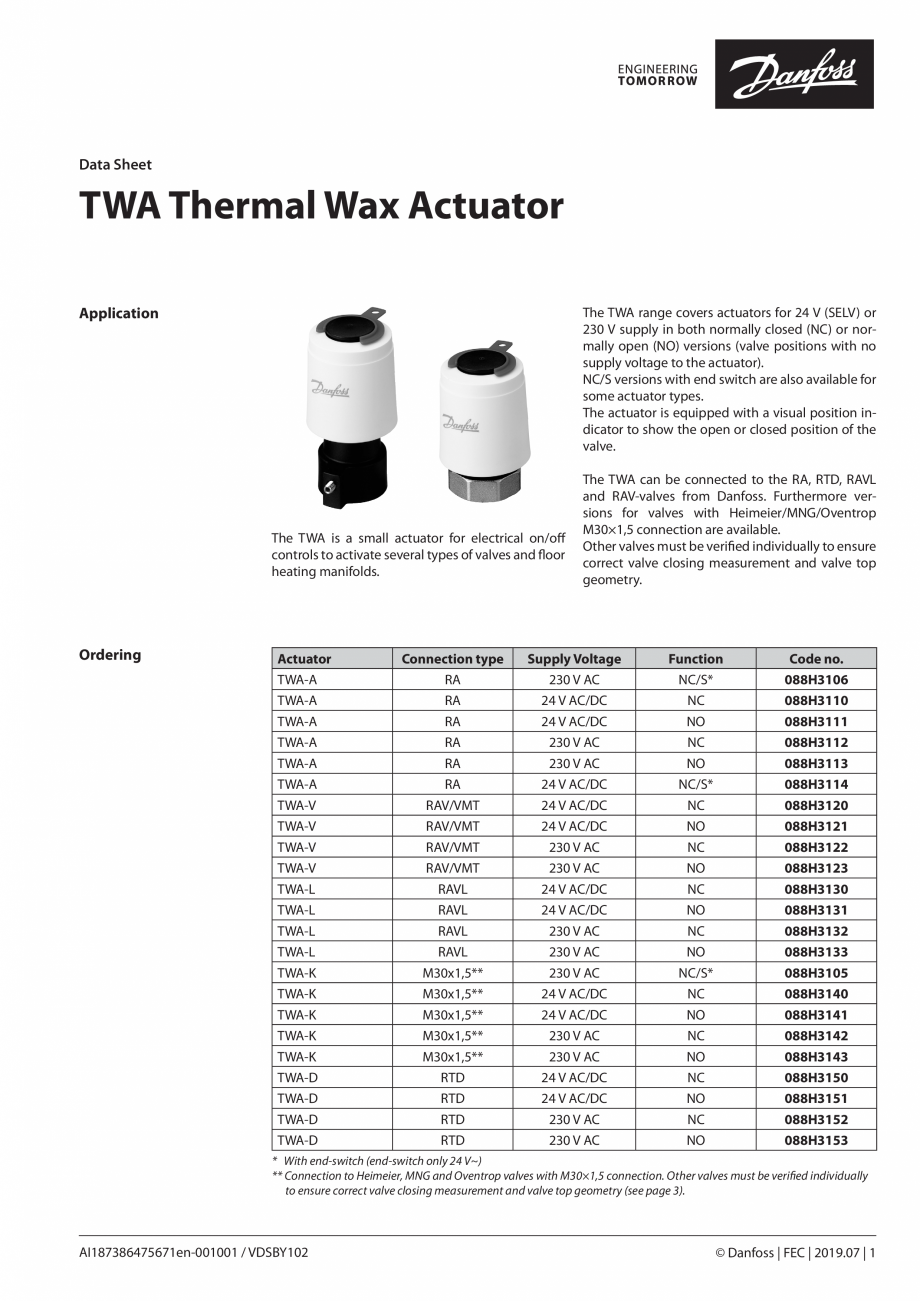

Pagina 1 - Actuator TWA Thermal Wax DANFOSS TWA-A 230V NC Fisa tehnica Engleza Data Sheet

TWA...

Data Sheet TWA Thermal Wax Actuator Application The TWA range covers actuators for 24 V (SELV) or 230 V supply in both normally closed (NC) or normally open (NO) versions (valve positions with no supply voltage to the actuator). NC/S versions with end switch are also available for some actuator types. The actuator is equipped with a visual position indicator to show the open or closed position of the valve. The TWA is a small actuator for electrical on/off controls to activate several types of valves and floor heating manifolds. Ordering Actuator The TWA can be connected to the RA, RTD, RAVL and RAV-valves from Danfoss. Furthermore versions for valves with Heimeier/MNG/Oventrop M30×1,5 connection are available. Other valves must be verified individually to ensure correct valve closing measurement and valve top geometry. Connection type Supply Voltage Function Code no. TWA-A RA 230 V AC NC/S* 088H3106 TWA-A RA 24 V AC/DC NC 088H3110 TWA-A RA 24 V AC/DC NO 088H3

Pagina 1-Actuator TWA Thermal Wax DANFOSS TWA-A 230V NC Fisa tehnica Engleza Data Sheet

TWA Thermal Wax...

Pagina 2 - Actuator TWA Thermal Wax DANFOSS TWA-A 230V NC Fisa tehnica Engleza 111

TWA-A

RA

230 ...

111 TWA-A RA 230 V AC NC 088H3112 TWA-A RA 230 V AC NO 088H3113 TWA-A RA 24 V AC/DC NC/S* 088H3114 TWA-V RAV/VMT 24 V AC/DC NC 088H3120 TWA-V RAV/VMT 24 V AC/DC NO 088H3121 TWA-V RAV/VMT 230 V AC NC 088H3122 TWA-V RAV/VMT 230 V AC NO 088H3123 TWA-L RAVL 24 V AC/DC NC 088H3130 TWA-L RAVL 24 V AC/DC NO 088H3131 TWA-L RAVL 230 V AC NC 088H3132 TWA-L RAVL 230 V AC NO 088H3133 TWA-K M30x1,5** 230 V AC NC/S* 088H3105 TWA-K M30x1,5** 24 V AC/DC NC 088H3140 TWA-K M30x1,5** 24 V AC/DC NO 088H3141 TWA-K M30x1,5** 230 V AC NC 088H3142 TWA-K M30x1,5** 230 V AC NO 088H3143 TWA-D RTD 24 V AC/DC NC 088H3150 TWA-D RTD 24 V AC/DC NO 088H3151 TWA-D RTD 230 V AC NC 088H3152 TWA-D RTD 230 V AC NO 088H3153 * With end-switch (end-switch only 24 V~) ** Connection to Heimeier, MNG and Oventrop valves with M30×1,5 connection. Other valves must be verified individually to ensure correct valve closing measuremen

Pagina 2-Actuator TWA Thermal Wax DANFOSS TWA-A 230V NC Fisa tehnica Engleza 111

TWA-A

RA

230 V AC

NC
...

Pagina 3 - Actuator TWA Thermal Wax DANFOSS TWA-A 230V NC Fisa tehnica Engleza t and valve top...

t and valve top geometry (see page 3). AI187386475671en-001001 / VDSBY102 © Danfoss | FEC | 2019.07 | 1 Data Sheet Technical specifications TWA Thermal Wax Actuator Supply voltage 24 V (Class II (SELV)) and 230 V (3 A pre-fuse) Max. inrush current 24 V: 350 mA, 230 V: 250 mA Frequency 50-60 Hz Running power consumption 2W Spindle travel time ~3 min. Ambient temperature 0 °C to +60 °C Enclosure IP 41 Cable length 950 mm Combination overview for Danfoss thermal wax actuator and valves (V) or manifolds (M) Valve/ Manifold RA-N (V) RTD-N (V) RA-C (V) RA-FN (V) RA-G (V) RTD-G RAV-/8 VMT-8 RAVL-6 (V) (V) (V) (V) FHD (M) 0,65 to 0,65 to 1,20 to 0,65 to 2,06 to 2,00 to 1,20 to 1,50 to 0,20 to 0,10 to 1,40 1,40 3,30 1,40 4,75 4,40 3,10 3,10 1,50 1,10 kvs (m³/H) Max. Δp (Bar) 0,6 Actuator** 0,6 0,6 0,6 0,2* 0,2* 0,8 0,8 0,6 0,6 TWA-A TWA-D TWA-A TWA-A TWA-A TWA-D TWA-V TWA-V TWA-L TWA-A * The RA-G/ RTD-G 25 valve has a max. Δp = 0,16 bar. Consult

Pagina 3-Actuator TWA Thermal Wax DANFOSS TWA-A 230V NC Fisa tehnica Engleza t and valve top geometry (see...

Pagina 4 - Actuator TWA Thermal Wax DANFOSS TWA-A 230V NC Fisa tehnica Engleza valve/manifold...

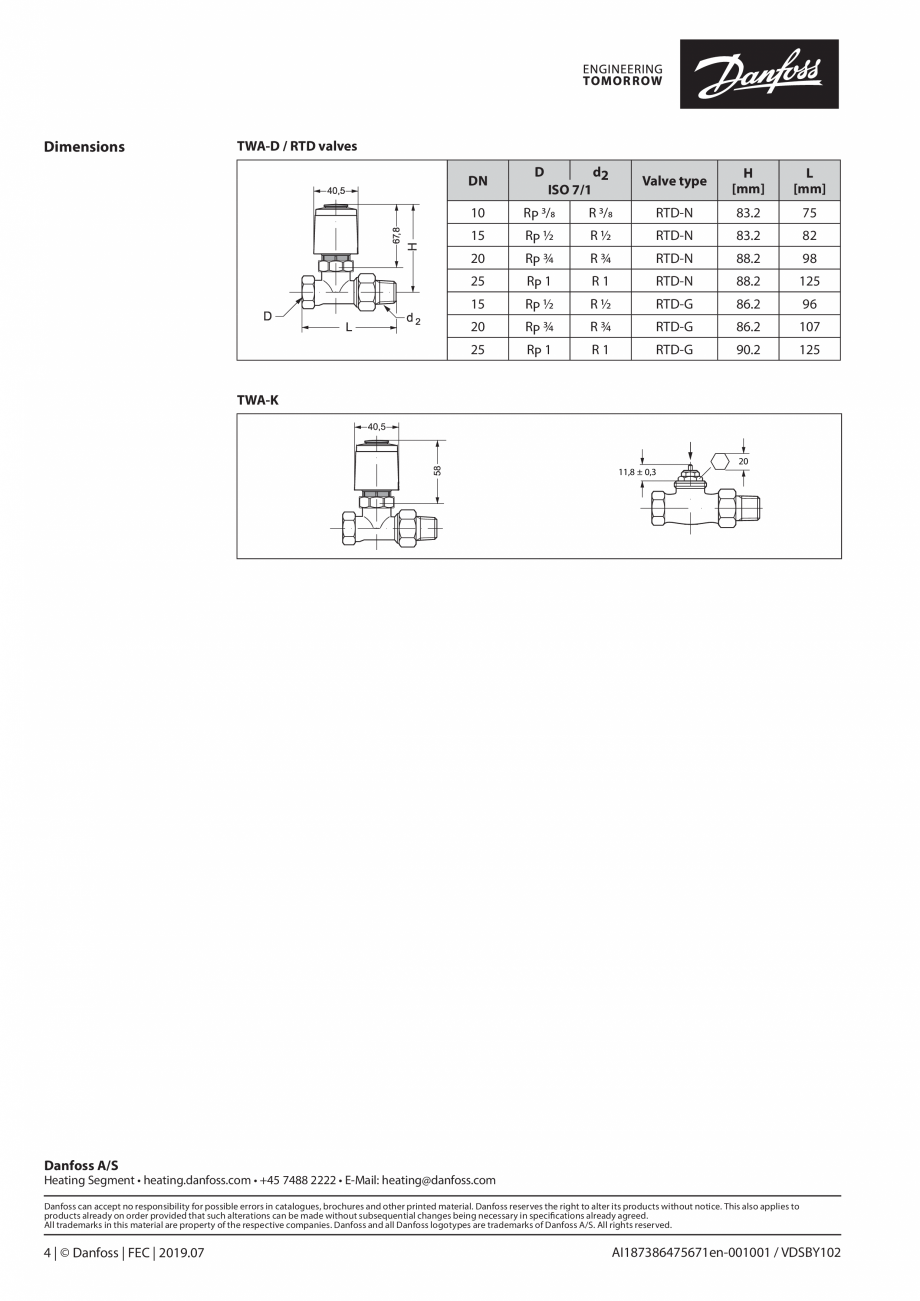

valve/manifold datasheets for further information. ** If the actuator should be an 24 V or 230 V and normally open (NO) or normally closed (NC), depends mainly of the application, control strategy and the controller connected to the actuator. Electrical connections 24 V * 230 V~ **  Blue  Brown 50-60 Hz 24 V * 230 V~ ** 50-60 Hz 24 V~ / 2 A*  Green  Green * 24 V Class II transformer (SELV) ** 230 V max. 3 A pre-fuse Note! All NC-versions are equipped with a red mounting split on the position indicator to secure easy valve connection. When mounted this split must be removed for correct operation. 2 | © Danfoss | FEC | 2019.07 AI187386475671en-001001 / VDSBY102 Data Sheet Dimensions TWA Thermal Wax Actuator TWA-A / RA valves H DN D L D ISO 7/1 d2 Valve type H [mm] L [mm] 10 RP 3/8 R 3/8 RA-N, RA-FN 92 75 15 RP ½ R½ RA-N, RA-FN 92 82 20 RP ¾ R¾ RA-N, RA-FN 97 98 25 RP 1 RP ½ R1 RA-N, RA-FN 97 125 15 R½ RA-G
