Tip documentatie: Fisa tehnica

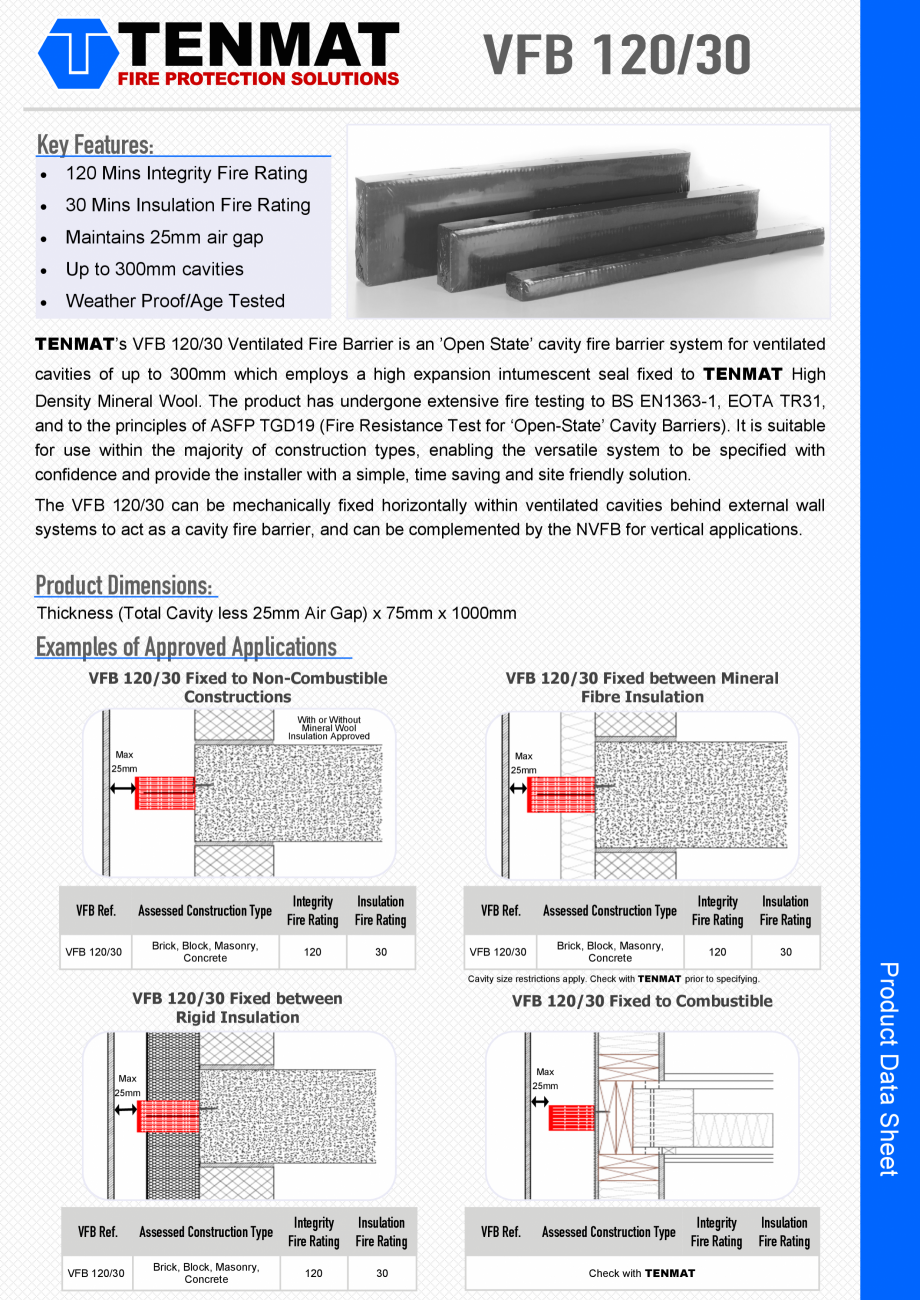

Pagina 1 - Bariere rezistente la foc pentru cavitati ventilate TENMAT VFB 120/30 Fisa tehnica Key...

Key Features:  120 Mins Integrity Fire Rating  30 Mins Insulation Fire Rating  Maintains 25mm air gap  Up to 300mm cavities  Weather Proof/Age Tested TENMAT’s VFB 120/30 Ventilated Fire Barrier is an ’Open State’ cavity fire barrier system for ventilated cavities of up to 300mm which employs a high expansion intumescent seal fixed to TENMAT High Density Mineral Wool. The product has undergone extensive fire testing to BS EN1363-1, EOTA TR31, and to the principles of ASFP TGD19 (Fire Resistance Test for ‘Open-State’ Cavity Barriers). It is suitable for use within the majority of construction types, enabling the versatile system to be specified with confidence and provide the installer with a simple, time saving and site friendly solution. The VFB 120/30 can be mechanically fixed horizontally within ventilated cavities behind external wall systems to act as a cavity fire barrier, and can be complemented by the NVFB for vertical applications. Product Di

Pagina 1-Bariere rezistente la foc pentru cavitati ventilate TENMAT VFB 120/30 Fisa tehnica Key Features:
...

Pagina 2 - Bariere rezistente la foc pentru cavitati ventilate TENMAT VFB 120/30 Fisa tehnica...

mensions: Thickness (Total Cavity less 25mm Air Gap) x 75mm x 1000mm Examples of Approved Applications VFB 120/30 Fixed to Non-Combustible Constructions VFB 120/30 Fixed between Mineral Fibre Insulation With or Without Mineral Wool Insulation Approved Max Max 25mm 25mm Assessed Construction Type Integrity Fire Rating Insulation Fire Rating VFB Ref. Assessed Construction Type Integrity Fire Rating Insulation Fire Rating VFB 120/30 Brick, Block, Masonry, Concrete 120 30 VFB 120/30 Brick, Block, Masonry, Concrete 120 30 Cavity size restrictions apply. Check with TENMAT prior to specifying. VFB 120/30 Fixed between Rigid Insulation VFB 120/30 Fixed to Combustible Max Max 25mm 25mm VFB Ref. Assessed Construction Type Integrity Fire Rating Insulation Fire Rating VFB 120/30 Brick, Block, Masonry, Concrete 120 30 VFB Ref. Assessed Construction Type Integrity Fire Rating Check with TENMAT Insulation Fire Rating Product Data Sheet VFB Ref. General Fit
