THE CONCRETE SOLUTION.

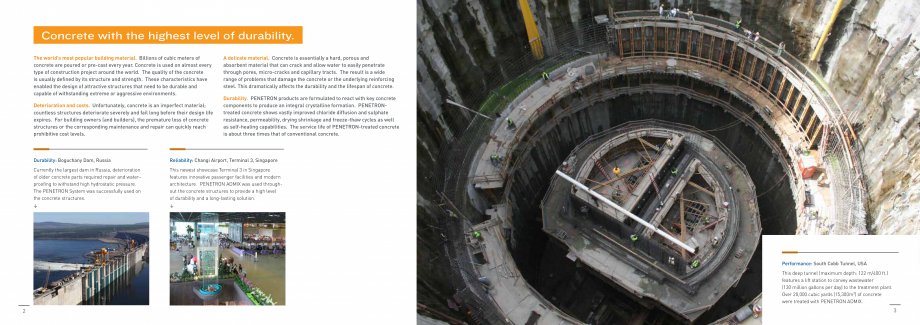

Concrete with the highest level of durability.
The world’s most popular building material. Billions of cubic meters of
concrete are poured or pre-cast every year. Concrete is used on almost every
type of construction project around the world. The quality of the concrete
is usually defined by its structure and strength. These characteristics have
enabled the design of attractive structures that need to be durable and
capable of withstanding extreme or aggressive environments.
Durability: Boguchany Dam, Russia
Reliability: Changi Airport, Terminal 3, Singapore
Currently the largest dam in Russia, deterioration
of older concrete parts required repair and water–
proofing to withstand high hydrostatic pressure.
The PENETRON System was successfully used on
the concrete structures.
This newest showcase Terminal 3 in Singapore
features innovative passenger faciliti
es and modern
architecture. PENETRON ADMIX was used throughout the concrete structures to provide a high level
of durability and a long-lasting solution.
v
Durability. PENETRON products are formulated to react with key concrete
components to produce an integral crystalline formation. PENETRONtreated concrete shows vastly improved chloride diffusion and sulphate
resistance, permeability, drying shrinkage and freeze-thaw cycles as well
as self-healing capabilities. The service life of PENETRON-treated concrete
is about three times that of conventional concrete.
v
Deterioration and costs. Unfortunately, concrete is an imperfect material;
countless structures deteriorate severely and fail long before their design life
expires. For building owners (and builders), the premature loss of concrete
structures or the corresponding maintenance and repair can quickly reach
prohibitive cost levels.
A delicate material. Concrete is essentially a hard, porous and
absorbent material that can
crack and allow water to easily penetrate
through pores, micro-cracks and capillary tracts. The result is a wide
range of problems that damage the concrete or the underlying reinforcing
steel. This dramatically affects the durability and the lifespan of concrete.
Performance: South Cobb Tunnel, USA
This deep tunnel (maximum depth: 122 m/400 ft.)
features a lift station to convey wastewater
(130 million gallons per day) to the treatment plant.
Over 20,000 cubic yards (15,300m3) of concrete
were treated with PENETRON ADMIX.
2
3
4
Image: MTA New York © 2013

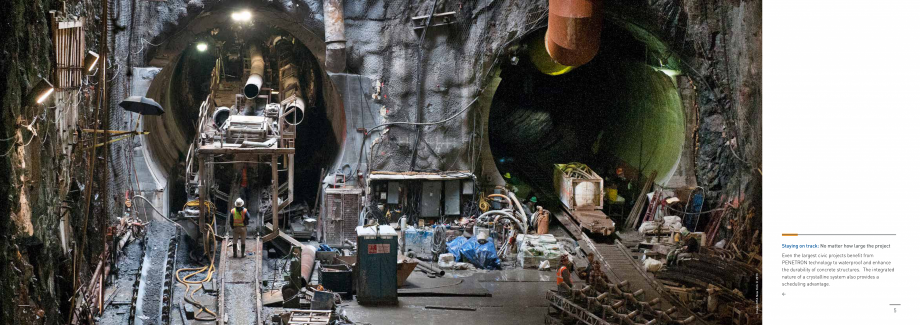

Staying on track: No matter how large the project
Even the largest civic projects benefit from
PENETRON technology to waterproof and enhance
the durability of concrete structures. The integrated
nature of a crystalline system also provides a
scheduling advantage.
v
5

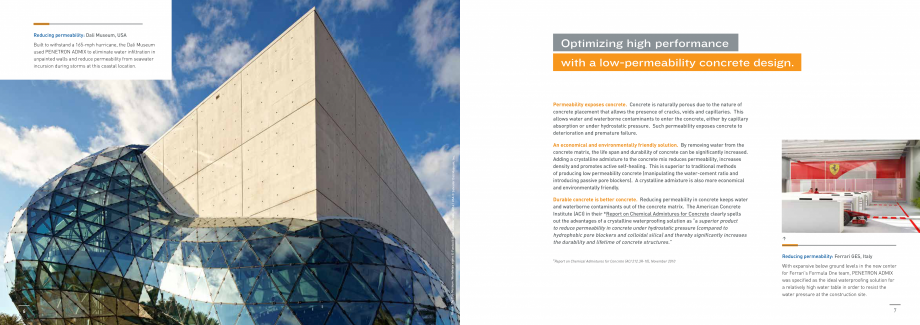

Reducing permeability: Dali Museum, USA
Optimizing high performance
Built to withstand a 165-mph hurricane, the Dali Museum
used PENETRON ADMIX to elimina
te water infiltration in
unpainted walls and reduce permeability from seawater
incursion during storms at this coastal location.
with a low-permeability concrete design.
An economical and environmentally friendly solution. By removing water from the
concrete matrix, the life span and durability of concrete can be significantly increased.
Adding a crystalline admixture to the concrete mix reduces permeability, increases
density and promotes active self-healing. This is superior to traditional methods
of producing low permeability concrete (manipulating the water-cement ratio and
introducing passive pore blockers). A crystalline admixture is also more economical
and environmentally friendly.
Durable concrete is better concrete. Reducing permeability in concrete keeps water
and waterborne contaminants out of the concrete matrix. The American Concrete
Institute (ACI) in their *Report on Chemical Admixtures for Concrete clearly spells
out the advantages of a crystalline waterproofing solu
tion as “a superior product
to reduce permeability in concrete under hydrostatic pressure (compared to
hydrophobic pore blockers and colloidal silica) and thereby significantly increases
the durability and lifetime of concrete structures.”
* eport on Chemical Admixtures for Concrete (ACI 212.3R-10), November 2010
R
v
6
4
Image: The Dali Museum. Worldwide rights © Fundació Gala-Salvador Dalí, 2014 / USA © Salvador Dalí Museum, Inc.
Permeability exposes concrete. Concrete is naturally porous due to the nature of
concrete placement that allows the presence of cracks, voids and capillaries. This
allows water and waterborne contaminants to enter the concrete, either by capillary
absorption or under hydrostatic pressure. Such permeability exposes concrete to
deterioration and premature failure.
Reducing permeability: Ferrari GES, Italy
With expansive below ground levels in the new center
for Ferrari’s Formula One team, PENETRON ADMIX
was specified as the ideal waterproofing
solution for
a relatively high water table in order to resist the
water pressure at the construction site.
7

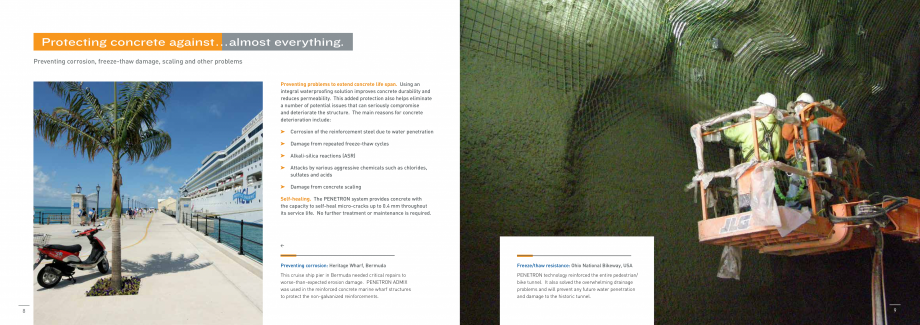

Protecting concrete against. . .almost everything.
Preventing corrosion, freeze-thaw damage, scaling and other problems
Preventing problems to extend concrete life span. Using an
integral waterproofing solution improves concrete durability and
reduces permeability. This added protection also helps eliminate
a number of potential issues that can seriously compromise
and deteriorate the structure. The main reasons for concrete
deterioration include:
Corrosion of the reinforcement steel due to water penetration
Damage from repeated freeze-thaw cycles
Alkali-silica reactions (ASR)
Attacks by various aggressive chemicals such as chlorides,
sulfates and acids
Damage from concrete scaling
Self-healing. The PENETRON system provides concrete with
the capacity to self-heal micro-cracks up to 0.4 mm throughout
its service life. No further treatment or maintenance is required
.
v
Preventing corrosion: Heritage Wharf, Bermuda
This cruise ship pier in Bermuda needed critical repairs to
worse-than-expected erosion damage. PENETRON ADMIX
was used in the reinforced concrete marine wharf structures
to protect the non-galvanized reinforcements.
8
Freeze/thaw resistance: Ohio National Bikeway, USA
PENETRON technology reinforced the entire pedestrian/
bike tunnel. It also solved the overwhelming drainage
problems and will prevent any future water penetration
and damage to the historic tunnel.
9

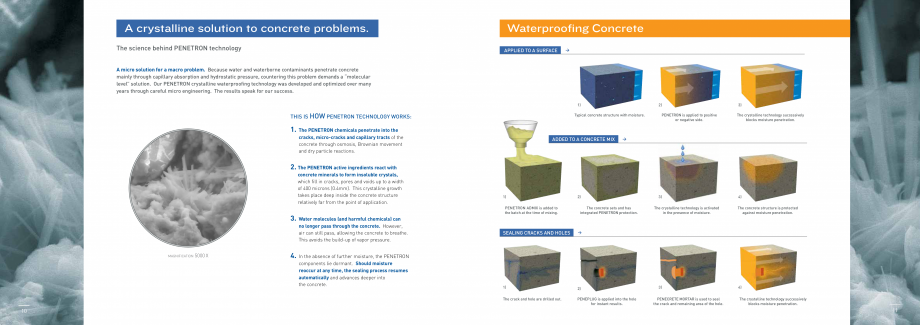

A crystalline solution to concrete problems.
The science behind PENETRON technology
Waterproofing Concrete
APPLIED TO A SURFACE
A micro solution for a macro problem. Because water and waterborne contaminants penetrate concrete
mainly through capillary absorption and hydrostatic pressure, countering this problem demands a “molecular
level” solution. Our PENETRON crystalline waterproofing technology was developed and optimized over many
years through careful micro
engineering. The results speak for our success.
1)
THIS IS HOW PENETRON TECHNOLOGY WORKS:
1.
Typical concrete structure with moisture.
2)
PENETRON is applied to positive
or negative side.
3)
The crystalline technology successively
blocks moisture penetration.
The PENETRON chemicals penetrate into the
cracks, micro-cracks and capillary tracts of the
concrete through osmosis, Brownian movement
and dry particle reactions.
ADDED TO A CONCRETE MIX
2. The PENETRON active ingredients react with
3.
Water molecules (and harmful chemicals) can
no longer pass through the concrete. However,
air can still pass, allowing the concrete to breathe.
This avoids the build-up of vapor pressure.
1)
PENETRON ADMIX is added to
the batch at the time of mixing.
2)
The concrete sets and has
integrated PENETRON protection.
10
5000 X
4.
1)
2)
The crack and hole are drilled out.
magnification
SEALING CRACKS AND HOLES
PENEPLUG is applied into the hole
for instant results.
3)
The cry
stalline technology is activated
in the presence of moisture.
4)
The concrete structure is protected
against moisture penetration.
v
concrete minerals to form insoluble crystals,
which fill in cracks, pores and voids up to a width
of 400 microns (0.4mm). This crystalline growth
takes place deep inside the concrete structure
relatively far from the point of application.
In the absence of further moisture, the PENETRON
components lie dormant. Should moisture
reoccur at any time, the sealing process resumes
automatically and advances deeper into
the concrete.
3)
PENECRETE MORTAR is used to seal
the crack and remaining area of the hole.
4)
The crystalline technology successively
blocks moisture penetration.
11

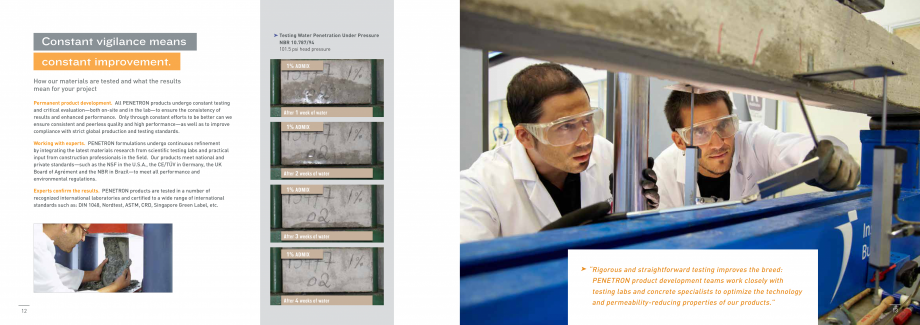

Constant vigilance means
constant improvement.
Testing Water Penetration Under Pressure
NBR 10.787/94
101.5 psi head pressure
1% ADMIX
How our materials are tested and what the results
mean for your project
Permanent product development. All PENETRON products under
go constant testing
and critical evaluation—both on-site and in the lab—to ensure the consistency of
results and enhanced performance. Only through constant efforts to be better can we
ensure consistent and peerless quality and high performance—as well as to improve
compliance with strict global production and testing standards.
Working with experts. PENETRON formulations undergo continuous refinement
by integrating the latest materials research from scientific testing labs and practical
input from construction professionals in the field. Our products meet national and
private standards—such as the NSF in the U.S.A., the CE/TÜV in Germany, the UK
Board of Agrément and the NBR in Brazil—to meet all performance and
environmental regulations.
Experts confirm the results. PENETRON products are tested in a number of
recognized international laboratories and certified to a wide range of international
standards such as: DIN 1048, Nordtest, ASTM, CRD, Singapore Green Label, etc.
A
fter 1 week of water
1% ADMIX
After 2 weeks of water
1% ADMIX
After 3 weeks of water
1% ADMIX
“ igorous and straightforward testing improves the breed:
R
PENETRON product development teams work closely with
testing labs and concrete specialists to optimize the technology
After 4 weeks of water
12
and permeability-reducing properties of our products.”
13

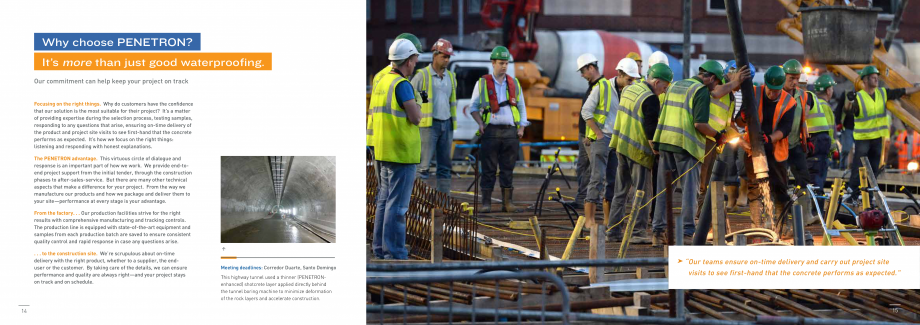

Why choose PENETRON?
It’s more than just good waterproofing.
Our commitment can help keep your project on track
Focusing on the right things. Why do customers have the confidence
that our solution is the most suitable for their project? It’s a matter
of providing expertise during the selection process, testing samples,
responding to any questions that arise, ensuring on-time delivery of
the product and project site visits to see first-hand that the concrete
performs as expected. It’s how we focus on the right things:
listening and responding with honest explanations.
The PENETRON advantage. This virtuous circle of dialo
gue and
response is an important part of how we work. We provide end-toend project support from the initial tender, through the construction
phases to after-sales-service. But there are many other technical
aspects that make a difference for your project. From the way we
manufacture our products and how we package and deliver them to
your site—performance at every stage is your advantage.
From the factory. . . Our production facilities strive for the right
results with comprehensive manufacturing and tracking controls.
The production line is equipped with state-of-the-art equipment and
samples from each production batch are saved to ensure consistent
quality control and rapid response in case any questions arise.
14
v
. . . to the construction site. We’re scrupulous about on-time
delivery with the right product, whether to a supplier, the enduser or the customer. By taking care of the details, we can ensure
performance and quality are always right—and your project stays
on tra
ck and on schedule.
Meeting deadlines: Corredor Duarte, Santo Domingo
This highway tunnel used a thinner (PENETRONenhanced) shotcrete layer applied directly behind
the tunnel boring machine to minimize deformation
of the rock layers and accelerate construction.
➤ “ ur teams ensure on-time delivery and carry out project site
O
visits to see first-hand that the concrete performs as expected."
15
Let’s make them last.
A wide range of solutions ensures durable results
Image credit: 123RF Stock Photo (123rf.com/profile_topdeq)

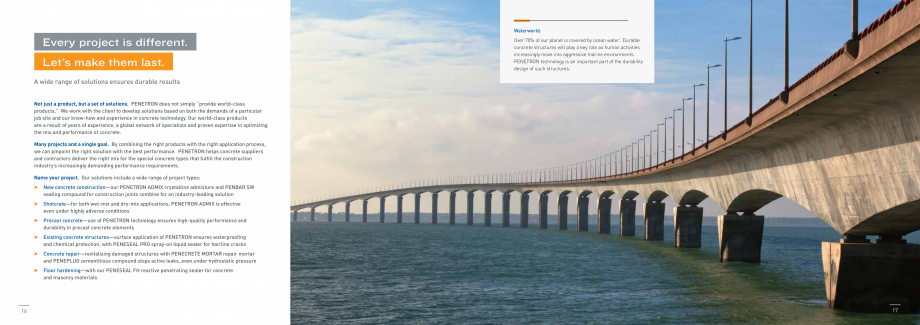

Every project is different.
Waterworld.
Over 70% of our planet is covered by ocean water. Durable
concrete structures will play a key role as human activities
increasingly move into aggressive marine environments.
PENETRON technology is an important part of the durability
design of such structures.
Not just a product, but a set of solutions. PENETRON does not simply “provide world-class
products.” We work with the client to develop solutions based
on both the demands of a particular
job site and our know-how and experience in concrete technology. Our world-class products
are a result of years of experience, a global network of specialists and proven expertise in optimizing
the mix and performance of concrete.
Many projects and a single goal. By combining the right products with the right application process,
we can pinpoint the right solution with the best performance. PENETRON helps concrete suppliers
and contractors deliver the right mix for the special concrete types that fulfill the construction
industry’s increasingly demanding performance requirements.
Name your project. Our solutions include a wide range of project types:
concrete construction—our PENETRON ADMIX crystalline admixture and PENBAR SW
New
sealing compound for construction joints combine for an industry-leading solution
Shotcrete—for both wet-mix and dry-mix applications, PENETRON ADMIX is effective
even under highly adverse conditions
Precast
concrete—use of PENETRON technology ensures high-quality performance and
durability in precast concrete elements
Existing concrete structures—surface application of PENETRON ensures waterproofing
and chemical protection, with PENESEAL PRO spray-on liquid sealer for hairline cracks
Concrete repair—revitalizing damaged structures with PENECRETE MORTAR repair mortar
and PENEPLUG cementitious compound stops active leaks, even under hydrostatic pressure
Floor hardening—with our PENESEAL FH reactive penetrating sealer for concrete
and masonry materials
16
17

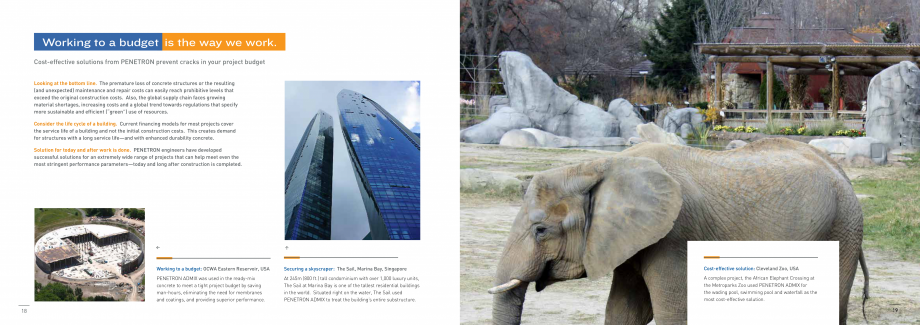

Working to a budget is the way we work.
Cost-effective solutions from PENETRON prevent cracks in your project budget
Looking at the bottom line. The premature loss of concrete structures or the resulting
(and unexpected) maintenance and repair costs can easily reach prohibitive levels that
exceed the original construction costs. Also, the global supply chain faces growing
material shortages, increasing costs a
concrete—use of PENETRON technology ensures high-quality performance and
durability in precast concrete elements
Existing concrete structures—surface application of PENETRON ensures waterproofing
and chemical protection, with PENESEAL PRO spray-on liquid sealer for hairline cracks
Concrete repair—revitalizing damaged structures with PENECRETE MORTAR repair mortar
and PENEPLUG cementitious compound stops active leaks, even under hydrostatic pressure
Floor hardening—with our PENESEAL FH reactive penetrating sealer for concrete
and masonry materials
16
17
Working to a budget is the way we work.
Cost-effective solutions from PENETRON prevent cracks in your project budget
Looking at the bottom line. The premature loss of concrete structures or the resulting
(and unexpected) maintenance and repair costs can easily reach prohibitive levels that
exceed the original construction costs. Also, the global supply chain faces growing
material shortages, increasing costs a
... ascunde
Alte documentatii ale aceleasi game Vezi toate
Fisa tehnica
3 p |
PENETRON ADMIX
Fisa tehnica
2 p |
PENEPLUG
