Pagina 1 - Broasca multipunct pentru usi cu oblon AGB ARIETE Catalog, brosura Engleza ARIETE...

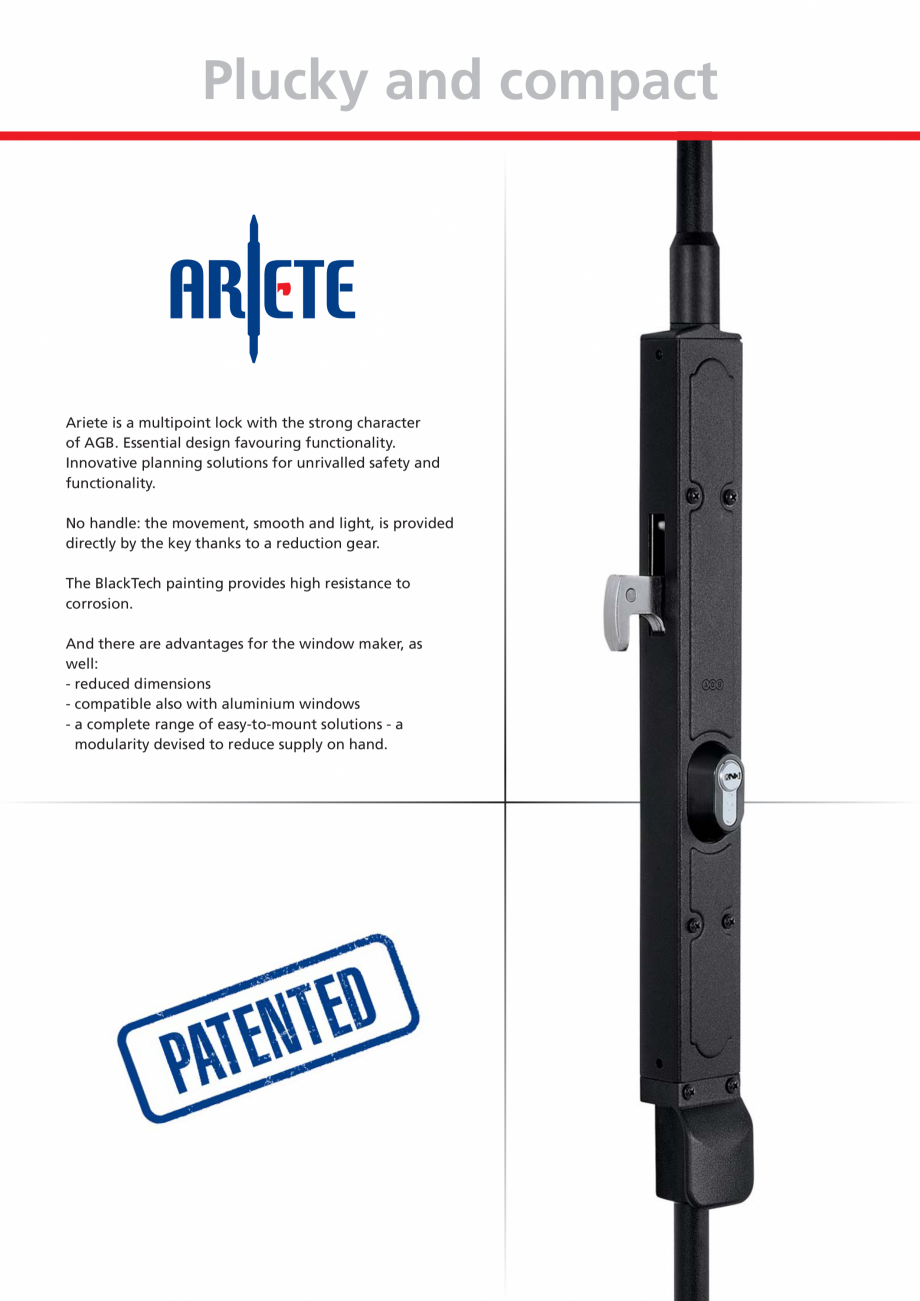

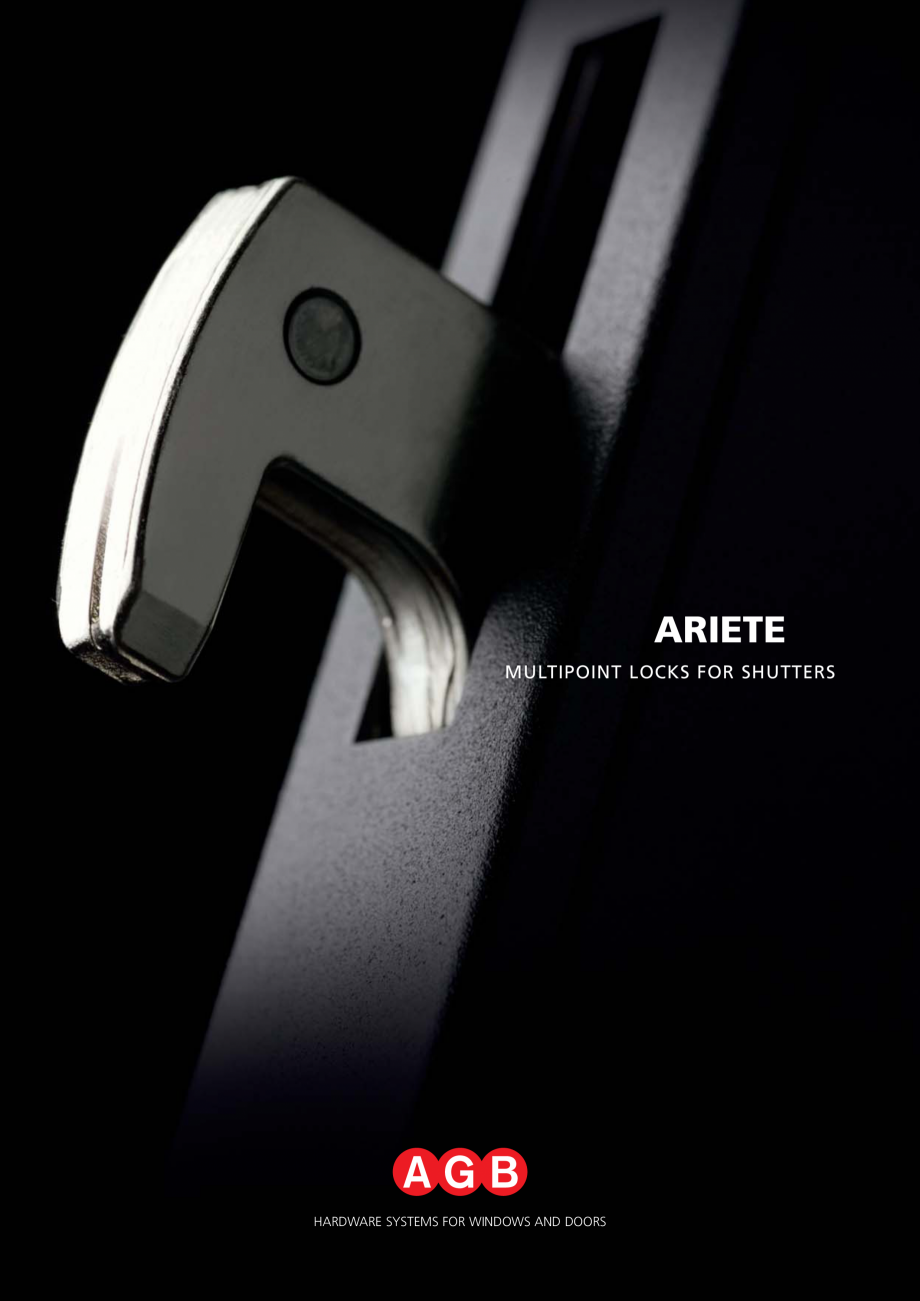

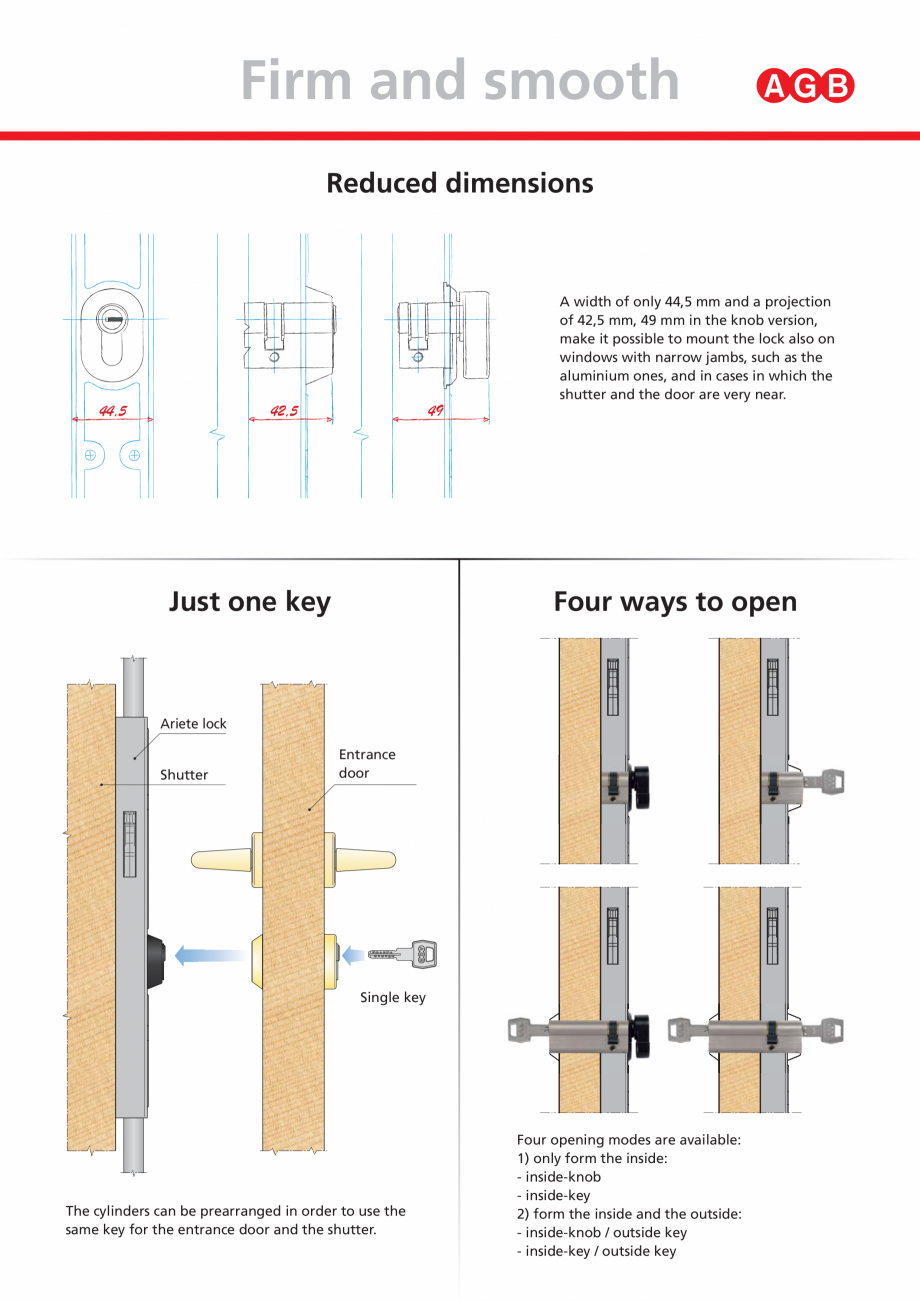

ARIETE SERRATURE MULTIPOINT MULTIPUNTO LOCKS FOR PER SHUTTERS IMPOSTE HARDWARE SISTEMI DI SYSTEMS FERRAMENTA FOR PER WINDOWS PORTE EAND FINESTRE DOORS ARIETE A LOCK OF CHARACTER Plucky and compact Ariete is a multipoint lock with the strong character of AGB. Essential design favouring functionality. Innovative planning solutions for unrivalled safety and functionality. No handle: the movement, smooth and light, is provided directly by the key thanks to a reduction gear. The BlackTech painting provides high resistance to corrosion. And there are advantages for the window maker, as well: - reduced dimensions - compatible also with aluminium windows - a complete range of easy-to-mount solutions - a modularity devised to reduce supply on hand. Firm and smooth Reduced dimensions A width of only 44,5 mm and a projection of 42,5 mm, 49 mm in the knob version, make it possible to mount the lock also on windows with narrow jambs, such as the aluminium ones, and in cases in which the s

Pagina 1-Broasca multipunct pentru usi cu oblon AGB ARIETE Catalog, brosura Engleza ARIETE
SERRATURE...

Pagina 2 - Broasca multipunct pentru usi cu oblon AGB ARIETE Catalog, brosura Engleza hutter and the...

hutter and the door are very near. Just one key Four ways to open Ariete lock Shutter Entrance door Single key The cylinders can be prearranged in order to use the same key for the entrance door and the shutter. Four opening modes are available: 1) only form the inside: - inside-knob - inside-key 2) form the inside and the outside: - inside-knob / outside key - inside-key / outside key Safe and reliable Hook The hook is made of two plates in tempered steel united by a pin. Its shape makes it possible to adjust the sash laterally while it guarantees a burglar-proof anchorage to the striker. Wide range of strikers Striker for single sash U27 for hook Adjustable striker for double sash U30 with handle for hook Adjustable striker for double sash U30 for hook Striker for double sash U36 for hook Non-handed Lock and strikes are left/right reversible just by rotating them. The double lateral opening is used on one side to let the hook protrude, while the other is closed with a s

Pagina 2-Broasca multipunct pentru usi cu oblon AGB ARIETE Catalog, brosura Engleza hutter and the door are...

Pagina 3 - Broasca multipunct pentru usi cu oblon AGB ARIETE Catalog, brosura Engleza pring cap...

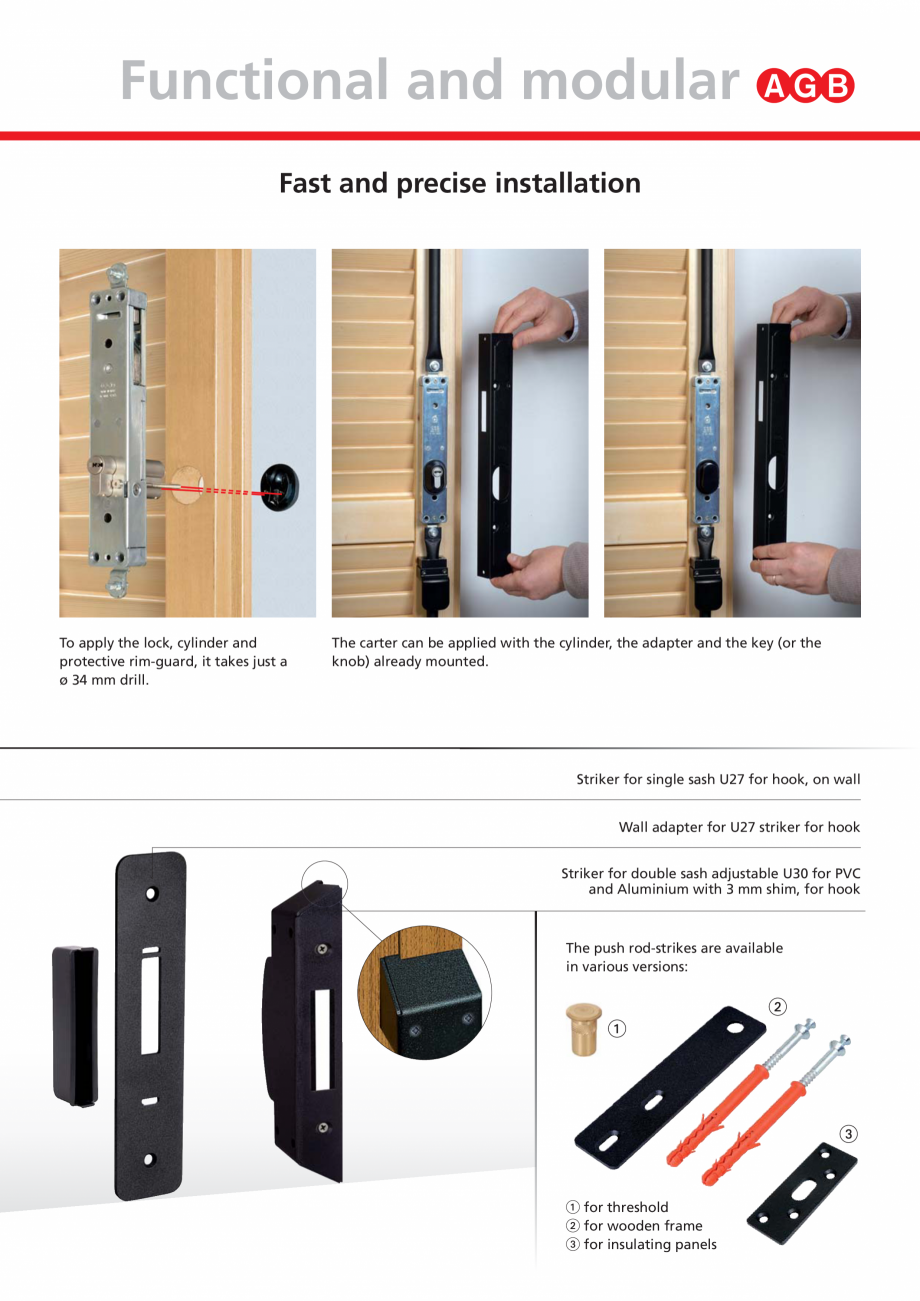

pring cap provided with the product. Functional and modular Fast and precise installation To apply the lock, cylinder and protective rim-guard, it takes just a ø 34 mm drill. The carter can be applied with the cylinder, the adapter and the key (or the knob) already mounted. Striker for single sash U27 for hook, on wall Wall adapter for U27 striker for hook Striker for double sash adjustable U30 for PVC and Aluminium with 3 mm shim, for hook The push rod-strikes are available in various versions: �� for threshold �� for wooden frame �� for insulating panels Protective escutcheons for cylinders Round TENAX, ARIETE version External escutcheon 34 34 5 Oval TENAX 20 24 24 (*) 24 (*) (*) (*) for double sash applications (e.g.) (*) for double sash applications (e.g.) (*) for double sash applications (e.g.) Compatible with PVC and Aluminium profiles Adapter for rod guide Adapter for lock case Adapter for round TENAX Double Version Triplex Duplex T

Pagina 3-Broasca multipunct pentru usi cu oblon AGB ARIETE Catalog, brosura Engleza pring cap provided with...

Pagina 4 - Broasca multipunct pentru usi cu oblon AGB ARIETE Catalog, brosura Engleza he system has ...

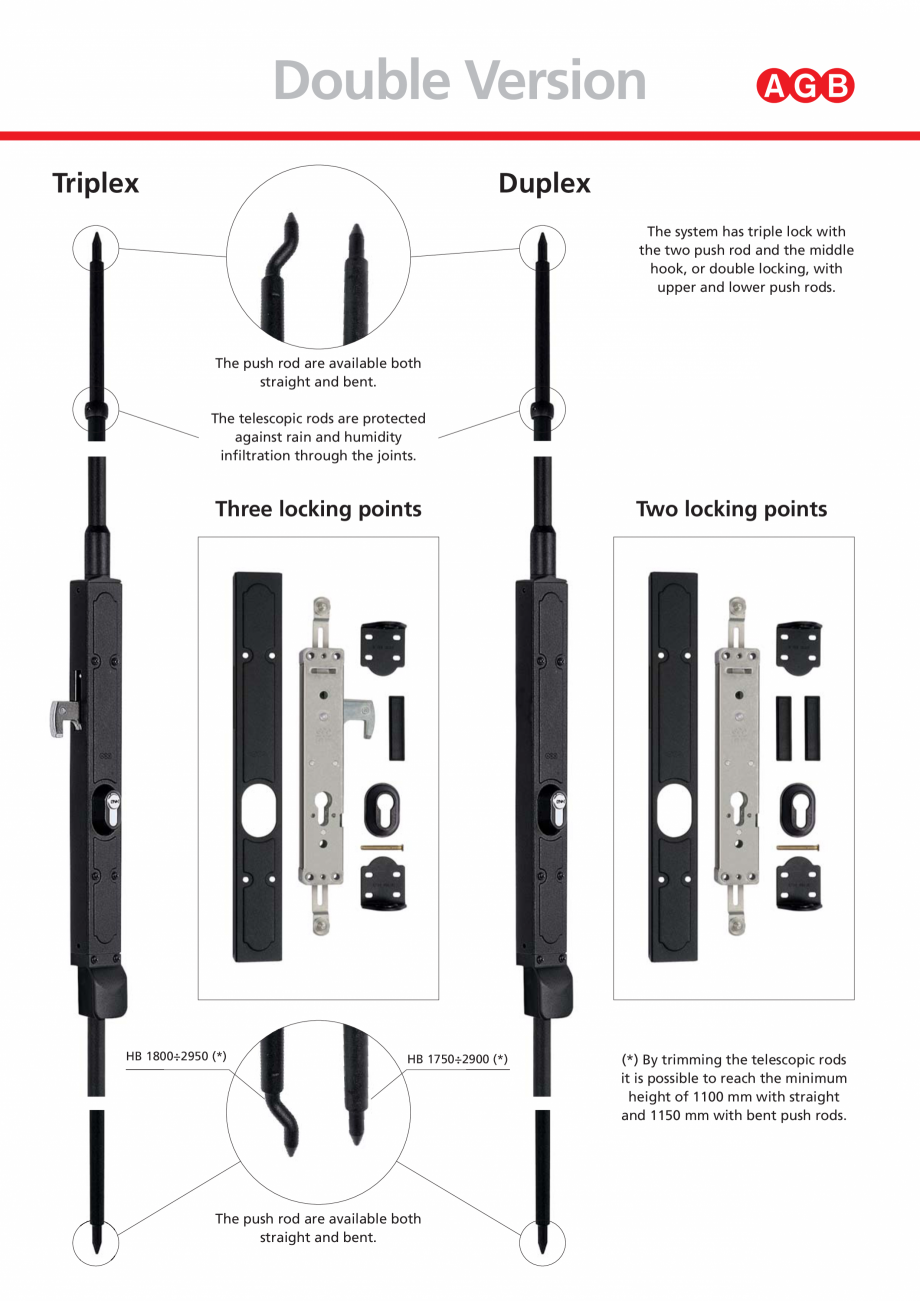

he system has triple lock with the two push rod and the middle hook, or double locking, with upper and lower push rods. The push rod are available both straight and bent. The telescopic rods are protected against rain and humidity infiltration through the joints. Three locking points HB 180 1800÷2950 (*) HB 1750÷2900 2900 (*) The push rod are available both straight and bent. Two locking points (*) By trimming the telescopic rods it is possible to reach the minimum height of 1100 mm with straight and 1150 mm with bent push rods. ENV 1627÷30:2000 Regulation for antiburglar windows In order to define an antiburglar window, we can not trust in subjective considerations, we must rather follow the standards laid down and assimilated in the European Union. The ENV 1627÷30:2000 European regulation defines the methods to test the windows and doors and allows a classification according to the referring resistance levels. This represents the basis to correctly evaluate the antiburgl

Pagina 4-Broasca multipunct pentru usi cu oblon AGB ARIETE Catalog, brosura Engleza he system has triple lock...

Pagina 5 - Broasca multipunct pentru usi cu oblon AGB ARIETE Catalog, brosura Engleza ar performance...

ar performance of a window facing its building costs. 1st resistance class The shutter is subjected to dynamic stress with static and dynamic loads, simulating kicks, pushes with the shoulder and break in attempts by an occasional thief (without the use of tools). 2nd resistance class The shutter, in addition to the dynamic stress used in the 1st class, experiences break in tests by simulating an expert thief using: - Screw driver 40 cm long - Pliers - Spanner - Additional screw driver - Wedges Configuration for 2nd class resistance Push rod striker Double push rod guide Adjustable striker for double sash U30 Screws Kit: versions for wooden and PVC / Aluminium profiles ARIETE, Triplex version Double push rod guide Push rod striker Alban Giacomo SpA Via A. de Gasperi 75 36060 Romano d’Ezzelino (VI) Italy Tel. +39 0424 832 832 www.agb.it - info@agb.it Z90014.02.24 - 05.11 - Printed in Italy HARDWARE SYSTEMS FOR WINDOWS AND DOORS
