Pagina 1 - Broasca usi silentioasa - Pliant AGB Mediana Evolution Catalog, brosura Engleza Mediana...

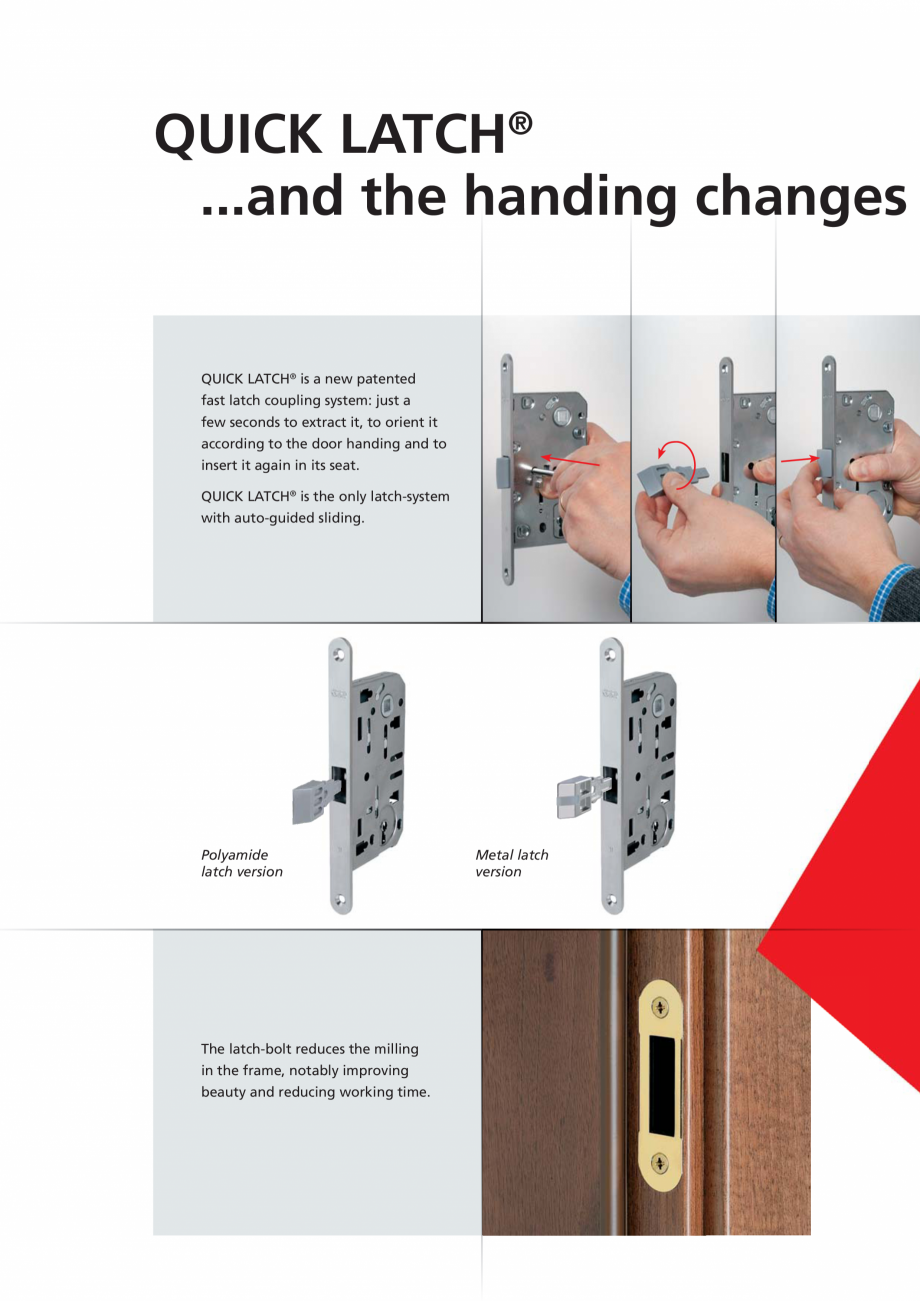

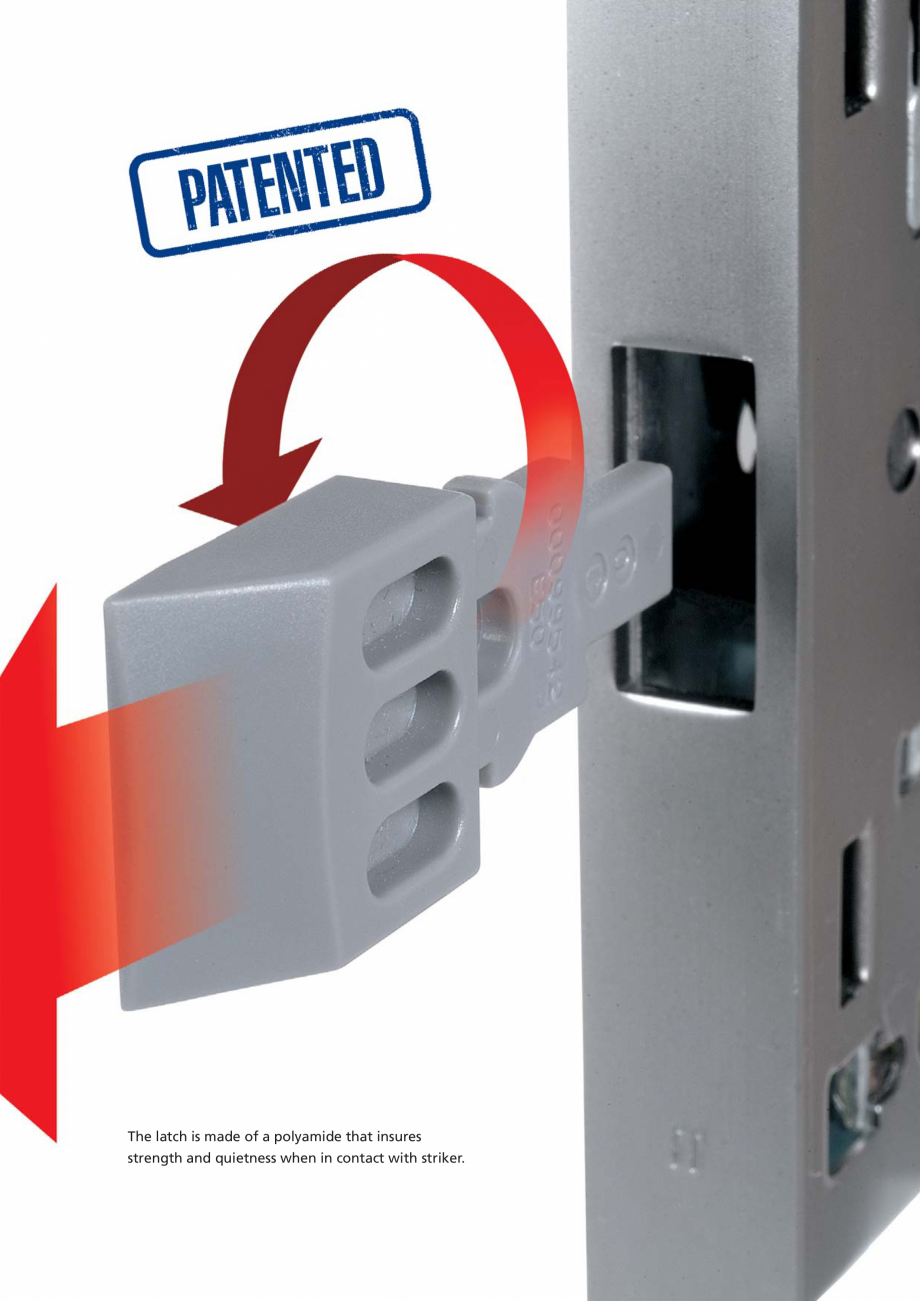

Mediana EVOLUTION SILENT LOCK FOR INTERIOR DOORS HARDWARE SYSTEMS FOR WINDOWS AND DOORS Mediana EVOLUTION ELISA - 16 YEARS OLD - 2.30 AM COMING BACK FROM DISCO Mediana EVOLUTION Silent accomplice Mediana Evolution represents the state of the art of the interior door locks panorama. It is a synthesis of the know-how achieved by AGB after many years of consolidated leadership in this sector. Silent, versatile, with an essential design, Mediana Evolution meets the market trends and the users requirements. QUICK LATCH® ...and the handing changes QUICK LATCH® is a new patented fast latch coupling system: just a few seconds to extract it, to orient it according to the door handing and to insert it again in its seat. QUICK LATCH® is the only latch-system with auto-guided sliding. Polyamide latch version The latch-bolt reduces the milling in the frame, notably improving beauty and reducing working time. Metal latch version The latch is made of a polyamide that insures streng

Pagina 1-Broasca usi silentioasa - Pliant AGB Mediana Evolution Catalog, brosura Engleza Mediana EVOLUTION...

Pagina 2 - Broasca usi silentioasa - Pliant AGB Mediana Evolution Catalog, brosura Engleza th and...

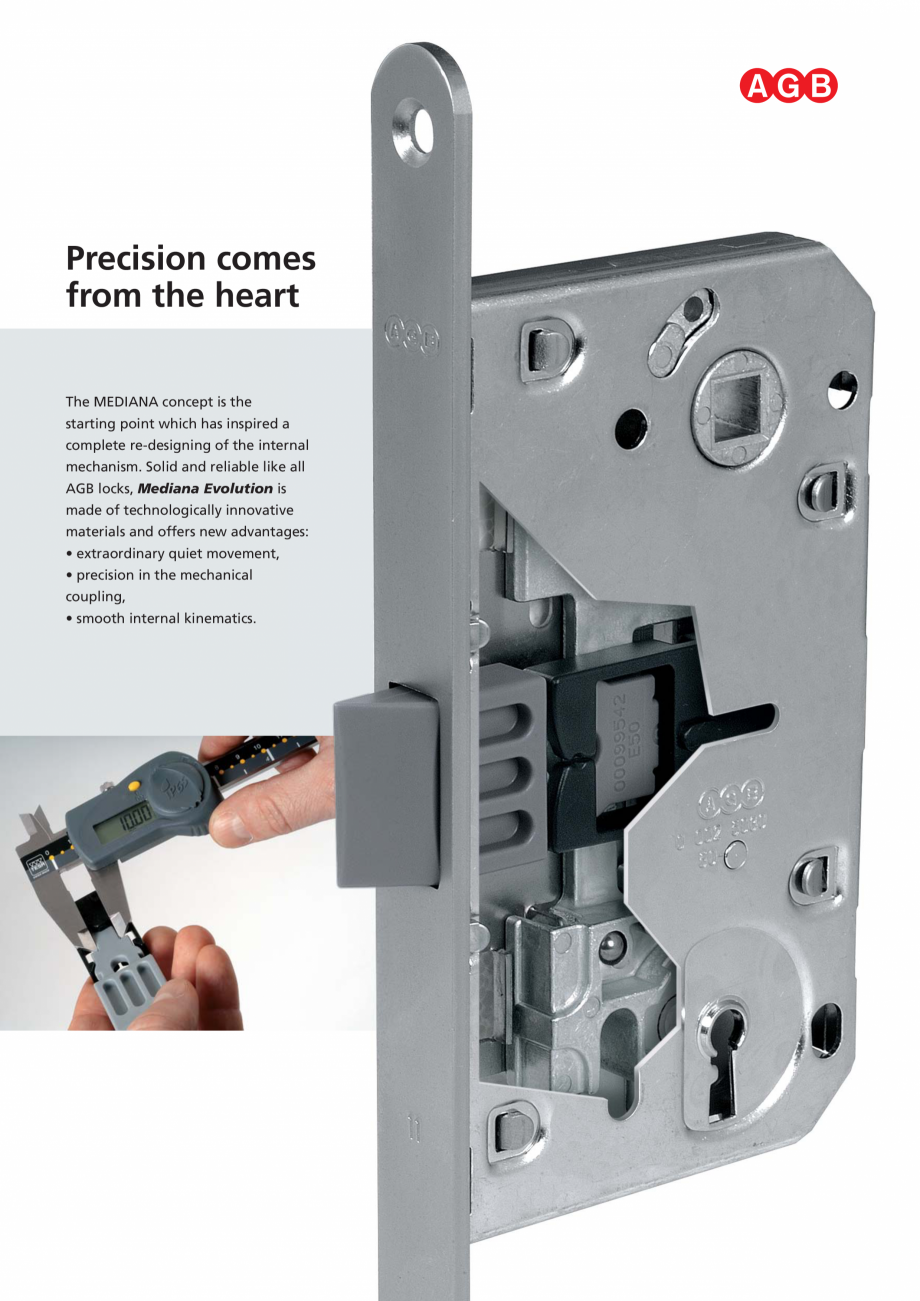

th and quietness when in contact with striker. Good sensation... excellent performance A fast and safe movement e The opening/closing movement of the handle has been reduced to 30°. Even when the latch is blocked by the key, the handle can freely rotate, avoiding damage due to unintentional forcings. 30° The key closes with a click A soft and regular key turn, a precise end stroke. The pleasant sensations by turning Mediana Evolution key are brought by a device carefully designed by AGB designers. We did it 500,000 times! Mediana Evolution bore an openingclosing test (UNI 9173:1988) for more than 500.000 cycles maintaining its functionality. Moreover, the excellent quality of the finishes is guaranteed by the periodical corrosion tests carried out according to the DIN 50021 regulations with salt fog. Internal AGB laboratories test Precision comes from the heart The MEDIANA concept is the starting point which has inspired a complete re-designing of the internal mechanism. Soli

Pagina 2-Broasca usi silentioasa - Pliant AGB Mediana Evolution Catalog, brosura Engleza th and quietness...

Pagina 3 - Broasca usi silentioasa - Pliant AGB Mediana Evolution Catalog, brosura Engleza d and...

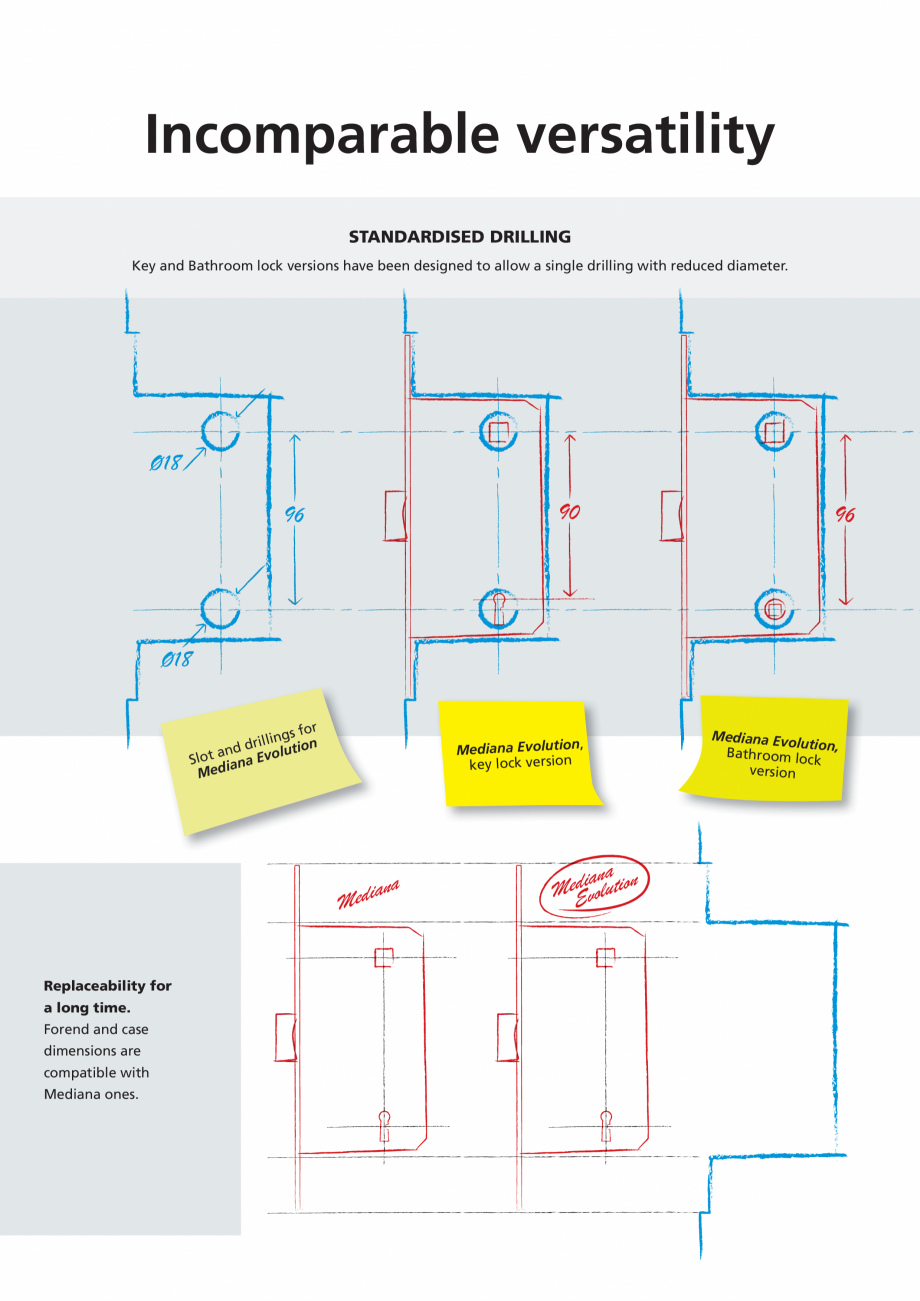

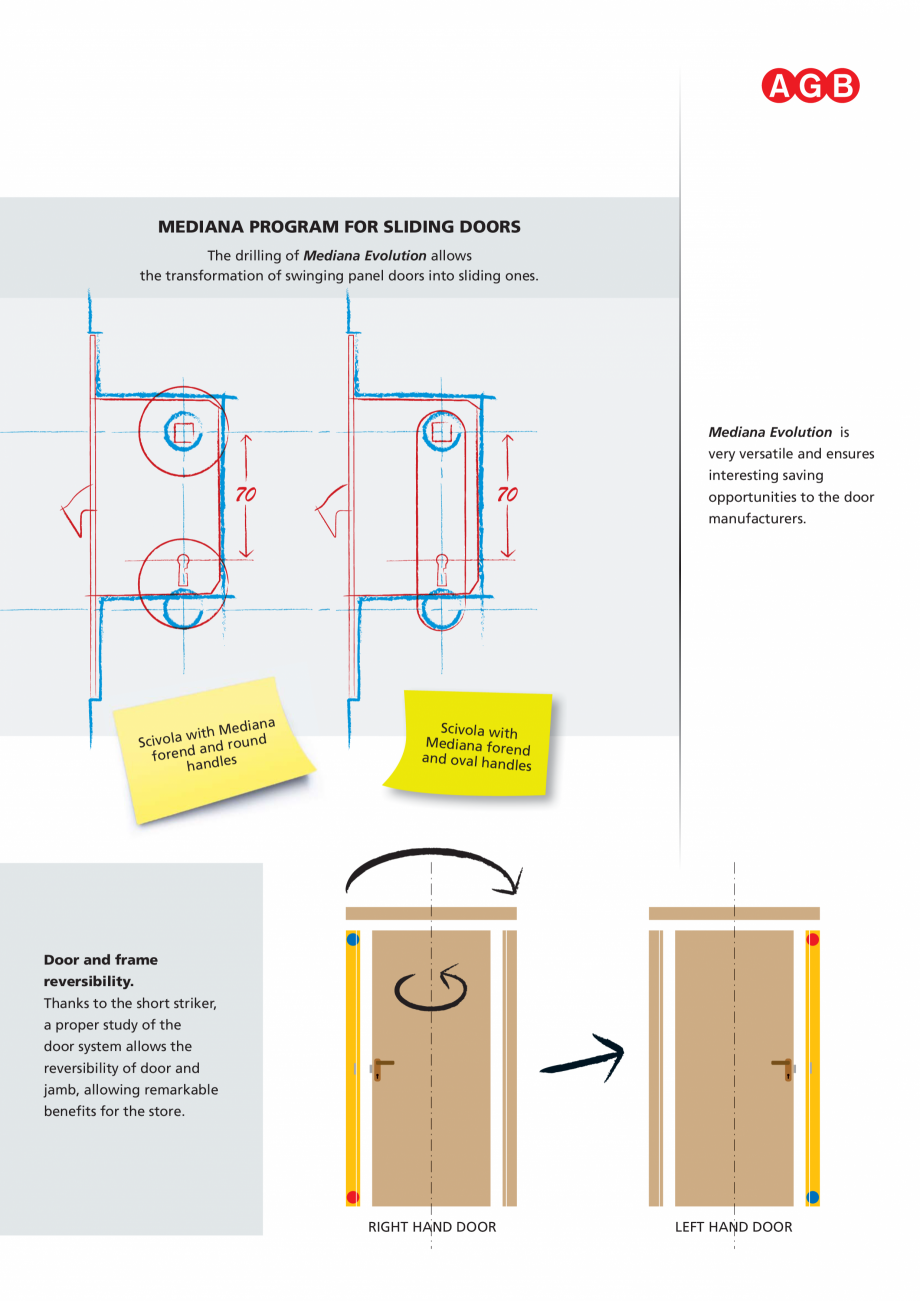

d and reliable like all AGB locks, Mediana Evolution is made of technologically innovative materials and offers new advantages: • extraordinary quiet movement, • precision in the mechanical coupling, • smooth internal kinematics. Incomparable versatility STANDARDISED DRILLING Key and Bathroom lock versions have been designed to allow a single drilling with reduced diameter. Ø18 90 96 96 Ø18 r gs fo rillin tion d d lu an Slot iana Evo Med Mediana Evolution, key lock version iana Med Replaceability for a long time. Forend and case dimensions are compatible with Mediana ones. diaonlaution MeE v Mediana Evol utio Bathroom lo n, ck version MEDIANA PROGRAM FOR SLIDING DOORS The drilling of Mediana Evolution allows the transformation of swinging panel doors into sliding ones. Mediana Evolution is very versatile and ensures 70 70 interesting saving opportunities to the door manufacturers. ediana with M Scivola and round forend dles han Scivola with Mediana fore nd an

Pagina 3-Broasca usi silentioasa - Pliant AGB Mediana Evolution Catalog, brosura Engleza d and reliable like ...

Pagina 4 - Broasca usi silentioasa - Pliant AGB Mediana Evolution Catalog, brosura Engleza d oval...

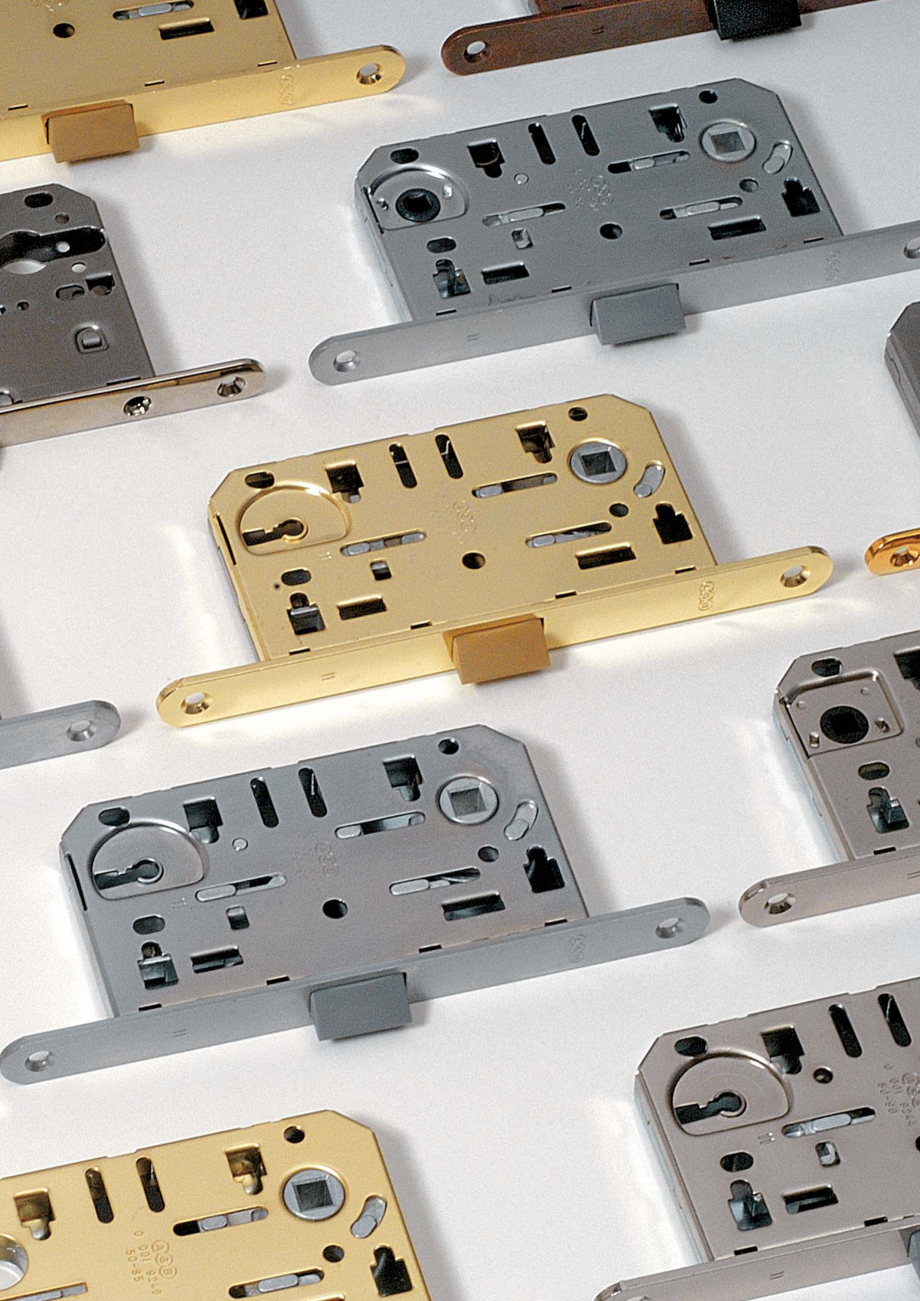

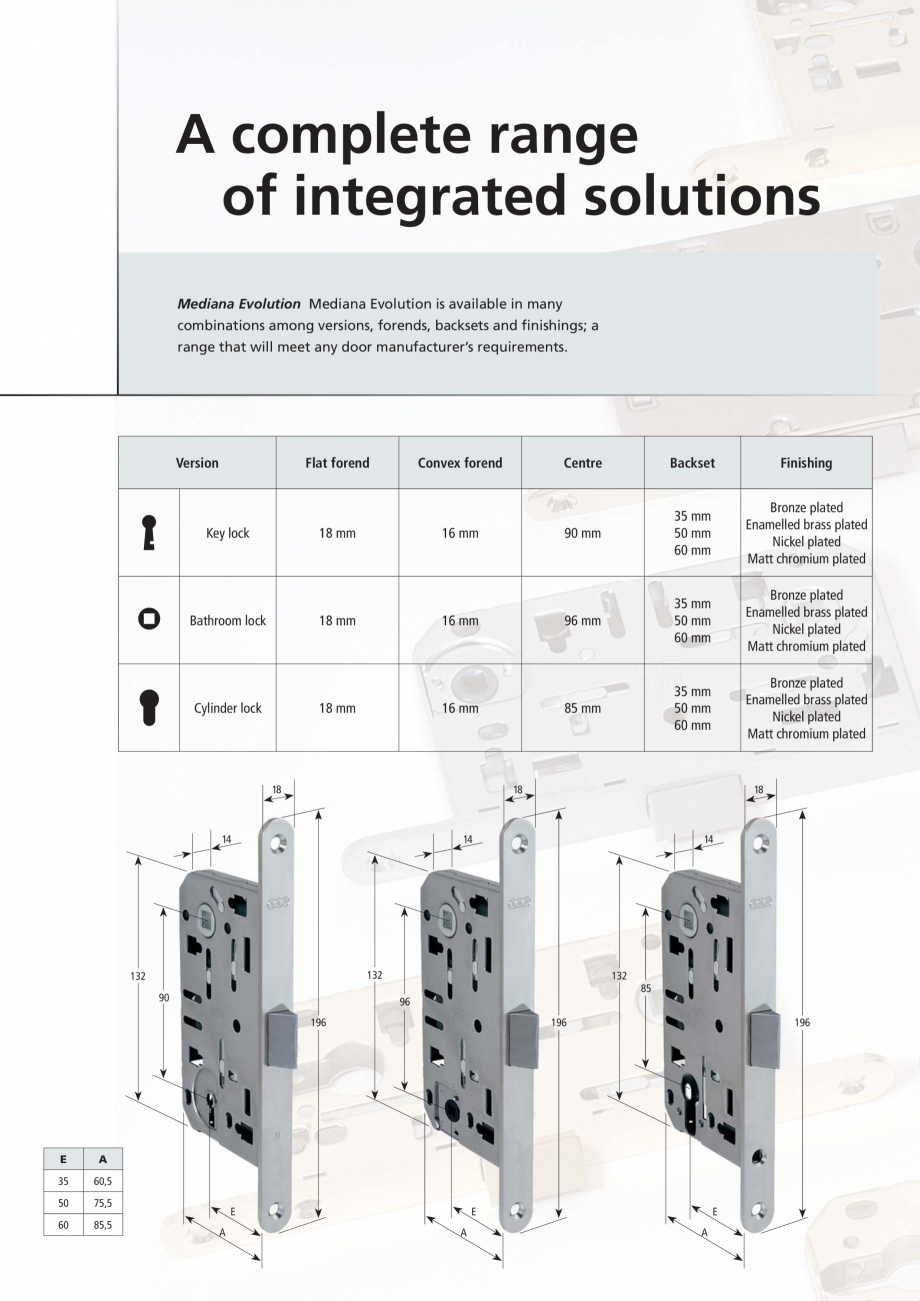

d oval hand les Door and frame reversibility. Thanks to the short striker, a proper study of the door system allows the reversibility of door and jamb, allowing remarkable benefits for the store. RIGHT HAND DOOR LEFT HAND DOOR A complete range of integrated solutions Mediana Evolution Mediana Evolution is available in many combinations among versions, forends, backsets and finishings; a range that will meet any door manufacturer’s requirements. Version Flat forend Key lock Convex forend 18 mm Bathroom lock 16 mm 18 mm Cylinder lock 16 mm 18 mm 16 mm 18 50 75,5 60 85,5 Bronze plated Enamelled brass plated Nickel plated Matt chromium plated 96 mm 35 mm 50 mm 60 mm Bronze plated Enamelled brass plated Nickel plated Matt chromium plated 85 mm 35 mm 50 mm 60 mm Bronze plated Enamelled brass plated Nickel plated Matt chromium plated 18 14 132 85 96 196 A 90 mm 35 mm 50 mm 60 mm 132 90 60,5 Finishing 14 132 E Backset 18 14 35 Centre 196 E A

Pagina 4-Broasca usi silentioasa - Pliant AGB Mediana Evolution Catalog, brosura Engleza d oval hand
les
...

Pagina 5 - Broasca usi silentioasa - Pliant AGB Mediana Evolution Catalog, brosura Engleza 196

E
A
...

196 E A E A Mediana EVOLUTION RAISES THE STANDARD OF INTERIOR DOOR LOCKS - Printed in Italy Cod. Z90064.02.26 - 4M - 09.08 - HARDWARE SYSTEMS FOR WINDOWS AND DOORS Alban Giacomo SpA Via A. de Gasperi 75 36060 Romano d’Ezzelino (VI) Italy Tel. +39 0424 832 832 www.agb.it - info@agb.it
