Documentatie atasata la

Sisteme si soluții de glisare ascunse pentru usi ECLISSE

Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE

Limba: Engleza

Produse încluse în această documentație: SYNTESIS® LINE GLISANTA, SYNTESIS® LINE ESTENSIONE, SYNTESIS® LINE LUCE, SYNTESIS® LINE UNICO

23 afisari

Tip documentatie: Catalog, brosura

Pagina 1 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

BROCHURE ECLISSE SYNTESIS® COLLECTION Syntesis® Collection ECLISSE Syntesis® Collection SYNTESIS® LINE SYNTESIS® LUCE SYNTESIS® LINE BATTENTE SYNTESIS® BATTENTE GLASS SYNTESIS® TECH SYNTESIS® BASEBOARD ECLISSE SYNTESIS® COLLECTION is a new concept of wall surface, a new design element that opens up to new and unique spaces of expression, widely opened to the eloquence of colour, or to the camouflage discretion of white. A complete design vision, sum of different high technologies dialoguing with each other and perfectly integrated into the wall, providing techniques and products for the achievement of functional and stunning surfaces. With ECLISSE SYNTESIS® COLLECTION the space for design opens up to new creative directions, in a stylish and linear frame. ECLISSE —3— ECLISSE SYNTESIS® LINE ECLISSE SYNTESIS® LUCE ECLISSE —4— ECLISSE SYNTESIS® LINE BATTENTE SYNTESIS® BATTENTE GLASS ECLISSE SYNTESIS® TECH ECLISSE SYNTESIS® BASEBOARD ECLISSE —5�

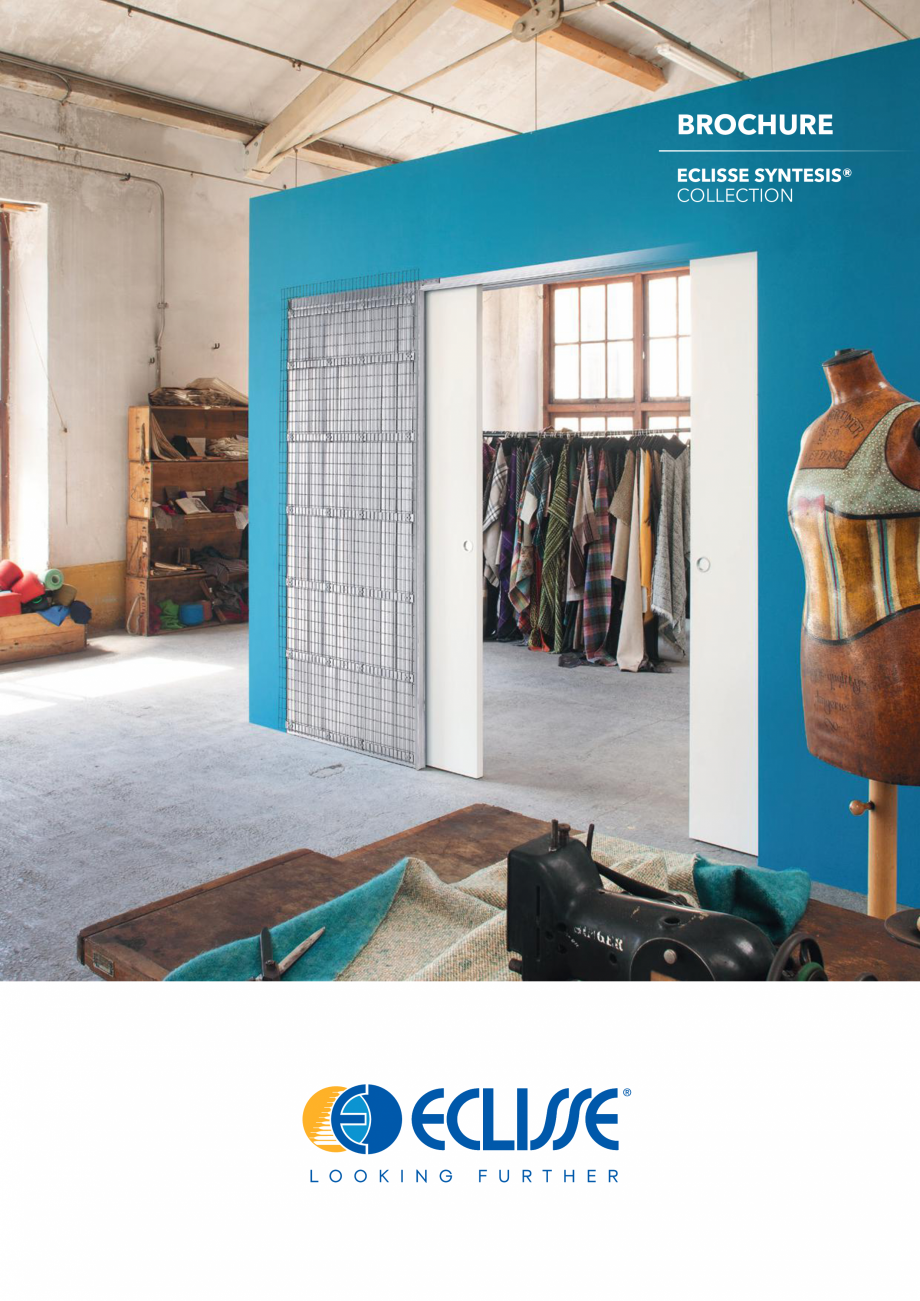

Pagina 1-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 2 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

�� ECLISSE SYNTESIS ® | LINE | Syntesis® Collection ECLISSE SYNTESIS® LINE ECLISSE SYNTESIS® LINE is the sliding pocket door system without jambs and architraves. Thanks to the total integration in the wall and the absence of frames along its perimeter, this system reaches a perfect synthesis between technology and design for a stunning aesthetic result. One of a kind, the frame includes elements and construction details, such as the resin-coated profiles, that can be painted in the same colour of the wall, becoming invisible, to obtain the perfect camouflage of the structure. ECLISSE —6— ECLISSE SYNTESIS ® | LINE | Syntesis® Collection ECLISSE —7— ECLISSE SYNTESIS ® | LINE | Syntesis® Collection info info SOLID WALL VERSION TECHNICAL TECHNICAL 5 4 7 14 12 2 13 8 A 2. Horizontal gaskets. These gaskets hide the space between the track and the header. They also allow a better tolerance for installation. 15 9 10 B 16 1 3 6 1. Rear bracke

Pagina 2-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 3 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

t and selfcentering door guide system (patented). Inserting the door panel is much easier thanks to the combination of the rear bracket (picture A) and the self centering door guide, that does not require to be screwed on the floor (picture B). 7. Extractable track system (patented). It is always possible to replace worn mechanisms and to add accessories. 8. Protruding close plaster mesh (50x25 mm). It joins the counterframe with the wall becoming an integral part of it, thus offering an increasing grasp to the plaster. The finished wall won’t have faults nor cracks. 11 17 9. Stop jamb. Resin-coated and paintable. 10. Reinforcing horizontal bars. Made from 0.7 mm thick, galvanised sheet steel sections with an inverted swallowtail-shaped profile to ensure good resistance to lateral pressures and to keep the fit in the doorway constant at all times. In the stud wall version the reinforcing horizontal bars are pre-drilled to facilitate the fixing of plasterboard sheets. ECLISSE �

Pagina 3-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 4 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

�8— 3. Universal resin-coated profiles. Vertical reinforced bars, the top beam and the metal door stop are pre-treated with a special resin coating, that makes it easier and faster to apply the final coat of fine wall or drywall plaster to the edges and reveals of the doorway. 11. Alignment bar (patented). As it crosses the pocket door in all its width, it permits to solidly link the frame with the posts, thus making the assembly easier. ECLISSE SYNTESIS ® | LINE | Syntesis® Collection STUD WALL info info TECHNICAL TECHNICAL VERSION 4 7 14 5 2 12 13 5. Strengthened brackets system. Top beam and stop jamb are always perpendicular (90°). 8 15 4. Reinforced joint. It guarantees linearity and a better linkage of track, frame and verticals. 9 16 3 10 6 10. Pre-driled horizontal reinforced bars. The new micro drillholes in the bars make it easier to screw the screws into the sheet metal profile. 12. Frontal stop. It allows the frontal adjustment and offers a better c

Pagina 4-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 5 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

losing. 13. Adjustable rear door stop. It allows to change the door passage size without removing the door panel. 11 17 1 6. Vertical reinforced bars. They improve the strength of the pocket door. 15. Transparent thermoplastic gasket. Completely transparent, it improves the aesthetics of the verticals bars but also its functionality because the door panel leans gently thanks to the resulting air cushion. 16. Template for lock. It offers the possibility to easily install the lock. 14. Certified runners with ball bearings. They guarantee long lasting, smooth and silent action. Standard door’s weight is 100 Kg. ECLISSE —9— 17. Under-door profile. It improves the strength and the integrity of the counterframe. ECLISSE SYNTESIS ® | LINE | Syntesis® Collection info info ECLISSE SYNTESIS LINE ® TECHNICAL TECHNICAL DATA SOLID WALL VERSION 50 C A FW Br B LP H1 HP ECLISSE SYNTESIS® LINE door panel should be milled along the upper profile, as indicated in the pict

Pagina 5-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 6 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

ure (except glass doors). HP H H1 FINISHED FLOOR LEVEL 50 40 C A 20 B 20 20 Br FW LP standard dimensions PASSAGE SIZE IP solid wall version stud wall version OVERALL DIMENSIONS door panel* OVERALL DIMENSIONS AxH CxH1 B CxH1 B LP HP 600 x 2000/2100 1393 x 2060/2160 750 1393 x 2060/2160 750 615 ÷ 635 1992/2092 700 x 2000/2100 1593 x 2060/2160 850 1593 x 2060/2160 850 715 ÷ 735 1992/2092 800 x 2000/2100 1793 x 2060/2160 950 1793 x 2060/2160 950 815 ÷ 835 1992/2092 900 x 2000/2100 1993 x 2060/2160 1050 1993 x 2060/2160 1050 915 ÷ 935 1992/2092 1000 x 2000/2100 2193 x 2060/2160 1150 2193 x 2060/2160 1150 1015 ÷ 1035 1992/2092 thickness available - solid wall version FINISHED WALL FW BRICKS Br thickness available - stud wall version INTERNAL PASSAGE IP FINISHED WALL FW STUDWORK S INTERNAL PASSAGE IP 108 80 54 100 75 - with one plasterboard layer 54 125 100 54 125 75 - with two plasterboard layer 54 150 120

Pagina 6-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 7 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

54 150 100 - with two plasterboard layer 54 SIZES ARE GIVEN IN mm NON-STANDARD MEASURES: Pocket systems with width 600 ÷ 1300 mm and height 1000 ÷ 2700 mm are available (intermediate sizes: 50 mm width, 50 mm height). Width in-between measures (e.g. A= 650 mm) require a made-to-measure door panel. AVAILABLE ACCESSORIES - ECLISSE SYNTESIS® BASEBOARD - Vitro - ECLISSE BIAS® - ECLISSE BIAS® DS - ECLISSE PUSH&PULL S - Anti-warp profile NOTES: • The passage size A is reduced by 7 mm. • Suggested maximum door thickness is 40 mm (any aluminium frame included). • Standard door weight is 100 kg. * Listed measures refers to wooden door panels only. ECLISSE — 10 — WARNING: • Due to system’s productive characteristics and for safety reasons, ECLISSE recommends the door panel protrudes 80 mm. • If needed, the adjustable door stop allows to modify the real passage size. • In order to ensure that the door disappear completely, a milling is required. • The milling f

Pagina 7-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 8 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

or the door guide must have the following dimensions: 7x15 mm. ECLISSE SYNTESIS ® | LINE | Syntesis® Collection info info ECLISSE SYNTESIS LINE DOUBLE ® STUD WALL VERSION DATA FW S C A B TECHNICAL TECHNICAL B LP ECLISSE SYNTESIS® LINE door panel should be milled along the upper profile, as indicated in the picture (except glass doors). H1 HP HP H H1 FINISHED FLOOR LEVEL C A B 40 12,5 B 20 20 20 S FW IP LP standard dimensions PASSAGE SIZE solid wall version stud wall version OVERALL DIMENSIONS door panel* OVERALL DIMENSIONS AxH CxH1 B CxH1 B LP HP 1200 x 2000/2100 2686 x 2060/2160 750 2686 x 2060/2160 750 615 ÷ 635 1992/2092 1400 x 2000/2100 3086 x 2060/2160 850 3086 x 2060/2160 850 715 ÷ 735 1992/2092 1600 x 2000/2100 3486 x 2060/2160 950 3486 x 2060/2160 950 815 ÷ 835 1992/2092 1800 x 2000/2100 3886 x 2060/2160 1050 3886 x 2060/2160 1050 915 ÷ 935 1992/2092 2000 x 2000/2100 4286 x 2060/2160 1150 4286 x 2

Pagina 8-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 9 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

060/2160 1150 1015 ÷ 1035 1992/2092 thickness available - solid wall version FINISHED WALL FW BRICKS Br thickness available - stud wall version INTERNAL PASSAGE IP FINISHED WALL FW STUDWORK S INTERNAL PASSAGE IP 108 80 54 100 75 - with one plasterboard layer 54 125 100 54 125 75 - with two plasterboard layer 54 150 120 54 150 100 - with two plasterboard layer 54 SIZES ARE GIVEN IN mm NON-STANDARD MEASURES: Pocket systems with width 1200 ÷ 2600 mm and height 1000 ÷ 2700 mm are available (increments in size: 100 mm width, 50 mm height). Width in-between measures (e.g. A = 1300 mm) require a made-to-measure door panel. AVAILABLE ACCESSORIES - ECLISSE SYNTESIS® BASEBOARD - Vitro - ECLISSE BIAS® - ECLISSE BIAS® DS - Double doors coordination for ECLISSE SYNTESIS® - ECLISSE PUSH&PULL S - Anti-warp profile NOTES: • The passage size A is reduced by 14 mm. • Suggested maximum door thickness is 40 mm (any aluminium frame included). • Standard door weig

Pagina 9-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 10 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

ht is 100 kg. * Listed measures refers to wooden door panels only. ECLISSE — 11 — WARNING: • Due to system’s productive characteristics and for safety reasons, ECLISSE recommends the door panel protrudes 80 mm. • If needed, the adjustable door stop allows to modify the real passage size. • In order to ensure that the door disappear completely, a milling is required. • The milling for the door guide must have the following dimensions: 7x15 mm. ECLISSE SYNTESIS ® | LUCE | Syntesis® Collection ECLISSE SYNTESIS® LUCE “ECLISSE SYNTESIS® LUCE is the sliding pocket door system without jambs and architraves, combining aesthetic and functionality. Designed to obtain clean lines, thanks to its patented technology this model fits out with dimmer controls, switches and sockets into the wall hosting the counterframe. Special constructive details such as resin-coated integrated-structure profiles (vertical reinforced bars, the top beam and the metal door stop) allow the w

Pagina 10-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 11 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

all to be extremely homogeneous while hiding the door, while ECLISSE Luce technology grants the pocket to be arranged with electric devices. Up to 10 electrical boxes per door panel can be installed (5 per side). On ECLISSE SYNTESIS® LUCE glass doors can be installed, using the Vitro set. ECLISSE — 12 — ECLISSE SYNTESIS ® | LUCE | Syntesis® Collection ECLISSE — 13 — ECLISSE SYNTESIS ® | LUCE | Syntesis® Collection info info SOLID WALL VERSION TECHNICAL TECHNICAL 6 4 8 15 13 2 14 9 A 2. Horizontal gaskets. These gaskets hide the space between the track and the header. They also allow a better tolerance for installation. 16 10 11 B 17 1 3 7 1. Rear bracket and selfcentering door guide system (patented). Inserting the door panel is much easier thanks to the combination of the rear bracket (picture A) and the self centering door guide, that does not require to be screwed on the floor (picture B). 8. Extractable track system (patented). It is always

Pagina 11-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 12 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

possible to replace worn mechanisms and to add accessories. 9. Protruding close plaster mesh (50x25 mm). It joins the counterframe with the wall becoming an integral part of it, thus offering an increasing grasp to the plaster. The finished wall won’t have faults nor cracks. 12 3. Pre-cut steel (patented). Steel is pre-cut, easy to remove in order to insert the electrical box. It’s possible to have up to 10 electrical boxes per pocket (5 on each side). 18 10. Stop jamb. Resin-coated and paintable. 11. Reinforcing horizontal bars. Made from 0.7 mm thick, galvanised sheet steel sections with an inverted swallowtail-shaped profile to ensure good resistance to lateral pressures and to keep the fit in the doorway constant at all times. In the stud wall version the reinforcing horizontal bars are pre-drilled to facilitate the fixing of plasterboard sheets. ECLISSE — 14 — 12. Alignment bar (patented). As it crosses the pocket door in all its width, it permits to solidly link th

Pagina 12-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 13 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

e pocket with the stop jambs, thus making the assembly easier. ECLISSE SYNTESIS ® | LUCE | Syntesis® Collection info info STUD WALL VERSION TECHNICAL 6 2 8 15 13 4 14 6. Strengthened brackets system. Top beam and stop jamb are always perpendicular (90°). 9 16 4. Reinforced joint. It guarantees linearity and a better linkage of track, frame and verticals. 10 11 17 3 5 7 12 5. Universal resin-coated profiles. Vertical reinforced bars, the top beam and the metal door stop are pre-treated with a special resin coating, that makes it easier and faster to apply the final coat of fine wall or drywall plaster to the edges and reveals of the doorway. 13.Frontal stop. It allows the frontal adjustment and offers a better closing. 14. Adjustable rear door stop. It allows to change the door passage size without removing the door panel. 18 1 16. Transparent thermoplastic gasket. Completely transparent, it improves the aesthetics of the verticals bars but also its functionalit

Pagina 13-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 14 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

y because the door panel leans gently thanks to the resulting air cushion. 17. Template for lock. It offers the possibility to easily install the lock. 15. Certified runners with ball bearings. They guarantee long lasting, smooth and silent action. Standard door’s weight is 100 Kg. ECLISSE — 15 — 7. Vertical reinforced bars. They improve the strength of the pocket door. 18. Under-door profile. It improves the strength and the integrity of the counterframe. ECLISSE SYNTESIS ® | LUCE | Syntesis® Collection info info ECLISSE SYNTESIS LUCE ® TECHNICAL TECHNICAL DATA SOLID WALL VERSION 50 FW Br C B LP ECLISSE SYNTESIS® LUCE door panel should be routed along the upper profile, as indicated in the picture (except glass doors) 1355 1710 A HP H H1 HP 290 645 1000 H1 FINISHED FLOOR LEVEL 170 50 C A 40 B 20 Br FW LP standard dimensions 20 20 IP solid wall version stud wall version door panel* PASSAGE SIZE OVERALL DIMENSIONS AxH CxH1 B OVERA

Pagina 14-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 15 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

LL DIMENSIONS CxH1 B LP HP 600 x 2000/2100 1393 x 2060/2160 750 1393 x 2060/2160 750 615 ÷ 635 1992/2092 700 x 2000/2100 1593 x 2060/2160 850 1593 x 2060/2160 850 715 ÷ 735 1992/2092 800 x 2000/2100 1793 x 2060/2160 950 1793 x 2060/2160 950 815 ÷ 835 1992/2092 900 x 2000/2100 1993 x 2060/2160 1050 1993 x 2060/2160 1050 915 ÷ 935 1992/2092 1000 x 2000/2100 2193 x 2060/2160 1150 2193 x 2060/2160 1150 1015 ÷ 1035 1992/2092 thickness available - solid wall version thickness available - stud wall version FINISHED WALL FW BRICKS Br INTERNAL PASSAGE IP FINISHED WALL FW STUDWORK S INTERNAL PASSAGE IP 150 120 54 150 100 one layer on each side of the pocket two layers on each side of the studwork 54 SIZES ARE GIVEN IN mm NON-STANDARD MEASURES: Pocket systems with width 600 ÷ 1300 mm and height 1000 ÷ 2700 mm are available (increments in size: 50 mm width, 50 mm height). Width in-between measures (e.g. A = 650 mm) require a made-to-meas

Pagina 15-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 16 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

ure door panel. AVAILABLE ACCESSORIES - ECLISSE SYNTESIS® BASEBOARD - Vitro - ECLISSE BIAS® - ECLISSE BIAS® DS - ECLISSE PUSH&PULL S - Anti-warp profile NOTES: • The passage size A is reduced by 7 mm. • Suggested maximum door thickness is 40 mm (any aluminium frame included). • Standard door weight is 100 kg. * Listed measures refers to wooden door panels only. ECLISSE — 16 — WARNING: • Due to system’s productive characteristics and for safety reasons, ECLISSE recommends the door panel protrudes 80 mm. • If needed, the adjustable door stop allows to modify the real passage size. • In order to ensure that the door disappear completely, a milling is required. • The milling for the door guide must have the following dimensions: 7x15 mm. ECLISSE SYNTESIS ® | LUCE | Syntesis® Collection info info ECLISSE SYNTESIS LUCE DOUBLE ® STUD WALL VERSION DATA FW S C A B TECHNICAL TECHNICAL B LP ECLISSE SYNTESIS® LUCE door panel should be routed along the up

Pagina 16-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 17 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

per profile, as indicated in the picture (except glass doors) H1 HP H H1 HP FINISHED FLOOR LEVEL 170 C A B B 40 12,5 20 S FW LP standard dimensions 20 20 IP solid wall version stud wall version door panel* PASSAGE SIZE OVERALL DIMENSIONS AxH CxH1 B OVERALL DIMENSIONS CxH1 B LP HP 1200 x 2000/2100 2686 x 2060/2160 750 2686 x 2060/2160 750 615 ÷ 635 1992/2092 1400 x 2000/2100 3086 x 2060/2160 850 3086 x 2060/2160 850 715 ÷ 735 1992/2092 1600 x 2000/2100 3486 x 2060/2160 950 3486 x 2060/2160 950 815 ÷ 835 1992/2092 1800 x 2000/2100 3886 x 2060/2160 1050 3886 x 2060/2160 1050 915 ÷ 935 1992/2092 2000 x 2000/2100 4286 x 2060/2160 1150 4286 x 2060/2160 1150 1015 ÷ 1035 1992/2092 thickness available - solid wall version thickness available - stud wall version FINISHED WALL FW BRICKS Br INTERNAL PASSAGE IP FINISHED WALL FW STUDWORK S INTERNAL PASSAGE IP 150 120 54 150 100 one layer on each side of the pocket two

Pagina 17-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 18 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

layers on each side of the studwork 54 SIZES ARE GIVEN IN mm NON-STANDARD MEASURES: Pocket systems with width 1200 ÷ 2600 mm and height 1000 ÷ 2700 mm are available (increments in size: 50 mm width, 50 mm height). Width in-between measures (e.g. A = 1300 mm) require a made-to-measure door panel. AVAILABLE ACCESSORIES - ECLISSE SYNTESIS® BASEBOARD - Vitro - ECLISSE BIAS® - ECLISSE BIAS® DS - Double doors coordination for ECLISSE SYNTESIS® - ECLISSE PUSH&PULL S - Anti-warp profile NOTES: • The passage size A is reduced by 14 mm. • Suggested maximum door thickness is 40 mm (any aluminium frame included). • Standard door weight is 100 kg. * Listed measures refers to wooden door panels only. ECLISSE — 17 — WARNING: • Due to system’s productive characteristics and for safety reasons, ECLISSE recommends the door panel protrudes 80 mm. • If needed, the adjustable door stop allows to modify the real passage size. • In order to ensure that the door disappear compl

Pagina 18-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 19 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

etely, a milling is required. • The milling for the door guide must have the following dimensions: 7x15 mm. ECLISSE SYNTESIS ® LINE | BATTENTE | Syntesis® Collection ECLISSE SYNTESIS® LINE BATTENTE ECLISSE SYNTESIS® LINE BATTENTE is the ECLISSE solution that allows to install a hinged door flushing to the wall, this means a door with no frame: no jambs, no architraves. This system also allows to install the door flush to the ceiling to achieve a total integration between door and wall. All door panels are equipped as standard with an adjustable internal tensioning rod that helps to keep the door panel in constant tension, improving the door flatness. As with the sliding models, the ECLISSE SYNTESIS® LINE BATTENTE frame is also primer coated, for a perfect integration between the system and the wall. ECLISSE — 18 — ECLISSE SYNTESIS ® LINE | BATTENTE | Syntesis® Collection ECLISSE — 19 — ECLISSE SYNTESIS ® LINE | BATTENTE | Syntesis® Collection info inf

Pagina 19-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 20 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

o ALUMINIUM FRAME TECHNICAL TECHNICAL 5 1 4 1. Long lasting and paintable. The aluminium frame is firstly subjected to and anodization treatment against oxidation and then it is primer-coated to facilitate paint cohesion. 5. 6 adjustable clamps. The clamps are adjustable in height and prepared to be easily fixed to brick walls. 6 2 6. Brand. The frame is recognisable by the ECLISSE trademark. 2. Very strong frame. The frame profile weighs about 2 kg/m. 4 7 3 3 . NO cracks! The frame profile is specially designed to avoid cracks. 4 . Spacer panels in OSB 3. 25 mm thick and pre-assembled to guarantee a perfect squaring of the frame. 7. Quote 100 mm. It helps the installer finding the “0” quote. THE ADVANTAGES: • A universal frame, for both stud and solid wall. • Gaskets to be installed on the frame, not on the door. Stable, easy to install, soft and aesthetically pleasant. • Hinge-coverings to protect them from plaster (on pull version). • ECLISSE SYNTESIS®

Pagina 20-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 21 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

LINE BATTENTE is also available for double door. • Supplied with a plastic protection to avoid dirty and scratches in construction site. ECLISSE — 20 — ECLISSE SYNTESIS ® LINE | BATTENTE | Syntesis® Collection info info ECLISSE SYNTESIS LINE BATTENTE DOOR ® TECHNICAL TECHNICAL TENSIONING ROD* A special adjustable device, it keeps the door panel in constant tension, improving the door flatness. THE DOOR. Full hollow core with double solid wood perimeter to improve rigidity. y z x THE MAGNETIC LOCK It has a modern design and minimal lines: it stays “flush” and guarantees an extraordinary softness while closing. ECCENTRIC STRIKE PLATE: • Minimal design, it remains “flush” • Eccentric: it allows fixing little installation imperfections, always ensuring a perfect locking. THE HINGES 3 adjustable hinges (in height, width and depth) for a perfect calibration of the slightest perimeter spacing. Note: it comes as standard without lock or with key lock. Thum

Pagina 21-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 22 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

b turn lock on request. Note: when the door weighs more than 50 kg (max 65 kg), 4 hinges are needed. THE DOOR: • it is recognisable by the ECLISSE trademark; * It comes standard with door panels with H starting from 2000 mm. • it is 45 mm thick; • it is bordered along the entire perimeter; • Has an universal outline adaptable to opening side (right or left); ECLISSE — 21 — ECLISSE SYNTESIS ® LINE | BATTENTE | Syntesis® Collection ECLISSE SYNTESIS® LINE BATTENTE info info TECHNICAL TECHNICAL OPENING TYPE: CHOOSE THE OPENING - BATTENTE ECLISSE SYNTESIS® LINE BATTENTE PUSH DOOR Left Right PULL DOOR Left Right VERSION: WITH OR WITHOUT HEADER The distinctive feature of ECLISSE SYNTESIS® LINE BATTENTE is the possibility to install the doors flush with the ceiling, thank to the without header option, in order to achieve a total integration among door, wall and ceiling. With header Without header ECLISSE — 22 — ECLISSE SYNTESIS ® LINE | BATTENTE

Pagina 22-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 23 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

| Syntesis® Collection ECLISSE SYNTESIS® LINE BATTENTE info info TECHNICAL TECHNICAL OPENING TYPE: CHOOSE THE OPENING - BATTENTE DOUBLE ECLISSE SYNTESIS® LINE BATTENTE DOUBLE LEFT PUSH DOOR - RIGHT FIXED DOOR LEFT PULL DOOR - RIGHT FIXED DOOR ECLISSE SYNTESIS® LINE BATTENTE DOUBLE RIGHT PUSH DOOR - LEFT FIXED DOOR RIGHT PULL DOOR - LEFT FIXED DOOR VERSION: WITH OR WITHOUT HEADER ECLISSE SYNTESIS® LINE BATTENTE DOUBLE is available with header only. With header • On ECLISSE SYNTESIS® LINE BATTENTE DOUBLE the fixed door closes with a latch (supplied as standard). ECLISSE — 23 — ECLISSE SYNTESIS ® LINE | BATTENTE | Syntesis® Collection ECLISSE SYNTESIS® LINE BATTENTE OPENING info info TECHNICAL TECHNICAL DATA SUPPLY OPTIONS OR HARDWARE HARDWARE SINGLE ELEMENTS THE COMPLETE KIT The complete KIT supply includes: FRAME STRUCTURE + PRIMER-COATED DOOR + HARDWARE. ACCESSORIES HARDWARE HARDWARE = Hardware includes a door seal, a lock, a strike plate, 3 hi

Pagina 23-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 24 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

nges, 3 hingcoverings and a screw bag. Eccentric strike plate Door seal, length 6,6 m, to be cut to reqd. length. Lock Hinges Hinge-coverings Screw bag DOOR-CLOSER DOOR CLOSER HINGE Soft closing system for wooden doors. It is fitted completely inside the door leaf, becoming invisible. Available finishes: satin chrome, white, light bronze, dark bronze, graphite bronze. Invisible from the outside, the door-closer is available in four variants: with or without stop, right or left. The installation of the door-closer requires a special processing on the frame and the door panel that has to be specified when ordering. 180-degree opening angle ECLISSE — 24 — ECLISSE SYNTESIS ® LINE | BATTENTE | Syntesis® Collection ECLISSE SYNTESIS® LINE BATTENTE APPLICATIONS PUSH DOOR info info TECHNICAL TECHNICAL DATA PULL DOOR Frame on solid wall 46 87,5 82,5 27 Anchor clamp Anchor clamp 35 46 Frame on stud wall with one layer of plasterboard - Finished wall thickness 100

Pagina 24-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 25 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

mm 46 87,5 75 100 82,5 75 100 27 35 46 Frame on stud wall with two layer of plasterboard - Finished wall thickness 100 mm 46 87,5 50 100 82,5 50 100 27 35 46 Frame on stud wall with two layer of plasterboard - Finished wall thickness 125/150 mm 27 87,5 75/100 125/150 82,5 75/100 125/150 46 35 46 The frame fits both with stud and solid wall. On solid wall 6 clamps are cemented in the special hole created in the wall. On stud wall the frame is screwed to the metal studwork through the designated holes. ECLISSE — 25 — ECLISSE SYNTESIS ® LINE | BATTENTE | Syntesis® Collection ECLISSE SYNTESIS® LINE BATTENTE SIZES FINISHED CEILING PUSH DOOR H H LP LP HP H1 HP H1 H=H1 H=H1 HP HP L L C C FINISHED FLOOR FINISHED FLOOR FRAME WITH HEADER FRAME WITHOUT HEADER FINISHED CEILING FINISHED CEILING PULL DOOR L L ARE ARE HP HP TURA TURA ARE ARE FRAME WITHOUT HEADER FINISHED CEILING TURA TURA SSO SSO DATA FRAME WITH HEADER ERE ERE ERE E

Pagina 25-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 26 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

RE info info TECHNICAL TECHNICAL H H1 H H1 HP HP H=H1 H=H1 LP LP C C FINISHED FLOOR FINISHED FLOOR FRAME WITH HEADER PASSAGE SIZE L OVERALL DIMENSIONS H C 600 2100/2400 692 650 2100/2400 742 700 2100/2400 792 750 H 2100/2400 HP H1 842 800 2100/2400 892 850 2100/2400 942 H HP H1 H1 FRAME WITHOUT HEADER DOOR PANEL - th 45 mm PASSAGE SIZE OVERALL DIMENSIONS DOOR PANEL - th 45 mm LP HP L H C H1 2146/2446 616 2104/2404 600 2700 692 2146/2446 666 2104/2404 650 2700 742 2146/2446 716 2104/2404 700 2700 792 2146/2446 766 2104/2404 LP 750 2700 842 2146/2446 816 2104/2404 800 2700 892 2700 816 2146/2446 866 2104/2404 850 2700 942 2700 866 LP LP HP 2700 616 2693 2700 666 2693 2700 716 2693 2700 H=H1 766 H=H1 HP HP 2693 2693 2693 900 2100/2400 992 2146/2446 916 2104/2404 L 900 2700 992 2700 916 2693 950 2100/2400 1042 2146/2446 966 2104/2404 C C 950 2700 1042 2700 966 2693 10

Pagina 26-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 27 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

00 2100/2400 1092 2146/2446 1016 2104/2404 1000 2700 1092 2700 1016 2693 L SIZES ARE GIVEN IN mm • Intervals in H every 50 mm, from 1650 to 2700 mm. • Variations in H can be realized in centimeters in the version without header. • Version with header: overall dimension in height is always 46 mm higher than H. • Version with header: version with overall dimension in height of 2700 mm and passage size of 2654 mm is available. ECLISSE L — — 26 L HP H H1 H=H1 HP ECLISSE SYNTESIS ® LINE | BATTENTE | Syntesis® Collection ECLISSE SYNTESIS® LINE BATTENTE SIZES info info TECHNICAL TECHNICAL DATA FRAME WITH HEADER - PUSH FINISHED CEILING LP1 LP2 L C H HP H1 LP1 LP2 L C FINISHED FLOOR FRAME WITH HEADER - PULL L FINISHED CEILING LP2 HP LP1 C H H1 L LP2 LP1 FINISHED FLOOR C FRAME WITH HEADER PASSAGE SIZE OVERALL DIMENSIONS DOOR PANEL - th 45 mm L H C H1 LP1 LP2 HP 1200 2100/2400 1292 2146/2446 606 616 2104/2404 1300 2100/

Pagina 27-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 28 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

2400 1392 2146/2446 656 666 2104/2404 1400 2100/2400 1492 2146/2446 706 716 2104/2404 1500 2100/2400 1592 2146/2446 756 766 2104/2404 1600 2100/2400 1692 2146/2446 806 816 2104/2404 1700 2100/2400 1792 2146/2446 856 866 2104/2404 1800 2100/2400 1892 2146/2446 906 916 2104/2404 1900 2100/2400 1992 2146/2446 956 966 2104/2404 2000 2100/2400 2092 2146/2446 1006 1016 2104/2404 SIZES ARE GIVEN IN mm • Intervals in H every 50 mm, from 1650 to 2700 mm. • Height overall dimension is always higher than 46 mm compared to height size H. ECLISSE — 27 — • It’s possible to have a variation with height overall dimension 2700 mm and passage size 2654 mm. ECLISSE SYNTESIS® | BATTENTE GLASS | Syntesis® Collection ECLISSE SYNTESIS® BATTENTE GLASS Elegant and impressive, glass is a materila that decorates and separates the rooms lightly and without cluttering. ECLISSE SYNTESIS® BATTENTE GLASS is available with transparent glass

Pagina 28-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 29 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

(also extraclear), satin glass (also extraclear), trasparent smoked glass and sandblasted smoked glass. The single glass panel is held by a vertical anodized aluminum trim, while the hinges, completely concealed, ensure stability even in the case of particular heavy oversized doors. The exclusive design of the profiles grants the perfect integration between the frame and the wall. The profiles of the frame are made of anodized aluminium to prevent oxidation and coated with primer to ensure the perfect adhesion of the paintings. ECLISSE — 28 — ECLISSE SYNTESIS® | BATTENTE GLASS | Syntesis® Collection ECLISSE — 29 — ECLISSE SYNTESIS® | BATTENTE GLASS | Syntesis® Collection ECLISSE SYNTESIS® BATTENTE GLASS SWING OPENING info TECHNICAL DATA TYPE: CHOOSE THE OPENING - BATTENTE GLASS ECLISSE SYNTESIS® BATTENTE GLASS PUSH DOOR Left Right PULL DOOR Left Right VERSION: WITH HEADER ECLISSE SYNTESIS® BATTENTE GLASS is only available with header. SUPPLY OPTION

Pagina 29-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 30 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

S ONLY FRAME DOOR KIT Includes hardware, gaskets, lock and anodized aluminium vertical profile (handle not included). ECLISSE — 30 — ECLISSE SYNTESIS® | BATTENTE GLASS | Syntesis® Collection ECLISSE SYNTESIS® BATTENTE GLASS FEATURES - FINISHINGS info TECHNICAL DATA FEATURES The 8 mm tempered glass door is supported by a vertical anodized aluminum profile, while the hinges, completely hidden, ensure stability and the necessary payload capacity even for big doors. GLASS - PUSH DOOR Closed glass door Details of the aluminium vertical profile Closed glass door Details of the aluminium vertical profile GLASS - PULL DOOR Open glass door Details of the aluminium vertical profile Open glass door Details of the aluminium vertical profile LOCK DIMENSION 70 9 8 21 120 FINISHES TRANSPARENT TRANSPARENT EXTRA CLEAR SATIN SATIN EXTRA CLEAR ECLISSE — 31 — TRANSPARENT SMOKED SANDBLASTED SMOKED ECLISSE SYNTESIS® | BATTENTE GLASS | Syntesis® Collection ECLISSE

Pagina 30-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 31 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

SYNTESIS® BATTENTE GLASS APPLICATIONS PUSH DOOR info TECHNICAL DATA PULL DOOR Frame on solid wall 46 27 7 82,5 Anchor clamp 13 33 7 Anchor clamp 87,5 37 67 46 55 35 46 Frame on solid wall with one plasterboard - Finished wall thickness 100 mm 46 87,5 7 75 100 37 13 33 7 82,5 67 75 100 27 46 55 35 46 Frame on stud wall with two plasterboards - Finished wall thickness 100 mm 46 87,5 7 50 100 37 13 33 7 82,5 67 50 100 27 46 55 35 46 Frame on stud wall with two plasterboards - Finished wall thickness 125/150 mm 27 13 33 7 7 87,5 37 82,5 67 75/100 125/150 75/100 125/150 46 46 35 55 46 The frame fits both with stud and solid wall. For solid wall 6 clamps are cemented in the special spaces created in the wall. For stud wall the frame is fixed with screws to the metal structure through the existing holes. ECLISSE — 32 — ECLISSE SYNTESIS® | BATTENTE GLASS | Syntesis® Collection ECLISSE SYNTESIS® BATTENTE GLASS

Pagina 31-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 32 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

SIZES info TECHNICAL DATA ECLISSE SYNTESIS® BATTENTE GLASS - PUSH DOOR FINISHED CEILING LP H HP H1 L C FINISHED FLOOR ECLISSE SYNTESIS® BATTENTE GLASS - PULL DOOR FINISHED CEILING L HP H H1 LP C FINISHED FLOOR DIMENSIONS PASSAGE SIZE OVERALL DIMENSIONS DOOR GLASS - 8 mm Thick L H C H1 LP HP 600 2100/2400 692 2146/2446 616 2098/2398 650 2100/2400 742 2146/2446 666 2098/2398 700 2100/2400 792 2146/2446 716 2098/2398 750 2100/2400 842 2146/2446 766 2098/2398 800 2100/2400 892 2146/2446 816 2098/2398 850 2100/2400 942 2146/2446 866 2098/2398 900 2100/2400 992 2146/2446 916 2098/2398 950 2100/2400 1042 2146/2446 966 2098/2398 1000 2100/2400 1092 2146/2446 1016 2098/2398 SIZES ARE GIVEN IN mm • Intervals for height every 50 mm, from 1650 mm to 2700 mm. ECLISSE — 33 — ECLISSE SYNTESIS ® | TECH | Syntesis® Collection ECLISSE SYNTESIS® TECH ECLISSE SYNTESIS® TECH is the solution that allows to conceal s

Pagina 32-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 33 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

ervice compar tments. Cables, tube s, elec tric al s y s tem s and even store cupboards can now be concealed and discreetly integrated into the wall. With ECLISSE SYNTESIS ® TECH, the wall appear unaltered while the technical compartments are always accessible when needed, through handy push-pull openings. Lever handles or key-locks are available on request. Customisable with any t ype of single, double, top-hung, bottom-hinged or removable door panel, ECLISSE SYNTESIS ® TECH allows any niche, element or equipment which we would rather not see to be concealed, leaving them easily accessible to inspec tion for maintenance and repair work. ECLISSE — 34 — ECLISSE SYNTESIS ® | TECH | Syntesis® Collection ECLISSE — 35 — ECLISSE SYNTESIS ® | TECH | Syntesis® Collection info ECLISSE SYNTESIS TECH OPENINGS ® TECHNICAL APPLICATION EXAMPLES OF THE ECLISSE SYNTESIS® TECH SYSTEM Top-hung single door version opening upwards. Double door version. Single door version

Pagina 33-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 34 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

hinging on the right. Single removable door version Bottom-hinged door version opening downwards. Single door version hinging on the left. ECLISSE — 36 — ECLISSE SYNTESIS ® | TECH | Syntesis® Collection info ECLISSE SYNTESIS TECH ® TECHNICAL APPLICATIONS ADVANTAGES • Long lasting and paintable frame. The whole frame and locks/hinge mounting brackets are made of anodized anti-corrosion aluminum, coated with primer and ready to be painted in the same colour as the wall. • Universal One frame for both solid wall and stud wall. Metal supports to fix the frame to the metal wrapping and the wall structure are available as standard. • Door panel ECLISSE SYNTESIS® TE CH comes complete with frame and door panel. 18 mm panel thickness are melamine faced chipboard Class E1, melamine coated in white and edged in ABS, ready to be painted. • Designed for the installer! The reduced size of the frame is designed in order to push through comfortably with wiring and pipin

Pagina 34-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 35 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

g on all 4 sides. • Sturdy frame. Like all other ECLISSE SYNTESIS® COLLECTION products, ECLISSE SYNTESIS® TECH is sturdy and easy to assemble. • 165° hinges as standard Maxximum accessibility thanks to special 165-degree hinge opening, mounted as standard. Hinges also can be adjusted on the three axes to ensure a perfect aesthetic result. • No cracks! The frame profile is designed to fully integrate into the wall, avoiding the formation of cracks along the perimeter of the compartment. OVERALL DIMENSIONS 21 38 44 Push-Pull ECLISSE — 37 — 62 70 55 82 Hinge ECLISSE SYNTESIS ® | TECH | Syntesis® Collection info ECLISSE SYNTESIS TECH ® DIMENSIONS DIMENSIONS C L OVERALL DIMENSIONS H1 H C = L + 53 mm H1 = H + 53 mm APPLICATIONS FRAME ON SOLID WALL 44 82 28 26,5 FRAME ON STUD WALL WITH ONE PLASTERBOARD 44 82 28 26,5 FRAME ON STUD WALL WITH TWO PLASTERBOARD 44 82 28 26,5 ECLISSE — 38 — TECHNICAL DATA ECLISSE SYNTESIS ® | TECH | S

Pagina 35-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 36 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

yntesis® Collection info ECLISSE SYNTESIS TECH ® VERSIONS TECHNICAL DATA SINGLE DOOR PASSAGE SIZE L min OVERALL DIMENSIONS H max min 300 ÷ 600 C max min H1 max 300 ÷ 1600 353 ÷ 653 min max 353 ÷ 1653 • A single frame for righthinged or left-hinged opening. • Useful space between hinge and lock around 100 mm less than the passage size. SIZES ARE GIVEN IN mm DOUBLE DOOR PASSAGE SIZE L min OVERALL DIMENSIONS H max min C max min H1 max min max • Useful space between hinge and lock around 150 mm less than the passage size. • Not available with key-lock. 600 ÷ 1000 300 ÷ 1600 653 ÷ 1053 353 ÷ 1653 (300+300 ÷ 500+500) SIZES ARE GIVEN IN mm TOP HUNG PANEL PASSAGE SIZE L min OVERALL DIMENSIONS H max min C max 300 ÷ 1600 300 ÷ 600 min H1 max min max 353 ÷ 1653 353 ÷ 653 • Hold open device supplied as standard. • Useful space between hinge and lock around 100 mm less than the passage size. SIZES ARE GIVEN IN mm BOTTOM-HIN

Pagina 36-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 37 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

GED PANEL PASSAGE SIZE L min OVERALL DIMENSIONS H max min C max 300 ÷ 1600 300 ÷ 600 min H1 max min max 353 ÷ 1653 353 ÷ 653 • Safety chain device supplied as standard. • Useful space between hinge and lock around 100 mm less than the passage size. SIZES ARE GIVEN IN mm REMOVABLE PANEL PASSAGE SIZE L min OVERALL DIMENSIONS H max min C max 300 ÷ 1600 300 ÷ 600 min H1 max min max 353 ÷ 1653 353 ÷ 653 SIZES ARE GIVEN IN mm ECLISSE — 39 — • Safety chain device supplied as standard. ECLISSE SYNTESIS ® | BASEBOARD | Syntesis® Collection ECLISSE SYNTESIS® BASEBOARD The ECLISSE SYNTESIS® BASEBOARD (skirting) is an innovative idea for decorating house spaces in an elegant, minimal and modern way. Unlike the traditional baseboard, this “flush with wall” version runs along the wall without protruding. In this way the furniture can be placed directly on the wall, without remodelling the baseboard. This solution is possible by predisposin

Pagina 37-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 38 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

g a hollow for the baseboard and placing the special aluminum profiles while creating the wall structure, before laying the floor. The harmonious combination of ECLISSE SYNTESIS® BASEBOARD is realized by matching it with the other SYNTESIS® COLLECTION models. / 05 ECLISSE — 40 — ECLISSE SYNTESIS ® | BASEBOARD | Syntesis® Collection ECLISSE — 41 — ECLISSE SYNTESIS ® | BASEBOARD | Syntesis® Collection info info ECLISSE SYNTESIS BASEBOARD ® TECHNICAL TECHNICAL TECHNICAL FEATURES • The profiles fit with the insertion of standard baseboards (height 58 mm); for higher baseboards it is sufficient to place the profiles over the zero quota. • The aluminium profiles have a triple-chamber structure that assures robustness and allows a perfect union between the two profiles through the special joints. • To fix the profiles to a solid wall a structural sealing adhesive is needed; in the case of stud wall the profiles, specifically perforated, are to be fixed with

Pagina 38-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 39 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

screws. LINEAR PROFILES The baseboard is provided in bars 2000 mm long. 12,5 12,5 12,5 15 15 12,512,5 12,5 12,5 12,5 12,5 15 15 15 15 9,59,5 9,5 0 0 0 Baseboard installed on stud wall (one layer plasterboard) Baseboard installed on stud wall (one layer plasterboard) JOINTS FOR CONNECTING THE PROFILES LINEAR JOINT JOINT FOR INTERNAL CORNER A B E A A B C B C C JOINT FOR EXTERNAL CORNER ECLISSE — 42 — 2 2 2 58 58 60 60 58 60 85 85 85 9,59,5 9,5 58 58 60 60 58 60 85 85 85 0 0 0 Baseboard installed on solid wall 10 9,59,5 9,5 58 58 60 60 58 60 0 0 10 10 2 2 2 15 2 2 15 15 2 Useful space in height for the baseboard: 58 mm JOINT FOR STEPS 0 ECLISSE SYNTESIS ® | BASEBOARD | Syntesis® Collection info info ECLISSE SYNTESIS BASEBOARD ® TECHNICAL TECHNICAL TERMINAL PROFILES FOR ECLISSE SYNTESIS® LINE AND ECLISSE SYNTESIS® LUCE A package contains 4 terminal profiles needed for every ECLISSE SYNTESIS® LINE or ECLISSE SYNTESIS® LUCE. P

Pagina 39-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 40 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

rofiles length: 160 mm A C B C The traditional baseboard ECLISSE SYNTESIS® BASEBOARD TERMINAL PROFILES FOR ECLISSE SYNTESIS® LINE BATTENTE A package contains 4 terminal profiles, needed in correspondence of every ECLISSE SYNTESIS® LINE BATTENTE. Profiles length: 160 mm D B C 12,5 15 15 LED LIGHTING APPLICATION (LED not provided) 2 2 9,5 • The baseboard (skirting) must be ECLISSE SYNTESIS® BASEBOARD 2~ 12,5 ECLISSE SYNTESIS® BASEBOARD can function as a 10 step marker if backlit with LED. 9,5 4 85 25 milled on the top of the rear side: 25 mm from the top, 4 mm in depth (see picture). • The baseboard height must be reduced by 2 mm to allow the 0 light to pass. 56 58 60 • Fix the LED stripe on the back side of the milling (see picture). 58 60 85 The traditional baseboard 12,5 9 0 LED stripe ECLISSE — 43 — 0 A B Syntesis® Collection | FINISHING AND ACCESSORIES | FINISHING AND ACCESSORIES Design becomes concrete through systems that ada

Pagina 40-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 41 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

pt the doors to the frame, matching the linear forms of ECLISSE SYNTESIS® COLLECTIONN, and it turns into pure innovation when c o m b i n e d w i t h t h e s o f tc l o s e r f o r s li d i n g d o o r s . The lock kits are functional solutions that simplify everyday life. T he acce s sorie s de signed for ECLISSE SYNTESIS® COLLECTION are conceived to complement a product that needs solutions able to dialogue with the minimalism of it s forms. Exclusive finishing such as glass doors reinterpret the concept of door, converting it to an integral part of the furniture. “The new wooden essences for the door panels further expand the range. ECLISSE — 44 — | FINISHING AND ACCESSORIES | Syntesis® Collection ECLISSE — 45 — Syntesis® Collection | FINISHING AND ACCESSORIES | info DOORS PRIMER-COATED - LACQUERED - WOOD ESSENCES The primer-coated door panels, either sliding or hinged, are ready to be finished with wallpaper, varnish or painting just as the surrounding w

Pagina 41-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 42 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

all. ECLISSE SYNTESIS® COLLECTION solutions are perfect for hiding walk-in closets and utility rooms. ECLISSE — 46 — | FINISHING AND ACCESSORIES | Syntesis® Collection info DOORS PRIMER-COATED - LACQUERED - WOOD ESSENCES The sliding door panels for the ECLISSE SYNTESIS® COLLECTION models are available in the following finishings: 1. primer-coated untreated door panels ready to be painted or lacquered 2. lacquered door panels in different RAL colours 3. door panels in wooden essences such as natural oak, white ash, natural ash, open pore RAL 9010 white lacquered ash. Door panels, both sliding and hinged have a standard tensioning rod starting from H = 2000 mm. FINISHES PRIMER-COATED RAL 9010 WHITE LACQUERED OPAQUE RAL LACQUERED NATURAL OAK WHITE ASH OPEN PORE RAL 9010 WHITE LACQUERED ASH ECLISSE — 47 — NATURAL ASH Syntesis® Collection | FINISHING AND ACCESSORIES | SLIDING POCKET GLASS DOOR info GLASS DOOR Brightness and lightness ECLISSE sliding glas

Pagina 42-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 43 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

s pocket doors are designed to join, separate and furnish with elegance, always favouring light. ECLISSE offers new lines of all-glass doors: Aree, Flores, Opere and Colors. Aree and Flores are realized with 10 mm thick toughtempered glass with a transparent or satin base. They base can be decorated on one side by using an engraving process (sandblasting) and/or glass fusing applications. Smoked options are available too, both on transparent and satin base, also with engraved decorations. Opere are hand-painted doors on a transparent or satin base, inspired by famous works of art. Colors doors are available in a wide range of plain colours, with coating or satin effect. The glass sliding doors, entirely of glass, are equipped with a special door guide and brackets for fastening them to the ECLISSE sliding systems. The doors may be completed with special handles or with a specific lock kit. All glass sheets are in compliance with current regulations regarding their usage in private and

Pagina 43-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 44 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

public building (UNI 7142 and UNI 7697 standards). AREE FLORES OPERE COLORS ECLISSE — 48 — | FINISHING AND ACCESSORIES | Syntesis® Collection GLASS DOOR WITH STANDARD LOWERED EDGING info GLASS DOOR WITH STANDARD LOWERED EDGING FOR ECLISSE SYNTESIS® LINE AND ECLISSE SYNTESIS® LUCE The all-glass ECLISSE doors in the finishes shown below are supplied with a special aluminium edging with a decidedly minimalist design. Thanks to its reduced height (30 mm) it is barely visible. FINISHES TRASPARENT TRANSPARENT WITH DECORATION SATIN SATIN WITH DECORATION TRASPARENT SMOKED TRASPARENT SMOKED WITH DECORATION SATIN SMOKED SATIN SMOKED WITH DECORATION COATING EFFECT COLOURS SATIN EFFECT COLOURS SILVER MIRROR HAND PAINTED HANDLES STANDARD HANDLES SIROS LOCK KIT PAIR OF HANDLES NISÍ MYRTA THERA AYDIN KOS ECLISSE — 49 — Syntesis® Collection | FINISHING AND ACCESSORIES | info LOCK KITS ECLISSE SYNTESIS® LINE - ECLISSE SYNTESIS® LUCE CASSIOPEA SQU

Pagina 44-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 45 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

ARE - SATIN CHROME HANDLE WITH KEY KIT WITH LOCK AND THUMB TURN KIT WITHOUT LOCK CASSIOPEA ROUND - SATIN CHROME HANDLE WITH KEY KIT WITH LOCK AND THUMB TURN KIT WITHOUT LOCK ECLISSE SYNTESIS® LINE BATTENTE CASSIOPEA BATTENTE SQUARE - SATIN CHROME WITHOUT LOCK WITH KEY WITH THUMB TURN WITH CYLINDER (not included) CASSIOPEA BATTENTE ROUND - SATIN CHROME WITHOUT LOCK WITH KEY WITH THUMB TURN ECLISSE — 50 — WITH CYLINDER (not included) | FINISHING AND ACCESSORIES | Syntesis® Collection info LOCK KITS ECLISSE SYNTESIS® LINE BATTENTE MAGNETIC LOCK FOR ECLISSE SYNTESIS® LINE BATTENTE - ONLY PULL DOORS DOOR PULL ROUND HANDLES DOOR PULL SQUARE HANDLE ECLISSE SYNTESIS® TECH PUSH&PULL STANDARD EQUIPMENT PULL LEVER HANDLE KEY LOCK ECLISSE SYNTESIS® BATTENTE GLASS - SATIN CHROME PAIR OF HANDLES LOCK FOR ECLISSE SYNTESIS® BATTENTE VETRO (handles not included) HANDLES ONLY BLOCK ONLY WITH THUMB TURN LOCK DIMENSIONS CYLINDER FOR GLASS 9 8 21 120 70 F

Pagina 45-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 46 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

ITTED FOR CYLINDER ECLISSE — 51 — Syntesis® Collection | FINISHING AND ACCESSORIES | info ECLISSE SYNTESIS® PLUS VITRO FOR ECLISSE SYNTESIS ® LINE AND ECLISSE SYNTESIS ® LUCE VITRO is the stainless steel veil that allows you to install any glass door on the ECLISSE SYNTESIS® sliding door models. VITRO includes the vertical elements that adapt the frame to the reduced thickness of the glass doors (10 mm). ECLISSE BIAS® ECLISSE BIAS® DS Built-In Anti-Slam Double Side. A bidirectional damper with anti-slam technology, completely hidden inside the track. Suitable for single and double sliding pocket doors. Invisible from the outside, ECLISSE BIAS® DS slows and softly accompanies the door both during the closing phase as well as during the opening phase. Built-In Anti-Slam. The damper for sliding pocket doors, fully integrated inside the track. Invisible from the outside, it’s equipped with an oil piston that slows and softly accompanies the door in the closing pha

Pagina 46-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 47 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

se. It guarantees the closing of a door panel of up to 40 kg with a perfect scrolling. Still, it offers a good slowing down even for doors up to 100 kg. It guarantees the opening and closing of a door panel of up to 40 kg with a perfect scrolling. Still, it offers a good slowing down even for doors up to 100 kg. ECLISSE BIAS® is suitable for glass or wooden doors and for every ECLISSE SYNTESIS® sliding door system. ECLISSE BIAS® DS is suitable for glass or wooden doors and for every ECLISSE SYNTESIS® sliding door system. Only for door panels with passage widths wider than 700 mm (see installation instructions).” ECLISSE — 52 — | FINISHING AND ACCESSORIES | Syntesis® Collection info ECLISSE SYNTESIS® PLUS DOUBLE DOOR CO-ORDINATION - ECLISSE SYNTESIS® This accessory allows you to open and close the two door panels simultaneously by moving only one door at a time. Only for wooden doors from 600+600 mm up to 1000+1000 mm. It comes as standard with ECLISSE BIAS®, th

Pagina 47-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 48 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

at slows down the movement and gently closes the door panels. For doors with a weight up to 50+50 kg, the device only slows down the movement. ECLISSE PUSH&PULL S ECLISSE Push&Pull S is the exclusive accessory for sliding pocket door systems which allows the door panel to be pulled out of the door pocket with a light pressure. This makes it easier to grip the door and makes it handier to close. Suitable for wooden and glass doors (with maximum weight of 50 kg) it can be used with already installed counterframes, thanks to the ECLISSE patented extractable track. The accessory is designed for passage width from 600 to 1300 mm for single doors and from 600+600 to 1300+1300 mm for double doors. ECLISSE PUSH&PULL S can be combined with ECLISSE BIAS®. ECLISSE — 53 — ECLISSE Via Giovanni Pascoli, 7 - 31053 Pieve di Soligo TV - Italy - T. +39 0438 985749 - international.sales@eclisse.it www.eclisseworld.com © 2020 ECLISSE, all rights reserved. The use, filing and total or partia

Pagina 48-Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS® LINE GLISANTA...

Pagina 49 - Brosura Gama Eclisse Syntesis Line - Sisteme pentru usi glisante ECLISSE SYNTESIS®...

l reproduction, using any mechanical or electronic means, of texts, drawings and pictures contained in thispublication is strictly prohibited, unless specifically approved in writing by ECLISSE. All pictures and drawings are for illustrative purposes only. ECLISSE s.r.l. reserves the right to make changes in order to improve the product specifications without notice. We may change the content of this catalogue, so if you have any queries related to the products you can contact our call center. ECLISSE refuses any responsibility for misprints, clerical errors or for any other reason. photo Enrico Dal Zotto graphic creativeblend.it print Scarpis 601011204 09/2020 V Edition - 10/2020 - 601011204 Via Giovanni Pascoli, 7 - 31053 Pieve di Soligo TV - Italy - T. +39 0438 985749 international.sales@eclisse.it - www.eclisseworld.com
