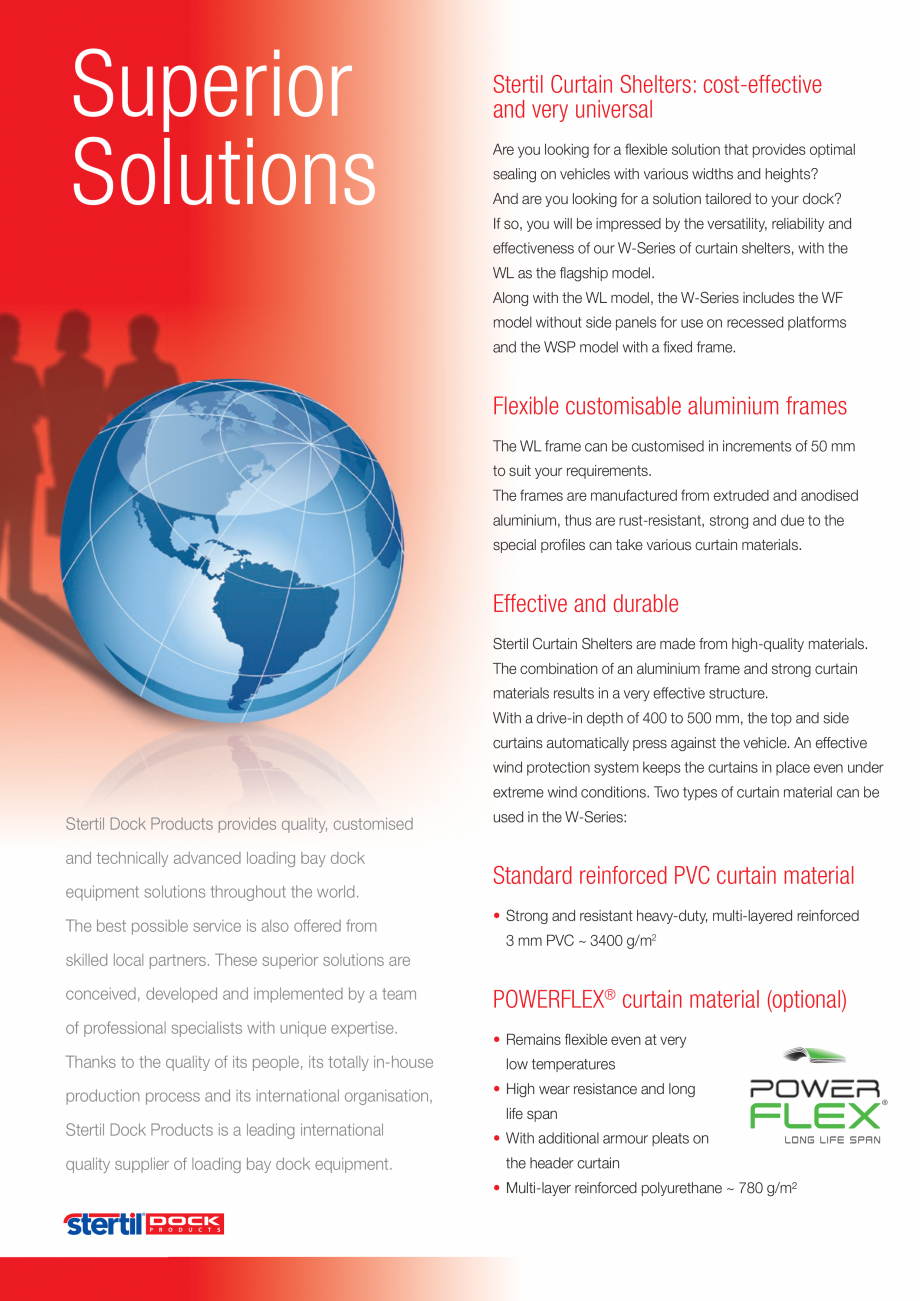

DOCK SHELTERS W-SERIES Curtain Dock Shelters Universal and Flexible STERTIL SUPERIOR SOLUTIONS Superior Solutions Stertil Curtain Shelters: cost-effective and very universal Are you looking for a flexible solution that provides optimal sealing on vehicles with various widths and heights? And are you looking for a solution tailored to your dock? If so, you will be impressed by the versatility, reliability and effectiveness of our W-Series of curtain shelters, with the WL as the flagship model. Along with the WL model, the W-Series includes the WF model without side panels for use on recessed platforms and the WSP model with a fixed frame. Flexible customisable aluminium frames The WL frame can be customised in increments of 50 mm to suit your requirements. The frames are manufactured from extruded and anodised aluminium, thus are rust-resistant, strong and due to the special profiles can take various curtain materials. Effective and durable Stertil Curtain Shelters are made from

Pagina 1-Burdufuri de etansare seria W- cu cortina STERTIL Catalog, brosura Engleza DOCK SHELTERS W-SERIES
...

Pagina 2 - Burdufuri de etansare seria W- cu cortina STERTIL Catalog, brosura Engleza high-quality...

high-quality materials. The combination of an aluminium frame and strong curtain materials results in a very effective structure. With a drive-in depth of 400 to 500 mm, the top and side curtains automatically press against the vehicle. An effective wind protection system keeps the curtains in place even under extreme wind conditions. Two types of curtain material can be Stertil Dock Products provides quality, customised and technically advanced loading bay dock equipment solutions throughout the world. The best possible service is also offered from used in the W-Series: Standard reinforced PVC curtain material • Strong and resistant heavy-duty, multi-layered reinforced 3 mm PVC ~ 3400 g/m2 skilled local partners. These superior solutions are conceived, developed and implemented by a team of professional specialists with unique expertise. Thanks to the quality of its people, its totally in-house production process and its international organisation, Stertil Dock Products is a lea

Pagina 2-Burdufuri de etansare seria W- cu cortina STERTIL Catalog, brosura Engleza high-quality materials....

Pagina 3 - Burdufuri de etansare seria W- cu cortina STERTIL Catalog, brosura Engleza ding...

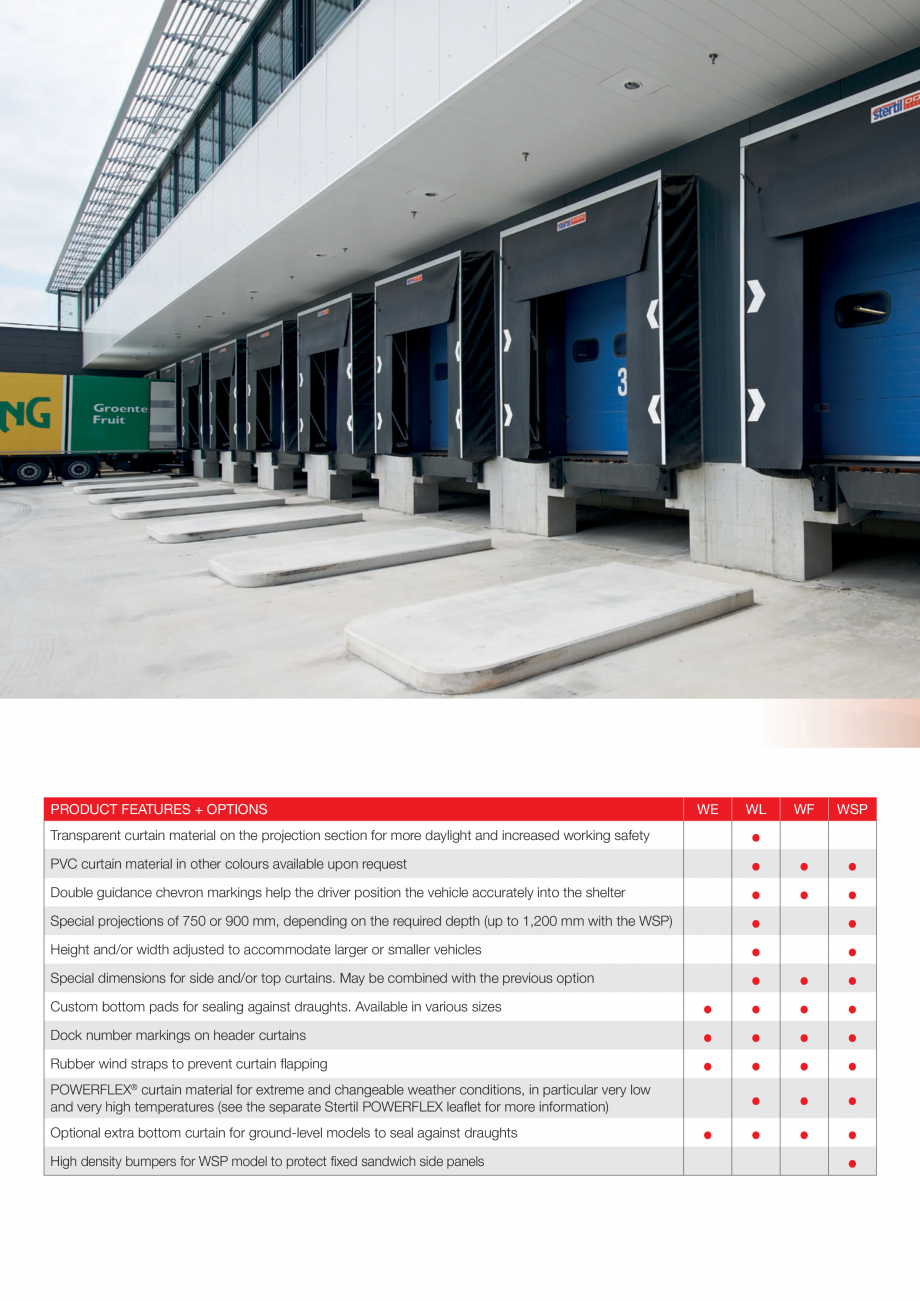

ding international quality supplier of loading bay dock equipment. POWERFLEX® curtain material (optional) • Remains flexible even at very low temperatures • High wear resistance and long life span • With additional armour pleats on the header curtain • Multi-layer reinforced polyurethane ~ 780 g/m² PRODUCT FEATURES + OPTIONS WE WL • • • • • • • • • • • • Transparent curtain material on the projection section for more daylight and increased working safety PVC curtain material in other colours available upon request Double guidance chevron markings help the driver position the vehicle accurately into the shelter Special projections of 750 or 900 mm, depending on the required depth (up to 1,200 mm with the WSP) Height and/or width adjusted to accommodate larger or smaller vehicles Special dimensions for side and/or top curtains. May be combined with the previous option Custom bottom pads for sealing against draughts. Available in various sizes Doc

Pagina 3-Burdufuri de etansare seria W- cu cortina STERTIL Catalog, brosura Engleza ding international...

Pagina 4 - Burdufuri de etansare seria W- cu cortina STERTIL Catalog, brosura Engleza k number...

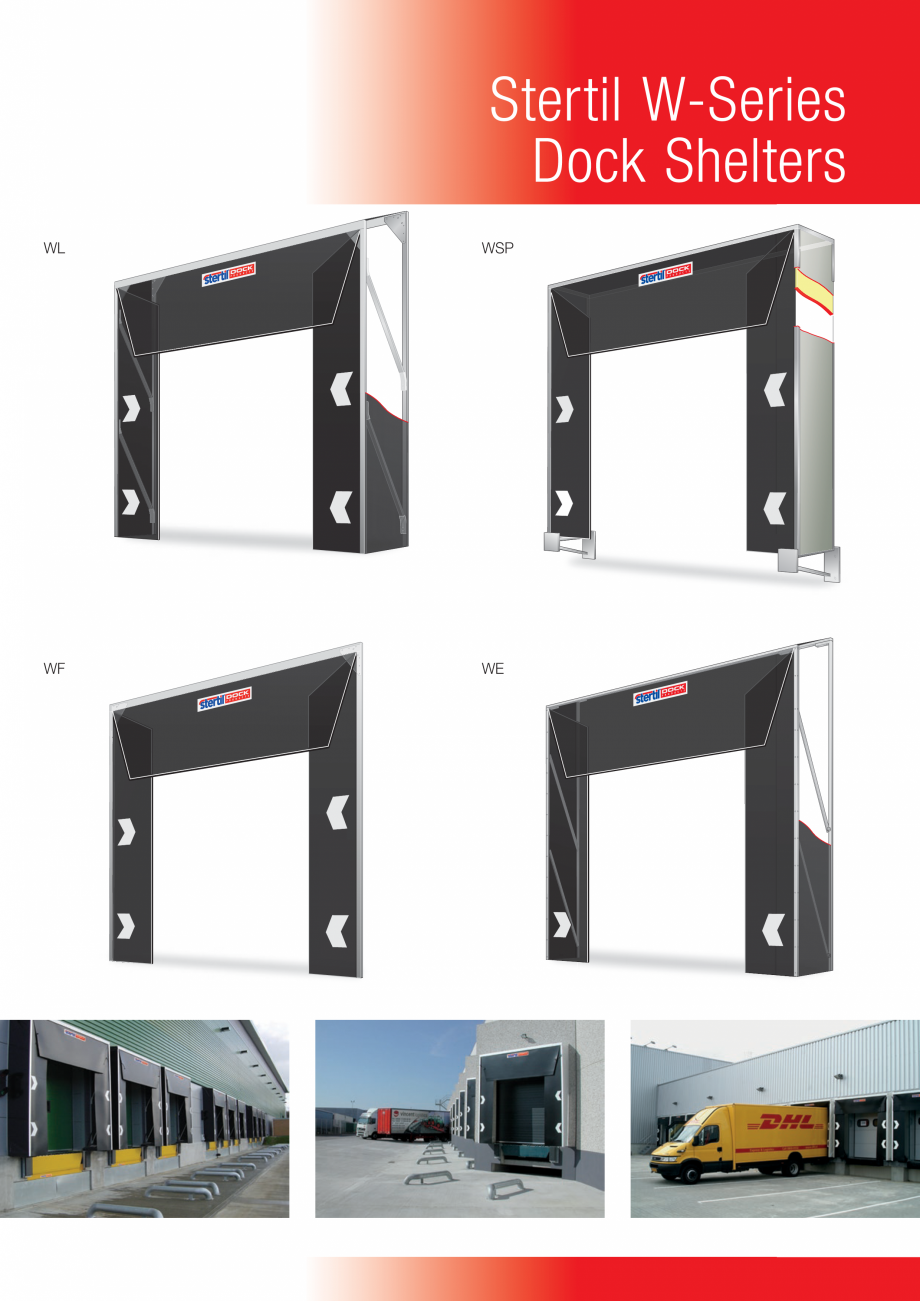

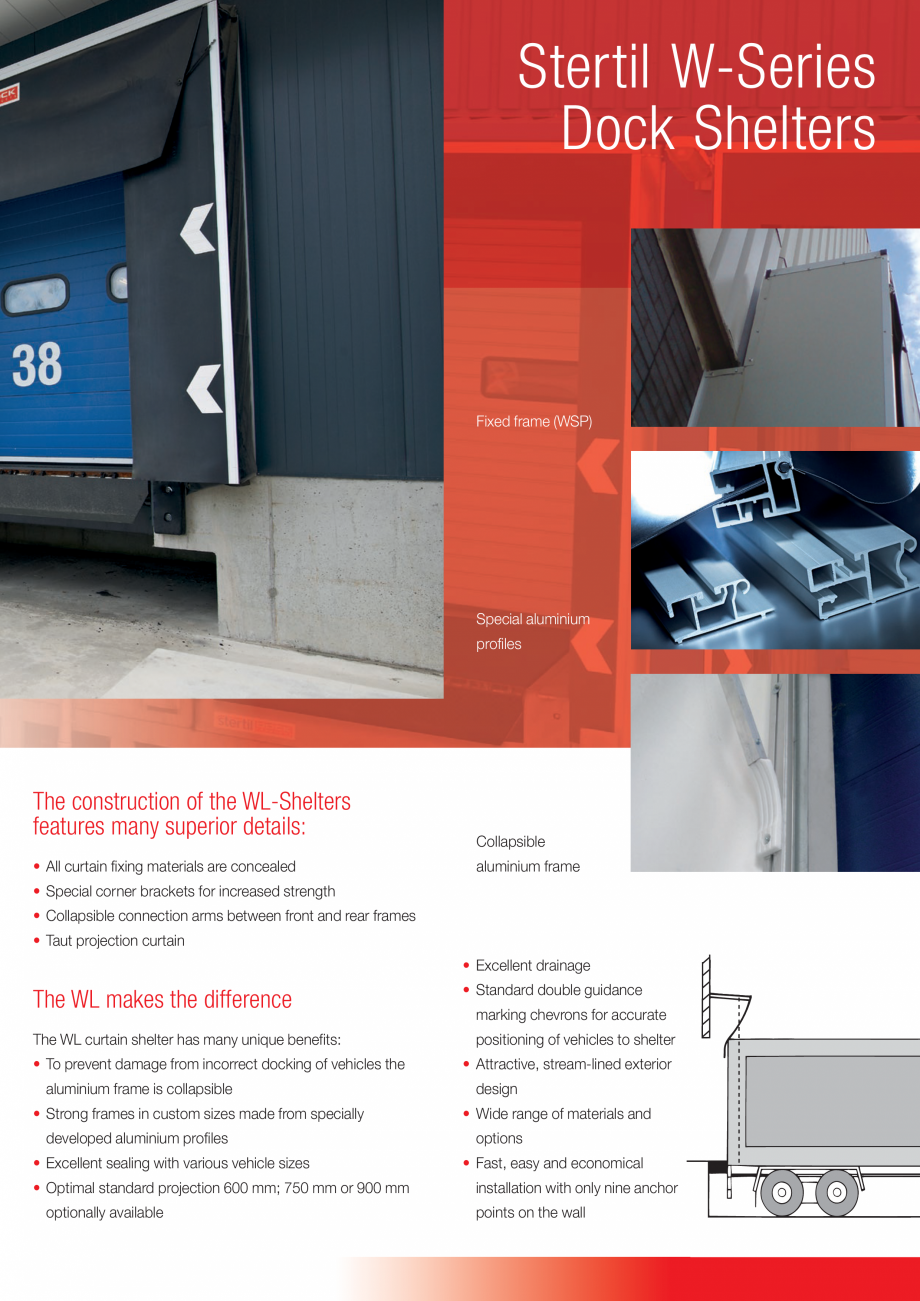

k number markings on header curtains Rubber wind straps to prevent curtain flapping POWERFLEX® curtain material for extreme and changeable weather conditions, in particular very low and very high temperatures (see the separate Stertil POWERFLEX leaflet for more information) Optional extra bottom curtain for ground-level models to seal against draughts High density bumpers for WSP model to protect fixed sandwich side panels • WF WSP • • • • • • • • • • • • • • • • • • • • • Stertil W-Series Dock Shelters Fixed frame (WSP) Special aluminium profiles The construction of the WL-Shelters features many superior details: • All curtain fixing materials are concealed Collapsible aluminium frame • Special corner brackets for increased strength • Collapsible connection arms between front and rear frames • Taut projection curtain • Excellent drainage The WL makes the difference The WL curtain shelter has many unique benefit

Pagina 4-Burdufuri de etansare seria W- cu cortina STERTIL Catalog, brosura Engleza k number markings on...

Pagina 5 - Burdufuri de etansare seria W- cu cortina STERTIL Catalog, brosura Engleza s:
• To...

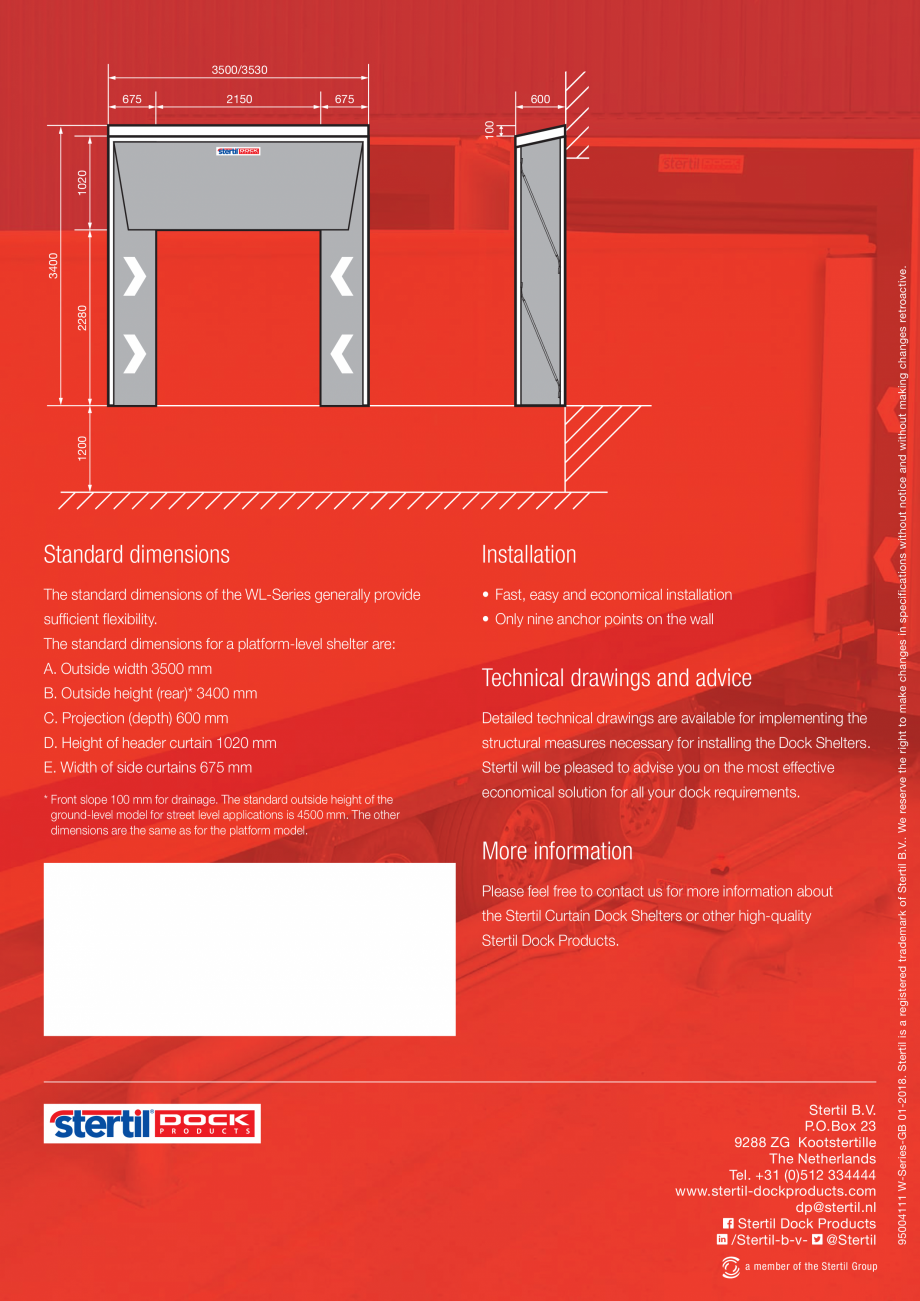

s: • To prevent damage from incorrect docking of vehicles the aluminium frame is collapsible • Strong frames in custom sizes made from specially developed aluminium profiles • Excellent sealing with various vehicle sizes • Optimal standard projection 600 mm; 750 mm or 900 mm optionally available • Standard double guidance marking chevrons for accurate positioning of vehicles to shelter • Attractive, stream-lined exterior design • Wide range of materials and options • Fast, easy and economical installation with only nine anchor points on the wall Stertil W-Series Dock Shelters WL WSP WL WF WSP WE WF WE 3500/3530 2150 675 600 Standard dimensions Installation The standard dimensions of the WL-Series generally provide • Fast, easy and economical installation sufficient flexibility. • Only nine anchor points on the wall The standard dimensions for a platform-level shelter are: A. Outside width 3500 mm B. Outside height (rear)* 3400 mm Technical drawin

Pagina 5-Burdufuri de etansare seria W- cu cortina STERTIL Catalog, brosura Engleza s:
• To prevent damage ...

Pagina 6 - Burdufuri de etansare seria W- cu cortina STERTIL Catalog, brosura Engleza gs and advice
...

gs and advice C. Projection (depth) 600 mm Detailed technical drawings are available for implementing the D. Height of header curtain 1020 mm structural measures necessary for installing the Dock Shelters. E. Width of side curtains 675 mm Stertil will be pleased to advise you on the most effective * Front slope 100 mm for drainage. The standard outside height of the ground-level model for street level applications is 4500 mm. The other dimensions are the same as for the platform model. economical solution for all your dock requirements. More information Please feel free to contact us for more information about the Stertil Curtain Dock Shelters or other high-quality Stertil Dock Products. Stertil B.V. P.O.Box 23 9288 ZG Kootstertille The Netherlands Tel. +31 (0)512 334444 www.stertil-dockproducts.com dp@stertil.nl Stertil Dock Products /Stertil-b-v- @Stertil a member of the Stertil Group 95004111 W-Series-GB 01-2018. Stertil is a registered trademark of Stertil B.V.. We reser
