Deck 10/04 e1 02.03.2005 6:51 Uhr Seite 1 A C C E S S C O V E R S DECK ® Your best decision: our quality www.hago.at Deck 10/04 e1 02.03.2005 6:51 Uhr Seite 2 A C C E S S C O V E R S DECK ® Our business philosophy Our sole aim is your satisfaction. We offer innovative product design, a high level of specialist skills, an ongoing quality control system and reliable delivery dates. And should you ever have a complaint, you have my personal assurance that it will be dealt with competently and quickly. Yours sincerely, Udo Gossner (Managing Director) Page 2 3/4/5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 20 21 22 23 24 25 26 28 29 30 31 Key: yes Type / Content HAGO Philosophy/overview of types HAGO features BV B BVA BVE BVA light BVA comfort BV-shallow BV-F90 BVS-250 BVS-400 BV-GD/BVE-GD automatic BV-GDZ automatic BVH maxi BVH-GD maxi BVHS 250 BVHS 400 RV/RVE RVA BR/RG BV thermo BVA multi Sealed duct covers FAQs - frequently asked questions FAQs - frequently asked quest

Pagina 1-Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ AUTOMATIC STEEL,...

Pagina 2 - Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ...

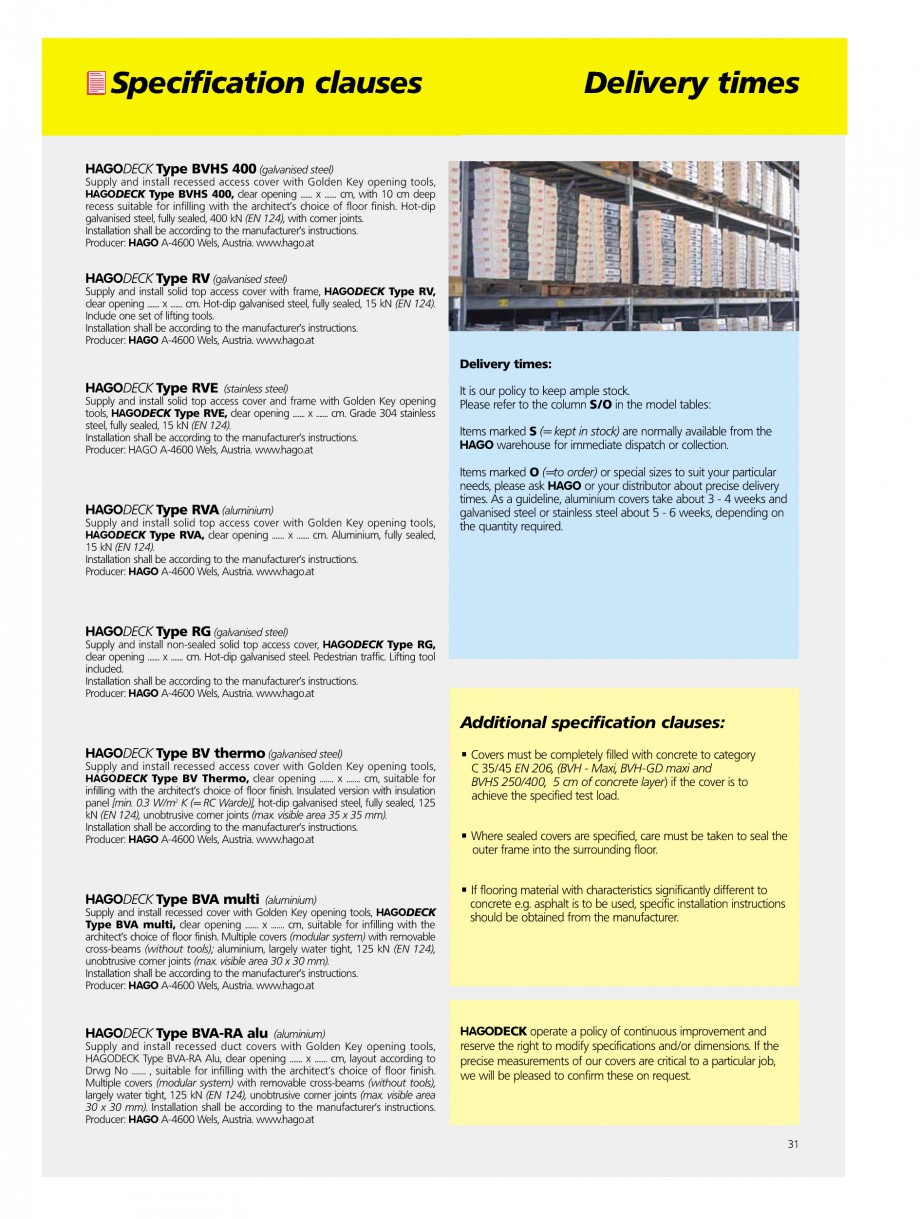

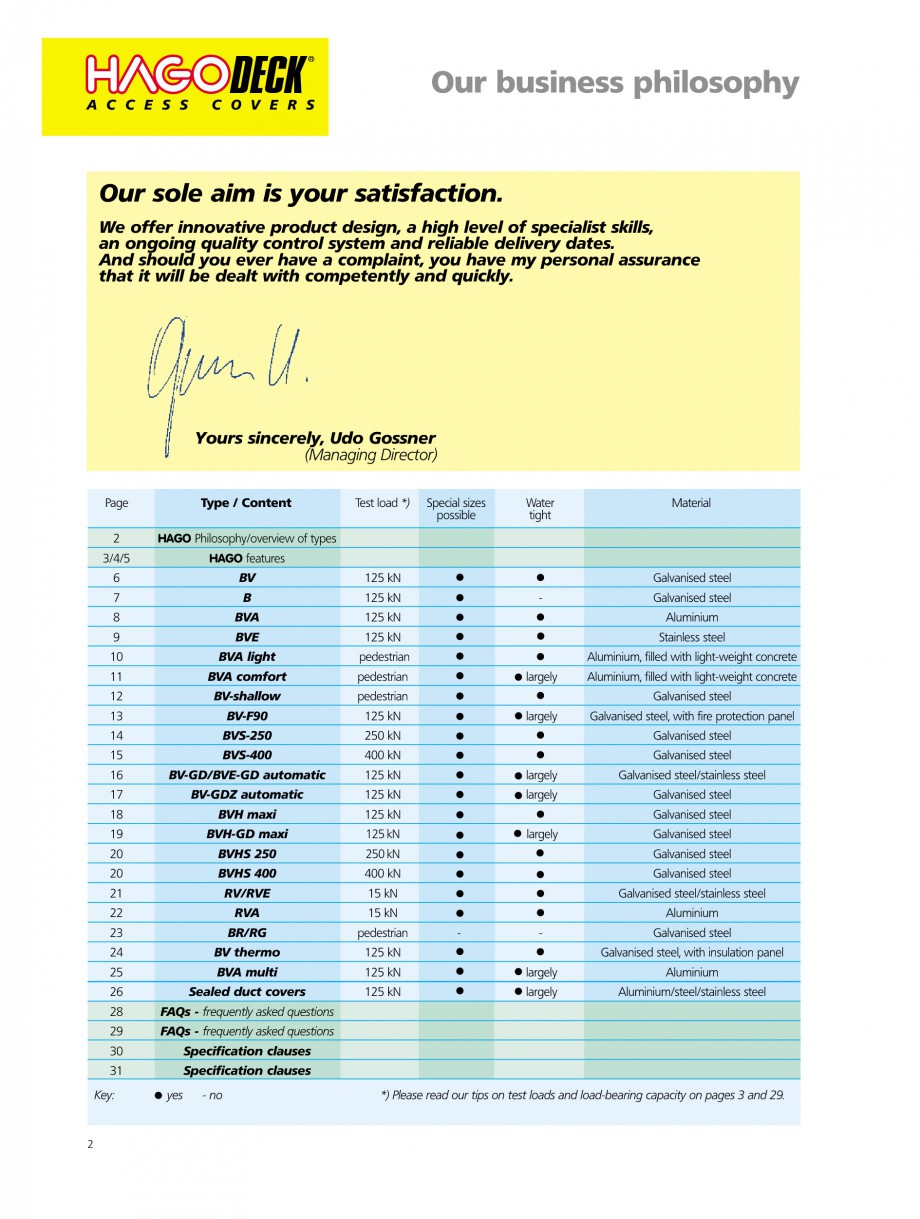

ions Specification clauses Specification clauses - no *) Please read our tips on test loads and load-bearing capacity on pages 3 and 29. 125 kN 125 kN 125 kN 125 kN pedestrian pedestrian pedestrian 125 kN 250 kN 400 kN 125 kN 125 kN 125 kN 125 kN 250 kN 400 kN 15 kN 15 kN pedestrian 125 kN 125 kN 125 kN largely largely largely largely largely largely largely Galvanised steel Galvanised steel Aluminium Stainless steel Aluminium, filled with light-weight concrete Aluminium, filled with light-weight concrete Galvanised steel Galvanised steel, with fire protection panel Galvanised steel Galvanised steel Galvanised steel/stainless steel Galvanised steel Galvanised steel Galvanised steel Galvanised steel Galvanised steel Galvanised steel/stainless steel Aluminium Galvanised steel Galvanised steel, with insulation panel Aluminium Aluminium/steel/stainless steel Test load *) Special sizes possible Water tight Material 2 Deck 10/04 e1 02.03.2005 6:51 Uhr Seite 3 A C C E S S C O V E R S

Pagina 2-Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ AUTOMATIC STEEL,...

Pagina 3 - Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ...

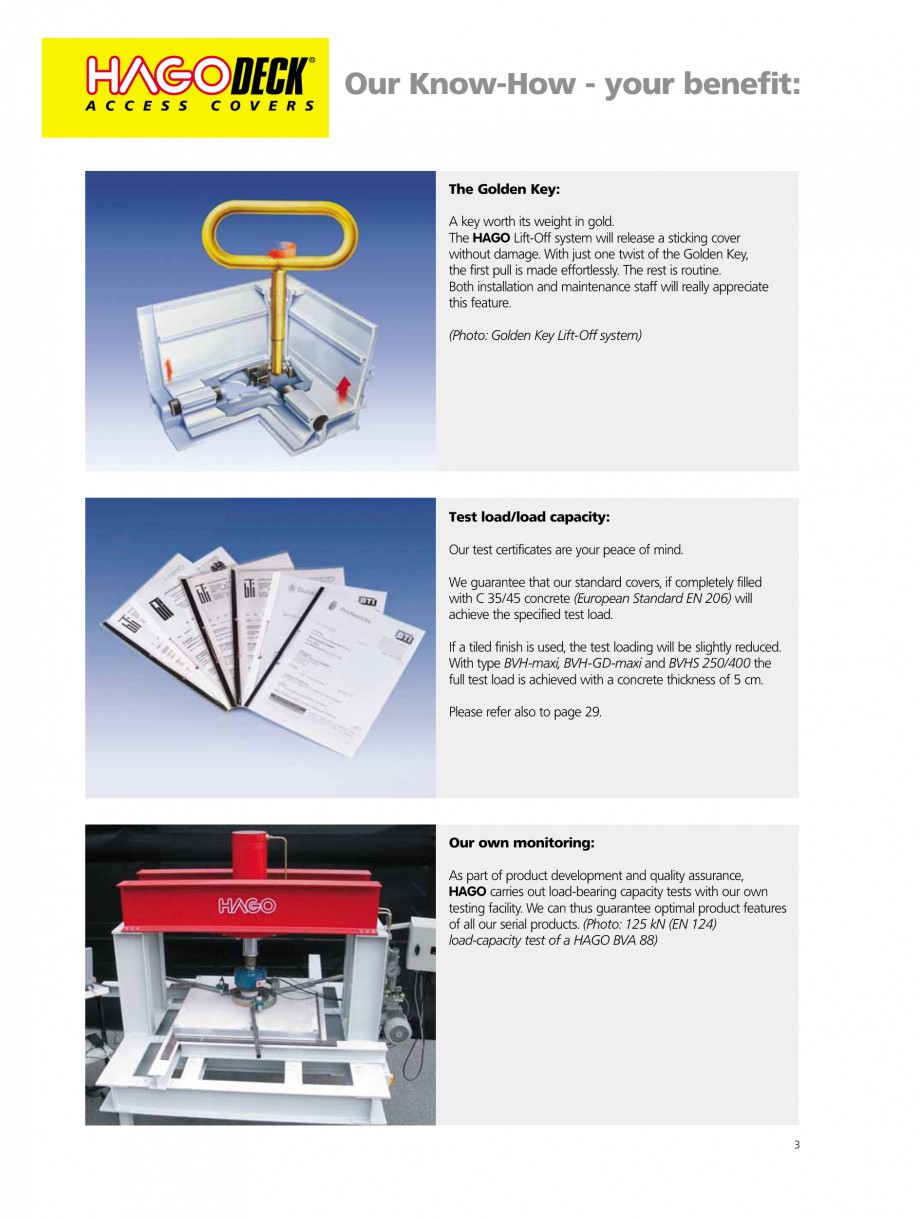

DECK ® Our Know-How - your benefit: The Golden Key: A key worth its weight in gold. The HAGO Lift-Off system will release a sticking cover without damage. With just one twist of the Golden Key, the first pull is made effortlessly. The rest is routine. Both installation and maintenance staff will really appreciate this feature. (Photo: Golden Key Lift-Off system) Test load/load capacity: Our test certificates are your peace of mind. We guarantee that our standard covers, if completely filled with C 35/45 concrete (European Standard EN 206) will achieve the specified test load. If a tiled finish is used, the test loading will be slightly reduced. With type BVH-maxi, BVH-GD-maxi and BVHS 250/400 the full test load is achieved with a concrete thickness of 5 cm. Please refer also to page 29. Our own monitoring: As part of product development and quality assurance, HAGO carries out load-bearing capacity tests with our own testing facility. We can thus guarantee optimal product features

Pagina 3-Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ AUTOMATIC STEEL,...

Pagina 4 - Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ...

of all our serial products. (Photo: 125 kN (EN 124) load-capacity test of a HAGO BVA 88) 3 Deck 10/04 e1 02.03.2005 6:51 Uhr Seite 4 A C C E S S C O V E R S DECK ® Our Know-How - your benefit: Precision-made: Our covers are manufactured to an accuracy based on EN Standard 22768-1 „Tolerance for length and corner dimensions“. Waterproofing: Our sealed covers are (unless otherwise advised) resistant to standing surface water or back pressure up to 0.1 bar =1000 mm head of water. (Photo: Watertightness test) Fire protection: An official IBS fire-test confirms that fire cannot pass through our BV-F90 cover for a period of at least 90 minutes. Stock: We keep large stocks of all standard HAGODECK covers permanently available for you at our Wels warehouse, our Vienna branch and our dealers. Packaging and Labelling: Standard covers are packed with cardboard corners. These provide adequate protection during transport, and minimum use of cardboard is environmentally sound. C

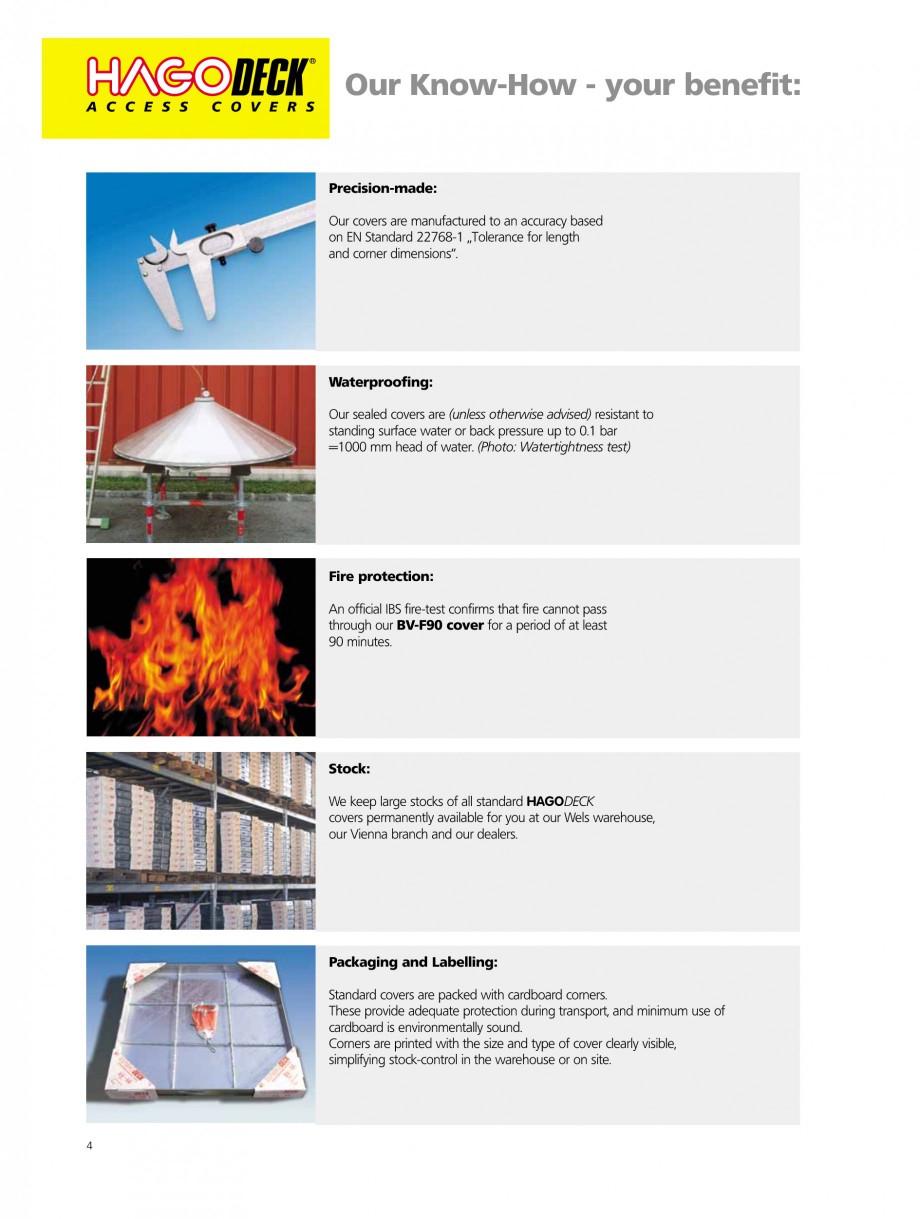

Pagina 4-Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ AUTOMATIC STEEL,...

Pagina 5 - Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ...

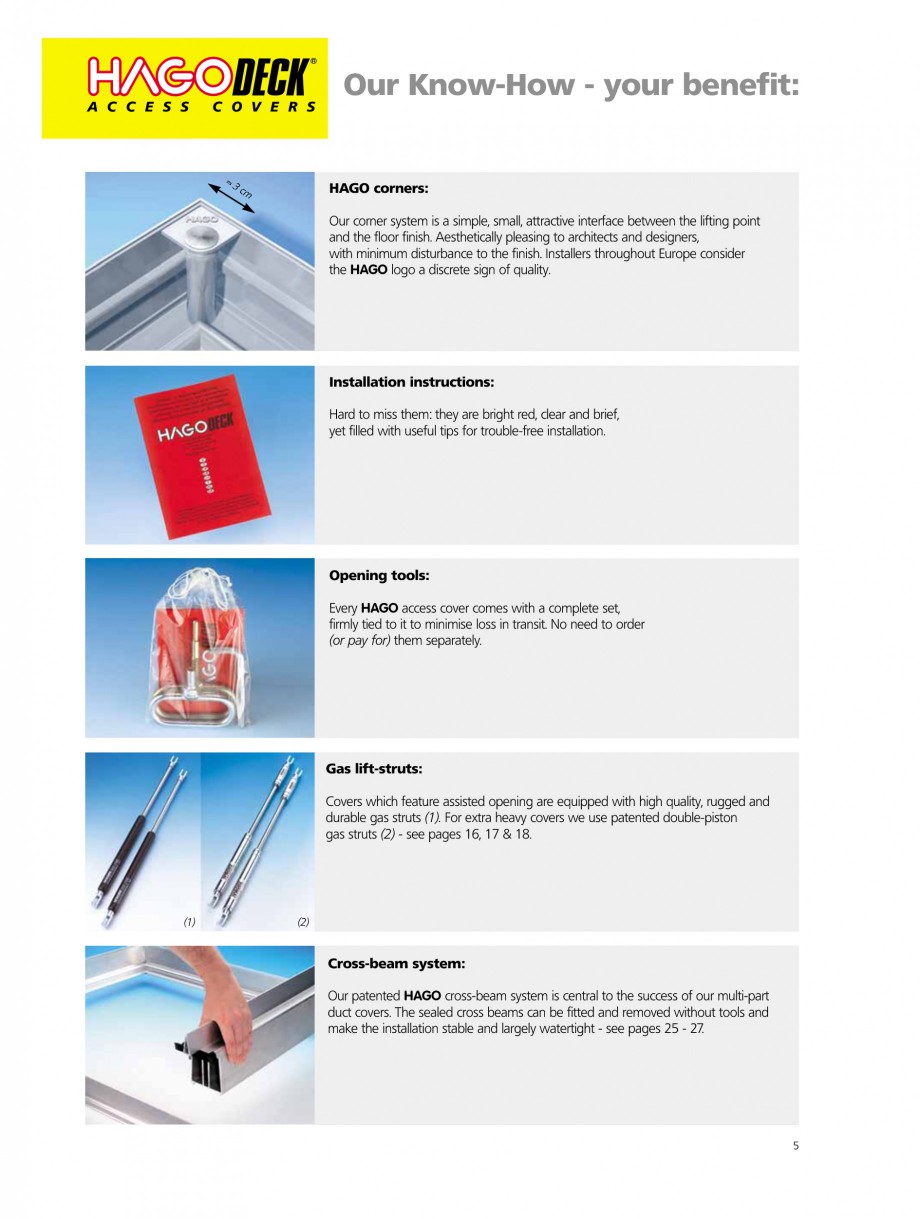

orners are printed with the size and type of cover clearly visible, simplifying stock-control in the warehouse or on site. 4 Deck 10/04 e1 02.03.2005 6:51 Uhr Seite 5 A C C E S S C O V E R S DECK cm ® Our Know-How - your benefit: ≈3 HAGO corners: Our corner system is a simple, small, attractive interface between the lifting point and the floor finish. Aesthetically pleasing to architects and designers, with minimum disturbance to the finish. Installers throughout Europe consider the HAGO logo a discrete sign of quality. Installation instructions: Hard to miss them: they are bright red, clear and brief, yet filled with useful tips for trouble-free installation. Opening tools: Every HAGO access cover comes with a complete set, firmly tied to it to minimise loss in transit. No need to order (or pay for) them separately. Gas lift-struts: Covers which feature assisted opening are equipped with high quality, rugged and durable gas struts (1). For extra heavy covers we use p

Pagina 5-Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ AUTOMATIC STEEL,...

Pagina 6 - Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ...

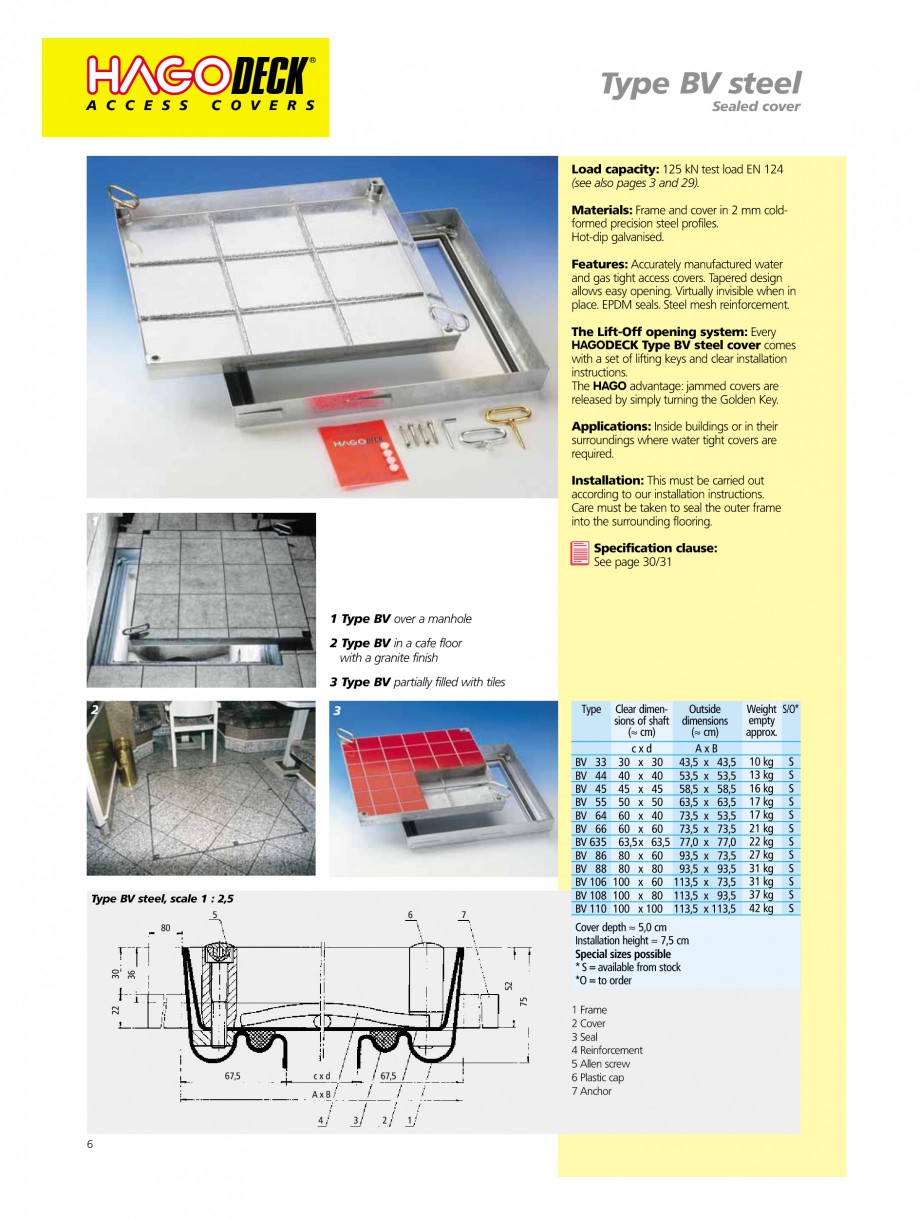

atented double-piston gas struts (2) - see pages 16, 17 & 18. (1) (2) Cross-beam system: Our patented HAGO cross-beam system is central to the success of our multi-part duct covers. The sealed cross beams can be fitted and removed without tools and make the installation stable and largely watertight - see pages 25 - 27. 5 Deck 10/04 e1 02.03.2005 6:51 Uhr Seite 6 A C C E S S C O V E R S DECK ® Type BV steel Load capacity: 125 kN test load EN 124 (see also pages 3 and 29). Materials: Frame and cover in 2 mm coldformed precision steel profiles. Hot-dip galvanised. Features: Accurately manufactured water and gas tight access covers. Tapered design allows easy opening. Virtually invisible when in place. EPDM seals. Steel mesh reinforcement. The Lift-Off opening system: Every HAGODECK Type BV steel cover comes with a set of lifting keys and clear installation instructions. The HAGO advantage: jammed covers are released by simply turning the Golden Key. Applications: Inside bui

Pagina 6-Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ AUTOMATIC STEEL,...

Pagina 7 - Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ...

ldings or in their surroundings where water tight covers are required. Installation: This must be carried out according to our installation instructions. Care must be taken to seal the outer frame into the surrounding flooring. Specification clause: See page 30/31 Sealed cover 1 1 Type BV over a manhole 2 Type BV in a cafe floor with a granite finish 3 Type BV partially filled with tiles 2 3 Type Weight S/O* Clear dimenOutside empty sions of shaft dimensions approx. (≈ cm) (≈ cm) cxd AxB 30 x 30 43,5 x 43,5 10 kg S 40 x 40 53,5 x 53,5 13 kg S 45 x 45 58,5 x 58,5 16 kg S 50 x 50 63,5 x 63,5 17 kg S 60 x 40 73,5 x 53,5 17 kg S 60 x 60 73,5 x 73,5 21 kg S 63,5 x 63,5 77,0 x 77,0 22 kg S 80 x 60 93,5 x 73,5 27 kg S 80 x 80 93,5 x 93,5 31 kg S 100 x 60 113,5 x 73,5 31 kg S 100 x 80 113,5 x 93,5 37 kg S 100 x 100 113,5 x 113,5 42 kg S Type BV steel, scale 1 : 2,5 5 80 6 7 BV 33 BV 44 BV 45 BV 55 BV 64 BV 66 BV 635 BV 86 BV 88 BV 106 BV 108 BV 110 52 Cover depth ≈ 5,0 cm Installa

Pagina 7-Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ AUTOMATIC STEEL,...

Pagina 8 - Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ...

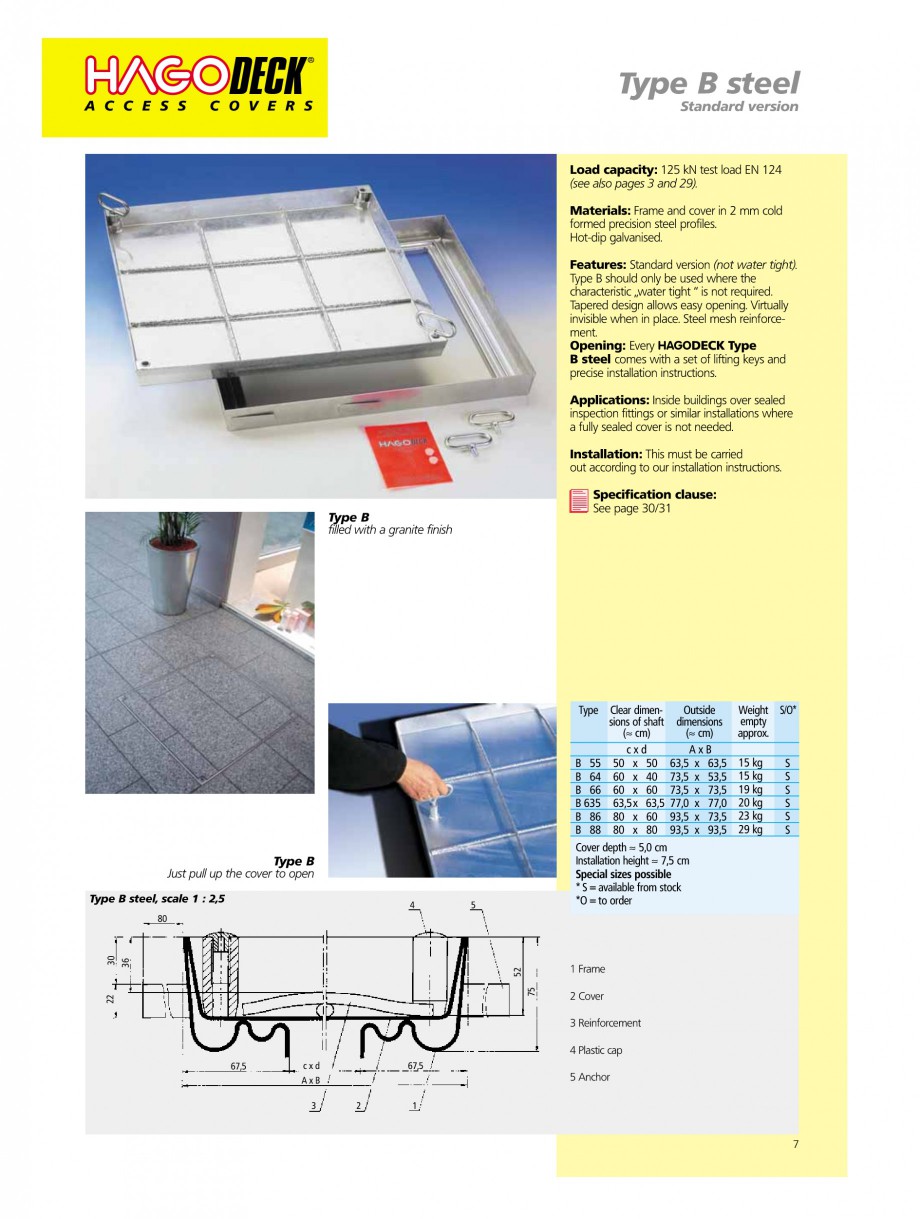

tion height ≈ 7,5 cm Special sizes possible * S = available from stock *O = to order 75 30 36 67,5 cxd AxB 4 3 67,5 1 Frame 2 Cover 3 Seal 4 Reinforcement 5 Allen screw 6 Plastic cap 7 Anchor 22 2 1 6 Deck 10/04 e1 02.03.2005 6:51 Uhr Seite 7 A C C E S S C O V E R S DECK ® Type B steel Load capacity: 125 kN test load EN 124 (see also pages 3 and 29). Materials: Frame and cover in 2 mm cold formed precision steel profiles. Hot-dip galvanised. Features: Standard version (not water tight). Type B should only be used where the characteristic „water tight “ is not required. Tapered design allows easy opening. Virtually invisible when in place. Steel mesh reinforcement. Opening: Every HAGODECK Type B steel comes with a set of lifting keys and precise installation instructions. Applications: Inside buildings over sealed inspection fittings or similar installations where a fully sealed cover is not needed. Installation: This must be carried out according to our instal

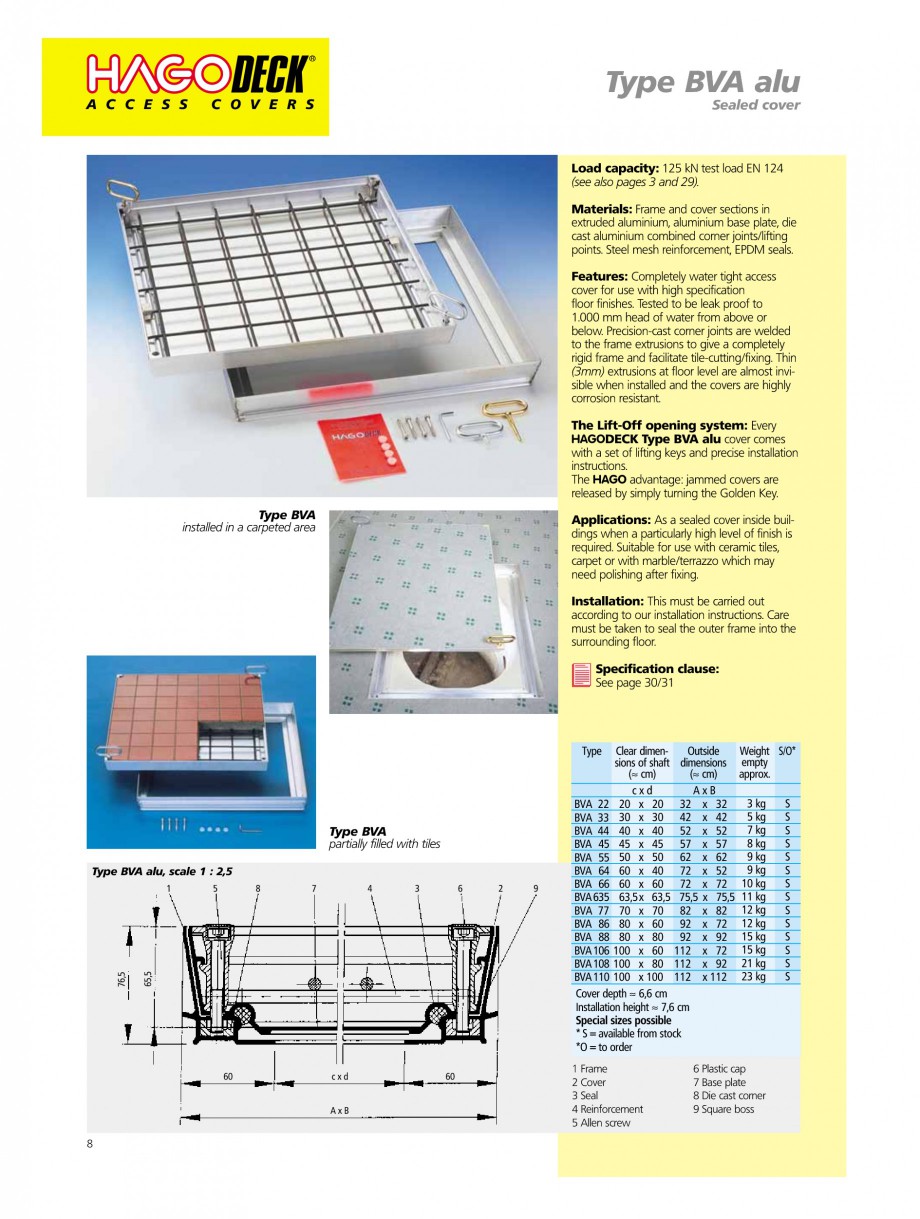

Pagina 8-Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ AUTOMATIC STEEL,...

Pagina 9 - Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ...

lation instructions. Specification clause: See page 30/31 Standard version Type B filled with a granite finish Type B 55 B 64 B 66 B 635 B 86 B 88 Clear dimensions of shaft (≈ cm) cxd 50 x 50 60 x 40 60 x 60 63,5 x 63,5 80 x 60 80 x 80 Outside dimensions (≈ cm) AxB 63,5 x 63,5 73,5 x 53,5 73,5 x 73,5 77,0 x 77,0 93,5 x 73,5 93,5 x 93,5 Weight S/O* empty approx. 15 kg 15 kg 19 kg 20 kg 23 kg 29 kg S S S S S S Type B Just pull up the cover to open Type B steel, scale 1 : 2,5 80 4 5 Cover depth ≈ 5,0 cm Installation height ≈ 7,5 cm Special sizes possible * S = available from stock *O = to order 30 36 52 1 Frame 75 22 2 Cover 3 Reinforcement 4 Plastic cap 67,5 cxd AxB 3 2 67,5 5 Anchor 1 7 Deck 10/04 e1 02.03.2005 6:51 Uhr Seite 8 A C C E S S C O V E R S DECK ® Type BVA alu Load capacity: 125 kN test load EN 124 (see also pages 3 and 29). Materials: Frame and cover sections in extruded aluminium, aluminium base plate, die cast aluminium combined corner

Pagina 9-Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ AUTOMATIC STEEL,...

Pagina 10 - Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ...

joints/lifting points. Steel mesh reinforcement, EPDM seals. Features: Completely water tight access cover for use with high specification floor finishes. Tested to be leak proof to 1.000 mm head of water from above or below. Precision-cast corner joints are welded to the frame extrusions to give a completely rigid frame and facilitate tile-cutting/fixing. Thin (3mm) extrusions at floor level are almost invisible when installed and the covers are highly corrosion resistant. The Lift-Off opening system: Every HAGODECK Type BVA alu cover comes with a set of lifting keys and precise installation instructions. The HAGO advantage: jammed covers are released by simply turning the Golden Key. Sealed cover Type BVA installed in a carpeted area Applications: As a sealed cover inside buildings when a particularly high level of finish is required. Suitable for use with ceramic tiles, carpet or with marble/terrazzo which may need polishing after fixing. Installation: This must be carried out a

Pagina 10-Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ AUTOMATIC STEEL,...

Pagina 11 - Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ...

ccording to our installation instructions. Care must be taken to seal the outer frame into the surrounding floor. Specification clause: See page 30/31 Type BVA partially filled with tiles Type BVA alu, scale 1 : 2,5 1 5 8 7 4 3 6 2 9 Clear dimenOutside sions of shaft dimensions (≈ cm) (≈ cm) cxd AxB BVA 22 20 x 20 32 x 32 BVA 33 30 x 30 42 x 42 BVA 44 40 x 40 52 x 52 BVA 45 45 x 45 57 x 57 BVA 55 50 x 50 62 x 62 BVA 64 60 x 40 72 x 52 BVA 66 60 x 60 72 x 72 BVA 635 63,5 x 63,5 75,5 x 75,5 BVA 77 70 x 70 82 x 82 BVA 86 80 x 60 92 x 72 BVA 88 80 x 80 92 x 92 BVA 106 100 x 60 112 x 72 BVA 108 100 x 80 112 x 92 BVA 110 100 x 100 112 x 112 Cover depth ≈ 6,6 cm Installation height ≈ 7,6 cm Special sizes possible * S = available from stock *O = to order 1 Frame 2 Cover 3 Seal 4 Reinforcement 5 Allen screw Type Weight S/O* empty approx. 3 kg 5 kg 7 kg 8 kg 9 kg 9 kg 10 kg 11 kg 12 kg 12 kg 15 kg 15 kg 21 kg 23 kg S S S S S S S S S S S S S S 76,5 65,5 60 cxd 60 AxB 6 Plastic

Pagina 11-Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ AUTOMATIC STEEL,...

Pagina 12 - Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ...

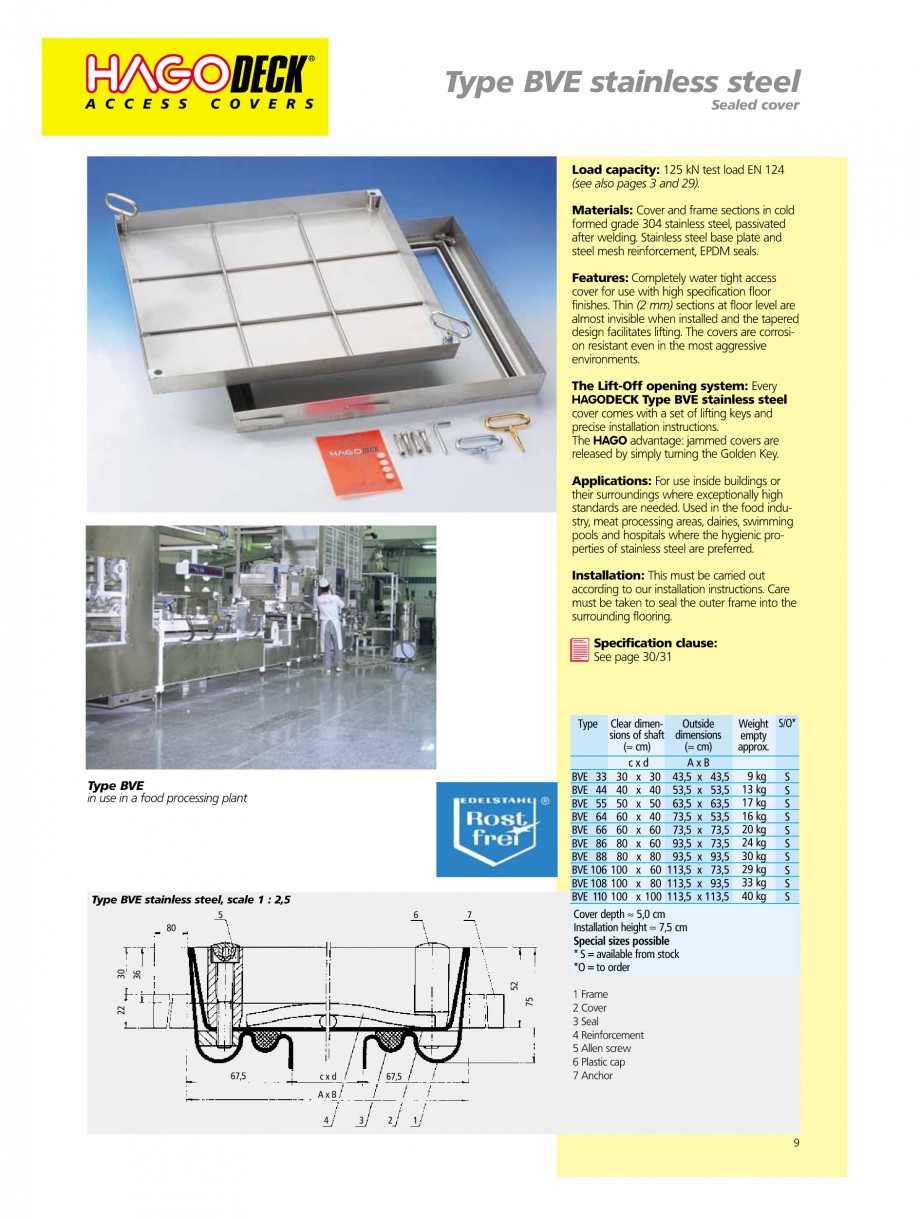

cap 7 Base plate 8 Die cast corner 9 Square boss 8 Deck 10/04 e1 02.03.2005 6:52 Uhr Seite 9 A C C E S S C O V E R S DECK ® Type BVE stainless steel Sealed cover Load capacity: 125 kN test load EN 124 (see also pages 3 and 29). Materials: Cover and frame sections in cold formed grade 304 stainless steel, passivated after welding. Stainless steel base plate and steel mesh reinforcement, EPDM seals. Features: Completely water tight access cover for use with high specification floor finishes. Thin (2 mm) sections at floor level are almost invisible when installed and the tapered design facilitates lifting. The covers are corrosion resistant even in the most aggressive environments. The Lift-Off opening system: Every HAGODECK Type BVE stainless steel cover comes with a set of lifting keys and precise installation instructions. The HAGO advantage: jammed covers are released by simply turning the Golden Key. Applications: For use inside buildings or their surroundings where except

Pagina 12-Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ AUTOMATIC STEEL,...

Pagina 13 - Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ...

ionally high standards are needed. Used in the food industry, meat processing areas, dairies, swimming pools and hospitals where the hygienic properties of stainless steel are preferred. Installation: This must be carried out according to our installation instructions. Care must be taken to seal the outer frame into the surrounding flooring. Specification clause: See page 30/31 Type BVE in use in a food processing plant Type BVE stainless steel, scale 1 : 2,5 5 80 6 7 Clear dimenOutside Weight S/O* sions of shaft dimensions empty (≈ cm) (≈ cm) approx. cxd AxB 9 kg BVE 33 30 x 30 43,5 x 43,5 S BVE 44 40 x 40 53,5 x 53,5 13 kg S BVE 55 50 x 50 63,5 x 63,5 17 kg S BVE 64 60 x 40 73,5 x 53,5 16 kg S BVE 66 60 x 60 73,5 x 73,5 20 kg S BVE 86 80 x 60 93,5 x 73,5 24 kg S BVE 88 80 x 80 93,5 x 93,5 30 kg S BVE 106 100 x 60 113,5 x 73,5 29 kg S BVE 108 100 x 80 113,5 x 93,5 33 kg S BVE @@0 100 x 100 113,5 x 113,5 40 kg S Type Cover depth ≈ 5,0 cm Installation height ≈ 7,5 cm Special

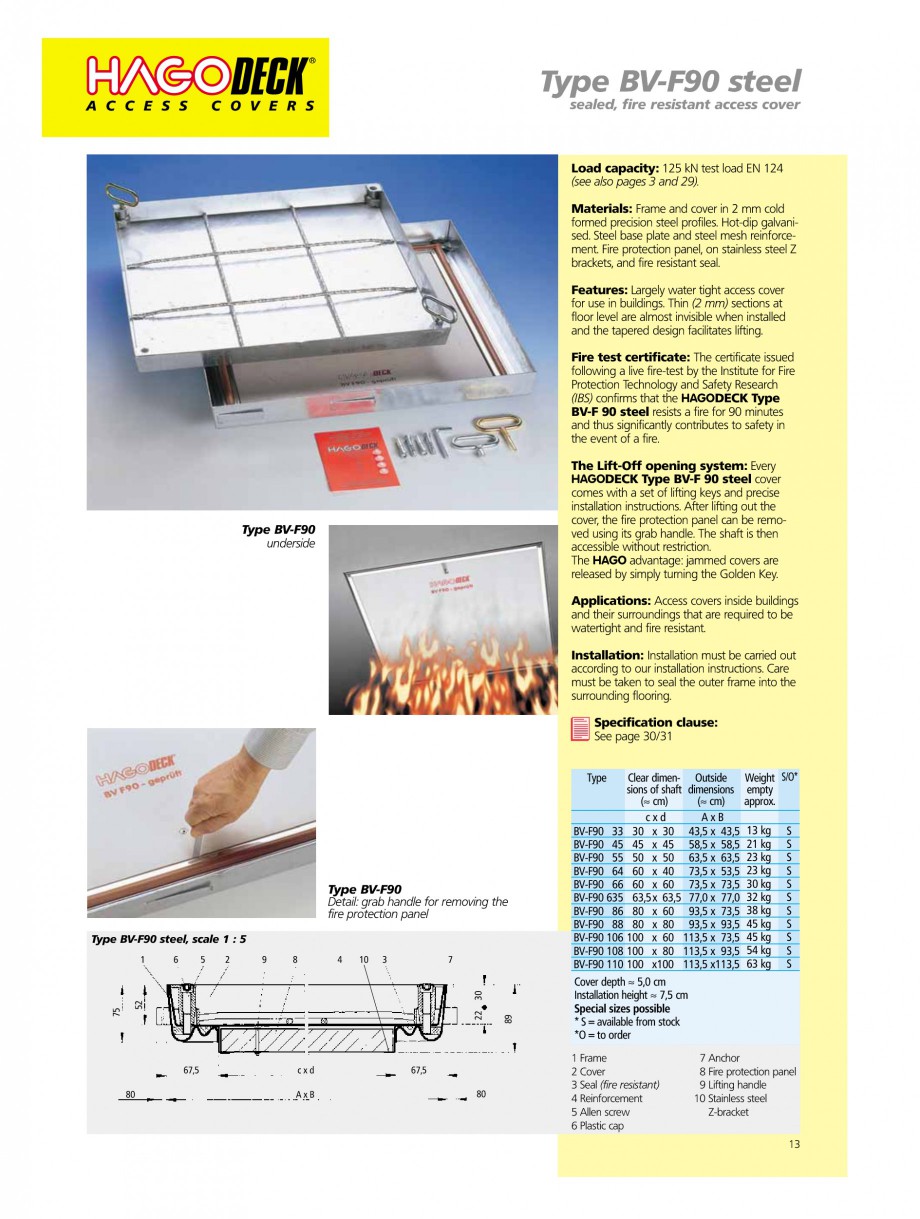

Pagina 13-Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ AUTOMATIC STEEL,...

Pagina 14 - Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ...

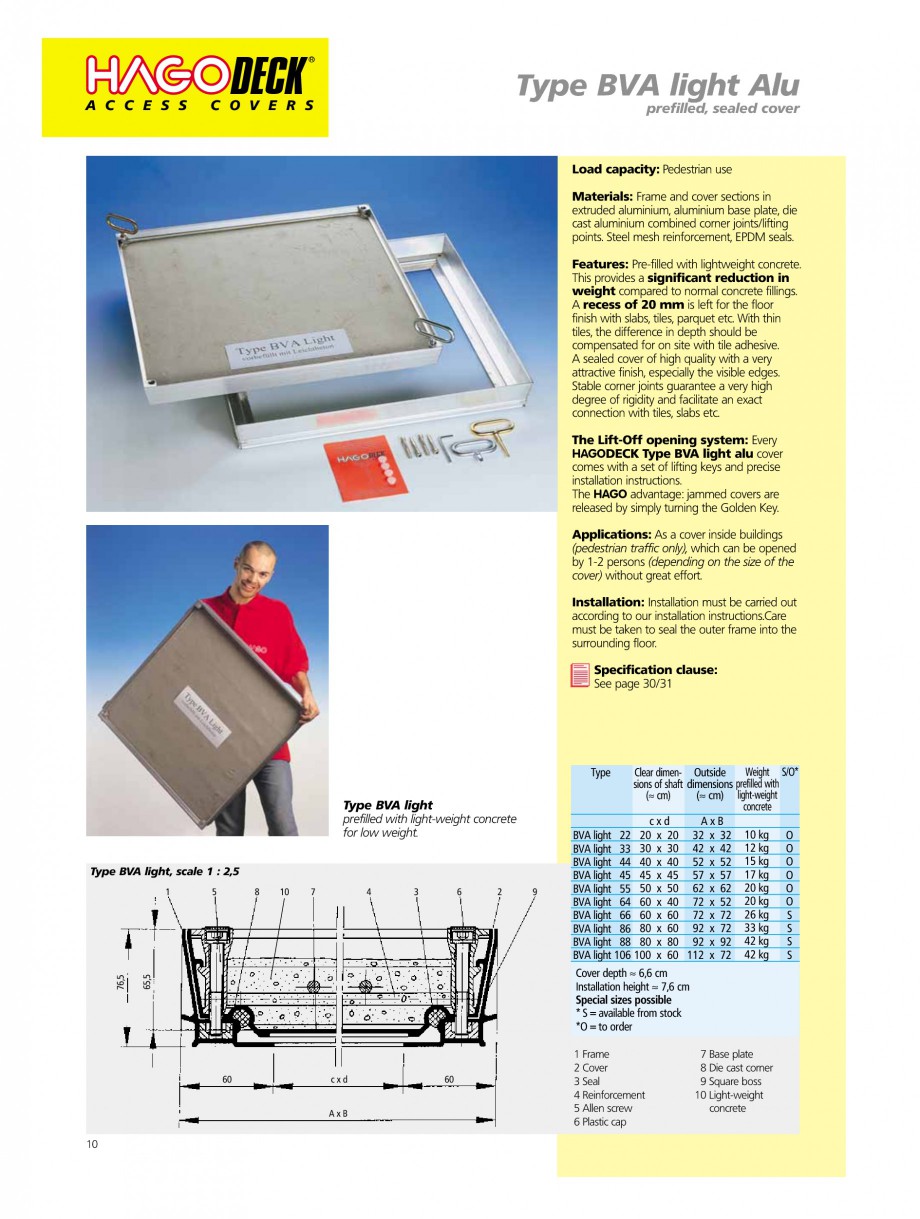

sizes possible * S = available from stock *O = to order 52 30 36 67,5 cxd AxB 4 3 67,5 1 Frame 2 Cover 3 Seal 4 Reinforcement 5 Allen screw 6 Plastic cap 7 Anchor 22 2 1 75 9 Deck 10/04 e1 02.03.2005 6:52 Uhr Seite 10 A C C E S S C O V E R S DECK ® Type BVA light Alu prefilled, sealed cover Load capacity: Pedestrian use Materials: Frame and cover sections in extruded aluminium, aluminium base plate, die cast aluminium combined corner joints/lifting points. Steel mesh reinforcement, EPDM seals. Features: Pre-filled with lightweight concrete. This provides a significant reduction in weight compared to normal concrete fillings. A recess of 20 mm is left for the floor finish with slabs, tiles, parquet etc. With thin tiles, the difference in depth should be compensated for on site with tile adhesive. A sealed cover of high quality with a very attractive finish, especially the visible edges. Stable corner joints guarantee a very high degree of rigidity and facilitate an

Pagina 14-Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ AUTOMATIC STEEL,...

Pagina 15 - Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ...

exact connection with tiles, slabs etc. The Lift-Off opening system: Every HAGODECK Type BVA light alu cover comes with a set of lifting keys and precise installation instructions. The HAGO advantage: jammed covers are released by simply turning the Golden Key. Applications: As a cover inside buildings (pedestrian traffic only), which can be opened by 1-2 persons (depending on the size of the cover) without great effort. Installation: Installation must be carried out according to our installation instructions.Care must be taken to seal the outer frame into the surrounding floor. Specification clause: See page 30/31 Type BVA light prefilled with light-weight concrete for low weight. Type BVA light, scale 1 : 2,5 1 5 8 10 7 4 3 6 2 9 Weight S/O* Clear dimen- Outside sions of shaft dimensions prefilled with (≈ cm) light-weight (≈ cm) concrete cxd AxB O BVA light 22 20 x 20 32 x 32 10 kg O BVA light 33 30 x 30 42 x 42 12 kg O BVA light 44 40 x 40 52 x 52 15 kg O BVA light 45 45 x 45

Pagina 15-Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ AUTOMATIC STEEL,...

Pagina 16 - Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ...

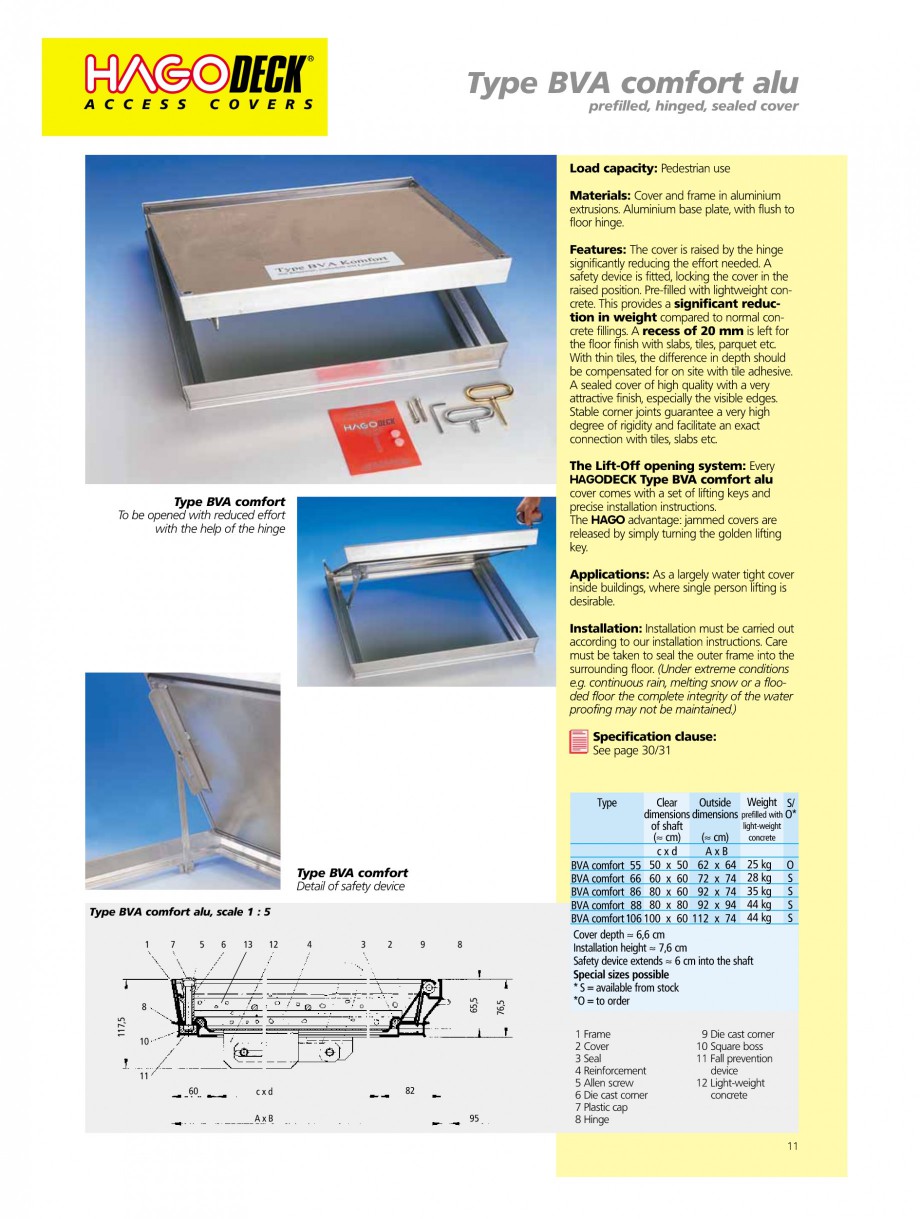

57 x 57 17 kg O BVA light 55 50 x 50 62 x 62 20 kg O BVA light 64 60 x 40 72 x 52 20 kg S BVA light 66 60 x 60 72 x 72 26 kg S BVA light 86 80 x 60 92 x 72 33 kg S BVA light 88 80 x 80 92 x 92 42 kg S BVA light 106 100 x 60 112 x 72 42 kg Type Cover depth ≈ 6,6 cm Installation height ≈ 7,6 cm Special sizes possible * S = available from stock *O = to order 1 Frame 2 Cover 3 Seal 4 Reinforcement 5 Allen screw 6 Plastic cap 7 Base plate 8 Die cast corner 9 Square boss 10 Light-weight concrete 76,5 65,5 60 cxd 60 AxB 10 Deck 10/04 e1 02.03.2005 6:52 Uhr Seite 11 A C C E S S C O V E R S DECK ® Type BVA comfort alu prefilled, hinged, sealed cover Load capacity: Pedestrian use Materials: Cover and frame in aluminium extrusions. Aluminium base plate, with flush to floor hinge. Features: The cover is raised by the hinge significantly reducing the effort needed. A safety device is fitted, locking the cover in the raised position. Pre-filled with lightweight concrete. This pr

Pagina 16-Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ AUTOMATIC STEEL,...

Pagina 17 - Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ...

ovides a significant reduction in weight compared to normal concrete fillings. A recess of 20 mm is left for the floor finish with slabs, tiles, parquet etc. With thin tiles, the difference in depth should be compensated for on site with tile adhesive. A sealed cover of high quality with a very attractive finish, especially the visible edges. Stable corner joints guarantee a very high degree of rigidity and facilitate an exact connection with tiles, slabs etc. The Lift-Off opening system: Every HAGODECK Type BVA comfort alu cover comes with a set of lifting keys and precise installation instructions. The HAGO advantage: jammed covers are released by simply turning the golden lifting key. Applications: As a largely water tight cover inside buildings, where single person lifting is desirable. Installation: Installation must be carried out according to our installation instructions. Care must be taken to seal the outer frame into the surrounding floor. (Under extreme conditions e.g. conti

Pagina 17-Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ AUTOMATIC STEEL,...

Pagina 18 - Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ...

nuous rain, melting snow or a flooded floor the complete integrity of the water proofing may not be maintained.) Specification clause: See page 30/31 Type BVA comfort To be opened with reduced effort with the help of the hinge Type BVA comfort Detail of safety device Type BVA comfort alu, scale 1 : 5 1 7 5 6 13 12 4 3 2 9 8 65,5 8 117,5 76,5 Clear Outside Weight S/ dimensions dimensions prefilled with O* light-weight of shaft concrete (≈ cm) (≈ cm) cxd AxB BVA comfort 55 50 x 50 62 x 64 25 kg O BVA comfort 66 60 x 60 72 x 74 28 kg S BVA comfort 86 80 x 60 92 x 74 35 kg S BVA comfort 88 80 x 80 92 x 94 44 kg S BVA comfort @06 100 x 60 112 x 74 44 kg S Cover depth ≈ 6,6 cm Installation height ≈ 7,6 cm Safety device extends ≈ 6 cm into the shaft Special sizes possible * S = available from stock *O = to order Type 1 Frame 2 Cover 3 Seal 4 Reinforcement 5 Allen screw 6 Die cast corner 7 Plastic cap 8 Hinge 9 Die cast corner 10 Square boss 11 Fall prevention device 12 Light-w

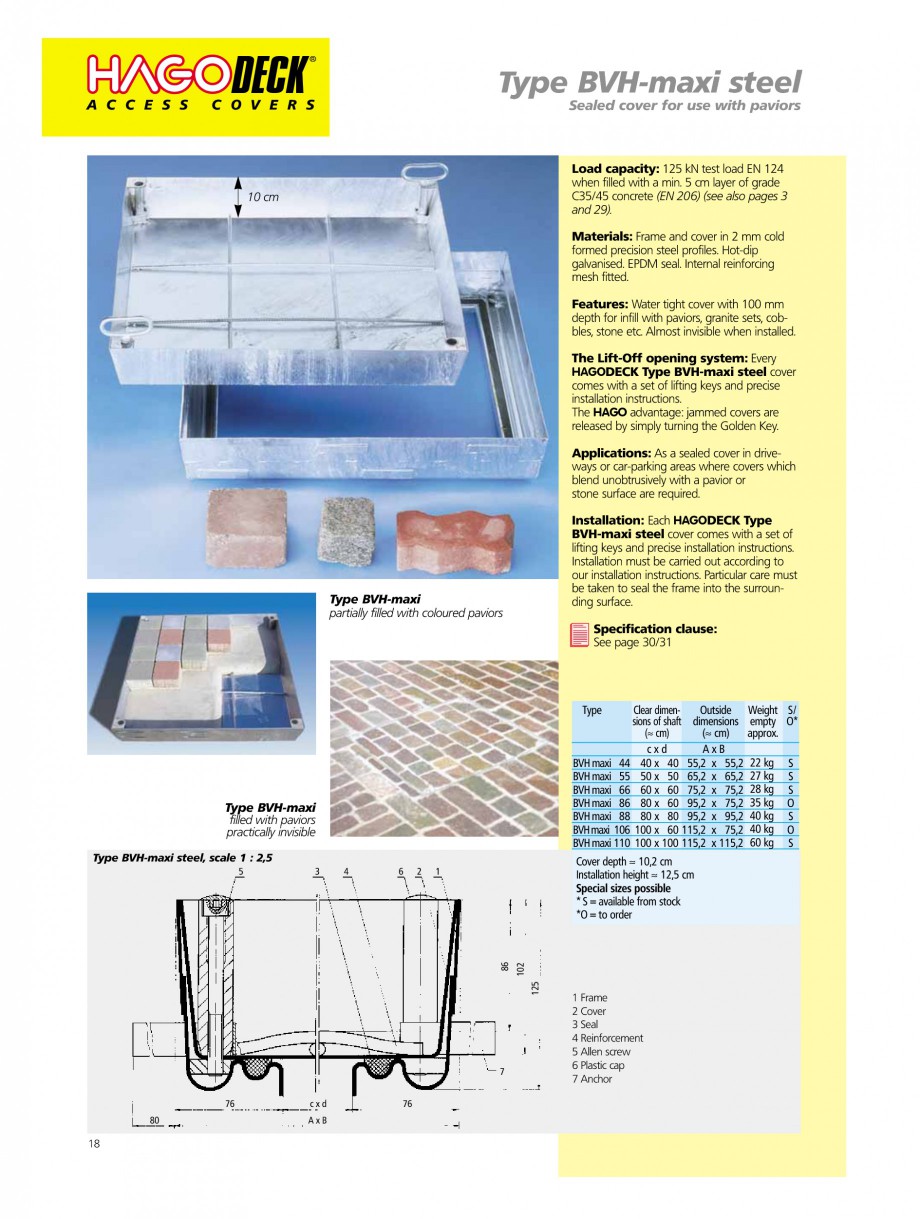

Pagina 18-Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ AUTOMATIC STEEL,...

Pagina 19 - Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ...

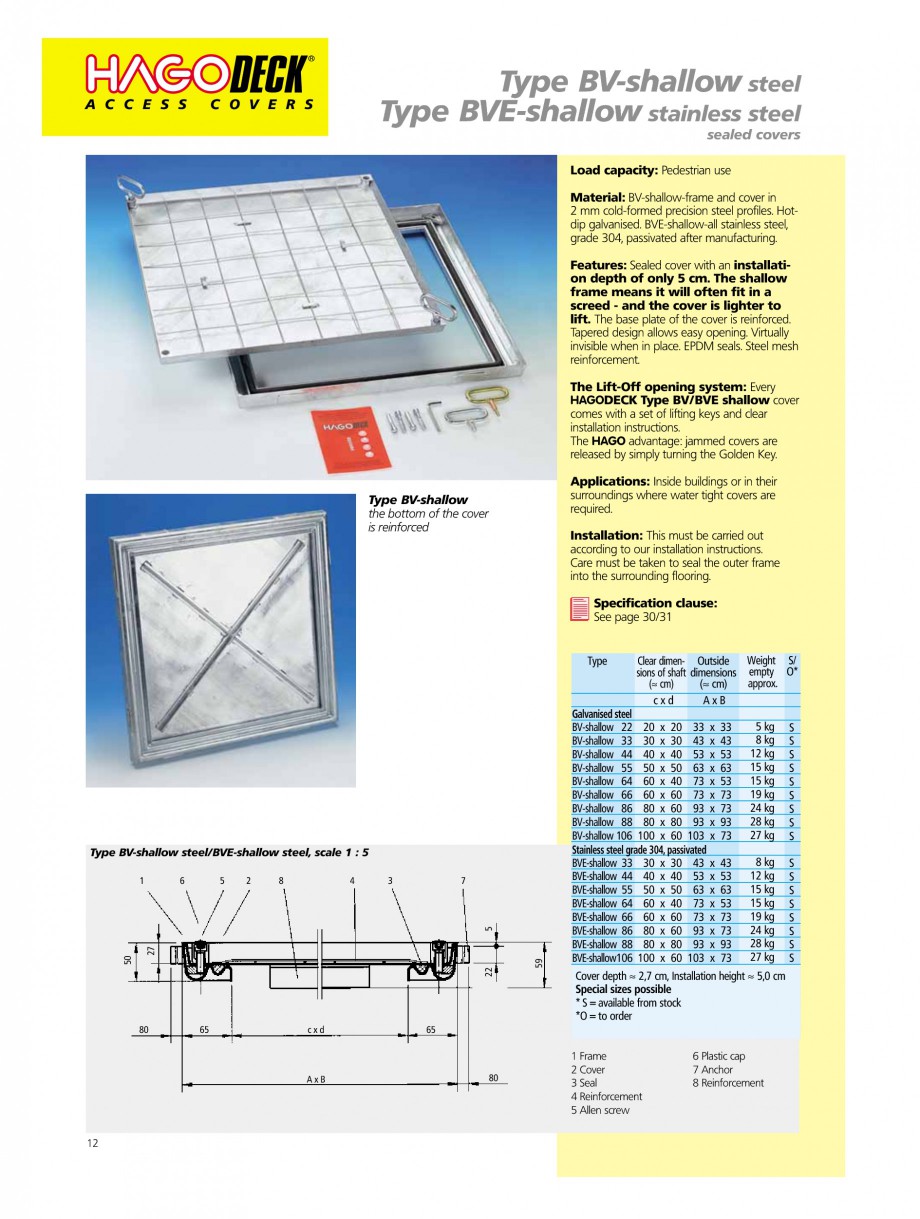

eight concrete 10 11 60 cxd AxB 82 95 11 Deck 10/04 e1 02.03.2005 6:52 Uhr Seite 12 A C C E S S C O V E R S DECK ® Type BV-shallow steel Type BVE-shallow stainless steel sealed covers Load capacity: Pedestrian use Material: BV-shallow-frame and cover in 2 mm cold-formed precision steel profiles. Hotdip galvanised. BVE-shallow-all stainless steel, grade 304, passivated after manufacturing. Features: Sealed cover with an installation depth of only 5 cm. The shallow frame means it will often fit in a screed - and the cover is lighter to lift. The base plate of the cover is reinforced. Tapered design allows easy opening. Virtually invisible when in place. EPDM seals. Steel mesh reinforcement. The Lift-Off opening system: Every HAGODECK Type BV/BVE shallow cover comes with a set of lifting keys and clear installation instructions. The HAGO advantage: jammed covers are released by simply turning the Golden Key. Applications: Inside buildings or in their surroundings where water

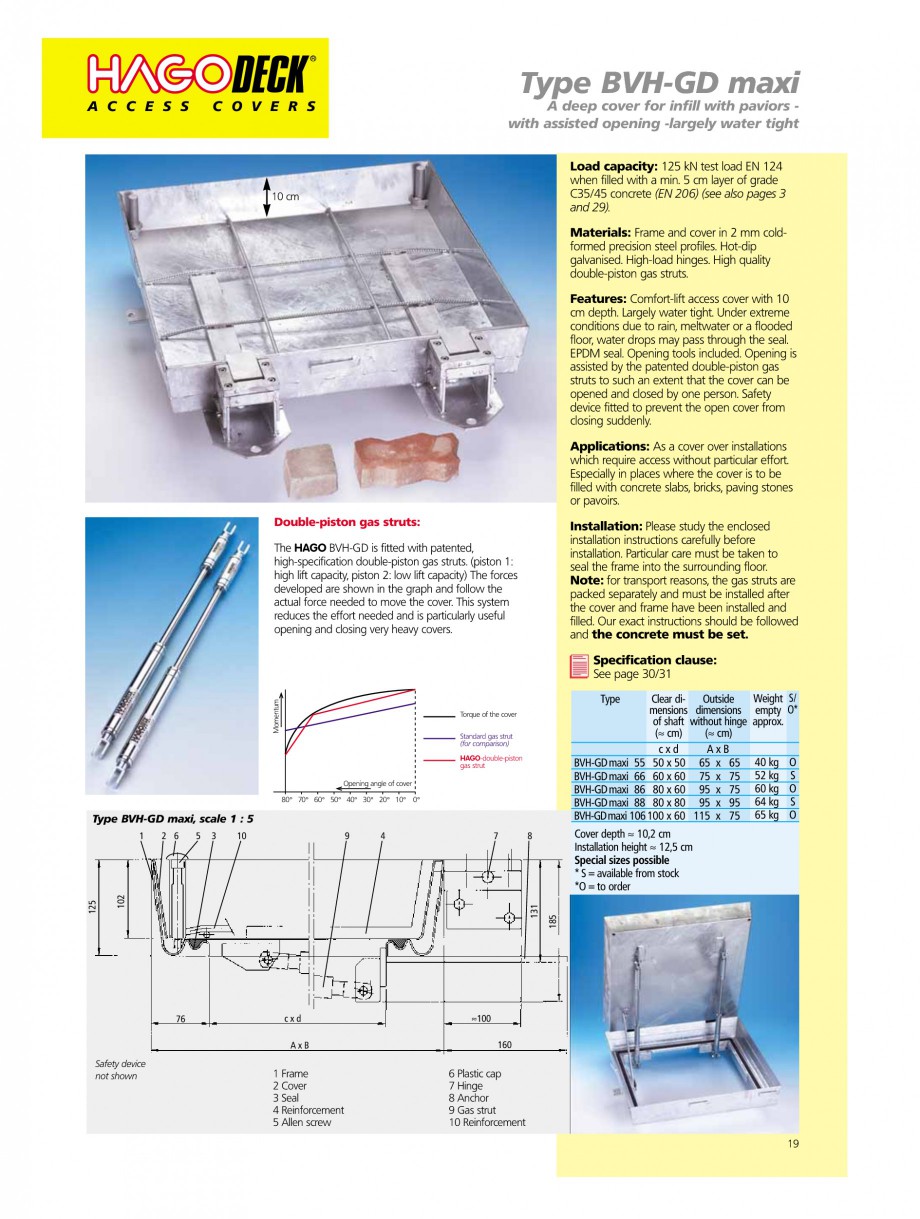

Pagina 19-Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ AUTOMATIC STEEL,...

Pagina 20 - Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ...

tight covers are required. Installation: This must be carried out according to our installation instructions. Care must be taken to seal the outer frame into the surrounding flooring. Specification clause: See page 30/31 Type BV-shallow the bottom of the cover is reinforced Type Weight S/ Clear dimen- Outside sions of shaft dimensions empty O* approx. (≈ cm) (≈ cm) cxd AxB x x x x x x x x x x x x x x x x x 33 43 53 63 53 73 73 93 73 43 53 63 53 73 73 93 73 5 kg 8 kg 12 kg 15 kg 15 kg 19 kg 24 kg 28 kg 27 kg 8 kg 12 kg 15 kg 15 kg 19 kg 24 kg 28 kg 27 kg S S S S S S S S S S S S S S S S S Type BV-shallow steel/BVE-shallow steel, scale 1 : 5 1 6 5 2 8 4 3 7 50 22 59 Galvanised steel BV-shallow 22 20 x 20 33 BV-shallow 33 30 x 30 43 BV-shallow 44 40 x 40 53 BV-shallow 55 50 x 50 63 BV-shallow 64 60 x 40 73 BV-shallow 66 60 x 60 73 BV-shallow 86 80 x 60 93 BV-shallow 88 80 x 80 93 BV-shallow 106 100 x 60 103 Stainless steel grade 304, passivated BVE-shallow 33 30 x 30 43 BVE-sha

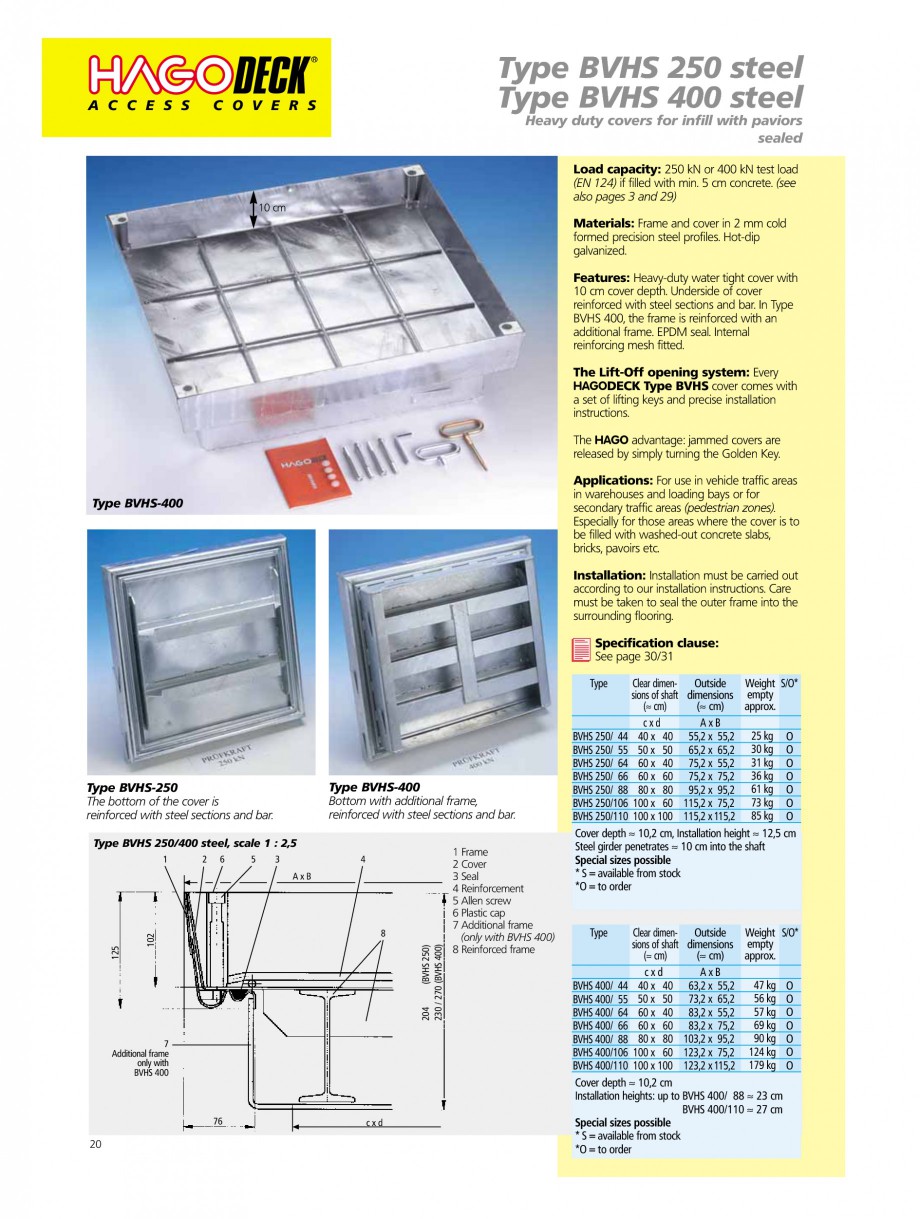

Pagina 20-Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ AUTOMATIC STEEL,...

Pagina 21 - Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ...

llow 44 40 x 40 53 BVE-shallow 55 50 x 50 63 BVE-shallow 64 60 x 40 73 BVE-shallow 66 60 x 60 73 BVE-shallow 86 80 x 60 93 BVE-shallow 88 80 x 80 93 BVE-shallow106 100 x 60 103 27 5 Cover depth ≈ 2,7 cm, Installation height ≈ 5,0 cm Special sizes possible * S = available from stock *O = to order 80 65 cxd 65 AxB 80 1 Frame 2 Cover 3 Seal 4 Reinforcement 5 Allen screw 6 Plastic cap 7 Anchor 8 Reinforcement 12 Deck 10/04 e1 02.03.2005 6:52 Uhr Seite 13 A C C E S S C O V E R S DECK ® Type BV-F90 steel sealed, fire resistant access cover Load capacity: 125 kN test load EN 124 (see also pages 3 and 29). Materials: Frame and cover in 2 mm cold formed precision steel profiles. Hot-dip galvanised. Steel base plate and steel mesh reinforcement. Fire protection panel, on stainless steel Z brackets, and fire resistant seal. Features: Largely water tight access cover for use in buildings. Thin (2 mm) sections at floor level are almost invisible when installed and the tape

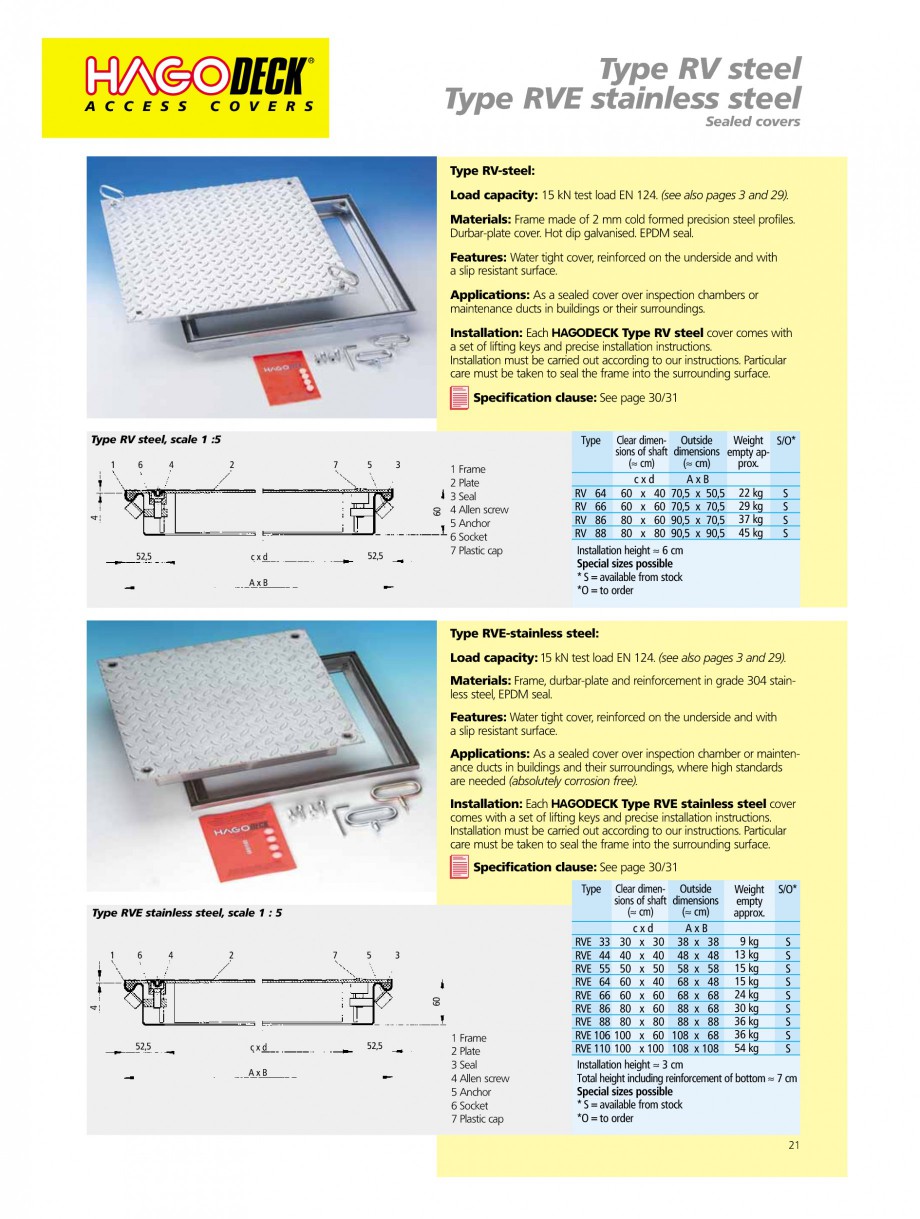

Pagina 21-Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ AUTOMATIC STEEL,...

Pagina 22 - Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ...

red design facilitates lifting. Fire test certificate: The certificate issued following a live fire-test by the Institute for Fire Protection Technology and Safety Research (IBS) confirms that the HAGODECK Type BV-F 90 steel resists a fire for 90 minutes and thus significantly contributes to safety in the event of a fire. The Lift-Off opening system: Every HAGODECK Type BV-F 90 steel cover comes with a set of lifting keys and precise installation instructions. After lifting out the cover, the fire protection panel can be removed using its grab handle. The shaft is then accessible without restriction. The HAGO advantage: jammed covers are released by simply turning the Golden Key. Applications: Access covers inside buildings and their surroundings that are required to be watertight and fire resistant. Installation: Installation must be carried out according to our installation instructions. Care must be taken to seal the outer frame into the surrounding flooring. Specification clause: S

Pagina 22-Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ AUTOMATIC STEEL,...

Pagina 23 - Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ...

ee page 30/31 Clear dimen- Outside sions of shaft dimensions (≈ cm) (≈ cm) cxd AxB BV-F90 33 30 x 30 43,5 x 43,5 BV-F90 45 45 x 45 58,5 x 58,5 BV-F90 55 50 x 50 63,5 x 63,5 BV-F90 64 60 x 40 73,5 x 53,5 BV-F90 66 60 x 60 73,5 x 73,5 BV-F90 635 63,5 x 63,5 77,0 x 77,0 BV-F90 86 80 x 60 93,5 x 73,5 BV-F90 88 80 x 80 93,5 x 93,5 BV-F90 106 100 x 60 113,5 x 73,5 BV-F90 108 100 x 80 113,5 x 93,5 BV-F90 110 100 x100 113,5 x113,5 Cover depth ≈ 5,0 cm Installation height ≈ 7,5 cm Special sizes possible * S = available from stock *O = to order 1 Frame 2 Cover 3 Seal (fire resistant) 4 Reinforcement 5 Allen screw 6 Plastic cap 7 Anchor 8 Fire protection panel 9 Lifting handle 10 Stainless steel Z-bracket 13 Type BV-F90 underside Type Weight S/O* empty approx. 13 kg 21 kg 23 kg 23 kg 30 kg 32 kg 38 kg 45 kg 45 kg 54 kg 63 kg S S S S S S S S S S S Type BV-F90 Detail: grab handle for removing the fire protection panel Type BV-F90 steel, scale 1 : 5 1 6 5 2 9 8 4 10 3 7 75 52 22 67,5

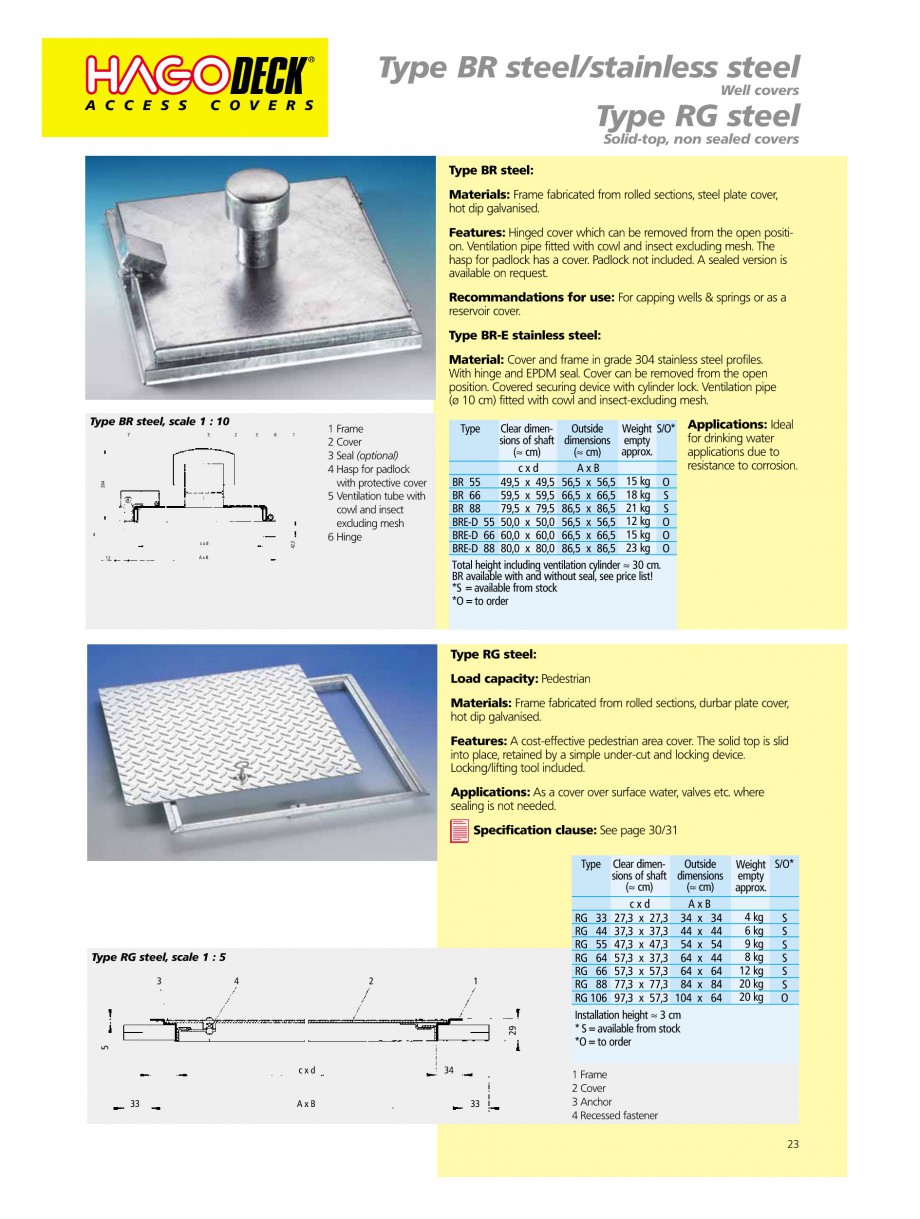

Pagina 23-Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ AUTOMATIC STEEL,...

Pagina 24 - Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ...

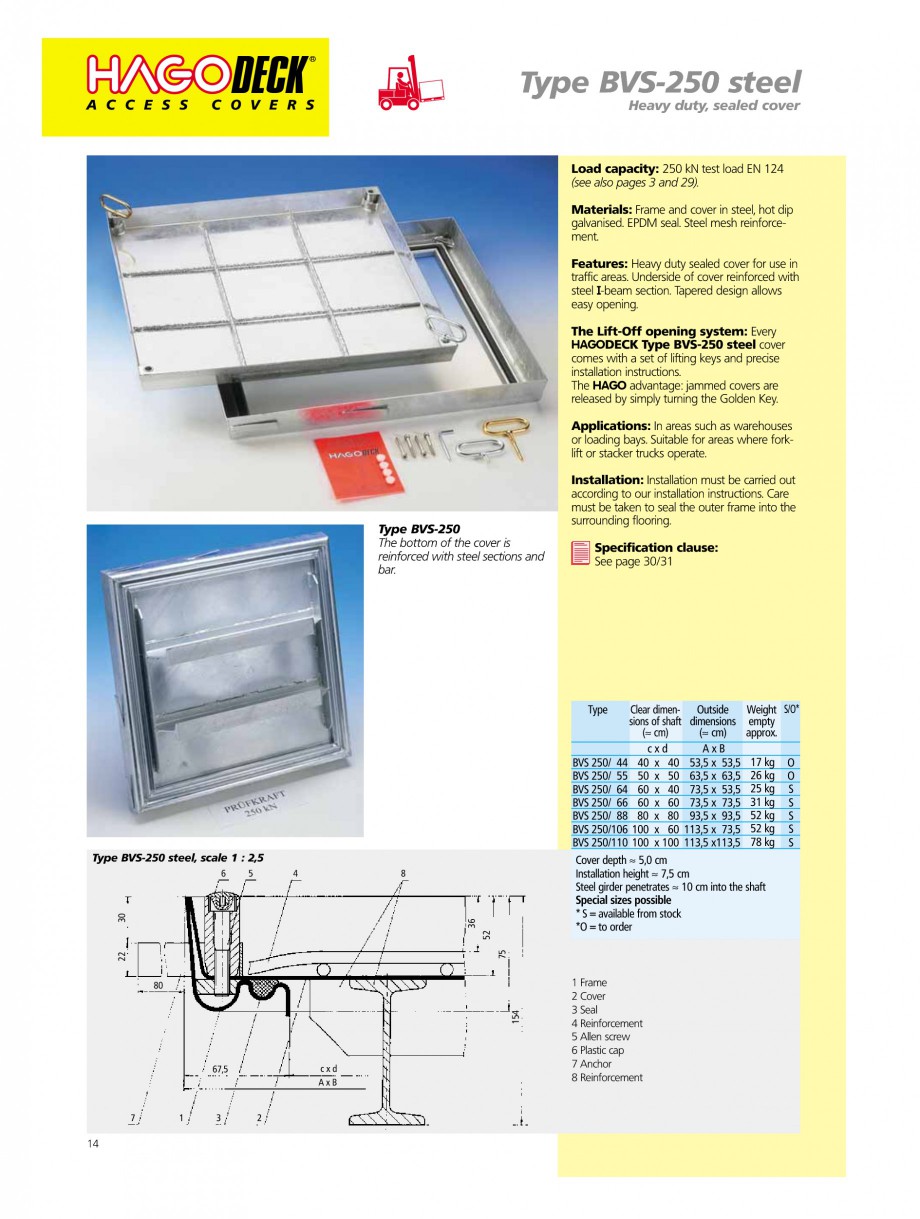

80 cxd AxB 67,5 80 30 89 Deck 10/04 e1 02.03.2005 6:52 Uhr Seite 14 A C C E S S C O V E R S DECK ® Type BVS-250 steel Heavy duty, sealed cover Load capacity: 250 kN test load EN 124 (see also pages 3 and 29). Materials: Frame and cover in steel, hot dip galvanised. EPDM seal. Steel mesh reinforcement. Features: Heavy duty sealed cover for use in traffic areas. Underside of cover reinforced with steel I-beam section. Tapered design allows easy opening. The Lift-Off opening system: Every HAGODECK Type BVS-250 steel cover comes with a set of lifting keys and precise installation instructions. The HAGO advantage: jammed covers are released by simply turning the Golden Key. Applications: In areas such as warehouses or loading bays. Suitable for areas where forklift or stacker trucks operate. Installation: Installation must be carried out according to our installation instructions. Care must be taken to seal the outer frame into the surrounding flooring. Specification clause: See

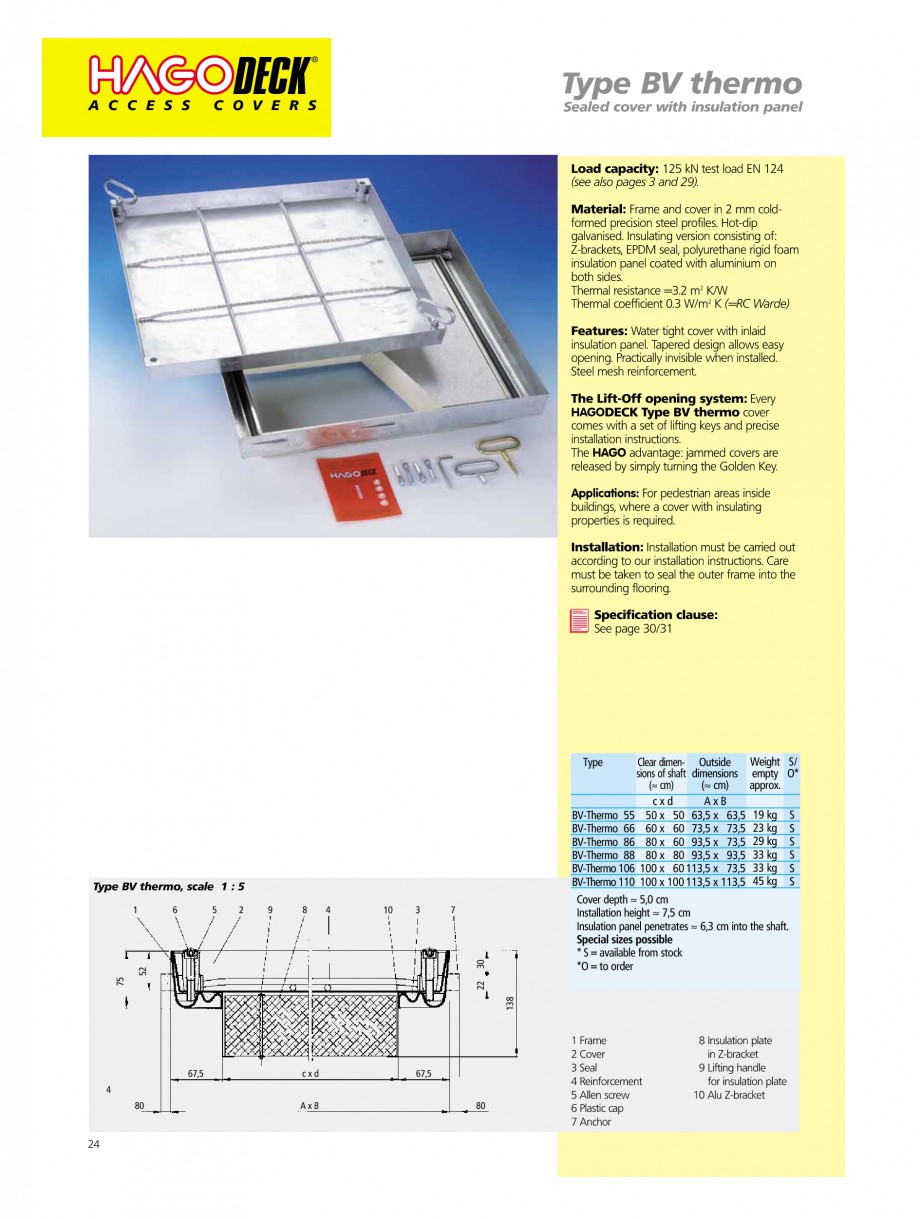

Pagina 24-Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ AUTOMATIC STEEL,...

Pagina 25 - Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ...

page 30/31 Type BVS-250 The bottom of the cover is reinforced with steel sections and bar. Clear dimen- Outside sions of shaft dimensions (≈ cm) (≈ cm) cxd AxB BVS 250/ 44 40 x 40 53,5 x 53,5 BVS 250/ 55 50 x 50 63,5 x 63,5 BVS 250/ 64 60 x 40 73,5 x 53,5 BVS 250/ 66 60 x 60 73,5 x 73,5 BVS 250/ 88 80 x 80 93,5 x 93,5 BVS 250/106 100 x 60 113,5 x 73,5 BVS 250/110 100 x 100 113,5 x113,5 Type BVS-250 steel, scale 1 : 2,5 6 5 4 8 Type Weight S/O* empty approx. 17 kg 26 kg 25 kg 31 kg 52 kg 52 kg 78 kg O O S S S S S 52 Cover depth ≈ 5,0 cm Installation height ≈ 7,5 cm Steel girder penetrates ≈ 10 cm into the shaft Special sizes possible * S = available from stock *O = to order 75 30 22 36 80 154 67,5 cxd AxB 1 Frame 2 Cover 3 Seal 4 Reinforcement 5 Allen screw 6 Plastic cap 7 Anchor 8 Reinforcement 7 1 3 2 14 Deck 10/04 e1 02.03.2005 6:52 Uhr Seite 15 A C C E S S C O V E R S DECK ® Type BVS-400 steel Extra heavy duty, sealed cover Load capacity: 400 kN

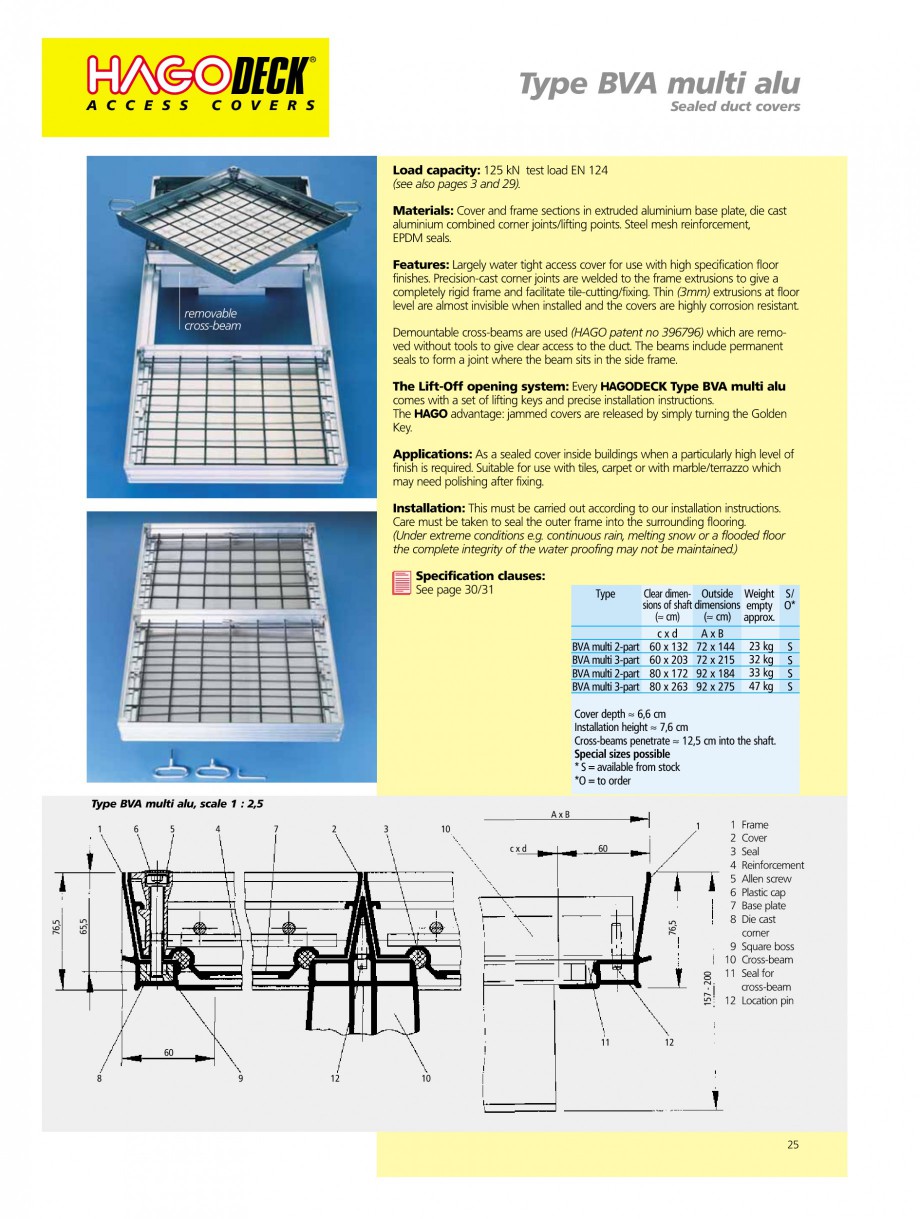

Pagina 25-Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ AUTOMATIC STEEL,...

Pagina 26 - Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ...

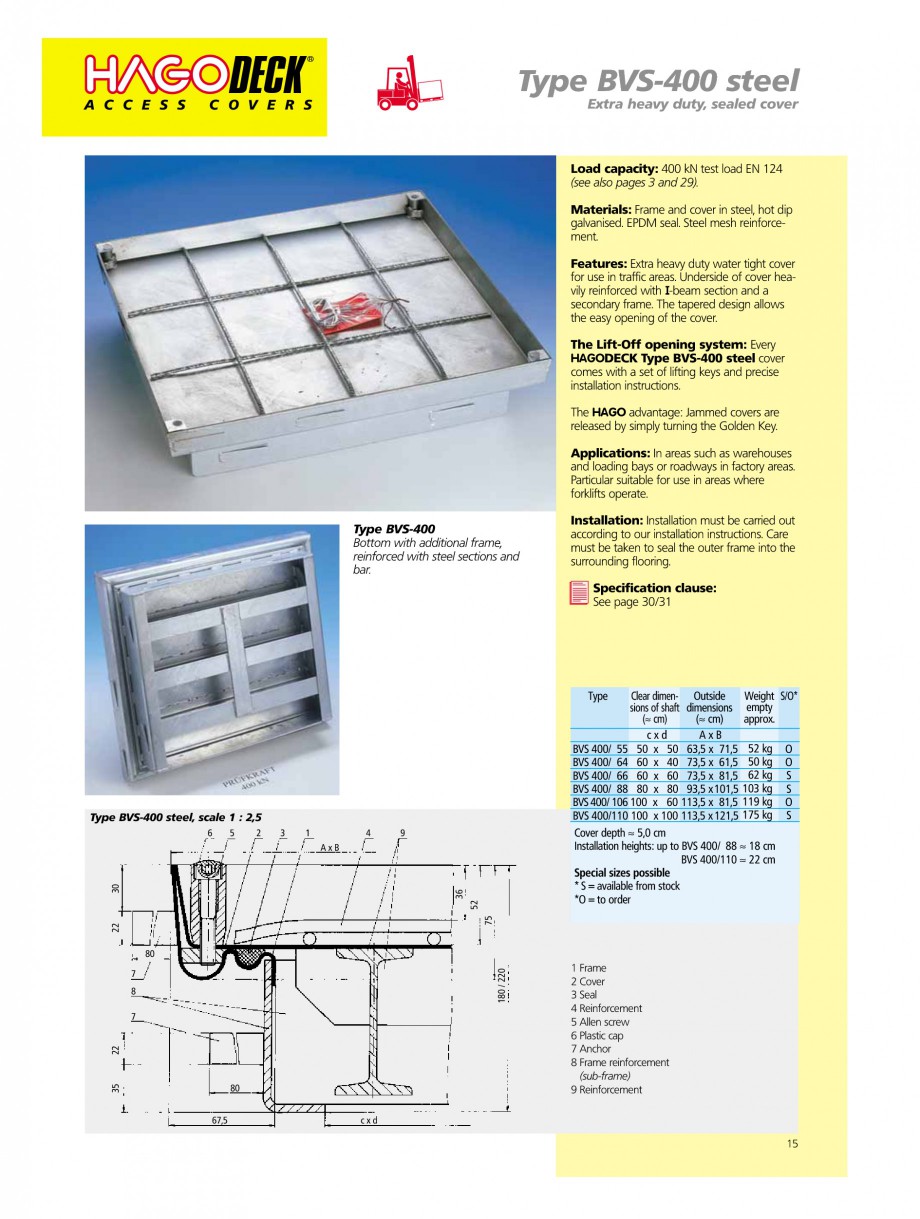

test load EN 124 (see also pages 3 and 29). Materials: Frame and cover in steel, hot dip galvanised. EPDM seal. Steel mesh reinforcement. Features: Extra heavy duty water tight cover for use in traffic areas. Underside of cover heavily reinforced with I-beam section and a secondary frame. The tapered design allows the easy opening of the cover. The Lift-Off opening system: Every HAGODECK Type BVS-400 steel cover comes with a set of lifting keys and precise installation instructions. The HAGO advantage: Jammed covers are released by simply turning the Golden Key. Applications: In areas such as warehouses and loading bays or roadways in factory areas. Particular suitable for use in areas where forklifts operate. Type BVS-400 Bottom with additional frame, reinforced with steel sections and bar. Installation: Installation must be carried out according to our installation instructions. Care must be taken to seal the outer frame into the surrounding flooring. Specification clause: See page

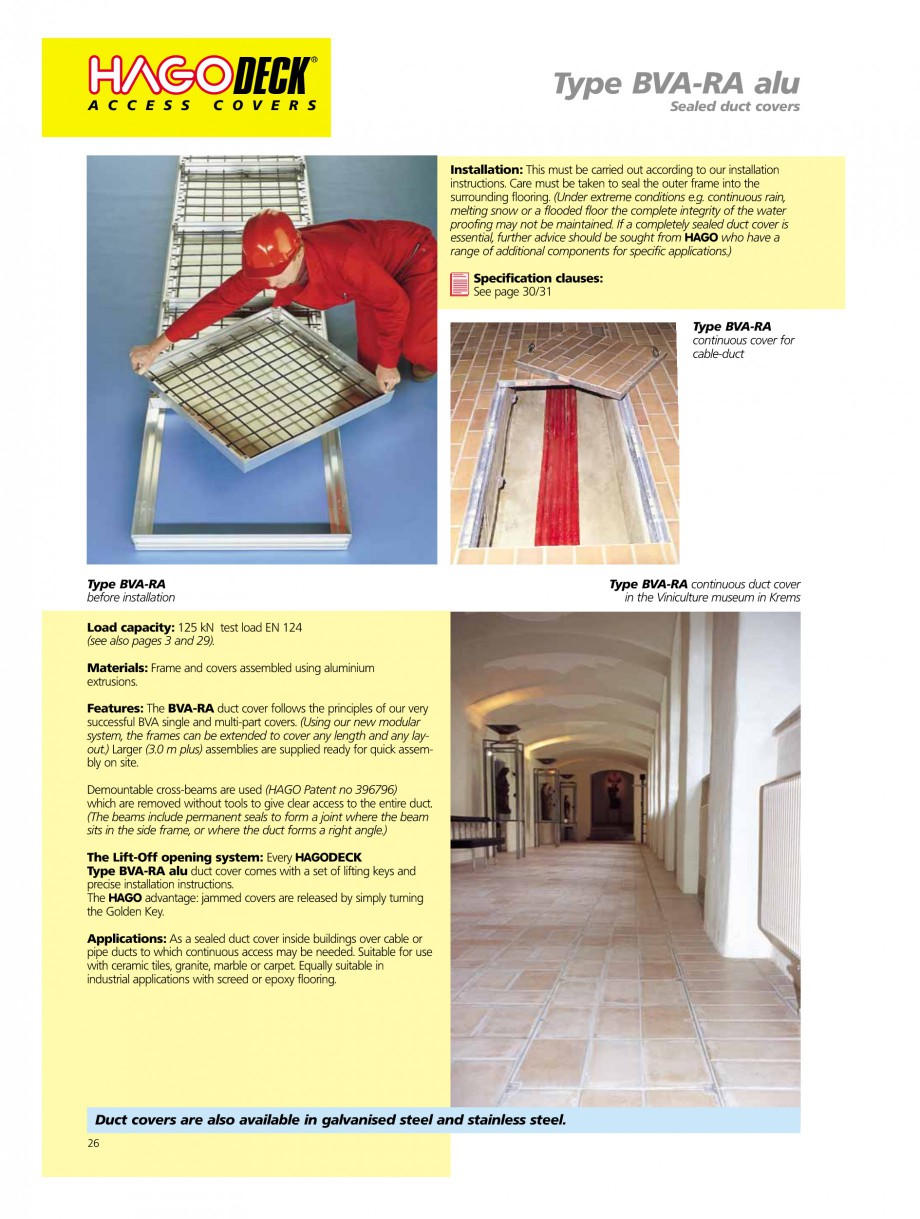

Pagina 26-Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ AUTOMATIC STEEL,...

Pagina 27 - Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ...

30/31 Type BVS-400 steel, scale 1 : 2,5 6 5 2 3 1 AxB 4 9 52 Weight Clear dimen- Outside sions of shaft dimensions empty approx. (≈ cm) (≈ cm) cxd AxB BVS 400/ 55 50 x 50 63,5 x 71,5 52 kg BVS 400/ 64 60 x 40 73,5 x 61,5 50 kg BVS 400/ 66 60 x 60 73,5 x 81,5 62 kg BVS 400/ 88 80 x 80 93,5 x 101,5 103 kg BVS 400/ 106 100 x 60 113,5 x 81,5 119 kg BVS 400/110 100 x 100 113,5 x 121,5 175 kg Cover depth ≈ 5,0 cm Installation heights: up to BVS 400/ 88 ≈ 18 cm BVS 400/110 ≈ 22 cm Special sizes possible * S = available from stock *O = to order Type 75 S/O* O O S S O S 30 22 80 7 8 7 36 80 67,5 cxd 1 Frame 2 Cover 3 Seal 4 Reinforcement 5 Allen screw 6 Plastic cap 7 Anchor 8 Frame reinforcement (sub-frame) 9 Reinforcement 35 22 180 / 220 15 Deck 10/04 e1 02.03.2005 6:52 Uhr Seite 16 A C C E S S C O V E R S DECK ® Type BV-GD automatic steel Type BVE-GD automatic stainless steel Hinged sealed covers, with gas-strut lift Load capacity: 125 kN test load EN 124 (s

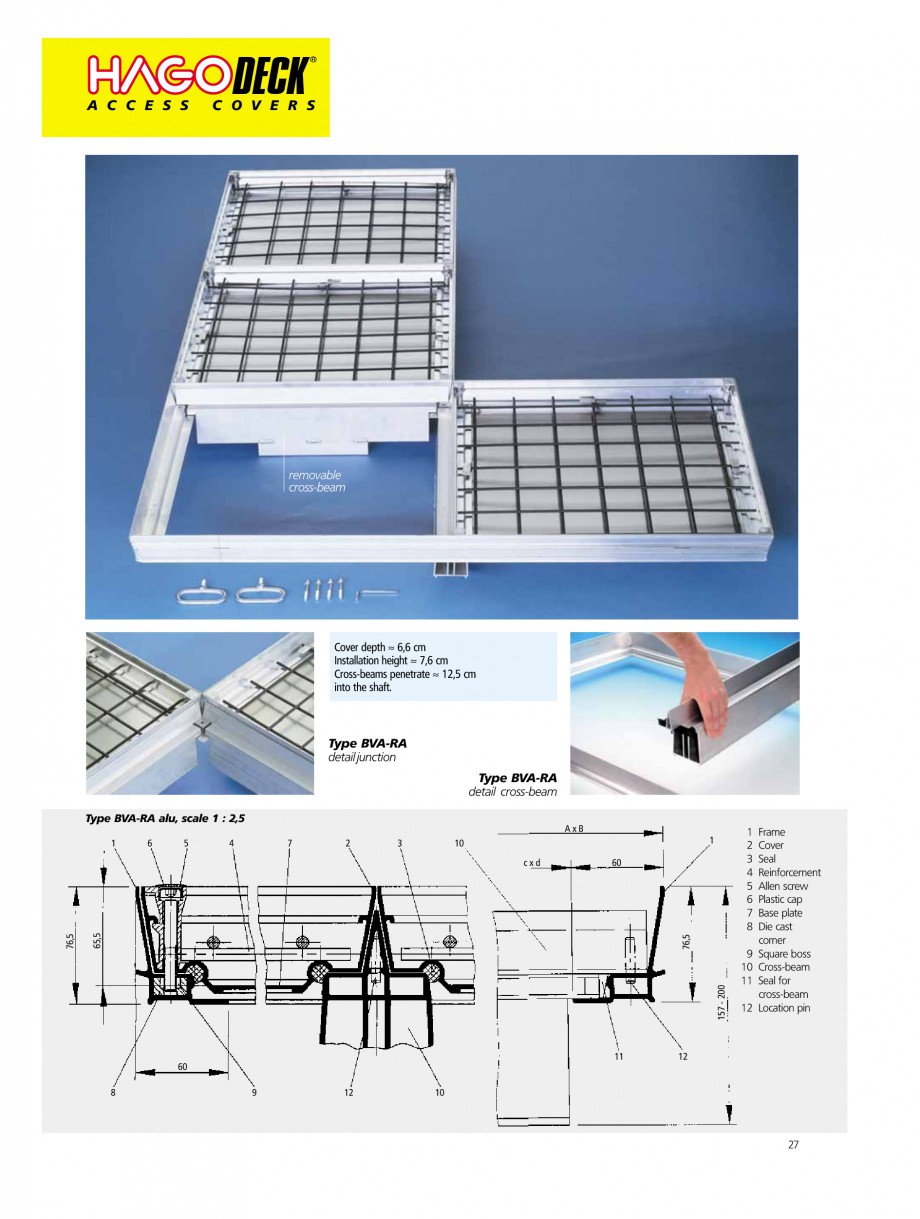

Pagina 27-Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ AUTOMATIC STEEL,...

Pagina 28 - Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ...

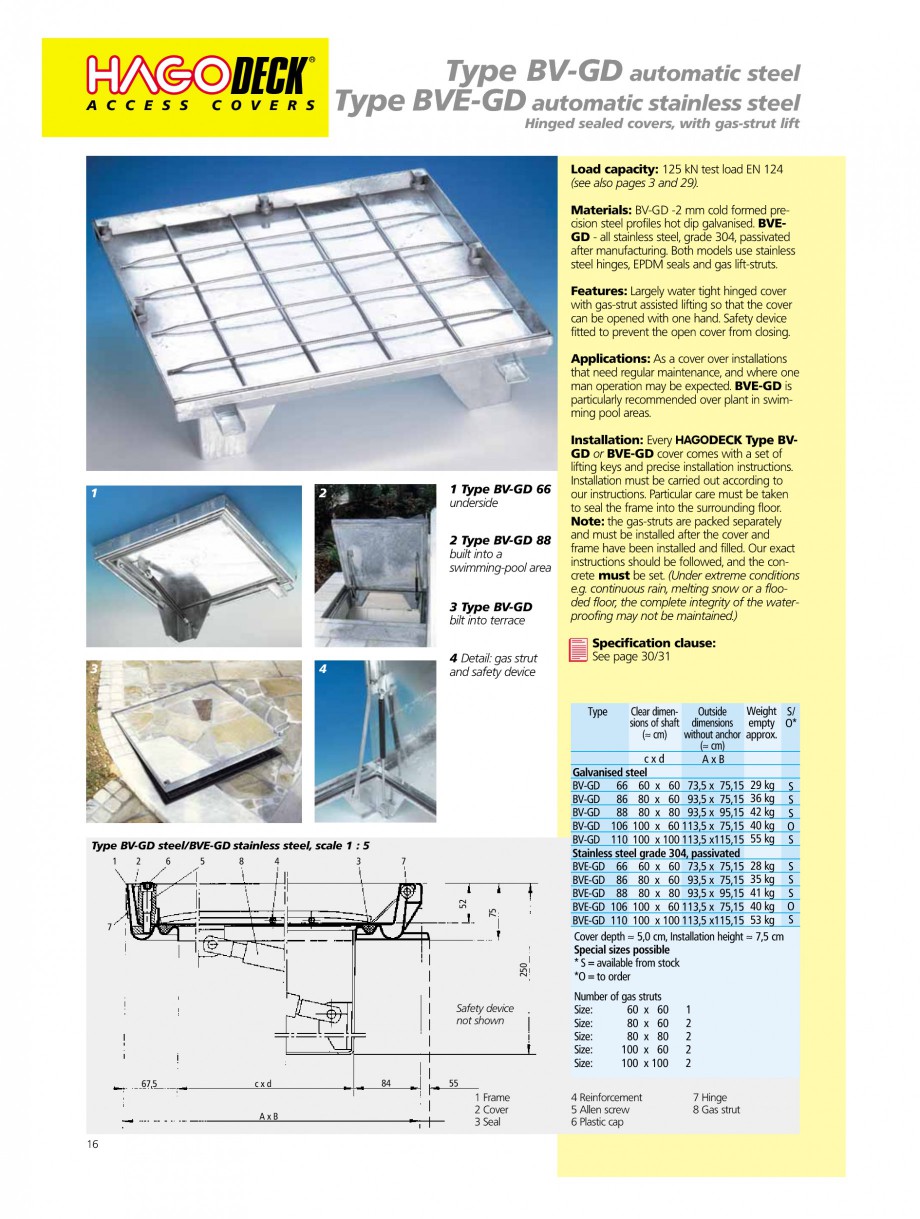

ee also pages 3 and 29). Materials: BV-GD -2 mm cold formed precision steel profiles hot dip galvanised. BVEGD - all stainless steel, grade 304, passivated after manufacturing. Both models use stainless steel hinges, EPDM seals and gas lift-struts. Features: Largely water tight hinged cover with gas-strut assisted lifting so that the cover can be opened with one hand. Safety device fitted to prevent the open cover from closing. Applications: As a cover over installations that need regular maintenance, and where one man operation may be expected. BVE-GD is particularly recommended over plant in swimming pool areas. Installation: Every HAGODECK Type BVGD or BVE-GD cover comes with a set of lifting keys and precise installation instructions. Installation must be carried out according to our instructions. Particular care must be taken to seal the frame into the surrounding floor. Note: the gas-struts are packed separately and must be installed after the cover and frame have been installed

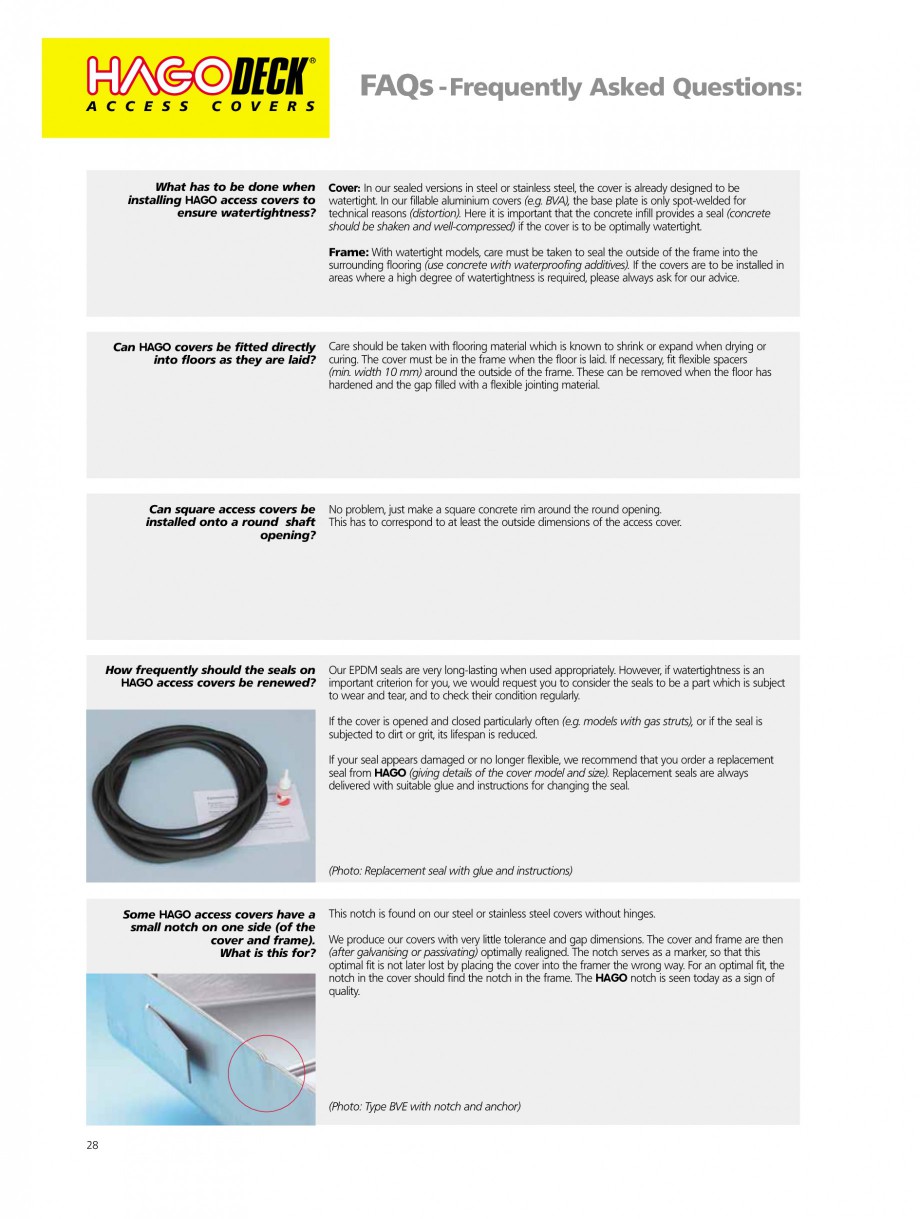

Pagina 28-Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ AUTOMATIC STEEL,...

Pagina 29 - Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ...

and filled. Our exact instructions should be followed, and the concrete must be set. (Under extreme conditions e.g. continuous rain, melting snow or a flooded floor, the complete integrity of the waterproofing may not be maintained.) Specification clause: See page 30/31 1 2 1 Type BV-GD 66 underside 2 Type BV-GD 88 built into a swimming-pool area 3 Type BV-GD bilt into terrace 4 Detail: gas strut and safety device 3 4 Type BV-GD steel/BVE-GD stainless steel, scale 1 : 5 1 2 6 5 8 4 3 7 7 Weight S/ Clear dimenOutside sions of shaft dimensions empty O* (≈ cm) without anchor approx. (≈ cm) cxd AxB Galvanised steel BV-GD 66 60 x 60 73,5 x 75,15 29 kg S BV-GD 86 80 x 60 93,5 x 75,15 36 kg S BV-GD 88 80 x 80 93,5 x 95,15 42 kg S BV-GD 106 100 x 60 113,5 x 75,15 40 kg O BV-GD 110 100 x 100 113,5 x115,15 55 kg S Stainless steel grade 304, passivated BVE-GD 66 60 x 60 73,5 x 75,15 28 kg S BVE-GD 86 80 x 60 93,5 x 75,15 35 kg S BVE-GD 88 80 x 80 93,5 x 95,15 41 kg S BVE-GD 106 100 x

Pagina 29-Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ AUTOMATIC STEEL,...

Pagina 30 - Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ...

60 113,5 x 75,15 40 kg O BVE-GD 110 100 x 100 113,5 x115,15 53 kg S Cover depth ≈ 5,0 cm, Installation height ≈ 7,5 cm Special sizes possible * S = available from stock *O = to order Type Number of gas struts Size: 60 x 60 Size: 80 x 60 Size: 80 x 80 Size: 100 x 60 Size: 100 x 100 4 Reinforcement 5 Allen screw 6 Plastic cap 52 75 250 Safety device not shown 1 2 2 2 2 7 Hinge 8 Gas strut 67,5 cxd AxB 84 55 1 Frame 2 Cover 3 Seal 16 Deck 10/04 e1 02.03.2005 6:52 Uhr Seite 17 A C C E S S C O V E R S DECK ® Type BV-GDZ automatic steel Hinged, lockable, sealed cover with gas-strut lift Load capacity: 125 kN test load EN 124 (see also pages 3 and 29). Materials: Cover and frame from 2 mm cold formed precision steel profiles, hot dip galvanised. Stainless steel hinges and gas lift-struts. EPDM seal. Features: Largely water tight hinged cover with gas strut assited lifting so that the cover can be opened with one hand. Safety device fitted to prevent the opened cover

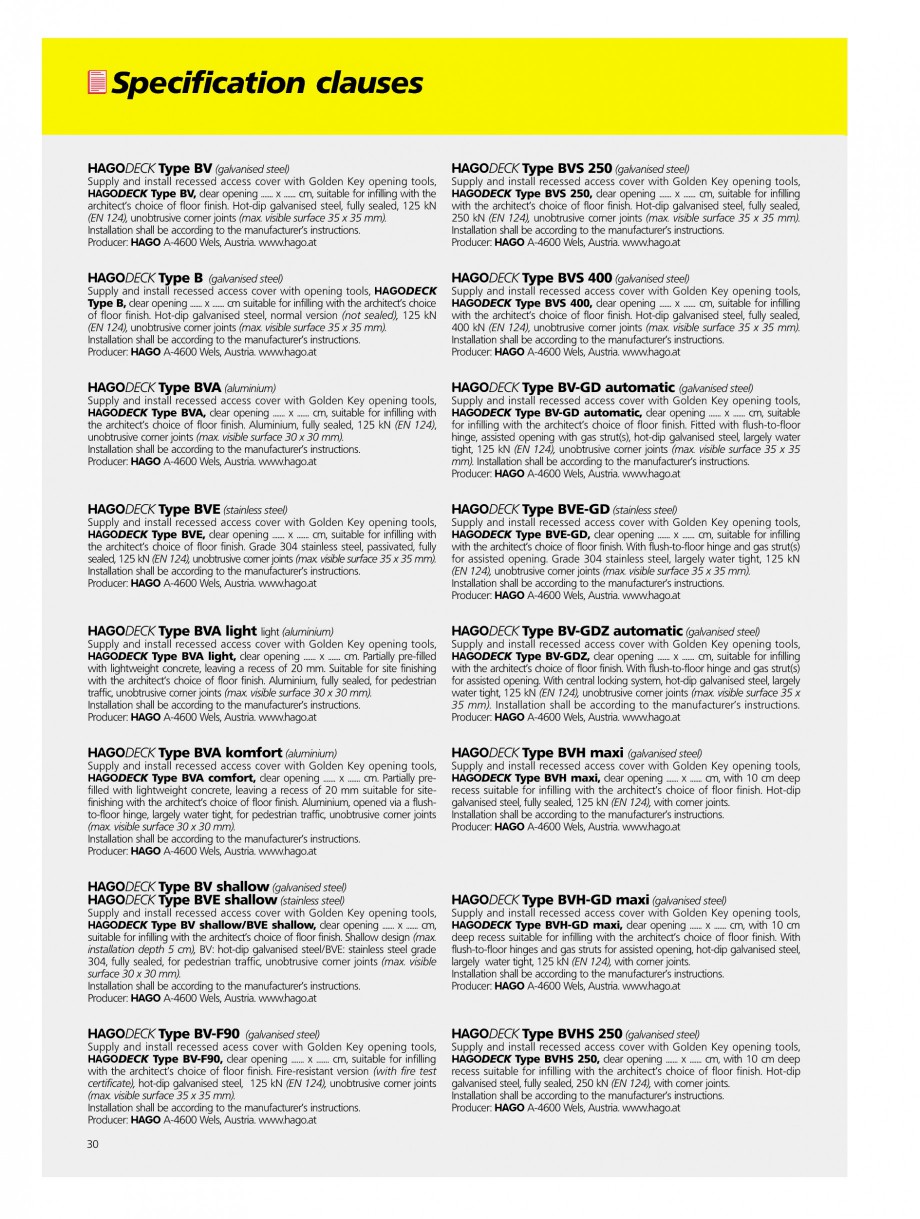

Pagina 30-Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ AUTOMATIC STEEL,...

Pagina 31 - Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ...

from closing. The central locking system allows the cover to be opened from above using a socket key (supplied) or from underneath by using the built-in handle. Applications: For covers that need to be opened regularly, from above or below, with minimum effort. Particularly useful as entry to and escape routes from ducts or passage ways in underground railways, power stations, telecommunication or military facilities. Installation: Installation must be carried out according to our instructions. Particular care must be taken to seal the frame into the surrounding floor. Note: the gas-struts are packed separately and must be fitted after the cover and frame have been installed and filled. Our exact instructions should be followed, and the concrete must be set. (Under extreme conditions e.g. continuous rain, melting snow or a flooded floor, the complete integrity of the waterproofing may not be maintained.) Specification clause: See page 30/31 Type BV-GDZ To be opened from the underside

Pagina 31-Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ AUTOMATIC STEEL,...

Pagina 32 - Capace pentru camine de vizitare
HAGODECK B STEEL, BV-GD AUTOMATIC STEEL, BV-GDZ...

with the central lock Type BV-GDZ Detail central lock from underneath Type BV-GDZ steel, scale 1 : 5 1 2 6 5 4 8 3 8 7 Weight S/O* Outside Clear dimensions of shaft dimensions empty (≈ cm) withot anchor approx. (≈ cm) cxd AxB BV-GDZ 66 60 x 60 73,5 x 75,@5 30 kg S BV-GDZ 86 80 x 60 93,5 x 75,@5 38 kg S BV-GDZ 88 80 x 80 93,5 x 95,@5 44 kg S BV-GDZ @@0 100 x 100 113,5 x 115,@5 58 kg S Cover depth ≈ 5,0 cm, Installation height ≈ 8 cm Special sizes possible * S = available from stock *O = to order Type Number of gas struts Size: 60 x 60 Size: 80 x 60 Size: 80 x 80 Size: 100 x 100 1 2 2 2 52 52 75 250 Safety device not shown 10 67,5 cxd AxB 84 55 1 Frame 2 Cover 3 Seal 4 Reinforcement 5 Lifting boss 6 Plastic cap 7 Hinge 8 Gas strut 9 Central lock 17 Deck 10/04 e1 02.03.2005 6:52 Uhr Seite 18 A C C E S S C O V E R S DECK 10 cm ® Type BVH-maxi steel Sealed cover for use with paviors Load capacity: 125 kN test load EN 124 when filled with a min. 5 cm layer of grade
