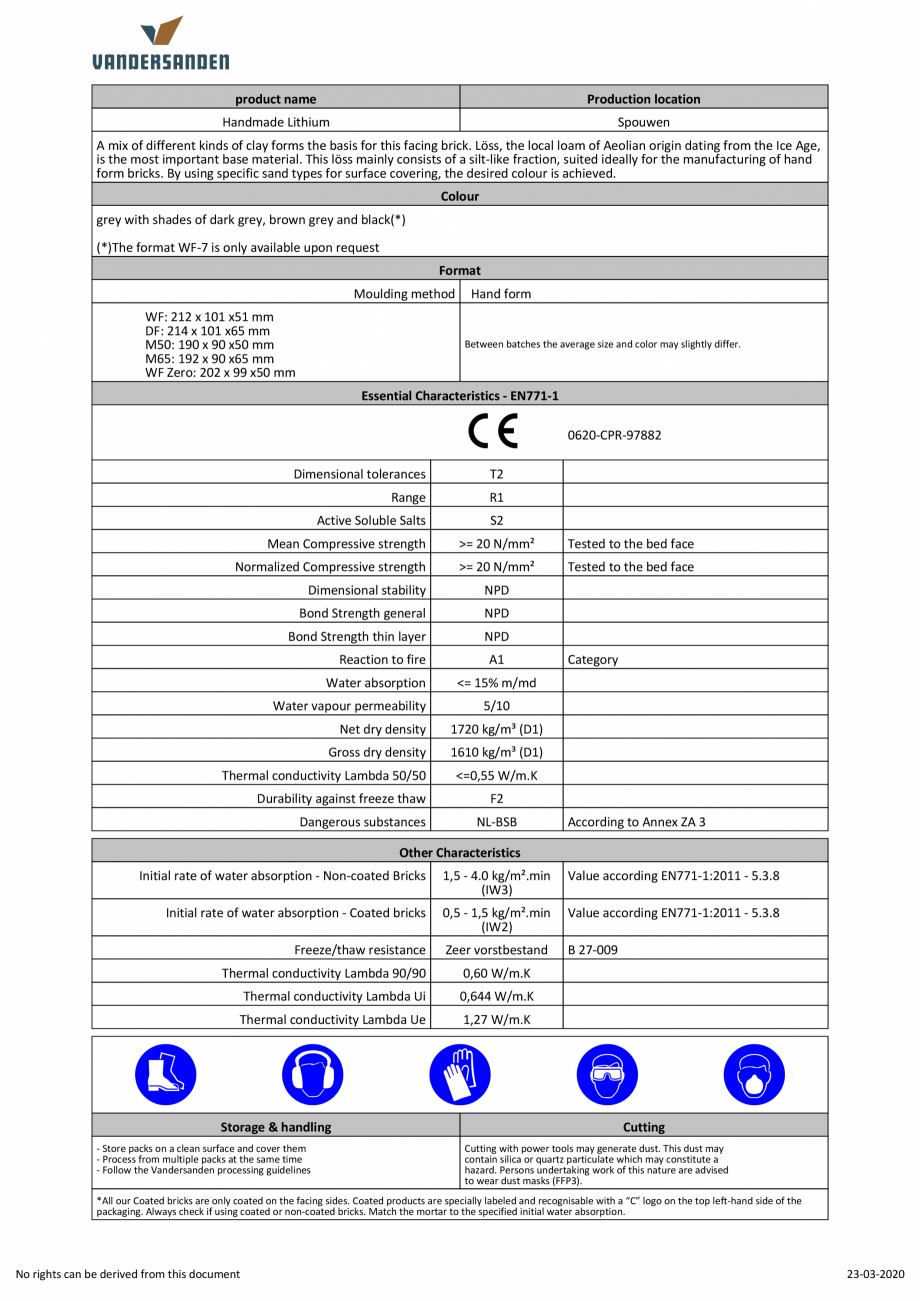

Pagina 1 - Caramida aparenta klinker - Lithium Amedio Ideas SM65 Fisa tehnica Engleza product name

...

product name Production location Handmade Lithium Spouwen A mix of different kinds of clay forms the basis for this facing brick. Löss, the local loam of Aeolian origin dating from the Ice Age, is the most important base material. This löss mainly consists of a silt-like fraction, suited ideally for the manufacturing of hand form bricks. By using specific sand types for surface covering, the desired colour is achieved. Colour grey with shades of dark grey, brown grey and black(*) (*)The format WF-7 is only available upon request Format Moulding method WF: 212 x 101 x51 mm DF: 214 x 101 x65 mm M50: 190 x 90 x50 mm M65: 192 x 90 x65 mm WF Zero: 202 x 99 x50 mm Hand form Between batches the average size and color may slightly differ. Essential Characteristics - EN771-1 0620-CPR-97882 Dimensional tolerances T2 Range R1 Active Soluble Salts S2 Mean Compressive strength >= 20 N/mm² Tested to the bed face Normalized Compressive strength >= 20 N/mm² Tested to the bed face

Pagina 1-Caramida aparenta klinker - Lithium Amedio Ideas SM65 Fisa tehnica Engleza product name

Production ...

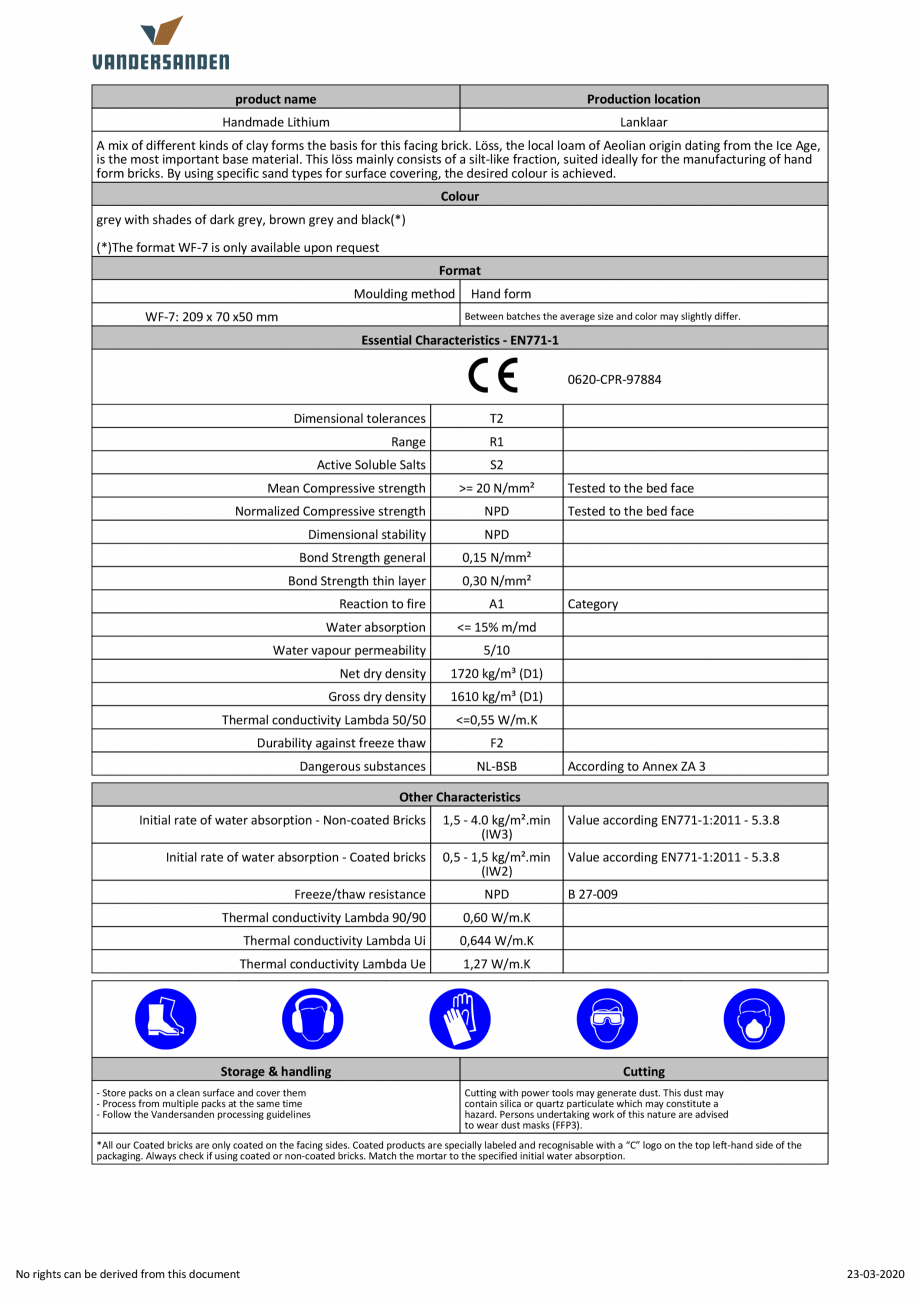

Pagina 2 - Caramida aparenta klinker - Lithium Amedio Ideas SM65 Fisa tehnica Engleza

Dimensional ...

Dimensional stability NPD Bond Strength general NPD Bond Strength thin layer NPD Reaction to fire Water absorption Water vapour permeability A1 <= 15% m/md 5/10 Net dry density 1720 kg/m³ (D1) Gross dry density 1610 kg/m³ (D1) Thermal conductivity Lambda 50/50 Durability against freeze thaw Dangerous substances Category <=0,55 W/m.K F2 NL-BSB According to Annex ZA 3 Other Characteristics Initial rate of water absorption - Non-coated Bricks 1,5 - 4.0 kg/m².min (IW3) Value according EN771-1:2011 - 5.3.8 Initial rate of water absorption - Coated bricks 0,5 - 1,5 kg/m².min (IW2) Value according EN771-1:2011 - 5.3.8 Freeze/thaw resistance Zeer vorstbestand B 27-009 Thermal conductivity Lambda 90/90 0,60 W/m.K Thermal conductivity Lambda Ui 0,644 W/m.K Thermal conductivity Lambda Ue 1,27 W/m.K Storage & handling - Store packs on a clean surface and cover them - Process from multiple packs at the same time - Follow the Vandersanden processing guidelines C

Pagina 2-Caramida aparenta klinker - Lithium Amedio Ideas SM65 Fisa tehnica Engleza

Dimensional stability

...

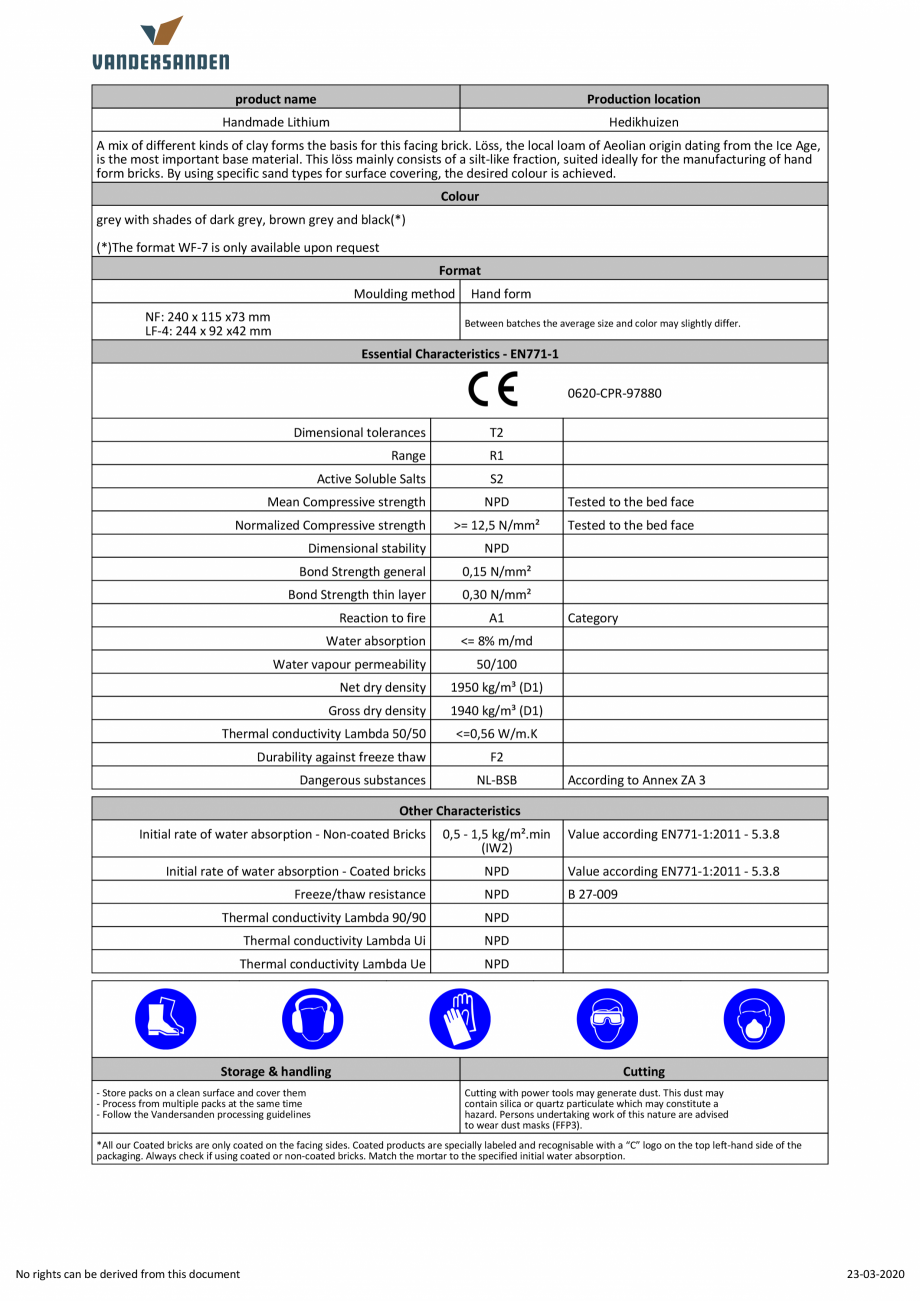

Pagina 3 - Caramida aparenta klinker - Lithium Amedio Ideas SM65 Fisa tehnica Engleza utting
Cutting...

utting Cutting with power tools may generate dust. This dust may contain silica or quartz particulate which may constitute a hazard. Persons undertaking work of this nature are advised to wear dust masks (FFP3). *All our Coated bricks are only coated on the facing sides. Coated products are specially labeled and recognisable with a “C” logo on the top left-hand side of the packaging. Always check if using coated or non-coated bricks. Match the mortar to the specified initial water absorption. No rights can be derived from this document 23-03-2020 product name Production location Handmade Lithium Lanklaar A mix of different kinds of clay forms the basis for this facing brick. Löss, the local loam of Aeolian origin dating from the Ice Age, is the most important base material. This löss mainly consists of a silt-like fraction, suited ideally for the manufacturing of hand form bricks. By using specific sand types for surface covering, the desired colour is achieved. Colour g
