Caramida aparenta klinker - Livorno Amedio Ideas SM65

Limba: Engleza

8 afisari

Tip documentatie: Fisa tehnica

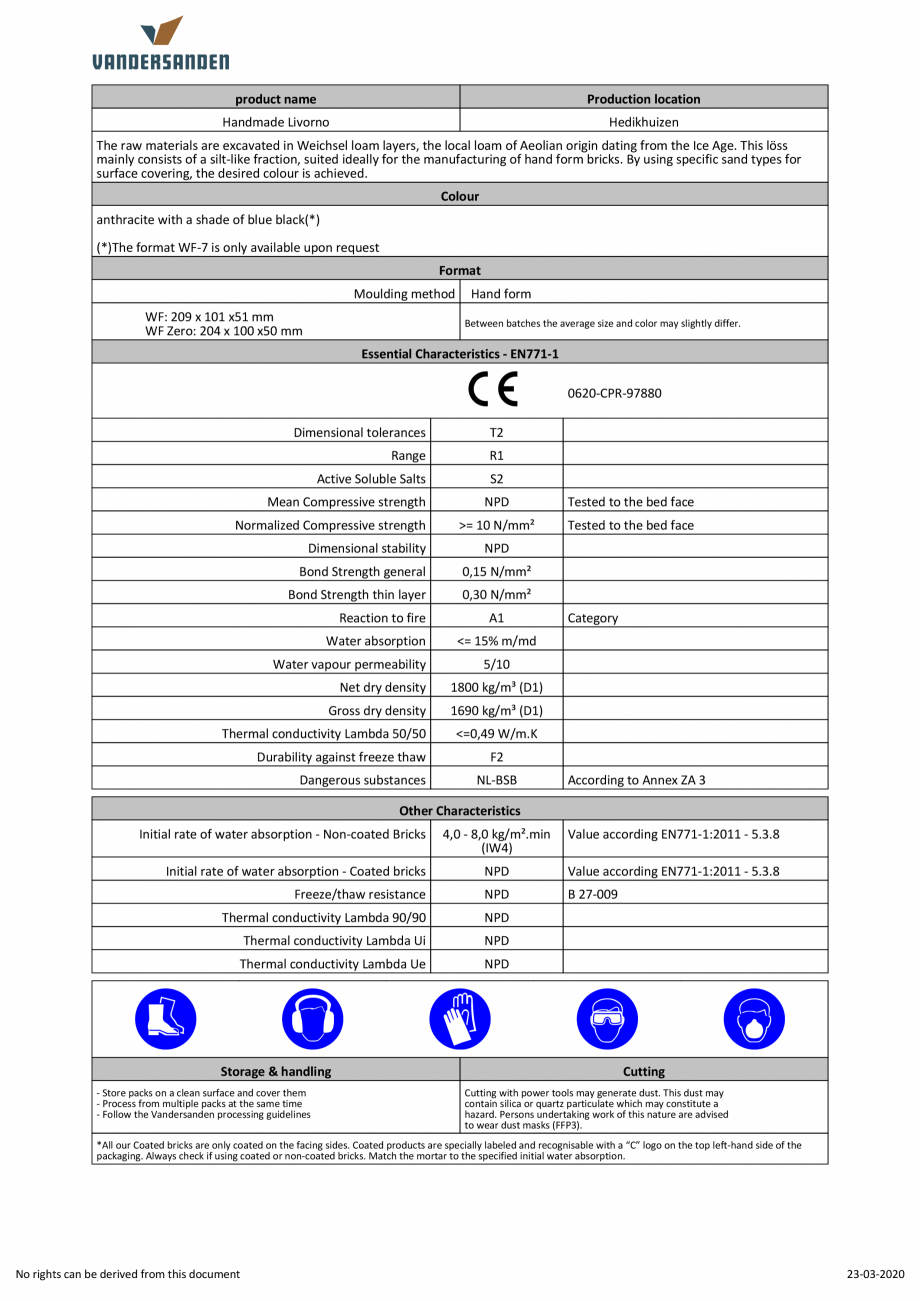

Pagina 1 - Caramida aparenta klinker - Livorno Amedio Ideas SM65 Fisa tehnica Engleza product name

...

product name Production location Handmade Livorno Hedikhuizen The raw materials are excavated in Weichsel loam layers, the local loam of Aeolian origin dating from the Ice Age. This löss mainly consists of a silt-like fraction, suited ideally for the manufacturing of hand form bricks. By using specific sand types for surface covering, the desired colour is achieved. Colour anthracite with a shade of blue black(*) (*)The format WF-7 is only available upon request Format Moulding method WF: 209 x 101 x51 mm WF Zero: 204 x 100 x50 mm Hand form Between batches the average size and color may slightly differ. Essential Characteristics - EN771-1 0620-CPR-97880 Dimensional tolerances T2 Range R1 Active Soluble Salts Mean Compressive strength Normalized Compressive strength Dimensional stability S2 NPD Tested to the bed face >= 10 N/mm² Tested to the bed face NPD Bond Strength general 0,15 N/mm² Bond Strength thin layer 0,30 N/mm² Reaction to fire Water absorption Water

Pagina 1-Caramida aparenta klinker - Livorno Amedio Ideas SM65 Fisa tehnica Engleza product name

Production ...

Pagina 2 - Caramida aparenta klinker - Livorno Amedio Ideas SM65 Fisa tehnica Engleza vapour...

vapour permeability A1 <= 15% m/md 5/10 Net dry density 1800 kg/m³ (D1) Gross dry density 1690 kg/m³ (D1) Thermal conductivity Lambda 50/50 Durability against freeze thaw Dangerous substances Category <=0,49 W/m.K F2 NL-BSB According to Annex ZA 3 Other Characteristics Initial rate of water absorption - Non-coated Bricks 4,0 - 8,0 kg/m².min (IW4) Value according EN771-1:2011 - 5.3.8 Initial rate of water absorption - Coated bricks NPD Value according EN771-1:2011 - 5.3.8 Freeze/thaw resistance NPD B 27-009 Thermal conductivity Lambda 90/90 NPD Thermal conductivity Lambda Ui NPD Thermal conductivity Lambda Ue NPD Storage & handling - Store packs on a clean surface and cover them - Process from multiple packs at the same time - Follow the Vandersanden processing guidelines Cutting Cutting with power tools may generate dust. This dust may contain silica or quartz particulate which may constitute a hazard. Persons undertaking work of this nature are advised to

Pagina 2-Caramida aparenta klinker - Livorno Amedio Ideas SM65 Fisa tehnica Engleza vapour permeability

A1
...

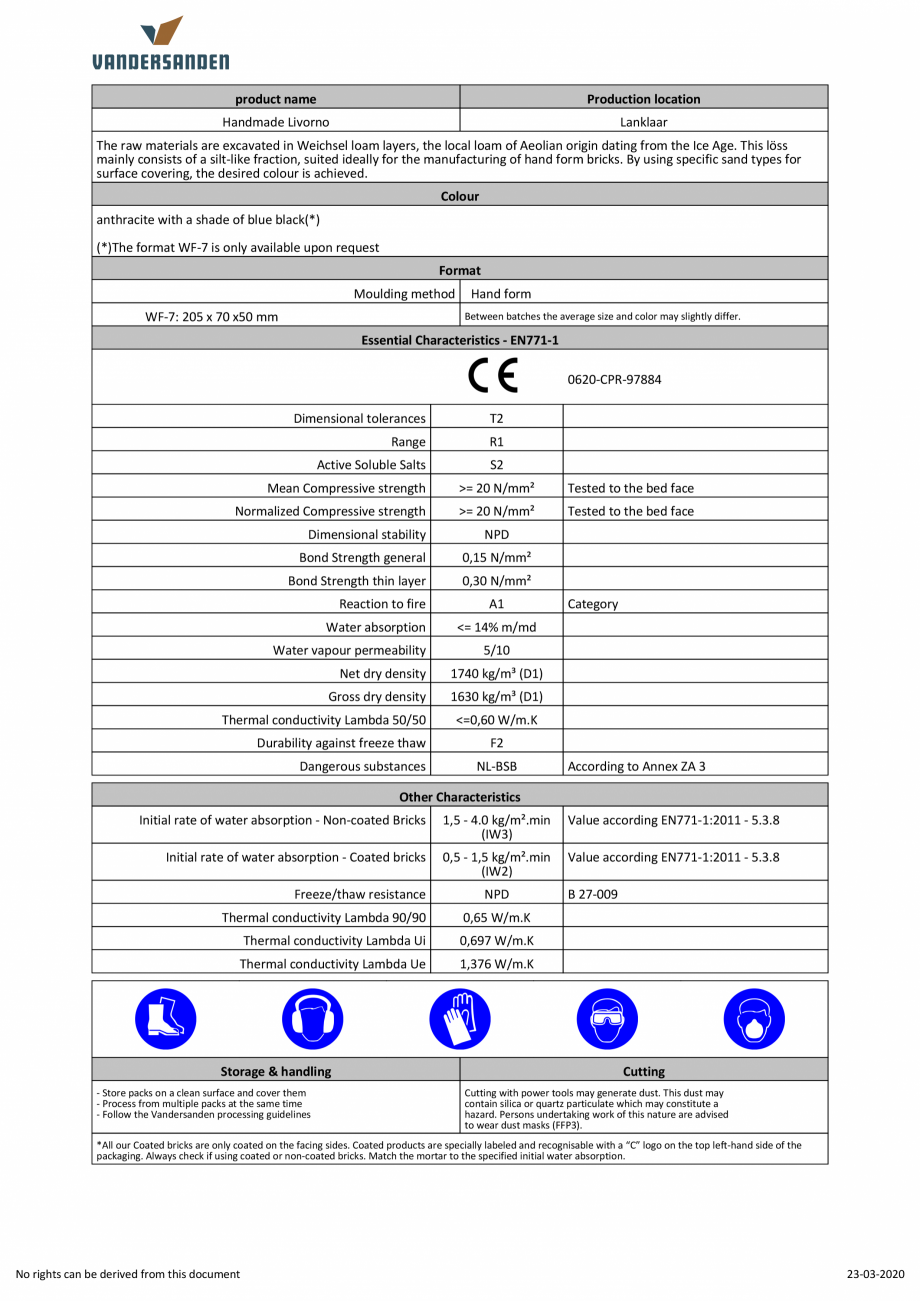

Pagina 3 - Caramida aparenta klinker - Livorno Amedio Ideas SM65 Fisa tehnica Engleza wear dust...

wear dust masks (FFP3). *All our Coated bricks are only coated on the facing sides. Coated products are specially labeled and recognisable with a “C” logo on the top left-hand side of the packaging. Always check if using coated or non-coated bricks. Match the mortar to the specified initial water absorption. No rights can be derived from this document 23-03-2020 product name Production location Handmade Livorno Spouwen The raw materials are excavated in Weichsel loam layers, the local loam of Aeolian origin dating from the Ice Age. This löss mainly consists of a silt-like fraction, suited ideally for the manufacturing of hand form bricks. By using specific sand types for surface covering, the desired colour is achieved. Colour anthracite with a shade of blue black(*) (*)The format WF-7 is only available upon request Format Moulding method WF: 210 x 100 x50 mm DF: 210 x 100 x65 mm M65: 189 x 88 x65 mm WF Zero: 200 x 98 x49 mm Hand form Between batches the average size and
