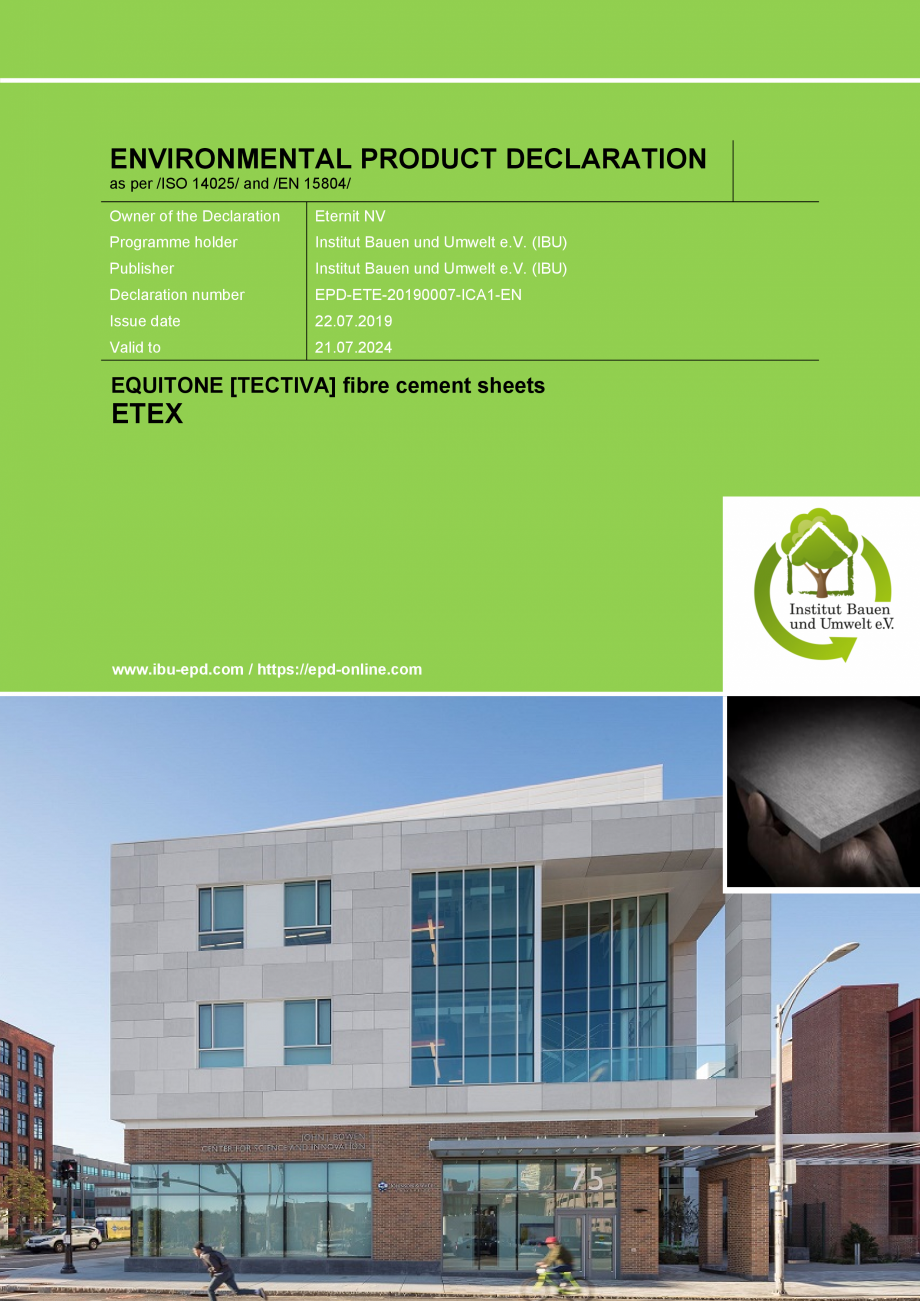

ENVIRONMENTAL PRODUCT DECLARATION as per /ISO 14025/ and /EN 15804/ Owner of the Declaration Eternit NV Programme holder Institut Bauen und Umwelt e.V. (IBU) Publisher Institut Bauen und Umwelt e.V. (IBU) Declaration number EPD-ETE-20190007-ICA1-EN Issue date 22.07.2019 Valid to 21.07.2024 EQUITONE [TECTIVA] fibre cement sheets ETEX www.ibu-epd.com / https://epd-online.com Umwelt Produktdeklaration Name des Herstellers – Name des Produkts 1. General Information Eternit NV EQUITONE [TECTIVA] Programme holder IBU - Institut Bauen und Umwelt e.V. Panoramastr. 1 10178 Berlin Germany Owner of the declaration Eternit NV Kuiermansstraat 1 1880 Kapelle-op-den-Bos Belgium Declaration number EPD-ETE-20190007-ICA1-EN Declared product / declared unit The production of 1 m2 of a “EQUITONE [TECTIVA]” fibre cement sheets and it’s related impacts over cradle-to-grave life cycle stages, where the product’s expected average reference service life is of 50 years This decl

Pagina 1-Declaratie de conformitate placi de fibrociment pentru fatade ventilate EQUITONE [tectiva] [tectiva]...

Pagina 2 - Declaratie de conformitate placi de fibrociment pentru fatade ventilate EQUITONE...

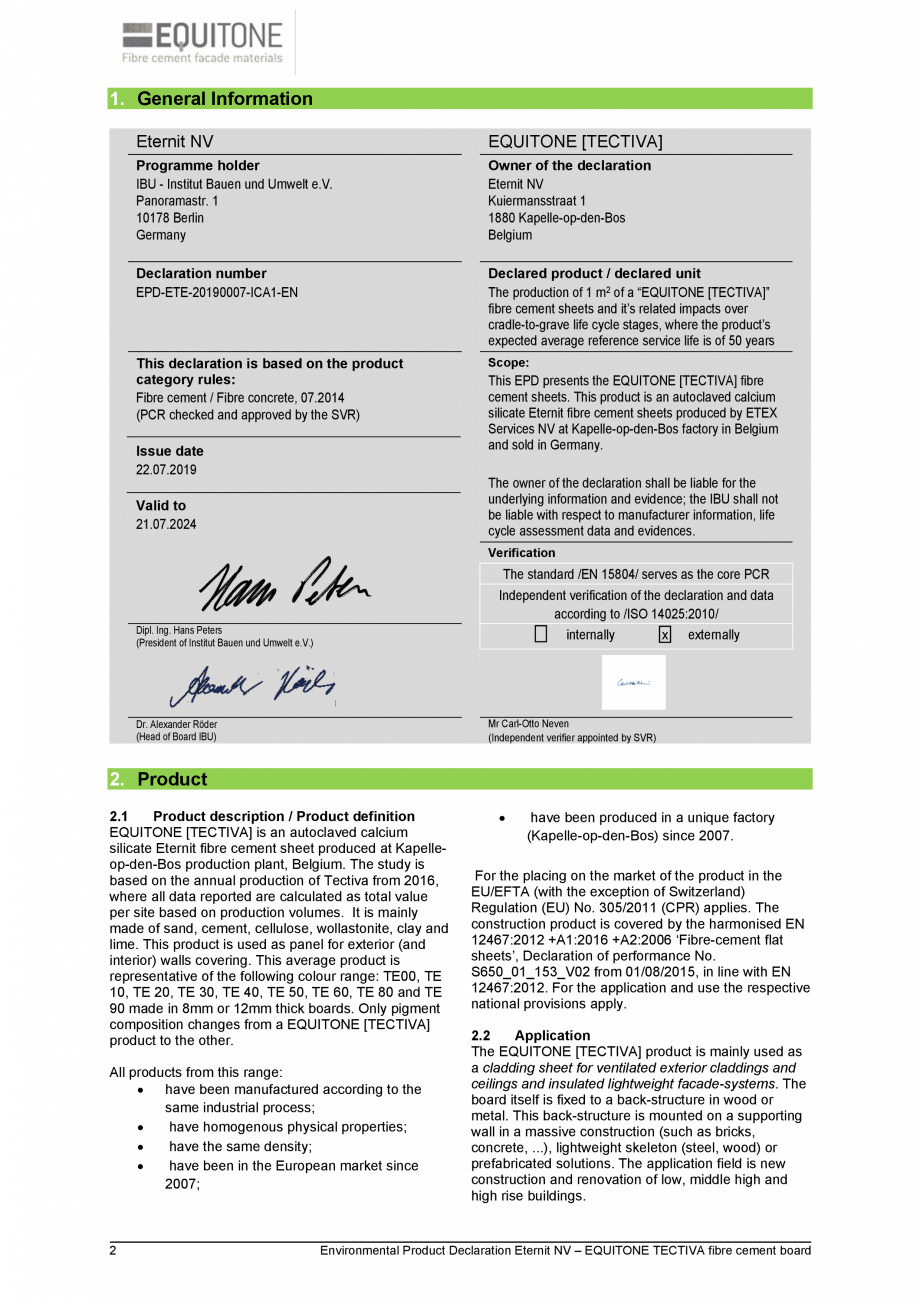

aration is based on the product category rules: Fibre cement / Fibre concrete, 07.2014 (PCR checked and approved by the SVR) Scope: Issue date 22.07.2019 This EPD presents the EQUITONE [TECTIVA] fibre cement sheets. This product is an autoclaved calcium silicate Eternit fibre cement sheets produced by ETEX Services NV at Kapelle-op-den-Bos factory in Belgium and sold in Germany. The owner of the declaration shall be liable for the underlying information and evidence; the IBU shall not be liable with respect to manufacturer information, life cycle assessment data and evidences. Valid to 21.07.2024 Verification The standard /EN 15804/ serves as the core PCR Independent verification of the declaration and data according to /ISO 14025:2010/ internally x externally Dipl. Ing. Hans Peters (President of Institut Bauen und Umwelt e.V.) Mr Carl-Otto Neven (Independent verifier appointed by SVR) Dr. Alexander Röder (Head of Board IBU) 2. Product 2.1 Product description / Product defin

Pagina 2-Declaratie de conformitate placi de fibrociment pentru fatade ventilate EQUITONE [tectiva] [tectiva]...

Pagina 3 - Declaratie de conformitate placi de fibrociment pentru fatade ventilate EQUITONE...

ition EQUITONE [TECTIVA] is an autoclaved calcium silicate Eternit fibre cement sheet produced at Kapelleop-den-Bos production plant, Belgium. The study is based on the annual production of Tectiva from 2016, where all data reported are calculated as total value per site based on production volumes. It is mainly made of sand, cement, cellulose, wollastonite, clay and lime. This product is used as panel for exterior (and interior) walls covering. This average product is representative of the following colour range: TE00, TE 10, TE 20, TE 30, TE 40, TE 50, TE 60, TE 80 and TE 90 made in 8mm or 12mm thick boards. Only pigment composition changes from a EQUITONE [TECTIVA] product to the other. All products from this range:  have been manufactured according to the same industrial process;  have homogenous physical properties;  have the same density;  have been in the European market since 2007; 2  have been produced in a unique factory (Kapelle-op-den-Bos) since 2007. For

Pagina 3-Declaratie de conformitate placi de fibrociment pentru fatade ventilate EQUITONE [tectiva] [tectiva]...

Pagina 4 - Declaratie de conformitate placi de fibrociment pentru fatade ventilate EQUITONE...

the placing on the market of the product in the EU/EFTA (with the exception of Switzerland) Regulation (EU) No. 305/2011 (CPR) applies. The construction product is covered by the harmonised EN 12467:2012 +A1:2016 +A2:2006 ‘Fibre-cement flat sheets’, Declaration of performance No. S650_01_153_V02 from 01/08/2015, in line with EN 12467:2012. For the application and use the respective national provisions apply. 2.2 Application The EQUITONE [TECTIVA] product is mainly used as a cladding sheet for ventilated exterior claddings and ceilings and insulated lightweight facade-systems. The board itself is fixed to a back-structure in wood or metal. This back-structure is mounted on a supporting wall in a massive construction (such as bricks, concrete, ...), lightweight skeleton (steel, wood) or prefabricated solutions. The application field is new construction and renovation of low, middle high and high rise buildings. Environmental Product Declaration Eternit NV – EQUITONE TECTIVA fibre

Pagina 4-Declaratie de conformitate placi de fibrociment pentru fatade ventilate EQUITONE [tectiva] [tectiva]...

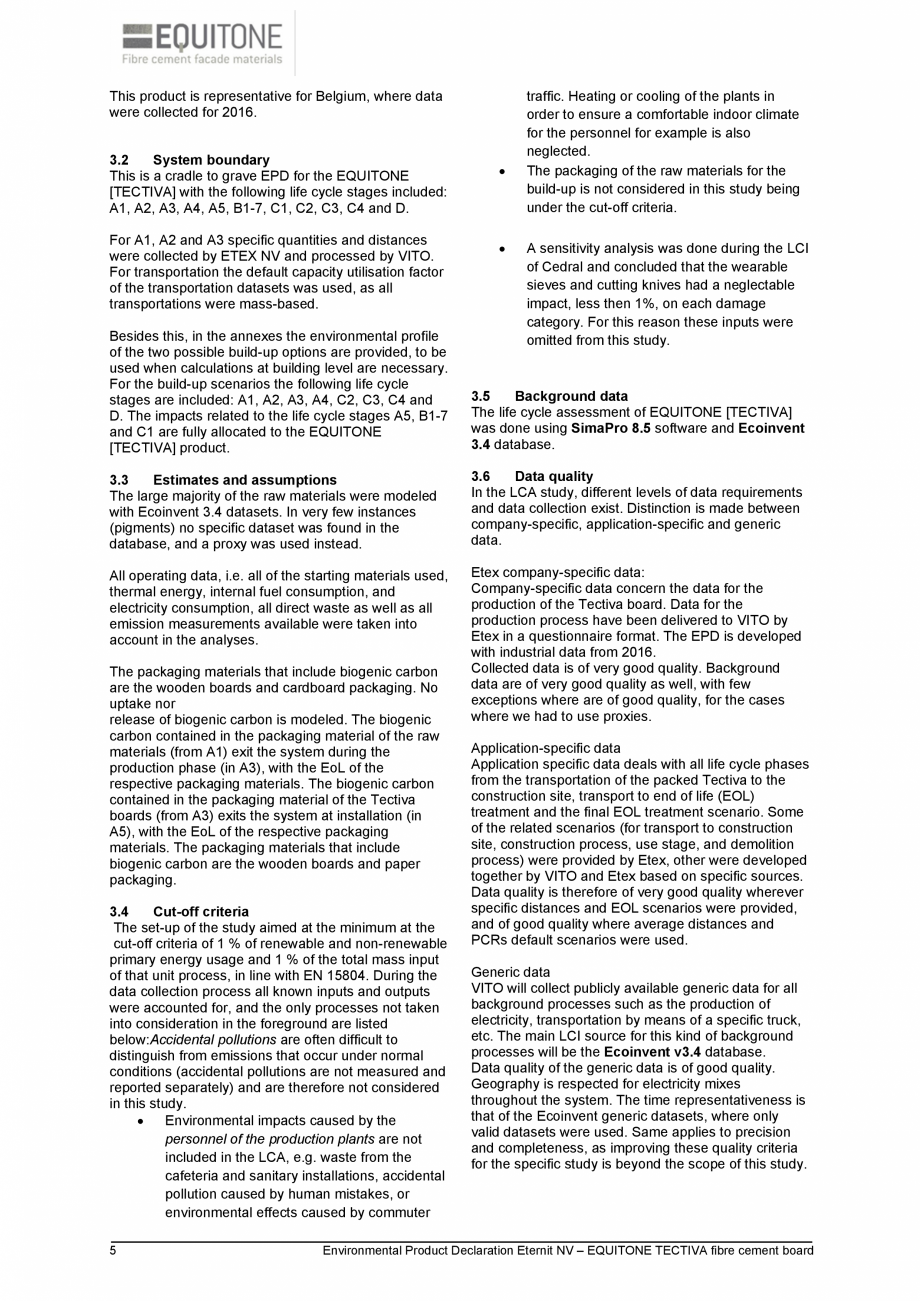

Pagina 5 - Declaratie de conformitate placi de fibrociment pentru fatade ventilate EQUITONE...

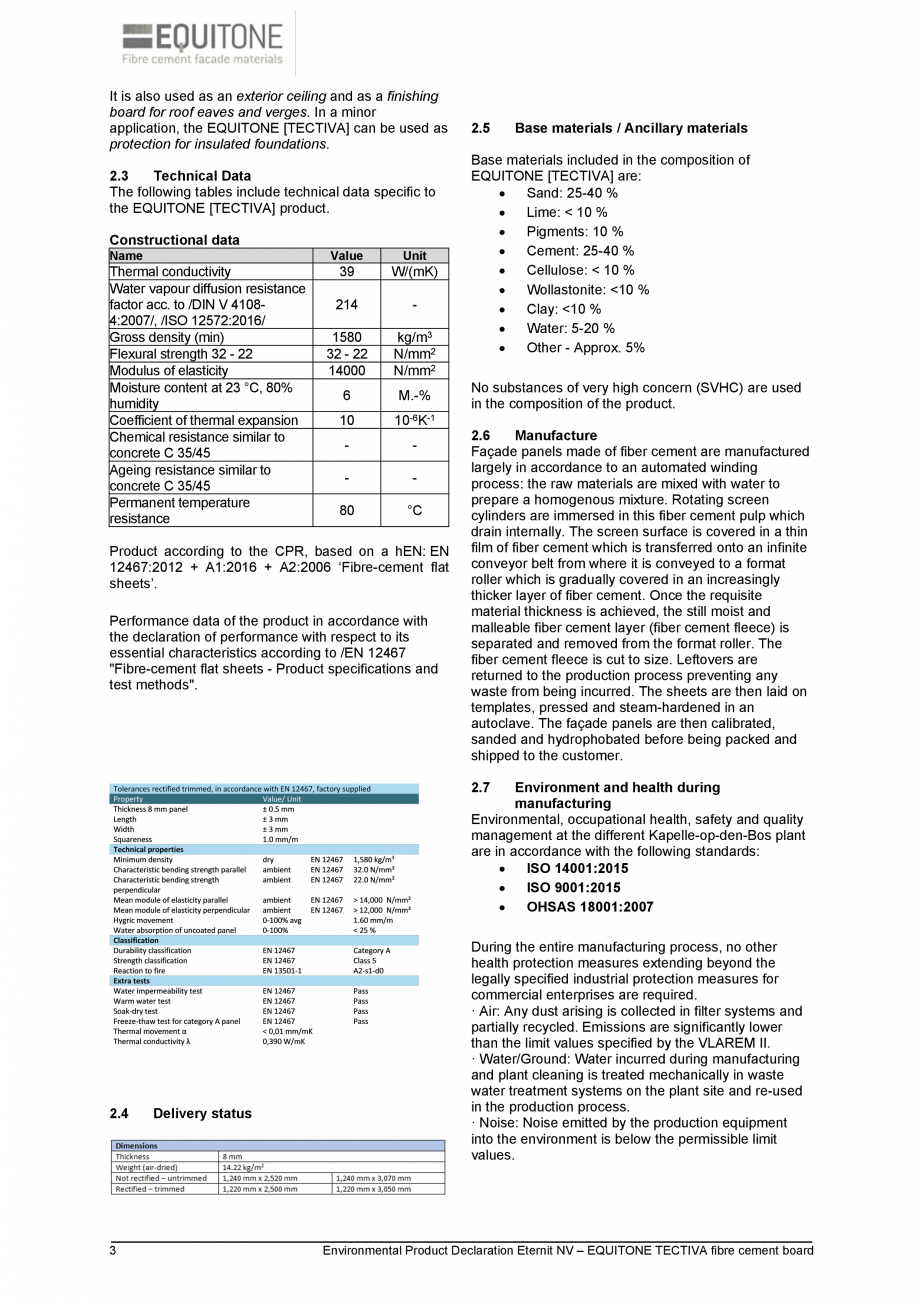

cement board It is also used as an exterior ceiling and as a finishing board for roof eaves and verges. In a minor application, the EQUITONE [TECTIVA] can be used as protection for insulated foundations. 2.3 Technical Data The following tables include technical data specific to the EQUITONE [TECTIVA] product. Constructional data Name Thermal conductivity Water vapour diffusion resistance factor acc. to /DIN V 41084:2007/, /ISO 12572:2016/ Gross density (min) Flexural strength 32 - 22 Modulus of elasticity Moisture content at 23 °C, 80% humidity Coefficient of thermal expansion Chemical resistance similar to concrete C 35/45 Ageing resistance similar to concrete C 35/45 Permanent temperature resistance Value Unit 39 W/(mK) 214 - 1580 32 - 22 14000 kg/m3 N/mm2 N/mm2 6 M.-% 10 10-6K-1 - - - - 80 °C Product according to the CPR, based on a hEN: EN 12467:2012 + A1:2016 + A2:2006 ‘Fibre-cement flat sheets’. Performance data of the product in accordance with the d

Pagina 5-Declaratie de conformitate placi de fibrociment pentru fatade ventilate EQUITONE [tectiva] [tectiva]...

Pagina 6 - Declaratie de conformitate placi de fibrociment pentru fatade ventilate EQUITONE...

eclaration of performance with respect to its essential characteristics according to /EN 12467 "Fibre-cement flat sheets - Product specifications and test methods". 2.5 Base materials / Ancillary materials Base materials included in the composition of EQUITONE [TECTIVA] are:  Sand: 25-40 %  Lime: < 10 %  Pigments: 10 %  Cement: 25-40 %  Cellulose: < 10 %  Wollastonite: <10 %  Clay: <10 %  Water: 5-20 %  Other - Approx. 5% No substances of very high concern (SVHC) are used in the composition of the product. 2.6 Manufacture Façade panels made of fiber cement are manufactured largely in accordance to an automated winding process: the raw materials are mixed with water to prepare a homogenous mixture. Rotating screen cylinders are immersed in this fiber cement pulp which drain internally. The screen surface is covered in a thin film of fiber cement which is transferred onto an infinite conveyor belt from where it is conveyed to a format roller which is gradua

Pagina 6-Declaratie de conformitate placi de fibrociment pentru fatade ventilate EQUITONE [tectiva] [tectiva]...

Pagina 7 - Declaratie de conformitate placi de fibrociment pentru fatade ventilate EQUITONE...

lly covered in an increasingly thicker layer of fiber cement. Once the requisite material thickness is achieved, the still moist and malleable fiber cement layer (fiber cement fleece) is separated and removed from the format roller. The fiber cement fleece is cut to size. Leftovers are returned to the production process preventing any waste from being incurred. The sheets are then laid on templates, pressed and steam-hardened in an autoclave. The façade panels are then calibrated, sanded and hydrophobated before being packed and shipped to the customer. 2.7 Environment and health during manufacturing Environmental, occupational health, safety and quality management at the different Kapelle-op-den-Bos plant are in accordance with the following standards:  ISO 14001:2015  ISO 9001:2015  OHSAS 18001:2007 2.4 3 Delivery status During the entire manufacturing process, no other health protection measures extending beyond the legally specified industrial protection measures for

Pagina 7-Declaratie de conformitate placi de fibrociment pentru fatade ventilate EQUITONE [tectiva] [tectiva]...

Pagina 8 - Declaratie de conformitate placi de fibrociment pentru fatade ventilate EQUITONE...

commercial enterprises are required. · Air: Any dust arising is collected in filter systems and partially recycled. Emissions are significantly lower than the limit values specified by the VLAREM II. · Water/Ground: Water incurred during manufacturing and plant cleaning is treated mechanically in waste water treatment systems on the plant site and re-used in the production process. · Noise: Noise emitted by the production equipment into the environment is below the permissible limit values. Environmental Product Declaration Eternit NV – EQUITONE TECTIVA fibre cement board 2.8 Product processing/Installation The product use and installation instructions shall be followed for the specific applications where EQUITONE [TECTIVA] is used. Build-up alternatives are presented below, and annexes will present the environmental profiles of these build-ups for use at building level. · Build scenario 1: Fastening of EQUITONE panels to facades using EQUITONE UNIscrew (EN 14567) or A2 (304)

Pagina 8-Declaratie de conformitate placi de fibrociment pentru fatade ventilate EQUITONE [tectiva] [tectiva]...

Pagina 9 - Declaratie de conformitate placi de fibrociment pentru fatade ventilate EQUITONE...

Stainless Steel ISR T20 Torx TTAP® screw fixed to a sub-construction of wooden framing. These recommendations apply to the most common areas of application.Consumption per m²: 2,389 kg wood, 0,033kg stainless steel screws and 0,018kg EPDM sealing tape. · Build scenario 2: Fastening of EQUITONE panels to facades using Aluminium or Stainless Steel EQUITONE UNI-rivets fixed to a sub construction of adjustable aluminium rails and brackets. Consumption per m²: 1,610kg aluminium, 0,016kg aluminium rivets and 0,018kg EthylenPropylen-Dien-Monomer (EPDM) sealing tape. service life. It is estimated that the reference service life of Tectiva is the average building life time of 50 years. This is also in line with the category in BBSR with the code 335.511. There are no influences on the aging of the product when applied in accordance with the rules of technology. 2.13 Extraordinary effects Fire Product classification of EQUITONE [TECTIVA] in relation to its reaction to fire behavior, acco

Pagina 9-Declaratie de conformitate placi de fibrociment pentru fatade ventilate EQUITONE [tectiva] [tectiva]...

Pagina 10 - Declaratie de conformitate placi de fibrociment pentru fatade ventilate EQUITONE...

rding to EN 13501-1+A1:2007 is presented below: Fire protection Name Value Building material class Burning droplets Smoke gas development A2 d0 s1 2.9 Packaging The final Tectiva product is placed on a custom-size, not re-usable wooden pallet. On each pallet there are 10 Tectiva boards placed, and the boards are separated from each other through a paper/carton sheet. The entire pallet with the Tectiva boards are tied together with a PE strap. Water Tests on the product performance including possible impacts on the environment following the unforeseeable influence of water, e.g. flooding showed that no risks are expected to occur in terms of environment and human health. Packaging material per functional unit: Pallet - 0,2278 kg Carton - 0,0146 kg PE strap 0,0012 kg. Mechanical destruction In case of mechanical destruction, no risks are expected to occur in terms of environment and human health. 2.10 Condition of use Maintenance requirement will depend on the specific design and
