Ecran LED HDR - Seria CP Absen

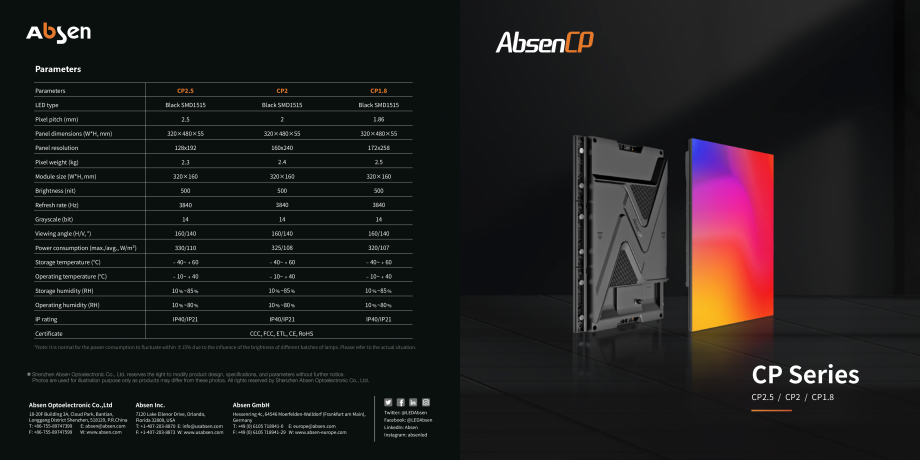

Parameters
CP2.5
Parameters
LED type
Panel dimensions (W*H, mm)
Black SMD1515
Black SMD1515
320×480×55
320×480×55
320×480×55
2.3
2.4
2.5
128x192
Panel resolution
Pixel weight (kg)
CP1.8
Black SMD1515
2.5
Pixel pitch (mm)
CP2
2
160x240
1.86
172x258
320×160
320×160
320×160
3840
3840
3840
160/140
160/140
160/140
Storage temperature (℃)
﹣40~﹢60
﹣40~﹢60
﹣40~﹢60
Storage humidity (RH)
10﹪~85﹪
10﹪~85﹪
10﹪~85﹪
Module size (W*H, mm)
Refresh rate (Hz)
Viewing angle (H/V, °)
Power consumption (max./avg., W/m²)
330/110
﹣10~﹢40
Operating temperature (℃)
10﹪~80﹪
Operating humidity (RH)
IP40/IP21
IP rating
Certificate
14
14
14
Grayscale (bit)
500
500
500
Brightness (nit)
325/108
﹣10~﹢40
10﹪~80﹪
IP40/IP21
320/107
﹣10~﹢40
10﹪~80﹪
CCC, FCC, ETL, CE, RoHS
IP40/IP21
*Note: It is normal for the power consumption to fluctuate within ±15% due to the influence of the brightness of
different batches of lamps. Please refer to the actual situation.
Absen Optoelectronic Co.,Ltd
18-20F Building 3A, Cloud Park, Bantian,
Longgang District Shenzhen, 518129, P.R.China
T: +86-755-89747399
E: absen@absen.com
F: +86-755-89747599
W: www.absen.com
Absen Inc.
7120 Lake Ellenor Drive, Orlando,
Florida 32809, USA
T: +1-407-203-8870 E: info@usabsen.com
F: +1-407-203-8873 W: www.usabsen.com
Absen GmbH
Hessenring 4c, 64546 Moerfelden-Walldorf (Frankfurt am Main),
Germany
T: +49 (0) 6105 718941-0 E: europe@absen.com
F: +49 (0) 6105 718941-29 W: www.absen-europe.com
Twitter: @LEDAbsen
Facebook: @LEDAbsen
LinkedIn: Absen
Instagram: absenled
CP Series
CP2.5 / CP2 / CP1.8
CP Series
CP2.5 / CP2 / CP1.8
320mm
55mm
480mm
Ready-to-use panel
Vivid performance
Integrated product design
High refresh rate, high grayscale
Flexible splicing
Magnetic installation
Disassemble panel for size adjustment
Full front maintenance with vacuum tools
Superior Quality
Worry-Free
Safe & Secure
·Reliable raw material
·Quick Installation
·Certification
·Excellent product design
·Standard manufacturing process
·Quality control throughout the
whole manufacturing process
Ready-to-Use LED
·Extraordinary visual effect
·Ready-to-Use Panel
·One-Stop Standard Solution
·Global Service and Long Term Warranty
·Safe and Trustworthy
·Professional Installation &
Maintenance Services
Superior Quality/ Worry-Free/ Safe & Secure
On-Site Assembly LED
Inferior Quality/ Troublesome/ Hidden Dangers
Inferior Quality
Troublesome
Hidden Dangers
·Poor raw material
·Complicated Installation
·No Certification
·Crude product design
·Non-standard manufacturing
process
·No strict quality control
·Terrible visual effect
·On-Site Assembly
·Non-Standard Solution
·Unreliable After-Sales Service
·Great Security Risks
·Non-Standard Installation &
Maintenance Services
Ready-to-use panel with superior quality
Adopting an all-in-one design, t
he product including Absen-branded PSU and receiving card. Ready-to-use panel,
no need for secondary assembly, and the screen flatness is better. All accessories with superior quality are supplied from Absen-factory.
Place for safety rope
Independent modules
Integrated design of
PSU and receiving card
Maintenance back cover
Neat wiring design
Simple data and power cable cascade design.
Vivid, accurate and stable display
Disassemble panel for flexible splicing
3840 high refresh rate, no scan lines for taking pictures.
The disassemble panel can be connected vertically with standard panels to allow for flexible screen size adjustment.
Supporting high grayscale display at low brightness for true-to-nature colors.
320mm
320mm
480mm
3840 high refresh rate
(Pictures taken without scanning lines)
Disassembled
panel
320mm
High grayscale
(Clear details)
Standard
panel
Splicing with standard panels
Low refresh rate
(Pictures taken with scanning lines)
Standard panels and
disassembled panels can
be connected together vertically
Low grayscale
(Missing details)
*320x320mm back covers are optional
Magnetic installation with steel structure
Easy installation of large screen with Magnetic installation scheme.
Installation efficiency increased by 30%
Lower installation costs effectively
Recommended height of LED wall: 6m or less
Steel structure suitable for most scenarios
Full front maintenance
CP Series supports full front maintenance with vacuum tools for easy operation and assembly,
requires no special maintenance channels.
Safety rope (Optional)
For additional security in installation
& maintenance
For Main Application Scenarios of
Commercial Display
Safe and Stable
Standard manufacturing process and a number of quality tests ensure safe operation of CP series
Reliable raw material
Standard manufacturing process
power box and other accessories
process to ensure product quality
High quality LED lamp ,
Transportation Hub
Chain Store
Ho
tel
Conference Hall
Quality control throughout the
whole manufacturing process
18 monitoring links
29 operation processes
33 recording links
Entrance & Lobby
Conference Hall
2285 inspections and tests
Exhibition Hall
And More Application Scenarios��
4S Car Shop
Certifications
FCC, ETL, CE, RoHS
China Compulsory Certification
Energy Conservation Certification
Pass performance/ blue light hazard/ photobiology test, etc.
Long service life
Save operating cost
Energy efficiency, long service life
Low operational risks
Pursue precision and high quality
House of Worship
Adhere to standard manufacturing
Stable product quality
Low operating and maintenance costs
Professional service, best experience
Absen service philosophy
Absen has built up a global network , able to provide prompt and professional local services.
Absen service ability
保
Comprehensive support
Global coverage
Enjoy 1-year warranty, support up to
1-year extended warranty, lifetime
mainten
ance, and enjoy 10+ items of
professional service solutions to help you
solve problems
500+ Absen certified partners, 3000+
Absen certified engineers, covering most
of the global market, the global service
network is continuing to expand
vigorously
Multiple service channels
24/7 response
Providing service via multiple channels
such as Hot line, WeChat, WhatsApp,
E-mail and official website to quickly take
care of service requirements
One-stop service
24/7/365 available, quick response in
10 seconds
Enjoy exclusive and professional service in the whole process of pre-sales,
sales and after-sales
Initiative
Proactive care and return visits, regular touring
inspection services for customers
Efficiency
Absen customer service center responds within 10 seconds, intelligently
match the best local service resources, and enjoy a fast service experience
Standardization
Comprehensive service engineer training system, ACE professional training
and certification, ACP professional ce
rtification; establishing customer’s
product files and record the entire service process
Thoughtfulness
Longer warranty, worry-free quality
Service channels
Hot line: +86 400-700-3278
WeChat: 13923413428
WhatsApp: 008613923413428
Email: service@absen.com
Official website: www.absen.com
Service time(GMT+8)
7X24 hours online service
rtification; establishing customer’s
product files and record the entire service process
Thoughtfulness
Longer warranty, worry-free quality
Service channels
Hot line: +86 400-700-3278
WeChat: 13923413428
WhatsApp: 008613923413428
Email: service@absen.com
Official website: www.absen.com
Service time(GMT+8)
7X24 hours online service
