ROOF WINDOWS
INTRODUCTION

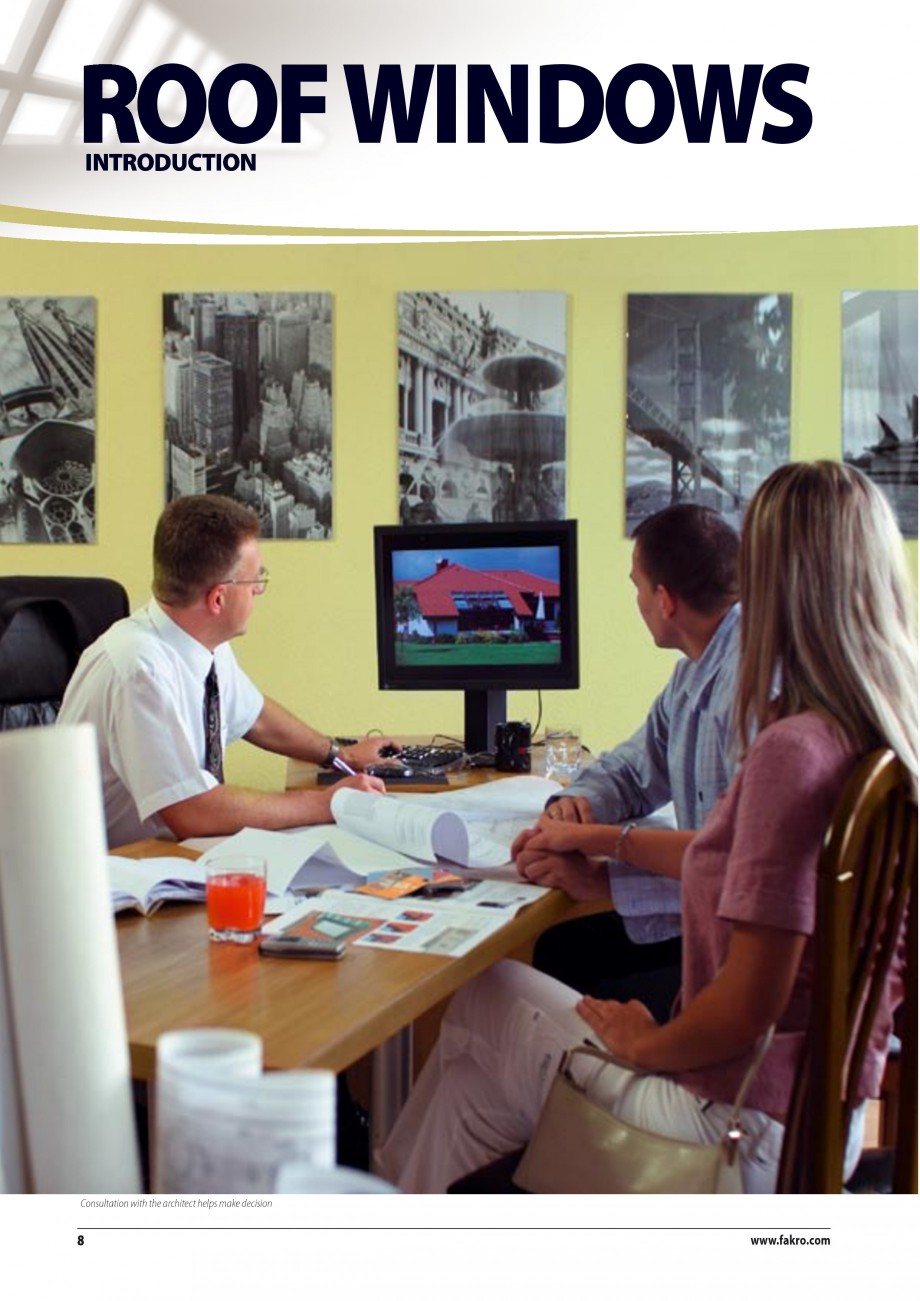

Consultation with the architect helps make decision
8
www.fakro.com
Loft Conversion-planning
Building or renovation of a house is an investment which requires not only financial expenditure, but also considered decisions and solutions. Each matter should be discussed with professionals who will advise the best way of solving problems. When deciding how and where to place roof windows you should consult an architect, who will help you to choose the right window type depending on the proposed use of the loft. He will also give you advice concerning the window’s glass surface area decided by the ratio to the total floor area and also where to place the windows to gain the maximum benefit. Nowadays roof windows are often an indispensable element of newly built structures. They create new, unique, individual possibilities. When adapting or converting the loft and also installing roof windows your loft can be easily changed into a functional, stylish and e
legant space. Depending on the client’s individual requirements and the ingenuity of the architects, even the most exceptional ideas can be prepared in the form of computerised 3D visualisation of the project which helps your dreams come true.
The attic before conversion
A completed conversion with two roof windows
A completed conversion with four roof windows and blinds
ROOF WINDOW
9

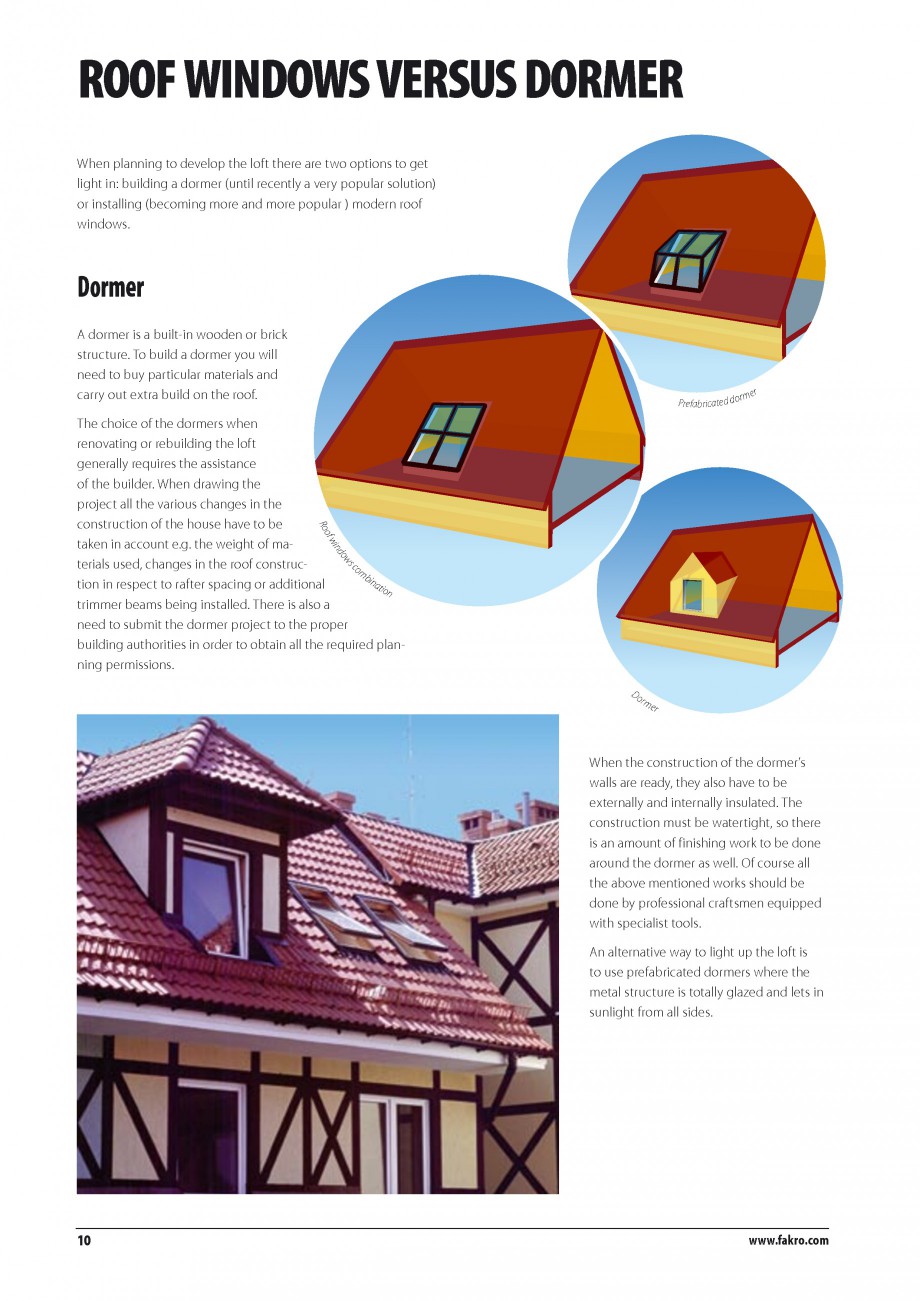

ROOF WINDOWS VERSUS DORMER
When planning to develop the loft there are two options to get light in: building a dormer (until recently a very popular solution) or installing (becoming more and more popular ) modern roof windows.
Dormer
A dormer is a built-in wooden or brick structure. To build a dormer you will need to buy particular materials and carry out extra build on the roof. The choice of the dormers when renovating or rebuilding the loft generally requires the assistance of the builder. When drawing the project all the various changes in the construction of the house have to be taken in a
ccount e.g. the weight of maco terials used, changes in the roof construcmb ina tion in respect to rafter spacing or additional tion trimmer beams being installed. There is also a need to submit the dormer project to the proper building authorities in order to obtain all the required planning permissions.
Ro o
Prefabricate d do
rme
r
fw
ind
ow
s
Do
rm
er
When the construction of the dormer’s walls are ready, they also have to be externally and internally insulated. The construction must be watertight, so there is an amount of finishing work to be done around the dormer as well. Of course all the above mentioned works should be done by professional craftsmen equipped with specialist tools. An alternative way to light up the loft is to use prefabricated dormers where the metal structure is totally glazed and lets in sunlight from all sides.
10
www.fakro.com

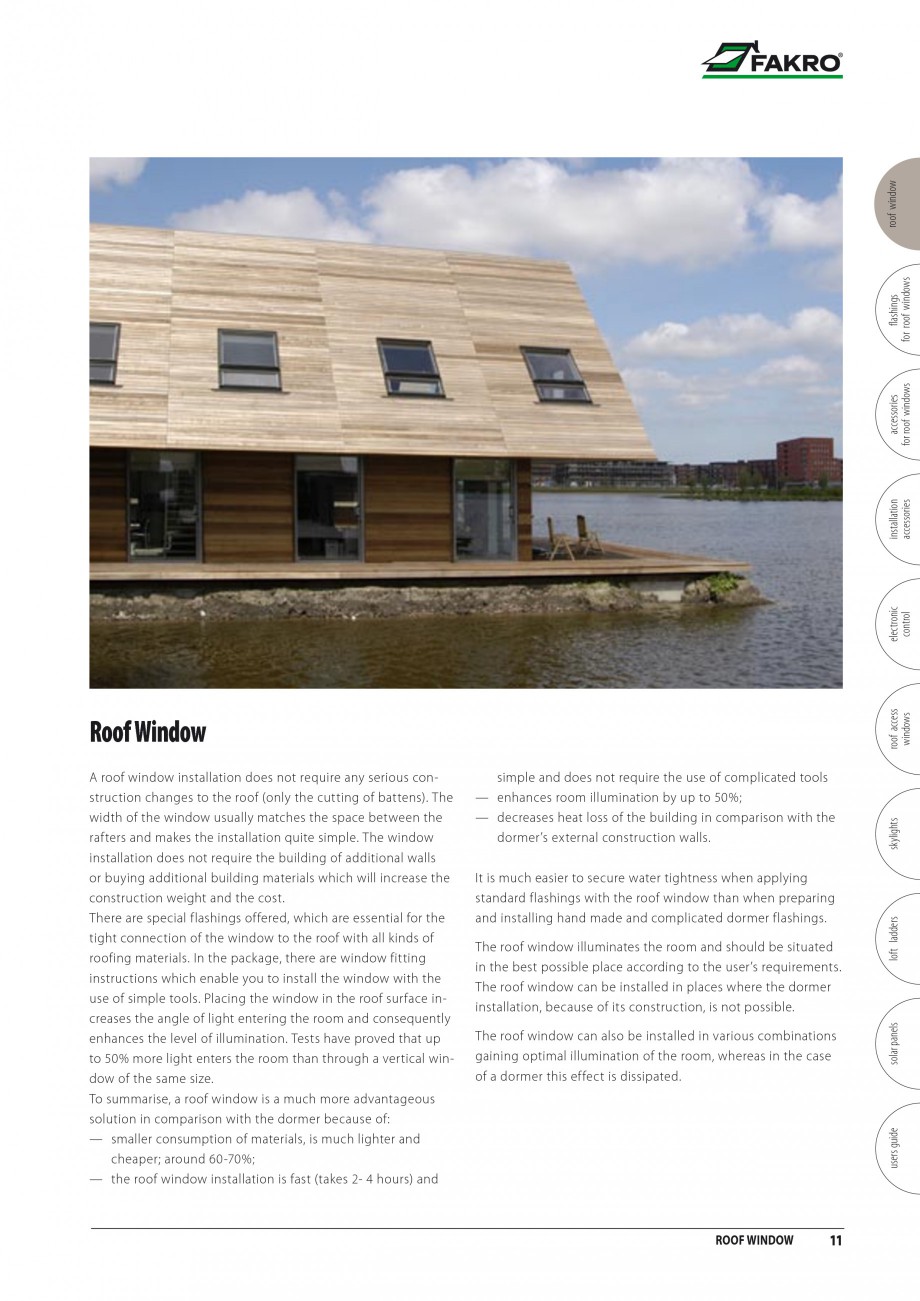

Roof Window
A roof window installation does not require any serious construction changes to the roof (only the cutt
ing of battens). The width of the window usually matches the space between the rafters and makes the installation quite simple. The window installation does not require the building of additional walls or buying additional building materials which will increase the construction weight and the cost. There are special flashings offered, which are essential for the tight connection of the window to the roof with all kinds of roofing materials. In the package, there are window fitting instructions which enable you to install the window with the use of simple tools. Placing the window in the roof surface increases the angle of light entering the room and consequently enhances the level of illumination. Tests have proved that up to 50% more light enters the room than through a vertical window of the same size. To summarise, a roof window is a much more advantageous solution in comparison with the dormer because of: — smaller consumption of materials, is much lighter and cheaper; around 60-
70%; — the roof window installation is fast (takes 2- 4 hours) and simple and does not require the use of complicated tools — enhances room illumination by up to 50%; — decreases heat loss of the building in comparison with the dormer’s external construction walls. It is much easier to secure water tightness when applying standard flashings with the roof window than when preparing and installing hand made and complicated dormer flashings. The roof window illuminates the room and should be situated in the best possible place according to the user’s requirements. The roof window can be installed in places where the dormer installation, because of its construction, is not possible. The roof window can also be installed in various combinations gaining optimal illumination of the room, whereas in the case of a dormer this effect is dissipated.
ROOF WINDOW
11
users guide
solar panels
loft ladders
skylights
roof access windows
electronic control
installation accessories
ac
cessories for roof windows
flashings for roof windows
roof window

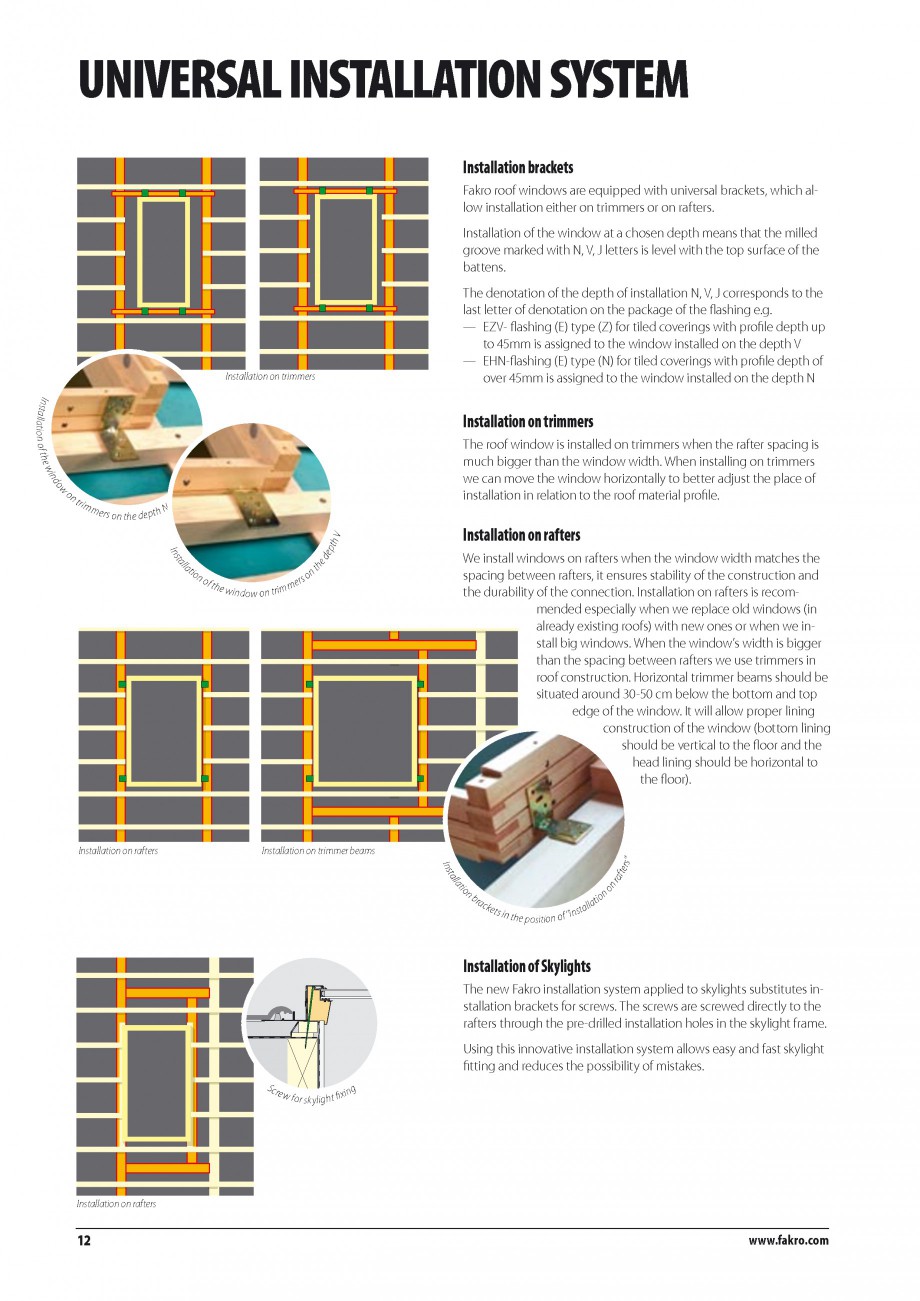

UNIVERSAL INSTALLATION SYSTEM
Installation brackets
Fakro roof windows are equipped with universal brackets, which allow installation either on trimmers or on rafters. Installation of the window at a chosen depth means that the milled groove marked with N, V, J letters is level with the top surface of the battens. The denotation of the depth of installation N, V, J corresponds to the last letter of denotation on the package of the flashing e.g. — EZV- flashing (E) type (Z) for tiled coverings with profile depth up to 45mm is assigned to the window installed on the depth V — EHN-flashing (E) type (N) for tiled coverings with profile depth of over 45mm is assigned to the window installed on the depth N
Installation on trimmers
I n st a ll
pt h
Installation on trimmers
The roof window is installed on trimmers when the rafter spacing is much bigger than the window width. When installing on trimmers we can mov
e the window horizontally to better adjust the place of installation in relation to the roof material profile.
V
at
ion
of t
he w
in d o w o n tri m
rs me
on
Installation on rafters
Installation on trimmer beams
on
raf bra
he
t
de
c ke
ts i n
t he p o sitio n o f ‘ ’i ns
t all
a ti
Installation of Skylights
The new Fakro installation system applied to skylights substitutes installation brackets for screws. The screws are screwed directly to the rafters through the pre-drilled installation holes in the skylight frame. Using this innovative installation system allows easy and fast skylight fitting and reduces the possibility of mistakes.
Scr
ew f
o r s kyli g ht fi xi
ng
Installation on rafters
12
on
on
te rs ’
’
I n st
at i o n o f t h
ew
in d
ow
on
tri m
m er s
o n th e d e p t h
N
Installation on rafters
We install windows on rafters when the window width matches the spacing between rafters, it ensures stability of the construction and th
e durability of the connection. Installation on rafters is recommended especially when we replace old windows (in already existing roofs) with new ones or when we install big windows. When the window’s width is bigger than the spacing between rafters we use trimmers in roof construction. Horizontal trimmer beams should be situated around 30-50 cm below the bottom and top edge of the window. It will allow proper lining construction of the window (bottom lining should be vertical to the floor and the head lining should be horizontal to the floor).
I ns
t al
l
all
a ti
www.fakro.com

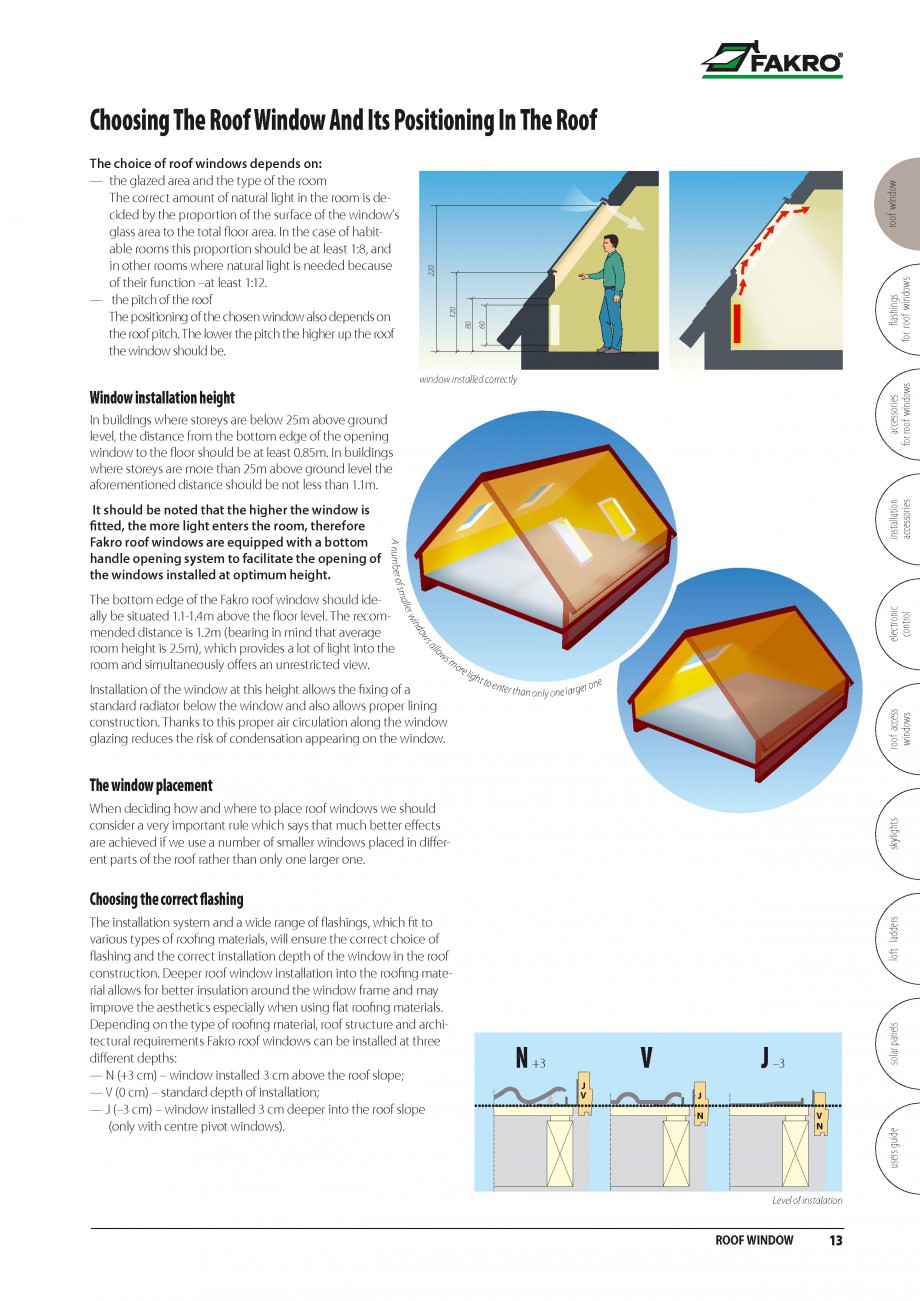

Choosing The Roof Window And Its Positioning In The Roof
The choice of roof windows depends on: — the glazed area and the type of the room The correct amount of natural light in the room is decided by the proportion of the surface of the window’s glass area to the total floor area. In the case of habitable rooms this proportion should be at least 1:8, and in other rooms where natural light is n
eeded because of their function –at least 1:12. — the pitch of the roof The positioning of the chosen window also depends on the roof pitch. The lower the pitch the higher up the roof the window should be.
roof window
���
Window installation height
In buildings where storeys are below 25m above ground level, the distance from the bottom edge of the opening window to the floor should be at least 0.85m. In buildings where storeys are more than 25m above ground level the aforementioned distance should be not less than 1.1m. It should be noted that the higher the window is fitted, the more light enters the room, therefore Fakro roof windows are equipped with a bottom handle opening system to facilitate the opening of the windows installed at optimum height.
The bottom edge of the Fakro roof window should ideally be situated 1.1-1.4m above the floor level. The recommended distance is 1.2m (bearing in mind that average room height is 2.5m), which provides a lot of light into t
he room and simultaneously offers an unrestricted view.
ow
sm
o re
The window placement
When deciding how and where to place roof windows we should consider a very important rule which says that much better effects are achieved if we use a number of smaller windows placed in different parts of the roof rather than only one larger one.
skylights
Choosing the correct flashing
The installation system and a wide range of flashings, which fit to various types of roofing materials, will ensure the correct choice of flashing and the correct installation depth of the window in the roof construction. Deeper roof window installation into the roofing material allows for better insulation around the window frame and may improve the aesthetics especially when using flat roofing materials. Depending on the type of roofing material, roof structure and architectural requirements Fakro roof windows can be installed at three different depths: — N (+3 cm) – window installed 3 cm abo
ve the roof slope; — V (0 cm) – standard depth of installation; — J (–3 cm) – window installed 3 cm deeper into the roof slope (only with centre pivot windows).
loft ladders
N +3
� �
V
� �
J –3
� �
Level of instalation
ROOF WINDOW
13
users guide
solar panels
roof access windows
Installation of the window at this height allows the fixing of a standard radiator below the window and also allows proper lining construction. Thanks to this proper air circulation along the window glazing reduces the risk of condensation appearing on the window.
ligh
t to e
nter th
a n only o ne larger
on e
electronic control
installation accessories
A n um b er of
accessories for roof windows
window installed correctly
flashings for roof windows
���
��
��
s ma
ll er
wi n
do
ws
al l

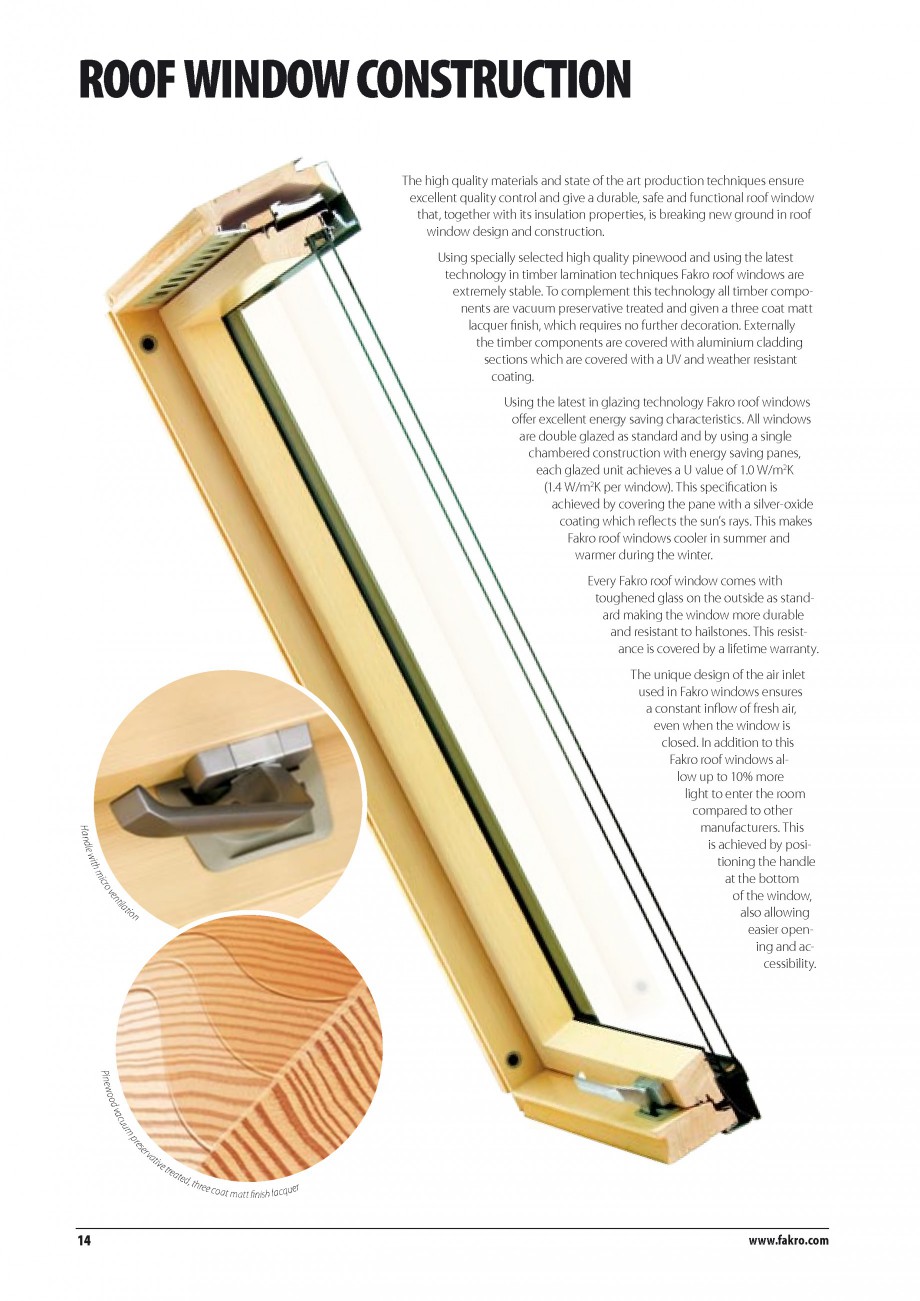

ROOF WINDOW CONSTRUCTION
The high quality materials and state of the art production techniques ensure excellent quality control and give a durable, safe and funct
ional roof window that, together with its insulation properties, is breaking new ground in roof window design and construction. Using specially selected high quality pinewood and using the latest technology in timber lamination techniques Fakro roof windows are extremely stable. To complement this technology all timber components are vacuum preservative treated and given a three coat matt lacquer finish, which requires no further decoration. Externally the timber components are covered with aluminium cladding sections which are covered with a UV and weather resistant coating. Using the latest in glazing technology Fakro roof windows offer excellent energy saving characteristics. All windows are double glazed as standard and by using a single chambered construction with energy saving panes, each glazed unit achieves a U value of 1.0 W/m2K (1.4 W/m2K per window). This specification is achieved by covering the pane with a silver-oxide coating which reflects the sun’s rays. This make
s Fakro roof windows cooler in summer and warmer during the winter. Every Fakro roof window comes with toughened glass on the outside as standard making the window more durable and resistant to hailstones. This resistance is covered by a lifetime warranty. The unique design of the air inlet used in Fakro windows ensures a constant inflow of fresh air, even when the window is closed. In addition to this Fakro roof windows allow up to 10% more light to enter the room compared to other manufacturers. This is achieved by positioning the handle at the bottom of the window, also allowing easier opening and accessibility.
14
H a ndl e
with
m ic
ro v
tila en
o Pine w
tio n
wane
a cu od v
um
p re
rva
se
ti v
e tr
eat e d,
t h re e
c o a t m a t t fi n is h l a c q u e r
www.fakro.com
h ail re
sistan t glass
4 0P r inlet V High efficiency ai
refl e
ctin
g gla
ss
2

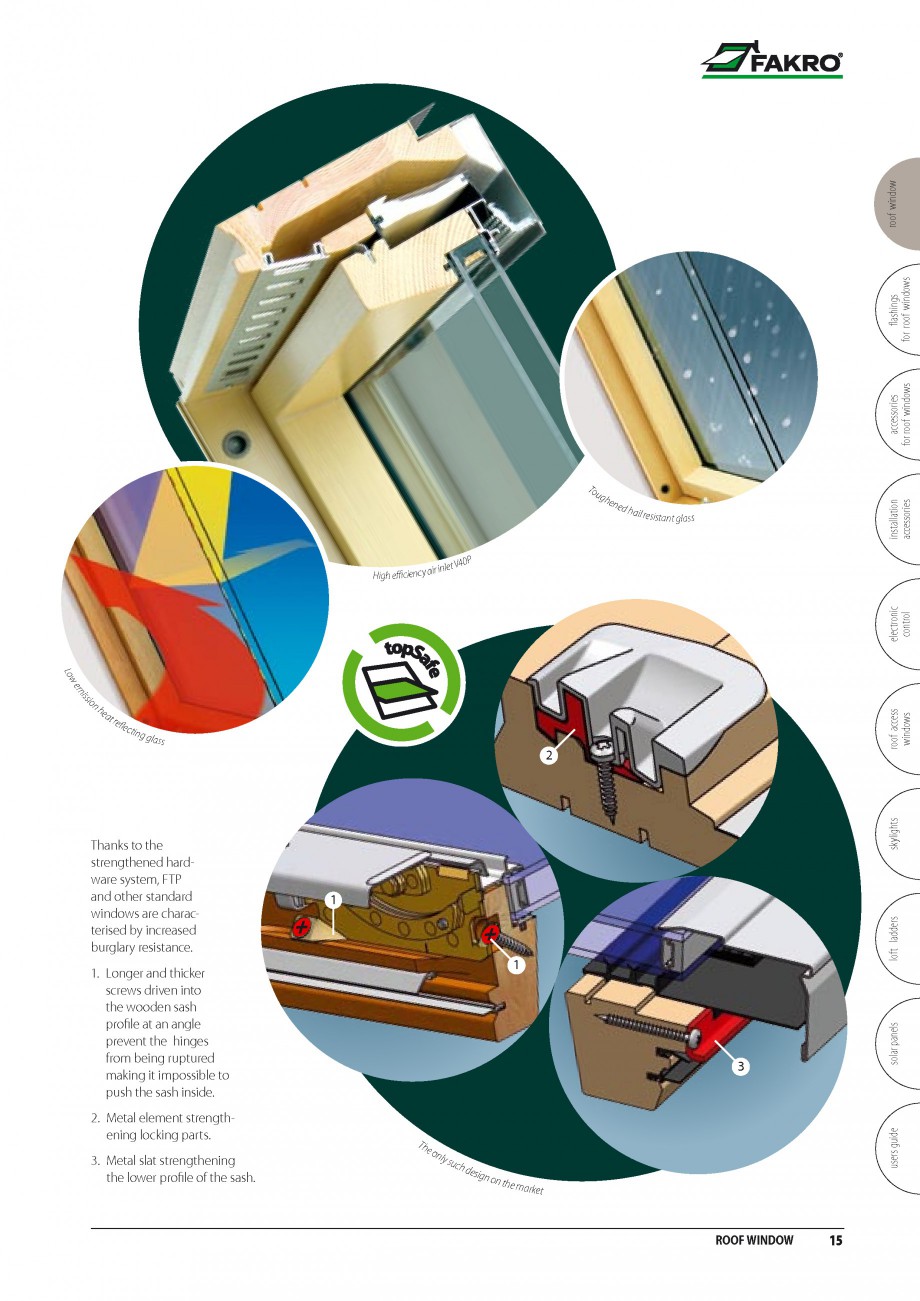

1. Longer and thicker screws driven into the wooden sash profile at an angle prevent the hinges from bei
ng ruptured making it impossible to push the sash inside. 2. Metal element strengthening locking parts. 3. Metal slat strengthening the lower profile of the sash.
1
3
The
onl y su ch d esign on
the ma rket
ROOF WINDOW
15
users guide
solar panels
loft ladders
Thanks to the strengthened hardware system, FTP and other standard windows are characterised by increased burglary resistance.
1
skylights
roof access windows
on
he
at
electronic control
Lo w
em
installation accessories
To u
g he
n ed
accessories for roof windows
i iss
flashings for roof windows
roof window

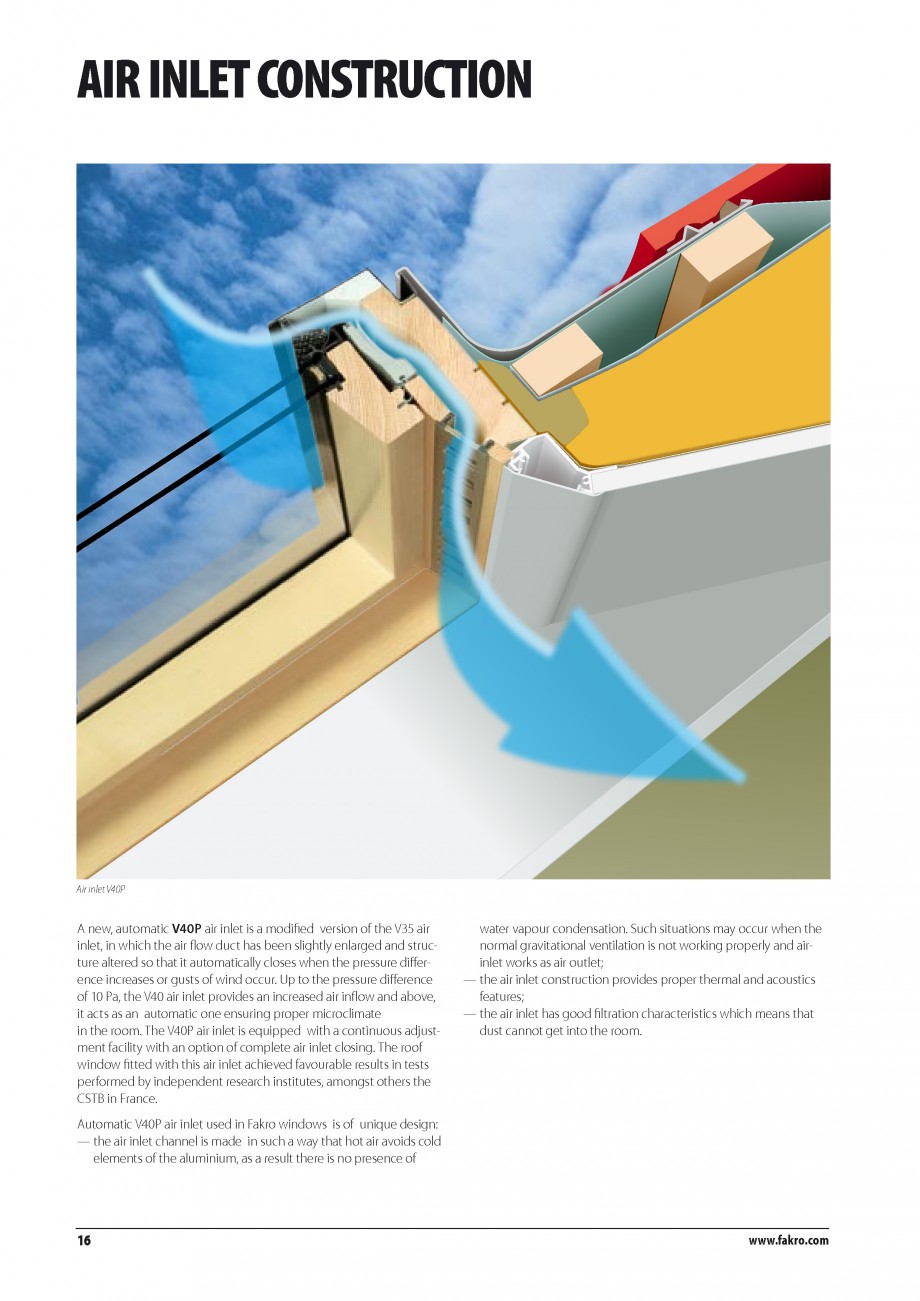

AIR INLET CONSTRUCTION
Air inlet V40P
A new, automatic V40P air inlet is a modified version of the V35 air inlet, in which the air flow duct has been slightly enlarged and structure altered so that it automatically closes when the pressure difference increases or gusts of wind occur. Up to the pressure difference of 10 Pa, the V40 air inlet provides an increased air inflow and above, it acts a
s an automatic one ensuring proper microclimate in the room. The V40P air inlet is equipped with a continuous adjustment facility with an option of complete air inlet closing. The roof window fitted with this air inlet achieved favourable results in tests performed by independent research institutes, amongst others the CSTB in France. Automatic V40P air inlet used in Fakro windows is of unique design: — the air inlet channel is made in such a way that hot air avoids cold elements of the aluminium, as a result there is no presence of
water vapour condensation. Such situations may occur when the normal gravitational ventilation is not working properly and airinlet works as air outlet; — the air inlet construction provides proper thermal and acoustics features; — the air inlet has good filtration characteristics which means that dust cannot get into the room.
16
www.fakro.com

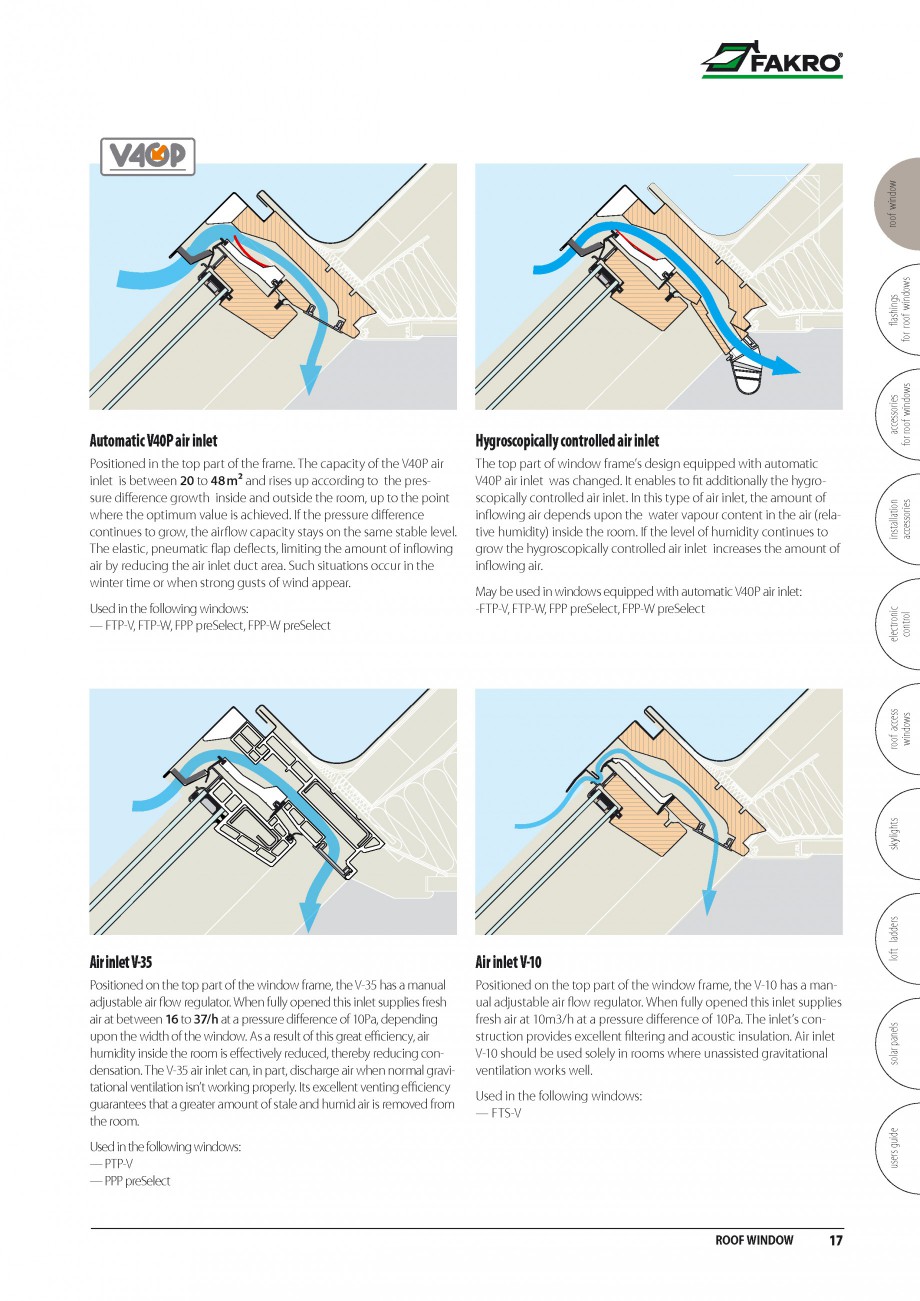

Automatic V40P air inlet
Positioned in the top part of the frame. The capacity of the V40P air inlet
is between 20 to 48 m² and rises up according to the pressure difference growth inside and outside the room, up to the point where the optimum value is achieved. If the pressure difference continues to grow, the airflow capacity stays on the same stable level. The elastic, pneumatic flap deflects, limiting the amount of inflowing air by reducing the air inlet duct area. Such situations occur in the winter time or when strong gusts of wind appear. Used in the following windows: — FTP-V, FTP-W, FPP preSelect, FPP-W preSelect
Hygroscopically controlled air inlet
The top part of window frame’s design equipped with automatic V40P air inlet was changed. It enables to fit additionally the hygroscopically controlled air inlet. In this type of air inlet, the amount of inflowing air depends upon the water vapour content in the air (relative humidity) inside the room. If the level of humidity continues to grow the hygroscopically controlled air inlet increases the amount of inflowi
ng air. May be used in windows equipped with automatic V40P air inlet: -FTP-V, FTP-W, FPP preSelect, FPP-W preSelect
Air inlet V-35
Positioned on the top part of the window frame, the V-35 has a manual adjustable air flow regulator. When fully opened this inlet supplies fresh air at between 16 to 37/h at a pressure difference of 10Pa, depending upon the width of the window. As a result of this great efficiency, air humidity inside the room is effectively reduced, thereby reducing condensation. The V-35 air inlet can, in part, discharge air when normal gravitational ventilation isn’t working properly. Its excellent venting efficiency guarantees that a greater amount of stale and humid air is removed from the room. Used in the following windows: — PTP-V — PPP preSelect
Air inlet V-10
Positioned on the top part of the window frame, the V-10 has a manual adjustable air flow regulator. When fully opened this inlet supplies fresh air at 10m3/h at a pressure difference of 10Pa. T
he inlet’s construction provides excellent filtering and acoustic insulation. Air inlet V-10 should be used solely in rooms where unassisted gravitational ventilation works well. Used in the following windows: — FTS-V
ROOF WINDOW
17
users guide
solar panels
loft ladders
skylights
roof access windows
electronic control
installation accessories
accessories for roof windows
flashings for roof windows
roof window
TYPES OF ROOF WINDOWS
Pivot windows Top hung and Pivot windows Panoramic Top hung windows
0°
������
������
Pivot windows are the basic type of roof window. They ensure a flow of fresh air and allow light into the room. These windows open only in a centre pivot method and can be rotated through 180 degrees and this function is used when cleaning the outer pane or operating the awning blind. Centre pivot windows can be equipped with both external and internal accessories.
Top hung and pivot windows allow light and fresh air into the
room, ensure unobstructed access to the window and a wide view to the outside through the open window. They can be opened in two ways: — the outward opening function from 0 to 35 degrees enables an easy approach to the window and a wide view — the centre pivot function is used for cleaning and also operating the awning blind — Top hung windows can be equipped with external and internal accessories
The Panoramic and top hung windows, which are characterised by big dimensions, also allow light and fresh air into the room. The window opens to a wide angle and allows for access to the roof or for use as an emergency escape window. These windows can be opened: — outward opening function-opens to 40 degrees, enabling easy approach to the window and offering an unrestricted view. — an additional outward opening function to 68 degrees. The large sizes of these windows and a big sash-opening angle enable you to go out on the roof and also meet all emergency escape regulations. —
the centre pivot function is used for cleaning and also operating the awning blind
18
������
p � �f�� ro o
ro
of �
h i�tc
��p �
° 35
ro o f ��
�c p it ��
5° h3
i�tc
h5
www.fakro.com

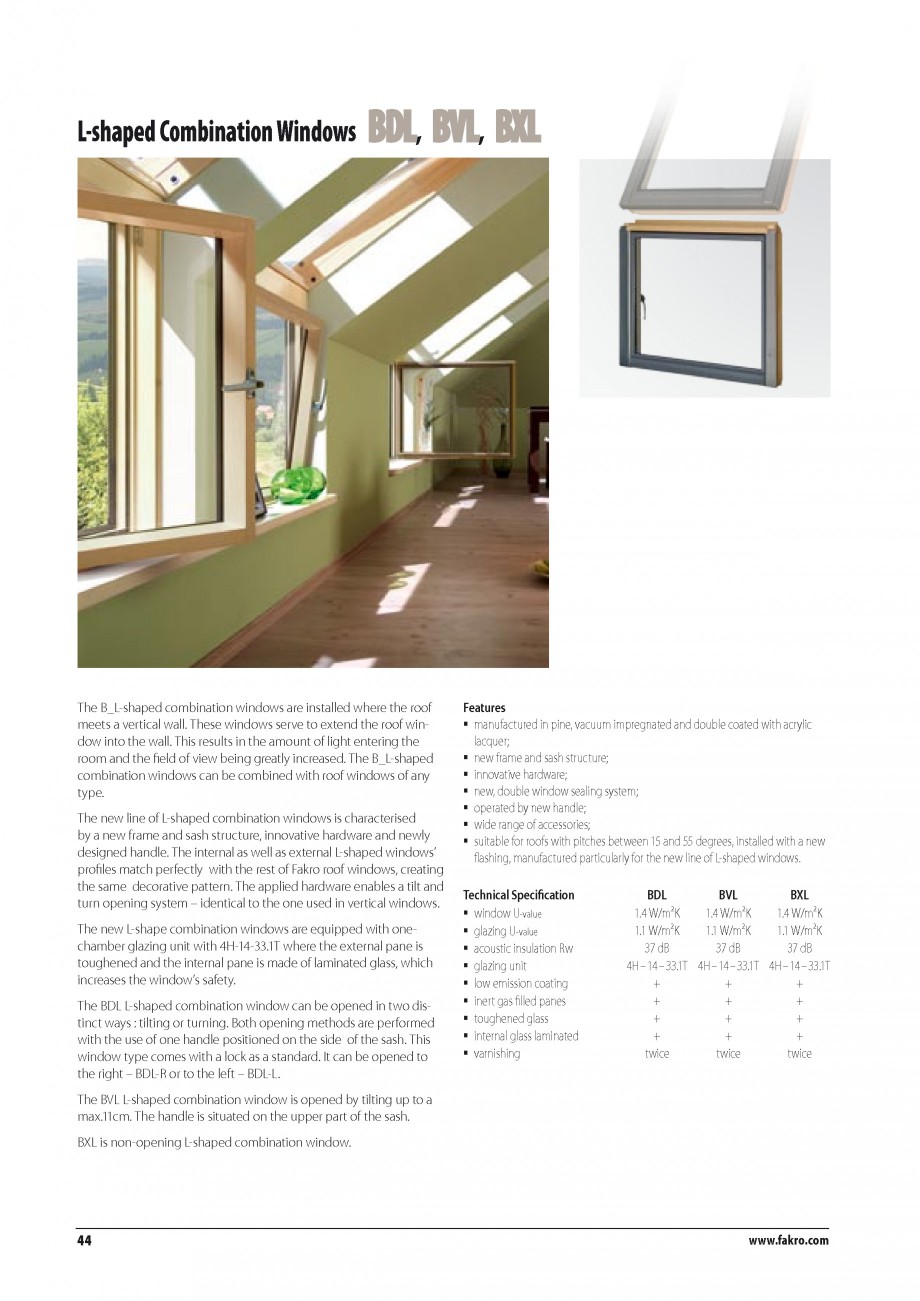

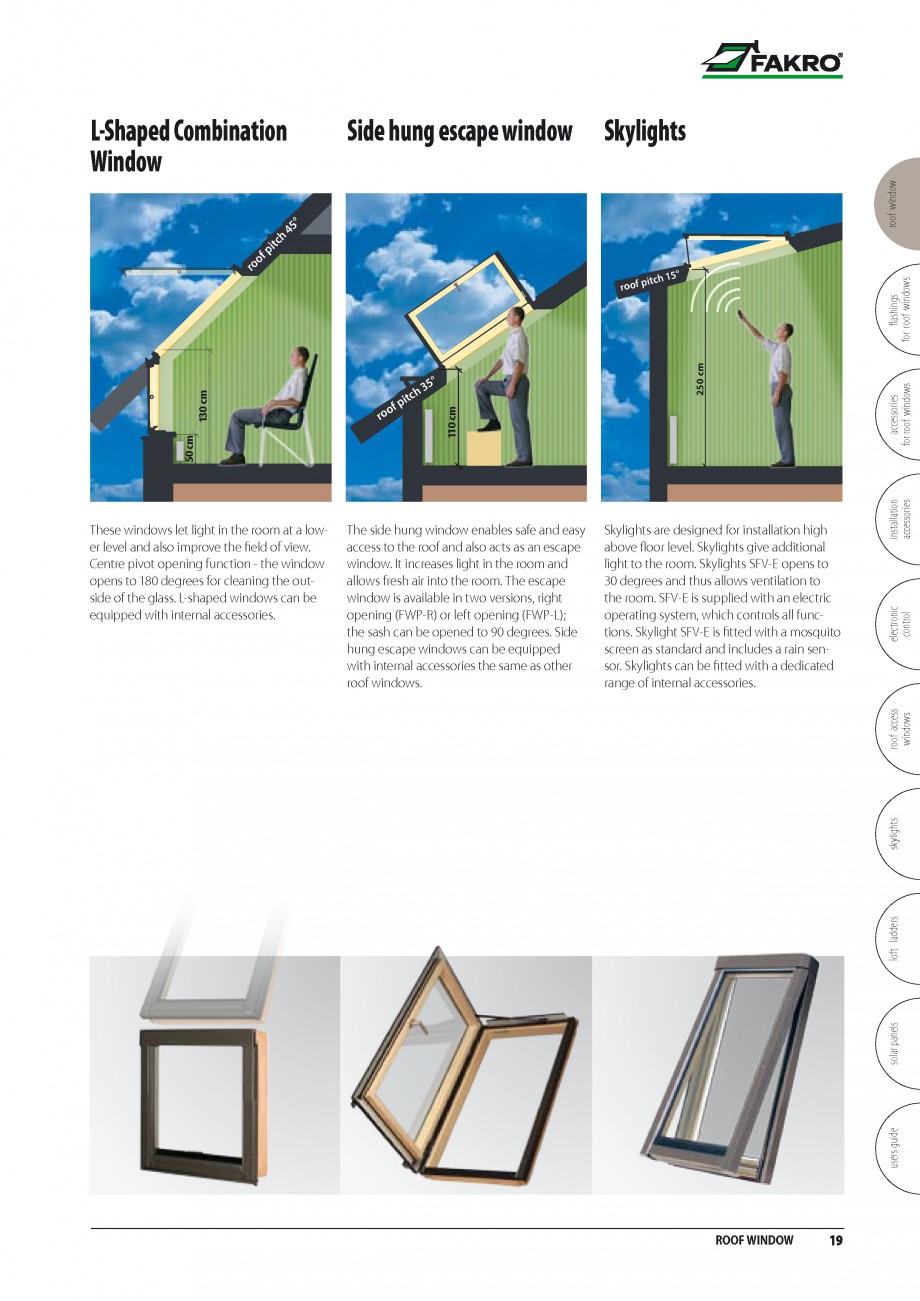

L-Shaped Combination Window
�� �� �
Side hung escape window
45 °
Skylights
roof window
ro
of
p
h i tc
�����
������
t�ch �i f �p � oo� r
ROOF WINDOW
19
users guide
solar panels
loft ladders
skylights
roof access windows
electronic control
These windows let light in the room at a lower level and also improve the field of view. Centre pivot opening function - the window opens to 180 degrees for cleaning the outside of the glass. L-shaped windows can be equipped with internal accessories.
The side hung window enables safe and easy access to the roof and also acts as an escape window. It increases light in the room and allows fresh air into the room. The escape window is available in two vers
ions, right opening (FWP-R) or left opening (FWP-L); the sash can be opened to 90 degrees. Side hung escape windows can be equipped with internal accessories the same as other roof windows.
Skylights are designed for installation high above floor level. Skylights give additional light to the room. Skylights SFV-E opens to 30 degrees and thus allows ventilation to the room. SFV-E is supplied with an electric operating system, which controls all functions. Skylight SFV-E is fitted with a mosquito screen as standard and includes a rain sensor. Skylights can be fitted with a dedicated range of internal accessories.
installation accessories
accessories for roof windows
������
° 35
������
flashings for roof windows
ro of p �����
5° itch 1

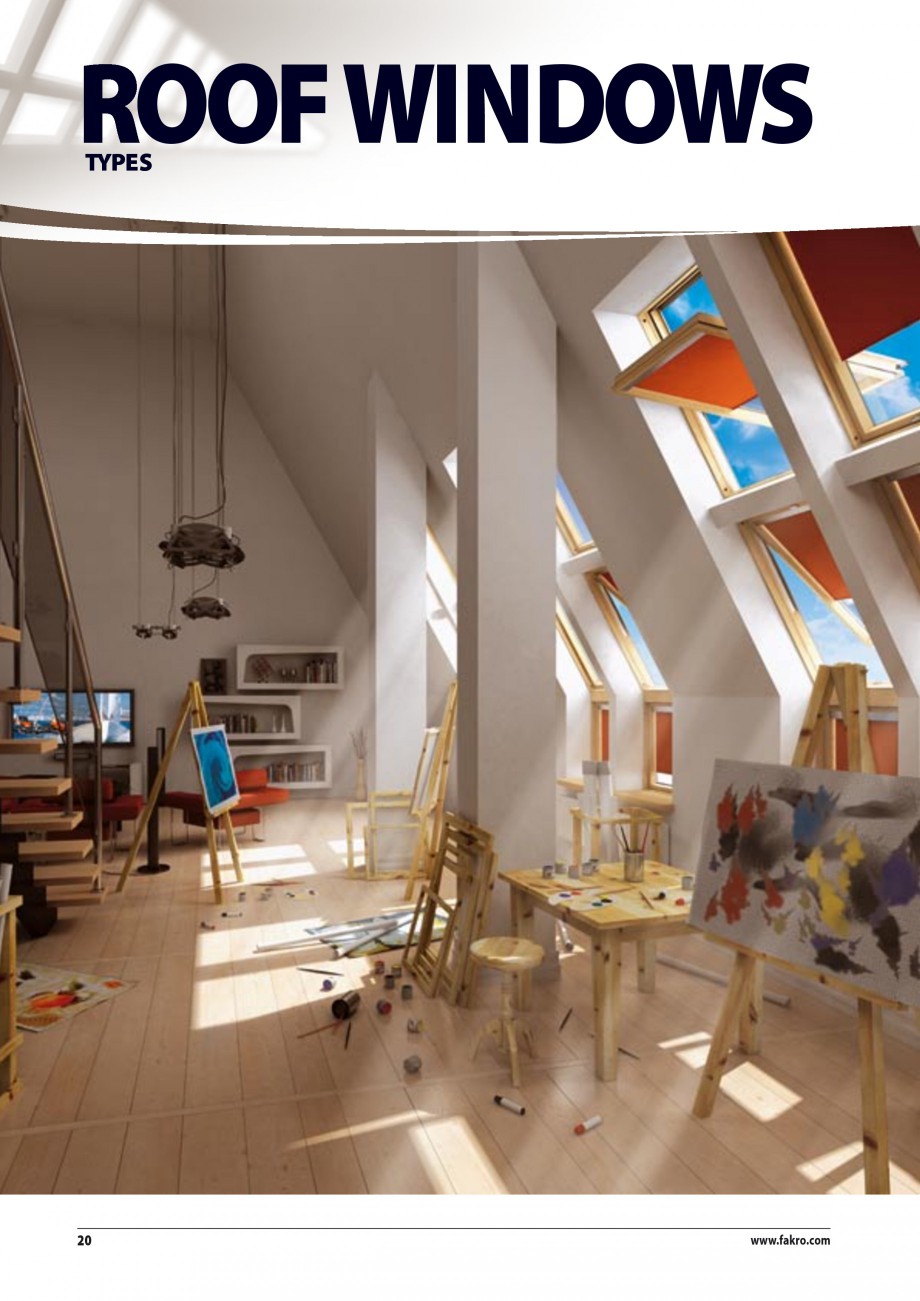

ROOF WINDOWS
TYPES
20
www.fakro.com

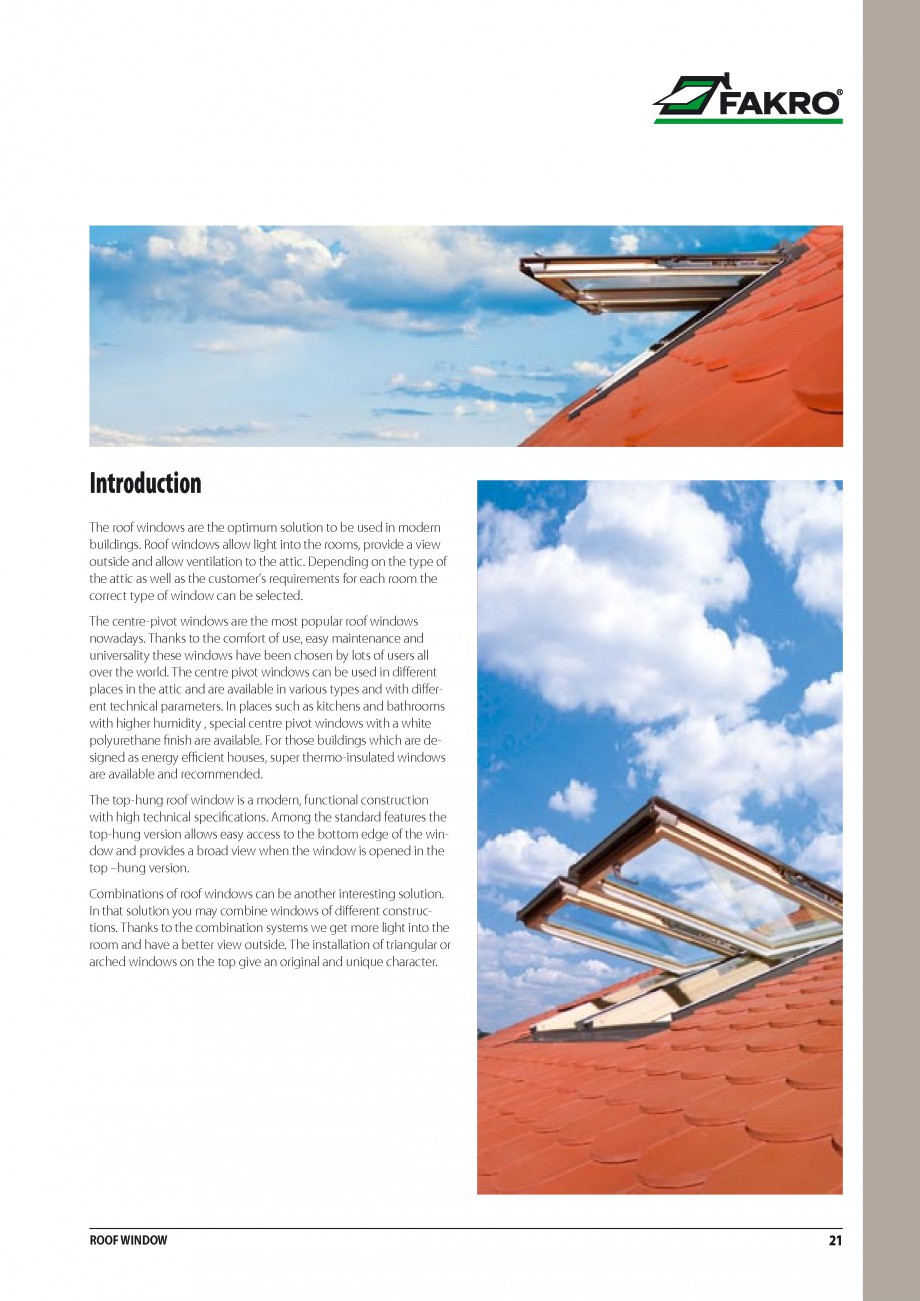

Introduction
The roof windows are the optimum solution to be used in modern buildings. Roof windows allow light into the rooms, provide a view outside and allow venti
lation to the attic. Depending on the type of the attic as well as the customer’s requirements for each room the correct type of window can be selected. The centre-pivot windows are the most popular roof windows nowadays. Thanks to the comfort of use, easy maintenance and universality these windows have been chosen by lots of users all over the world. The centre pivot windows can be used in different places in the attic and are available in various types and with different technical parameters. In places such as kitchens and bathrooms with higher humidity , special centre pivot windows with a white polyurethane finish are available. For those buildings which are designed as energy efficient houses, super thermo-insulated windows are available and recommended. The top-hung roof window is a modern, functional construction with high technical specifications. Among the standard features the top-hung version allows easy access to the bottom edge of the window and provides a broad view
when the window is opened in the top –hung version. Combinations of roof windows can be another interesting solution. In that solution you may combine windows of different constructions. Thanks to the combination systems we get more light into the room and have a better view outside. The installation of triangular or arched windows on the top give an original and unique character.
ROOF WINDOW
21

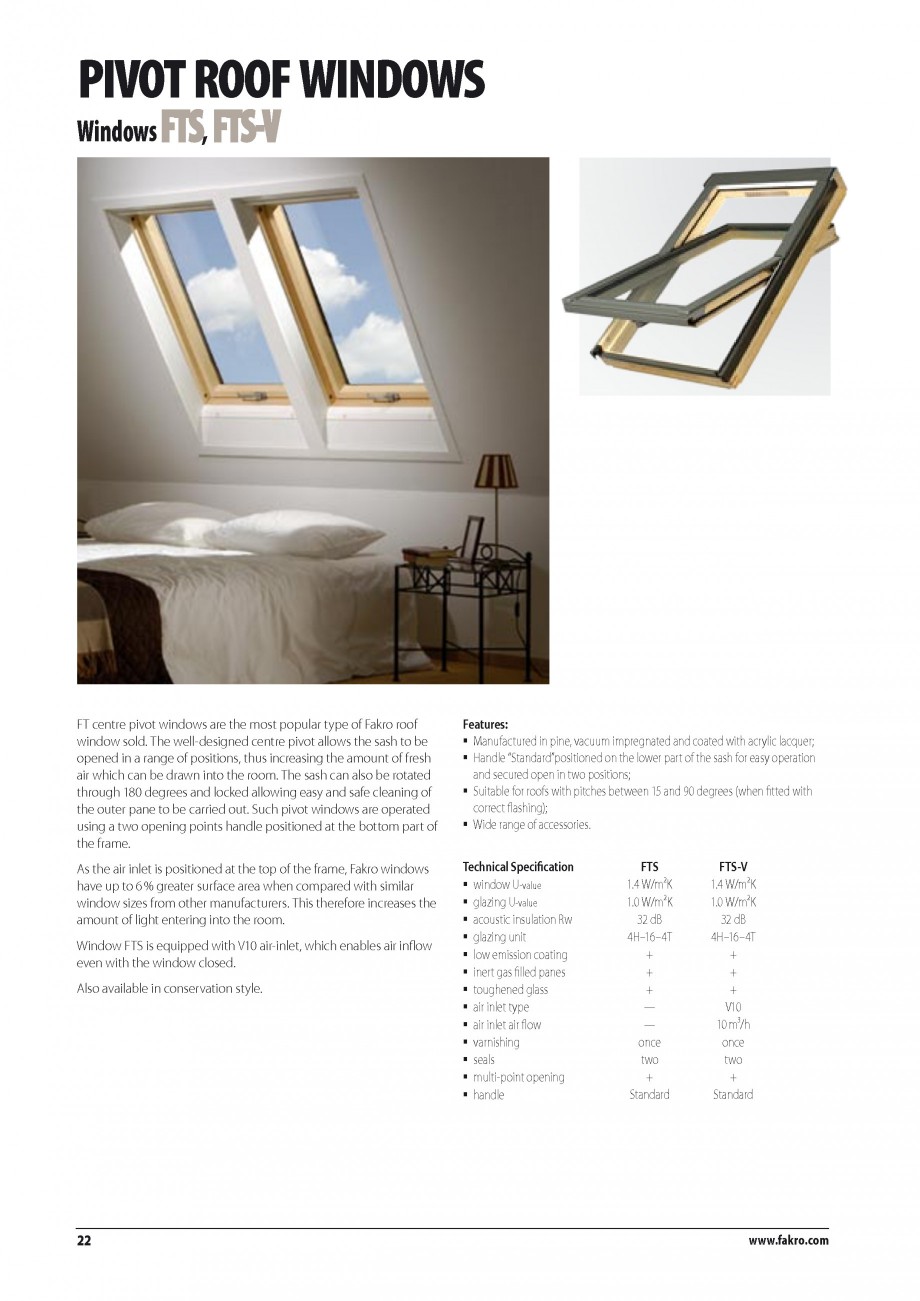

PIVOT ROOF WINDOWS
Windows FTS, FTS-V
FT centre pivot windows are the most popular type of Fakro roof window sold. The well-designed centre pivot allows the sash to be opened in a range of positions, thus increasing the amount of fresh air which can be drawn into the room. The sash can also be rotated through 180 degrees and locked allowing easy and safe cleaning of the outer pane to be carried out. Such pivot windows are operated using a two opening points handle positioned at the bottom part of the frame. As the air inlet is positioned at the top of the frame, Fakro windows have up t
o 6 % greater surface area when compared with similar window sizes from other manufacturers. This therefore increases the amount of light entering into the room. Window FTS is equipped with V10 air-inlet, which enables air inflow even with the window closed. Also available in conservation style.
Features: Manufactured in pine, vacuum impregnated and coated with acrylic lacquer; Handle “Standard”positioned on the lower part of the sash for easy operation and secured open in two positions; Suitable for roofs with pitches between 15 and 90 degrees (when fitted with correct flashing); Wide range of accessories. Technical Specification window U-value glazing U-value acoustic insulation Rw glazing unit low emission coating inert gas filled panes toughened glass air inlet type air inlet air flow varnishing seals multi-point opening handle FTS 1.4 W/m²K 1.0 W/m²K 32 dB 4H–16–4T + + + — — once two + Standar
d FTS-V 1.4 W/m²K 1.0 W/m²K 32 dB 4H–16–4T + + + V10 10 m³/h once two + Standard
22
www.fakro.com

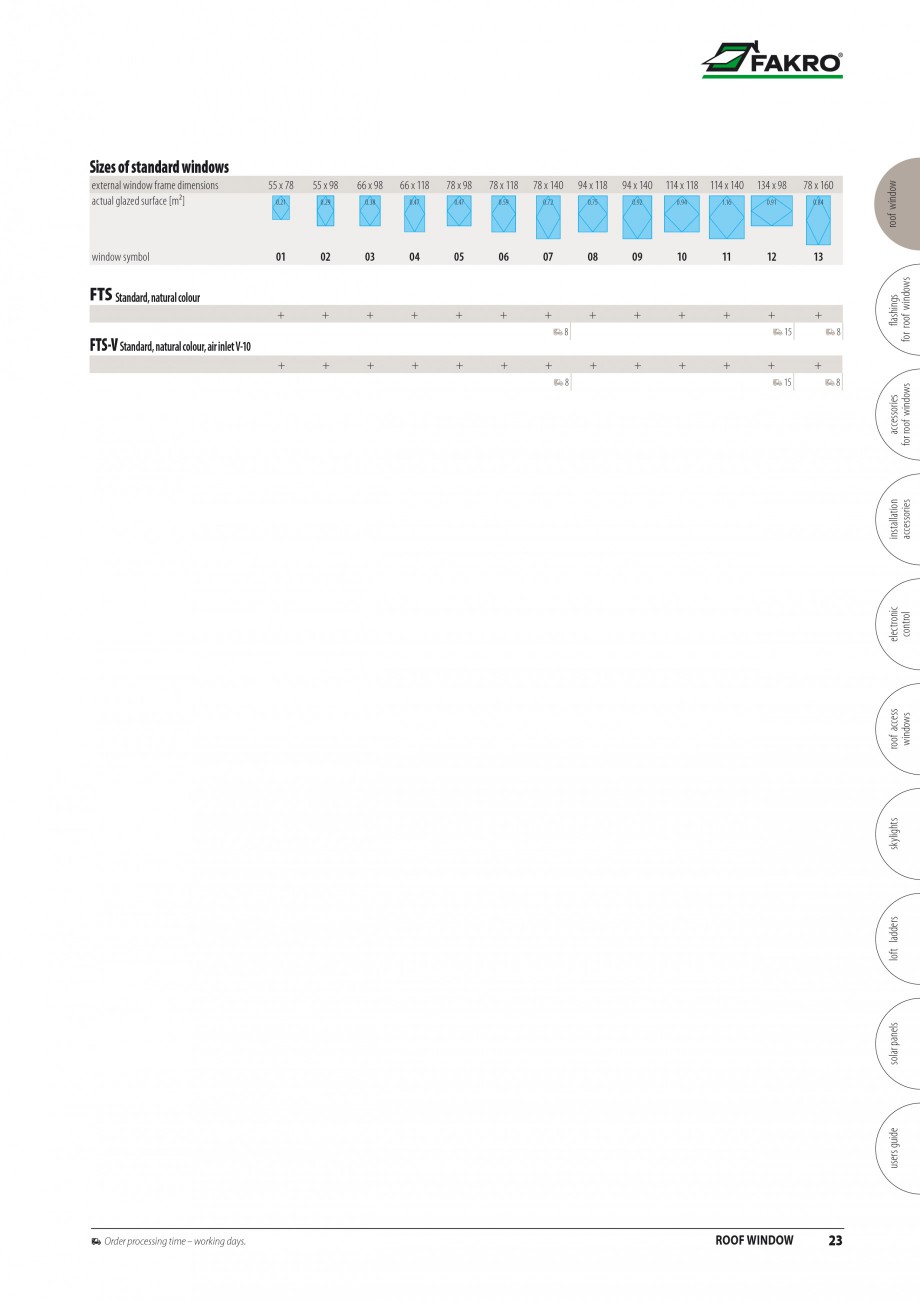

Sizes of standard windows
0.21 0.29 0.38 0.47 0.47 0.59 0.72 0.75 0.92 0.94 1.16 0.91 0.84
window symbol
01
02
03
04
05
06
07
08
09
10
11
12
13 flashings for roof windows users guide solar panels loft ladders skylights roof access windows electronic control installation accessories accessories for roof windows
FTS Standard, natural colour
+ + + + + + +
8
+
+
+
+
+
15
+
8
FTS-V Standard, natural colour, air inlet V-10
+ + + + + + +
+
8
+
+
+
+
15
+
8
Order processing time – working days.
ROOF WINDOW
23
roof window
external window frame dimensions actual glazed surface [m²]
55 x 78
55 x 98
66 x 98
66 x 118
78 x 98
78 x 118
78 x 140
94 x 118
94 x 140
114 x 118 114 x 140
134 x 98
78 x 160

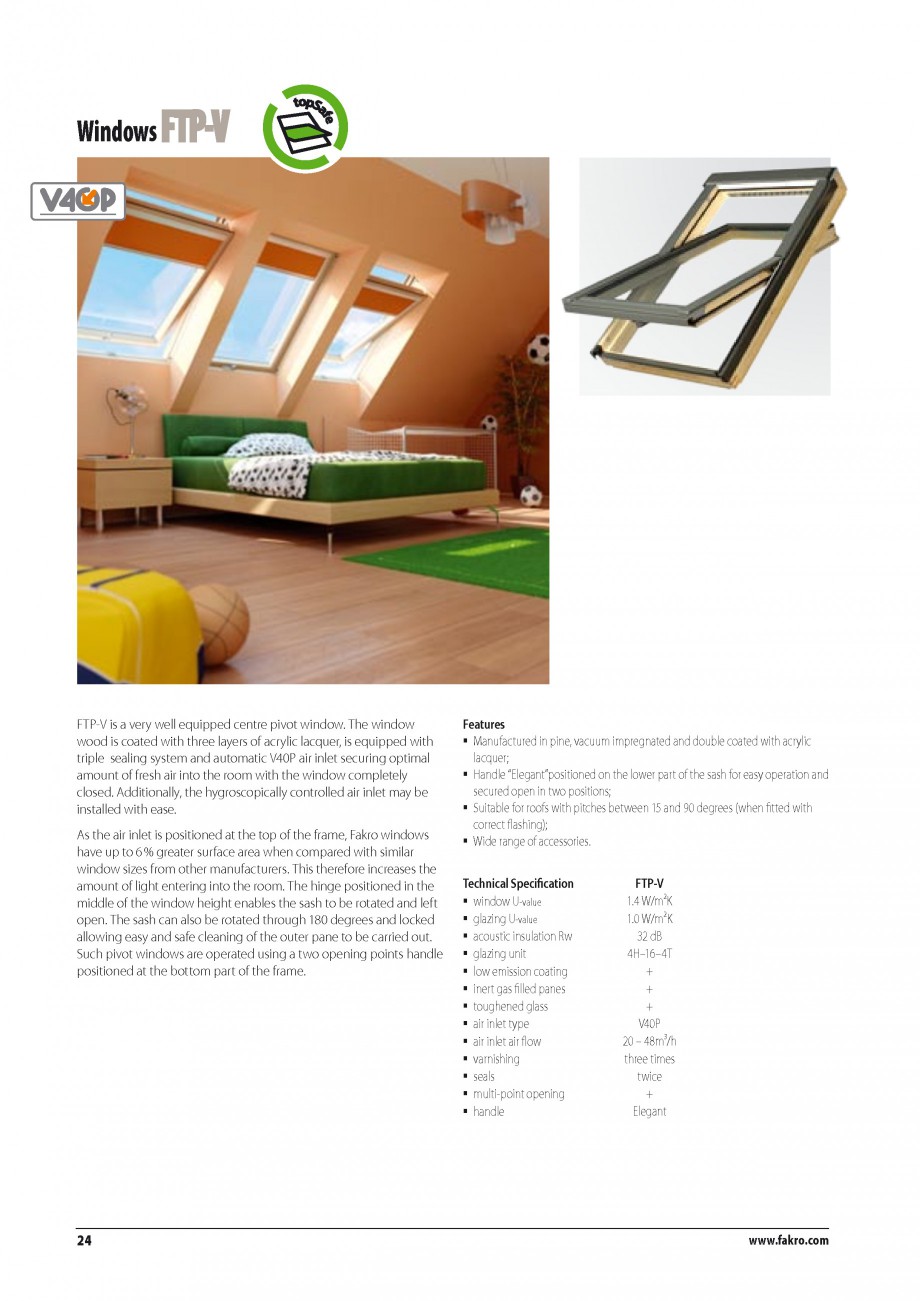

Windows FTP-V
FTP-V is a very well equipped centre pivot window. The window wood is coated with three layers of acrylic lacquer, is equipped with
triple sealing system and automatic V40P air inlet securing optimal amount of fresh air into the room with the window completely closed. Additionally, the hygroscopically controlled air inlet may be installed with ease. As the air inlet is positioned at the top of the frame, Fakro windows have up to 6 % greater surface area when compared with similar window sizes from other manufacturers. This therefore increases the amount of light entering into the room. The hinge positioned in the middle of the window height enables the sash to be rotated and left open. The sash can also be rotated through 180 degrees and locked allowing easy and safe cleaning of the outer pane to be carried out. Such pivot windows are operated using a two opening points handle positioned at the bottom part of the frame.
Features Manufactured in pine, vacuum impregnated and double coated with acrylic lacquer; Handle “Elegant”positioned on the lower part of the sash for easy operation and secured open i
n two positions; Suitable for roofs with pitches between 15 and 90 degrees (when fitted with correct flashing); Wide range of accessories. Technical Specification window U-value glazing U-value acoustic insulation Rw glazing unit low emission coating inert gas filled panes toughened glass air inlet type air inlet air flow varnishing seals multi-point opening handle FTP-V 1.4 W/m²K 1.0 W/m²K 32 dB 4H–16–4T + + + V40P 20 – 48m³/h three times twice + Elegant
24
www.fakro.com

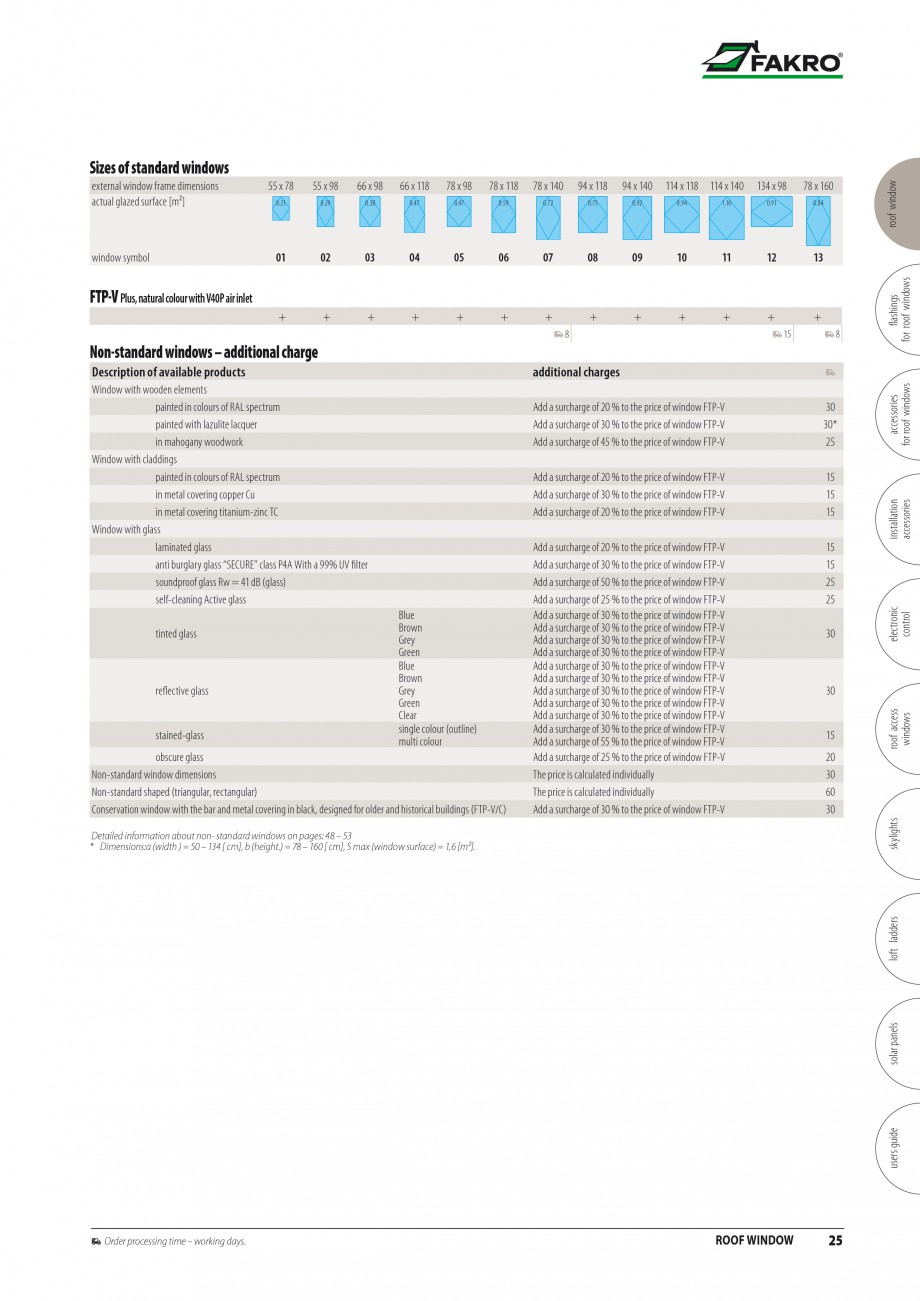

Sizes of standard windows
0.21 0.29 0.38 0.47 0.47 0.59 0.72 0.75 0.92 0.94 1.16 0.91 0.84
window symbol
01
02
03
04
05
06
07
08
09
10
11
12
13 flashings for roof windows users guide solar panels loft ladders skylights roof access windows electronic control installation accessories accessories for roof windows
FTP-V Plus, natural colour with V40P air inlet
+ + + + + + +
8
+
+
+
+
+
15
+
8
Non-standard windows – addit
ional charge
Description of available products
Window with wooden elements painted in colours of RAL spectrum painted with lazulite lacquer in mahogany woodwork Window with claddings painted in colours of RAL spectrum in metal covering copper Cu in metal covering titanium-zinc TC Window with glass laminated glass anti burglary glass “SECURE” class P4A With a 99% UV filter soundproof glass Rw = 41 dB (glass) self-cleaning Active glass tinted glass Blue Brown Grey Green Blue Brown Grey Green Clear single colour (outline) multi colour
additional charges
Add a surcharge of 20 % to the price of window FTP-V Add a surcharge of 30 % to the price of window FTP-V Add a surcharge of 45 % to the price of window FTP-V Add a surcharge of 20 % to the price of window FTP-V Add a surcharge of 30 % to the price of window FTP-V Add a surcharge of 20 % to the price of window FTP-V Add a surcharge of 20 % to the price of window FTP-V Add a surcharge of 30 % to the price of window FTP-V Add a surchar
ge of 50 % to the price of window FTP-V Add a surcharge of 25 % to the price of window FTP-V Add a surcharge of 30 % to the price of window FTP-V Add a surcharge of 30 % to the price of window FTP-V Add a surcharge of 30 % to the price of window FTP-V Add a surcharge of 30 % to the price of window FTP-V Add a surcharge of 30 % to the price of window FTP-V Add a surcharge of 30 % to the price of window FTP-V Add a surcharge of 30 % to the price of window FTP-V Add a surcharge of 30 % to the price of window FTP-V Add a surcharge of 30 % to the price of window FTP-V Add a surcharge of 30 % to the price of window FTP-V Add a surcharge of 55 % to the price of window FTP-V Add a surcharge of 25 % to the price of window FTP-V The price is calculated individually The price is calculated individually Add a surcharge of 30 % to the price of window FTP-V 30 30* 25 15 15 15 15 15 25 25 30
reflective glass stained-glass
30 15 20 30 60 30
obscure glass Non-standard window dimensions Non-standard
shaped (triangular, rectangular) Conservation window with the bar and metal covering in black, designed for older and historical buildings (FTP-V/C)

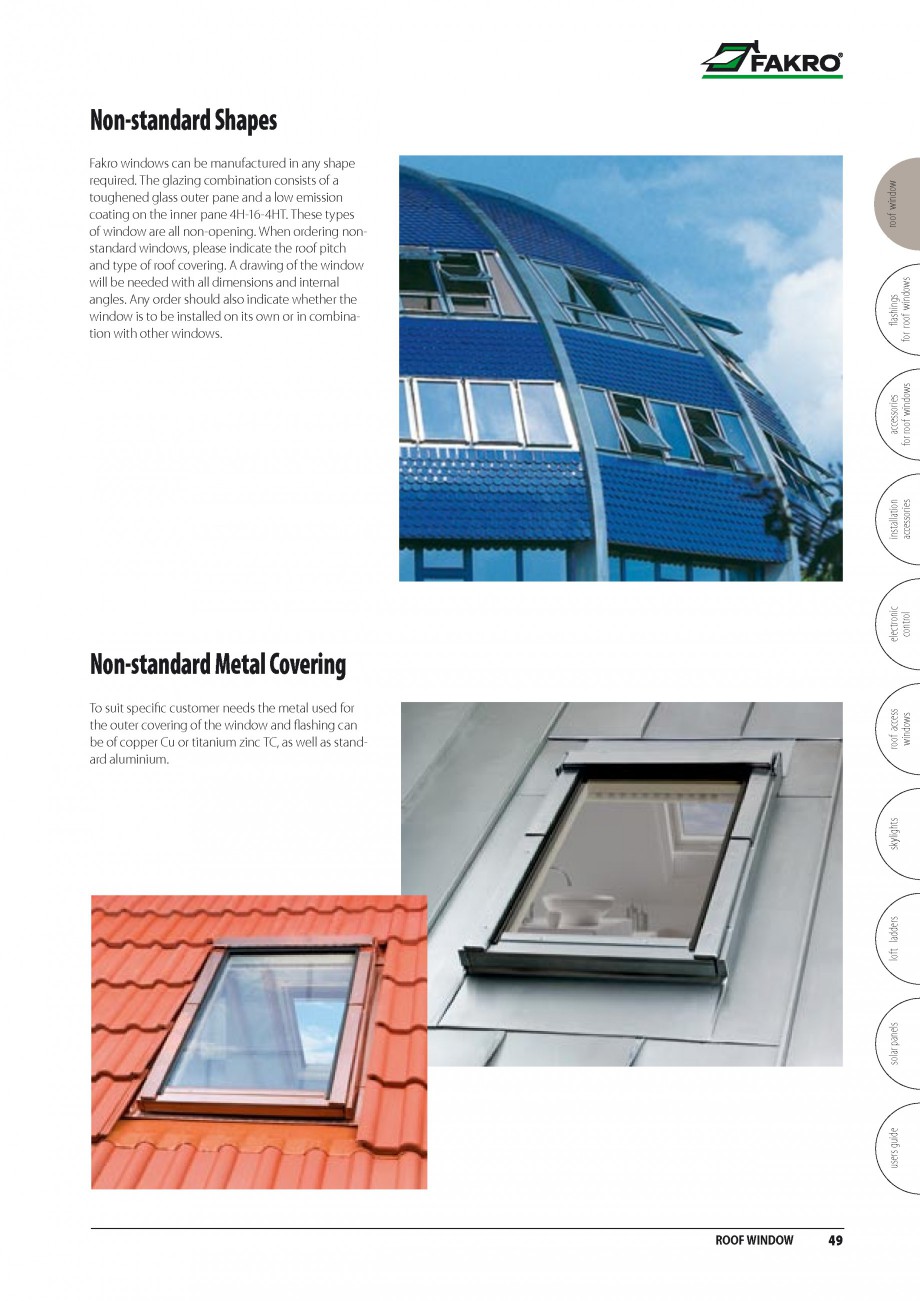

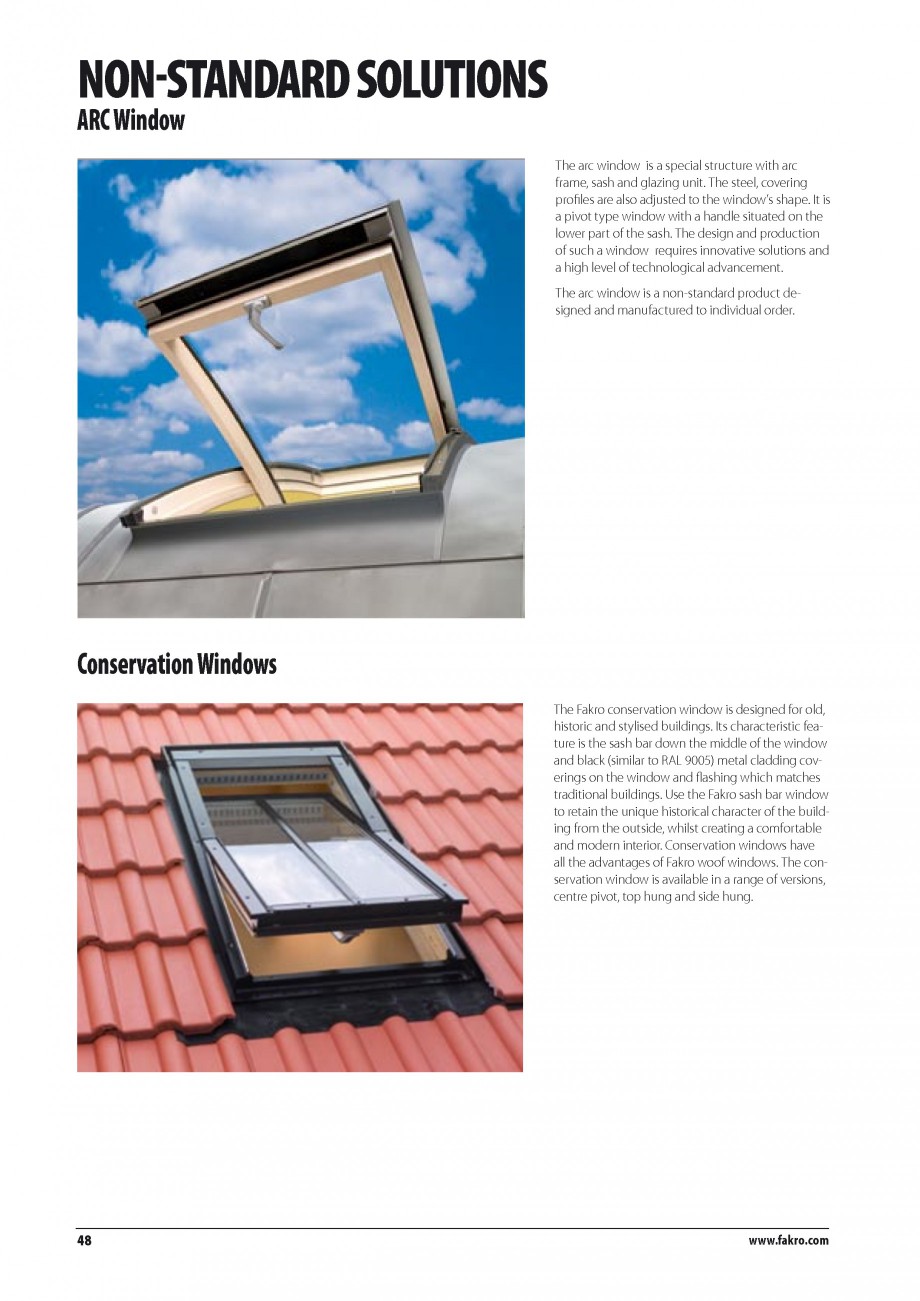

Detailed information about non- standard windows on pages: 48 – 53 * Dimensions:a (width ) = 50 – 134 [ cm], b (height.) = 78 – 160 [ cm], S max (window surface) = 1,6 [m²].
Order processing time – working days.
ROOF WINDOW
25
roof window
external window frame dimensions actual glazed surface [m²]
55 x 78
55 x 98
66 x 98
66 x 118
78 x 98
78 x 118
78 x 140
94 x 118
94 x 140
114 x 118 114 x 140
134 x 98
78 x 160

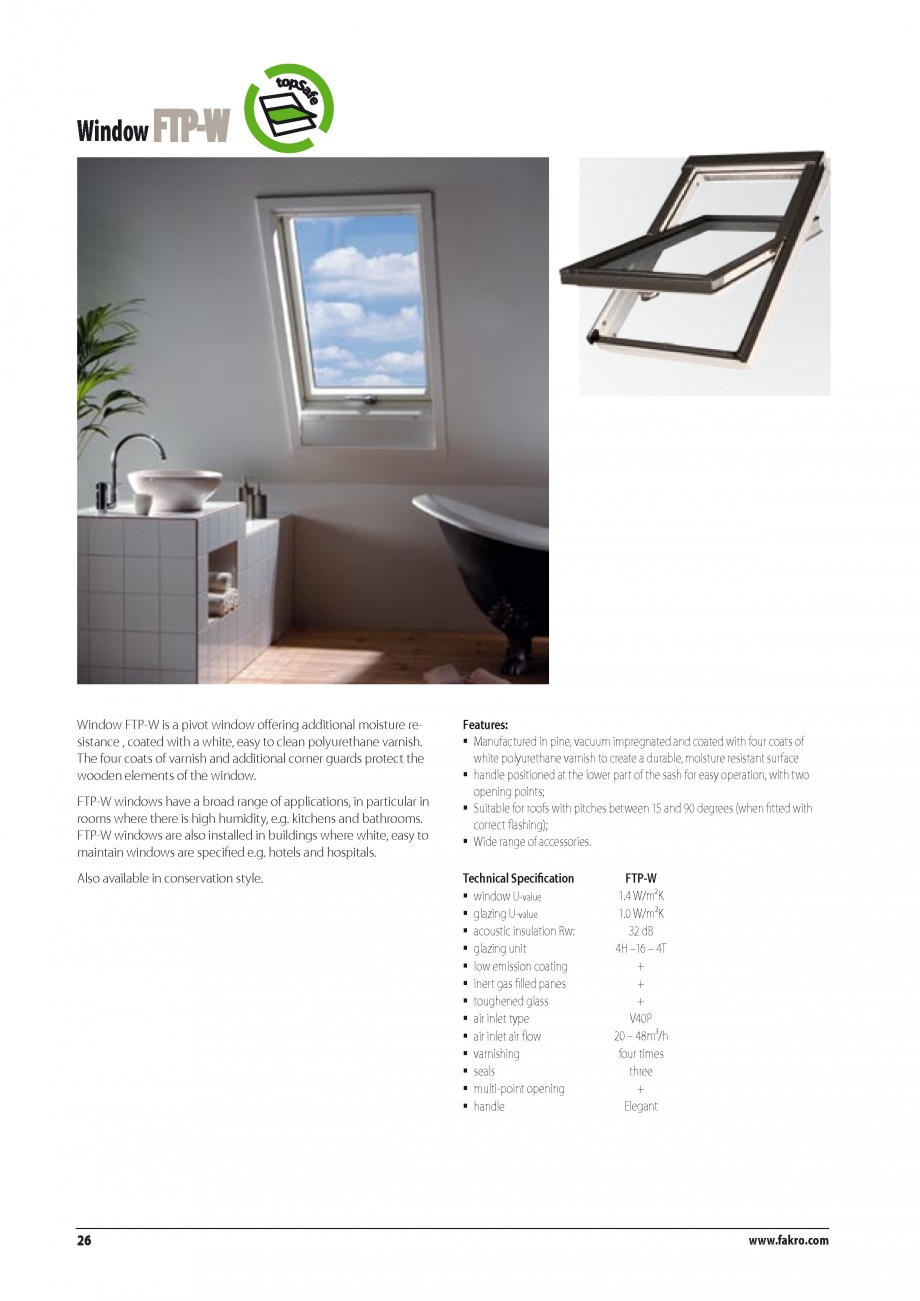

Window FTP-W
Window FTP-W is a pivot window offering additional moisture resistance , coated with a white, easy to clean polyurethane varnish. The four coats of varnish and additional corner guards protect the wooden elements of the window. FTP-W windows have a broad range of applications, in particular in rooms where there is high humidity, e.g. kitchens and bathrooms. FTP-W windows are also installed
in buildings where white, easy to maintain windows are specified e.g. hotels and hospitals. Also available in conservation style.
Features: Manufactured in pine, vacuum impregnated and coated with four coats of white polyurethane varnish to create a durable, moisture resistant surface handle positioned at the lower part of the sash for easy operation, with two opening points; Suitable for roofs with pitches between 15 and 90 degrees (when fitted with correct flashing); Wide range of accessories. Technical Specification window U-value glazing U-value acoustic insulation Rw: glazing unit low emission coating inert gas filled panes toughened glass air inlet type air inlet air flow varnishing seals multi-point opening handle FTP-W 1.4 W/m²K 1.0 W/m²K 32 dB 4H –16 – 4T + + + V40P 20 – 48m³/h four times three + Elegant
26
www.fakro.com

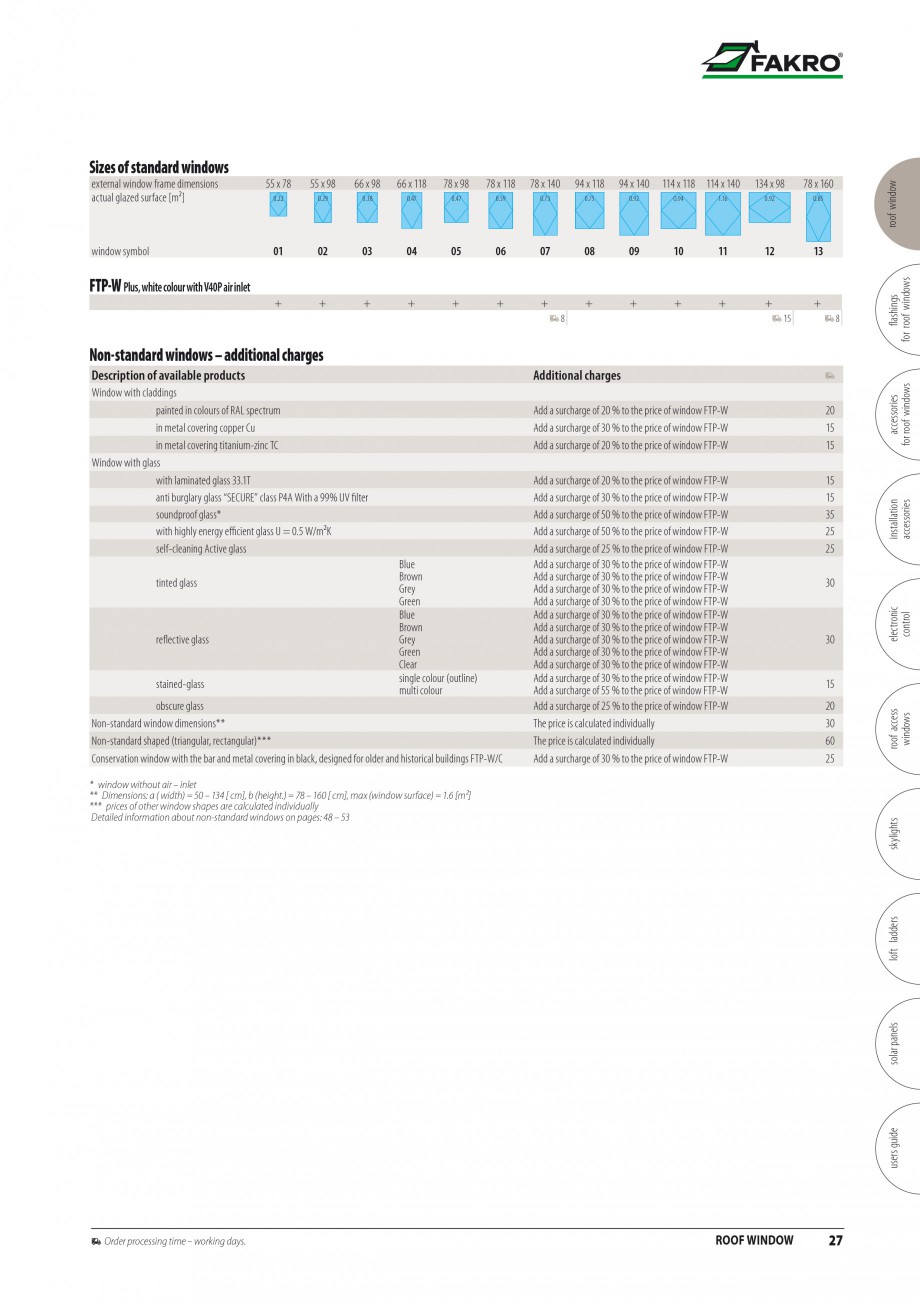

Sizes of standard windows
external window frame dimensions actual gla
zed surface [m²]
0.22
0.29
0.38
0.47
0.47
0.59
0.73
0.75
0.92
0.94
1.16
0.92
0.85
window symbol
01
02
03
04
05
06
07
08
09
10
11
12
13 flashings for roof windows users guide solar panels loft ladders skylights roof access windows electronic control installation accessories accessories for roof windows
FTP-W Plus, white colour with V40P air inlet
+ + + + + + +
8
+
+
+
+
+
15
+
8
Non-standard windows – additional charges
Description of available products
Window with claddings painted in colours of RAL spectrum in metal covering copper Cu in metal covering titanium-zinc TC Window with glass with laminated glass 33.1T anti burglary glass “SECURE” class P4A With a 99% UV filter soundproof glass* with highly energy efficient glass U = 0.5 W/m²K self-cleaning Active glass tinted glass Blue Brown Grey Green Blue Brown Grey Green Clear single colour (outline) multi colour
Additional charges
Add a surcharge of 20 % to the price of window FTP-W Add a
surcharge of 30 % to the price of window FTP-W Add a surcharge of 20 % to the price of window FTP-W Add a surcharge of 20 % to the price of window FTP-W Add a surcharge of 30 % to the price of window FTP-W Add a surcharge of 50 % to the price of window FTP-W Add a surcharge of 50 % to the price of window FTP-W Add a surcharge of 25 % to the price of window FTP-W Add a surcharge of 30 % to the price of window FTP-W Add a surcharge of 30 % to the price of window FTP-W Add a surcharge of 30 % to the price of window FTP-W Add a surcharge of 30 % to the price of window FTP-W Add a surcharge of 30 % to the price of window FTP-W Add a surcharge of 30 % to the price of window FTP-W Add a surcharge of 30 % to the price of window FTP-W Add a surcharge of 30 % to the price of window FTP-W Add a surcharge of 30 % to the price of window FTP-W Add a surcharge of 30 % to the price of window FTP-W Add a surcharge of 55 % to the price of window FTP-W Add a surcharge of 25 % to the price of window FTP-W
The price is calculated individually The price is calculated individually Add a surcharge of 30 % to the price of window FTP-W 20 15 15 15 15 35 25 25 30
reflective glass stained-glass
30 15 20 30 60 25
obscure glass Non-standard window dimensions** Non-standard shaped (triangular, rectangular)*** Conservation window with the bar and metal covering in black, designed for older and historical buildings FTP-W/C
* window without air – inlet ** Dimensions: a ( width) = 50 – 134 [ cm], b (height.) = 78 – 160 [ cm], max (window surface) = 1.6 [m²] *** prices of other window shapes are calculated individually Detailed information about non-standard windows on pages: 48 – 53
Order processing time – working days.
ROOF WINDOW
27
roof window
55 x 78
55 x 98
66 x 98
66 x 118
78 x 98
78 x 118
78 x 140
94 x 118
94 x 140
114 x 118 114 x 140
134 x 98
78 x 160

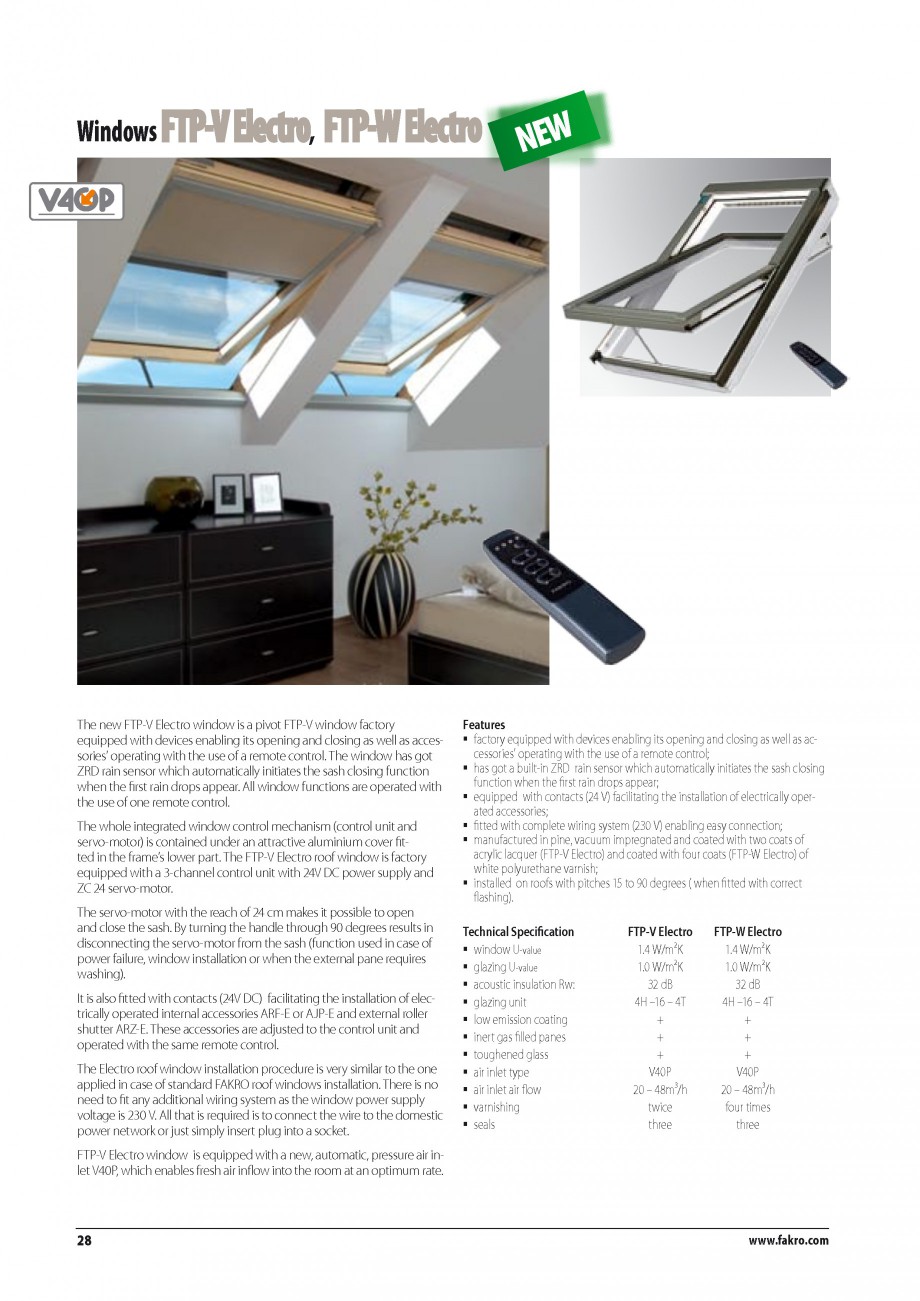

Windows FTP-V Electro, FTP-W Electro
���
The new FTP-V Electro window is a pivot FTP-V window factory
equipped with devices enabling its opening and closing as well as accessories’ operating with the use of a remote control. The window has got ZRD rain sensor which automatically initiates the sash closing function when the first rain drops appear. All window functions are operated with the use of one remote control. The whole integrated window control mechanism (control unit and servo-motor) is contained under an attractive aluminium cover fitted in the frame’s lower part. The FTP-V Electro roof window is factory equipped with a 3-channel control unit with 24V DC power supply and ZC 24 servo-motor. The servo-motor with the reach of 24 cm makes it possible to open and close the sash. By turning the handle through 90 degrees results in disconnecting the servo-motor from the sash (function used in case of power failure, window installation or when the external pane requires washing). It is also fitted with contacts (24V DC) facilitating the installation of electrically operated int
ernal accessories ARF-E or AJP-E and external roller shutter ARZ-E. These accessories are adjusted to the control unit and operated with the same remote control. The Electro roof window installation procedure is very similar to the one applied in case of standard FAKRO roof windows installation. There is no need to fit any additional wiring system as the window power supply voltage is 230 V. All that is required is to connect the wire to the domestic power network or just simply insert plug into a socket. FTP-V Electro window is equipped with a new, automatic, pressure air inlet V40P, which enables fresh air inflow into the room at an optimum rate.
Features factory equipped with devices enabling its opening and closing as well as accessories’ operating with the use of a remote control; has got a built-in ZRD rain sensor which automatically initiates the sash closing function when the first rain drops appear; equipped with contacts (24 V) facilitating the installation
of electrically operated accessories; fitted with complete wiring system (230 V) enabling easy connection; manufactured in pine, vacuum impregnated and coated with two coats of acrylic lacquer (FTP-V Electro) and coated with four coats (FTP-W Electro) of white polyurethane varnish; installed on roofs with pitches 15 to 90 degrees ( when fitted with correct flashing). Technical Specification window U-value glazing U-value acoustic insulation Rw: glazing unit low emission coating inert gas filled panes toughened glass air inlet type air inlet air flow varnishing seals FTP-V Electro 1.4 W/m²K 1.0 W/m²K 32 dB 4H –16 – 4T + + + V40P 20 – 48m³/h twice three FTP-W Electro 1.4 W/m²K 1.0 W/m²K 32 dB 4H –16 – 4T + + + V40P 20 – 48m³/h four times three
28
www.fakro.com

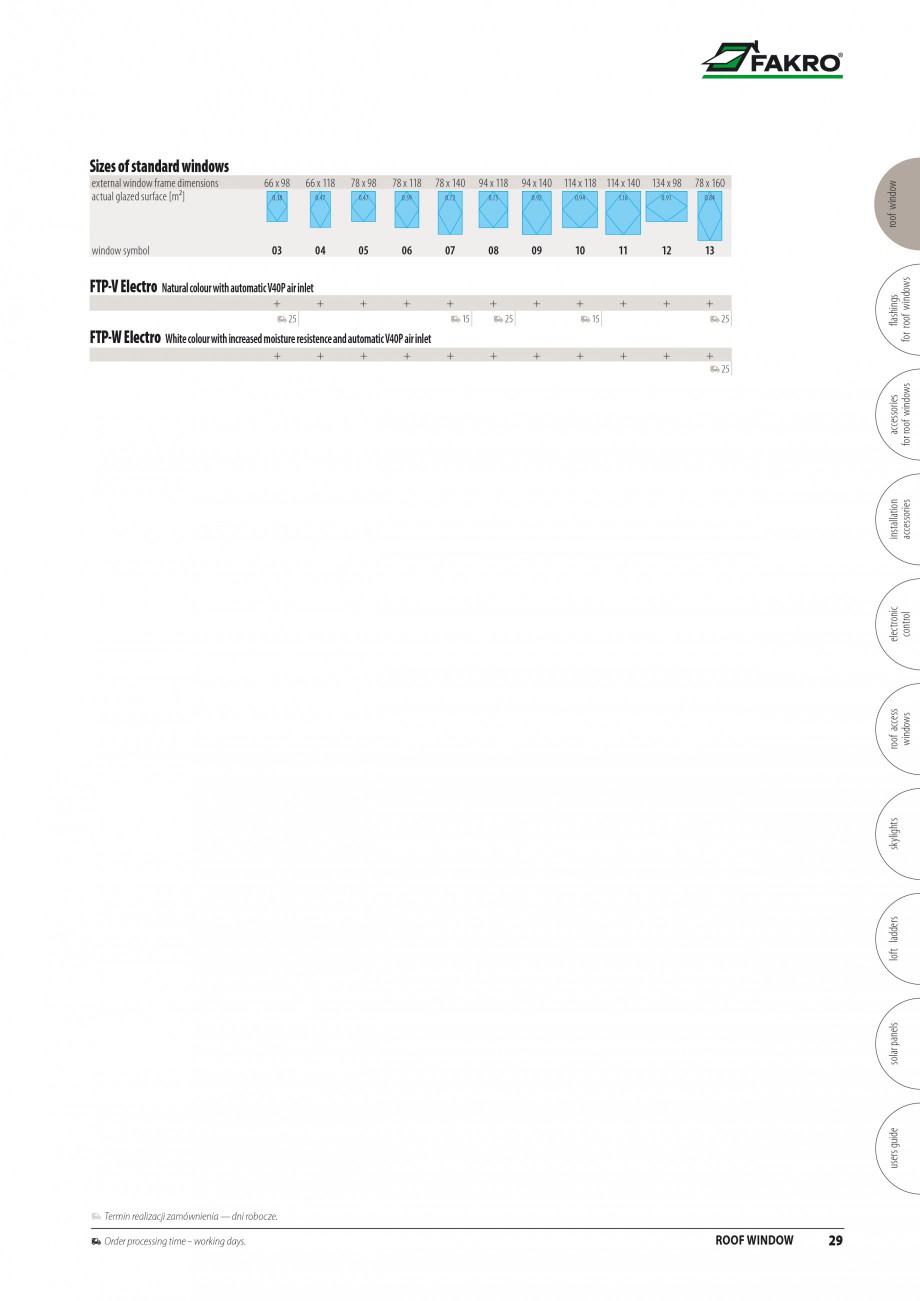

Sizes of standard windows
external window frame dimensions actual glazed surface [m²]
0.38
0.47
0.47
0.59
0.72
0.75
0.92
0.94
1.16
0.91
0.84
window symbol
03
04
05
06
07
08
09
10
11
12
13 flashings for roof windows
FTP-V Electro Natural colour with automatic V40P air inlet
+
25
+
+
+
+
15
+
25
+
+
15
+
+
+
25
FTP-W Electro White colour with increased moisture resistence and automatic V40P air inlet
+ + + + + + + + + + +
25
Termin realizacji zamównienia — dni robocze. Order processing time – working days.
ROOF WINDOW
29
users guide
solar panels
loft ladders
skylights
roof access windows
electronic control
installation accessories
accessories for roof windows
roof window
66 x 98
66 x 118
78 x 98
78 x 118
78 x 140
94 x 118
94 x 140 114 x 118 114 x 140 134 x 98
78 x 160

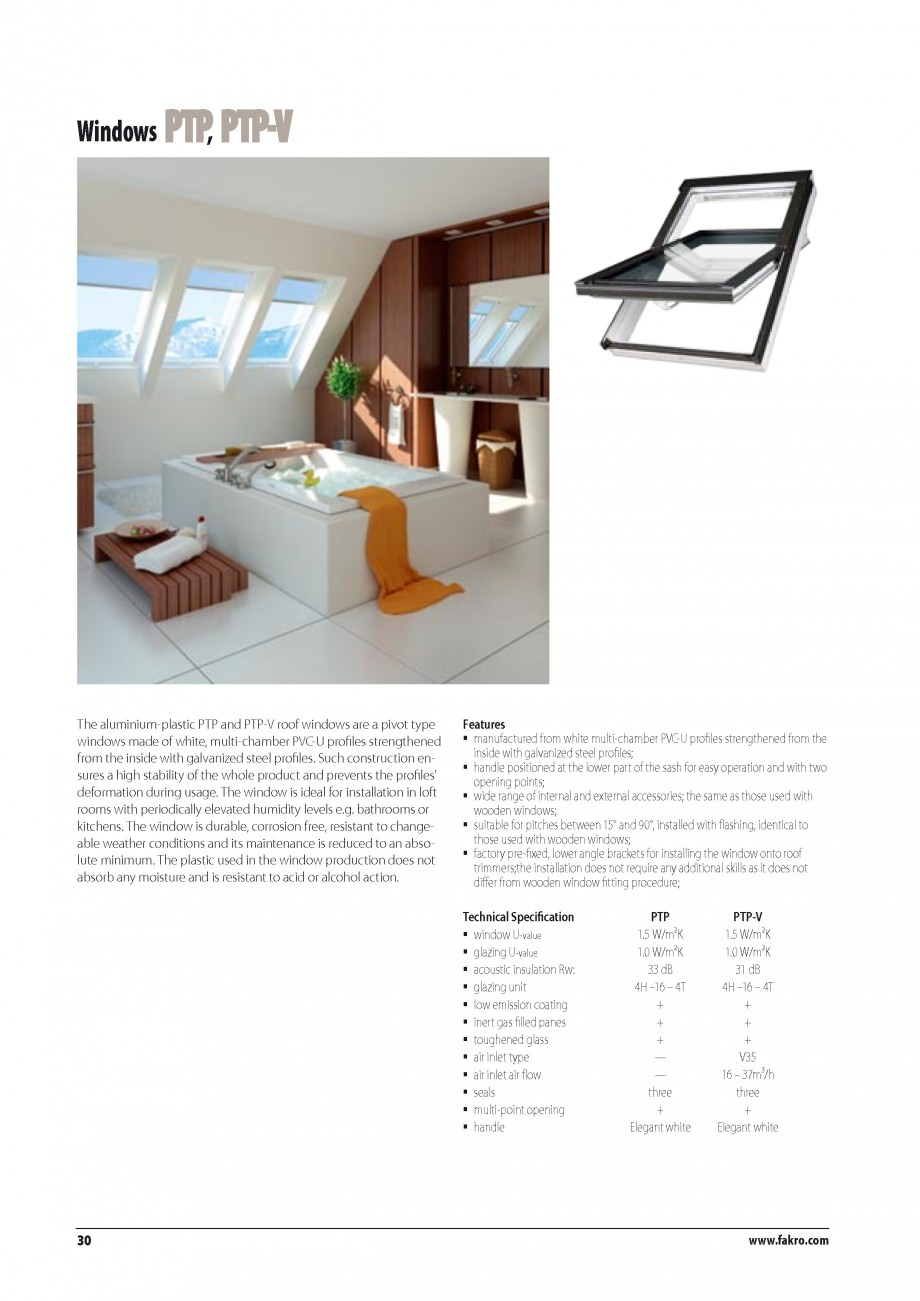

Windows PTP, PTP-V
The aluminium-plastic PTP and PTP-V roof windows are a pivot type windows made of white, multi-chamber PVC-U profiles strengthened from the inside with galvanized steel profiles. Such construction ensures a high stability of the whole product and prevents the profiles’ deformation
during usage. The window is ideal for installation in loft rooms with periodically elevated humidity levels e.g. bathrooms or kitchens. The window is durable, corrosion free, resistant to changeable weather conditions and its maintenance is reduced to an absolute minimum. The plastic used in the window production does not absorb any moisture and is resistant to acid or alcohol action.
Features manufactured from white multi-chamber PVC-U profiles strengthened from the inside with galvanized steel profiles; handle positioned at the lower part of the sash for easy operation and with two opening points; wide range of internal and external accessories; the same as those used with wooden windows; suitable for pitches between 15° and 90°, installed with flashing, identical to those used with wooden windows; factory pre-fixed, lower angle brackets for installing the window onto roof trimmers;the installation does not require any additional skills as it does not di
er from wooden window fitting procedure; Technical Specification window U-value glazing U-value acoustic insulation Rw: glazing unit low emission coating inert gas filled panes toughened glass air inlet type air inlet air flow seals multi-point opening handle PTP 1.5 W/m²K 1.0 W/m²K 33 dB 4H –16 – 4T + + + — — three + Elegant white PTP-V 1.5 W/m²K 1.0 W/m²K 31 dB 4H –16 – 4T + + + V35 16 – 37m³/h three + Elegant white
30
www.fakro.com

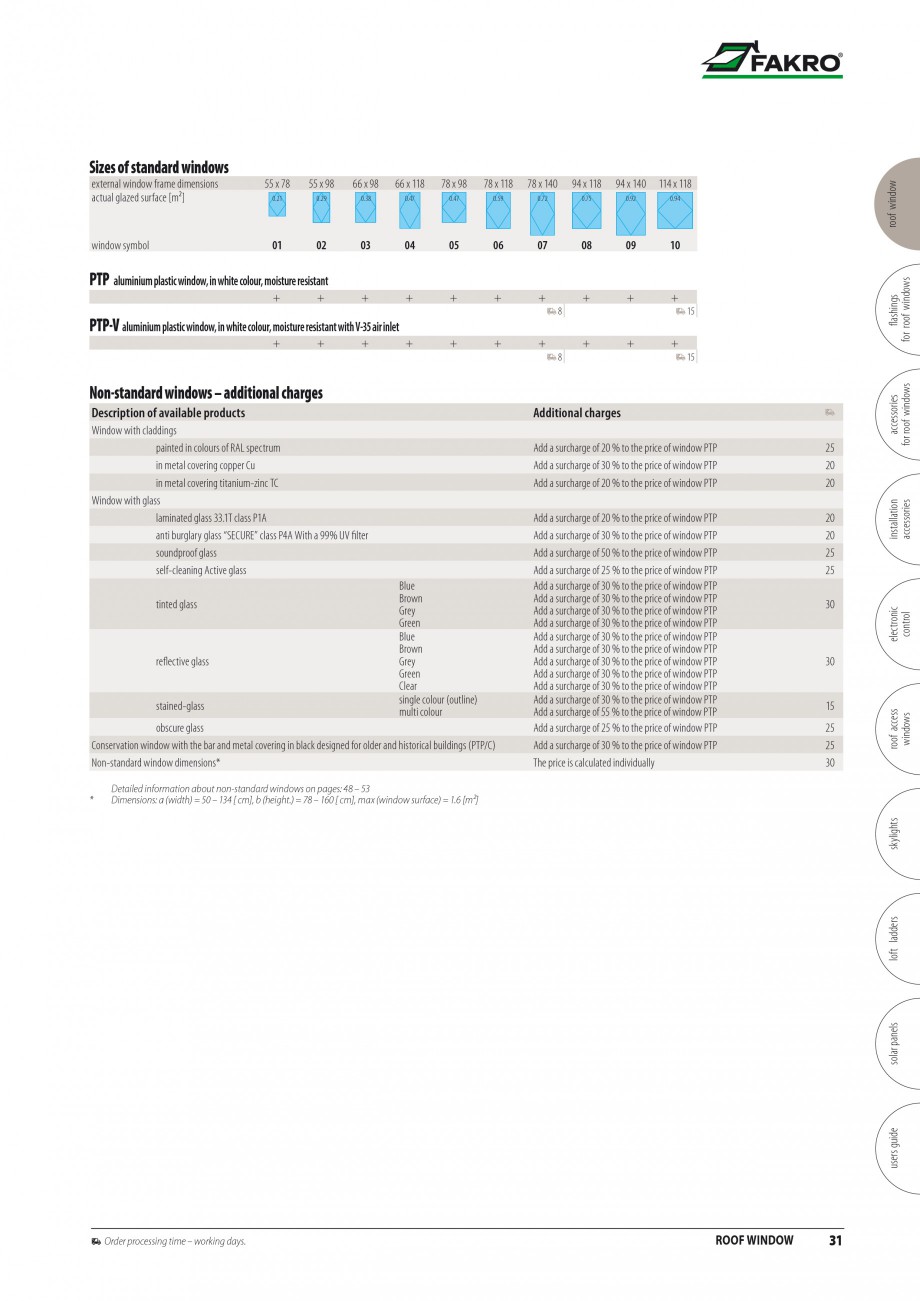

Sizes of standard windows
external window frame dimensions actual glazed surface [m²]
0.21
0.29
0.38
0.47
0.47
0.59
0.72
0.75
0.92
0.94
window symbol
01
02
03
04
05
06
07
08
09
10 flashings for roof windows 25 20 20 20 20 25 25 30 30 15 25 25 30
PTP aluminium plastic window, in white colour, moisture resistant
+ + + + + + +
8
+
+
+
15
PTP-V aluminium plastic window, in white colour, moisture resistant with V-35 air inlet
+ + + + + + +
+
8
+
+
15
Des
cription of available products
Window with claddings painted in colours of RAL spectrum in metal covering copper Cu in metal covering titanium-zinc TC Window with glass laminated glass 33.1T class P1A anti burglary glass “SECURE” class P4A With a 99% UV filter soundproof glass self-cleaning Active glass tinted glass Blue Brown Grey Green Blue Brown Grey Green Clear single colour (outline) multi colour
Additional charges
Add a surcharge of 20 % to the price of window PTP Add a surcharge of 30 % to the price of window PTP Add a surcharge of 20 % to the price of window PTP Add a surcharge of 20 % to the price of window PTP Add a surcharge of 30 % to the price of window PTP Add a surcharge of 50 % to the price of window PTP Add a surcharge of 25 % to the price of window PTP Add a surcharge of 30 % to the price of window PTP Add a surcharge of 30 % to the price of window PTP Add a surcharge of 30 % to the price of window PTP Add a surcharge of 30 % to the price of window PTP Add a sur
charge of 30 % to the price of window PTP Add a surcharge of 30 % to the price of window PTP Add a surcharge of 30 % to the price of window PTP Add a surcharge of 30 % to the price of window PTP Add a surcharge of 30 % to the price of window PTP Add a surcharge of 30 % to the price of window PTP Add a surcharge of 55 % to the price of window PTP Add a surcharge of 25 % to the price of window PTP Add a surcharge of 30 % to the price of window PTP The price is calculated individually
reflective glass stained-glass
obscure glass Conservation window with the bar and metal covering in black designed for older and historical buildings (PTP/C) Non-standard window dimensions*
* Detailed information about non-standard windows on pages: 48 – 53 Dimensions: a (width) = 50 – 134 [ cm], b (height.) = 78 – 160 [ cm], max (window surface) = 1.6 [m²]
Order processing time – working days.
ROOF WINDOW
31
users guide
solar panels
loft ladders
skylights
roof access windows
electronic
control
installation accessories
accessories for roof windows
Non-standard windows – additional charges
roof window
55 x 78
55 x 98
66 x 98
66 x 118
78 x 98
78 x 118
78 x 140
94 x 118
94 x 140
114 x 118
Window FTT Thermo
The FTT Thermo is a specialist roof window whose innovative structure ensures outstanding energy saving properties. This roof window is characterised by an extremely advantageous overall heat transfer co-efficient of U-window = 0.94Wm2K, which enables its application in buildings where heat loss reduction is particularly required e.g. passive buildings. FTT is a centre pivot roof window equipped with an excellent, energy saving two-chamber glazing unit placed in a thicker, wooden sash frame. Properly designed and manufactured it has, along with its installation system exploiting moisture and wind resistant accessories, excellent thermo-insulating parameters and the highest (class 4) tightness as regards air leakage(classification PN-EN12207, researc
h norm PN-EN1026). The FTT Thermo roof window installed using specially designed FAKRO installation accessories (XDP vapour permeable flashing and XDS vapour tight flashing) plays the role of energy saving product.
Features the sash frame is approximately 30% thicker in comparison with a standard window which significantly increases durability and the thermo-insulating properties of the whole product; outstanding energy saving two chamber glazing unit ‘warm’ TGI spacing frames; the combination of two materials, plastic and metal, along with a proper TGI frame shape guarantees high tightness and low heat permeation; such a structure of the glazing unit makes it possible to attain outstanding energy saving parameters; quadruple sealing system; all seals are made of the highest quality materials; thanks to their high flexibility and elasticity they adhere better to the pane, further reducing heat loss; window compatible with standard external accessories; beca
use of the wider sash frame the internal accessories have modified dimensions adjusted to suit the FTT window; they can be manufactured to order; Technical Specification window U-value glazing U-value acoustic insulation Rw glazing unit low emission coating inert gas filled panes toughened glass varnishing seals multi-point opening handle FTT 0.9 W/m²K 0.5 W/m²K 33 dB 4HT–10 – 4H – 10 – 4HT + + + twice four + Elegant
32
www.fakro.com

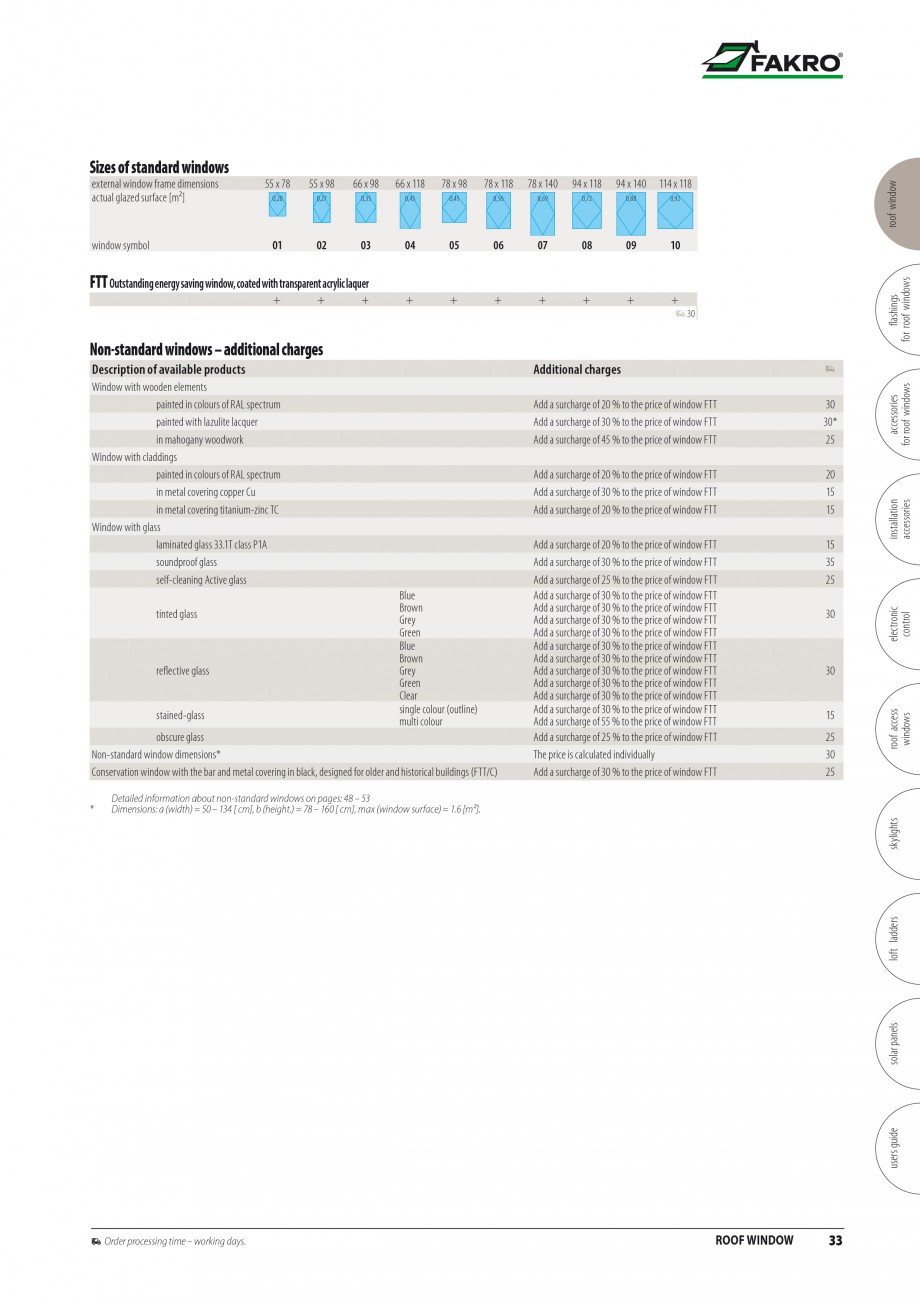

Sizes of standard windows
external window frame dimensions actual glazed surface [m²]
0,20
0,27
0,35
0,45
0,45
0,56
0,69
0,72
0,88
0,92
window symbol
01
02
03
04
05
06
07
08
09
10 flashings for roof windows 30 30* 25 20 15 15 15 35 25 30 30 15 25 30 25
FTT Outstanding energy saving window, coated with transparent acrylic laquer
+ + + + + + + + + +
30
Non-standard windows – additional charges
Description of available products
Window with wooden elements painted in colour
s of RAL spectrum painted with lazulite lacquer in mahogany woodwork Window with claddings painted in colours of RAL spectrum in metal covering copper Cu in metal covering titanium-zinc TC Window with glass laminated glass 33.1T class P1A soundproof glass self-cleaning Active glass tinted glass Blue Brown Grey Green Blue Brown Grey Green Clear single colour (outline) multi colour
Additional charges
Add a surcharge of 20 % to the price of window FTT Add a surcharge of 30 % to the price of window FTT Add a surcharge of 45 % to the price of window FTT Add a surcharge of 20 % to the price of window FTT Add a surcharge of 30 % to the price of window FTT Add a surcharge of 20 % to the price of window FTT Add a surcharge of 20 % to the price of window FTT Add a surcharge of 30 % to the price of window FTT Add a surcharge of 25 % to the price of window FTT Add a surcharge of 30 % to the price of window FTT Add a surcharge of 30 % to the price of window FTT Add a surcharge of 30 % to the price
of window FTT Add a surcharge of 30 % to the price of window FTT Add a surcharge of 30 % to the price of window FTT Add a surcharge of 30 % to the price of window FTT Add a surcharge of 30 % to the price of window FTT Add a surcharge of 30 % to the price of window FTT Add a surcharge of 30 % to the price of window FTT Add a surcharge of 30 % to the price of window FTT Add a surcharge of 55 % to the price of window FTT Add a surcharge of 25 % to the price of window FTT The price is calculated individually Add a surcharge of 30 % to the price of window FTT accessories for roof windows users guide solar panels loft ladders skylights roof access windows electronic control installation accessories
reflective glass stained-glass
obscure glass Non-standard window dimensions* Conservation window with the bar and metal covering in black, designed for older and historical buildings (FTT/C)
* Detailed information about non-standard windows on pages: 48 – 53 Dimensions: a (width) = 50 – 13
4 [ cm], b (height.) = 78 – 160 [ cm], max (window surface) = 1.6 [m²].
Order processing time – working days.
ROOF WINDOW
33
roof window
55 x 78
55 x 98
66 x 98
66 x 118
78 x 98
78 x 118
78 x 140
94 x 118
94 x 140
114 x 118

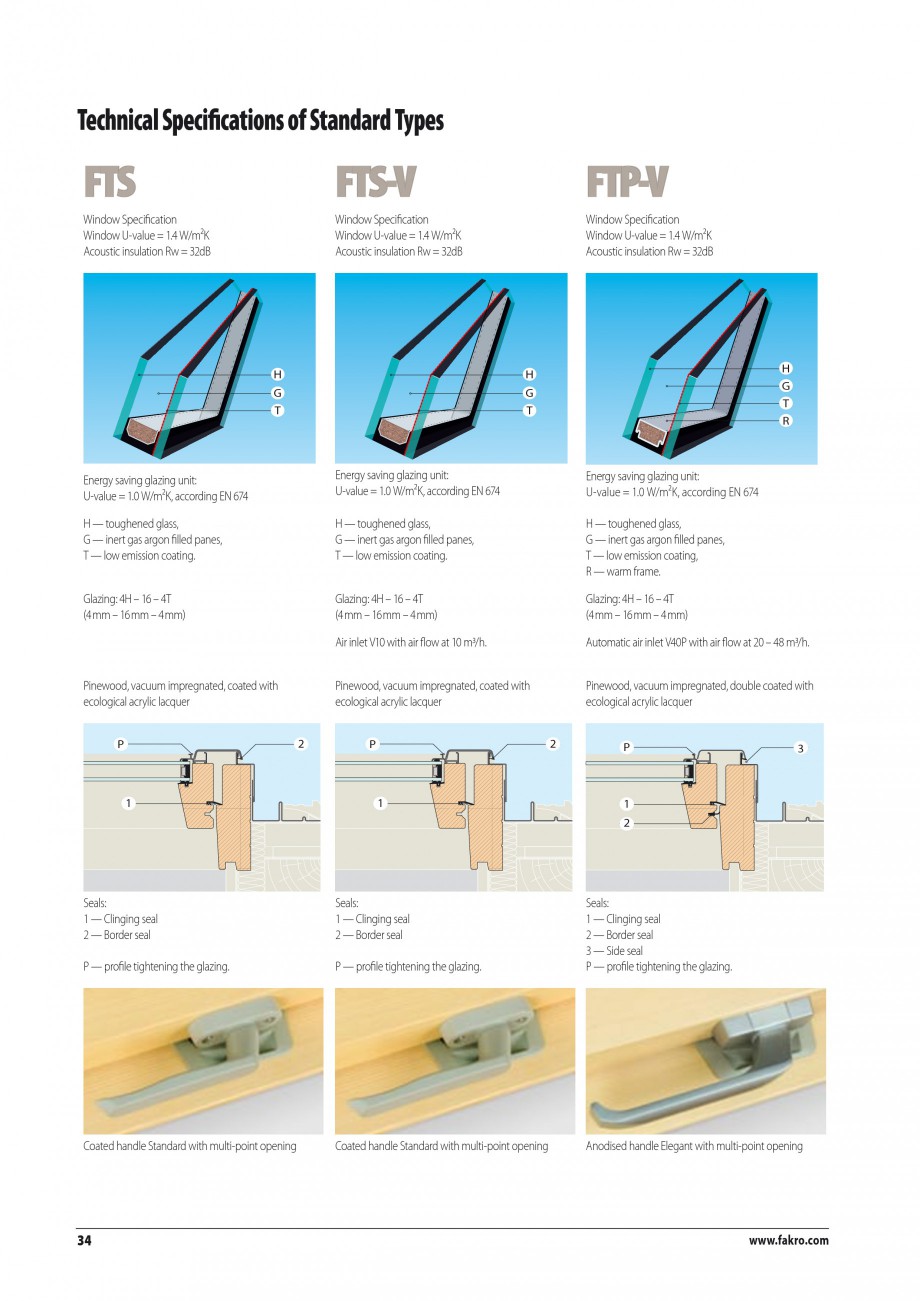

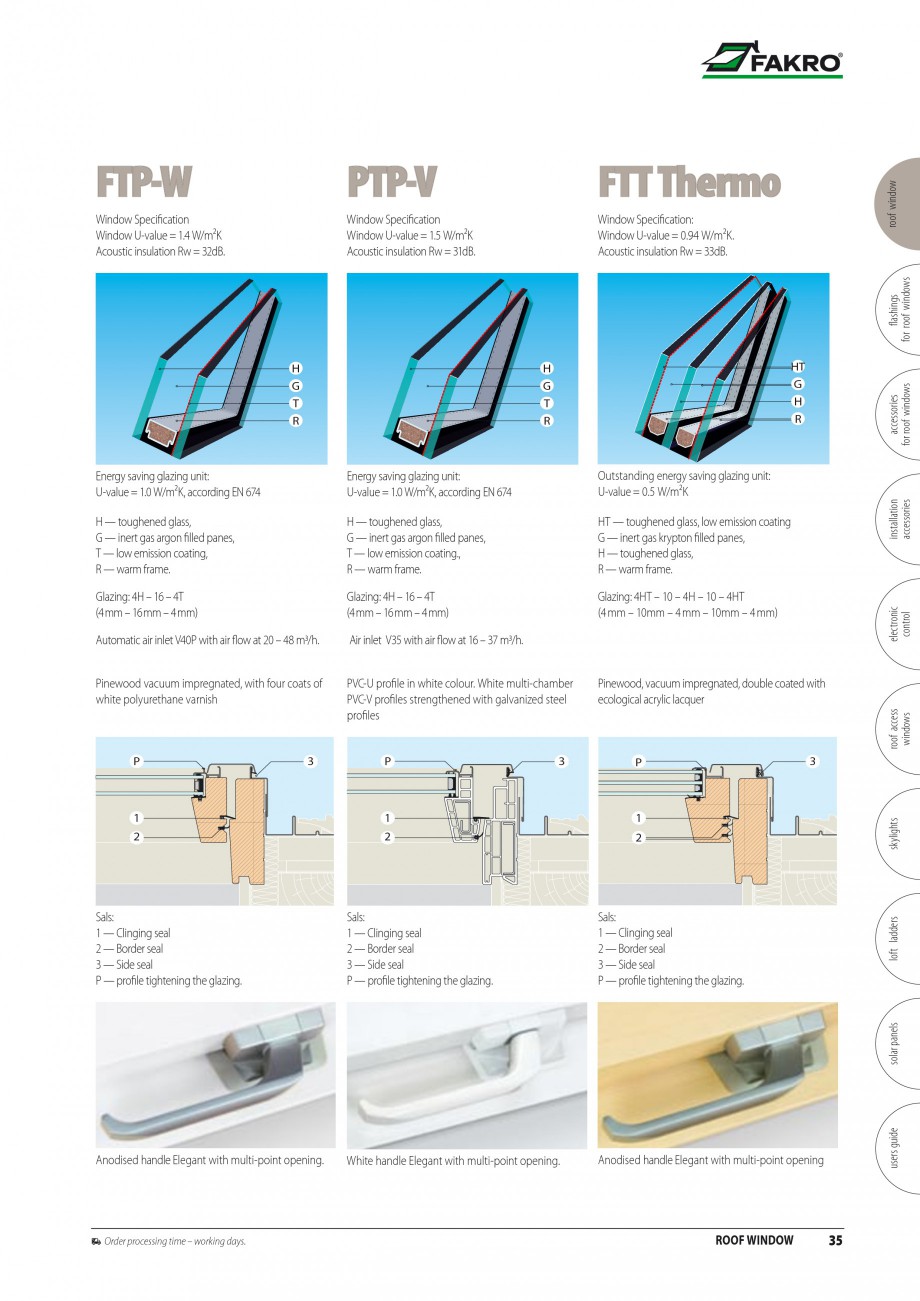

Technical Specifications of Standard Types
FTS
Window Specification Window U-value = 1.4 W/m²K Acoustic insulation Rw = 32dB
FTS-V
Window Specification Window U-value = 1.4 W/m²K Acoustic insulation Rw = 32dB
FTP-V
Window Specification Window U-value = 1.4 W/m²K Acoustic insulation Rw = 32dB
H
G T
H
G T
H G T R
Energy saving glazing unit: U-value = 1.0 W/m²K, according EN 674
Energy saving glazing unit: U-value = 1.0 W/m²K, according EN 674
Energy saving glazing unit: U-value = 1.0 W/m²K, according EN 674 H — toughened glass, G — inert gas argon filled panes, T — low emission coating, R — warm frame. Glazing: 4H – 16 – 4T (4 mm – 16 mm – 4 mm) Automatic air inlet V40P with air flow at 20 – 48 m3/h. Pinewood
4 [ cm], b (height.) = 78 – 160 [ cm], max (window surface) = 1.6 [m²].
Order processing time – working days.
ROOF WINDOW
33
roof window
55 x 78
55 x 98
66 x 98
66 x 118
78 x 98
78 x 118
78 x 140
94 x 118
94 x 140
114 x 118
Technical Specifications of Standard Types
FTS
Window Specification Window U-value = 1.4 W/m²K Acoustic insulation Rw = 32dB
FTS-V
Window Specification Window U-value = 1.4 W/m²K Acoustic insulation Rw = 32dB
FTP-V
Window Specification Window U-value = 1.4 W/m²K Acoustic insulation Rw = 32dB
H
G T
H
G T
H G T R
Energy saving glazing unit: U-value = 1.0 W/m²K, according EN 674
Energy saving glazing unit: U-value = 1.0 W/m²K, according EN 674
Energy saving glazing unit: U-value = 1.0 W/m²K, according EN 674 H — toughened glass, G — inert gas argon filled panes, T — low emission coating, R — warm frame. Glazing: 4H – 16 – 4T (4 mm – 16 mm – 4 mm) Automatic air inlet V40P with air flow at 20 – 48 m3/h. Pinewood
