Gard metalic de fatada HERAS Atlas

Limba: Engleza

131 afisari

Tip documentatie: Fisa tehnica

Pagina 1 - Gard metalic de fatada HERAS Atlas Fisa tehnica Engleza Bar fencing

Elegant
Durable...

Bar fencing Elegant Durable Characteristic Safety and durability combined Atlas Atlas combines safety and durability with a characteristically elegant look. This fence range consists of a complete line of bar panel elements, turning and sliding gates, slope panels and hanging panels suitable for ditches. The fence is available in heights between 1 and 2.5 metres. It has round bars that protrude through the top and bottom rails so that they cannot be removed. The strong square posts are installed in concrete poured on location or alternatively onto a base plate. Again, the hinged slope panels enable the fence to seamlessly follow the contours of the terrain. Panel element Blind connection Anchoring Hinge construction, other than 90° angle Table of dimensions Type Atlas 100 Atlas 125 Atlas 150 Atlas 180 Atlas 200 Atlas 250 Height of fence 1,000 1,250 1,500 1,800 2,000 2,500 Lenght of posts 1700 1900 2150 2650 2800 3350 Top of bar Straight Straight Bevelled Bevelled Bevelled

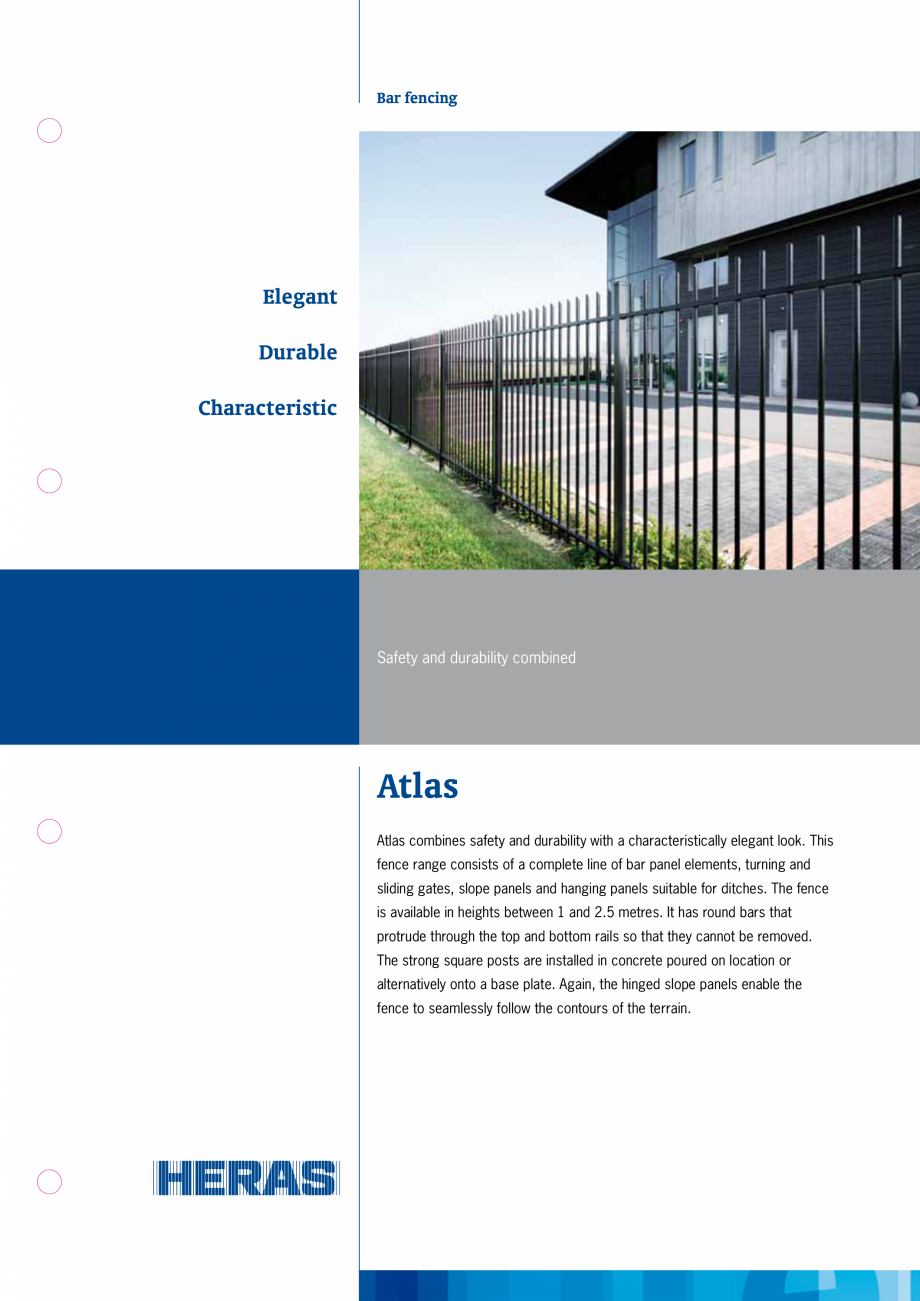

Pagina 1-Gard metalic de fatada HERAS Atlas Fisa tehnica Engleza Bar fencing

Elegant
Durable
Characteristic
...

Pagina 2 - Gard metalic de fatada HERAS Atlas Fisa tehnica Engleza Bevelled

Dimensions in mm.
...

Bevelled Dimensions in mm. Colour schemes Coating • alvanised or coated. Standard coating, available as RAL G Galvanised and aluminium parts are pre-treated before coating. 6005 (moss green), RAL 6009 (fir green), RAL 6014 (Heras Electrostatic powder-coating is then applied, after which the green), RAL 7016 (anthracite grey), RAL 7030 (stone grey), coated materials are cured in an oven (210 ºC) to create a RAL 9005 (black) and RAL 9010 (pure white). durable coating with an average thickness of 80 μm and a • s the RAL 9006 and RAL 9007 colours come in several A hardness of 80 buchholz. variants they are only available - at a surcharge - if the additional ’variant’ colour code is stated. • Other RAL colours are available upon request. Options • Steel box section posts 60 x 60 mm • The fence panels are connected to the posts using a blind connec- • 1 row of galvanised rotating spike segments (large spikes) • 1 or 2 rows of aluminium ro
