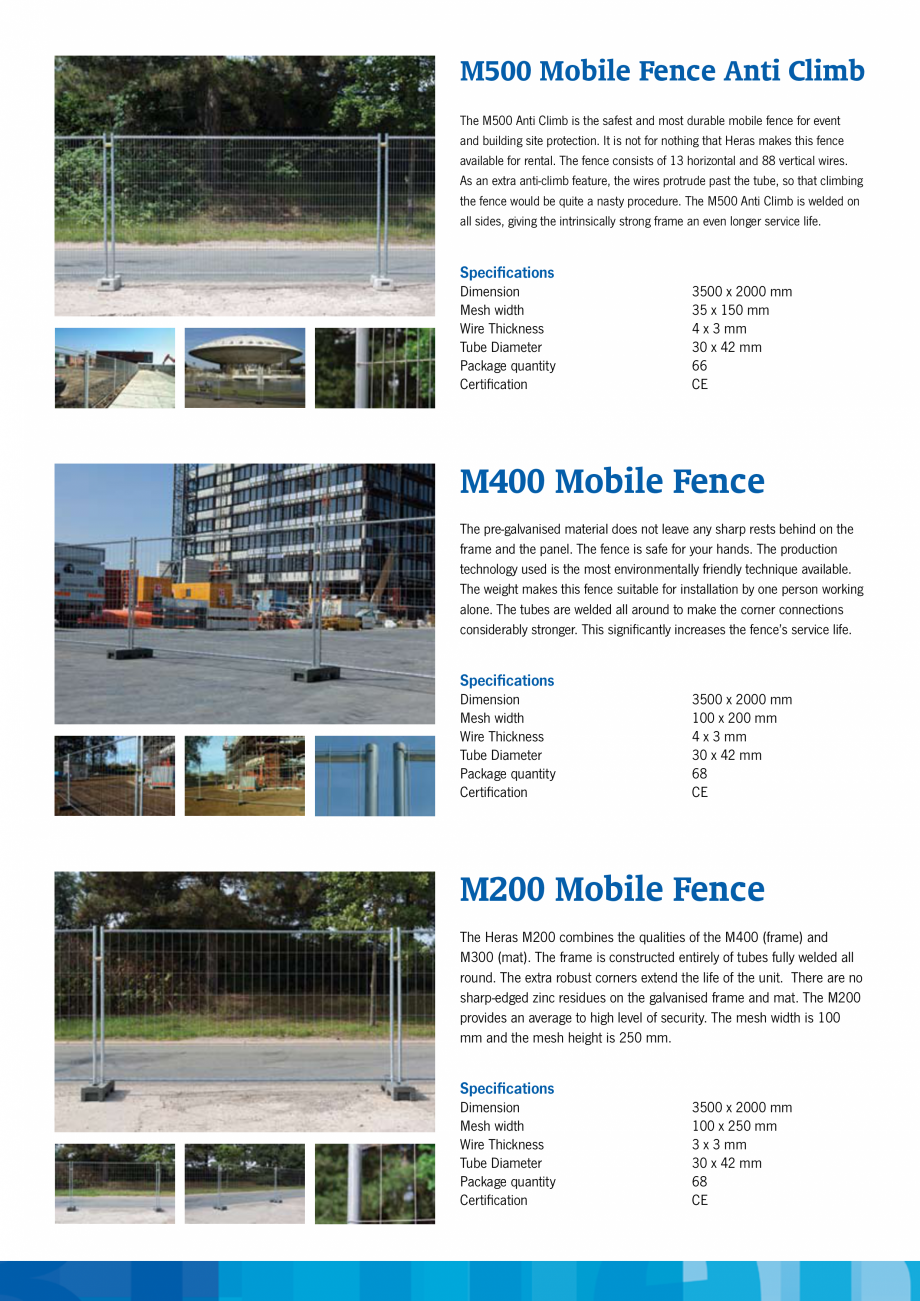

Product Brochure Heras Mobile Fencing & Security BV M500 Mobile Fence Anti Climb The M500 Anti Climb is the safest and most durable mobile fence for event and building site protection. It is not for nothing that Heras makes this fence available for rental. The fence consists of 13 horizontal and 88 vertical wires. As an extra anti-climb feature, the wires protrude past the tube, so that climbing the fence would be quite a nasty procedure. The M500 Anti Climb is welded on all sides, giving the intrinsically strong frame an even longer service life. Specifications Dimension Mesh width Wire Thickness Tube Diameter Package quantity Certification 3500 x 2000 mm 35 x 150 mm 4 x 3 mm 30 x 42 mm 66 CE M400 Mobile Fence The pre-galvanised material does not leave any sharp rests behind on the frame and the panel. The fence is safe for your hands. The production technology used is the most environmentally friendly technique available. The weight makes this fence suitable for instal

Pagina 1-Garduri mobile HERAS M125, M130, M350, M400, Tip jandarmerie Catalog, brosura Engleza Product...

Pagina 2 - Garduri mobile HERAS M125, M130, M350, M400, Tip jandarmerie Catalog, brosura Engleza...

lation by one person working alone. The tubes are welded all around to make the corner connections considerably stronger. This significantly increases the fence’s service life. Specifications Dimension Mesh width Wire Thickness Tube Diameter Package quantity Certification 3500 x 2000 mm 100 x 200 mm 4 x 3 mm 30 x 42 mm 68 CE M200 Mobile Fence The Heras M200 combines the qualities of the M400 (frame) and M300 (mat). The frame is constructed entirely of tubes fully welded all round. The extra robust corners extend the life of the unit. There are no sharp-edged zinc residues on the galvanised frame and mat. The M200 provides an average to high level of security. The mesh width is 100 mm and the mesh height is 250 mm. Specifications Dimension Mesh width Wire Thickness Tube Diameter Package quantity Certification 3500 x 2000 mm 100 x 250 mm 3 x 3 mm 30 x 42 mm 68 CE M300 Mobile Fence The pre-galvanised material does not leave any sharp zinc rests behind on the frame and

Pagina 2-Garduri mobile HERAS M125, M130, M350, M400, Tip jandarmerie Catalog, brosura Engleza lation by one...

Pagina 3 - Garduri mobile HERAS M125, M130, M350, M400, Tip jandarmerie Catalog, brosura Engleza ...

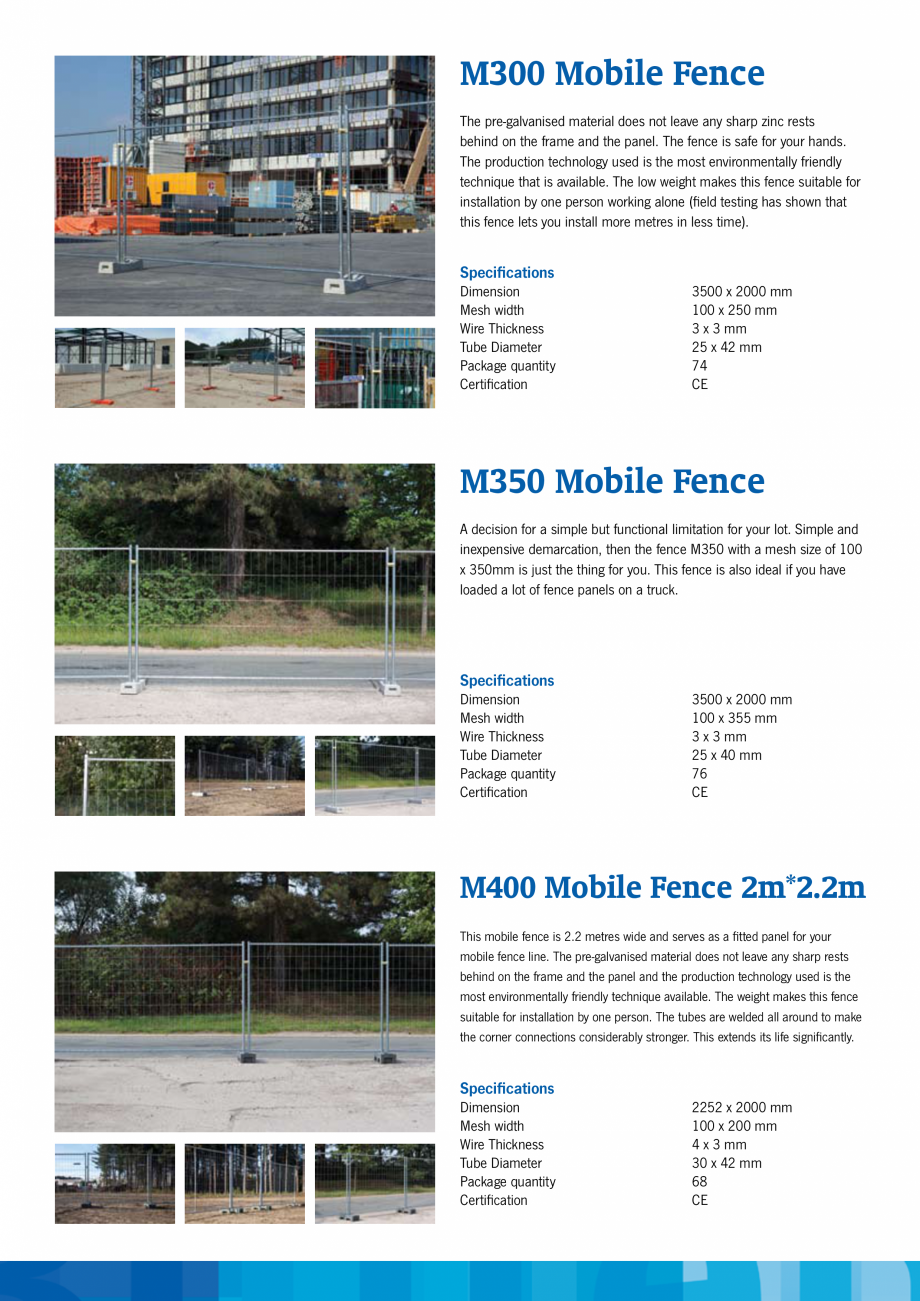

the panel. The fence is safe for your hands. The production technology used is the most environmentally friendly technique that is available. The low weight makes this fence suitable for installation by one person working alone (field testing has shown that this fence lets you install more metres in less time). Specifications Dimension Mesh width Wire Thickness Tube Diameter Package quantity Certification 3500 x 2000 mm 100 x 250 mm 3 x 3 mm 25 x 42 mm 74 CE M350 Mobile Fence A decision for a simple but functional limitation for your lot. Simple and inexpensive demarcation, then the fence M350 with a mesh size of 100 x 350mm is just the thing for you. This fence is also ideal if you have loaded a lot of fence panels on a truck. Specifications Dimension Mesh width Wire Thickness Tube Diameter Package quantity Certification 3500 x 2000 mm 100 x 355 mm 3 x 3 mm 25 x 40 mm 76 CE M400 Mobile Fence 2m*2.2m This mobile fence is 2.2 metres wide and serves as a fitted panel f

Pagina 3-Garduri mobile HERAS M125, M130, M350, M400, Tip jandarmerie Catalog, brosura Engleza the panel....

Pagina 4 - Garduri mobile HERAS M125, M130, M350, M400, Tip jandarmerie Catalog, brosura Engleza or...

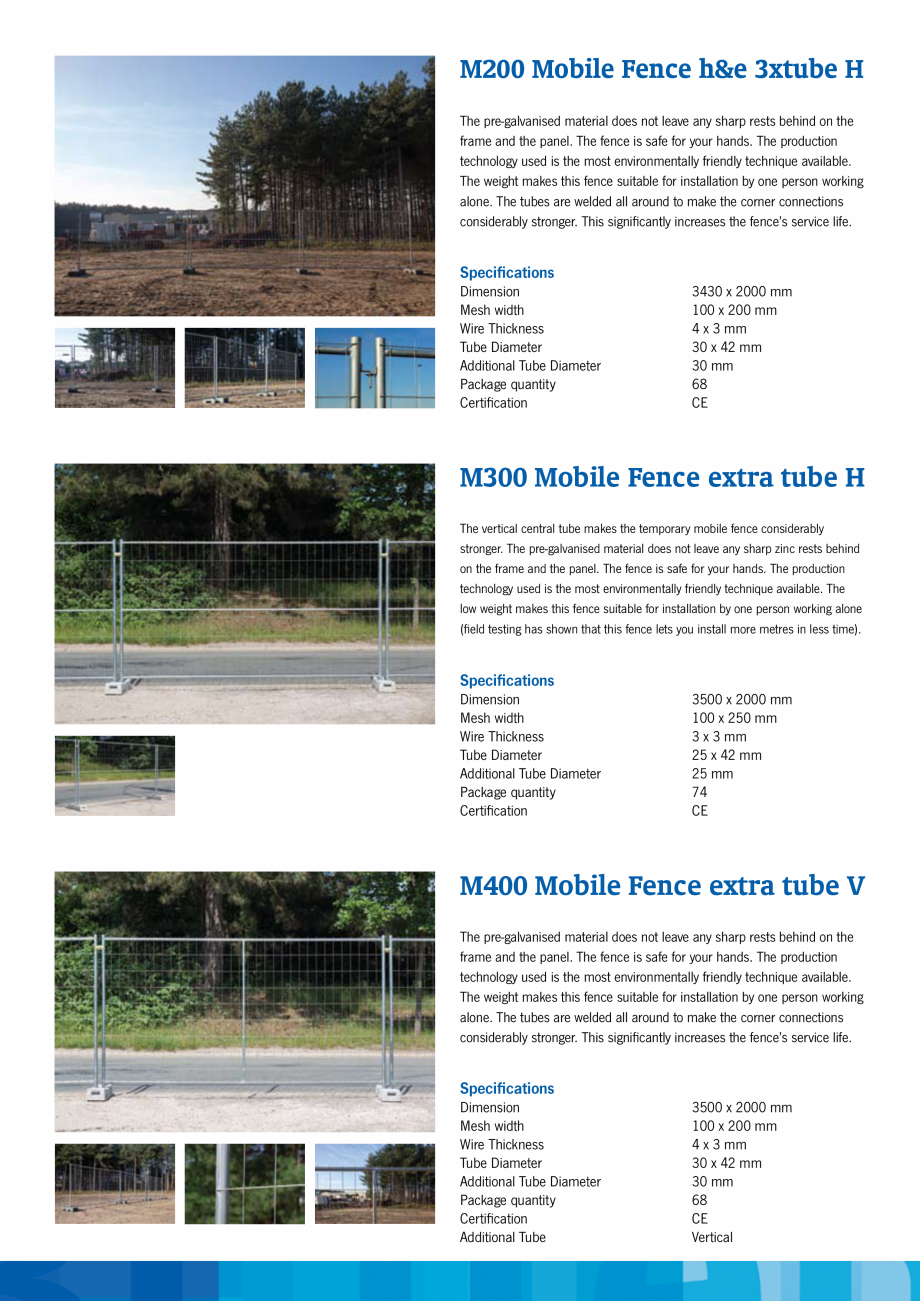

or your mobile fence line. The pre-galvanised material does not leave any sharp rests behind on the frame and the panel and the production technology used is the most environmentally friendly technique available. The weight makes this fence suitable for installation by one person. The tubes are welded all around to make the corner connections considerably stronger. This extends its life significantly. Specifications Dimension Mesh width Wire Thickness Tube Diameter Package quantity Certification 2252 x 2000 mm 100 x 200 mm 4 x 3 mm 30 x 42 mm 68 CE M200 Mobile Fence h&e 3xtube H The pre-galvanised material does not leave any sharp rests behind on the frame and the panel. The fence is safe for your hands. The production technology used is the most environmentally friendly technique available. The weight makes this fence suitable for installation by one person working alone. The tubes are welded all around to make the corner connections considerably stronger. This significantly

Pagina 4-Garduri mobile HERAS M125, M130, M350, M400, Tip jandarmerie Catalog, brosura Engleza or your...

Pagina 5 - Garduri mobile HERAS M125, M130, M350, M400, Tip jandarmerie Catalog, brosura Engleza ...

increases the fence’s service life. Specifications Dimension Mesh width Wire Thickness Tube Diameter Additional Tube Diameter Package quantity Certification 3430 x 2000 mm 100 x 200 mm 4 x 3 mm 30 x 42 mm 30 mm 68 CE M300 Mobile Fence extra tube H The vertical central tube makes the temporary mobile fence considerably stronger. The pre-galvanised material does not leave any sharp zinc rests behind on the frame and the panel. The fence is safe for your hands. The production technology used is the most environmentally friendly technique available. The low weight makes this fence suitable for installation by one person working alone (field testing has shown that this fence lets you install more metres in less time). Specifications Dimension Mesh width Wire Thickness Tube Diameter Additional Tube Diameter Package quantity Certification 3500 x 2000 mm 100 x 250 mm 3 x 3 mm 25 x 42 mm 25 mm 74 CE M400 Mobile Fence extra tube V The pre-galvanised material does not leave

Pagina 5-Garduri mobile HERAS M125, M130, M350, M400, Tip jandarmerie Catalog, brosura Engleza increases...

Pagina 6 - Garduri mobile HERAS M125, M130, M350, M400, Tip jandarmerie Catalog, brosura Engleza ...

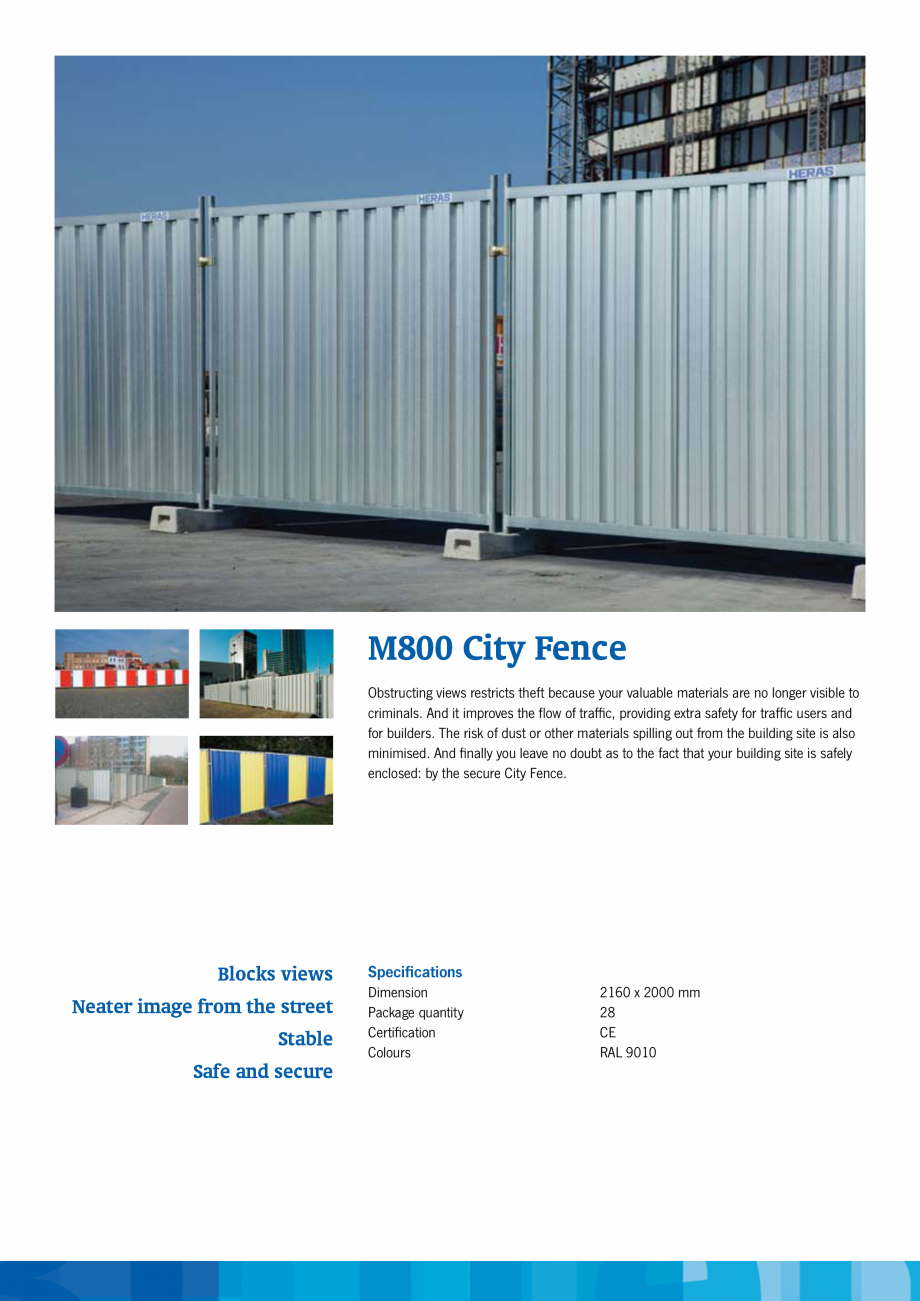

any sharp rests behind on the frame and the panel. The fence is safe for your hands. The production technology used is the most environmentally friendly technique available. The weight makes this fence suitable for installation by one person working alone. The tubes are welded all around to make the corner connections considerably stronger. This significantly increases the fence’s service life. Specifications Dimension Mesh width Wire Thickness Tube Diameter Additional Tube Diameter Package quantity Certification Additional Tube 3500 x 2000 mm 100 x 200 mm 4 x 3 mm 30 x 42 mm 30 mm 68 CE Vertical M800 City Fence Obstructing views restricts theft because your valuable materials are no longer visible to criminals. And it improves the flow of traffic, providing extra safety for traffic users and for builders. The risk of dust or other materials spilling out from the building site is also minimised. And finally you leave no doubt as to the fact that your building site is saf

Pagina 6-Garduri mobile HERAS M125, M130, M350, M400, Tip jandarmerie Catalog, brosura Engleza any sharp...

Pagina 7 - Garduri mobile HERAS M125, M130, M350, M400, Tip jandarmerie Catalog, brosura Engleza...

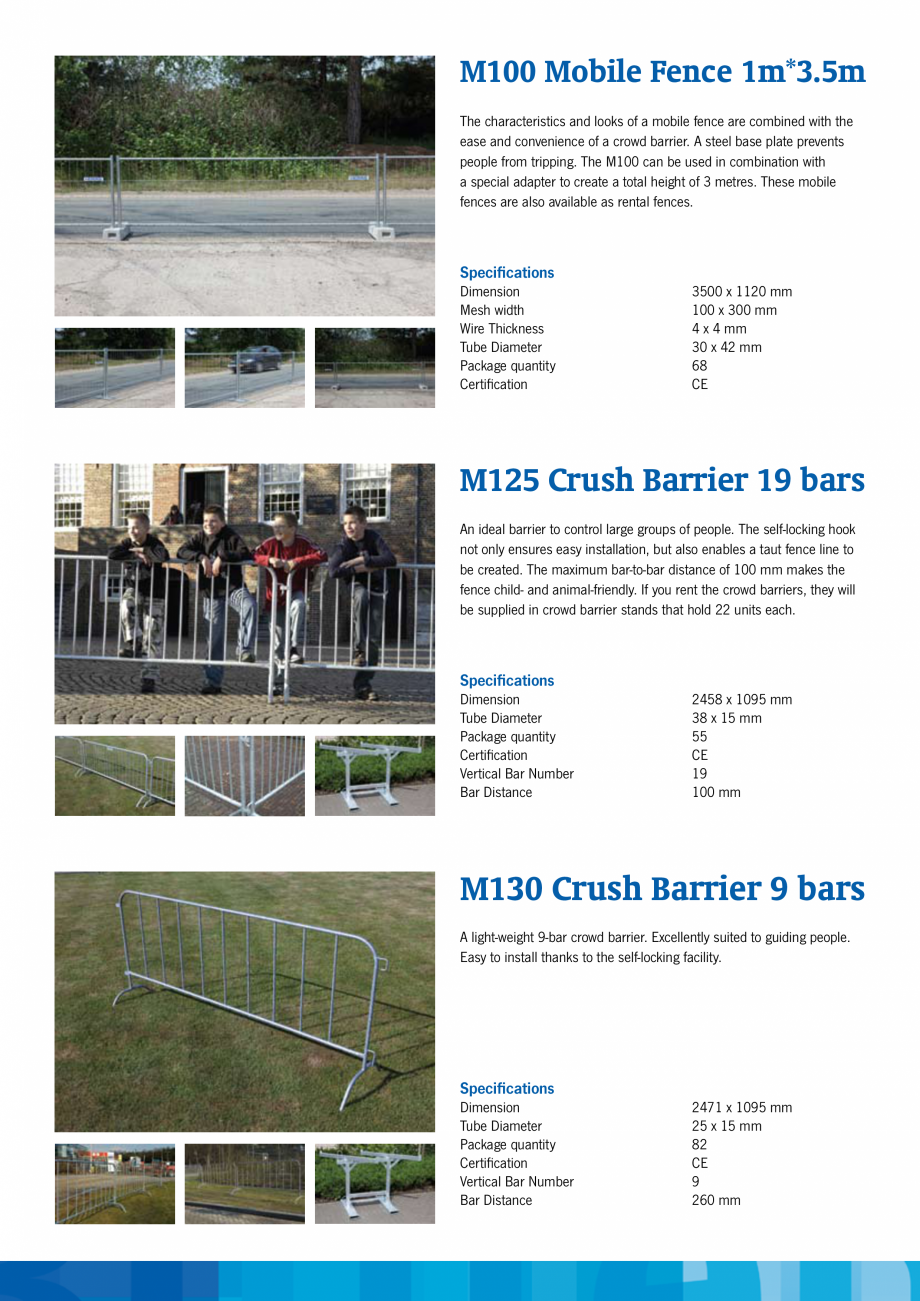

ely enclosed: by the secure City Fence. Blocks views Neater image from the street Stable Safe and secure Specifications Dimension Package quantity Certification Colours 2160 x 2000 mm 28 CE RAL 9010 M100 Mobile Fence 1m*3.5m The characteristics and looks of a mobile fence are combined with the ease and convenience of a crowd barrier. A steel base plate prevents people from tripping. The M100 can be used in combination with a special adapter to create a total height of 3 metres. These mobile fences are also available as rental fences. Specifications Dimension Mesh width Wire Thickness Tube Diameter Package quantity Certification 3500 x 1120 mm 100 x 300 mm 4 x 4 mm 30 x 42 mm 68 CE M125 Crush Barrier 19 bars An ideal barrier to control large groups of people. The self-locking hook not only ensures easy installation, but also enables a taut fence line to be created. The maximum bar-to-bar distance of 100 mm makes the fence child- and animal-friendly. If you rent the cro

Pagina 7-Garduri mobile HERAS M125, M130, M350, M400, Tip jandarmerie Catalog, brosura Engleza ely
enclosed:...

Pagina 8 - Garduri mobile HERAS M125, M130, M350, M400, Tip jandarmerie Catalog, brosura Engleza wd...

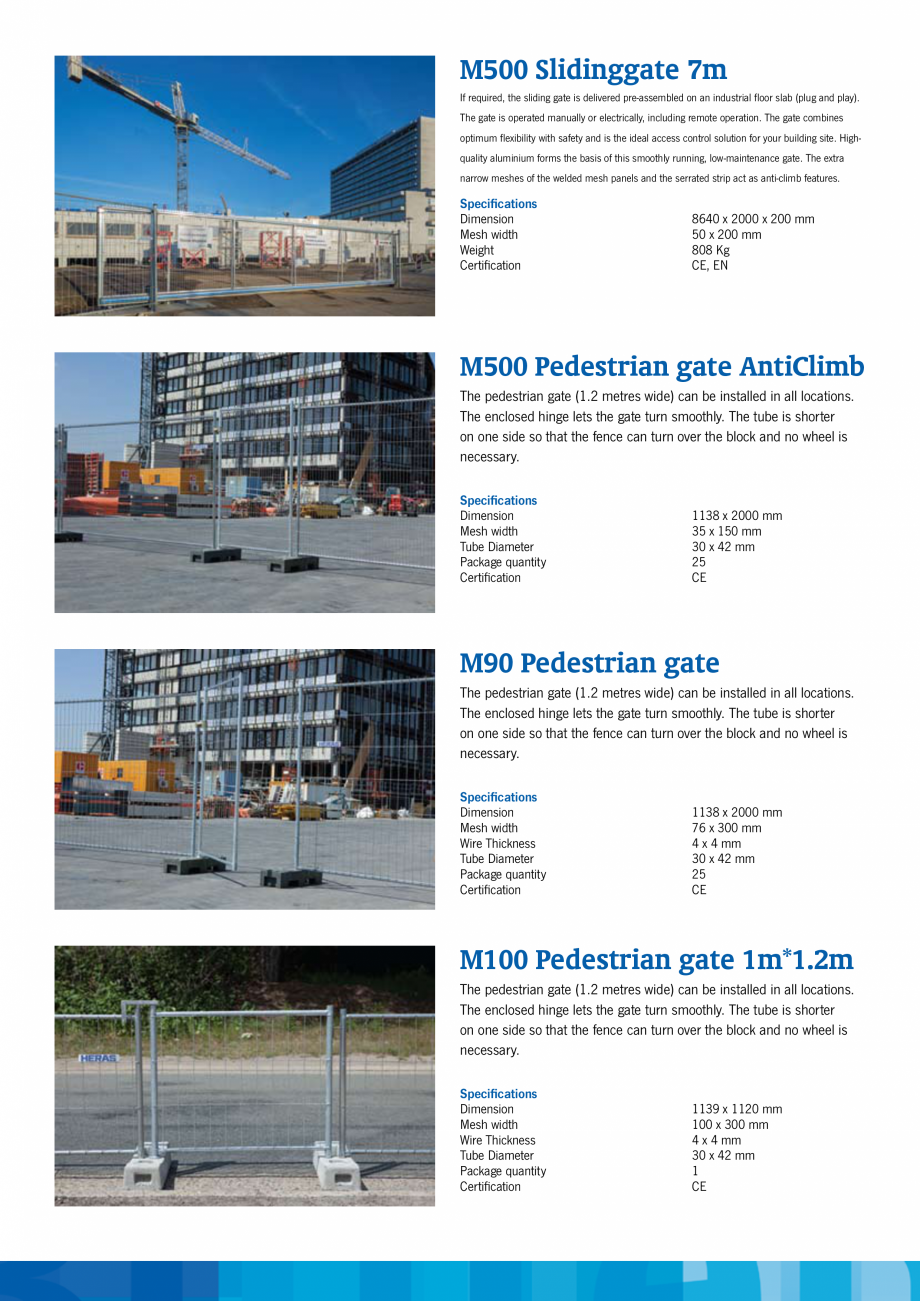

wd barriers, they will be supplied in crowd barrier stands that hold 22 units each. Specifications Dimension Tube Diameter Package quantity Certification Vertical Bar Number Bar Distance 2458 x 1095 mm 38 x 15 mm 55 CE 19 100 mm M130 Crush Barrier 9 bars A light-weight 9-bar crowd barrier. Excellently suited to guiding people. Easy to install thanks to the self-locking facility. Specifications Dimension Tube Diameter Package quantity Certification Vertical Bar Number Bar Distance 2471 x 1095 mm 25 x 15 mm 82 CE 9 260 mm M500 Slidinggate 7m If required, the sliding gate is delivered pre-assembled on an industrial floor slab (plug and play). The gate is operated manually or electrically, including remote operation. The gate combines optimum flexibility with safety and is the ideal access control solution for your building site. Highquality aluminium forms the basis of this smoothly running, low-maintenance gate. The extra narrow meshes of the welded mesh panels and the

Pagina 8-Garduri mobile HERAS M125, M130, M350, M400, Tip jandarmerie Catalog, brosura Engleza wd barriers, ...

Pagina 9 - Garduri mobile HERAS M125, M130, M350, M400, Tip jandarmerie Catalog, brosura Engleza ...

serrated strip act as anti-climb features. Specifications Dimension Mesh width Weight Certification 8640 x 2000 x 200 mm 50 x 200 mm 808 Kg CE, EN M500 Pedestrian gate AntiClimb The pedestrian gate (1.2 metres wide) can be installed in all locations. The enclosed hinge lets the gate turn smoothly. The tube is shorter on one side so that the fence can turn over the block and no wheel is necessary. Specifications Dimension Mesh width Tube Diameter Package quantity Certification 1138 x 2000 mm 35 x 150 mm 30 x 42 mm 25 CE M90 Pedestrian gate The pedestrian gate (1.2 metres wide) can be installed in all locations. The enclosed hinge lets the gate turn smoothly. The tube is shorter on one side so that the fence can turn over the block and no wheel is necessary. Specifications Dimension Mesh width Wire Thickness Tube Diameter Package quantity Certification 1138 x 2000 mm 76 x 300 mm 4 x 4 mm 30 x 42 mm 25 CE M100 Pedestrian gate 1m*1.2m The pedestrian gate (1.2 metres

Pagina 9-Garduri mobile HERAS M125, M130, M350, M400, Tip jandarmerie Catalog, brosura Engleza serrated...

Pagina 10 - Garduri mobile HERAS M125, M130, M350, M400, Tip jandarmerie Catalog, brosura Engleza...

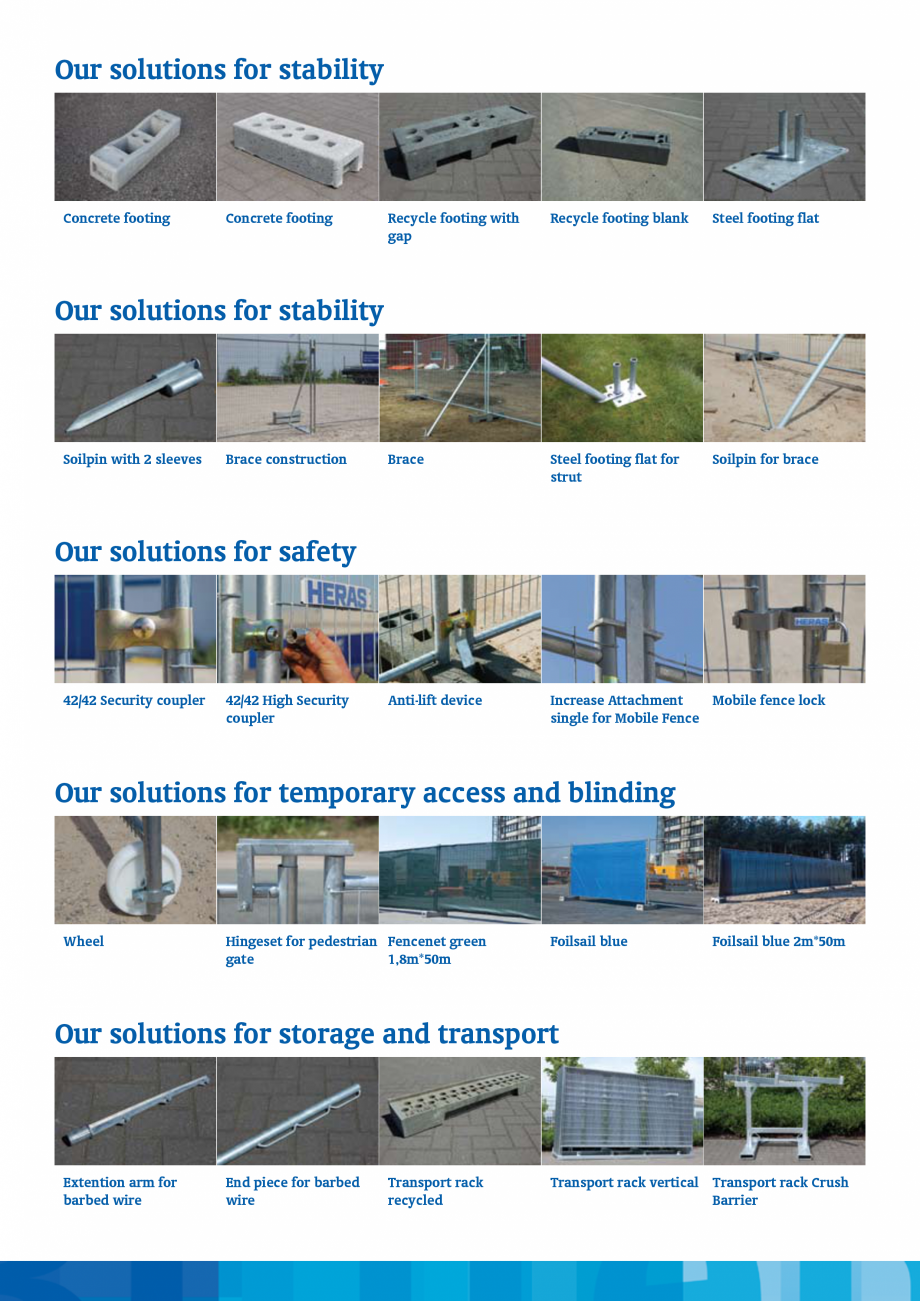

wide) can be installed in all locations. The enclosed hinge lets the gate turn smoothly. The tube is shorter on one side so that the fence can turn over the block and no wheel is necessary. Specifications Dimension Mesh width Wire Thickness Tube Diameter Package quantity Certification 1139 x 1120 mm 100 x 300 mm 4 x 4 mm 30 x 42 mm 1 CE Our solutions for stability Concrete footing Concrete footing Recycle footing with gap Recycle footing blank Steel footing flat Brace Steel footing flat for strut Soilpin for brace Anti-lift device Increase Attachment Mobile fence lock single for Mobile Fence Our solutions for stability Soilpin with 2 sleeves Brace construction Our solutions for safety 42/42 Security coupler 42/42 High Security coupler Our solutions for temporary access and blinding Wheel Hingeset for pedestrian Fencenet green gate 1,8m*50m Foilsail blue Foilsail blue 2m*50m Our solutions for storage and transport Extention arm for barbed wire End piece

Pagina 10-Garduri mobile HERAS M125, M130, M350, M400, Tip jandarmerie Catalog, brosura Engleza wide) can be ...

Pagina 11 - Garduri mobile HERAS M125, M130, M350, M400, Tip jandarmerie Catalog, brosura Engleza...

for barbed wire Transport rack recycled Transport rack vertical Transport rack Crush Barrier PO Box 30, 5688 JE Oirschot The Netherlands T: +31 499 55 15 08 F: +31 499 57 14 23 E: export@mobilefencing.com
