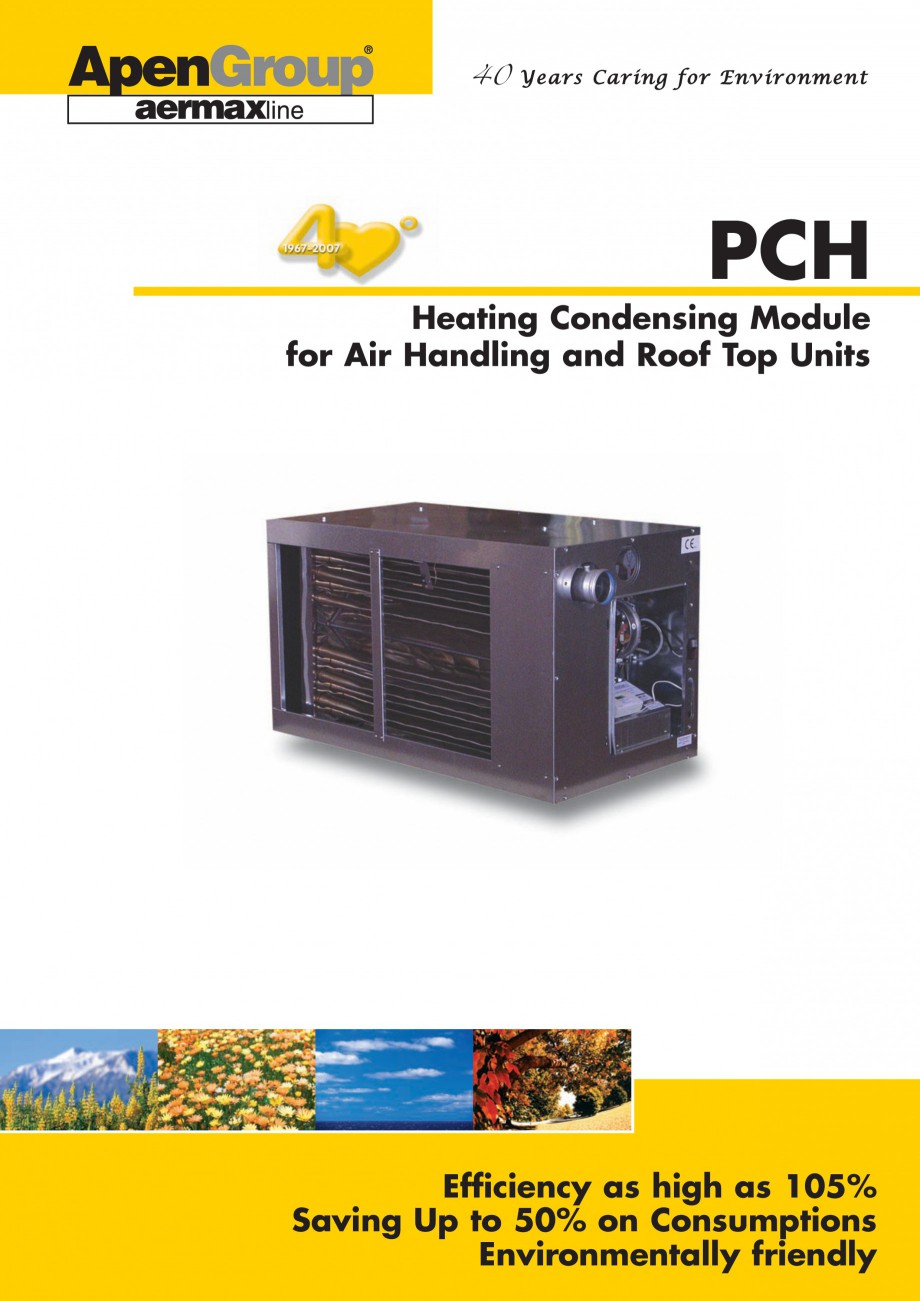

Pagina 1 - Generatoare de aer cald incorporabile APEN PCH Fisa tehnica Engleza 40 Y e a r s C a r i ...

40 Y e a r s C a r i n g f o r E n v i r o n m e n t PCH Heating Condensing Module for Air Handling and Roof Top Units Efﬁciency as high as 105% Saving Up to 50% on Consumptions Environmentally friendly Efﬁciency as high as 105%? You can! Apen Group has designed and developed PCH heating modules for installation in air handling and roof-top units. PCH modules leverage on pre-mix and modulation technology to exploit condensation and reach efﬁciency levels as high as 105% according to lower heating value (LHV - Hi). Efﬁciency % (Hi) 105 102 105,0 % 99 96 ® 93 90 89,0 % 87 PCH Module Traditional Exchanger PCH module is built with environment-friendly, totally recyclable materials, such as steel and aluminium. The heat produced using PCH module's "clean combustion" is earth-friendly and convenient: the burner completely pre-mixes air and gas while the system constantly and logically adapts heat output to changing ambient heating requirements. A microprocessor-based d

Pagina 1-Generatoare de aer cald incorporabile APEN PCH Fisa tehnica Engleza 40 Y e a r s C a r i n g f o r E...

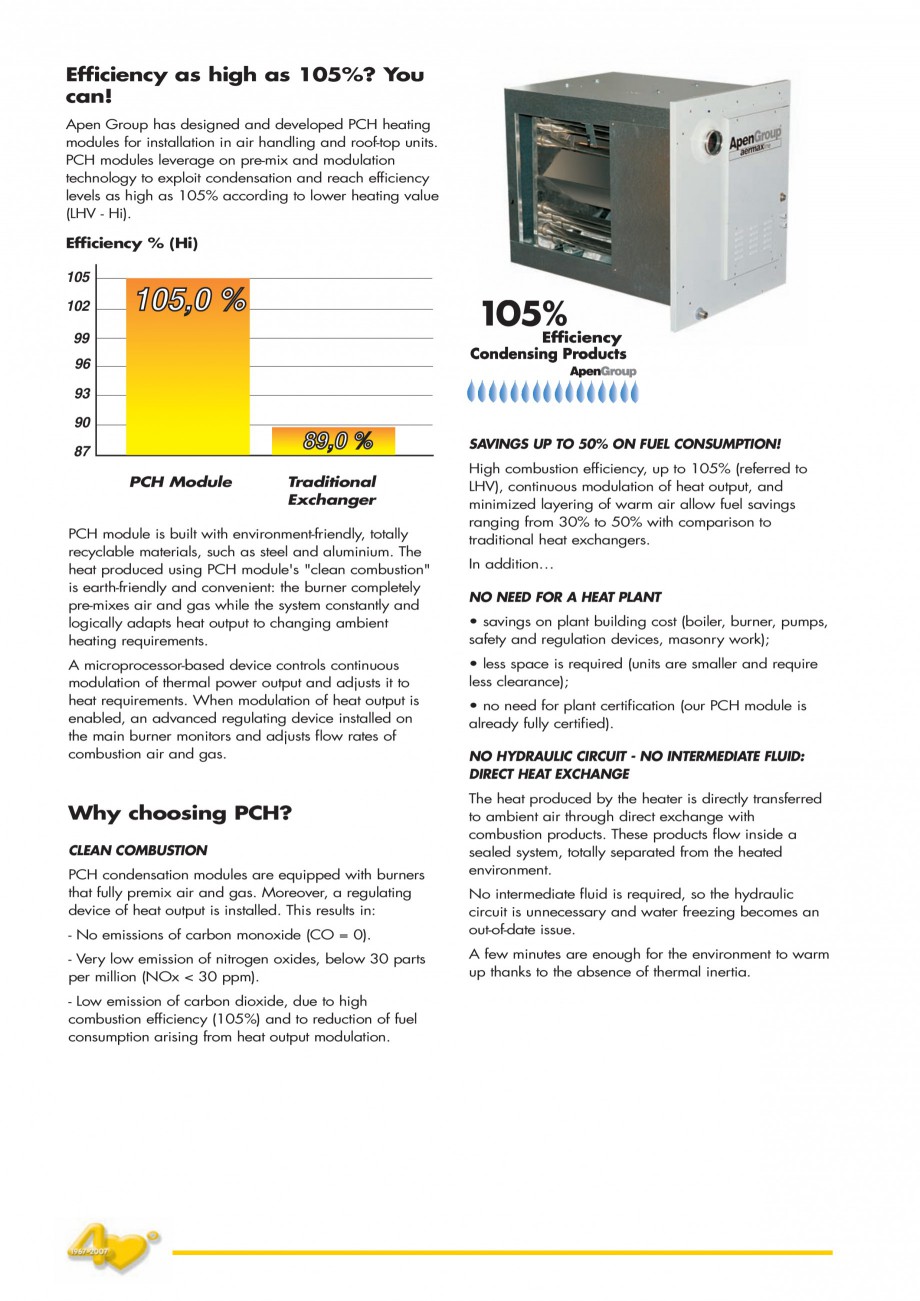

Pagina 2 - Generatoare de aer cald incorporabile APEN PCH Fisa tehnica Engleza evice controls...

evice controls continuous modulation of thermal power output and adjusts it to heat requirements. When modulation of heat output is enabled, an advanced regulating device installed on the main burner monitors and adjusts ﬂow rates of combustion air and gas. Why choosing PCH? CLEAN COMBUSTION PCH condensation modules are equipped with burners that fully premix air and gas. Moreover, a regulating device of heat output is installed. This results in: SAVINGS UP TO 50% ON FUEL CONSUMPTION! High combustion efﬁciency, up to 105% (referred to LHV), continuous modulation of heat output, and minimized layering of warm air allow fuel savings ranging from 30% to 50% with comparison to traditional heat exchangers. In addition… NO NEED FOR A HEAT PLANT • savings on plant building cost (boiler, burner, pumps, safety and regulation devices, masonry work); • less space is required (units are smaller and require less clearance); • no need for plant certiﬁcation (our PCH module is alread

Pagina 2-Generatoare de aer cald incorporabile APEN PCH Fisa tehnica Engleza evice controls continuous...

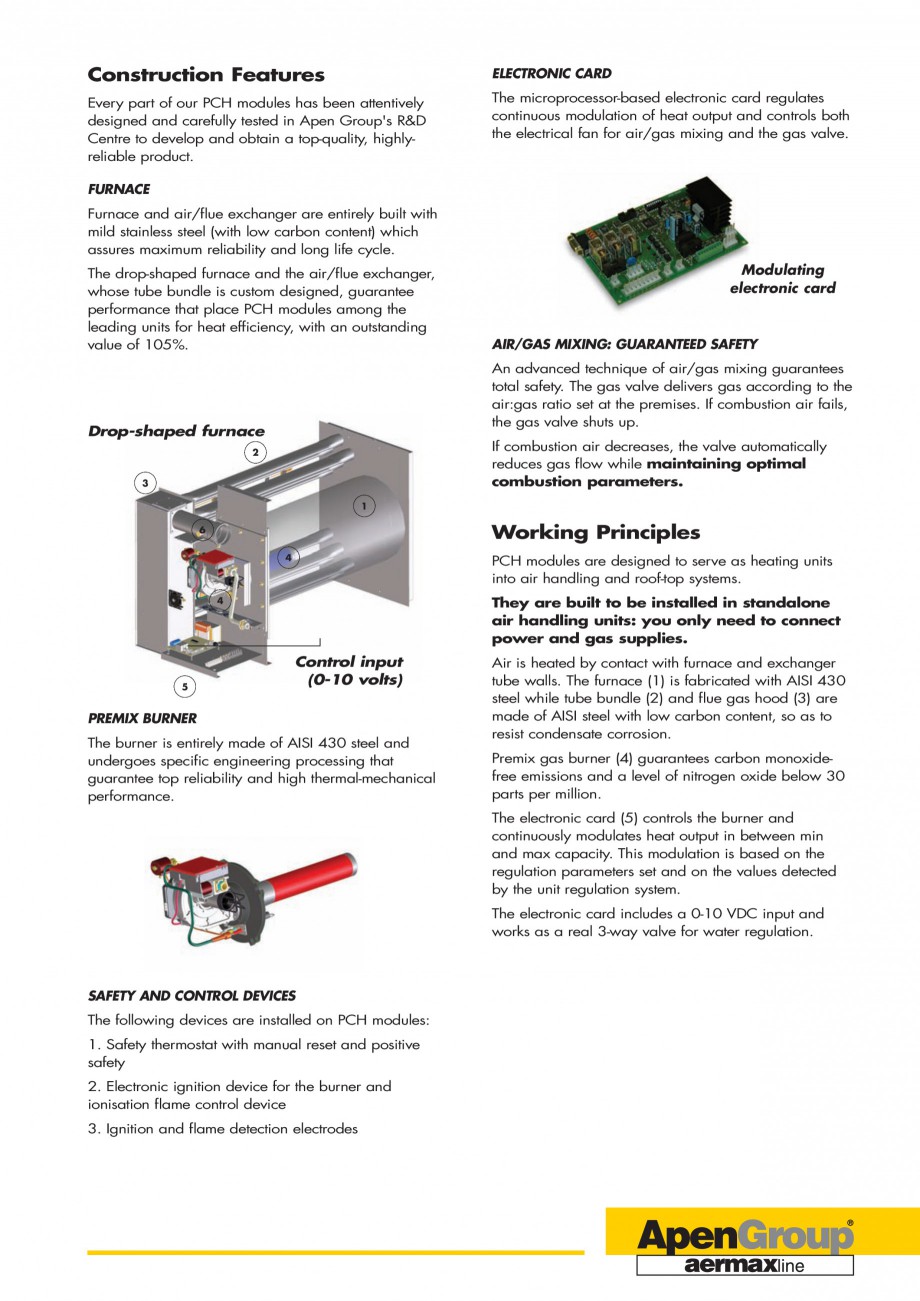

Pagina 3 - Generatoare de aer cald incorporabile APEN PCH Fisa tehnica Engleza y fully certiﬁed).
...

y fully certiﬁed). NO HYDRAULIC CIRCUIT - NO INTERMEDIATE FLUID: DIRECT HEAT EXCHANGE The heat produced by the heater is directly transferred to ambient air through direct exchange with combustion products. These products ﬂow inside a sealed system, totally separated from the heated environment. - No emissions of carbon monoxide (CO = 0). No intermediate ﬂuid is required, so the hydraulic circuit is unnecessary and water freezing becomes an out-of-date issue. - Very low emission of nitrogen oxides, below 30 parts per million (NOx < 30 ppm). A few minutes are enough for the environment to warm up thanks to the absence of thermal inertia. - Low emission of carbon dioxide, due to high combustion efﬁciency (105%) and to reduction of fuel consumption arising from heat output modulation. Construction Features ELECTRONIC CARD Every part of our PCH modules has been attentively designed and carefully tested in Apen Group's R&D Centre to develop and obtain a top-quality, highly

Pagina 3-Generatoare de aer cald incorporabile APEN PCH Fisa tehnica Engleza y fully certiﬁed).

NO...

Pagina 4 - Generatoare de aer cald incorporabile APEN PCH Fisa tehnica Engleza reliable product.
...

reliable product. The microprocessor-based electronic card regulates continuous modulation of heat output and controls both the electrical fan for air/gas mixing and the gas valve. FURNACE Furnace and air/ﬂue exchanger are entirely built with mild stainless steel (with low carbon content) which assures maximum reliability and long life cycle. The drop-shaped furnace and the air/ﬂue exchanger, whose tube bundle is custom designed, guarantee performance that place PCH modules among the leading units for heat efﬁciency, with an outstanding value of 105%. Modulating electronic card AIR/GAS MIXING: GUARANTEED SAFETY An advanced technique of air/gas mixing guarantees total safety. The gas valve delivers gas according to the air:gas ratio set at the premises. If combustion air fails, the gas valve shuts up. Drop-shaped furnace If combustion air decreases, the valve automatically reduces gas ﬂow while maintaining optimal combustion parameters. 2 3 1 Working Principles 6 4 PCH

Pagina 4-Generatoare de aer cald incorporabile APEN PCH Fisa tehnica Engleza reliable product.

The...

Pagina 5 - Generatoare de aer cald incorporabile APEN PCH Fisa tehnica Engleza modules are designed...

modules are designed to serve as heating units into air handling and roof-top systems. 4 5 They are built to be installed in standalone air handling units: you only need to connect power and gas supplies. Control input (0-10 volts) PREMIX BURNER The burner is entirely made of AISI 430 steel and undergoes speciﬁc engineering processing that guarantee top reliability and high thermal-mechanical performance. Air is heated by contact with furnace and exchanger tube walls. The furnace (1) is fabricated with AISI 430 steel while tube bundle (2) and ﬂue gas hood (3) are made of AISI steel with low carbon content, so as to resist condensate corrosion. Premix gas burner (4) guarantees carbon monoxidefree emissions and a level of nitrogen oxide below 30 parts per million. The electronic card (5) controls the burner and continuously modulates heat output in between min and max capacity. This modulation is based on the regulation parameters set and on the values detected by the unit reg

Pagina 5-Generatoare de aer cald incorporabile APEN PCH Fisa tehnica Engleza modules are designed to serve...

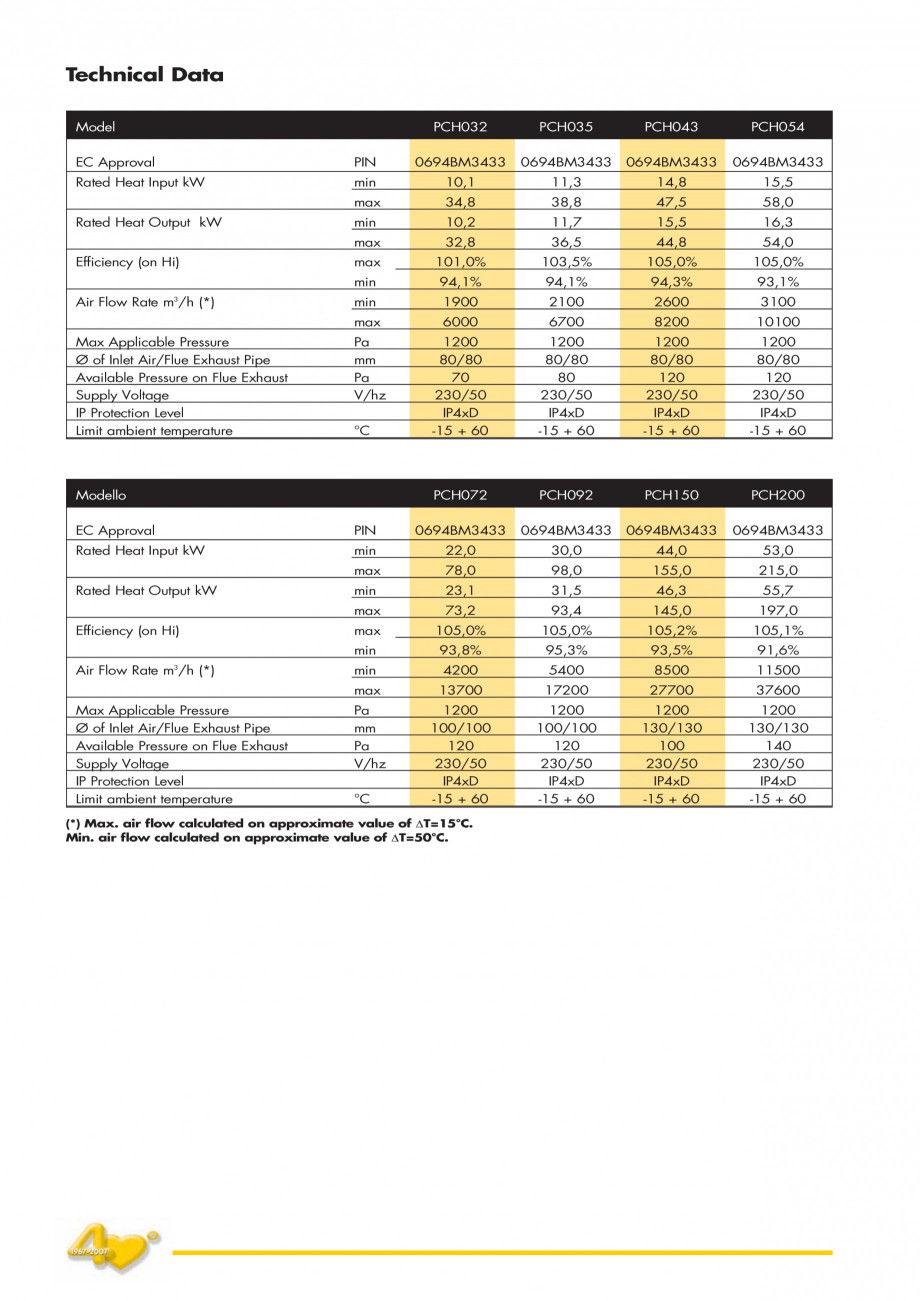

Pagina 6 - Generatoare de aer cald incorporabile APEN PCH Fisa tehnica Engleza ulation system.
The...

ulation system. The electronic card includes a 0-10 VDC input and works as a real 3-way valve for water regulation. SAFETY AND CONTROL DEVICES The following devices are installed on PCH modules: 1. Safety thermostat with manual reset and positive safety 2. Electronic ignition device for the burner and ionisation ﬂame control device 3. Ignition and ﬂame detection electrodes Technical Features CAD DRAWINGS u CONDENSING exchanger module When ordering a PCH module, ask for its size drawings. We supply drawings in CAD format to ease your assembling work of the PCH module into your installation! u The AISI 430 steel, drop-shaped furnace maximizes heat exchange and reduces pressure drops u AISI steel with low carbon content heat exchanger u Sealed combustion circuit u Efﬁciency over 105% Hi of LHV u Pre-mix gas burner (Class 5), with NOx emissions below 30 ppm and CO rate = 0 u Electronic card for continuous capacity modulation. It is controlled by a microprocessor and includes a

Pagina 6-Generatoare de aer cald incorporabile APEN PCH Fisa tehnica Engleza ulation system.
The electronic...

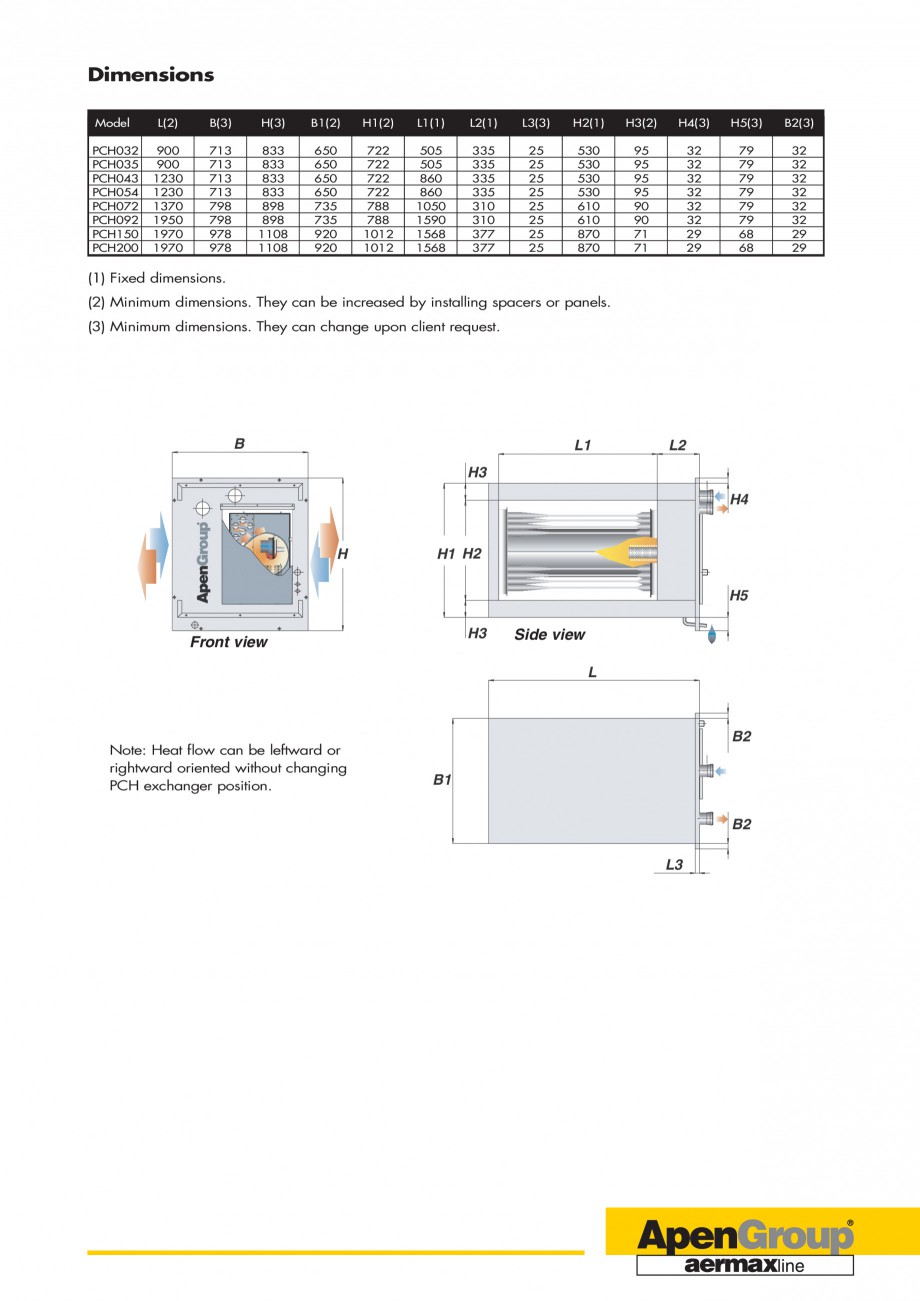

Pagina 7 - Generatoare de aer cald incorporabile APEN PCH Fisa tehnica Engleza 010 Vdc input.
u An ...

010 Vdc input. u An advanced technique of air/gas mixing guarantees total safety. The gas valve delivers fuel according to the air: gas ratio set at the premises. u Safety and control device u Safety thermostat and air pressure switch u 230V/1ph/50Hz power supply u Compliant with all EC existing regulations (EC 0694BM3433 approval) STANDARD ACCESSORIES u Conversion kit to LP (Propane) gas. u Remote control with lock/reset signals and parameter setting features. Standard PCH module PCH module with installed front panel A Certiﬁed System Technical features of PCH module have been thoroughly checked and tested, then they been approved and certiﬁed by KIWA GASTEC, the respected and renowned Body for European Certiﬁcation. By assigning to PCH module the approval number 0694BM3433, KIWA GASTEC has certiﬁed that this modules comply with the following Directives: - 90/396/EEC Directory on appliances burning gaseous fuels 90/392/EEC Machinery Directive - 72/23/EEC - Low Voltage Di

Pagina 7-Generatoare de aer cald incorporabile APEN PCH Fisa tehnica Engleza 010 Vdc input.
u An advanced...

Pagina 8 - Generatoare de aer cald incorporabile APEN PCH Fisa tehnica Engleza rective
- 89/336/EEC ...

rective - 89/336/EEC Directive on Electromagnetic Compatibility Fields of application PCH modules can be modularly assembled in order to reach very high thermal outputs. The units can be controlled in three ways: Actually, modules can be assembled in series or parallel installation, according to project requirements. • By means of an ON-OFF switch • Proportionally, by means of an external 0-10 Vdc • Incrementally, when more units are installed. PCH modules can also be installed outdoor without any protection. For instance, four PCH092 modules can reach a maximum power output of 368 kW with a modulation ﬁeld ranging from 368 kW down to a minimum power of 31.5 kW, according to speciﬁc needs. PCH modules are suitable for installations with C- and B-type layout of ﬂue gas exhaust system. ® Installation of more PCH modules: onesolo modulo con potenza max ranging Applicazione del modulo PCH: un single module with max output scelta from 32 to 200 kW all’interno del s
