Izolatie elastomerica pentru instalatii aer conditionat ARMACELL Armaflex Duct

Limba: Romana

159 afisari

Tip documentatie: Fisa tehnica

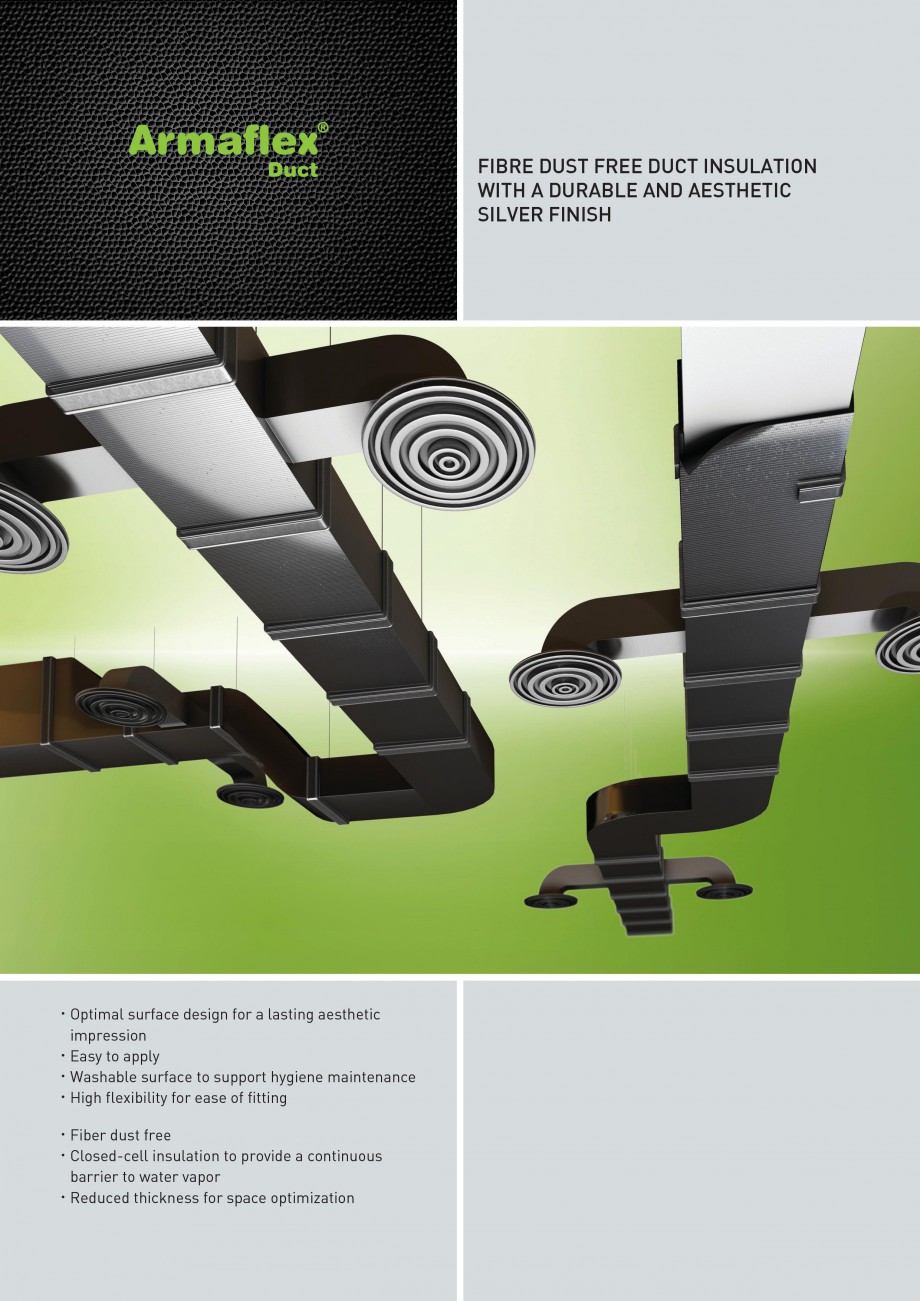

Pagina 1 - Izolatie elastomerica pentru instalatii aer conditionat ARMACELL Armaflex Duct Fisa...

FIBRE DUST FREE DUCT INSULATION WITH A DURABLE AND AESTHETIC SILVER FINISH Powered by TCPDF (www.tcpdf.org) • • • • • • • Optimal surface design for a lasting aesthetic impression Easy to apply Washable surface to support hygiene maintenance High flexibility for ease of fitting Fiber dust free Closed-cell insulation to provide a continuous barrier to water vapor Reduced thickness for space optimization Powered by TCPDF (www.tcpdf.org) Technical Data - Armaflex Duct [parent] Brief description Armaflex Duct is a black, closed-cell insulation material also available with a bright silver finish. It is especially designed and produced for the thermal and acoustic insulation of air-conditioning ducts. Armaflex Duct insulation reduces heat losses and the closed-cell structure prevents water vapor transmission, thus avoiding the risk of corrosion. Material type Elastomeric foam based on synthetic rubber. Colour black / silver Remarks EC Certificate of Conformity no

Pagina 1-Izolatie elastomerica pentru instalatii aer conditionat ARMACELL Armaflex Duct Fisa tehnica Romana...

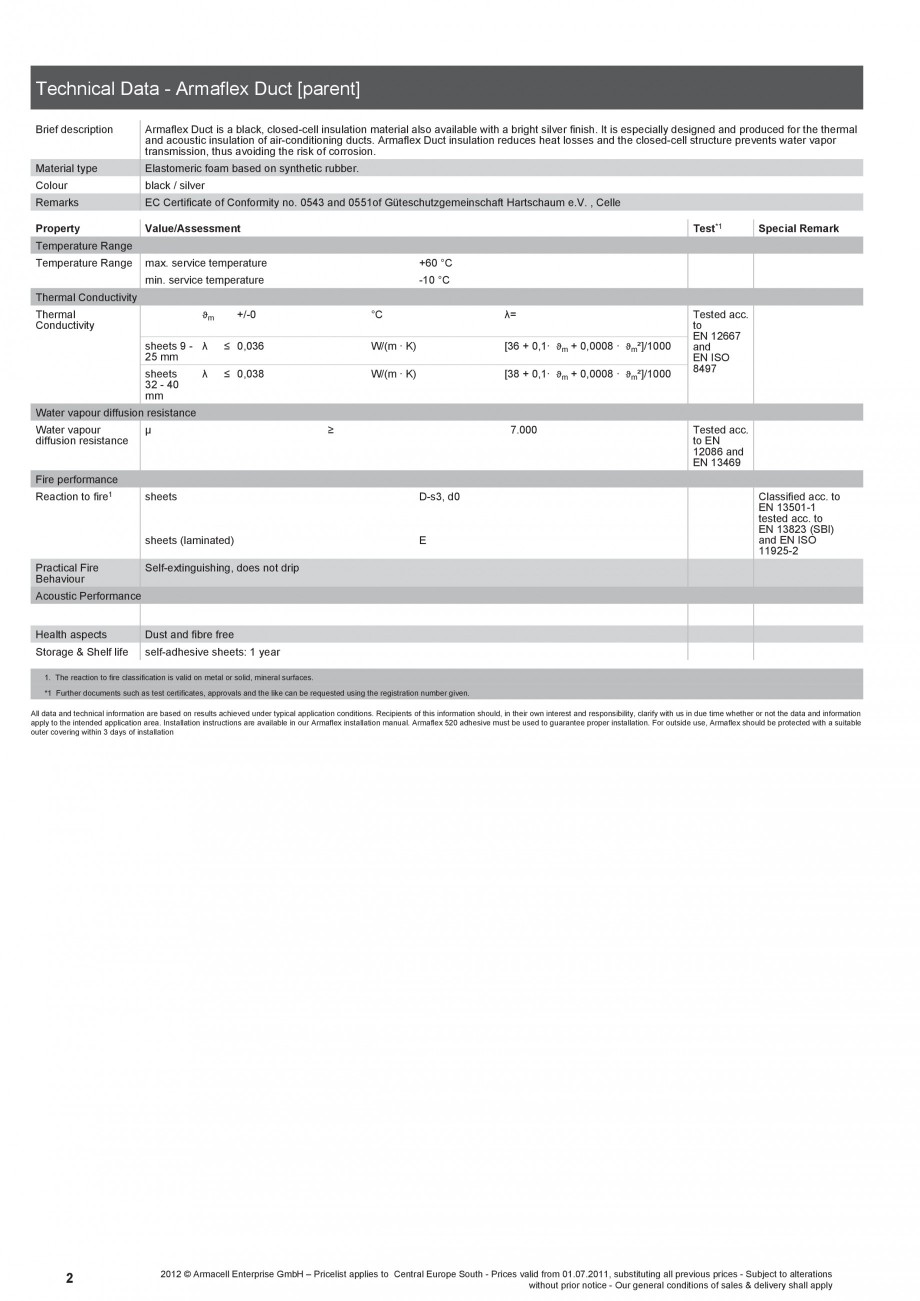

Pagina 2 - Izolatie elastomerica pentru instalatii aer conditionat ARMACELL Armaflex Duct Fisa...

. 0543 and 0551of Güteschutzgemeinschaft Hartschaum e.V. , Celle Property Value/Assessment Test*1 Special Remark Temperature Range Temperature Range max. service temperature +60 °C min. service temperature -10 °C Thermal Conductivity Thermal Conductivity +/-0 ϑm °C λ= sheets 9 - λ 25 mm ≤ 0,036 W/(m · K) [36 + 0,1· ϑm + 0,0008 · ϑm²]/1000 sheets 32 - 40 mm ≤ 0,038 W/(m · K) [38 + 0,1· ϑm + 0,0008 · ϑm²]/1000 λ Tested acc. to EN 12667 and EN ISO 8497 Water vapour diffusion resistance Water vapour diffusion resistance μ ≥ 7.000. Tested acc. to EN 12086 and EN 13469 Fire performance Reaction to fire1 D-s3, d0 sheets (laminated) Practical Fire Behaviour sheets E Classified acc. to EN 13501-1 tested acc. to EN 13823 (SBI) and EN ISO 11925-2 Self-extinguishing, does not drip Acoustic Performance Health aspects Dust and fibre free Storage & Shelf life self-adhesive sheets: 1 year 1. The reaction to fire classification is val

Pagina 2-Izolatie elastomerica pentru instalatii aer conditionat ARMACELL Armaflex Duct Fisa tehnica Romana ....

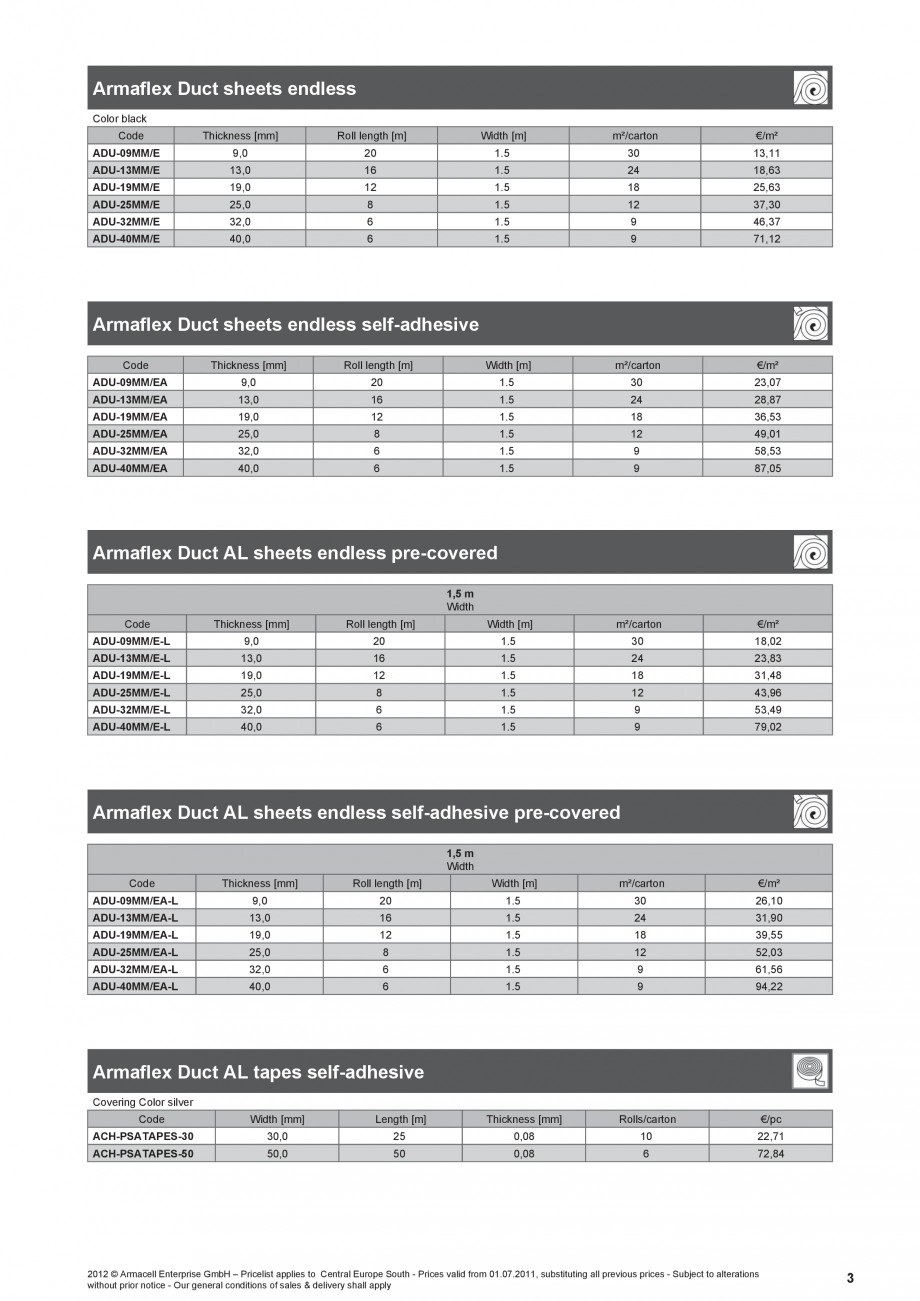

Pagina 3 - Izolatie elastomerica pentru instalatii aer conditionat ARMACELL Armaflex Duct Fisa...

id on metal or solid, mineral surfaces. *1 Further documents such as test certificates, approvals and the like can be requested using the registration number given. All data and technical information are based on results achieved under typical application conditions. Recipients of this information should, in their own interest and responsibility, clarify with us in due time whether or not the data and information apply to the intended application area. Installation instructions are available in our Armaflex installation manual. Armaflex 520 adhesive must be used to guarantee proper installation. For outside use, Armaflex should be protected with a suitable outer covering within 3 days of installation 2 2012 © Armacell Enterprise GmbH – Pricelist applies to Central Europe South - Prices valid from 01.07.2011, substituting all previous prices - Subject to alterations without prior notice - Our general conditions of sales & delivery shall apply Armaflex Duct sheets endless Color bl

Pagina 3-Izolatie elastomerica pentru instalatii aer conditionat ARMACELL Armaflex Duct Fisa tehnica Romana...

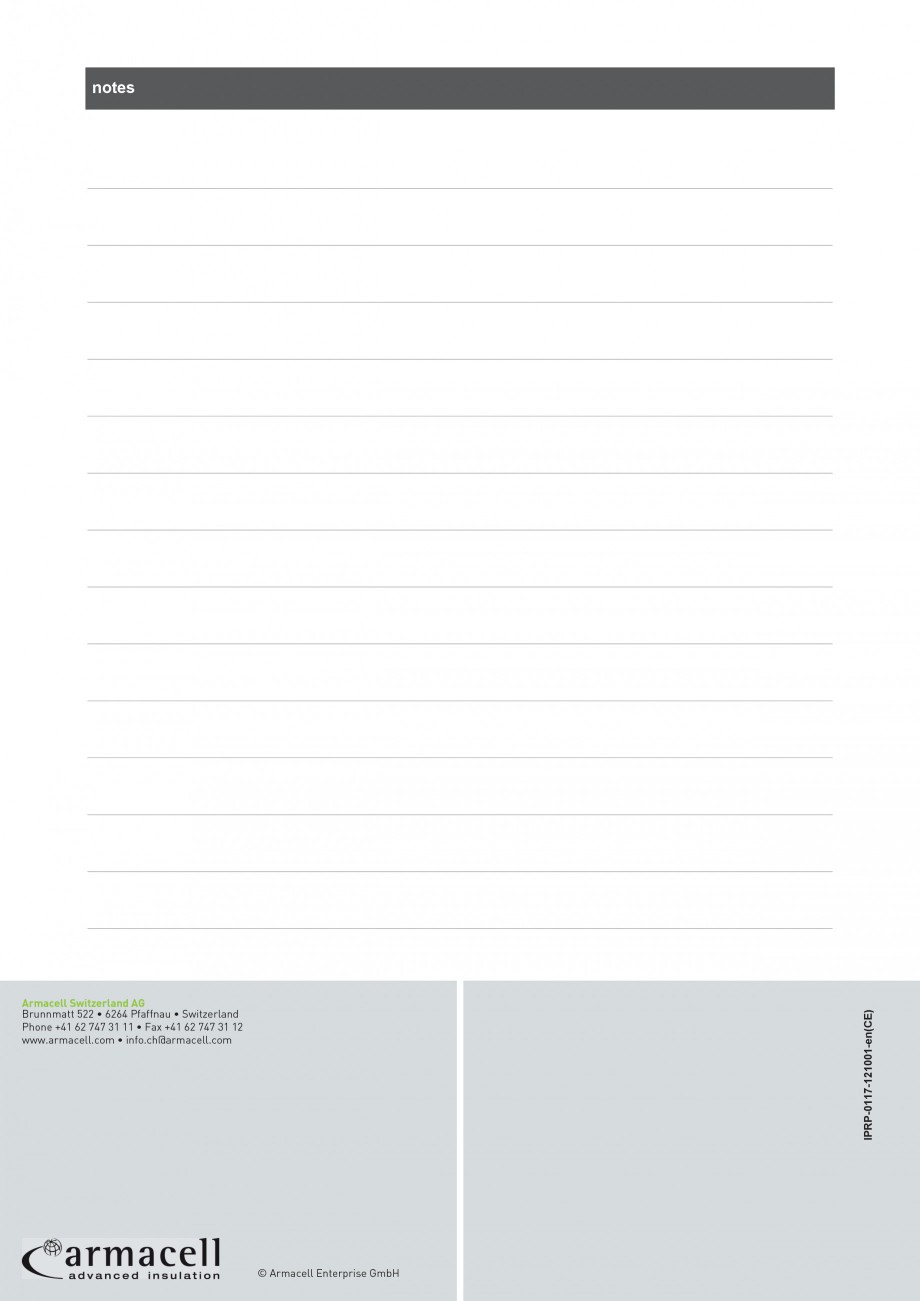

Pagina 4 - Izolatie elastomerica pentru instalatii aer conditionat ARMACELL Armaflex Duct Fisa...

ack Thickness [mm] Roll length [m] Width [m] m²/carton €/m² ADU-09MM/E Code 9,0 20. 1.5. 30. 13,11 ADU-13MM/E 13,0 16. 1.5. 24. 18,63 ADU-19MM/E 19,0 12. 1.5. 18. 25,63 ADU-25MM/E 25,0 8. 1.5. 12. 37,30 ADU-32MM/E 32,0 6. 1.5. 9. 46,37 ADU-40MM/E 40,0 6. 1.5. 9. 71,12 Armaflex Duct sheets endless self-adhesive Thickness [mm] Roll length [m] Width [m] m²/carton €/m² ADU-09MM/EA Code 9,0 20. 1.5. 30. 23,07 ADU-13MM/EA 13,0 16. 1.5. 24. 28,87 ADU-19MM/EA 19,0 12. 1.5. 18. 36,53 ADU-25MM/EA 25,0 8. 1.5. 12. 49,01 ADU-32MM/EA 32,0 6. 1.5. 9. 58,53 ADU-40MM/EA 40,0 6. 1.5. 9. 87,05 Armaflex Duct AL sheets endless pre-covered 1,5 m Width Thickness [mm] Roll length [m] Width [m] m²/carton €/m² ADU-09MM/E-L Code 9,0 20. 1.5. 30. 18,02 ADU-13MM/E-L 13,0 16. 1.5. 24. 23,83 ADU-19MM/E-L 19,0 12. 1.5. 18. 31,48 ADU-25MM/E-L 25,0 8. 1.5. 12. 43,96 ADU-32MM/E-L 32,0 6. 1.5.
