Documentatie atasata la

Cupole luminatoare si ferestre pentru acoperis plat VELUX Commercial

Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight

15 afisari

Tip documentatie: Catalog, brosura

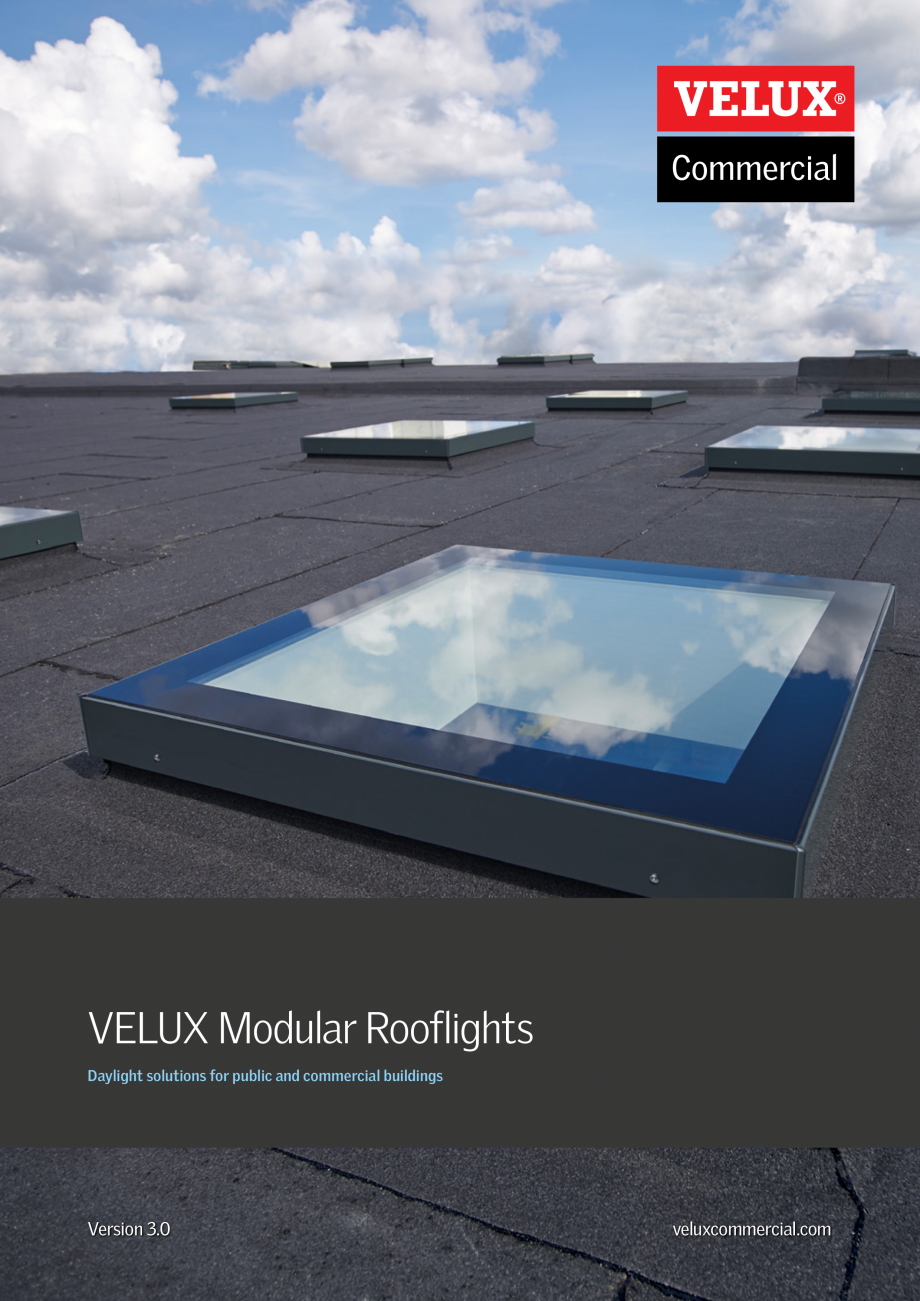

Pagina 1 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

VELUX Modular Rooflights Daylight solutions for public and commercial buildings Version 3.0 veluxcommercial.com Front cover: Monolight Elegant rooflight in pure style for flat roofs VELUX Modular Rooflights are roof windows for flat roofs, that maximise the amount of natural light, without intrusive framing being visible from beneath. VELUX Modular Rooflights have an elegant and aesthetic design and bring daylight into commercial buildings – for learning, working and recovering. The modules are available made-tomeasure and can be produced in any dimension within the design limits, to meet the specific needs. 2 VELUX Modular Rooflights come in the following configurations: Monolight (Fixed and Venting) Monolight Walk-on (Fixed) Linearlight (Fixed and Venting) Circularlight (Fixed without upstand) Burglary-resistant variant is available for: Monolight (Fixed and Venting) Linearlight (Fixed) Above: Linearlight, Residential buildings, Strandpromenaden, Østerbro, Denmark VELUX C

Pagina 1-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura VELUX...

Pagina 2 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

ommercial 3 4 K.B. Hallen, Sports Facilities, Copenhagen, Denmark. Index VELUX Modular Rooflights 6 Daylight through the roof as single spots or entire bands 8 Made-to-measure premium rooflights 10 The Module / Product overview Module construction Roof pitch and clear internal measurement Product overview – features and limitations Size overview Attachment to the roof 12 14 20 22 24 27 Performance and technical data 28 Module materials Glazing unit Technical data Classifications Data plate Venting module – Chain actuator, Electrical system Venting module – Electrical components Roller blinds / Size overview Sectional drawings 30 32 34 36 38 40 42 44 50 Installation 54 Designed for easy installation 56 Support 58 Technical drawings, CAD/BIM objects VELUX Daylight Visualizer Design phase, Installation phase, Daily operation 60 61 62 VELUX Commercial 5 6 VELUX MODULAR ROOFLIGHTS VELUX Commercial 7 Daylight through the roof as single spots or entire

Pagina 2-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura...

Pagina 3 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

bands Monolight, K.B.Hallen Sports facilities, Copenhagen, Denmark VELUX Modular Rooflights are an elegant solution for flat roofs, providing direct access to daylight. Due to the glass-top construction the light incidence is maximised, meaning that the light area is equal to the hole in the roof. Furthermore, the prefabricated built-in timber upstand provides a straightforward and simple installation process. VELUX Modular Rooflights consist of several variants: 8 • Monolight is a single rooflight which can transform a dull room by flooding the space with natural light from above. Monolight is offered as fixed or venting rooflight, allowing for additional comfort ventilation as required. Linearlight, Residential buildings, Hellerup, Denmark • Monolight Walk-on is offered as a fixed version intended for domestic applications. The walkable top unit can make flat roofs accessible without compromising daylight in the building. • Linearlight is a row of VELUX Modular Rooflight

Pagina 3-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura bands
...

Pagina 4 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

s that by means of an advanced connector system provides a larger band of natural light without the need for additional support. Linearlight is offered as a fixed or venting rooflight, allowing for additional comfort ventilation as required. • Circularlight is a fixed single round rooflight which can provide an elegant rounded style look in the roof. It is supplied without an upstand. VELUX Commercial 9 10 MADE-TO-MEASURE PREMIUM ROOFLIGHTS VELUX Commercial 11 The module The advantages of a prefabricated flat roof module Prefabricated modularity offers a great number of advantages, at every step in the process. From planning and design to the moment the roof is sealed off with magnificent skylights. Modularity offers: – Known performance, classifications and behaviour, easing the specification phase. – Predictability of time frame and estimation of labour in the installation phase. – Security for years to come through support and maintenance. – Clarity and speed for

Pagina 4-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura s that ...

Pagina 5 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

all implicated stakeholders in the building process. Modularity is a shortcut to creating sustainable buildings with all the necessary approvals and classifications. Modularity in every single product All modules are produced offsite at our factory, meaning every single component is rigorously tested and integrated in a controlled environment. Each component is also of the highest premium quality and is built to stand the test of time. All prefabricated Monolight and Linearlight roof windows are CE marked in accordance with EN 14351-1. Except for Circularlight where no upstand is included. VELUX Modular Rooflights have a reference service life of 30 years in accordance with EN 17213. For more on performance and classifications, go to page 28-37. VELUX Modular Rooflights are made-to-measure modules and can be produced in any dimension and upstand height, within the design limits, thus perfectly to match the building. The two different types Indicated with light blue colour: Monolight

Pagina 5-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura all...

Pagina 6 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

and Linearlight as standard fixed and venting versions are designed and certified as generation B. Indicated with dark blue colour: Monolight Burglary-resistant, Monolight Walk-on, Linearlight Burglary-resistant and Circularlight are designed and certified as generation A. Product overview Monolight Fixed Monolight fixed Is a non-venting variant, including upstand, and a perfect solution where natural light is desired. For a nice finish the builders inner lining can be connected into the groove just under the glazing. 12 Venting Monolight venting Is an optimal solution where light and natural ventilation are required. An elegant and functional solution, with a fully integrated chain actuator concealed within the insulated timber upstand. For a nice finish the builders inner lining can be connected into the groove just under the glazing. Linearlight Fixed Linearlight fixed and/or venting Linearlight is a unique solution that by placing modules side by side form a continuous sys

Pagina 6-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura and...

Pagina 7 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

tem without the need for additional support. The solution consists of either pure fixed modules, pure venting modules or a combination of both, based on customer wishes. Monolight Burglary-resistant Fixed and venting Burglary-resistant Is available as versions of Monolight fixed and venting and of Linearlight fixed. These products are approved according Venting The upstand with advanced connector system and drainage gutter ensures a watertight and airtight connection between the modules. A minimized beam ensures a beautiful connection on the inside. Based on customer requirements a static calculation (snow and windloads) will be made by VELUX Commercial for each building situation. Linearlight Burglary-resistant Fixed to EN 1627 and NEN 5096 Resistance Class 2. A vapour barrier is prefitted to the upstand. Monolight Walk-on Circularlight * Fixed Fixed * No upstand included Monolight Walk-on Is a non-venting, single-unit rooflight intended for domestic application and ideal

Pagina 7-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura tem...

Pagina 8 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

in case where natural light is required under an accessible roof. A vapour barrier is prefitted to the upstand. Circularlight For buildings with a wish for an extraordinary architectural style or daylight design Circularlight can be applied to illuminate the room with natural light. Circularlight is supplied with top plate that can be applied on to builders kerb. VELUX Commercial 13 Module construction Monolight 2 3 4 1 4 7 1 Aluminium frame (height vary depending on glazing unit) Pre-assembled corners and powder coated aluminium frame with the standard colour RAL 7043, gloss 30. 2 Insulating Glass Unit (IGU) Available in double and triple glazing, standard with LowE coating or with additional Sun protection. 3 Silk screen print The silk screen print gives a nice finish as well as UV protection to the gaskets and the underlying construction. 4 Double gaskets The gaskets on the alumium profiles provide watertight and airtight construction. 5 Upstand 90°angle provides

Pagina 8-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura in...

Pagina 9 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

a straight connection with the interior. The timber-EPS sandwich construction provides a stable and well-insulated upstand for a good insulating performance of the entire product. 6 Lining profile This multifunctional part defines the clear internal part of the product. It offers the possibility for a secure connection to the vapour barrier in the roof construction. It also makes the flush plaster board connection from ceiling to glazing easy and intuitive during installation. Vapour barrier and inner lining are to be supplied by others. The profile also supports installation of an optional roller blind. 7 Pre-wiring for roller blind Hidden pre-wiring is optional for nice and easy installation of VELUX roller blinds. 6 5 14 Linearlight 11 4 10 4 6 7 3 9 1 2 8 5 9 8 1 Aluminium frame (height vary depending on glazing unit) Pre-assembled corners and powder coated aluminium frame with the standard colour RAL 7043, gloss 30. 2 Insulating Glass Unit (IGU) Available in do

Pagina 9-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura a...

Pagina 10 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

uble and triple glazing, standard with LowE coating or with additional Sun protection. 3 Silk screen print The silk screen print gives a nice finish as well as UV protection to the gaskets and the underlying construction. 4 5 Double gaskets The gaskets on the aluminium profiles provide watertight and airtight construction. Upstand 90° angle provides a straight connection with the interior. The timber-EPS sandwich construction provides a stable and well-insulated upstand for a good insulating performance of the entire product. 6 Lining profile This multifunctional part defines the clear internal part of the product. It offers the possibility for a secure connection to the vapour barrier in the roof construction. It also makes the flush plaster board connection from ceiling to glazing easy and intuitive during installation. Vapour barrier and inner lining are to be supplied by others. The profile also supports installation of an optional roller blind. 7 Pre-wiring for roller bl

Pagina 10-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura uble...

Pagina 11 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

inds Hidden pre-wiring is optional for nice and easy installation of VELUX roller blinds. 8 Minimized beam The beam with optimized reinforcement is supporting the top unit while it is kept as slim as possible in order to maximize light entrance. 9 Drainage gutter Rain water flows down the drainage gutter and is transported to the outside of the product. 10 Fixed module 11 Venting module VELUX Commercial 15 Module construction Monolight & Linearlight – Burglary-resistant 11 12 11 3 11 2 1 7 4 4 7 2 5 3 1 10 8 5 4 9 4 6 6 8 Monolight – Burglary-resistant Linearlight – Burglary-resistant Applies to Monolight and Linearlight – Burglary-resistant Applies to Linearlight – Burglary-resistant 9 1 Aluminium frame (height vary depending on glazing unit) Welded corners and powder coated aluminium frame with the standard colour RAL 7043, gloss 30 2 Insulating Glass Unit (IGU) Available in double and triple glazing, standard with LowE coating or with ad

Pagina 11-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura inds...

Pagina 12 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

ditional Sun protection. 10 Drainage gutter 3 Silk screen print The silk screen print gives a nice finish as well as UV protection to the gaskets and the underlying construction 11 Fixed module 4 Double gaskets The gaskets on the timber upstand provide watertight and airtight construction 5 Internal lining 90° lining defining the clear internal part of the product and provides a great connection with the interior 6 Lining groove Makes the plaster board connection easy and intuitive during installation 7 Insulating mineral wool Insulation material in the frame ensures a good insulating performance of the entire product 8 Vapour barrier The pre-fitted vapour barrier ensures an easy and secure connection to the vapour barrier in the roof construction 16 Minimized beam The beam is supporting the top unit while it is kept as slim as possible in order to maximize light entrance Rain water flows down the drainage gutter and is transported to the outside of the product Appli

Pagina 12-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura...

Pagina 13 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

es to Monolight – Burglary-resistant 11 Fixed module 12 Venting module Monolight Walk-on 3 2 1 4 4 7 5 6 8 1 Aluminium frame (height varies depending on glazing unit) Welded corners and powder coated aluminium frame with the standard colour RAL 7043, gloss 30 5 Internal lining 90° lining defining the clear internal part of the product and provides a great connection with the interior 2 Insulating Glass Unit (IGU), double glazing Outer 3-layer toughened laminated glass: Special walk-on glass construction (EVA Foil) with step. Inner 2-layer laminated glass: With PVB foil. Space between outer and inner glass is filled with air. An anti-slip coating is optional. 6 Lining groove Makes the plaster board connection easy and intuitive during installation 7 Insulating mineral wool Insulation material in the frame ensures a good insulating performance of the entire product 8 Vapour barrier The pre-fitted vapour barrier ensures an easy and secure connection to the vapour b

Pagina 13-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura es to...

Pagina 14 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

arrier in the roof construction 1 Aluminium frame Welded frame and powder coated aluminium frame with the standard colour RAL 7043, gloss 30 2 Insulating Glass Unit (IGU) Available in double glazing with LowE coating 3 Silk screen print 4 Double gaskets A top plate with gaskets provides a watertight and airtight construction 5 Upstand/sub-construction Not supplied by VELUX Commercial 3 Silk screen print Gives a nice finish as well as UV protection to the gaskets and the underlying construction 4 Double gaskets On the timber upstand provide watertight and airtight construction Circularlight 3 2 1 4 4 5 VELUX Commercial 17 Burglary-resistant variants Class 2 (RC2) Stronger fixation of the top unit to upstand and roof. Occasionally the government or building owner will require a burglar resistant building. It is important to have a product or system that is tested according to European standards and has achieved the correct classification. Monolight (fixed and ve

Pagina 14-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura arrier ...

Pagina 15 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

nting) and Linearlight (fixed) are available as a Burglary-resistant versions. The products are reinforced with stronger glass (P4A), fixation and additional installation materials. The approved security materials are supplied within the package. Burglar resistant glazing code P4A: See page 34-35 for further details. Performance EN 1627:2011 & NEN 5096-2012+A1:2015: Class 2 (RC2) ! Read more about burglary-resistance in our installation instruction Can be downloaded at: veluxcommercial.com 18 Monolight Walk-on Anti-slip coating Monolight Walk-on In case the room under an accessible roof needs natural light, the Monolight Walk-on is the ideal solution. This product is a solution for domestic application, so people can step on or walk along the rooflight, when the roof is accessible and a rooflight is placed in that area. Modular Rooflights Walk-on with pedestrian walkability are only intended for light residential or light commercial use. They are not intended to be installed f

Pagina 15-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura nting) ...

Pagina 16 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

or industrial use, or in any other public or domestic situation where for instance driving through, use of cleaning agents, detergents and other chemicals may occur. Monolight Walk-on is available as a double layer glazing unit with optional anti-slip feature. Walk-on glazing construction; outer 3-layer toughened laminated glass (EVA Foil) with step, inner 2-layer laminated glass (PVB foil), space between outer and inner glass is filled with air. VELUX Modular Rooflights Walk-on is supplied with an upstand and is CE marked according to EN 14351-1. Circularlight Circularlight For buildings with an extraordinary architectural style Circularlight can be applied to illuminate with natural light. The round shape can on its own or combined in a pattern give a stylish expression to the building from outside or from the interior. VELUX Modular Rooflights Circularlight is supplied without an upstand thus it is not CE marked. It is recommended to construct a stable upstand at a minimum heigh

Pagina 16-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura or...

Pagina 17 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

t of 150 mm. VELUX Commercial 19 Roof pitch and clear internal measurement Roof pitch VELUX Modular Rooflights can be installed in flat and pitched roofs from 0° up to 15°. A minimum 5° pitch on the module installation is recommended to avoid ponding water on the glass surface. The venting modules must be installed as top hung. A lateral pitch is not allowed for Venting modules or for Linearlight and Linearlight Burglary-resistant. 0-15o Length 0°-15° 0°-5° Width 0° 20 Monolight and Linearlight Monolight Monolight/Linearlight Length: A Width: B :A+ Opening length Opening width: B + 30 mm 30 mm Linearlight Width: B 130 mm Width: B Clear Internal A = Clear internal module length B = Clear internal module width Note: Inner lining to be supplied by others Opening width: (X x B) + (Y x 130 mm) + 30 mm Monolight Burglary-resistant, Monolight Walk-on and Linearlight Burglary-resistant Monolight Monolight/Linearlight Length: A Width: B : A + 30 mm Opening l

Pagina 17-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura t of...

Pagina 18 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

ength Opening width: B + 30 mm Linearlight Width: B 126 mm Width: B Clear Internal A = Clear internal module length B = Clear internal module width Opening width: (X x B) + (Y x 126 mm) + 30 mm VELUX Commercial 21 Product overview The Module 22 Configuration options Max. ratio between shortest and longest side Clear internal area (m²) or width (B) in relation to one or two actuators Min. width (B) for two actuators (mm) 250-3000 250-3000 150-600 100 4.00 1600 1:6 – – Monolight Fixed Triple glazing 250-3000 250-3000 150-600 100 4.00 1600 1:6 – – Monolight Venting Double glazing 600-3000 600-2000 150-600 100 4.00 1600 1:6 Area ≤ 2 m² (Single actuator) Area > 2 m² or width (B) > 2m (Dual actuators) 1200 Monolight Venting Triple glazing 600-3000 600-2000 150-600 100 3.00 1600 1:6 Area ≤ 1.5 m² (Single actuator) Area > 1.5 m² or width (B) > 2m (Dual actuators) 1200 Linearlight Fixed Double 250-3000* 250-2000* 150-600

Pagina 18-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura ength

...

Pagina 19 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

glazing 100 4.00* 1600 1:6 _ _ Linearlight Fixed Triple 250-3000* 250-2000* 150-600 glazing 100 4.00* 1600 1:6 _ _ Linearlight Venting Double 600-3000* 600-2000* 150-600 glazing 100 4.00* 1600 1:6 Area ≤ 2 m² (Single actuator) Area > 2 m² or width (B) > 2m (Dual actuators) 1330 Linearlight Venting Triple 600-3000* 600-2000* 150-600 glazing 100 3.00* 1600 1:6 Area ≤ 1.5 m² (Singleactuator) Area > 1.5 m² or width (B) > 2m (Dual actuators) 1330 Monolight Walk-on (domestic application) Walk-on Double 250-2000 glazing 100 2.00 – 1:6 _ _ Topplate 107 1.43 _ _ _ _ Fixed Circularlight (upstand not Fixed included) Double Ø 900-1350 glazing Height Double glazing Length (A) (Slope direction) Fixed Width (B) (Actuator side) Diameter (Ø) (only Circularlight) Monolight Glazing unit Max. measurement of shortest side (mm) Limitations Max. clear internal area (m²) Upstand (mm) Construction width Clear internal measurements (mm) 250

Pagina 19-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura ...

Pagina 20 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

-2000 150-600 _ _ * Depends on snow and wind loads – a static calculation must be performed Note: Monolight and Linearlight are including burglary-resistant versions VELUX Commercial 23 Size overview Monolight – Made-to-measure The table gives an indication of module size limits for all Monolight variants. Modules are made-to-measure and the size shall always be configured according to configuration options of criteria page 23. Width (B) between 250 and 3000 mm depending on module type 400 600 800 1000 1200 1400 800 1000 1200 1400 1500 1600 1800 2000 2200 2400 3000 2800 2600 Length (A) between 250 and 3000 mm depending on module type 600 400 250 250 Fixed modules Venting modules – Double glazing Venting modules – Triple glazing Walk-on modules 24 1500 1600 1800 2000 2200 2400 2600 2800 3000 Linearlight – Made-to-measure The table gives an indication of module size limits for all Linearlight variants. Modules are made-to-measure and the size

Pagina 20-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura -2000...

Pagina 21 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

shall always be configured according to configuration options of criteria page 23 and conform static calculation. Width (B) between 250 and 3000 mm depending on module type 400 600 800 1000 1200 1400 1500 1600 1800 2000 2200 2400 2600 2800 3000 800 1000 1200 1400 1500 1600 1800 2000 2200 2400 2600 2800 3000 Length (A) between 250 and 3000 mm depending on module type 600 400 250 250 Fixed modules Venting modules – Double glazing Venting modules – Triple glazing VELUX Commercial 25 Size overview Circularlight – Made-to-measure The table gives an indication of module size limits. Modules are made-to-measure and the size shall always be configured according to criteria page 23. Ø between 900 and 1350 mm 1350 900 900 1350 Ø 900 mm Ø 1350 mm Circularlight modules Sizes between: Ø 900 – 1350 mm 26 Attachment to the roof Insulated timber upstand 600 mm 450 mm 300 mm 150 mm 0 mm The timber upstand is supplied from 150 mm up to 600 mm, de

Pagina 21-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura shall ...

Pagina 22 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

pending on project requirements, or visual architectural idea. In venting modules, the actuator is fully integrated inside the timber upstand. If 150 mm continuous roofing felt is needed, a minimum upstand height of 230 mm is required due to the top unit design. Though merely 190 mm if only fixed modules. Monolight and Linearlight Monolight Burglary-resistant and Linearlight Burglary-resistant 100 mm From 150 mm to 600 mm From 150 mm to 600 mm 100 mm Inner lining and vapour barrier to be supplied by others. Upstand includes vapour barrier and has white coated inner surface VELUX Commercial 27 28 PERFORMANCE AND TECHNICAL DATA VELUX Commercial 29 Module materials and colours Monolight and Linearlight, fixed and venting Insulated timber upstand Material: Timber – EPS sandwich panel with timber and coated aluminium profile (RAL 9010 pure white, gloss 30) RAL 9010 pure white Top surface: – Water-resistant pine wood – Waterbased white coating – Colour: RAL 9010 pu

Pagina 22-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura pending...

Pagina 23 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

re white, gloss 30 Internal and external surface: Water-resistant plywood untreated Top unit Frame: Material: Aluminium (5 mm) with stainless steel corner keys RAL 7043 traffic grey B Surface: Powder coated Colour: RAL 7043 traffic grey B, gloss 30 or RAL 9005 jet black, gloss 30. Other colours upon request at additional price. Pane: Double or triple glazing RAL 9005 jet black All modular rooflight modules Silk screen printing on pane Material: Silk screen print, 115 mm wide (50 mm wide at beam side of Linearlight) Colour: Black 30 Monolight Burglary-resistant, Monolight Walk-on and Linearlight Burglary-resistant Insulated timber upstand Material: Timber, mineral wool insulation and vapour barrier RAL 9010 pure white Internal surface and top: – Water-resistant plywood – Waterbased white coating – Colour: RAL 9010 pure white, gloss 30 External surface: Water-resistant plywood untreated Top unit RAL 7043 traffic grey B Frame: Material: Aluminium (5 mm) Surface: Powder c

Pagina 23-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura re...

Pagina 24 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

oated Colour: RAL 7043 traffic grey B, gloss 30 Pane: Double or triple glazing; for Walk-on only double glazing Circularlight Top plate Material: Water-resistant plywood RAL 9010 pure white Internal surface and top: – Water-resistant plywood – Waterbased white coating – Colour: RAL 9010 pure white, gloss 30 Top unit RAL 7043 traffic grey B Frame: Material: Aluminium (5 mm) Surface: Powder coated Colour: RAL 7043 traffic grey B, gloss 30 Pane: Double glazing VELUX Commercial 31 Glazing unit Options Modular rooflights come with low emissivity double or triple glazing with foil-laminated inner glazing for added safety and two different coating options. Double glazing available for Monolight fixed and venting Linearlight fixed and venting Triple glazing available for Monolight fixed and venting Linearlight fixed and venting Double glazing available for Burglary-resistant Monolight fixed and venting Linearlight fixed Triple glazing available for Burglary-resistant Monoli

Pagina 24-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura oated...

Pagina 25 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

ght fixed and venting Linearlight fixed Walkable double glazing available for Monolight Walk-on 32 The coatings are optimised to meet the desired levels of solar heat gain, sun protection, light transmittance and colour rendering. Double glazing available for Circularlight Glazing unit with advanced sun protection coating Spectral values (wave length in nm) Visible daylight All of the mentioned values on this page are in accordance with EN 410. tau Glazing with low emissivity coating (LowE) for DG Glazing with light sun protection coating (Sun1) for DG Variant 20V Variant 21V Light transmittance: τv -value = 80% Solar factor: g-value = 61% Colour rendering index: Ra = 97 Light transmittance: τv -value = 61% Solar factor: g-value = 33% Colour rendering index: Ra = 91 % % 100 100 80 80 60 60 40 40 20 20 0 λ nm 0 λ nm 00 10 0 85 0 0 0 74 66 60 0 52 0 44 0 38 0 34 00 10 0 85 0 0 0 74 66 60 0 52 0 44 0 38 0 34 Glazing with low emissivity coa

Pagina 25-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura ght...

Pagina 26 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

ting (LowE) for TG Glazing with light sun protection coating (Sun1) for TG Variant 30V Variant 31V Light transmittance: τv -value = 71% Solar factor: g-value = 53% Colour rendering index: Ra = 95 Light transmittance: τv -value = 55% Solar factor: g-value = 31% Colour rendering index: Ra = 90 % % 100 100 80 80 60 60 40 40 20 20 0 λ nm 0 λ nm 00 10 0 85 0 0 0 74 66 60 0 52 0 44 0 38 0 34 00 10 0 85 0 0 0 74 66 60 0 52 0 44 0 38 0 34 VELUX Commercial 33 Technical data 34 Circularlight Solar factor Monolight Walk-on Light transmittance Monolight Burglary-resistant Linearlight Burglrary-resistant Thermal transmittance Monolight Linearlight Ug* τv g W/m2K % % 8H - 16 Argon - 8.76F LowE (44.2) 1.1 80 61 Construction Insulatin Glass Unit (IGU) Coating DG = Double Glazing TG = Triple Glazing WG = Walk-on glazing WAG = Walk-on anti-slip glazing Glazing Unit Clear internal area IGU a code m2 a ≤ 2 m² Insulating Glass U

Pagina 26-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura ting...

Pagina 27 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

nit (IGU) (outside - inside) DG LowE 20V DG LowE 20Y 2 m² < a ≤ 2.8 m² 8H - 14 Argon - 10.76F LowE (55.2) 1.1 80 61 DG LowE 20Z 2.8 m² < a ≤ 4.0 m² 8H - 12 Argon - 12.76F LowE (66.2) 1.1 79 61 DG LowE 22V a ≤ 2 m² 8H - 16 Argon - 9.52F LowE (44.4) 1.1 80 61 DG LowE 22Y 2 m² < a ≤ 2.8 m² 8H - 14 Argon - 11.52F LowE (55.4) 1.1 79 61 DG LowE 22Z 2.8 m² < a ≤ 4.0 m² 8H - 12 Argon - 13.52F LowE (66.4) 1.2 79 61 DG Sun1 21V a ≤ 2 m² 8H Sun1- 16 Argon - 8.76F LowE (44.2) 1.0 61 33 DG Sun1 21Y 2 m² < a ≤ 2.8 m² 8H Sun1 - 14 Argon - 10.76F LowE (55.2) 1.0 61 33 DG Sun1 21Z 2.8 m² < a ≤ 4.0 m² 8H Sun1 - 12 Argon - 12.76F LowE (66.2) 1.2 60 33 DG Sun1 23V a ≤ 2 m² 8H Sun1 - 16 Argon - 9.52F LowE (44.4) 1.0 61 33 DG Sun1 23Y 2 m² < a ≤ 2.8 m² 8H Sun1 - 14 Argon - 11.52F LowE (55.4) 1.0 61 33 DG Sun1 23Z 2.8 m² < a ≤ 4.0 m² 8H Sun1 - 12 Argon - 13.52F LowE (66.4) 1.2 6

Pagina 27-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura nit...

Pagina 28 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

0 33 TG LowE 30V a ≤ 2 m² 8H - 18 Argon - 6H LowE - 18 Argon - 10.76F LowE (55.2) 0.5 71 53 TG LowE 30Y 2 m² < a ≤ 2.8 m² 8H - 16 Argon - 6H LowE - 18 Argon - 12.76F LowE (66.2) 0.5 71 52 TG LowE 30Z 2.8 m² < a ≤ 4.0 m² 8H - 15 Argon - 6H LowE - 15 Argon - 16.76F LowE (88.2) 0.6 70 52 TG LowE 32V a ≤ 2 m² 8H - 18 Argon - 6H LowE - 18 Argon - 11.52F LowE (55.4) 0.5 71 52 TG LowE 32Y 2 m² < a ≤ 2.8 m² 8H - 16 Argon - 6H LowE - 18 Argon - 13.52F LowE (66.4) 0.5 71 52 TG LowE 32Z 2.8 m² < a ≤ 4.0 m² 8H - 15 Argon - 6H LowE - 15 Argon - 17.52F LowE (88.4) 0.6 70 52 TG Sun1 31V a ≤ 2 m² 8H Sun1 - 18 Argon - 6H - 18 Argon - 10.76F LowE (55.2) 0.5 55 30 TG Sun1 31Y 2 m² < a ≤ 2.8 m² 8H Sun1- 16 Argon - 6H - 18 Argon - 12.76F LowE (66.2) 0.5 55 30 TG Sun1 31Z 2.8 m² < a ≤ 4.0 m² 8H Sun1 - 15 Argon - 6H - 15 Argon - 16.76F LowE (88.2) 0.6 55 30 TG Sun1 33V a ≤ 2 m² 8H Sun1 - 18 Argon

Pagina 28-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura 0

33

...

Pagina 29 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

- 6H - 18 Argon - 11.52F LowE (55.4) 0.5 55 30 TG Sun1 33Y 2 m² < a ≤ 2.8 m² 8H Sun1 - 16 Argon - 6H - 18 Argon - 13.52F LowE (66.4) 0.5 55 30 TG Sun1 33Z 2.8 m² < a ≤ 4.0 m² 8H Sun1 - 15 Argon - 6H - 15 Argon - 17.52F LowE (88.4) 0.6 55 30 WG LowE 25V a ≤ 1 m² 25.04H (688.8) - 16 Air - 8.76F LowE (44.2) 1.3 74 50 WG LowE 25Y 1 m² < a ≤ 1.5 m² 27.04H (888.8) - 16 Air - 10.76F LowE (55.2) 1.3 73 49 WG LowE 25Z 1.5 m² < a ≤2 m² 29.04H (8810.8) - 16 Air - 10.76F LowE (55.2) 1.3 73 49 WAG LowE 26V a ≤ 1 m² 25.04H (688.8) Anti-slip - 16 Air - 8.76F LowE (44.2) 1.3 NPD NPD WAG LowE 26Y 1 m² < a ≤ 1.5 m² 27.04H (888.8) Anti-slip - 16 Air - 10.76F LowE (55.2) 1.3 NPD NPD WAG LowE 26Z 1.5 m² < a ≤2 m² 29.04H (8810.8) Anti-slip - 16 Air - 10.76F LowE (55.2) 1.3 NPD NPD DG LowE 20V a ≤ 2 m² 8H - 16 Argon - 8.76F LowE (44.2) 1.1 80 61 The glazing unit has a black silk screen print along th

Pagina 29-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura - 6H -...

Pagina 30 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

e edge * Slope α = 90° NPD = No Performance Determined Monolight Burglary-resistant Linearlight Burglrary-resistant Monolight Walk-on Circularlight τuv % - 0.055 0.4 Ra Rw (C, Ctr) Lia a Class Class dB dB % Outside/Inside Outside/Inside 97 37 (-1,-5) 37 24 NPD/1B1 NPD/P2A Security glazing (IGU) EN356 *** ψ W/mK Total solar energy direct absorbtion Uw W/m2K > 2.3 m2 ** Rain noise Uw W/m2K ≤ 2.3 m2 ** Direct airborn sound reduction (IGU) *** IGU code For clear internal area: Colour rendering index UVtransmittance Thermal transmittance of the entire window in accordance with EN 14351-1 Resistance to pendulum body impact (IGU) EN12600 *** Monolight Linearlight Psi value Insulatin Glass Unit (IGU) Coating DG = Double Glazing TG = Triple Glazing WG = Walk-on glazing WAG = Walk-on anti-slip glazing Glazing Unit – continued DG LowE 20V 1.7 DG LowE 20Y 1.7 1.6 0.055 0.4 96 39 (-2,-5) 39 25 NPD/1B1 NPD/P2A DG LowE 20Z -

Pagina 30-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura e edge
...

Pagina 31 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

1.8 0.061 0.4 96 38 (0,-4) 38 26 NPD/1B1 NPD/P2A DG LowE 22V 1.7 - 0.055 NPD 97 38 (-1,-5) 38 25 NPD/1B1 NPD/P4A DG LowE 22Y 1.7 1.6 0.055 NPD 96 39 (-2,-5) 39 26 NPD/1B1 NPD/P4A DG LowE 22Z - 1.8 0.061 NPD 96 38 (0,-4) 38 27 NPD/1B1 NPD/P4A DG Sun1 21V 1.7 - 0.055 0.2 91 37 (-1,-5) 37 36 NPD/1B1 NPD/P2A DG Sun1 21Y 1.7 1.6 0.055 0.2 91 39 (-2,-5) 39 37 NPD/1B1 NPD/P2A DG Sun1 21Z - 1.8 0.061 0.2 90 38 (0,-4) 38 37 NPD/1B1 NPD/P2A DG Sun1 23V 1.7 - 0.055 NPD 91 38 (-1,-5) 38 37 NPD/1B1 NPD/P4A DG Sun1 23Y 1.7 1.6 0.055 NPD 91 39 (-2,-5) 39 38 NPD/1B1 NPD/P4A DG Sun1 23Z - 1.8 0.061 NPD 90 38 (0,-4) 38 38 NPD/1B1 NPD/P4A TG LowE 30V 1.2 - 0.075 0.3 95 45 (-2,-4) 45 31 NPD/1C1/1B1 NPD/NPD/P2A TG LowE 30Y 1.2 1.1 0.075 0.3 95 45 (-1,-4) 45 31 NPD/1C1/1B1 NPD/NPD/P2A TG LowE 30Z - 1.2 0.091 0.3 94 44 (-1,-3) 44 32 NPD/1C1/1B1 NP

Pagina 31-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura 1.8

0....

Pagina 32 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

D/NPD/P2A TG LowE 32V 1.2 - 0.075 NPD 95 45 (-2,-4) 45 32 NPD/1C1/1B1 NPD/NPD/P4A TG LowE 32Y 1.2 1.1 0.075 NPD 95 45 (-1,-4) 45 33 NPD/1C1/1B1 NPD/NPD/P4A TG LowE 32Z - 1.2 0.091 NPD 94 44 (-1,-3) 44 33 NPD/1C1/1B1 NPD/NPD/P4A TG Sun1 31V 1.2 - 0.075 0.1 90 45 (-2,-4) 45 38 NPD/1C1/1B1 NPD/NPD/P2A TG Sun1 31Y 1.2 1.1 0.075 0.1 89 45 (-1,-4) 45 38 NPD/1C1/1B1 NPD/NPD/P2A TG Sun1 31Z - 1.2 0.091 0.1 89 44 (-1,-3) 44 39 NPD/1C1/1B1 NPD/NPD/P2A TG Sun1 33V 1.2 - 0.075 NPD 90 45 (-2,-4) 45 39 NPD/1C1/1B1 NPD/NPD/P4A TG Sun1 33Y 1.2 1.1 0.075 NPD 90 45 (-1,-4) 45 39 NPD/1C1/1B1 NPD/NPD/P4A TG Sun1 33Z - 1.2 0.091 NPD 90 44 (-1,-3) 44 39 NPD/1C1/1B1 NPD/NPD/P4A WG LowE 25V 2.0 - 0.069 NPD 94 36(-1,-4) NPD 55 1B1/1B1 NPD/P2A WG LowE 25Y 2.0 - 0.069 NPD 94 36(-1,-4) NPD 53 1B1/1B1 NPD/P2A WG LowE 25Z 2.0 - 0.069 NPD 93 36(-1,-4) NPD 52 1B1/1

Pagina 32-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura...

Pagina 33 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

B1 NPD/P2A WAG LowE 26V 2.0 - 0.069 NPD NPD 36(-1,-4) NPD NPD 1B1/1B1 NPD/P2A WAG LowE 26Y 2.0 - 0.069 NPD NPD 36(-1,-4) NPD NPD 1B1/1B1 NPD/P2A WAG LowE 26Z 2.0 - 0.069 NPD NPD 36(-1,-4) NPD NPD 1B1/1B1 NPD/P2A DG LowE 20V 1.7 - 0.055 0.4 97 37 (-1,-5) 37 24 NPD/1B1 NPD/P2A The glazing unit has a black silk screen print along the edge NPD = No Performance Determined * Slope α = 90° ** Upstand height = 150 mm, if height > 150 – 600 mm, NPD *** Only for glazing VELUX Commercial 35 Classifications Further, products can be tested for other commonly-used parameters customers may require. Because the products are prefabricated, they can be tested extensively against all conceivable hazards and stressful events. Monolight and Linearlight roof windows are tested and CE marked in accordance with the harmonized standard EN 14351-1 Windows and doors. All products are manufactured, assembled and delivered from the same heavily-contr

Pagina 33-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura B1
...

Pagina 34 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

olled production line, leading to components with identical properties. Performance Essential characteristic performances according to EN 14351-1 Test results Monolight Resistance to windload, EN12210, EN12211 Watertightness, non shielded, EN12208, EN1027 Impact resistance, EN13049 Thermal transmittance, EN ISO 10077-1, EN ISO 10077-2 Air permeability, EN12207, EN1026 Monolight Walk-on Class C5 * Class C3 * Class C5 * Class E1200 ** Class E1200 ** Class E1200 ** Class 4 Class 4 NPD Depending on size and pane variant*** Depending on size and pane variant*** Depeding on size and glazing variant*** Class 4 ** Class 4 ** Class 4 ** Class B, s1-d0 Class B, s1-d0 Class B, s1-d0 34 (-1;-4) – 35 (-1; -3) dB **** 34 (-1;-4) – 35 (-1; -3) dB **** 36 (-1;-4) dB Reaction to fire, EN13501-1 Acoustic performance, EN ISO 140-3, EN ISO 717-1 Linearlight * For Monolight exceeding = 1170 mm (B) x 1170 mm (A): NPD, For Linearlight exceeding = 600 mm (B) x 1350 mm (A): NPD

Pagina 34-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura olled...

Pagina 35 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

** For Monolight exceeding 2m²: NPD , For Linearlight exceeding 1.44m²: NPD *** For further information, see page 35 in regard to Uw according to EN 14351-1 **** Depending on size and pane variant. Burglary-resistant modules: 34 (-1; -4) – 36 (0; -3) dB. Contact VELUX Commercial for further information. NPD = No Performance Determined Additional performances for burglary-resistant variant Test results Burglary resistance, NEN 5096:2012+A1:2015, EN 1627:2011 Monolight Linearlight Monolight Walk-on Class 2 (RC2)* Class 2 (RC2)** NPD * = NPD for Monolight Venting width > 3.09 m ** = NPD for Linearlight Venting NPD = No Performance Determined DG* TG* DG** TG** 36 Insulation Glazing Code Double Glazing = DG Triple Glazing = TG U-values with outer surface area Clear internal area Ug [W/m2K] (Slope α = 90°, vertical) Uτ [W/m2K] (Slope α = 0°, horizontal) URC,300 [W/m2K] (Slope α = 0°, horizontal, upstand height 300 mm) ARC,300 [m2] (developed area) 20V a ≤

Pagina 35-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura ** For ...

Pagina 36 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

2 m2 1.1 1.7 1.0 4.49 20Y 2 m2 < a ≤ 2.3 m2 1.1 1.7 1.0 4.49 20Y 2.3 m2 < a ≤ 2.8 m2 1.1 1.7 – – 20Z 2.8 m2 < a ≤ 4.0 m2 1.1 1.8 – – 30V a ≤ 2 m2 0.5 0.8 0.71 4.49 30Y 2 m2 < a ≤ 2.3 m2 0.5 0.9 0.71 4.49 30Y 2.3 m2 < a ≤ 2.8 m2 0.5 0.9 – – 30Z 2.8 m2 < a ≤ 4.0 m2 0.5 0.9 – – 20V a ≤ 2 m2 1.1 1.7 0.97 3.84 20Y 2 m2 < a ≤ 2.8 m2 1.1 1.7 1.1 3.84 20Z 2.8 m2 < a ≤ 4.0 m2 1.1 1.8 1.1 3.84 30V a ≤ 2 m2 0.5 0.8 0.69 3.99 30Y 2 m2 < a ≤ 2.8 m2 0.5 0.9 0.74 3.99 30Z 2.8 m2 < a ≤ 4.0 m2 0.5 0.9 0.75 3.99 * Calculated according to EN 1873 for reference size 1230 mm x 1400 mm (not part of CE marking) ** Calculated according to EN 1873 for reference size 1200 mm x 1200 mm (not part of CE marking) Product tests Watertightness Air permeability Resistance to wind load Acoustic performance Reaction to fire Impact resistance Thermal transmittance VELUX Commercial 37 Da

Pagina 36-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura 2 m2

1...

Pagina 37 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

ta plate Information about the modules All VELUX Modular Rooflights, electrical components and accessory products have a data plate label. The data plate helps to identify the product and must NOT be removed. If a product is damaged or malfunctioning, the information on the data plate must be given to the VELUX sales company. Module type Module size Material colour Glazing type Glazing variant Example of data plate and position Module variant Upstand height Module generation RMR roller blind code Production code Sales order number Reference to the relevant product standard(s) 38 Modular Rooflights – code structure Example UFL 30001000 0 0 20 Z E 150 1 B Type Module width Interior colour Exterior colour Glazing type Glazing variant Module variant Upstand height Branding U= VELUX Modular Rooflights Above is a size example in mm 0 = std. 0 = std. 20 = DG/LowE V = a ≤ 2m² Linearlight: Above is a size example in mm 1 = VELUX Standard, RAL 9010 gloss

Pagina 37-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura ta...

Pagina 38 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

30 Standard, RAL 7043 gloss 30 21 = DG/Sun1 V = a ≤ 1m² (for Walk-on) 22 = DG/LowE P4A V = a ≤ 1,43m2 (for Circularlight) Width and length (if Rectangular) Diameter (if Circularlight) 23 = DG/Sun1 P4A V = Venting 25 = DG/LowE Walk-on Y = 2m²< a ≤ 2.8m² 26 = DG/LowE Walk-on anti-slip Y = 1m²< a ≤ 1.5m² (for Walk-on) 8= Non standard L= Linearlight 5= Standard, RAL 9005 gloss 30 C= Circularlight 8= Non standard M = Mid E = End 150-600 mm A= Launch 2019 (welded frame, Burglaryresistant, Walk-on and Circularlight) W = Walk-on F = Fixed M= Monolight S = Start Module generation 30 = TG/LowE Z = 2.8m² < a ≤ 4m² 31 = TG/Sun1 Z = 2.8m² < a ≤ 3m² (for Vented TG) 32 = TG/LowE P4A Z = 1.5m² < a ≤ 2m² (for Walk-on) Q= Burglary QE = Burglary End B= Launch 2021 (corner keys & sandwich upstand) QM = Burglary Mid Burglaryresistant ONLY available with glazing type 22,23,32,33 33 = TG/Sun1 P4A X = Non standard 99 = Non standard No letter for Mono

Pagina 38-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura 30
...

Pagina 39 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

light and Circularlight Roller blind RMR codes Example Code Explanation NW / no code Non wired PREW-U1 Pre-wired left hand side PREW-U3 Pre-wired right hand side PREW-U4 Pre-wired top side RMR-U1 Mounted RMR left hand side RMR-U3 Mounted RMR right hand side RMR-U4 Mounted RMR top side VELUX Commercial 39 Venting module Chain actuator In venting modules, the actuator is fully integrated in the timber upstand. The actuator is not visible from the inside when the module is closed, thus there is no visual difference between fixed and venting modules. The stroke length is 260 mm resulting in an opening of approximately 190 mm. The venting modules meet the requirements of the harmonised standard EN 60335-2-103(2015), see comment below for reference. A venting module is operated by either one actuator or two synchronised actuators depending on the clear internal area and modules width. For further information, see pages 23. The modules can be controlled by either a VELUX

Pagina 39-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura light...

Pagina 40 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

INTEGRA®, a Motorlink™ or Open System ± 24V (OS ±24 V DC) control system. Monolight / Linearlight Venting Modules Glazing - Double (DG) or Triple (TG) Clear internal area – max. No. of actuators* integrated in upstand DG DG TG TG 2 m² 4 m² 1.5 m² 3 m² 1 2 1 2 * VELUX WMU 88V ---- (2 Amp/actuator) b a Service Monolight venting and Linearlight venting The actuator is accessible by removing the top plate (a) Global saftety warning (except Germany, Austria, Switzerland) Comfort venting VELUX Modular Rooflights meet the requirements of the harmonised standard EN 60335-2-103(2015) as to a max opening clearance of 200 mm (by means of physical limitation of the actuator) and as to the max closing speed of 15 mm/sec. Therefore, comfort venting rooflights can be installed within reach, i.e. at installation heights below 2.5 m above floor level (inside) and ground level (outside). According to EN 60335-2-103 access levels are defined as e.g. stairs and terraces. Sur

Pagina 40-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura ...

Pagina 41 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

faces not normally used for standing on, such as windowsills, and movable equipment such as ladders, are not considered to be access level. Please note that the venting rooflights operate with high closing force, which can cause serious injury in case of entrapment. If VELUX roller blinds are in stalled in the rooflight, please observe recommendations in the safety in structions provided with each VELUX roller blind RMR. We recommend that you observe national regulations and consider if the planned specific use of the building requires additional safety measures that must be applied by the installer/user to prevent serious injury. 40 The VELUX Group will not accept responsibility for damages, injury or death resulting from such an installation. The installer/user is ultimately responsible Service Monolight Burglary-resistant venting The serviceplate (b) must be accessible in connection with service of the chain actuator. for own omissions and actions. Measures could for instanc

Pagina 41-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura faces...

Pagina 42 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

e be to install a motion sensor that is able to disconnect power from the control unit in case of any movement in the immediate vicinity of the VELUX Modular Rooflights. Safety warning for Germany, Austria, Switzerland VELUX Modular Rooflights have a recommended minimum installation height of 2.5 m above floor level (inside) and ground level (outside). In case of installation below that level, safety measures must be applied by the installer/user to prevent serious injury. No instruction or measure can eliminate the inherent hazards resulting from installation heights below 2.5 m. If VELUX roller blinds are installed in the rooflight, please observe recommendations in the safety instructions provided with each VELUX roller blind RMR. The VELUX Group will not accept responsibility for damages, injury or death resulting from such installation. The installer/user is ultimately responsible for own omissions and actions. Measures could for instance be to install a motion sensor that is able

Pagina 42-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura e be to...

Pagina 43 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

to disconnect power from the control unit in case of any movement in the immediate vicinity of the VELUX Modular Rooflights. Electrical system Connection to a fieldbus system requires a separate control box between fieldbus system and actuator. For the ± 24 V DC system, only the actuators are supplied by the VELUX Group. As all three systems use the same actuator, the decision on which system to choose, can be postponed or changed at a later time. For small installations (e.g. few rooflights in the same area) a VELUX INTEGRA® or MotorLink™ will often be sufficient to cover all needs. Large installations (e.g. many different rooflights on different roofs) are likely to be integrated in a building management system and ± 24 V DC system should be considered. VELUX can supply two different electrical systems for controlling comfort venting modules, a VELUX INTEGRA® or a MotorLink™ system. VELUX INTEGRA® is a wireless system for control of comfort venting and roller blinds and

Pagina 43-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura to...

Pagina 44 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

is based on io-homecontrol®. All components for VELUX INTEGRA® are supplied by the VELUX Group. WMa MotorLink™ is a wired system for control of comfort venting modules. Basic components for a fully functional system can be supplied by the VELUX Group. In all cases the installed components must be accessible for service and maintenance. A third option is to use Open System, where the actuators are controlled by ± 24 V DC. In addition, the actuator can be integrated in common building automation fieldbus systems, e.g. KNX, BACnet, LON and Modbus, through the integrated MotorLink™ technology. Planning the Electrical System: • The control system is not a part of the VELUX Modular Rooflight venting modules, but can be purchased separately • Wiring between the control system and the actuator is not part of the VELUX delivery • The actuator can be controlled by either VELUX INTEGRA®, MotorLink™ or OS ±24 V DC Brown White RMR4 Green Brown White RMR3 Green Brown Wh

Pagina 44-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura is...

Pagina 45 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

ite RMR2 Green Brown White Green RMR1 +/Maintenance cable Not to be connected Brown White RMR4 Green Brown RMR3 White RMR2 Green Brown White WindowMaster MotorLink™ Control system Green RMR1 Brown +/- White +/- Green 24 V DC Control system +/+/+/- MotorLink™ communication VELUX Commercial 41 Electrical components – VELUX INTEGRA® (standalone system) VELUX INTEGRA® is a wireless system for control of comfort venting modules. VELUX INTEGRA® is based on io-homecontrol®. When installing VELUX INTEGRA® products, you only need to install standard 230V cabling to supply control unit KLC 410. All components for VELUX INTEGRA® are supplied by the VELUX Group. Monolight / Linearlight Venting Modules Glazing - Double (DG) or Triple (TG) Clear internal area – max. DG DG TG TG 2 m² 4 m² 1.5 m² 3 m² 1 2 1 2 1** 1** 1** 1** No. of actuators* integrated in upstand VELUX can provide following components for venting modules: Control u

Pagina 45-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura ite
...

Pagina 46 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

nits KLC 410 – Power supply and control unit Control switch and sensor KLR 200 – Control pad KLI 311 – Wall switch KLA 200 – Rain sensor KLF 200 – Interface (external control devices) * VELUX WMU 88V (2 Amp/actuator) ** No. of venting modules / control unit To be decided according to the project requirement 42 Control pad Power supply and control unit Rain sensor KLR 200 KLC 410 KLA 200 Wall switch Wall switch Interface (external control devices) KLI 311 (for ventilation) KLI 312 (for roller blinds) KLF 200 Electrical components – MotorLink™ (standalone system) MotorLink™ system is a wired standalone system to control of comfort venting module. The actuator and the control box communicate through MotorLink™, which is a patented protocol from WindowMaster. Basic components for a fully functionally system can be supplied by the VELUX Group. Monolight / Linearlight Venting Modules Glazing - Double (DG) or Triple (TG) DG DG TG TG 2 m² 4 m² 1.5 m�

Pagina 46-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura nits...

Pagina 47 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

� 3 m² 1 2 1 2 WCC 103 EU / WCC 103 UK (3 Amp) 1** – 1** – WCC 310 S (10 Amp) 4** 2** 4** 2** WCC 320 S (20 Amp) 8** 4** 8** 4** Clear internal area – max. No. of actuators* integrated in upstand VELUX can provide following components for venting modules: Control units Control switch and sensor WSK 102 (Fuga) – Control switch WSK 103 (Fuga) – Control switch WLA 330 – Wind and rain sensor WLA 331 – Rain sensor NV SOLO® – Rain and wind sensor, outdoor and indoor temperature sensor * VELUX WMU 88V (2 Amp/actuator) ** No. of venting modules / control unit To be decided according to the project requirement Control unit Control unit Control switch Rain and wind sensor WCC 103 WCC 310/320 WSK 102 WSK 103 WLA 330 WLA 331 Remote control with sensors NV SOLO® VELUX Commercial 43 Roller blinds Sun screening The internal roller blind RMR is designed for installation with VELUX Modular Rooflights. The blind protects against heat and glare and

Pagina 47-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura �

3...

Pagina 48 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

helps to control the amount of light in the building. The roller blind is available in any height from 725 mm till 3000 mm and in width from 600 mm till 1000 mm. It can be oriented in the topbottom or side-side direction of the rooflight. The roller blind is available for Monolight and Linearlight both fixed and venting, including burglary-resistant modules. To support fast and safe installation of VELUX Modular Rooflights, it is possible to order roller blinds with hidden pre-wiring and completely premounted from the factory, except for buglary-resistant modules. The blind consists of four wheels, one in each corner of the rooflight upstand and two steel wires at the side of the blind. The two wires pull a lightweight polyester fabric available in three commonly used colours. VELUX roller blinds are electrically operated and can be controlled using either VELUX INTEGRA® or Open System ±24V (OS ±24V DC). Operation One power supply and control unit KLC 410 per four roller blinds RMR

Pagina 48-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura helps...

Pagina 49 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

is required. Roller blinds RMR can be operated from either one of the following or a combination of: • Control pad KLR 200 – individual or simultaneous operation • Wall switch KLI 312 – simultaneous operation Order the right size To order the right sizes see the data plate on the VELUX Modular Rooflight. How to read the data plate, see page 38. Data label Fabric Top wheel Wire Bottom wheel VELUX can provide following components for roller blinds RMR: (see page 42 for reference) Control units KLC 410 – Power supply and control unit Control switch KLR 200 – Control pad KLI 312 - Wall switch KLF 200 – Interface (external control devices) * No. of roller blinds / control unit To be decided according to the project requirement 44 4* Size overview of roller blinds The table gives an indication of module size limits for all roller blinds variants. Width (B) between 250 and 3000 mm depending on module type 400 600 800 1000 1200 1400 1500 1600 1800 2000 2200 2

Pagina 49-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura is...

Pagina 50 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

400 2600 2800 3000 400 250 250 800 1000 1200 1400 Height of roller blind 1500 1600 1800 2000 2200 2400 2600 2800 3000 Height (A) between 250 and 3000 mm depending on module type 600 Width of roller blind Height of roller blind Width of roller blind Side-side direction Top-bottom direction VELUX Commercial 45 Linearlight with minimized beam and roller blinds 46 Sky replacement VELUX Commercial 47 Sun screening and colours Fire retardant sun screening Colour: Variant code Grey RMR 8805 White RMR 8806 The blind cloth of VELUX roller blinds is pulled on two tension steel wires on pulley wheels, which are accessible, when the roller blinds are installed on rooflights within reach and therefore can cause serious injury, if a person gets in contact with this during the electrical operation of the blind. VELUX roller blinds have a recommended minimum installation height of 2.5 m above floor level (inside) and ground level (outside). In case of installation below t

Pagina 50-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura 400
...

Pagina 51 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

hat level, safety measures must be applied by the installer/user to prevent serious injury. No instruction or measure can eliminate the inherent hazards resulting from installation heights below 2.5 m. Black RMR 8807 We recommend you to observe national regulations and consider if the planned specific use of the building requires that additional safety measures must be applied by the installer/user to prevent serious injury. The VELUX Group will not accept responsibility for damages, injury or death resulting from such installation. The installer/user is ultimately responsible for own omissions and actions. Measures could for instance be to install a motion sensor that is able to disconnect power from the control unit in case of any movement in the immediate vicinity of the VELUX Modular Rooflights. Interior design The motor for roller blind operation is hidden inside the rod. Roller blind bottom wheel ensures position of the wire. 48 Roller blinds are kept tight and smooth by a

Pagina 51-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura hat...

Pagina 52 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

strong, thin wire suspension. Interior design Roller blind RMR at top side of Linearlight. Roller blind fixation at bottom side of Linearlight. VELUX Commercial 49 Sectional Drawings Monolight Examples of sectional drawings. The full assortment is available at our website. Monolight fixed – double glazing (Triple glazing also available) Cross-section – bottom Longitudinal section 50 Linearlight Examples of sectional drawings. The full assortment is available at our website. Linearlight fixed/venting – double glazing (Triple glazing also available) Cross-section – bottom Longitudinal section VELUX Commercial 51 Walk-on Examples of sectional drawings. The full assortment is available at our website. Walk-on fixed – double glazing Cross-section – bottom Longitudinal section 52 Circularlight Examples of sectional drawings. The full assortment is available at our website. Circularlight fixed – double glazing Cross-section – bottom Burglary-resistant E

Pagina 52-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura strong,...

Pagina 53 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

xamples of sectional drawings. The full assortment is available at our website. Monolight burglary-resistant fixed – double glazing Cross-section – bottom VELUX Commercial 53 54 INSTALLATION VELUX Commercial 55 Designed for easy installation All components are designed in accordance with the overall system. In our controlled facilities, we monitor all aspects of production to ensure a perfect fit and assembly. A strong integrated upstand ensures stability of the product, so that it can be installed on virtually any slightly inclined roof structure. This makes it possible to mount the upstand and top unit within minutes. The VELUX Group does not take responsibility for the sub-construction. Installation of Monolight venting Structural opening size Inner lining / Clear Internal Diagonal measurement of the module Inner lining shall be mounted at the inner side of the upstand. Perfect fit in the groove of the aluminium profile just under the glazing. Inner lining shall be

Pagina 53-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura xamples...

Pagina 54 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

mounted into the lining groove at the bottom of upstand. Installation of Linearlight ! Read more about the installation in our installation instructions. Can be downloaded at your local VELUX Commercial website. VELUX Modular Rooflights UVM VELUX Modular Rooflights UVL ENGLISH: Installation instructions for Vented Monolight UVM ENGLISH: Installation instructions for Vented Linearlight UVL DEUTSCH: Einbauanleitung für öffenbares Monolight UVM DEUTSCH: Einbauanleitung für öffenbares Linearlight UVL FRANÇAIS : Notice d'installation du lanterneau ventilé sur mesure UVM FRANÇAIS : Notice d'installation de la verrière linéaire de lanterneaux ventilés sur mesure UVL DANSK: Monteringsvejledning for oplukkeligt ovenlys UVM DANSK: Monteringsvejledning for lysbånd med oplukkelige moduler UVL NEDERLANDS: Inbouwinstructies voor ventilerende daklicht UVM NEDERLANDS: Inbouwinstructies voor ventilerende daklichten UVL ITEM NO. 20659 454512-2019-05 Monolight Vented UVM.indd

Pagina 54-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura ...

Pagina 55 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

1 56 SVENSKA: Monteringsanvisning för ventilerad Linearlight UVL SVENSKA: Monteringsanvisning för ventilerad Monolight UVM VERSION 05/19 05-11-2020 14:02:02 ITEM NO. 20661 VERSION 05/19 A fast installation system Craning products to the roof Preparing the hole for the upstand Securing the upstand and roofing material for watertightness without exposing the product to the flame. Placing the top unit Placing the top unit External work finalized Connecting the electricity and checking the functionality Internal work finalized Note: Generation A is shown on above photos VELUX Commercial 57 58 SUPPORT VELUX Commercial 59 Technical drawings, 2D Download detailed 2D illustrations and technical drawings Precise and detailed AutoCAD material can be downloaded for immediate use, directly from our website. The drawings contain all relevant descriptions and measurements. 2D Download a complete folder with all material on modular rooflights. The brochure and drawing

Pagina 55-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura 1

56
...

Pagina 56 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

s are also available for download at your local VELUX Commercial website. CAD/BIM objects, 3D drawing tools Use drag and drop objects VELUX CAD/BIM objects are available for use with the most popular modelling programs. Furthermore, all 3D objects are compatible with Autodesk AutoCAD and BIM Trimble SketchUp. The object families are built in accordance with buildingSMART, including: COBIE, CCS and Omni class. BIM Objects can be downloaded from BIMobject and from your local VELUX Commercial website. www.bimobjects.com 60 VELUX Daylight Visualizer A professional tool for projects of all sizes VELUX Daylight Visualizer is a professional simulation tool that offers precise and visually convincing daylight analysis of any given rooflight installation. The tool permits you to accurately simulate and quantify daylight levels in the interiors, develop before and after scenarios and create extensive data reports for project review. All projects can be imported or exported at will for f

Pagina 56-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura s are...

Pagina 57 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

urther processing. Comprehensive daylight planning is a prerequisite to achieving optimal daylight conditions in commercial buildings. Proper daylight management will always be an asset. For example, by replacing artificial light, you'll save electricity and by providing free solar heating, you'll save on conventional energy consumption. Design your own grand ideas – Create a magnificent rooflight Ready to know if your ideas can become a reality? Let us calculate your possibilities and give a price estimate for your chosen solution. Contact your local VELUX Commercial sales office for more details. A 0 100 A O 300 346 B 100 B 100 A 346 B O 100 B 300 A 0 A A L 100 0 103 L 100 0 Bx 103 126 Bx B 0 O 300 346 100 O 300 346 100 100 F 100 0 300 W 0 303 100 1000 W 1030 0 103 300 th leng rnal r inte th leng ning ht L: Ope heig tand width rnal O: Ups inte shed F: Fini width width ule ning mod Ope W: rnal Inte 916 Bx: 3000 A: Clea 100

Pagina 57-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura urther ...

Pagina 58 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

0 1030 leng rnal r inte A: Clea 300 th 1000 th leng 1030 ning ht L: Ope heig tand width O: Ups rnal r inte B: Clea width ning Ope W: UP, UX GRO Print Save/ UX® VEL and ts - This ing draw may not shed d, publi be copie red UX logo VEL are registe rks. azing al Gl tectur ema trad Archi ule ble dou ted, Mod ule Mod ing glaz type End 4 type � 1 Print Save/ 1 916 B 4: : BEnd red ule mod UX® VEL UP, Mon 100 UX GRO no.: : 021 1 VEL ay-2 wing Initials dom Dra 10-M © 202 d King is Date: Unite s and 4ND, t ID: onent KY7 le: fligh of the ng comp Sca s, Fife, Roo iption responsible buildi rothe ier of own descr is not e: , Glen suppl . dat VELUX or the is a Way for its such cts y Ltd Rev ns, nsible products. dside VELUX produ s or as pan icatio respo of its X, Woo of the only specif by other rties the lation UX Com £ VELU Please prope design, instal taken of VEL the ion. rties n of or under entat ts d for the prope red ructio no

Pagina 58-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura 0

1030...

Pagina 59 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

.: fligh r docum on the with regarfor const be prepatende Roo ation and nsible Project as may in any n ular ed for inform is respo of VELUXother issio Mod cts includ VELUX buyer and perm UX ct produ fire ut The VEL conta cts. of the building, witho the produ lation be used les, the must s instal applicable modu rwise lation to fit the tion the to the the ts. The instal d ying or othe Sec and UX logo are registe rks. Archi azing al Gl tectur ema trad VEL ble Dou ght, Glazing arli Line 100 no.: : -2021 wing Initials dom Dra 09-May d King Date: Unite 4ND, t ID: KY7 le: fligh Sca s, Fife, Roo rothe e: , Glen . dat Way y Ltd Rev dside pan X, Woo UX Com £ VELU VEL n issio ut perm rwise shed used witho or othe d, publi - ---This ted? Ven ules 1 B3: 3 ven olight, as the emen sione satisf well requir ction and t as dimen and legal projec ied onstru the eering specif sub-c ts of ers engin with the ned, emen l and desig along party provid ectura ic requir archit

Pagina 59-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura .:...

Pagina 60 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

practices, of third specif able ts and practices applic emen ts and requir emen requir project. to the 3030 mod No of 916 B2: 2 type ule Mod B1: 1 type Mod no.: fligh Roo Project ular UX Mod VEL s tion Sec ---- data ule 1 VEL © 202 is s and onent of the ng comp iption responsible buildi ier of own descr is not suppl VELUX or the is a for its such cts ns, nsible products. VELUX produ s or as icatio respo of its of the only specif by other rties the lation Please prope design, instal taken of the ion. rties n of or under entat d for the prope red ructio r docum on the with regarfor const be prepatende ation and nsible as may in any ed for inform is respo of VELUXother includ VELUX buyer products and ct fire The conta cts. of the building, the produ lation be les, the must instal applicable modu lation to fit the the to the ts. The instal d ying as the emen and the sione satisf well requir ction t as dimen and legal projec ied onstru the eering specif sub-c ts of ers e

Pagina 60-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura ...

Pagina 61 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

ngin with the ned, emen l and desig along party provid ectura ic requir archit practices, of third specif able ts and practices applic emen ts and requir emen requir project. to the ule Mod ing draw may not be copie Sub-construction quality assurance (QA) document and specification documents VELUX Commercial 61 Design phase Consultancy To help you get started, we offer expert guidance even before your project gets approved. Technical documentation All technical documents are available for download on our websites. Specification Our experienced building consultants stand ready to help you specify your projects. Statics The evaluation of the local load conditions, applying national methods and additional safety factors (if any) are solely your responsibility. VELUX does not assume any liability in this regard. Humid areas In order to maintain guarantee, it is necessary to ensure adequate ventilation when installing the products in areas with high humidity such as in bathr

Pagina 61-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura ngin...

Pagina 62 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

ooms. Please ask our consultants for more details. Installation phase On-site support Once your project is underway, we will help you track your progress and offer on-site consulting on projects and critical issues. Instruction To ensure high safety and efficiency on the construction site, we offer various forms of training for all installers involved. The training can take place directly on the construction site, where your project is being performed. 62 Daily operation After sale A number of tools and accessories are available to help optimise your solution, if or when the requirements evolve. User guidance To maximise performance output, we are there to guide you on the different components of the solutions and we offer training. Product service Should the system, for some reason, require professional service, our team of VELUX service technicians will do all they can to solve the problem to everyone’s satisfaction. Guarantee Our Modular Rooflights are supported by a 10-ye

Pagina 62-Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog, brosura ooms....

Pagina 63 - Luminatoare modulare VELUX Commercial Linearlight, Monolight, Circularlight Catalog,...

ar guarantee. Blinds, actuators and other electrical components that are a part of the modular system come with a 3-year guarantee. The guarantee is subject to correct installation and usage. Guarantee conditions can be found at your local VELUX Commercial website. Contact Our aim is to provide all the tools and answers to make your project as simple and trouble-free as possible. Thus, we offer a wide range of expert support and consulting from before the project starts to well after its completion. To get in touch, please contact your local VELUX Commercial sales office. VELUX Commercial 63 Your preferred partner for daylight and ventilation solutions 17090-167 MAIN BROCHURE VMR, OCTOBER 2021 © VELUX GROUP 2021. ® VELUX AND THE VELUX LOGO ARE REGISTERED TRADEMARKS USED UNDER LICENSE BY THE VELUX GROUP. THE INFORMATION CONTAINED IN THIS BROCHURE IS SUBJECT TO CHANGE WITHOUT NOTICE. PRINT ERRORS CAN OCCUR. VELUX Group VELUX Commercial Ådalsvej 99 2970 Hørsholm Denmark Email
