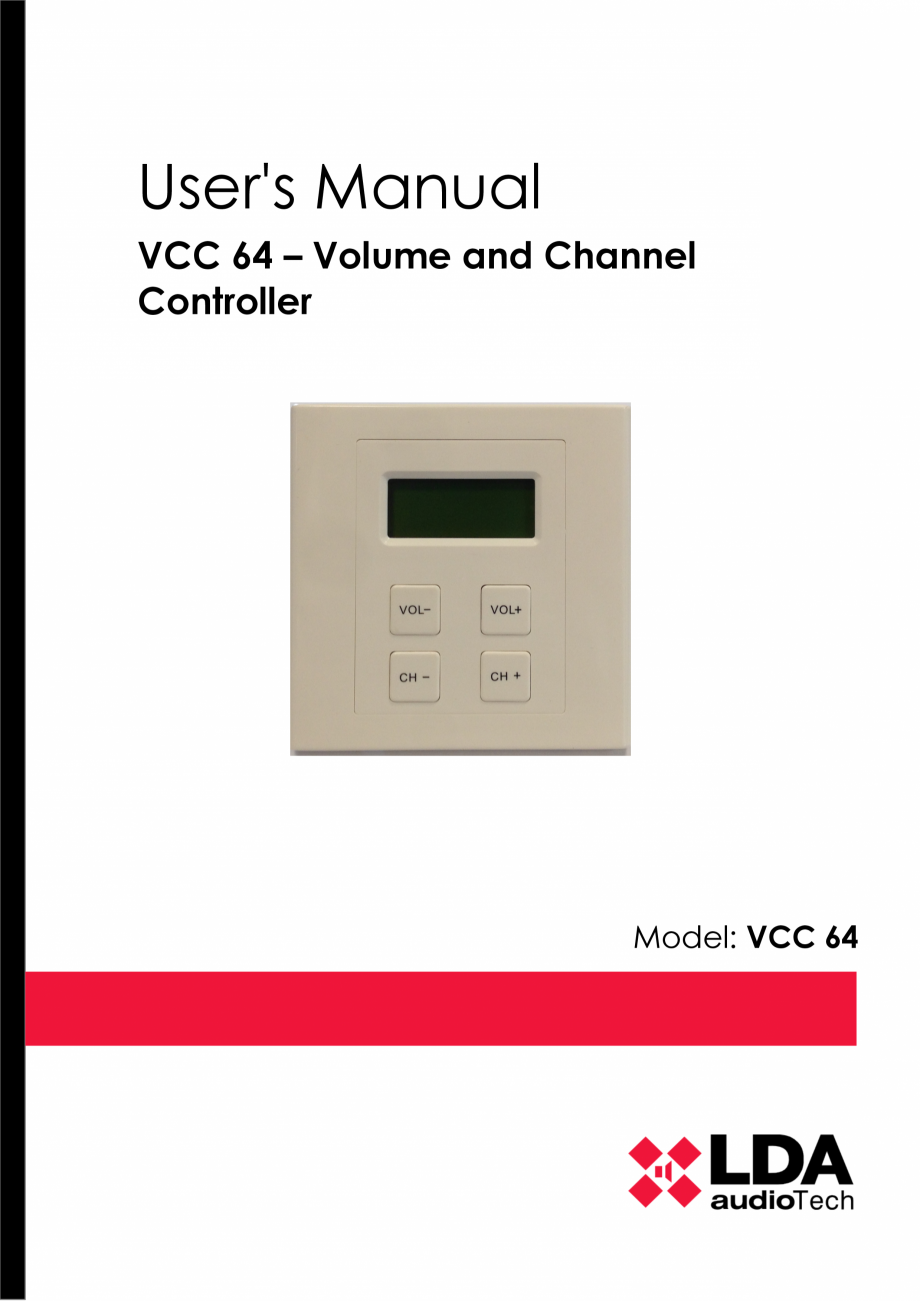

User's Manual
VCC 64 – Volume and Channel
Controller
Model: VCC 64

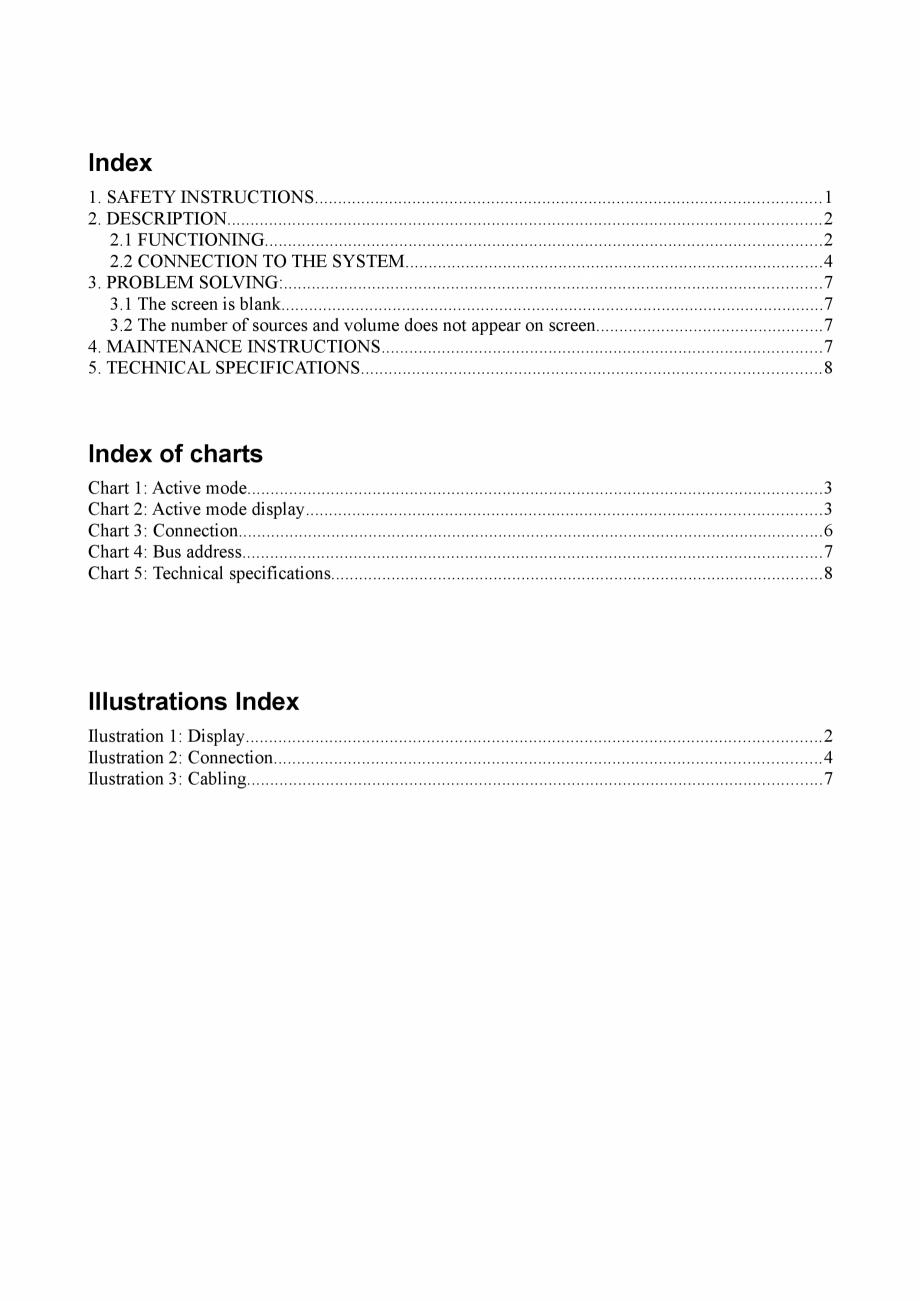

Index
1. SAFETY INSTRUCTIONS.............................................................................................................1
2. DESCRIPTION................................................................................................................................2
2.1 FUNCTIONING........................................................................................................................2
2.2 CONNECTION TO THE SYSTEM..........................................................................................4
3. PROBLEM SOLVING:....................................................................................................................7
3.1 The screen is blank.....................................................................................................................7
3.2 The number of sources and volume does not appear on screen..............................................
...7
4. MAINTENANCE INSTRUCTIONS...............................................................................................7
5. TECHNICAL SPECIFICATIONS...................................................................................................8
Index of charts
Chart 1: Active mode............................................................................................................................3
Chart 2: Active mode display...............................................................................................................3
Chart 3: Connection..............................................................................................................................6
Chart 4: Bus address.............................................................................................................................7
Chart 5: Technical specifications..........................................................................................................8
Ill
ustrations Index
Ilustration 1: Display............................................................................................................................2
Ilustration 2: Connection......................................................................................................................4
Ilustration 3: Cabling............................................................................................................................7

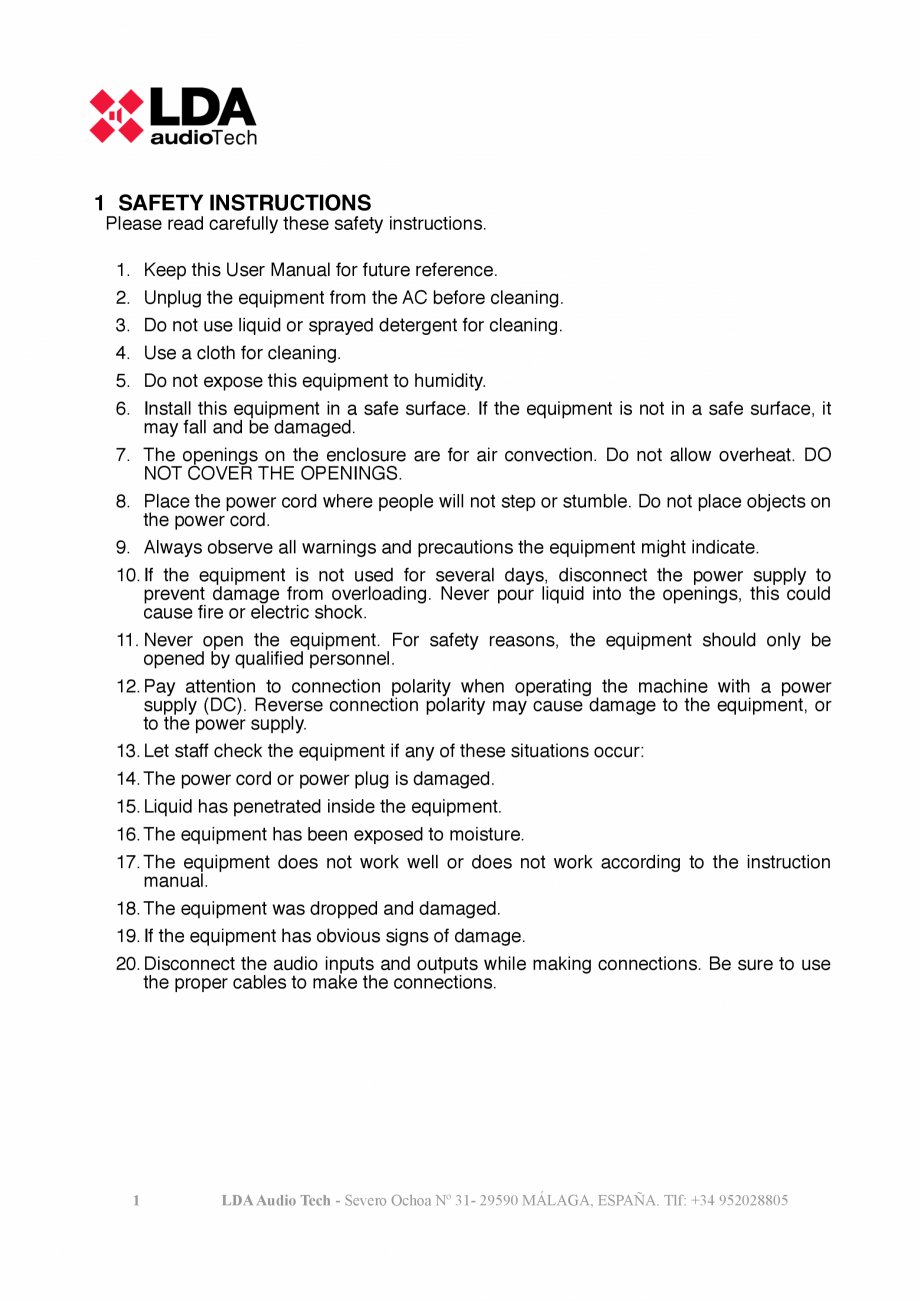

1 SAFETY INSTRUCTIONS
Please read carefully these safety instructions.
1.
2.
3.
4.
5.
6.
Keep this User Manual for future reference.
Unplug the equipment from the AC before cleaning.
Do not use liquid or sprayed detergent for cleaning.
Use a cloth for cleaning.
Do not expose this equipment to humidity.
Install this equipment in a safe surface. If the equipment is not in a safe surface, it
may fall and be damaged.
7. The openings on the enclosure are for air convection. Do not allow overheat. DO
NOT COVER THE OPENINGS.
8. Place the p
ower cord where people will not step or stumble. Do not place objects on
the power cord.
9. Always observe all warnings and precautions the equipment might indicate.
10. If the equipment is not used for several days, disconnect the power supply to
prevent damage from overloading. Never pour liquid into the openings, this could
cause fire or electric shock.
11. Never open the equipment. For safety reasons, the equipment should only be
opened by qualified personnel.
12. Pay attention to connection polarity when operating the machine with a power
supply (DC). Reverse connection polarity may cause damage to the equipment, or
to the power supply.
13. Let staff check the equipment if any of these situations occur:
14. The power cord or power plug is damaged.
15. Liquid has penetrated inside the equipment.
16. The equipment has been exposed to moisture.
17. The equipment does not work well or does not work according to the instruction
manual.
18. The equipment was dropped and damaged.
19. If
the equipment has obvious signs of damage.
20. Disconnect the audio inputs and outputs while making connections. Be sure to use
the proper cables to make the connections.
1
LDA Audio Tech - Severo Ochoa Nº 31- 29590 MÁLAGA, ESPAÑA. Tlf: +34 952028805
MANUAL DE USUARIO – VCC 64
2 DESCRIPTION
The VCC-64 allows up to 64 programmable channels and volume control (0-9). Usually
installed in local zone and connected via bus to the system, it offers source selection, volume
control and lock function.
FEATURES:
1. Source selection (1-64)
2. Volume setting for the zone (0-9) – 10 steps per change
3. Automatic lock function
4. It shows the identifier of the music source routed to the zone
5. It shows the volume level asigned to the zone
6. Lock activated indicator
7. Connection of devices by bus mode
2.1 FUNCTIONING
The VCC-64 has a 2x8 character alphanumeric display where it shows the information
related to the zone of the PA system that is asigned.
2.1.1 REST MODE
During the rest m
ode, the display will indicate the music source asigned to the zone,
the volumen level (0-9) and the lock indicator.

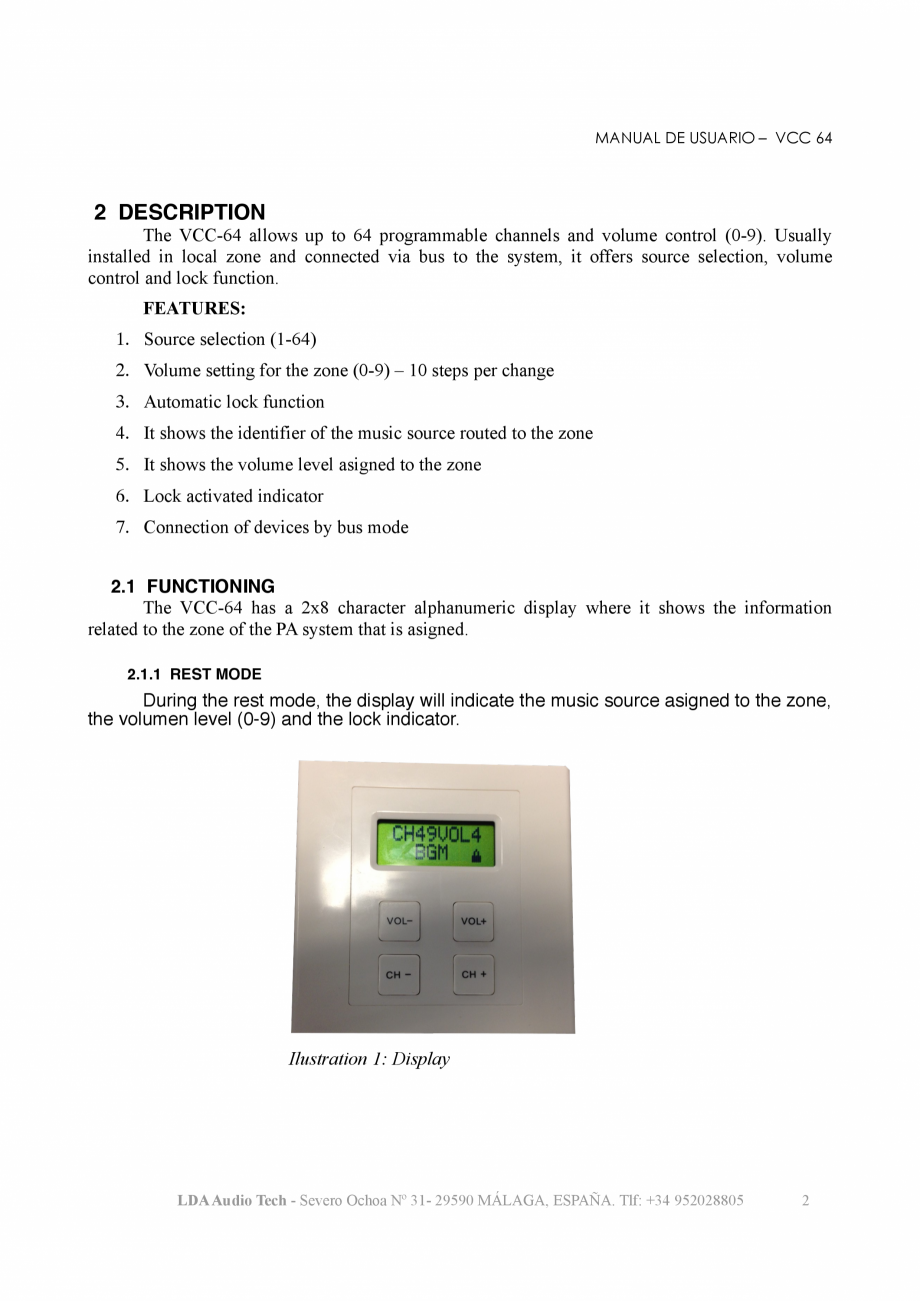

Ilustration 1: Display
LDA Audio Tech - Severo Ochoa Nº 31- 29590 MÁLAGA, ESPAÑA. Tlf: +34 952028805
2

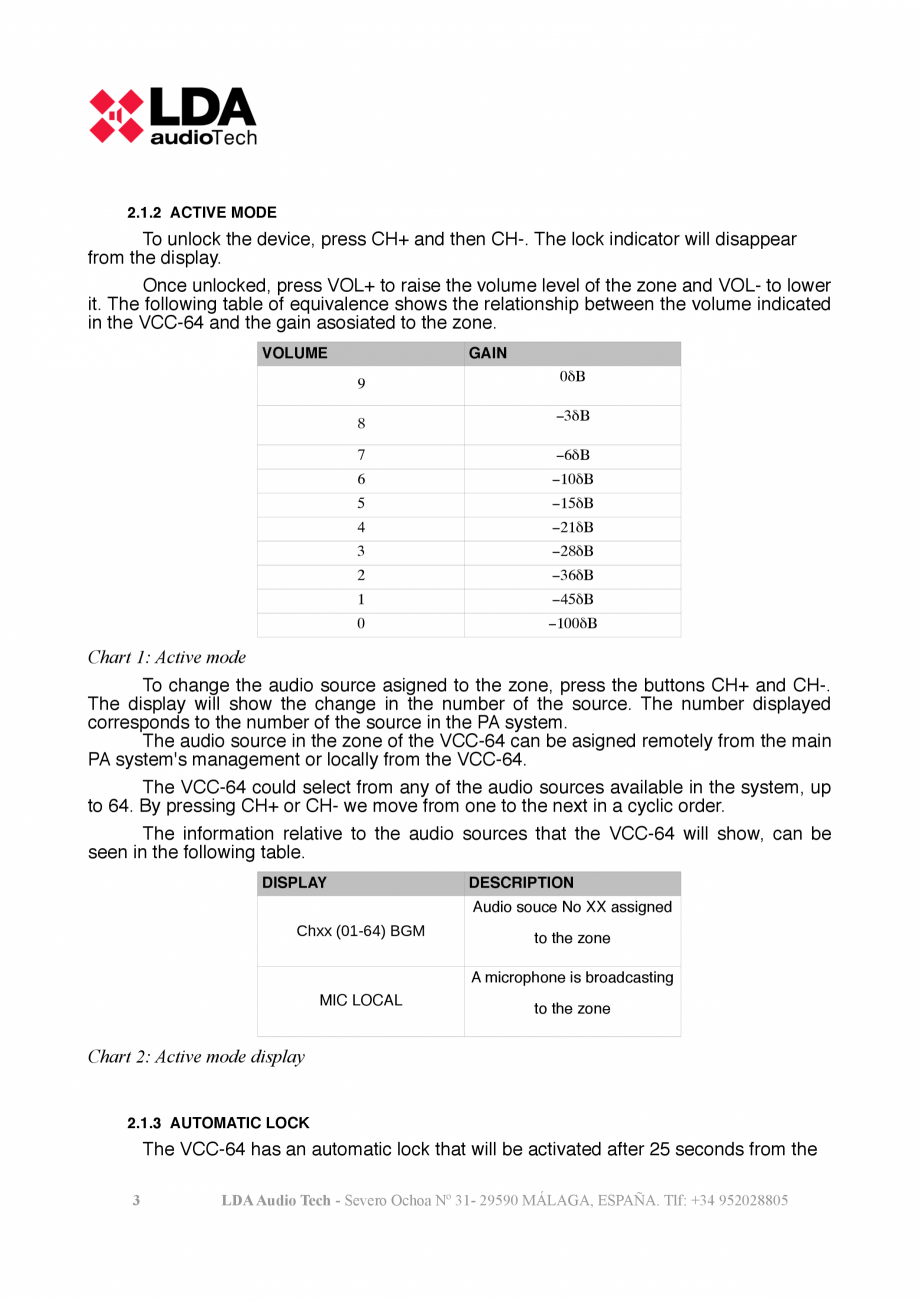

2.1.2 ACTIVE MODE
To unlock the device, press CH+ and then CH-. The lock indicator will disappear
from the display.
Once unlocked, press VOL+ to raise the volume level of the zone and VOL- to lower
it. The following table of equivalence shows the relationship between the volume indicated
in the VCC-64 and the gain asosiated to the zone.
VOLUME
GAIN
3
7
6
6
1
5
15
4
21
3
2
2
36
1
45
1
Chart 1: Active mode
To change the audio source asigned to the zone, press the buttons CH+ and CH-.
The display will show the change in the number of the source. The number displayed
corresponds to the number of the source in the PA system.
The aud
io source in the zone of the VCC-64 can be asigned remotely from the main
PA system's management or locally from the VCC-64.
The VCC-64 could select from any of the audio sources available in the system, up
to 64. By pressing CH+ or CH- we move from one to the next in a cyclic order.
The information relative to the audio sources that the VCC-64 will show, can be
seen in the following table.
DISPLAY
DESCRIPTION
Audio souce No XX assigned
Chxx (01-64) BGM
to the zone
A microphone is broadcasting
MIC LOCAL
to the zone
Chart 2: Active mode display
2.1.3 AUTOMATIC LOCK
The VCC-64 has an automatic lock that will be activated after 25 seconds from the
3
LDA Audio Tech - Severo Ochoa Nº 31- 29590 MÁLAGA, ESPAÑA. Tlf: +34 952028805
MANUAL DE USUARIO – VCC 64
last push of a button. To activate again the VCC-64, press CH+ and then CH-. The lock
indicator will disappear from the display.
2.2 CONNECTION TO THE SYSTEM
2.2.1 DATA BUS and POWER SUPPLY
The VCC-64 has two poles for da
ta connection through RS-485 protocol. It has a
power supply input of 12V DC with a consumption of 1,2W (100mA). The connector is
marked as J500. When the equipment has a power supply, the LED indicator marked as
power will be on.
The maximum number of units connected to the same interface is 8. The maximum
length (considering all sections) is 1000 m.
The connection uses a female Eurobock type connector (included with the
equipment) of 4 pins and 3,81mm pitch. The range of cable section for each pole of this
connector is 0,14 → 1,5mm2 (30 → 14 AWG).

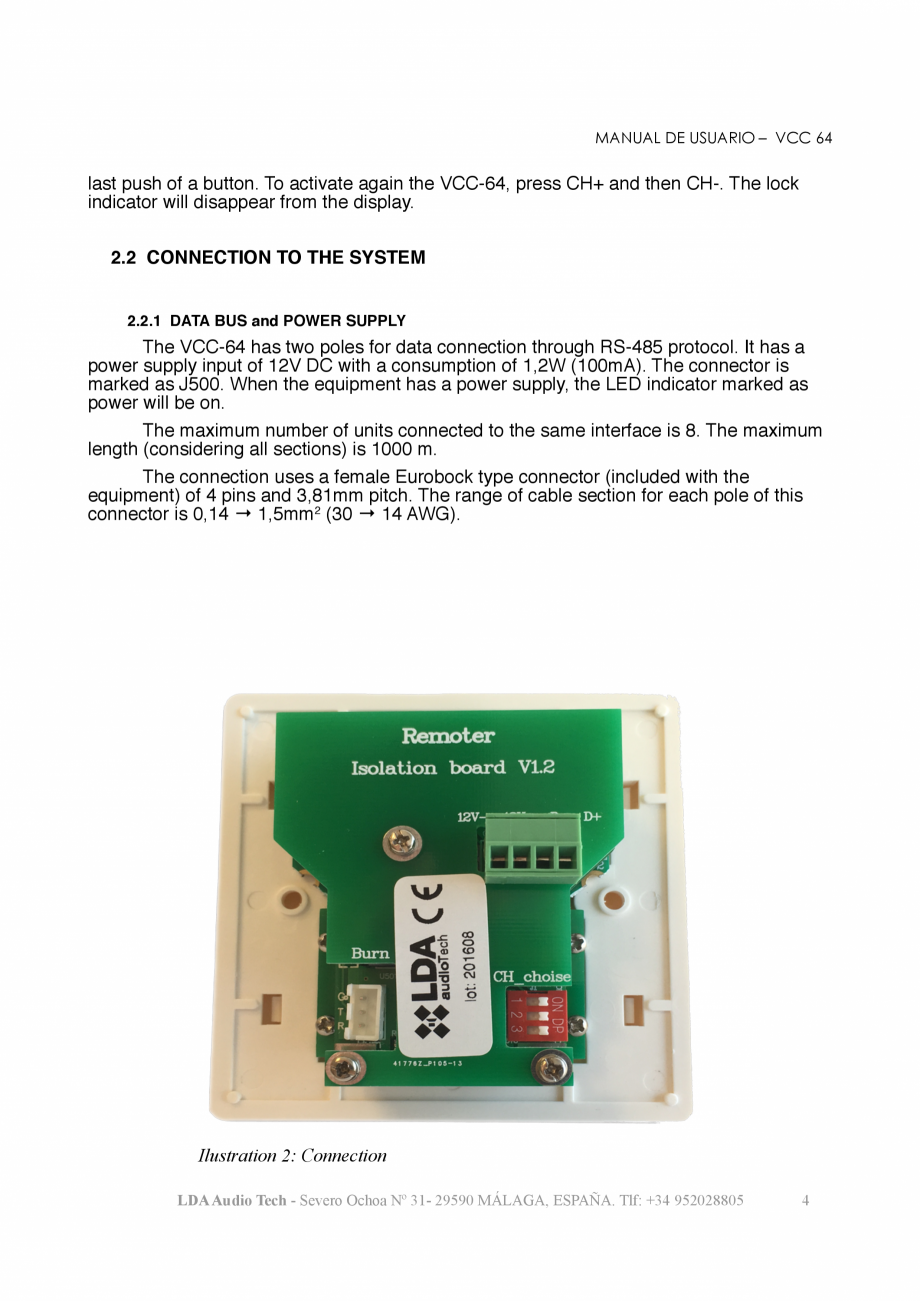

Ilustration 2: Connection
LDA Audio Tech - Severo Ochoa Nº 31- 29590 MÁLAGA, ESPAÑA. Tlf: +34 952028805
4
MANUAL DE USUARIO – VCC 64
ark Description
ype
Signal ctivation
Reference for power supply
G
(negative pole)
Connect it to the negative pole of
Input
the power supply
Connect it to the negative pole of
power supply
12V Continuous
(positive pole)
the power supply. (max 100 mA / 1
Input
2V dc)
DD+
Serial
connection port for
integration RS-485. Terminal DSerial connection port for
integration RS-485. Terminal D+
Port
D-
Standard RS-485/9600/8/SPACE/1
Port
D+
Standard RS-485/9600/8/SPACE/1

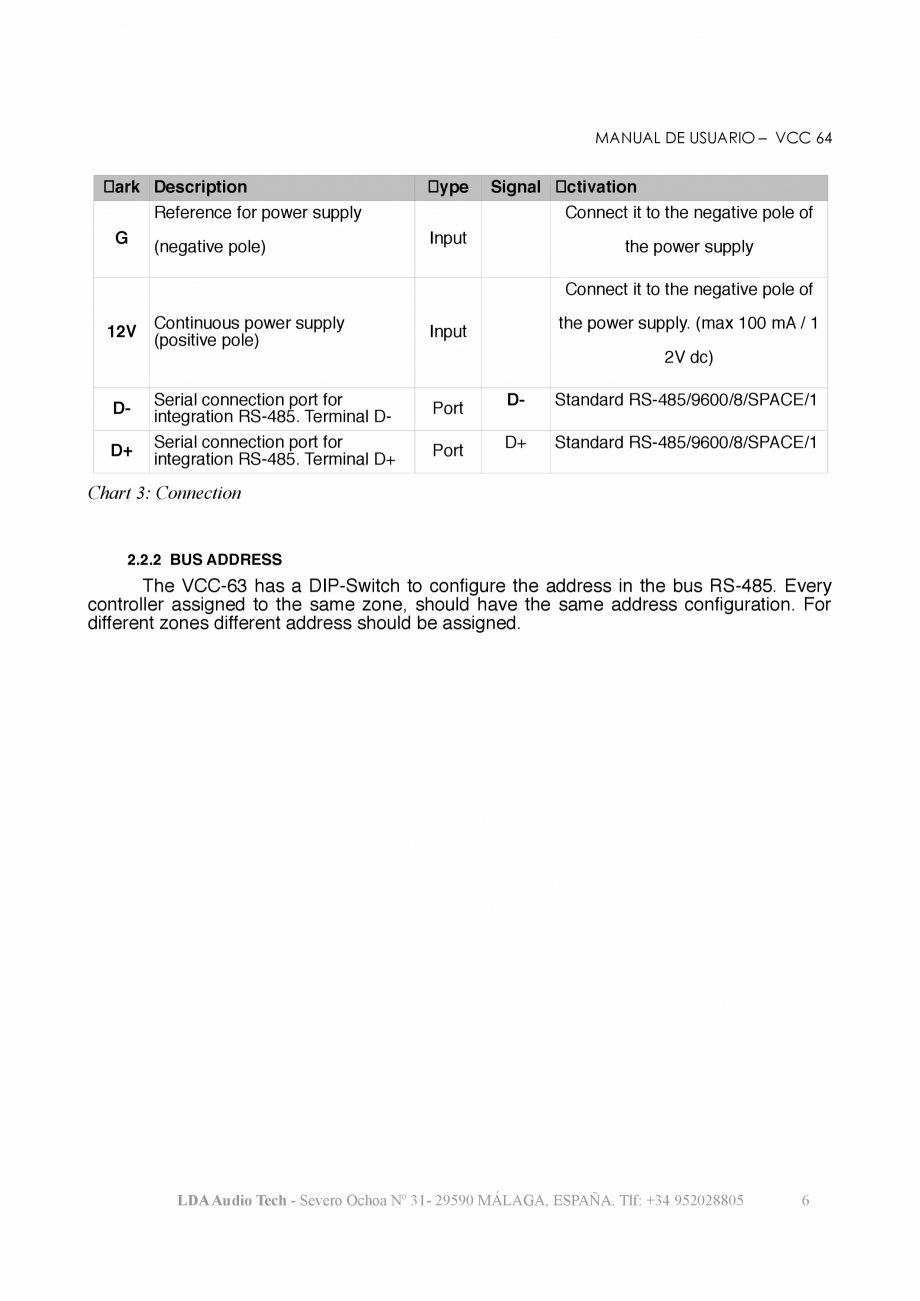

Chart 3: Connection

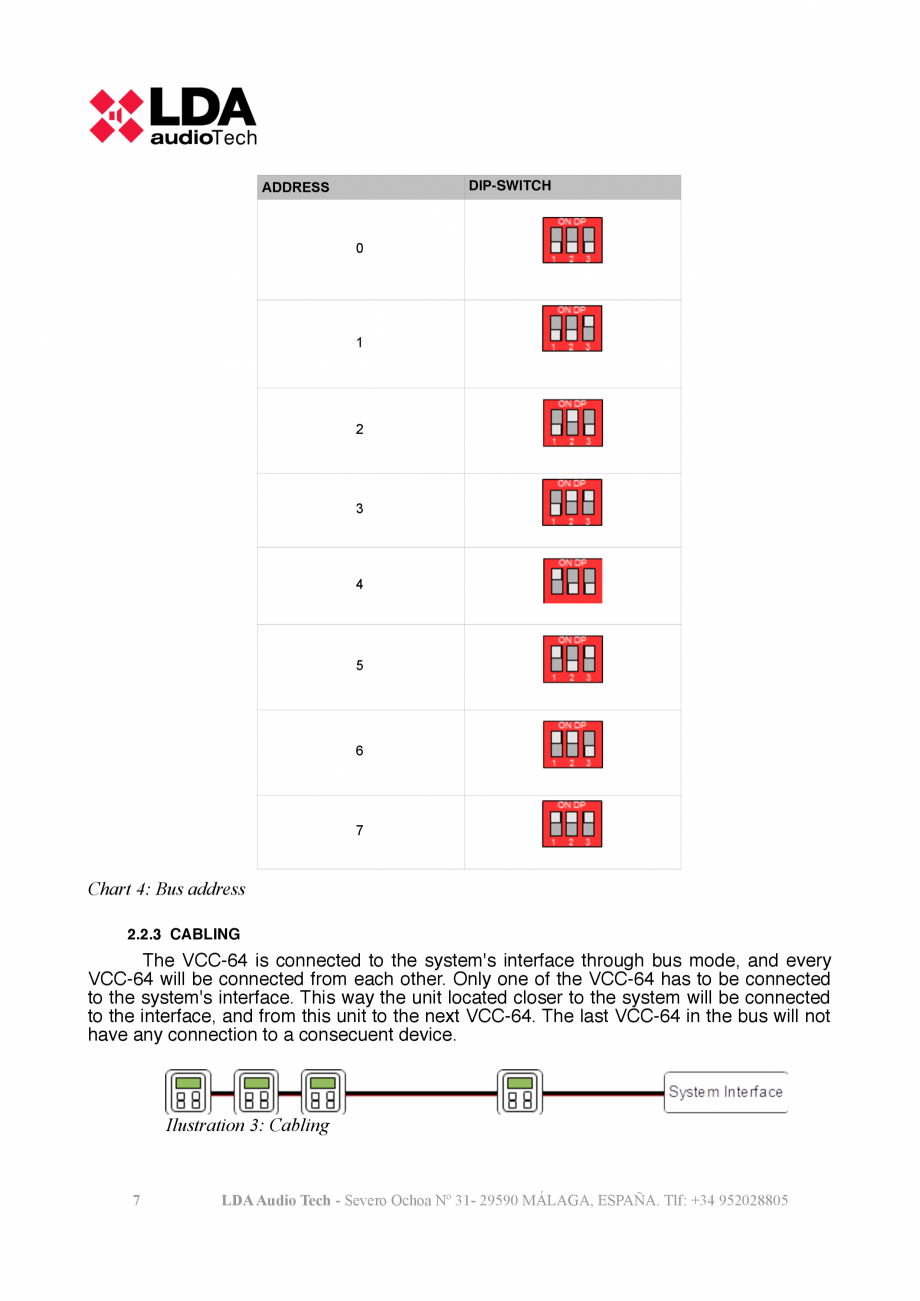

2.2.2 BUS ADDRESS
The VCC-63 has a DIP-Switch to configure the address in the bus RS-485. Every
controller assigned to the same zone, should have the same address configuration. For
different zones different address should be assigned.
LDA Audio Tech - Severo Ochoa Nº 31- 29590 MÁLAGA, ESPAÑA. Tlf: +34 952028805
6
ADDRESS
DIP-SWITCH
0
1
2
3
4
5
6
7
Chart 4: Bus address
2.2.3 CABLING
The VCC-64 is connected to the system's interface through bus mode, and every
VCC-64 will be connected from each other. Only one of the VCC-64 has to be connected
to the system's interface. This way the unit located closer to the system will be connected
to the interface, and from this unit to the next VCC-64. The last VCC-64 in the bus will not
have any connection to a consecu
ent device.
Ilustration 3: Cabling
7
LDA Audio Tech - Severo Ochoa Nº 31- 29590 MÁLAGA, ESPAÑA. Tlf: +34 952028805
MANUAL DE USUARIO – VCC 64

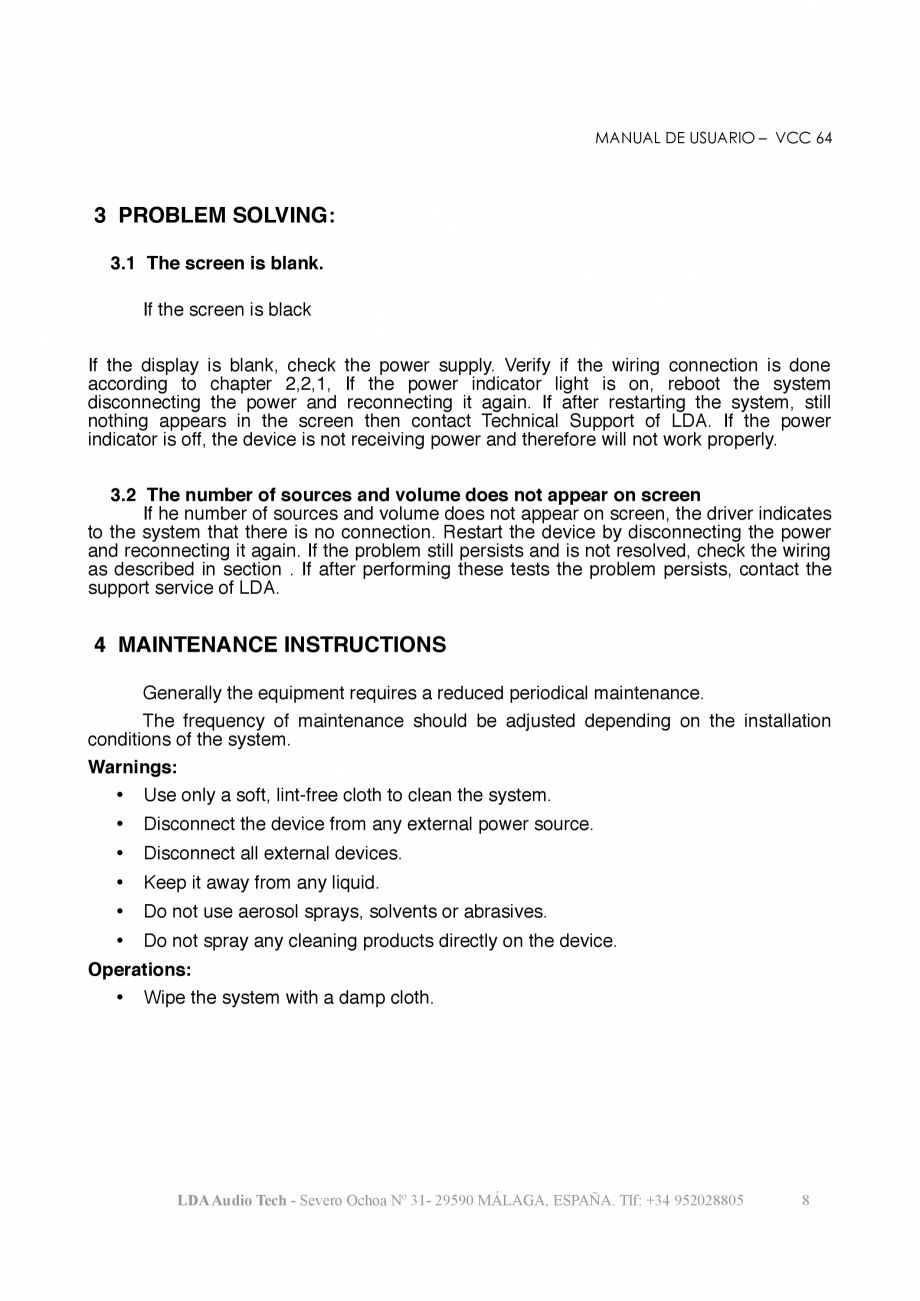

3 PROBLEM SOLVING:
3.1 The screen is blank.
If the screen is black
If the display is blank, check the power supply. Verify if the wiring connection is done
according to chapter 2,2,1, If the power indicator light is on, reboot the system
disconnecting the power and reconnecting it again. If after restarting the system, still
nothing appears in the screen then contact Technical Support of LDA. If the power
indicator is off, the device is not receiving power and therefore will not work properly.
3.2 The number of sources and volume does not appear on screen
If he number of sources and volume does not appear on screen, the driver indicates
to the system that there is no connection. Restart the device by disconnecting the power
and reconnecting it again. If the problem still persists and is not resolved, check the wiring
as described in se
ction . If after performing these tests the problem persists, contact the
support service of LDA.
4 MAINTENANCE INSTRUCTIONS
Generally the equipment requires a reduced periodical maintenance.
The frequency of maintenance should be adjusted depending on the installation
conditions of the system.
Warnings:
Use only a soft, lint-free cloth to clean the system.
Disconnect the device from any external power source.
Disconnect all external devices.
Keep it away from any liquid.
Do not use aerosol sprays, solvents or abrasives.
Do not spray any cleaning products directly on the device.
Operations:
Wipe the system with a damp cloth.
LDA Audio Tech - Severo Ochoa Nº 31- 29590 MÁLAGA, ESPAÑA. Tlf: +34 952028805
8

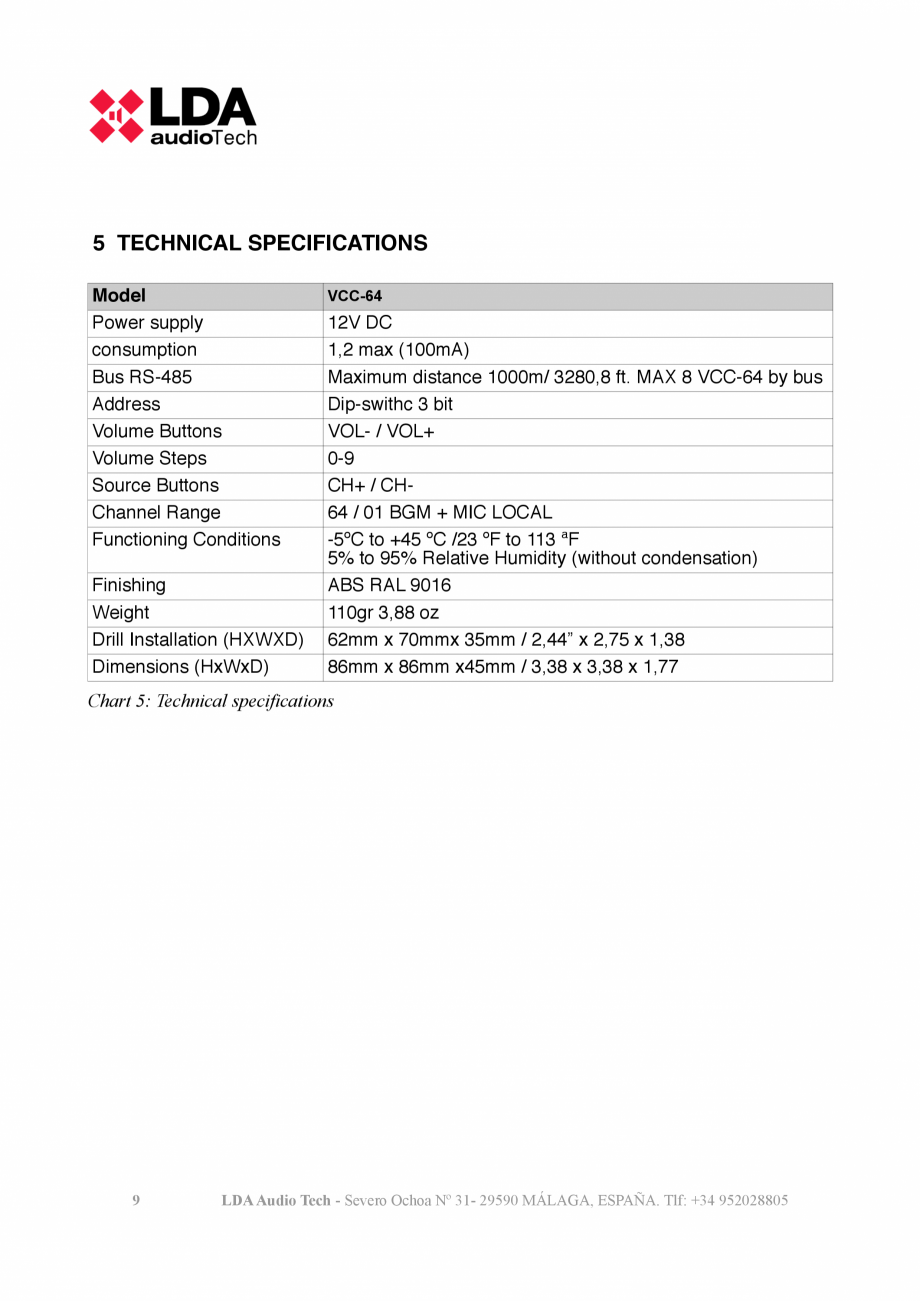

5 TECHNICAL SPECIFICATIONS
Model
Power supply
consumption
Bus RS-485
Address
Volume Buttons
Volume Steps
Source Buttons
Channel Range
Functioning Conditions
Finishing
Weight
Drill Installation (HXWXD)
Dimensions (HxWxD)
VCC-64
12V DC
1,2 m
ax (100mA)
Maximum distance 1000m/ 3280,8 ft. MAX 8 VCC-64 by bus
Dip-swithc 3 bit
VOL- / VOL+
0-9
CH+ / CH64 / 01 BGM + MIC LOCAL
-5ºC to +45 ºC /23 ºF to 113 ªF
5% to 95% Relative Humidity (without condensation)
ABS RAL 9016
110gr 3,88 oz
62mm x 70mmx 35mm / 2,44” x 2,75 x 1,38
86mm x 86mm x45mm / 3,38 x 3,38 x 1,77
Chart 5: Technical specifications
9
LDA Audio Tech - Severo Ochoa Nº 31- 29590 MÁLAGA, ESPAÑA. Tlf: +34 952028805
MANUAL DE USUARIO – VCC 64
LDA Audio Tech - Severo Ochoa Nº 31- 29590 MÁLAGA, ESPAÑA. Tlf: +34 952028805
ax (100mA)
Maximum distance 1000m/ 3280,8 ft. MAX 8 VCC-64 by bus
Dip-swithc 3 bit
VOL- / VOL+
0-9
CH+ / CH64 / 01 BGM + MIC LOCAL
-5ºC to +45 ºC /23 ºF to 113 ªF
5% to 95% Relative Humidity (without condensation)
ABS RAL 9016
110gr 3,88 oz
62mm x 70mmx 35mm / 2,44” x 2,75 x 1,38
86mm x 86mm x45mm / 3,38 x 3,38 x 1,77
Chart 5: Technical specifications
9
LDA Audio Tech - Severo Ochoa Nº 31- 29590 MÁLAGA, ESPAÑA. Tlf: +34 952028805
MANUAL DE USUARIO – VCC 64
LDA Audio Tech - Severo Ochoa Nº 31- 29590 MÁLAGA, ESPAÑA. Tlf: +34 952028805
