EDGEDOCK SERIES The flexible solution for small height differences DOCK LEVELLERS SUPERIOR SOLUTIONS FOR LOADING AND UNLOADING SUPERIOR SOLUTIONS Stertil Dock Products provides customised technically advanced loading bay dock equipment solutions internationally and the best possible service from skilled local partners. These superior solutions are conceived, developed and implemented by a committed team of product developers with years of experience in the loading dock equipment industry as well as in-house production. Stertil Dock Products is a leading international quality supplier of loading bay dock equipment. THE FLEXIBLE SAFE SOLUTION FOR SMALL HEIGHT DIFFERENCES Level small height differences easily Benefits The EDGEDOCK levellers series is the flexible solution for situations • Ideal for situations with minimal height differences where small height differences between the vehicle and loading between the warehouse and vehicle floor floor apply. Available in a hyd

Pagina 1-Mini-rampa hidraulica STERTIL EDGEDOCK Catalog, brosura Romana EDGEDOCK SERIES
The flexible solution...

Pagina 2 - Mini-rampa hidraulica STERTIL EDGEDOCK Catalog, brosura Romana raulically operated...

raulically operated (ED/HA) or manually • Dock bumper integration with the frame of the leveller operated (LA). EDGEDOCK Levellers offer the same high level in terms • Suitable for internal transport equipment with of operation and safety as other Stertil Dock Levellers. low floor clearance • Robust open lip hinge with a life time guarantee Options (LA/HA models) • A variety of bumpers available • Increased safety with anti-slip surface • Weather resistant galvanised model • Compact design with minimal maintenance • Standard in RAL 9011 (black), with other • Easy installation to the loading bay customised colours available • Tapered lip for easy positioning of the leveller in a non-symmetrical positioned vehicle • Various models hydraulic & manual operated • Dynamic capacity 6 tons HYDRAULICALLY OPERATED EDGEDOCK ED/HA-SERIES EDGEDOCK ED-Series EDGEDOCK hydraulically operated The hydraulically operated models offer one push-button operat

Pagina 2-Mini-rampa hidraulica STERTIL EDGEDOCK Catalog, brosura Romana raulically operated (ED/HA) or...

Pagina 3 - Mini-rampa hidraulica STERTIL EDGEDOCK Catalog, brosura Romana ion. Maximum safety
and...

ion. Maximum safety and security with 500 mm safety distance between the docked vehicle and EDGEDOCK. Platform parks in an up-right position for some models. The HA models are equipped with a swing lip and open lip hinge which has the advantage of dirt and debris free and have a dynamic capacity of 6 tons. These models can be installed in a pit if required. High quality reliable hydraulic cylinders A working range below dock Automatic lock in up-right position Lockable main switch with one-push button operation Weather resistant galvanised model Compact design and minimal maintenance Standard rubber bumpers or optional PE bumpers EDGEDOCK HA-Series Technical Specifications MODEL TOTAL WIDTH PLATFORM WIDTH TOTAL LENGTH (A)* (B)* (C)* LIP RANGE BEYOND BUMPERS (D)* BUMPER WORKING RANGE PROJECTION ABOVE DOCK WORKING RANGE BELOW DOCK (E)* (H)* HP (F)* / LP (G)* ED 1830 HP/LP 2290 mm 1830 mm 890 mm 258 mm 673 mm 70 mm / 15 mm 200 mm ED 2000 HP/LP 2460 mm 2000

Pagina 3-Mini-rampa hidraulica STERTIL EDGEDOCK Catalog, brosura Romana ion. Maximum safety
and security with...

Pagina 4 - Mini-rampa hidraulica STERTIL EDGEDOCK Catalog, brosura Romana mm

890 mm

258 mm

673...

mm 890 mm 258 mm 673 mm 70 mm / 15 mm 200 mm ED 2110 HP/LP 2570 mm 2110 mm 890 mm 258 mm 673 mm 70 mm / 15 mm 200 mm HA 1830 HP/LP 2290 mm 1830 mm 700 mm 245 mm 455 mm** 100 mm / 50 mm 100 mm / 80 mm HA 2000 HP/LP 2460 mm 2000 mm 700 mm 245 mm 455 mm** 100 mm / 50 mm 100 mm / 80 mm HA 2110 HP/LP 2570 mm 2110 mm 700 mm 245 mm 455 mm** 100 mm / 50 mm 100 mm / 80 mm LP = Low Profile, HP = High Profile. The HP is suitable for internal transport equipment with high ground clearance whereas the LP is more suitable for pallet trucks with limited clearance underneath the forks. *Technical Diagrams on back cover. Total width based on 220 mm Bumper Console. **Standard with 100 mm Rubber Bumper projection. E* with 150 mm Rubber Bumper projection = 505 mm. E* with 140 mm PE Bumper projection = 495 mm. MANUALLY OPERATED EDGEDOCK LA-SERIES LA-Series manually operated Modularity The manually EDGEDOCK LA-Series is easy to operate by The LA Leveller (from t

Pagina 4-Mini-rampa hidraulica STERTIL EDGEDOCK Catalog, brosura Romana mm

890 mm

258 mm

673 mm

70 mm / ...

Pagina 5 - Mini-rampa hidraulica STERTIL EDGEDOCK Catalog, brosura Romana he model February 2020)...

he model February 2020) has been means of a lever which is supplied with the leveller. The open designed so that it can easily be converted from a manually to lip hinge makes it possible to smoothly position the leveller a hydraulic operated leveller. This allows flexibility to choose a on the vehicle floor. After loading and unloading the vehicle hydraulic conversion after installation. This can be done using can drive away and the leveller automatically returns to idle the LA to HA Conversion kit. position, also possible manually. 1) osition the lever into P the leveller platform. 2) Move the lever backwards and down to the floor until the platform reaches its highest position. 3) Let the lever come up and the lip will automatically extend to the positioned vehicle. Easy operation manually Increased safety with anti-slip surface Debris and dirt-free open lip hinge Technical Specifications MODEL TOTAL WIDTH PLATFORM WIDTH TOTAL LENGTH (A)* (B)* (C)* LIP RA

Pagina 5-Mini-rampa hidraulica STERTIL EDGEDOCK Catalog, brosura Romana he model February 2020) has been
...

Pagina 6 - Mini-rampa hidraulica STERTIL EDGEDOCK Catalog, brosura Romana NGE
BEYOND
BUMPERS
(D)*
...

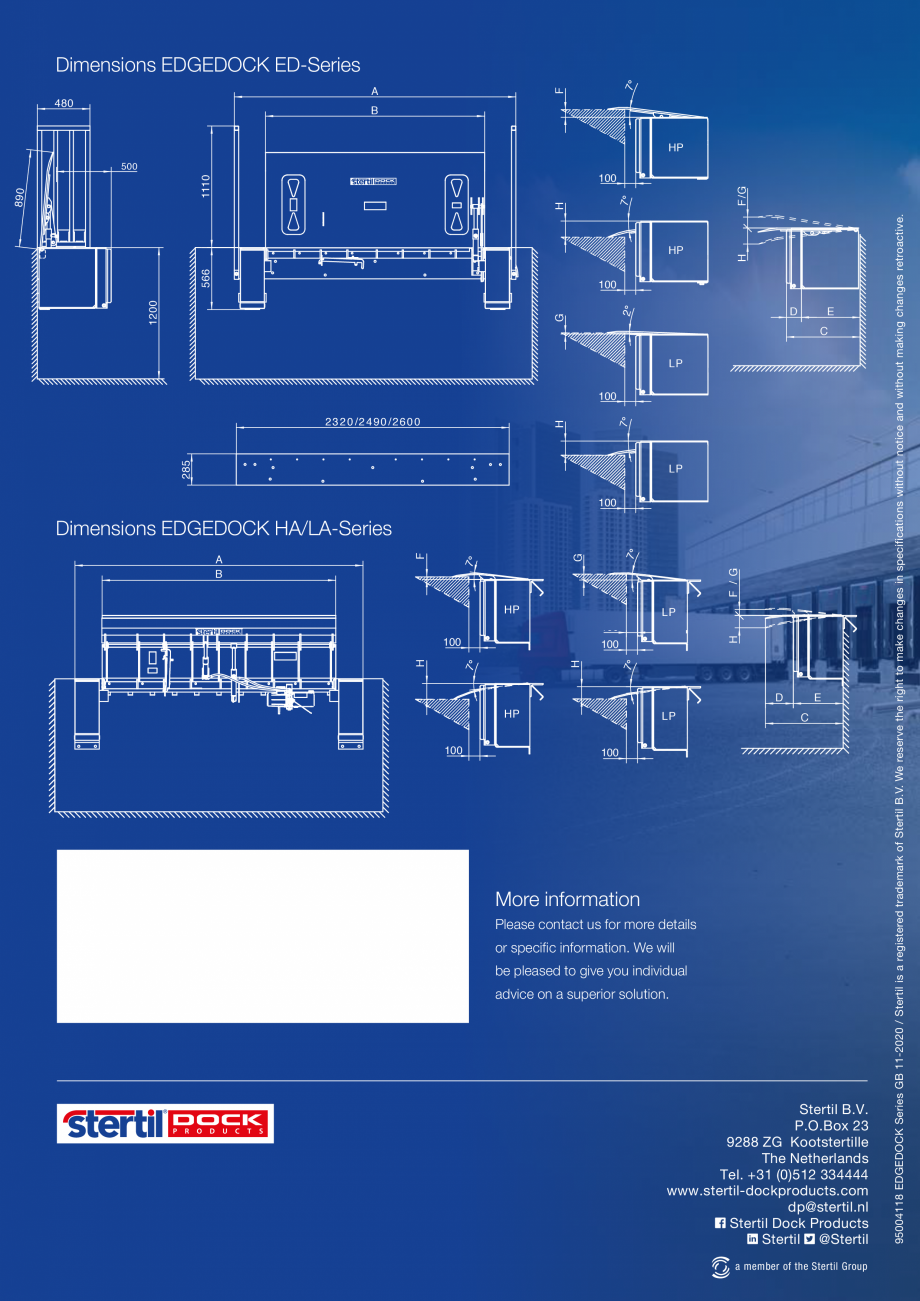

NGE BEYOND BUMPERS (D)* BUMPER PROJECTION** WORKING RANGE ABOVE DOCK WORKING RANGE BELOW DOCK (E)* HP (F)* / LP (G)* (H)* LA 1830 HP/LP 2290 mm 1830 mm 700 mm 245 mm 455 mm 100 mm / 50 mm 100 mm / 80 mm LA 2000 HP/LP 2460 mm 2000 mm 700 mm 245 mm 455 mm 100 mm / 50 mm 100 mm / 80 mm LA 2110 HP/LP 2570 mm 2110 mm 700 mm 245 mm 455 mm 100 mm / 50 mm 100 mm / 80 mm LP = Low Profile, HP = High Profile. The HP is suitable for internal transport equipment with high ground clearance whereas the LP is more suitable for pallet trucks with limited clearance underneath the forks. *Technical Diagrams on back cover. Total width based on 220 mm Bumper Console. **Standard with 100 mm Rubber Bumper projection. E* with 150 mm Rubber Bumper projection = 505 mm. E* with 140 mm PE Bumper projection = 495 mm. F A 480 7 Dimensions EDGEDOCK ED-Series B HP F /G 7 H 890 1110 100 566 H HP 72 D E C 7 G F F 1200 100 LP HP 7 100 7 77 H H 7 G G 7 7 7
