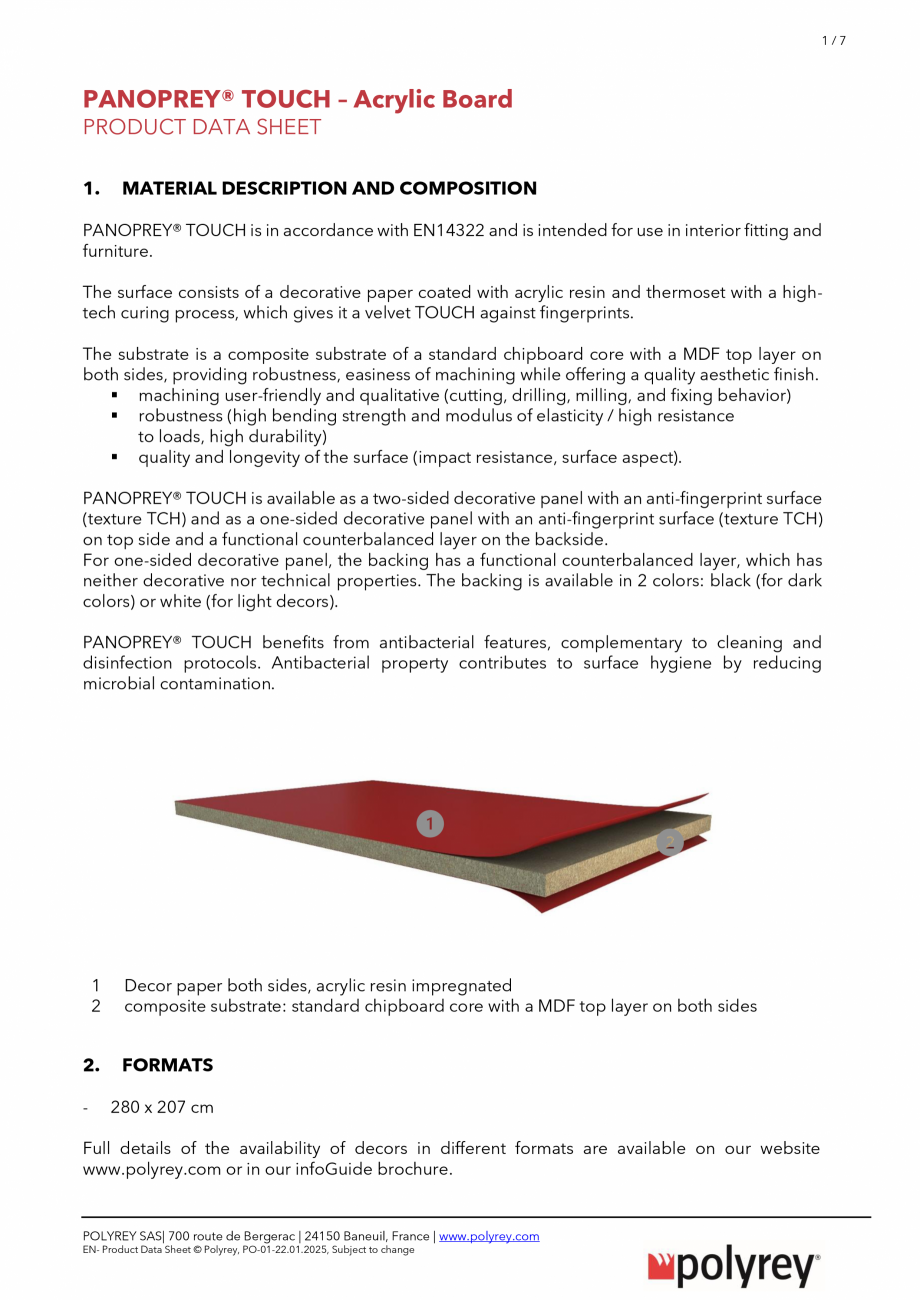

1/7 PANOPREY® TOUCH – Acrylic Board PRODUCT DATA SHEET 1. MATERIAL DESCRIPTION AND COMPOSITION PANOPREY® TOUCH is in accordance with EN14322 and is intended for use in interior fitting and furniture. The surface consists of a decorative paper coated with acrylic resin and thermoset with a hightech curing process, which gives it a velvet TOUCH against fingerprints. The substrate is a composite substrate of a standard chipboard core with a MDF top layer on both sides, providing robustness, easiness of machining while offering a quality aesthetic finish. ▪ machining user-friendly and qualitative (cutting, drilling, milling, and fixing behavior) ▪ robustness (high bending strength and modulus of elasticity / high resistance to loads, high durability) ▪ quality and longevity of the surface (impact resistance, surface aspect). PANOPREY® TOUCH is available as a two-sided decorative panel with an anti-fingerprint surface (texture TCH) and as a one-sided decorative panel with an a

Pagina 1-Panou decorativ POLYREY PANOPREY Fisa tehnica Engleza, Franceza 1/7

PANOPREY® TOUCH – Acrylic...

Pagina 2 - Panou decorativ POLYREY PANOPREY Fisa tehnica Engleza, Franceza nti-fingerprint surface...

nti-fingerprint surface (texture TCH) on top side and a functional counterbalanced layer on the backside. For one-sided decorative panel, the backing has a functional counterbalanced layer, which has neither decorative nor technical properties. The backing is available in 2 colors: black (for dark colors) or white (for light decors). PANOPREY® TOUCH benefits from antibacterial features, complementary to cleaning and disinfection protocols. Antibacterial property contributes to surface hygiene by reducing microbial contamination. 1 2 2. - Decor paper both sides, acrylic resin impregnated composite substrate: standard chipboard core with a MDF top layer on both sides FORMATS 280 x 207 cm Full details of the availability of decors in different formats are available on our website www.polyrey.com or in our infoGuide brochure. POLYREY SAS| 700 route de Bergerac | 24150 Baneuil, France | www.polyrey.com EN- Product Data Sheet © Polyrey, PO-01-22.01.2025, Subject to change 2/7 3.

Pagina 2-Panou decorativ POLYREY PANOPREY Fisa tehnica Engleza, Franceza nti-fingerprint surface (texture...

Pagina 3 - Panou decorativ POLYREY PANOPREY Fisa tehnica Engleza, Franceza AREAS OF APPLICATION
...

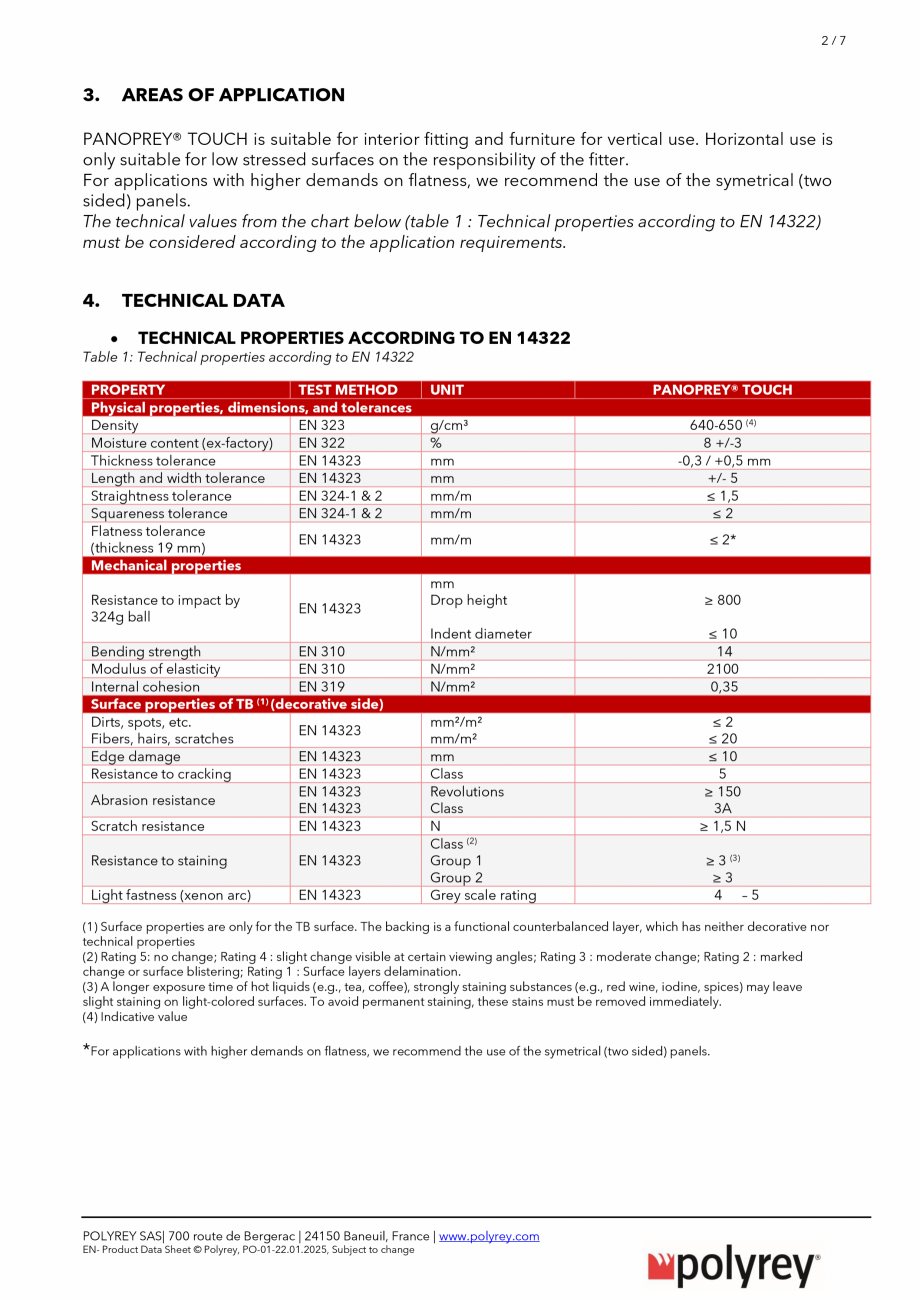

AREAS OF APPLICATION PANOPREY® TOUCH is suitable for interior fitting and furniture for vertical use. Horizontal use is only suitable for low stressed surfaces on the responsibility of the fitter. For applications with higher demands on flatness, we recommend the use of the symetrical (two sided) panels. The technical values from the chart below (table 1 : Technical properties according to EN 14322) must be considered according to the application requirements. 4. TECHNICAL DATA • TECHNICAL PROPERTIES ACCORDING TO EN 14322 Table 1: Technical properties according to EN 14322 PROPERTY TEST METHOD Physical properties, dimensions, and tolerances Density EN 323 Moisture content (ex-factory) EN 322 Thickness tolerance EN 14323 Length and width tolerance EN 14323 Straightness tolerance EN 324-1 & 2 Squareness tolerance EN 324-1 & 2 Flatness tolerance EN 14323 (thickness 19 mm) Mechanical properties Resistance to impact by 324g ball EN 14323 Bending strength EN 310 Modulus of elastici

Pagina 3-Panou decorativ POLYREY PANOPREY Fisa tehnica Engleza, Franceza AREAS OF APPLICATION

PANOPREY®...

Pagina 4 - Panou decorativ POLYREY PANOPREY Fisa tehnica Engleza, Franceza ty
EN 310
Internal...

ty EN 310 Internal cohesion EN 319 Surface properties of TB (1) (decorative side) Dirts, spots, etc. EN 14323 Fibers, hairs, scratches Edge damage EN 14323 Resistance to cracking EN 14323 EN 14323 Abrasion resistance EN 14323 Scratch resistance EN 14323 Resistance to staining EN 14323 Light fastness (xenon arc) EN 14323 UNIT PANOPREY® TOUCH g/cm³ % mm mm mm/m mm/m 640-650 (4) 8 +/-3 -0,3 / +0,5 mm +/- 5 ≤ 1,5 ≤2 mm/m ≤ 2* mm Drop height ≥ 800 Indent diameter N/mm² N/mm² N/mm² ≤ 10 14 2100 0,35 mm²/m² mm/m² mm Class Revolutions Class N Class (2) Group 1 Group 2 Grey scale rating ≤2 ≤ 20 ≤ 10 5 ≥ 150 3A ≥ 1,5 N ≥ 3 (3) ≥3 4 –5 (1) Surface properties are only for the TB surface. The backing is a functional counterbalanced layer, which has neither decorative nor technical properties (2) Rating 5: no change; Rating 4 : slight change visible at certain viewing angles; Rating 3 : moderate change; Rating 2 : marked change or surface blistering;

Pagina 4-Panou decorativ POLYREY PANOPREY Fisa tehnica Engleza, Franceza ty
EN 310
Internal cohesion
EN 319...

Pagina 5 - Panou decorativ POLYREY PANOPREY Fisa tehnica Engleza, Franceza Rating 1 : Surface...

Rating 1 : Surface layers delamination. (3) A longer exposure time of hot liquids (e.g., tea, coffee), strongly staining substances (e.g., red wine, iodine, spices) may leave slight staining on light-colored surfaces. To avoid permanent staining, these stains must be removed immediately. (4) Indicative value *For applications with higher demands on flatness, we recommend the use of the symetrical (two sided) panels. POLYREY SAS| 700 route de Bergerac | 24150 Baneuil, France | www.polyrey.com EN- Product Data Sheet © Polyrey, PO-01-22.01.2025, Subject to change 3/7 5. CERTIFICATIONS AND TESTS Table 2: Certifications and test reports PROPERTY Fire behaviour (5) Building product Calorific value Formaldehyde Emission Emission VOC (Volatile organic compounds) Environmental product declaration (EPD/FDES) (7) Antibacterial effect (8) TEST METHOD UNIT EN 13501-1 Euroclass EN ISO 1716 EN 16516 MJ/kg Classification ISO 16000-9 Emission class according to French regulation (Décr

Pagina 5-Panou decorativ POLYREY PANOPREY Fisa tehnica Engleza, Franceza Rating 1 : Surface layers...

Pagina 6 - Panou decorativ POLYREY PANOPREY Fisa tehnica Engleza, Franceza et no
2011-321)

ISO...

et no 2011-321) ISO 14025 EN 15804 JIS Z 2801 ISO 22196 PEFC (9) FSC® (9) PANOPREY® TOUCH D-s2, d0 (6) 16 E1 ≤ 0.1ppm (≤ 124 µg/m3) A (scenario wall) Available Yes Reduction in % 99.9 Certification Certification Upon request Upon request (5) Consider details (e.g., Classification report, Official Journal of the European Union); e.g., validity in combination with substrate, adhesive system (6) Expected building material class (no classification report available) (7) Environmental product declaration on INIES and IBU data basis (8) Complies with BPR Biocidal Regulation EU Nr. 58 2012 (9) Please specify with your order 6. TRANSPORT AND STORAGE PANOPREY® TOUCH must be transported and stored flat, horizontal, with full-surface contact and on a sufficiently large pallet. PANOPREY® TOUCH panels are not dangerous goods as defined by transport regulations, therefore labeling is not required. Panels must be stored in a closed storage area under normal indoor conditions (10�

Pagina 6-Panou decorativ POLYREY PANOPREY Fisa tehnica Engleza, Franceza et no
2011-321)

ISO 14025
EN 15804
...

Pagina 7 - Panou decorativ POLYREY PANOPREY Fisa tehnica Engleza, Franceza ��30 °C and 40–65 %...

��30 °C and 40–65 % relative humidity), and protected against moisture and mechanical damage, with suitable protection. The protection placed on top of the pallet must be maintained whenever panels are removed from the stack. If the panels are stored for a long period of time, ensure flat storage, and place a panel on top to weigh on the panel, otherwise the panels may warp or deform. On wooden pallets, use a protection panel on bottom (chipboard or MDF/HDF board of at least 12mm above/below). Isolated panels and top / bottom panel on the pallet are more sensitive to environmental influences. PANOPREY® TOUCH are filmed on both sides. This does not dispense the customer in any way from a prior incoming goods inspection. The side with the texture TOUCH has a Wilsonart protective film (W) and for the one-sided version the backing has a neutral film. The protective film must be maintained on both sides during machining operations until installation to avoid any risk of scratches and di
