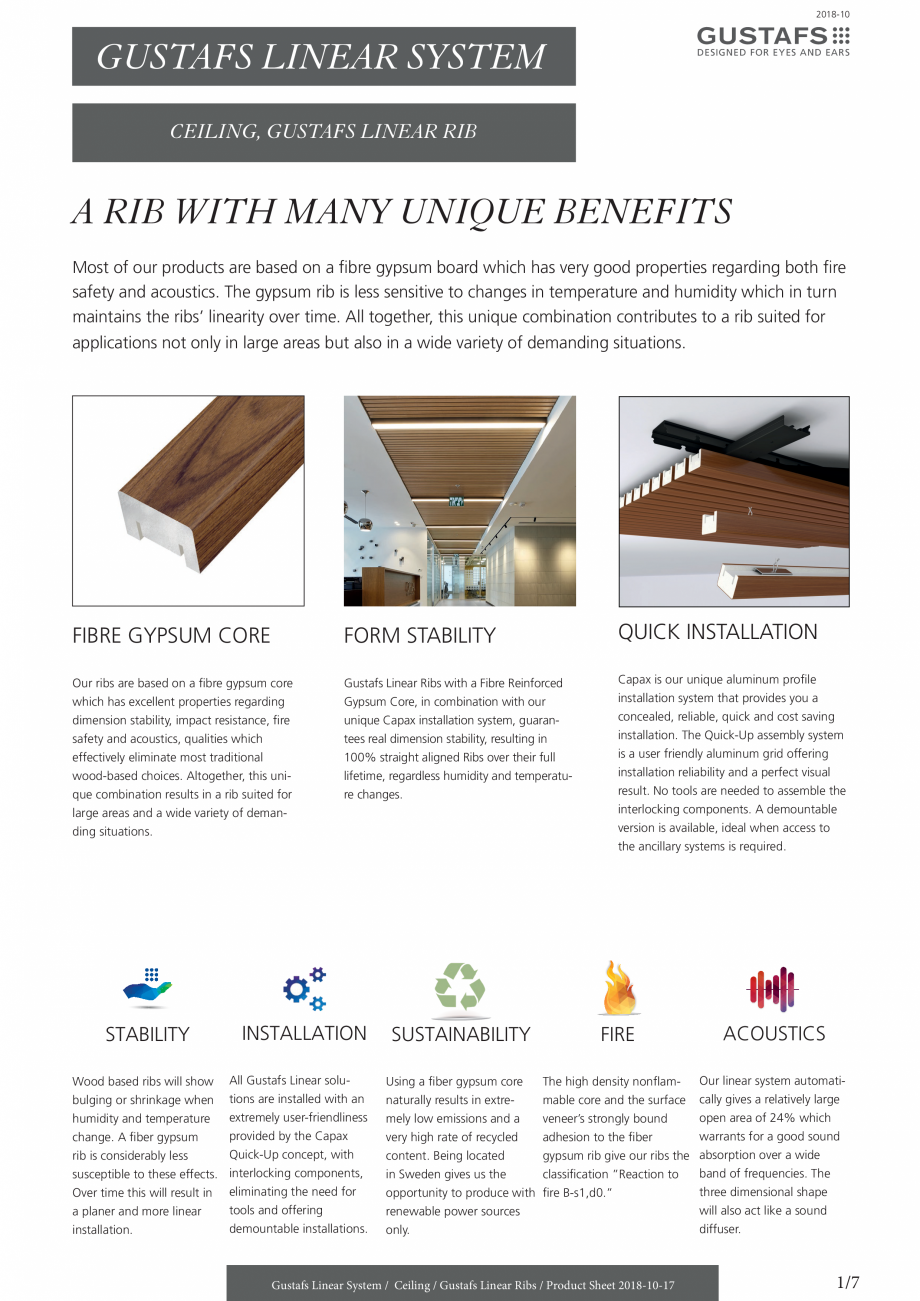

2018-10 GUSTAFS LINEAR SYSTEM DESIGNED FOR EYES AND EARS CEILING, GUSTAFS LINEAR RIB A RIB WITH MANY UNIQUE BENEFITS Most of our products are based on a fibre gypsum board which has very good properties regarding both fire safety and acoustics. The gypsum rib is less sensitive to changes in temperature and humidity which in turn maintains the ribs’ linearity over time. All together, this unique combination contributes to a rib suited for applications not only in large areas but also in a wide variety of demanding situations. FIBRE GYPSUM CORE FORM STABILITY QUICK INSTALLATION Our ribs are based on a fibre gypsum core which has excellent properties regarding dimension stability, impact resistance, fire safety and acoustics, qualities which effectively eliminate most traditional wood-based choices. Altogether, this unique combination results in a rib suited for large areas and a wide variety of demanding situations. Gustafs Linear Ribs with a Fibre Reinforced Gypsum Core, in c

Pagina 1-Panouri fonoabsorbante pentru plafoane - sistem linear - instructiuni de montaj GUSTAFS Gustafs...

Pagina 2 - Panouri fonoabsorbante pentru plafoane - sistem linear - instructiuni de montaj GUSTAFS ...

ombination with our unique Capax installation system, guarantees real dimension stability, resulting in 100% straight aligned Ribs over their full lifetime, regardless humidity and temperature changes. Capax is our unique aluminum profile installation system that provides you a concealed, reliable, quick and cost saving installation. The Quick-Up assembly system is a user friendly aluminum grid offering installation reliability and a perfect visual result. No tools are needed to assemble the interlocking components. A demountable version is available, ideal when access to the ancillary systems is required. STABILITY Wood based ribs will show bulging or shrinkage when humidity and temperature change. A fiber gypsum rib is considerably less susceptible to these effects. Over time this will result in a planer and more linear installation. INSTALLATION All Gustafs Linear solutions are installed with an extremely user-friendliness provided by the Capax Quick-Up concept, with interlocking

Pagina 2-Panouri fonoabsorbante pentru plafoane - sistem linear - instructiuni de montaj GUSTAFS Gustafs...

Pagina 3 - Panouri fonoabsorbante pentru plafoane - sistem linear - instructiuni de montaj GUSTAFS ...

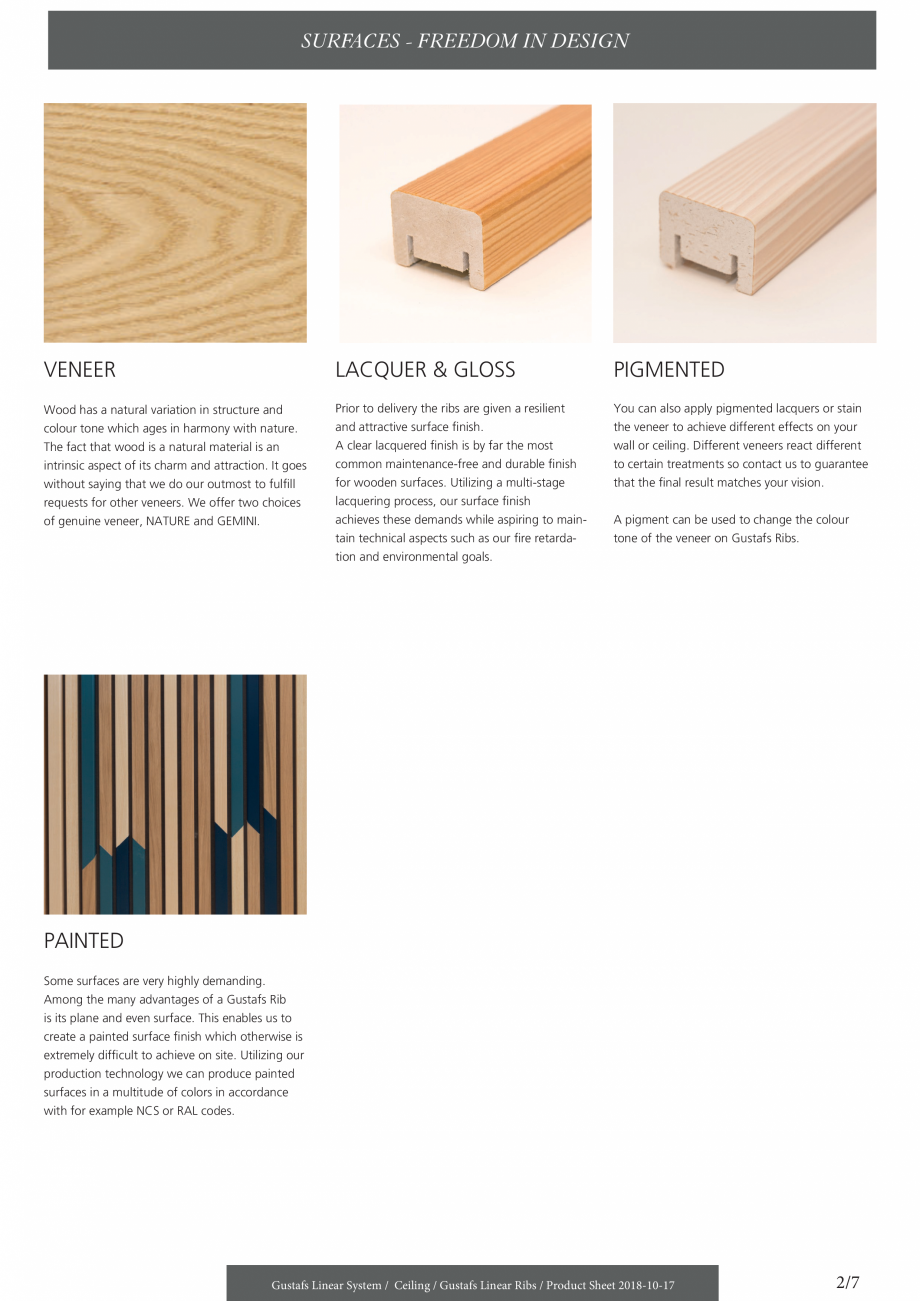

components, eliminating the need for tools and offering demountable installations. SUSTAINABILITY Using a fiber gypsum core naturally results in extremely low emissions and a very high rate of recycled content. Being located in Sweden gives us the opportunity to produce with renewable power sources only. EUROCLASS A2-s1,d0 LEADING ACOUSTICS, DESIGNED FOR EYES & EARS FIRE ACOUSTICS The high density nonflammable core and the surface veneer’s strongly bound adhesion to the fiber gypsum rib give our ribs the classification ”Reaction to fire B-s1,d0.” Our linear system automatically gives a relatively large open area of 24% which warrants for a good sound absorption over a wide band of frequencies. The three dimensional shape will also act like a sound diffuser. Gustafs Linear System / Ceiling / Gustafs Linear Ribs / Product Sheet 2018-10-17 1/7 SURFACES - FREEDOM IN DESIGN VENEER LACQUER & GLOSS PIGMENTED Wood has a natural variation in structure and colour tone which

Pagina 3-Panouri fonoabsorbante pentru plafoane - sistem linear - instructiuni de montaj GUSTAFS Gustafs...

Pagina 4 - Panouri fonoabsorbante pentru plafoane - sistem linear - instructiuni de montaj GUSTAFS ...

ages in harmony with nature. The fact that wood is a natural material is an intrinsic aspect of its charm and attraction. It goes without saying that we do our outmost to fulfill requests for other veneers. We offer two choices of genuine veneer, NATURE and GEMINI. Prior to delivery the ribs are given a resilient and attractive surface finish. A clear lacquered finish is by far the most common maintenance-free and durable finish for wooden surfaces. Utilizing a multi-stage lacquering process, our surface finish achieves these demands while aspiring to maintain technical aspects such as our fire retarda- You can also apply pigmented lacquers or stain the veneer to achieve different effects on your wall or ceiling. Different veneers react different to certain treatments so contact us to guarantee that the final result matches your vision. A pigment can be used to change the colour tone of the veneer on Gustafs Ribs. tion and environmental goals. PAINTED Some surfaces are very hi

Pagina 4-Panouri fonoabsorbante pentru plafoane - sistem linear - instructiuni de montaj GUSTAFS Gustafs...

Pagina 5 - Panouri fonoabsorbante pentru plafoane - sistem linear - instructiuni de montaj GUSTAFS ...

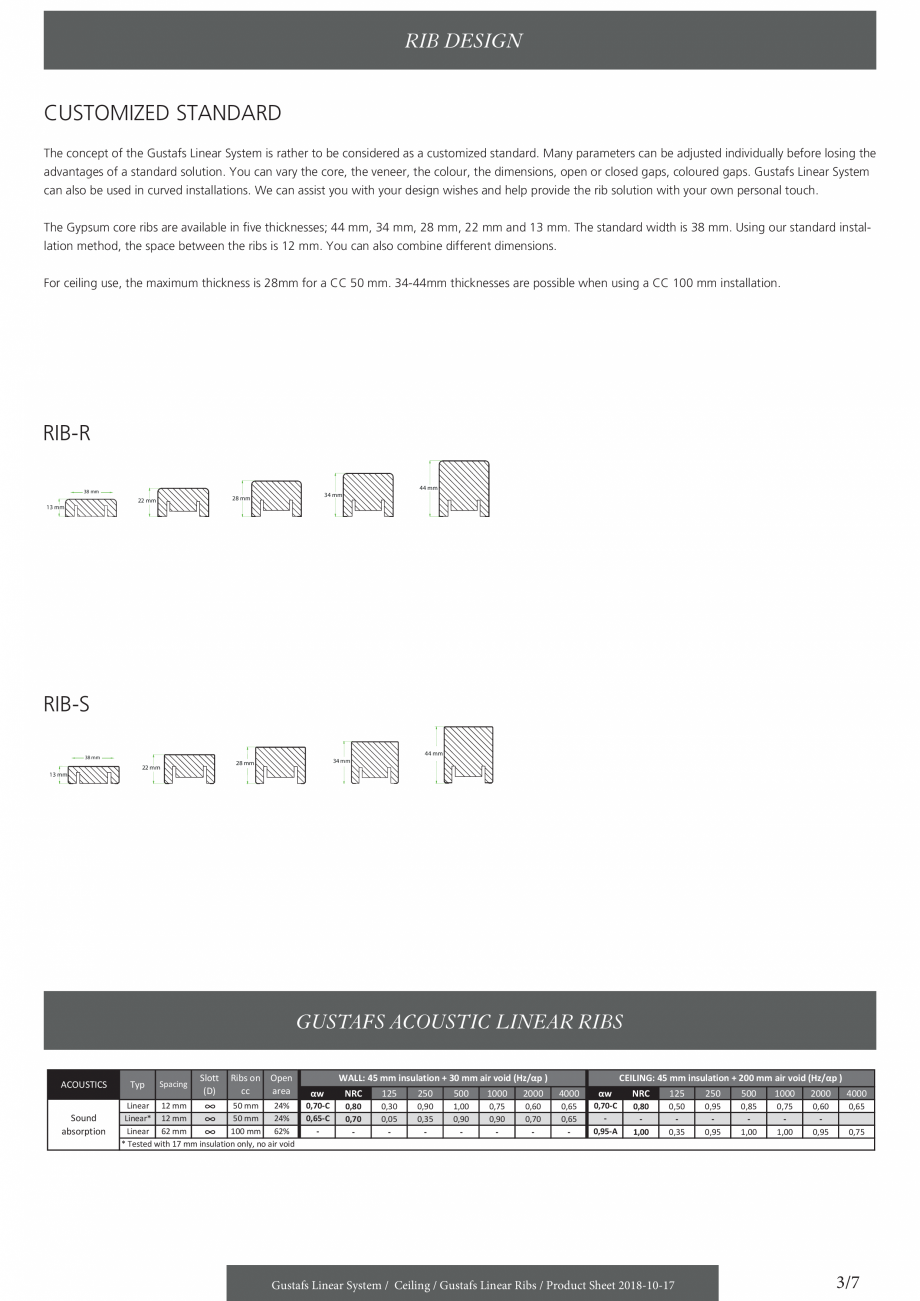

ghly demanding. Among the many advantages of a Gustafs Rib is its plane and even surface. This enables us to create a painted surface finish which otherwise is extremely difficult to achieve on site. Utilizing our production technology we can produce painted surfaces in a multitude of colors in accordance with for example NCS or RAL codes. Gustafs Linear System / Ceiling / Gustafs Linear Ribs / Product Sheet 2018-10-17 2/7 RIB DESIGN CUSTOMIZED STANDARD The concept of the Gustafs Linear System is rather to be considered as a customized standard. Many parameters can be adjusted individually before losing the advantages of a standard solution. You can vary the core, the veneer, the colour, the dimensions, open or closed gaps, coloured gaps. Gustafs Linear System can also be used in curved installations. We can assist you with your design wishes and help provide the rib solution with your own personal touch. The Gypsum core ribs are available in five thicknesses; 44 mm, 34 mm, 28 mm,

Pagina 5-Panouri fonoabsorbante pentru plafoane - sistem linear - instructiuni de montaj GUSTAFS Gustafs...

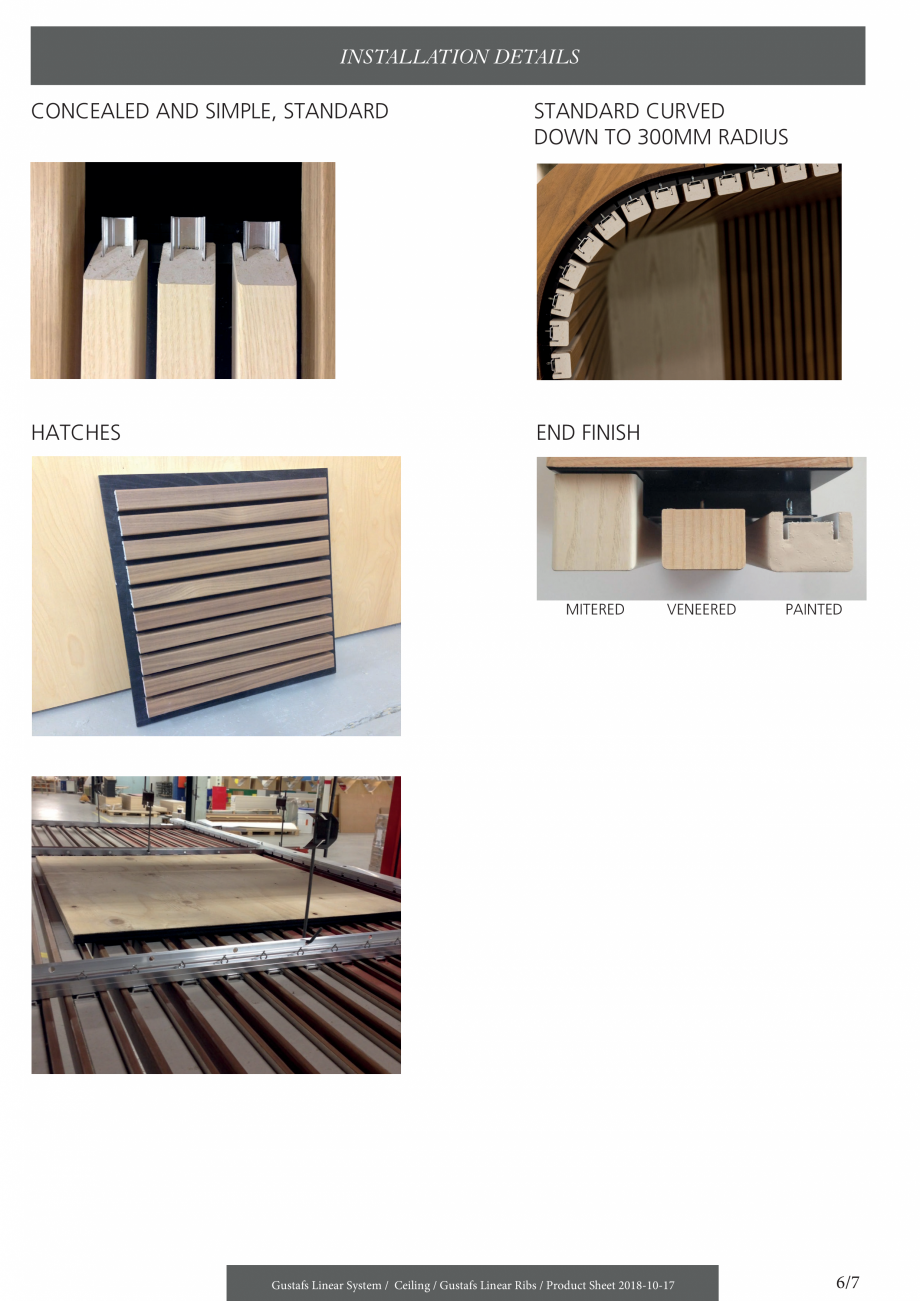

Pagina 6 - Panouri fonoabsorbante pentru plafoane - sistem linear - instructiuni de montaj GUSTAFS ...

22 mm and 13 mm. The standard width is 38 mm. Using our standard installation method, the space between the ribs is 12 mm. You can also combine different dimensions. For ceiling use, the maximum thickness is 28mm for a CC 50 mm. 34-44mm thicknesses are possible when using a CC 100 mm installation. RIB-R 38 mm 44 mm 34 mm 28 mm 22 mm 13 mm RIB-S 44 mm 38 mm 13 mm 34 mm 28 mm 22 mm GUSTAFS ACOUSTIC LINEAR RIBS ACOUSTICS Sound absorption Typ Spacing Slott (D) Ribs on cc Open area Linear 12 mm ∞ 50 mm 24% Linear* 12 mm ∞ 50 mm 24% Linear 62 mm ∞ 100 mm 62% * Tested with 17 mm insulation only, no air void WALL: 45 mm insulation + 30 mm air void (Hz/αp ) αw 0,70-C 0,65-C - CEILING: 45 mm insulation + 200 mm air void (Hz/αp ) NRC 125 250 500 1000 2000 4000 0,80 0,70 - 0,30 0,05 - 0,90 0,35 - 1,00 0,90 - 0,75 0,90 - 0,60 0,70 - 0,65 0,65 - αw 0,70-C 0,95-A NRC 125 250 500 1000 2000 4000 0,80 1,00 0,50 0,35 0,95 0,95 0,85 1,00 0,75 1,0

Pagina 6-Panouri fonoabsorbante pentru plafoane - sistem linear - instructiuni de montaj GUSTAFS Gustafs...

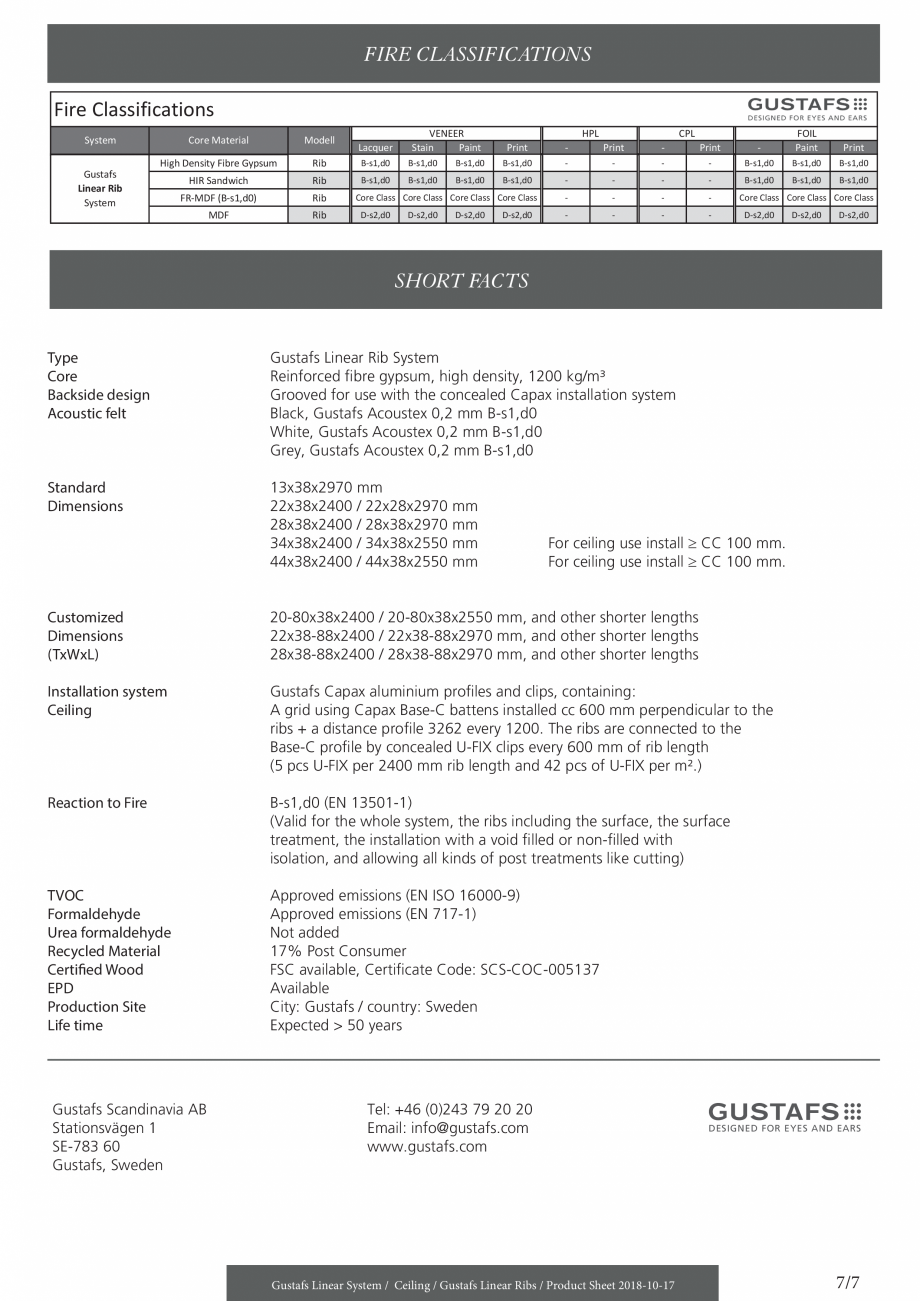

Pagina 7 - Panouri fonoabsorbante pentru plafoane - sistem linear - instructiuni de montaj GUSTAFS ...

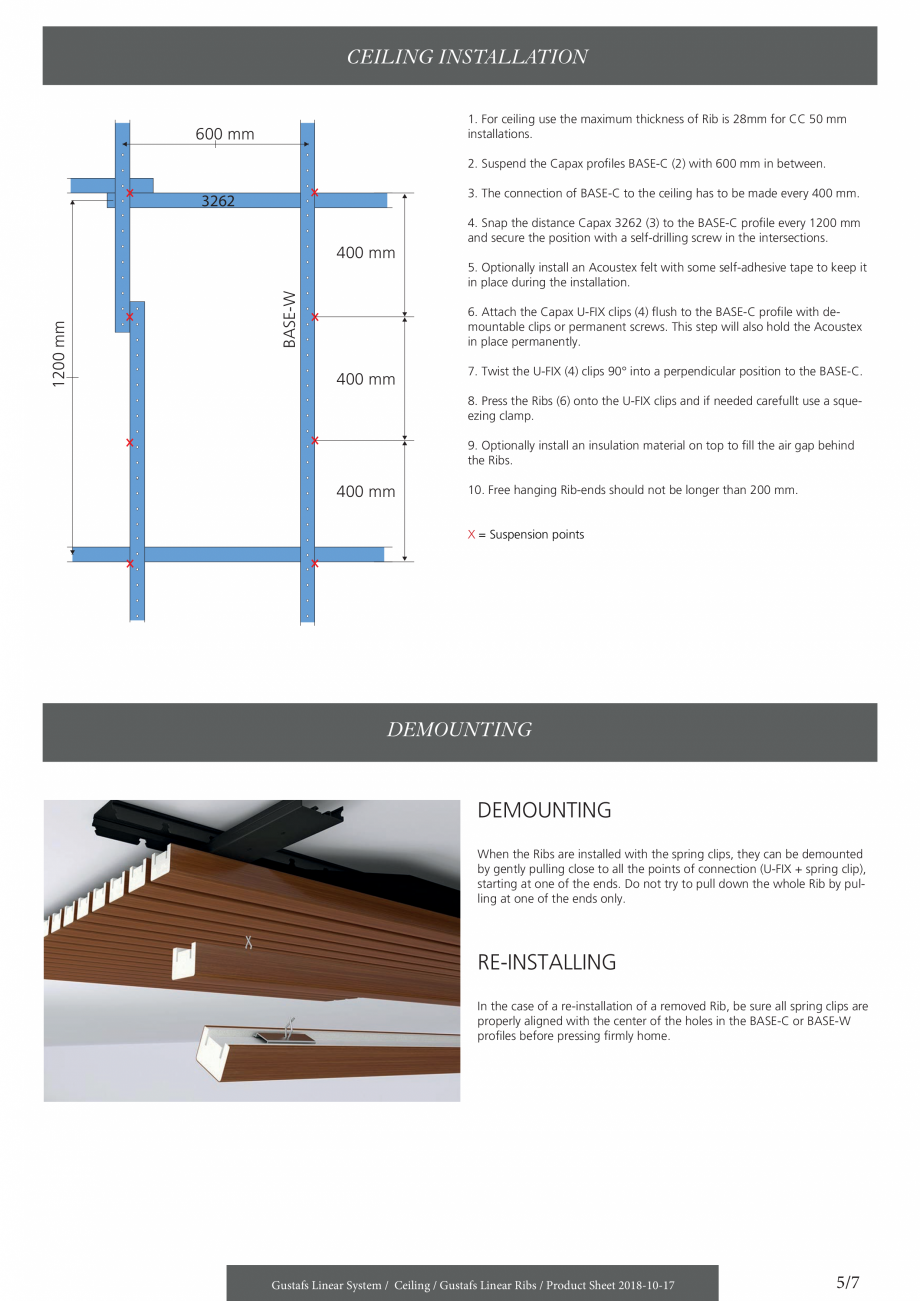

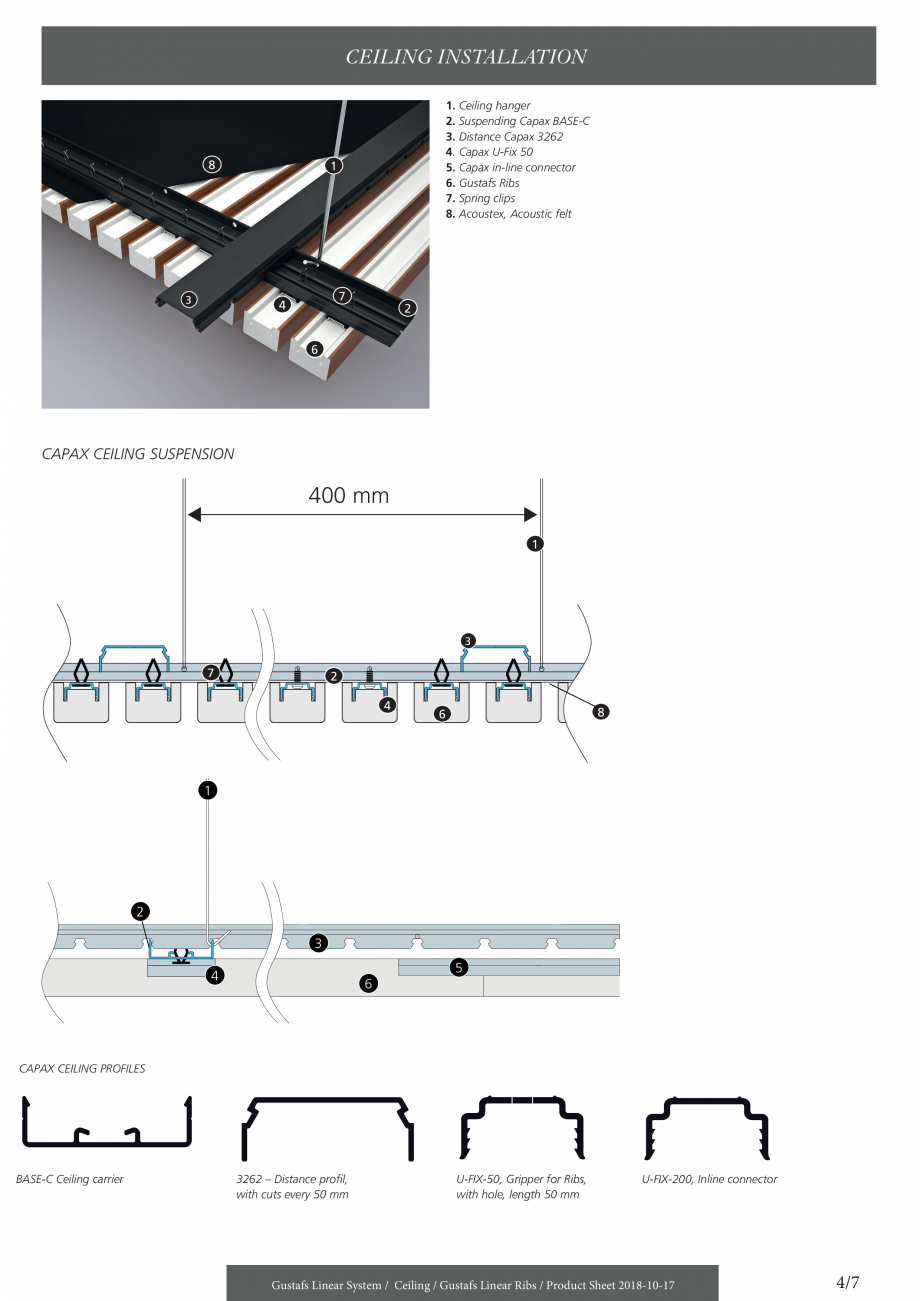

0 0,60 0,95 0,65 Gustafs Linear System / Ceiling / Gustafs Linear Ribs / Product Sheet 2018-10-17 0,75 3/7 CEILING INSTALLATION 8 3 1. Ceiling hanger 2. Suspending Capax BASE-C 3. Distance Capax 3262 4. Capax U-Fix 50 5. Capax in-line connector 6. Gustafs Ribs 7. Spring clips 8. Acoustex, Acoustic felt 1 7 4 2 6 CAPAX CEILING SUSPENSION 400 mm 1 3 7 2 4 8 6 1 2 3 5 4 6 CAPAX CEILING PROFILES BASE-C Ceiling carrier 3262 – Distance profil, with cuts every 50 mm U-FIX-50, Gripper for Ribs, with hole, length 50 mm U-FIX-200, Inline connector Gustafs Linear System / Ceiling / Gustafs Linear Ribs / Product Sheet 2018-10-17 4/7 CEILING INSTALLATION 1. For ceiling use the maximum thickness of Rib is 28mm for CC 50 mm installations. 600 mm 2. Suspend the Capax profiles BASE-C (2) with 600 mm in between. 3. The connection of BASE-C to the ceiling has to be made every 400 mm. 3262 BASE-W 1200 mm 400 mm 4. Snap the distance Capax 3262 (3) to the BASE-C p
