Panouri metalice rigide cu fir dublu HERAS Pallas, Pallas Economy

Limba: Engleza

228 afisari

Tip documentatie: Fisa tehnica

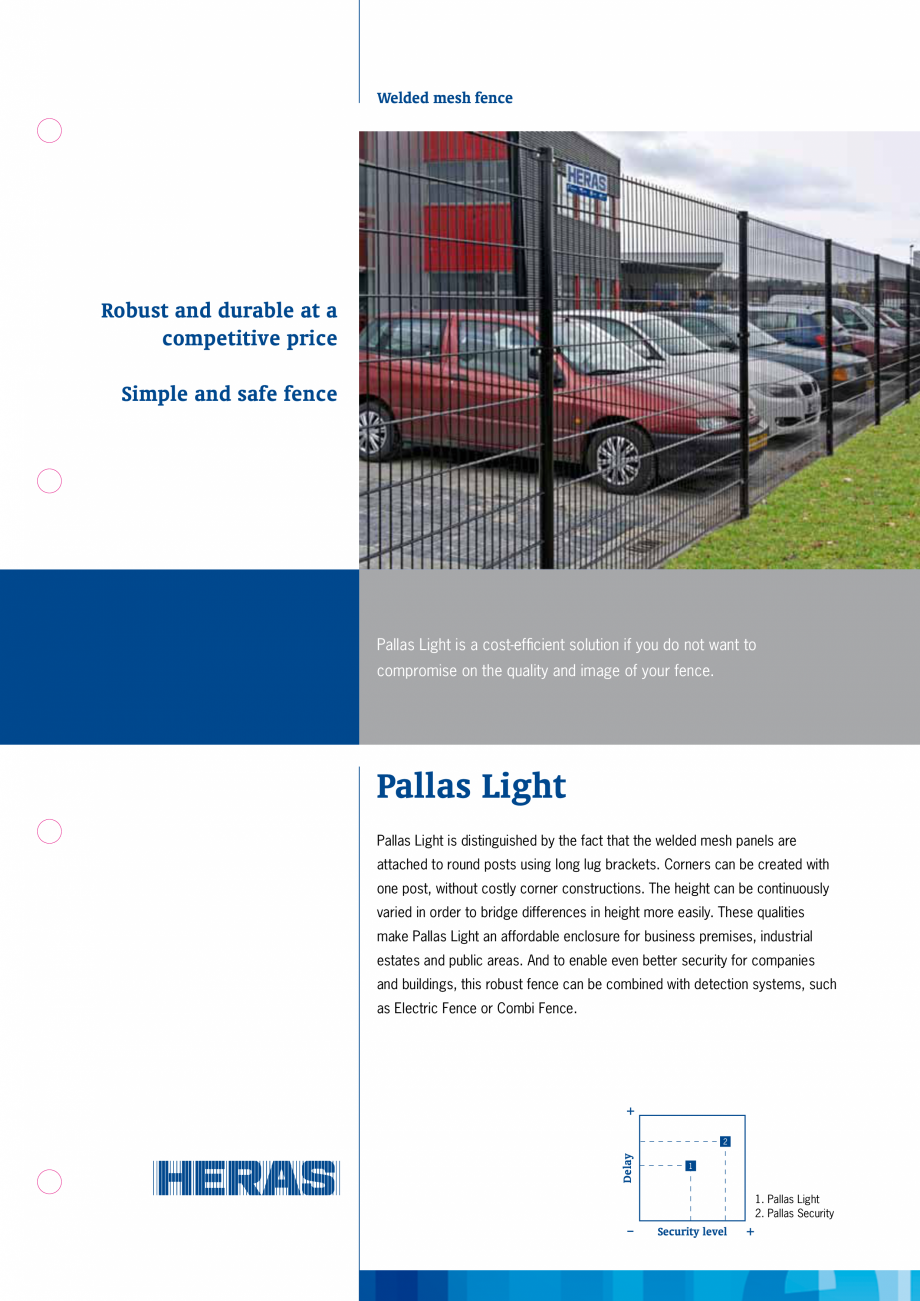

Pagina 1 - Panouri metalice rigide cu fir dublu HERAS Pallas, Pallas Economy Fisa tehnica Engleza...

Welded mesh fence Robust and durable at a competitive price Simple and safe fence Pallas Light is a cost-efficient solution if you do not want to compromise on the quality and image of your fence. Pallas Light Pallas Light is distinguished by the fact that the welded mesh panels are attached to round posts using long lug brackets. Corners can be created with one post, without costly corner constructions. The height can be continuously varied in order to bridge differences in height more easily. These qualities make Pallas Light an affordable enclosure for business premises, industrial estates and public areas. And to enable even better security for companies and buildings, this robust fence can be combined with detection systems, such as Electric Fence or Combi Fence. + Delay 2 _ 1 1. Pallas Light 2. Pallas Security Security level + Intermediate post Corner post End post Post with base plate Continuous transition Technical specifications Type Panel height Post profi

Pagina 1-Panouri metalice rigide cu fir dublu HERAS Pallas, Pallas Economy Fisa tehnica Engleza Welded mesh ...

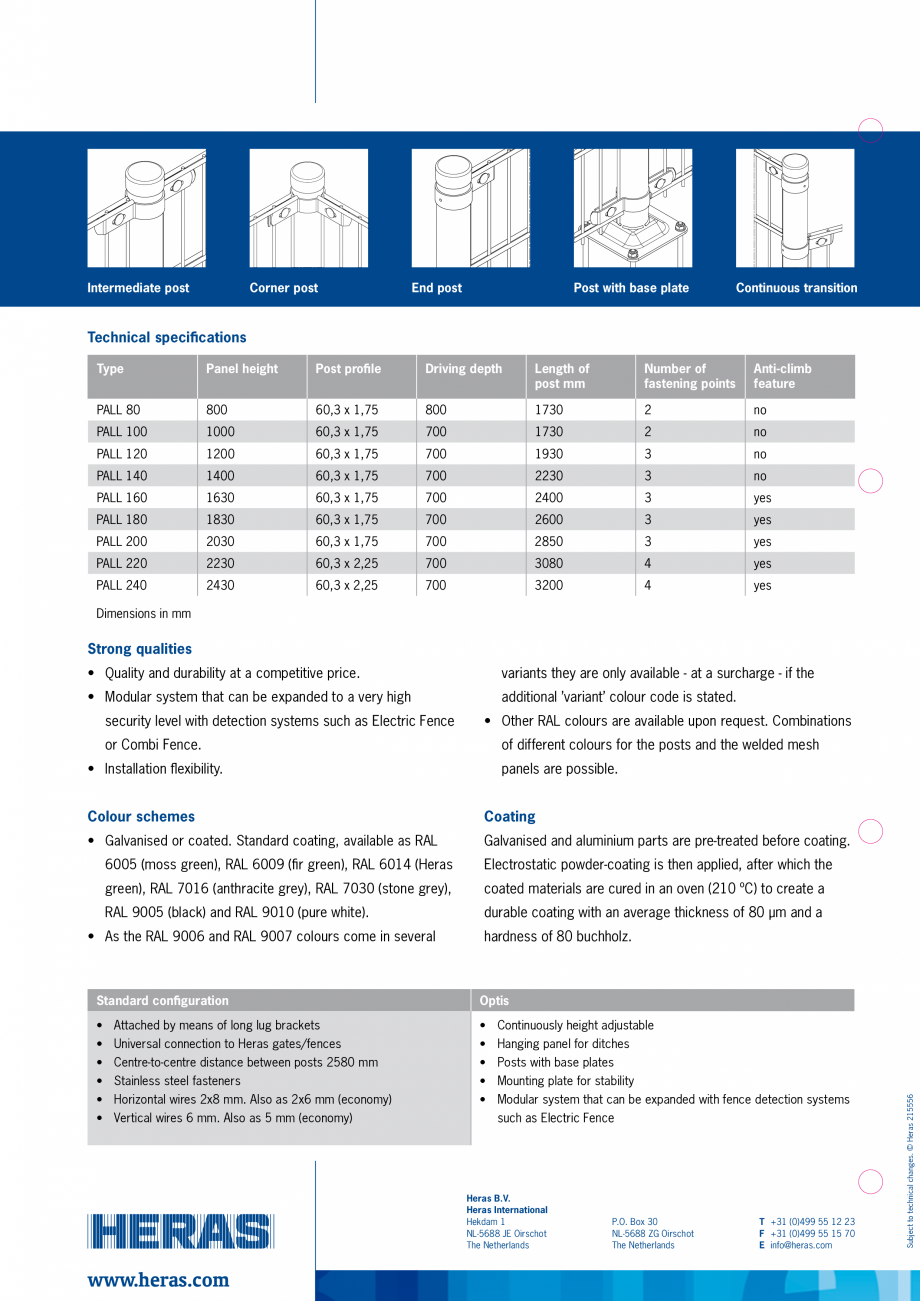

Pagina 2 - Panouri metalice rigide cu fir dublu HERAS Pallas, Pallas Economy Fisa tehnica Engleza...

le Driving depth Length of post mm Number of fastening points Anti-climb feature PALL 80 800 60,3 x 1,75 800 1730 2 no PALL 100 1000 60,3 x 1,75 700 1730 2 no PALL 120 1200 60,3 x 1,75 700 1930 3 no PALL 140 1400 60,3 x 1,75 700 2230 3 no PALL 160 1630 60,3 x 1,75 700 2400 3 yes PALL 180 1830 60,3 x 1,75 700 2600 3 yes PALL 200 2030 60,3 x 1,75 700 2850 3 yes PALL 220 2230 60,3 x 2,25 700 3080 4 yes PALL 240 2430 60,3 x 2,25 700 3200 4 yes Dimensions in mm Strong qualities • Quality and durability at a competitive price. variants they are only available - at a surcharge - if the • odular system that can be expanded to a very high M additional ’variant’ colour code is stated. security level with detection systems such as Electric Fence or Combi Fence. • Installation flexibility. • ther RAL colours are available upon request. Combinations O of different colours for the posts and the welded mes

Pagina 2-Panouri metalice rigide cu fir dublu HERAS Pallas, Pallas Economy Fisa tehnica Engleza le

Driving ...
