Documentatie atasata la

Parchet laminat foarte rezistent la trafic intens si umiditate in Brasov ALSAFLOOR

Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR

Limba: Engleza

Produse încluse în această documentație: Sardinia Oak 619, Corsica Oak 620, Canaries Oak 621, Balearic Oak 622, Congo Oak 140, Grey Oak 448, Nature Oak 450, Nevada Oak 449, Alpaca Oak 436, Cassandra 409, Corfou 625, Grey Building 437, Polar Oak 627, Vintage 414, Jersey 626

701 afisari

Tip documentatie: Instructiuni montaj, utilizare

Pagina 1 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619,...

EPI FLOORING SAS, ZI, 1 RUE DE L’EUROPE, 67521 MARLENHEIM CEDEX TECHNICAL INFORMATION 2013 ALSAFLOOR LAMINATE FLOORING & ACCESSORIES Dec 2012 We reserve us the possibility to change the production and information about the product in way to adapt it the laminate flooring to the legislations and the market. 1 EPI FLOORING SAS, ZI, 1 RUE DE L’EUROPE, 67521 MARLENHEIM CEDEX INDEX INTRODUCTION ....................................................................................................................................................... 4 1) 2) STRUCTURE OF LAMINATE FLOORING .............................................................................................................. 4 PALLET CONDITIONNING ................................................................................................................................. 4 CLASS OF USE ............................................................................................................................

Pagina 1-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

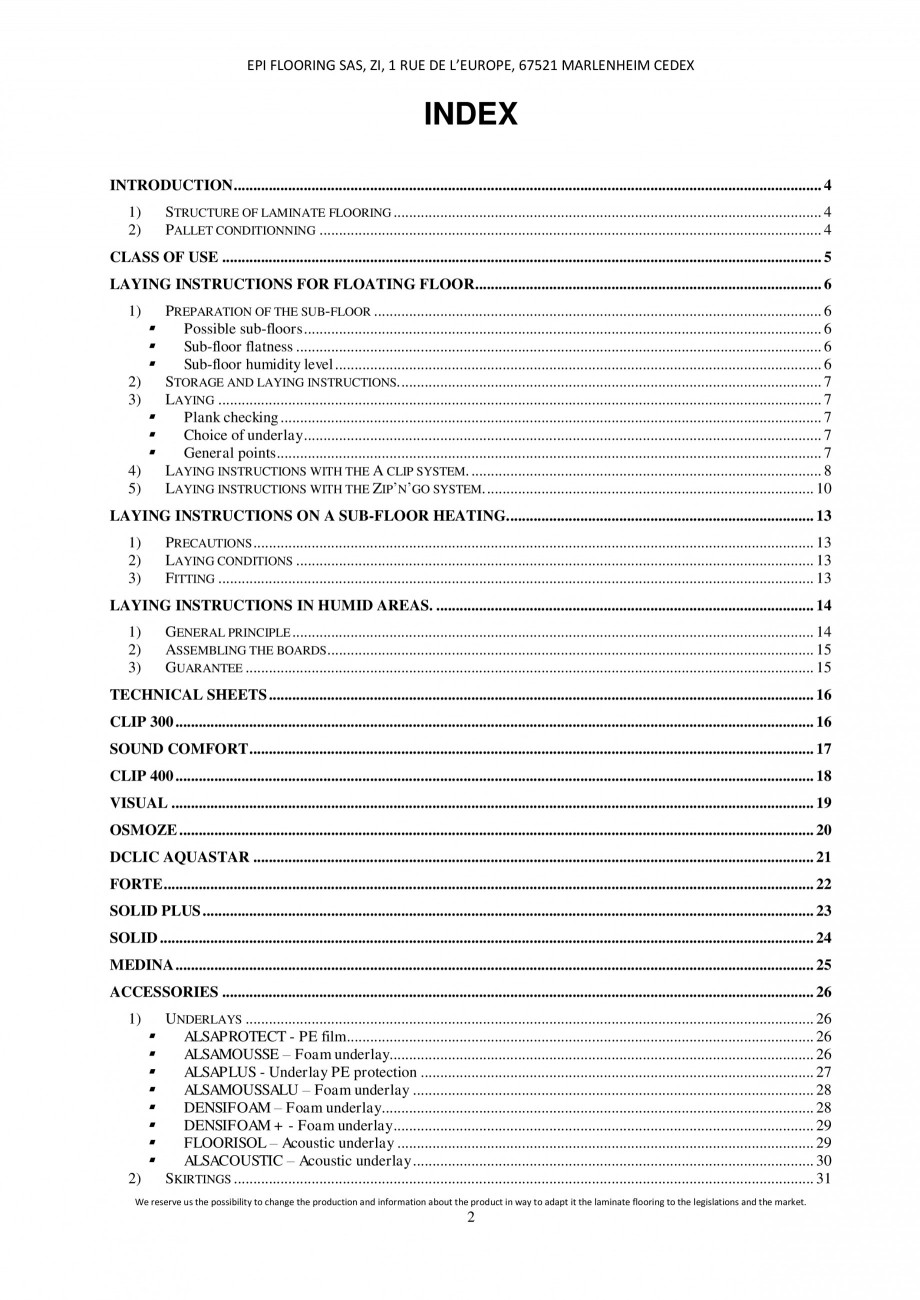

Pagina 2 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619,...

.............................. 5 LAYING INSTRUCTIONS FOR FLOATING FLOOR ......................................................................................... 6 1) PREPARATION OF THE SUB-FLOOR ................................................................................................................... 6 Possible sub-floors ..................................................................................................................................... 6 Sub-floor flatness ....................................................................................................................................... 6 Sub-floor humidity level ............................................................................................................................. 6 2) STORAGE AND LAYING INSTRUCTIONS. ............................................................................................................ 7 3) LAYING ..............................................................

Pagina 2-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

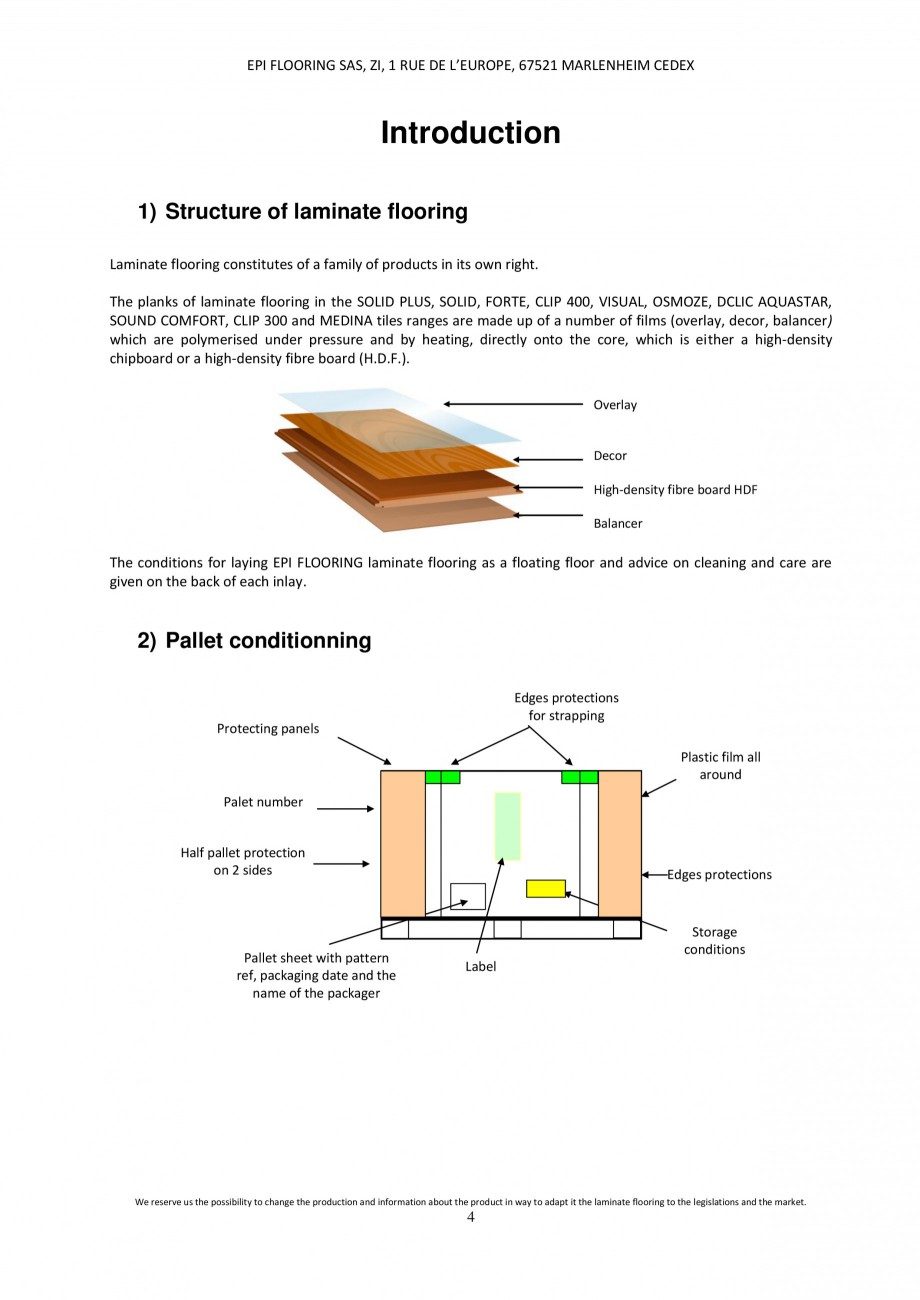

Pagina 3 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619,...

............................................................................................. 7  Plank checking ........................................................................................................................................... 7  Choice of underlay ..................................................................................................................................... 7  General points............................................................................................................................................ 7 4) LAYING INSTRUCTIONS WITH THE A CLIP SYSTEM. .......................................................................................... 8 5) LAYING INSTRUCTIONS WITH THE ZIP’N’GO SYSTEM. .................................................................................... 10    LAYING INSTRUCTIONS ON A SUB-FLOOR HEATING. .............................................................................. 13 1)

Pagina 3-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

Pagina 4 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619,...

2) 3) PRECAUTIONS ................................................................................................................................................ 13 LAYING CONDITIONS ..................................................................................................................................... 13 FITTING ......................................................................................................................................................... 13 LAYING INSTRUCTIONS IN HUMID AREAS. ................................................................................................. 14 1) 2) 3) GENERAL PRINCIPLE ...................................................................................................................................... 14 ASSEMBLING THE BOARDS ............................................................................................................................. 15 GUARANTEE ...............................................

Pagina 4-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

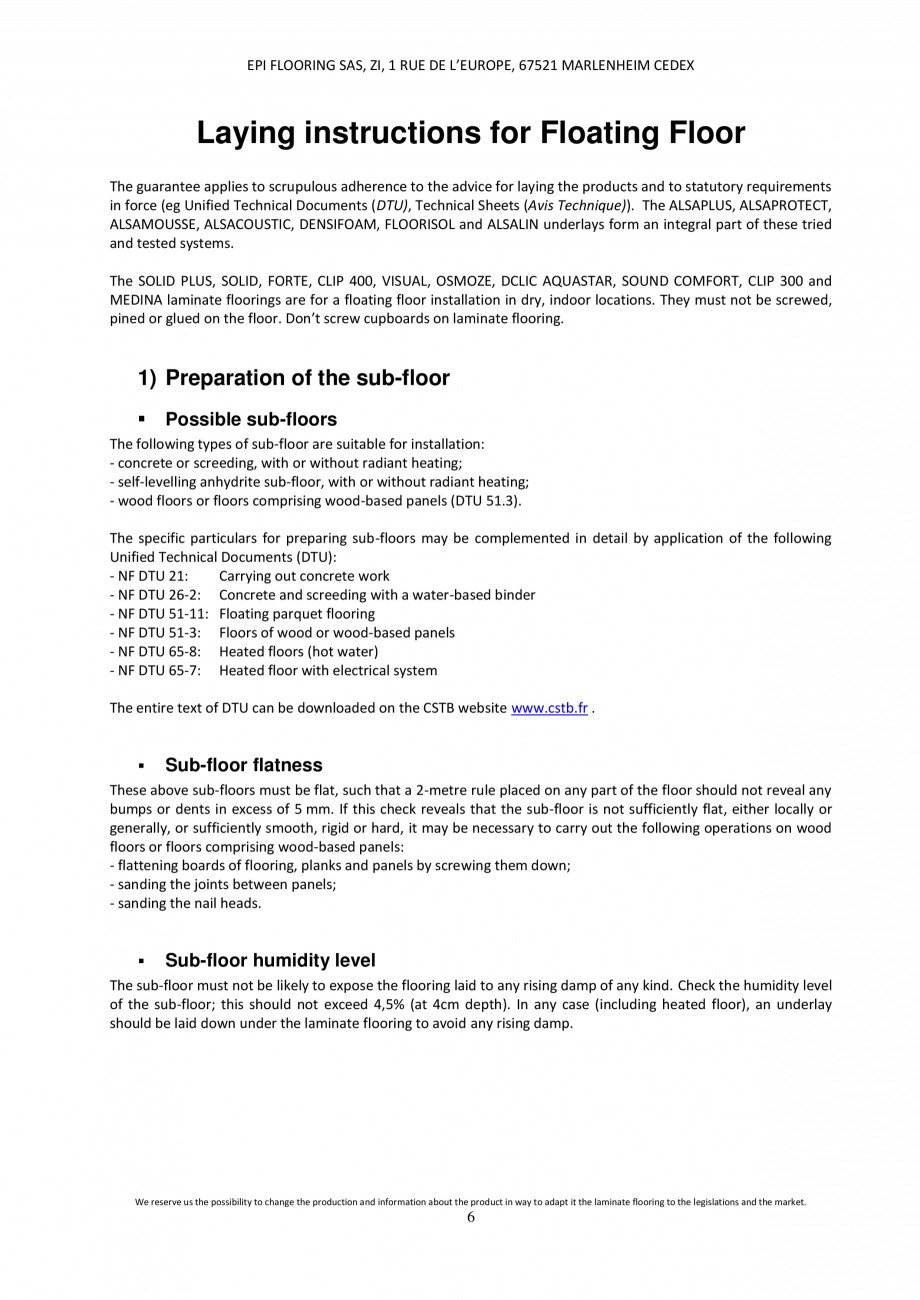

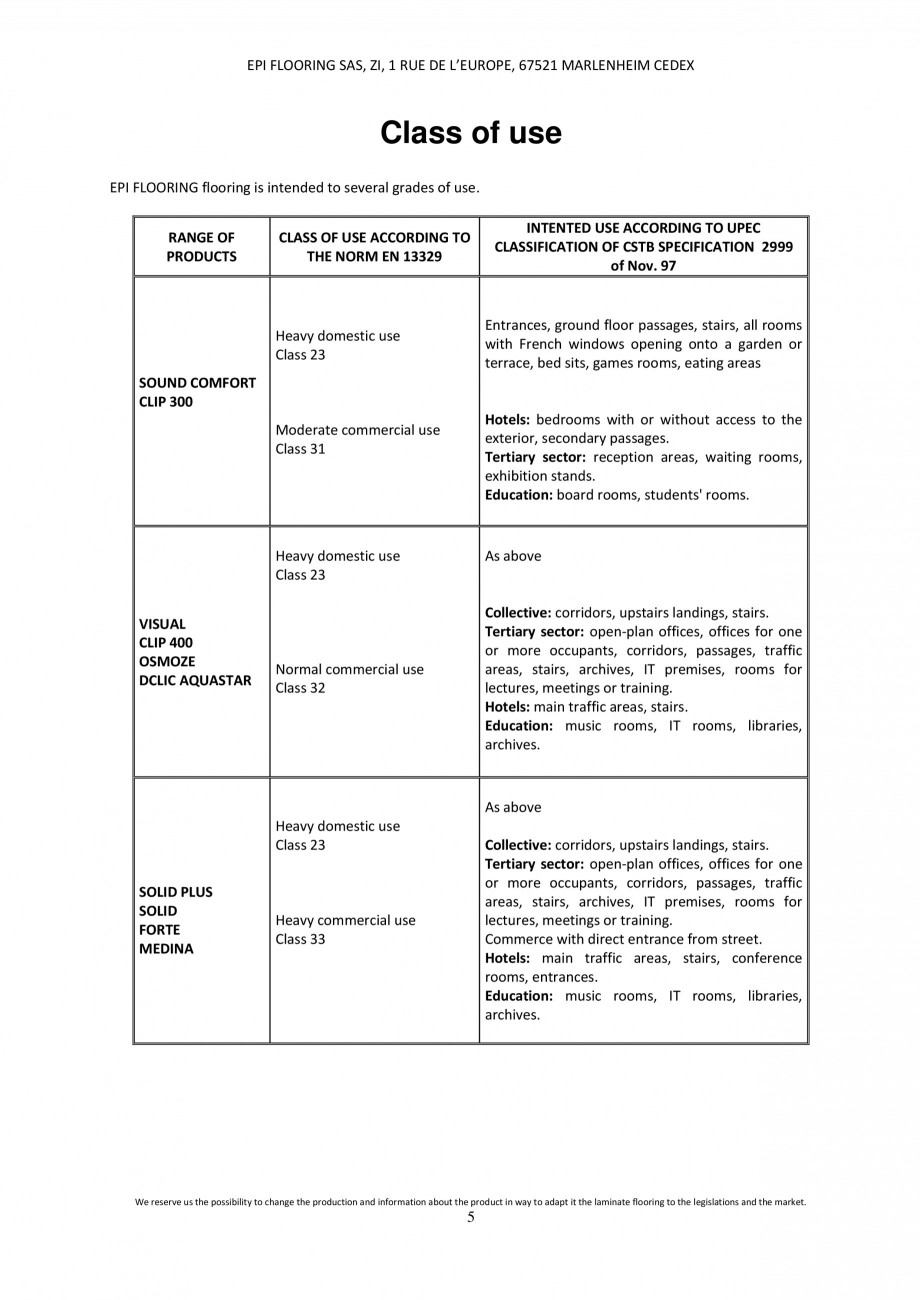

Pagina 5 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619,...

................................................................................................... 15 TECHNICAL SHEETS ............................................................................................................................................ 16 CLIP 300 .................................................................................................................................................................... 16 SOUND COMFORT ................................................................................................................................................. 17 CLIP 400 .................................................................................................................................................................... 18 VISUAL ..................................................................................................................................................................... 19 OSMOZE ...................................

Pagina 5-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

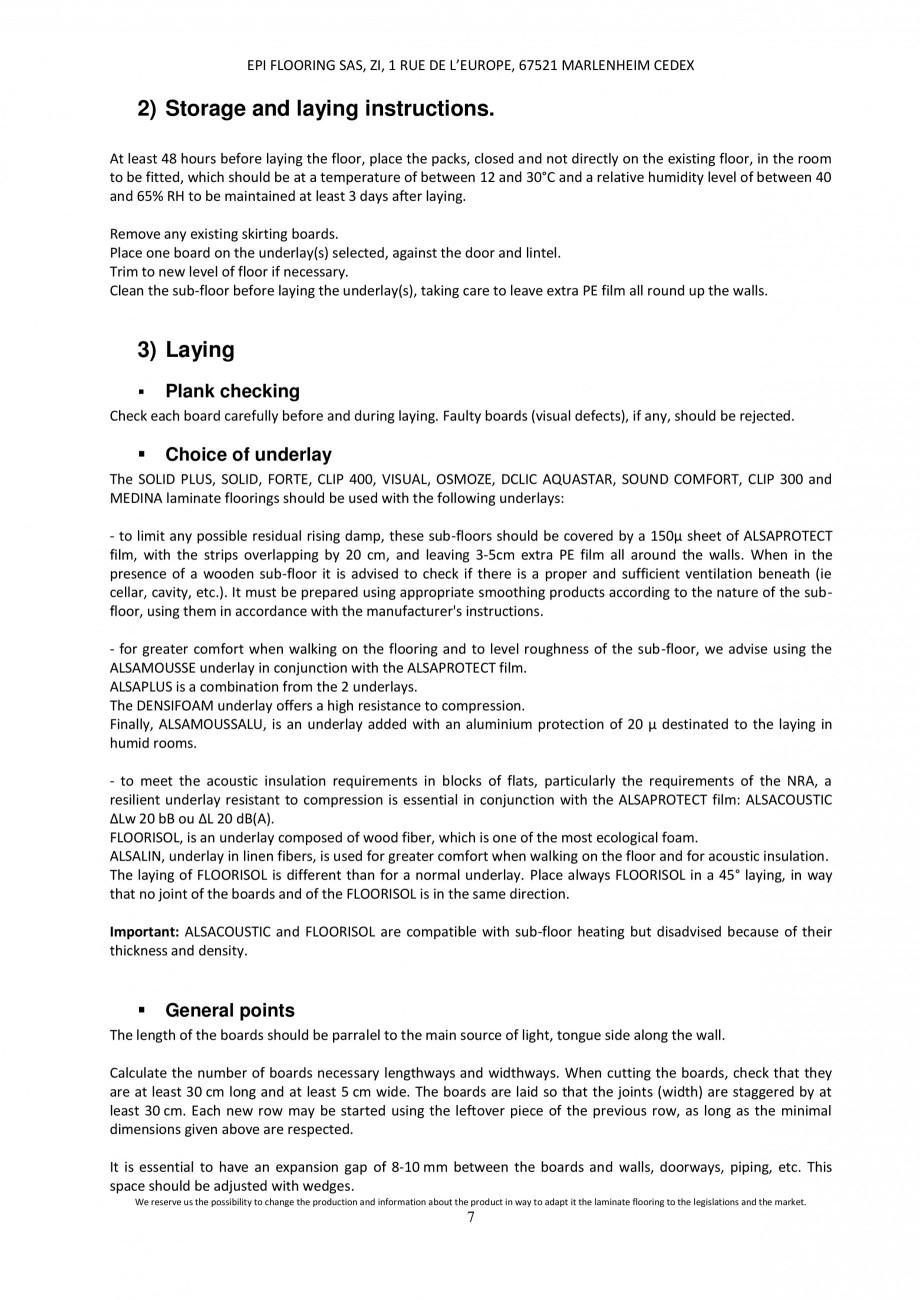

Pagina 6 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619,...

................................................................................................................................ 20 DCLIC AQUASTAR ................................................................................................................................................ 21 FORTE ....................................................................................................................................................................... 22 SOLID PLUS ............................................................................................................................................................. 23 SOLID ........................................................................................................................................................................ 24 MEDINA .................................................................................................................................................................... 25 ACC

Pagina 6-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

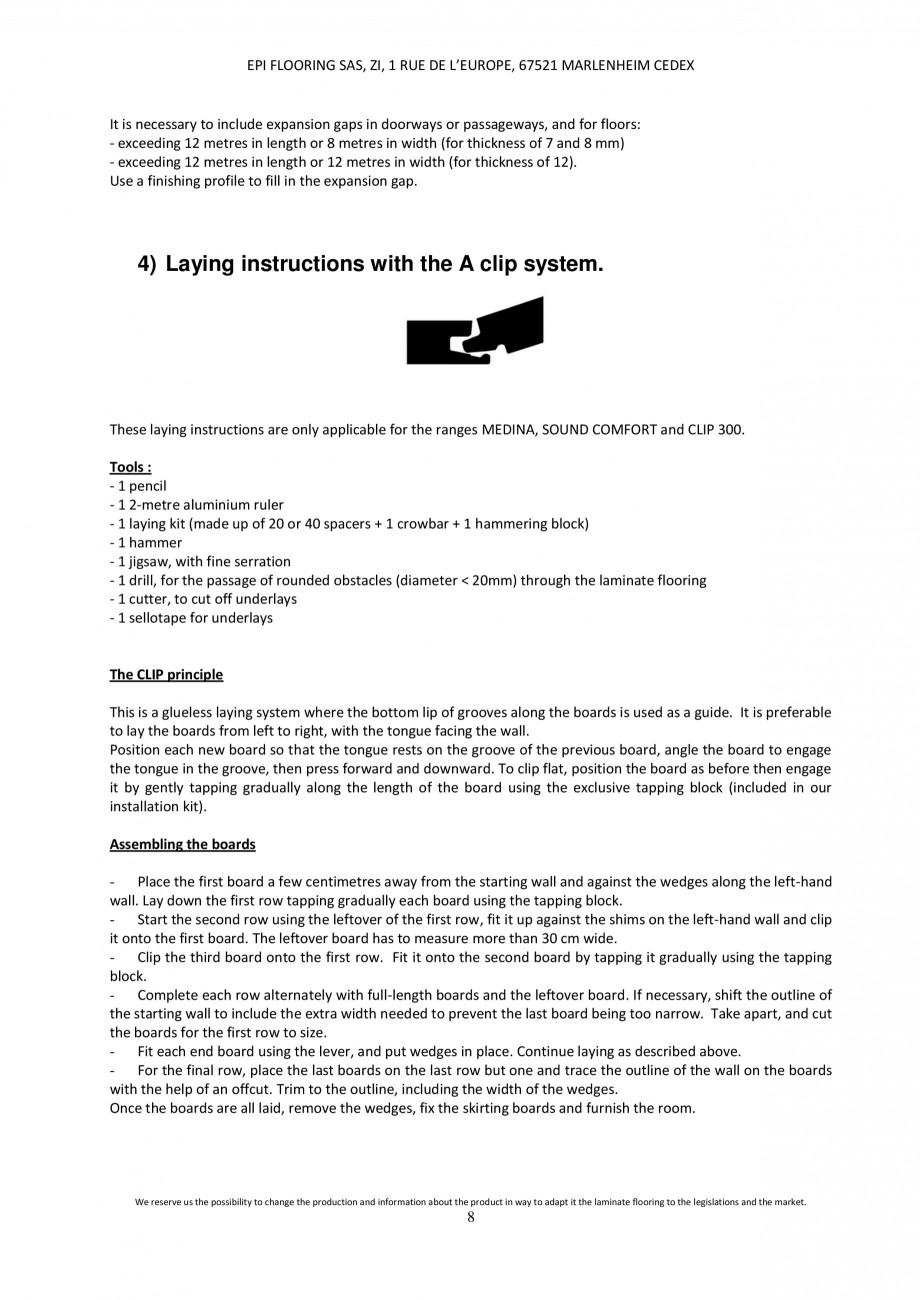

Pagina 7 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619,...

ESSORIES ........................................................................................................................................................ 26 1) 2)         UNDERLAYS .................................................................................................................................................. 26 ALSAPROTECT - PE film ........................................................................................................................ 26 ALSAMOUSSE – Foam underlay............................................................................................................. 26 ALSAPLUS - Underlay PE protection ..................................................................................................... 27 ALSAMOUSSALU – Foam underlay ....................................................................................................... 28 DENSIFOAM – Foam underlay ..........................................

Pagina 7-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

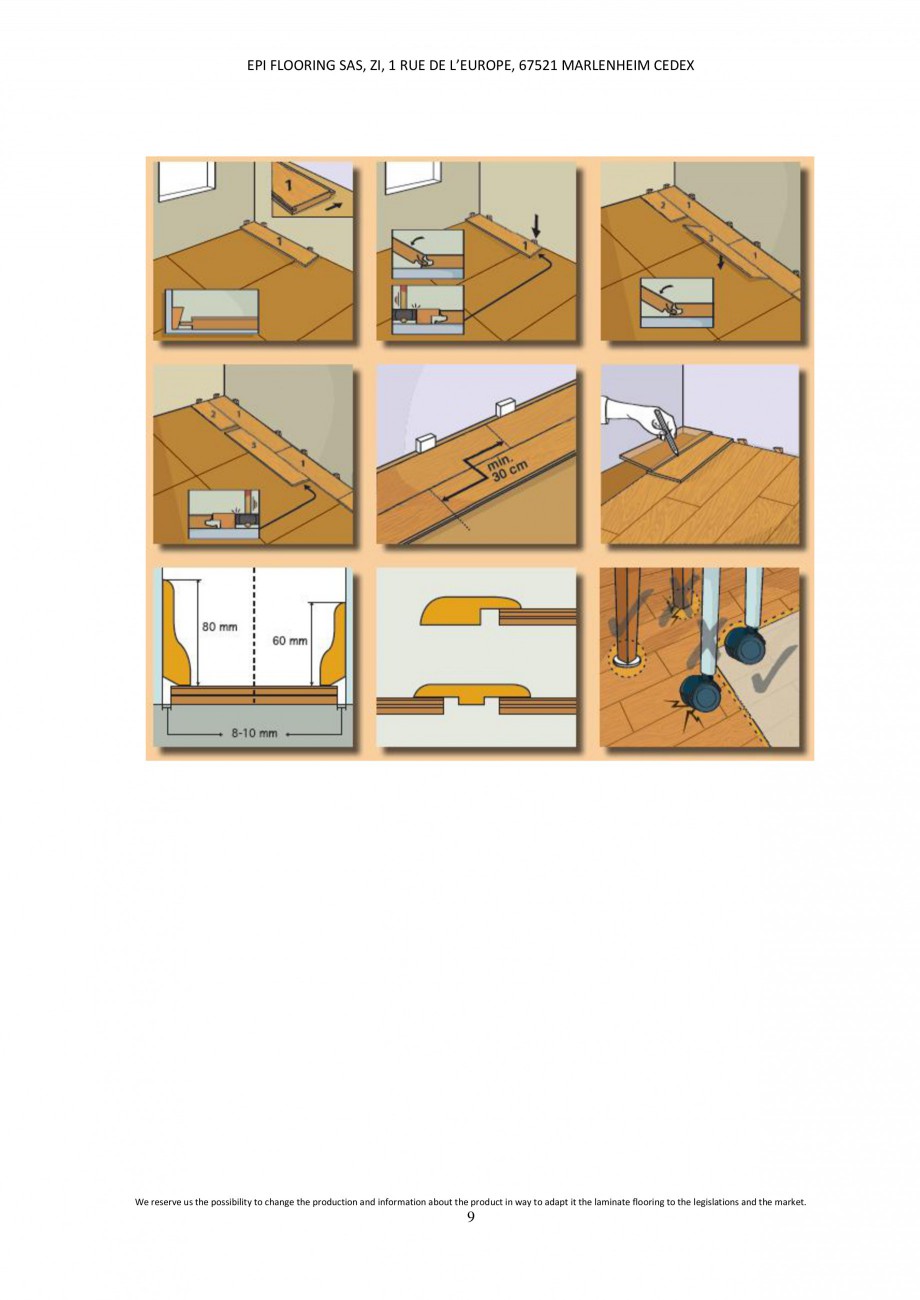

Pagina 8 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619,...

..................................................................... 28 DENSIFOAM + - Foam underlay ............................................................................................................ 29 FLOORISOL – Acoustic underlay ........................................................................................................... 29 ALSACOUSTIC – Acoustic underlay ....................................................................................................... 30 SKIRTINGS ..................................................................................................................................................... 31 We reserve us the possibility to change the production and information about the product in way to adapt it the laminate flooring to the legislations and the market. 2 EPI FLOORING SAS, ZI, 1 RUE DE L’EUROPE, 67521 MARLENHEIM CEDEX       3) 4)          Coated MDF quarter round .......

Pagina 8-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

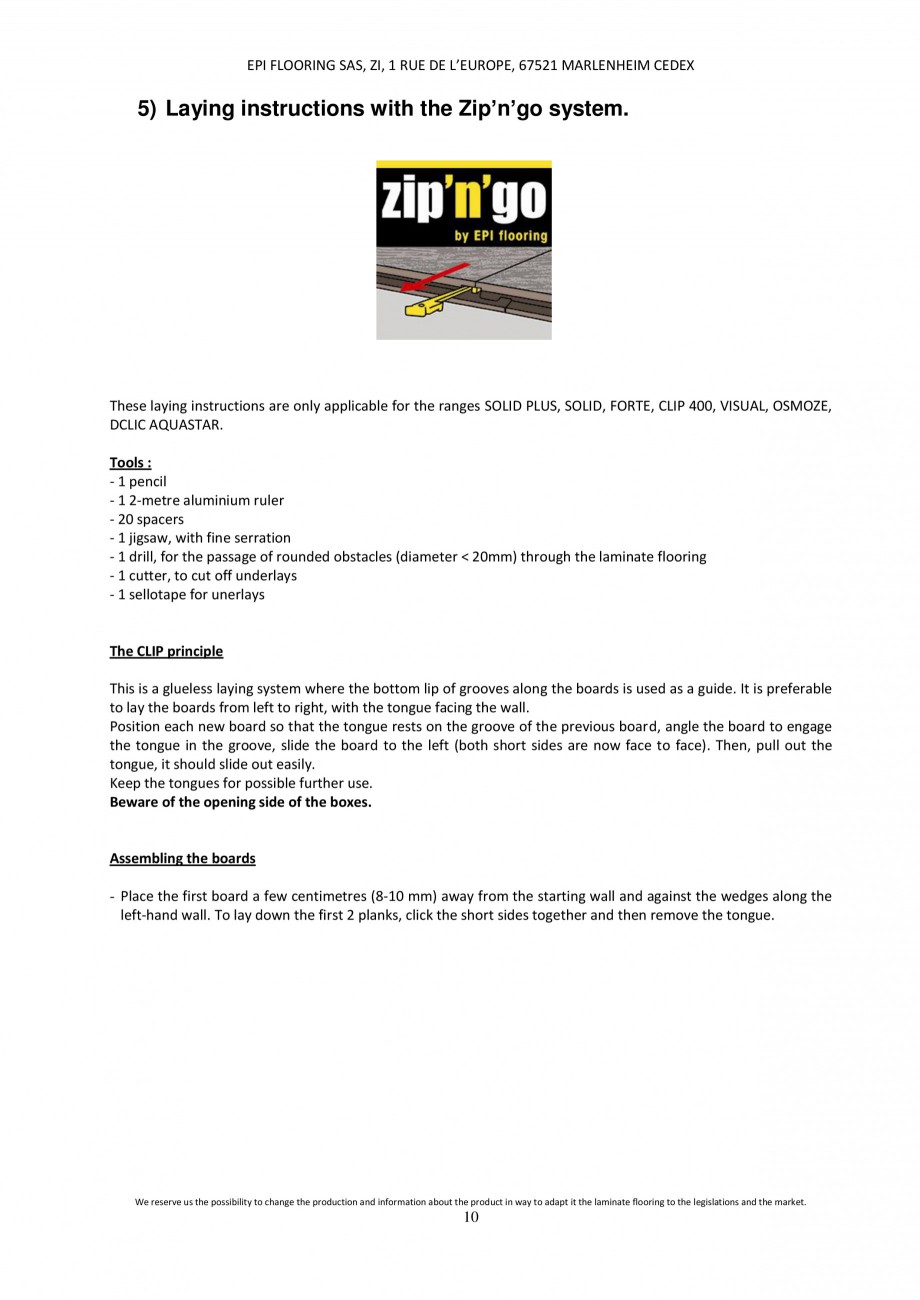

Pagina 9 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619,...

.............................................................................................................. 31 Coated MDF “Scoties” F16 .................................................................................................................... 31 Coated MDF Skirting F58 ....................................................................................................................... 31 Coated MDF Skirting F80 ....................................................................................................................... 32 Covering skirting ..................................................................................................................................... 32 Clip for Skirtings ...................................................................................................................................... 32 PROFILES ..........................................................................................................................

Pagina 9-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

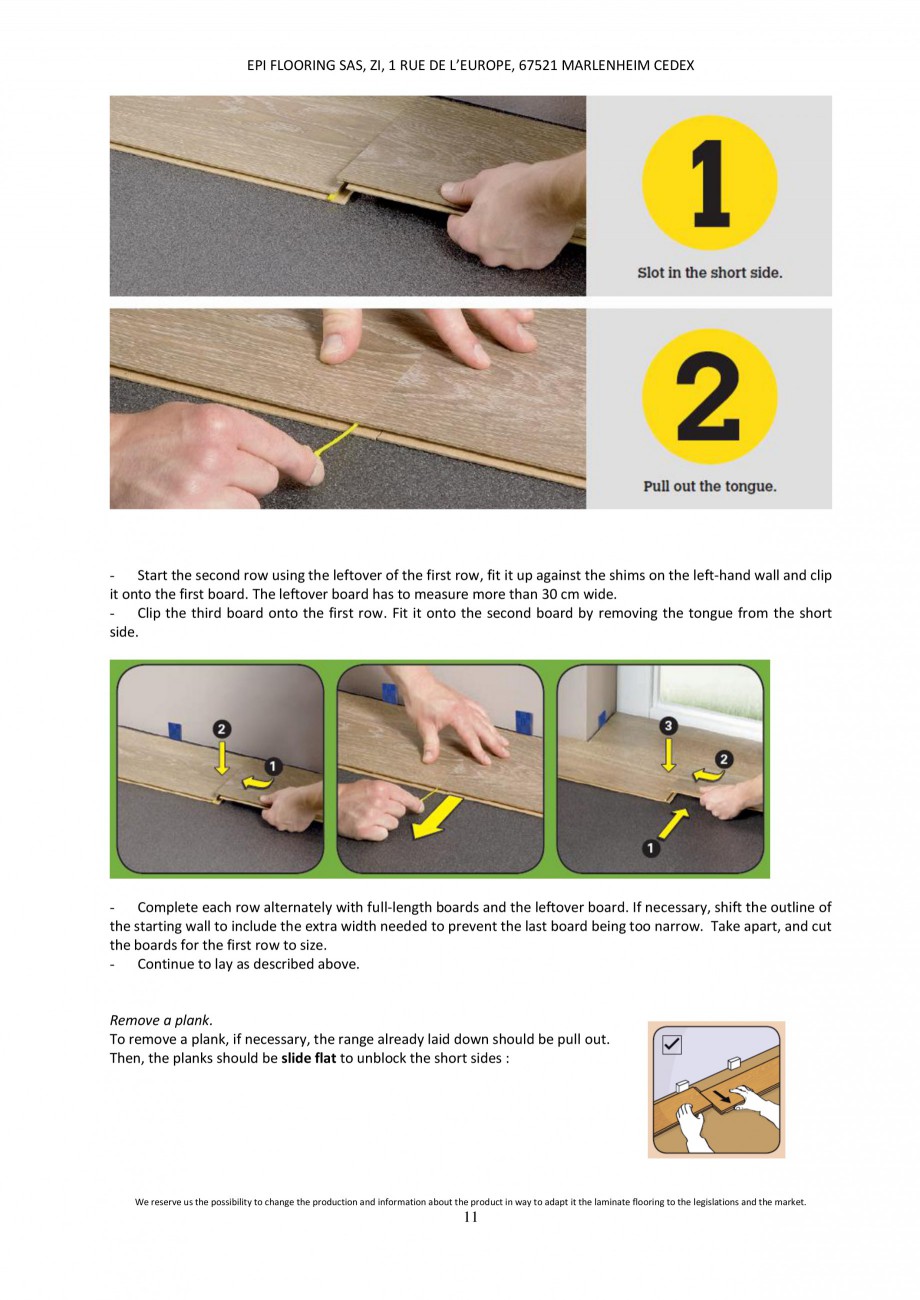

Pagina 10 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

............................. 33 ALSALU – Aluminium profiles ................................................................................................................. 33 SUBTLE – Aluminium profils, that could substitute skirtings. ................................................................. 34 ALSAPRO – MDF profiles ....................................................................................................................... 34 OTHER ACCESSORIES ..................................................................................................................................... 35 LAYING KIT ............................................................................................................................................ 35 LAYING KIT ............................................................................................................................................ 35 ROSETTES - for radiator piping.............................................

Pagina 10-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

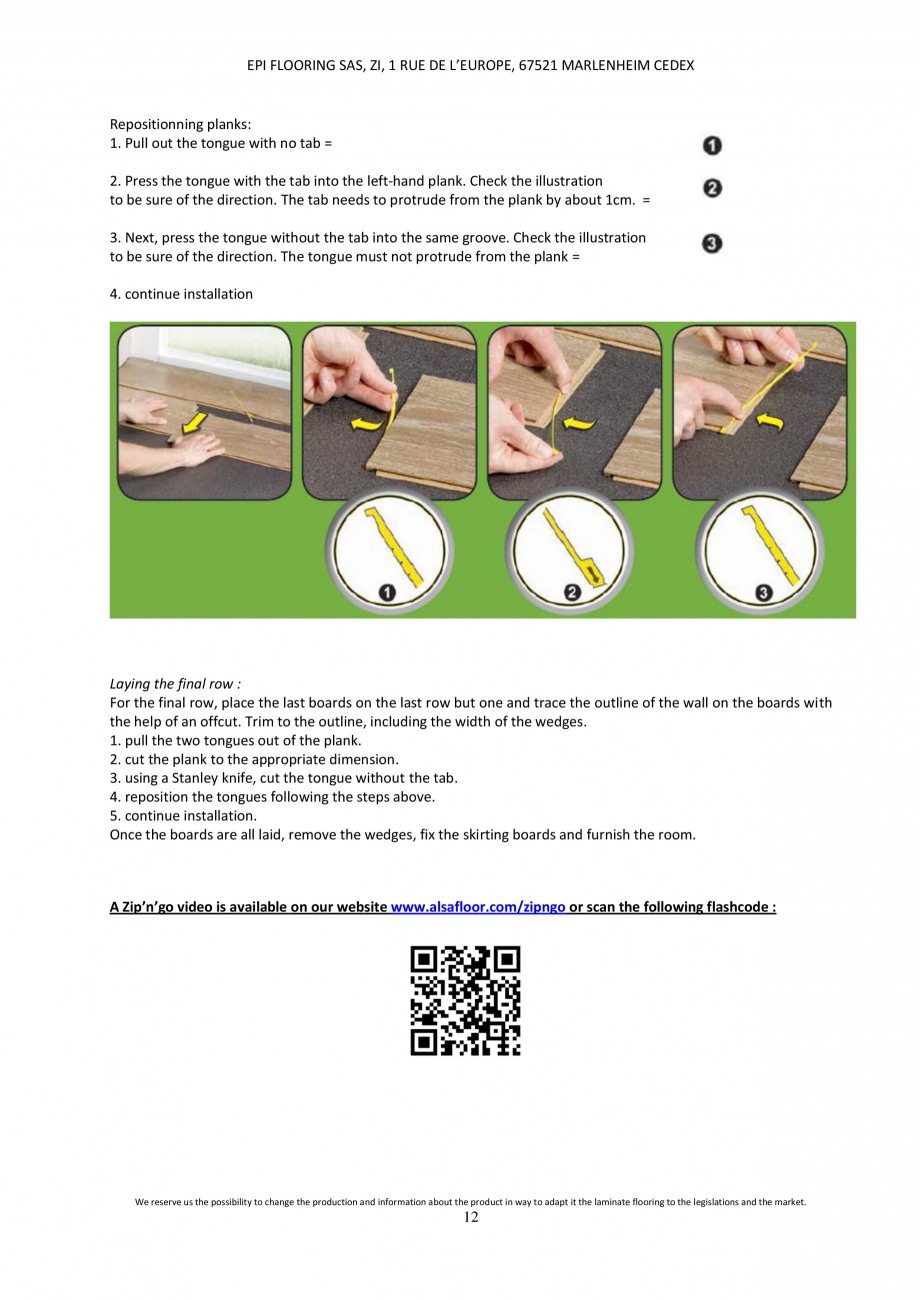

Pagina 11 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

................................................................. 36 COLORFILL – Repair resins ................................................................................................................... 36 COLORSEALANT – Sealant for joints ..................................................................................................... 37 CLICSEAL – Moisture protection. ........................................................................................................... 37 USE AND CARE ....................................................................................................................................................... 39 1) 2) 3) PRECAUTIONS ................................................................................................................................................ 39 CLEANING .....................................................................................................................................................

Pagina 11-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

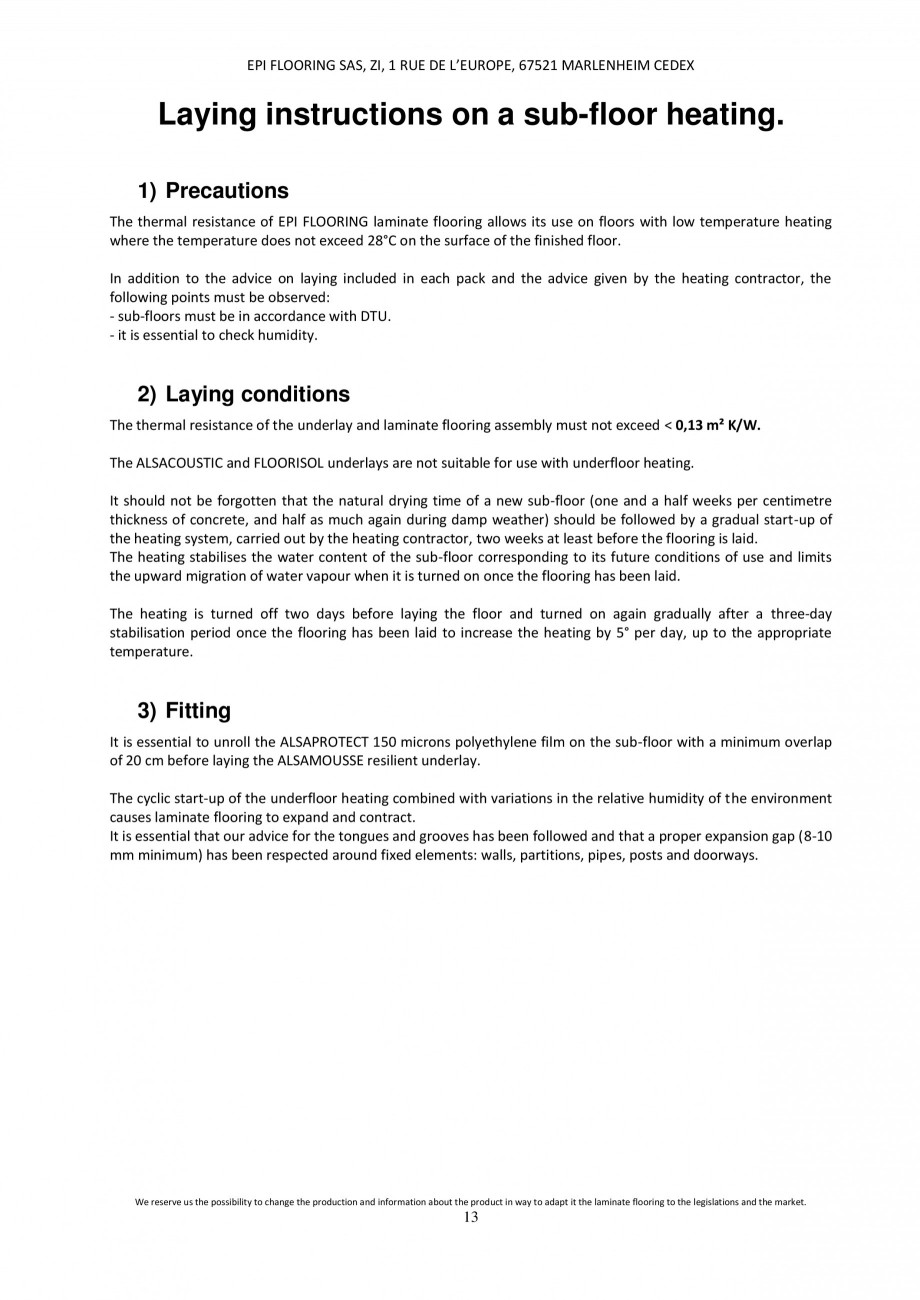

Pagina 12 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

39 REPLACING A BOARD ..................................................................................................................................... 39 WARRANTY CONDITIONS .................................................................................................................................. 40 1) 2) 3) 4) 5) SCOPE OF WARRANTY .................................................................................................................................... 40 DURATION AND NATURE OF WARRANTY ........................................................................................................ 40 LAYING ......................................................................................................................................................... 40 APPLICATION OF WARRANTY ......................................................................................................................... 41 EXCLUSIONS .....................................................

Pagina 12-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

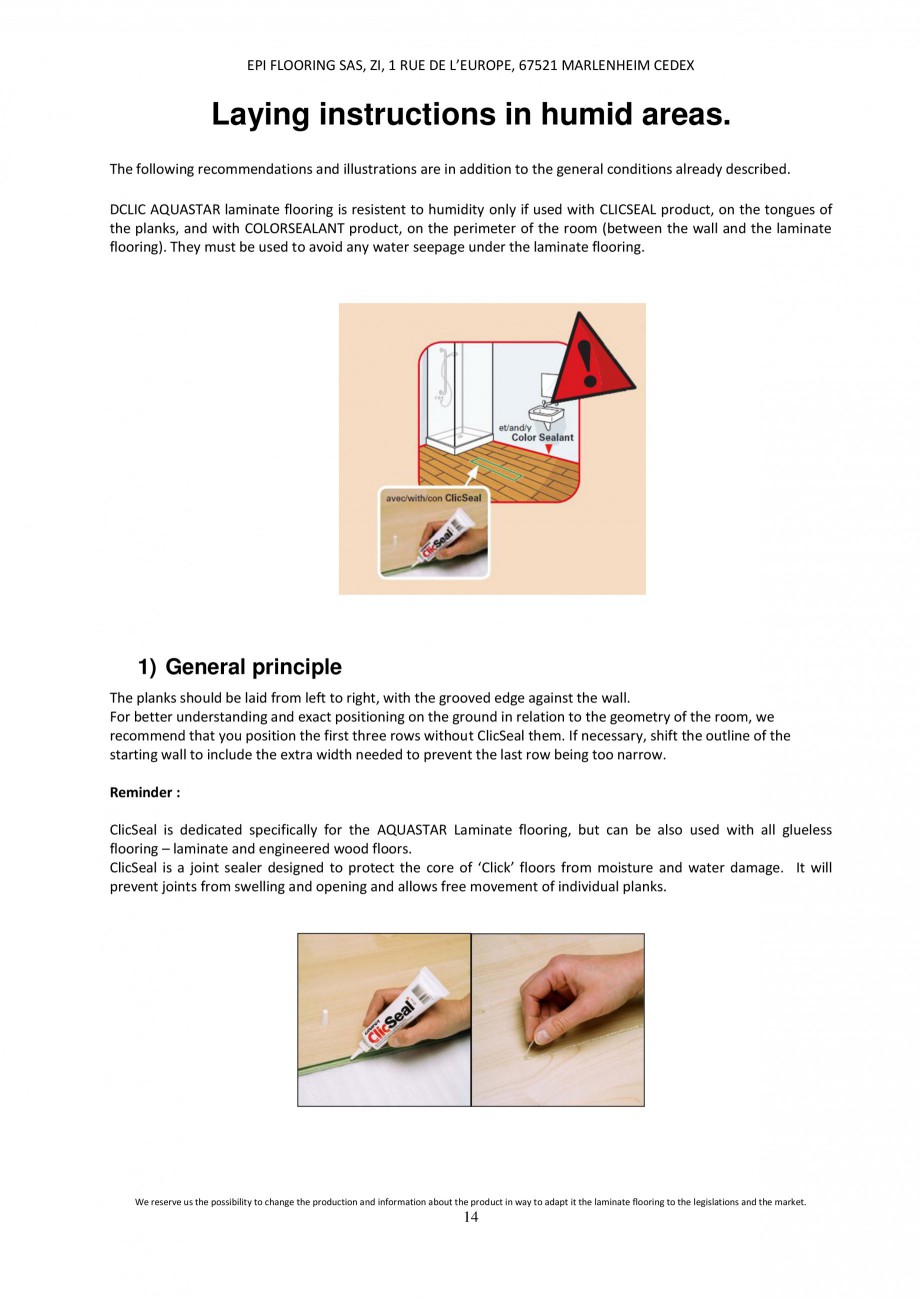

Pagina 13 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

............................................................................................. 41 APPENDIX 1: ENVIRONMENTAL CARACTERISTICS .................................................................................. 42 1) 2) 3) FORMALDEHYDE ........................................................................................................................................... 42 ECOLOGICAL PROPERTIES .............................................................................................................................. 42 HEALTH SAFETY LABELLING ......................................................................................................................... 43 DOCUMENT 2: NE 13329 ....................................................................................................................................... 44 DOCUMENT 3 : ISO 9001 : 2008 CERTIFICATE. .............................................................................................. 45 DOCUMEN

Pagina 13-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

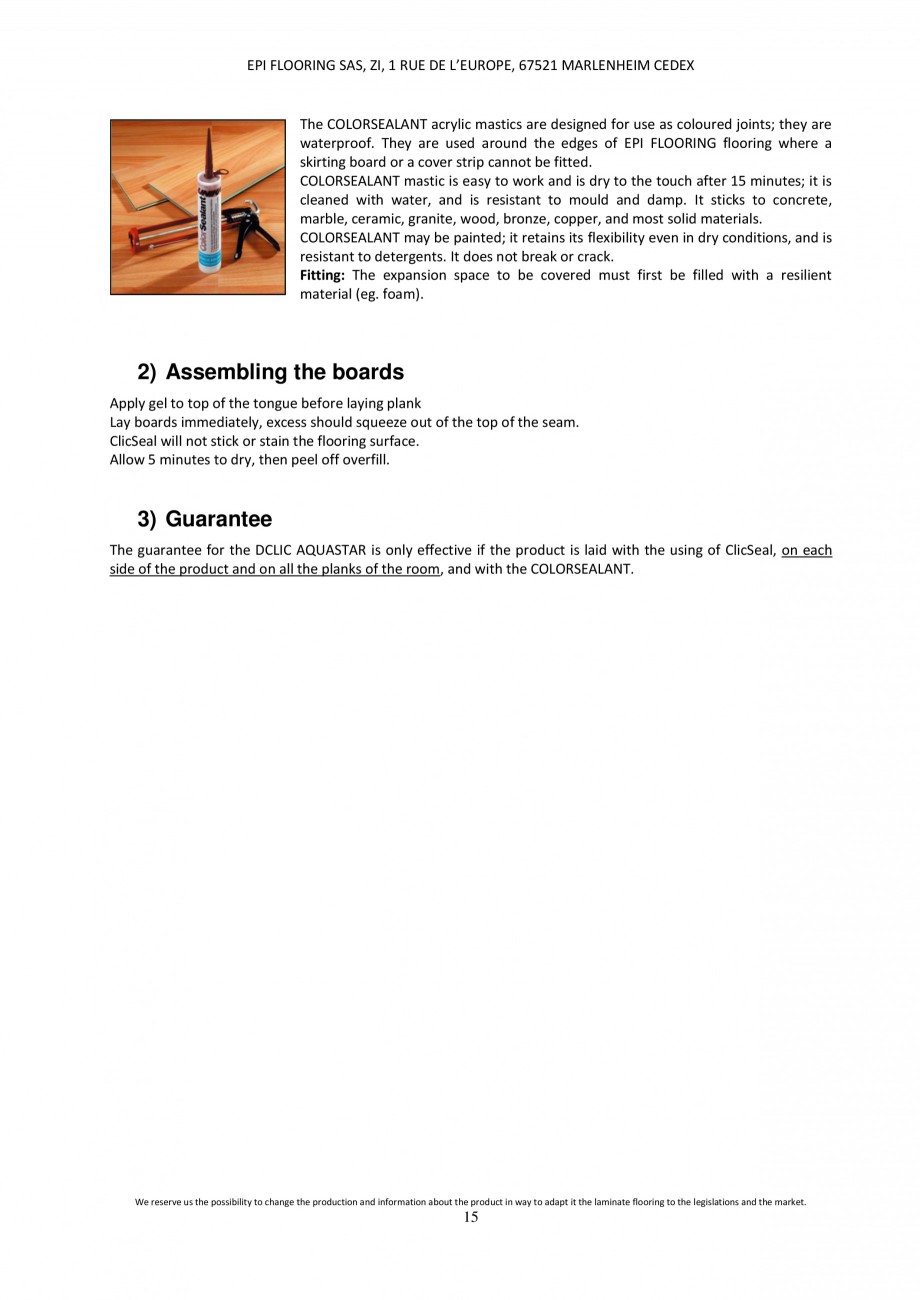

Pagina 14 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

T 4 : EN 13 501-1 .................................................................................................................................. 46 DOCUMENT 5 : CE DECLARATION OF CONFORMITY ............................................................................... 51 DOCUMENT 6: FORMALDEHYDE CERTIFICATE. ....................................................................................... 52 DOCUMENT 7 : PEFC CERTIFICATE. ............................................................................................................... 53 We reserve us the possibility to change the production and information about the product in way to adapt it the laminate flooring to the legislations and the market. 3 EPI FLOORING SAS, ZI, 1 RUE DE L’EUROPE, 67521 MARLENHEIM CEDEX Introduction 1) Structure of laminate flooring Laminate flooring constitutes of a family of products in its own right. The planks of laminate flooring in the SOLID PLUS, SOLID, FORTE, CLIP 400, VISUAL, OSMOZE,

Pagina 14-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

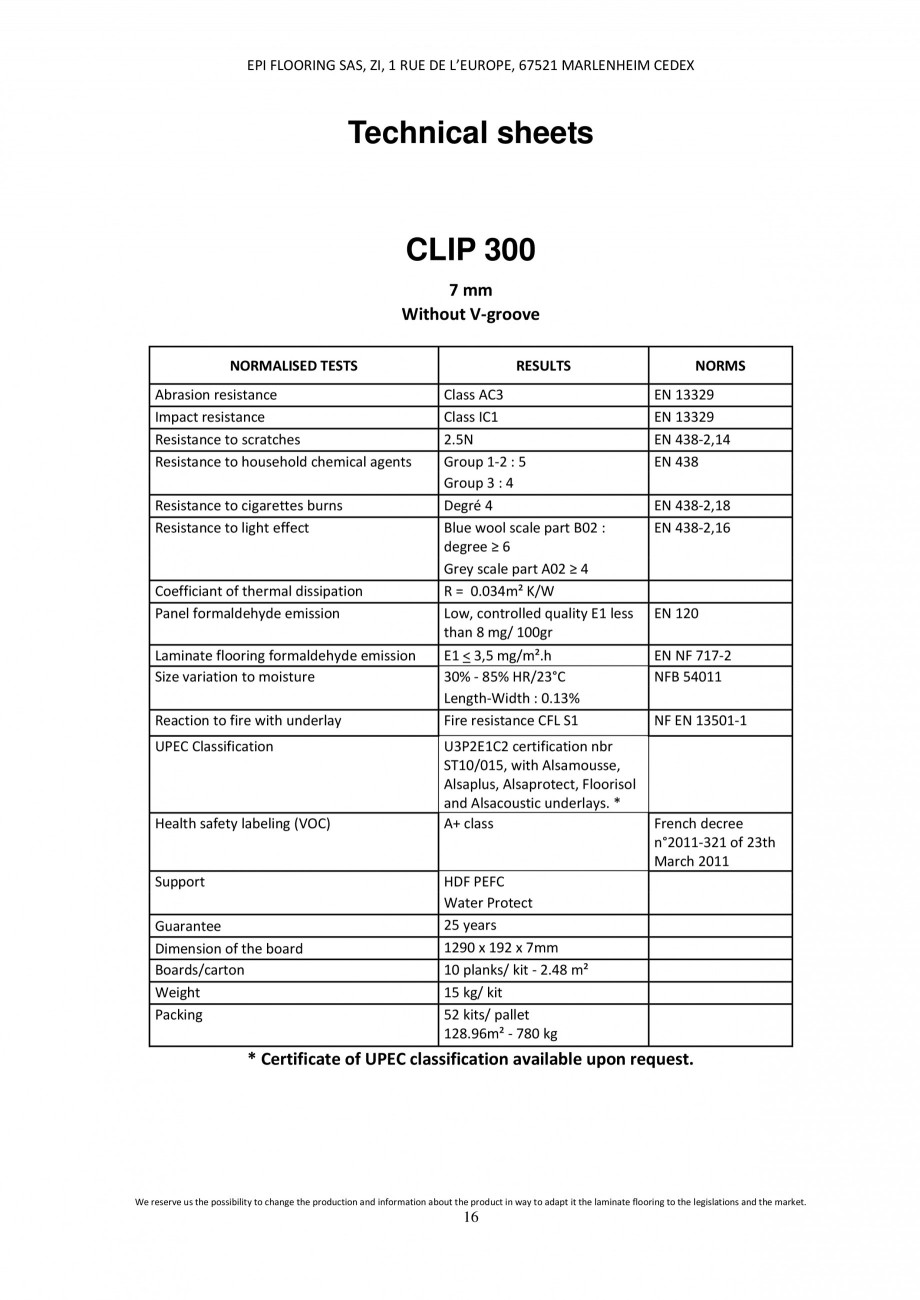

Pagina 15 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

DCLIC AQUASTAR, SOUND COMFORT, CLIP 300 and MEDINA tiles ranges are made up of a number of films (overlay, decor, balancer) which are polymerised under pressure and by heating, directly onto the core, which is either a high-density chipboard or a high-density fibre board (H.D.F.). Overlay Decor High-density fibre board HDF Balancer The conditions for laying EPI FLOORING laminate flooring as a floating floor and advice on cleaning and care are given on the back of each inlay. 2) Pallet conditionning Edges protections for strapping Protecting panels Plastic film all around Palet number Half pallet protection on 2 sides Pallet sheet with pattern ref, packaging date and the name of the packager Edges protections Storage conditions Label We reserve us the possibility to change the production and information about the product in way to adapt it the laminate flooring to the legislations and the market. 4 EPI FLOORING SAS, ZI, 1 RUE DE L’EUROPE, 67521 MARLENHEIM CEDEX Class of

Pagina 15-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

Pagina 16 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

use EPI FLOORING flooring is intended to several grades of use. RANGE OF PRODUCTS CLASS OF USE ACCORDING TO THE NORM EN 13329 INTENTED USE ACCORDING TO UPEC CLASSIFICATION OF CSTB SPECIFICATION 2999 of Nov. 97 Entrances, ground floor passages, stairs, all rooms with French windows opening onto a garden or terrace, bed sits, games rooms, eating areas Heavy domestic use Class 23 SOUND COMFORT CLIP 300 Hotels: bedrooms with or without access to the exterior, secondary passages. Tertiary sector: reception areas, waiting rooms, exhibition stands. Education: board rooms, students' rooms. Moderate commercial use Class 31 Heavy domestic use Class 23 VISUAL CLIP 400 OSMOZE DCLIC AQUASTAR As above Collective: corridors, upstairs landings, stairs. Tertiary sector: open-plan offices, offices for one or more occupants, corridors, passages, traffic areas, stairs, archives, IT premises, rooms for lectures, meetings or training. Hotels: main traffic areas, stairs. Education: music rooms, IT

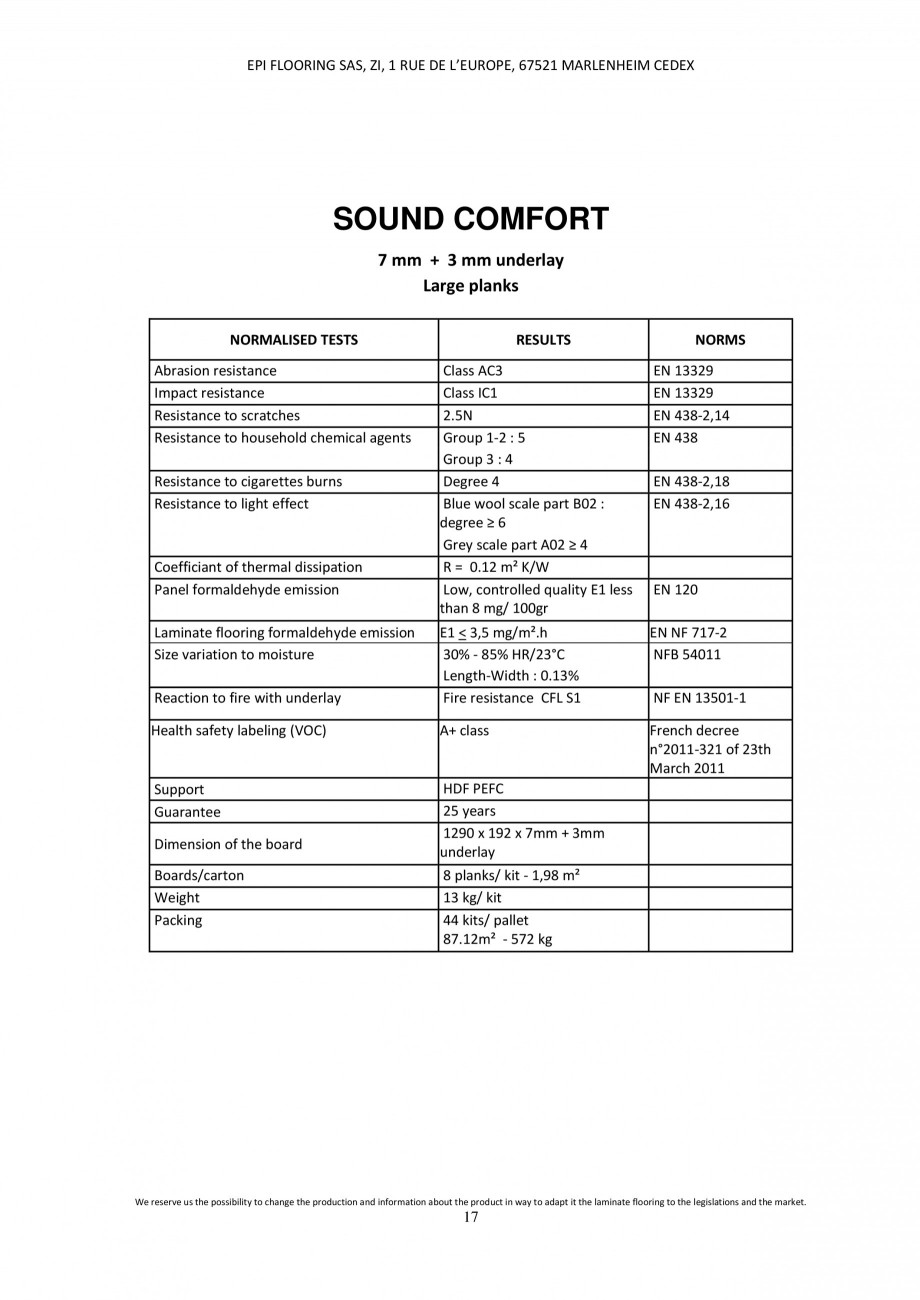

Pagina 16-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

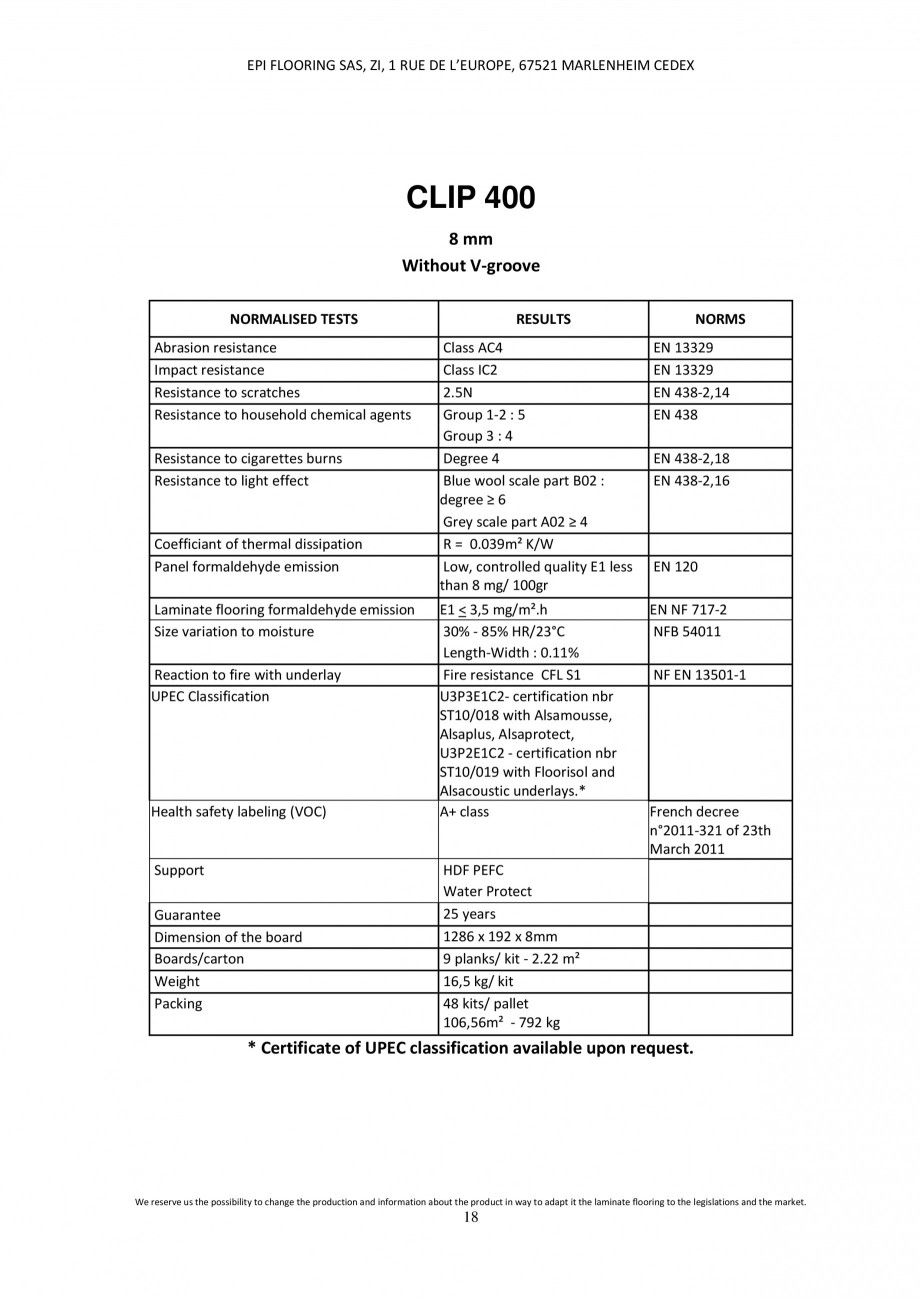

Pagina 17 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

rooms, libraries, archives. Normal commercial use Class 32 As above Heavy domestic use Class 23 SOLID PLUS SOLID FORTE MEDINA Collective: corridors, upstairs landings, stairs. Tertiary sector: open-plan offices, offices for one or more occupants, corridors, passages, traffic areas, stairs, archives, IT premises, rooms for lectures, meetings or training. Commerce with direct entrance from street. Hotels: main traffic areas, stairs, conference rooms, entrances. Education: music rooms, IT rooms, libraries, archives. Heavy commercial use Class 33 We reserve us the possibility to change the production and information about the product in way to adapt it the laminate flooring to the legislations and the market. 5 EPI FLOORING SAS, ZI, 1 RUE DE L’EUROPE, 67521 MARLENHEIM CEDEX Laying instructions for Floating Floor The guarantee applies to scrupulous adherence to the advice for laying the products and to statutory requirements in force (eg Unified Technical Documents (DTU), Technic

Pagina 17-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

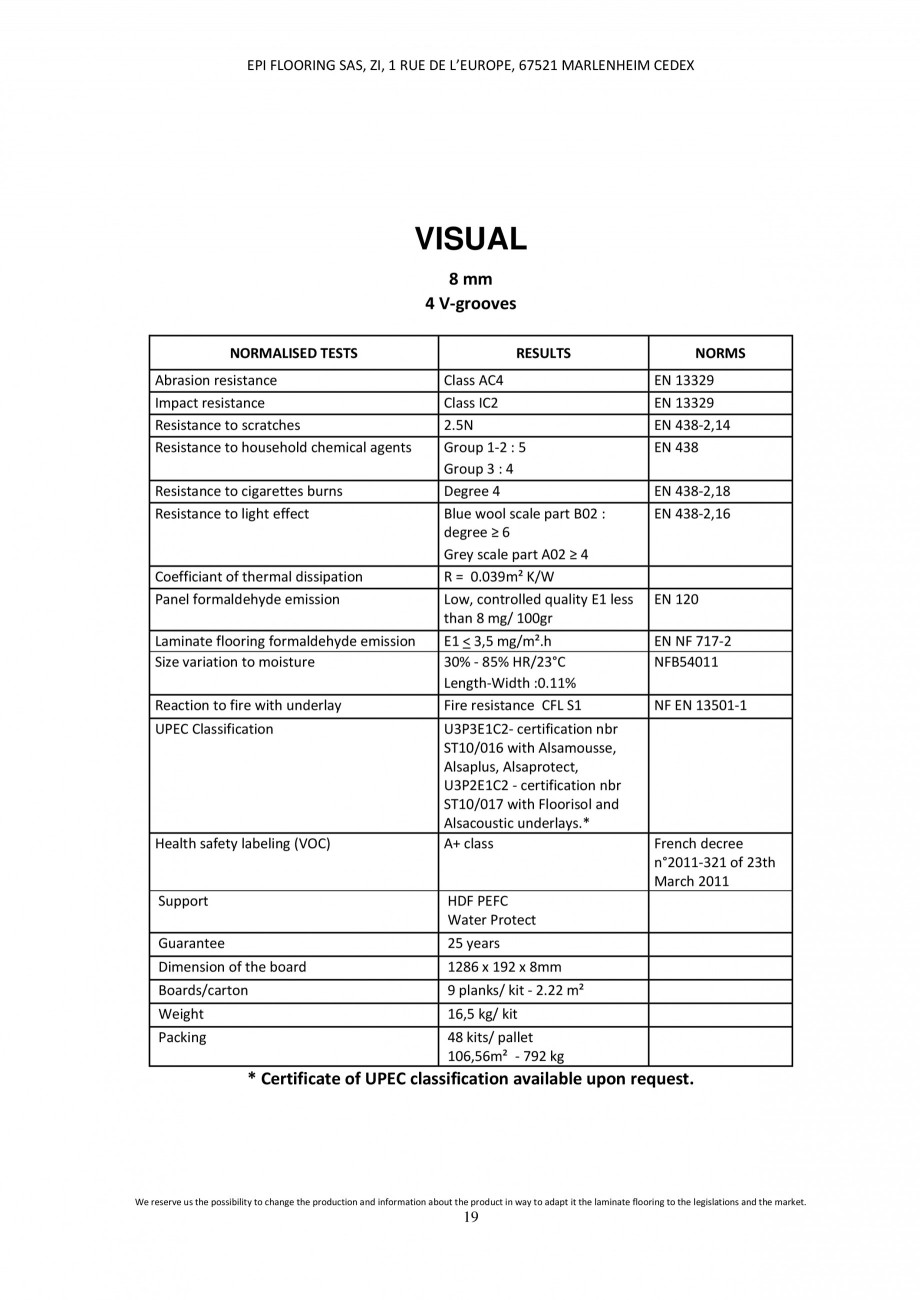

Pagina 18 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

al Sheets (Avis Technique)). The ALSAPLUS, ALSAPROTECT, ALSAMOUSSE, ALSACOUSTIC, DENSIFOAM, FLOORISOL and ALSALIN underlays form an integral part of these tried and tested systems. The SOLID PLUS, SOLID, FORTE, CLIP 400, VISUAL, OSMOZE, DCLIC AQUASTAR, SOUND COMFORT, CLIP 300 and MEDINA laminate floorings are for a floating floor installation in dry, indoor locations. They must not be screwed, pined or glued on the floor. Don’t screw cupboards on laminate flooring. 1) Preparation of the sub-floor  Possible sub-floors The following types of sub-floor are suitable for installation: - concrete or screeding, with or without radiant heating; - self-levelling anhydrite sub-floor, with or without radiant heating; - wood floors or floors comprising wood-based panels (DTU 51.3). The specific particulars for preparing sub-floors may be complemented in detail by application of the following Unified Technical Documents (DTU): - NF DTU 21: Carrying out concrete work - NF DTU 26-2: Concrete

Pagina 18-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

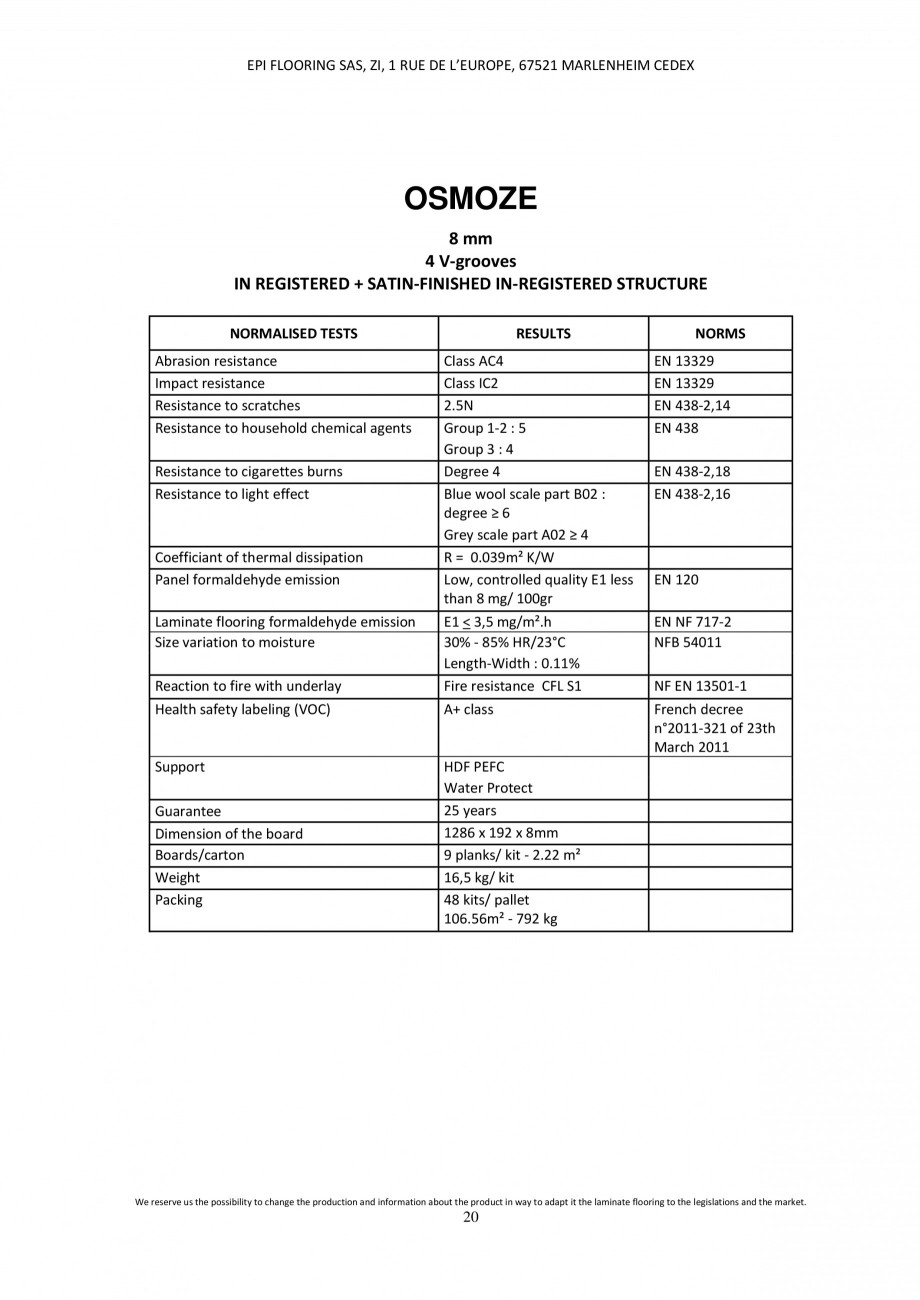

Pagina 19 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

and screeding with a water-based binder - NF DTU 51-11: Floating parquet flooring - NF DTU 51-3: Floors of wood or wood-based panels - NF DTU 65-8: Heated floors (hot water) - NF DTU 65-7: Heated floor with electrical system The entire text of DTU can be downloaded on the CSTB website www.cstb.fr .  Sub-floor flatness These above sub-floors must be flat, such that a 2-metre rule placed on any part of the floor should not reveal any bumps or dents in excess of 5 mm. If this check reveals that the sub-floor is not sufficiently flat, either locally or generally, or sufficiently smooth, rigid or hard, it may be necessary to carry out the following operations on wood floors or floors comprising wood-based panels: - flattening boards of flooring, planks and panels by screwing them down; - sanding the joints between panels; - sanding the nail heads.  Sub-floor humidity level The sub-floor must not be likely to expose the flooring laid to any rising damp of any kind. Check the humi

Pagina 19-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

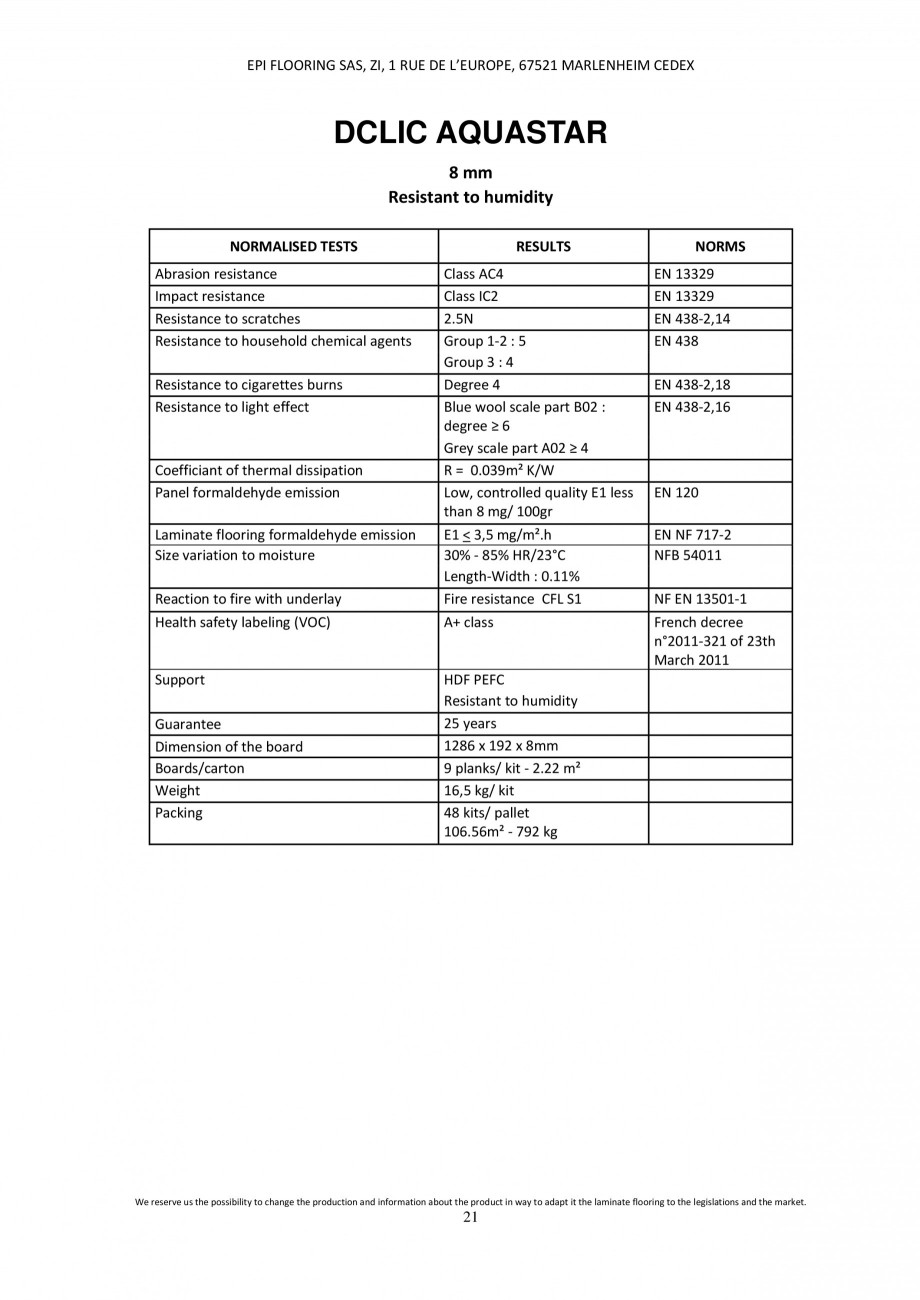

Pagina 20 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

dity level of the sub-floor; this should not exceed 4,5% (at 4cm depth). In any case (including heated floor), an underlay should be laid down under the laminate flooring to avoid any rising damp. We reserve us the possibility to change the production and information about the product in way to adapt it the laminate flooring to the legislations and the market. 6 EPI FLOORING SAS, ZI, 1 RUE DE L’EUROPE, 67521 MARLENHEIM CEDEX 2) Storage and laying instructions. At least 48 hours before laying the floor, place the packs, closed and not directly on the existing floor, in the room to be fitted, which should be at a temperature of between 12 and 30°C and a relative humidity level of between 40 and 65% RH to be maintained at least 3 days after laying. Remove any existing skirting boards. Place one board on the underlay(s) selected, against the door and lintel. Trim to new level of floor if necessary. Clean the sub-floor before laying the underlay(s), taking care to leave extra PE fil

Pagina 20-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

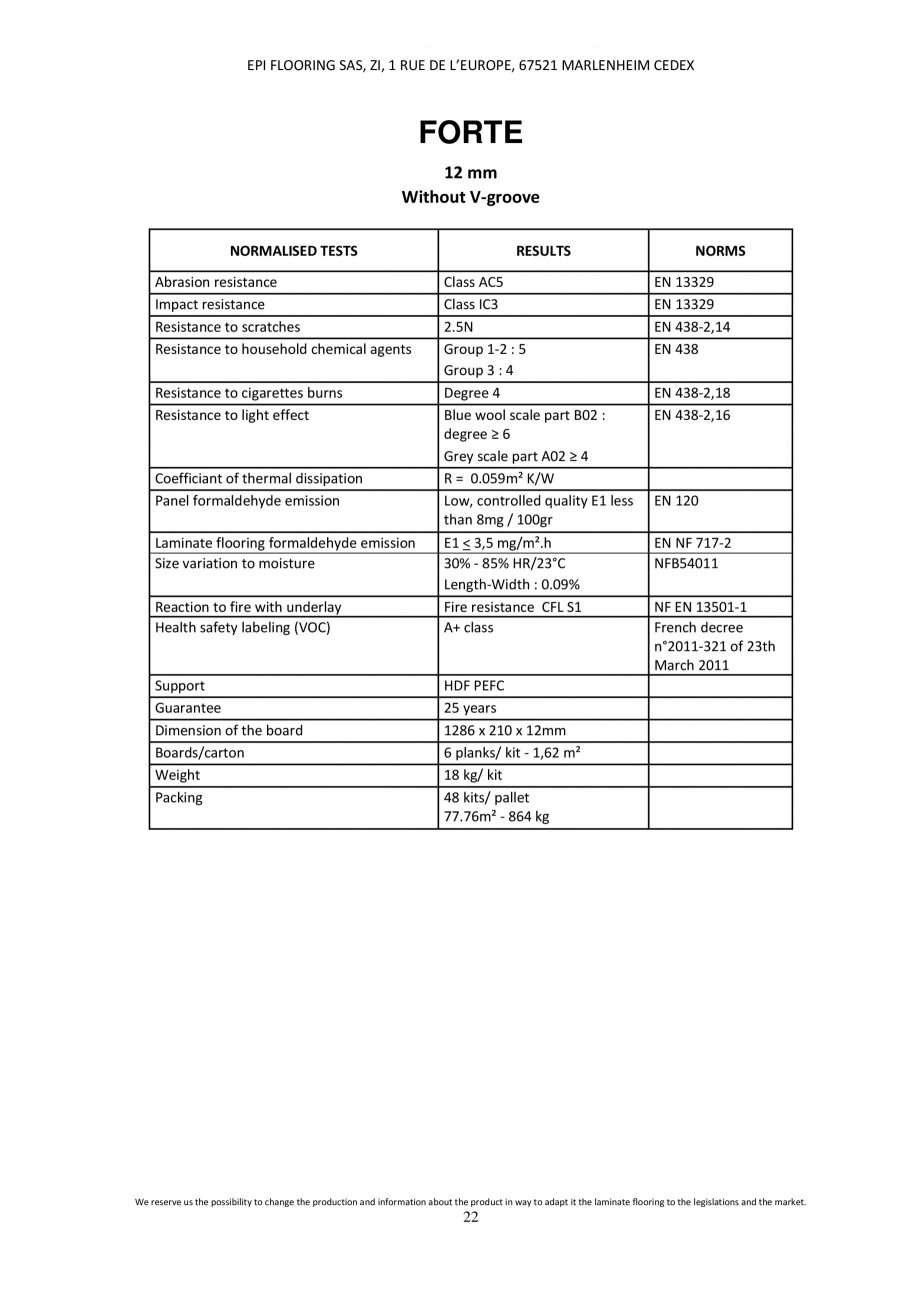

Pagina 21 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

m all round up the walls. 3) Laying  Plank checking Check each board carefully before and during laying. Faulty boards (visual defects), if any, should be rejected.  Choice of underlay The SOLID PLUS, SOLID, FORTE, CLIP 400, VISUAL, OSMOZE, DCLIC AQUASTAR, SOUND COMFORT, CLIP 300 and MEDINA laminate floorings should be used with the following underlays: - to limit any possible residual rising damp, these sub-floors should be covered by a 150µ sheet of ALSAPROTECT film, with the strips overlapping by 20 cm, and leaving 3-5cm extra PE film all around the walls. When in the presence of a wooden sub-floor it is advised to check if there is a proper and sufficient ventilation beneath (ie cellar, cavity, etc.). It must be prepared using appropriate smoothing products according to the nature of the subfloor, using them in accordance with the manufacturer's instructions. - for greater comfort when walking on the flooring and to level roughness of the sub-floor, we advise using the

Pagina 21-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

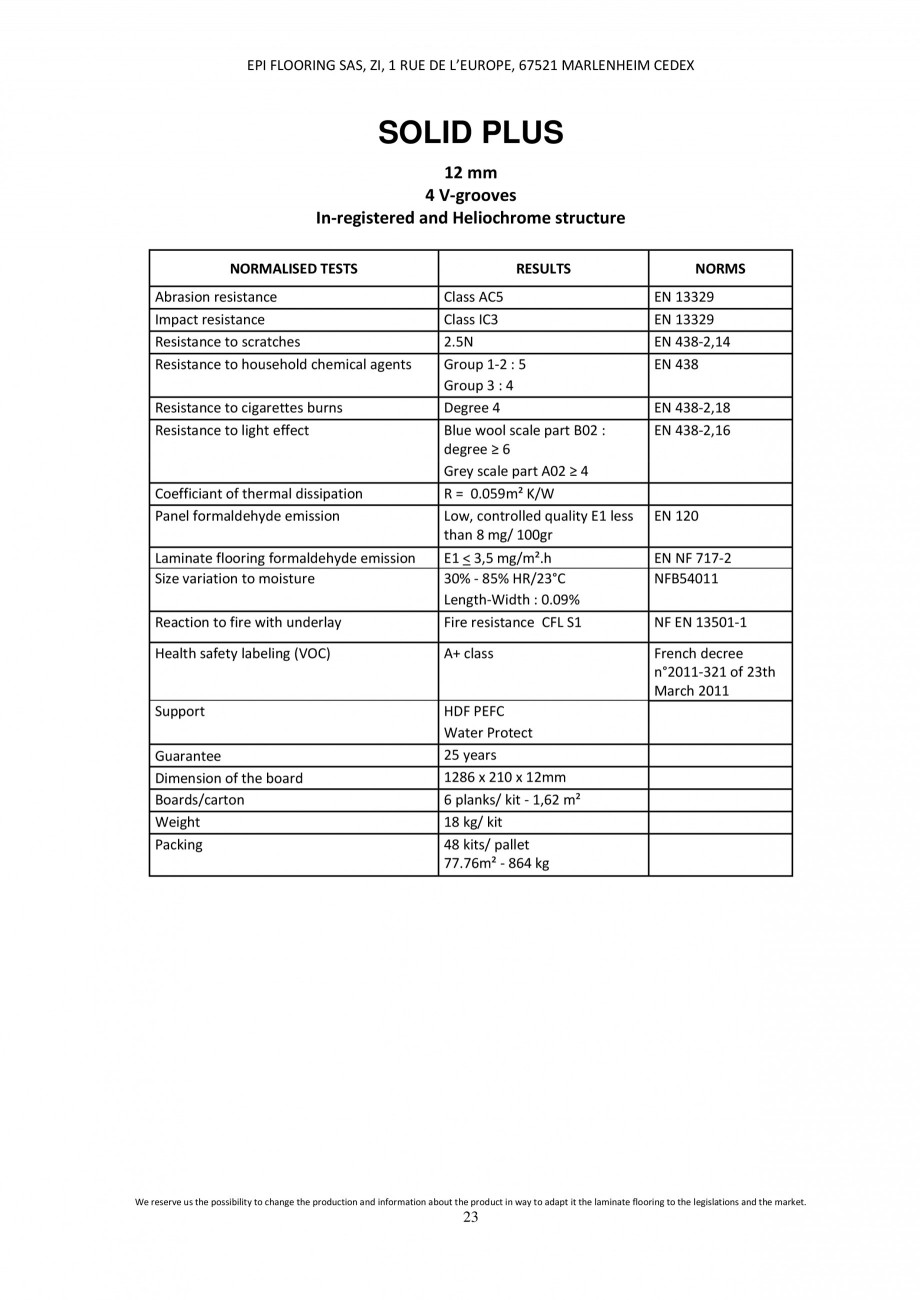

Pagina 22 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

ALSAMOUSSE underlay in conjunction with the ALSAPROTECT film. ALSAPLUS is a combination from the 2 underlays. The DENSIFOAM underlay offers a high resistance to compression. Finally, ALSAMOUSSALU, is an underlay added with an aluminium protection of 20 µ destinated to the laying in humid rooms. - to meet the acoustic insulation requirements in blocks of flats, particularly the requirements of the NRA, a resilient underlay resistant to compression is essential in conjunction with the ALSAPROTECT film: ALSACOUSTIC ∆Lw 20 bB ou ∆L 20 dB(A). FLOORISOL, is an underlay composed of wood fiber, which is one of the most ecological foam. ALSALIN, underlay in linen fibers, is used for greater comfort when walking on the floor and for acoustic insulation. The laying of FLOORISOL is different than for a normal underlay. Place always FLOORISOL in a 45° laying, in way that no joint of the boards and of the FLOORISOL is in the same direction. Important: ALSACOUSTIC and FLOORISOL are compatible

Pagina 22-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

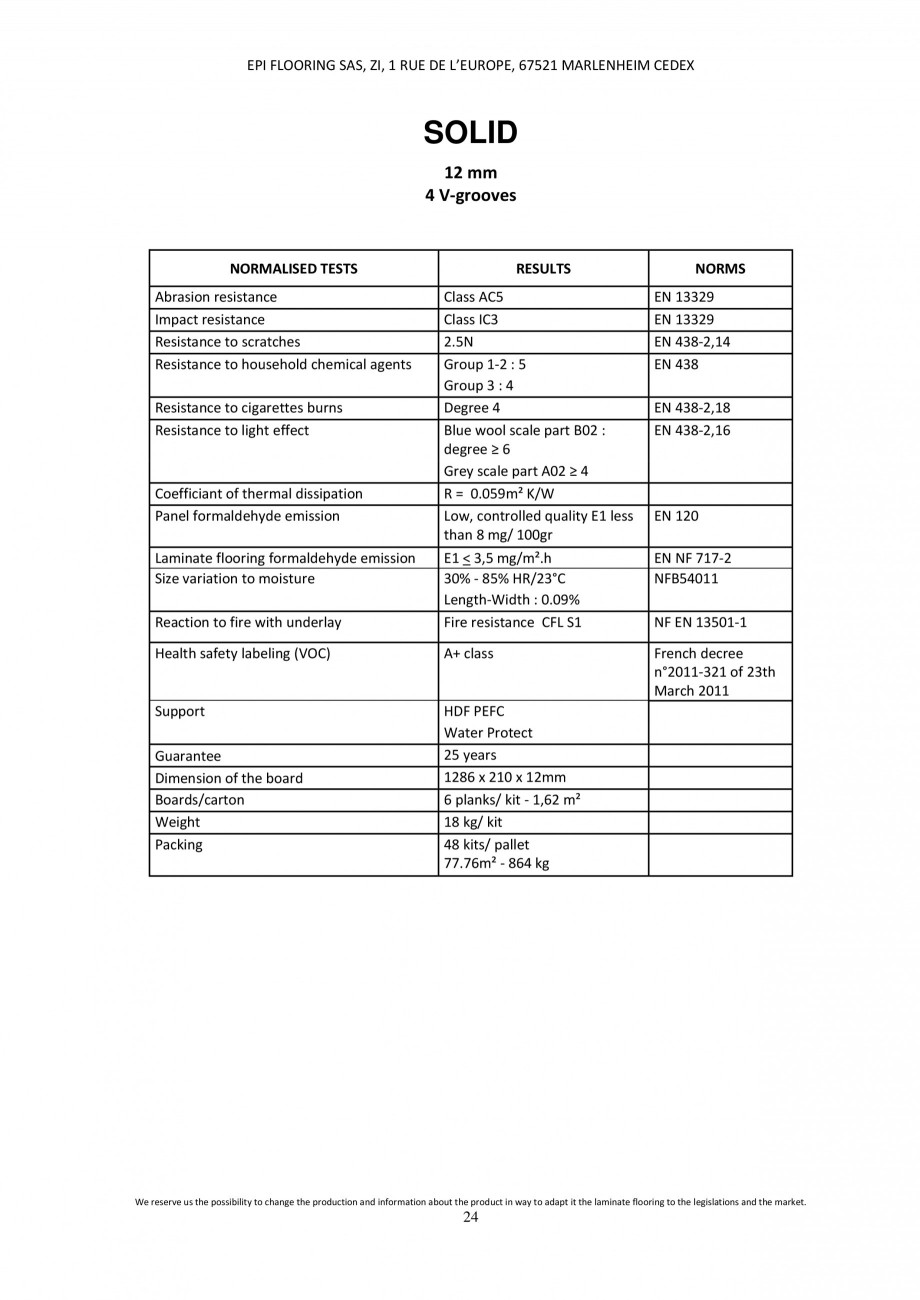

Pagina 23 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

with sub-floor heating but disadvised because of their thickness and density.  General points The length of the boards should be parralel to the main source of light, tongue side along the wall. Calculate the number of boards necessary lengthways and widthways. When cutting the boards, check that they are at least 30 cm long and at least 5 cm wide. The boards are laid so that the joints (width) are staggered by at least 30 cm. Each new row may be started using the leftover piece of the previous row, as long as the minimal dimensions given above are respected. It is essential to have an expansion gap of 8-10 mm between the boards and walls, doorways, piping, etc. This space should be adjusted with wedges. We reserve us the possibility to change the production and information about the product in way to adapt it the laminate flooring to the legislations and the market. 7 EPI FLOORING SAS, ZI, 1 RUE DE L’EUROPE, 67521 MARLENHEIM CEDEX It is necessary to include expansion gaps

Pagina 23-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

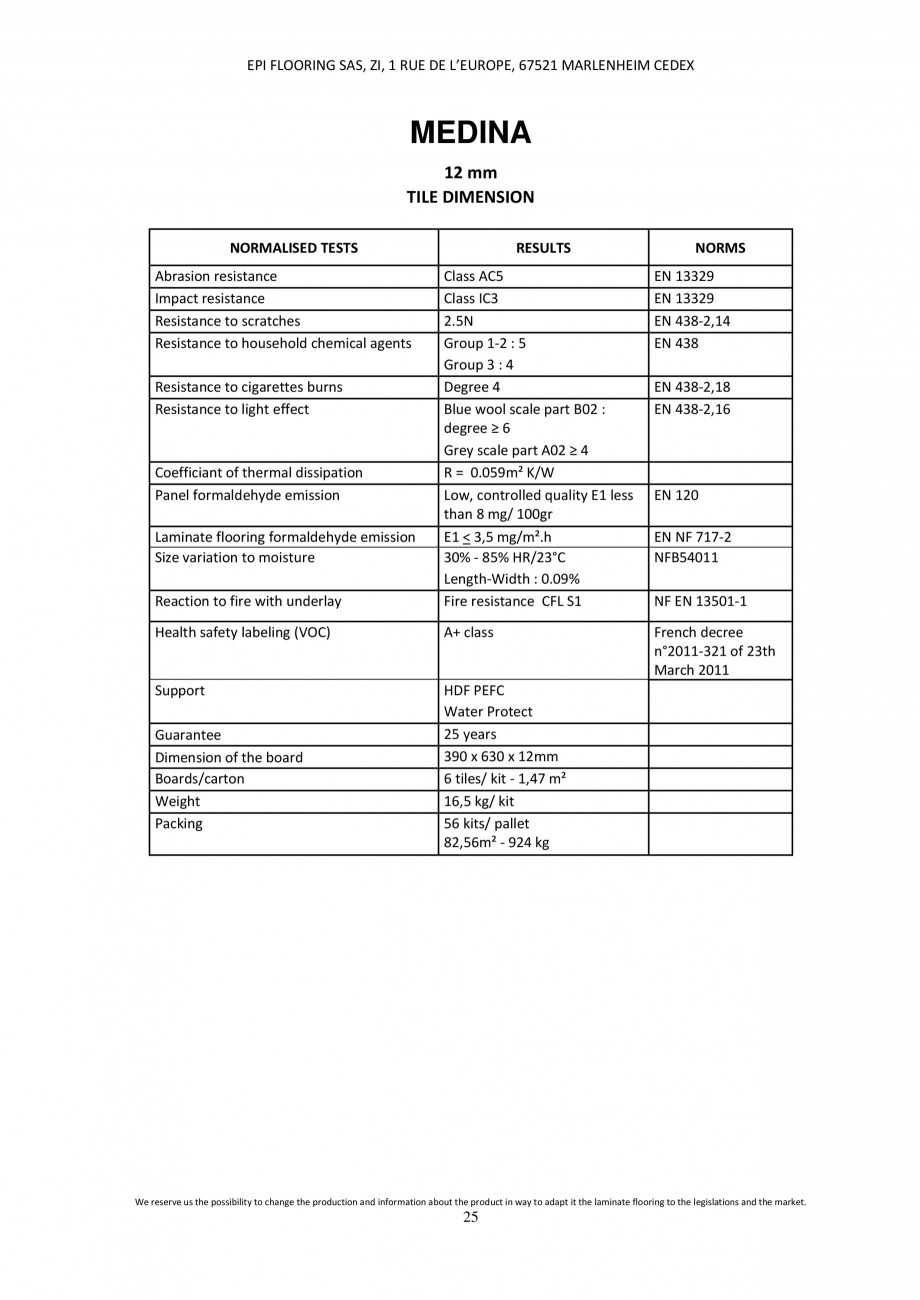

Pagina 24 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

in doorways or passageways, and for floors: - exceeding 12 metres in length or 8 metres in width (for thickness of 7 and 8 mm) - exceeding 12 metres in length or 12 metres in width (for thickness of 12). Use a finishing profile to fill in the expansion gap. 4) Laying instructions with the A clip system. These laying instructions are only applicable for the ranges MEDINA, SOUND COMFORT and CLIP 300. Tools : - 1 pencil - 1 2-metre aluminium ruler - 1 laying kit (made up of 20 or 40 spacers + 1 crowbar + 1 hammering block) - 1 hammer - 1 jigsaw, with fine serration - 1 drill, for the passage of rounded obstacles (diameter < 20mm) through the laminate flooring - 1 cutter, to cut off underlays - 1 sellotape for underlays The CLIP principle This is a glueless laying system where the bottom lip of grooves along the boards is used as a guide. It is preferable to lay the boards from left to right, with the tongue facing the wall. Position each new board so that the tongue rests on the groove

Pagina 24-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

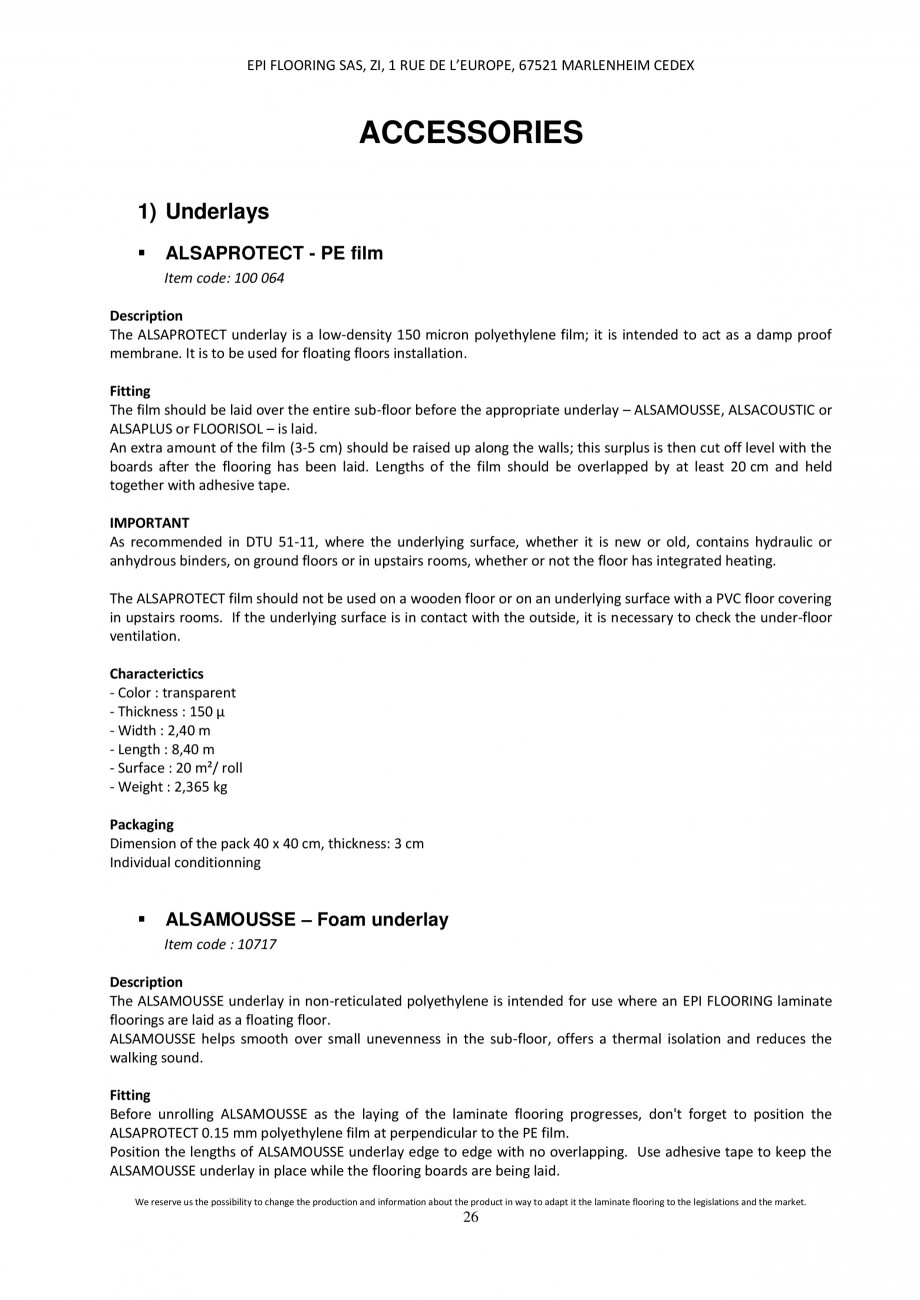

Pagina 25 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

of the previous board, angle the board to engage the tongue in the groove, then press forward and downward. To clip flat, position the board as before then engage it by gently tapping gradually along the length of the board using the exclusive tapping block (included in our installation kit). Assembling the boards - Place the first board a few centimetres away from the starting wall and against the wedges along the left-hand wall. Lay down the first row tapping gradually each board using the tapping block. - Start the second row using the leftover of the first row, fit it up against the shims on the left-hand wall and clip it onto the first board. The leftover board has to measure more than 30 cm wide. - Clip the third board onto the first row. Fit it onto the second board by tapping it gradually using the tapping block. - Complete each row alternately with full-length boards and the leftover board. If necessary, shift the outline of the starting wall to include the extra width needed

Pagina 25-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

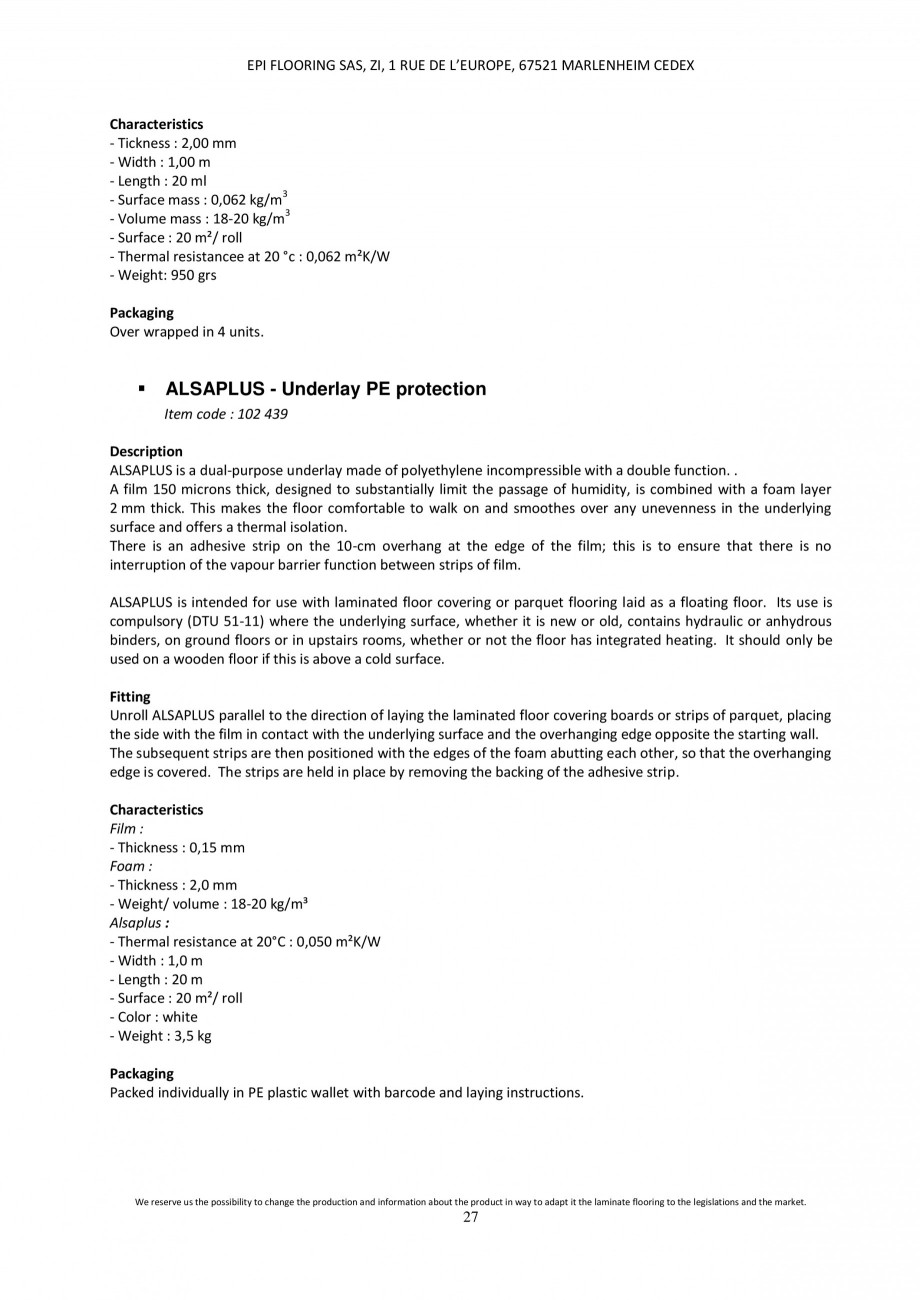

Pagina 26 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

to prevent the last board being too narrow. Take apart, and cut the boards for the first row to size. - Fit each end board using the lever, and put wedges in place. Continue laying as described above. - For the final row, place the last boards on the last row but one and trace the outline of the wall on the boards with the help of an offcut. Trim to the outline, including the width of the wedges. Once the boards are all laid, remove the wedges, fix the skirting boards and furnish the room. We reserve us the possibility to change the production and information about the product in way to adapt it the laminate flooring to the legislations and the market. 8 EPI FLOORING SAS, ZI, 1 RUE DE L’EUROPE, 67521 MARLENHEIM CEDEX We reserve us the possibility to change the production and information about the product in way to adapt it the laminate flooring to the legislations and the market. 9 EPI FLOORING SAS, ZI, 1 RUE DE L’EUROPE, 67521 MARLENHEIM CEDEX 5) Laying instructions with

Pagina 26-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

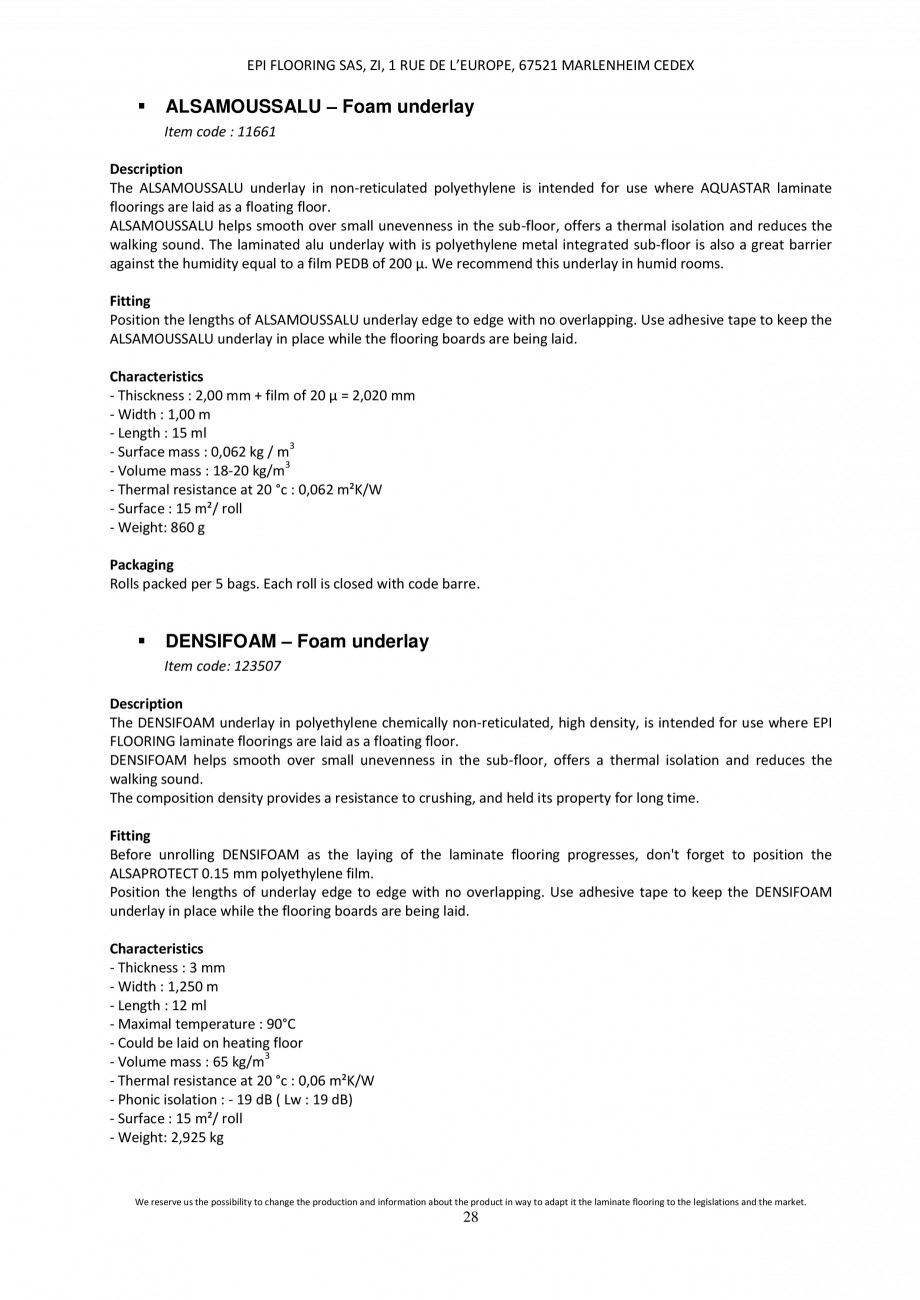

Pagina 27 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

the Zip’n’go system. These laying instructions are only applicable for the ranges SOLID PLUS, SOLID, FORTE, CLIP 400, VISUAL, OSMOZE, DCLIC AQUASTAR. Tools : - 1 pencil - 1 2-metre aluminium ruler - 20 spacers - 1 jigsaw, with fine serration - 1 drill, for the passage of rounded obstacles (diameter < 20mm) through the laminate flooring - 1 cutter, to cut off underlays - 1 sellotape for unerlays The CLIP principle This is a glueless laying system where the bottom lip of grooves along the boards is used as a guide. It is preferable to lay the boards from left to right, with the tongue facing the wall. Position each new board so that the tongue rests on the groove of the previous board, angle the board to engage the tongue in the groove, slide the board to the left (both short sides are now face to face). Then, pull out the tongue, it should slide out easily. Keep the tongues for possible further use. Beware of the opening side of the boxes. Assembling the boards - Place the first

Pagina 27-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

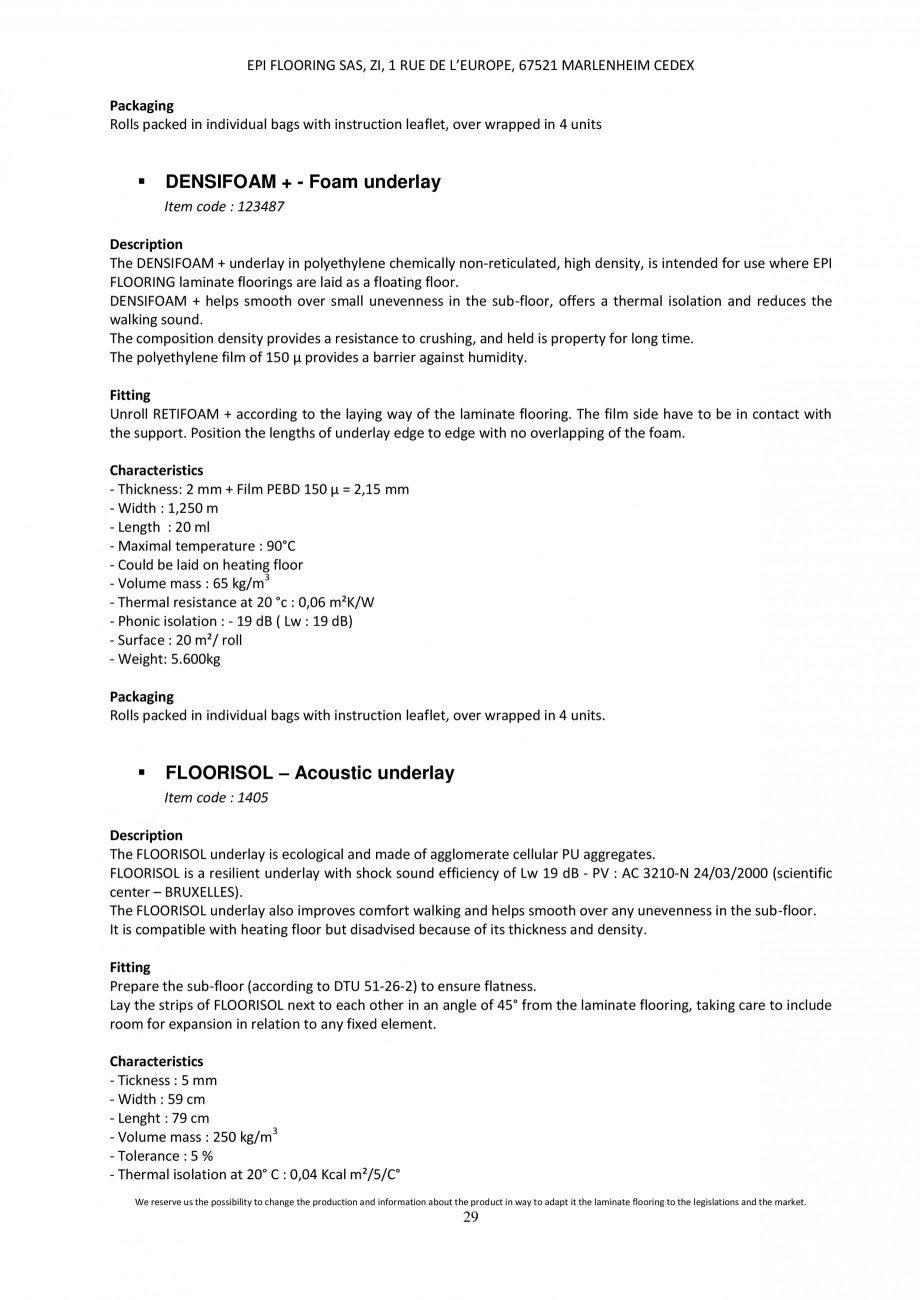

Pagina 28 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

board a few centimetres (8-10 mm) away from the starting wall and against the wedges along the left-hand wall. To lay down the first 2 planks, click the short sides together and then remove the tongue. We reserve us the possibility to change the production and information about the product in way to adapt it the laminate flooring to the legislations and the market. 10 EPI FLOORING SAS, ZI, 1 RUE DE L’EUROPE, 67521 MARLENHEIM CEDEX - Start the second row using the leftover of the first row, fit it up against the shims on the left-hand wall and clip it onto the first board. The leftover board has to measure more than 30 cm wide. - Clip the third board onto the first row. Fit it onto the second board by removing the tongue from the short side. - Complete each row alternately with full-length boards and the leftover board. If necessary, shift the outline of the starting wall to include the extra width needed to prevent the last board being too narrow. Take apart, and cut the board

Pagina 28-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

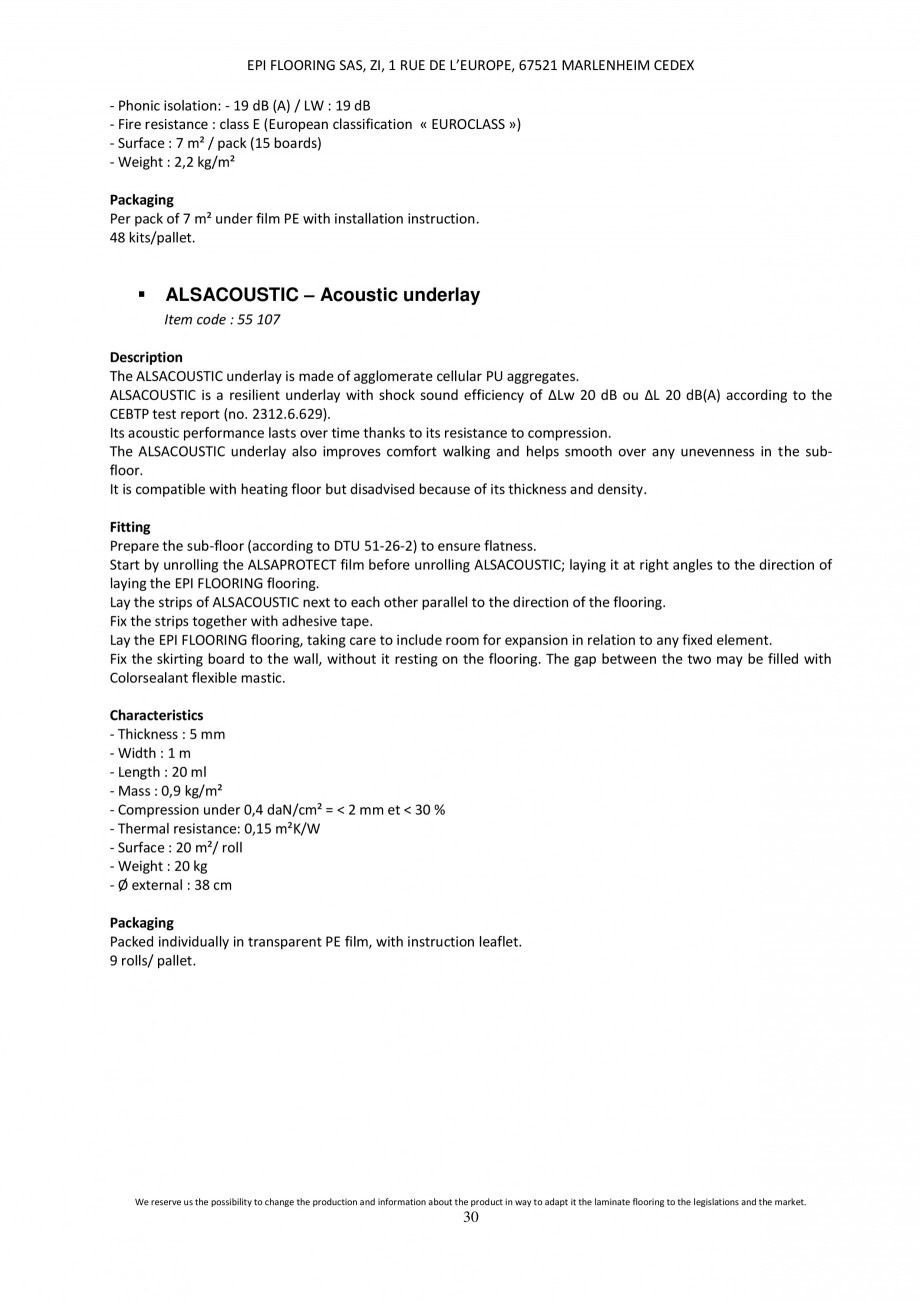

Pagina 29 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

s for the first row to size. - Continue to lay as described above. Remove a plank. To remove a plank, if necessary, the range already laid down should be pull out. Then, the planks should be slide flat to unblock the short sides : We reserve us the possibility to change the production and information about the product in way to adapt it the laminate flooring to the legislations and the market. 11 EPI FLOORING SAS, ZI, 1 RUE DE L’EUROPE, 67521 MARLENHEIM CEDEX Repositionning planks: 1. Pull out the tongue with no tab = 2. Press the tongue with the tab into the left-hand plank. Check the illustration to be sure of the direction. The tab needs to protrude from the plank by about 1cm. = 3. Next, press the tongue without the tab into the same groove. Check the illustration to be sure of the direction. The tongue must not protrude from the plank = 4. continue installation Laying the final row : For the final row, place the last boards on the last row but one and trace the outline of

Pagina 29-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

Pagina 30 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

the wall on the boards with the help of an offcut. Trim to the outline, including the width of the wedges. 1. pull the two tongues out of the plank. 2. cut the plank to the appropriate dimension. 3. using a Stanley knife, cut the tongue without the tab. 4. reposition the tongues following the steps above. 5. continue installation. Once the boards are all laid, remove the wedges, fix the skirting boards and furnish the room. A Zip’n’go video is available on our website www.alsafloor.com/zipngo or scan the following flashcode : We reserve us the possibility to change the production and information about the product in way to adapt it the laminate flooring to the legislations and the market. 12 EPI FLOORING SAS, ZI, 1 RUE DE L’EUROPE, 67521 MARLENHEIM CEDEX Laying instructions on a sub-floor heating. 1) Precautions The thermal resistance of EPI FLOORING laminate flooring allows its use on floors with low temperature heating where the temperature does not exceed 28°C on the s

Pagina 30-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

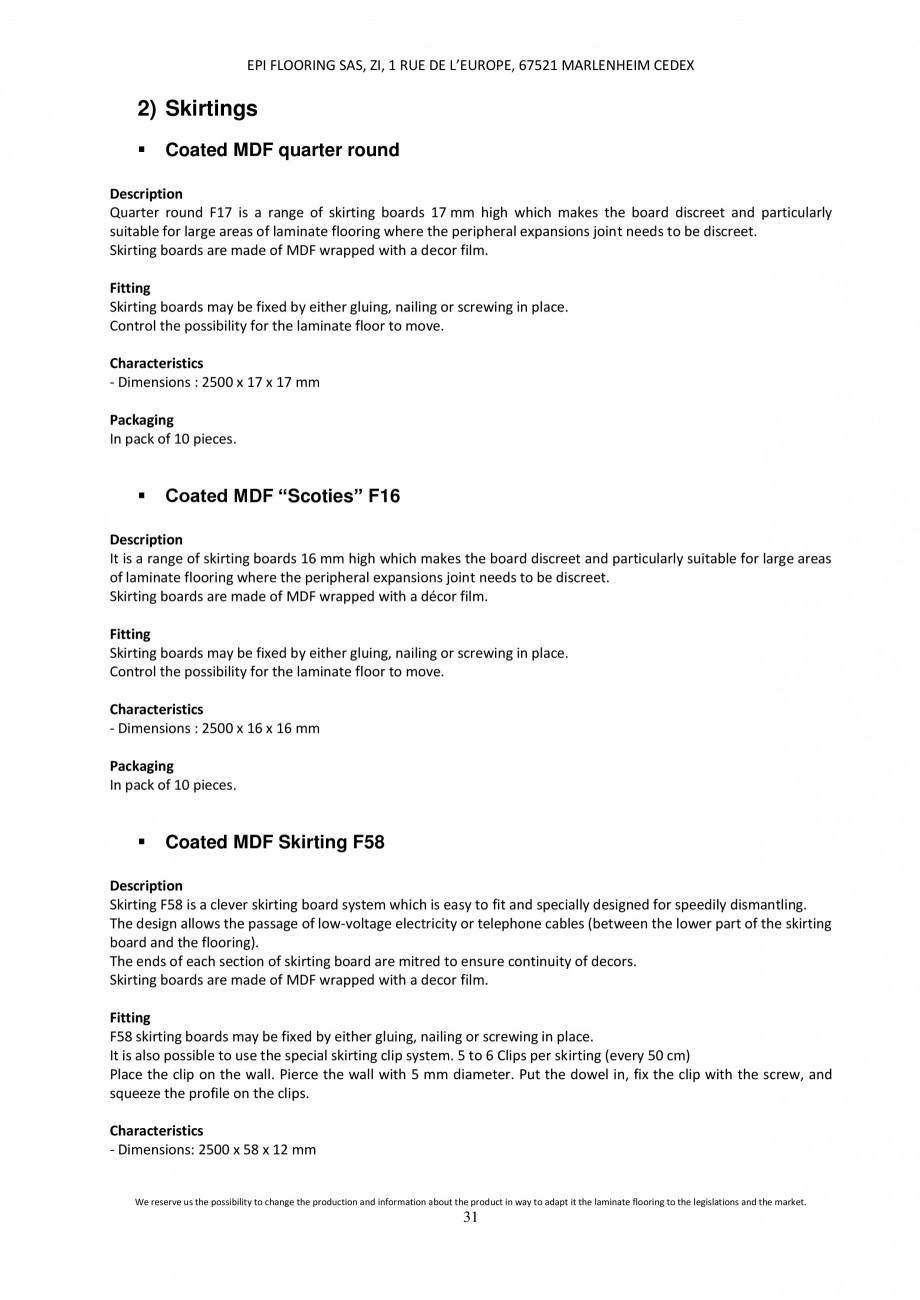

Pagina 31 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

urface of the finished floor. In addition to the advice on laying included in each pack and the advice given by the heating contractor, the following points must be observed: - sub-floors must be in accordance with DTU. - it is essential to check humidity. 2) Laying conditions The thermal resistance of the underlay and laminate flooring assembly must not exceed < 0,13 m² K/W. The ALSACOUSTIC and FLOORISOL underlays are not suitable for use with underfloor heating. It should not be forgotten that the natural drying time of a new sub-floor (one and a half weeks per centimetre thickness of concrete, and half as much again during damp weather) should be followed by a gradual start-up of the heating system, carried out by the heating contractor, two weeks at least before the flooring is laid. The heating stabilises the water content of the sub-floor corresponding to its future conditions of use and limits the upward migration of water vapour when it is turned on once the flooring has been

Pagina 31-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

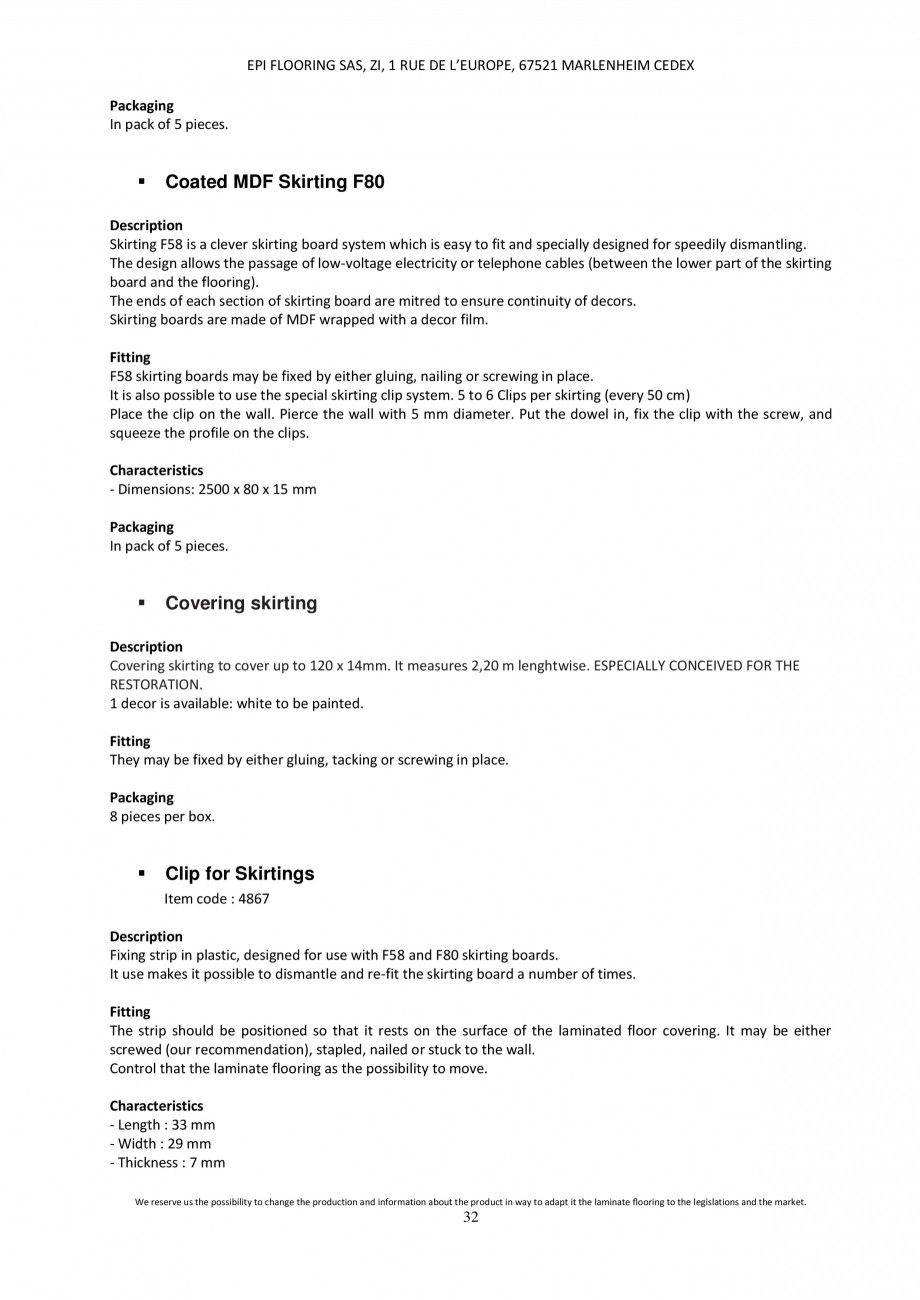

Pagina 32 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

laid. The heating is turned off two days before laying the floor and turned on again gradually after a three-day stabilisation period once the flooring has been laid to increase the heating by 5° per day, up to the appropriate temperature. 3) Fitting It is essential to unroll the ALSAPROTECT 150 microns polyethylene film on the sub-floor with a minimum overlap of 20 cm before laying the ALSAMOUSSE resilient underlay. The cyclic start-up of the underfloor heating combined with variations in the relative humidity of the environment causes laminate flooring to expand and contract. It is essential that our advice for the tongues and grooves has been followed and that a proper expansion gap (8-10 mm minimum) has been respected around fixed elements: walls, partitions, pipes, posts and doorways. We reserve us the possibility to change the production and information about the product in way to adapt it the laminate flooring to the legislations and the market. 13 EPI FLOORING SAS, ZI, 1

Pagina 32-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

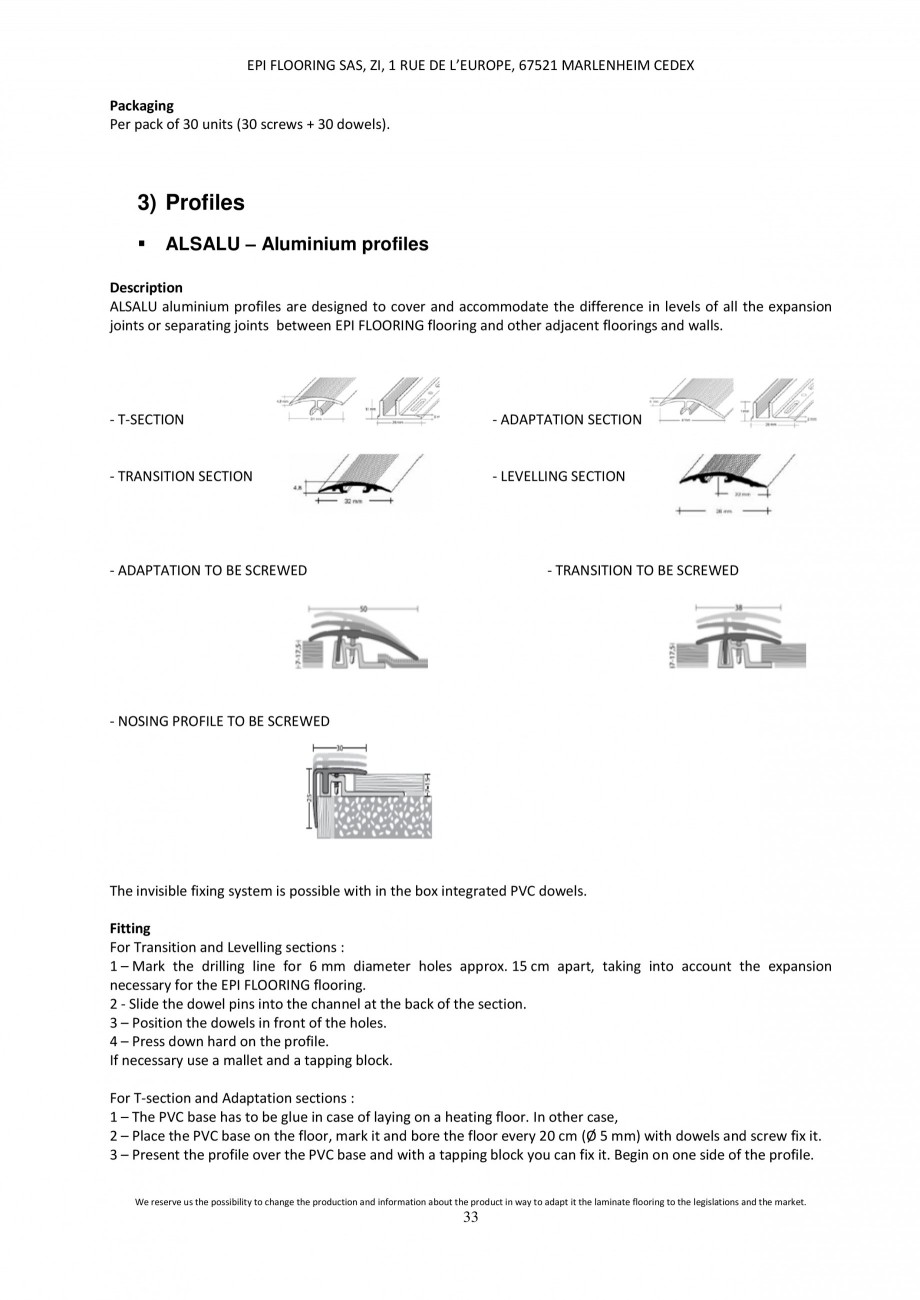

Pagina 33 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

RUE DE L’EUROPE, 67521 MARLENHEIM CEDEX Laying instructions in humid areas. The following recommendations and illustrations are in addition to the general conditions already described. DCLIC AQUASTAR laminate flooring is resistent to humidity only if used with CLICSEAL product, on the tongues of the planks, and with COLORSEALANT product, on the perimeter of the room (between the wall and the laminate flooring). They must be used to avoid any water seepage under the laminate flooring. 1) General principle The planks should be laid from left to right, with the grooved edge against the wall. For better understanding and exact positioning on the ground in relation to the geometry of the room, we recommend that you position the first three rows without ClicSeal them. If necessary, shift the outline of the starting wall to include the extra width needed to prevent the last row being too narrow. Reminder : ClicSeal is dedicated specifically for the AQUASTAR Laminate flooring, but can be

Pagina 33-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

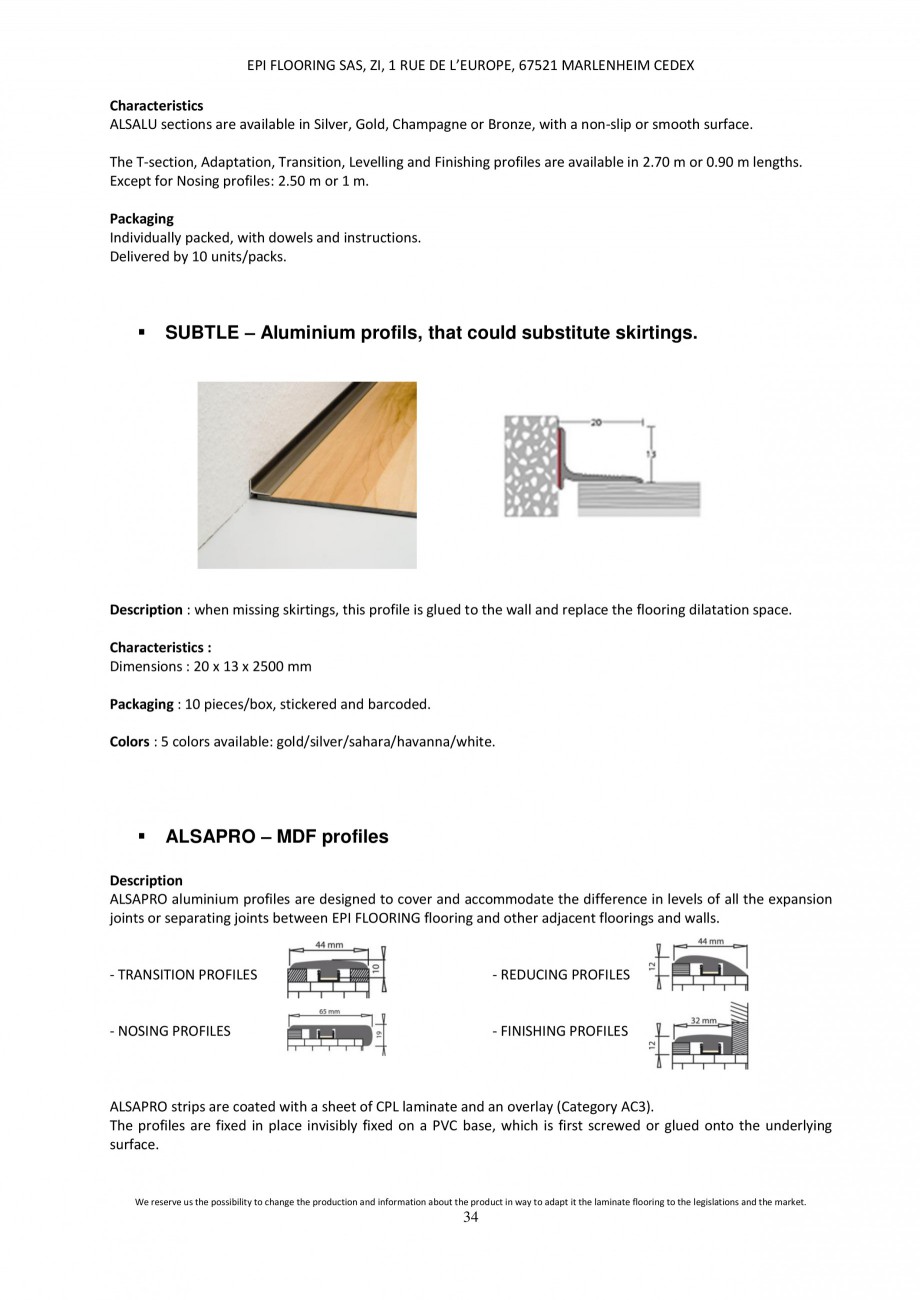

Pagina 34 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

also used with all glueless flooring – laminate and engineered wood floors. ClicSeal is a joint sealer designed to protect the core of ‘Click’ floors from moisture and water damage. It will prevent joints from swelling and opening and allows free movement of individual planks. We reserve us the possibility to change the production and information about the product in way to adapt it the laminate flooring to the legislations and the market. 14 EPI FLOORING SAS, ZI, 1 RUE DE L’EUROPE, 67521 MARLENHEIM CEDEX The COLORSEALANT acrylic mastics are designed for use as coloured joints; they are waterproof. They are used around the edges of EPI FLOORING flooring where a skirting board or a cover strip cannot be fitted. COLORSEALANT mastic is easy to work and is dry to the touch after 15 minutes; it is cleaned with water, and is resistant to mould and damp. It sticks to concrete, marble, ceramic, granite, wood, bronze, copper, and most solid materials. COLORSEALANT may be painted; i

Pagina 34-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

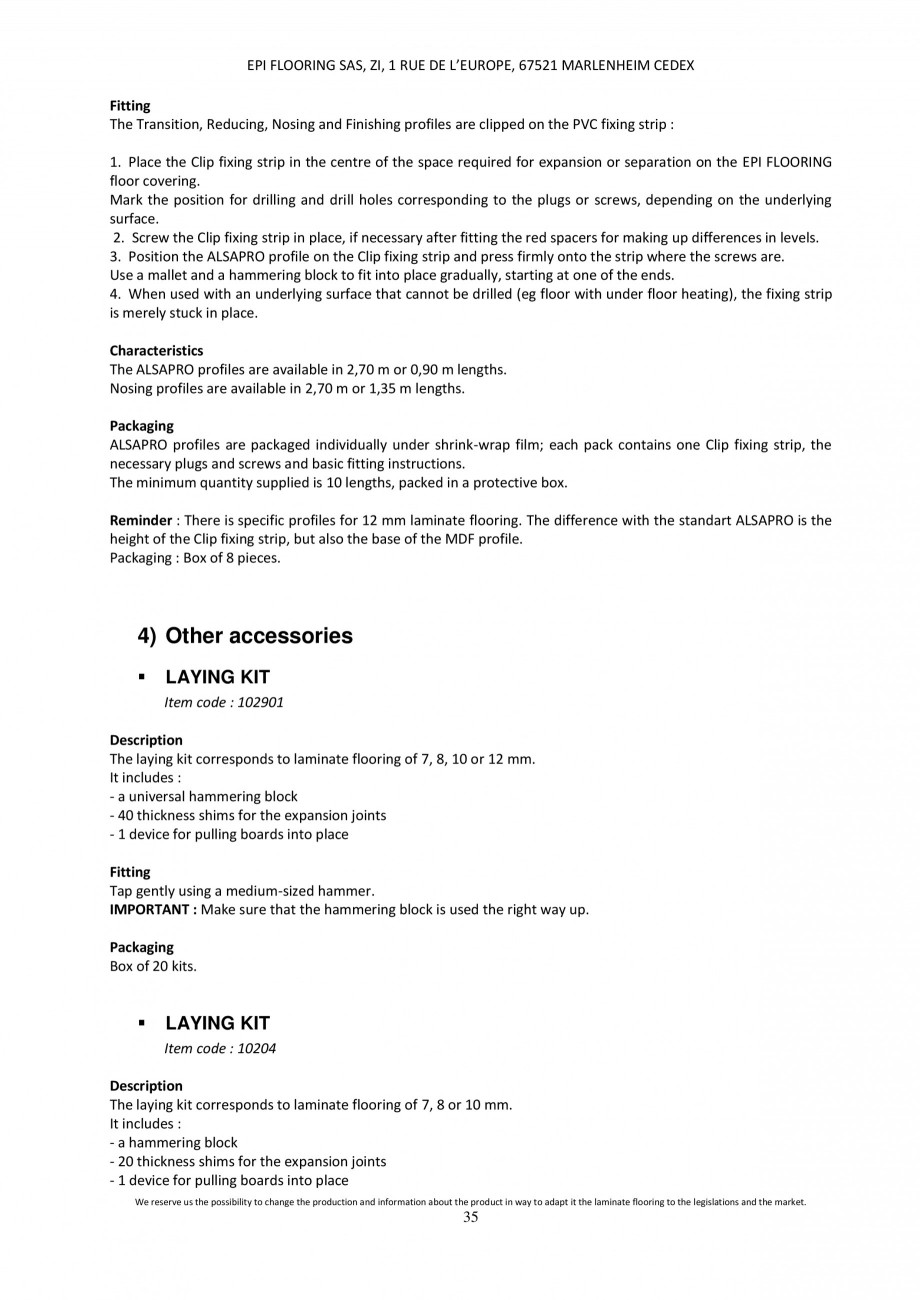

Pagina 35 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

t retains its flexibility even in dry conditions, and is resistant to detergents. It does not break or crack. Fitting: The expansion space to be covered must first be filled with a resilient material (eg. foam). 2) Assembling the boards Apply gel to top of the tongue before laying plank Lay boards immediately, excess should squeeze out of the top of the seam. ClicSeal will not stick or stain the flooring surface. Allow 5 minutes to dry, then peel off overfill. 3) Guarantee The guarantee for the DCLIC AQUASTAR is only effective if the product is laid with the using of ClicSeal, on each side of the product and on all the planks of the room, and with the COLORSEALANT. We reserve us the possibility to change the production and information about the product in way to adapt it the laminate flooring to the legislations and the market. 15 EPI FLOORING SAS, ZI, 1 RUE DE L’EUROPE, 67521 MARLENHEIM CEDEX Technical sheets CLIP 300 7 mm Without V-groove NORMALISED TESTS Abrasion resistanc

Pagina 35-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

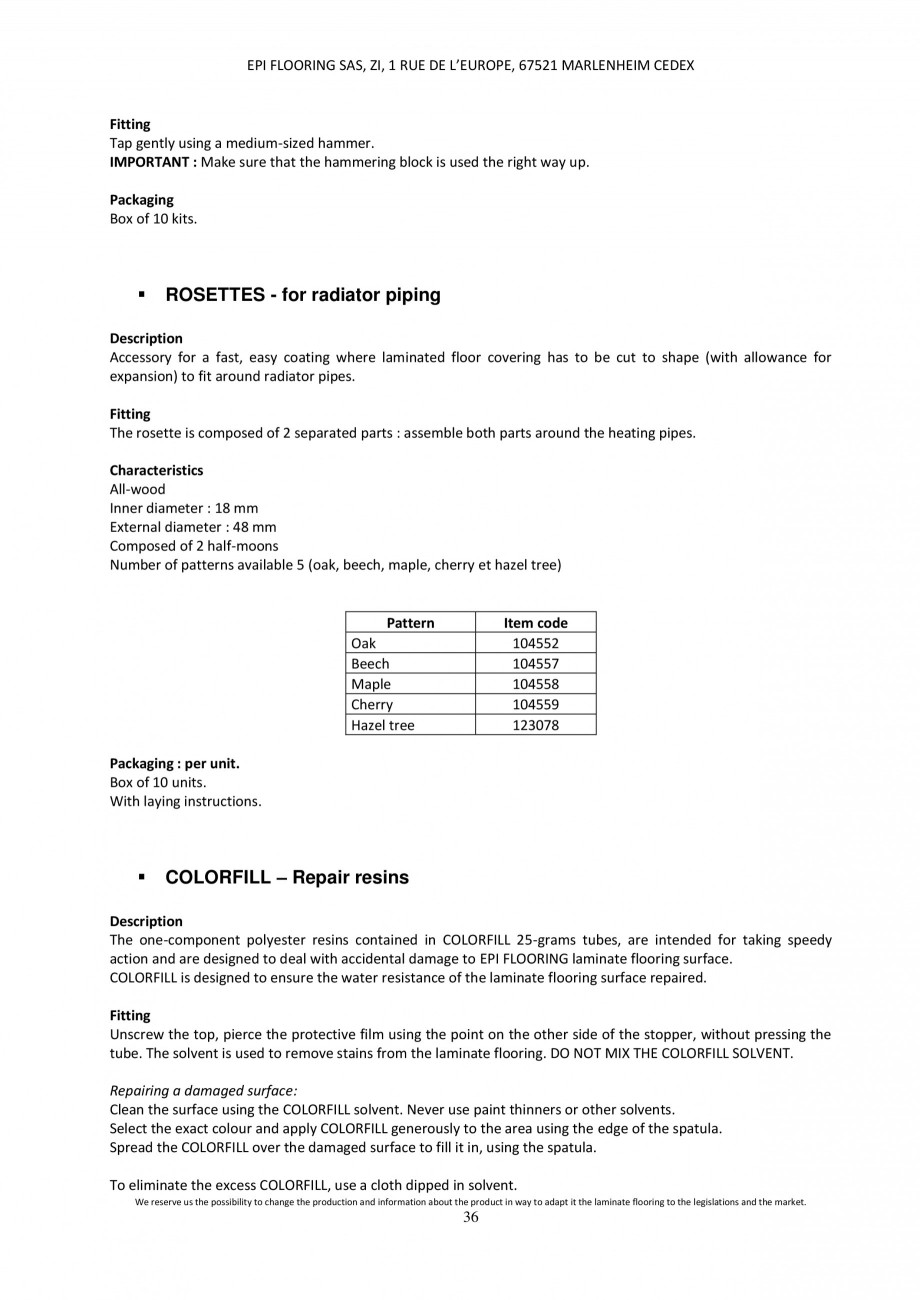

Pagina 36 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

e Impact resistance Resistance to scratches Resistance to household chemical agents Resistance to cigarettes burns Resistance to light effect Coefficiant of thermal dissipation Panel formaldehyde emission Laminate flooring formaldehyde emission Size variation to moisture Reaction to fire with underlay UPEC Classification Health safety labeling (VOC) Support Guarantee Dimension of the board Boards/carton Weight Packing RESULTS NORMS Class AC3 Class IC1 2.5N Group 1-2 : 5 Group 3 : 4 Degré 4 Blue wool scale part B02 : degree ≥ 6 Grey scale part A02 ≥ 4 R = 0.034m² K/W Low, controlled quality E1 less than 8 mg/ 100gr EN 13329 EN 13329 EN 438-2,14 EN 438 E1 < 3,5 mg/m².h 30% - 85% HR/23°C Length-Width : 0.13% Fire resistance CFL S1 EN NF 717-2 NFB 54011 U3P2E1C2 certification nbr ST10/015, with Alsamousse, Alsaplus, Alsaprotect, Floorisol and Alsacoustic underlays. * A+ class EN 438-2,18 EN 438-2,16 EN 120 NF EN 13501-1 French decree n°2011-321 of 23th March 2011 HD

Pagina 36-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

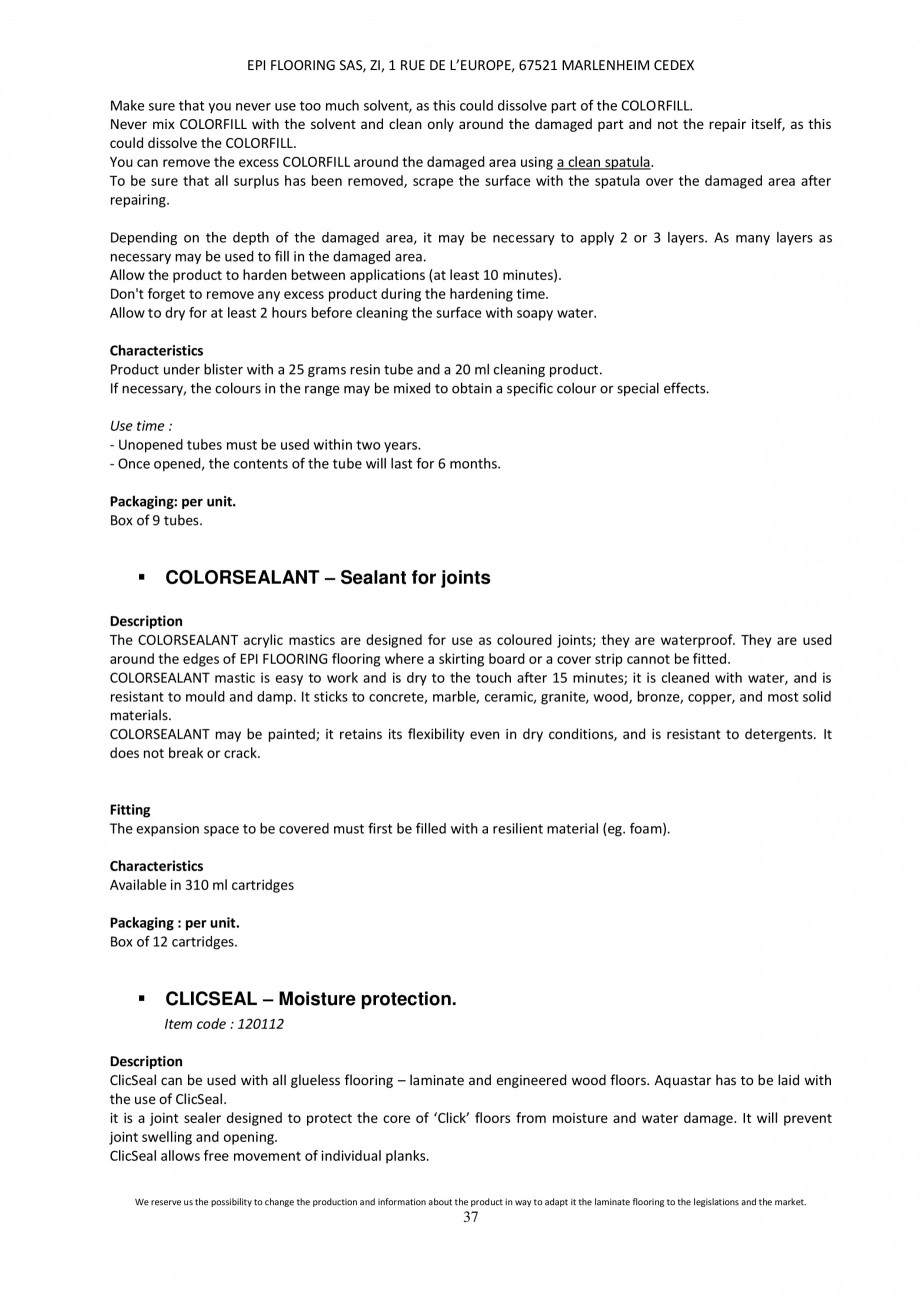

Pagina 37 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

F PEFC Water Protect 25 years 1290 x 192 x 7mm 10 planks/ kit - 2.48 m² 15 kg/ kit 52 kits/ pallet 128.96m² - 780 kg * Certificate of UPEC classification available upon request. We reserve us the possibility to change the production and information about the product in way to adapt it the laminate flooring to the legislations and the market. 16 EPI FLOORING SAS, ZI, 1 RUE DE L’EUROPE, 67521 MARLENHEIM CEDEX SOUND COMFORT 7 mm + 3 mm underlay Large planks NORMALISED TESTS Abrasion resistance Impact resistance Resistance to scratches Resistance to household chemical agents RESULTS NORMS Class AC3 Class IC1 2.5N Group 1-2 : 5 Group 3 : 4 Degree 4 Blue wool scale part B02 : degree ≥ 6 Grey scale part A02 ≥ 4 R = 0.12 m² K/W Low, controlled quality E1 less than 8 mg/ 100gr EN 13329 EN 13329 EN 438-2,14 EN 438 EN NF 717-2 NFB 54011 Reaction to fire with underlay E1 < 3,5 mg/m².h 30% - 85% HR/23°C Length-Width : 0.13% Fire resistance CFL S1 Health safety labeling (VOC

Pagina 37-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

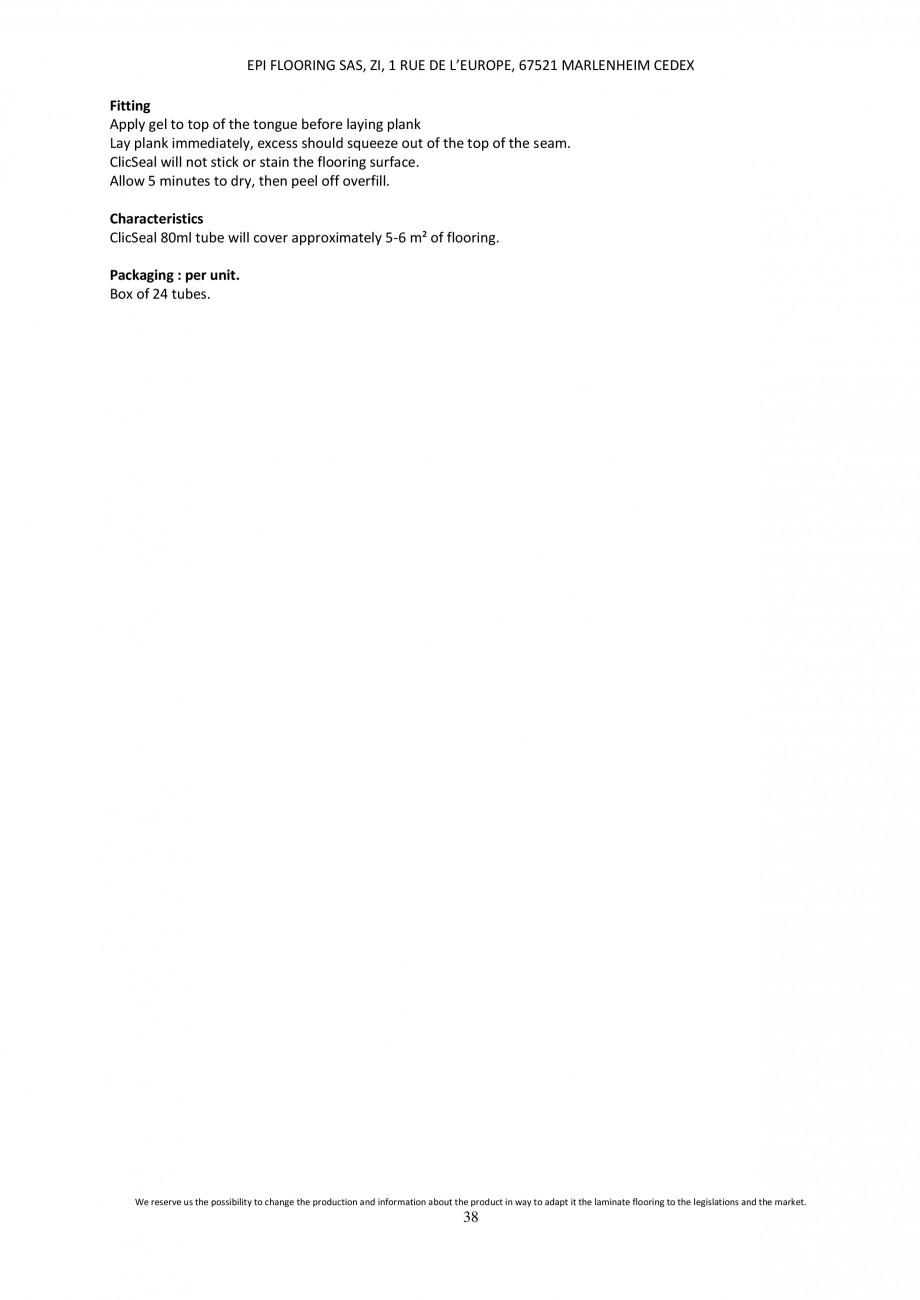

Pagina 38 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

) A+ class French decree n°2011-321 of 23th March 2011 Support Guarantee HDF PEFC 25 years 1290 x 192 x 7mm + 3mm underlay Resistance to cigarettes burns Resistance to light effect Coefficiant of thermal dissipation Panel formaldehyde emission Laminate flooring formaldehyde emission Size variation to moisture Dimension of the board Boards/carton Weight Packing EN 438-2,18 EN 438-2,16 EN 120 NF EN 13501-1 8 planks/ kit - 1,98 m² 13 kg/ kit 44 kits/ pallet 87.12m² - 572 kg We reserve us the possibility to change the production and information about the product in way to adapt it the laminate flooring to the legislations and the market. 17 EPI FLOORING SAS, ZI, 1 RUE DE L’EUROPE, 67521 MARLENHEIM CEDEX CLIP 400 8 mm Without V-groove NORMALISED TESTS Abrasion resistance Impact resistance Resistance to scratches Resistance to household chemical agents Resistance to cigarettes burns Resistance to light effect Coefficiant of thermal dissipation Panel formaldehyde emissio

Pagina 38-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

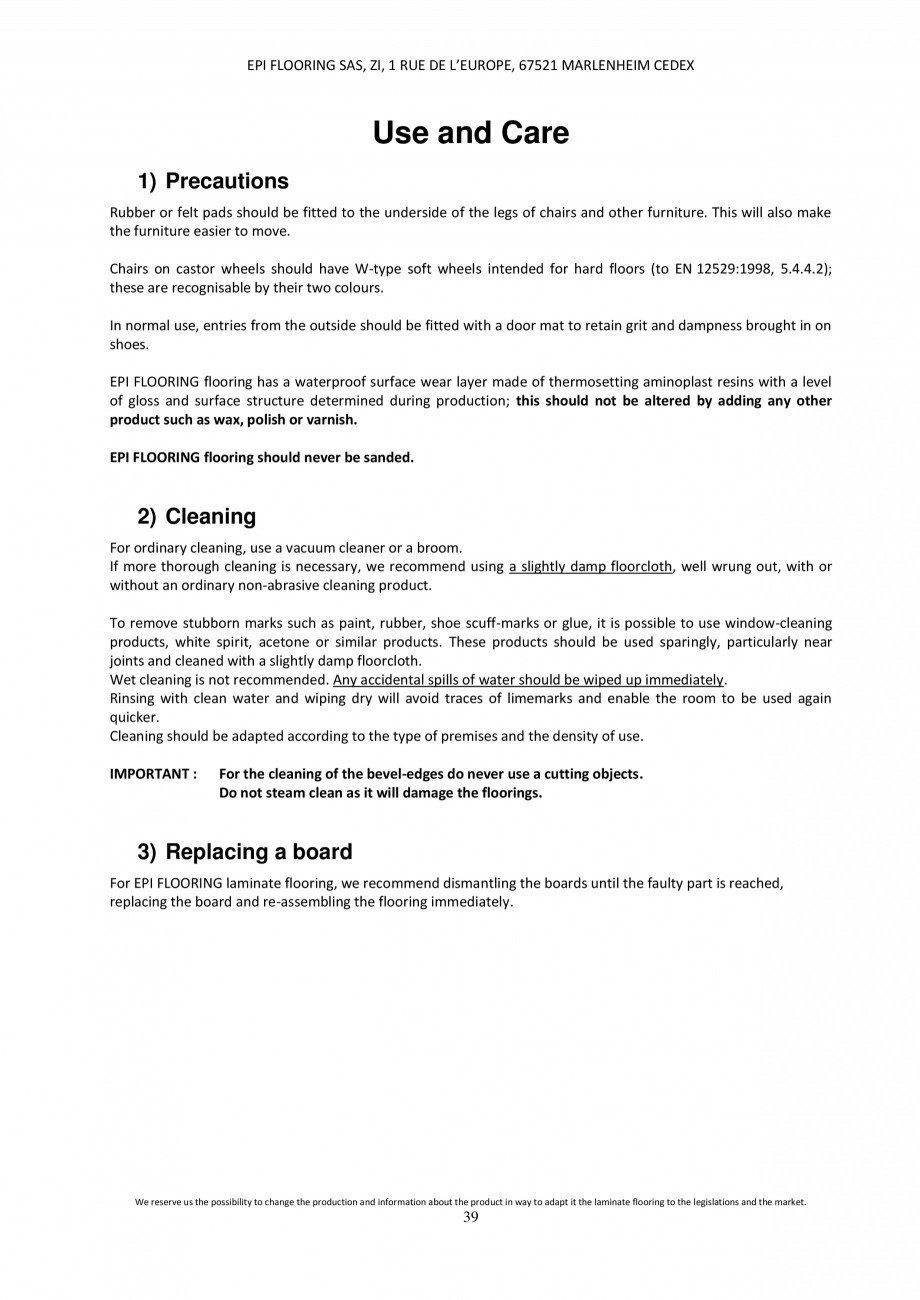

Pagina 39 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

n Laminate flooring formaldehyde emission Size variation to moisture Reaction to fire with underlay UPEC Classification Health safety labeling (VOC) Support Guarantee Dimension of the board Boards/carton Weight Packing RESULTS NORMS Class AC4 Class IC2 2.5N Group 1-2 : 5 Group 3 : 4 Degree 4 Blue wool scale part B02 : degree ≥ 6 Grey scale part A02 ≥ 4 R = 0.039m² K/W Low, controlled quality E1 less than 8 mg/ 100gr EN 13329 EN 13329 EN 438-2,14 EN 438 E1 < 3,5 mg/m².h 30% - 85% HR/23°C Length-Width : 0.11% Fire resistance CFL S1 U3P3E1C2- certification nbr ST10/018 with Alsamousse, Alsaplus, Alsaprotect, U3P2E1C2 - certification nbr ST10/019 with Floorisol and Alsacoustic underlays.* A+ class EN NF 717-2 NFB 54011 EN 438-2,18 EN 438-2,16 EN 120 NF EN 13501-1 French decree n°2011-321 of 23th March 2011 HDF PEFC Water Protect 25 years 1286 x 192 x 8mm 9 planks/ kit - 2.22 m² 16,5 kg/ kit 48 kits/ pallet 106,56m² - 792 kg * Certificate of UPEC classification avail

Pagina 39-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

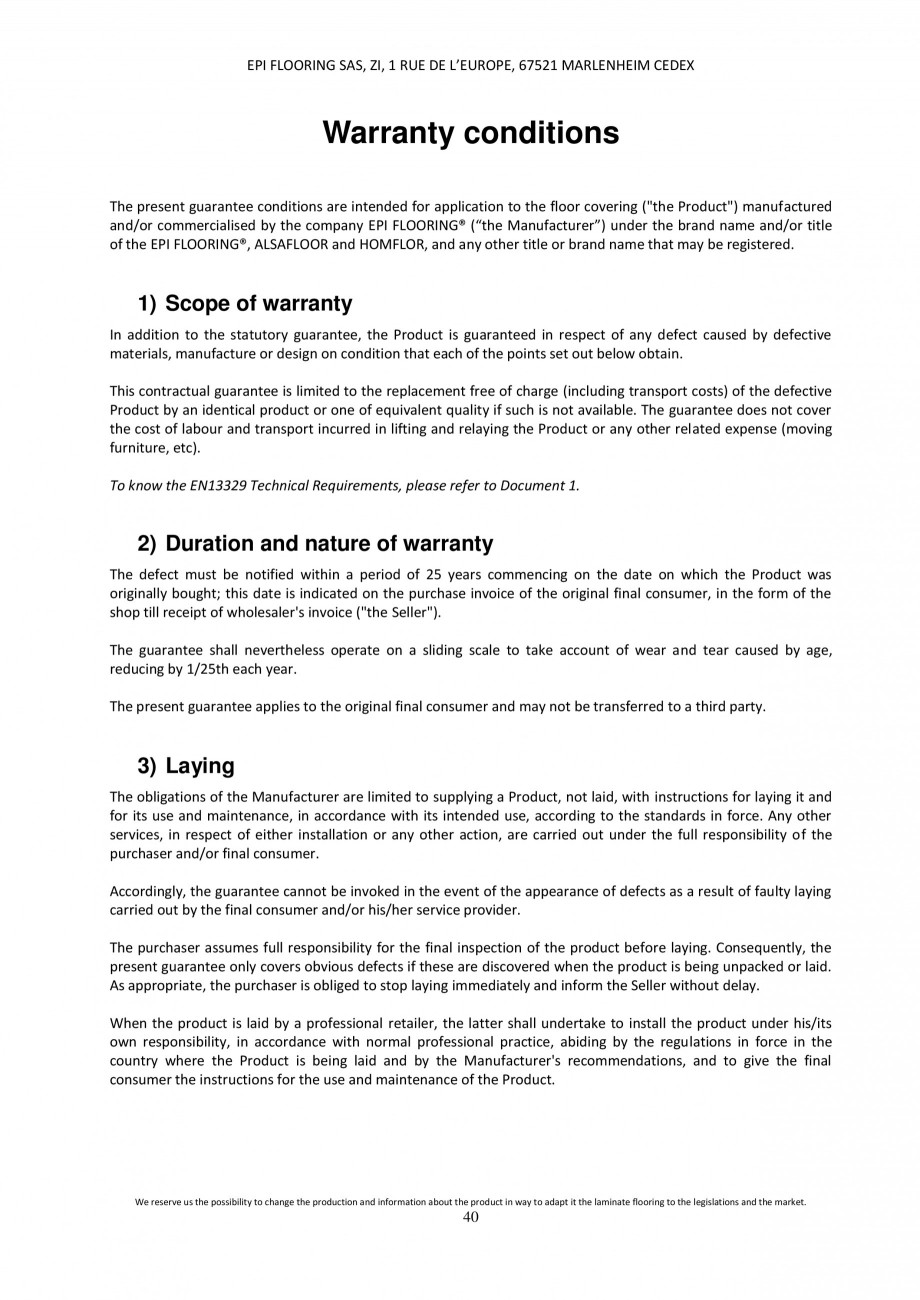

Pagina 40 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

able upon request. We reserve us the possibility to change the production and information about the product in way to adapt it the laminate flooring to the legislations and the market. 18 EPI FLOORING SAS, ZI, 1 RUE DE L’EUROPE, 67521 MARLENHEIM CEDEX VISUAL 8 mm 4 V-grooves NORMALISED TESTS Abrasion resistance Impact resistance Resistance to scratches Resistance to household chemical agents Resistance to cigarettes burns Resistance to light effect Coefficiant of thermal dissipation Panel formaldehyde emission Laminate flooring formaldehyde emission Size variation to moisture Reaction to fire with underlay UPEC Classification Health safety labeling (VOC) RESULTS NORMS Class AC4 Class IC2 2.5N Group 1-2 : 5 Group 3 : 4 Degree 4 Blue wool scale part B02 : degree ≥ 6 Grey scale part A02 ≥ 4 R = 0.039m² K/W Low, controlled quality E1 less than 8 mg/ 100gr EN 13329 EN 13329 EN 438-2,14 EN 438 E1 < 3,5 mg/m².h 30% - 85% HR/23°C Length-Width :0.11% Fire resistance CFL S1

Pagina 40-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

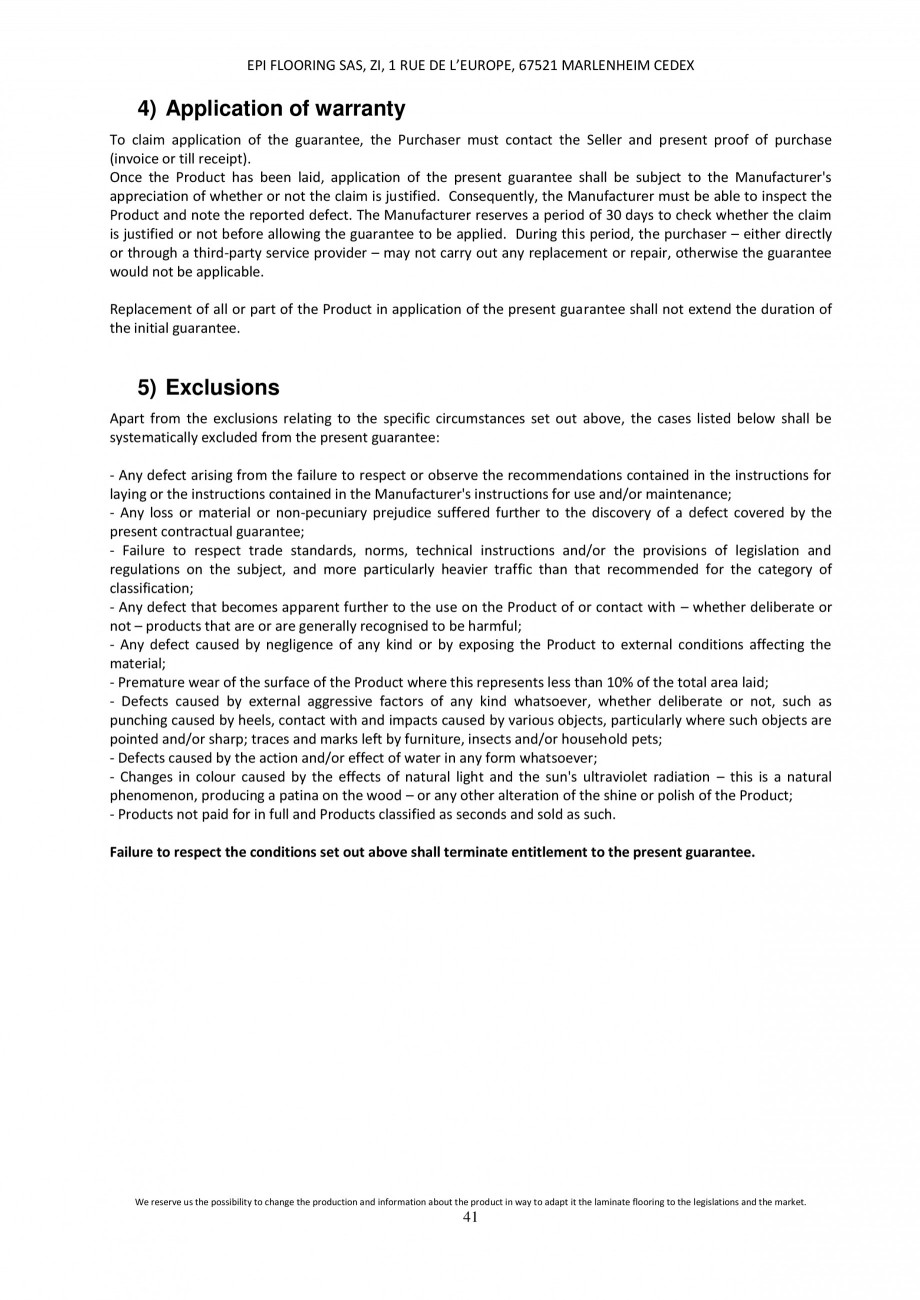

Pagina 41 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

EN NF 717-2 NFB54011 U3P3E1C2- certification nbr ST10/016 with Alsamousse, Alsaplus, Alsaprotect, U3P2E1C2 - certification nbr ST10/017 with Floorisol and Alsacoustic underlays.* A+ class Support 9 planks/ kit - 2.22 m² Weight 16,5 kg/ kit Packing French decree n°2011-321 of 23th March 2011 1286 x 192 x 8mm Boards/carton NF EN 13501-1 25 years Dimension of the board EN 120 HDF PEFC Water Protect Guarantee EN 438-2,18 EN 438-2,16 48 kits/ pallet 106,56m² - 792 kg * Certificate of UPEC classification available upon request. We reserve us the possibility to change the production and information about the product in way to adapt it the laminate flooring to the legislations and the market. 19 EPI FLOORING SAS, ZI, 1 RUE DE L’EUROPE, 67521 MARLENHEIM CEDEX OSMOZE 8 mm 4 V-grooves IN REGISTERED + SATIN-FINISHED IN-REGISTERED STRUCTURE NORMALISED TESTS Abrasion resistance Impact resistance Resistance to scratches Resistance to household chemical agents RESULTS NO

Pagina 41-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

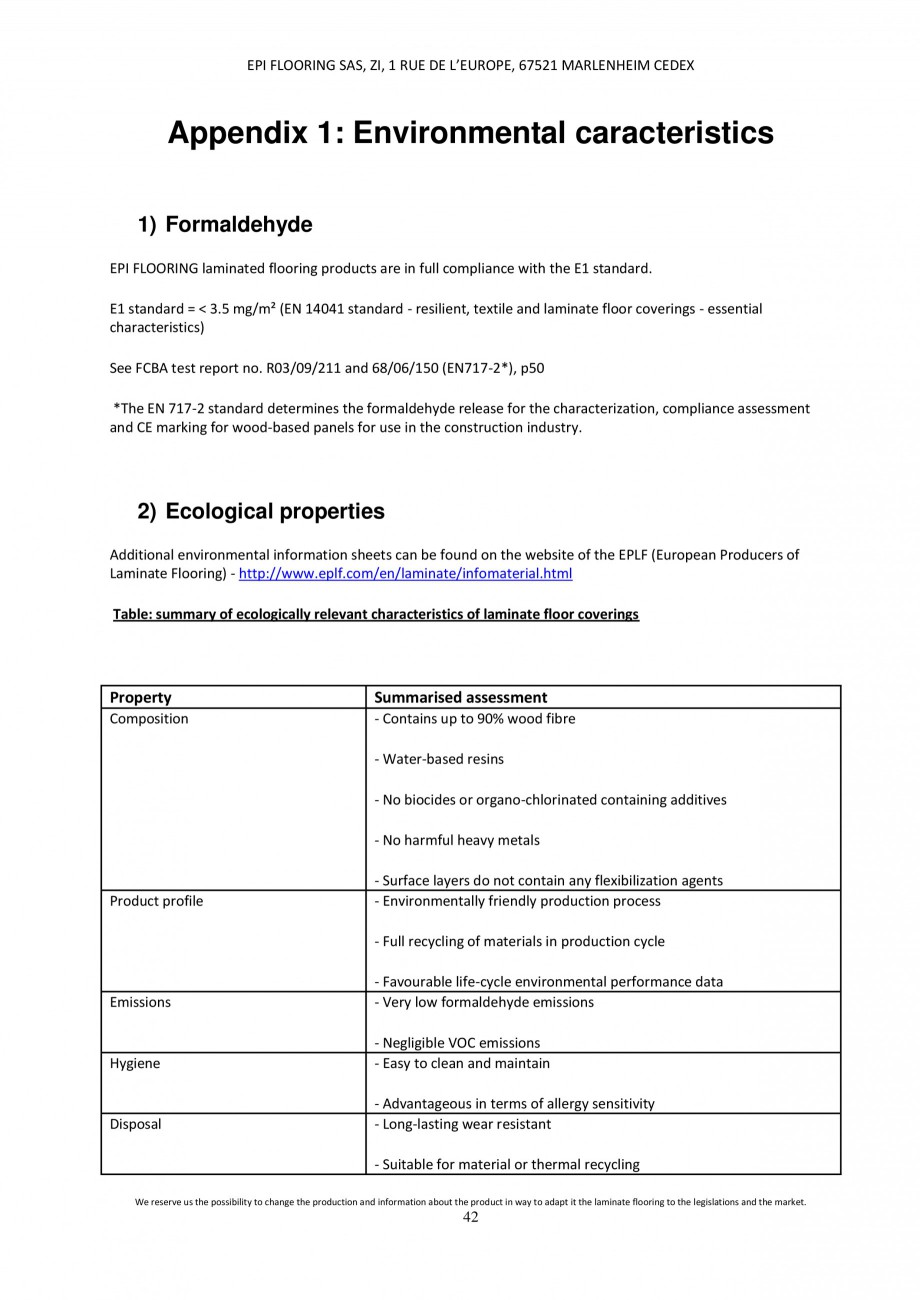

Pagina 42 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

RMS Class AC4 Class IC2 2.5N Group 1-2 : 5 Group 3 : 4 Degree 4 Blue wool scale part B02 : degree ≥ 6 Grey scale part A02 ≥ 4 R = 0.039m² K/W Low, controlled quality E1 less than 8 mg/ 100gr EN 13329 EN 13329 EN 438-2,14 EN 438 EN NF 717-2 NFB 54011 Reaction to fire with underlay E1 < 3,5 mg/m².h 30% - 85% HR/23°C Length-Width : 0.11% Fire resistance CFL S1 Health safety labeling (VOC) A+ class French decree n°2011-321 of 23th March 2011 Support HDF PEFC Water Protect 25 years 1286 x 192 x 8mm 9 planks/ kit - 2.22 m² 16,5 kg/ kit 48 kits/ pallet 106.56m² - 792 kg Resistance to cigarettes burns Resistance to light effect Coefficiant of thermal dissipation Panel formaldehyde emission Laminate flooring formaldehyde emission Size variation to moisture Guarantee Dimension of the board Boards/carton Weight Packing EN 438-2,18 EN 438-2,16 EN 120 NF EN 13501-1 We reserve us the possibility to change the production and information about the product in way to adapt it

Pagina 42-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

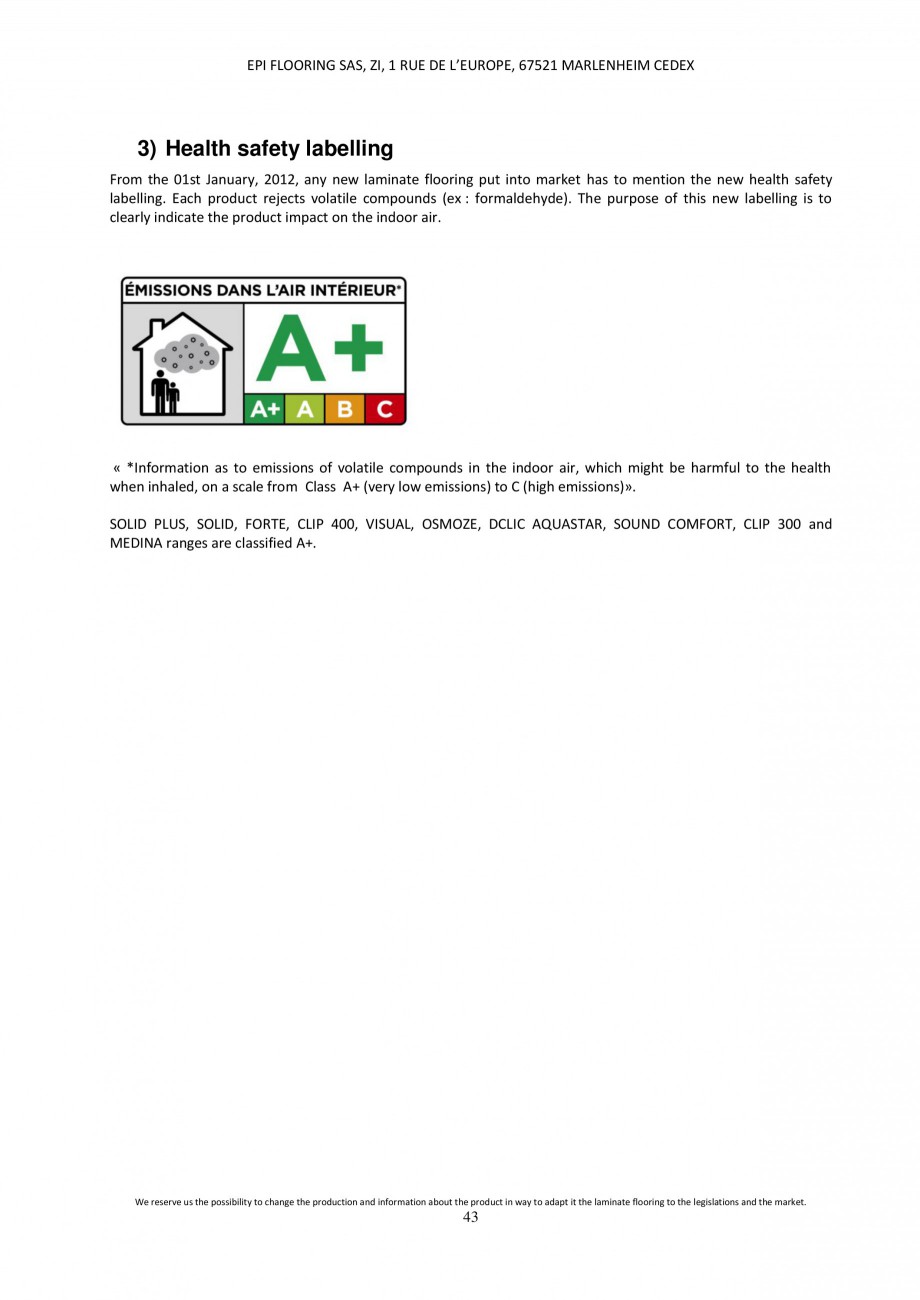

Pagina 43 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

the laminate flooring to the legislations and the market. 20 EPI FLOORING SAS, ZI, 1 RUE DE L’EUROPE, 67521 MARLENHEIM CEDEX DCLIC AQUASTAR 8 mm Resistant to humidity NORMALISED TESTS Abrasion resistance Impact resistance Resistance to scratches Resistance to household chemical agents RESULTS NORMS Class AC4 Class IC2 2.5N Group 1-2 : 5 Group 3 : 4 Degree 4 Blue wool scale part B02 : degree ≥ 6 Grey scale part A02 ≥ 4 R = 0.039m² K/W Low, controlled quality E1 less than 8 mg/ 100gr EN 13329 EN 13329 EN 438-2,14 EN 438 EN NF 717-2 NFB 54011 Reaction to fire with underlay E1 < 3,5 mg/m².h 30% - 85% HR/23°C Length-Width : 0.11% Fire resistance CFL S1 Health safety labeling (VOC) A+ class French decree n°2011-321 of 23th March 2011 Support HDF PEFC Resistant to humidity 25 years 1286 x 192 x 8mm 9 planks/ kit - 2.22 m² 16,5 kg/ kit 48 kits/ pallet 106.56m² - 792 kg Resistance to cigarettes burns Resistance to light effect Coefficiant of thermal dissipation Pan

Pagina 43-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

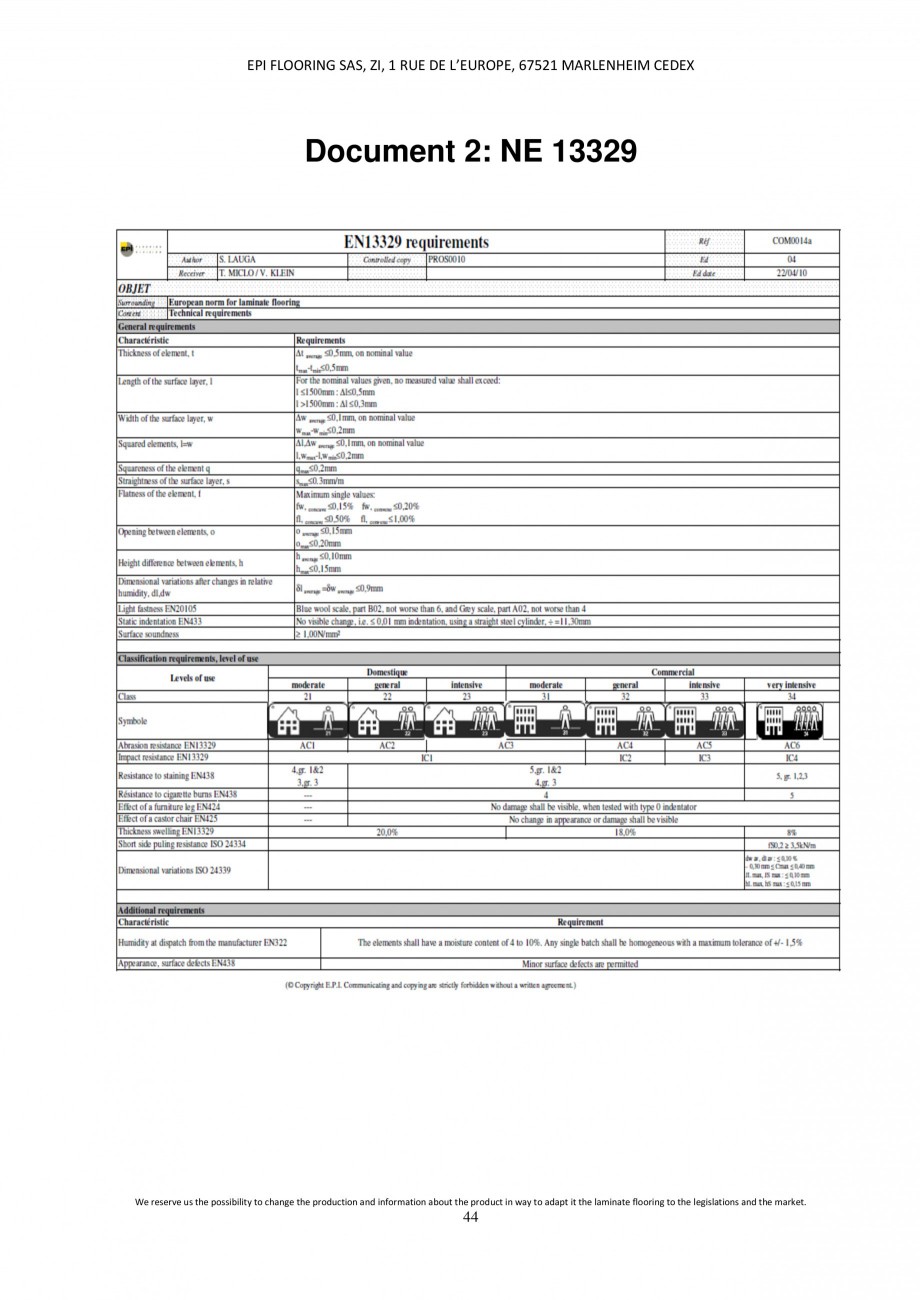

Pagina 44 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

el formaldehyde emission Laminate flooring formaldehyde emission Size variation to moisture Guarantee Dimension of the board Boards/carton Weight Packing EN 438-2,18 EN 438-2,16 EN 120 NF EN 13501-1 We reserve us the possibility to change the production and information about the product in way to adapt it the laminate flooring to the legislations and the market. 21 EPI FLOORING SAS, ZI, 1 RUE DE L’EUROPE, 67521 MARLENHEIM CEDEX FORTE 12 mm Without V-groove NORMALISED TESTS Abrasion resistance Impact resistance Resistance to scratches Resistance to household chemical agents Resistance to cigarettes burns Resistance to light effect Coefficiant of thermal dissipation Panel formaldehyde emission Laminate flooring formaldehyde emission Size variation to moisture Reaction to fire with underlay Health safety labeling (VOC) Support Guarantee Dimension of the board Boards/carton Weight Packing RESULTS NORMS Class AC5 Class IC3 2.5N Group 1-2 : 5 Group 3 : 4 Degree 4 Blue wool sc

Pagina 44-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

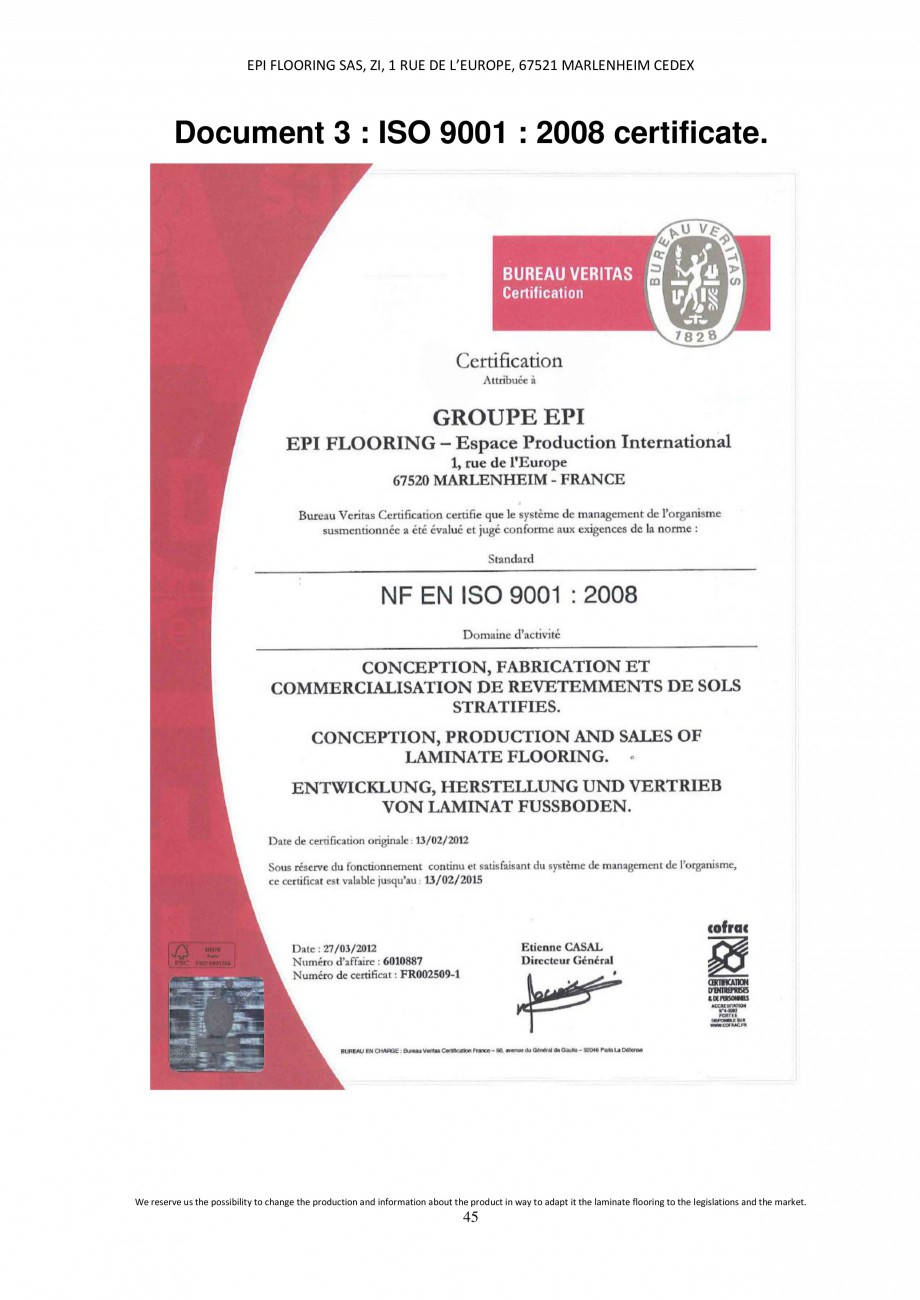

Pagina 45 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

ale part B02 : degree ≥ 6 Grey scale part A02 ≥ 4 R = 0.059m² K/W Low, controlled quality E1 less than 8mg / 100gr EN 13329 EN 13329 EN 438-2,14 EN 438 E1 < 3,5 mg/m².h 30% - 85% HR/23°C Length-Width : 0.09% Fire resistance CFL S1 A+ class EN NF 717-2 NFB54011 EN 438-2,18 EN 438-2,16 EN 120 NF EN 13501-1 French decree n°2011-321 of 23th March 2011 HDF PEFC 25 years 1286 x 210 x 12mm 6 planks/ kit - 1,62 m² 18 kg/ kit 48 kits/ pallet 77.76m² - 864 kg We reserve us the possibility to change the production and information about the product in way to adapt it the laminate flooring to the legislations and the market. 22 EPI FLOORING SAS, ZI, 1 RUE DE L’EUROPE, 67521 MARLENHEIM CEDEX SOLID PLUS 12 mm 4 V-grooves In-registered and Heliochrome structure NORMALISED TESTS Abrasion resistance Impact resistance Resistance to scratches Resistance to household chemical agents RESULTS NORMS Class AC5 Class IC3 2.5N Group 1-2 : 5 Group 3 : 4 Degree 4 Blue wool scale part B02

Pagina 45-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

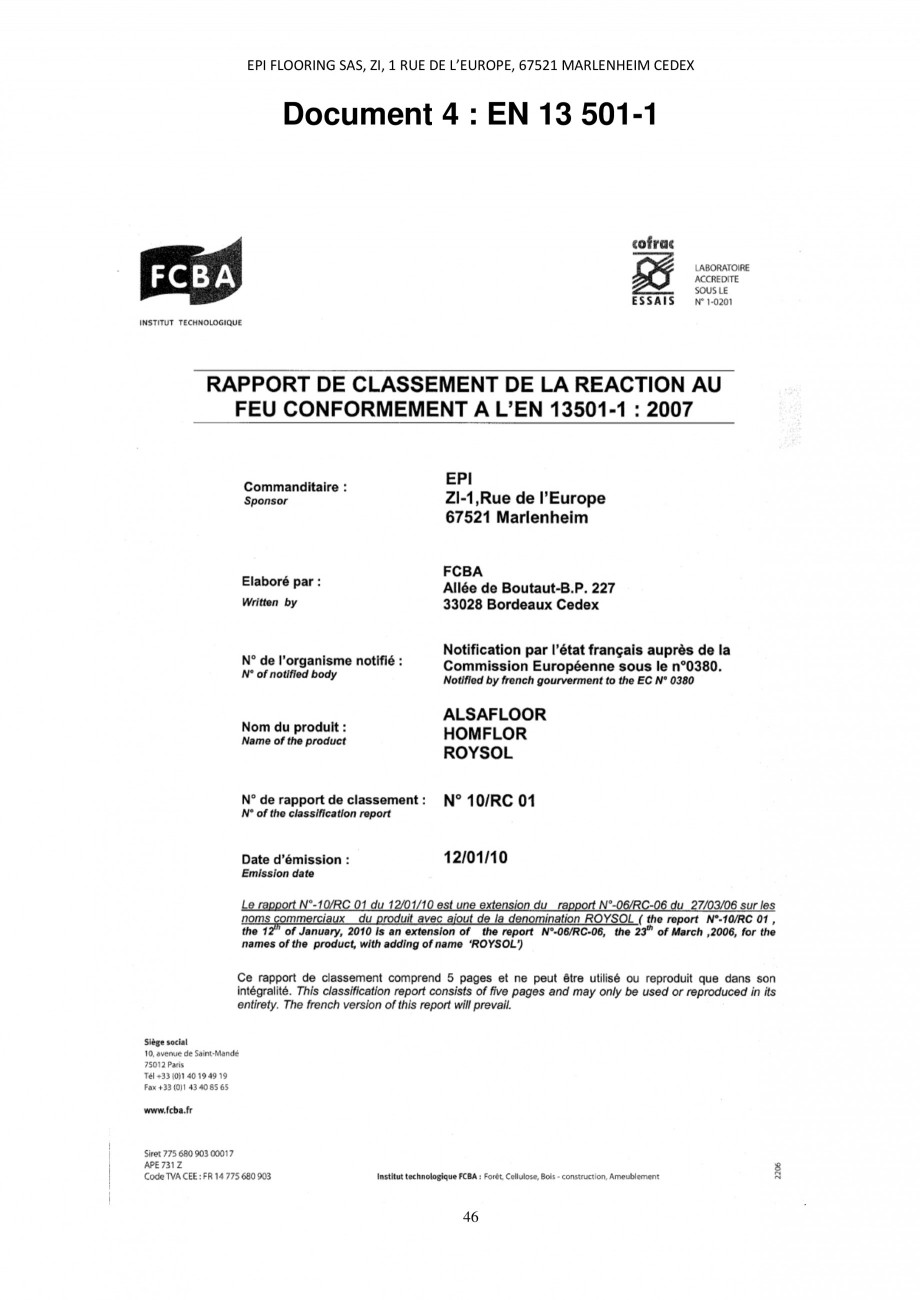

Pagina 46 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

: degree ≥ 6 Grey scale part A02 ≥ 4 R = 0.059m² K/W Low, controlled quality E1 less than 8 mg/ 100gr EN 13329 EN 13329 EN 438-2,14 EN 438 EN NF 717-2 NFB54011 Reaction to fire with underlay E1 < 3,5 mg/m².h 30% - 85% HR/23°C Length-Width : 0.09% Fire resistance CFL S1 Health safety labeling (VOC) A+ class French decree n°2011-321 of 23th March 2011 Support HDF PEFC Water Protect 25 years 1286 x 210 x 12mm 6 planks/ kit - 1,62 m² 18 kg/ kit 48 kits/ pallet 77.76m² - 864 kg Resistance to cigarettes burns Resistance to light effect Coefficiant of thermal dissipation Panel formaldehyde emission Laminate flooring formaldehyde emission Size variation to moisture Guarantee Dimension of the board Boards/carton Weight Packing EN 438-2,18 EN 438-2,16 EN 120 NF EN 13501-1 We reserve us the possibility to change the production and information about the product in way to adapt it the laminate flooring to the legislations and the market. 23 EPI FLOORING SAS, ZI, 1 RUE

Pagina 46-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

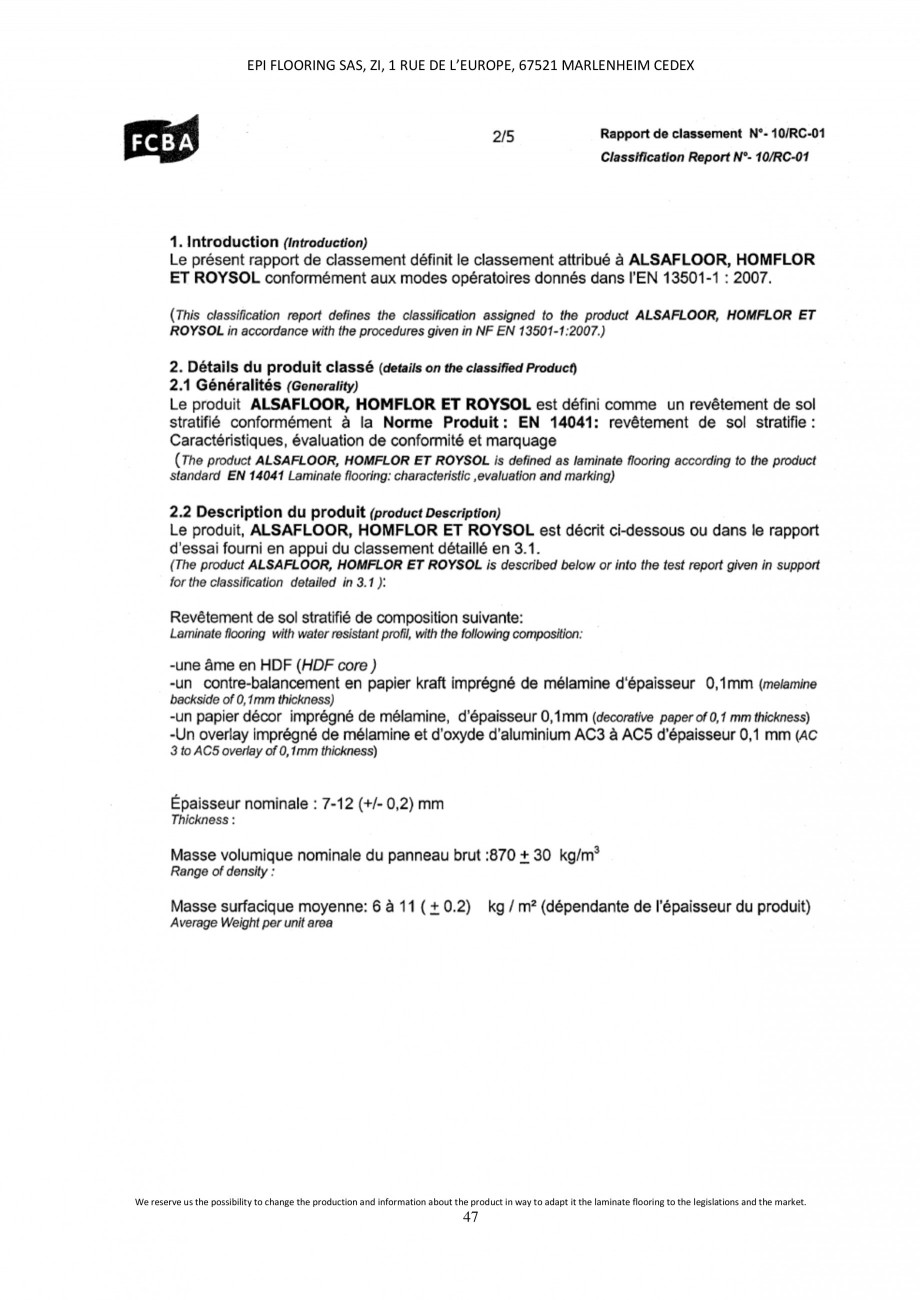

Pagina 47 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

DE L’EUROPE, 67521 MARLENHEIM CEDEX SOLID 12 mm 4 V-grooves NORMALISED TESTS Abrasion resistance Impact resistance Resistance to scratches Resistance to household chemical agents RESULTS NORMS Class AC5 Class IC3 2.5N Group 1-2 : 5 Group 3 : 4 Degree 4 Blue wool scale part B02 : degree ≥ 6 Grey scale part A02 ≥ 4 R = 0.059m² K/W Low, controlled quality E1 less than 8 mg/ 100gr EN 13329 EN 13329 EN 438-2,14 EN 438 EN NF 717-2 NFB54011 Reaction to fire with underlay E1 < 3,5 mg/m².h 30% - 85% HR/23°C Length-Width : 0.09% Fire resistance CFL S1 Health safety labeling (VOC) A+ class French decree n°2011-321 of 23th March 2011 Support HDF PEFC Water Protect 25 years 1286 x 210 x 12mm 6 planks/ kit - 1,62 m² 18 kg/ kit 48 kits/ pallet 77.76m² - 864 kg Resistance to cigarettes burns Resistance to light effect Coefficiant of thermal dissipation Panel formaldehyde emission Laminate flooring formaldehyde emission Size variation to moisture Guarantee Dimension of the

Pagina 47-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

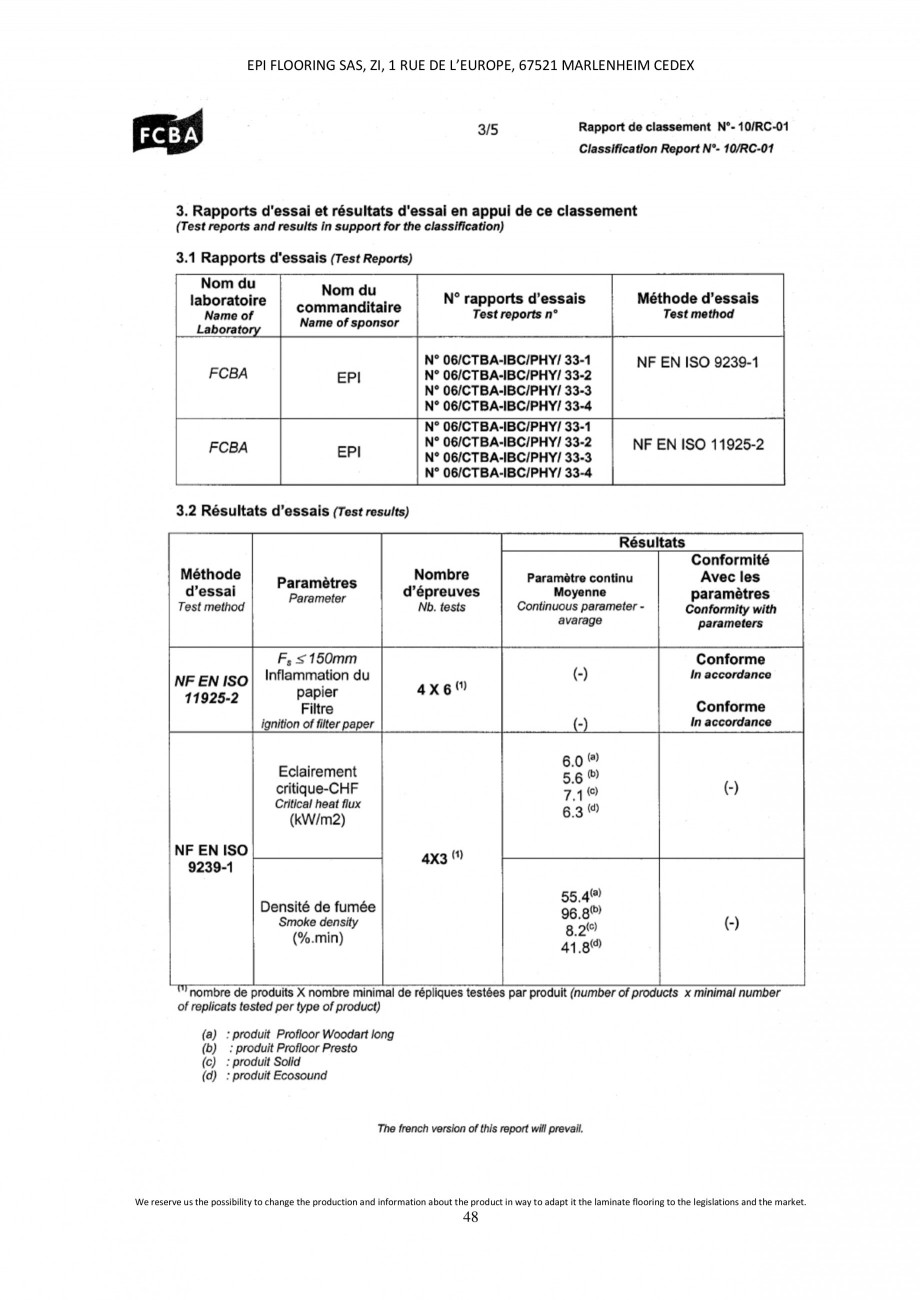

Pagina 48 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

board Boards/carton Weight Packing EN 438-2,18 EN 438-2,16 EN 120 NF EN 13501-1 We reserve us the possibility to change the production and information about the product in way to adapt it the laminate flooring to the legislations and the market. 24 EPI FLOORING SAS, ZI, 1 RUE DE L’EUROPE, 67521 MARLENHEIM CEDEX MEDINA 12 mm TILE DIMENSION NORMALISED TESTS Abrasion resistance Impact resistance Resistance to scratches Resistance to household chemical agents RESULTS NORMS Class AC5 Class IC3 2.5N Group 1-2 : 5 Group 3 : 4 Degree 4 Blue wool scale part B02 : degree ≥ 6 Grey scale part A02 ≥ 4 R = 0.059m² K/W Low, controlled quality E1 less than 8 mg/ 100gr EN 13329 EN 13329 EN 438-2,14 EN 438 EN NF 717-2 NFB54011 Reaction to fire with underlay E1 < 3,5 mg/m².h 30% - 85% HR/23°C Length-Width : 0.09% Fire resistance CFL S1 Health safety labeling (VOC) A+ class French decree n°2011-321 of 23th March 2011 Support HDF PEFC Water Protect 25 years 390 x 630 x 12mm 6

Pagina 48-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

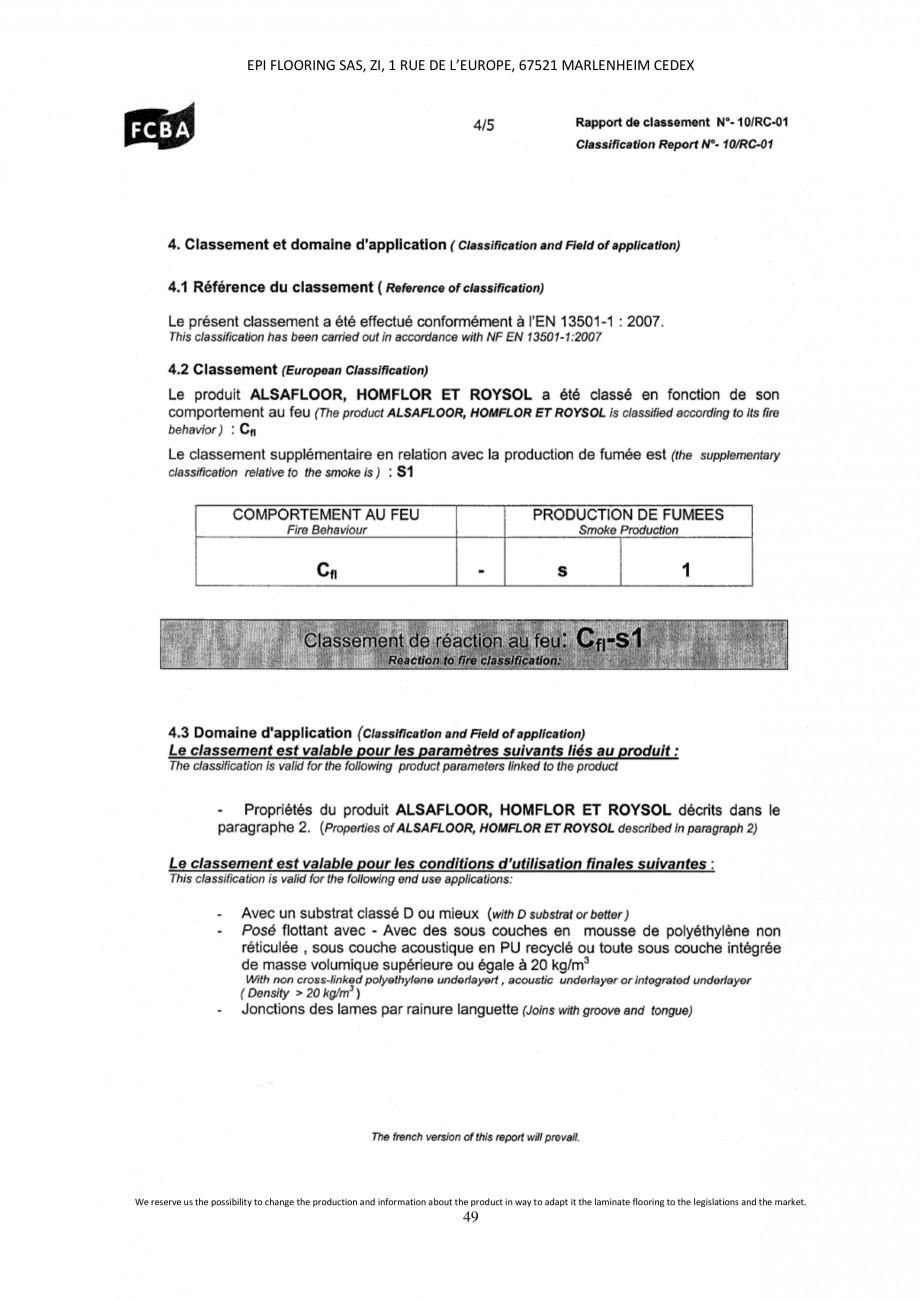

Pagina 49 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

tiles/ kit - 1,47 m² 16,5 kg/ kit 56 kits/ pallet 82,56m² - 924 kg Resistance to cigarettes burns Resistance to light effect Coefficiant of thermal dissipation Panel formaldehyde emission Laminate flooring formaldehyde emission Size variation to moisture Guarantee Dimension of the board Boards/carton Weight Packing EN 438-2,18 EN 438-2,16 EN 120 NF EN 13501-1 We reserve us the possibility to change the production and information about the product in way to adapt it the laminate flooring to the legislations and the market. 25 EPI FLOORING SAS, ZI, 1 RUE DE L’EUROPE, 67521 MARLENHEIM CEDEX ACCESSORIES 1) Underlays  ALSAPROTECT - PE film Item code: 100 064 Description The ALSAPROTECT underlay is a low-density 150 micron polyethylene film; it is intended to act as a damp proof membrane. It is to be used for floating floors installation. Fitting The film should be laid over the entire sub-floor before the appropriate underlay – ALSAMOUSSE, ALSACOUSTIC or ALSAPLUS or FL

Pagina 49-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

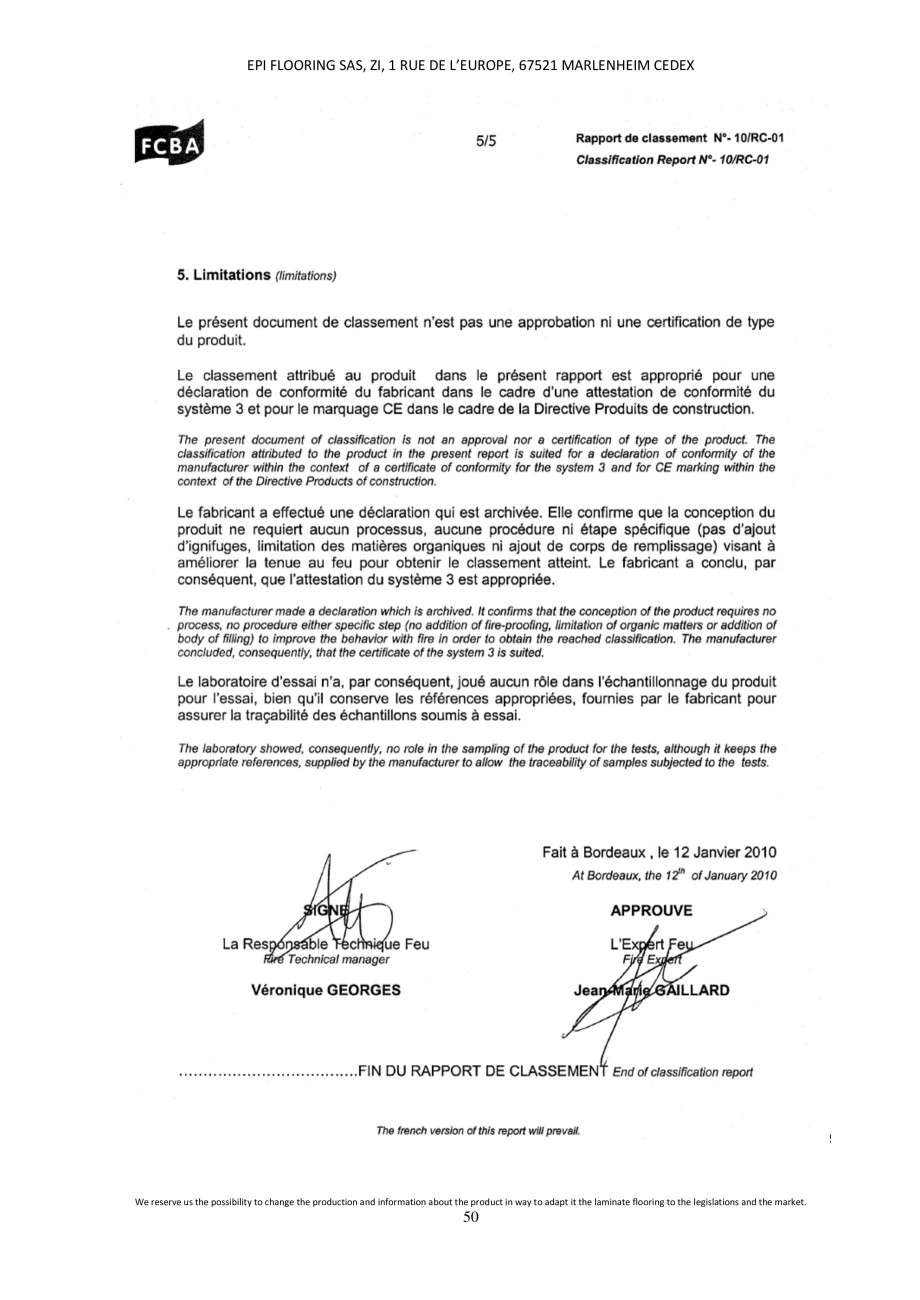

Pagina 50 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

OORISOL – is laid. An extra amount of the film (3-5 cm) should be raised up along the walls; this surplus is then cut off level with the boards after the flooring has been laid. Lengths of the film should be overlapped by at least 20 cm and held together with adhesive tape. IMPORTANT As recommended in DTU 51-11, where the underlying surface, whether it is new or old, contains hydraulic or anhydrous binders, on ground floors or in upstairs rooms, whether or not the floor has integrated heating. The ALSAPROTECT film should not be used on a wooden floor or on an underlying surface with a PVC floor covering in upstairs rooms. If the underlying surface is in contact with the outside, it is necessary to check the under-floor ventilation. Characterictics - Color : transparent - Thickness : 150 µ - Width : 2,40 m - Length : 8,40 m - Surface : 20 m²/ roll - Weight : 2,365 kg Packaging Dimension of the pack 40 x 40 cm, thickness: 3 cm Individual conditionning  ALSAMOUSSE – Foam underl

Pagina 50-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

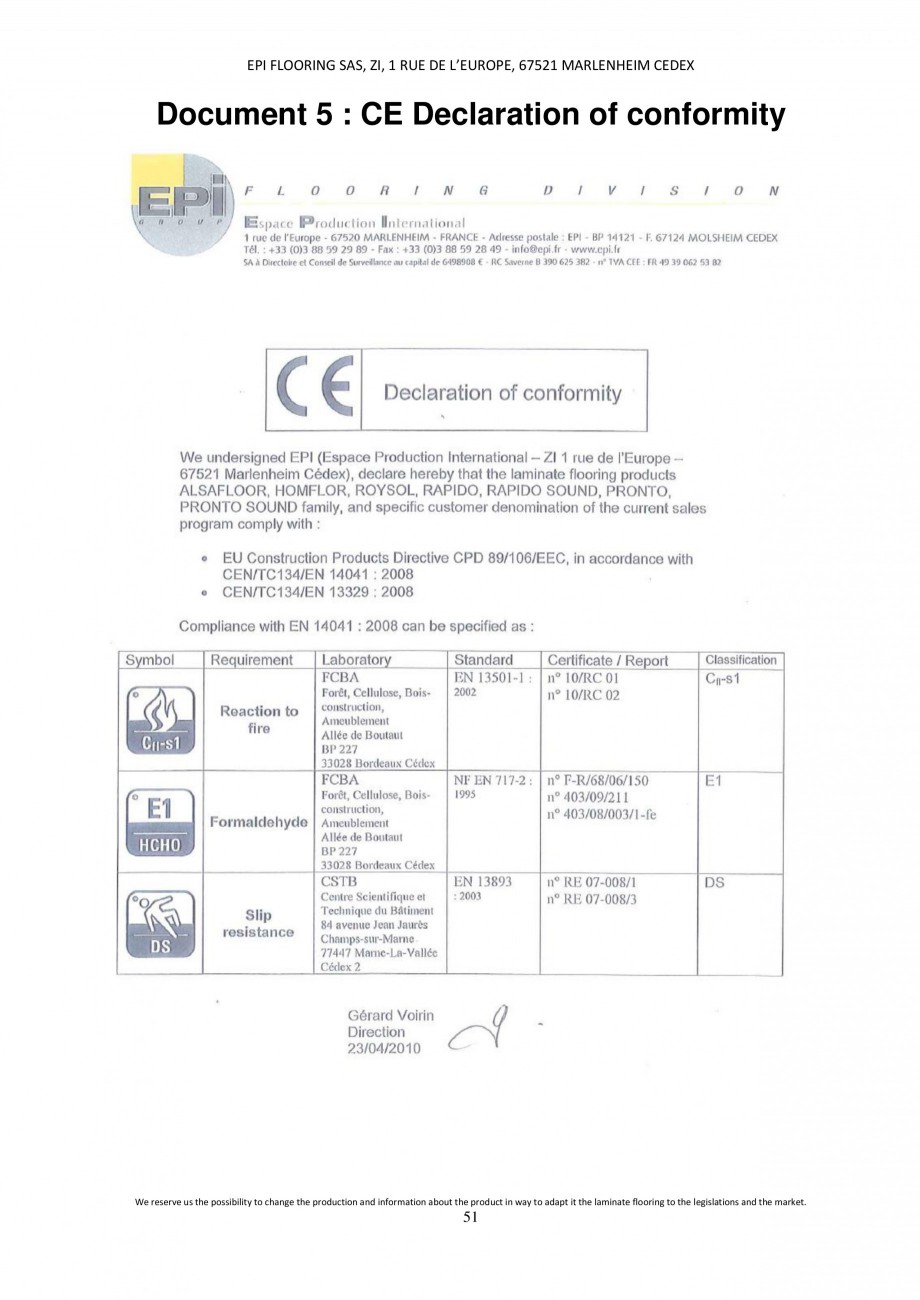

Pagina 51 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

ay Item code : 10717 Description The ALSAMOUSSE underlay in non-reticulated polyethylene is intended for use where an EPI FLOORING laminate floorings are laid as a floating floor. ALSAMOUSSE helps smooth over small unevenness in the sub-floor, offers a thermal isolation and reduces the walking sound. Fitting Before unrolling ALSAMOUSSE as the laying of the laminate flooring progresses, don't forget to position the ALSAPROTECT 0.15 mm polyethylene film at perpendicular to the PE film. Position the lengths of ALSAMOUSSE underlay edge to edge with no overlapping. Use adhesive tape to keep the ALSAMOUSSE underlay in place while the flooring boards are being laid. We reserve us the possibility to change the production and information about the product in way to adapt it the laminate flooring to the legislations and the market. 26 EPI FLOORING SAS, ZI, 1 RUE DE L’EUROPE, 67521 MARLENHEIM CEDEX Characteristics - Tickness : 2,00 mm - Width : 1,00 m - Length : 20 ml 3 - Surface mass : 0,

Pagina 51-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

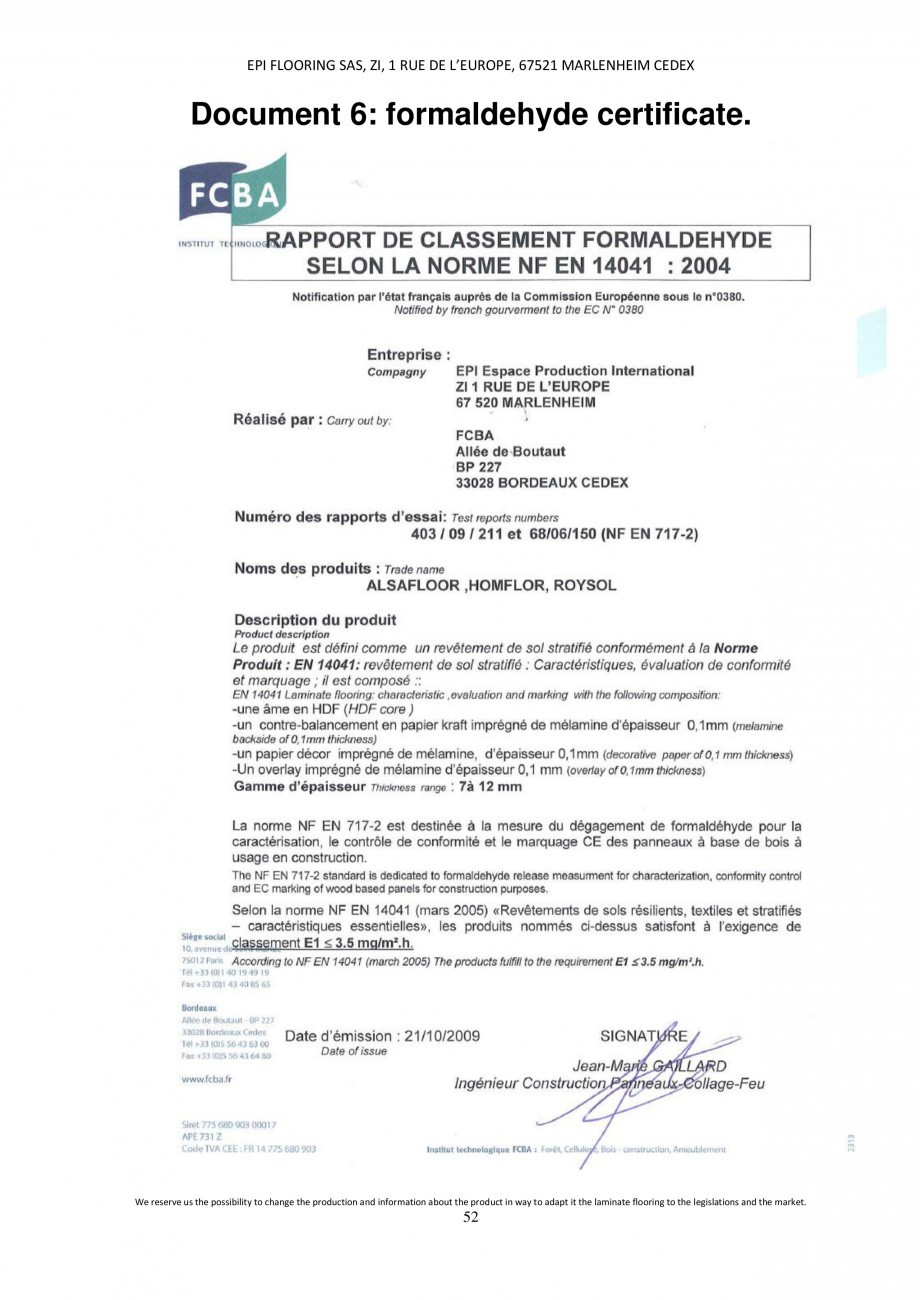

Pagina 52 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

062 kg/m 3 - Volume mass : 18-20 kg/m - Surface : 20 m²/ roll - Thermal resistancee at 20 °c : 0,062 m²K/W - Weight: 950 grs Packaging Over wrapped in 4 units.  ALSAPLUS - Underlay PE protection Item code : 102 439 Description ALSAPLUS is a dual-purpose underlay made of polyethylene incompressible with a double function. . A film 150 microns thick, designed to substantially limit the passage of humidity, is combined with a foam layer 2 mm thick. This makes the floor comfortable to walk on and smoothes over any unevenness in the underlying surface and offers a thermal isolation. There is an adhesive strip on the 10-cm overhang at the edge of the film; this is to ensure that there is no interruption of the vapour barrier function between strips of film. ALSAPLUS is intended for use with laminated floor covering or parquet flooring laid as a floating floor. Its use is compulsory (DTU 51-11) where the underlying surface, whether it is new or old, contains hydraulic or anhydrous bi

Pagina 52-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

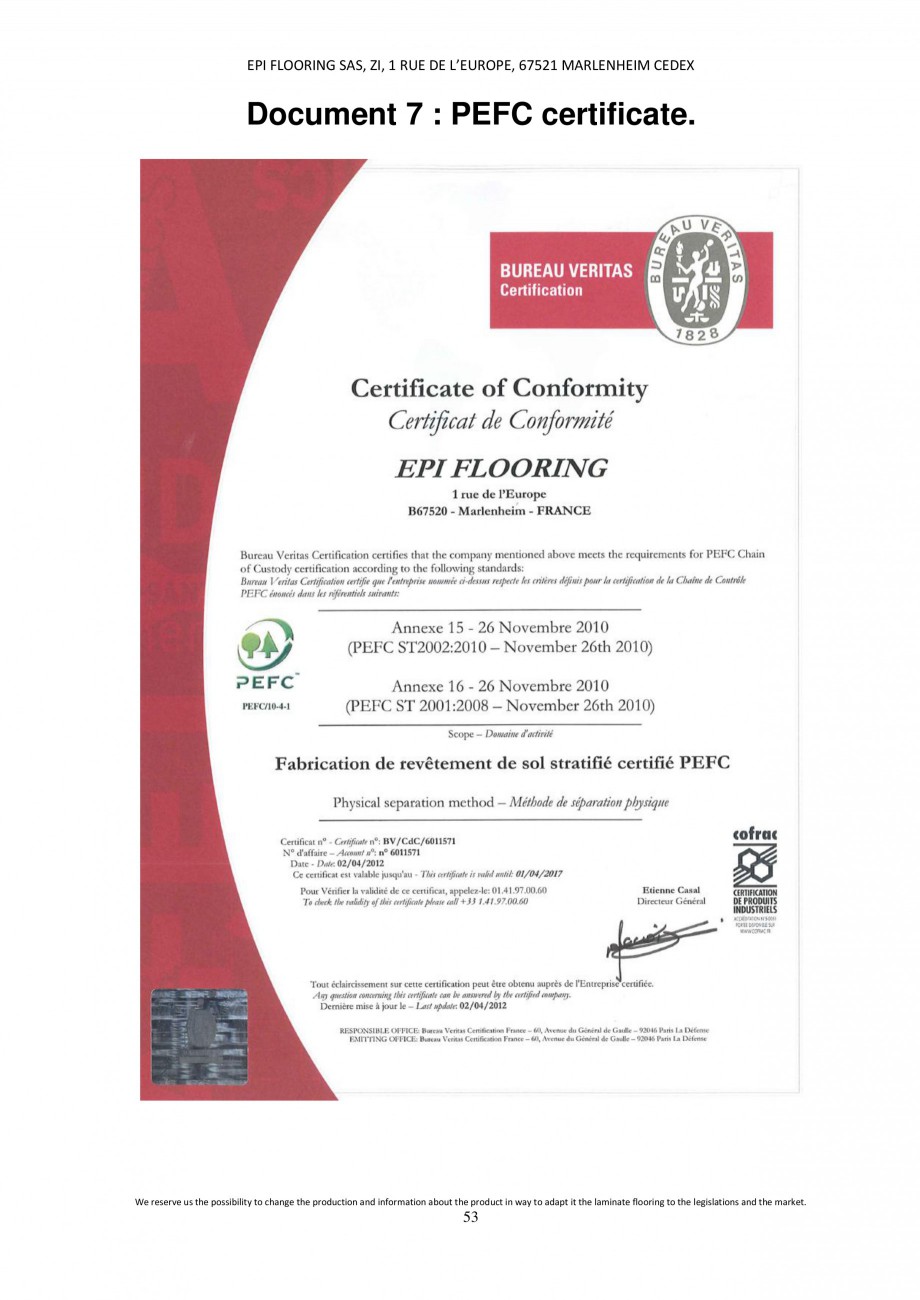

Pagina 53 - Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619...

nders, on ground floors or in upstairs rooms, whether or not the floor has integrated heating. It should only be used on a wooden floor if this is above a cold surface. Fitting Unroll ALSAPLUS parallel to the direction of laying the laminated floor covering boards or strips of parquet, placing the side with the film in contact with the underlying surface and the overhanging edge opposite the starting wall. The subsequent strips are then positioned with the edges of the foam abutting each other, so that the overhanging edge is covered. The strips are held in place by removing the backing of the adhesive strip. Characteristics Film : - Thickness : 0,15 mm Foam : - Thickness : 2,0 mm - Weight/ volume : 18-20 kg/m³ Alsaplus : - Thermal resistance at 20°C : 0,050 m²K/W - Width : 1,0 m - Length : 20 m - Surface : 20 m²/ roll - Color : white - Weight : 3,5 kg Packaging Packed individually in PE plastic wallet with barcode and laying instructions. We reserve us the possibility to change t

Pagina 53-Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR Sardinia Oak 619, Corsica...

Alta documentatie a aceleasi game

Parchet laminat - Solid Plus Alsafloor

Fisa tehnica
2 p | EN

Sardinia Oak 619 Corsica Oak 620 Canaries Oak 621 Balearic Oak 622 Jersey 626 Corfou 625 Polar Oak 627

Promovați-vă produsele și serviciile pe SpatiulConstruit.ro!

Furnizor

MC PRO

Parchet laminat - Utilizare, montaj si informatii - Alsafloor ALSAFLOOR

Alta documentatie a aceleasi game

Parchet laminat - Solid Plus Alsafloor
