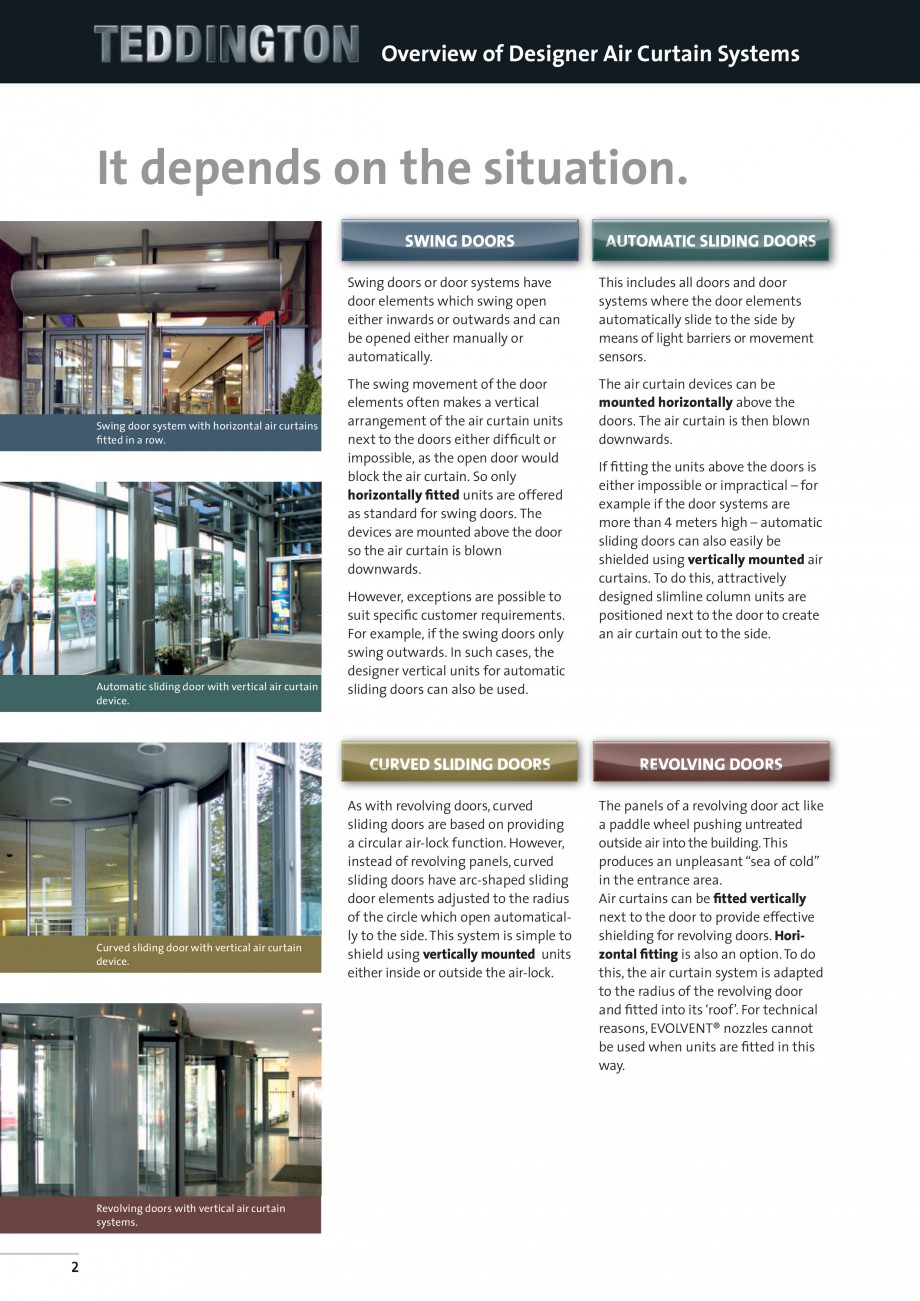

Overview of Designer Air Curtain Systems
It depends on the situation.
SWING DOORS
AutomatiC SLIDING DOORS
Swing doors or door systems have
door elements which swing open
either inwards or outwards and can
be opened either manually or
automatically.
S
wing door system with horizontal air curtains
fitted in a row.
Automatic sliding door with vertical air curtain
device.
This includes all doors and door
systems where the door elements
automatically slide to the side by
means of light barriers or movement
sensors.
The swing movement of the door
elements often makes a vertical
arrangement of the air curtain units
next to the doors either difficult or
impossible, as the open door would
block the air curtain. So only
horizontally fitted units are offered
as standard for swing doors. The
devices are mounted above the door
so the air curtain is blown
down
wards.
The air curtain devices can be
mounted horizontally above the
doors. The air curtain is then blown
downwards.
However, exceptions are possible to
suit specific customer requirements.
For example, if the swing doors only
swing outwards. In such cases, the
designer vertical units for automatic
sliding doors can also be used.
If fitting the units above the doors is
either impossible or impractical – for
example if the door systems are
more than 4 meters high – automatic
sliding doors can also easily be
shielded using vertically mounted air
curtains. To do this, attractively
designed slimline column units are
positioned next to the door to create
an air curtain out to the side.
Curved sliding doors
C
urved sliding door with vertical air curtain
device.
Revolving doors with vertical air curtain
systems.
2
REVOLVING DOORS
As with revolving doors, curved
sliding doors are based on providing
a circular air-lock function. However,
instead of revolving panels, curved
slidin
g doors have arc-shaped sliding
door elements adjusted to the radius
of the circle which open automatically to the side. This system is simple to
shield using vertically mounted units
either inside or outside the air-lock.
The panels of a revolving door act like
a paddle wheel pushing untreated
outside air into the building. This
produces an unpleasant “sea of cold”
in the entrance area.
Air curtains can be fitted vertically
next to the door to provide effective
shielding for revolving doors. Horizontal fitting is also an option. To do
this, the air curtain system is adapted
to the radius of the revolving door
and fitted into its ‘roof’. For technical
reasons, EVOLVENT® nozzles cannot
be used when units are fitted in this
way.

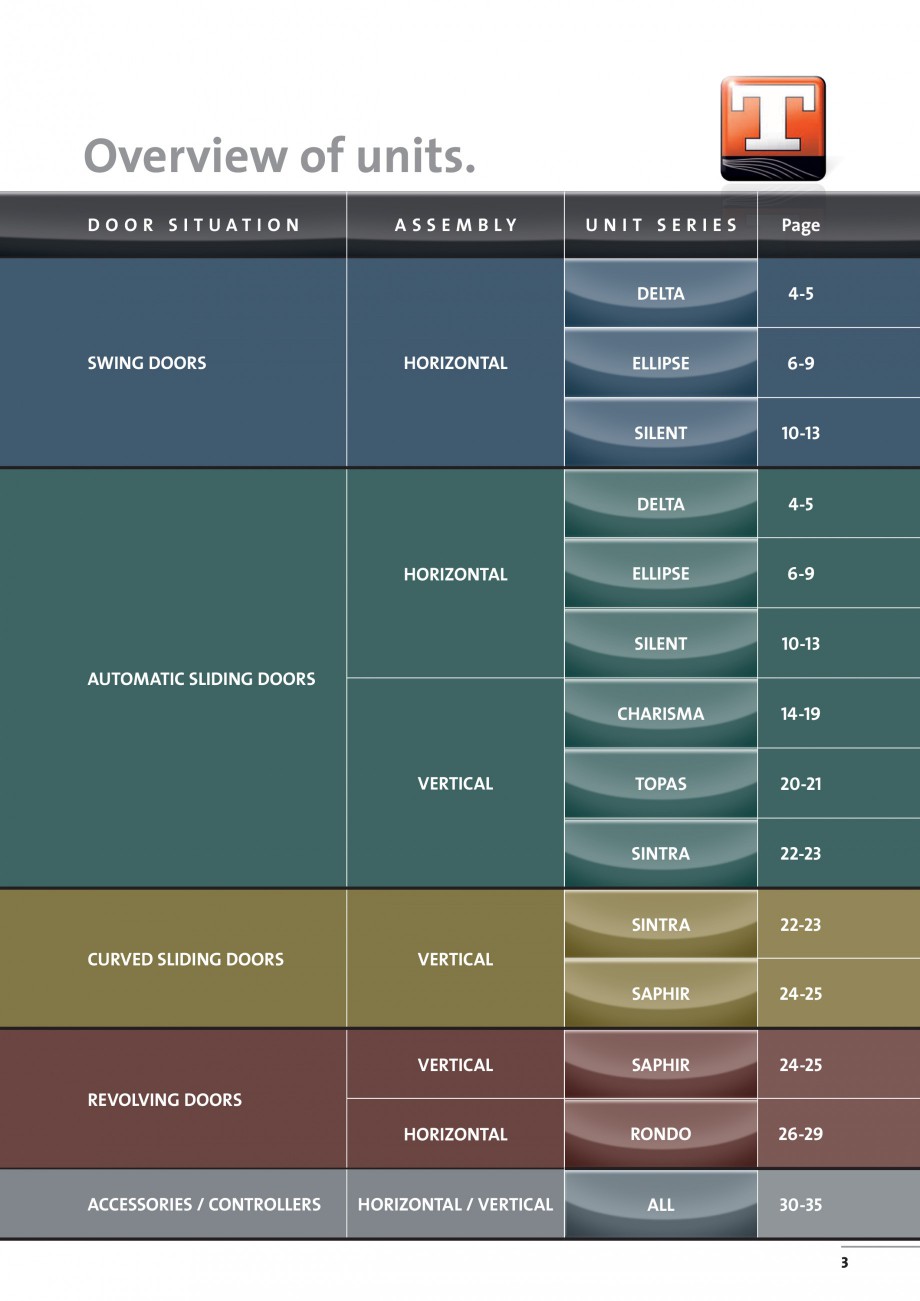

Overview of units.
D o o r s i tuat i o n
Unit series
Page
DELTA
4-5
ELLIPSE
6-9
SILENT
10-13
DELTA
4-5
ELLIPSE
6-9
SILENT
10-13
CHARISMA
14-19
TOPAS
20-21
SINTRA
22-23
SINTRA
22-23
SAPHIR
24-25
Vertical
SAPHIR
24-25
Hor
izontal
SWING DOORS
A ss e m b l y
RONDO
26-29
Horizontal / Vertical
ALL
30-35
HORIZONTAL
Horizontal
Automatic sliding doors
VertiCal
Curved sliding doors
VertiCal
REVOLVING DOORS
ACCESSORIES / CONTROLLERS
3
CHARISMA
Designer Units for Vertical Fitting
Autom ati c
sli d i n g
d o o r s

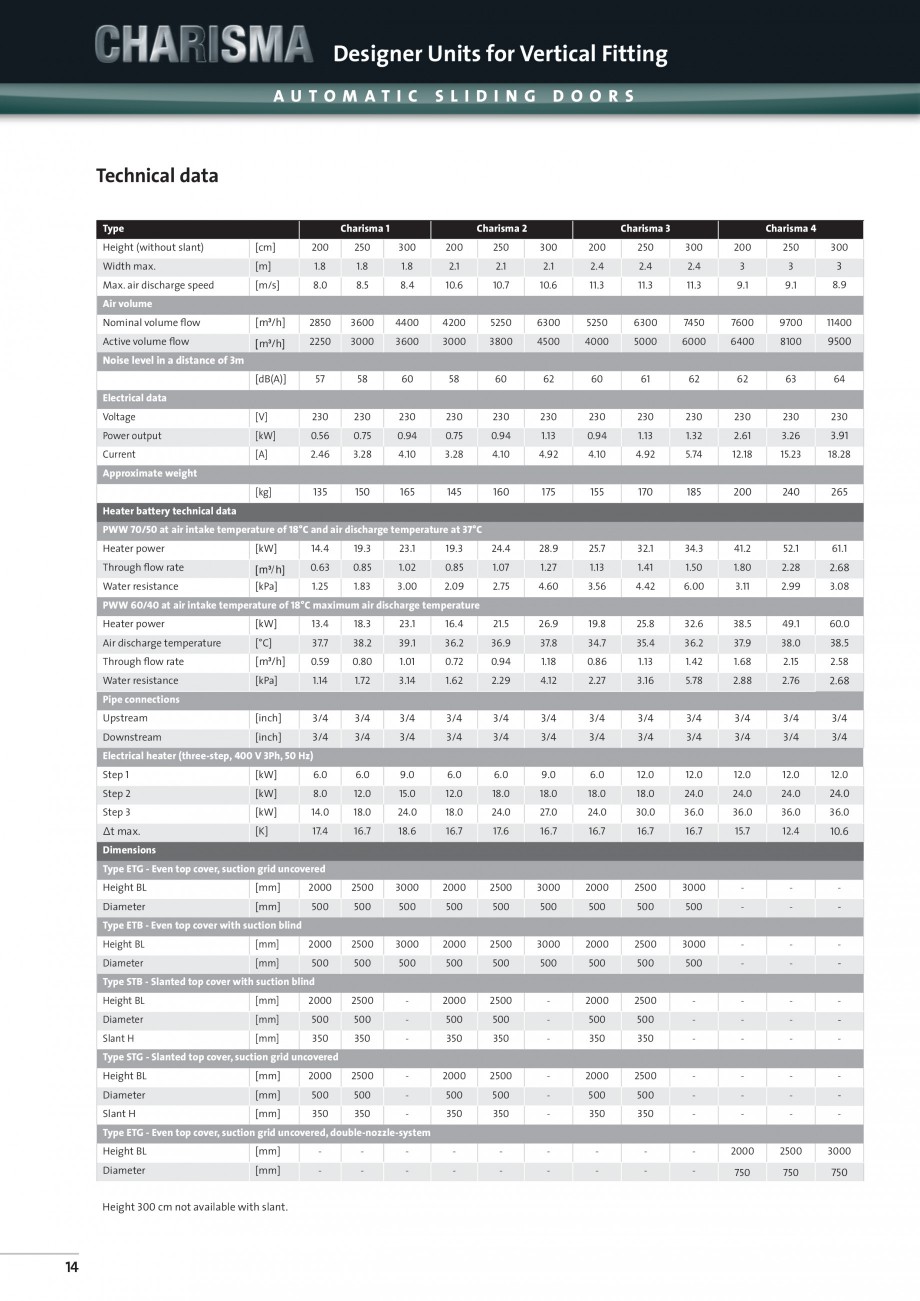

Technical data
Type
Charisma 1
Charisma 2
Charisma 3
Charisma 4
Height (without slant)
[cm]
200
250
300
200
250
300
200
250
300
200
250
Width max.
[m]
1.8
1.8
1.8
2.1
2.1
2.1
2.4
2.4
2.4
3
3
300
3
Max. air discharge speed
[m/s]
8.0
8.5
8.4
10.6
10.7
10.6
11.3
11.3
11.3
9.1
9.1
8.9
[m³/h]
2850
3600
4400
4200
5250
6300
5250
6300
7450
7600
9700
11400
[m³/h]
2250
3000
3600
3000
3800
4500
4000
5000
6000
6400
8100
9500
[dB(A)]
57
58
60
58
60
62
60
61
62
62
63
64
230
230
230
230
230
230
230
230
230
230
230
230
Air volume
Nominal volume flow
Active volume flow
Noise level in a distance of 3
m
Electrical data
Voltage
[V]
Power output
[kW]
0.56
0.75
0.94
0.75
0.94
1.13
0.94
1.13
1.32
2.61
3.26
3.91
Current
[A]
2.46
3.28
4.10
3.28
4.10
4.92
4.10
4.92
5.74
12.18
15.23
18.28
[kg]
135
150
165
145
160
175
155
170
185
200
240
265
Approximate weight
Heater battery technical data
PWW 70/50 at air intake temperature of 18°C and air discharge temperature at 37°C
Heater power
[kW]
14.4
19.3
23.1
19.3
24.4
28.9
25.7
32.1
34.3
41.2
52.1
61.1
Through flow rate
[m³/h]
0.63
0.85
1.02
0.85
1.07
1.27
1.13
1.41
1.50
1.80
2.28
2.68
Water resistance
[kPa]
1.25
1.83
3.00
2.09
2.75
4.60
3.56
4.42
6.00
3.11
2.99
3.08
PWW 60/40 at air intake temperature of 18°C maximum air discharge temperature
Heater power
[kW]
13.4
18.3
23.1
16.4
21.5
26.9
19.8
25.8
32.6
38.5
49.1
60.0
Air discharge temperature
[°C]
37.7
38.2
39.1
36.2
36.9
37.8
34.7
35.4
36.2
37.9
38.0
38.5
Through flow rate
[m
/h]
0.59
0.80
1.01
0.72
0.94
1.18
0.86
1.13
1.42
1.68
2.15
2.58
Water resistance
[kPa]
1.14
1.72
3.14
1.62
2.29
4.12
2.27
3.16
5.78
2.88
2.76
2.68
Upstream
[inch]
3/4
3/4
3/4
3/4
3/4
3/4
3/4
3/4
3/4
3/4
3/4
3/4
Downstream
[inch]
3/4
3/4
3/4
3/4
3/4
3/4
3/4
3/4
3/4
3/4
3/4
3/4
Pipe connections
Electrical heater (three-step, 400 V 3Ph, 50 Hz)
Step 1
[kW]
6.0
6.0
9.0
6.0
6.0
9.0
6.0
12.0
12.0
12.0
12.0
12.0
Step 2
[kW]
8.0
12.0
15.0
12.0
18.0
18.0
18.0
18.0
24.0
24.0
24.0
24.0
Step 3
[kW]
14.0
18.0
24.0
18.0
24.0
27.0
24.0
30.0
36.0
36.0
36.0
36.0
∆t max.
[K]
17.4
16.7
18.6
16.7
17.6
16.7
16.7
16.7
16.7
15.7
12.4
10.6
Dimensions
Type ETG - Even top cover, suction grid uncovered
Height BL
[mm]
2000
2500
3000
2000
2500
3000
2000
2500
3000
-
-
-
Diameter
[mm]
500
500
500
500
500
500
500
500
500
-
-
-
Type ETB - Even top cover with suction blind
Height
BL
[mm]
2000
2500
3000
2000
2500
3000
2000
2500
3000
-
-
-
Diameter
[mm]
500
500
500
500
500
500
500
500
500
-
-
-
Type STB - Slanted top cover with suction blind
Height BL
[mm]
2000
2500
-
2000
2500
-
2000
2500
-
-
-
-
Diameter
[mm]
500
500
-
500
500
-
500
500
-
-
-
-
Slant H
[mm]
350
350
-
350
350
-
350
350
-
-
-
-
Type STG - Slanted top cover, suction grid uncovered
Height BL
[mm]
2000
2500
-
2000
2500
-
2000
2500
-
-
-
-
Diameter
[mm]
500
500
-
500
500
-
500
500
-
-
-
-
Slant H
[mm]
350
350
-
350
350
-
350
350
-
-
-
-
Type ETG - Even top cover, suction grid uncovered, double-nozzle-system
Height BL
[mm]
-
-
-
-
-
-
-
-
-
2000
2500
3000
Diameter
[mm]
-
-
-
-
-
-
-
-
-
750
750
750
Height 300 cm not available with slant.
14
BL

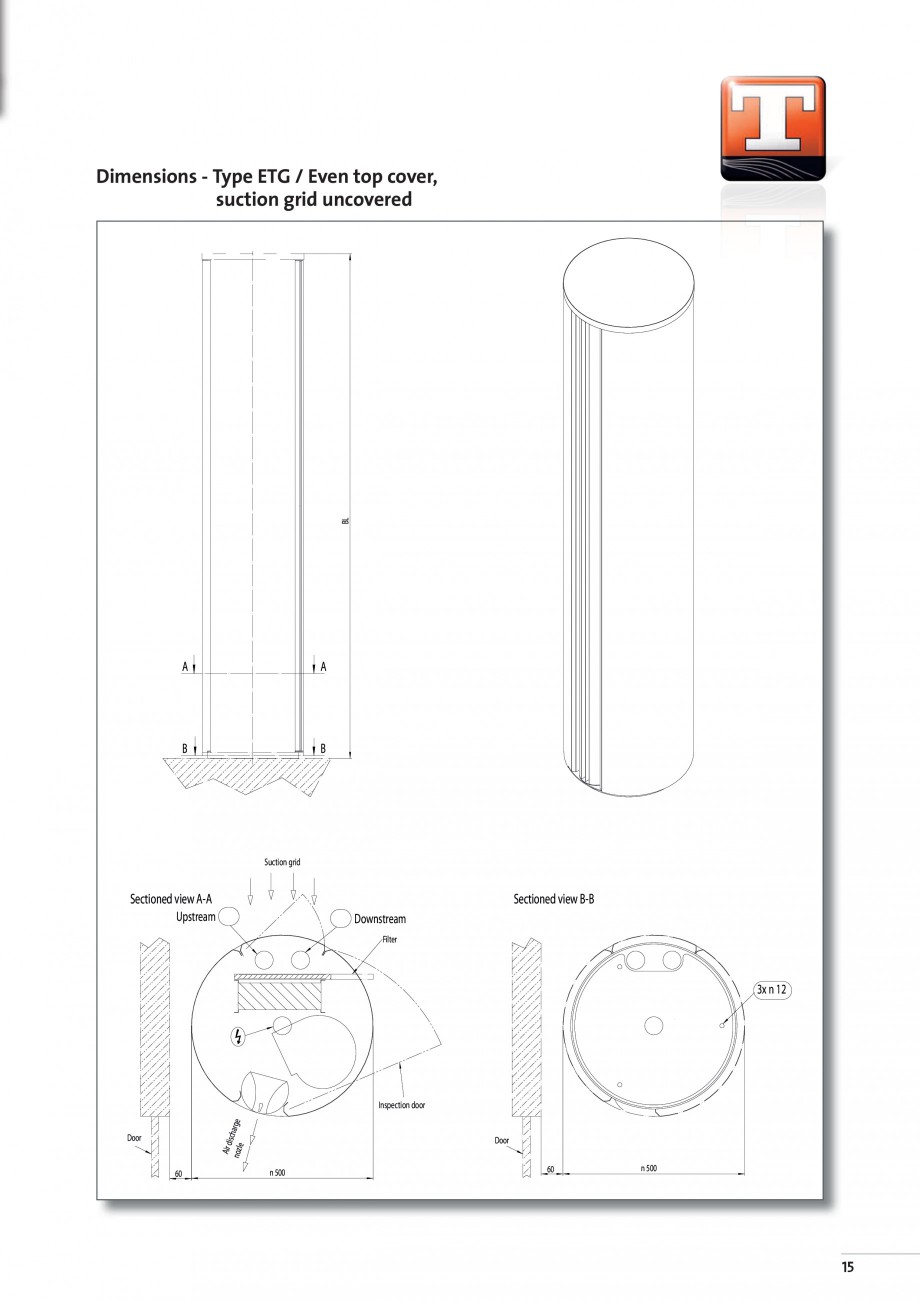

Dimensions - Type ETG / Even top cover,
suction grid uncovered
A
A
B
B
Suction grid
Sectioned view A-A
Upst
ream
Sectioned view B-B
Downstream
Filter
3x n 12
Air dis
nozle charge
Inspection door
Door
60
Door
n 500
60
n 500
15
CHARISMA
Designer Units for Vertical Fitting
Autom ati c
sli d i n g
d o o r s
BL

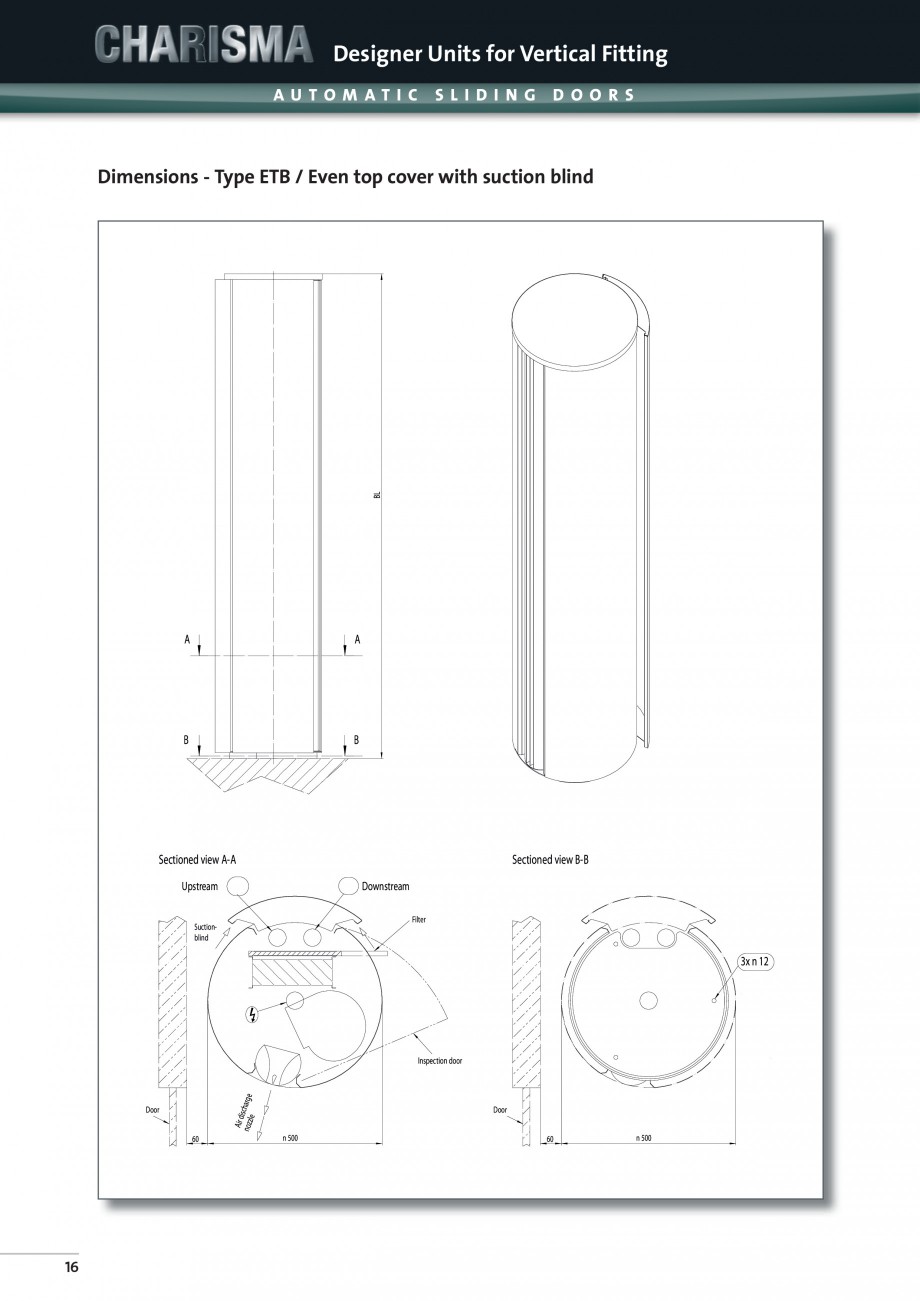

Dimensions - Type ETB / Even top cover with suction blind
A
A
B
B
Sectioned view A-A
Sectioned view B-B
Upstream
Downstream
Filter
Suctionblind
3x n 12
Air d
nozzleischarge
Inspection door
Door
60
16
Door
n 500
60
n 500
BL
H

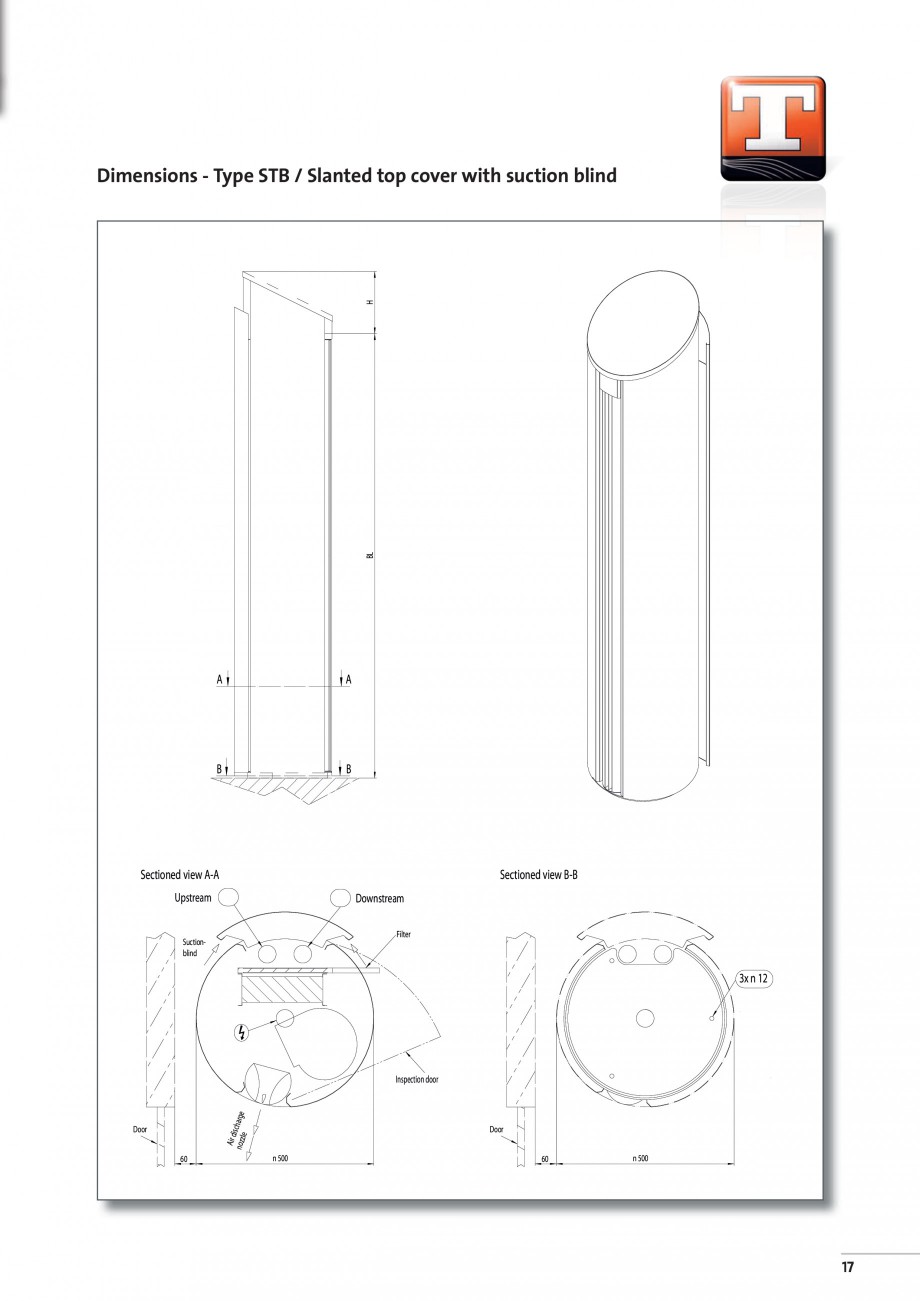

Dimensions - Type STB / Slanted top cover with suction blind
A
A
B
B
Sectioned view A-A
Sectioned view B-B
Upstream
Downstream
Filter
Suctionblind
3x n 12
Air d
nozzleischarge
Inspection door
Door
60
Door
n 500
60
n 500
17
CHARISMA
Designer Units for Vertical Fitting
Autom ati c
sli d i n g
d o o r s
BL
H

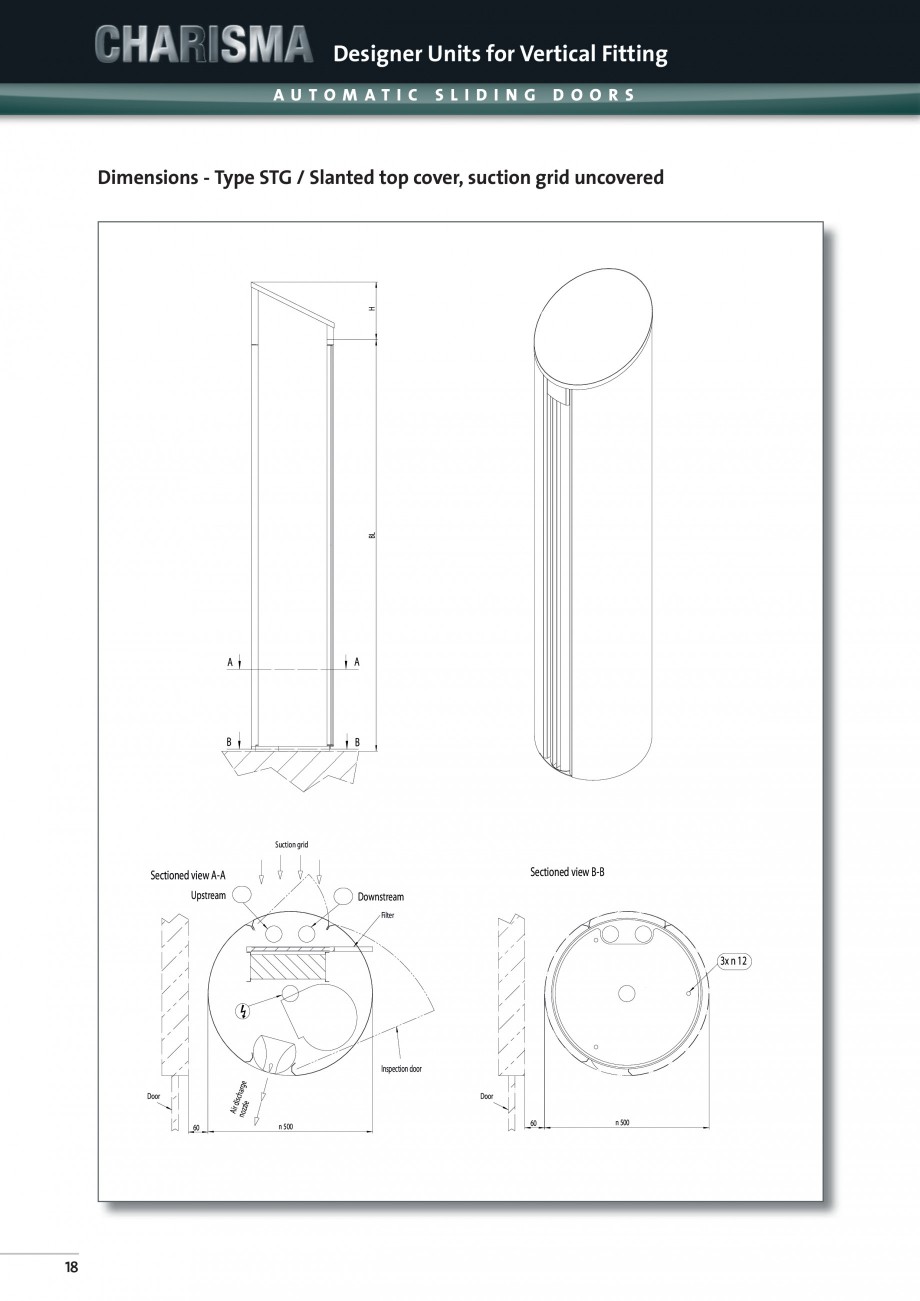

Dimensions - Type STG / Slanted top cover, suction grid uncovered
A
A
B
B
Suction grid
Sectioned view B-B
Sectioned view A-A
Upstream
Downstream
Filter
3x n 12
Air d
nozzleischarge
Inspection d
oor
Door
60
18
Door
n 500
60
n 500
BL

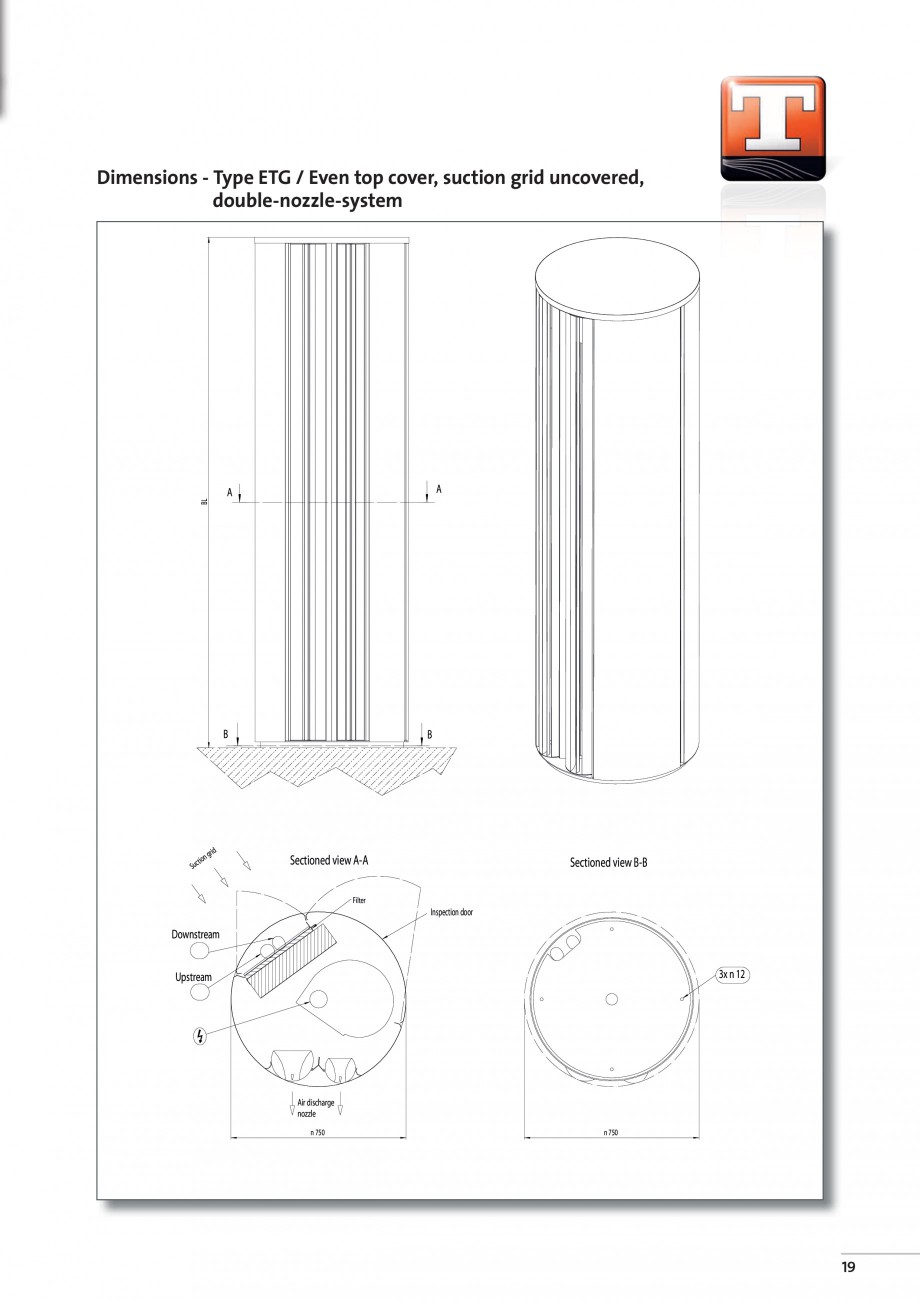

Dimensions - Type ETG / Even top cover, suction grid uncovered,
double-nozzle-system
A
A
B
Suc
grid
tion
B
Sectioned view A-A
Sectioned view B-B
Filter
Inspection door
Downstream
3x n 12
Upstream
Air discharge
nozzle
n 750
n 750
19
TEDDINGTON
Designer Units for Horizontal / Vertical Fitting
Acce sso r i e s
/
Co ntro lle r s

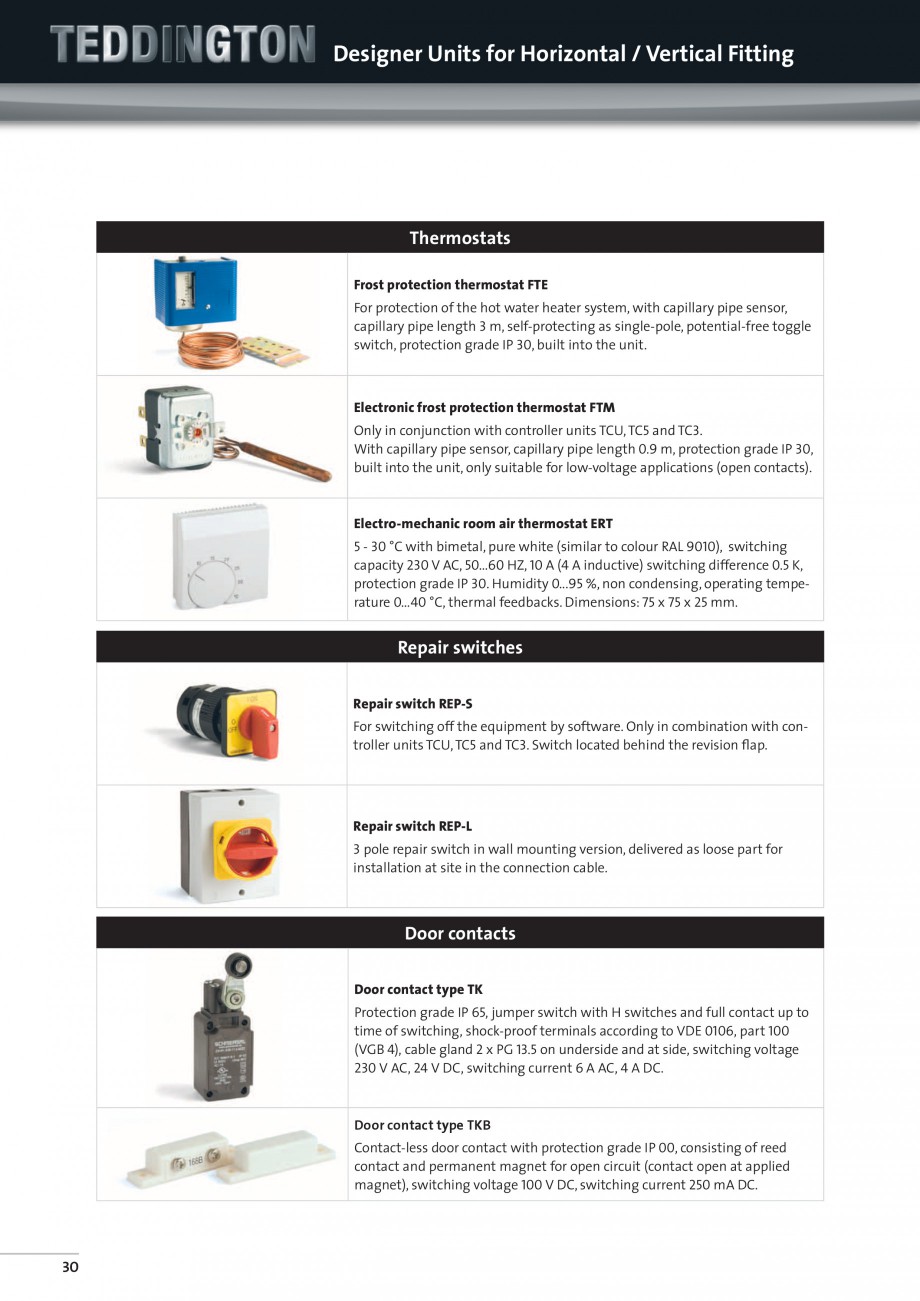

Thermostats
Frost protection thermostat FTE
For protection of the hot water heater system, with capillary pipe sensor,
capillary pipe length 3 m, self-protecting as single-pole, potential-free toggle
switch, protection grade IP 30, built into the unit.
Electronic frost protection thermostat FTM
Only in conjunction with controller units TCU, TC5 and TC3.
With capillary pipe sensor, capillary pipe length 0.9 m, protection grade IP 30,
built into the unit, only suitable for low-voltage applications (open contacts).
Electro-mechanic room air thermostat ERT
5 - 30 °C with bimetal, pure white (sim
ilar to colour RAL 9010), switching
capacity 230 V AC, 50...60 HZ, 10 A (4 A inductive) switching difference 0.5 K,
protection grade IP 30. Humidity 0...95 %, non condensing, operating temperature 0...40 °C, thermal feedbacks. Dimensions: 75 x 75 x 25 mm.
Repair switches
Repair switch REP-S
For switching off the equipment by software. Only in combination with controller units TCU, TC5 and TC3. Switch located behind the revision flap.
Repair switch REP-L
3 pole repair switch in wall mounting version, delivered as loose part for
installation at site in the connection cable.
Door contacts
Door contact type TK
Protection grade IP 65, jumper switch with H switches and full contact up to
time of switching, shock-proof terminals according to VDE 0106, part 100
(VGB 4), cable gland 2 x PG 13.5 on underside and at side, switching voltage
230 V AC, 24 V DC, switching current 6 A AC, 4 A DC.
Door contact type TKB
Contact-less door contact with protection grade IP 00, consisting of reed
conta
ct and permanent magnet for open circuit (contact open at applied
magnet), switching voltage 100 V DC, switching current 250 mA DC.
30

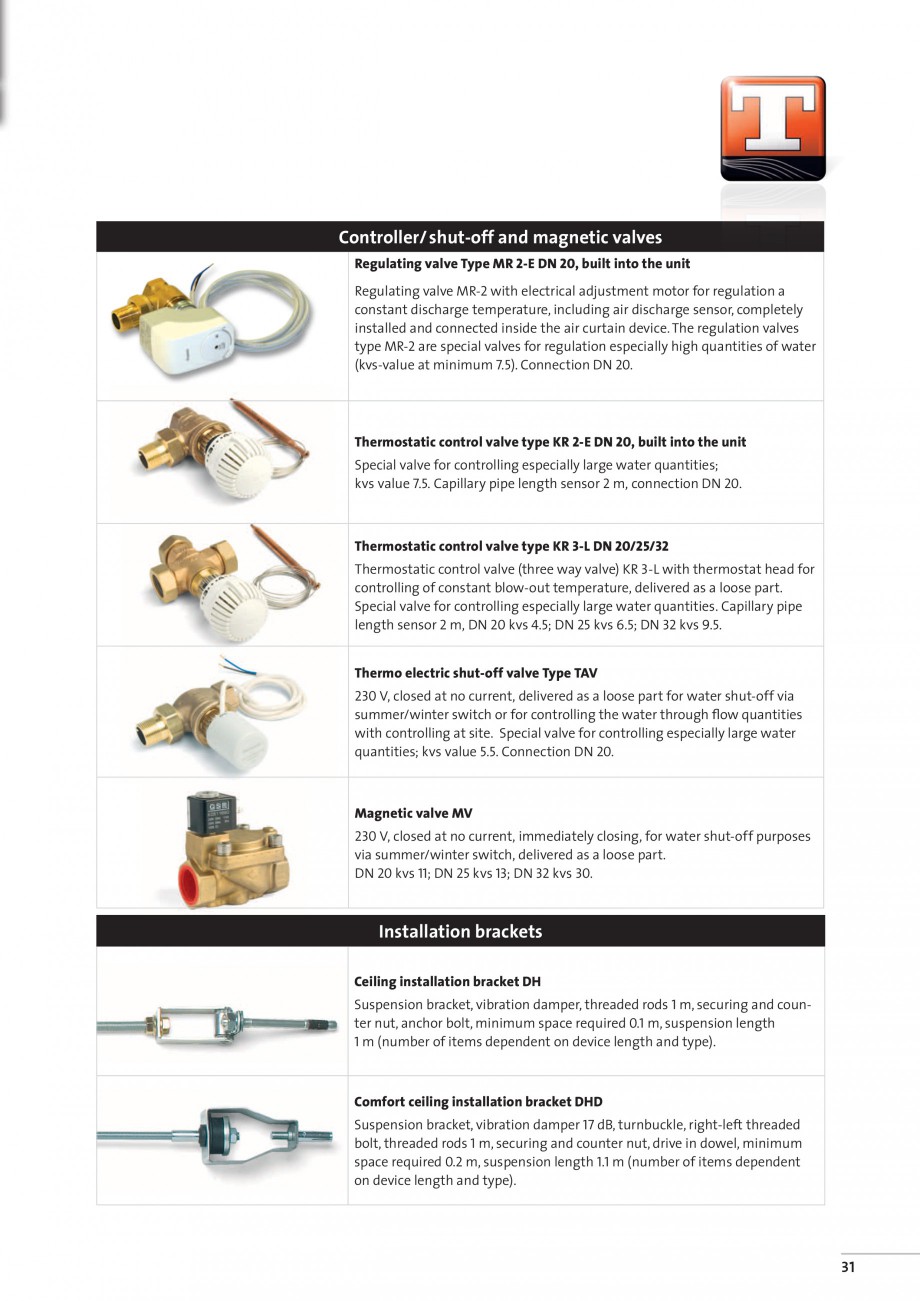

Controller/shut-off and magnetic valves
Regulating valve Type MR 2-E DN 20, built into the unit
Regulating valve MR-2 with electrical adjustment motor for regulation a
constant discharge temperature, including air discharge sensor, completely
installed and connected inside the air curtain device. The regulation valves
type MR-2 are special valves for regulation especially high quantities of water
(kvs-value at minimum 7.5). Connection DN 20.
Thermostatic control valve type KR 2-E DN 20, built into the unit
Special valve for controlling especially large water quantities;
kvs value 7.5. Capillary pipe length sensor 2 m, connection DN 20.
Thermostatic control valve type KR 3-L DN 20/25/32
Thermostatic control valve (three way valve) KR 3-L with thermostat head for
controlling of constant blow-out temperature, delivered as a loose part.
Special v
alve for controlling especially large water quantities. Capillary pipe
length sensor 2 m, DN 20 kvs 4.5; DN 25 kvs 6.5; DN 32 kvs 9.5.
Thermo electric shut-off valve Type TAV
230 V, closed at no current, delivered as a loose part for water shut-off via
summer/winter switch or for controlling the water through flow quantities
with controlling at site. Special valve for controlling especially large water
quantities; kvs value 5.5. Connection DN 20.
Magnetic valve MV
230 V, closed at no current, immediately closing, for water shut-off purposes
via summer/winter switch, delivered as a loose part.
DN 20 kvs 11; DN 25 kvs 13; DN 32 kvs 30.
Installation brackets
Ceiling installation bracket DH
Suspension bracket, vibration damper, threaded rods 1 m, securing and counter nut, anchor bolt, minimum space required 0.1 m, suspension length
1 m (number of items dependent on device length and type).
Comfort ceiling installation bracket DHD
Suspension bracket, vibration damper 17 dB, turnbuckle, r
ight-left threaded
bolt, threaded rods 1 m, securing and counter nut, drive in dowel, minimum
space required 0.2 m, suspension length 1.1 m (number of items dependent
on device length and type).
31
TEDDINGTON
Designer Units for Horizontal / Vertical Fitting
Acce sso r i e s
/
Co ntro lle r s

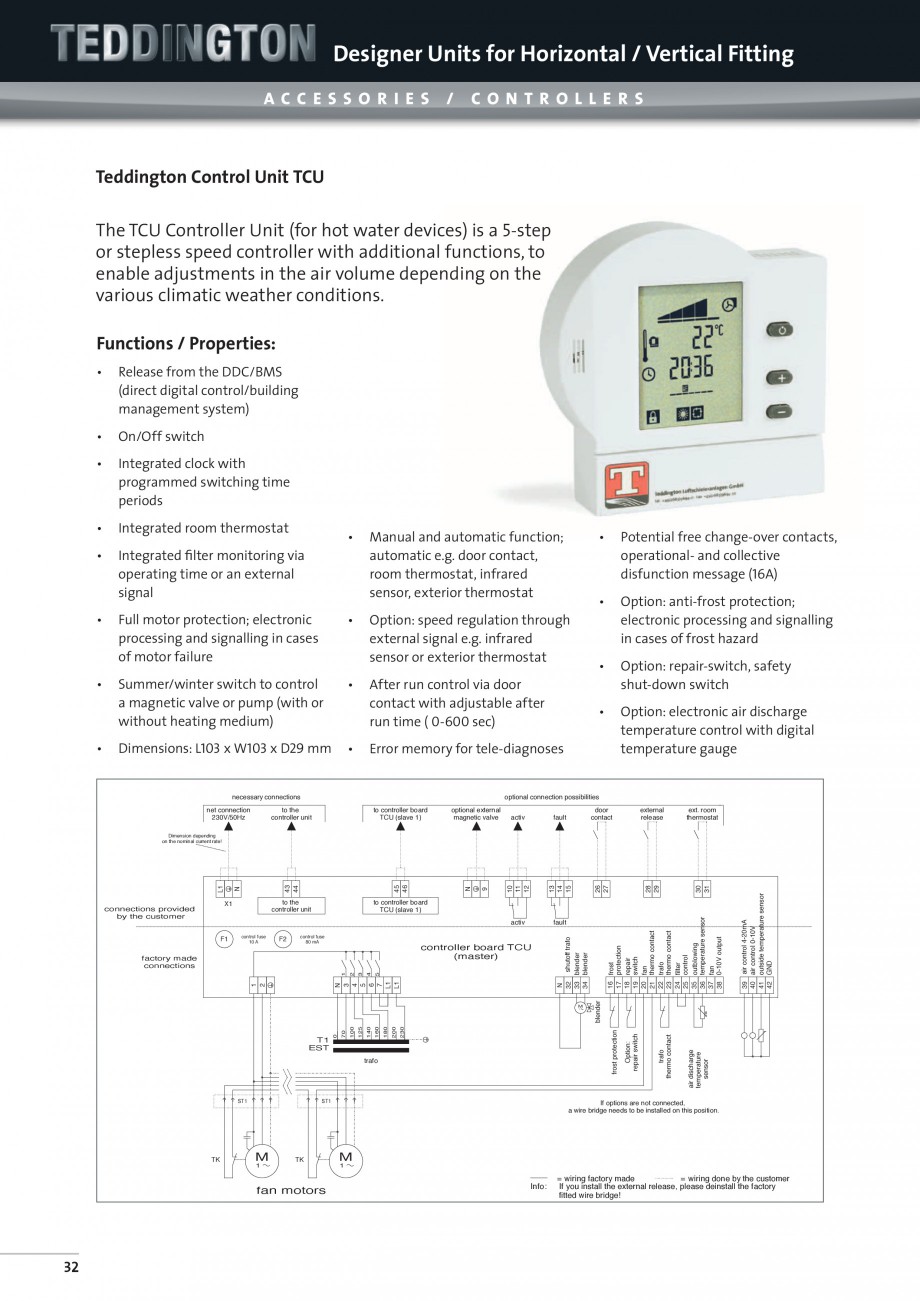

Teddington Control Unit TCU
The TCU Controller Unit (for hot water devices) is a 5-step
or stepless speed controller with additional functions, to
enable adjustments in the air volume depending on the
various climatic weather conditions.
Functions / Properties:
• Release from the DDC/BMS
(direct digital control/building
management system)
• On/Off switch
• Integrated clock with
programmed switching time
periods
• Integrated room thermostat
• Potential free change-over contacts,
operational- and collective
disfunction message (16A)
• Integrated filter monitoring via
operating time or an external
signal
•
Manual and automatic function;
automatic
e.g. door contact,
room thermostat, infrared
sensor, exterior thermostat
• Full motor protection; electronic
processing and signalling in cases
of motor failure
• Option: speed regulation through
external signal e.g. infrared
sensor or exterior thermostat
• Summer/winter switch to control
a magnetic valve or pump (with or
without heating medium)
• After run control via door
contact with adjustable after
run time ( 0-600 sec)
• Dimensions: L103 x W103 x D29 mm
• Error memory for tele-diagnoses
• Option: repair-switch, safety
shut-down switch
• Option: electronic air discharge
temperature control with digital
temperature gauge
optional connection possibilities
to controller board
TCU (slave 1)
optional external
magnetic valve
door
contact
activ
fault
13
14
15
to the
controller unit
10
11
12
necessary connections
net connection
230V/50Hz
• Option: anti-frost protection;
electronic processing and signalling
in cases of f
rost hazard
activ
fault
external
release
ext. room
thermostat
trafo
ST1
TK
ST1
M
1
TK
fan motors
32
39 air control 4-20mA
40 air control 0-10V
41 outside temperature sensor
42 GND
28
29
30
31
air discharge
temperature
sensor
frost protection
230
200
180
160
140
125
100
70
T1
EST
0
1
trafo
thermo contact
M
Option:
repair switch
5
4
3
2
1
N
3
4
5
6
7
L1
L1
1
2
26
27
9
controller board TCU
(master)
factory made
connections
frost
protection
repair
switch
fan
thermo contact
trafo
thermo contact
filter
control
outblowing
temperature sensor
fan
0-10V output
control fuse
80 mA
16
17
18
19
20
21
22
23
24
25
35
36
37
38
F2
blender
control fuse
10 A
to controller board
TCU (slave 1)
N
32 shutoff trafo
33 blender
34 blender
F1
45
46
X1
connections provided
by the customer
N
43
44
to the
controller unit
N
L1
Dimension depending
on the nominal current rate!
If options are not connected,
a wire bridge needs to be installed on this position.
M
1
Info:
= wiring factory made
= wiring done by the customer
If you install the external release, please deinstall the factory
fitted wire bridge!

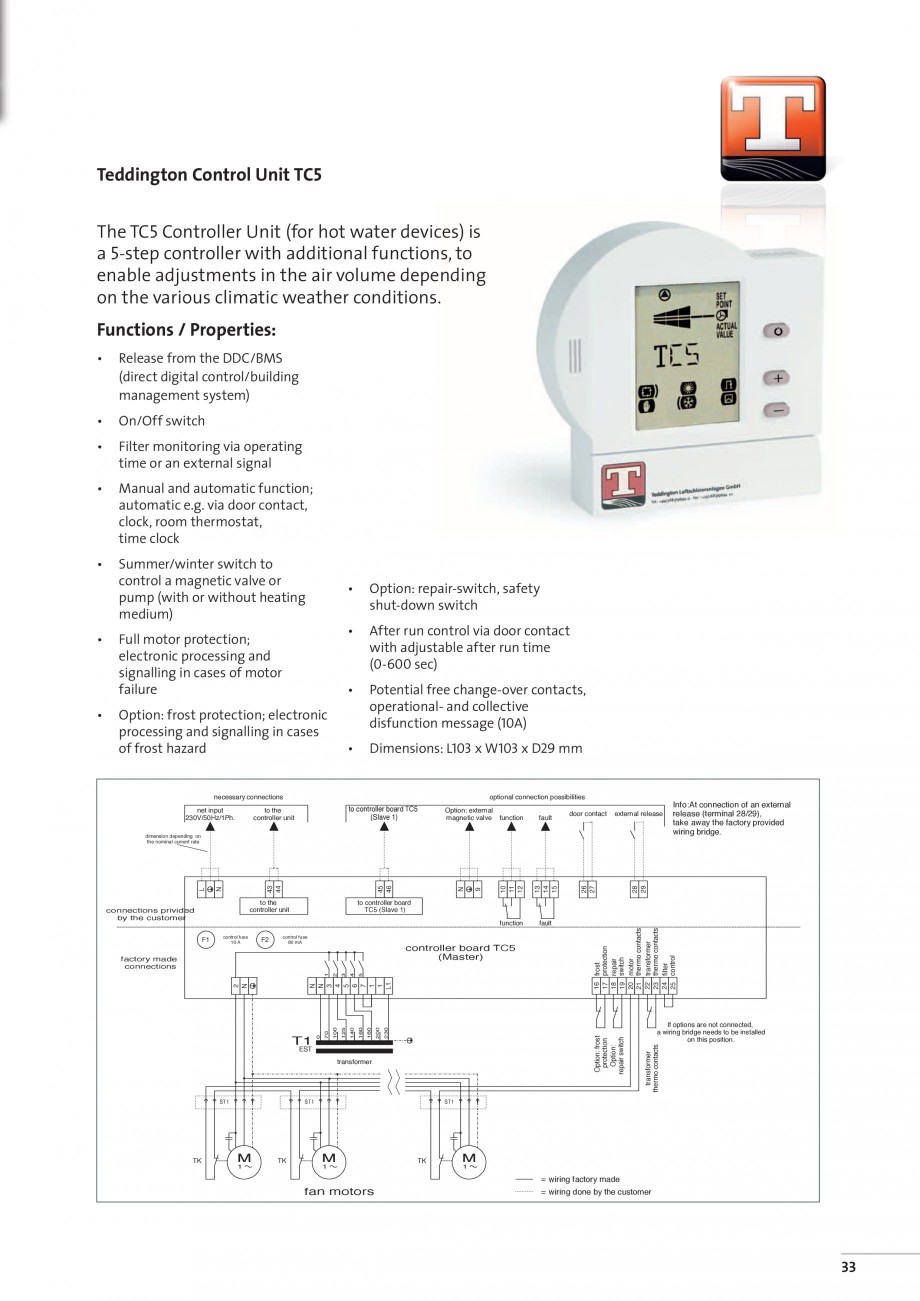

Teddington Control Unit TC5
The TC5 Controller Unit (for hot water devices) is
a 5-step controller with additional functions, to
enable adjustments in the air volume depending
on the various climatic weather conditions.
Functions / Properties:
• Release from the DDC/BMS
(direct digital control/building
management system)
• On/Off switch
• Filter monitoring via operating
time or an external signal
•
Manual and automatic function;
automatic e.g. via door contact,
clock, room thermostat,
time clock
•
Summer/winter switch to
control a magnetic valve or
pump (with or without heating
medium)
•
Full motor protection;
electronic processing and
signalling in cases of motor
failure
• Option: repair-switch, safety
shut-down switch
• After run control via door contact
with adjustable after
M
1
Info:
= wiring factory made
= wiring done by the customer
If you install the external release, please deinstall the factory
fitted wire bridge!
Teddington Control Unit TC5
The TC5 Controller Unit (for hot water devices) is
a 5-step controller with additional functions, to
enable adjustments in the air volume depending
on the various climatic weather conditions.
Functions / Properties:
• Release from the DDC/BMS
(direct digital control/building
management system)
• On/Off switch
• Filter monitoring via operating
time or an external signal
•
Manual and automatic function;
automatic e.g. via door contact,
clock, room thermostat,
time clock
•
Summer/winter switch to
control a magnetic valve or
pump (with or without heating
medium)
•
Full motor protection;
electronic processing and
signalling in cases of motor
failure
• Option: repair-switch, safety
shut-down switch
• After run control via door contact
with adjustable after

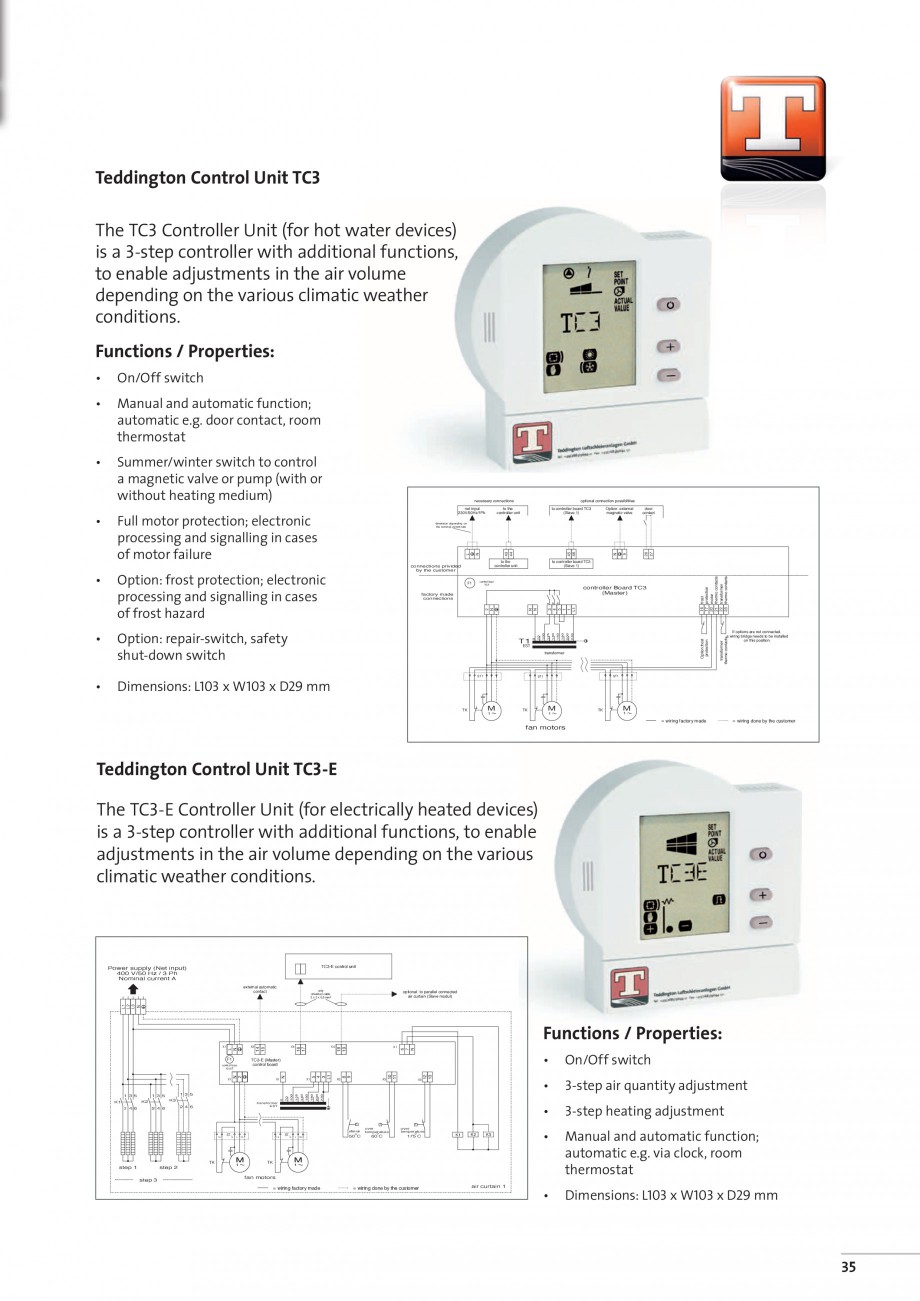

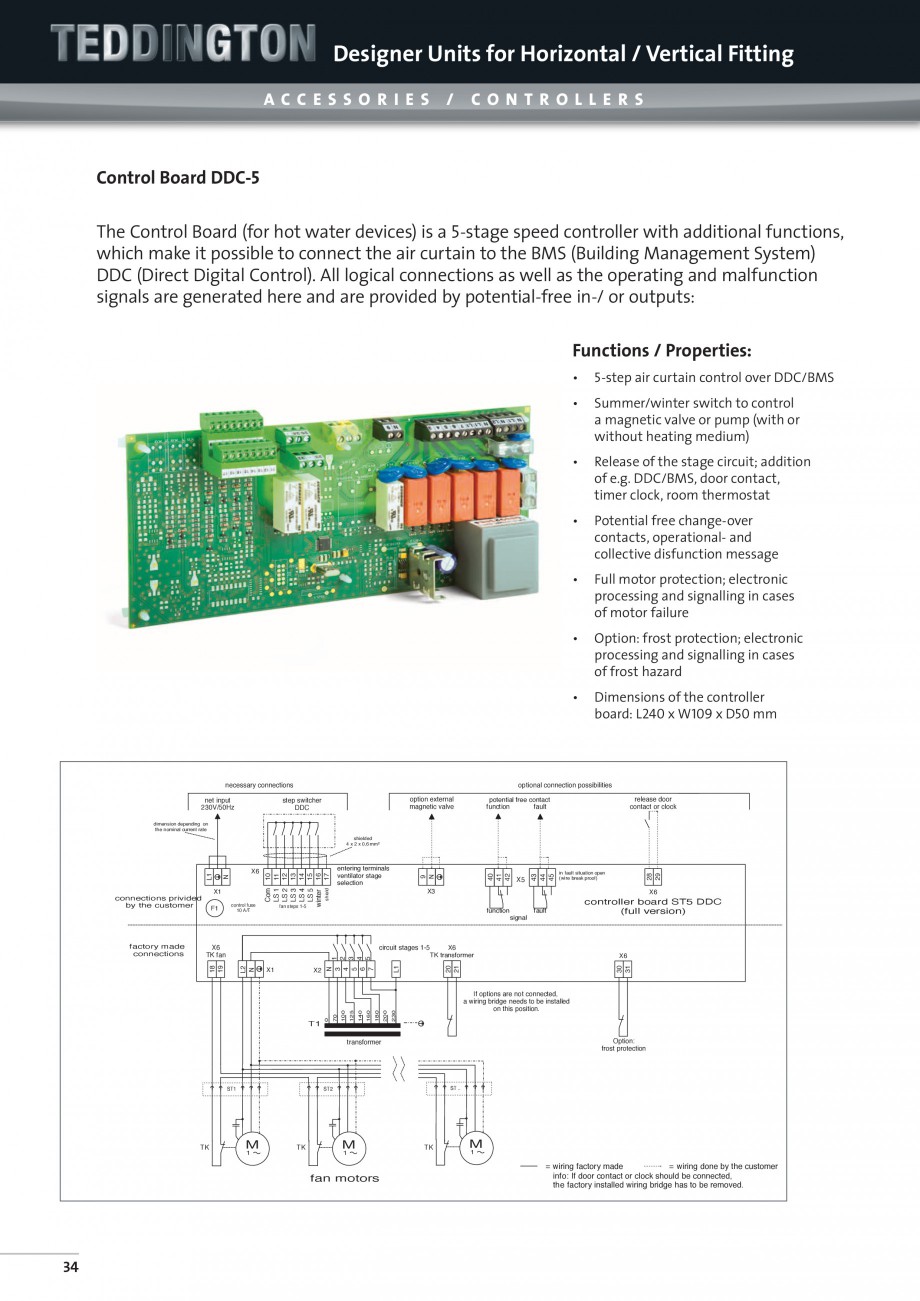

... ascunde
Alte documentatii ale aceleasi game Vezi toate
Fisa tehnica
12 p | EN
DELTA
Fisa tehnica
12 p | EN
ELLIPSE
