Pereti mobili, demontabili ESPERO Visio

Limba: Engleza

136 afisari

Tip documentatie: Catalog, brosura

Pagina 1 - Pereti mobili, demontabili ESPERO Visio Catalog, brosura Engleza VISIO

MOBILE GLASS...

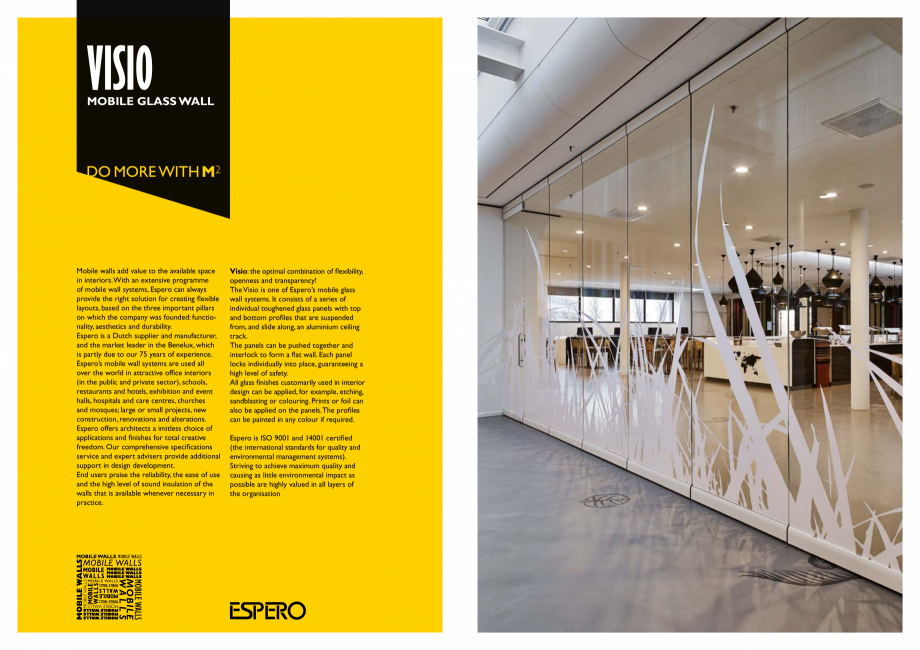

VISIO MOBILE GLASS WALL VISIO MOBILE GLASS WALL Mobile walls add value to the available space in interiors. With an extensive programme of mobile wall systems, Espero can always provide the right solution for creating flexible layouts, based on the three important pillars on which the company was founded: functionality, aesthetics and durability. Espero is a Dutch supplier and manufacturer, and the market leader in the Benelux, which is partly due to our 75 years of experience. Espero’s mobile wall systems are used all over the world in attractive office interiors (in the public and private sector), schools, restaurants and hotels, exhibition and event halls, hospitals and care centres, churches and mosques; large or small projects, new construction, renovations and alterations. Espero offers architects a imitless choice of applications and finishes for total creative freedom. Our comprehensive specifications service and expert advisers provide additional support in design devel

Pagina 1-Pereti mobili, demontabili ESPERO Visio Catalog, brosura Engleza VISIO

MOBILE GLASS WALL

VISIO

...

Pagina 2 - Pereti mobili, demontabili ESPERO Visio Catalog, brosura Engleza opment.
End users...

opment. End users praise the reliability, the ease of use and the high level of sound insulation of the walls that is available whenever necessary in practice. Visio: the optimal combination of flexibility, openness and transparency! The Visio is one of Espero’s mobile glass wall systems. It consists of a series of individual toughened glass panels with top and bottom profiles that are suspended from, and slide along, an aluminium ceiling track. The panels can be pushed together and interlock to form a flat wall. Each panel locks individually into place, guaranteeing a high level of safety. All glass finishes customarily used in interior design can be applied, for example, etching, sandblasting or colouring. Prints or foil can also be applied on the panels. The profiles can be painted in any colour if required. Espero is ISO 9001 and 14001 certified (the international standards for quality and environmental management systems). Striving to achieve maximum quality and causing as litt

Pagina 2-Pereti mobili, demontabili ESPERO Visio Catalog, brosura Engleza opment.
End users praise the...

Pagina 3 - Pereti mobili, demontabili ESPERO Visio Catalog, brosura Engleza le environmental impact...

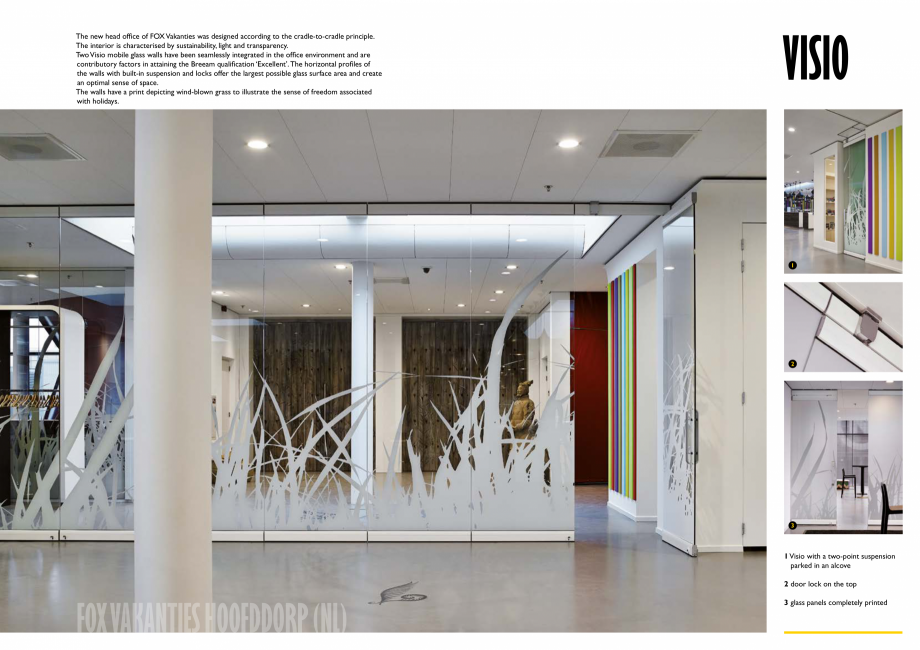

le environmental impact as possible are highly valued in all layers of the organisation The new head office of FOX Vakanties was designed according to the cradle-to-cradle principle. The interior is characterised by sustainability, light and transparency. Two Visio mobile glass walls have been seamlessly integrated in the office environment and are contributory factors in attaining the Breeam qualification ‘Excellent’. The horizontal profiles of the walls with built-in suspension and locks offer the largest possible glass surface area and create an optimal sense of space. The walls have a print depicting wind-blown grass to illustrate the sense of freedom associated with holidays. VISIO 1 2 3 1 Visio with a two-point suspension parked in an alcove 2 door lock on the top FOX VAKANTIES HOOFDDORP (NL) 3 glass panels completely printed VISIO Flexibility is a key principle of the open learning environment of the Thor Heyerdahl College in Larvik. The architecture is intended

Pagina 3-Pereti mobili, demontabili ESPERO Visio Catalog, brosura Engleza le environmental impact as...

Pagina 4 - Pereti mobili, demontabili ESPERO Visio Catalog, brosura Engleza to
stimulate widely...

to stimulate widely ranging activities such as informal meetings, teaching and working in quiet concentration. Mobile walls make it possible to rearrange the available space to suit the needs of a particular moment. The architects (Schmidt Hammer Lassen) deliberately chose Visio glass walls for the college’s central quadrangle. This transparent, safe and user-friendly solution enables optimal utilisation of the multi-functionality of this impressive space without diminishing the powerful spatial effect. THOR HEYERDAHL COLLEGE LARVIK (N) VISIO ‘Closed, but not sealed off’ is how to describe the imaginative use of the Visio wall in the hall of the municipal offices in Rozenburg. During opening hours, the wall is simply moved aside and parked in a purposebuilt alcove. When the building is closed, the wall is moved into position without negatively impacting on the accessibility and transparency of the interior. The Visio wall with a decorative strip of foil at eye level subtly obs

Pagina 4-Pereti mobili, demontabili ESPERO Visio Catalog, brosura Engleza to
stimulate widely ranging...

Pagina 5 - Pereti mobili, demontabili ESPERO Visio Catalog, brosura Engleza tructs the
view in...

tructs the view in precisely the right way to meet the functional requirement of guaranteeing the privacy of visitors and staff. 4 4 wall parked in the space behind glass doors 5 decorative, functional foil placed on the glass STADSKANTOOR ROZENBURG (NL) 5 Classroom and individual teaching, but still able to keep a watchful eye on the children. The use of Visio glass walls made this possible at the Juliana school in Dordrecht. The transparency of the glass ensures that the teachers in the classrooms can keep an eye on the open spaces where children are working on projects individually or in small groups. This works both ways and the children can easily make eye contact when they need a teacher’s help. By simply removing or positioning one or more mobile wall sections, the space can be continually rearranged to suit the needs of a particular moment. VISIO 6 7 6 optimal view of different areas 7 elegant corner solution JULIANASCHOOL DORDRECHT (NL) VISIO communication pane

Pagina 5-Pereti mobili, demontabili ESPERO Visio Catalog, brosura Engleza tructs the
view in precisely the...

Pagina 6 - Pereti mobili, demontabili ESPERO Visio Catalog, brosura Engleza l

double door panel

8...

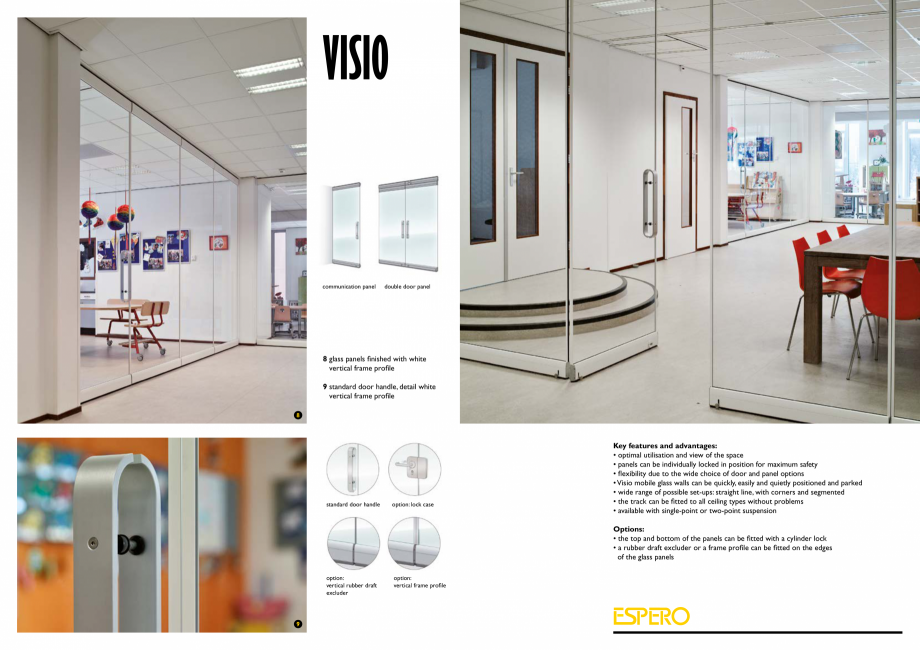

l double door panel 8 glass panels finished with white vertical frame profile 9 standard door handle, detail white vertical frame profile 8 standard door handle option: lock case Key features and advantages: • optimal utilisation and view of the space • panels can be individually locked in position for maximum safety • flexibility due to the wide choice of door and panel options • Visio mobile glass walls can be quickly, easily and quietly positioned and parked • wide range of possible set-ups: straight line, with corners and segmented • the track can be fitted to all ceiling types without problems • available with single-point or two-point suspension Options: • the top and bottom of the panels can be fitted with a cylinder lock • a rubber draft excluder or a frame profile can be fitted on the edges of the glass panels option: vertical rubber draft excluder 9 option: vertical frame profile VISIO TYPE VISIO Use Transparent mobile glass wall, suitable for

Pagina 6-Pereti mobili, demontabili ESPERO Visio Catalog, brosura Engleza l

double door panel

8 glass...

Pagina 7 - Pereti mobili, demontabili ESPERO Visio Catalog, brosura Engleza partitioning spaces...

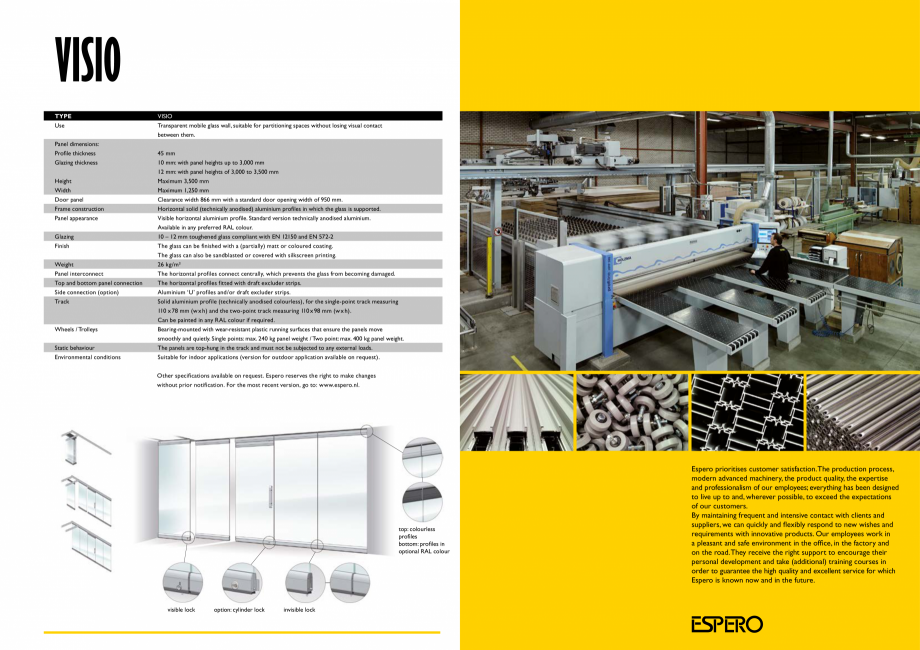

partitioning spaces without losing visual contact between them. Panel dimensions: Profile thickness 45 mm Glazing thickness 10 mm: with panel heights up to 3,000 mm 12 mm: with panel heights of 3,000 to 3,500 mm Height Maximum 3,500 mm Width Maximum 1,250 mm Door panel Clearance width 866 mm with a standard door opening width of 950 mm. Frame construction Horizontal solid (technically anodised) aluminium profiles in which the glass is supported. Panel appearance Visible horizontal aluminium profile. Standard version technically anodised aluminium. Available in any preferred RAL colour. Glazing 10 – 12 mm toughened glass compliant with EN 12150 and EN 572-2 Finish The glass can be finished with a (partially) matt or coloured coating. The glass can also be sandblasted or covered with silkscreen printing. Weight 26 kg/m² Panel interconnect The horizontal profiles connect centrally, which prevents the glass from becoming damaged. Top and bottom panel connection The

Pagina 7-Pereti mobili, demontabili ESPERO Visio Catalog, brosura Engleza partitioning spaces without losing...

Pagina 8 - Pereti mobili, demontabili ESPERO Visio Catalog, brosura Engleza horizontal profiles...

horizontal profiles fitted with draft excluder strips. Side connection (option) Aluminium ‘U’ profiles and/or draft excluder strips. Track Solid aluminium profile (technically anodised colourless), for the single-point track measuring 110 x 78 mm (w x h) and the two-point track measuring 110 x 98 mm (w x h). Can be painted in any RAL colour if required. Wheels / Trolleys Bearing-mounted with wear-resistant plastic running surfaces that ensure the panels move smoothly and quietly. Single points: max. 240 kg panel weight / Two point: max. 400 kg panel weight. Static behaviour The panels are top-hung in the track and must not be subjected to any external loads. Environmental conditions Suitable for indoor applications (version for outdoor application available on request). Other specifications available on request. Espero reserves the right to make changes without prior notification. For the most recent version, go to: www.espero.nl. top: co

Pagina 8-Pereti mobili, demontabili ESPERO Visio Catalog, brosura Engleza horizontal profiles fitted with...

Pagina 9 - Pereti mobili, demontabili ESPERO Visio Catalog, brosura Engleza lourless
profiles...

lourless profiles bottom: profiles in optional RAL colour visible lock option: cylinder lock invisible lock Espero prioritises customer satisfaction. The production process, modern advanced machinery, the product quality, the expertise and professionalism of our employees; everything has been designed to live up to and, wherever possible, to exceed the expectations of our customers. By maintaining frequent and intensive contact with clients and suppliers, we can quickly and flexibly respond to new wishes and requirements with innovative products. Our employees work in a pleasant and safe environment in the office, in the factory and on the road. They receive the right support to encourage their personal development and take (additional) training courses in order to guarantee the high quality and excellent service for which Espero is known now and in the future. MOBILE WALLS Enquire about our FSC certified products. postal adress Espero BV Postbus 576 5140 AN Waalwijk The Neth
