Get over the limits and meet the Skyroof family. You can
choose Skyroof to suit your needs and desires with unlimited
personalization.
P R E S T I G E
08
10
PLUS & C O M P A C T
28
09

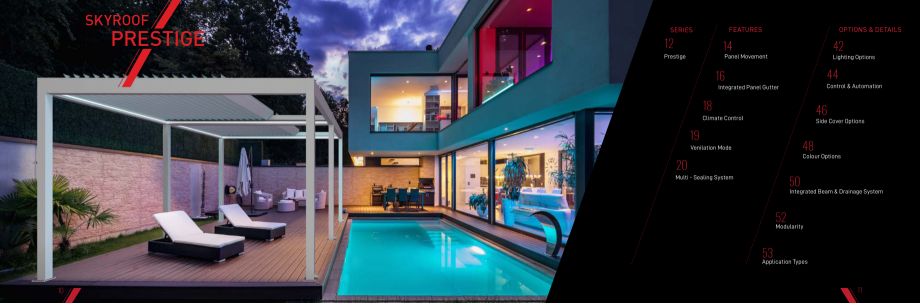

SKYROOF
PRESTIGE
FEATURES
SERIES
12
OPTIONS & DETAILS
14
42
Panel Movement
Prestige
Lighting Options
44
16
Control & Automation
Integrated Panel Gutter
18
46
Climate Control
Side Cover Options
19
48
Venilation Mode
Colour Options
20
50
Multi - Sealing System
Integrated Beam & Drainage System
52
Modularity
53
Application Types
10
11

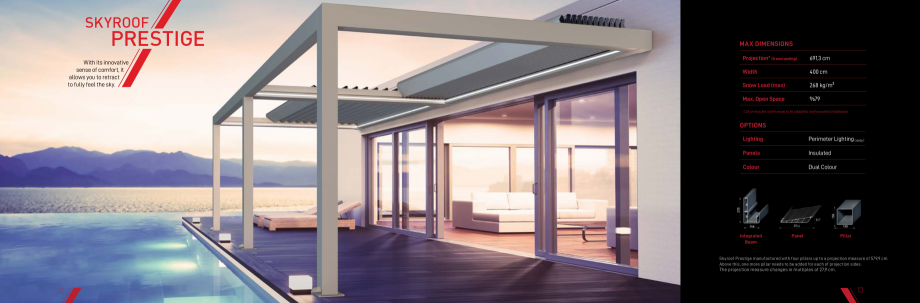

SKYROOF
PRESTIGE
With its innovative
sense of comfort, it
allows you to retract
to fully feel the sky.
MAX DIMENSIONS
Projection* (freestanding)
691,3 cm
Width
400 cm
Snow Load (max)
268 kg/m²
Max. Open Space
%79
*2,8 cm b
racket width needs to be added for wall mounted installation.
OPTIONS
Lighting
Perimeter Lighting ( only )
Panels
Insulated
Colour
Dual Colour
57,7
315.4
Integrated
Beam
Panel
Pillar
Skyroof Prestige manufactured with four pillars up to a projection measure of 579,9 cm.
Above this, one more pillar needs to be added for each of projection sides.
The projection measure changes in multiples of 27,9 cm.
12
13
PA NEL
MOV EMENT

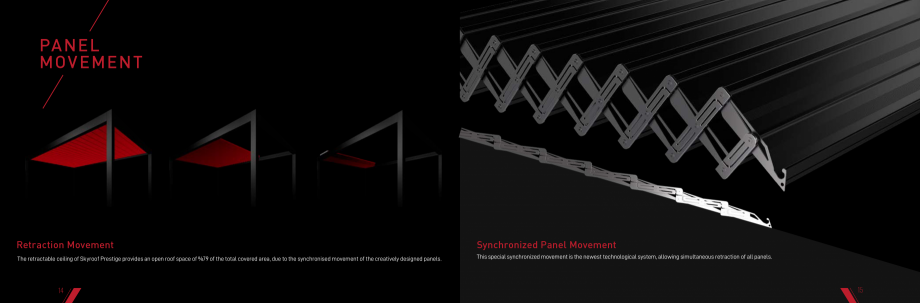

Retraction Movement
Synchronized Panel Movement
The retractable ceiling of Skyroof Prestige provides an open roof space of %79 of the total covered area, due to the synchronised movement of the creatively designed panels.
This special synchronized movement is the newest technological system, allowing simultaneous retraction of all panels.
14
15

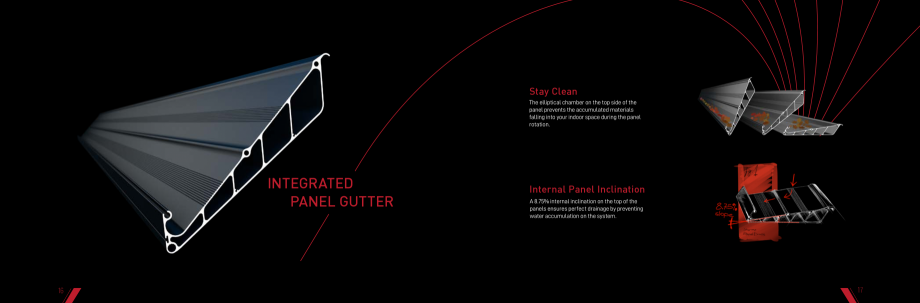

Stay Clean
The elliptical chamber on the top side of the
panel prevents the accumulated materials
falling into your indoor space during the panel
rotation.
INTEGRATED
PANEL GUTTER
16
Internal Panel In
clination
A 8.75% internal inclination on the top of the
panels ensures perfect drainage by preventing
water accumulation on the system.
17

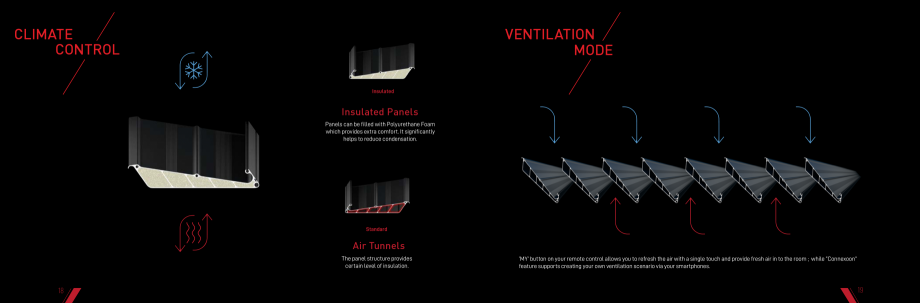

CLIMATE
CONTROL
VENTILATION
MODE
Insulated

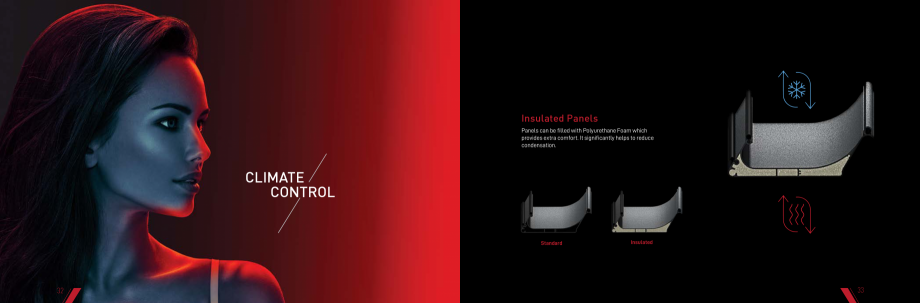

Insulated Panels
Panels can be filled with Polyurethane Foam
which provides extra comfort. It significantly
helps to reduce condensation.
Standard
Air Tunnels
The panel structure provides
certain level of insulation.
18
‘MY’ button on your remote control allows you to refresh the air with a single touch and provide fresh air in to the room ; while “Connexoon”
feature supports creating your own ventilation scenario via your smartphones.
19

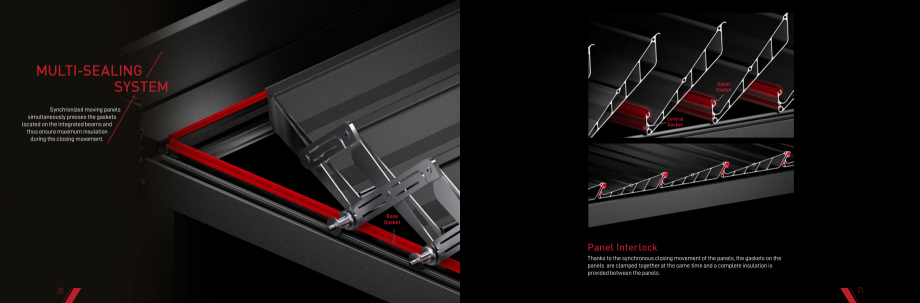

MULTI-SEALING
SYSTEM
Upper
Gasket
Synchronized moving panels
simultaneously presses the gaskets
located on the integrated beams and
thus ensure maximum insulation
during the closing movement.
Central
Gasket
Base
Gasket
Panel Interlock
Thanks to the synchronous closing movement of the panels, the gaskets on the
panels are clamped together at the sa
me time and a complete insulation is
provided between the panels.
20
21

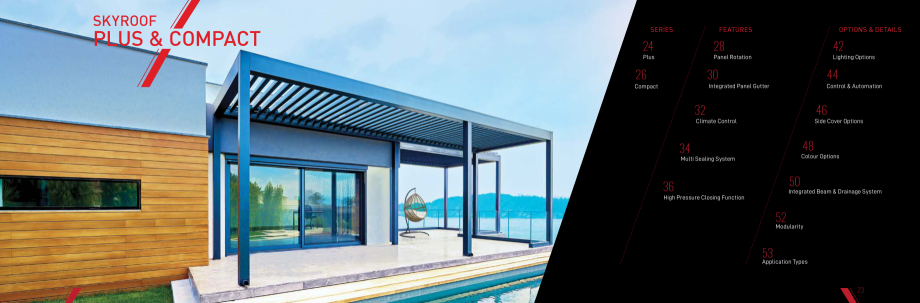

SKYROOF
PLUS & COMPACT
SERIES
FEATURES
24
OPTIONS & DETAILS
42
28
Plus
Lighting Options
Panel Rotation
26
44
30
Control & Automation
Integrated Panel Gutter
Compact
32
46
Climate Control
Side Cover Options
48
34
Colour Options
Multi Sealing System
50
36
Integrated Beam & Drainage System
High Pressure Closing Function
52
Modularity
53
Application Types
22
23

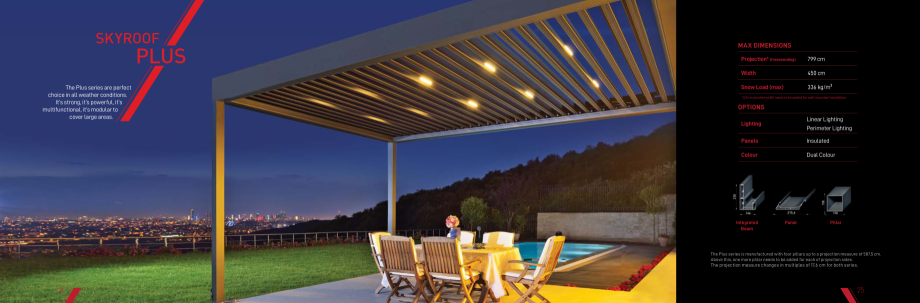

SKYROOF
PLUS
The Plus series are perfect
choice in all weather conditions.
It’s strong, it’s powerful, it‘s
multifunctional, it’s modular to
cover large areas.
MAX DIMENSIONS
Projection* (freestanding)
799 cm
Width
450 cm
Snow Load (max)
336 kg/m²
*2,8 cm bracket width needs to be added for wall mounted installation.
OPTIONS
Lighting
Linear Lighting
Perimeter Lighting
Panels
Insulated
Colour
Dual Colour
Integrated
Beam
Panel
Pillar
The Plus series is manufactured with four pillars up to a projec
tion measure of 587,5 cm.
Above this, one more pillar needs to be added for each of projection sides.
The projection measure changes in multiples of 17,6 cm for both series.
24
25
SKYROOF

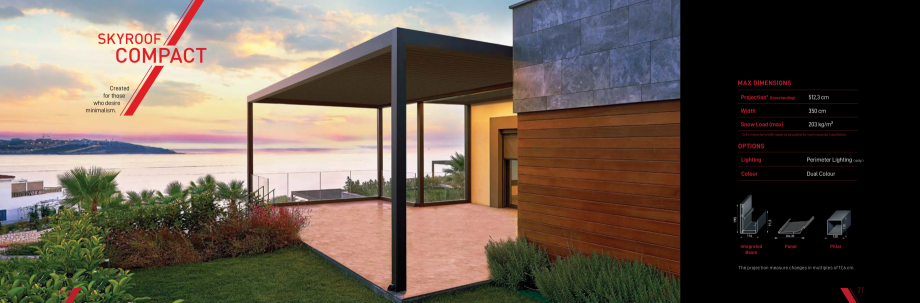

COMPACT
Created
for those
who desire
minimalism.
MAX DIMENSIONS
Projection* (freestanding)
512,3 cm
Width
350 cm
Snow Load (max)
203 kg/m²
*2,8 cm bracket width needs to be added for wall mounted installation.
OPTIONS
Lighting
Perimeter Lighting ( only )
Colour
Dual Colour
Integrated
Beam
Panel
Pillar
The projection measure changes in multiples of 17,6 cm.
26
27
120°

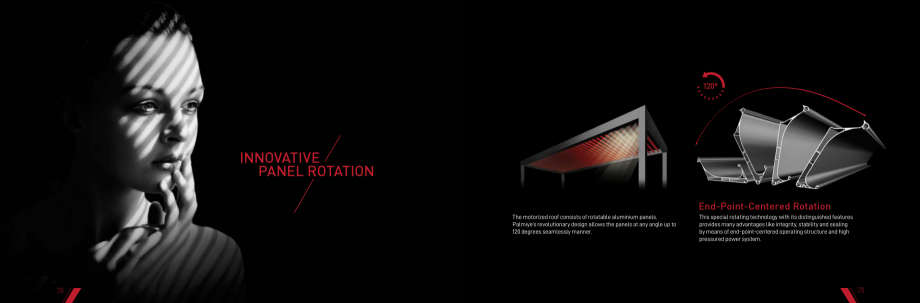

INNOVATIVE
PANEL ROTATION
End-Point-Centered Rotation
The motorized roof consists of rotatable aluminium panels.
Palmiye’s revolutionary design allows the panels at any angle up to
120 degrees seamlessly manner.
28
This special rotating technology with its distinguished features
provides many advantages like integrity, stability and sealing
by means of end-point-centered operating structure and high
pressu
red power system.
29
INTEGRATED
PANEL GUTTER
30

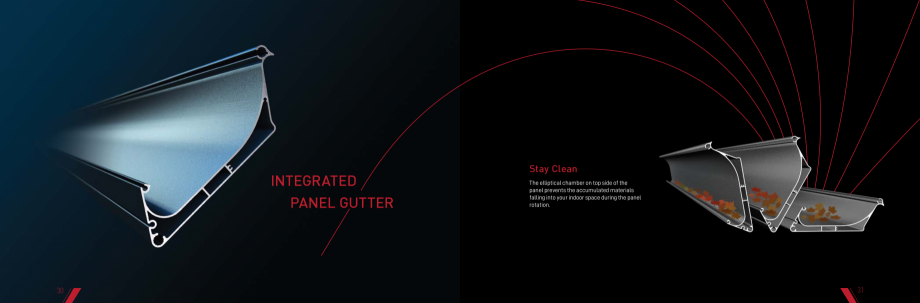

Stay Clean
The elliptical chamber on top side of the
panel prevents the accumulated materials
falling into your indoor space during the panel
rotation.
31
Insulated Panels
Panels can be filled with Polyurethane Foam which
provides extra comfort. It significantly helps to reduce
condensation.
CLIMATE
CONTROL
Standard
32
Insulated
33

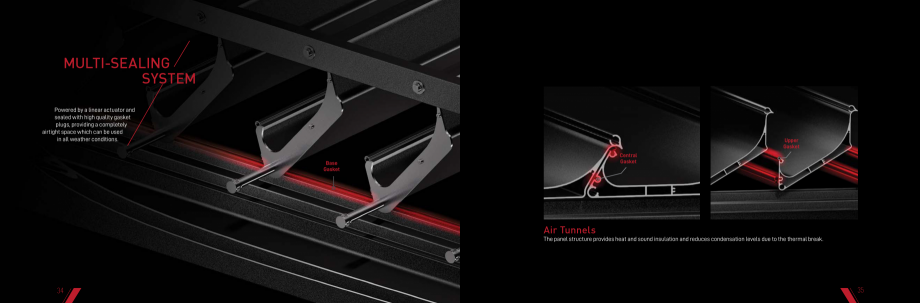

MULTI-SEALING
SYSTEM
Powered by a linear actuator and
sealed with high quality gasket
plugs, providing a completely
airtight space which can be used
in all weather conditions.
Upper
Gasket
Central
Gasket
Base
Gasket
Air Tunnels
The panel structure provides heat and sound insulation and reduces condensation levels due to the thermal break.
34
35

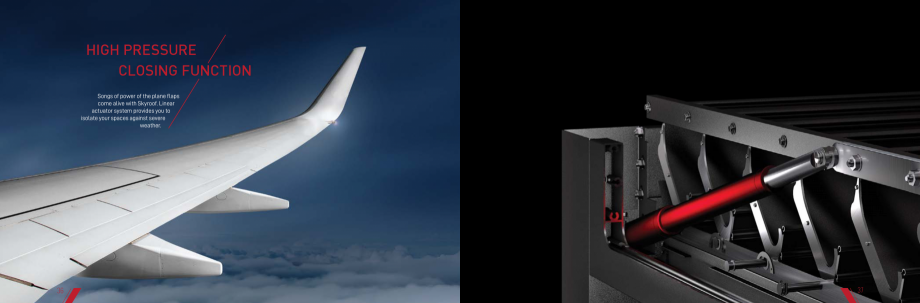

HIGH PRESSURE
CLOSING FUNCTION
Songs of power of the plane flaps
come alive with Skyroof. Linear
actuator system provides you to
isolate your spaces against severe
weather.
36
37
38
39
OPTIONS
D E TA I L S

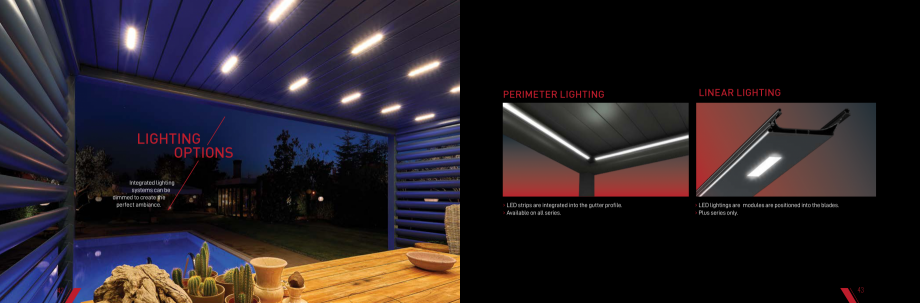

PERIMETER LIGHTING
LINEAR LIGHTIN
G
LIGHTING
OPTIONS
Integrated lighting
systems can be
dimmed to create the
perfect ambiance.
42
› LED strips are integrated into the gutter profile.
› Available on all series.
› LED lightings are modules are positioned into the blades.
› Plus series only.
43
CONTROL
& AUTOMATION

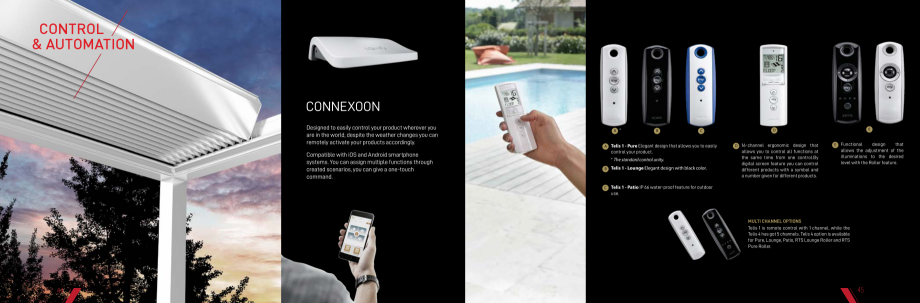

CONNEXOON
Designed to easily control your product wherever you
are in the world, despite the weather changes you can
remotely activate your products accordingly.
Compatible with iOS and Android smartphone
systems. You can assign multiple functions through
created scenarios, you can give a one-touch
command.
A
A
*
B
Telis 1 - Pure Elegant design that allows you to easily
control your product.
* The standard control unity.
B
Telis 1 - Lounge Elegant design with black color.
C
Telis 1 - Patio IP 66 water-proof feature for outdoor
use.
E
D
C
D
16-channel ergonomic design that
allows you to control all functions at
the same time from one control.By
digital screen feature you can control
different products with a symbol and
a number given for different products.
E
Functional
design
that
allows the adjustment of the
illuminations to the desired
level with the Roller feature.
MULTI CHANNEL OPTIONS
Telis 1 is remote control with 1 channel, while the
Telis 4 has got 5 channels. Telis 4 option is available
for Pure, Lounge, Patio, RTS Lounge Roller and RTS
Pure Roller.
44
45

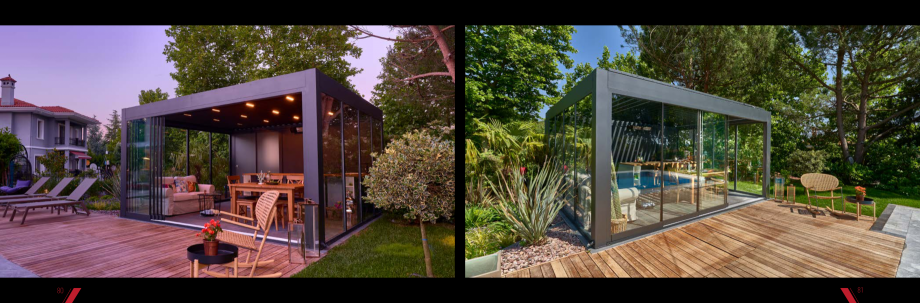

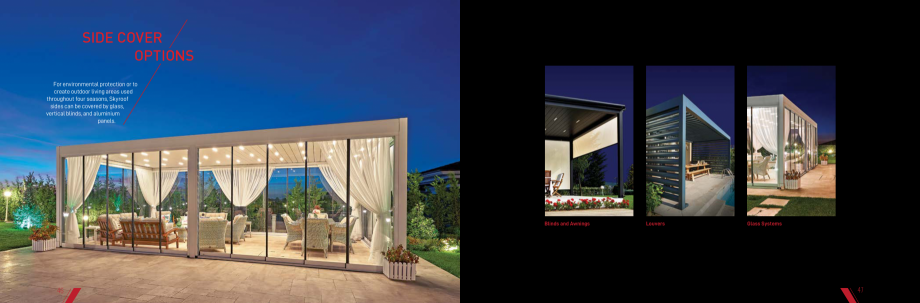

SIDE COVER
OPTIONS
For environmental protection or to
create outdoor living areas used
throughout four seasons, Skyroof
sides can be covered by glass,
vertical blinds, and aluminium
panels.
Blinds and Awnings
46
Louvers
Glass Systems
47

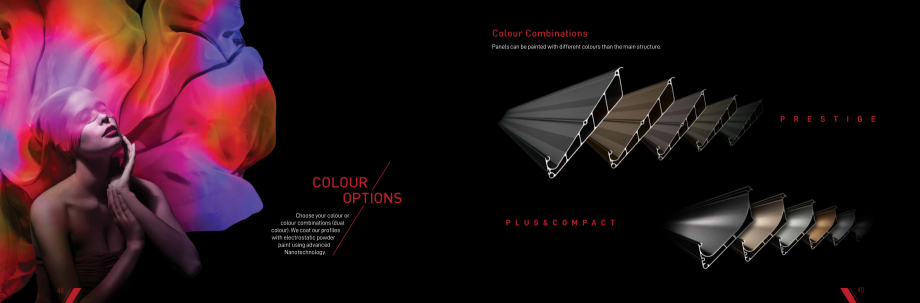

Colour Combinations
Panels can be painted with different colours than the main structure.
P
R
E
S
T
I
G
COLOUR
OPTIONS
Choose your colour or
colour combinations (dual
colour). We coat our profiles
with electrostatic powder
paint using advanced
Nanotechnology.
48
P L U S & C O M P A C T
49
E
Integrated Drainage System

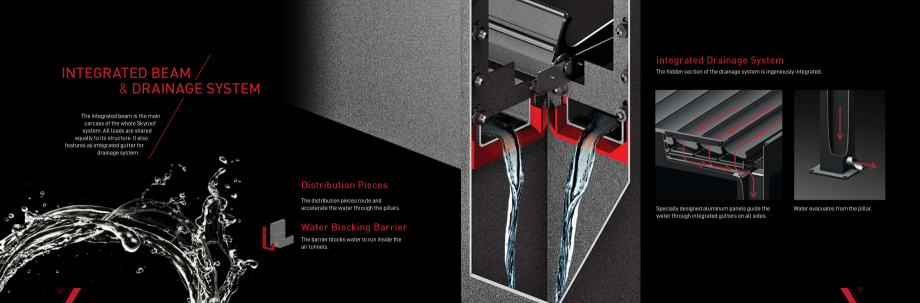

INTEGRATED BEAM
& DRAINA
GE SYSTEM
The hidden section of the drainage system is ingeniously integrated.
The integrated beam is the main
carcass of the whole Skyroof
system. All loads are shared
equally to its structure. It also
features as integrated gutter for
drainage system.
Distribution Pieces
The distribution pieces route and
accelerate the water through the pillars.
Specially designed aluminum panels guide the
water through integrated gutters on all sides.
Water evacuates from the pillar.
Water Blocking Barrier
The barrier blocks water to run inside the
air tunnels.
50
51

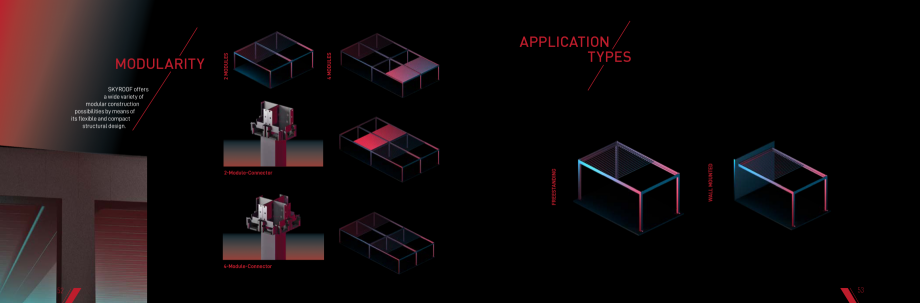

4 MODULES
2 MODULES
MODULARITY
APPLICATION
TYPES
WALL MOUNTED
2-Module-Connector
FREESTANDING
SKYROOF offers
a wide variety of
modular construction
possibilities by means of
its flexible and compact
structural design.
4-Module-Connector
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69

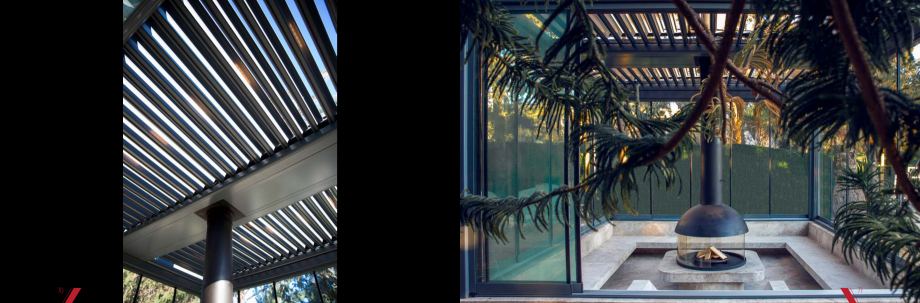

70
71
72
73
74
75
76
77
78
79
80
81
5-YEAR
WARRANTY
All our products have up
to 5 yea
rs guarantee for the
construction and motor.
The electronics and
remote controls are
guaranteed for
