Documentatie atasata la

Placi din fibre lemnoase pentru izolatii mansarde, acoperisuri, pereti GUTEX

Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall

Limba: Engleza

268 afisari

Tip documentatie: Catalog, brosura

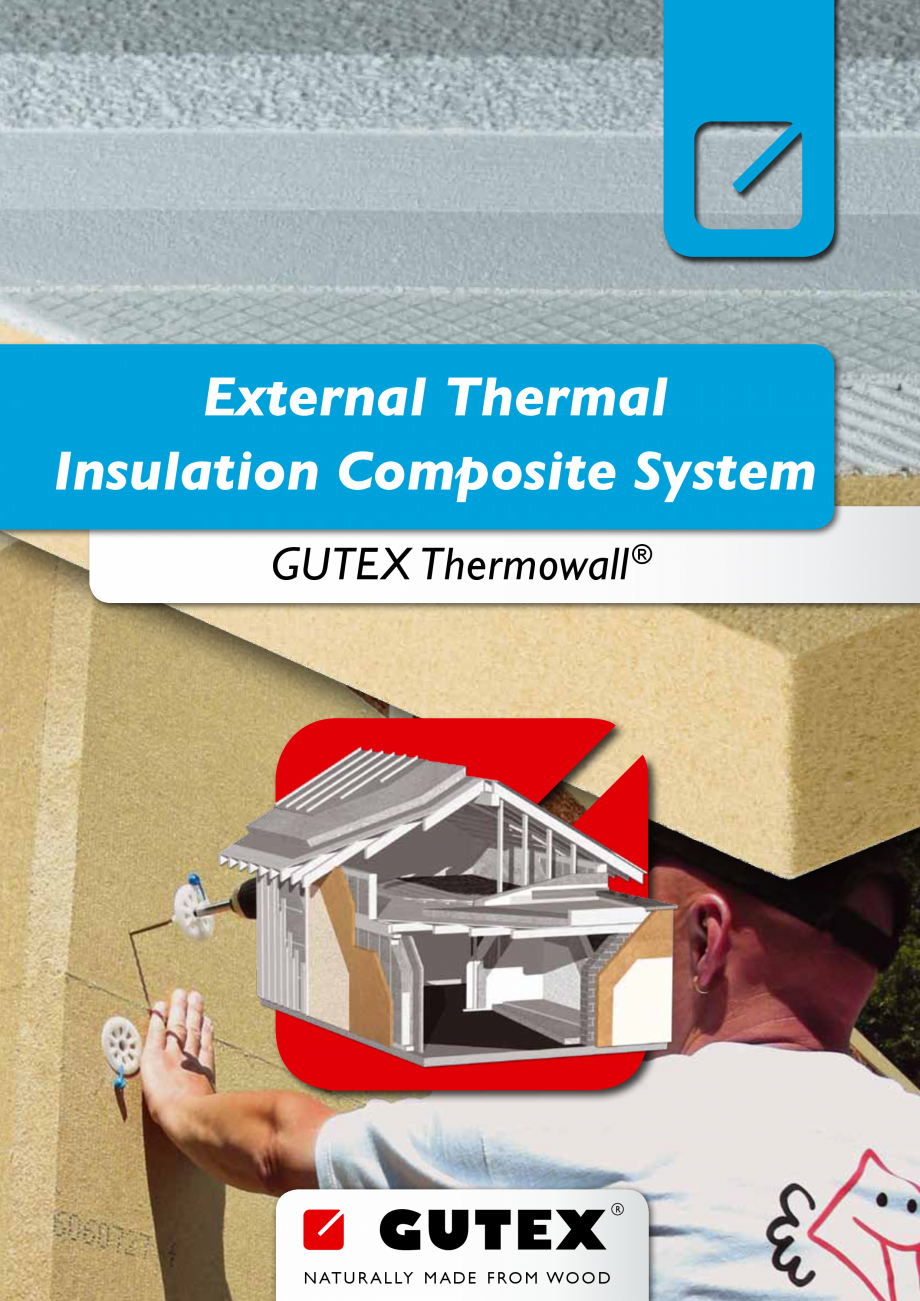

Pagina 1 - Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura...

External Thermal Insulation Composite System GUTEX Thermowall ® N AT U R A L LY M A D E F RO M W O O D Your home - safe and sound Table of Contents Advantages 3 Applications 4 Installation of Wood Fibreboard Insulation 6 General Installation Guidelines 8 Improper Installation & Consequences 10 Render System 11 Render System - Instructions 12 Accessories 14 Installation Details 16 Suggested Constructions 19 Fire Protection & Acoustic Insulation 23 Technical Information 26 Estimate Sheet 27 – 2– N AT U R A L LY M A D E F RO M W O O D GUTEX Thermowall ETICS Use of suitable, high quality building products is the key With their premium finished appearance, excellent to providing you with a healthy and comfortable indoor suitability, workability, and building authority certification, environment. GUTEX’s high-quality, natural building products deliver even more than installers and home owners expect from GUTEX‘s external thermal

Pagina 1-Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura Engleza External ...

Pagina 2 - Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura...

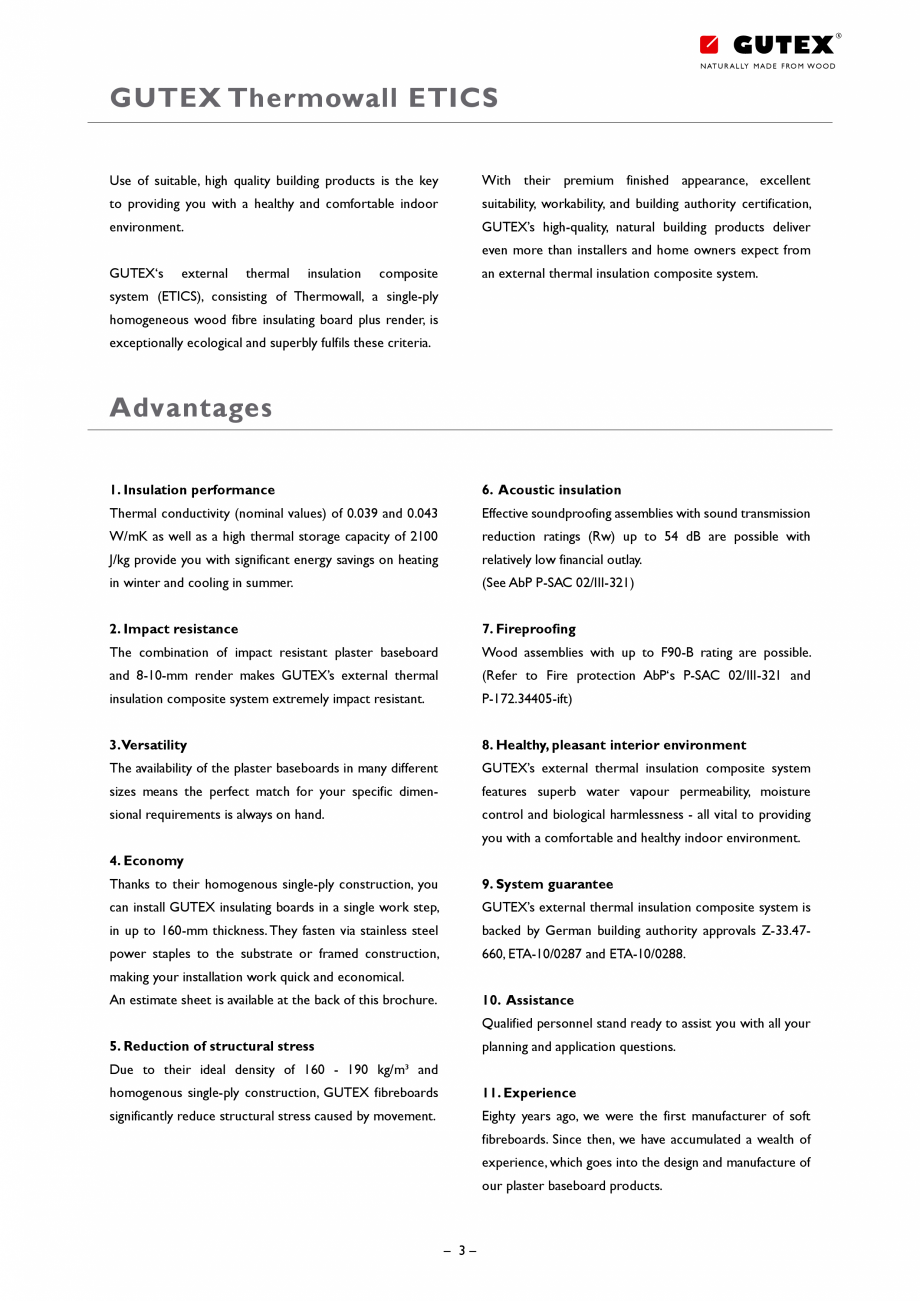

insulation an external thermal insulation composite system. composite system (ETICS), consisting of Thermowall, a single-ply homogeneous wood fibre insulating board plus render, is exceptionally ecological and superbly fulfils these criteria. Advantages 1. Insulation performance 6. Acoustic insulation Thermal conductivity (nominal values) of 0.039 and 0.043 Effective soundproofing assemblies with sound transmission W/mK as well as a high thermal storage capacity of 2100 reduction ratings (Rw) up to 54 dB are possible with J/kg provide you with significant energy savings on heating relatively low financial outlay. in winter and cooling in summer. (See AbP P-SAC 02/III-321) 2. Impact resistance 7. Fireproofing The combination of impact resistant plaster baseboard Wood assemblies with up to F90-B rating are possible. and 8-10-mm render makes GUTEX’s external thermal (Refer to Fire protection AbP‘s P-SAC 02/III-321 and insulation composite system extremely impact re

Pagina 2-Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura Engleza...

Pagina 3 - Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura...

sistant. P-172.34405-ift) 3.Versatility 8. Healthy, pleasant interior environment The availability of the plaster baseboards in many different GUTEX’s external thermal insulation composite system sizes means the perfect match for your specific dimen- features superb water vapour permeability, moisture sional requirements is always on hand. control and biological harmlessness - all vital to providing you with a comfortable and healthy indoor environment. 4. Economy Thanks to their homogenous single-ply construction, you 9. System guarantee can install GUTEX insulating boards in a single work step, GUTEX’s external thermal insulation composite system is in up to 160-mm thickness. They fasten via stainless steel backed by German building authority approvals Z-33.47- power staples to the substrate or framed construction, 660, ETA-10/0287 and ETA-10/0288. making your installation work quick and economical. 10. Assistance An estimate sheet is available at the back of t

Pagina 3-Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura Engleza sistant.
...

Pagina 4 - Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura...

his brochure. Qualified personnel stand ready to assist you with all your 5. Reduction of structural stress planning and application questions. Due to their ideal density of 160 - 190 kg/m³ and homogenous single-ply construction, GUTEX fibreboards 11. Experience significantly reduce structural stress caused by movement. Eighty years ago, we were the first manufacturer of soft fibreboards. Since then, we have accumulated a wealth of experience, which goes into the design and manufacture of our plaster baseboard products. – 3– Applications 1. Directly over wood frame Timber framed construction, cavities insulated with GUTEX Thermoflex GUTEX Thermowall/-gf GUTEX render system 2. Over composite or solid wood wall boards Timber framed construction, cavities insulated with GUTEX Thermoflex Boarding/ sheathing GUTEX Thermowall/-gf GUTEX render system 3. Over solid wood Solid wood building elements GUTEX Thermowall GUTEX render system �

Pagina 4-Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura Engleza his...

Pagina 5 - Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura...

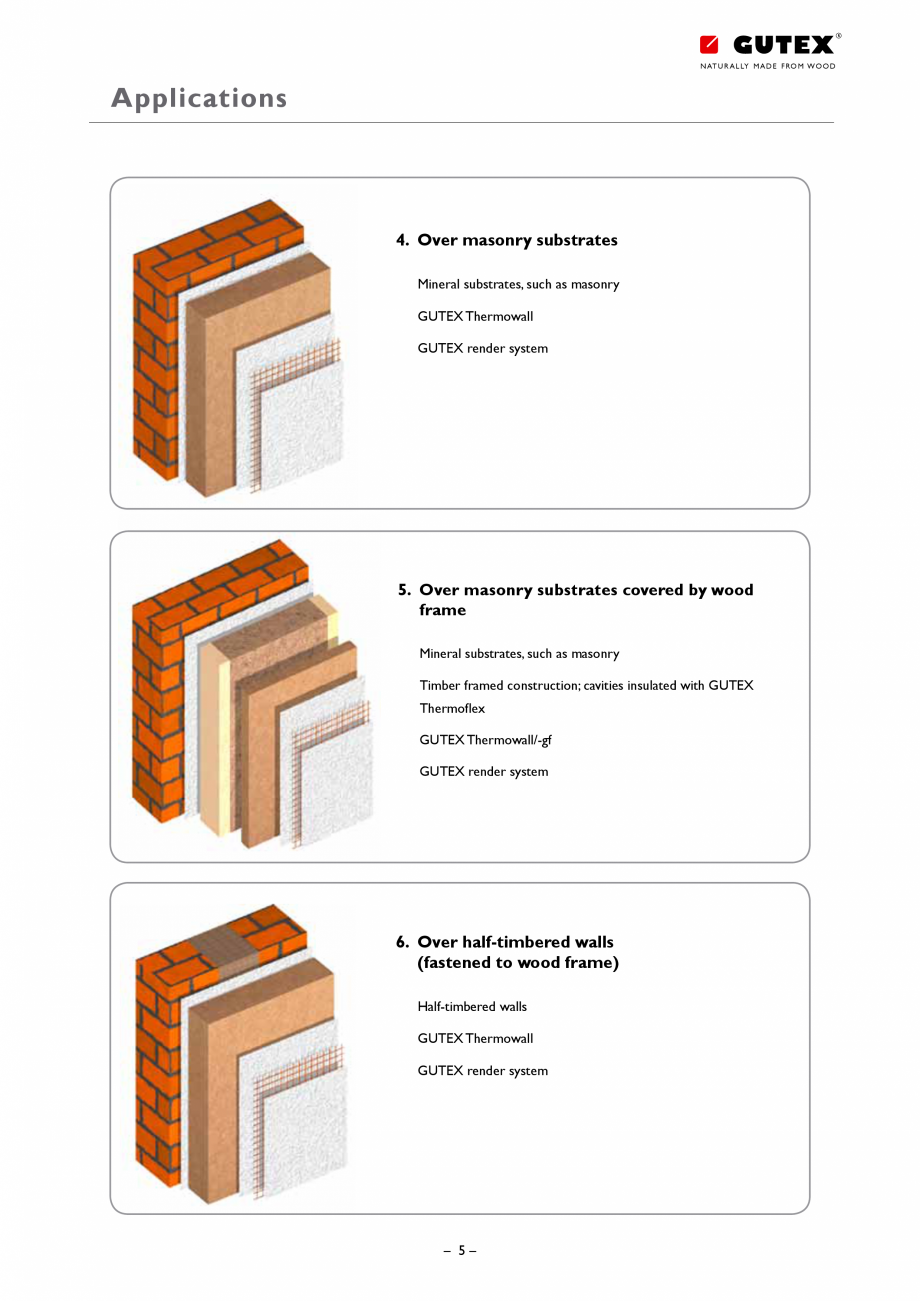

�� 4– N AT U R A L LY M A D E F RO M W O O D Applications 4. Over masonry substrates Mineral substrates, such as masonry GUTEX Thermowall GUTEX render system 5. Over masonry substrates covered by wood frame Mineral substrates, such as masonry Timber framed construction; cavities insulated with GUTEX Thermoflex GUTEX Thermowall/-gf GUTEX render system 6. Over half-timbered walls (fastened to wood frame) Half-timbered walls GUTEX Thermowall GUTEX render system – 5– Installation Over Timber Frame Walls Z-33.47-660 Smaller boards Fastening GUTEX Thermowall-gf; λ = 0.046 W/mK – GUTEX Thermowall/-gf fastens directly to the wood studs or over sheathing in timber framed constructions. Tongue and groove, 40 and 60 mm thick Length x width: 130 x 60 cm – When installing over sheathing, GUTEX Thermowall/-gf has to be fastened to the studs. GUTEX Thermowall; λ = 0.042 W/mK – For smaller GUTEX boards, the minimum required th

Pagina 5-Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura Engleza �� 4–

...

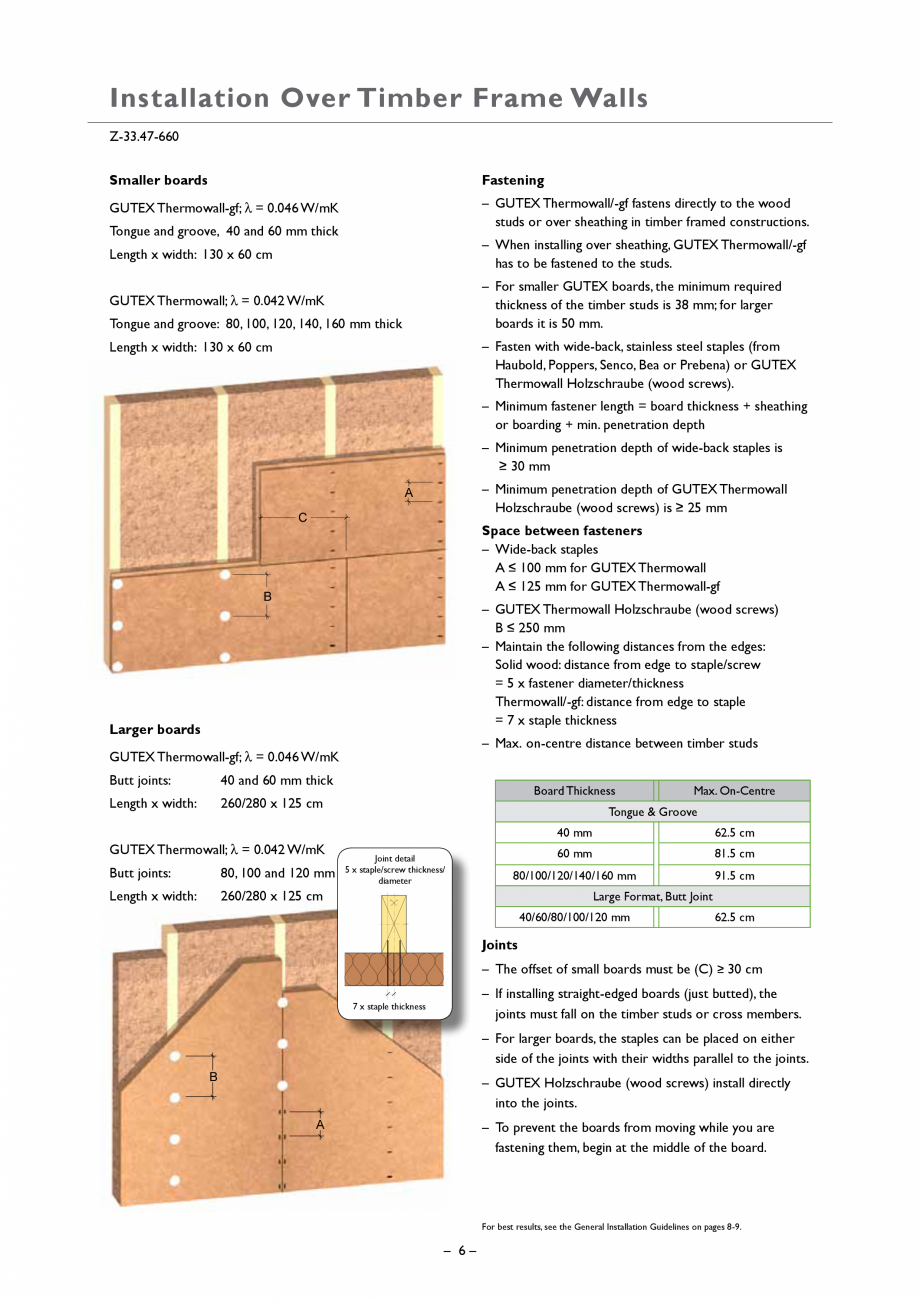

Pagina 6 - Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura...

ickness of the timber studs is 38 mm; for larger boards it is 50 mm. Tongue and groove: 80, 100, 120, 140, 160 mm thick – Fasten with wide-back, stainless steel staples (from Haubold, Poppers, Senco, Bea or Prebena) or GUTEX Thermowall Holzschraube (wood screws). Length x width: 130 x 60 cm – Minimum fastener length = board thickness + sheathing or boarding + min. penetration depth – Minimum penetration depth of wide-back staples is ≥ 30 mm – Minimum penetration depth of GUTEX Thermowall Holzschraube (wood screws) is ≥ 25 mm A C Space between fasteners – Wide-back staples A ≤ 100 mm for GUTEX Thermowall A ≤ 125 mm for GUTEX Thermowall-gf B – GUTEX Thermowall Holzschraube (wood screws) B ≤ 250 mm – Maintain the following distances from the edges: Solid wood: distance from edge to staple/screw = 5 x fastener diameter/thickness Thermowall/-gf: distance from edge to staple = 7 x staple thickness Larger boards – Max. on-centre distance

Pagina 6-Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura Engleza ickness...

Pagina 7 - Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura...

between timber studs GUTEX Thermowall-gf; λ = 0.046 W/mK Butt joints: 40 and 60 mm thick Length x width: 260/280 x 125 cm GUTEX Thermowall; λ = 0.042 W/mK Board Thickness Max. On-Centre Tongue & Groove 40 mm Joint detail Butt joints: 5 x staple/screw 80, 100 and 120 mm thick 5 dn thickness/ diameter Length x width: 260/280 x 125 cm 62.5 cm 60 mm 81.5 cm 80/100/120/140/160 mm 91.5 cm Large Format, Butt Joint 40/60/80/100/120 mm 62.5 cm Joints – The offset of small boards must be (C) ≥ 30 cm – If installing straight-edged boards (just butted), the joints must fall on the timber studs or cross members. 7 x staple dn 7 thickness – For larger boards, the staples can be placed on either side of the joints with their widths parallel to the joints. – GUTEX Holzschraube (wood screws) install directly into the joints. B – To prevent the boards from moving while you are fastening them, begin at the middle of the board. A For best results, see t

Pagina 7-Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura Engleza between...

Pagina 8 - Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura...

he General Installation Guidelines on pages 8-9. – 6– N AT U R A L LY M A D E F RO M W O O D Installation Over Wood or Masonry Substrates Z-33.47-660 and Z-33.43-942 Smaller boards For solid wood substrates, such as cross laminated plywood, glulam wood walls, or mineral substrates (masonry, etc.), it is possible to use just a single course of GUTEX Thermowall (up to 160 mm). If thicker insulation is required, a second layer may be installed in combination with GUTEX Thermosafe-homogen. GUTEX Thermowall; λ = 0.042 W/mK Butt joints: Length x width: 20, 40, 60 and 80 mm thick 125 x 59 cm Butt joints: Length x width: 100, 120, 140 and 160 mm thick 83 x 60 cm Possible combinations for double-layer installation with full-area contact to substrate Tongue and groove: 0 and 100 mm thick 8 Length x width: 130 x 60 cm Total thickness (mm) Butt joints: Rebate: Length x width: 60 butt 60 butt 140 80 butt 60 butt 160 100 butt 60 butt 180 120 butt 60 but

Pagina 8-Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura Engleza he...

Pagina 9 - Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura...

t 200 140 rebate 60 butt 220 160 rebate 60 butt 240 160 rebate 80 T+G/butt 260 180 rebate 80 T+G/butt 280 200 rebate 80 T+G/butt 300 60, 80, 100 and 120 mm thick 140, 160, 180 and 200 mm thick 120 x 62.5 cm Min. thickness of the second layer GUTEX Thermowall (mm) 120 GUTEX Thermosafe-homogen Max. thickness (mm) of the first course of GUTEX Thermosafe-homogen 200 rebate 100 T+G/butt Fasten the second layer as shown on page 9. Fastening to wood substrates – Use GUTEX Thermowall Holzschraube (wood screws) or stainless steel wide-back staples. – Minimum fastener length for wood substrates = board thickness + min. penetration depth – Minimum penetration depth of wide-back staples is ≥ 30 mm – Minimum penetration depth of GUTEX Thermowall Holzschraube (wood screws) ≥ 25 mm Spacing between fasteners – Wide-back staples: A ≤ 170 mm B ≤ 370 mm Fastening to mineral substrates – For the fastening of the boards to mineral substrates, we recomm

Pagina 9-Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura Engleza t

200
...

Pagina 10 - Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura...

end the use of GUTEX Klebe- and Spachtelputz, an adhesive base coat (Coverage will vary depending on the condition of the substrate). – Once the boards are in place, use GUTEX WDVS Spreiz-/Thermoschraubdübel (thermally-decoupled screw expansion fasteners) to secure them and GUTEX Verschlusselemente (plugs) to eliminate thermal bridging. – The substrate must be sound to ensure the system is strong and reliable. – Minimum penetration depth of the GUTEX WDVSThermoschraubdübel (thermally decoupled screw expansion fasteners) is ≥ 30 mm – Minimum fastener length = board thickness + old render + min. 30 mm For best results, see the General Installation Guidelines on pages 8-9. – 7– General Installation Guidelines Installation of the fibreboards – Minimum board thickness for exterior walls is 40 mm – Minimum board thickness for reveals is 20 mm – Minimum useable board size is 20 x 40 cm – Joints with adjacent elements of the building must be tightly sealed a

Pagina 10-Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura Engleza end the...

Pagina 11 - Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura...

gainst driving rain and wind. – Hollows or buckles in the exterior surface are to be smoothed out via sanding or planing prior to applying the render. – Board joints of 2 mm or less are acceptable; joints of 2-5 mm are to be filled with a suitable material, such as GUTEX Fugendicht (joint sealer). Fill joints greater than 5 mm with GUTEX Thermowall/-gf. – If installing over vertically or horizontally changing substrates, it is necessary to use expansion/movement joints. Details are available at www.gutex.de – The GUTEX render system is to be installed no later than 4 weeks after the GUTEX Thermowall/-gf is installed. If this is not possible, cover the exposed wall with a tarpaulin, making sure air can circulate under the tarpaulin. – Protect installed fibreboards from direct exposure to moisture. – If loose insulation fill is to be used (typically blown into the building block cavities), filling must be completed before the render is applied. – GUTEX Thermosafe-hom

Pagina 11-Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura Engleza gainst...

Pagina 12 - Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura...

ogen is not a suitable substrate for render! – Always store the boards in a dry place. Only install the boards if they are dry. – Install GUTEX Sockelabschlußleiste (stop beads) or comparable stops at the bottom of the GUTEX Thermowall/-gf boards adjacent to the foundation. It is necessary to cut off the last board's bottom groove. – Provide space between the GUTEX Sockelabschlußleiste (stop beads) for expansion, movement, etc. GUTEX Sockelabschlussleistenverbinder (stop bead connectors) are ideal, pg. 14. – GUTEX Thermowall/-gf is not intended for use below the ground – Install the boards, staggering them by a min. of 30 cm between parallel joints. – Avoid cross joints. . – Avoid joints at the corners of openings Fastening – Suitable fastening products: GUTEX Thermowall Holzschraube (wood screws), GUTEX WDVS Thermoschraubdübel (thermally-decoupled screw expansion fasteners) or wide-back, stainless steel staples (back width 27 mm, min. 1.8-mm gauge wire). �

Pagina 12-Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura Engleza ogen is...

Pagina 13 - Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura...

�� Fasten 20-mm thick side reveal insulation lining with either 60-mm Ø plastic disc fasteners and stainless steel screws or stainless steel wide-back staples. – Use the recommended quantity of fasteners. – Only fasteners installed in a solid substrate will hold effectively. – Screw the insulation fasteners into the board, so they are flush with the board surface. – Counter-sink the wide-back staple 3-5 mm into the surface of the boards. – Minimum penetration depth for the wide-back staples is ≥ 30 mm – Minimum penetration depth of GUTEX Thermowall Holzschraube (wood screws) is ≥ 25 mm – Minimum penetration depth of the GUTEX WDVSThermoschraubdübel (thermally decoupled screw expansion fasteners) is ≥ 30 mm – An estimate sheet is available at the back of this brochure. Correct Incorrect – Installation of insulation in two layers, is to be performed around windows as shown below: 1st Course GUTEX Thermosafe-homogen 2nd Course GUTEX Thermowall min. 3

Pagina 13-Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura Engleza �� ...

Pagina 14 - Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura...

0 cm GUTEX Thermowall – Prevent air circulation behind the boards by sealing the joints with GUTEX Fugendichtband (joint tape). – Install the boards so the joints are tight. – 8– N AT U R A L LY M A D E F RO M W O O D General Installation Guidelines Min. quantity of required fasteners per m2 for wood Wind load we as per DIN 1055-4 [kN/m²] Fasteners/m 2 - 1.00 - 1.60 GUTEX Thermowall Holzschraube (wood screws) 6 20 Max. allowed vertical distance between fasteners for boarding over timber studs spaced at 62. 5 cm on-centre 10 Wide-back staples with GUTEX Thermowall Min. number of required fasteners per m2 for masonry Wind load we as per DIN 1055-4 [kN/m²] Fasteners/m 2 - 0.55 - 1.00 - 1.60 6 8 10 GUTEX WDVS Thermoschraubdübel (thermally decoupled screw expansion fasteners) 25 Wide-back staples with GUTEX Thermowall-gf — 100 mm mineralischer mineralischer mineralischer Untergrund Untergrund Untergrund kleinformatige Platten kleinformatigekleinform

Pagina 14-Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura Engleza 0 cm
...

Pagina 15 - Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura...

atige Platten Platten 16 125 mm mineralischer mineralischer mineralischer Untergrund Untergrund Untergrund kleinformatige Platten kleinformatigekleinformatige Platten Platten Winddruck we = -0,55 Winddruck wewe -0,55 kN/m² kN/m² Winddruck we = -1,00 Winddruck wewe -1,00 kN/m² kN/m² Winddruck we = -1,60 Winddruck we = -1,60 kN/m² kN/m² Winddruck we = -0,55 kN/m² Winddruck = = -1,00 kN/m² Winddruck = = -1,60 kN/m² 6 Stück/m² 8 Stück/m² 10 Stück/m² 6 Stück/m² 8 Stück/m² 10 Stück/m² 6 Stück/m² 8 Stück/m² 10 Stück/m² Suggested placement of fasteners for boards installed over uninterrupted substrates Length x width: 83 x 60 we = -0,55 Winddruck wewe-0,55 kN/m² Winddruck we = -0,55 kN/m² Winddruck cm kN/m² Winddruck = = -1,00 kN/m² Winddruck we = -1,00 Winddruck wewe-1,00 kN/m² kN/m² Winddruck = = -1,60 kN/m² Winddruck we = -1,60 Winddruck we = -1,60 kN/m² kN/m² 6 Stück/m² 6 fasteners/m² 8 Stück/m² 8 fasteners/m² 6 Stück/m² 8 Stück/m² 6 St

Pagina 15-Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura Engleza atige...

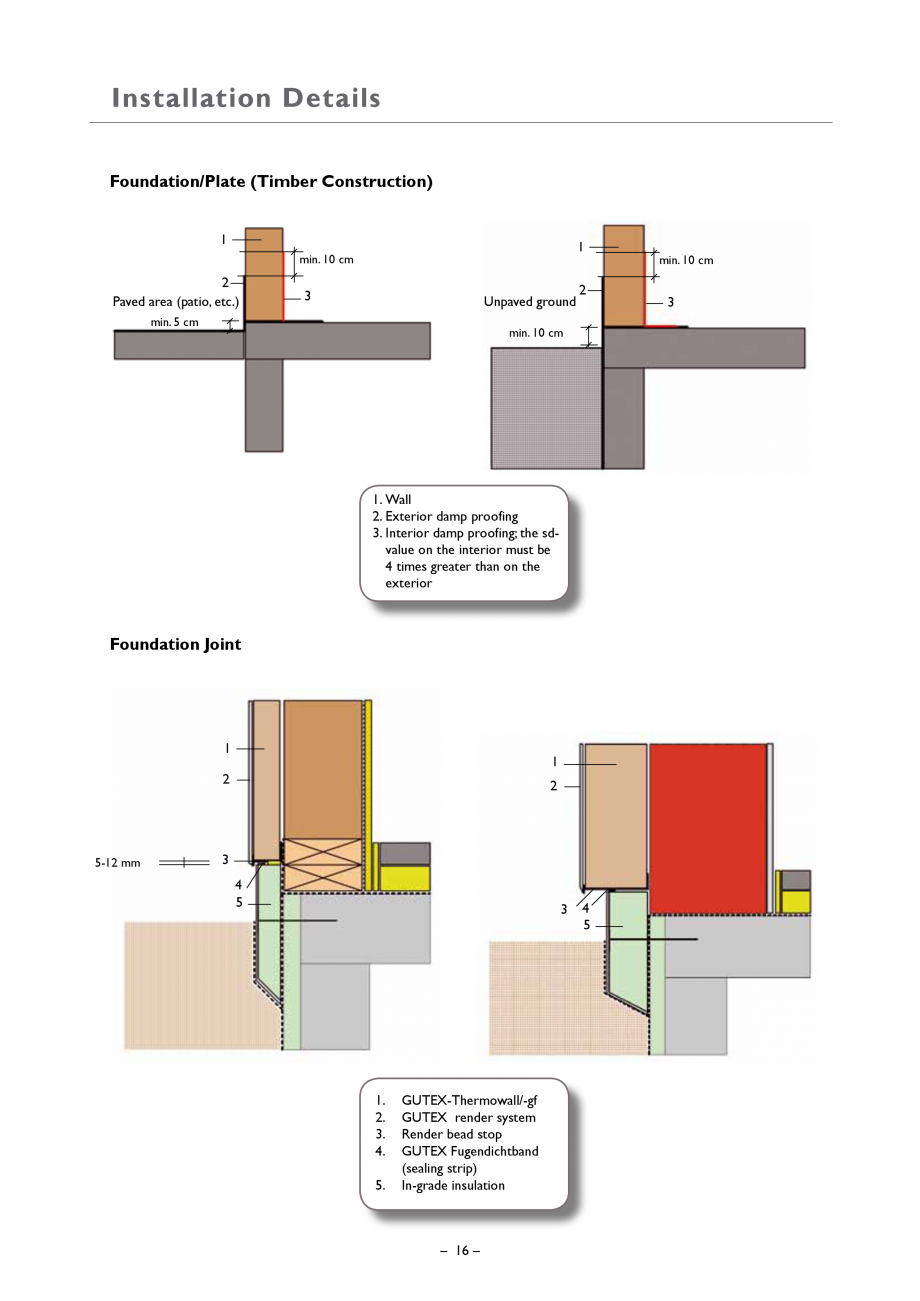

Pagina 16 - Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura...

ück/m² 8 Stück/m² 10 Stück/m² 10 Stück/m² 10 fasteners/m² 10 Stück/m² großformatige Platten großformatigegroßformatige Platten Platten Length x Stück/m² 125 x 59 cm width: 6 Stück/m² 6 Winddruck we = -0,55 Winddruck wewe -0,55 kN/m² kN/m² Winddruck we = -1,00 Winddruck wewe -1,00 kN/m² kN/m² Winddruck we = -1,60 Winddruck we = -1,60 kN/m² kN/m² Winddruck we = -0,55 kN/m² Winddruck = = -1,00 kN/m² Winddruck = = -1,60 kN/m² 6 Stück/m² 8 Stück/m² 10 Stück/m² 8 Stück/m² 10 Stück/m² 8 Stück/m² 10 Stück/m² 6 fasteners/m² 8 fasteners/m² großformatige Platten großformatigegroßformatige Platten Platten 10 fasteners/m² Winddruck we = -0,55 kN/m² Winddruck we = -0,55 Winddruck wewe-0,55 kN/m² kN/m² Winddruck = = -1,00 kN/m² Winddruck we = -1,00 Winddruck wewe-1,00 kN/m² kN/m² Winddruck = = -1,60 kN/m² Winddruck we = -1,60 Winddruck we = -1,60 kN/m² kN/m² 6 Stück/m² 8 Stück/m² 10 Stück/m² 6 Stück/m² 6 Stück/m² 8 Stück/m²

Pagina 16-Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura Engleza ück/m²
...

Pagina 17 - Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura...

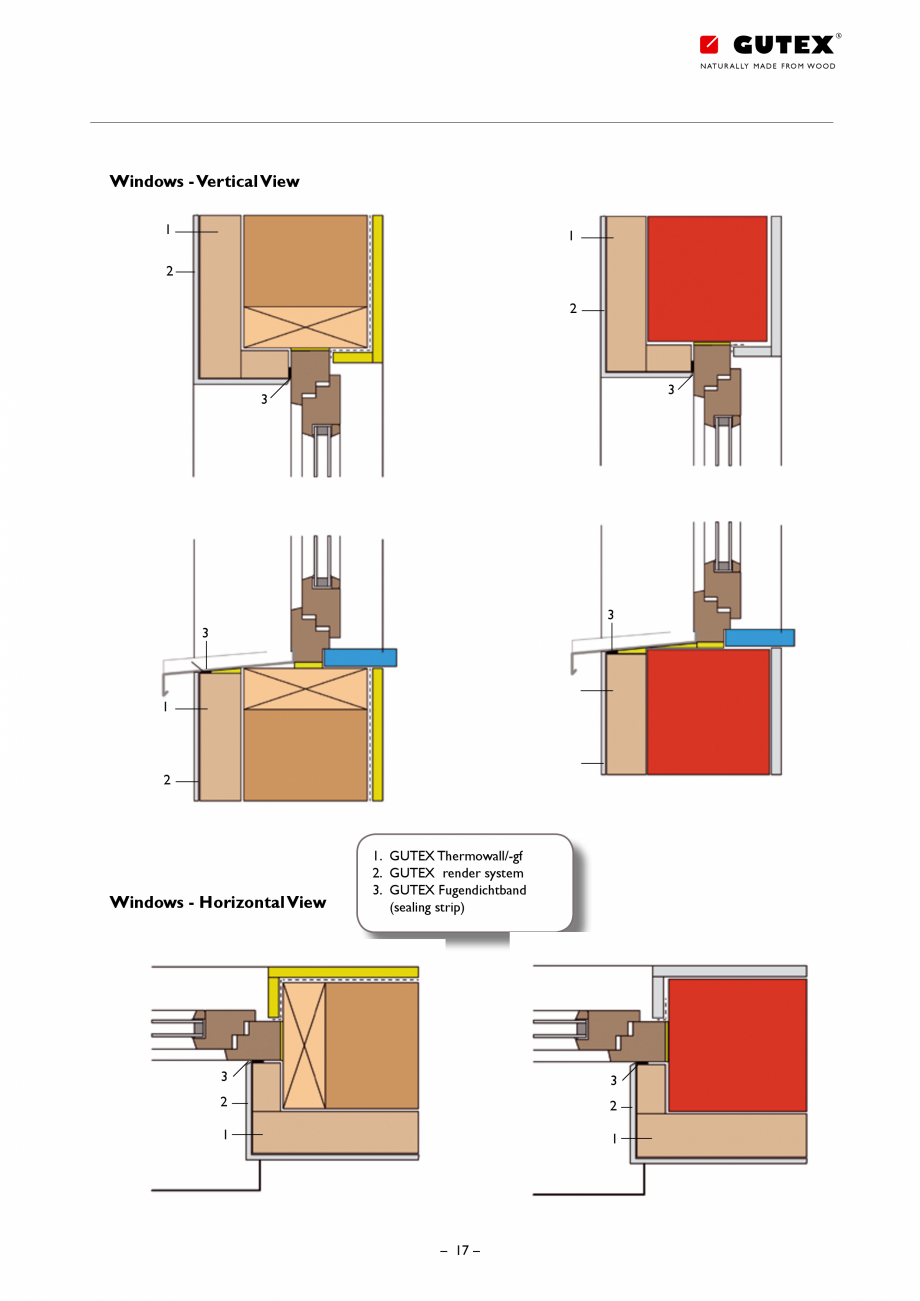

8 Stück/m² 10 Stück/m² 10 Stück/m² Suggested fasteners for installation in Render Holzuntergrund Holzuntergrund work Holzuntergrund GUTEX Thermowall/-gf kleinformatige Platten kleinformatige Platten kleinformatige Platten GUTEX Thermowall/-gf boards are suitable for the großformatige– Platten großformatige Platten großformatige Platten Winddruck we = -1,60 Winddruck we = we = -1,60 kN/m² kN/m² kN/m² Winddruck we = -1,60 kN/m² Winddruck -1,60 kN/m²Winddruck we = -1,60 Winddruck we = -1,60 kN/m² application of render on all their sides. The following table contains suggestions, based on load and Stück/m² 10 10 Stück/m² 10 Stück/m² 10 Stück/m² 10 Stück/m² 10 Stück/m² Holzuntergrund Holzuntergrund Holzuntergrund required lengths, for the fastening of lightweight signage, – Prior to application of the render, the exterior wall kleinformatige Platten kleinformatige Platten kleinformatige Platten großformatige Platten großformatige Platten großformatige P

Pagina 17-Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura Engleza 8...

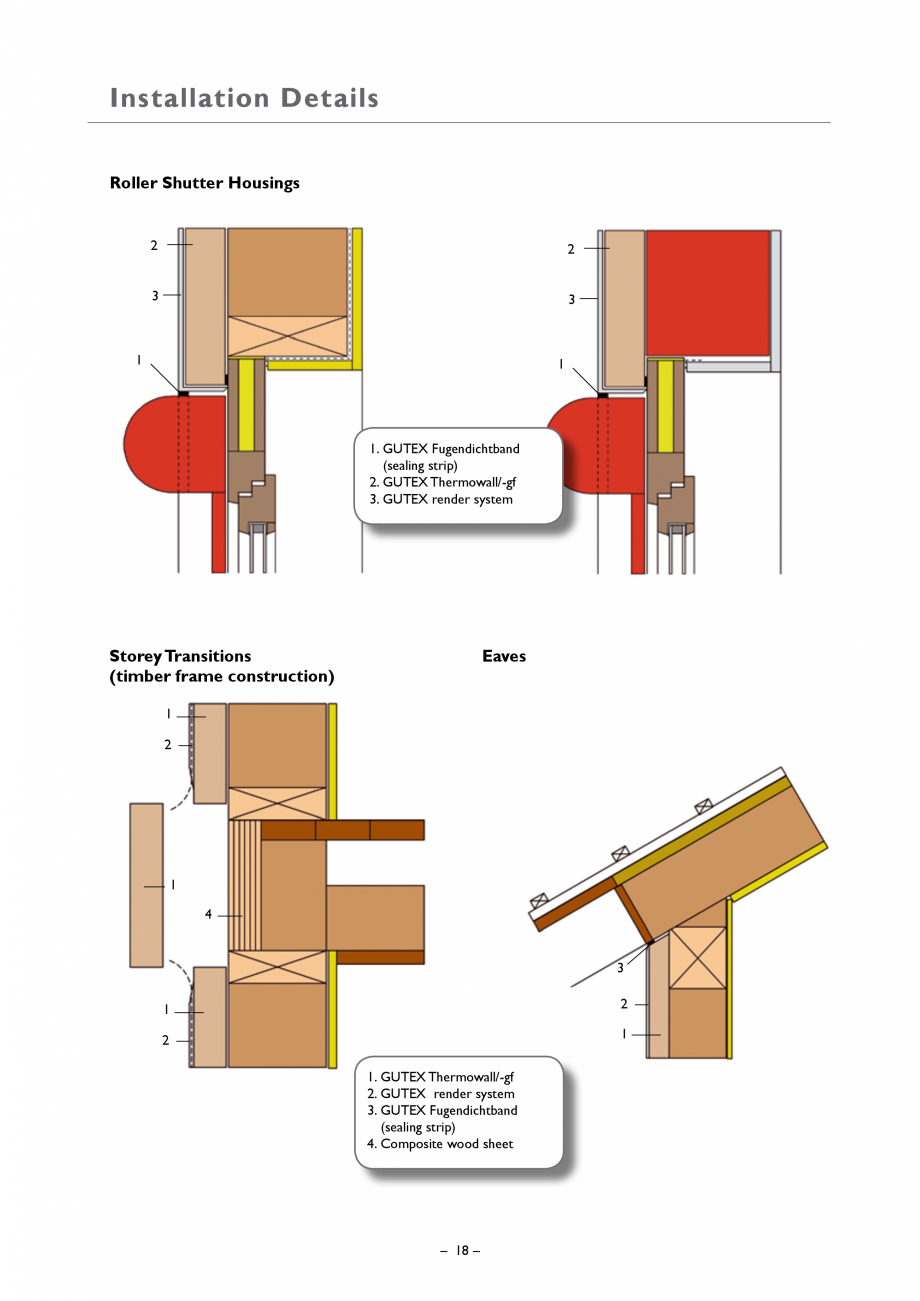

Pagina 18 - Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura...

latten etc. in GUTEX Thermowall/-gf: -1,60 kN/m² substrate we = -1,60 Winddruck we =by the render tradesmen. is to bekN/m² inspected -1,60 kN/m² Winddruck we = Winddruck we = -1,60 Winddruck we = we = kN/m² kN/m² Winddruck -1,60 -1,60 kN/m² Winddruck Fibreboard TOX Fastener Screw Ø x length 10 Stück/m² Nominal Ø (mm) of Pilot Hole 10 Stück/m² 10 Stück/m² – Before applying the render, make sure the surface is free of dust, dirt, etc. Rec. load F rec. (kN) 10 Stück/m² 10 Stück/m² 10 Stück/m² GUTEX Thermowall A-ISOL 50 Spax 4.5 x 60 6 0.05 GUTEX Thermowall ISOL 85 10 x 100 12 0.08 GUTEX Thermowall A-ISOL 85 Spax 4.5 x 70 10 0.05 GUTEX Thermowall-gf ISOL 55 10 x 100 12 0.13 GUTEX Thermowall-gf A-ISOL 50 Spax 4.5 x 60 6 – The moisture content of the boards should not exceed 16 %. 0.11 – Do not apply GUTEX render system render if the temperature is below 5° C (includes night temperature). – Tinted render and paints should h

Pagina 18-Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura Engleza latten...

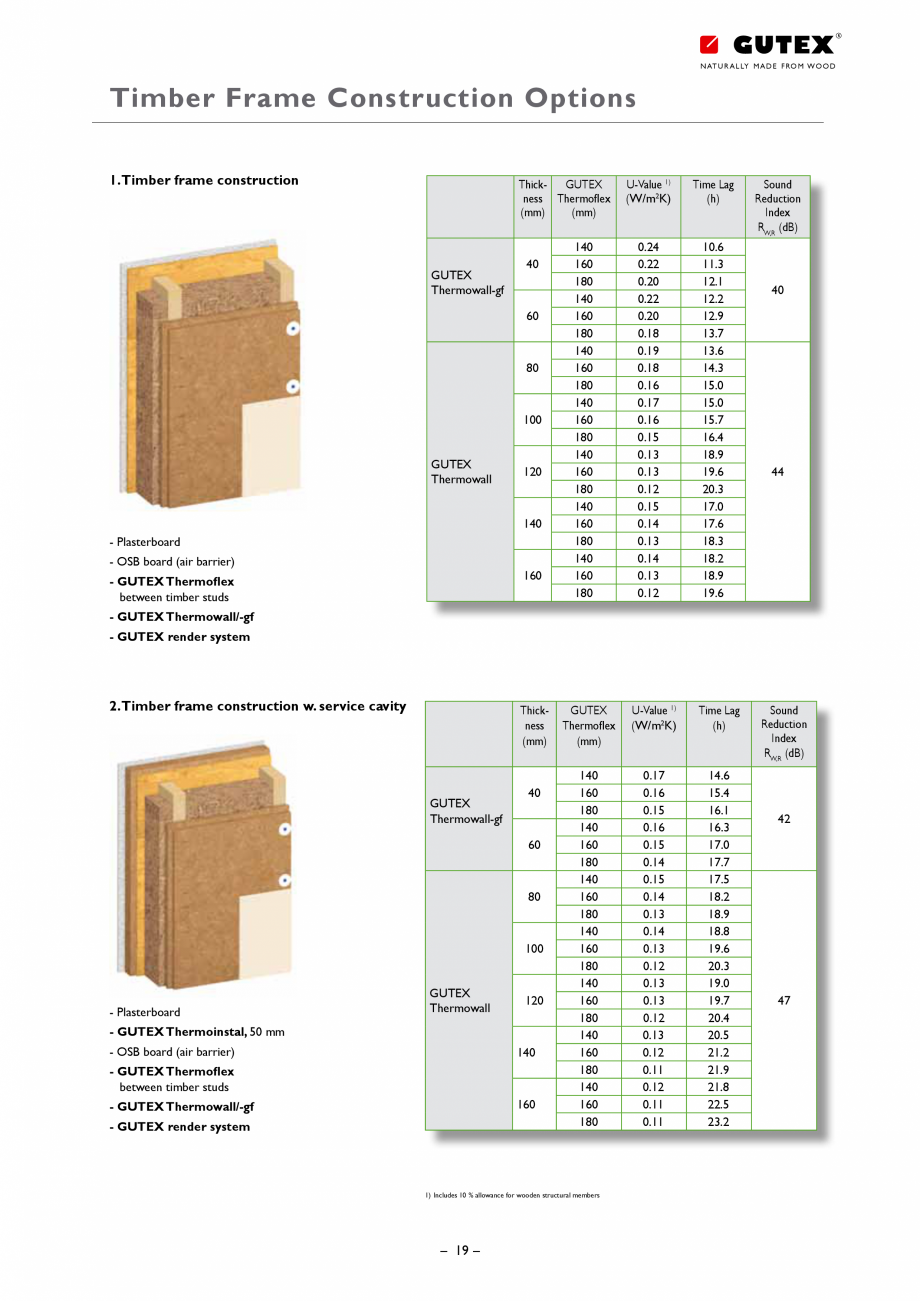

Pagina 19 - Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura...

ave a Light Reflectance Value of > 20 (see GUTEX colour chart) – Min. base coat thickness is 5 mm; max. is 8 mm – 9– – An estimate sheet is available at the back of this brochure. Improper Installation and Consequences Bottom edges adjacent to foundation Bottom edge of fibreboard not properly fitted with stop bead. Severely damaged board edges. Missing sealing strips.  Ingression of moisture causes the boards to swell, cracks to form in the render, and produces mould and fungus. Window sills Overhang ≤ 30 mm; absence of sealing strips  Moisture from driving rain and wind, brown discolouration of render, mould and fungus and swelling of boards. Transitions from masonry to wood structure Both render stop and expansion/ movement bead (settlement joint) absent. Buckling due to settling, formation of cracks caused by movement, ingression of moisture. Staggering of the joints Distance between parallel joints is less than 30 cm; the joints' spaces are too large. �

Pagina 19-Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura Engleza ave a...

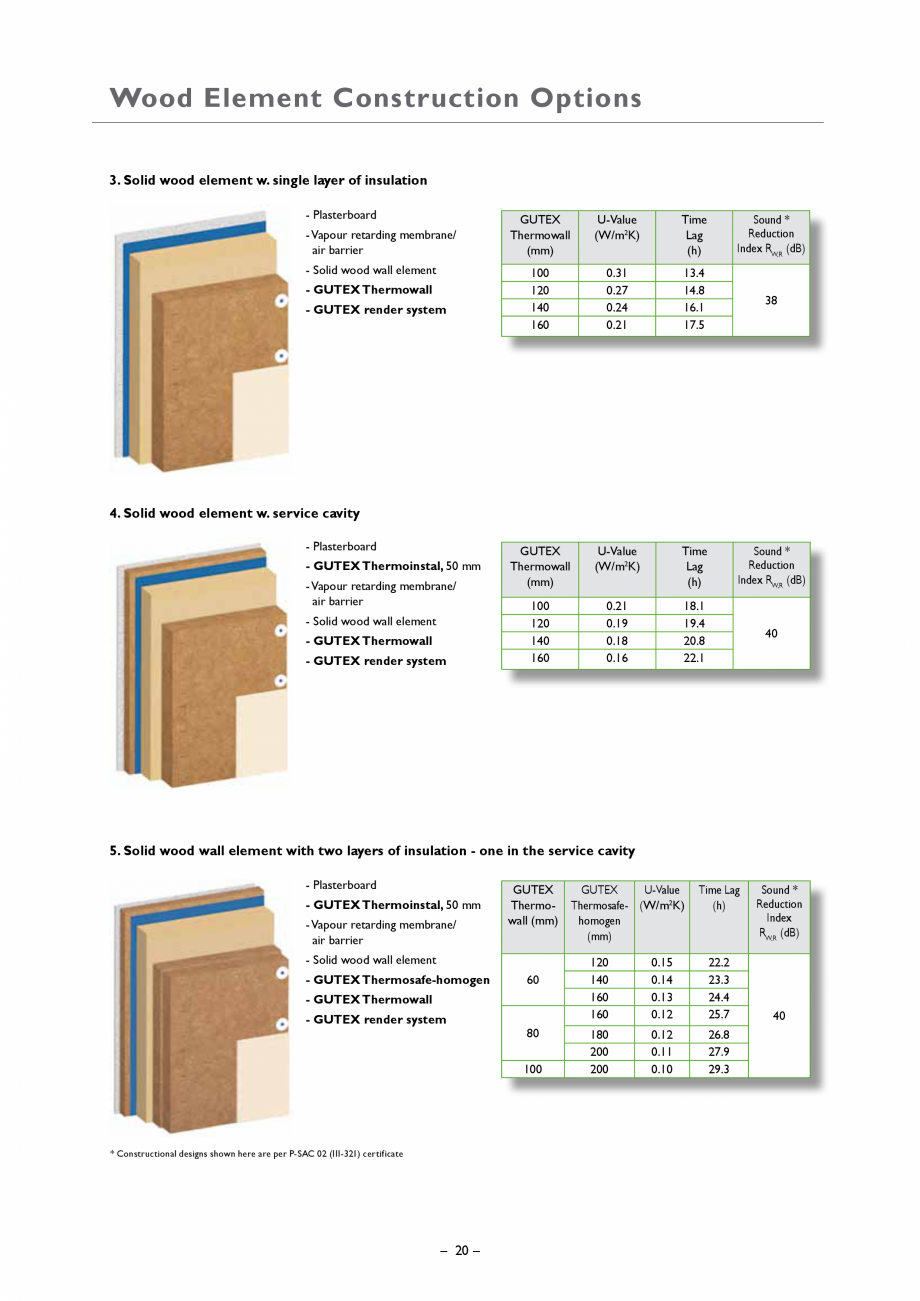

Pagina 20 - Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura...

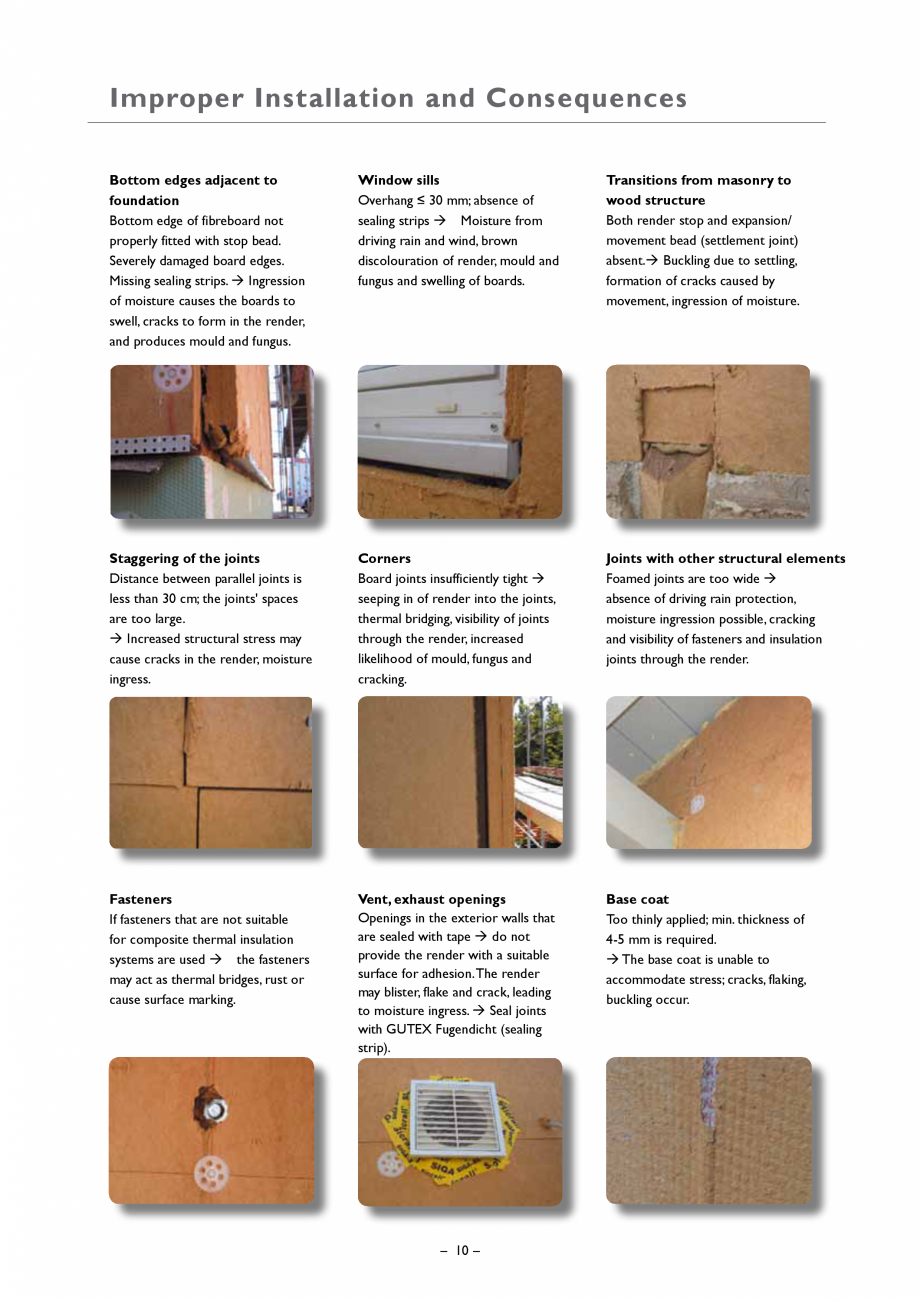

� Increased structural stress may cause cracks in the render, moisture ingress. Corners Board joints insufficiently tight  seeping in of render into the joints, thermal bridging, visibility of joints through the render, increased likelihood of mould, fungus and cracking. Joints with other structural elements Foamed joints are too wide  absence of driving rain protection, moisture ingression possible, cracking and visibility of fasteners and insulation joints through the render. Fasteners If fasteners that are not suitable for composite thermal insulation systems are used  the fasteners may act as thermal bridges, rust or cause surface marking. Vent, exhaust openings Openings in the exterior walls that are sealed with tape  do not provide the render with a suitable surface for adhesion. The render may blister, flake and crack, leading to moisture ingress.  Seal joints with GUTEX Fugendicht (sealing strip). Base coat Too thinly applied; min. thickness of 4-5 mm is req

Pagina 20-Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura Engleza �...

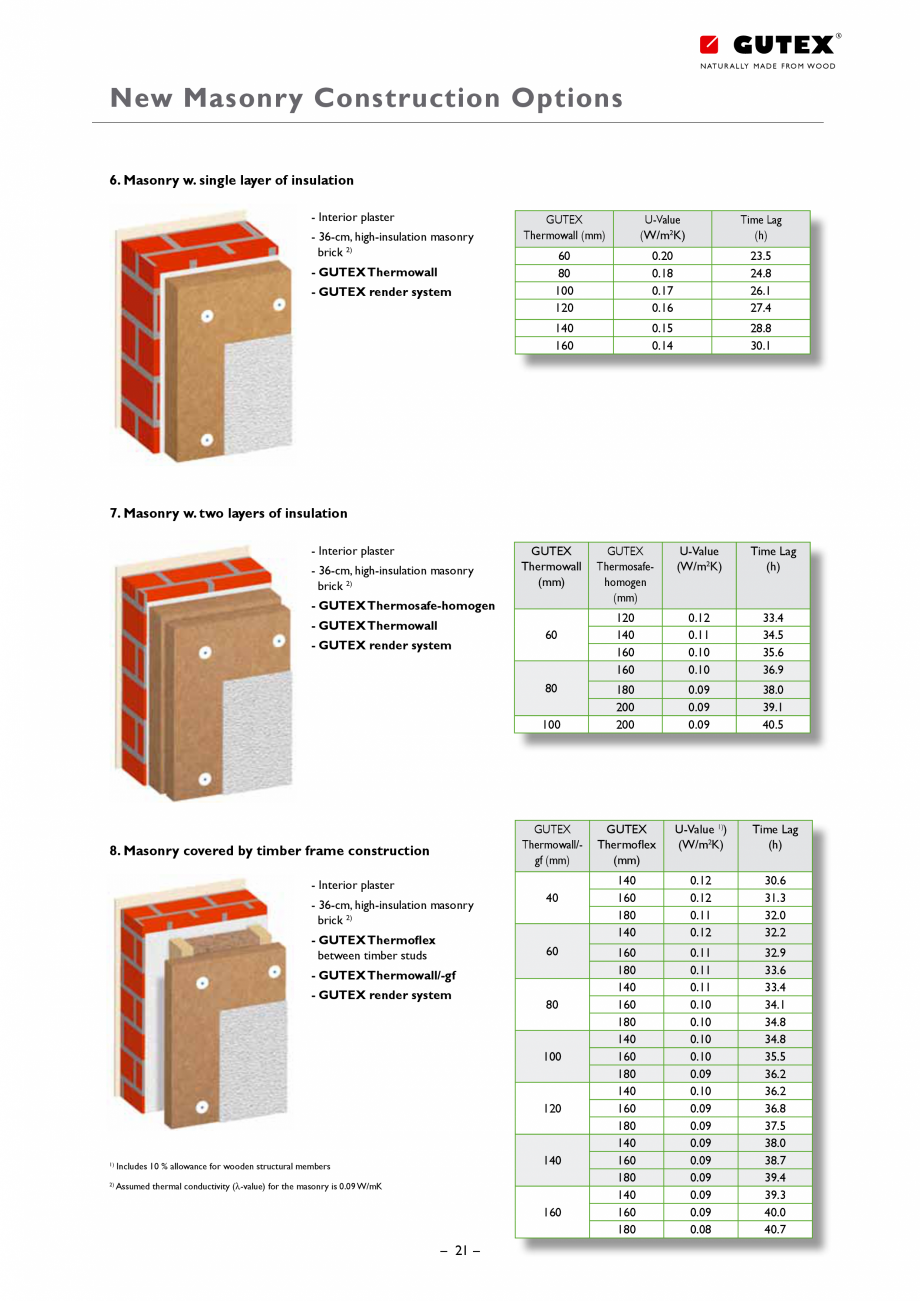

Pagina 21 - Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura...

uired.  The base coat is unable to accommodate stress; cracks, flaking, buckling occur. – 10 – N AT U R A L LY M A D E F RO M W O O D GUTEX Render System 4 2 5 Render protects buildings against moisture and other 6 environmental influences. GUTEX’s render system has been specially designed, tested and certified to meet the 3 toughest possible demands. Essential to the functional reliability of the render system is the compatibility of the render and the plasterboard. 1 System Components GUTEX Thermowall ETICS Products 1. Plaster baseboard GUTEX Thermowall and GUTEX Thermowall-gf 2. Base coat GUTEX Klebe- und Spachtelputz (adhesive/ base coat) 3. Reinforcement GUTEX Universal-Armierungsgewebe (fibre reinforcement mesh) Splash water protective coat (if required) GUTEX Sockelanstrich (foundation paint) 4. Primer GUTEX Isoliergrund (isolating primer) 5.1 Final render coat GUTEX Combiputz (mineral-based, hydraulic setting) 5.2 Final render coat GUTEX Sil

Pagina 21-Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura Engleza uired....

Pagina 22 - Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura...

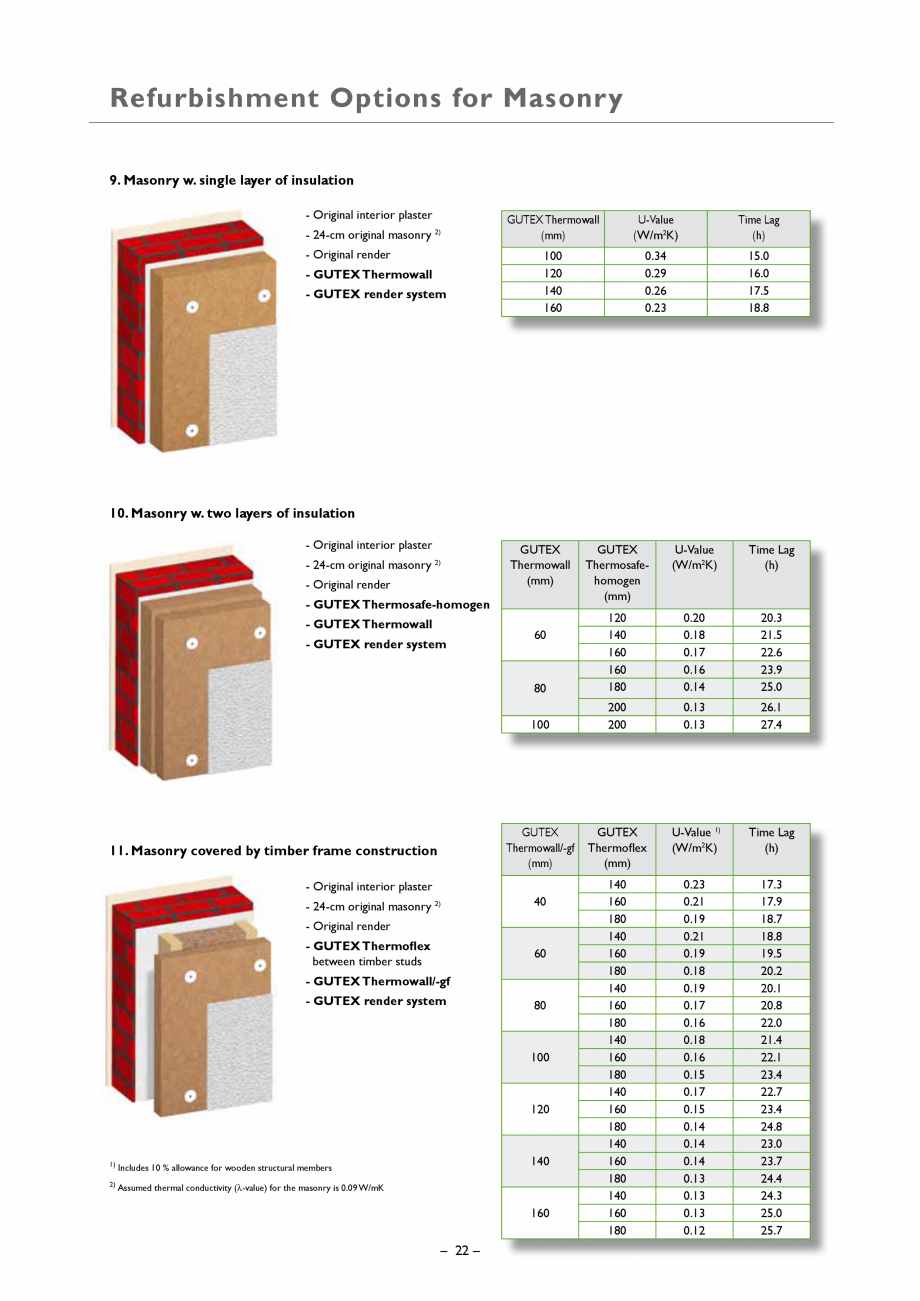

ikonharzputz (silicone resin) 6. Paint GUTEX Combi-Mineralfarbe/-PV (silicate mineral paint w. fungicide) 2. Base coat 4. Primer The base coat can be applied wet on wet or in two steps (base and reinforcement mesh). To attain a minimum thickness of 5 mm and keep the reinforcement lath in the outer third of the base coat, we recommend applying the base coat in two steps. Regulates the ability of the substrate to absorb, and prevents the quick hardening of the final render coat. It also serves as a bonding surface and provides the base coat with its first protection against the weather. When the primer is applied on the base coat, it may be left for a period of time (over winter) before you apply the final render coat. 3. Reinforcement 5.1 / 5.2 Final render Is necessary to prevent cracks in the render. To accommodate movement caused by thermal activity, etc., the reinforcement mesh must be applied over the entire surface and the segments must overlap each other. Provides addit

Pagina 22-Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura Engleza...

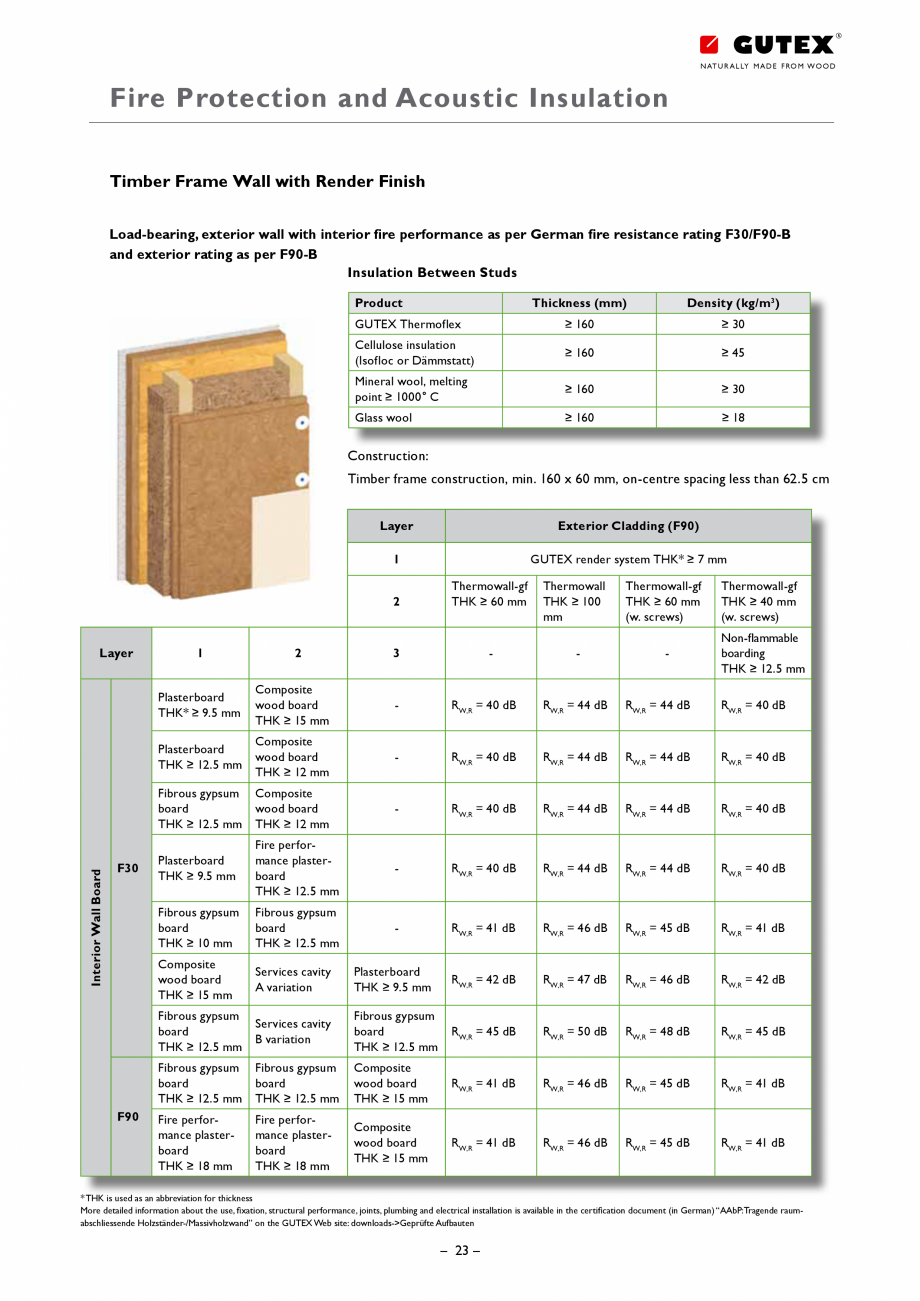

Pagina 23 - Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura...

ional protection against the elements while lending surfaces a uniform appearance. GUTEX Mineralfarbe PV, a mineral paint offers exceptionally good protection against mould and mildew. Splash water protective coat 6.Paint Provides additional protection against the elements while lending surfaces a uniform appearance. GUTEX Mineralfarbe PV paint offers exceptionally good protection against mould and mildew. With the use of a supplemental splash water protective coat, GUTEX Thermowall/-gf can be installed right down to the ground. – 11 – Instructions GUTEX Thermowall ETICS Adhering the boards to mineral substrates Application & quantity Full area adhesion with GUTEX Klebe und Spachtelputz mortar. Approx. 4 kg/m² Application of the base coat in two steps Base (scratch) coat GUTEX Klebe- und Spachtelputz Instructions for use Mix 25 kg of GUTEX Klebe- und Spachtelputz mortar with 4-6 l of clean water, making sure there are no lumps. May be applied by machine or by hand wi

Pagina 23-Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura Engleza ional...

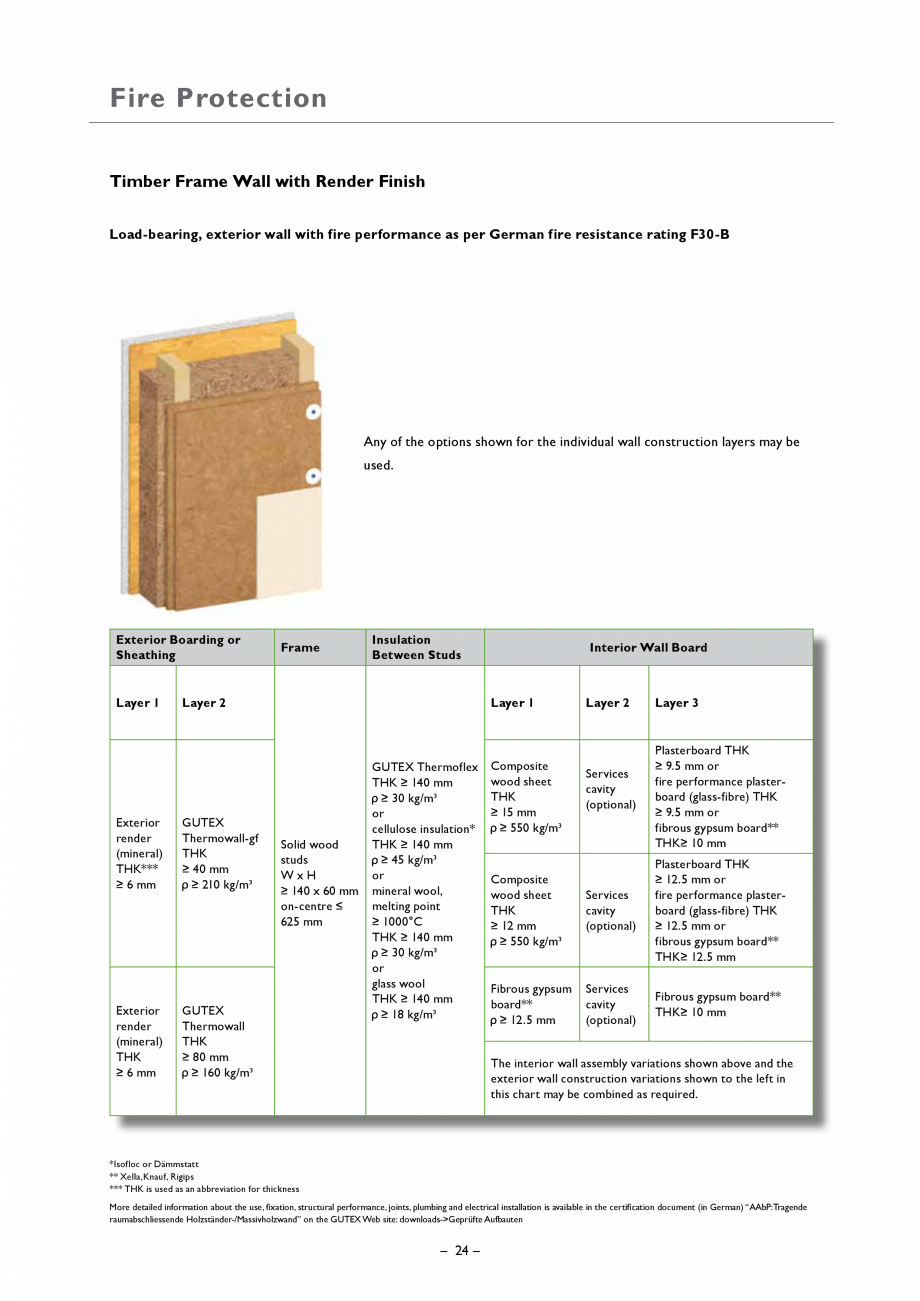

Pagina 24 - Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura...

th a 4 mm serrated trowel. Scratch with 4 mm serrated trowel. Drying time At 20°C & 65 % rel. hum., approx. 24-48 hr Required quantity Packaging unit Approx. 2.5 kg/m2 25-kg bag Fibre reinforcement mesh GUTEX Klebe- und Spachtelputz + GUTEX Universal-Armierungsgewebe Instructions for use Mix 25 kg of GUTEX Klebe- und Spachtelputz mortar with 4-6 l of clean water. Apply with a trowel. Embed the GUTEX Armierungsgewebe (fibre reinforcement mesh) in the compound and smooth the surface.. The mesh must be positioned in the outer third of the coat. Overlap the mesh by min. of 10 cm. Install additional sections diagonal to the corners of openings in the walls, such as windows, etc. Drying time Required quantity Packaging unit At 20°C & 65 % rel. hum., approx. 24-48 hr Approx. 2.5 kg/m2 / 1 lm/m2 25 kg bag / 1.1 m long Base coat thickness Min. 5 mm; max. 8 mm Alternative: Application of the base coat in a single step Drying time GUTEX Klebe- und Spachtelputz + GUTEX Universal-A

Pagina 24-Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura Engleza th a 4 mm...

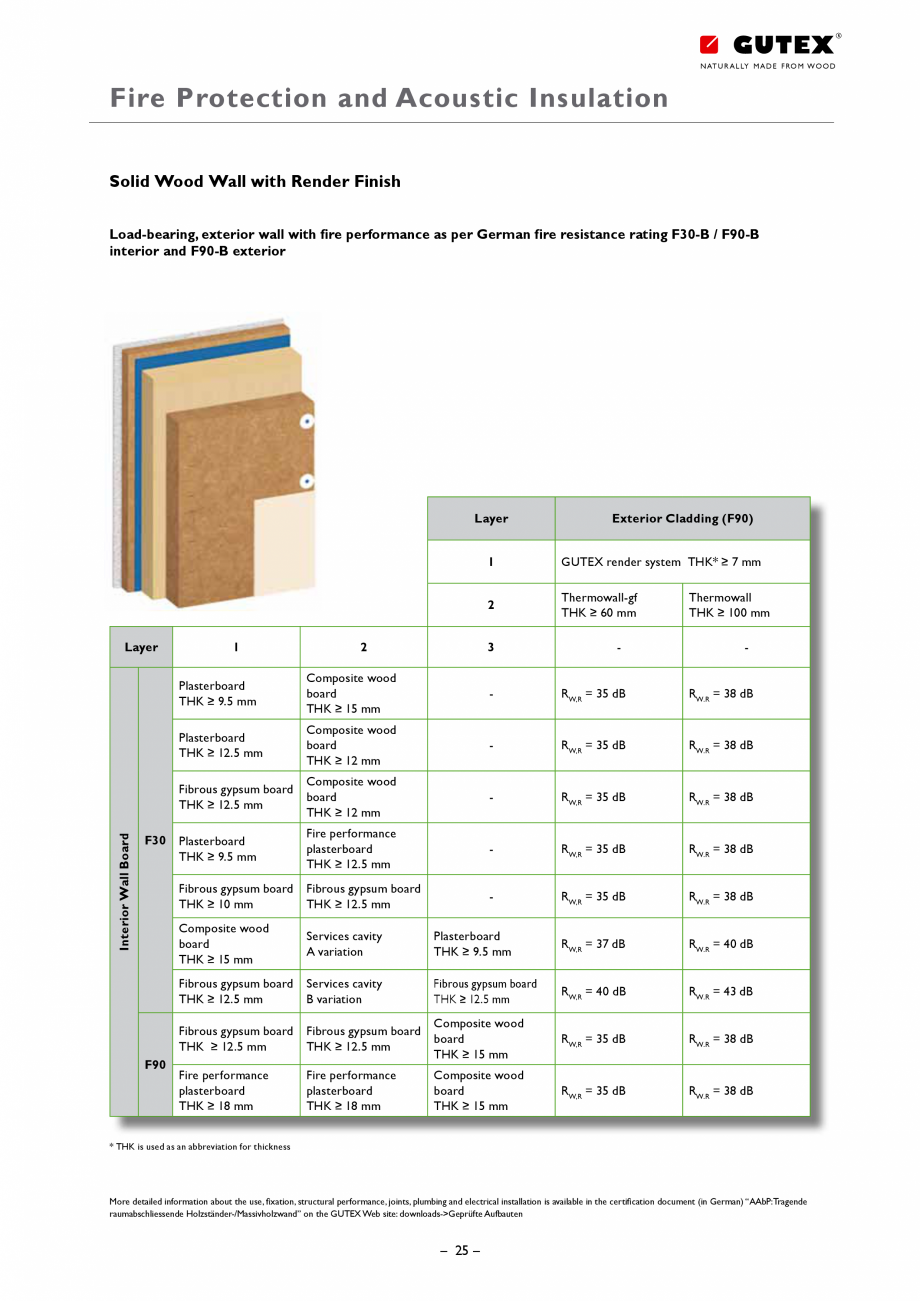

Pagina 25 - Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura...

rmierungsgewebe Mix 25 kg of GUTEX Klebe- und Spachtelputz mortar with 4-6 l of clean water, making sure there are no lumps. Apply GUTEX Klebe- und Spachtelputz mortar with a 15-mm serrated trowel or by machine. Embed the GUTEX Armierungsgewebe (fibre reinforcement mesh) and cover with a thin, even coat of the mortar. Avoid air pockets. The mesh must be positioned in the outer third of the coat. Overlap the mesh by min. of 10 cm. Install additional sections diagonal to the corners of openings in the walls, such as windows, etc. Required quantity Approx. 5 kg/m2 Packaging unit 25-kg bag Base coat thickness Min. 5 mm; max. 8 mm Splash water protective coat GUTEX Sockelanstrich Base (scratch) coat Instructions for use Drying time Mix 1:1 with Portland cement and then thin with water so it can be applied with a brush. Apply to base coat with paintbrush or brush in the area up to 30-50 cm from ground surface. Afterwards, apply GUTEX Isoliergrund isolating primer. 1-2 days prior

Pagina 25-Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura Engleza...

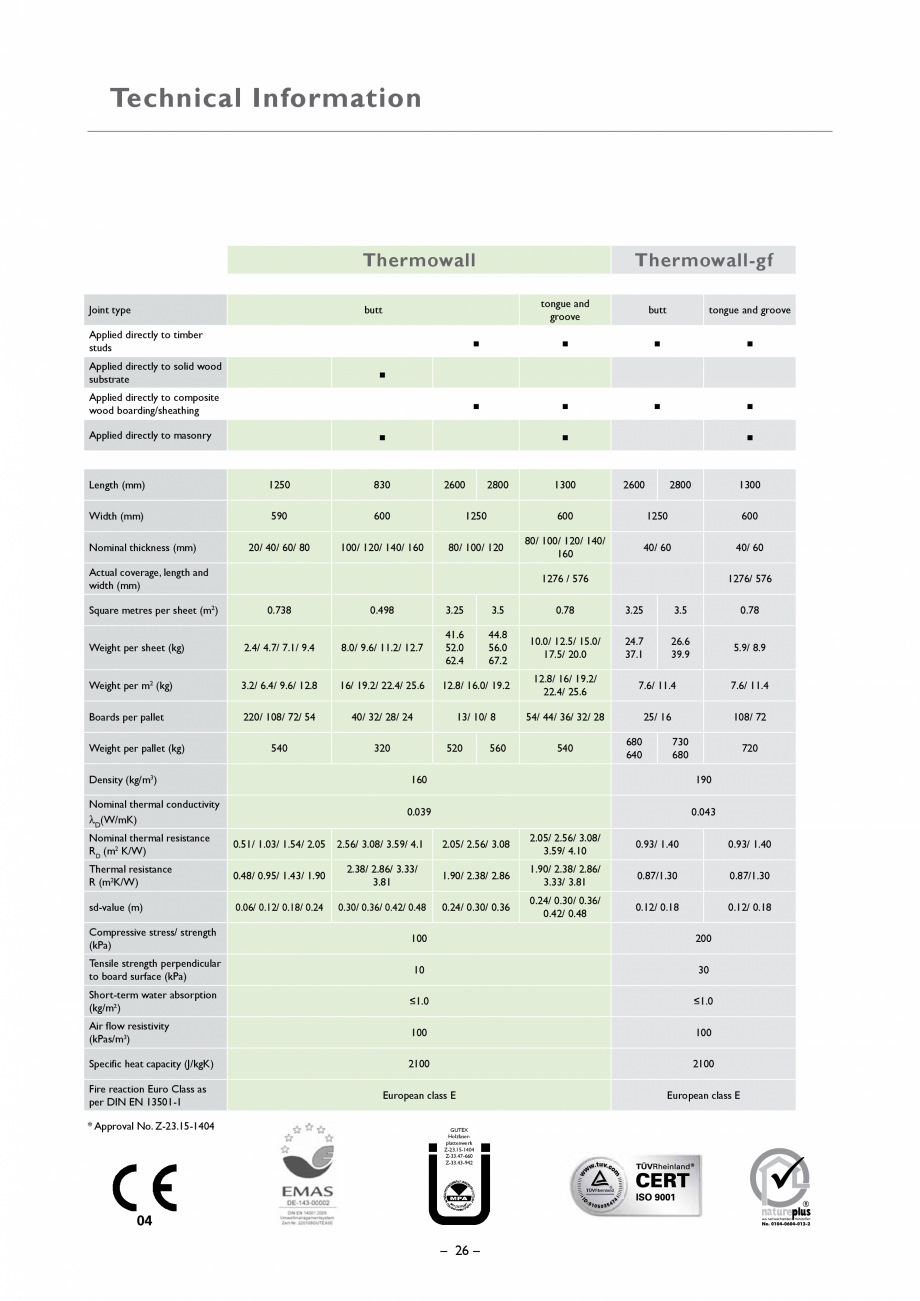

Pagina 26 - Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura...

to final render coat Required quantity Packaging unit Approx. 0.5 kg/m2 18-kg tub Instructions for use – 12 – N AT U R A L LY M A D E F RO M W O O D GUTEX Thermowall ETICS Application of the final render coat Primer GUTEX Isoliergrund Drying time Required quantity Packaging unit Depending on the substrate, it may be thinned with up to 10 % water. Apply the isolating primer to surface with paintbrush or roller. Not suitable for airless spraying. Protect nearby surfaces. Usually dries overnight Approx. 0.35 kg/m2 25-kg tub Final coat GUTEX Combiputz Instructions for use Instructions for use Drying time Mix 25 kg of GUTEX Klebe- und Spachtelputz mortar with 6-7 l of clean water, making sure there are no lumps. Apply with a stainless steel trowel with coat not exceeding grain thickness. Use a plastic trowel, foam rubber disc or PS float to texture the surface. Suitable for all common final coat plaster machines. Approx. 4-6 days 1.5 mm grain 2 kg/m2 combed: 2.2 kg/m

Pagina 26-Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura Engleza to final ...

Pagina 27 - Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura...

² Required quantity 2.0 mm grain 2.5 kg/m2 combed: 2.7 kg/m² 3.0 mm grain 25-kg bag 3.5 kg/m combed: 3.5 kg/m² Packaging unit Paint (levelling and smoothing coat) GUTEX Combi-Mineralfarbe/-PV 2 Drying time Required quantity Packaging unit Applies by brush, roller or airless spray pistol. Wet on wet with roller. One coat is necessary, two are recommended. GUTEX Combi-Mineralfarbe-PV (with fungicide) is recommended for building sides especially exposed to weather. Can be painted over after approx. 8 hours. Approx. 0.3 l/m² per coat 15-l tub Final coat GUTEX Combi-Silikonharzputz Instructions for use Instructions for use Drying time Required quantity Mix 25 kg of GUTEX Combiputz mortar with 6-7 l of clean water, making sure there are no lumps. Apply with a stainless steel trowel with coat not exceeding grain thickness. Use a plastic trowel, foam rubber disc or PS float to texture the surface. Suitable for all common final coat plaster machines. Allow 14 days for

Pagina 27-Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura Engleza ²
...

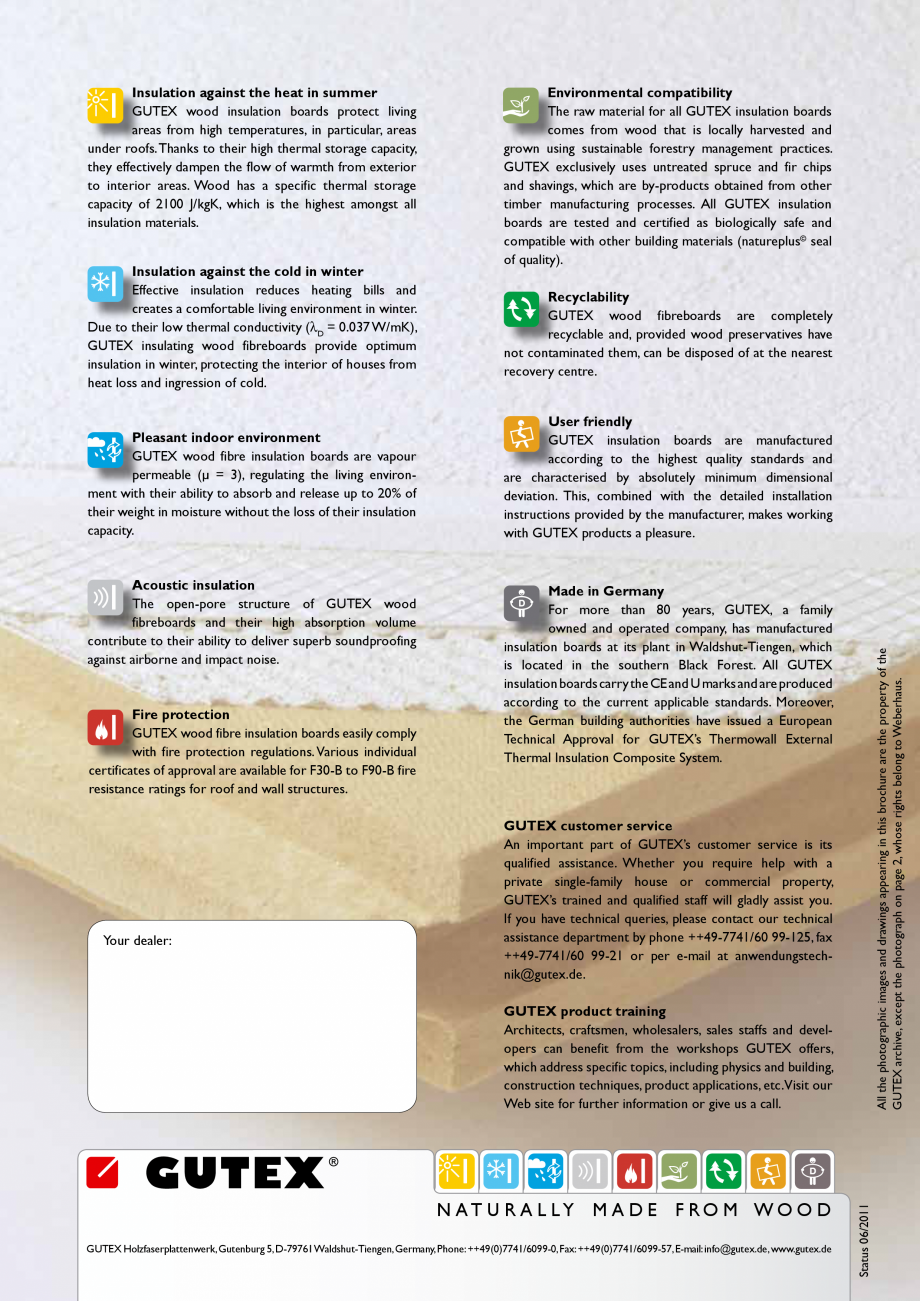

Pagina 28 - Placa din fibre lemnoase suport pentru tencuieli GUTEX Thermowall Catalog, brosura...

the material to completely cure. Depending on the condition of the substrate: 1.5 mm grain: scraped finish: approx. 2.3 kg/m² 2.0 mm grain: scraped finish: approx. 3.0 kg/m² Packaging unit 3.0 mm grain: scraped finish: approx. 4.3 kg/m² Tub Paint (levelling and smoothing coat) GUTEX Combi-Mineralfarbe/-PV Instructions for use Drying time Required quantity Packaging unit Applies by brush, roller or airless spray pistol. Wet on wet with roller. One coat is recommended. GUTEX Combi-Mineralfarbe-PV (with fungicide) is recommended for building sides especially exposed to weather. Can be painted over after approx. 8 hours. Approx. 0.3 l/m² per coat 15-l tub Tinted render and paints should have a Light Reflectance Value > 20. – 13 – Accessories GUTEX Sockelabschlussleisten 200-cm long, aluminium universal stop bead Width 43 mm Width 63 mm Width 83 mm Width 103 mm Width 123 mm Width 143 mm Width 163 mm Width 183 mm Width 203 mm 10
