TECHNICAL DOCUMENTATION Directionality This document is intended to provide general recommendations only. Trespa provides these guidelines and all testing, code and design data for informational purposes only and strongly advises that the customer, project owner and architect seek independent advice from a certified construction professional and/or engineer regarding application and installation as well as compliance with design requirements, applicable codes, laws and regulations, and test standards. Please check your local codes and applicable design requirements for proper use. General The following aspects must receive attention when designing and installing Trespa® Meteon® panels. Directionality (Focus, Lumen, Lumen Metallics, Metallics, Wood Decors and Naturals) Directionality of the panel is an important feature to consider during the design and installation. In case of directionality, special measures need to be observed. Whether Trespa® Meteon® panels feature a directio

Pagina 1-Placaje HPL pentru fatade si pereti interiori - Direcția fibrei TRESPA METEON Fisa tehnica Engleza...

Pagina 2 - Placaje HPL pentru fatade si pereti interiori - Direcția fibrei TRESPA METEON Fisa...

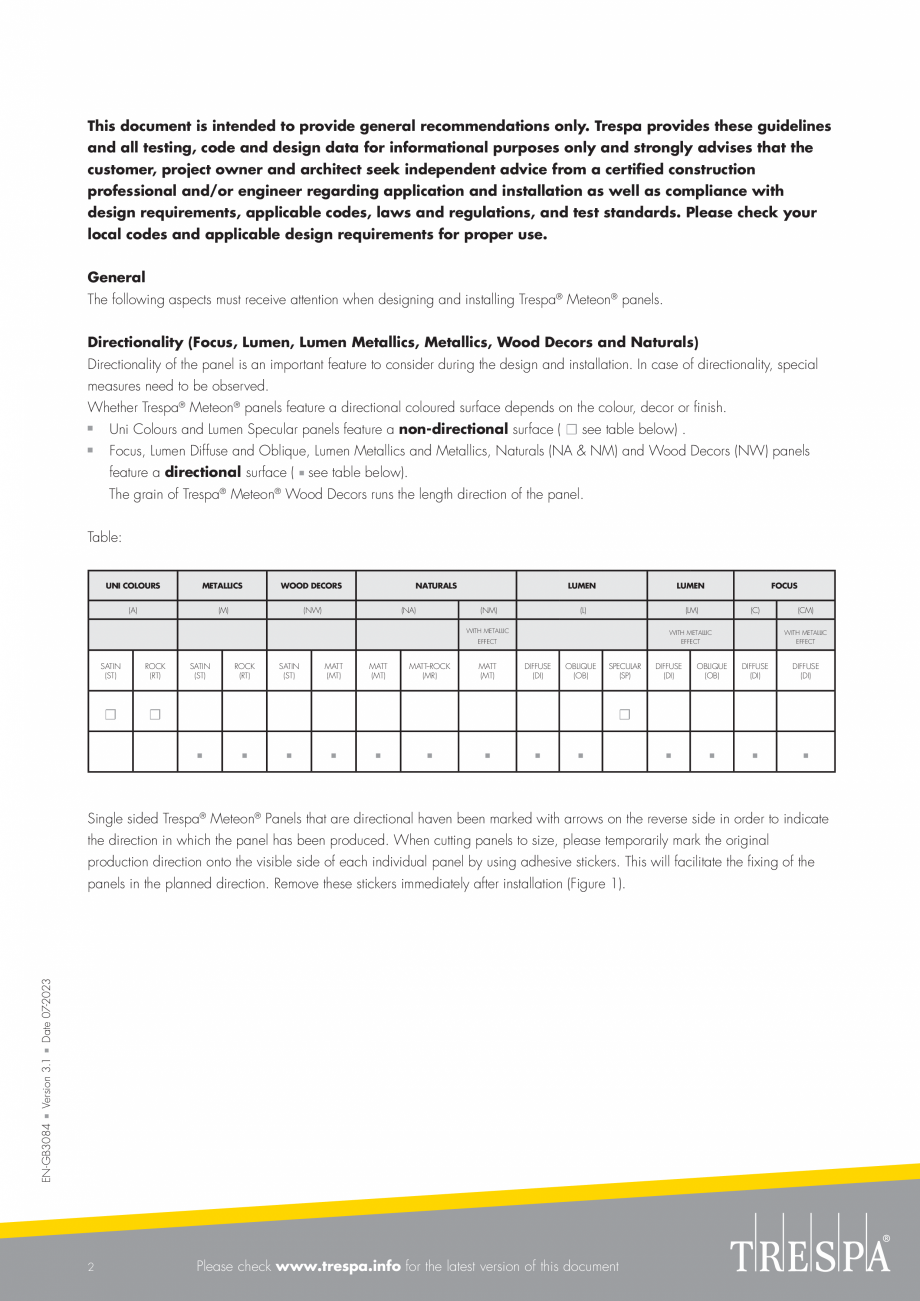

nal coloured surface depends on the colour, decor or finish. ■ Uni Colours and Lumen Specular panels feature a non-directional surface ( ☐ see table below) . ■ Focus, Lumen Diffuse and Oblique, Lumen Metallics and Metallics, Naturals (NA & NM) and Wood Decors (NW) panels feature a directional surface ( ■ see table below). The grain of Trespa® Meteon® Wood Decors runs the length direction of the panel. Table: UNI COLOURS METALLICS WOOD DECORS (A) (M) (NW) NATURALS (NA) LUMEN (NM) LUMEN (L) (LM) WITH METALLIC ROCK (RT) ☐ ☐ SATIN (ST) ROCK (RT) SATIN (ST) MATT (MT) MATT (MT) MATT--ROCK (MR) MATT (MT) (C) WITH METALLIC EFFECT EFFECT SATIN (ST) FOCUS DIFFUSE (DI) OBLIQUE (OB) SPECULAR (SP) (CM) WITH METALLIC EFFECT DIFFUSE (DI) OBLIQUE (OB) DIFFUSE (DI) DIFFUSE (DI) ■ ■ ■ ■ ☐ ■ ■ ■ ■ ■ ■ ■ ■ ■ Single sided Trespa® Meteon® Panels that are directional haven been marked with arrows on the reverse si

Pagina 2-Placaje HPL pentru fatade si pereti interiori - Direcția fibrei TRESPA METEON Fisa tehnica Engleza...

Pagina 3 - Placaje HPL pentru fatade si pereti interiori - Direcția fibrei TRESPA METEON Fisa...

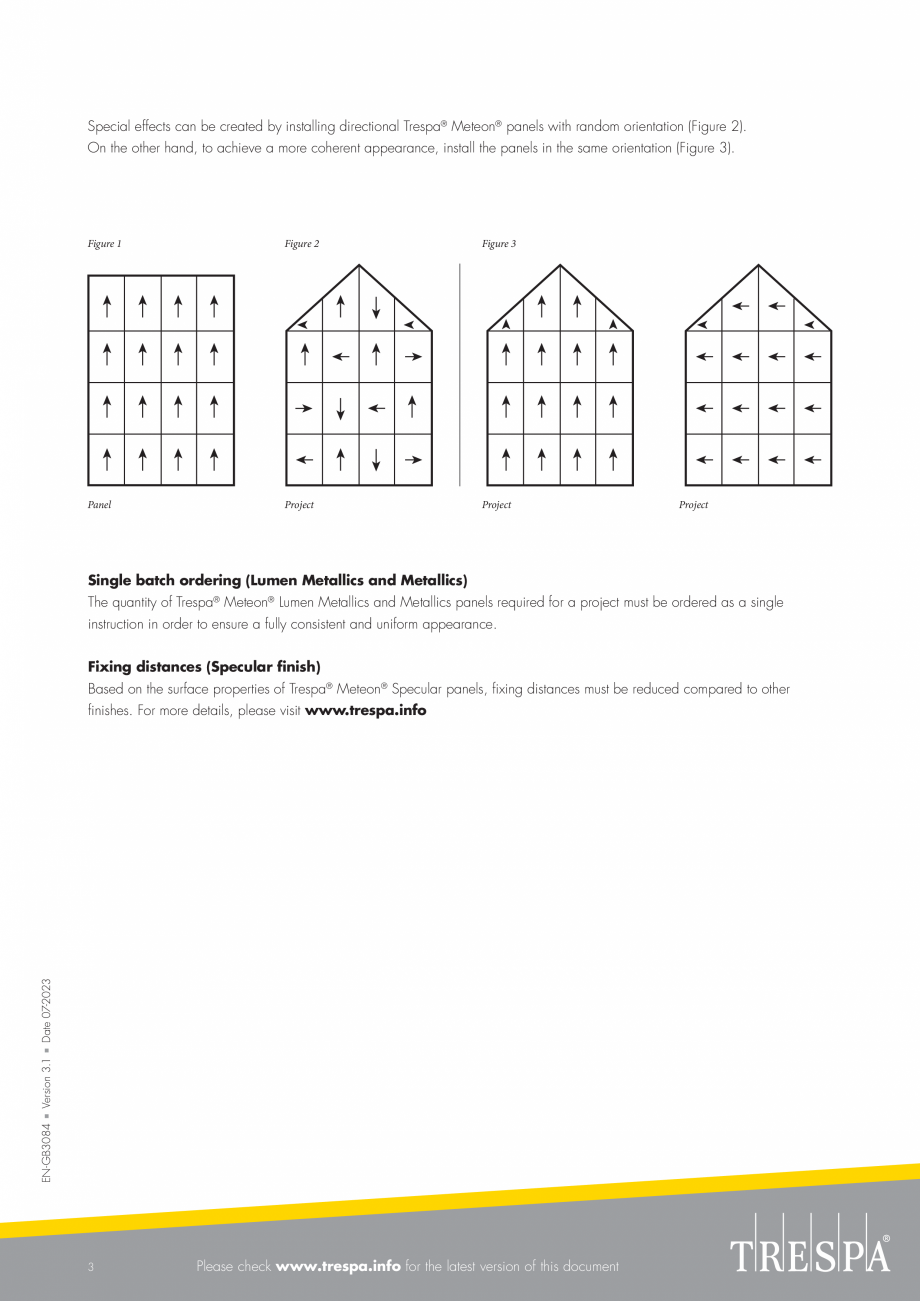

de in order to indicate the direction in which the panel has been produced. When cutting panels to size, please temporarily mark the original production direction onto the visible side of each individual panel by using adhesive stickers. This will facilitate the fixing of the EN-GB3084 ■ Version 3.1 ■ Date 07-2023 panels in the planned direction. Remove these stickers immediately after installation (Figure 1). 2 Please check www.trespa.info for the latest version of this document Special effects can be created by installing directional Trespa® Meteon® panels with random orientation (Figure 2). On the other hand, to achieve a more coherent appearance, install the panels in the same orientation (Figure 3). Figure 1 Figure 2 Figure 3 Panel Project Project Project Single batch ordering (Lumen Metallics and Metallics) The quantity of Trespa® Meteon® Lumen Metallics and Metallics panels required for a project must be ordered as a single instruction in order to ensur

Pagina 3-Placaje HPL pentru fatade si pereti interiori - Direcția fibrei TRESPA METEON Fisa tehnica Engleza...

Pagina 4 - Placaje HPL pentru fatade si pereti interiori - Direcția fibrei TRESPA METEON Fisa...

e a fully consistent and uniform appearance. Fixing distances (Specular finish) Based on the surface properties of Trespa® Meteon® Specular panels, fixing distances must be reduced compared to other EN-GB3084 ■ Version 3.1 ■ Date 07-2023 finishes. For more details, please visit www.trespa.info 3 Please check www.trespa.info for the latest version of this document DISCLAIMER This is a print generated by you from www.trespa.info (“Website”). By accessing the Website and printing this document you have accepted the Terms of Use of the Website. Please refer to the Website for all conditions that apply to this document. The system shown in this document may not be suitable for all applications and jurisdictions. We provide you with testing data and certification information for informational purposes only. We strongly recommend that you or any other user of this document obtains advice regarding compliance with design requirements, applicable codes, laws and regulations,
