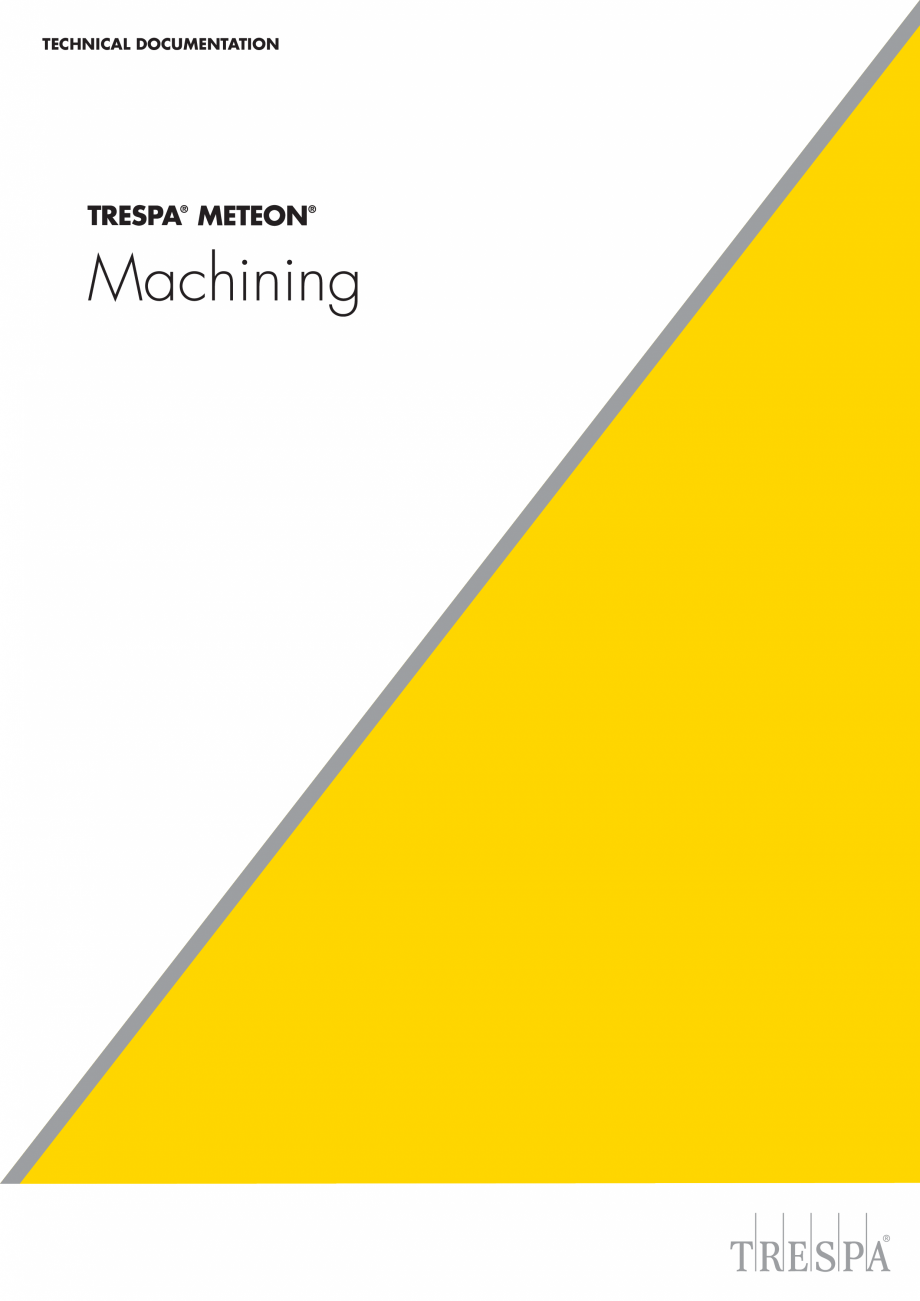

Pagina 1 - Placaje HPL pentru fatade si pereti interiori - Prelucrare Trespa® TRESPA METEON...

TECHNICAL DOCUMENTATION Machining This document is intended to provide general recommendations only. Trespa provides these guidelines and all testing, code and design data for informational purposes only and strongly advises that the customer, project owner and architect seek independent advice from a certified construction professional and/or engineer regarding application and installation as well as compliance with design requirements, applicable codes, laws and regulations, and test standards. Please check your local codes and applicable design requirements for proper use. General Machining panels should only be done by a machining or construction professional with proper equipment. The homogeneous composition of the material makes it possible to machine both the sides and the surface. Machining Trespa® panels is comparable to machining high quality hardwood. Trespa® panels may be machined using carpentry tools. The hardness of Trespa® panels makes greater demands on tools th

Pagina 1-Placaje HPL pentru fatade si pereti interiori - Prelucrare Trespa® TRESPA METEON Fisa tehnica...

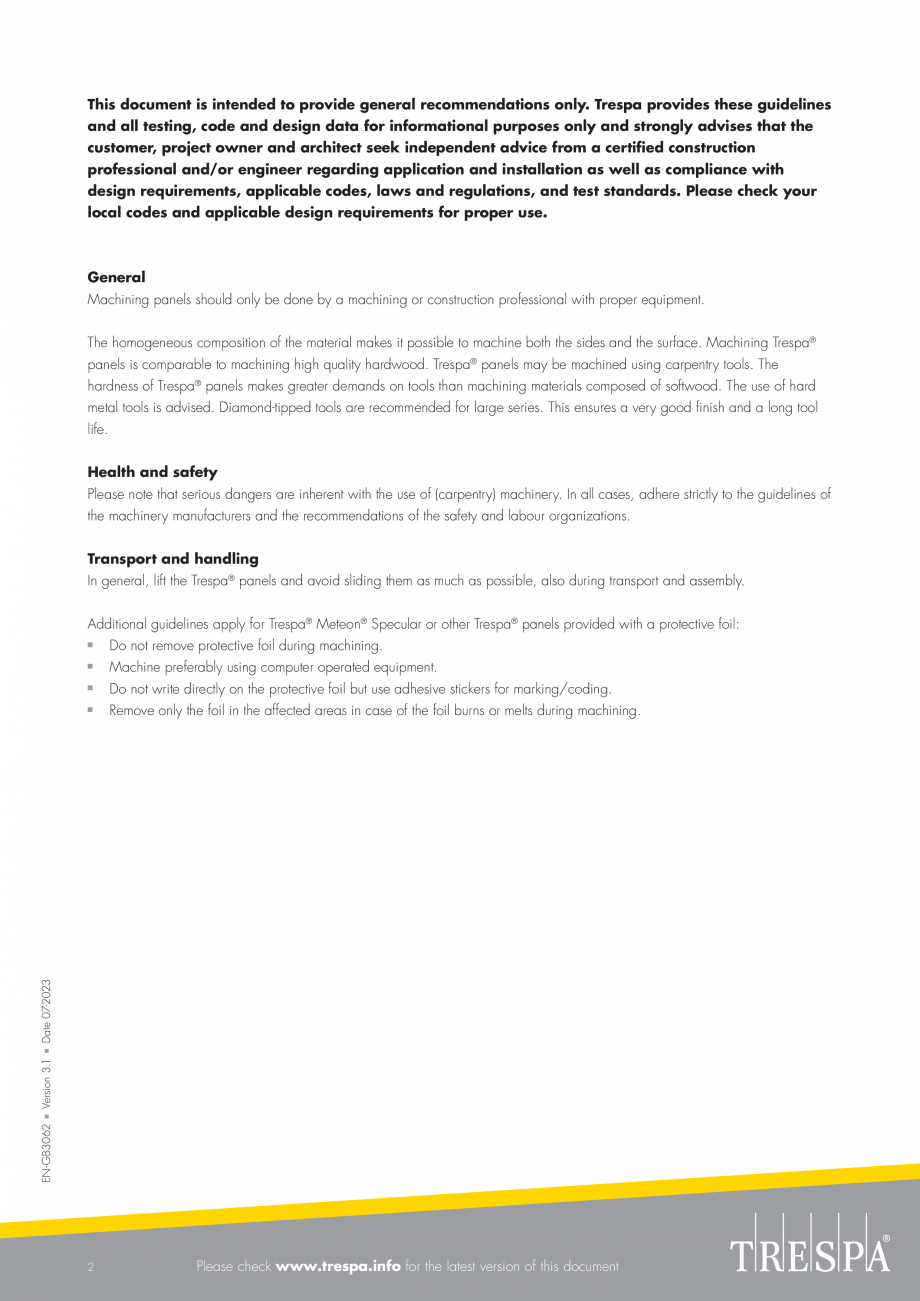

Pagina 2 - Placaje HPL pentru fatade si pereti interiori - Prelucrare Trespa® TRESPA METEON...

an machining materials composed of softwood. The use of hard metal tools is advised. Diamond-tipped tools are recommended for large series. This ensures a very good finish and a long tool life. Health and safety Please note that serious dangers are inherent with the use of (carpentry) machinery. In all cases, adhere strictly to the guidelines of the machinery manufacturers and the recommendations of the safety and labour organizations. Transport and handling In general, lift the Trespa® panels and avoid sliding them as much as possible, also during transport and assembly. Additional guidelines apply for Trespa® Meteon® Specular or other Trespa® panels provided with a protective foil: Do not remove protective foil during machining. ■ Machine preferably using computer operated equipment. ■ Do not write directly on the protective foil but use adhesive stickers for marking/coding. ■ Remove only the foil in the affected areas in case of the foil burns or melts during machini

Pagina 2-Placaje HPL pentru fatade si pereti interiori - Prelucrare Trespa® TRESPA METEON Fisa tehnica...

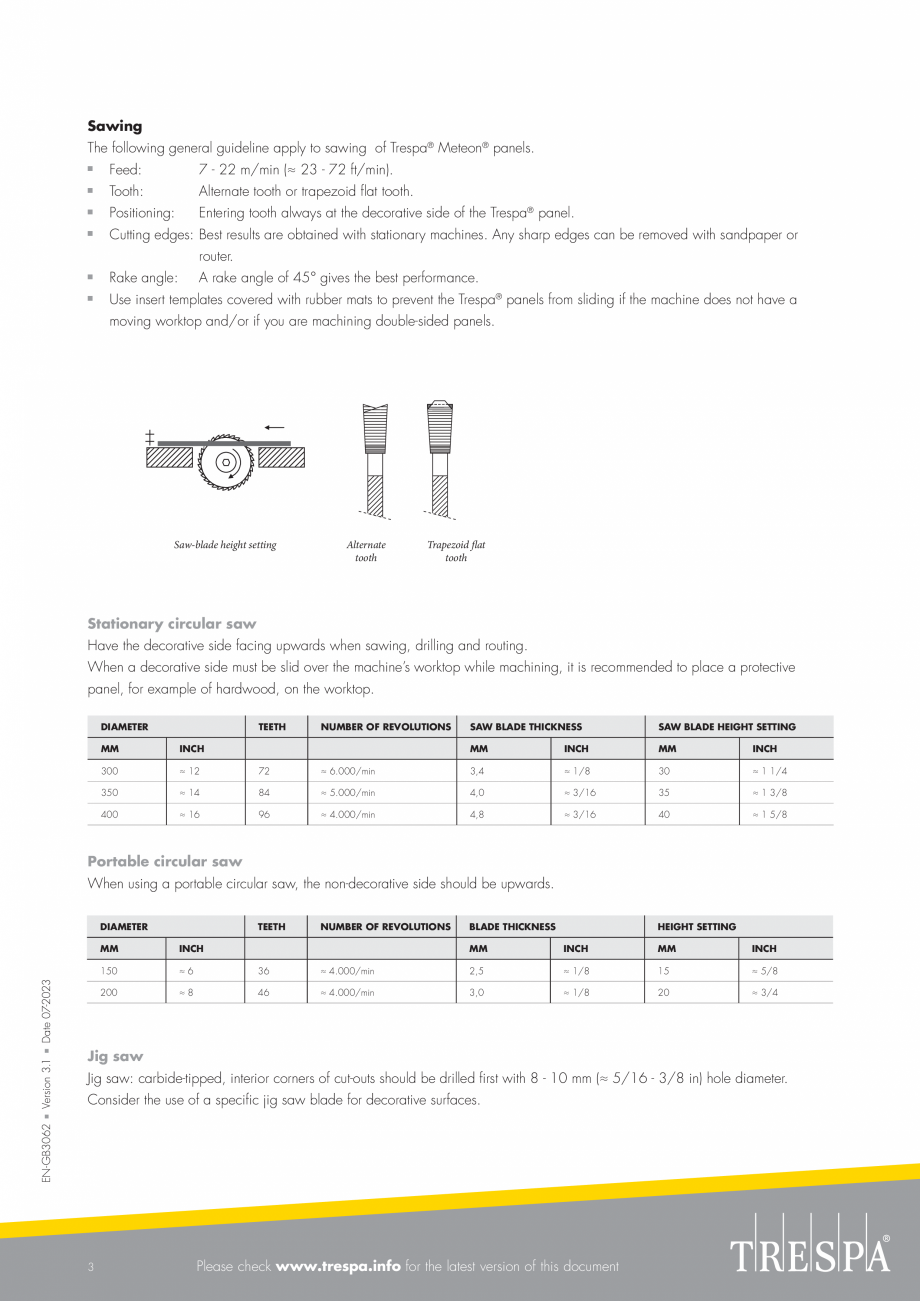

Pagina 3 - Placaje HPL pentru fatade si pereti interiori - Prelucrare Trespa® TRESPA METEON...

ng. EN-GB3062 ■ Version 3.1 ■ Date 07-2023 ■ 2 Please check www.trespa.info for the latest version of this document Sawing The following general guideline apply to sawing of Trespa® Meteon® panels. ■ Feed: 7 - 22 m/min (≈ 23 - 72 ft/min). ■ Tooth: Alternate tooth or trapezoid flat tooth. ■ Positioning: Entering tooth always at the decorative side of the Trespa® panel. ■ Cutting edges: Best results are obtained with stationary machines. Any sharp edges can be removed with sandpaper or ■ Rake angle: A rake angle of 45° gives the best performance. ■ Use insert templates covered with rubber mats to prevent the Trespa® panels from sliding if the machine does not have a router. moving worktop and/or if you are machining double-sided panels. Saw-blade height setting Alternate tooth Trapezoid flat tooth Stationary circular saw Have the decorative side facing upwards when sawing, drilling and routing. When a decorative side must be slid

Pagina 3-Placaje HPL pentru fatade si pereti interiori - Prelucrare Trespa® TRESPA METEON Fisa tehnica...

Pagina 4 - Placaje HPL pentru fatade si pereti interiori - Prelucrare Trespa® TRESPA METEON...

over the machine’s worktop while machining, it is recommended to place a protective panel, for example of hardwood, on the worktop. DIAMETER TEETH MM INCH 300 ≈ 12 72 350 ≈ 14 84 400 ≈ 16 96 NUMBER OF REVOLUTIONS SAW BLADE THICKNESS SAW BLADE HEIGHT SETTING MM INCH MM INCH ≈ 6.000/min 3,4 ≈ 1/8 30 ≈ 1 1/4 ≈ 5.000/min 4,0 ≈ 3/16 35 ≈ 1 3/8 ≈ 4.000/min 4,8 ≈ 3/16 40 ≈ 1 5/8 Portable circular saw When using a portable circular saw, the non-decorative side should be upwards. TEETH NUMBER OF REVOLUTIONS BLADE THICKNESS HEIGHT SETTING MM INCH MM INCH MM INCH 150 ≈6 36 ≈ 4.000/min 2,5 ≈ 1/8 15 ≈ 5/8 200 ≈8 46 ≈ 4.000/min 3,0 ≈ 1/8 20 ≈ 3/4 Jig saw Jig saw: carbide-tipped, interior corners of cut-outs should be drilled first with 8 - 10 mm (≈ 5/16 - 3/8 in) hole diameter. Consider the use of a specific jig saw blade for decorative surfaces. EN-GB3062 ■ Version 3.1 ■ Date 07-2023

Pagina 4-Placaje HPL pentru fatade si pereti interiori - Prelucrare Trespa® TRESPA METEON Fisa tehnica...

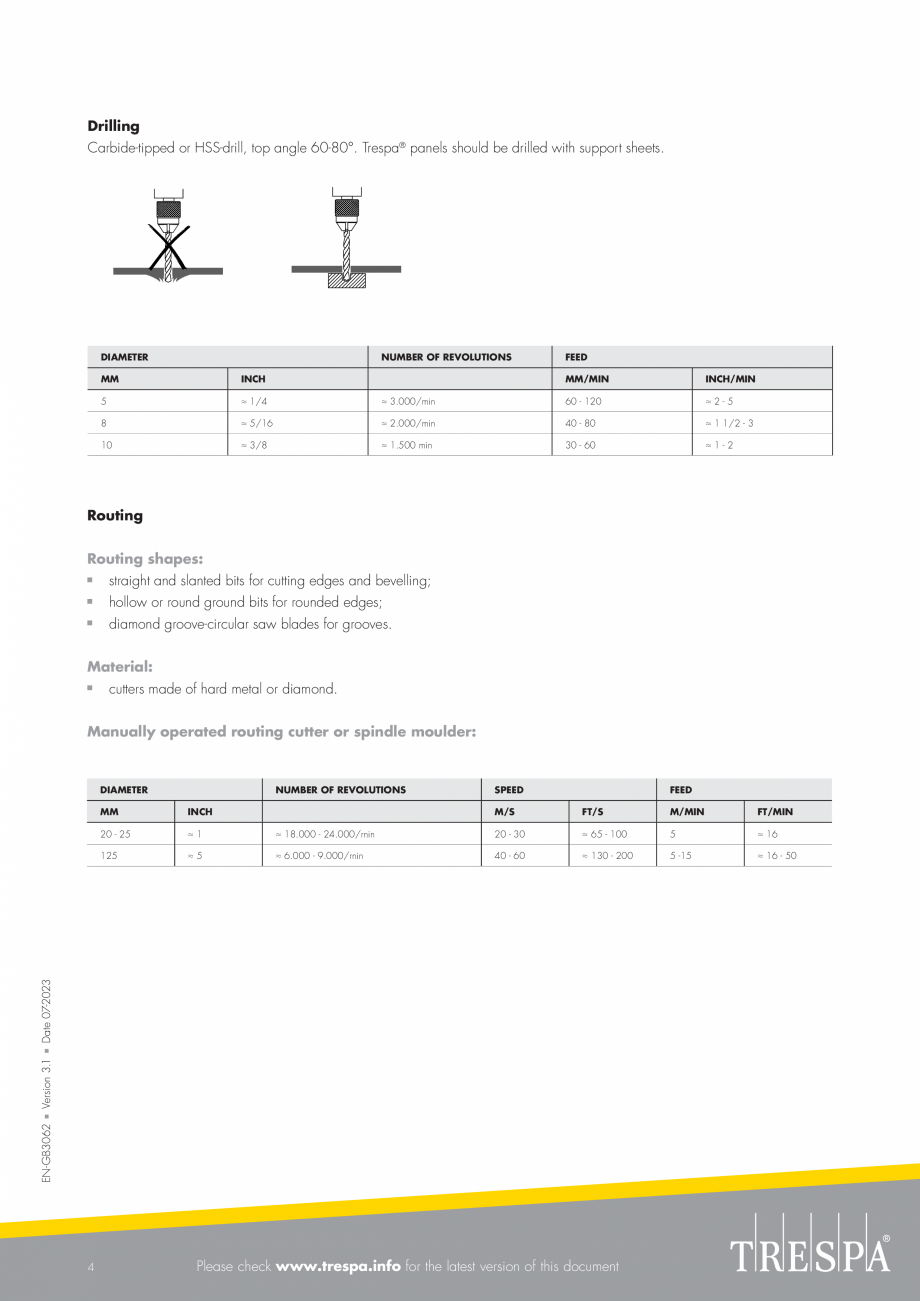

Pagina 5 - Placaje HPL pentru fatade si pereti interiori - Prelucrare Trespa® TRESPA METEON...

DIAMETER 3 Please check www.trespa.info for the latest version of this document Drilling Carbide-tipped or HSS-drill, top angle 60-80°. Trespa® panels should be drilled with support sheets. DIAMETER NUMBER OF REVOLUTIONS MM INCH 5 ≈ 1/4 8 ≈ 5/16 10 ≈ 3/8 FEED MM/MIN INCH/MIN ≈ 3.000/min 60 - 120 ≈2-5 ≈ 2.000/min 40 - 80 ≈ 1 1/2 - 3 ≈ 1.500 min 30 - 60 ≈1-2 Routing Routing shapes: ■ straight and slanted bits for cutting edges and bevelling; ■ hollow or round ground bits for rounded edges; ■ diamond groove-circular saw blades for grooves. Material: ■ cutters made of hard metal or diamond. Manually operated routing cutter or spindle moulder: DIAMETER NUMBER OF REVOLUTIONS INCH 20 - 25 ≈1 125 ≈5 SPEED FEED M/S FT/S M/MIN FT/MIN ≈ 18.000 - 24.000/rnin 20 - 30 ≈ 65 - 100 5 ≈ 16 ≈ 6.000 - 9.000/rnin 40 - 60 ≈ 130 - 200 5 -15 ≈ 16 - 50 EN-GB3062 ■ Version 3.1 ■ Date 07-2023 MM 4 Plea
