volcano grey, glazed Terracotta façades rainscreen cladding – back-ventilated – heat-insulated German quality MADE IN GERMANY As market leader, the MOEDING Keramikfassaden GmbH sets global standards in the curtain wall, back-ventilated and heat-insulated tile façade segment with ALPHATON® and LONGOTON®. As a 100% subsidiary of Girnghuber GmbH, located at Marklkofen (Lower Bavaria) with our 250 employees, we guarantee the highest quality in design and manufacture ever produced in Germany. With always the goal in mind: to provide architects and builders with custom solutions in every form – for creative features in innovative façade design. This is underlined by our sound practical advice and our numerous distinctions. More at www.moeding.de German Institute of Construction Engineering (Deutsches Institut für Bautechnik) General building inspectorate approval. Curtain wall, back-ventilated outer wall cladding “ALPHATON® Gen 95” and “ALPHATON® Gen 06”. CSTB �

Pagina 1-Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza volcano grey, glazed
...

Pagina 2 - Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza ��ALPHATON®” is...

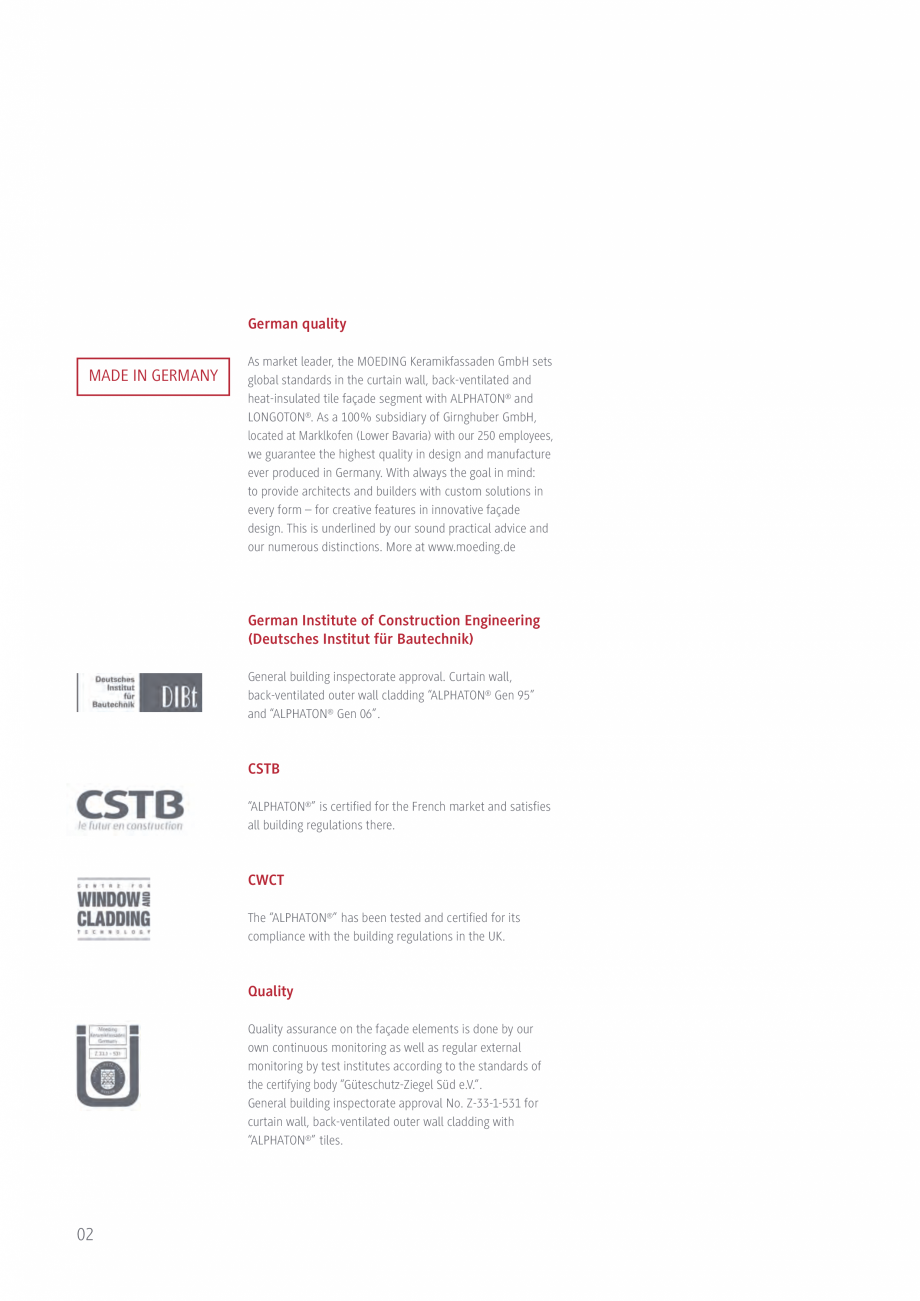

��ALPHATON®” is certified for the French market and satisfies all building regulations there. CWCT The “ALPHATON®” has been tested and certified for its compliance with the building regulations in the UK. Quality Quality assurance on the façade elements is done by our own continuous monitoring as well as regular external monitoring by test institutes according to the standards of the certifying body “Güteschutz-Ziegel Süd e.V.“. General building inspectorate approval No. Z-33-1-531 for curtain wall, back-ventilated outer wall cladding with “ALPHATON®” tiles. 02 Contents ALPHATON® terracotta façade 05 ALPHATON® façade system ALPHATON® Gen.06 ALPHATON® L2 06 14 Function Building physics Planning 22 24 26 Design Materials and colours Surfaces Sunscreen and blinds Formats 28 30 31 34 36 References new construction 38 References renovation 52 03 Coca-Cola head office, Berlin, Germany Architects: NPS Tschoban Voss, Berlin Colour: 5 shades of red S

Pagina 2-Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza ��ALPHATON®” is certified ...

Pagina 3 - Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza urface: glazed

04...

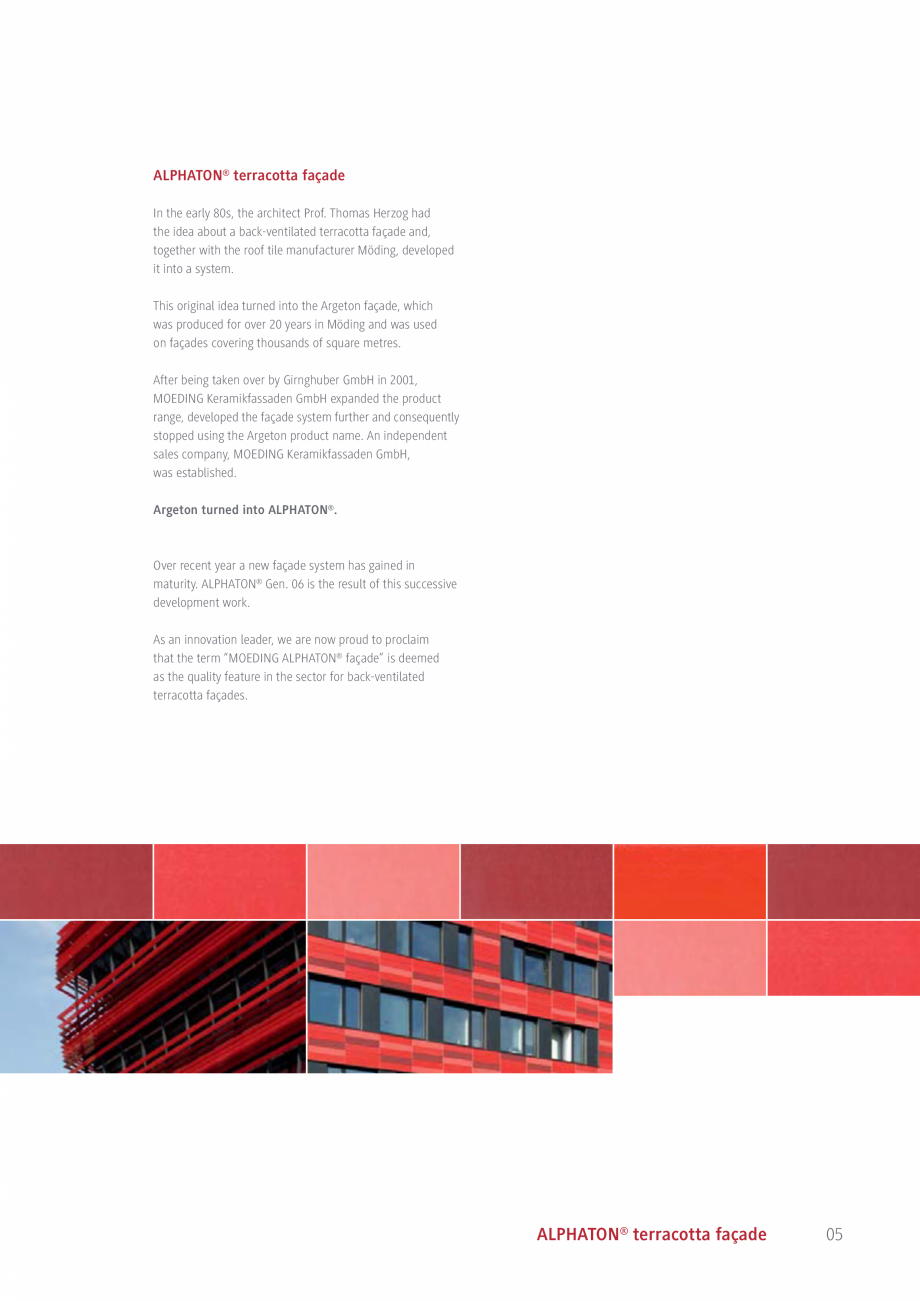

urface: glazed 04 ALPHATON® terracotta façade In the early 80s, the architect Prof. Thomas Herzog had the idea about a back-ventilated terracotta façade and, together with the roof tile manufacturer Möding, developed it into a system. This original idea turned into the Argeton façade, which was produced for over 20 years in Möding and was used on façades covering thousands of square metres. After being taken over by Girnghuber GmbH in 2001, MOEDING Keramikfassaden GmbH expanded the product range, developed the façade system further and consequently stopped using the Argeton product name. An independent sales company, MOEDING Keramikfassaden GmbH, was established. Argeton turned into ALPHATON®. Over recent year a new façade system has gained in maturity. ALPHATON® Gen. 06 is the result of this successive development work. As an innovation leader, we are now proud to proclaim that the term “MOEDING ALPHATON® façade” is deemed as the quality feature in the sector for

Pagina 4 - Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza back-ventilated...

back-ventilated terracotta façades. ALPHATON® terracotta façade 05 ALPHATON® Gen. 06 06 Panel holder Vertical basic proﬁle Wall holder Joint proﬁle Horizontal support proﬁle ALPHATON® façade system ALPHATON® terracotta tiles The ALPHATON® façade system is made out of four simple basic components: The extruded MOEDING ALPHATON® terracotta tiles are produced mainly from domestic clay and are fully imbued with colour. Due to the very high firing temperature and the the long firing period, intensive colours and the best strength are achieved. - Terracotta tiles Tile holders Horizontal support profile Joint profile The terracotta tiles are double-walled and 30 mm thick. The breaking loads of the ALPHATON® panel are therefore many times higher than with single-walled panels. The shape of the panel holders also contributes to the stability of the whole façade design. The panel holders are formed in such a way that frontal forces are transferred to the whole

Pagina 4-Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza back-ventilated
terracotta...

Pagina 5 - Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza
tile thickness...

tile thickness and dissipate into the substructure. The specifications for this are the so-called ball-throw test and the CWCT accreditation, which is generally applicable in England and is already part of the standards there. ALPHATON® Gen. 06 07 ALPHATON® tile holders The terracotta tiles are fastened by concealed aluminium tile holders. The holders encompass the head and base ridge and a screw driver is used to click them onto the support profiles. A metallic clicking sound tells the fitter that it has snapped in safely. The tile holders are designed in such a way that they can be used both on a closed and an open support file. The holder determines the design-engineering 10 mm wide gap between the tile element and the support profile. The M-holder is used in the façade area. For the bottom and top end there is the U and O-holder respectively. For fastening to soffits, special soffit holders are available. 08 ALPHATON® Gen. 06 oxide red, deep grooved Atlantic Haus, Ham

Pagina 5-Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza
tile thickness and dissipate...

Pagina 6 - Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza burg
Architects:...

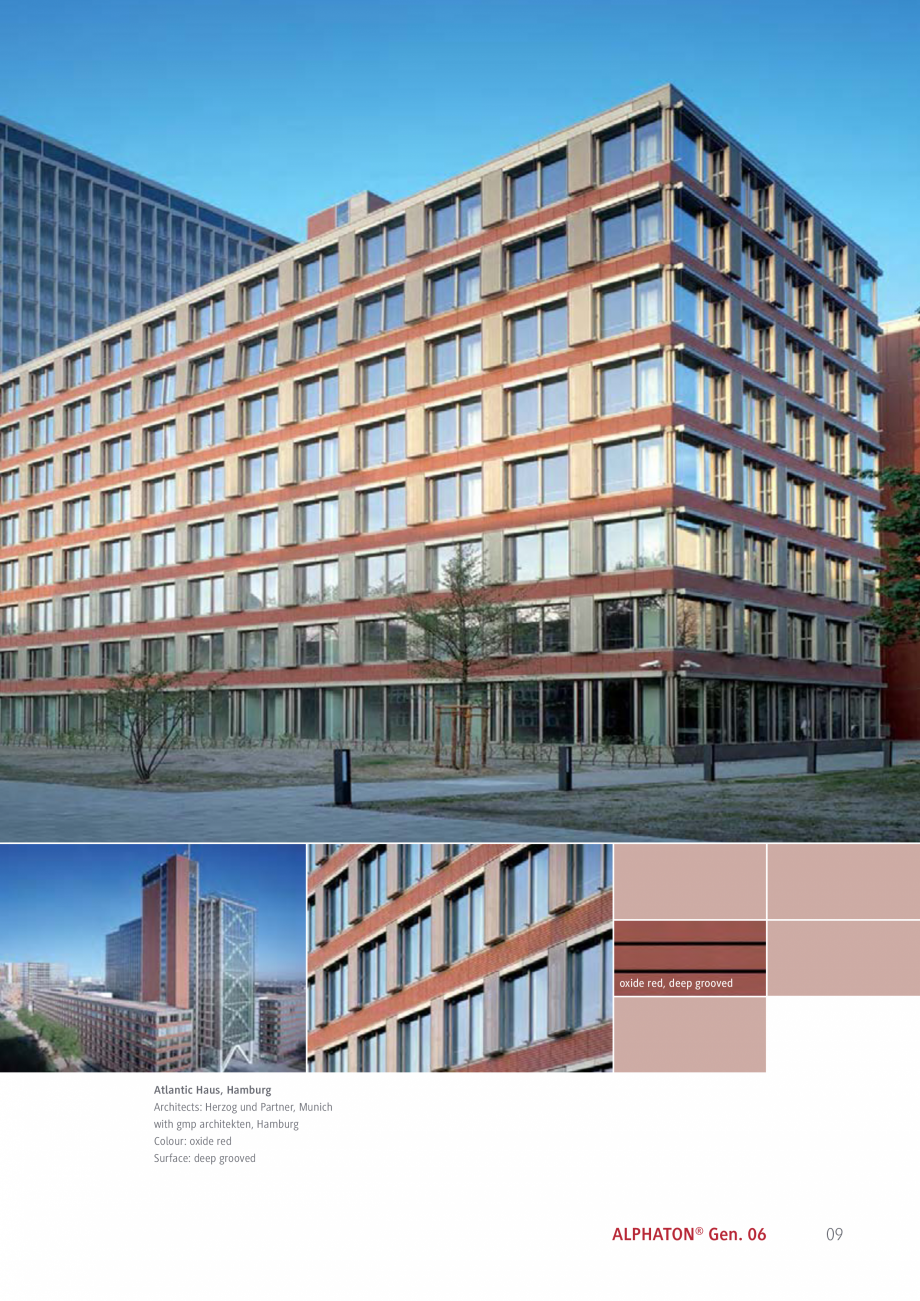

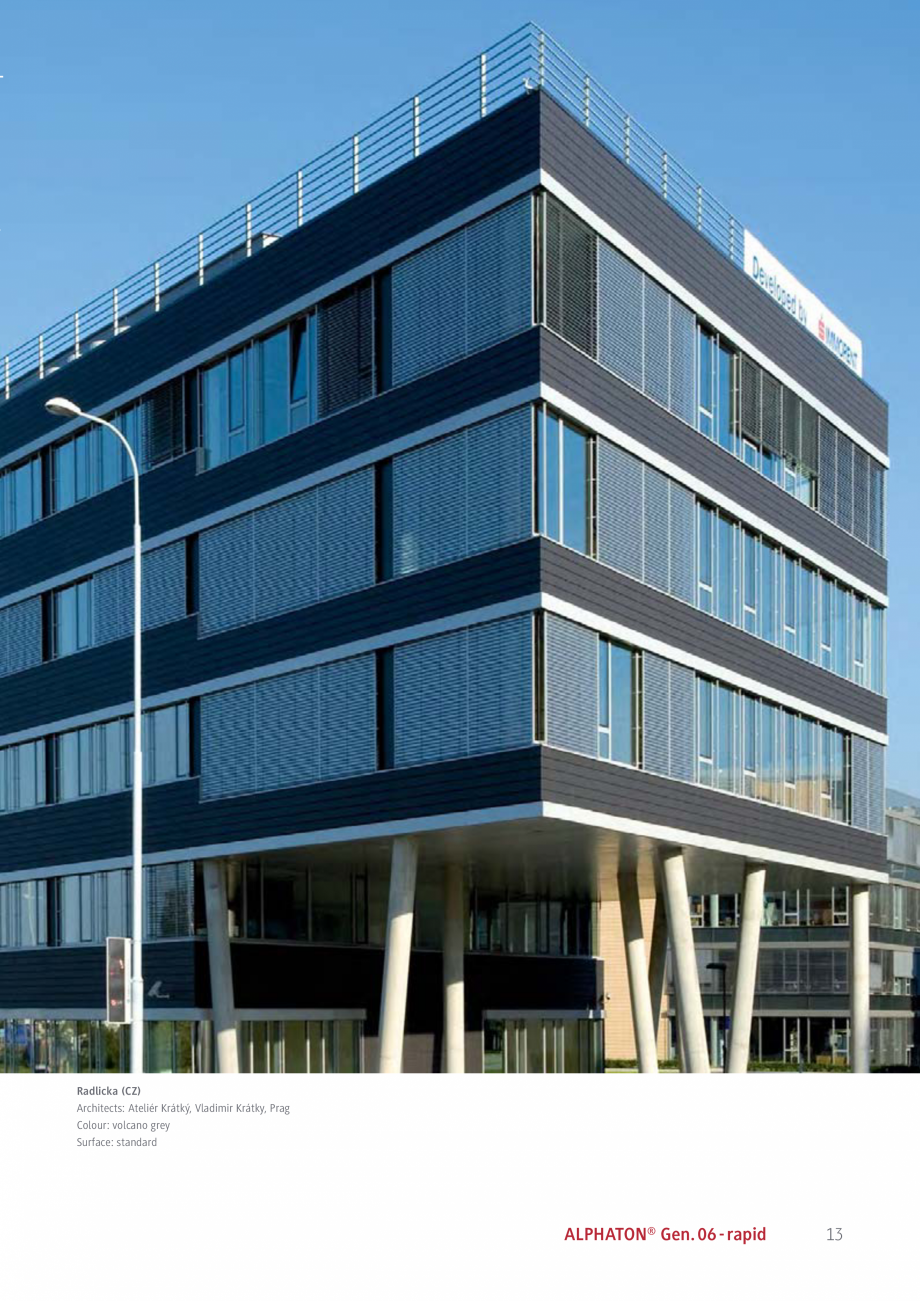

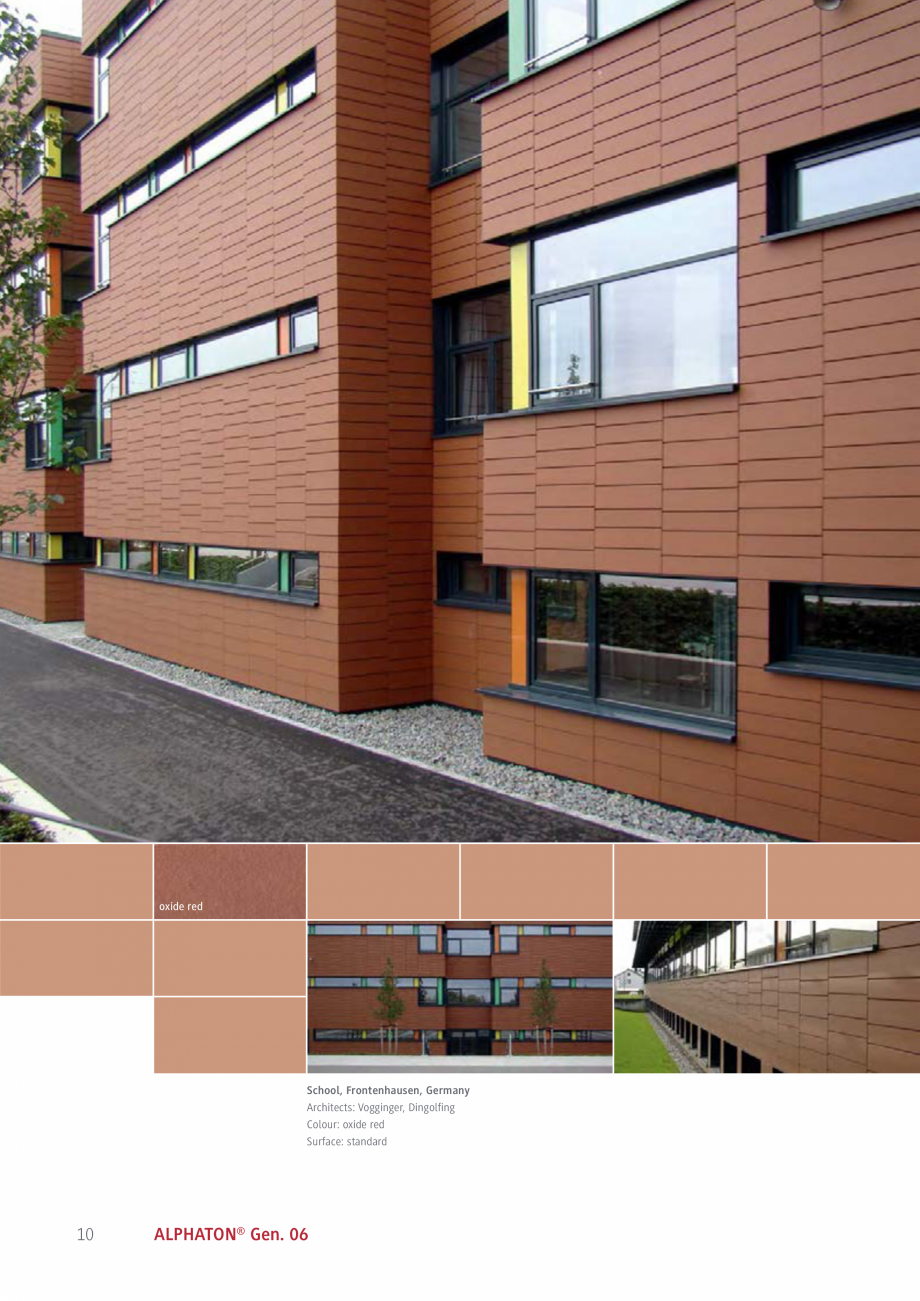

burg Architects: Herzog und Partner, Munich with gmp architekten, Hamburg Colour: oxide red Surface: deep grooved ALPHATON® Gen. 06 09 oxide red School, Frontenhausen, Germany Architects: Vogginger, Dingolfing Colour: oxide red Surface: standard 10 ALPHATON® Gen. 06 ALPHATON® horizontal support profiles ALPHATON® joint profile The horizontal support profiles are fastened to conventional vertical profiles with hollow rivets or self-tapping stainless steel screws. In cases where the architecture does not allow support profile span widths bigger than 0.75 m the open support profile Gen. 06 - 75 is used. The total thickness of the façade is then 60 mm. Depending on the foundations and the project-related structural evidence, the open support profile Gen. 06 - 75 can also be installed up to 900 mm wide. Aluminium joint profiles located in the vertical joints prevent panels from rattling in the wind, driving rain from penetrating and in particular the panels from moving side

Pagina 6-Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza burg
Architects: Herzog und...

Pagina 7 - Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza ways and thus...

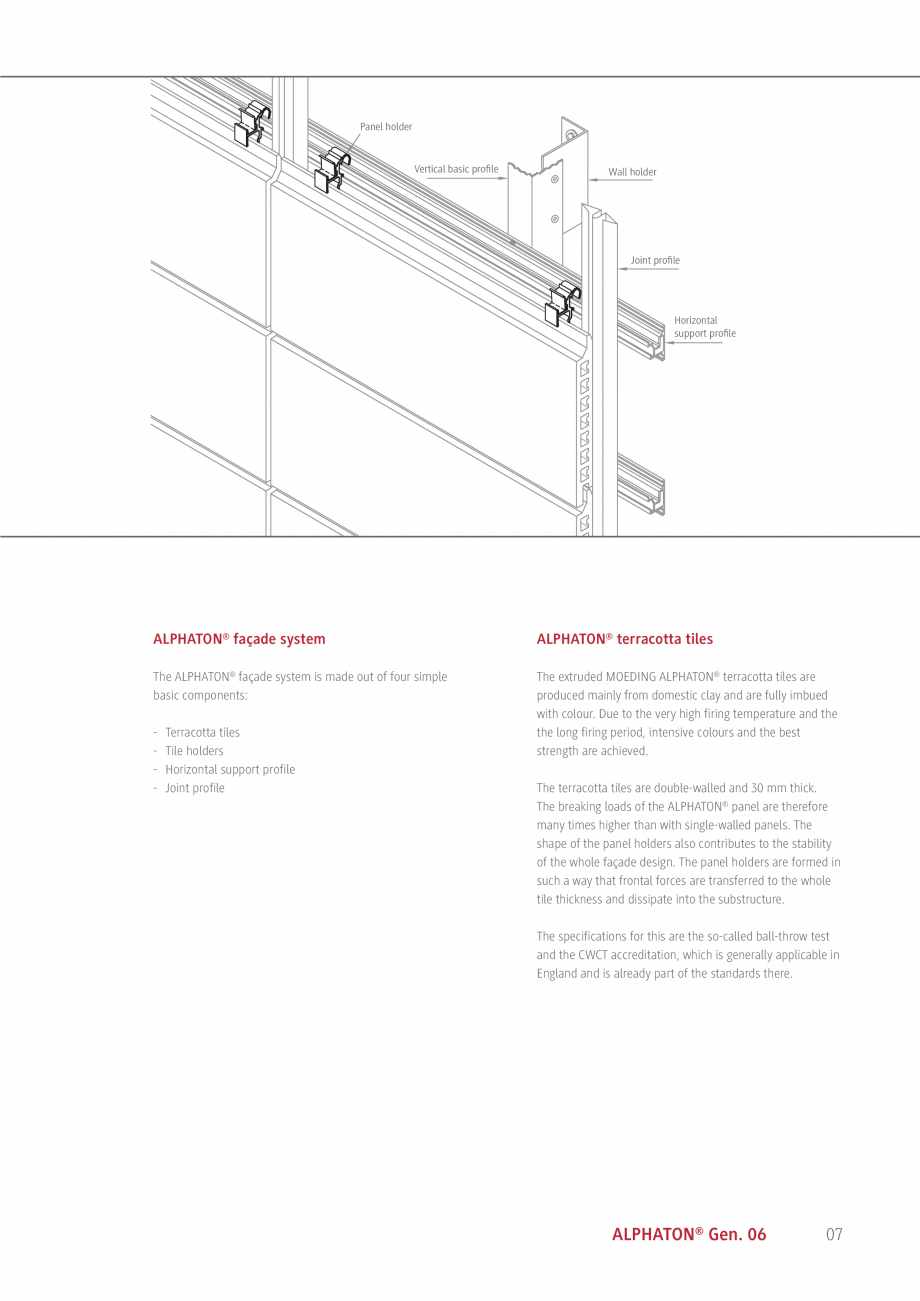

ways and thus guarantee a very exact joint pattern. There are profiles for joint widths of 8 mm, or alternatively 4 mm for the horizontal façade and 12 mm for the vertical façade. Joint profiles are available both for centre joints and end joints, matching all panel colours. If larger span widths need bridging, the closed support profile Gen. 06 - 150 is used. The maximum possible span width for this is 1,500 mm. The total thickness of the façade is then 70 mm. Vertical basic profiles and wall angle holders The support profile is always arranged in front of the heat insulation, which means this is securely held in place. The function of the back-ventilation gap is maintained in any event. The permitted projection of the ends of the horizontal support profile beyond the vertical profile makes it particularly cost-effective to design soffits and corners to the building. These components are standard in the trade. Their horizontal gap from each other when using the open, horizontal

Pagina 7-Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza ways and thus guarantee a...

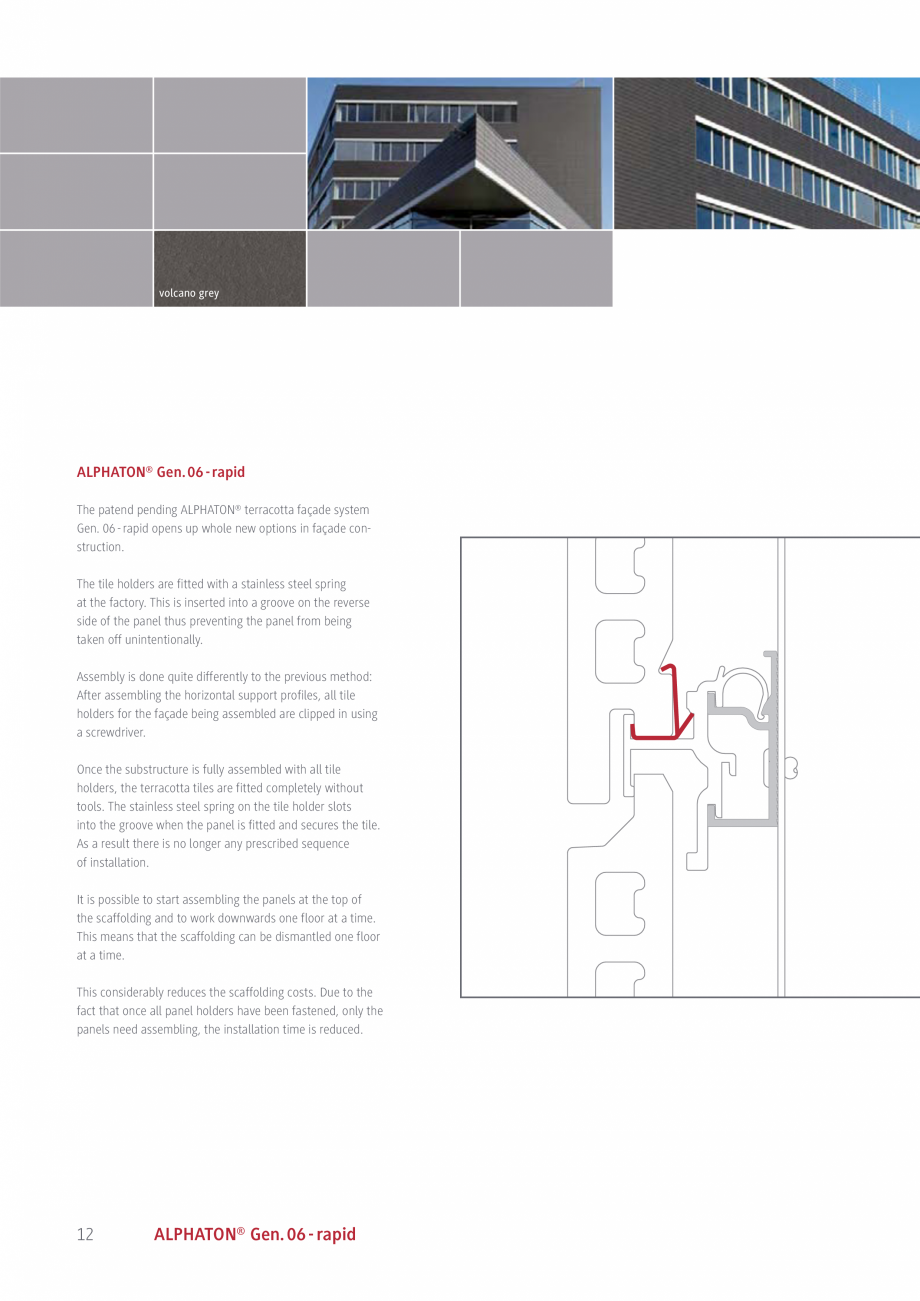

support profile Gen. 06 - 75 is 750/900 mm max., when using the closed support profile Gen. 06 - 150 it is 1,500 mm. Heat insulation It is possible to choose any thickness of heat-insulation. It is fastened and fixed in position to prevent it swelling and sticking out just by the horizontal support profiles without additional insulation material retainers. Open horizontal support profile Gen. 06 - 75 Closed horizontal support profile Gen. 06 - 150 Joint profile Heat insulation ALPHATON® Gen. 06 11 volcano grey ALPHATON® Gen. 06 - rapid The patend pending ALPHATON® terracotta façade system Gen. 06 - rapid opens up whole new options in façade construction. The tile holders are fitted with a stainless steel spring at the factory. This is inserted into a groove on the reverse side of the panel thus preventing the panel from being taken off unintentionally. Assembly is done quite differently to the previous method: After assembling the horizontal support profiles, all tile h

Pagina 9 - Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza olders for the...

olders for the façade being assembled are clipped in using a screwdriver. Once the substructure is fully assembled with all tile holders, the terracotta tiles are fitted completely without tools. The stainless steel spring on the tile holder slots into the groove when the panel is fitted and secures the tile. As a result there is no longer any prescribed sequence of installation. It is possible to start assembling the panels at the top of the scaffolding and to work downwards one floor at a time. This means that the scaffolding can be dismantled one floor at a time. This considerably reduces the scaffolding costs. Due to the fact that once all panel holders have been fastened, only the panels need assembling, the installation time is reduced. 12 ALPHATON® Gen. 06 - rapid Radlicka (CZ) Architects: Ateliér Krátký, Vladimir Krátky, Prag Colour: volcano grey Surface: standard ALPHATON® Gen. 06 - rapid 13 ALPHATON® L2 14 L2 M-holder Rapid holder Vertical support proﬁle

Pagina 9-Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza olders for the façade being ...

Pagina 10 - Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza
Joint proﬁle

...

Joint proﬁle ALPHATON® façade system L2 ALPHATON® terracotta tiles The ALPHATON® façade system is made out of four simple basic components: The extruded MOEDING ALPHATON® terracotta tiles are produced mainly from domestic clay and are fully imbued with colour. Due to the very high firing temperature and the the long firing period, intensive colours and the best strength are achieved. - Terracotta tiles Tile holders Vertical support profile Joint profile The terracotta tiles are double-walled and 30 mm thick. The breaking loads of the ALPHATON® panel are therefore many times higher than with single-walled panels. The shape of the panel holders also contributes to the stability of the whole façade design. The panel holders are formed in such a way that frontal forces are transferred to the whole tile thickness and dissipate into the substructure. The specifications for this are the so-called ball-throw test and the CWCT accreditation, which is generally applicable in En

Pagina 10-Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza
Joint proﬁle

ALPHATON®...

Pagina 11 - Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza gland and is...

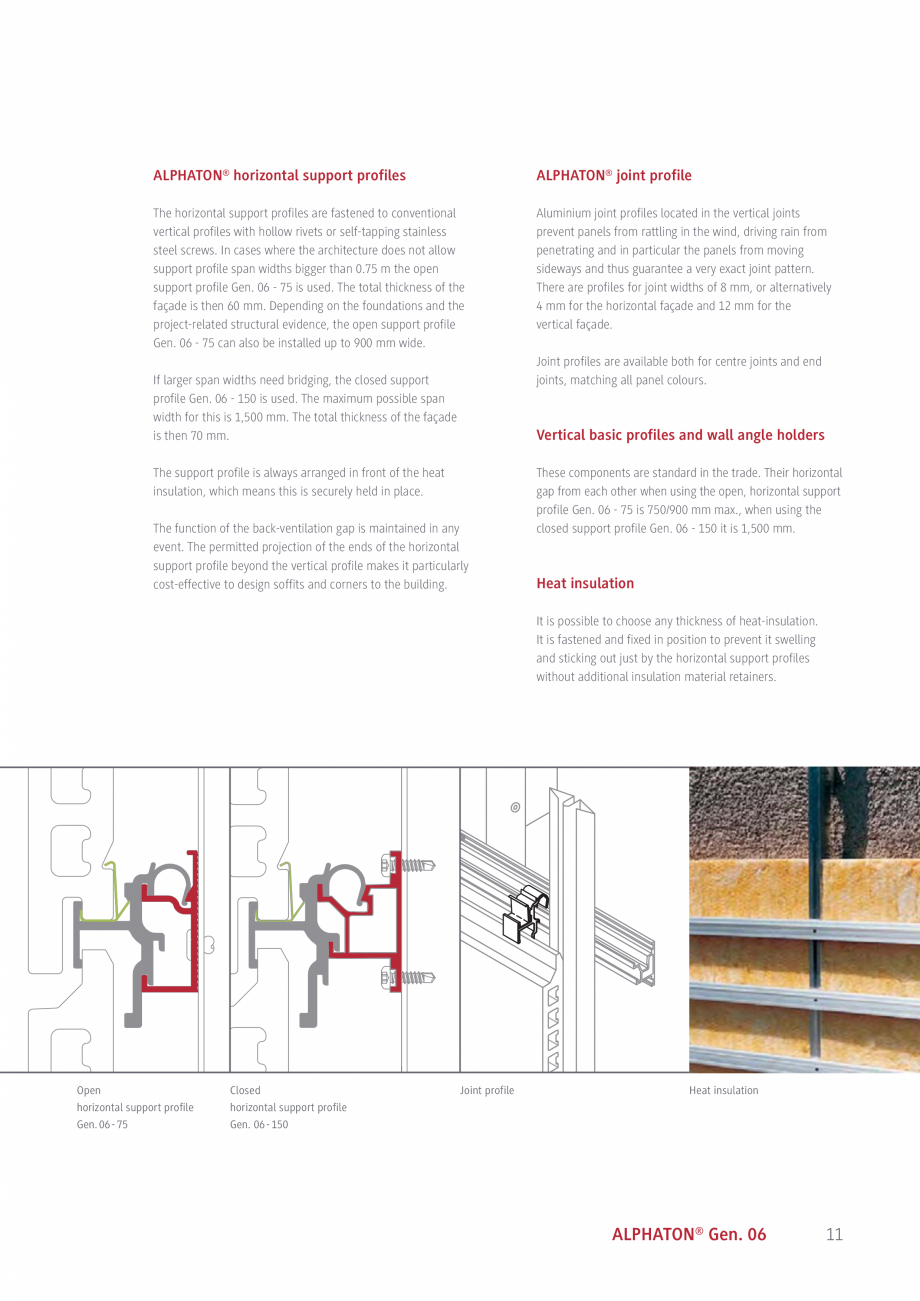

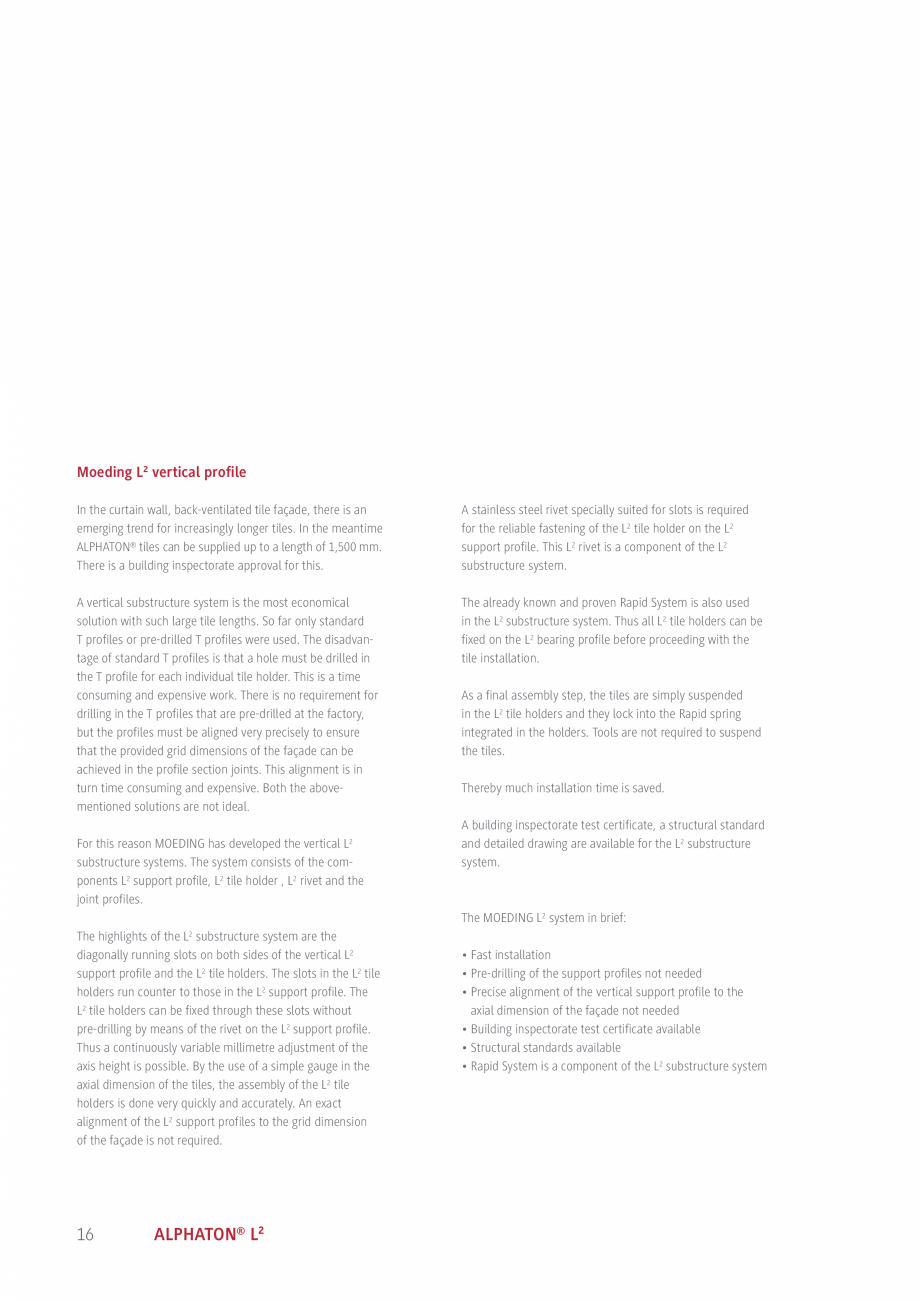

gland and is already part of the standards there. ALPHATON® L2 15 Moeding L2 vertical profile In the curtain wall, back-ventilated tile façade, there is an emerging trend for increasingly longer tiles. In the meantime ALPHATON® tiles can be supplied up to a length of 1,500 mm. There is a building inspectorate approval for this. A stainless steel rivet specially suited for slots is required for the reliable fastening of the L2 tile holder on the L2 support profile. This L2 rivet is a component of the L2 substructure system. A vertical substructure system is the most economical solution with such large tile lengths. So far only standard T profiles or pre-drilled T profiles were used. The disadvantage of standard T profiles is that a hole must be drilled in the T profile for each individual tile holder. This is a time consuming and expensive work. There is no requirement for drilling in the T profiles that are pre-drilled at the factory, but the profiles must be aligned very prec

Pagina 11-Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza gland and is already part of ...

Pagina 12 - Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza isely to ensure...

isely to ensure that the provided grid dimensions of the façade can be achieved in the profile section joints. This alignment is in turn time consuming and expensive. Both the abovementioned solutions are not ideal. The already known and proven Rapid System is also used in the L2 substructure system. Thus all L2 tile holders can be fixed on the L2 bearing profile before proceeding with the tile installation. For this reason MOEDING has developed the vertical L2 substructure systems. The system consists of the components L2 support profile, L2 tile holder , L2 rivet and the joint profiles. As a final assembly step, the tiles are simply suspended in the L2 tile holders and they lock into the Rapid spring integrated in the holders. Tools are not required to suspend the tiles. Thereby much installation time is saved. A building inspectorate test certificate, a structural standard and detailed drawing are available for the L2 substructure system. The MOEDING L2 system in brief: 2 The

Pagina 12-Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza isely to ensure
that the...

Pagina 13 - Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza highlights of the...

highlights of the L substructure system are the diagonally running slots on both sides of the vertical L2 support profile and the L2 tile holders. The slots in the L2 tile holders run counter to those in the L2 support profile. The L2 tile holders can be fixed through these slots without pre-drilling by means of the rivet on the L2 support profile. Thus a continuously variable millimetre adjustment of the axis height is possible. By the use of a simple gauge in the axial dimension of the tiles, the assembly of the L2 tile holders is done very quickly and accurately. An exact alignment of the L2 support profiles to the grid dimension of the façade is not required. 16 ALPHATON® L2 • Fast installation • Pre-drilling of the support profiles not needed • Precise alignment of the vertical support profile to the axial dimension of the façade not needed • Building inspectorate test certificate available • Structural standards available • Rapid System is a component of the L2

Pagina 13-Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza highlights of the L...

Pagina 14 - Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza substructure...

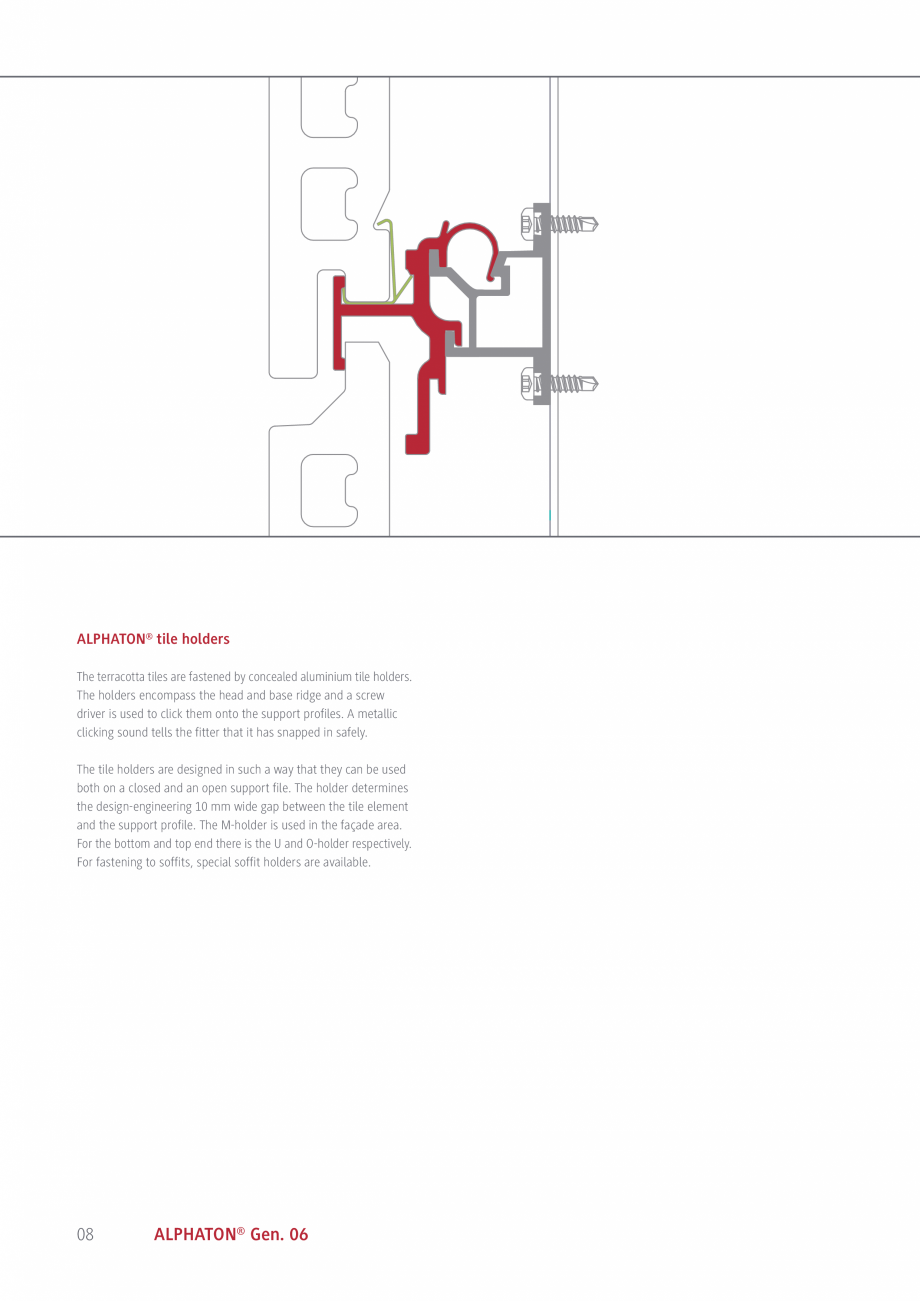

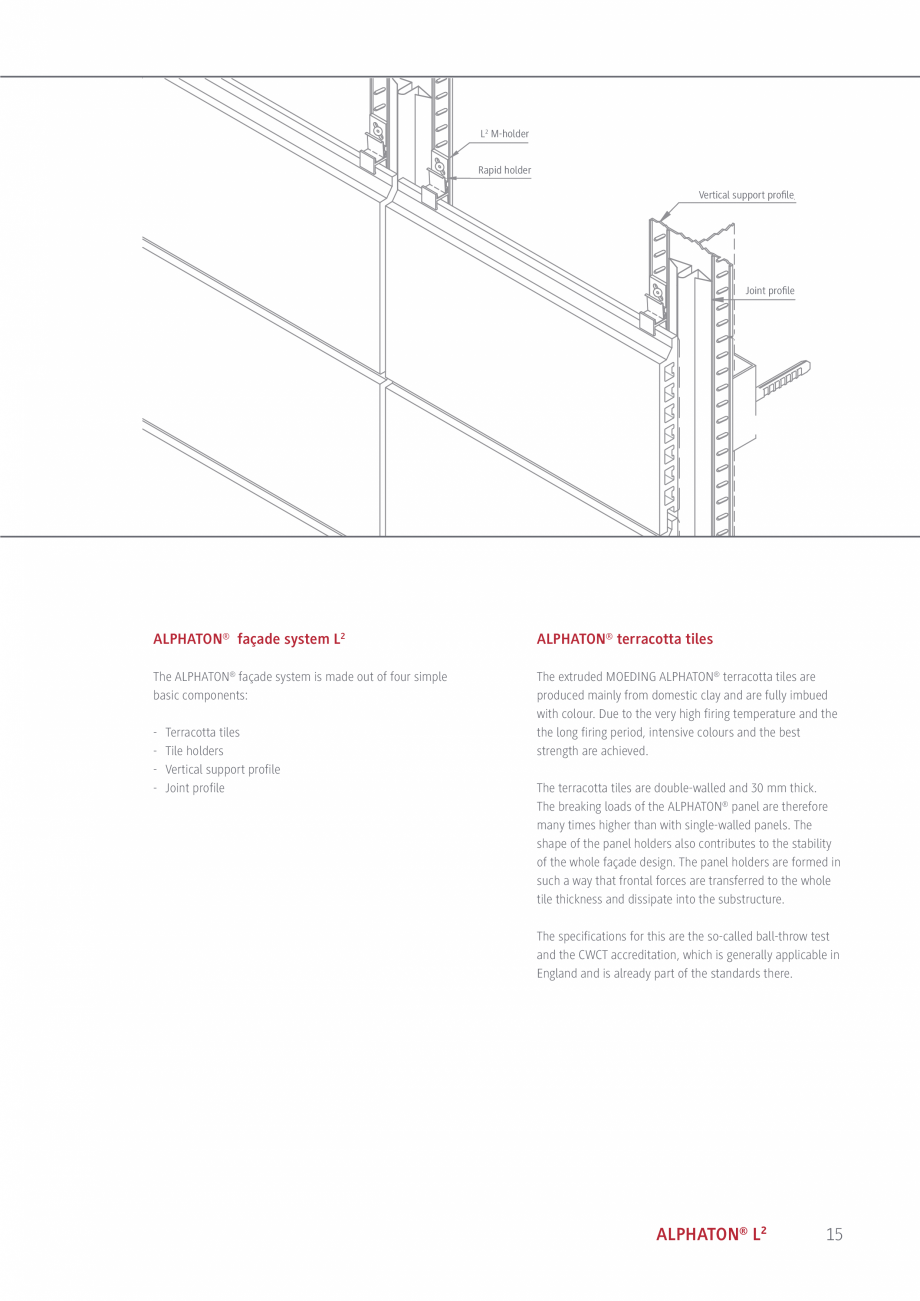

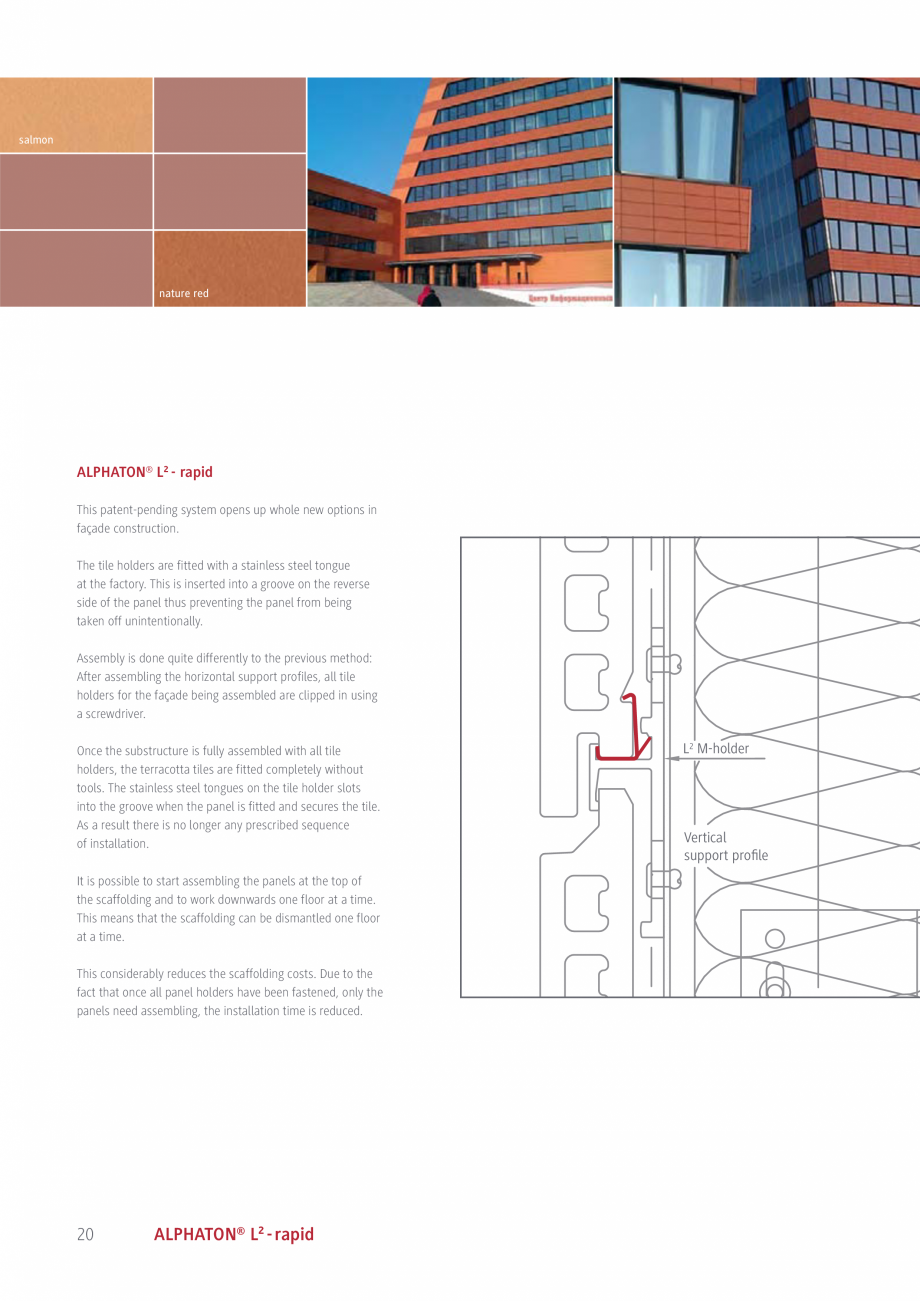

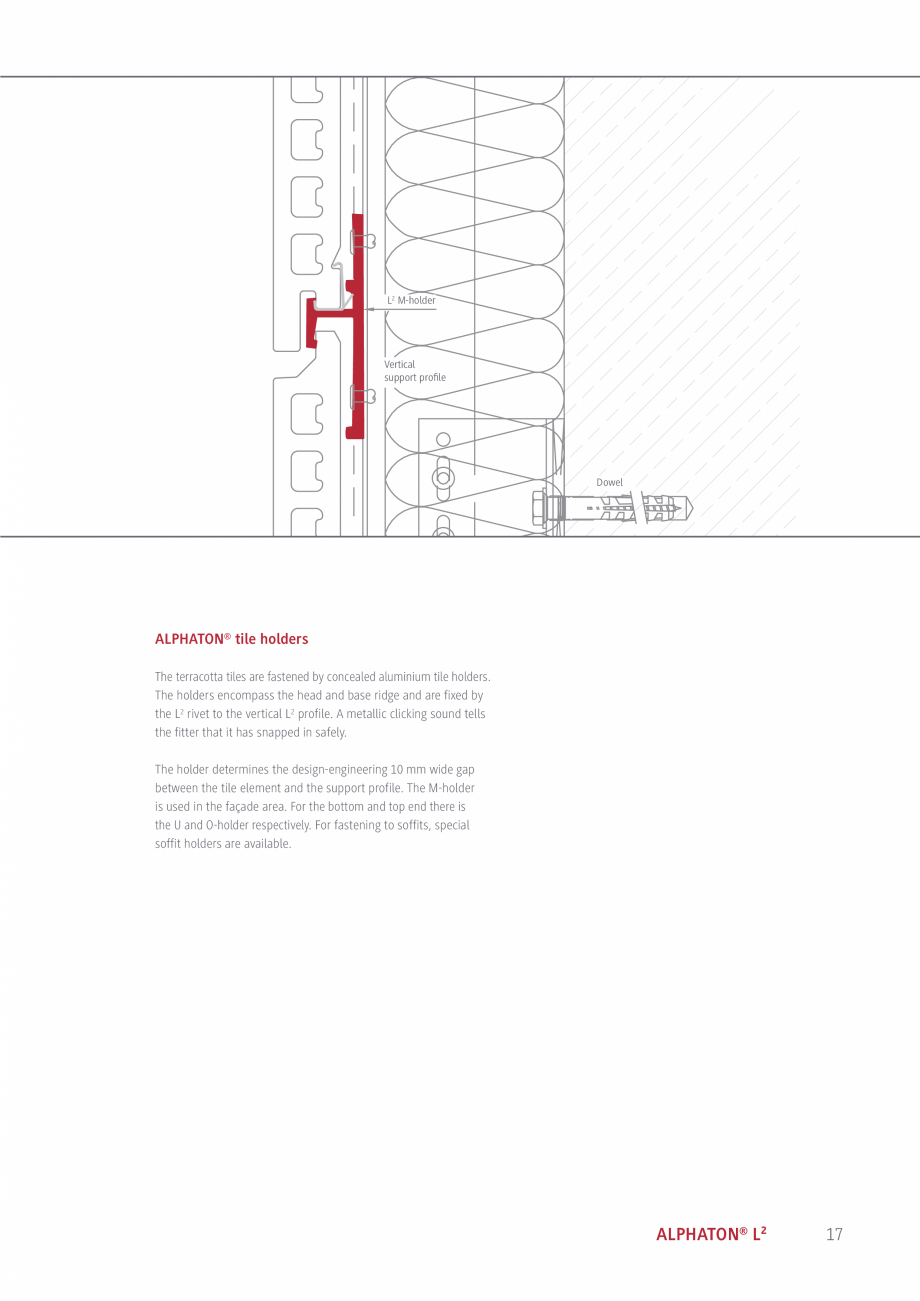

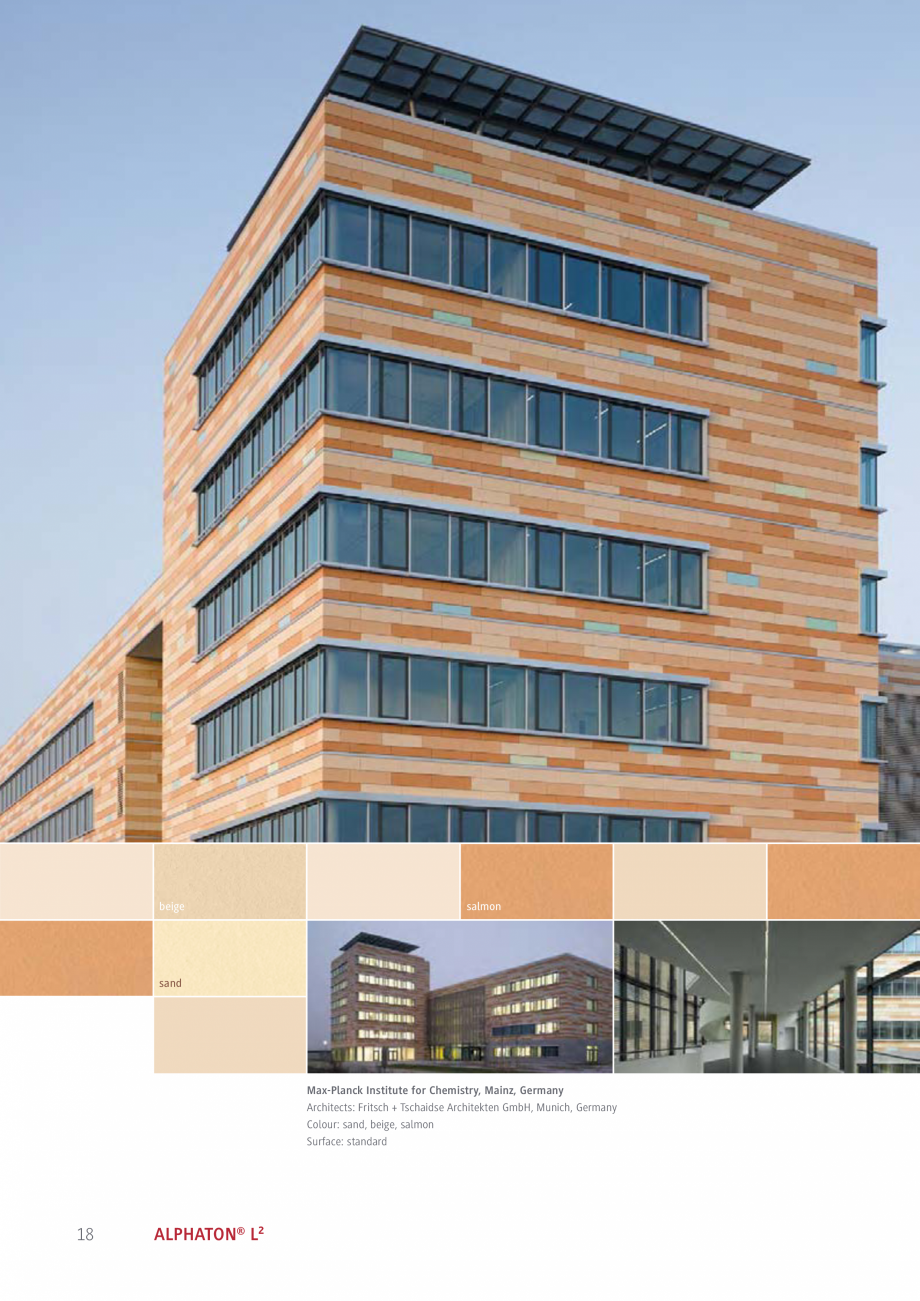

substructure system L2 M-holder Vertical support proﬁle Dowel ALPHATON® tile holders The terracotta tiles are fastened by concealed aluminium tile holders. The holders encompass the head and base ridge and are fixed by the L2 rivet to the vertical L2 profile. A metallic clicking sound tells the fitter that it has snapped in safely. The holder determines the design-engineering 10 mm wide gap between the tile element and the support profile. The M-holder is used in the façade area. For the bottom and top end there is the U and O-holder respectively. For fastening to soffits, special soffit holders are available. ALPHATON® L2 17 beige salmon sand Max-Planck Institute for Chemistry, Mainz, Germany Architects: Fritsch + Tschaidse Architekten GmbH, Munich, Germany Colour: sand, beige, salmon Surface: standard 18 ALPHATON® L2 ALPHATON® support profiles ALPHATON® joint profile The vertical support profile is fixed on wall angle holders which are anchored directly in t

Pagina 14-Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza substructure system

L2...

Pagina 15 - Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza he support wall.
...

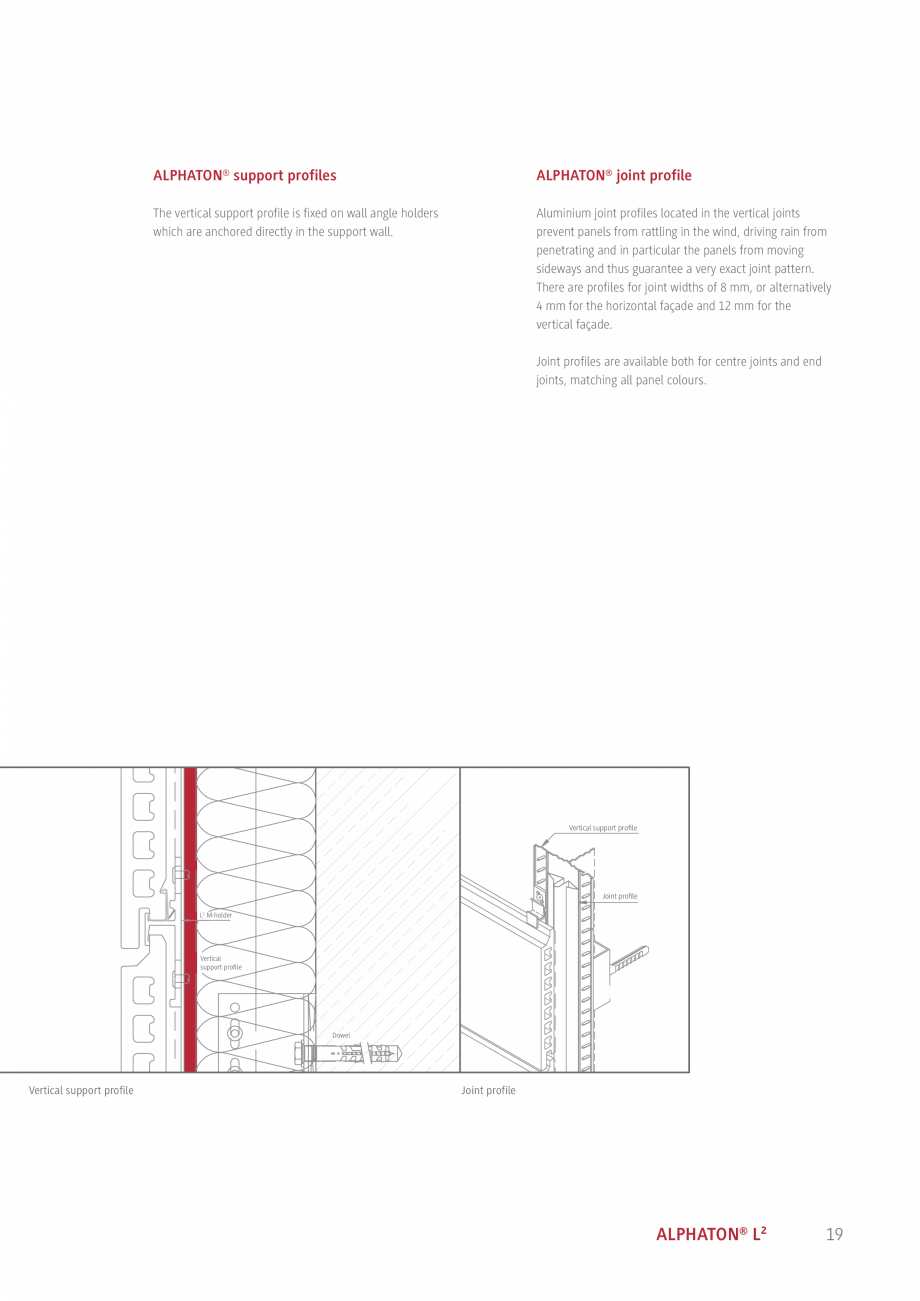

he support wall. Aluminium joint profiles located in the vertical joints prevent panels from rattling in the wind, driving rain from penetrating and in particular the panels from moving sideways and thus guarantee a very exact joint pattern. There are profiles for joint widths of 8 mm, or alternatively 4 mm for the horizontal façade and 12 mm for the vertical façade. Joint profiles are available both for centre joints and end joints, matching all panel colours. Vertical support proﬁle Joint proﬁle L2 M-holder Vertical support proﬁle Dowel Vertical support profile Joint profile ALPHATON® L2 19 salmon nature red ALPHATON® L2 - rapid This patent-pending system opens up whole new options in façade construction. The tile holders are fitted with a stainless steel tongue at the factory. This is inserted into a groove on the reverse side of the panel thus preventing the panel from being taken off unintentionally. Assembly is done quite differently to the previous method

Pagina 15-Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza he support wall.

Aluminium...

Pagina 16 - Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza :
After...

: After assembling the horizontal support profiles, all tile holders for the façade being assembled are clipped in using a screwdriver. Once the substructure is fully assembled with all tile holders, the terracotta tiles are fitted completely without tools. The stainless steel tongues on the tile holder slots into the groove when the panel is fitted and secures the tile. As a result there is no longer any prescribed sequence of installation. It is possible to start assembling the panels at the top of the scaffolding and to work downwards one floor at a time. This means that the scaffolding can be dismantled one floor at a time. This considerably reduces the scaffolding costs. Due to the fact that once all panel holders have been fastened, only the panels need assembling, the installation time is reduced. 20 ALPHATON® L2 - rapid L2 M-holder Vertical support proﬁle Technopark, Novosibirsk, Russia Architects: Vera Serova, Artur Lotarev, Valeriy Wilisov Colour: natural red, salmo

Pagina 16-Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza :
After assembling the...

Pagina 17 - Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza n
Surface:...

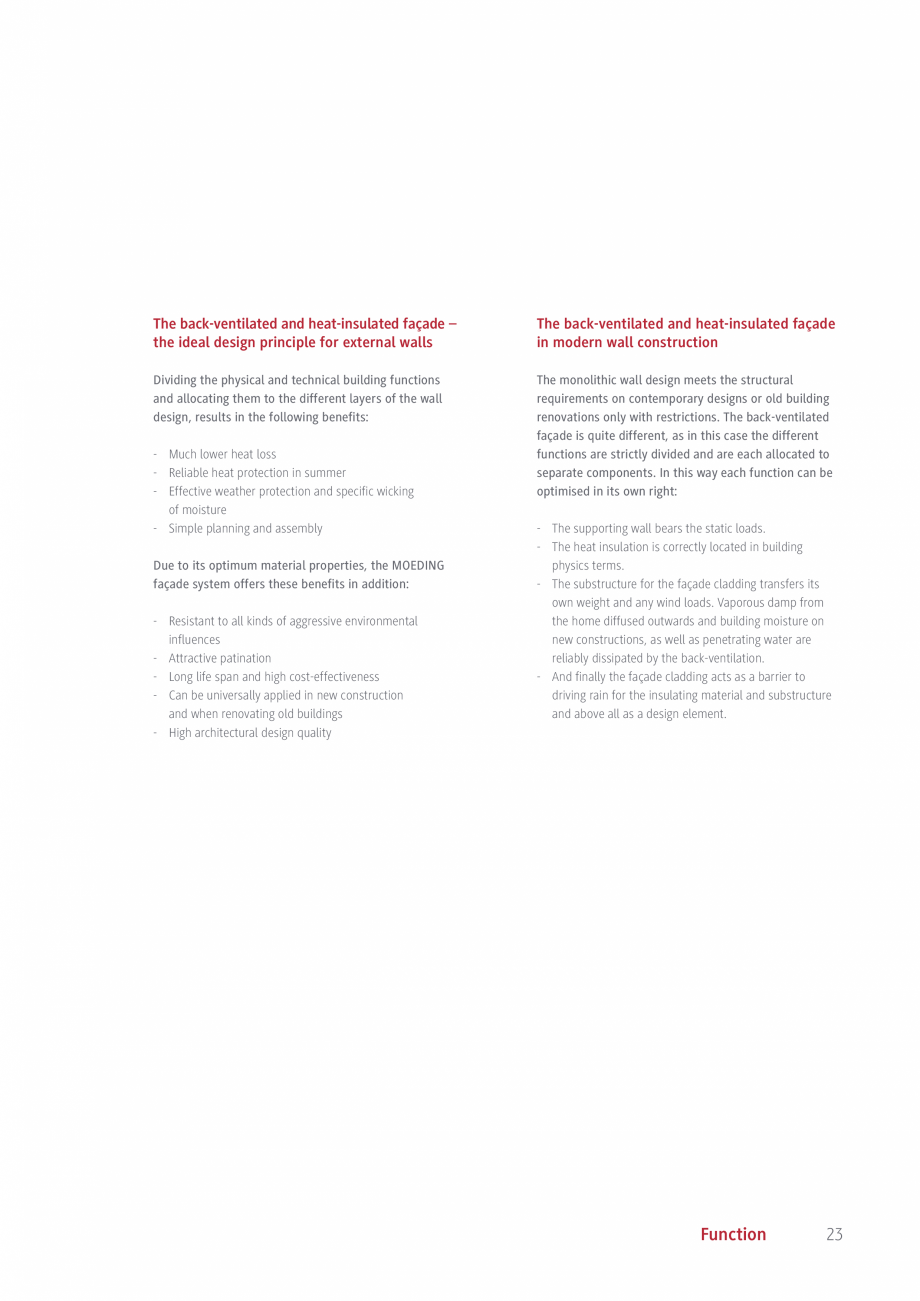

n Surface: standard ALPHATON® L2 - rapid 21 Function Building physics Planning 22 24 26 The back-ventilated and heat-insulated façade – the ideal design principle for external walls The back-ventilated and heat-insulated façade in modern wall construction Dividing the physical and technical building functions and allocating them to the different layers of the wall design, results in the following benefits: The monolithic wall design meets the structural requirements on contemporary designs or old building renovations only with restrictions. The back-ventilated façade is quite different, as in this case the different functions are strictly divided and are each allocated to separate components. In this way each function can be optimised in its own right: - Much lower heat loss - Reliable heat protection in summer - Effective weather protection and specific wicking of moisture - Simple planning and assembly Due to its optimum material properties, the MOEDING façade syst

Pagina 17-Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza n
Surface: standard
...

Pagina 18 - Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza em offers these...

em offers these benefits in addition: - Resistant to all kinds of aggressive environmental influences - Attractive patination - Long life span and high cost-effectiveness - Can be universally applied in new construction and when renovating old buildings - High architectural design quality - The supporting wall bears the static loads. - The heat insulation is correctly located in building physics terms. - The substructure for the façade cladding transfers its own weight and any wind loads. Vaporous damp from the home diffused outwards and building moisture on new constructions, as well as penetrating water are reliably dissipated by the back-ventilation. - And finally the façade cladding acts as a barrier to driving rain for the insulating material and substructure and above all as a design element. Function 23 Back-ventilation Fire protection The back-ventilation acts to dissipate the moisture that diffuses through the wall of the building. This takes place via a 4 or 9 cm dee

Pagina 18-Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza em offers these benefits in...

Pagina 19 - Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza p gap between the...

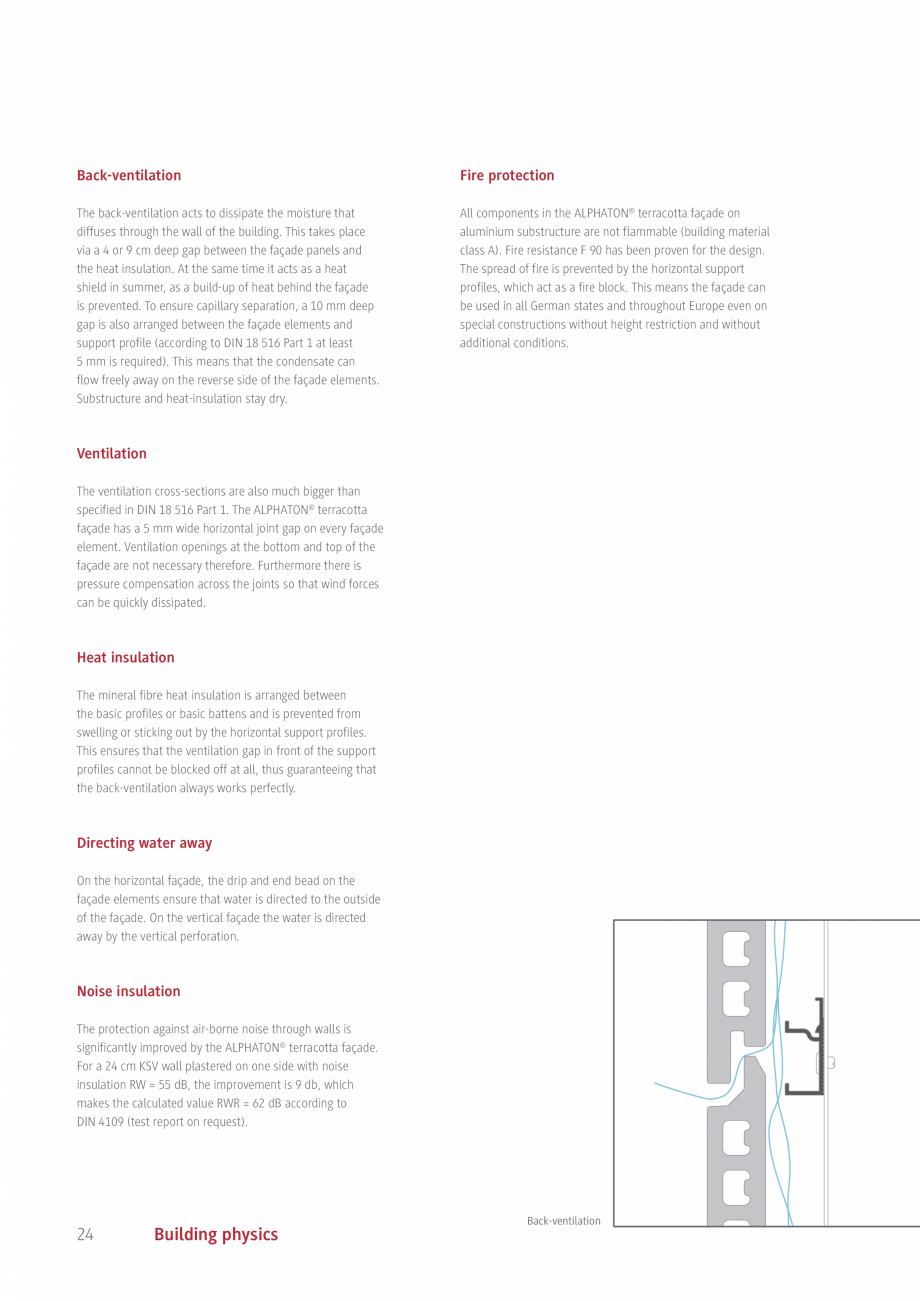

p gap between the façade panels and the heat insulation. At the same time it acts as a heat shield in summer, as a build-up of heat behind the façade is prevented. To ensure capillary separation, a 10 mm deep gap is also arranged between the façade elements and support profile (according to DIN 18 516 Part 1 at least 5 mm is required). This means that the condensate can flow freely away on the reverse side of the façade elements. Substructure and heat-insulation stay dry. All components in the ALPHATON® terracotta façade on aluminium substructure are not flammable (building material class A). Fire resistance F 90 has been proven for the design. The spread of fire is prevented by the horizontal support profiles, which act as a fire block. This means the façade can be used in all German states and throughout Europe even on special constructions without height restriction and without additional conditions. Ventilation The ventilation cross-sections are also much bigger than speci

Pagina 19-Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza p gap between the façade...

Pagina 20 - Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza fied in DIN 18...

fied in DIN 18 516 Part 1. The ALPHATON® terracotta façade has a 5 mm wide horizontal joint gap on every façade element. Ventilation openings at the bottom and top of the façade are not necessary therefore. Furthermore there is pressure compensation across the joints so that wind forces can be quickly dissipated. Heat insulation The mineral fibre heat insulation is arranged between the basic profiles or basic battens and is prevented from swelling or sticking out by the horizontal support profiles. This ensures that the ventilation gap in front of the support profiles cannot be blocked off at all, thus guaranteeing that the back-ventilation always works perfectly. Directing water away On the horizontal façade, the drip and end bead on the façade elements ensure that water is directed to the outside of the façade. On the vertical façade the water is directed away by the vertical perforation. Noise insulation The protection against air-borne noise through walls is significantl

Pagina 20-Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza fied in DIN 18 516 Part 1....

Pagina 21 - Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza y improved by the...

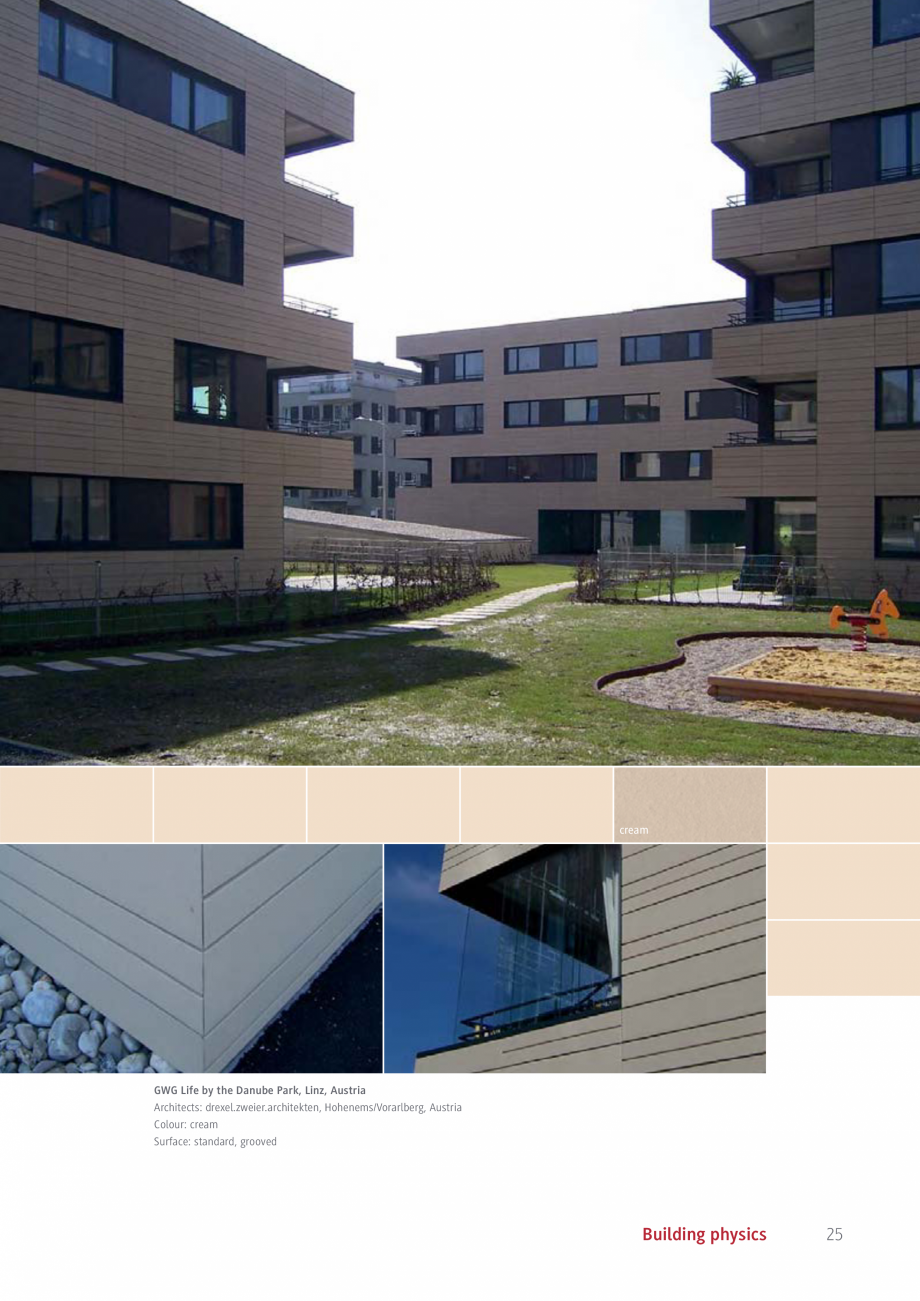

y improved by the ALPHATON® terracotta façade. For a 24 cm KSV wall plastered on one side with noise insulation RW = 55 dB, the improvement is 9 db, which makes the calculated value RWR = 62 dB according to DIN 4109 (test report on request). 24 Building physics Back-ventilation cream GWG Life by the Danube Park, Linz, Austria Architects: drexel.zweier.architekten, Hohenems/Vorarlberg, Austria Colour: cream Surface: standard, grooved Building physics 25 Planning and tendering Service and advice For planning ALPHATON® horizontal and vertical façades, an extensive collection of tried and tested connection details with many suggestions is available and for submitting telling sample contract specifications for tender. At MOEDING this means: The so-called detail booklet especially put together for detailed solutions gives planning tips and also shows very individual transitions from the façade to other building materials or technical designs. - Comprehensive help in plan

Pagina 21-Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza y improved by the ALPHATON® ...

Pagina 22 - Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza ning
Technical...

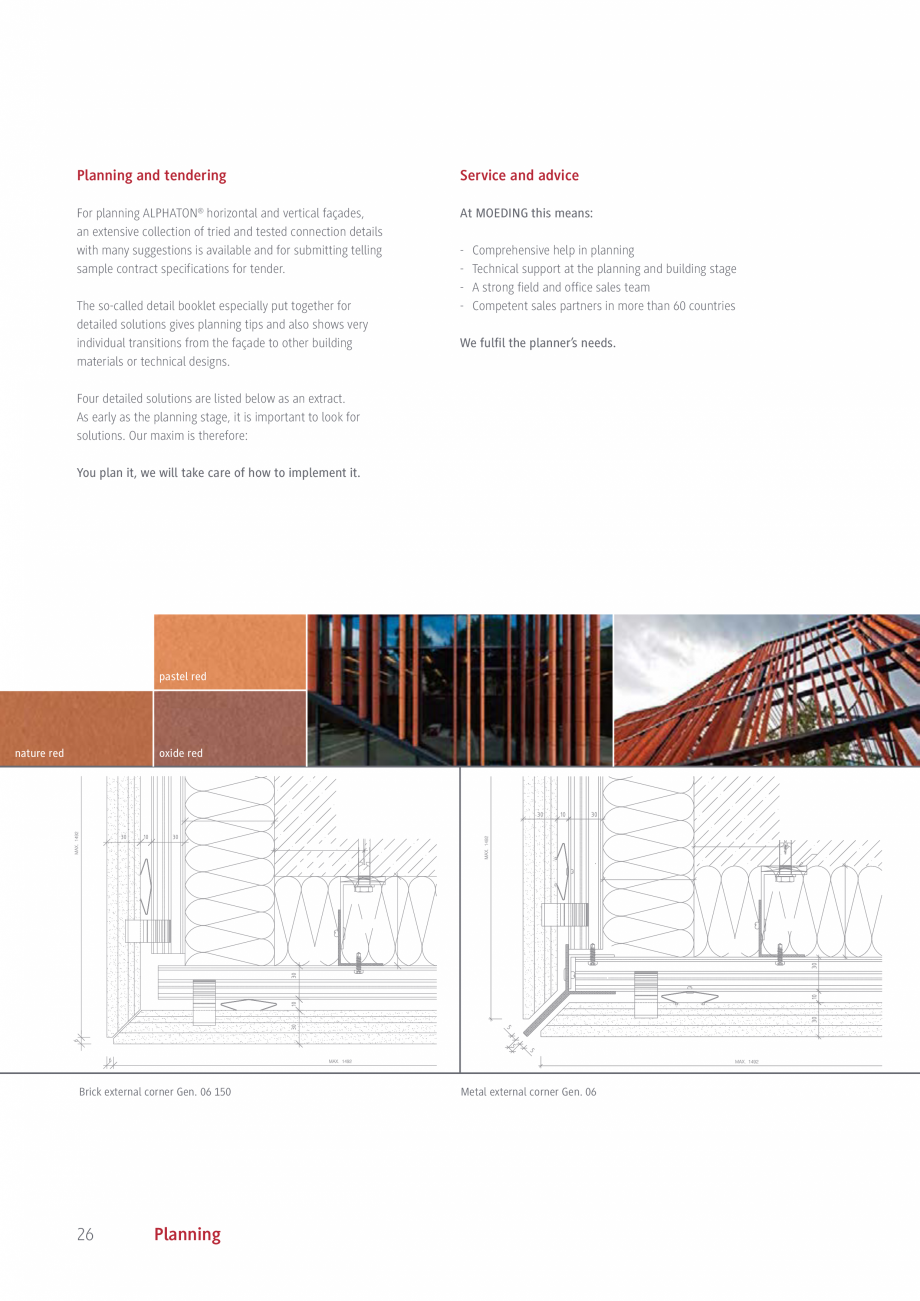

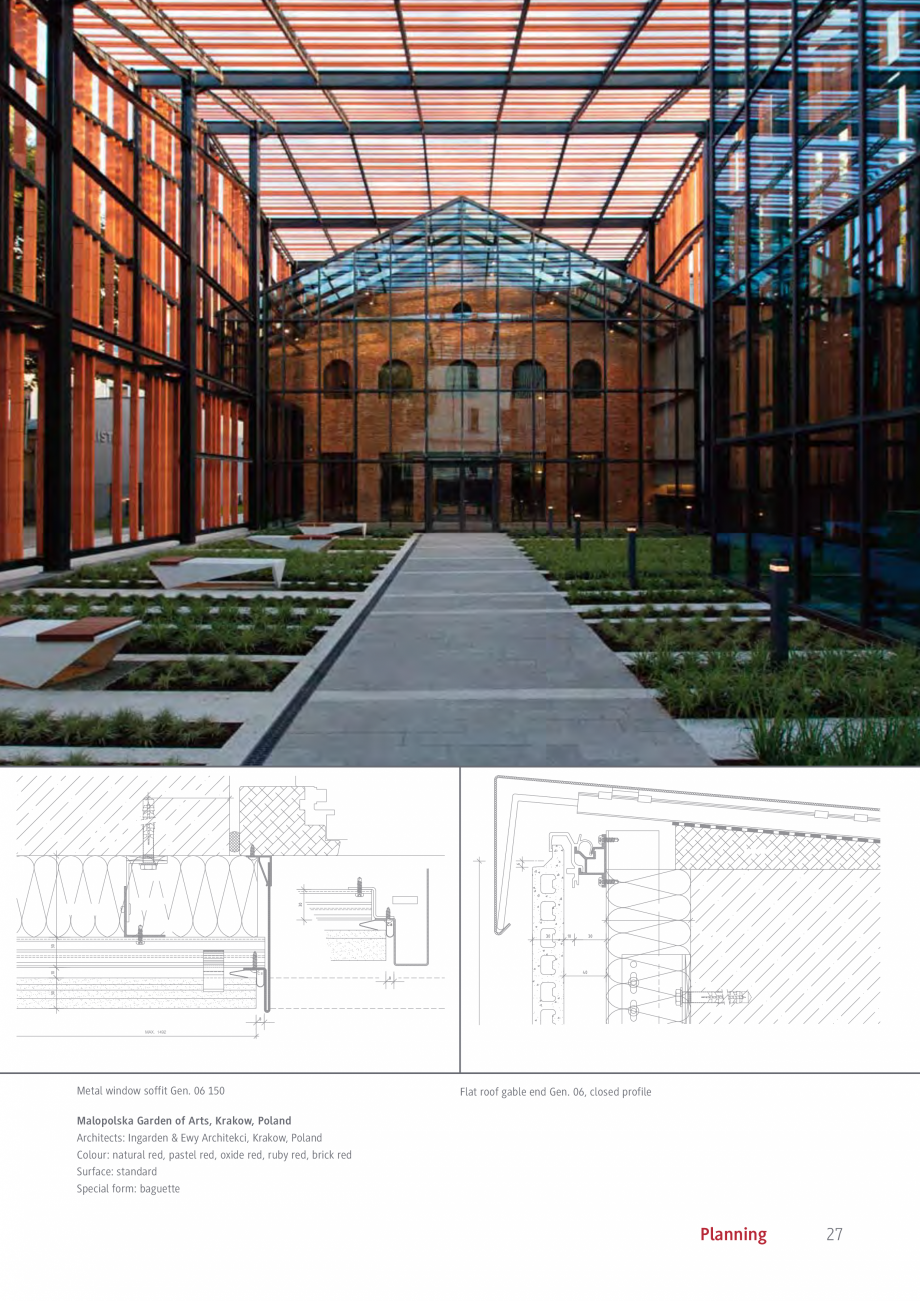

ning Technical support at the planning and building stage A strong field and office sales team Competent sales partners in more than 60 countries We fulfil the planner’s needs. Four detailed solutions are listed below as an extract. As early as the planning stage, it is important to look for solutions. Our maxim is therefore: You plan it, we will take care of how to implement it. pastel red nature red oxide red Brick external corner Gen. 06 150 26 Planning Metal external corner Gen. 06 Metal window soffit Gen. 06 150 Flat roof gable end Gen. 06, closed profile Malopolska Garden of Arts, Krakow, Poland Architects: Ingarden & Ewy Architekci, Krakow, Poland Colour: natural red, pastel red, oxide red, ruby red, brick red Surface: standard Special form: baguette Planning 27 Design Material and colours Surfaces Sunscreen and blinds Formats 28 30 31 34 36 Fascinating variety With the curtain wall, back-ventilated tile façade system ALPHATON® from MOEDING, you obtain c

Pagina 22-Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza ning
Technical support at the...

Pagina 23 - Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza reative tools to
...

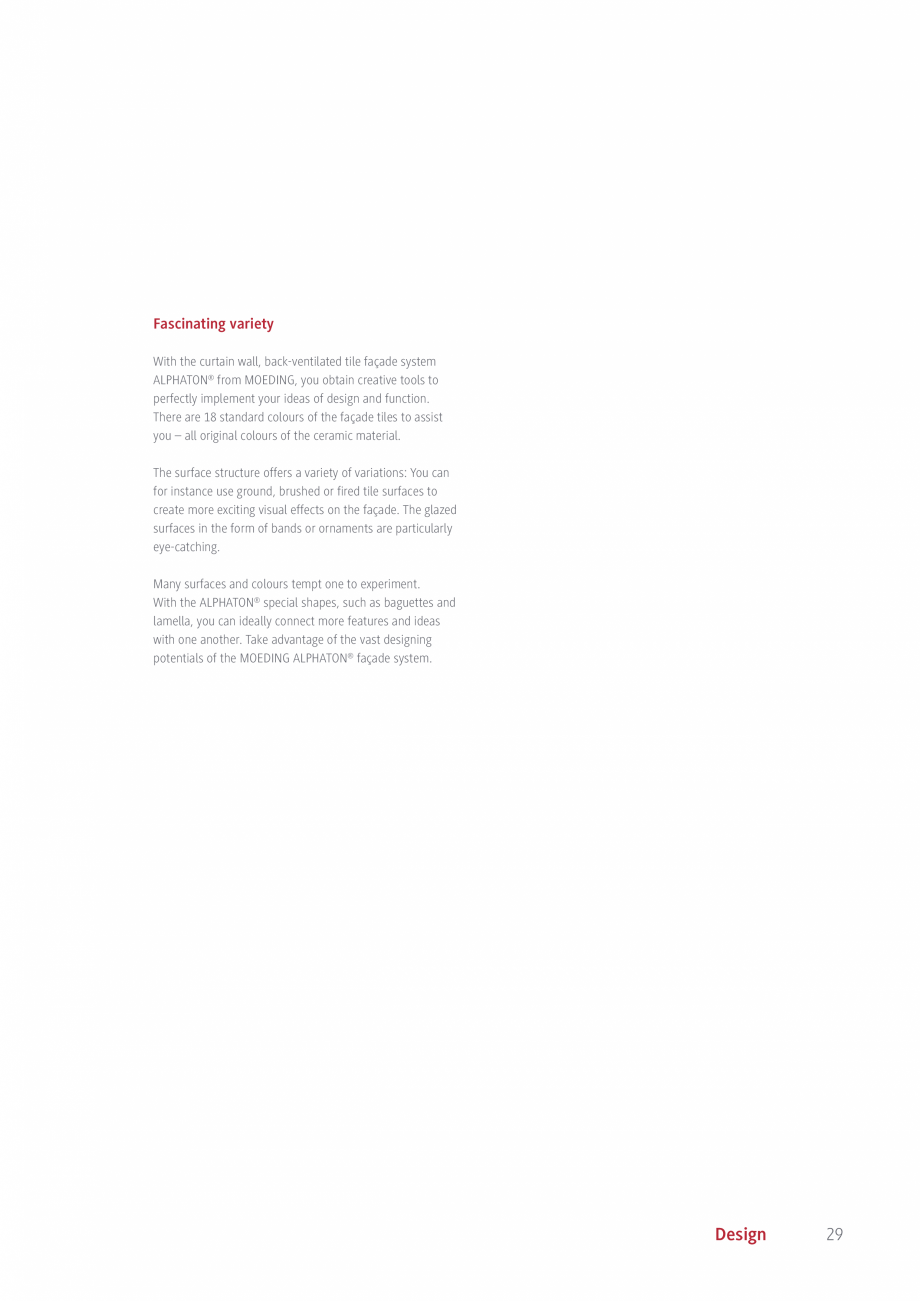

reative tools to perfectly implement your ideas of design and function. There are 18 standard colours of the façade tiles to assist you – all original colours of the ceramic material. The surface structure offers a variety of variations: You can for instance use ground, brushed or fired tile surfaces to create more exciting visual effects on the façade. The glazed surfaces in the form of bands or ornaments are particularly eye-catching. Many surfaces and colours tempt one to experiment. With the ALPHATON® special shapes, such as baguettes and lamella, you can ideally connect more features and ideas with one another. Take advantage of the vast designing potentials of the MOEDING ALPHATON® façade system. Design 29 natural red ivory oxide red dark red sand brown beige pearl grey blue grey salmon iron grey turquoise pastel red quartz grey light grey volcano grey Material and colours Thanks to its ideal properties, the traditional terracotta material suits new and

Pagina 23-Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza reative tools to
perfectly...

Pagina 24 - Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza historic...

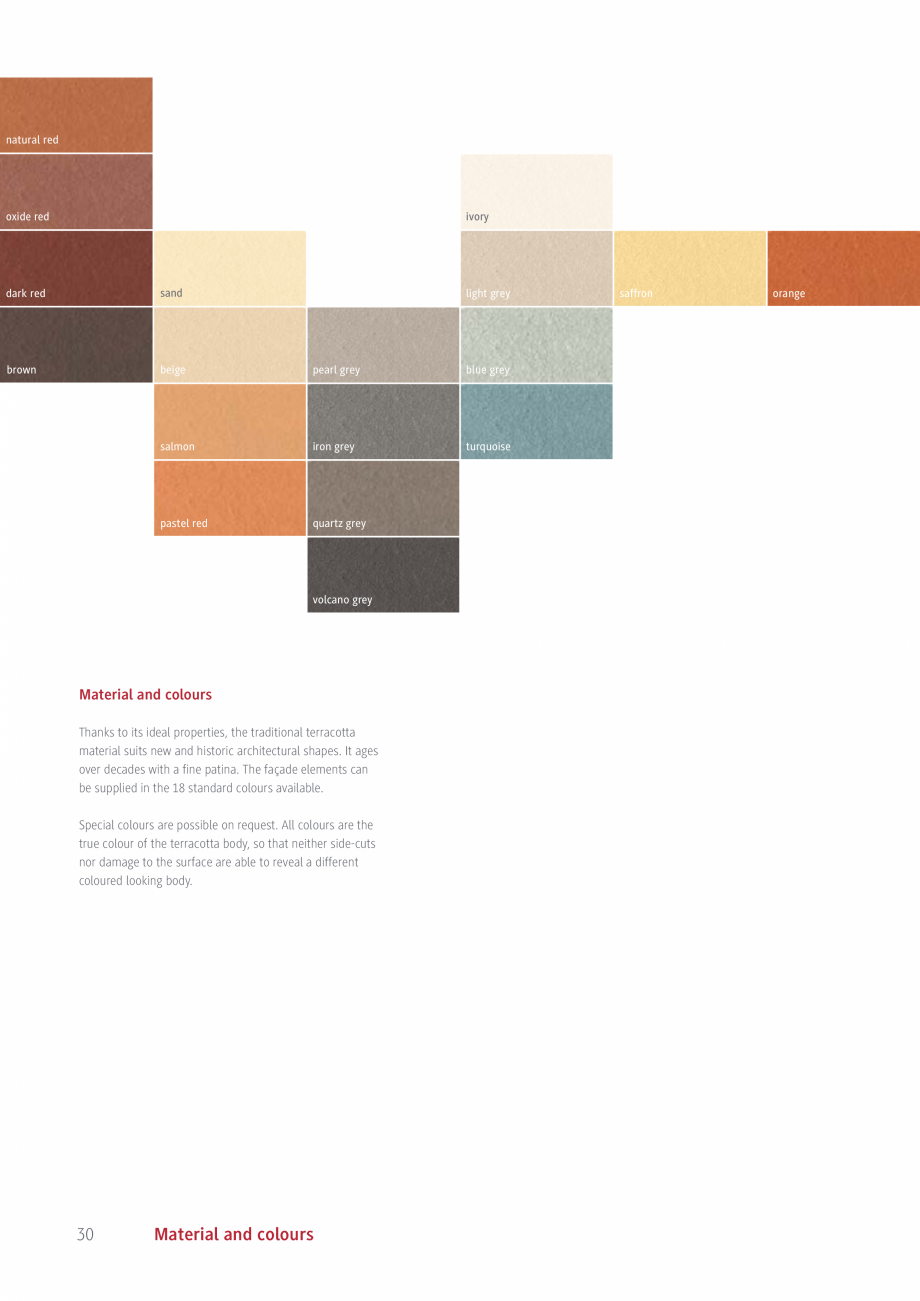

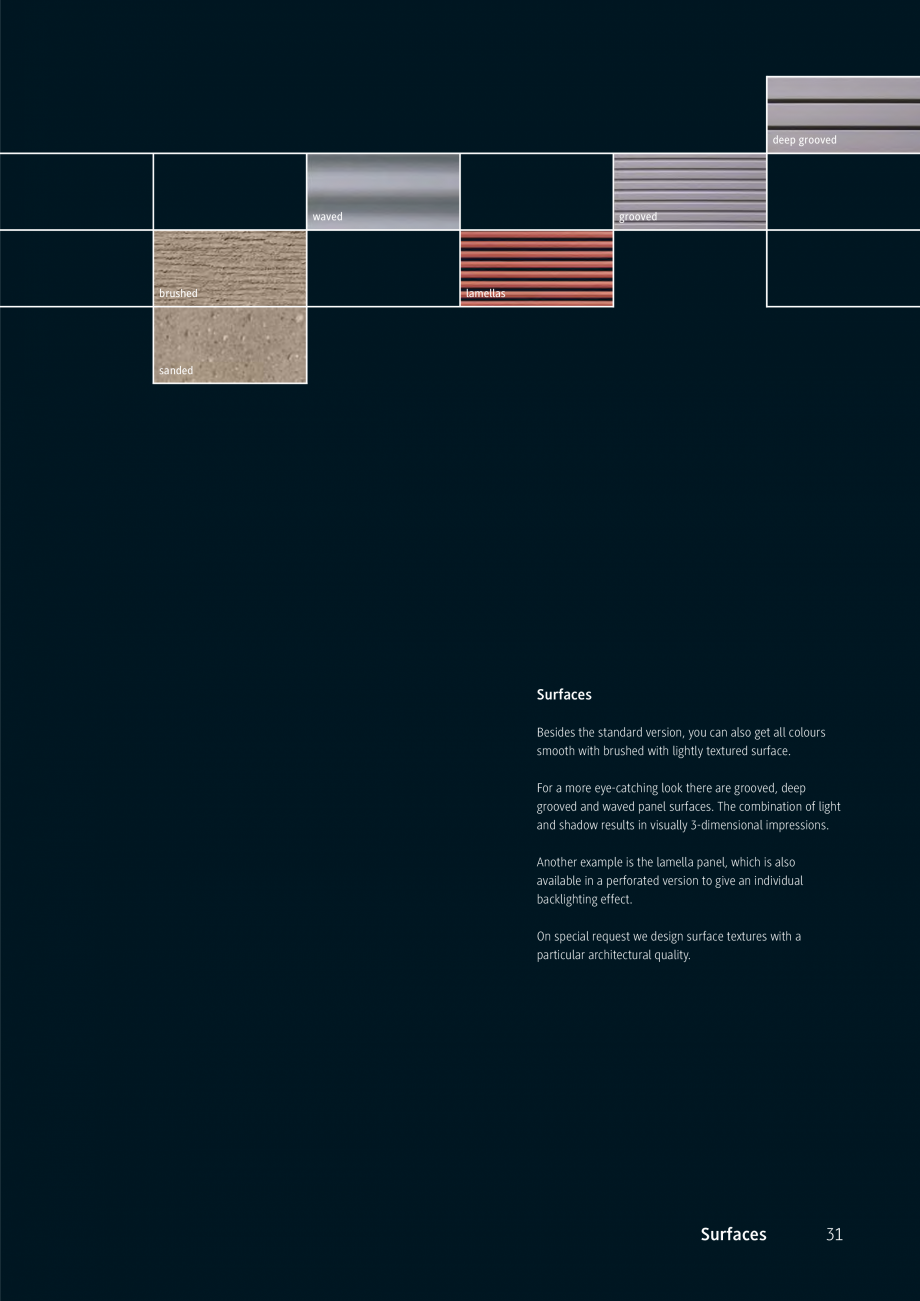

historic architectural shapes. It ages over decades with a fine patina. The façade elements can be supplied in the 18 standard colours available. Special colours are possible on request. All colours are the true colour of the terracotta body, so that neither side-cuts nor damage to the surface are able to reveal a different coloured looking body. 30 Material and colours saffron orange deep grooved waved brushed grooved lamellas sanded Surfaces Besides the standard version, you can also get all colours smooth with brushed with lightly textured surface. For a more eye-catching look there are grooved, deep grooved and waved panel surfaces. The combination of light and shadow results in visually 3-dimensional impressions. Another example is the lamella panel, which is also available in a perforated version to give an individual backlighting effect. On special request we design surface textures with a particular architectural quality. Surfaces 31 Glazed surfaces The ALPHAT

Pagina 24-Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza historic architectural...

Pagina 25 - Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza ON® terracotta...

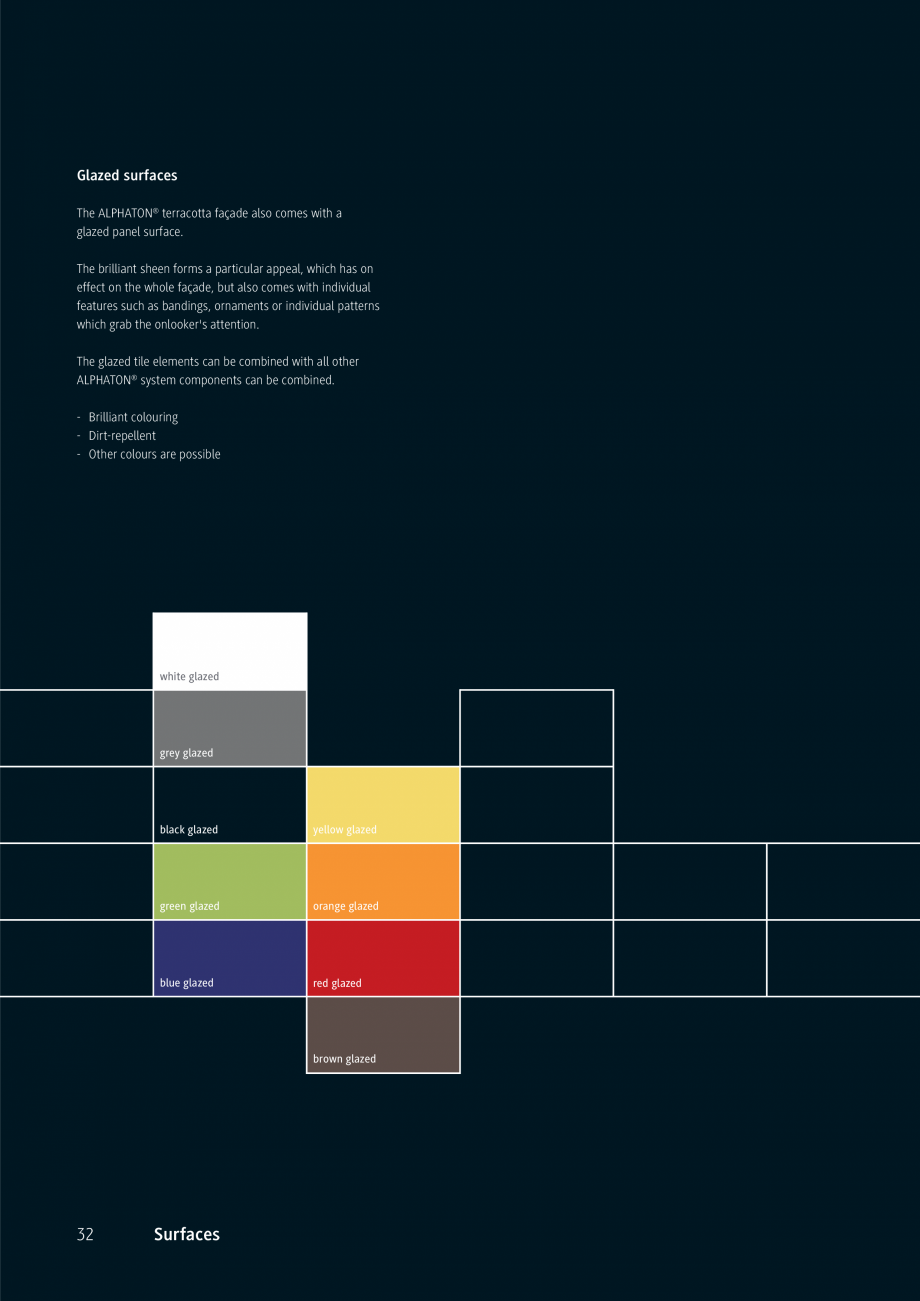

ON® terracotta façade also comes with a glazed panel surface. The brilliant sheen forms a particular appeal, which has on effect on the whole façade, but also comes with individual features such as bandings, ornaments or individual patterns which grab the onlooker's attention. The glazed tile elements can be combined with all other ALPHATON® system components can be combined. - Brilliant colouring - Dirt-repellent - Other colours are possible white glazed grey glazed black glazed yellow glazed green glazed orange glazed blue glazed red glazed brown glazed 32 Surfaces black glazed FEBO office building, Amsterdam, Netherlands New construction Colour: black Surface: glazed Surfaces 33 Sunscreen and blinds The baguettes and lamellas in the ALPHATON® façade system on the one hand provide creative freedom, whilst on the other hand, function and uses are stylishly adopted to the architecture. Finished parts can be prefabricated from several baguettes. The use of MOED

Pagina 25-Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza ON® terracotta façade also ...

Pagina 26 - Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza ING shading and...

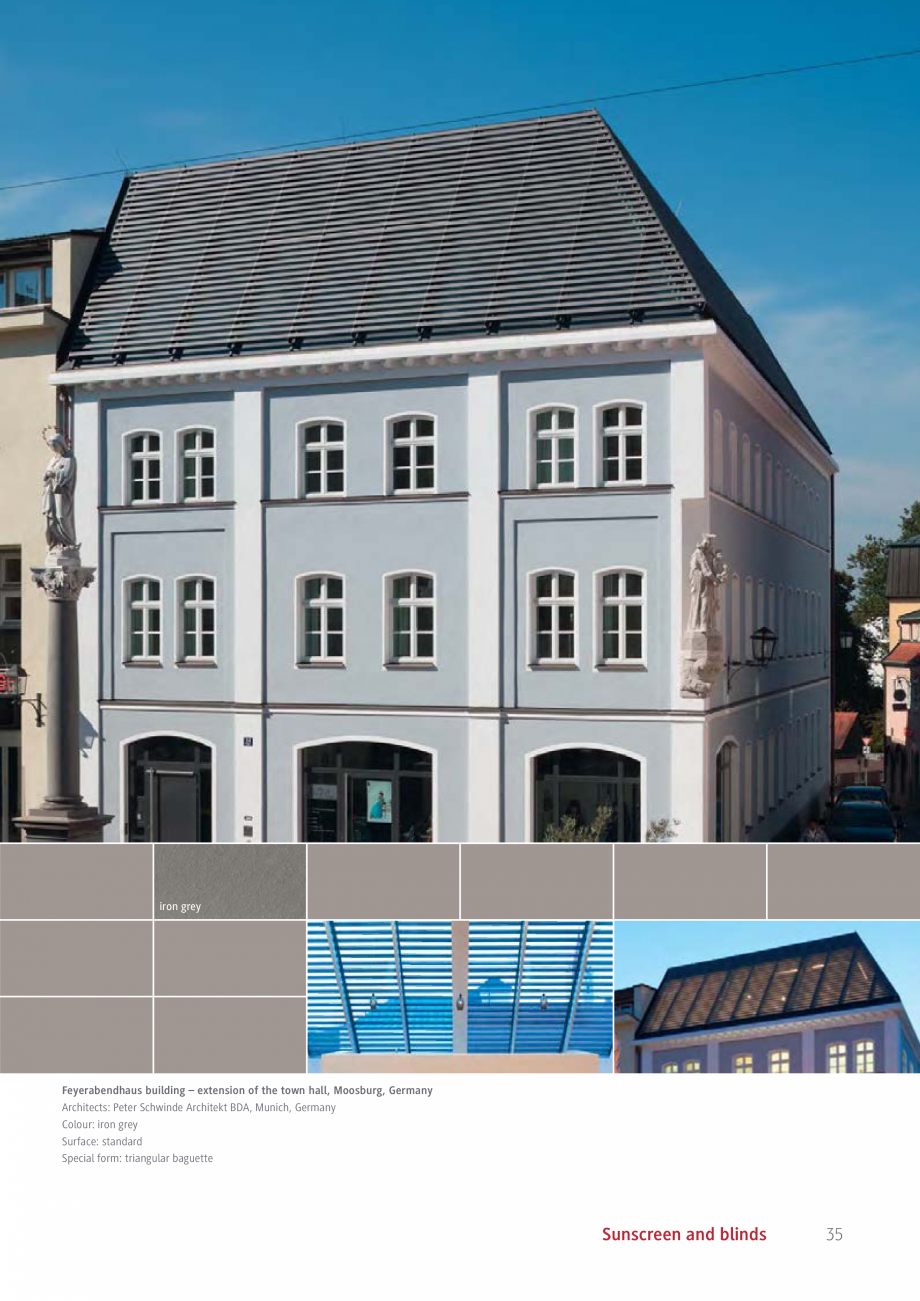

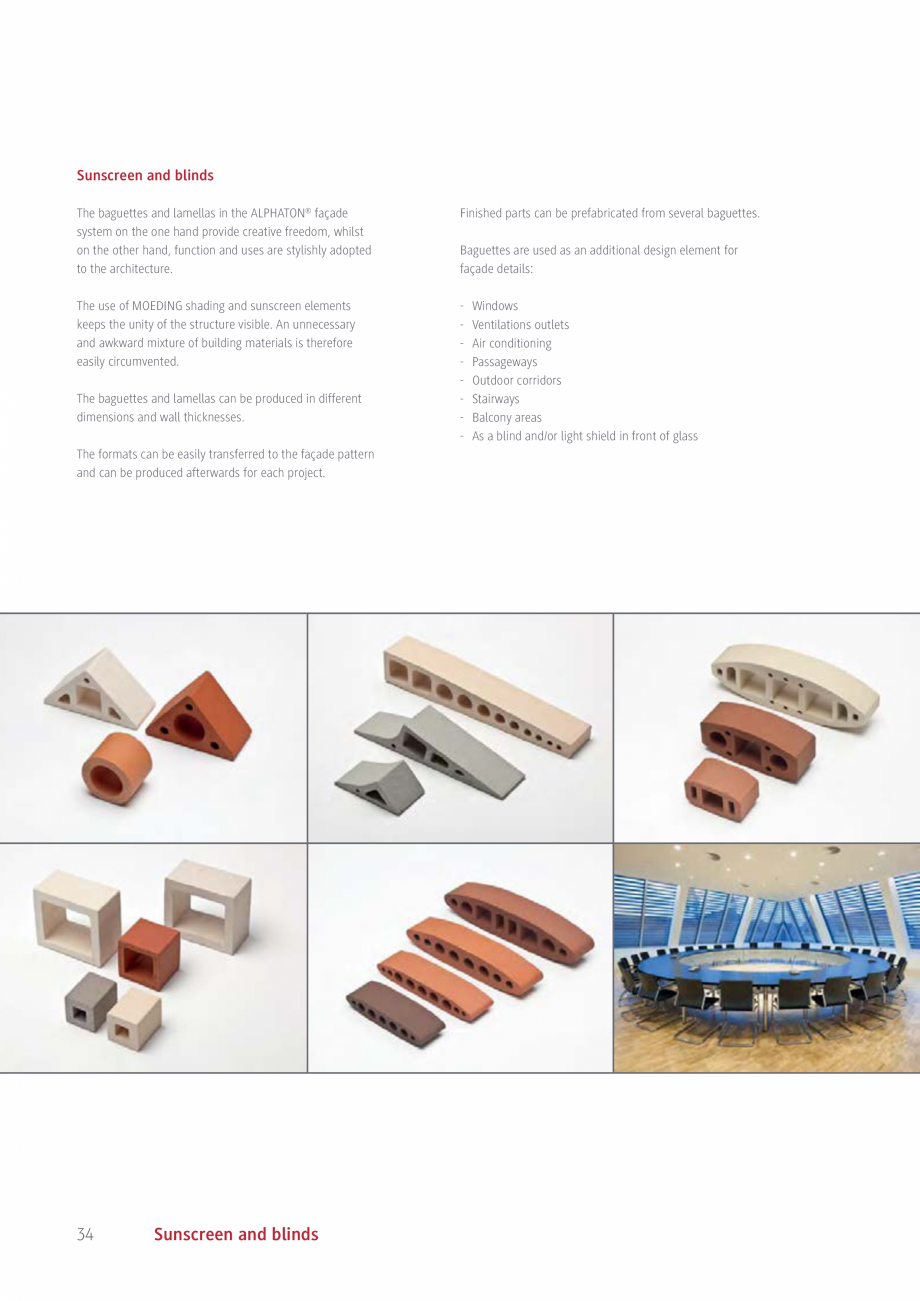

ING shading and sunscreen elements keeps the unity of the structure visible. An unnecessary and awkward mixture of building materials is therefore easily circumvented. - The baguettes and lamellas can be produced in different dimensions and wall thicknesses. The formats can be easily transferred to the façade pattern and can be produced afterwards for each project. 34 Sunscreen and blinds Baguettes are used as an additional design element for façade details: Windows Ventilations outlets Air conditioning Passageways Outdoor corridors Stairways Balcony areas As a blind and/or light shield in front of glass iron grey Feyerabendhaus building – extension of the town hall, Moosburg, Germany Architects: Peter Schwinde Architekt BDA, Munich, Germany Colour: iron grey Surface: standard Special form: triangular baguette Sunscreen and blinds 35 Formats and axial dimensions – ALPHATON® There is a broad range of design options thanks to the choice between horizontal and vertical

Pagina 26-Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza ING shading and sunscreen...

Pagina 27 - Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza formats,...

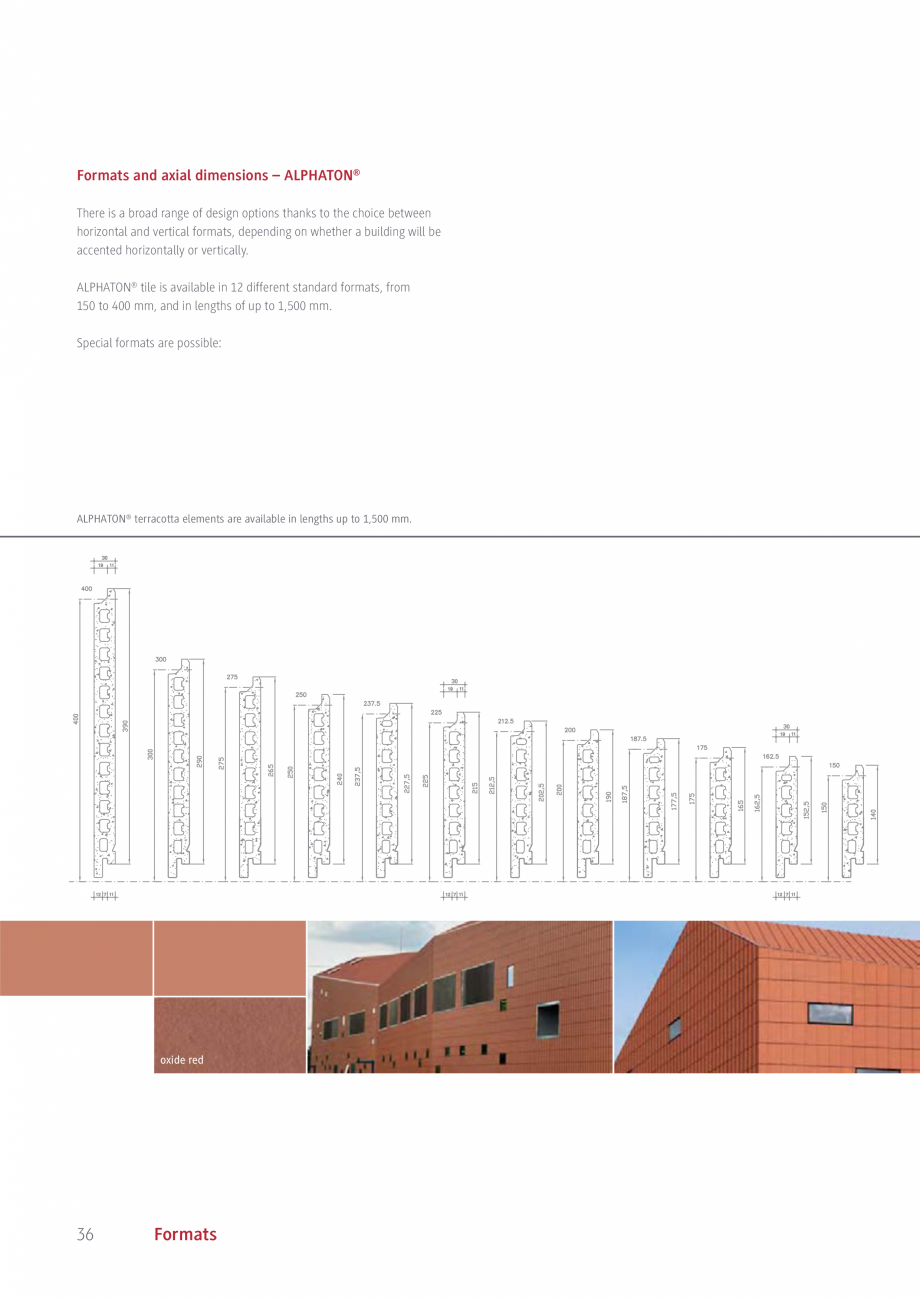

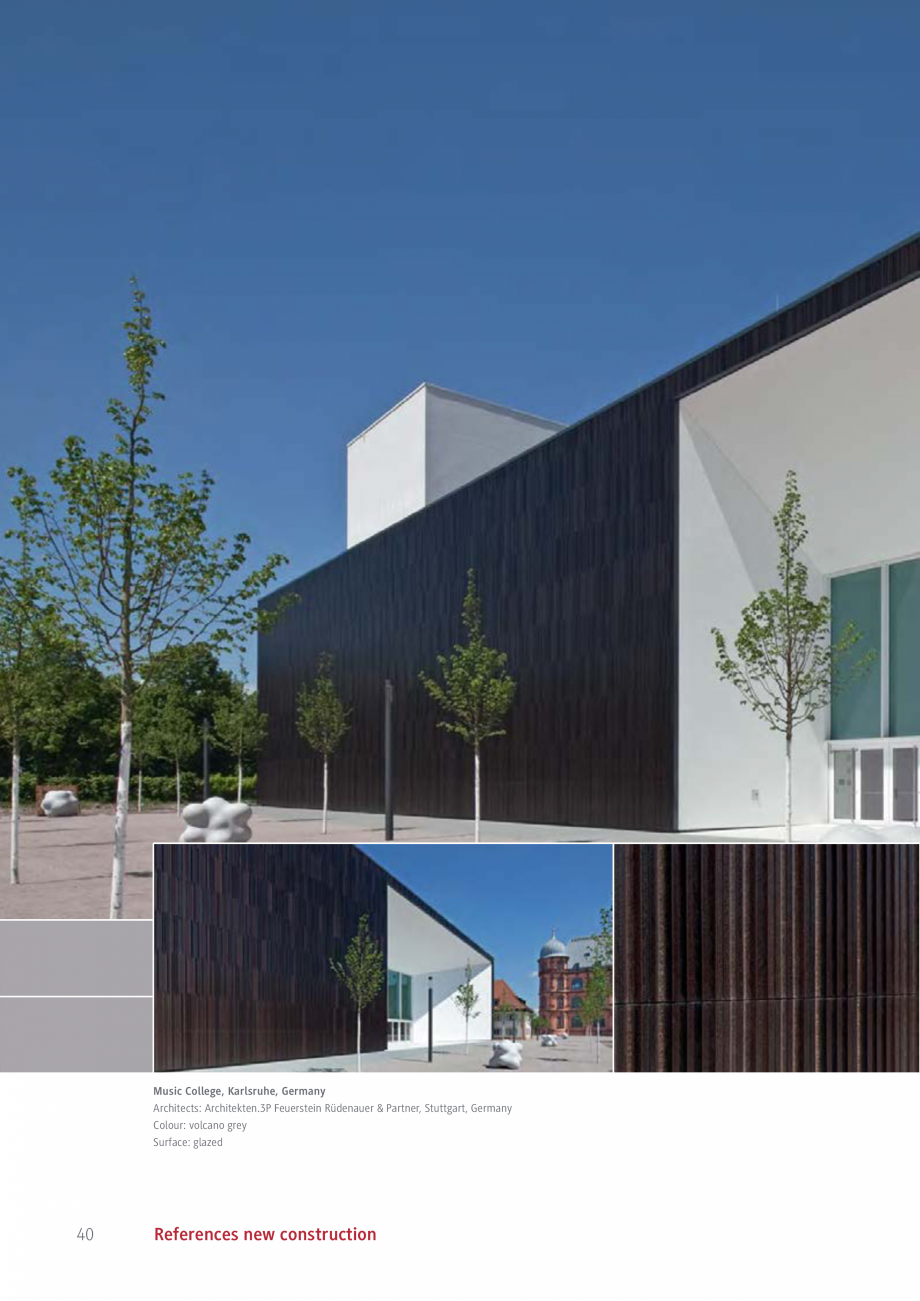

formats, depending on whether a building will be accented horizontally or vertically. ALPHATON® tile is available in 12 different standard formats, from 150 to 400 mm, and in lengths of up to 1,500 mm. Special formats are possible: ALPHATON® terracotta elements are available in lengths up to 1,500 mm. oxide red 36 Formats CFA, Gennevilliers, France Architects: Brenac et Gonzalez Architecture, Paris, France Colour: oxide red Special form: special form Formats 37 References new construction 38 red glazed Mensa, Salmtal, Germany Architects: Spreier, Dreis Colour: red Surface: glazed References new construction 39 Music College, Karlsruhe, Germany Architects: Architekten.3P Feuerstein Rüdenauer & Partner, Stuttgart, Germany Colour: volcano grey Surface: glazed 40 References new construction volcano grey, glazed References new construction 41 ivory light grey quartz grey Clinic, Schwabing (Munich), Germany Architects: Stefan Ludes, Munich, Germany Colour: light

Pagina 27-Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza formats, depending on whether...

Pagina 28 - Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza grey, quartz...

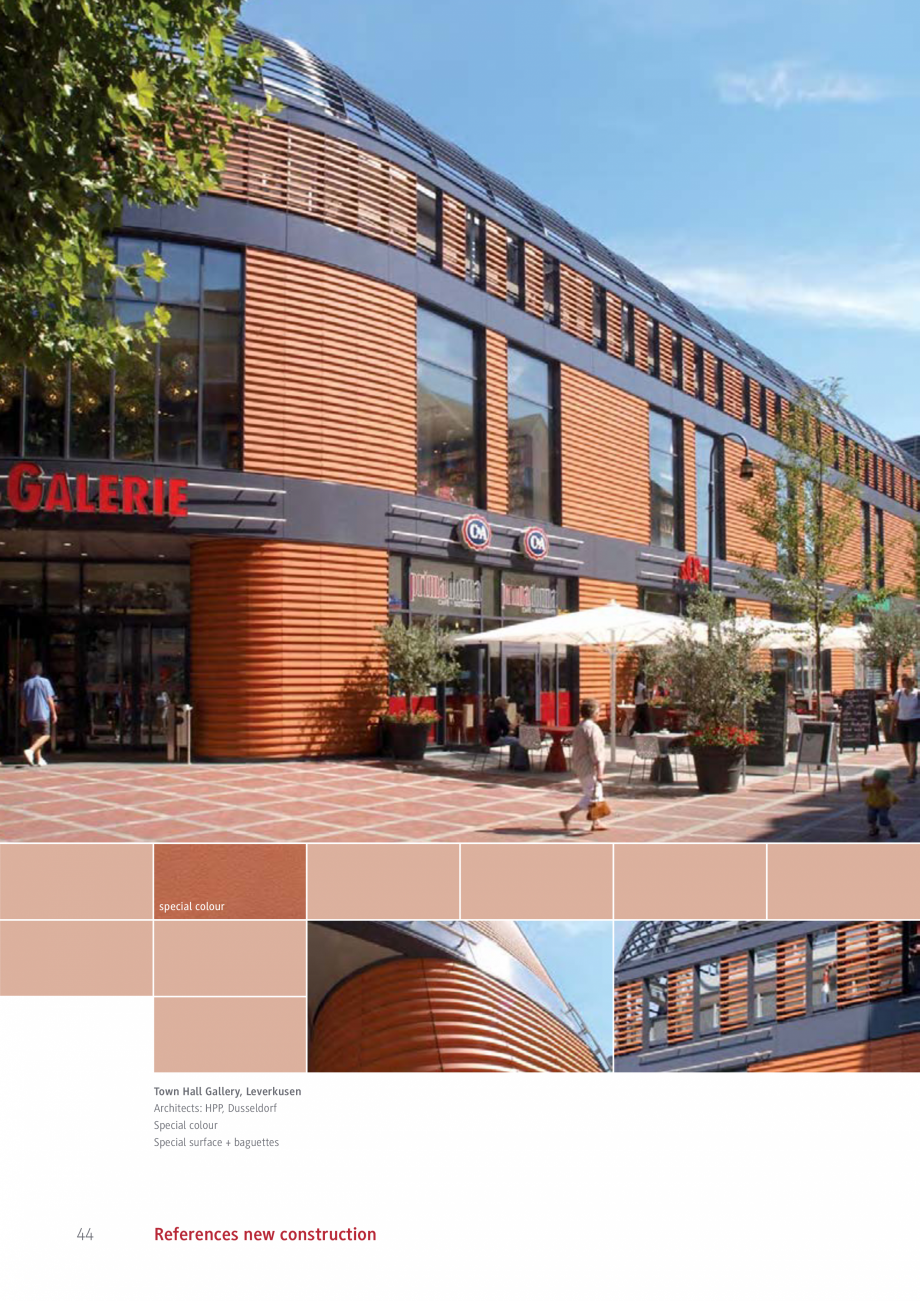

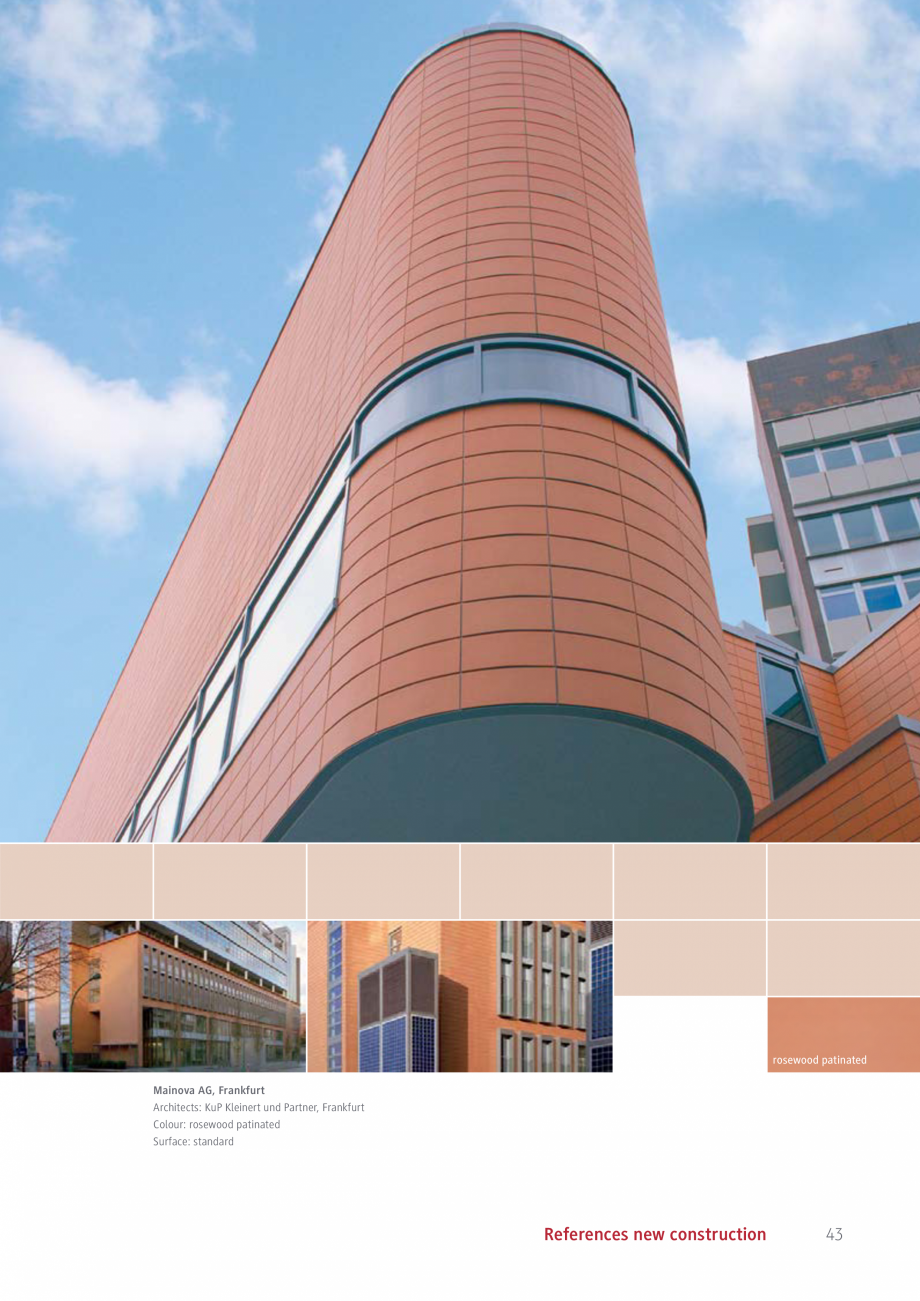

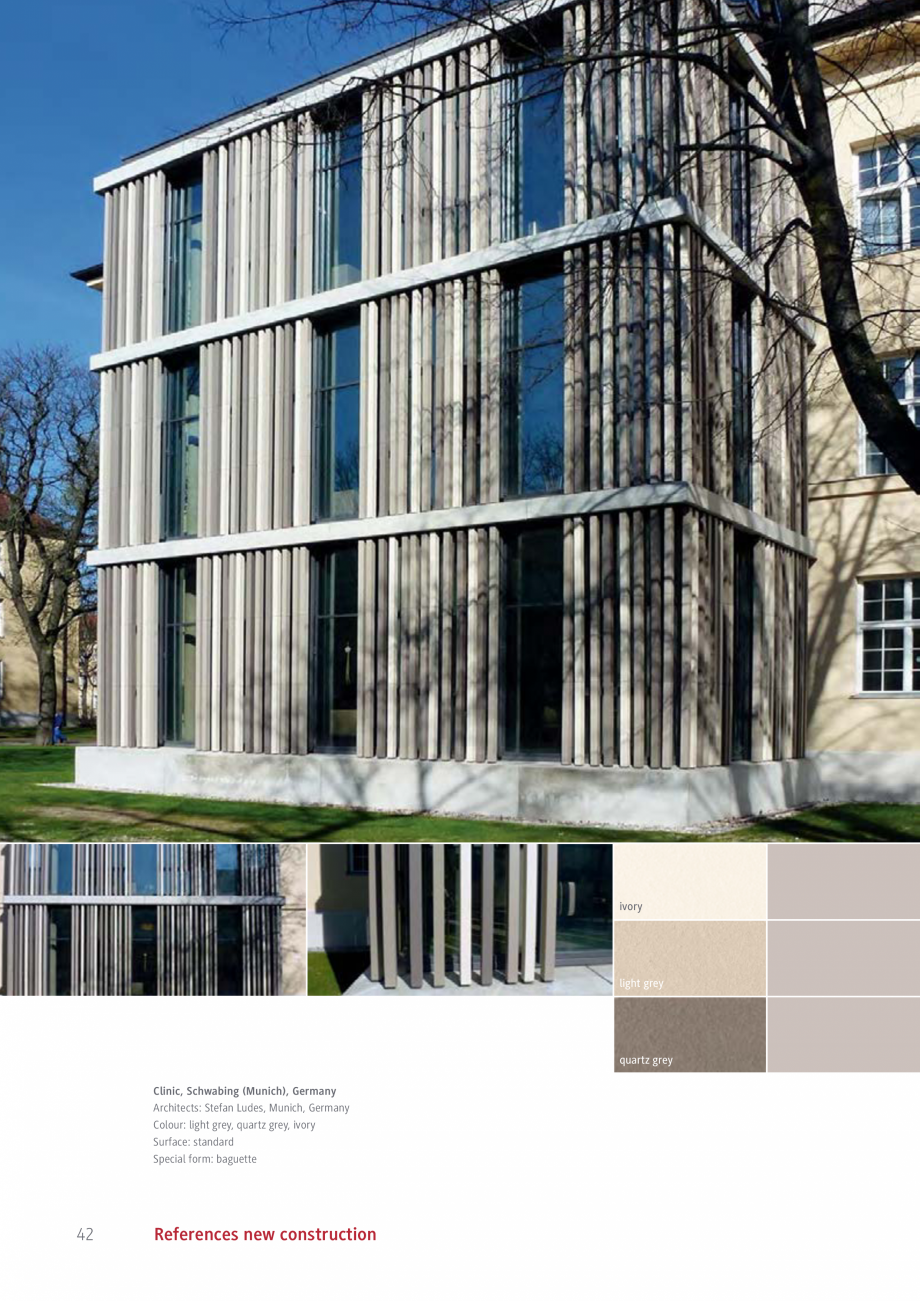

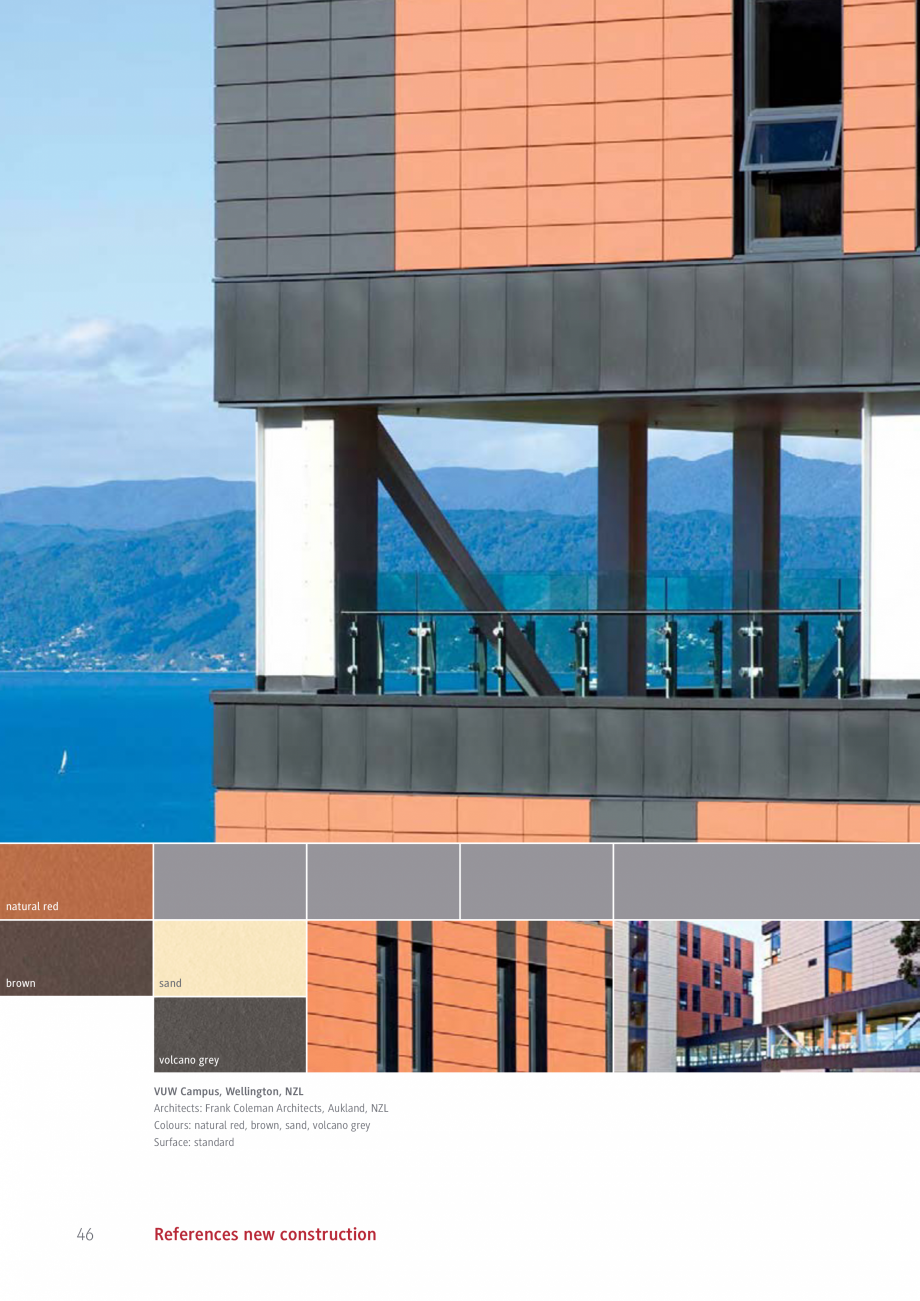

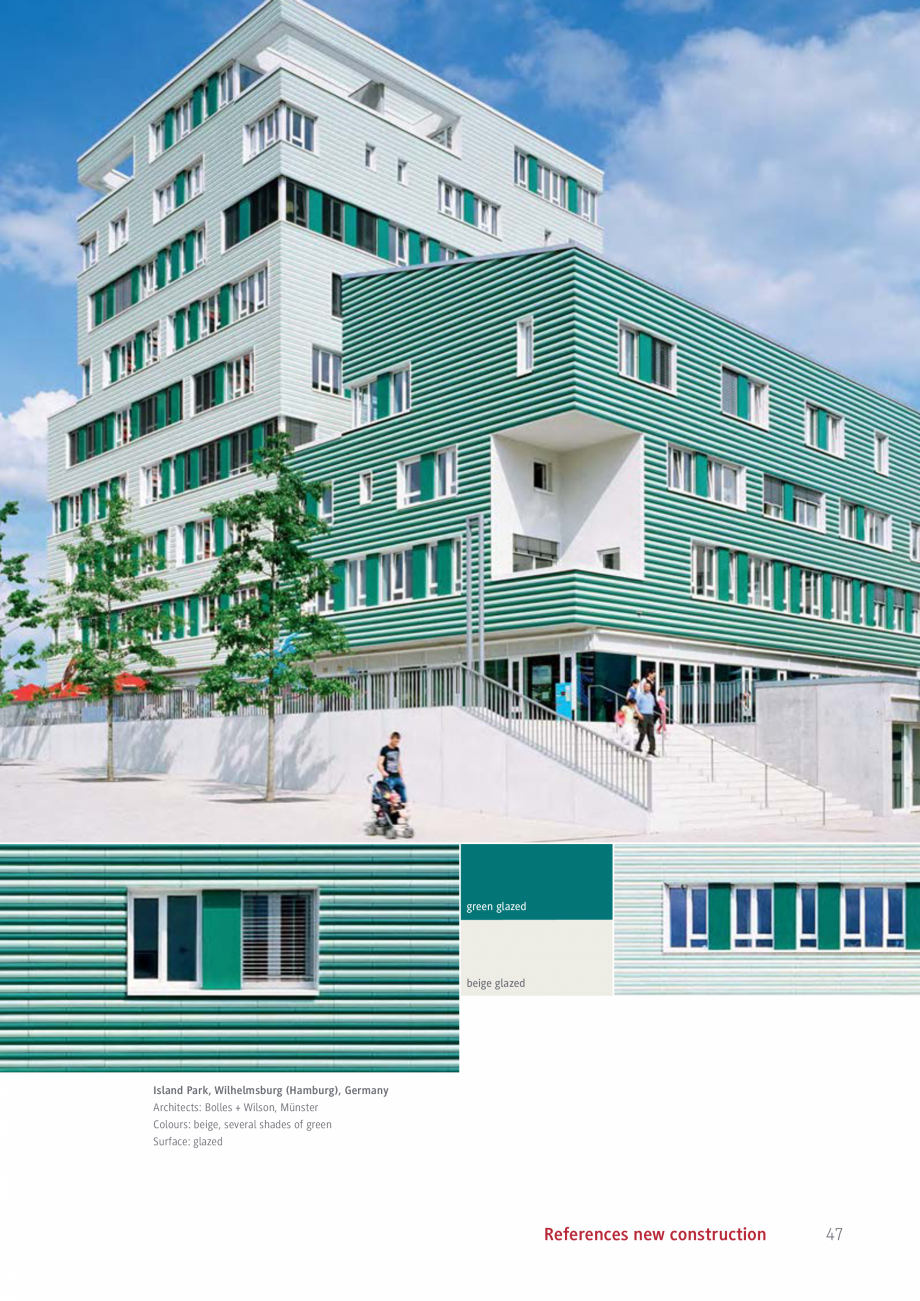

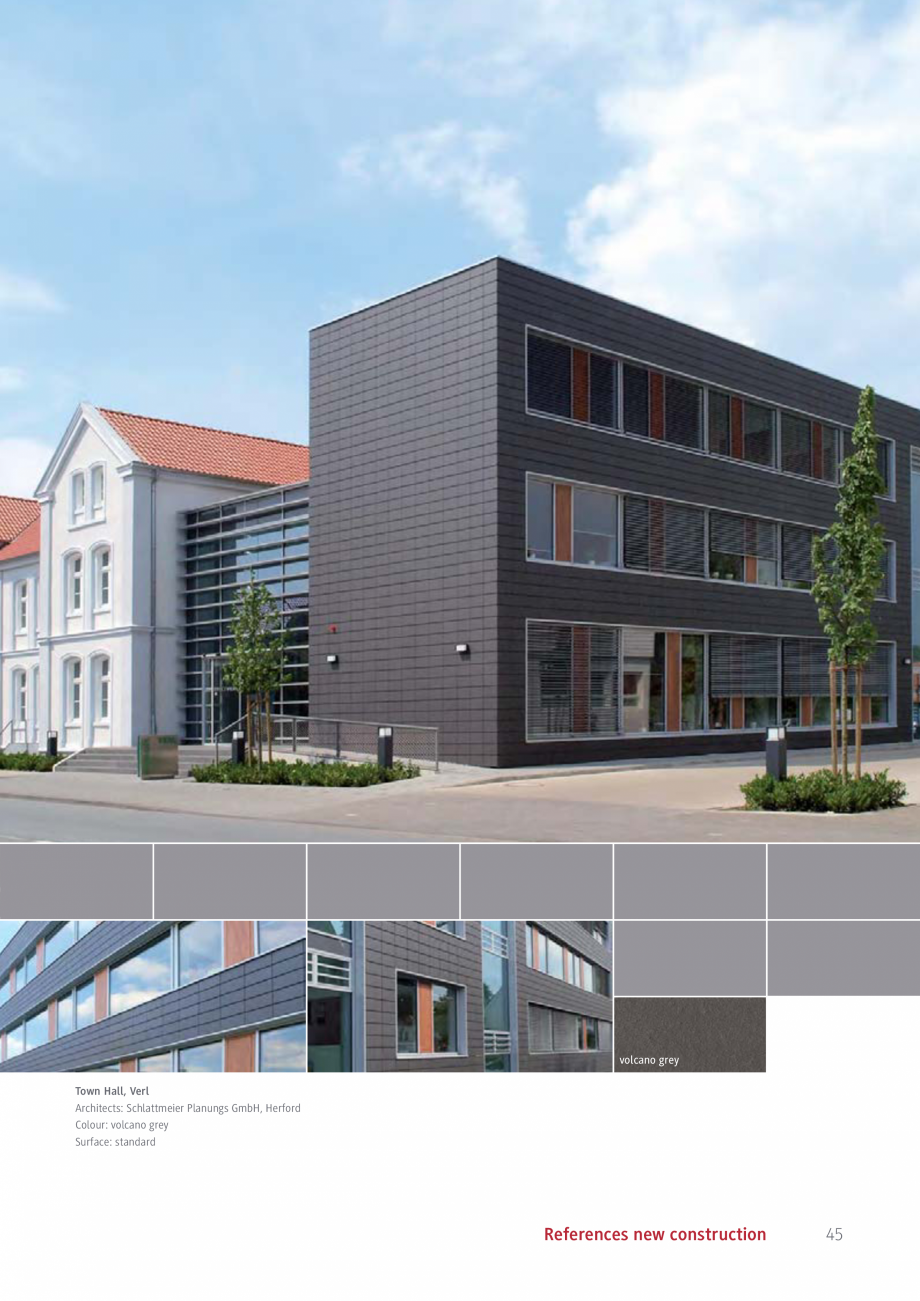

grey, quartz grey, ivory Surface: standard Special form: baguette 42 References new construction perlgrau rosewood patinated Mainova AG, Frankfurt Architects: KuP Kleinert und Partner, Frankfurt Colour: rosewood patinated Surface: standard References new construction 43 special colour Town Hall Gallery, Leverkusen Architects: HPP, Dusseldorf Special colour Special surface + baguettes 44 References new construction volcano grey Town Hall, Verl Architects: Schlattmeier Planungs GmbH, Herford Colour: volcano grey Surface: standard References new construction 45 natural red brown sand volcano grey VUW Campus, Wellington, NZL Architects: Frank Coleman Architects, Aukland, NZL Colours: natural red, brown, sand, volcano grey Surface: standard 46 References new construction green glazed beige glazed Island Park, Wilhelmsburg (Hamburg), Germany Architects: Bolles + Wilson, Münster Colours: beige, several shades of green Surface: glazed References new construction

Pagina 28-Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza grey, quartz grey, ivory...

Pagina 29 - Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza
47

deep...

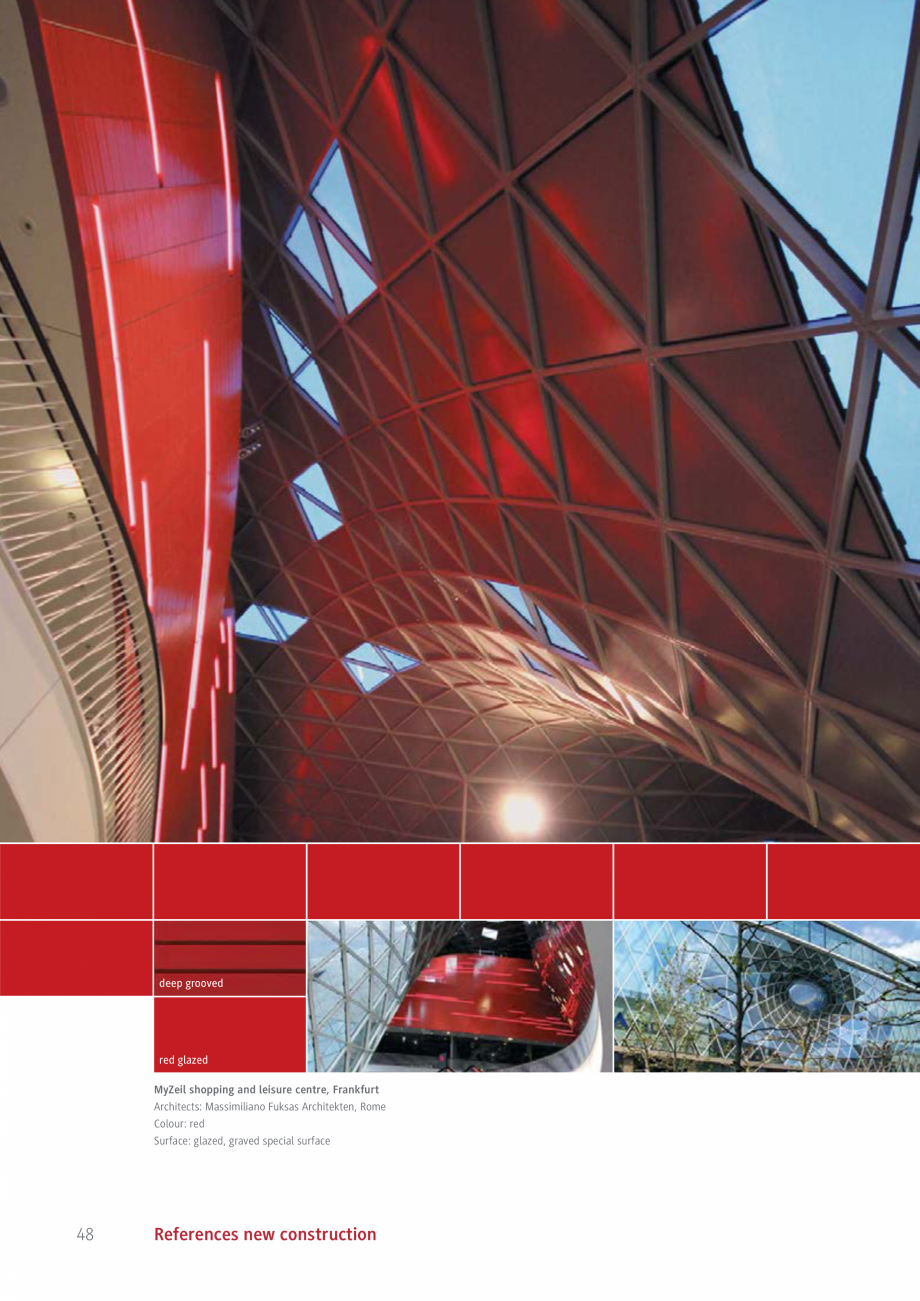

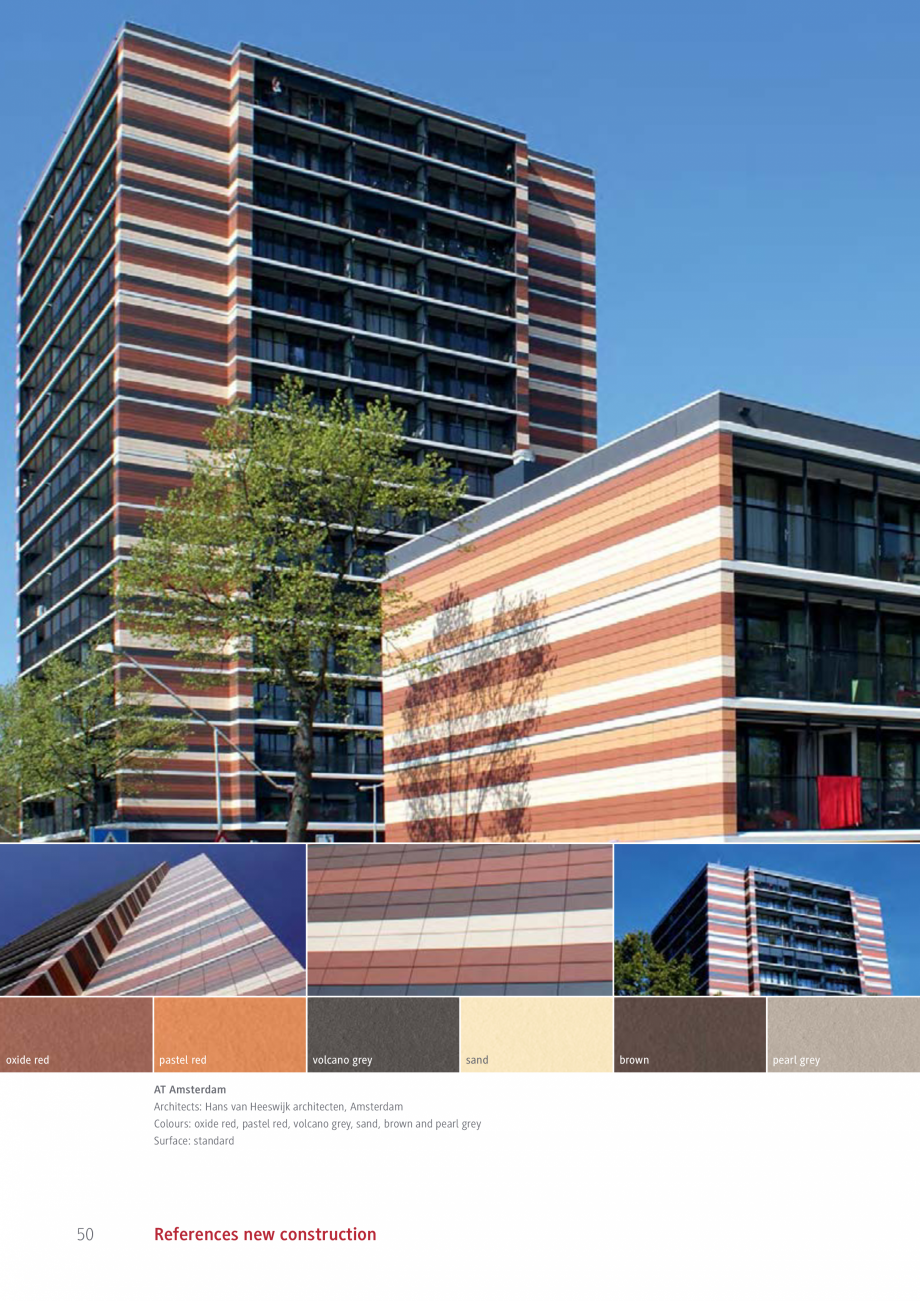

47 deep grooved red glazed MyZeil shopping and leisure centre, Frankfurt Architects: Massimiliano Fuksas Architekten, Rome Colour: red Surface: glazed, graved special surface 48 References new construction volcano grey Akershus University Hospital, Oslo, NOR Architects: C.F. Moller, Arhus, Denmark Colour: volcano grey Surface: standard Special form: baguette References new construction 49 oxide red pastel red volcano grey sand AT Amsterdam Architects: Hans van Heeswijk architecten, Amsterdam Colours: oxide red, pastel red, volcano grey, sand, brown and pearl grey Surface: standard 50 References new construction brown pearl grey terracotta beige Premier Inn, Doncaster, GB Architects: Cartwright Pickard, GB Colour: terracotta beige Surface: standard Special form: clapboard References new construction 51 References renovation 52 beige natural red volcano grey Water tower, Mittweida Architects: bks Ingenieurbüro für Hochbau, Wilkau-Haßlach Colours: beige

Pagina 29-Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza
47

deep grooved

red...

Pagina 30 - Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza , natural red,...

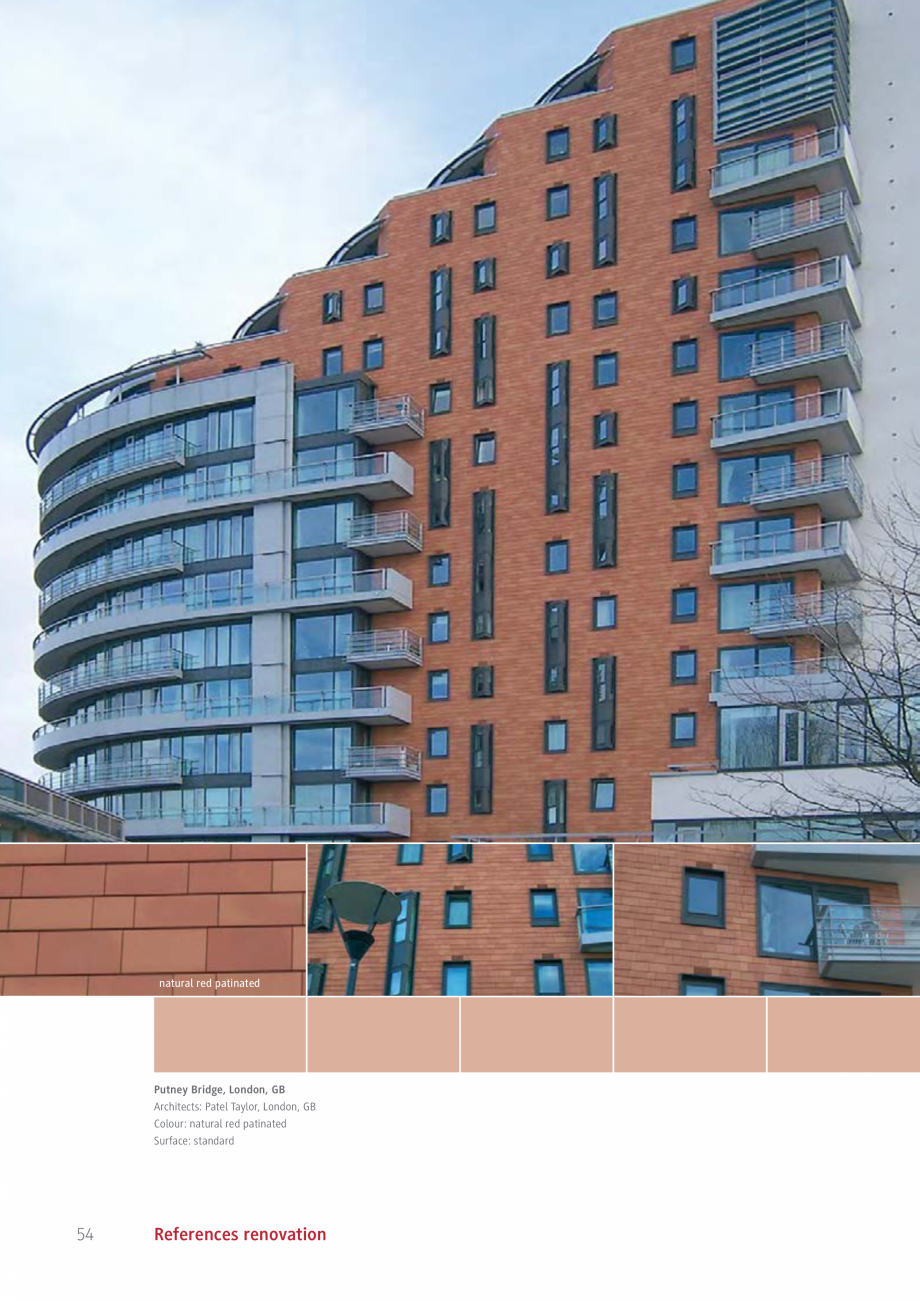

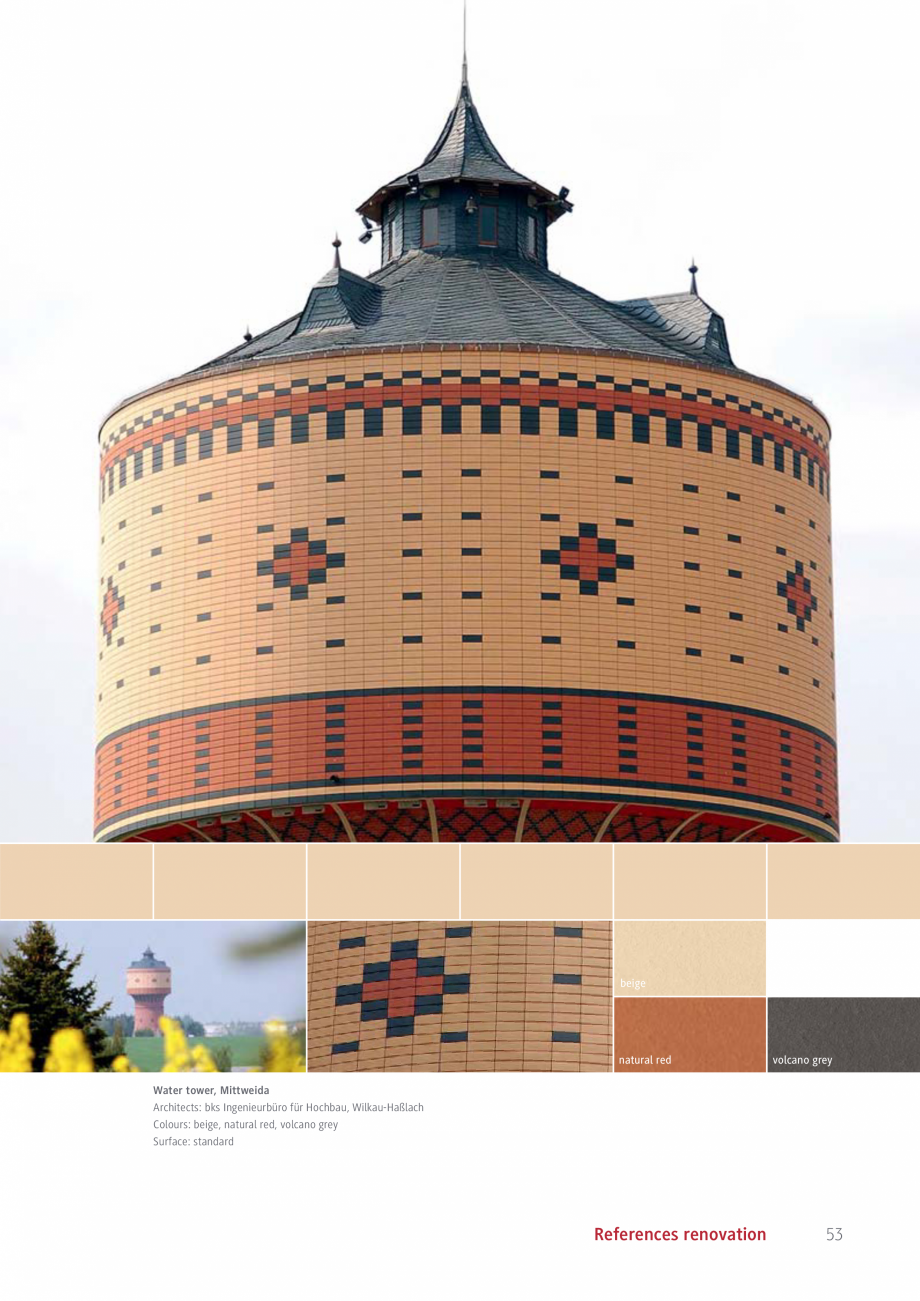

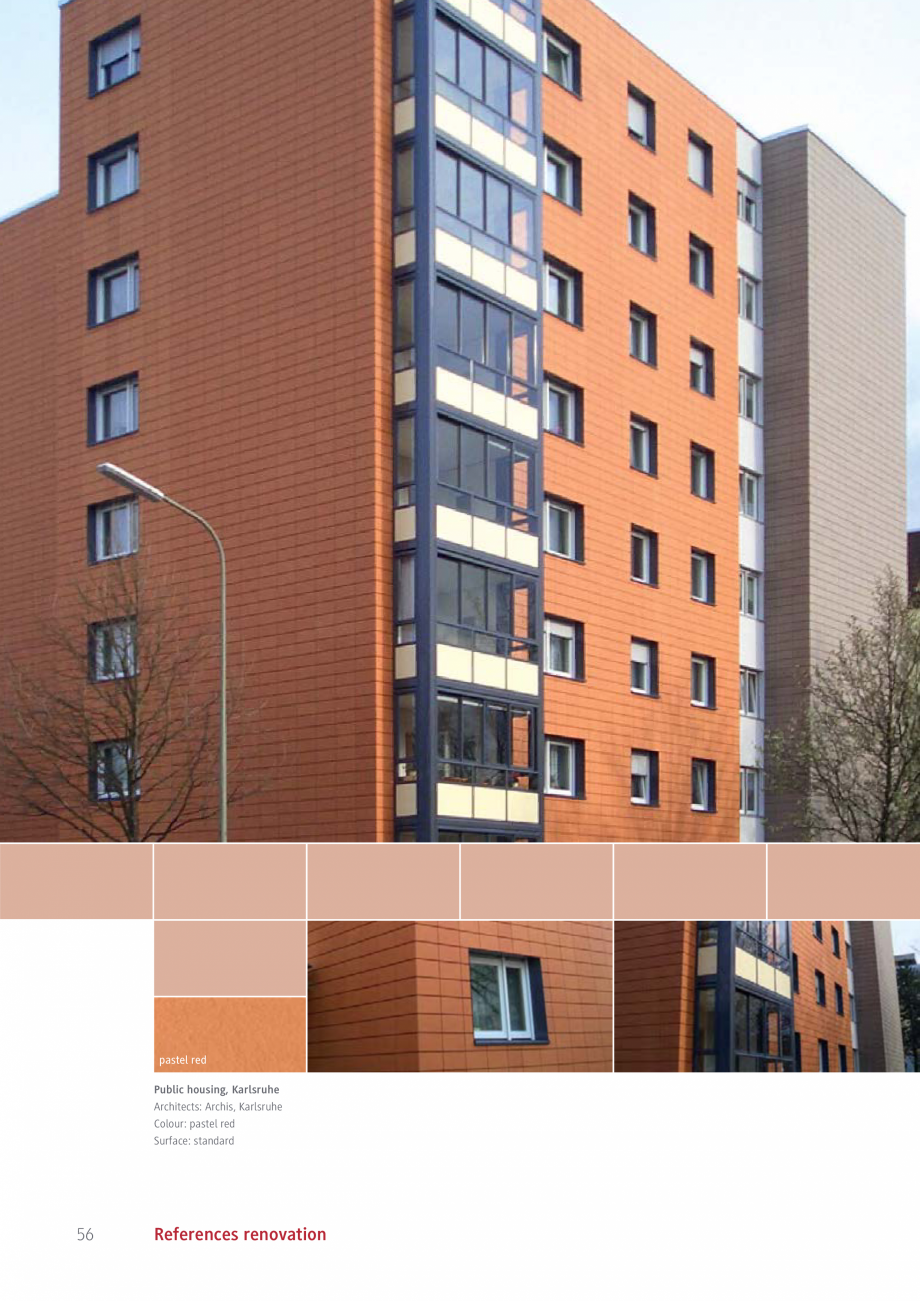

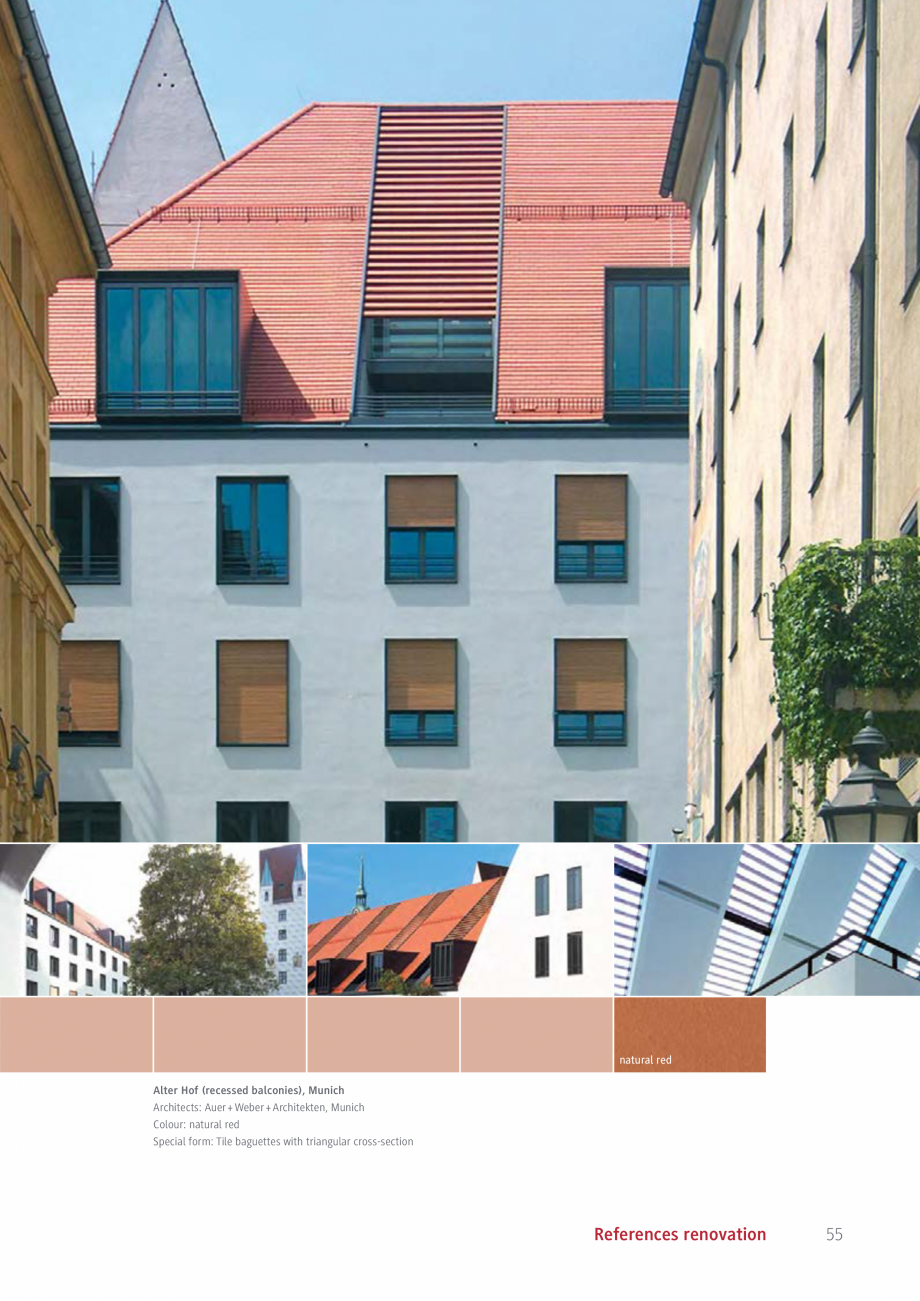

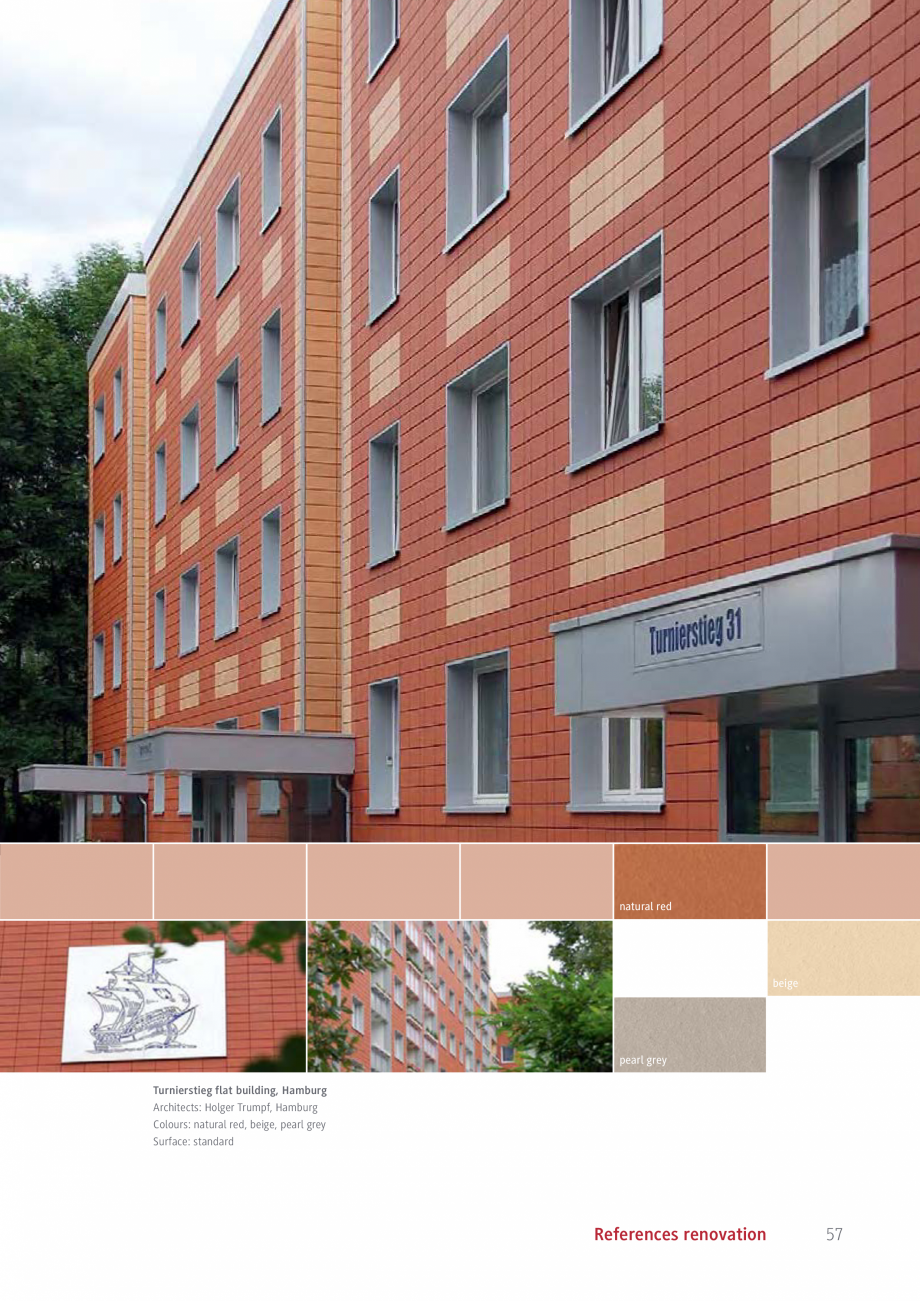

, natural red, volcano grey Surface: standard References renovation 53 natural red patinated Putney Bridge, London, GB Architects: Patel Taylor, London, GB Colour: natural red patinated Surface: standard 54 References renovation natural red Alter Hof (recessed balconies), Munich Architects: Auer + Weber + Architekten, Munich Colour: natural red Special form: Tile baguettes with triangular cross-section References renovation 55 pastel red Public housing, Karlsruhe Architects: Archis, Karlsruhe Colour: pastel red Surface: standard 56 References renovation natural red beige pearl grey Turnierstieg flat building, Hamburg Architects: Holger Trumpf, Hamburg Colours: natural red, beige, pearl grey Surface: standard References renovation 57 sand Residential high-rise, Bremerhaven Architects: STÄWOG, Bremerhaven, H.-J. Ewert Colour: sand Surface: standard 58 References renovation oxide red Couven Gymnasium, Aachen Architects: Finkeldei Architekten, Linnich Colour: o

Pagina 30-Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza , natural red, volcano grey...

Pagina 31 - Placi ceramice pentru fatada MOEDING ALPHATON Catalog, brosura Engleza xide red
Surface:...

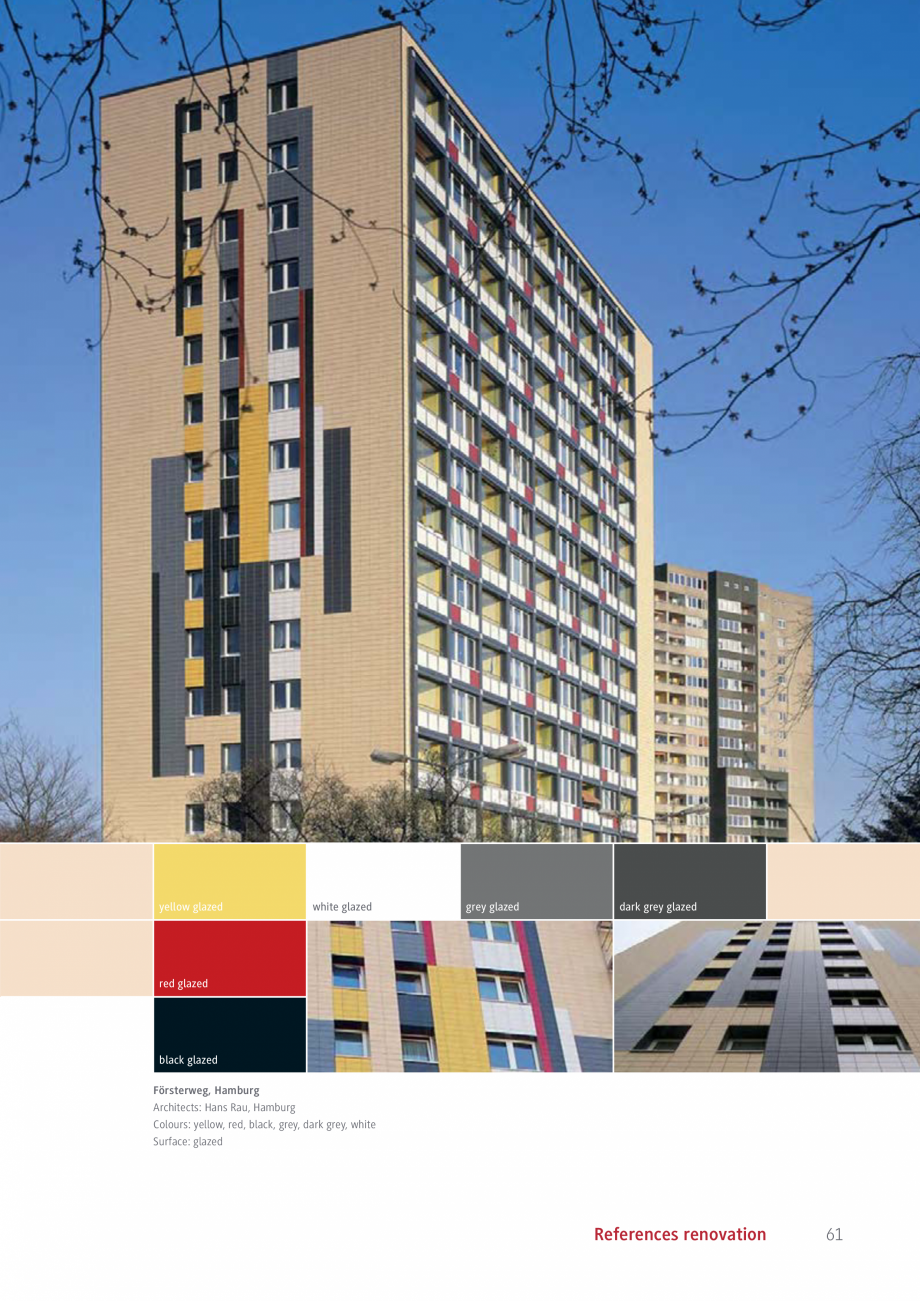

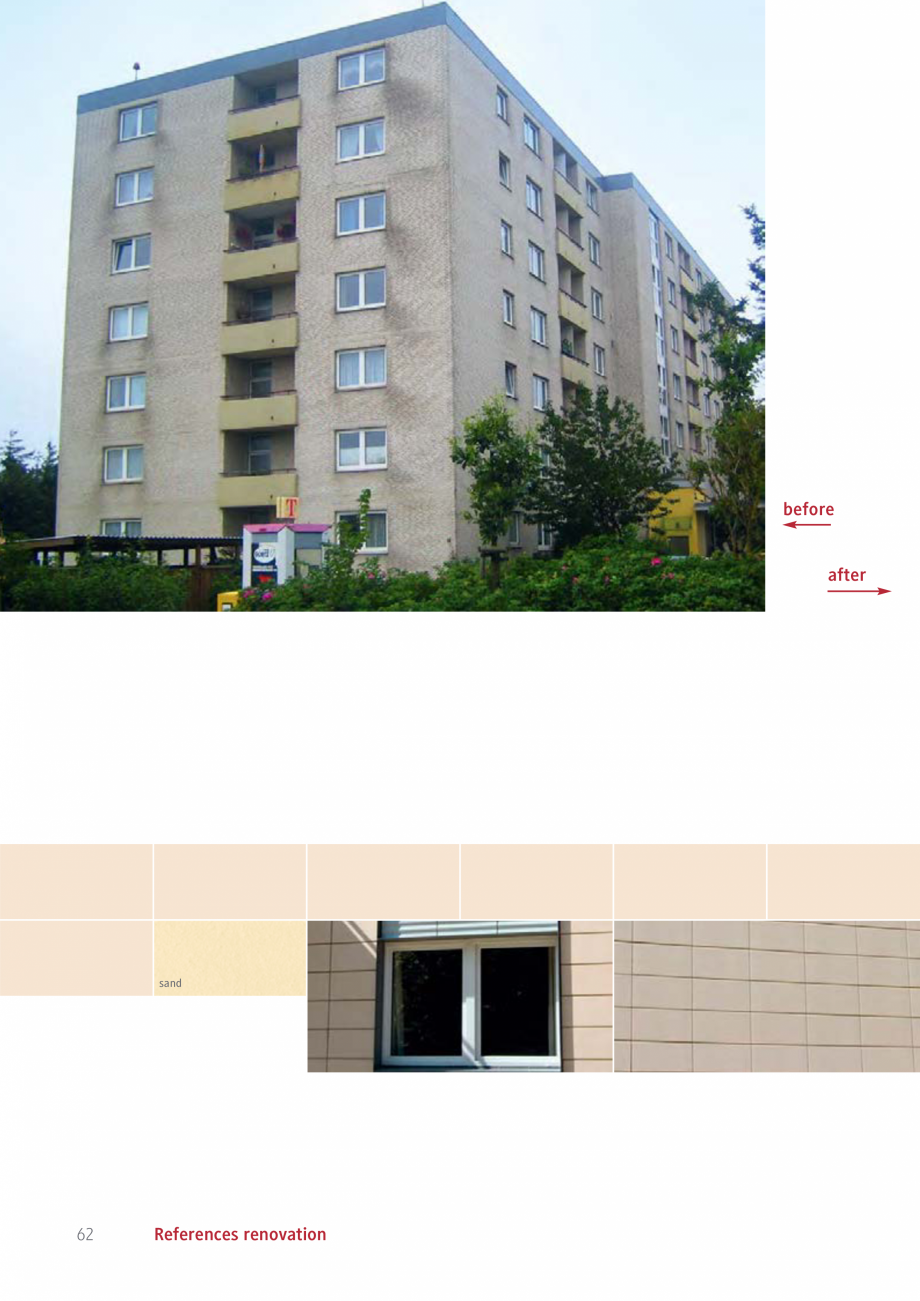

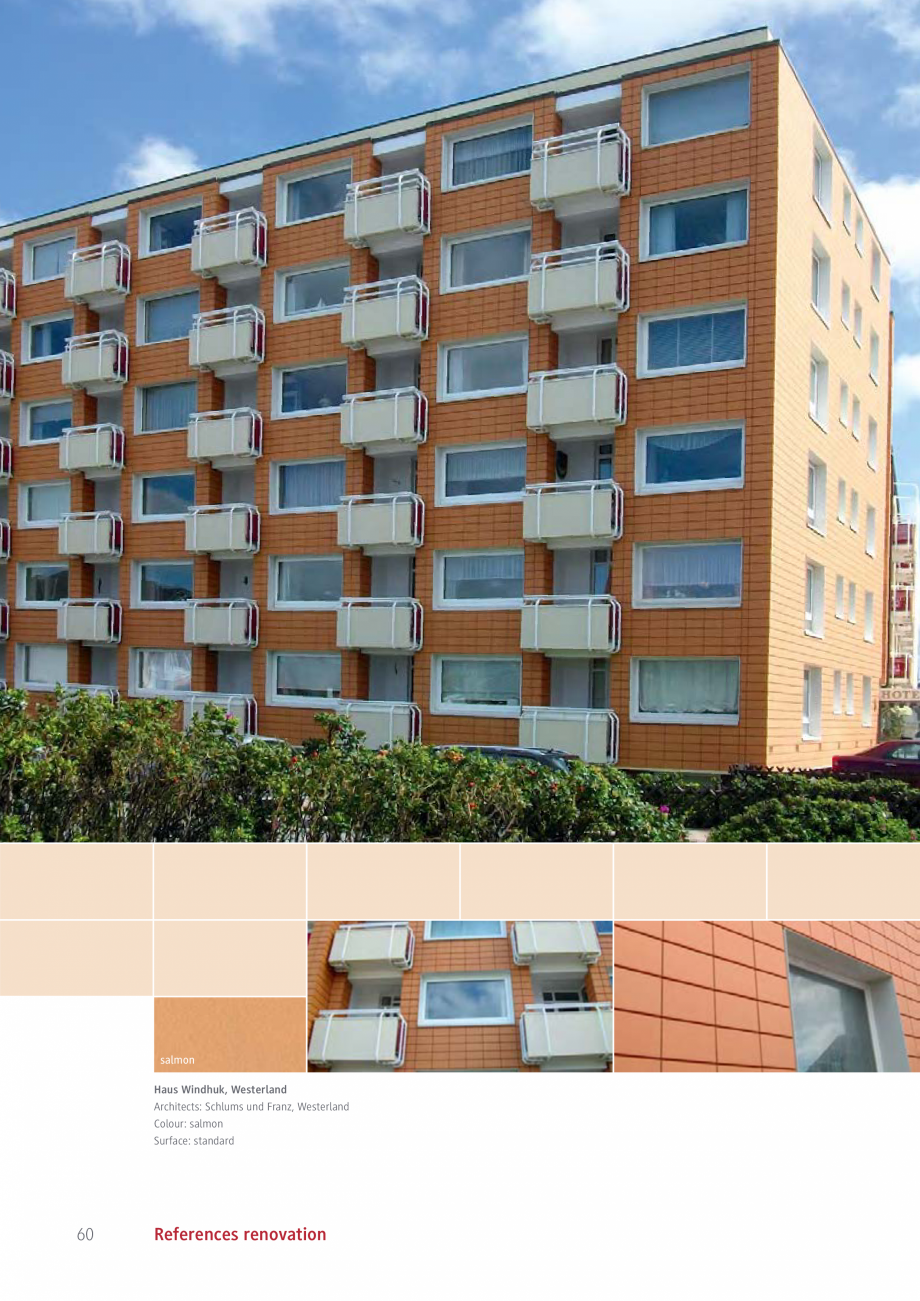

xide red Surface: standard, grooved Special form: baguette References renovation 59 salmon Haus Windhuk, Westerland Architects: Schlums und Franz, Westerland Colour: salmon Surface: standard 60 References renovation yellow glazed white glazed grey glazed dark grey glazed red glazed black glazed Försterweg, Hamburg Architects: Hans Rau, Hamburg Colours: yellow, red, black, grey, dark grey, white Surface: glazed References renovation 61 before after sand 62 References renovation sand volcano grey High-rise Waldstrasse, Sylt Architects: PGB Projektentwicklungsgesellschaft + Bauplanung, Hamburg Colours: volcano grey and sand Surface: standard, grooved References renovation 63 MOE-14-009_07/2014 Moeding Keramikfassaden GmbH Ludwig-Girnghuber-Straße 1 84163 Marklkofen Germany Fon + 49 (0) 87 32 / 246 - 00 Fax + 49 (0) 87 32 / 246 - 69 Internet: www.moeding.de
