Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza

Documentatie atasata la

Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel

Limba: Engleza

18 afisari

Tip documentatie: Catalog, brosura

Pagina 1 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

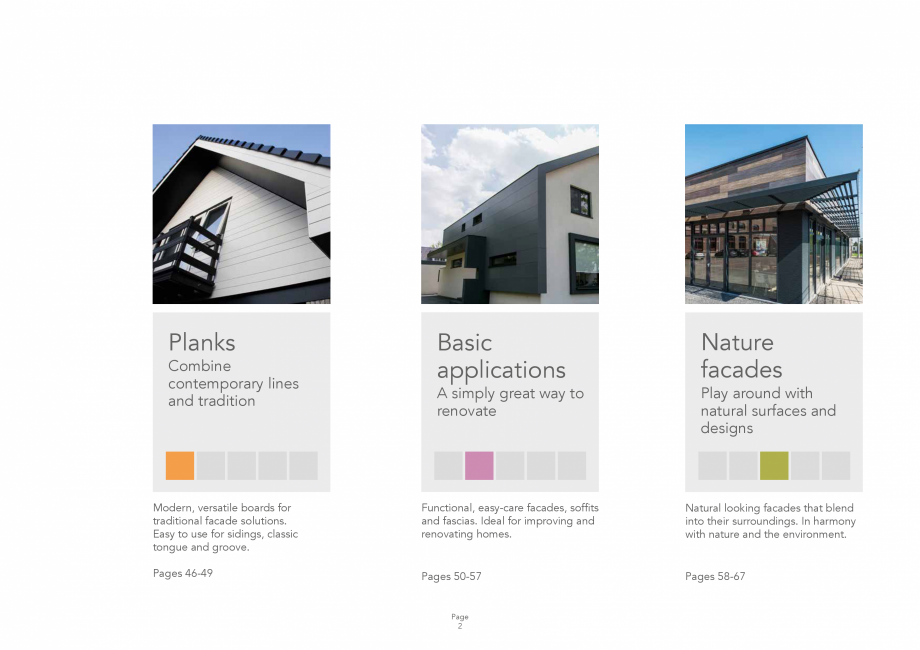

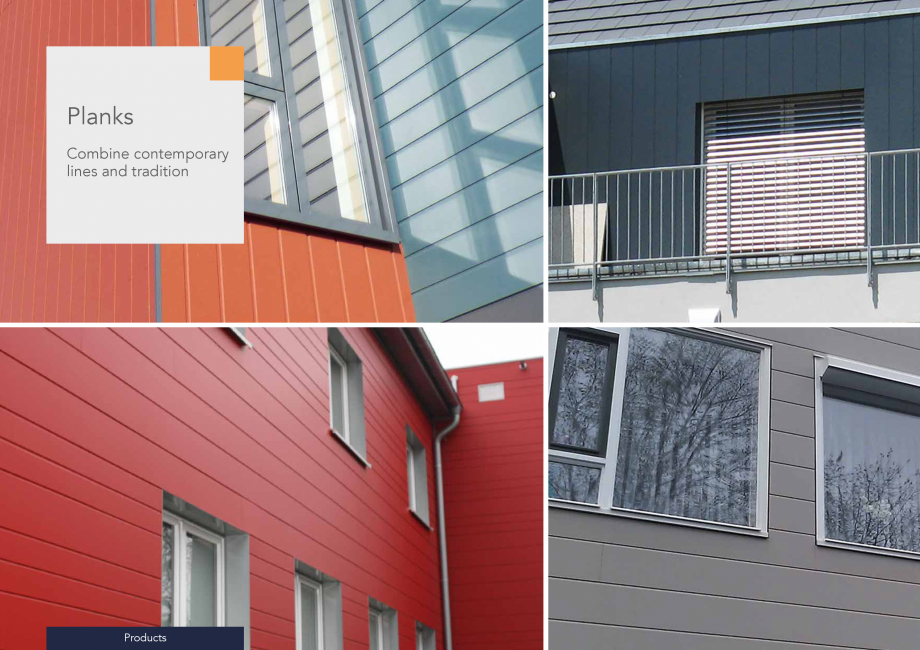

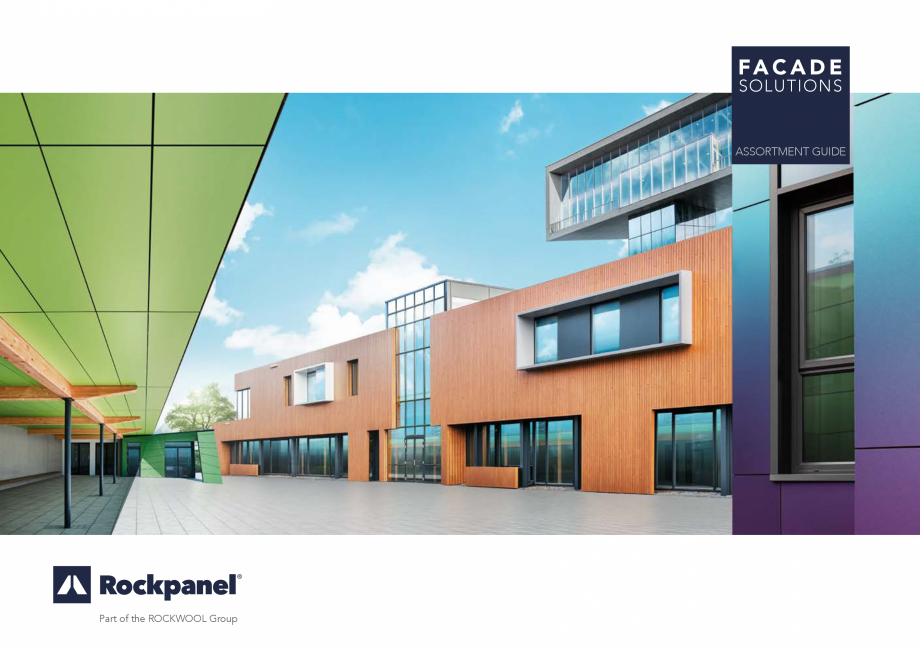

FA C A D E SOLUTIONS ASSORTMENT GUIDE Part of the ROCKWOOL Group Planks Combine contemporary lines and tradition Basic applications A simply great way to renovate Nature facades Play around with natural surfaces and designs Modern, versatile boards for traditional facade solutions. Easy to use for sidings, classic tongue and groove. Functional, easy-care facades, soffits and fascias. Ideal for improving and renovating homes. Natural looking facades that blend into their surroundings. In harmony with nature and the environment. Pages 46-49 Pages 50-57 Pages 58-67 Page 2 Everything you need – and more Our broad range of facade solution applications provide a clear structure to meet your needs as an architect. The product division is based on design and technical criteria that are crucial for your building project. Choose between the different product solutions and decide which facade is ideal for your building. Design facades Explore shapes and colours freely Expre

Pagina 1-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza FA C A ...

Pagina 2 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

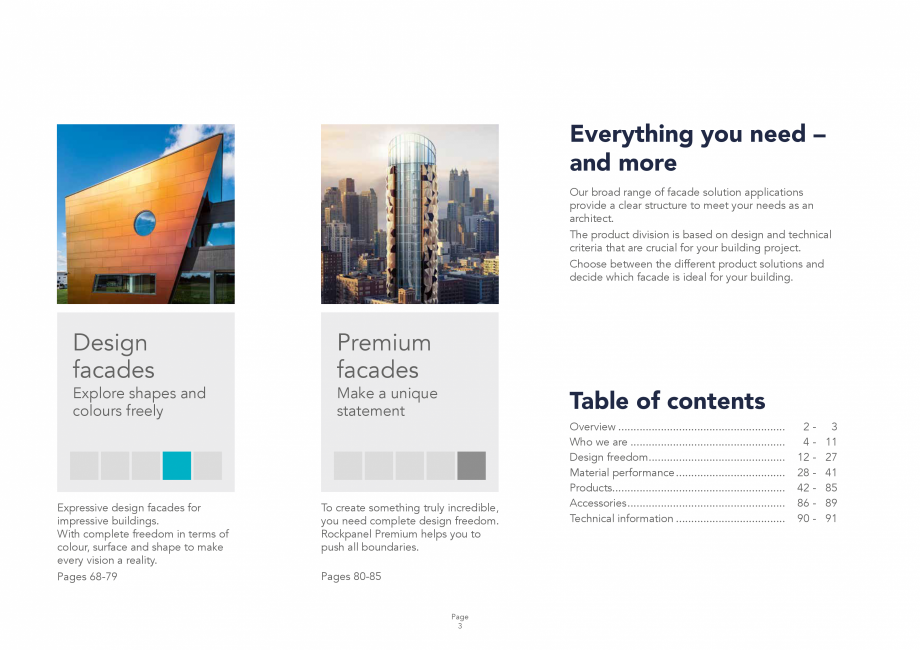

ssive design facades for impressive buildings. With complete freedom in terms of colour, surface and shape to make every vision a reality. Pages 68-79 Premium facades Table of contents Make a unique statement To create something truly incredible, you need complete design freedom. Rockpanel Premium helps you to push all boundaries. Pages 80-85 Page 3 Overview........................................................ Who we are.................................................... Design freedom.............................................. Material performance..................................... Products.......................................................... Accessories..................................................... Technical information..................................... 2412 28 42 86 90 - 3 11 27 41 85 89 91 Who we are Release the natural power of stone to enrich modern living Who we are We have a clear goal. We want to make stone come alive in all its facets.

Pagina 2-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza ssive...

Pagina 3 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

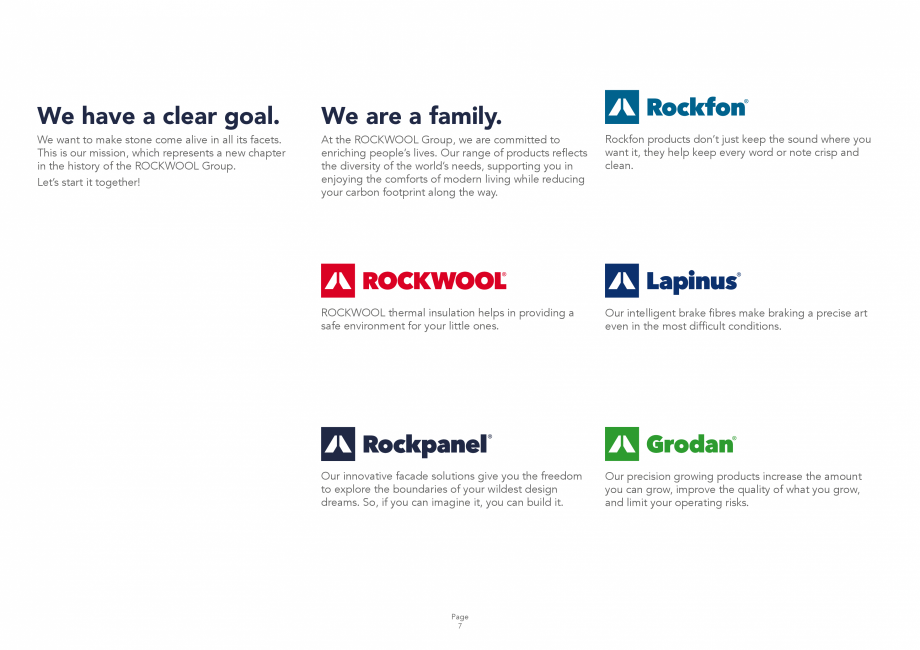

This is our mission, which represents a new chapter in the history of the ROCKWOOL Group. Let’s start it together! We are a family. At the ROCKWOOL Group, we are committed to enriching people’s lives. Our range of products reflects the diversity of the world’s needs, supporting you in enjoying the comforts of modern living while reducing your carbon footprint along the way. Rockfon products don’t just keep the sound where you want it, they help keep every word or note crisp and clean. ROCKWOOL thermal insulation helps in providing a safe environment for your little ones. Our intelligent brake fibres make braking a precise art even in the most difficult conditions. Our innovative facade solutions give you the freedom to explore the boundaries of your wildest design dreams. So, if you can imagine it, you can build it. Our precision growing products increase the amount you can grow, improve the quality of what you grow, and limit your operating risks. Page 7 Rockpanel H

Pagina 3-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza
This...

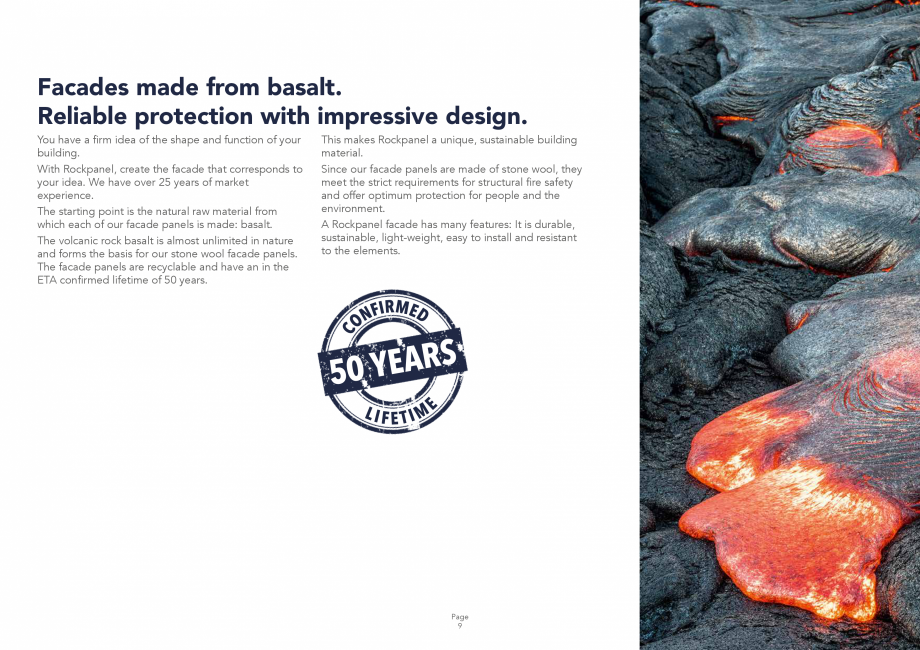

Pagina 4 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

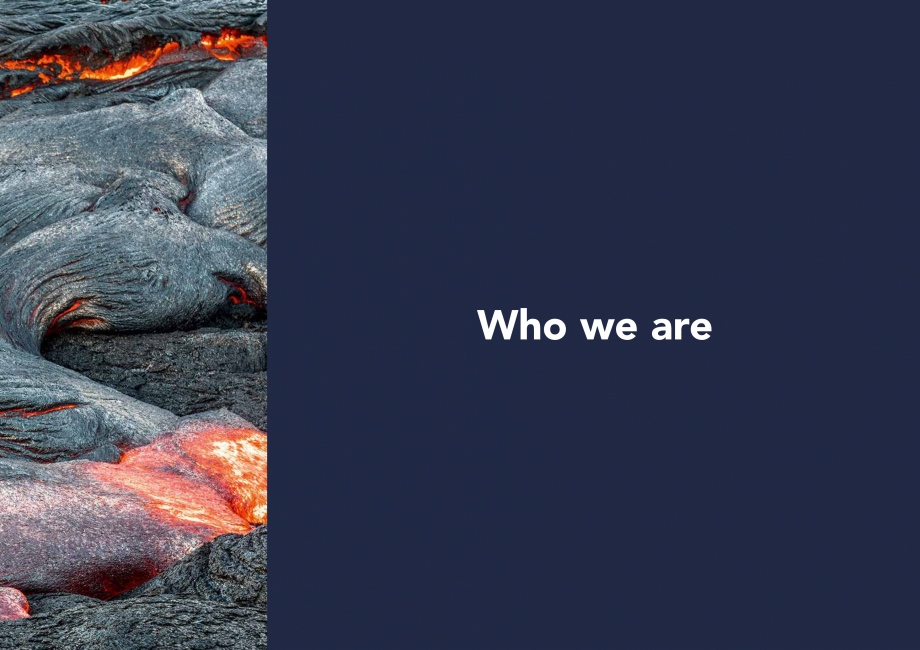

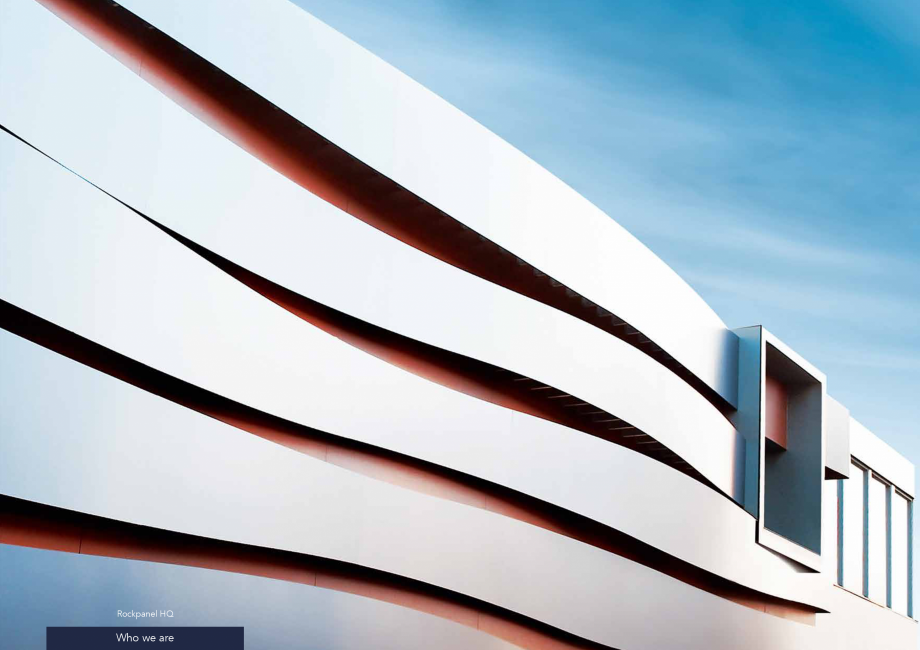

Q Who we are Facades made from basalt. Reliable protection with impressive design. You have a firm idea of the shape and function of your building. With Rockpanel, create the facade that corresponds to your idea. We have over 25 years of market experience. The starting point is the natural raw material from which each of our facade panels is made: basalt. The volcanic rock basalt is almost unlimited in nature and forms the basis for our stone wool facade panels. The facade panels are recyclable and have an in the ETA confirmed lifetime of 50 years. This makes Rockpanel a unique, sustainable building material. Since our facade panels are made of stone wool, they meet the strict requirements for structural fire safety and offer optimum protection for people and the environment. A Rockpanel facade has many features: It is durable, sustainable, light-weight, easy to install and resistant to the elements. Page 9 Each building material has its own strength. As long as buildings have

Pagina 4-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza Q

Who ...

Pagina 5 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

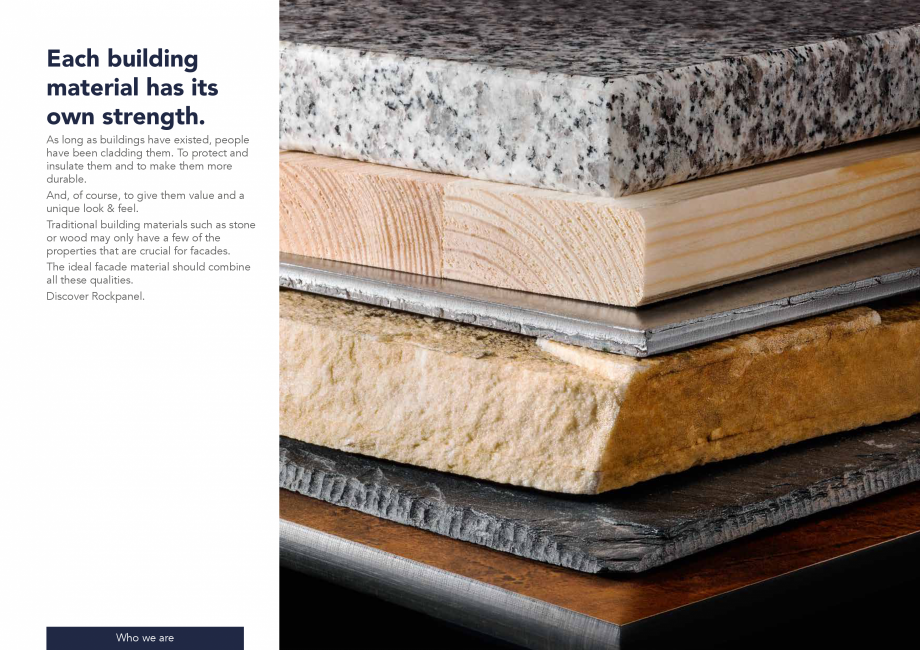

existed, people have been cladding them. To protect and insulate them and to make them more durable. And, of course, to give them value and a unique look & feel. Traditional building materials such as stone or wood may only have a few of the properties that are crucial for facades. The ideal facade material should combine all these qualities. Discover Rockpanel. Who we are Just one material has it all. Rockpanel. Design freedom More than 200 colours and designs Customised solutions Bending and curving Narrow joints Fire safety Contains hardly any combustible materials Euroclass A2-s1,d0 available No burning droplets Free of fire-retardant additives Installation benefits Light-weight Standard tools suitable Non-directional Dimensionally stable Sustainability Recyclable Natural raw material (basalt) In ETA confirmed lifetime of 50 years Water-based coating Durability Colour and UV-resistance Insensitive to moisture Low thermal expansion Low maintenance Dirt-resistant Page 11

Pagina 5-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza ...

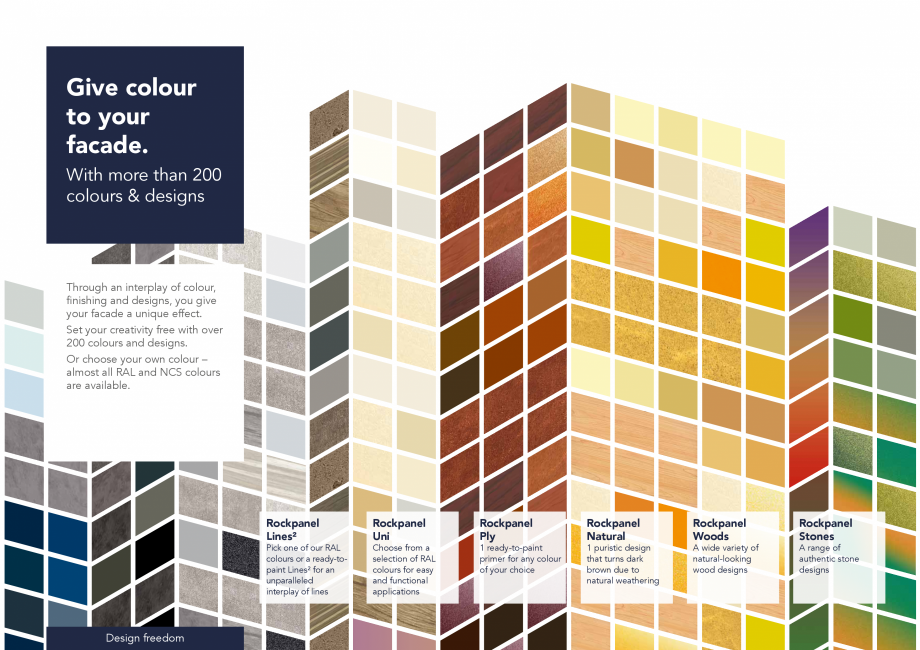

Pagina 6 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

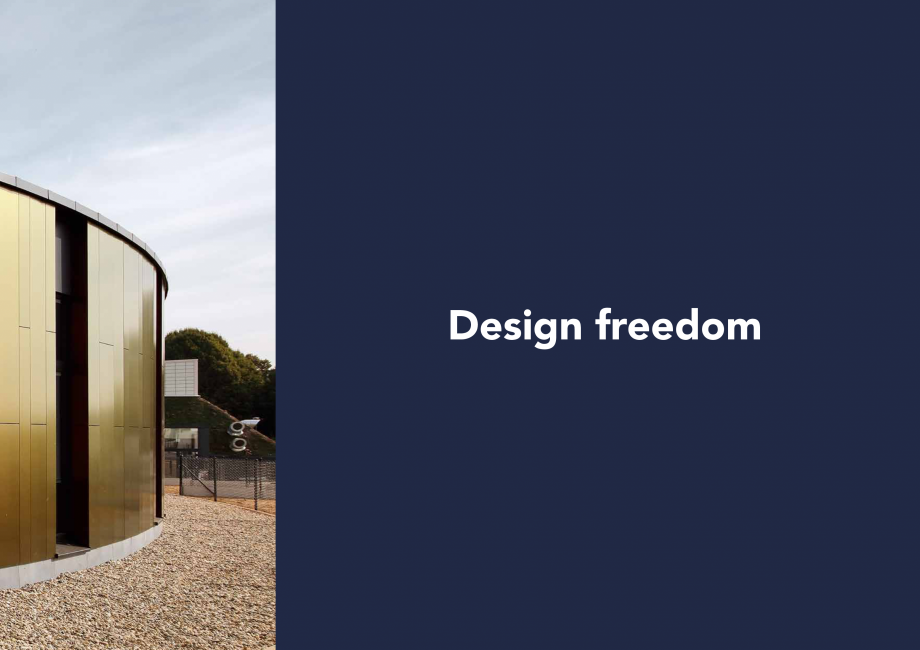

Design freedom Give colour to your facade. With more than 200 colours & designs Through an interplay of colour, finishing and designs, you give your facade a unique effect. Set your creativity free with over 200 colours and designs. Or choose your own colour – almost all RAL and NCS colours are available. Rockpanel Lines² Pick one of our RAL colours or a ready-topaint Lines² for an unparalleled interplay of lines Design freedom Rockpanel Uni Choose from a selection of RAL colours for easy and functional applications Rockpanel Ply 1 ready-to-paint primer for any colour of your choice Rockpanel Natural 1 puristic design that turns dark brown due to natural weathering Rockpanel Woods A wide variety of natural-looking wood designs Rockpanel Stones A range of authentic stone designs Rockpanel Colours Choose your favourite colour tone from all available RAL/NCS Colours Rockpanel Metals Industrial-look glossy designs Rockpanel Chameleon Extravagant designs that chan

Pagina 6-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza Design ...

Pagina 7 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

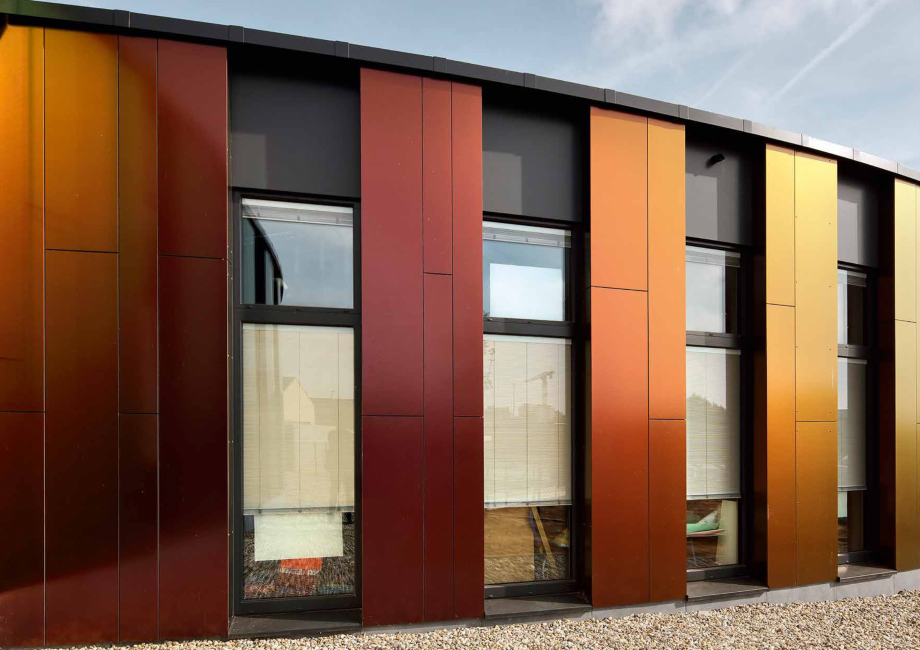

ge colour depending on the light and perspective Rockpanel Premium Combine all of our 200+ colours and designs to create your own unique facade Matt, semi-gloss or high-gloss? It’s up to you! Pick the finish that best suits your design, or mix different gloss grades for an even greater effect. Design freedom Design with different gloss grades Playing with light – a fabulous finish When realizing your project, you want every detail to be just right. That’s why we offer three different gloss grades: matt, semi-gloss and high-gloss. Each level of reflection has its own character. Feel free to play with light to create your own perfect picture. And for an additional dimension, you can even combine our different finishes. matt Page 17 semi-gloss high-gloss Versatile interplay of lines on unique facades. Flexible and effective. It starts with your building idea Rockpanel is flexible In addition to colour and material, the design of the facade gives your building its

Pagina 7-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza ge...

Pagina 8 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

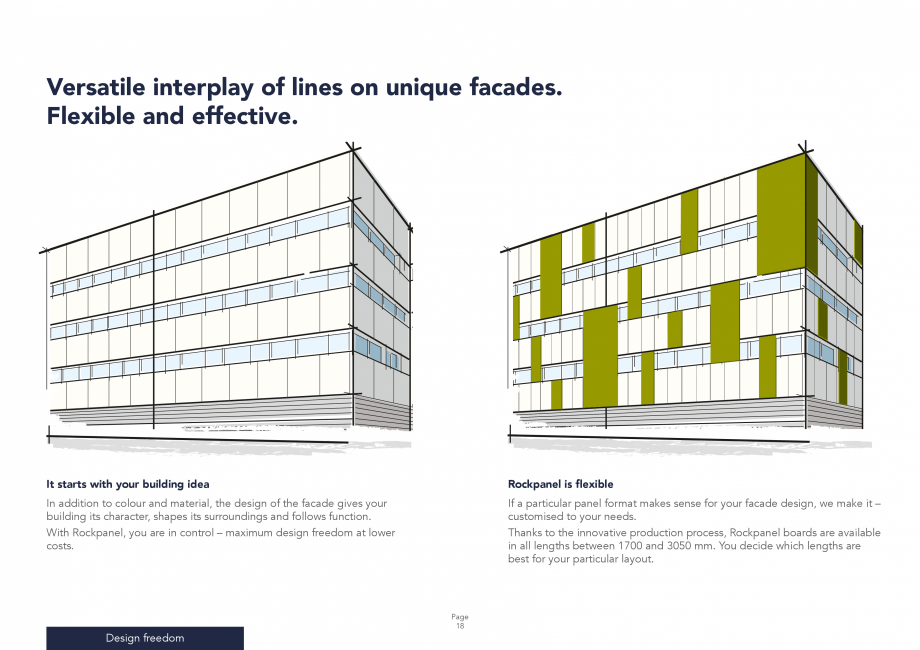

character, shapes its surroundings and follows function. With Rockpanel, you are in control – maximum design freedom at lower costs. If a particular panel format makes sense for your facade design, we make it – customised to your needs. Thanks to the innovative production process, Rockpanel boards are available in all lengths between 1700 and 3050 mm. You decide which lengths are best for your particular layout. Page 18 Design freedom 1700 mm The facade fits into your vision and budget 3050 mm Rockpanel facade cladding is quick and easy to install. Due to its unique format, it is virtually waste-free and highly costeffective. You will always find the solution that is exactly right for your building. Because it simply fits – into your design, your schedule and your budget. 1200 mm/ 1250 mm Page 19 Follow nature. In all its forms. Naturally bend, shape and curve If you feel that nature is the greatest architect, then your decision to go with Rockpanel follows this thin

Pagina 8-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza...

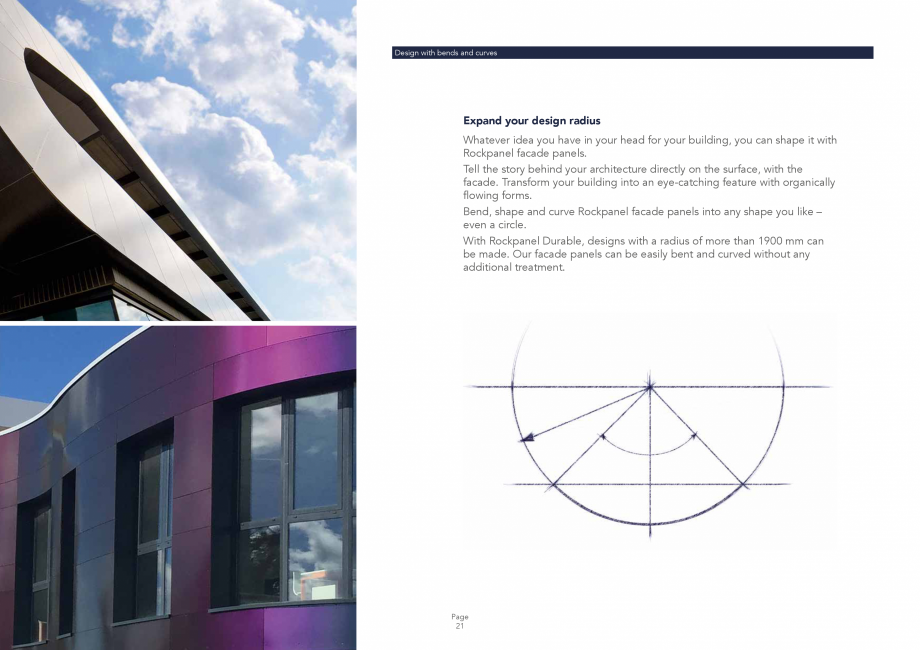

Pagina 9 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

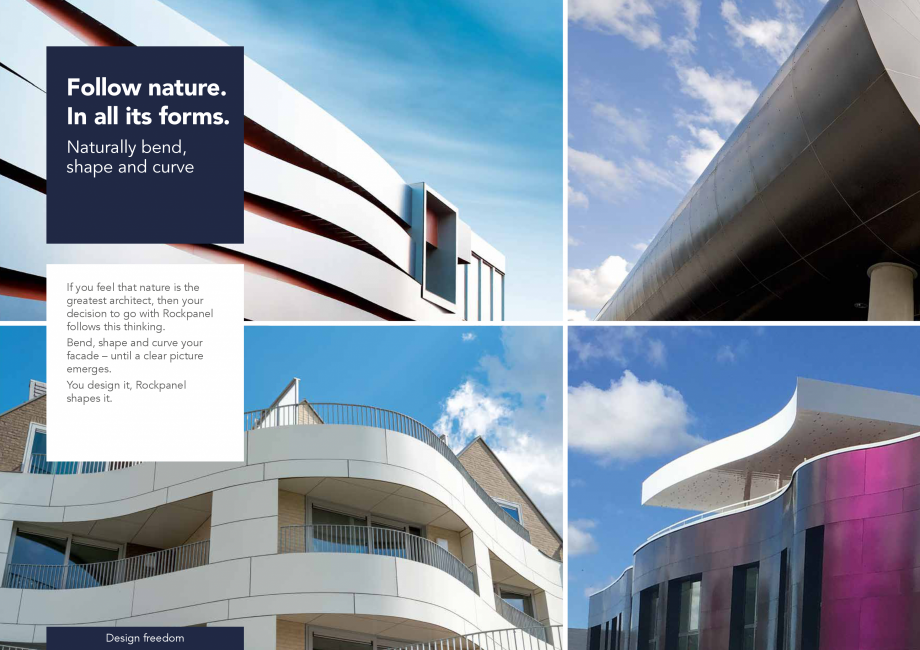

king. Bend, shape and curve your facade – until a clear picture emerges. You design it, Rockpanel shapes it. Design freedom Design with bends and curves Expand your design radius Whatever idea you have in your head for your building, you can shape it with Rockpanel facade panels. Tell the story behind your architecture directly on the surface, with the facade. Transform your building into an eye-catching feature with organically flowing forms. Bend, shape and curve Rockpanel facade panels into any shape you like – even a circle. With Rockpanel Durable, designs with a radius of more than 1900 mm can be made. Our facade panels can be easily bent and curved without any additional treatment. Page 21 Play around with light and shade. Engraving and perforating Add a third dimension to the design of your facades. Create some additional visual effects and play with light and shadows. For a fascinating design, for a real statement or a functional element. Design freedom Design w

Pagina 9-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza king....

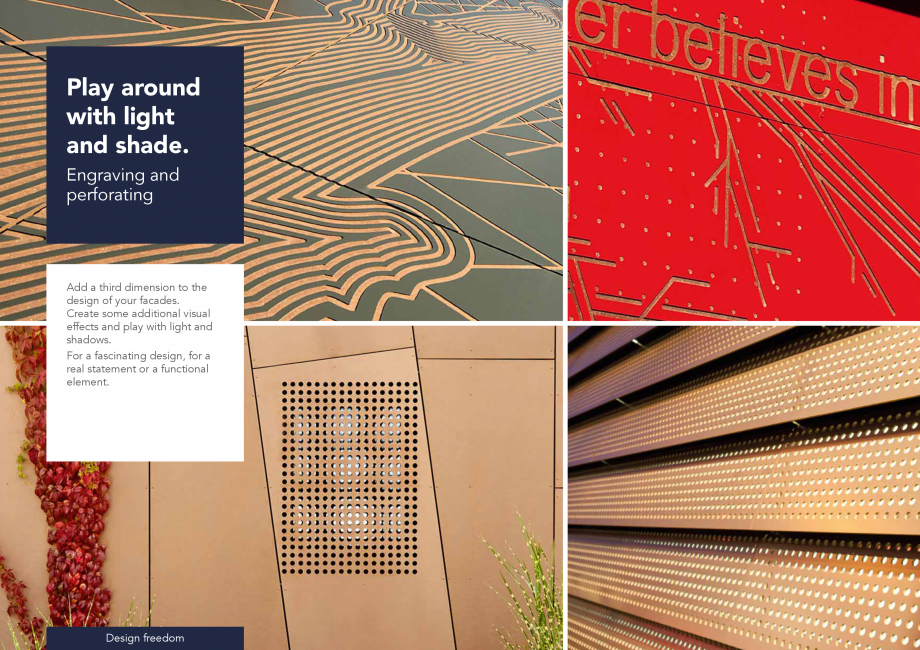

Pagina 10 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

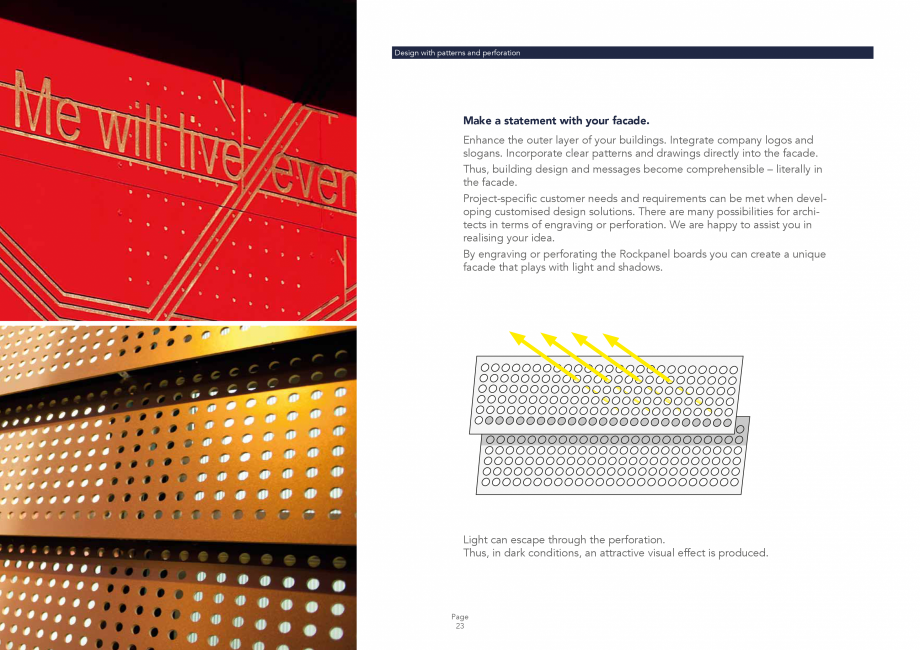

ith patterns and perforation Make a statement with your facade. Enhance the outer layer of your buildings. Integrate company logos and slogans. Incorporate clear patterns and drawings directly into the facade. Thus, building design and messages become comprehensible – literally in the facade. Project-specific customer needs and requirements can be met when developing customised design solutions. There are many possibilities for architects in terms of engraving or perforation. We are happy to assist you in realising your idea. By engraving or perforating the Rockpanel boards you can create a unique facade that plays with light and shadows. Light can escape through the perforation. Thus, in dark conditions, an attractive visual effect is produced. Page 23 Elegance reveals itself. At every angle. Corners and edges as design elements Details are important in order to implement an idea in the best possible way. By choosing the right corner profile or an invisible fixing, you can in

Pagina 10-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza ith...

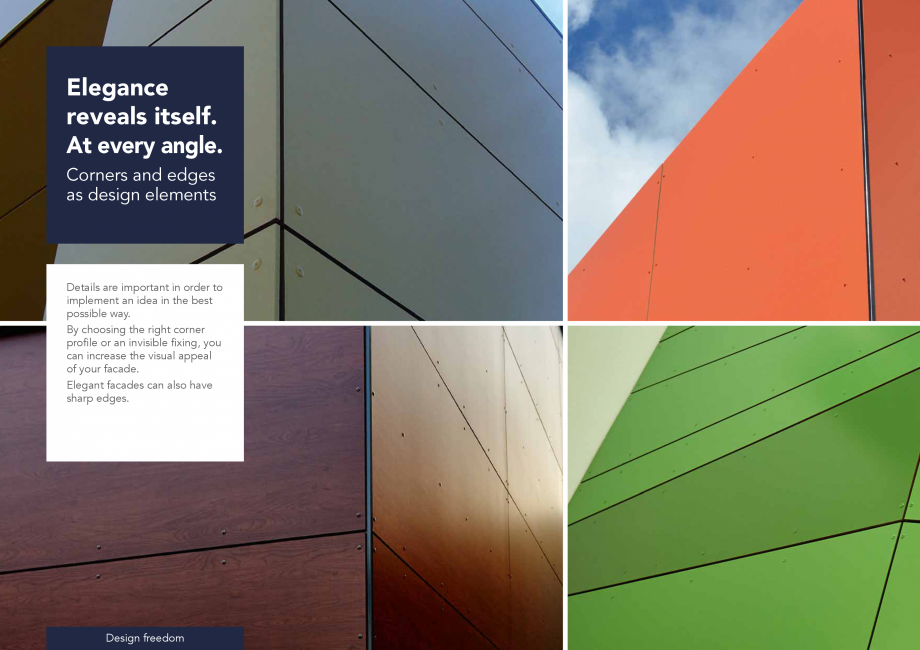

Pagina 11 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

crease the visual appeal of your facade. Elegant facades can also have sharp edges. Design freedom Designing corners and edges Emphasise corners and show edges Joints and corners give the facade design a definite emphasis and are a clear, formal statement – for a special material. The edges of Rockpanel facade panels do not need to be treated to protect them from moisture. Opt for a corner solution for purely aesthetic reasons, which gives your design more depth and that extra touch. You can maintain your creative freedom in the facade design – right down to the smallest corner. With a profile in the panel colour or finishing the edges with matching colour paint. Trims and profiles made of high-quality aluminium are available in nearly all RAL/NCS colours to suit your design. Depending on the product and fixing, you can choose joint, corner and connecting profiles. Page 25 Install your facade. With whatever you wish. Screws, rivets, nails, adhesive and concealed fixing Con

Pagina 11-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza crease ...

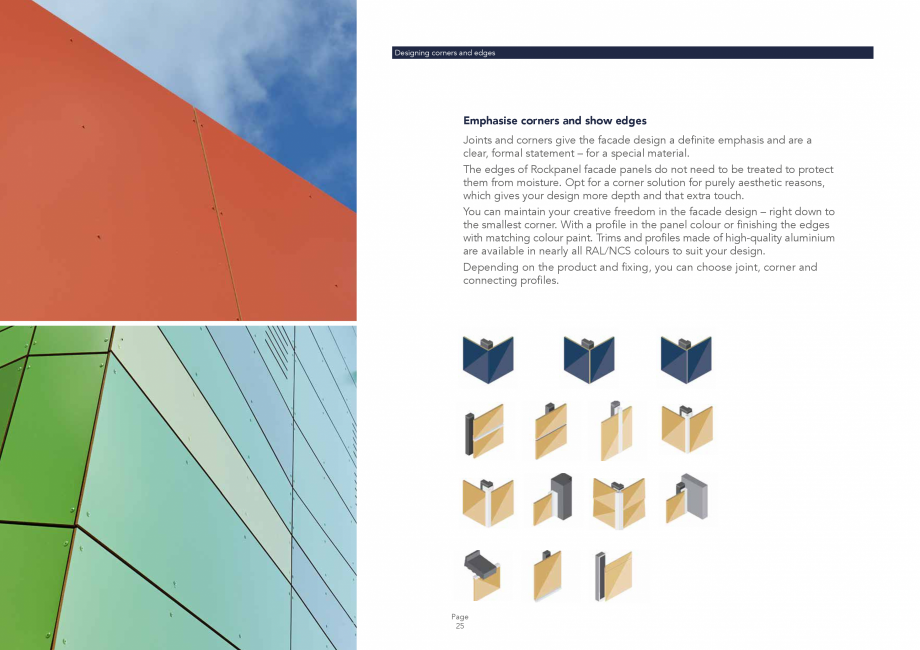

Pagina 12 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

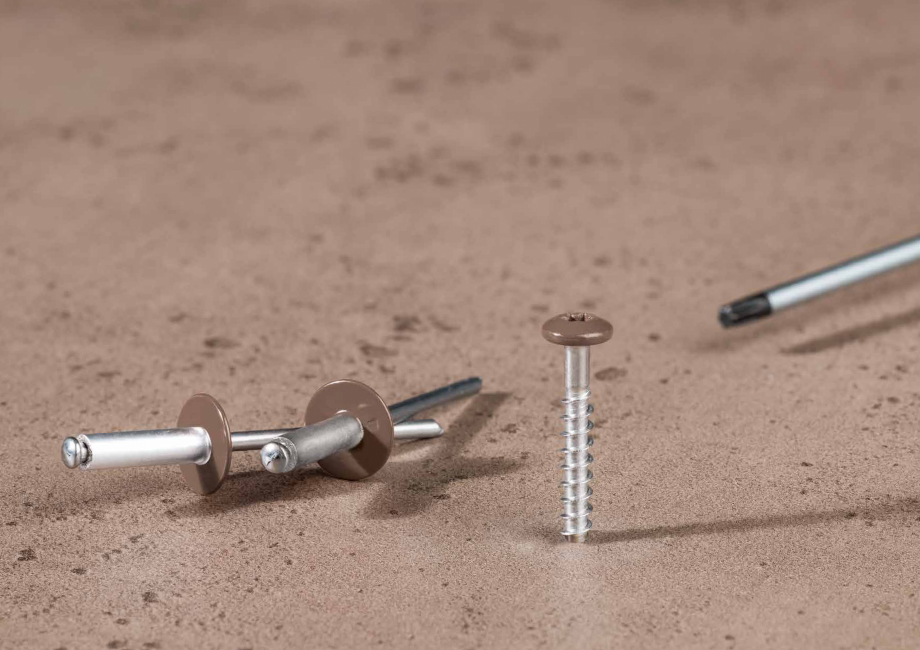

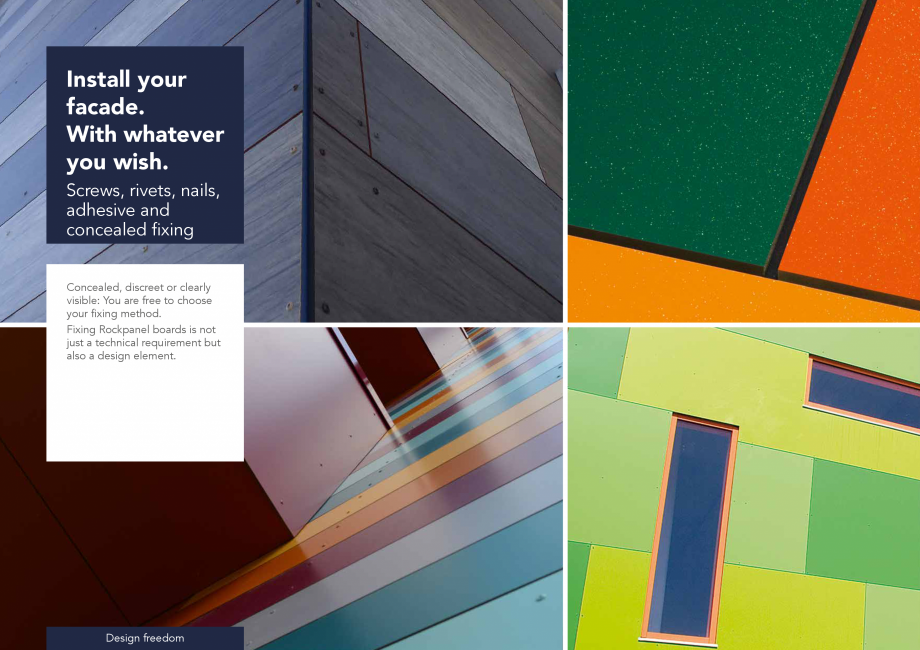

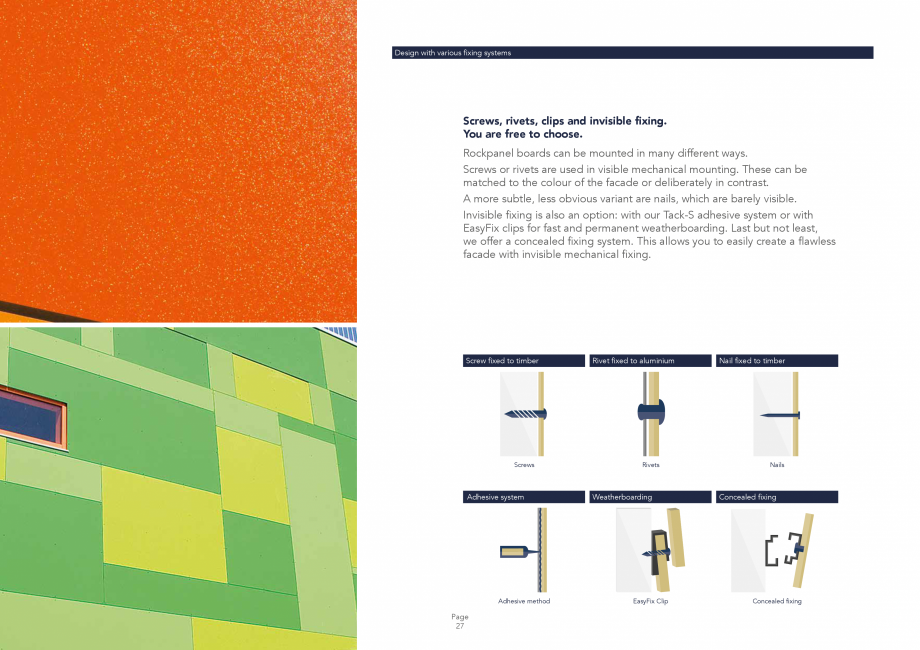

cealed, discreet or clearly visible: You are free to choose your fixing method. Fixing Rockpanel boards is not just a technical requirement but also a design element. Design freedom Design with various fixing systems Screws, rivets, clips and invisible fixing. You are free to choose. Rockpanel boards can be mounted in many different ways. Screws or rivets are used in visible mechanical mounting. These can be matched to the colour of the facade or deliberately in contrast. A more subtle, less obvious variant are nails, which are barely visible. Invisible fixing is also an option: with our Tack-S adhesive system or with EasyFix clips for fast and permanent weatherboarding. Last but not least, we offer a concealed fixing system. This allows you to easily create a flawless facade with invisible mechanical fixing. Screw fixed to timber Screws Adhesive system Adhesive method Page 27 Rivet fixed to aluminium Rivets Weatherboarding EasyFix Clip Nail fixed to timber Nails Concea

Pagina 12-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza cealed,...

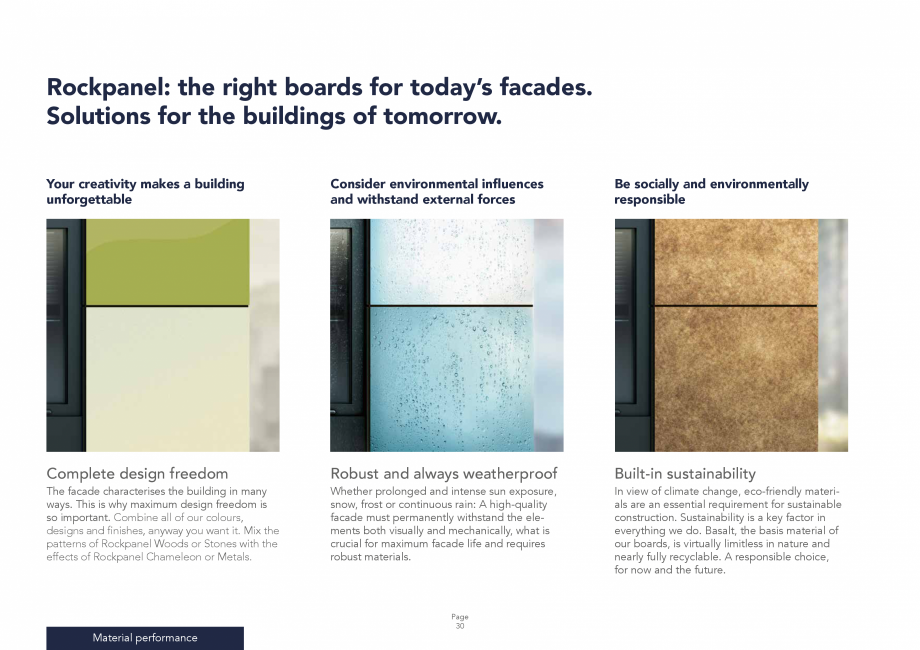

Pagina 13 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

led fixing Concealed fixing Material performance Rockpanel: the right boards for today’s facades. Solutions for the buildings of tomorrow. Your creativity makes a building unforgettable Consider environmental influences and withstand external forces Be socially and environmentally responsible Complete design freedom Robust and always weatherproof Built-in sustainability The facade characterises the building in many ways. This is why maximum design freedom is so important. Combine all of our colours, designs and finishes, anyway you want it. Mix the patterns of Rockpanel Woods or Stones with the effects of Rockpanel Chameleon or Metals. Whether prolonged and intense sun exposure, snow, frost or continuous rain: A high-quality facade must permanently withstand the elements both visually and mechanically, what is crucial for maximum facade life and requires robust materials. Page 30 Material performance In view of climate change, eco-friendly materials are an essential r

Pagina 13-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza led...

Pagina 14 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

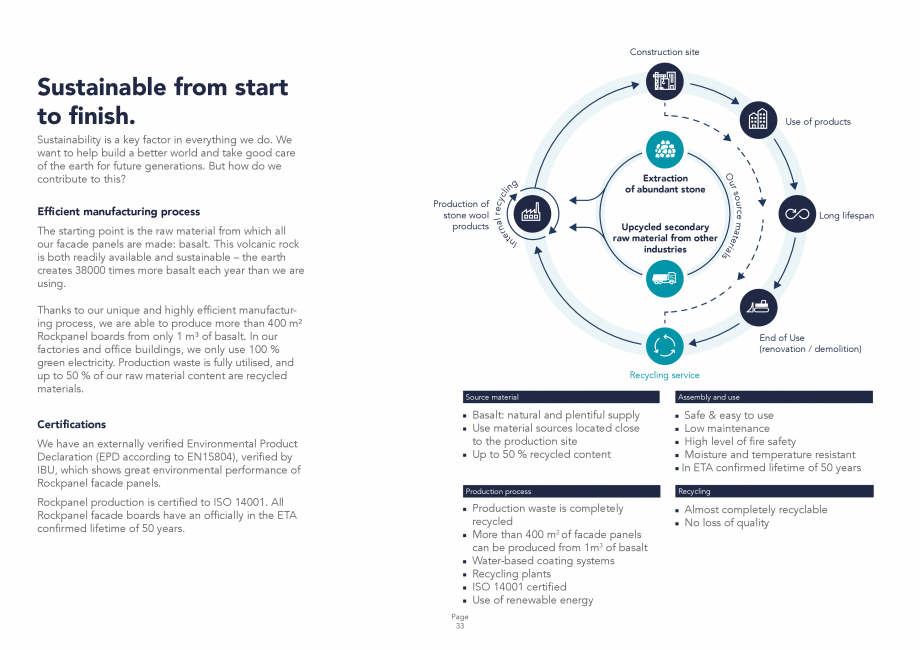

equirement for sustainable construction. Sustainability is a key factor in everything we do. Basalt, the basis material of our boards, is virtually limitless in nature and nearly fully recyclable. A responsible choice, for now and the future. Plan for the future Ensure safety Easy handling Permanently low maintenance Reliably fireproof Expand your creative space Rockpanel boards are available as Euroclass A2 – the responsible choice for high-rise and high-risk buildings. Safety comes first. No compromises. As Rockpanel boards are robust yet flexible and light-weight, the panels are easy to mount. And it can all be done with standard tools such as hand saws, circular saws, jigsaws and drills. Buildings must remain visually attractive for many decades. Easy maintenance and care is necessary for durability. Next to optimum colour fastness, there’s also the increased self-cleaning capacity. This means most of the dirt on the façade is simply washed away by rainwater. Page 3

Pagina 14-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza...

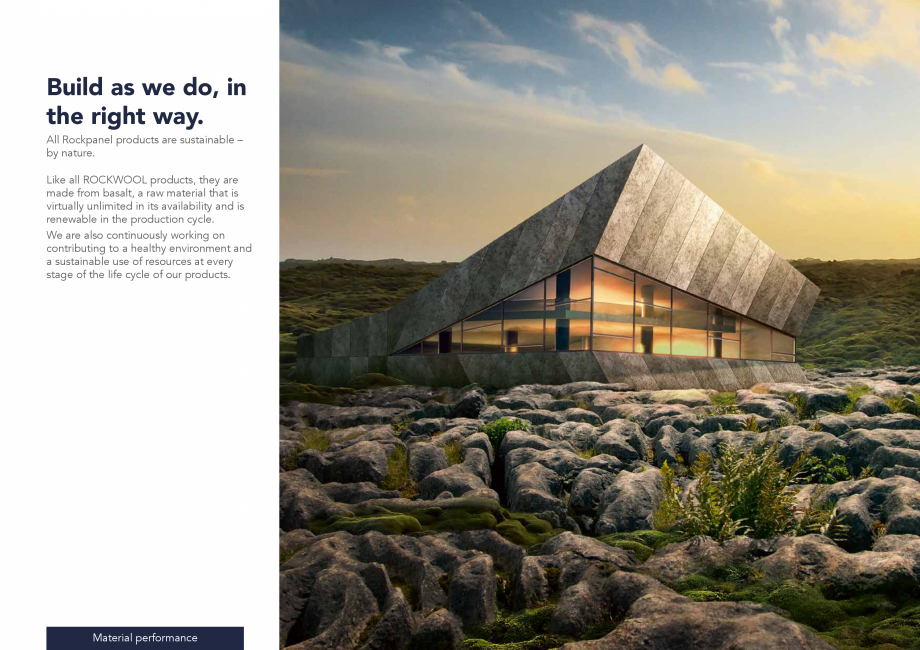

Pagina 15 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

1 Build as we do, in the right way. All Rockpanel products are sustainable – by nature. Like all ROCKWOOL products, they are made from basalt, a raw material that is virtually unlimited in its availability and is renewable in the production cycle. We are also continuously working on contributing to a healthy environment and a sustainable use of resources at every stage of the life cycle of our products. Material performance Construction site Sustainable from start to finish. Use of products n a l r e c yc li er I nt Rockpanel production is certified to ISO 14001. All Rockpanel facade boards have an officially in the ETA confirmed lifetime of 50 years. ls End of Use (renovation / demolition) Recycling service Source material Basalt: natural and plentiful supply Use material sources located close to the production site Up to 50 % recycled content Certifications We have an externally verified Environmental Product Declaration (EPD according to EN15804), verified by IB

Pagina 15-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza 1
...

Pagina 16 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

U, which shows great environmental performance of Rockpanel facade panels. Long lifespan r ia Thanks to our unique and highly efficient manufacturing process, we are able to produce more than 400 m² Rockpanel boards from only 1 m³ of basalt. In our factories and office buildings, we only use 100 % green electricity. Production waste is fully utilised, and up to 50 % of our raw material content are recycled materials. Upcycled secondary raw material from other industries r c e ma t e The starting point is the raw material from which all our facade panels are made: basalt. This volcanic rock is both readily available and sustainable – the earth creates 38000 times more basalt each year than we are using. Production of stone wool products Extraction of abundant stone r sou Efficient manufacturing process ng Ou Sustainability is a key factor in everything we do. We want to help build a better world and take good care of the earth for future generations. But how do we contr

Pagina 16-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza U,...

Pagina 17 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

ibute to this? Production process Production waste is completely recycled More than 400 m2 of facade panels can be produced from 1m3 of basalt Water-based coating systems Recycling plants ISO 14001 certified Use of renewable energy Page 33 Assembly and use Safe & easy to use Low maintenance High level of fire safety Moisture and temperature resistant In ETA confirmed lifetime of 50 years Recycling Almost completely recyclable No loss of quality Safety comes first. No compromises. At Rockpanel, we feel everyone deserves to be in a safe environment. No matter where you live, work, play or learn: safety comes first. Making the right choices therefore is essential. To ensure fire safety in high-risk and high-rise buildings, we should all work together. Each and every one of us should take responsibility and do their part. It’s part of our mission to use the power of stone to improve people’s safety. That’s why we offer facade cladding that is fire resilient by nature. Mat

Pagina 17-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza ibute...

Pagina 18 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

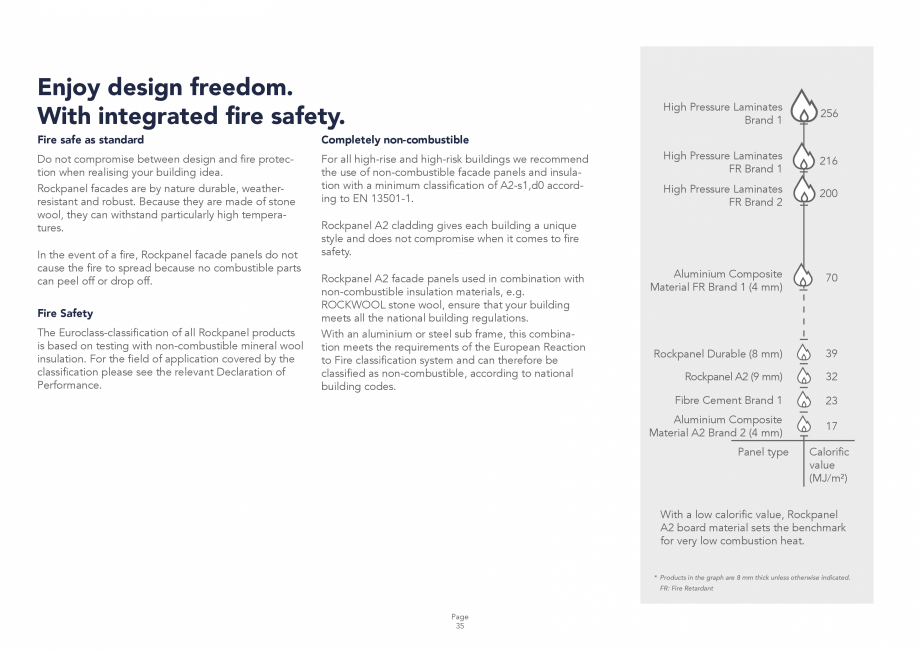

erial performance Enjoy design freedom. With integrated fire safety. Fire safe as standard Completely non-combustible Do not compromise between design and fire protection when realising your building idea. Rockpanel facades are by nature durable, weatherresistant and robust. Because they are made of stone wool, they can withstand particularly high temperatures. For all high-rise and high-risk buildings we recommend the use of non-combustible facade panels and insulation with a minimum classification of A2-s1,d0 according to EN 13501-1. In the event of a fire, Rockpanel facade panels do not cause the fire to spread because no combustible parts can peel off or drop off. Fire Safety The Euroclass-classification of all Rockpanel products is based on testing with non-combustible mineral wool insulation. For the field of application covered by the classification please see the relevant Declaration of Performance. High Pressure Laminates Brand 1 256 High Pressure Laminates FR Brand 1

Pagina 18-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza erial...

Pagina 19 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

216 High Pressure Laminates FR Brand 2 200 Aluminium Composite Material FR Brand 1 (4 mm) 70 Rockpanel Durable (8 mm) 39 Rockpanel A2 (9 mm) 32 Fibre Cement Brand 1 23 Aluminium Composite Material A2 Brand 2 (4 mm) 17 Rockpanel A2 cladding gives each building a unique style and does not compromise when it comes to fire safety. Rockpanel A2 facade panels used in combination with non-combustible insulation materials, e.g. ROCKWOOL stone wool, ensure that your building meets all the national building regulations. With an aluminium or steel sub frame, this combination meets the requirements of the European Reaction to Fire classification system and can therefore be classified as non-combustible, according to national building codes. Panel type Calorific value (MJ/m²) With a low calorific value, Rockpanel A2 board material sets the benchmark for very low combustion heat. * Products in the graph are 8 mm thick unless otherwise indicated. FR: Fire Retardant Page 35 Brave

Pagina 19-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza

216

...

Pagina 20 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

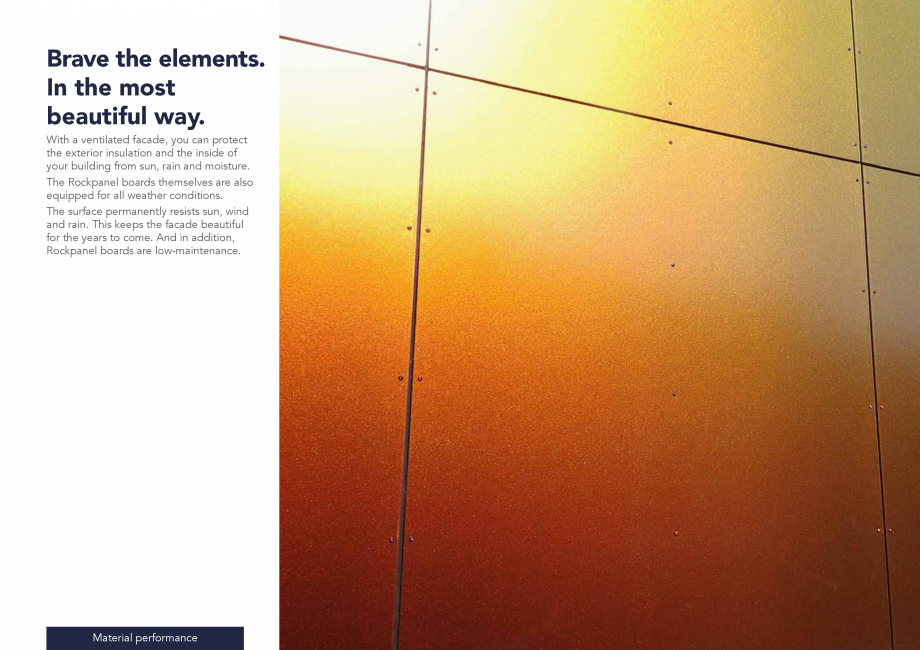

the elements. In the most beautiful way. With a ventilated facade, you can protect the exterior insulation and the inside of your building from sun, rain and moisture. The Rockpanel boards themselves are also equipped for all weather conditions. The surface permanently resists sun, wind and rain. This keeps the facade beautiful for the years to come. And in addition, Rockpanel boards are low-maintenance. Material performance Protected for a long time. Easy to maintain. Naturally easy to look after Even more protection with ProtectPlus Warranty All Rockpanel facade panels are manufactured with a water-based coating - except Rockpanel Natural and Rockpanel Ply. This coating protects your facade against the effects of UV radiation and preserves the colours for years. We have made our facades so easy to maintain that one wash a year with water is enough. ProtectPlus gives your facade extra protection. This transparent layer further strengthens the UV resistance and offers increased

Pagina 20-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza the...

Pagina 21 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

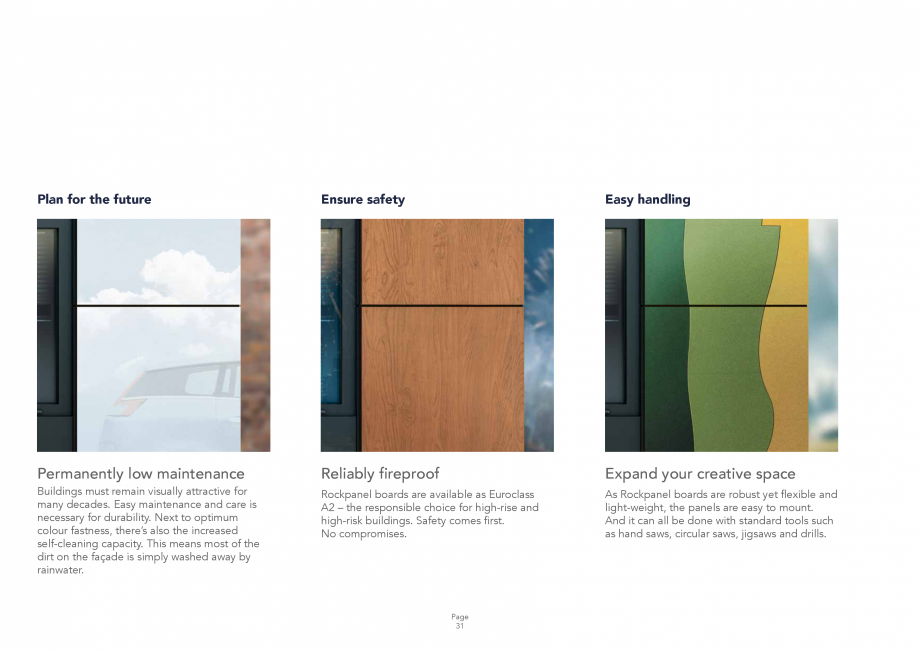

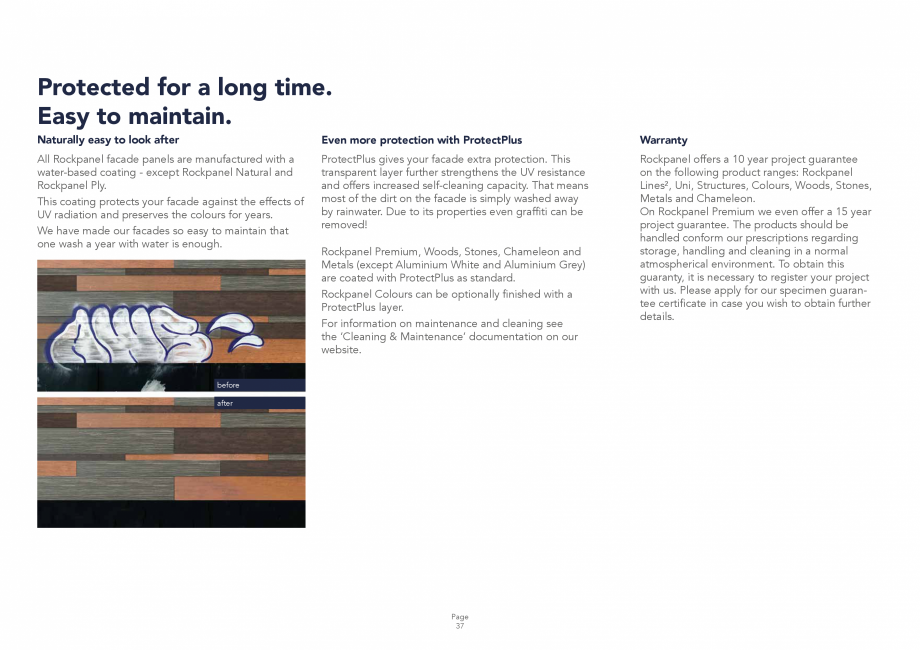

self-cleaning capacity. That means most of the dirt on the facade is simply washed away by rainwater. Due to its properties even graffiti can be removed! Rockpanel offers a 10 year project guarantee on the following product ranges: Rockpanel Lines², Uni, Structures, Colours, Woods, Stones, Metals and Chameleon. On Rockpanel Premium we even offer a 15 year project guarantee. The products should be handled conform our prescriptions regarding storage, handling and cleaning in a normal atmospherical environment. To obtain this guaranty, it is necessary to register your project with us. Please apply for our specimen guarantee certificate in case you wish to obtain further details. Rockpanel Premium, Woods, Stones, Chameleon and Metals (except Aluminium White and Aluminium Grey) are coated with ProtectPlus as standard. Rockpanel Colours can be optionally finished with a ProtectPlus layer. For information on maintenance and cleaning see the ‘Cleaning & Maintenance’ documentation on ou

Pagina 21-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza ...

Pagina 22 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

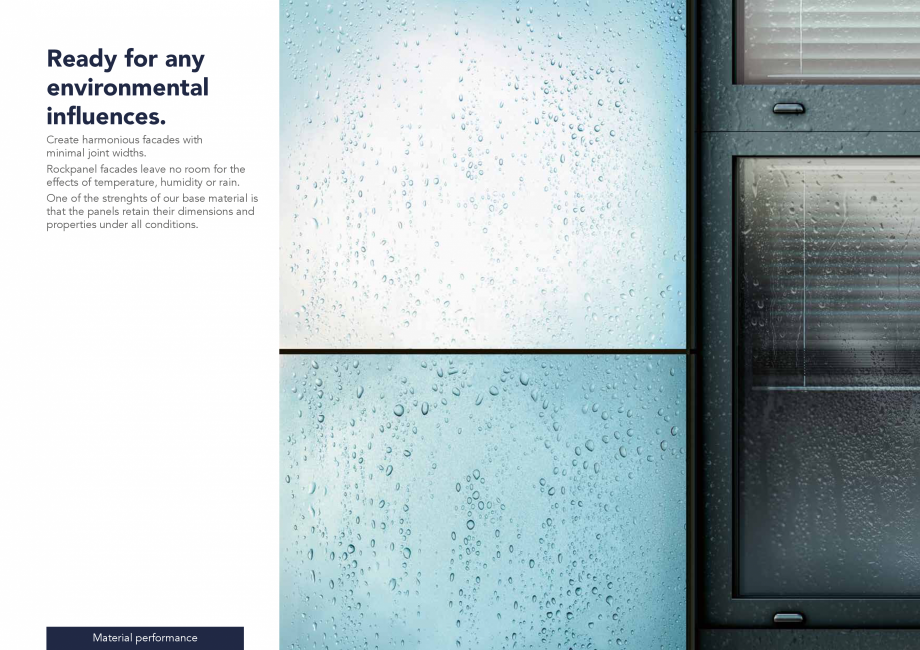

r website. before after Page 37 Ready for any environmental influences. Create harmonious facades with minimal joint widths. Rockpanel facades leave no room for the effects of temperature, humidity or rain. One of the strenghts of our base material is that the panels retain their dimensions and properties under all conditions. Material performance Unrivalled stability in terms of expansion. Unaffected by moisture. Horizontal and vertical joints Linear expansion coefficient Rockpanel (10.5 . 10-3) Concrete (12 . 10-3) Rockpanel RP Fibre cement (15 . 10-3) 5mm HPL (27 . 10-3) 3∙10-3 mm/ m∙K HPL/FCB 9 ∙10-3 mm/ 15 ∙10-3 mm/ 21∙10-3 mm/ 27∙10-3 mm/ m∙K m∙K m∙K m∙K 10mm Highly resistant Moisture resistant Thanks to the source material basalt, Rockpanel facade panels are dimensionally stable. Extreme temperature or humidity fluctuations cause practically no change to the length or width of the panels. Because the coefficient of expansion is even lower

Pagina 22-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza r...

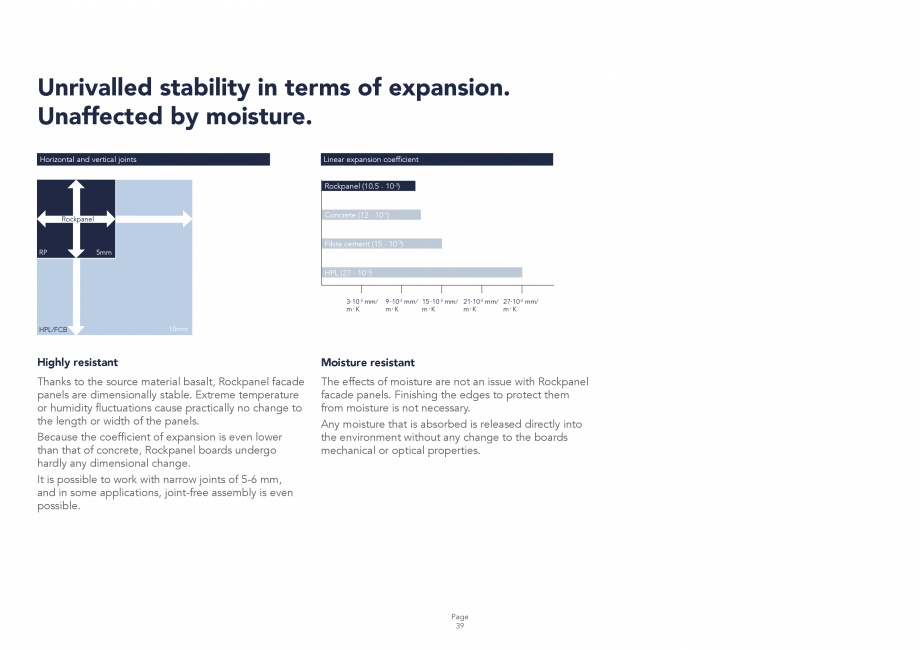

Pagina 23 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

than that of concrete, Rockpanel boards undergo hardly any dimensional change. It is possible to work with narrow joints of 5-6 mm, and in some applications, joint-free assembly is even possible. The effects of moisture are not an issue with Rockpanel facade panels. Finishing the edges to protect them from moisture is not necessary. Any moisture that is absorbed is released directly into the environment without any change to the boards mechanical or optical properties. Page 39 Make the installation easy. The safe, efficient and fast handling of building materials is an important issue in the cladding of facades. Rockpanel boards are as durable as stone and as easy to work with as wood. They are very light and can be machined quickly and easily using standard tools. This saves installation time and makes your building more economical, without compromising on design, shape or functionality. Material performance Easy to work with. Quick to build. Working with standard tools Shin

Pagina 23-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza
than...

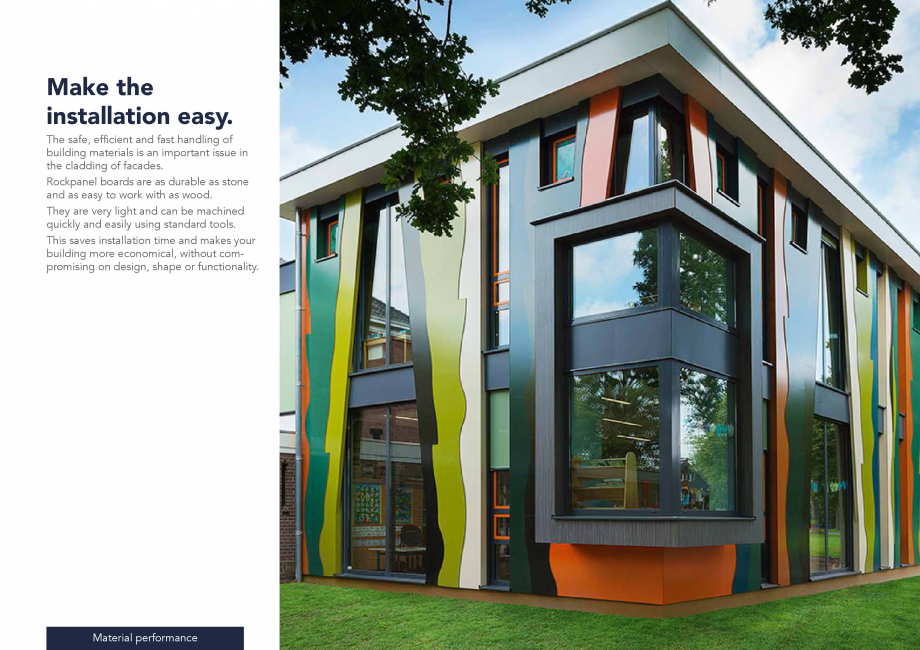

Pagina 24 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

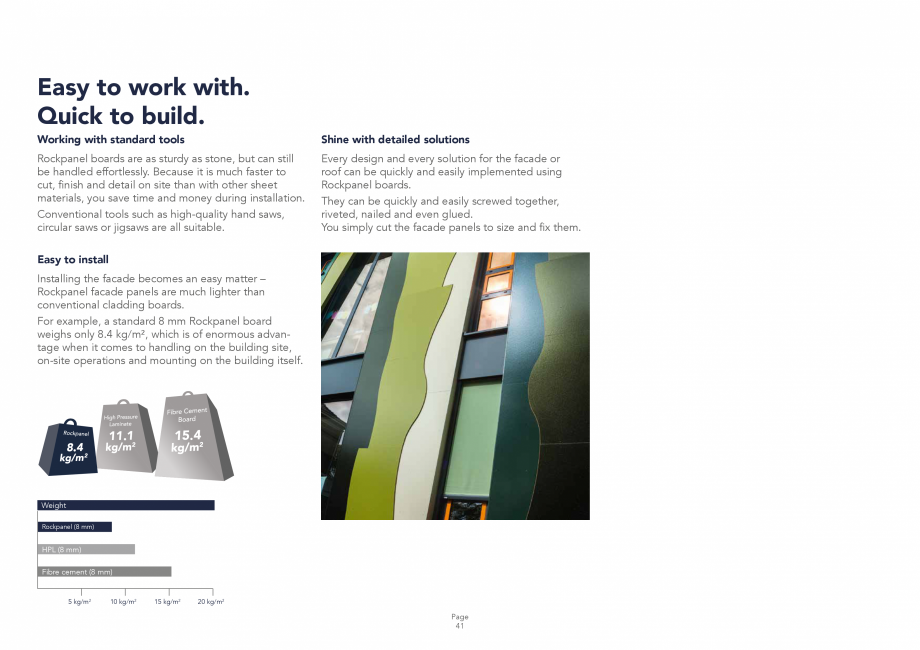

e with detailed solutions Rockpanel boards are as sturdy as stone, but can still be handled effortlessly. Because it is much faster to cut, finish and detail on site than with other sheet materials, you save time and money during installation. Conventional tools such as high-quality hand saws, circular saws or jigsaws are all suitable. Every design and every solution for the facade or roof can be quickly and easily implemented using Rockpanel boards. They can be quickly and easily screwed together, riveted, nailed and even glued. You simply cut the facade panels to size and fix them. Easy to install Installing the facade becomes an easy matter – Rockpanel facade panels are much lighter than conventional cladding boards. For example, a standard 8 mm Rockpanel board weighs only 8.4 kg/m², which is of enormous advantage when it comes to handling on the building site, on-site operations and mounting on the building itself. Weight Rockpanel (8 mm) HPL (8 mm) Fibre cement (8 mm) 5 k

Pagina 24-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza e with ...

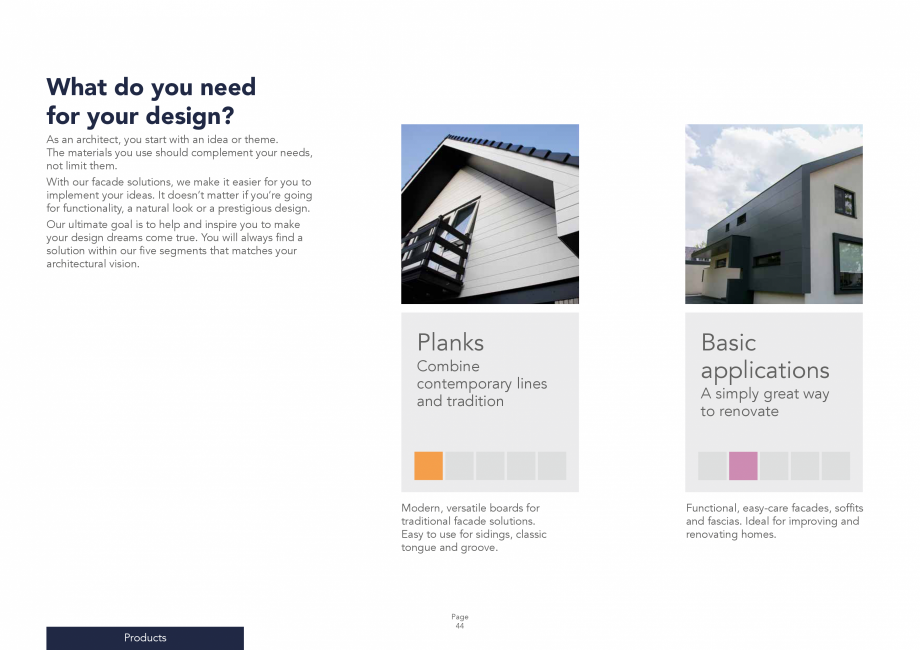

Pagina 25 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

g/m2 10 kg/m2 15 kg/m2 20 kg/m2 Page 41 Products What do you need for your design? As an architect, you start with an idea or theme. The materials you use should complement your needs, not limit them. With our facade solutions, we make it easier for you to implement your ideas. It doesn’t matter if you’re going for functionality, a natural look or a prestigious design. Our ultimate goal is to help and inspire you to make your design dreams come true. You will always find a solution within our five segments that matches your architectural vision. Planks Combine contemporary lines and tradition Modern, versatile boards for traditional facade solutions. Easy to use for sidings, classic tongue and groove. Page 44 Products Basic applications A simply great way to renovate Functional, easy-care facades, soffits and fascias. Ideal for improving and renovating homes. Nature facades Play around with natural surfaces and designs Natural looking facades that blend into th

Pagina 25-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza g/m2
...

Pagina 26 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

eir surroundings. In harmony with nature and the environment. Design facades Explore shapes and colours freely Expressive design facades for impressive buildings. With complete freedom in terms of colour, surface and shape to make every vision a reality. Page 45 Premium facades Make a unique statement To create something truly incredible, you need complete design freedom. Rockpanel Premium helps you to push all boundaries. Planks Combine contemporary lines and tradition Products Rockpanel Lines2. When lines are required. Play around with traditional facade designs – use lines as a continuous element or to provide a stylish touch. With Rockpanel Lines2 you can take the liberty to reinterpret the classic tongue and groove profile. Versatile, durable, easy to maintain and cost-effective. Rockpanel Lines2 Page 48 Products RAL 9010 RAL 9001 RAL 7004 RAL 1015 RAL 7016 Grey (ready-to-paint primer) Assortment Product Line Board Composition Thickness Standard dimens

Pagina 26-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza eir...

Pagina 27 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

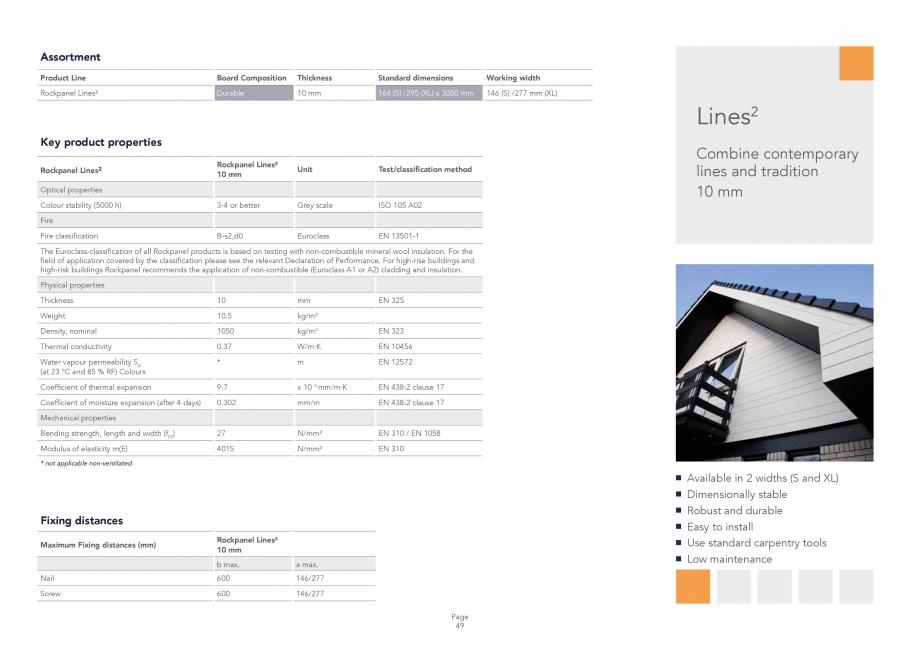

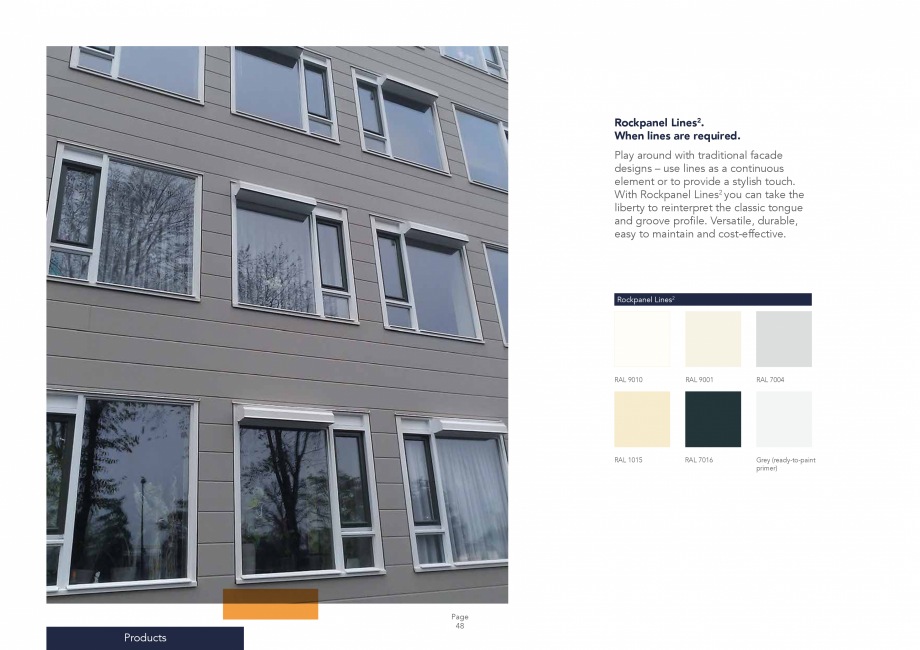

ions Working width Rockpanel Lines² Durable 10 mm 164 (S) /295 (XL) x 3050 mm 146 (S) /277 mm (XL) Lines2 Key product properties Rockpanel Lines² Rockpanel Lines² 10 mm Unit Test/classification method 3-4 or better Grey scale ISO 105 A02 B-s2,d0 Euroclass EN 13501-1 Optical properties Colour stability (5000 h) Combine contemporary lines and tradition 10 mm Fire Fire classification The Euroclass-classification of all Rockpanel products is based on testing with non-combustible mineral wool insulation. For the field of application covered by the classification please see the relevant Declaration of Performance. For high-rise buildings and high-risk buildings Rockpanel recommends the application of non-combustible (Euroclass A1 or A2) cladding and insulation. Physical properties Thickness 10 mm Weight 10.5 kg/m² EN 325 Density, nominal 1050 kg/m3 EN 323 Thermal conductivity 0.37 W/m∙K EN 10456 Water vapour permeability Sd (at 23 °C and 85 % RF) Col

Pagina 27-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza ions
...

Pagina 28 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

ours * m EN 12572 Coefficient of thermal expansion 9.7 x 10 -3 mm/m∙K EN 438:2 clause 17 Coefficient of moisture expansion (after 4 days) 0.302 mm/m EN 438:2 clause 17 Bending strength, length and width (f05) 27 N/mm² EN 310 / EN 1058 Modulus of elasticity m(E) 4015 N/mm² EN 310 Mechanical properties * not applicable non-ventilated Available in 2 widths (S and XL) Dimensionally stable Robust and durable Easy to install Use standard carpentry tools Low maintenance Fixing distances Maximum Fixing distances (mm) Rockpanel Lines² 10 mm b max. a max. Nail 600 146/277 Screw 600 146/277 Page 49 Basic applications A simply great way to renovate Products Products Functional and easy to maintain. An easy way to add beauty and value to your house. Basic applications Give each building a fresh, high-quality look. Easy to install and functional, whether improving or renovating: Rockpanel basic solutions are robust, easy-to-maintain facades and roof line

Pagina 28-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza ours

*...

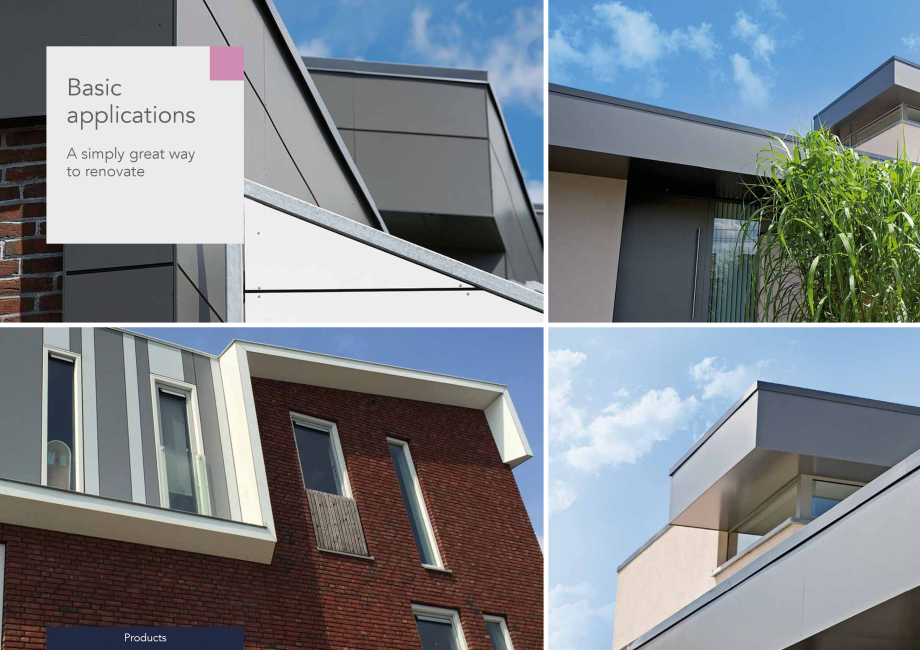

Pagina 29 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

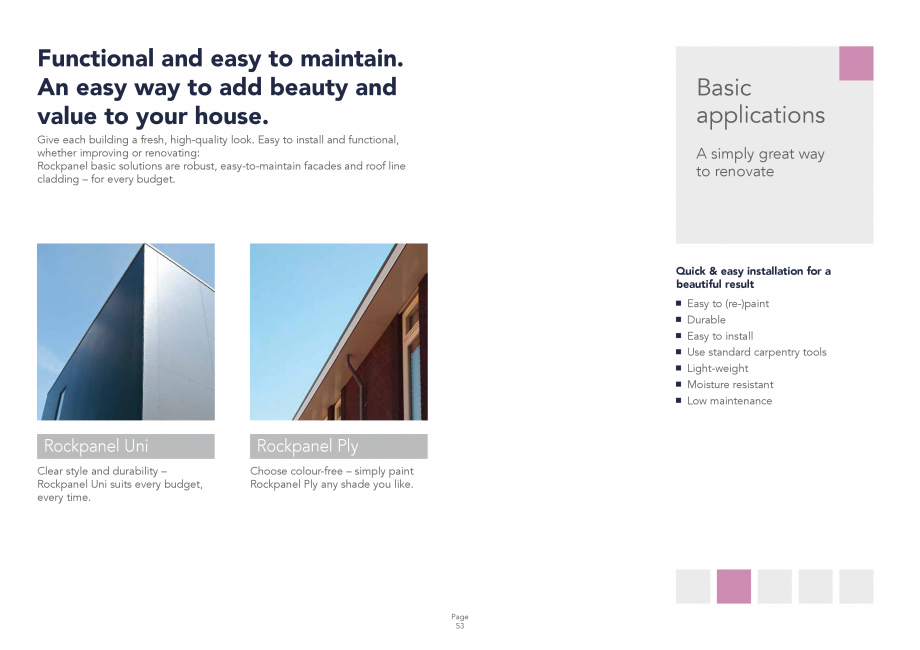

cladding – for every budget. A simply great way to renovate Quick & easy installation for a beautiful result Easy to (re-)paint Durable Easy to install Use standard carpentry tools Light-weight Moisture resistant Low maintenance Rockpanel Uni Clear style and durability – Rockpanel Uni suits every budget, every time. Rockpanel Ply Choose colour-free – simply paint Rockpanel Ply any shade you like. Page 53 Rockpanel Uni. Beauty can be that simple. Timeless architectural concepts are characterised by clarity. If your design idea involves a lot of functionality, then Rockpanel Uni is just the thing for you. Long lifetime, quick to install – suitable for facades and roof line – and fits into every budget. Rockpanel Uni Page 54 Products RAL 9010 RAL 9001 RAL 9011 RAL 7035 RAL 7016 RAL 7021 Assortment Product Line Thickness Standard dimensions Rockpanel Uni 6 mm 1200 x 2500/3050 mm Uni Key product properties Rockpanel Uni Rockpanel Uni 6 mm Unit Test/clas

Pagina 29-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza ...

Pagina 30 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

sification method 3 or better Class on greyscale ISO 105 A02 B-s2,d0 Euroclass EN 13501-1 Optical properties Colour stability (5000 h) Upgrade or renovate your house. 6 mm Fire Fire classification The Euroclass-classification of all Rockpanel products is based on testing with non-combustible mineral wool insulation. For the field of application covered by the classification please see the relevant Declaration of Performance. For high-rise buildings and high-risk buildings Rockpanel recommends the application of non-combustible (Euroclass A1 or A2) cladding and insulation. Physical properties Thickness 6 mm Weight 6.3 kg/m² Density, nominal 1050 kg/m3 EN 325 EN 323 Thermal conductivity 0.37 W/m∙K EN 10456 Water vapour permeability Sd (at 23 °C and 85 % RF) Colours < 1.8 m EN 12572 Coefficient of thermal expansion 10.5 x 10-3 mm/m∙K EN 438:2 clause 17 Coefficient of moisture expansion (after 4 days) 0.303 mm/m EN 438:2 clause 17 Bending strength

Pagina 30-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza...

Pagina 31 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

, length and width (f05) ≥ 24 N/mm² EN 310 / EN 1058 Modulus of elasticity m(E) 3567 N/mm² EN 310 Mechanical properties Easy to install Vapour-permeable Moisture resistant Use standard carpentry tools Fixing distances Maximum Fixing distances (mm) Rockpanel Uni 6 mm b max. a max. Nail 400 300 Screw 400 300 Page 55 Rockpanel Ply. Simply apply the colour of your choice. Is the exact colour you would like for your design not available in our range, or do you want to accentuate even the smallest detail of the building? Rockpanel Ply gives you the freedom to express yourself in any colour. It is a durable, sturdy base for your desired colour. And at the same time a sustainable alternative to wood. Ready for your painting ideas. They are pre-primed and very easy to finish. Our facade panels can be painted to your liking using standard colours from other manufacturers. Basic Primer Grey (ready-topaint primer) Page 56 Products Assortment Product Line Board Comp

Pagina 31-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza ,...

Pagina 32 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

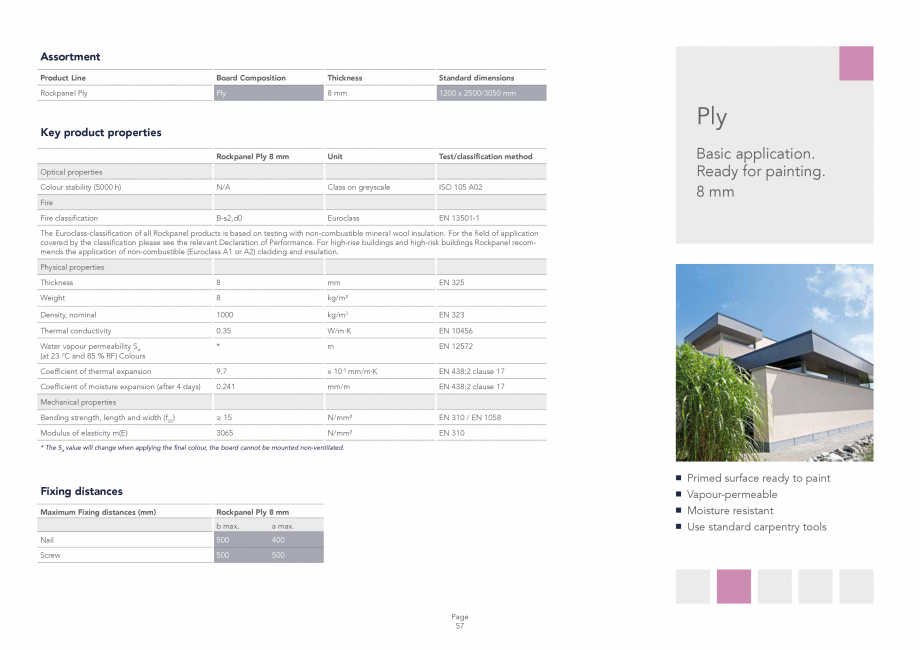

osition Thickness Standard dimensions Rockpanel Ply Ply 8 mm 1200 x 2500/3050 mm Ply Key product properties Rockpanel Ply 8 mm Unit Test/classification method N/A Class on greyscale ISO 105 A02 B-s2,d0 Euroclass EN 13501-1 Optical properties Colour stability (5000 h) Fire Fire classification Basic application. Ready for painting. 8 mm The Euroclass-classification of all Rockpanel products is based on testing with non-combustible mineral wool insulation. For the field of application covered by the classification please see the relevant Declaration of Performance. For high-rise buildings and high-risk buildings Rockpanel recommends the application of non-combustible (Euroclass A1 or A2) cladding and insulation. Physical properties Thickness 8 mm Weight 8 kg/m² Density, nominal 1000 kg/m3 EN 325 EN 323 Thermal conductivity 0.35 W/m∙K EN 10456 Water vapour permeability Sd (at 23 °C and 85 % RF) Colours * m EN 12572 Coefficient of thermal expansion

Pagina 32-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza osition...

Pagina 33 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

9.7 x 10-3 mm/m∙K EN 438:2 clause 17 Coefficient of moisture expansion (after 4 days) 0.241 mm/m EN 438:2 clause 17 Bending strength, length and width (f05) ≥ 15 N/mm² EN 310 / EN 1058 Modulus of elasticity m(E) 3065 N/mm² EN 310 Mechanical properties * The Sd value will change when applying the final colour, the board cannot be mounted non-ventilated. Primed surface ready to paint Vapour-permeable Moisture resistant Use standard carpentry tools Fixing distances Maximum Fixing distances (mm) Rockpanel Ply 8 mm b max. a max. Nail 500 400 Screw 500 500 Page 57 Nature facades Play around with natural surfaces and designs Products Products Facades with a natural look. In perfect harmony with the environment. Good architecture seeks and always finds dialogue with its environment. Rockpanel Nature facades can be taken literally. Take advantage of the unlimited shapes and colours of nature. And turn your building into an organic, natural part of its s

Pagina 33-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza
9.7

x...

Pagina 34 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

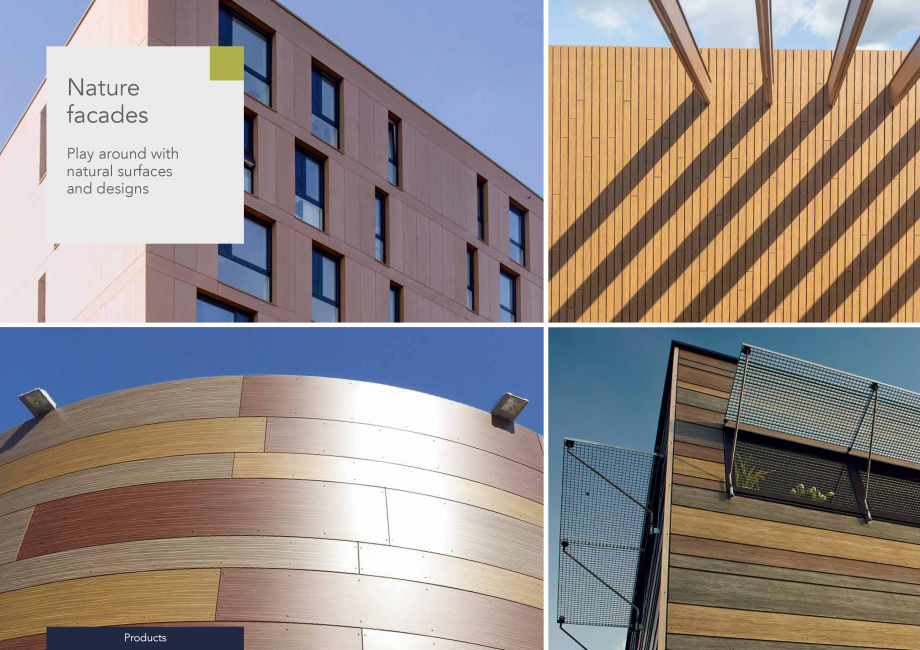

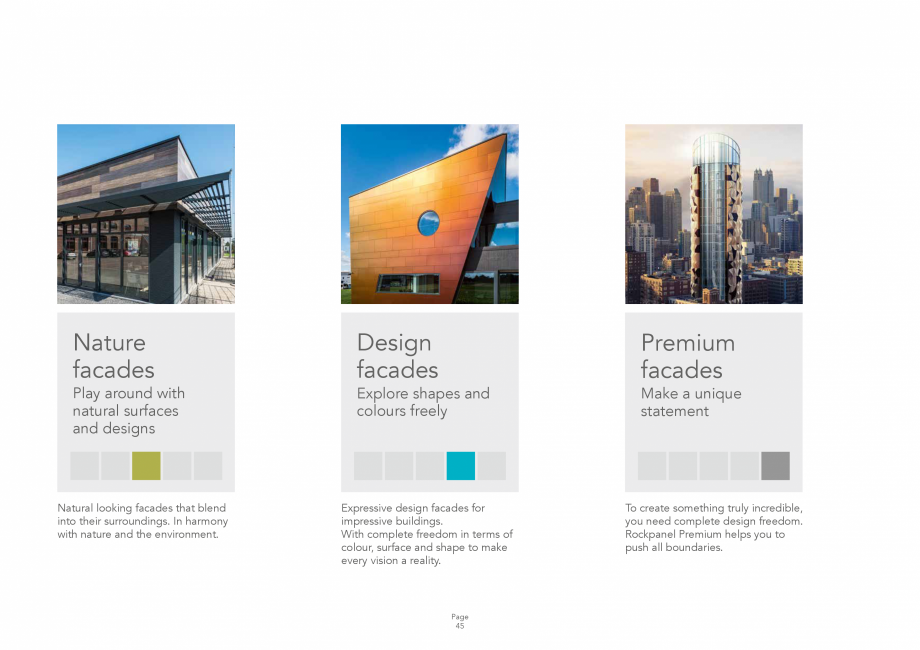

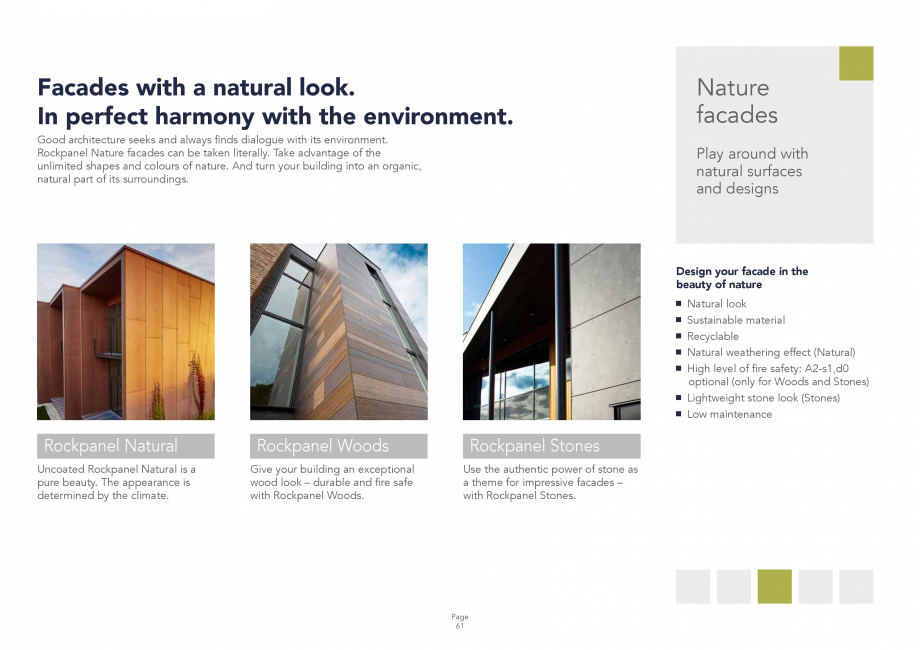

urroundings. Nature facades Play around with natural surfaces and designs Design your facade in the beauty of nature Natural look Sustainable material Recyclable Natural weathering effect (Natural) High level of fire safety: A2-s1,d0 optional (only for Woods and Stones) Lightweight stone look (Stones) Low maintenance Rockpanel Natural Uncoated Rockpanel Natural is a pure beauty. The appearance is determined by the climate. Rockpanel Woods Give your building an exceptional wood look – durable and fire safe with Rockpanel Woods. Rockpanel Stones Use the authentic power of stone as a theme for impressive facades – with Rockpanel Stones. Page 61 Rockpanel Natural. In dialogue with the elements. The true beauty of a facade is sometimes quite puristic. Be brave – let the sun, wind and rain play their part. Without applying paint or surface sealer, Rockpanel Natural allows the elements to take an active role in your facade. Your building fits organically into its surrounding

Pagina 34-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza...

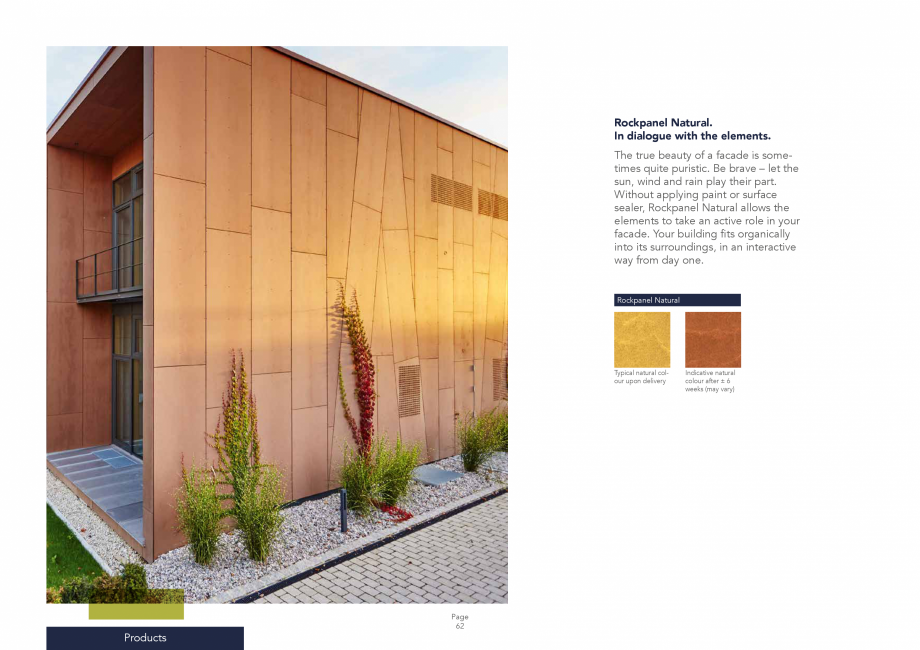

Pagina 35 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

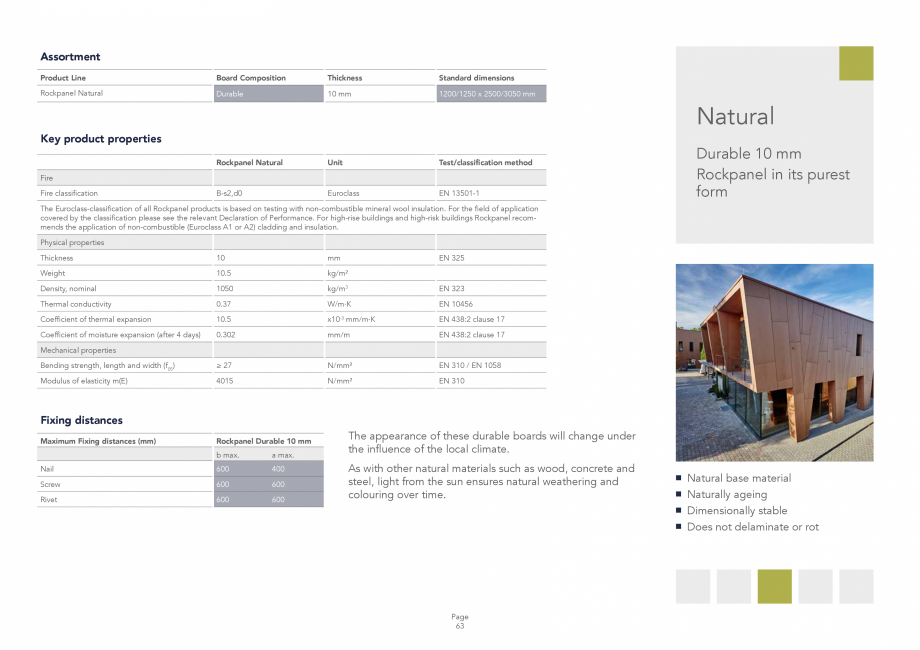

s, in an interactive way from day one. Rockpanel Natural Typical natural colour upon delivery Page 62 Products Indicative natural colour after ± 6 weeks (may vary) Assortment Product Line Board Composition Thickness Standard dimensions Rockpanel Natural Durable 10 mm 1200/1250 x 2500/3050 mm Natural Key product properties Rockpanel Natural Unit Test/classification method B-s2,d0 Euroclass EN 13501-1 Fire Fire classification Durable 10 mm Rockpanel in its purest form The Euroclass-classification of all Rockpanel products is based on testing with non-combustible mineral wool insulation. For the field of application covered by the classification please see the relevant Declaration of Performance. For high-rise buildings and high-risk buildings Rockpanel recommends the application of non-combustible (Euroclass A1 or A2) cladding and insulation. Physical properties Thickness 10 mm EN 325 Weight 10.5 kg/m² Density, nominal 1050 kg/m3 EN 323 Thermal conduc

Pagina 35-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza s, in...

Pagina 36 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

tivity 0.37 W/m∙K EN 10456 Coefficient of thermal expansion 10.5 x10-3 mm/m∙K EN 438:2 clause 17 Coefficient of moisture expansion (after 4 days) 0.302 mm/m EN 438:2 clause 17 Bending strength, length and width (f05) ≥ 27 N/mm² EN 310 / EN 1058 Modulus of elasticity m(E) 4015 N/mm² EN 310 Mechanical properties Fixing distances Maximum Fixing distances (mm) Rockpanel Durable 10 mm b max. a max. Nail 600 400 Screw 600 600 Rivet 600 600 The appearance of these durable boards will change under the influence of the local climate. As with other natural materials such as wood, concrete and steel, light from the sun ensures natural weathering and colouring over time. Page 63 Natural base material Naturally ageing Dimensionally stable Does not delaminate or rot Rockpanel Woods. Alive like wood. Sturdy as stone. Amaze everyone and make the users of your building feel good. With facades that radiate the warm, organic glow of wood. Build with the freedo

Pagina 36-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza tivity
...

Pagina 37 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

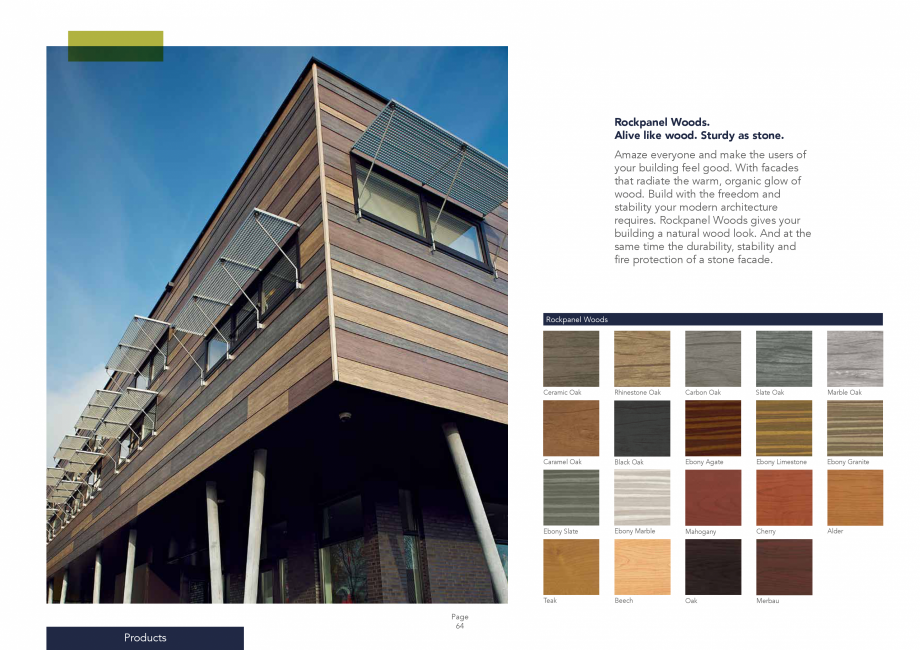

m and stability your modern architecture requires. Rockpanel Woods gives your building a natural wood look. And at the same time the durability, stability and fire protection of a stone facade. Rockpanel Woods Page 64 Products Ceramic Oak Rhinestone Oak Carbon Oak Slate Oak Marble Oak Caramel Oak Black Oak Ebony Agate Ebony Limestone Ebony Granite Ebony Slate Ebony Marble Mahogany Cherry Alder Teak Beech Oak Merbau Assortment Product Line Rockpanel Woods Board Composition Thickness Standard dimensions Durable 8 mm A2 9 mm Durable A2 Unit Test/classification method ProtectPlus: 4 or better ProtectPlus: 4 or better Class on greyscale ISO 105 A02 B-s2,d0 A2-s1,d0 Euroclass EN 13501-1 1200/1250 x 2500/3050 mm Woods Key product properties Rockpanel Woods Optical properties Colour stability (5000 h) Fire Fire classification Durable 8 mm A2, 9 mm A warm and authentic look ProtectPlus The Euroclass-classification of all Rockpanel products is base

Pagina 37-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza m and...

Pagina 38 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

d on testing with non-combustible mineral wool insulation. For the field of application covered by the classification please see the relevant Declaration of Performance. For high-rise buildings and high-risk buildings Rockpanel recommends the application of non-combustible (Euroclass A1 or A2) cladding and insulation. Physical properties Weight 8 mm: 8.4 9 mm: 11.25 kg/m² Density, nominal 1050 1250 kg/m3 EN 323 Thermal conductivity 0.37 0.55 W/m∙K EN 10456 Water vapour permeability Sd (at 23 °C and 85 % RF) ProtectPlus < 3.5 N/A m EN 12572 Coefficient of thermal expansion 10.5 9.7 x10-3 mm/m∙K EN 438:2 clause 17 Coefficient of moisture expansion (after 4 days) 0.302 0.206 mm/m EN 438:2 clause 17 Bending strength, length and width (f05) ≥ 27 ≥ 25.5 N/mm² EN 310 / EN 1058 Modulus of elasticity m(E) 4015 4740 N/mm² EN 310 Durable 8 mm A2 9 mm Mechanical properties Fixing distances Maximum Fixing distances (mm) b max. a max. b max.

Pagina 38-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza d on...

Pagina 39 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

a max. Nail 600 400 N/A N/A Screw 600 600 N/A N/A Rivet 600 600 600 600 Bonding 600 uninterupted glue line N/A N/A Authentic wood look No visual repetition Wood that does not burn Low maintenance Colourfast Page 65 Rockpanel Stones. Stones reach the sky. Visionary architecture is characterised by a courageous crossing of borders. Overcome limits – even those in nature. Design facades with the powerful look of stone. Build with its strength. But remain flexible in terms of shape and dimension. Challenge gravity – with the ease of Rockpanel Stones. Rockpanel Stones Page 66 Products Mineral Chalk Mineral Silver Mineral Graphite Mineral Clay Mineral Rust Basalt Zinc Basalt Iron Basalt Anthracite Mineral Earth Mineral Limestone Concrete Platinum Concrete Ash Concrete Sand Assortment Product Line Rockpanel Stones Board Composition Thickness Durable 8 mm A2 9 mm Standard dimensions 1200/1250 x 2500/3050 mm Stones Key product properties Ro

Pagina 39-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza a max.
...

Pagina 40 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

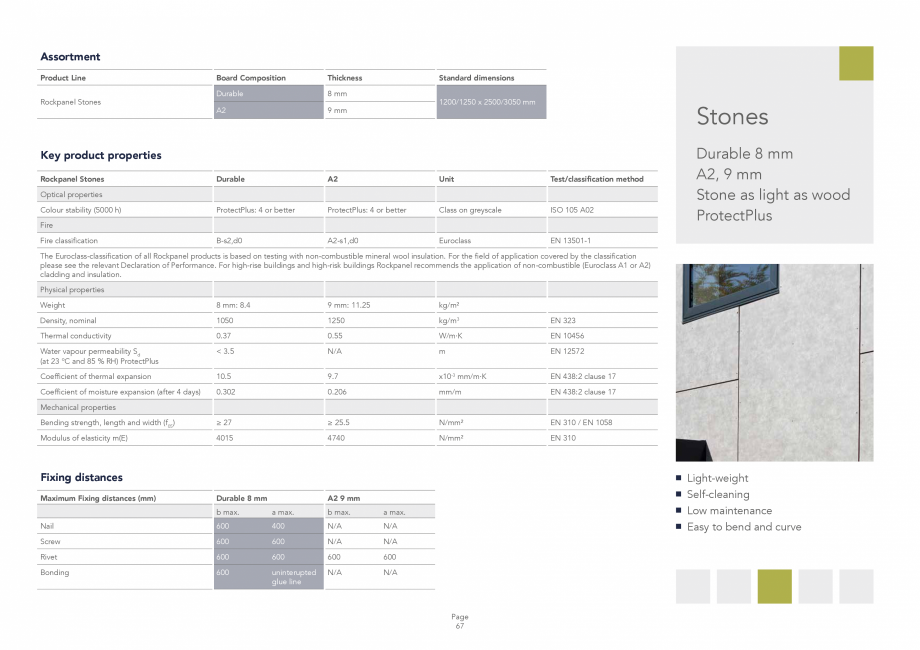

ckpanel Stones Durable A2 Unit Test/classification method ProtectPlus: 4 or better ProtectPlus: 4 or better Class on greyscale ISO 105 A02 B-s2,d0 A2-s1,d0 Euroclass EN 13501-1 Optical properties Colour stability (5000 h) Fire Fire classification Durable 8 mm A2, 9 mm Stone as light as wood ProtectPlus The Euroclass-classification of all Rockpanel products is based on testing with non-combustible mineral wool insulation. For the field of application covered by the classification please see the relevant Declaration of Performance. For high-rise buildings and high-risk buildings Rockpanel recommends the application of non-combustible (Euroclass A1 or A2) cladding and insulation. Physical properties Weight 8 mm: 8.4 9 mm: 11.25 kg/m² Density, nominal 1050 1250 kg/m3 EN 323 Thermal conductivity 0.37 0.55 W/m∙K EN 10456 Water vapour permeability Sd (at 23 °C and 85 % RH) ProtectPlus < 3.5 N/A m EN 12572 Coefficient of thermal expansion 10.5 9.7 x10-3

Pagina 40-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza ckpanel...

Pagina 41 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

mm/m∙K EN 438:2 clause 17 Coefficient of moisture expansion (after 4 days) 0.302 0.206 mm/m EN 438:2 clause 17 Mechanical properties Bending strength, length and width (f05) ≥ 27 ≥ 25.5 N/mm² EN 310 / EN 1058 Modulus of elasticity m(E) 4015 4740 N/mm² EN 310 Fixing distances Maximum Fixing distances (mm) Durable 8 mm Light-weight Self-cleaning Low maintenance Easy to bend and curve A2 9 mm b max. a max. b max. a max. Nail 600 400 N/A N/A Screw 600 600 N/A N/A Rivet 600 600 600 600 Bonding 600 uninterupted glue line N/A N/A Page 67 Design facades Explore shapes and colours freely Products Rockpanel Colours Create colourful statements or go for more subtle beauty. Colour becomes a design element with Rockpanel Colours. Products Expressive in every way. And in all colours. Design facades Design with plenty of courage, ideas and colour. Give your building a striking facade design that makes it stand out. You have complete fre

Pagina 41-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza ...

Pagina 42 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

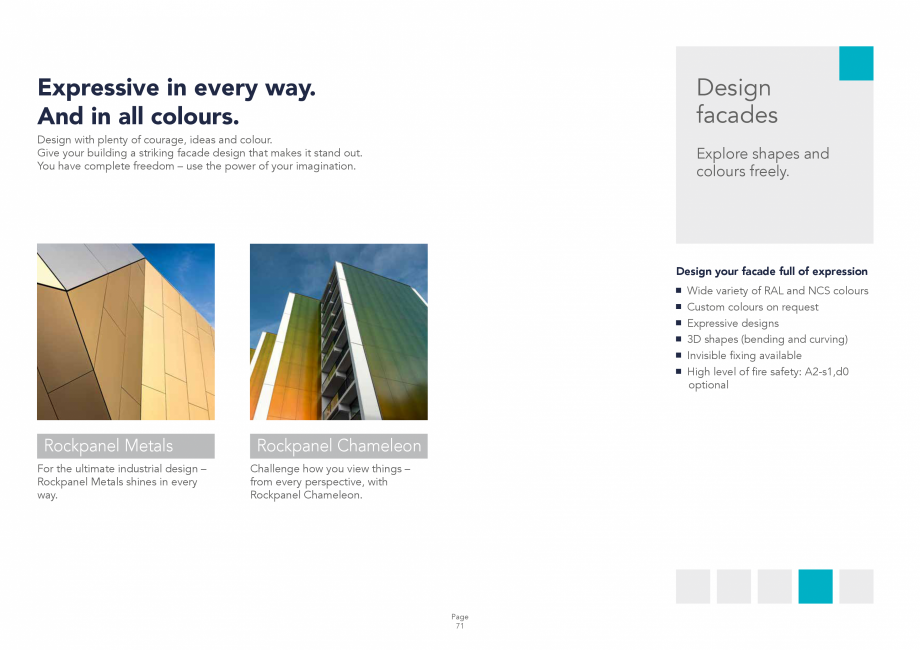

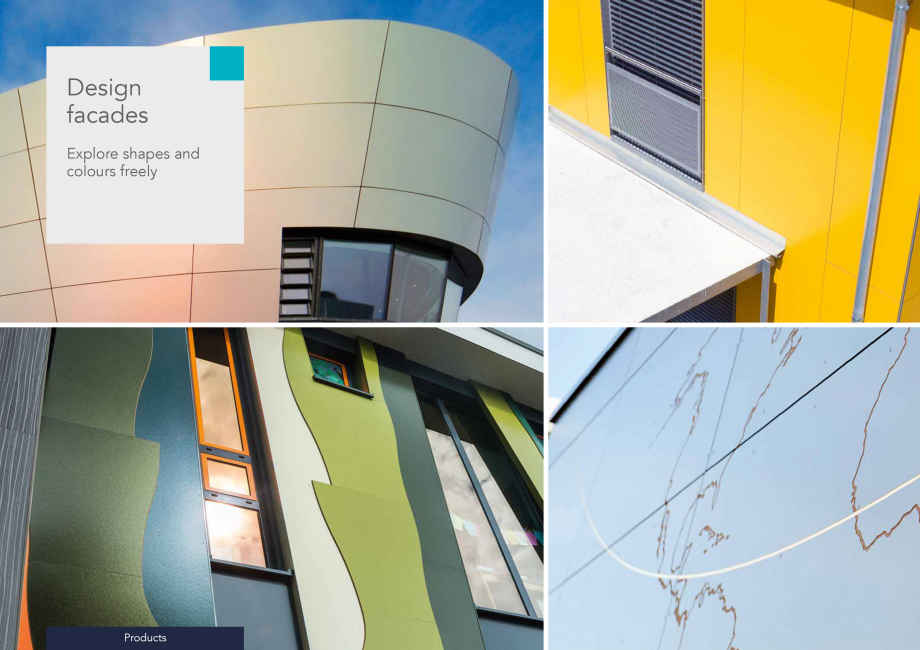

edom – use the power of your imagination. Explore shapes and colours freely. Design your facade full of expression Wide variety of RAL and NCS colours Custom colours on request Expressive designs 3D shapes (bending and curving) Invisible fixing available High level of fire safety: A2-s1,d0 optional Rockpanel Metals For the ultimate industrial design – Rockpanel Metals shines in every way. Rockpanel Chameleon Challenge how you view things – from every perspective, with Rockpanel Chameleon. Page 71 Rockpanel Colours. Fascinating colour range. Let your facade blend into the environment. Or emphasise the features in an urban setting. Enjoy complete freedom in the design of your building – in almost any colour of your choice. Our Rockpanel Colours assortment consists of Standard and Special colours. In addition to our standard and special RAL/NCS colours, you can choose almost any Custom RAL/NCS colour if you want to create something even more unique. Visit our website for th

Pagina 42-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza edom...

Pagina 43 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

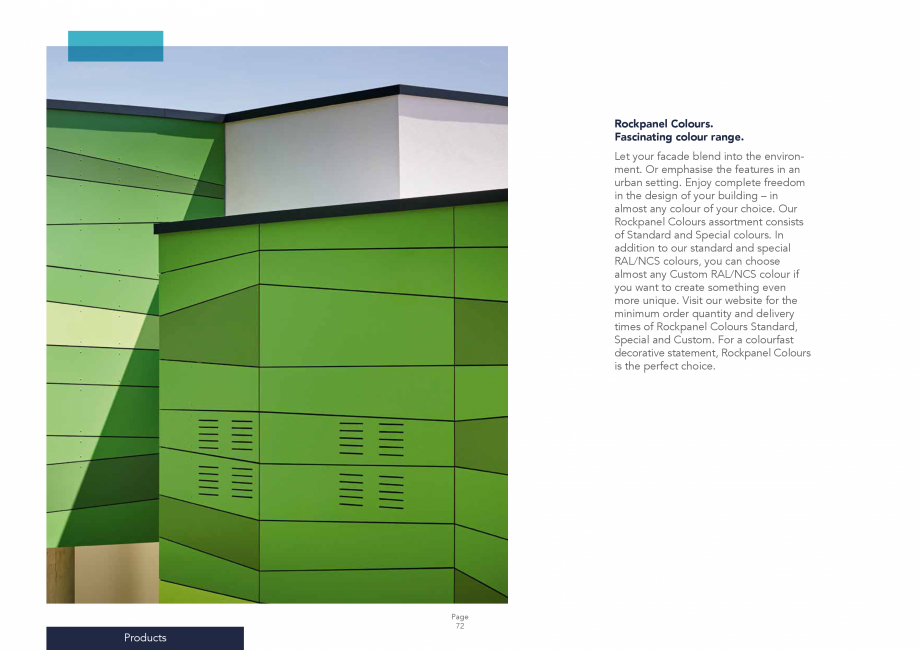

e minimum order quantity and delivery times of Rockpanel Colours Standard, Special and Custom. For a colourfast decorative statement, Rockpanel Colours is the perfect choice. Page 72 Products Assortment Product Line Rockpanel Colours Board Composition Thickness Standard dimensions Durable 6 mm, 8 mm A2 9 mm Durable A2 Unit Test/classification method ProtectPlus: 4 or better Colours: 3-4 or better ProtectPlus: 4 or better Colours: 3-4 or better Grey scale ISO 105 A02 B-s2,d0 A2-s1,d0 Euroclass EN 13501-1 1200/1250 x 2500/3050 mm Colours Key product properties Rockpanel Colours Optical properties Colour stability (5000 h) Fire Fire classification Durable 6 & 8 mm A2, 9 mm ProtectPlus (option, excl. 6 mm) The Euroclass-classification of all Rockpanel products is based on testing with non-combustible mineral wool insulation. For the field of application covered by the classification please see the relevant Declaration of Performance. For high-rise buildings and

Pagina 43-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza e...

Pagina 44 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

high-risk buildings Rockpanel recommends the application of non-combustible (Euroclass A1 or A2) cladding and insulation. Physical properties Weight 6 mm: 6.3 8 mm: 8.4 9 mm: 11.25 kg/m² Density, nominal 1050 1250 kg/m3 EN 323 Thermal conductivity 0.37 0.55 W/m∙K EN 10456 Water vapour permeability Sd (at 23 °C and 85 % RH) Colours < 1.80 N/A m EN 12572 Water vapour permeability Sd (at 23 °C and 85 % RH) ProtectPlus < 3.5 N/A m EN 12572 Coefficient of thermal expansion 10.5 9.7 x10-3 mm/m∙K EN 438:2 clause 17 Coefficient of moisture expansion (after 4 days) 0.302 0.206 mm/m EN 438:2 clause 17 Bending strength, length and width (f05) ≥ 27 ≥ 25.5 N/mm² EN 310 / EN 1058 Modulus of elasticity m(E) 4015 4740 N/mm² EN 310 Mechanical properties Fixing distances Maximum Fixing distances (mm) Durable 6 mm Durable 8 mm A2 9 mm b max. a max. b max. a max. b max. a max. Nail 400 300 600 400 N/A N/A Screw 400 300 600 600

Pagina 44-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza...

Pagina 45 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

N/A N/A Rivet N/A N/A 600 600 600 600 Bonding N/A N/A 600 uninterupted glue line N/A N/A Page 73 Wide range of standard colours Custom colours Easy to clean RAL and NCS as reference RAL 7001 NCS S 0520-R10B RAL 9001 RAL 7012 RAL 9010 RAL 3015 RAL 7031 RAL 080 80 05 RAL 010 30 44 NCS S 0570-Y90R RAL 2010 RAL 060 50 70 RAL 060 50 30 RAL 100 90 20 RAL 1015 RAL 9002 RAL 9003 RAL 7016 RAL 060 70 05 RAL 350 40 35 RAL 030 50 50 RAL 2012 RAL 8023 RAL 8001 RAL 100 90 50 RAL 095 70 10 RAL 100 80 05 RAL 7035 RAL 7021 RAL 7036 NCS S 4030-R50B RAL 3028 RAL 040 50 70 RAL 050 40 40 RAL 060 60 50 NCS S 2050-Y RAL 090 80 20 RAL 7030 RAL 7038 NCS S 1080-Y50R RAL 1013 RAL 060 70 20 RAL 9011 RAL 7004 RAL 040 50 05 RAL 4004 RAL 3001 RAL 3016 RAL 8024 RAL 7006 RAL 1012 RAL 1002 RAL 7039 RAL 7010 RAL9016 RAL 000 50 00 RAL 060 50 05 RAL 4007 RAL 3004 RAL 040 40 50 RAL 060 30 20 RAL 070 70 60 RAL 1032 NCS S 3030-Y10R RAL 080 40

Pagina 45-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza
N/A
...

Pagina 46 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

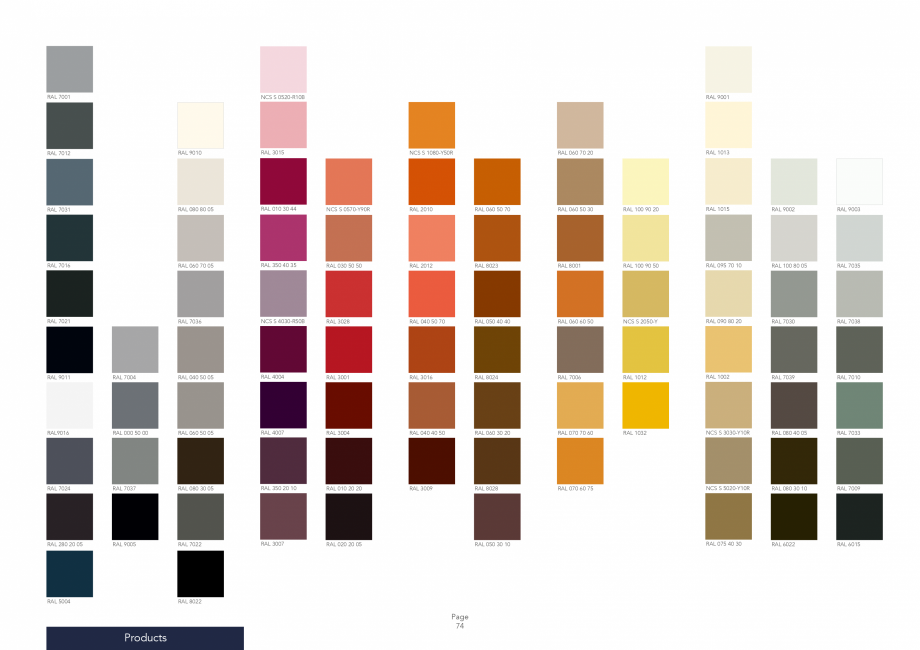

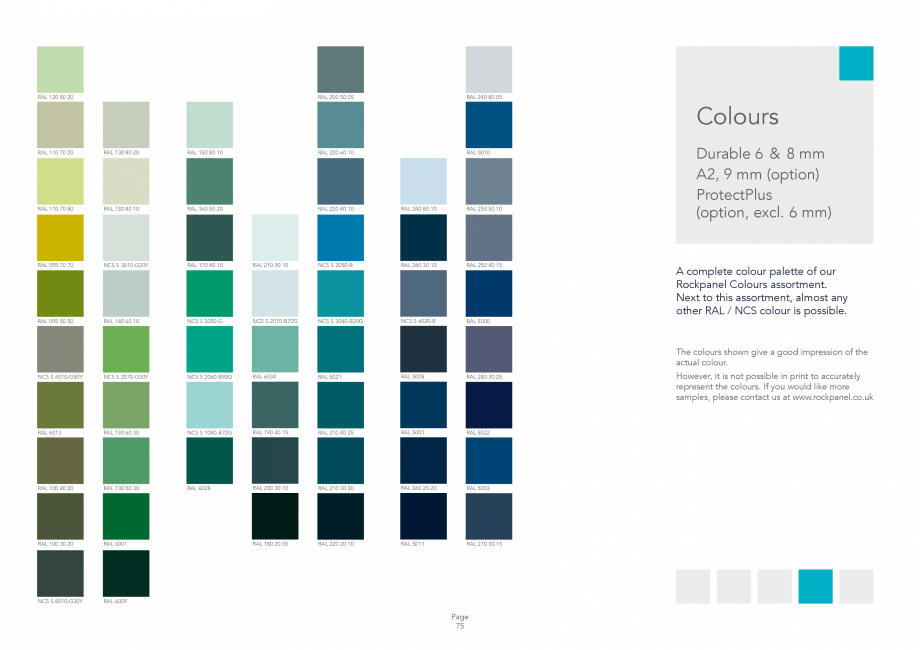

05 RAL 7033 RAL 7024 RAL 7037 RAL 080 30 05 RAL 350 20 10 RAL 010 20 20 RAL 3009 RAL 8028 RAL 070 60 75 NCS S 5020-Y10R RAL 080 30 10 RAL 7009 RAL 280 20 05 RAL 9005 RAL 7022 RAL 3007 RAL 020 20 05 RAL 075 40 30 RAL 6022 RAL 6015 RAL 5004 RAL 050 30 10 RAL 8022 Page 74 Products RAL 120 80 20 RAL 240 80 05 RAL 200 50 05 Colours RAL 110 70 20 RAL 130 80 20 RAL 150 80 10 RAL 220 60 10 RAL 110 70 50 RAL 130 80 10 RAL 160 50 20 RAL 220 40 10 RAL 240 80 10 RAL 250 50 10 RAL 095 70 70 NCS S 3010-G20Y RAL 170 40 10 RAL 210 90 10 NCS S 2050-B RAL 240 30 10 RAL 250 40 15 RAL 095 50 50 RAL 140 60 10 NCS S 3050-G NCS S 2010-B70G NCS S 3040-B20G NCS S 6020-B RAL 5000 RAL 5010 Durable 6 & 8 mm A2, 9 mm (option) ProtectPlus (option, excl. 6 mm) A complete colour palette of our Rockpanel Colours assortment. Next to this assortment, almost any other RAL / NCS colour is possible. The colours shown give a good impression of the actual colour. NCS

Pagina 46-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza 05
...

Pagina 47 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

S 6010-G50Y NCS S 2070-G30Y NCS S 2060-B90G RAL 6034 RAL 5021 RAL 5008 RAL 280 30 25 RAL 6013 RAL 130 60 30 NCS S 1040-B70G RAL 190 40 15 RAL 210 40 25 RAL 5001 RAL 5022 RAL 100 40 20 RAL 130 50 30 RAL 6028 RAL 200 30 10 RAL 210 30 30 RAL 260 20 20 RAL 5003 RAL 100 30 20 RAL 6001 RAL 180 20 05 RAL 220 20 10 RAL 5011 RAL 270 30 15 NCS S 8010-G30Y RAL 6009 Page 75 However, it is not possible in print to accurately represent the colours. If you would like more samples, please contact us at www.rockpanel.co.uk Rockpanel Metals. Sleek surfaces with an industrial look. Modern architecture is often characterised by an industrial design look. Give your high-quality facades an elegant finish. Rockpanel Metals creates amazing effects on facades because of the sheen from the light striking it – even with timelessly modern residential buildings. Our Elemental Metals line consists of the main precious metals such as gold, silver and platinum. It also includes other

Pagina 47-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza S...

Pagina 48 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

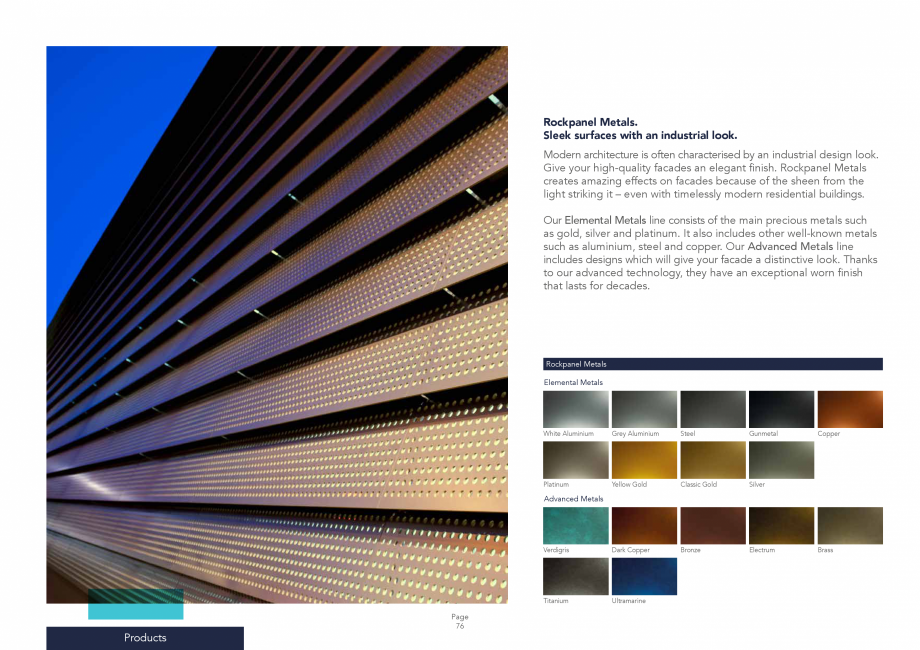

well-known metals such as aluminium, steel and copper. Our Advanced Metals line includes designs which will give your facade a distinctive look. Thanks to our advanced technology, they have an exceptional worn finish that lasts for decades. Rockpanel Metals Elemental Metals White Aluminium Grey Aluminium Steel Gunmetal Platinum Yellow Gold Classic Gold Silver Verdigris Dark Copper Bronze Electrum Titanium Ultramarine Copper Advanced Metals Page 76 Products Brass Assortment Product Line Rockpanel Metals Board Composition Thickness Durable 8 mm A2 9 mm Standard dimensions 1200/1250 x 2500/3050 mm Metals Key product properties Rockpanel Metals Durable A2 (option) Unit Test/classification method ProtectPlus: 4 or better ProtectPlus: 4 or better Class on greyscale ISO 105 A02 B-s2,d0 A2-s1,d0 Euroclass EN 13501-1 Optical properties Colour stability (5000 h) Fire Fire classification Durable 8 mm A2, 9 mm ProtectPlus A sleek industrial look The E

Pagina 48-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza ...

Pagina 49 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

uroclass-classification of all Rockpanel products is based on testing with non-combustible mineral wool insulation. For the field of application covered by the classification please see the relevant Declaration of Performance. For high-rise buildings and high-risk buildings Rockpanel recommends the application of non-combustible (Euroclass A1 or A2) cladding and insulation. Physical properties Weight 8 mm: 8.4 9 mm: 11.25 kg/m² Density, nominal 1050 1250 kg/m3 EN 323 Thermal conductivity 0.37 0.55 W/m∙K EN 10456 Water vapour permeability Sd (at 23 °C and 85 % RH) ProtectPlus < 3.5 N/A m EN 12572 Coefficient of thermal expansion 10.5 9.7 x10-3 mm/m∙K EN 438:2 clause 17 Coefficient of moisture expansion (after 4 days) 0.302 0.206 mm/m EN 438:2 clause 17 Mechanical properties Bending strength, length and width (f05) ≥ 27 ≥ 25.5 N/mm² EN 310 / EN 1058 Modulus of elasticity m(E) 4015 4740 N/mm² EN 310 Fixing distances Maximum Fixing distanc

Pagina 49-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza...

Pagina 50 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

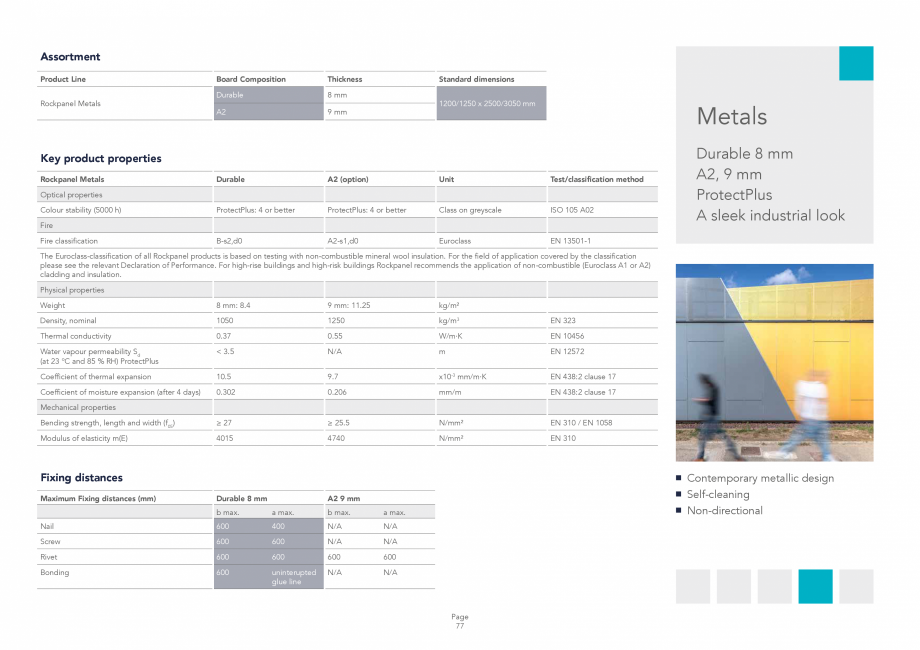

es (mm) Durable 8 mm Contemporary metallic design Self-cleaning Non-directional A2 9 mm b max. a max. b max. a max. Nail 600 400 N/A N/A Screw 600 600 N/A N/A Rivet 600 600 600 600 Bonding 600 uninterupted glue line N/A N/A Page 77 Rockpanel Chameleon. Fascinatingly different from every angle. Transform your building into an eye-catching feature that is constantly changing, but always striking and inspiring. Just change your position around the facade. The colour will never be the same no matter how long you look at the building. Depending on the angle from which it is viewed and the effect of the sunlight, the surface of the Rockpanel Chameleon facade changes. The secret of this vibrant colour is a special crystal effect layer. The effect remains permanently protected for many years. Rockpanel Chameleon Light purple – Light brown Purple – Green – Blue Red – Gold – Purple Green – Brown Page 78 Products Assortment Product Line Rockpanel

Pagina 50-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza es (mm)...

Pagina 51 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

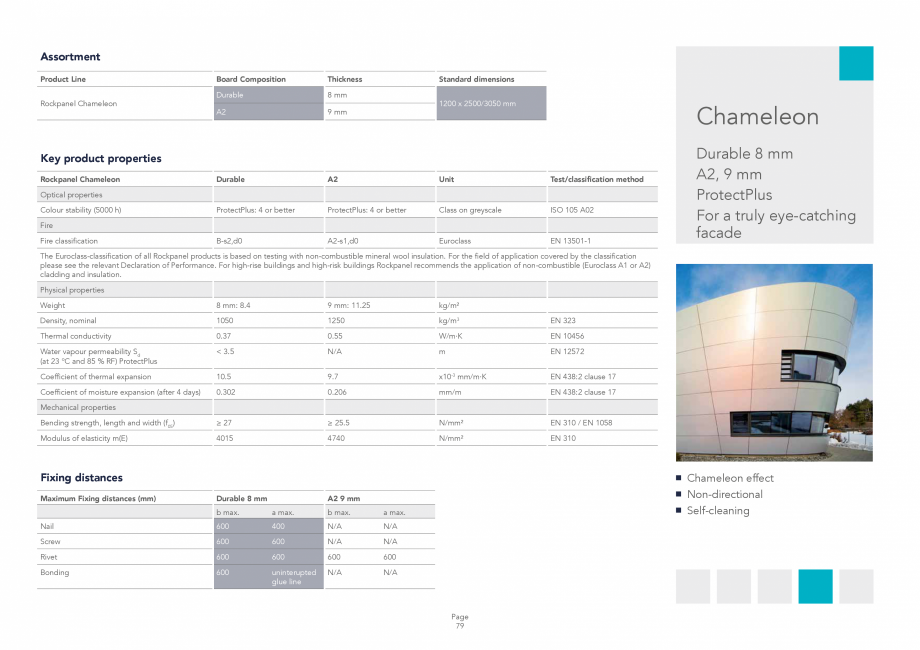

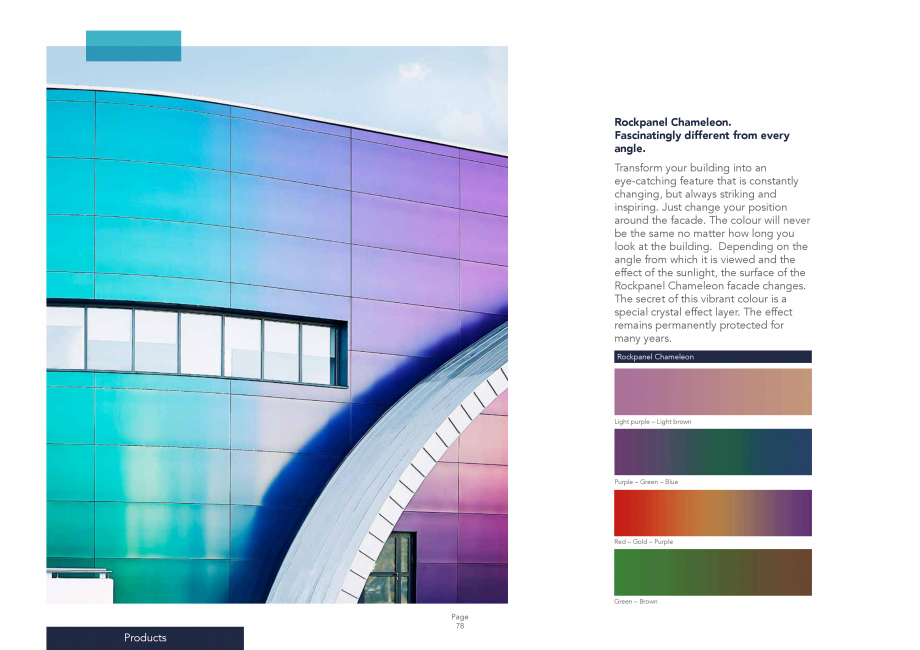

Chameleon Board Composition Thickness Durable 8 mm A2 9 mm Standard dimensions 1200 x 2500/3050 mm Chameleon Key product properties Rockpanel Chameleon Durable A2 Unit Test/classification method ProtectPlus: 4 or better ProtectPlus: 4 or better Class on greyscale ISO 105 A02 B-s2,d0 A2-s1,d0 Euroclass EN 13501-1 Optical properties Colour stability (5000 h) Fire Fire classification Durable 8 mm A2, 9 mm ProtectPlus For a truly eye-catching facade The Euroclass-classification of all Rockpanel products is based on testing with non-combustible mineral wool insulation. For the field of application covered by the classification please see the relevant Declaration of Performance. For high-rise buildings and high-risk buildings Rockpanel recommends the application of non-combustible (Euroclass A1 or A2) cladding and insulation. Physical properties Weight 8 mm: 8.4 9 mm: 11.25 kg/m² Density, nominal 1050 1250 kg/m3 EN 323 Thermal conductivity 0.37 0.55 W/m�

Pagina 51-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza...

Pagina 52 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

�K EN 10456 Water vapour permeability Sd (at 23 °C and 85 % RF) ProtectPlus < 3.5 N/A m EN 12572 Coefficient of thermal expansion 10.5 9.7 x10-3 mm/m∙K EN 438:2 clause 17 Coefficient of moisture expansion (after 4 days) 0.302 0.206 mm/m EN 438:2 clause 17 Mechanical properties Bending strength, length and width (f05) ≥ 27 ≥ 25.5 N/mm² EN 310 / EN 1058 Modulus of elasticity m(E) 4015 4740 N/mm² EN 310 Fixing distances Maximum Fixing distances (mm) Durable 8 mm Chameleon effect Non-directional Self-cleaning A2 9 mm b max. a max. b max. a max. Nail 600 400 N/A N/A Screw 600 600 N/A N/A Rivet 600 600 600 600 Bonding 600 uninterupted glue line N/A N/A Page 79 Premium facades Make a unique statement Products Products Impressive facades. Unique and innovative. Premium facades If you don’t want to compromise on the design and detail of your project, Rockpanel Premium facades are the right choice for you. Find the right

Pagina 52-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza �K

EN ...

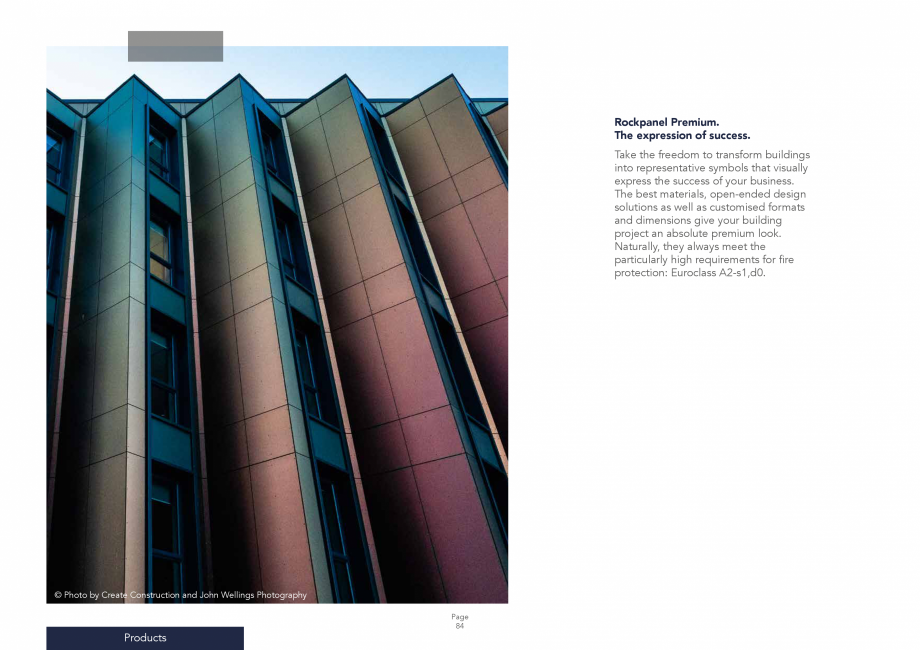

Pagina 53 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

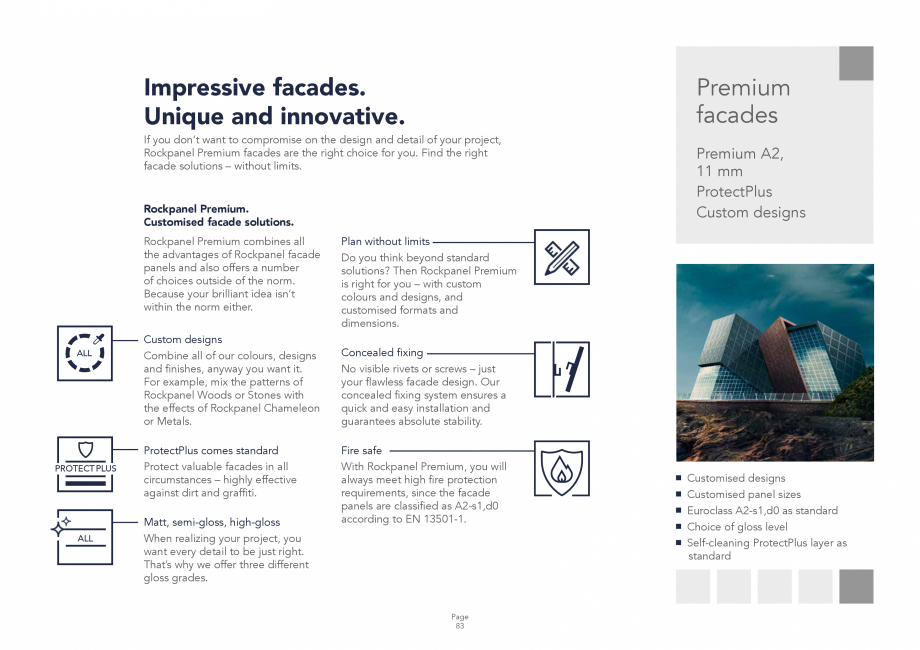

facade solutions – without limits. Rockpanel Premium. Customised facade solutions. Rockpanel Premium combines all the advantages of Rockpanel facade panels and also offers a number of choices outside of the norm. Because your brilliant idea isn’t within the norm either. ALL PROTECT PLUS ALL Custom designs Combine all of our colours, designs and finishes, anyway you want it. For example, mix the patterns of Rockpanel Woods or Stones with the effects of Rockpanel Chameleon or Metals. ProtectPlus comes standard Protect valuable facades in all circumstances – highly effective against dirt and graffiti. Matt, semi-gloss, high-gloss When realizing your project, you want every detail to be just right. That’s why we offer three different gloss grades. Premium A2, 11 mm ProtectPlus Custom designs Plan without limits Do you think beyond standard solutions? Then Rockpanel Premium is right for you – with custom colours and designs, and customised formats and dimensions. Concealed

Pagina 53-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza
facade...

Pagina 54 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

fixing No visible rivets or screws – just your flawless facade design. Our concealed fixing system ensures a quick and easy installation and guarantees absolute stability. Fire safe With Rockpanel Premium, you will always meet high fire protection requirements, since the facade panels are classified as A2-s1,d0 according to EN 13501-1. Page 83 ustomised designs C Customised panel sizes Euroclass A2-s1,d0 as standard Choice of gloss level Self-cleaning ProtectPlus layer as standard Rockpanel Premium. The expression of success. Take the freedom to transform buildings into representative symbols that visually express the success of your business. The best materials, open-ended design solutions as well as customised formats and dimensions give your building project an absolute premium look. Naturally, they always meet the particularly high requirements for fire protection: Euroclass A2-s1,d0. © Photo by Create Construction and John Wellings Photography Page 84 Products Assortm

Pagina 54-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza fixing
...

Pagina 55 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

ent Product Line Board Composition Thickness Standard dimensions Rockpanel Premium A2 11 mm 1200/1250 x 1700-3050 mm Premium Key product properties Rockpanel Premium Premium A2 Unit Test/classification method 4 or better Class on greyscale ISO 105 A02 A2-s1,d0 Euroclass EN 13501-1 Optical properties Colour stability ProtectPlus (5000 h) Fire Fire classification The Euroclass-classification of all Rockpanel products is based on testing with non-combustible mineral wool insulation. For the field of application covered by the classification please see the relevant Declaration of Performance. For high-rise buildings and high-risk buildings Rockpanel recommends the application of non-combustible (Euroclass A1 or A2) cladding and insulation. Physical properties Thickness 11 mm EN 325 Weight 13.75 kg/m² Density, nominal 1250 kg/m3 EN 323 Thermal conductivity 0.55 W/m∙K EN 10456 Water vapour permeability Sd (at 23 °C and 85 % RF) ProtectPlus N/A m EN 1

Pagina 55-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza ent...

Pagina 56 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

2572 Coefficient of thermal expansion 9.7 x10-3 mm/m∙K EN 438:2 clause 17 Coefficient of moisture expansion (after 4 days) 0.206 mm/m EN 438:2 clause 17 Bending strength, length and width (f05) ≥ 25.5 N/mm² EN 310 / EN 1058 Modulus of elasticity m(E) ≥ 4740 N/mm² EN 310 Mechanical properties Fixing distances Maximum Fixing distances (mm) Rockpanel Premium A2, 11 mm b max. a max. Rivet 750 750 Concealed (Blind fasteners TU-S) 750 600 Page 85 Custom colours and designs Euroclass A2-s1, d0 and ProtectPlus layer as standard Accessories Accessories Fasteners should be according to ETA and purchased at a recognised supplier. Please contact Rockpanel for further information. Mechanical fixing Fixing method Concealed fixing Combined with our Rockpanel Premium A2 board in thickness 11 mm, you can use the concealed fixing system. Suitable for Rockpanel Colour Ring Shank nails 27 mm Lines² 10 mm Stainless Steel Ring Shank nails 32 mm Natural / Ch

Pagina 56-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza 2572
...

Pagina 57 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

ameleon / Ply Stainless Steel Uni Standard Colours Colours Standard, Special and Custom Colours HP Nail 35 mm Screws 35 mm Woods / Stones / Metals Woods / Stones / Metals Natural / Chameleon / Ply Stainless Steel Uni Standard Colours Colours Standard, Special and Custom Colours Woods / Stones / Metals Woods / Stones / Metals Natural / Chameleon / Ply Quantity Blind fastener TU-S-6x 11-A4* 500 pcs per box Blind fastener TU-S-6x 13-A4** 500 pcs per box HSS-DrilL bit 6,0 x 43,5 1 piece Depth locator for drill bit universal 1 piece * for use with a 3 mm panel clip ** for use with a 5 mm panel clip Other accessories Article Width Quantity EPDM Foamtape (adhesive) 36 mm 50 m1 EPDM Foamtape (adhesive) 60 mm 50 m1 Stainless Steel EPDM Foamtape (adhesive) 80 mm 50 m1 Uni Standard Colours EPDM Foamtape (adhesive) 100 mm 25 m1 Colours Standard, Special and Custom Colours EPDM Foamtape (adhesive) 130 mm 25 m1 Woods / Stones / Metals Woods / Ston

Pagina 57-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza ameleon...

Pagina 58 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

es / Metals Adhesive system Quantity Indicative usage per 100 m Rockpanel Tack-S (certified) 290 ml 50 cartridges Primer MSP Transparent for the back of the boards 500 ml 6 cans Prep M Primer for aluminium sub-construction 500 ml 2 cans Foam tape (double sided) 25 m1 12 rolls Cleaner liquid 1 1 ltr 1 can Page 88 Accessories Concealed fixing 2 Rockpanel Graffiti Cleaner 780 ml Rockpanel Edge paint (only Rockpanel Colours)* 500 ml * Special and Custom Colours are only available in combination with Rockpanel Boards. For painting the edges of Woods, Stones, Metals and Chameleon, we advise RAL 9005 (black). For profiles we only recommend aluminium quality. Feature Note PLANKS BASIC APPLICATIONS Rockpanel Lines2 Rockpanel Uni NATURE FACADES Rockpanel Ply Rockpanel Natural Rockpanel Woods Rockpanel Stones APPLICATION High facades* Low facades Detailed solutions for roofs Height > 18 m Height < 10 m AESTHETICS Type of cladding Board Tongue and groove W

Pagina 58-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza es /...

Pagina 59 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

eatherboarding (EasyFix only for Durable or two visible attachments) Dimensions Standard dimensions (mm) Standard dimensions (mm) Customised dimensions Special width (mm) Thickness (mm) Surface 2500x1200/3050x1200 3050x164/3050x295 optional optional optional 10 8 8 Woods look Stone look optional optional 1250 10 6 8 & 10 Untreated Primer Coloured surface Customised surface ProtectPlus protective coating ProtectPlus protective coating ProtectPlus protective coating Maintenance Matt Silk matt High gloss ** Invisible fixing *** light Can be painted Self-cleaning Fixing methods Mechanically Adhesive Screws Nails Rivets FIRE SAFETY European fire class B-s2,d0 A2-s1,d0 * For all medium and high rise buildings, we recommend the

Pagina 59-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza...

Pagina 60 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

use of our A2 grade boards (A2-s1,d0). ** Maintenance for Rockpanel Ply depends on the paint chosen. Please contact the paint manufacturer. *** Rockpanel Natural boards age naturally; for further information see the product data sheet. Page 89 Product overview DESIGN FACADES Feature Note Rockpanel Colours PREMIUM FACADES Rockpanel Colours ProtectPlus Rockpanel Metals Rockpanel Chameleon Rockpanel Premium APPLICATION High facades* Low facades Detailed solutions for roofs Height >18 m Height < 10 m AESTHETICS Type of cladding Board Tongue and groove Weatherboarding (EasyFix only for Durable or two visible attachments) Dimensions Standard dimensions (mm) Standard dimensions (mm) Customised dimensions Special width (mm) Thickness (mm) Surface Untreated Primer Coloured surface Customised surface ProtectPlus protective coating ProtectPlus protective coating ProtectPlus protective coating Maintenance 2500x1200/3050x1200 3050x164/3050x295

Pagina 60-Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura Engleza use of ...

Pagina 61 - Placi din vata minerala bazaltica pentru fatade ventilate Rockpanel Catalog, brosura...

optional optional optional optional 6&8 8 8 8 optional optional optional optional 1250 Matt Silk matt High gloss Can be painted Self-cleaning Fixing methods Invisible fixing Mechanically Adhesive Screws Nails Rivets FIRE SAFETY European fire class B-s2,d0 A2-s1,d0 Page 90 9 BUILDING INSPIRATIONS www.rockpanel.co.uk Part of the ROCKWOOL Group Learn more about us, ask for product samples and be inspired by attractive reference projects. www.facebook.com/rockpanel Be the first to discover our latest international projects. www.twitter.com/rockpanel Engage and interact. www.instagram.com/rockpanel Get inspired. ABUK202105 / UK / Version 2.0 Follow us for the la
