Pagina 1 - Platforma pentru parcare KLAUS PARKBOARD PH Fisa tehnica Engleza Page 1

KLAUS...

Page 1 KLAUS Multiparking GmbH Hermann-Krum-Straße 2 D-88319 Aitrach Fon +49 (0 ) 75 65 5 08-0 Fax +49 (0 ) 75 65 5 08-88 info@multiparking.com www.multiparking.com Dimensions Car data Page 2 Examples Drive S Evenness tolerances Example Drive U Rail system Parking space border or support Headroom according to local regulations Page 4 Incline Notes Page 5 Electrical installation Page 6 B To be performed by the customer Description 2 Top edge ﬁnished ﬂoor Tolerances for the evenness of the carriageway must be strictly complied with in accordance with DIN (= German Industrial Standard) No. 18202, chart 3, line 3. Dimensions All space requirements are minimum ﬁnished dimensions. Tolerances for space requirements + 03 . Dimensions in cm. Type PE-215 PE-245 PH-215 PH-245 9,5 Technical data longitudinally shifting 2000 kg 1 / 2300 kg Warning light Page 3 PRODUCT DATA 32 Direction of movement L 500 530 1000 1060 B 215 245 215 245 3 Travel path 470 500 970 1030

Pagina 1-Platforma pentru parcare KLAUS PARKBOARD PH Fisa tehnica Engleza Page 1

KLAUS Multiparking GmbH...

Pagina 2 - Platforma pentru parcare KLAUS PARKBOARD PH Fisa tehnica Engleza Suitable for
Standard...

Suitable for Standard passenger cars: Limousine, station wagon, SUV, van, according to speciﬁcations in the table and maximal surface load. width length height weight wheel load Wheel-location recess Drive axis Standard Special 2 max. 190 cm max. 190 cm max. 500 cm max. 500 cm 10 cm less than headroom max. 2000 kg max. 2300 kg max. 500 kg max. 575 kg 15 L Travel path ParkBoard PH Building law requirements According to the German Building Code parking spaces on longitudinally shifting parking pallets are only permitted if the following requirements are met: – Next to the ParkBoards a remaining driving lane width of 275 cm minimum must be maintained. – ParkBoards must not be installed before power-driven parking systems. – In case of two-way trafﬁc in the driving lane no through trafﬁc is permitted. – The ParkBoards must be traversable on all sides. – Walkable areas must provide headroom of 200 cm. Make sure to observe the ventilation systems, bearers or other ins

Pagina 2-Platforma pentru parcare KLAUS PARKBOARD PH Fisa tehnica Engleza Suitable for
Standard passenger...

Pagina 3 - Platforma pentru parcare KLAUS PARKBOARD PH Fisa tehnica Engleza tallations. The...

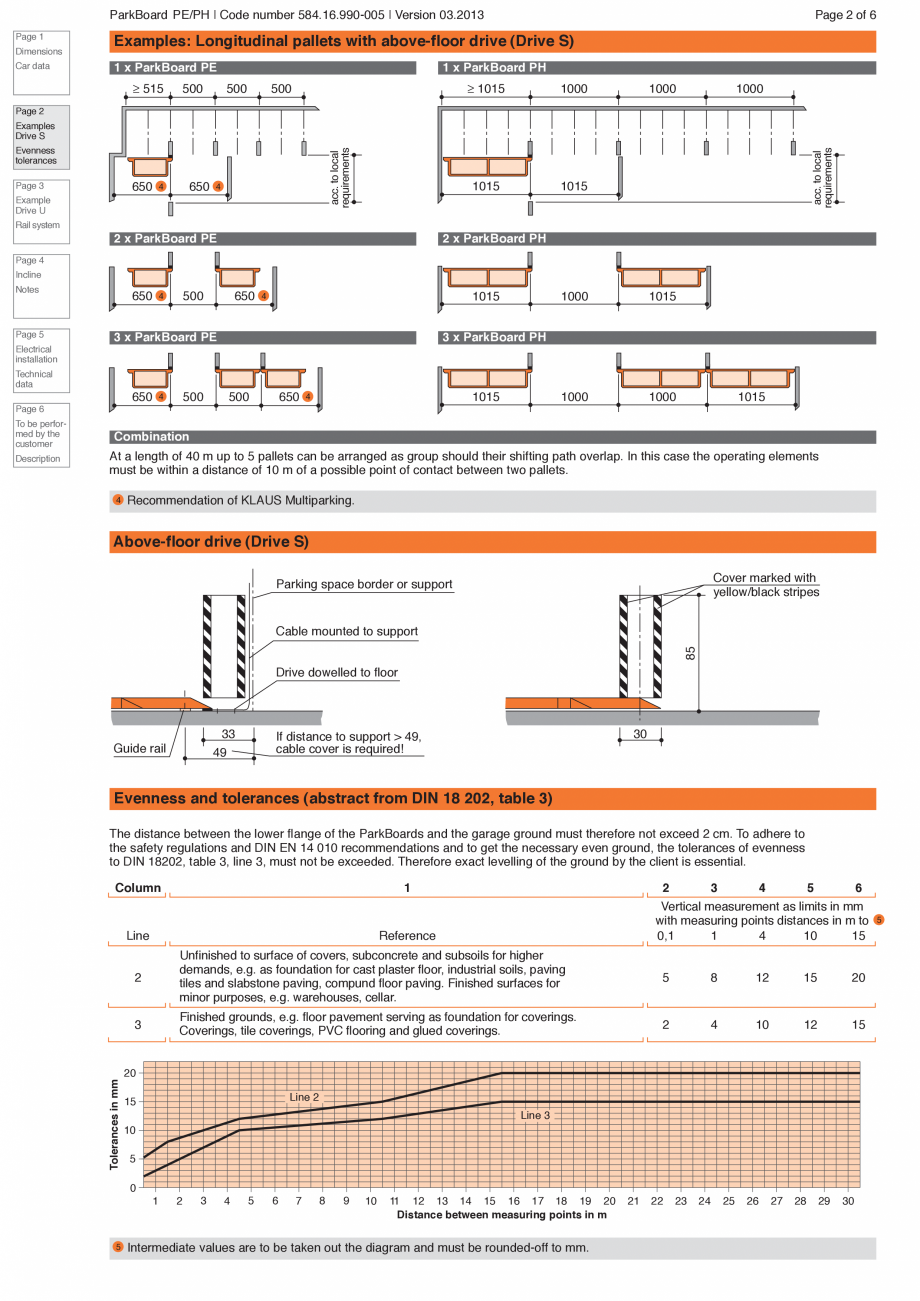

tallations. The ParkBoards have a height of 9,5 cm. 1 2 Standard type Special system: maximum load (PE-245/PH-245) for extra charge. 3 To follow the minimum ﬁnished dimensions, make sure to consider the tolerances according to VOB, part C (DIN 18330 and 18331) and the DIN 18202. ParkBoard PE/PH | Code number 584.16.990-005 | Version 03.2013 ParkBoard PE ParkBoard PE/PH | Code number 584.16.990-005 | Version 03.2013 Page 1 Dimensions Car data Page 2 of 6 Examples: Longitudinal pallets with above-ﬂoor drive (Drive S) 1 x ParkBoard PE ≥ 515 500 1 x ParkBoard PH 500 500 ≥ 1015 1000 1015 1015 1000 1000 Page 2 650 Page 3 650 4 acc. to local requirements Evenness tolerances 4 Example Drive U acc. to local requirements Examples Drive S Rail system 2 x ParkBoard PE 2 x ParkBoard PH Page 4 Incline Notes Page 5 650 500 4 650 1015 4 3 x ParkBoard PE 1000 1015 1000 1000 3 x ParkBoard PH Electrical installation Technical data 650 500 4 500

Pagina 3-Platforma pentru parcare KLAUS PARKBOARD PH Fisa tehnica Engleza tallations. The ParkBoards have a...

Pagina 4 - Platforma pentru parcare KLAUS PARKBOARD PH Fisa tehnica Engleza
650

1015

4

1015
...

650 1015 4 1015 Page 6 Combination At a length of 40 m up to 5 pallets can be arranged as group should their shifting path overlap. In this case the operating elements must be within a distance of 10 m of a possible point of contact between two pallets. 4 Recommendation of KLAUS Multiparking. Above-ﬂoor drive (Drive S) Cover marked with yellow/black stripes Parking space border or support Cable mounted to support 85 Description Drive dowelled to floor 33 49 Guide rail 30 If distance to support > 49, cable cover is required! Evenness and tolerances (abstract from DIN 18 202, table 3) The distance between the lower ﬂange of the ParkBoards and the garage ground must therefore not exceed 2 cm. To adhere to the safety regulations and DIN EN 14 010 recommendations and to get the necessary even ground, the tolerances of evenness to DIN 18202, table 3, line 3, must not be exceeded. Therefore exact levelling of the ground by the client is essential. Column 1 Line 2 3 4

Pagina 4-Platforma pentru parcare KLAUS PARKBOARD PH Fisa tehnica Engleza
650

1015

4

1015

Page 6
...

Pagina 5 - Platforma pentru parcare KLAUS PARKBOARD PH Fisa tehnica Engleza

5

6

Vertical...

5 6 Vertical measurement as limits in mm with measuring points distances in m to 0,1 1 4 10 15 Reference 2 Unﬁnished to surface of covers, subconcrete and subsoils for higher demands, e.g. as foundation for cast plaster ﬂoor, industrial soils, paving tiles and slabstone paving, compund ﬂoor paving. Finished surfaces for minor purposes, e.g. warehouses, cellar. 5 8 12 15 20 3 Finished grounds, e.g. ﬂoor pavement serving as foundation for coverings. Coverings, tile coverings, PVC ﬂooring and glued coverings. 2 4 10 12 15 20 Tolerances in mm To be performed by the customer Line 2 15 Line 3 10 5 0 1 5 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Distance between measuring points in m Intermediate values are to be taken out the diagram and must be rounded-off to mm. 21 22 23 24 25 26 27 28 29 30 5 ParkBoard PE/PH | Code number 584.16.990-005 | Version 03.2013 Page 1 Dimensions Car data Page 2 Examples Drive S Page 3 of 6 Exam

Pagina 5-Platforma pentru parcare KLAUS PARKBOARD PH Fisa tehnica Engleza

5

6

Vertical measurement as...

Pagina 6 - Platforma pentru parcare KLAUS PARKBOARD PH Fisa tehnica Engleza ple: Longitudinal...

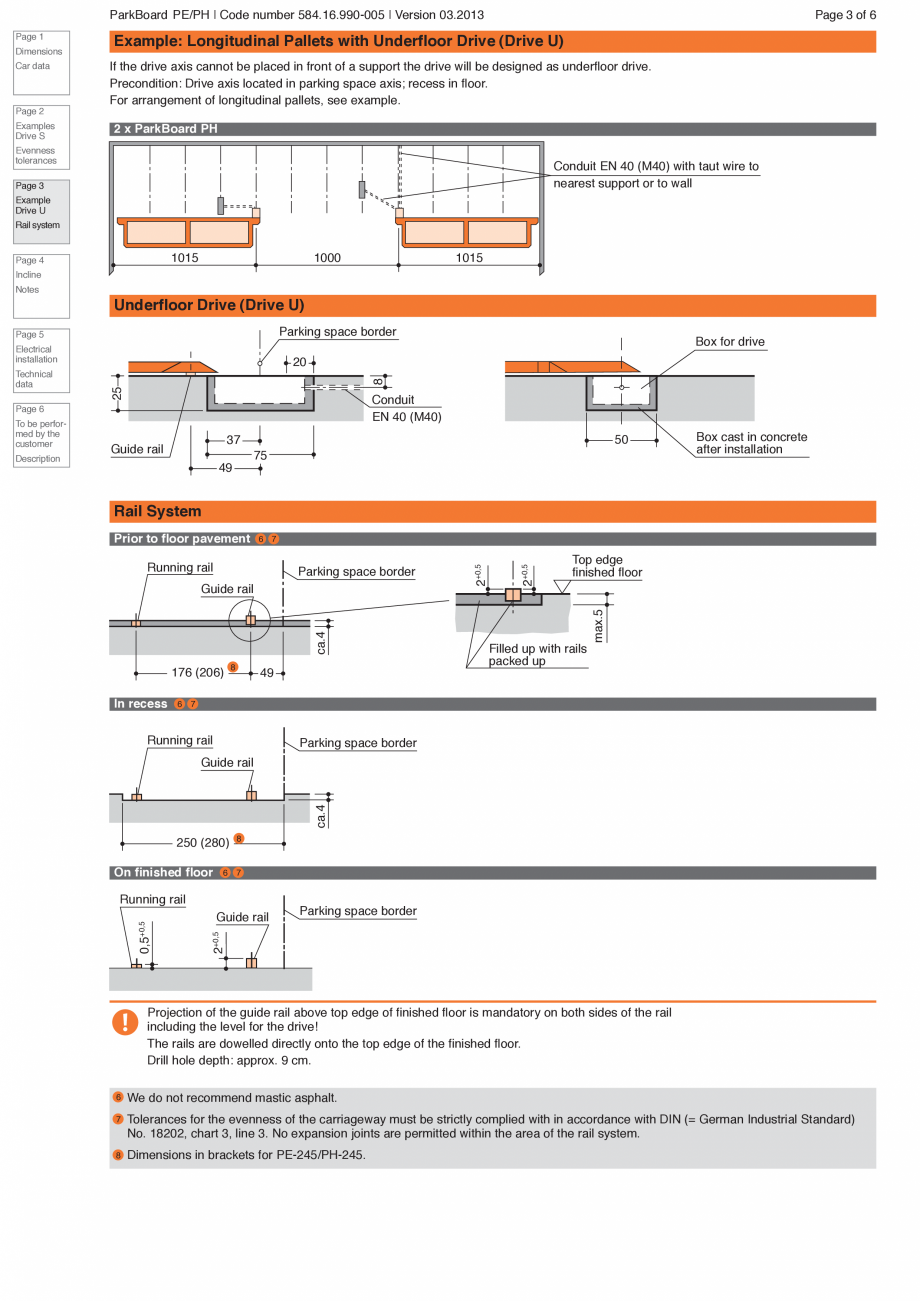

ple: Longitudinal Pallets with Underﬂoor Drive (Drive U) If the drive axis cannot be placed in front of a support the drive will be designed as underﬂoor drive. Precondition: Drive axis located in parking space axis; recess in ﬂoor. For arrangement of longitudinal pallets, see example. 2 x ParkBoard PH Evenness tolerances Conduit EN 40 (M40) with taut wire to nearest support or to wall Page 3 Example Drive U Rail system 1015 Page 4 1000 1015 Incline Notes Underﬂoor Drive (Drive U) Parking space border Page 5 Electrical installation 8 20 25 Conduit EN 40 (M40) Page 6 50 37 Guide rail 75 49 Box cast in concrete after installation Rail System 6 7 Parking space border ca.4 Guide rail 176 (206) In recess 8 49 Top edge finished floor max.5 Running rail 2+0,5 Prior to ﬂoor pavement Filled up with rails packed up 6 7 Running rail Parking space border ca.4 Guide rail 250 (280) On ﬁnished ﬂoor 8 6 7 Running rail Guide rail Parking space bor
