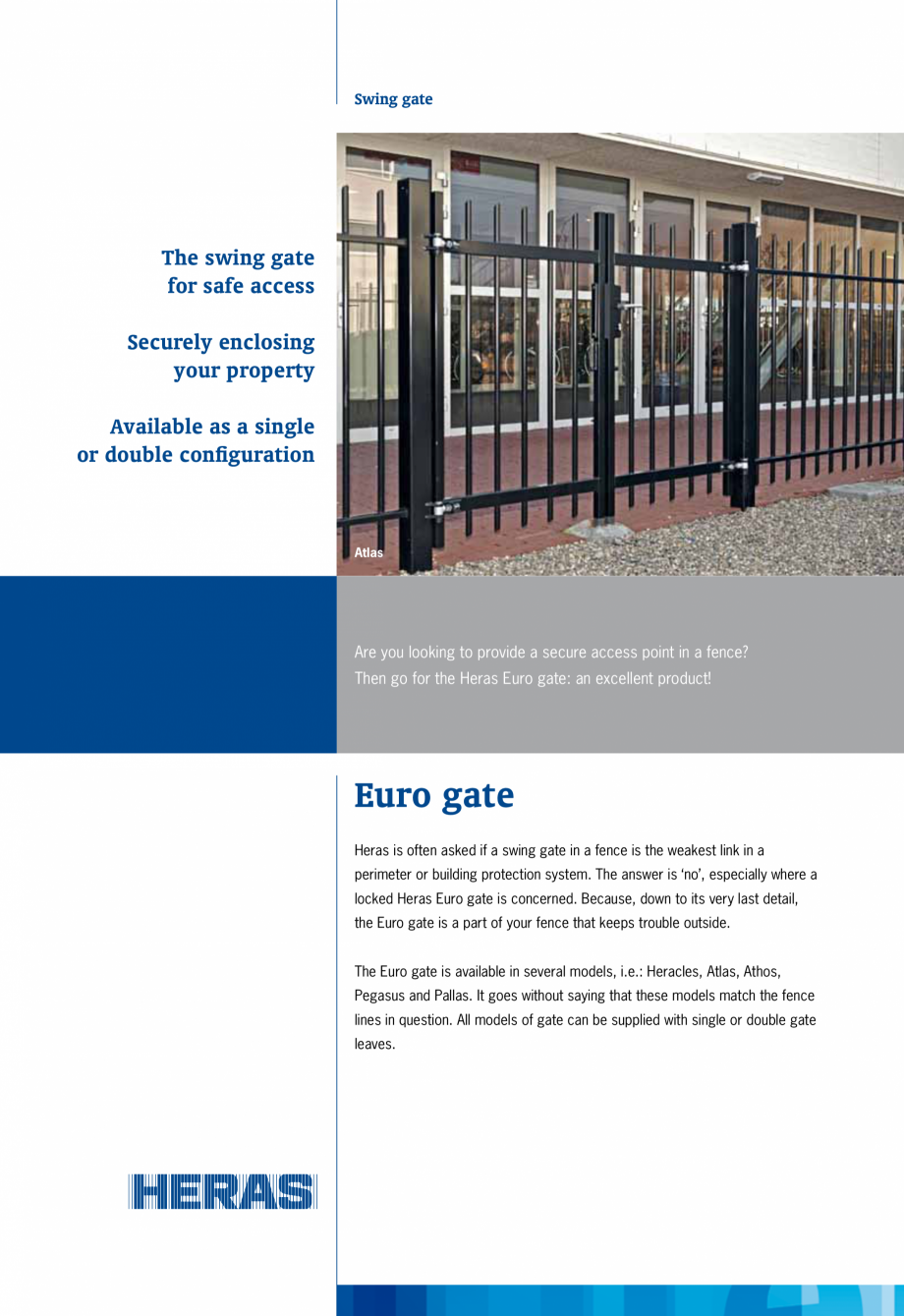

Pagina 1 - Porti de acces batante HERAS Fisa tehnica Engleza Swing gate

The swing gate
for safe...

Swing gate The swing gate for safe access Securely enclosing your property Available as a single or double configuration Atlas Are you looking to provide a secure access point in a fence? Then go for the Heras Euro gate: an excellent product! Euro gate Heras is often asked if a swing gate in a fence is the weakest link in a perimeter or building protection system. The answer is ‘no’, especially where a locked Heras Euro gate is concerned. Because, down to its very last detail, the Euro gate is a part of your fence that keeps trouble outside. The Euro gate is available in several models, i.e.: Heracles, Atlas, Athos, Pegasus and Pallas. It goes without saying that these models match the fence lines in question. All models of gate can be supplied with single or double gate leaves. Hinge set Safety nut Wall hinge set Wall slam set Closure of single-leaf swing gate Closure of double-leaf swing gate Drop bolt Gate post Electromechanical or hydraulic swing gate closer Elec

Pagina 1-Porti de acces batante HERAS Fisa tehnica Engleza Swing gate

The swing gate
for safe access...

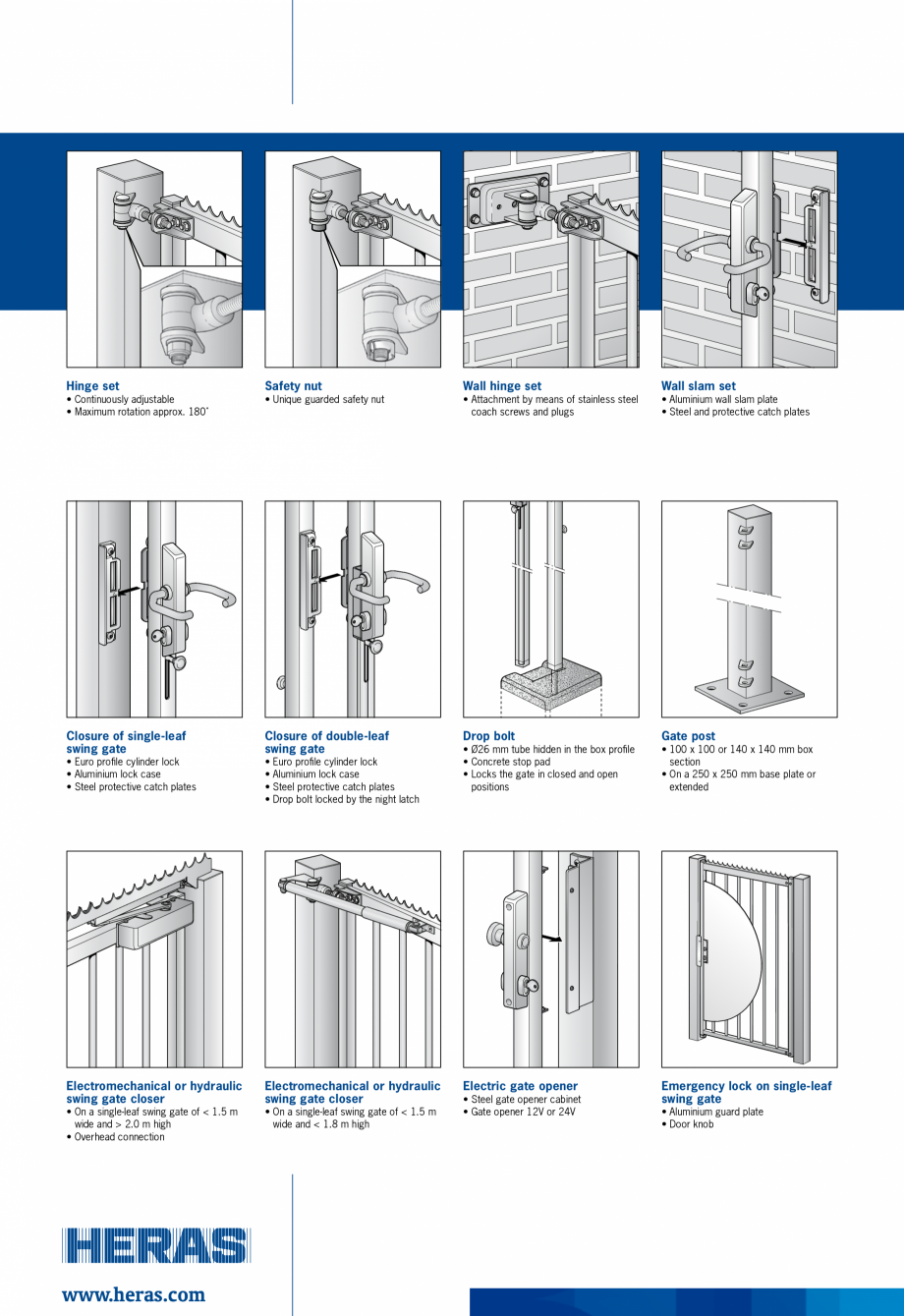

Pagina 2 - Porti de acces batante HERAS Fisa tehnica Engleza tromechanical or hydraulic
swing gate ...

tromechanical or hydraulic swing gate closer Electric gate opener Emergency lock on single-leaf swing gate • Continuously adjustable • Maximum rotation approx. 180˚ • Euro profile cylinder lock • Aluminium lock case • Steel protective catch plates • n a single-leaf swing gate of < 1.5 m O wide and > 2.0 m high • Overhead connection www.heras.com • Unique guarded safety nut • Euro profile cylinder lock • Aluminium lock case • Steel protective catch plates • Drop bolt locked by the night latch • On a single-leaf swing gate of < 1.5 m wide and < 1.8 m high • ttachment by means of stainless steel A coach screws and plugs • Ø26 mm tube hidden in the box profile • Concrete stop pad • ocks the gate in closed and open L positions • Steel gate opener cabinet • Gate opener 12V or 24V • Aluminium wall slam plate • Steel and protective catch plates • 00 x 100 or 140 x 140 mm box 1 section • n a 250 x 250 mm base plate or O e

Pagina 2-Porti de acces batante HERAS Fisa tehnica Engleza tromechanical or hydraulic
swing gate closer
...

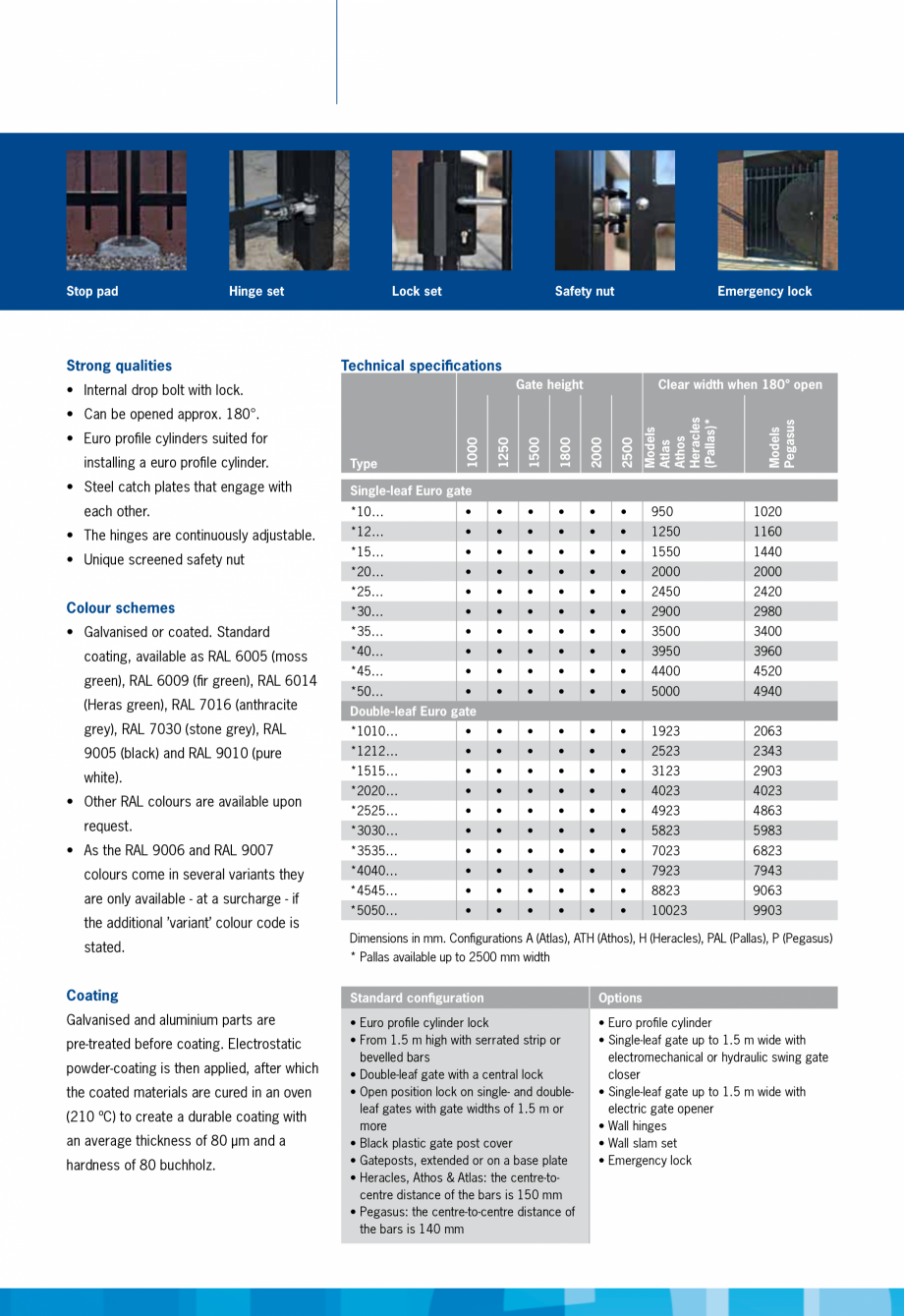

Pagina 3 - Porti de acces batante HERAS Fisa tehnica Engleza xtended

• Aluminium guard plate
•...

xtended • Aluminium guard plate • Door knob Hinge set Safety nut Emergency lock Technical specifications Gate height • Internal drop bolt with lock. Clear width when 180° open • Steel catch plates that engage with each other. • The hinges are continuously adjustable. • Unique screened safety nut 2500 2000 1800 Type 1500 installing a euro profile cylinder. 1250 • Euro profile cylinders suited for 1000 • Can be opened approx. 180°. Models Pegasus Strong qualities Lock set Models Atlas Athos Heracles (Pallas)* Stop pad Single-leaf Euro gate *10… • • • • • • 950 1020 *12… • • • • • • 1250 1160 *15… • • • • • • 1550 1440 *20… • • • • • • 2000 2000 *25… • • • • • • 2450 2420 Colour schemes *30… • • • • • • 2900 2980 • alvanised or coated. Standard G *35… • • • • • • 3500 34

Pagina 3-Porti de acces batante HERAS Fisa tehnica Engleza xtended

• Aluminium guard plate
• Door knob
...

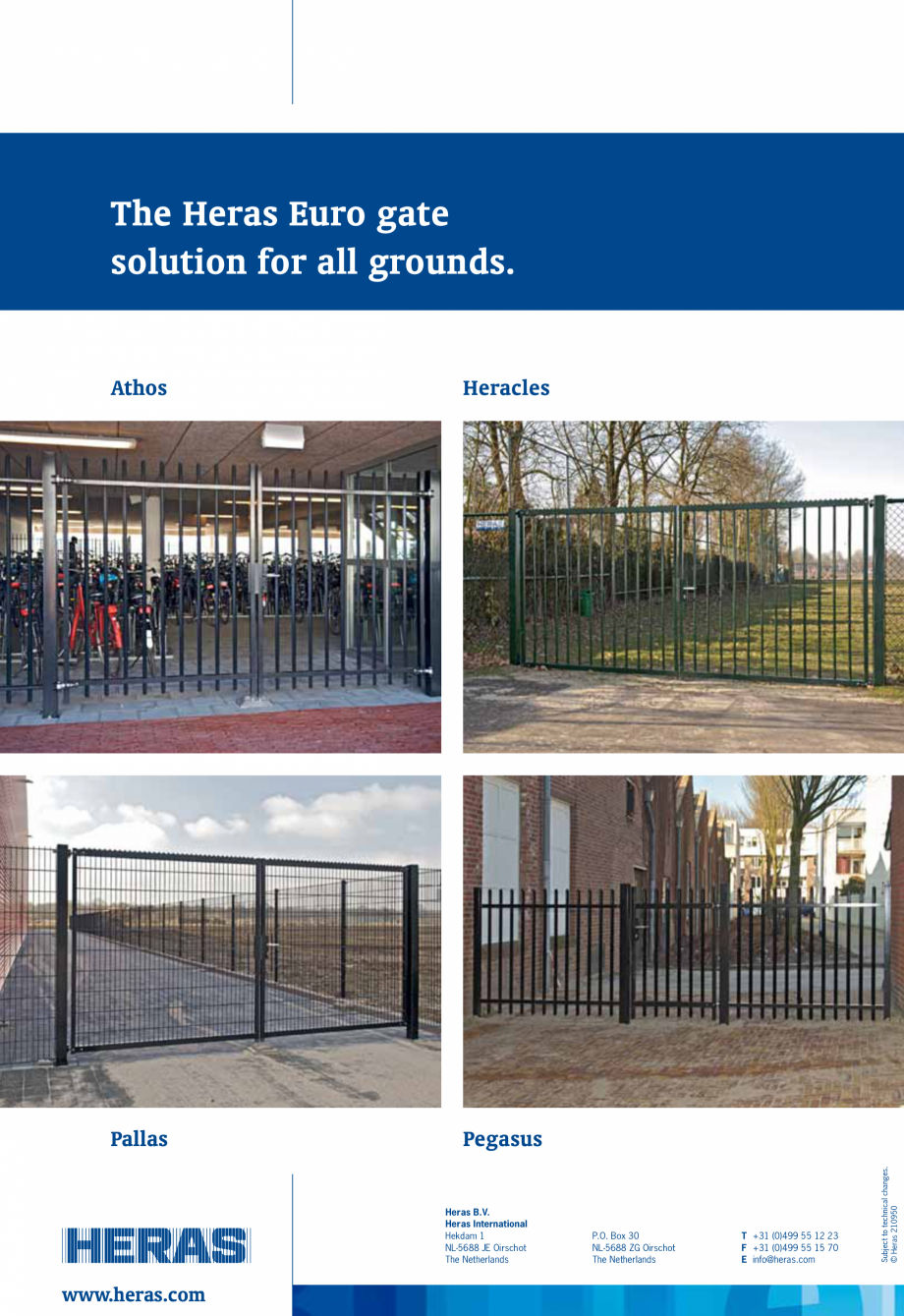

Pagina 4 - Porti de acces batante HERAS Fisa tehnica Engleza 00

*40…

•

•

•

•

•
...

00 *40… • • • • • • 3950 3960 coating, available as RAL 6005 (moss green), RAL 6009 (fir green), RAL 6014 (Heras green), RAL 7016 (anthracite *45… • • • • • • 4400 4520 *50… • • • • • • 5000 4940 Double-leaf Euro gate grey), RAL 7030 (stone grey), RAL *1010… • • • • • • 1923 2063 9005 (black) and RAL 9010 (pure *1212… • • • • • • 2523 2343 white). • ther RAL colours are available upon O request. • s the RAL 9006 and RAL 9007 A colours come in several variants they are only available - at a surcharge - if the additional ’variant’ colour code is stated. *1515… • • • • • • 3123 2903 *2020… • • • • • • 4023 4023 *2525… • • • • • • 4923 4863 *3030… • • • • • • 5823 5983 *3535… • • • • • • 7023 6823 *4040… • • • • • • 7923 7

Pagina 4-Porti de acces batante HERAS Fisa tehnica Engleza 00

*40…

•

•

•

•

•

•

3950
...
