Pagina 1 - Prezentare - panouri rigide cu dublu fir Wisniowski VEGA 2D Catalog, brosura Engleza...

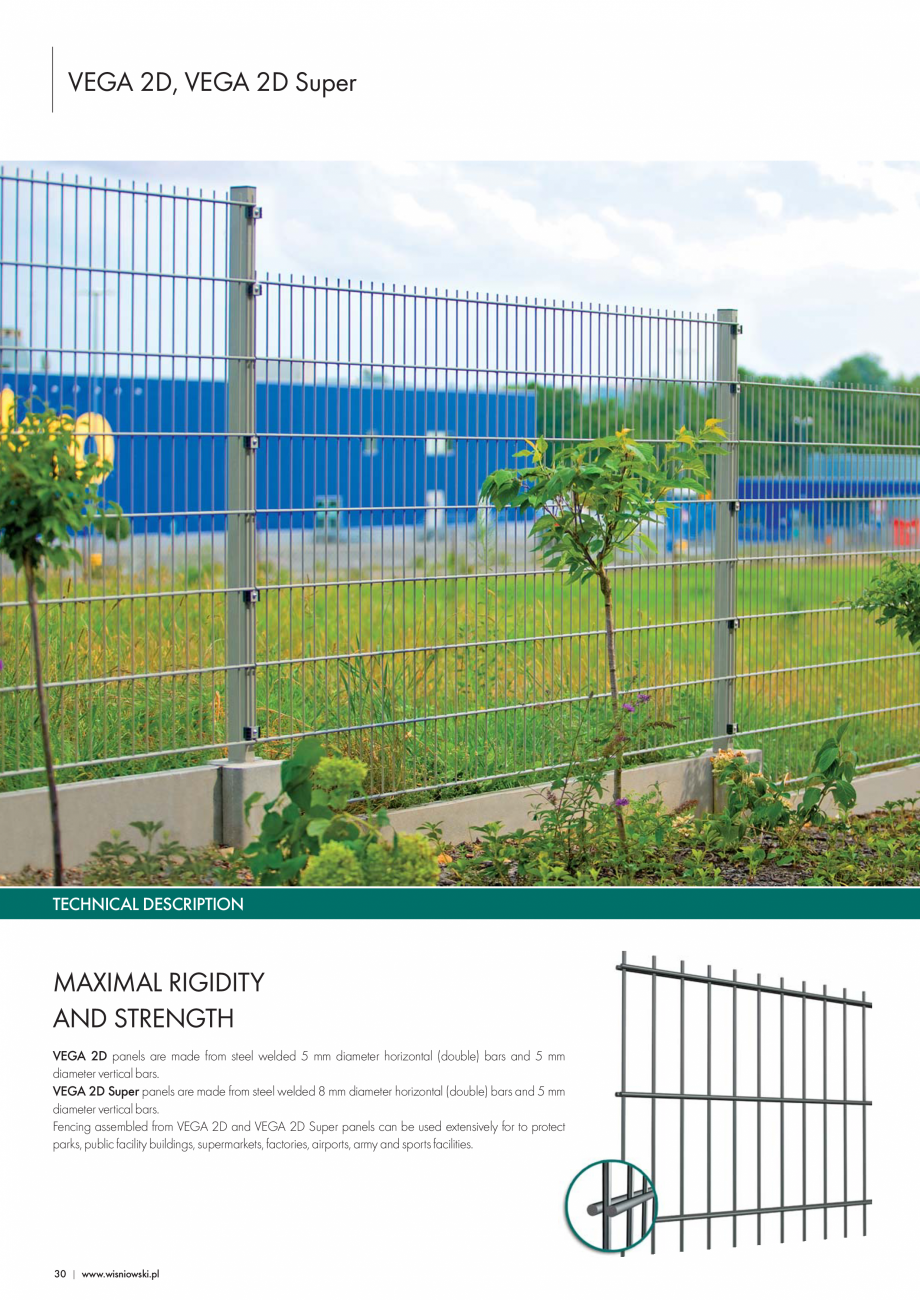

VEGA 2D, VEGA 2D Super TECHNICAL DESCRIPTION MAXIMAL RIGIDITY AND STRENGTH VEGA 2D panels are made from steel welded 5 mm diameter horizontal (double) bars and 5 mm diameter vertical bars. VEGA 2D Super panels are made from steel welded 8 mm diameter horizontal (double) bars and 5 mm diameter vertical bars. Fencing assembled from VEGA 2D and VEGA 2D Super panels can be used extensively for to protect parks, public facility buildings, supermarkets, factories, airports, army and sports facilities. 30 | www.wisniowski.pl ASSEMBLY SYSTEMS STREET PREMISES PREMISES STREET PREMISES STREET DELTA 2D system SIGMA 2D system OMEGA 2D system on 60 x 40 mm posts. Panels are hung on fastening clips, found under each row of double horizontal bars (2D–L type) or on fewer clips (of 2D–S type) fastened with pressure plates. on 60 x 40 mm posts. Panels are hung on fastening clips, found under each row of double horizontal bars, fastened with pressure bars. on 60 x 40 mm posts. Fasteni

Pagina 1-Prezentare - panouri rigide cu dublu fir Wisniowski VEGA 2D Catalog, brosura Engleza VEGA 2D, VEGA ...

Pagina 2 - Prezentare - panouri rigide cu dublu fir Wisniowski VEGA 2D Catalog, brosura Engleza ng ...

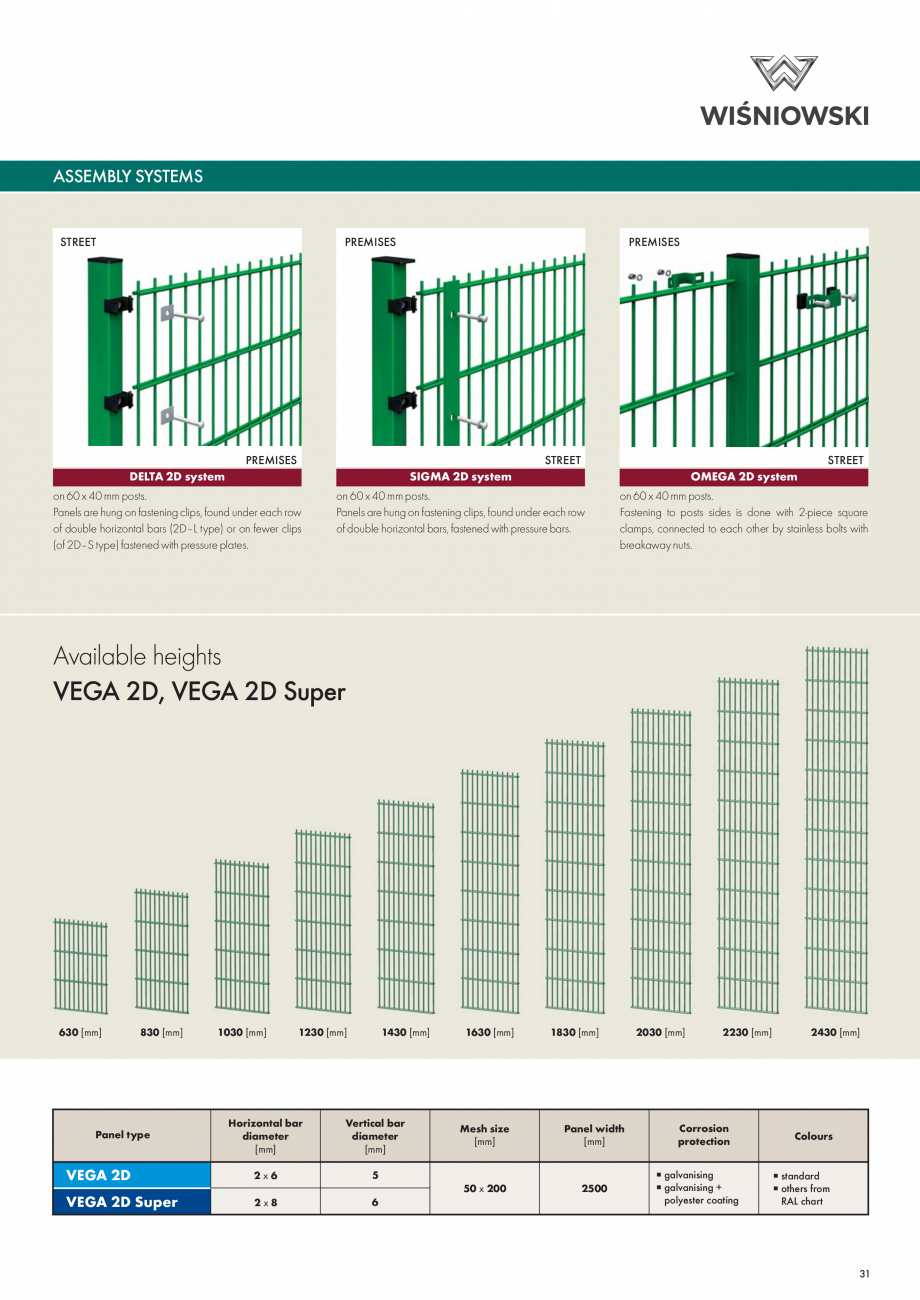

ng to posts sides is done with 2-piece square clamps, connected to each other by stainless bolts with breakaway nuts. Available heights VEGA 2D, VEGA 2D Super 630 [mm] 830 [mm] 1030 [mm] 1230 [mm] 1430 [mm] Horizontal bar diameter [mm] Vertical bar diameter [mm] VEGA 2D 2x6 5 VEGA 2D Super 2x8 6 Panel type 1630 [mm] 1830 [mm] Mesh size [mm] Panel width [mm] 50 x 200 2500 2030 [mm] 2230 [mm] Corrosion protection " galvanising " galvanising + polyester coating 2430 [mm] Colours " standard " others from RAL chart 15 31 WIŚNIOWSKI SPORTS FENCING ® Professional system of special sports fencing by WIŚNIOWSKI® 32 | www.wisniowski.pl ADVANTAGES ADAPTATION TO STANDARDS • All sports fencing alternatives are manufactured in line with individual designs and the purpose of each individual facility, developed in compliance with technical requirements for a corresponding type of projects. • They are adapted to individual investors requirements: from local foo

Pagina 2-Prezentare - panouri rigide cu dublu fir Wisniowski VEGA 2D Catalog, brosura Engleza ng to posts...

Pagina 3 - Prezentare - panouri rigide cu dublu fir Wisniowski VEGA 2D Catalog, brosura Engleza...

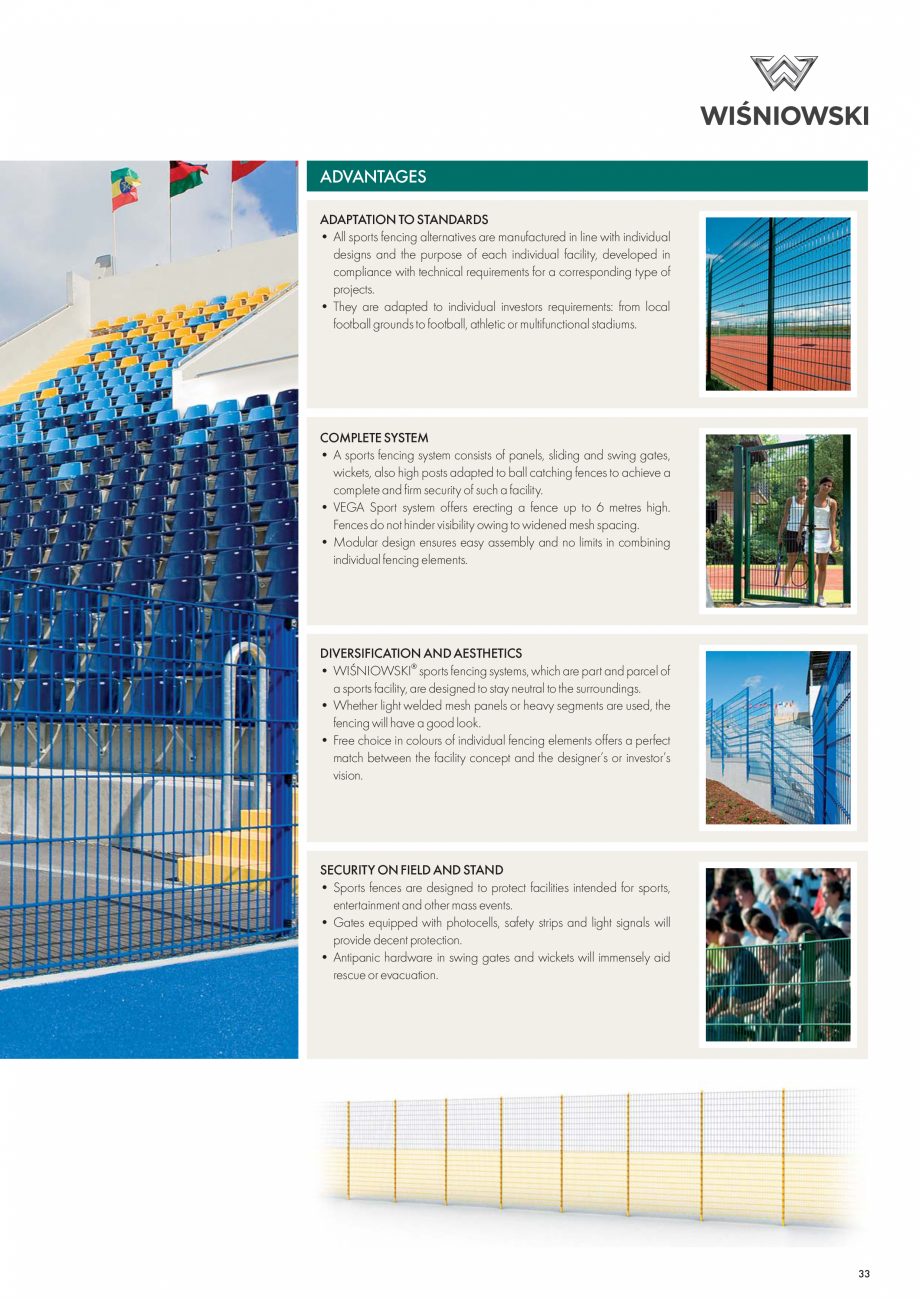

tball grounds to football, athletic or multifunctional stadiums. COMPLETE SYSTEM • A sports fencing system consists of panels, sliding and swing gates, wickets, also high posts adapted to ball catching fences to achieve a complete and firm security of such a facility. • VEGA Sport system offers erecting a fence up to 6 metres high. Fences do not hinder visibility owing to widened mesh spacing. • Modular design ensures easy assembly and no limits in combining individual fencing elements. DIVERSIFICATION AND AESTHETICS • WIŚNIOWSKI® sports fencing systems, which are part and parcel of a sports facility, are designed to stay neutral to the surroundings. • Whether light welded mesh panels or heavy segments are used, the fencing will have a good look. • Free choice in colours of individual fencing elements offers a perfect match between the facility concept and the designer’s or investor’s vision. SECURITY ON FIELD AND STAND • Sports fences are designed to protect fac

Pagina 3-Prezentare - panouri rigide cu dublu fir Wisniowski VEGA 2D Catalog, brosura Engleza tball grounds ...

Pagina 4 - Prezentare - panouri rigide cu dublu fir Wisniowski VEGA 2D Catalog, brosura Engleza...

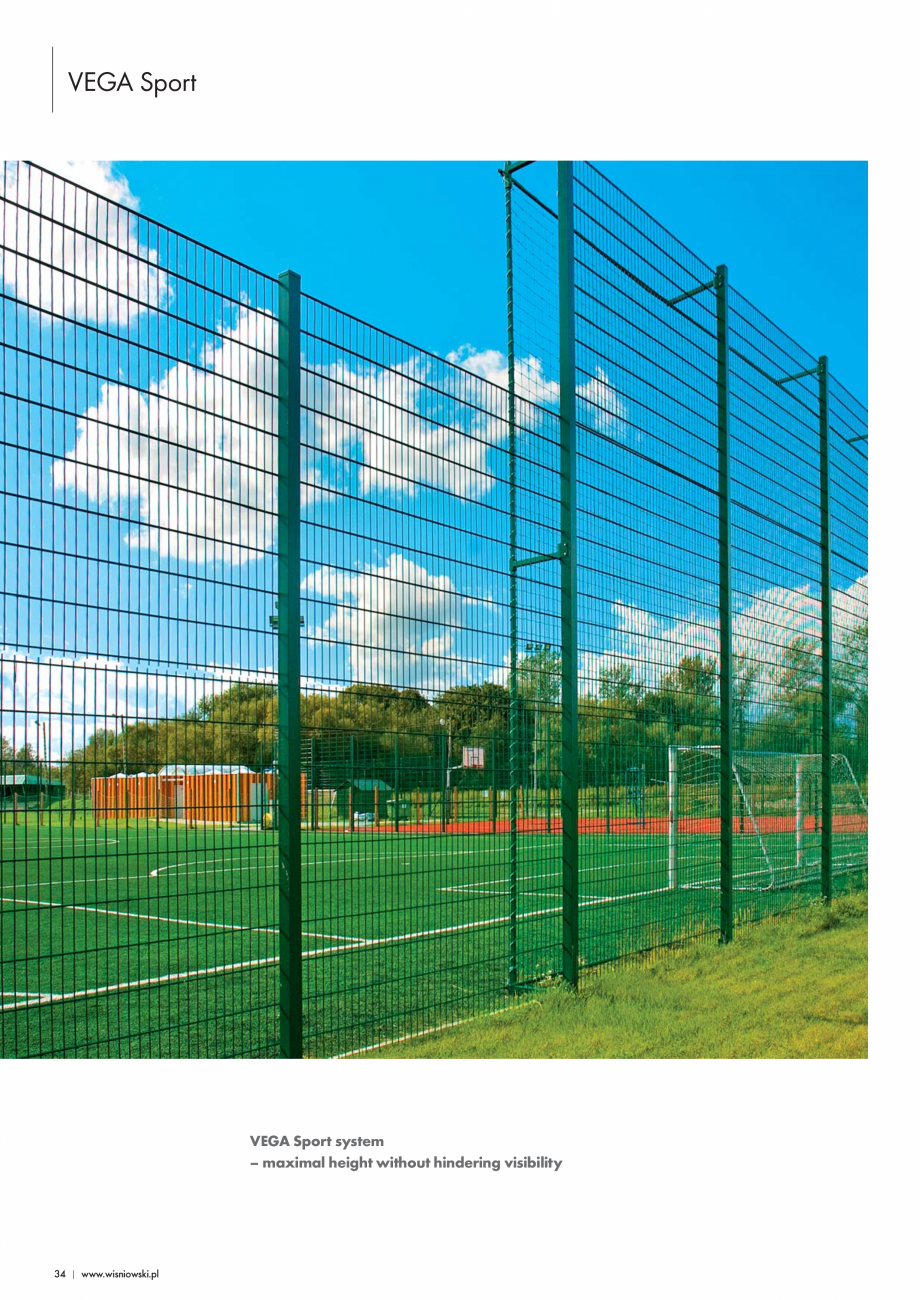

ilities intended for sports, entertainment and other mass events. • Gates equipped with photocells, safety strips and light signals will provide decent protection. • Antipanic hardware in swing gates and wickets will immensely aid rescue or evacuation. 33 VEGA Sport VEGA Sport system – maximal height without hindering visibility 34 | www.wisniowski.pl PANEL TYPES VEGA 2D / VEGA 2D Super Spot welded panels from steel bars with mesh size 50 x 200 mm. VEGA 2D – horizontal bar diameter 2 x 6 mm and vertical bar diameter 5 mm. VEGA 2D Super – horizontal bar diameter 2 x 8 mm and vertical bar diameter 6 mm. VEGA 2D Super Sport Spot welded panels from steel bars, with mesh size 100 x 200 mm. VEGA 2D Super Sport – horizontal bar diameter 2 x 8 mm and vertical bar diameter 6 mm. Vega B Spot welded panels from 5 mm diameter steel bars, with 50 x 200 mm straight mesh and 50 x 50 mm small mesh sizes. PROFESSIONAL SOLUTION STREET Sports fencing systems by WIŚNIOWSKI® are

Pagina 4-Prezentare - panouri rigide cu dublu fir Wisniowski VEGA 2D Catalog, brosura Engleza ilities...

Pagina 5 - Prezentare - panouri rigide cu dublu fir Wisniowski VEGA 2D Catalog, brosura Engleza...

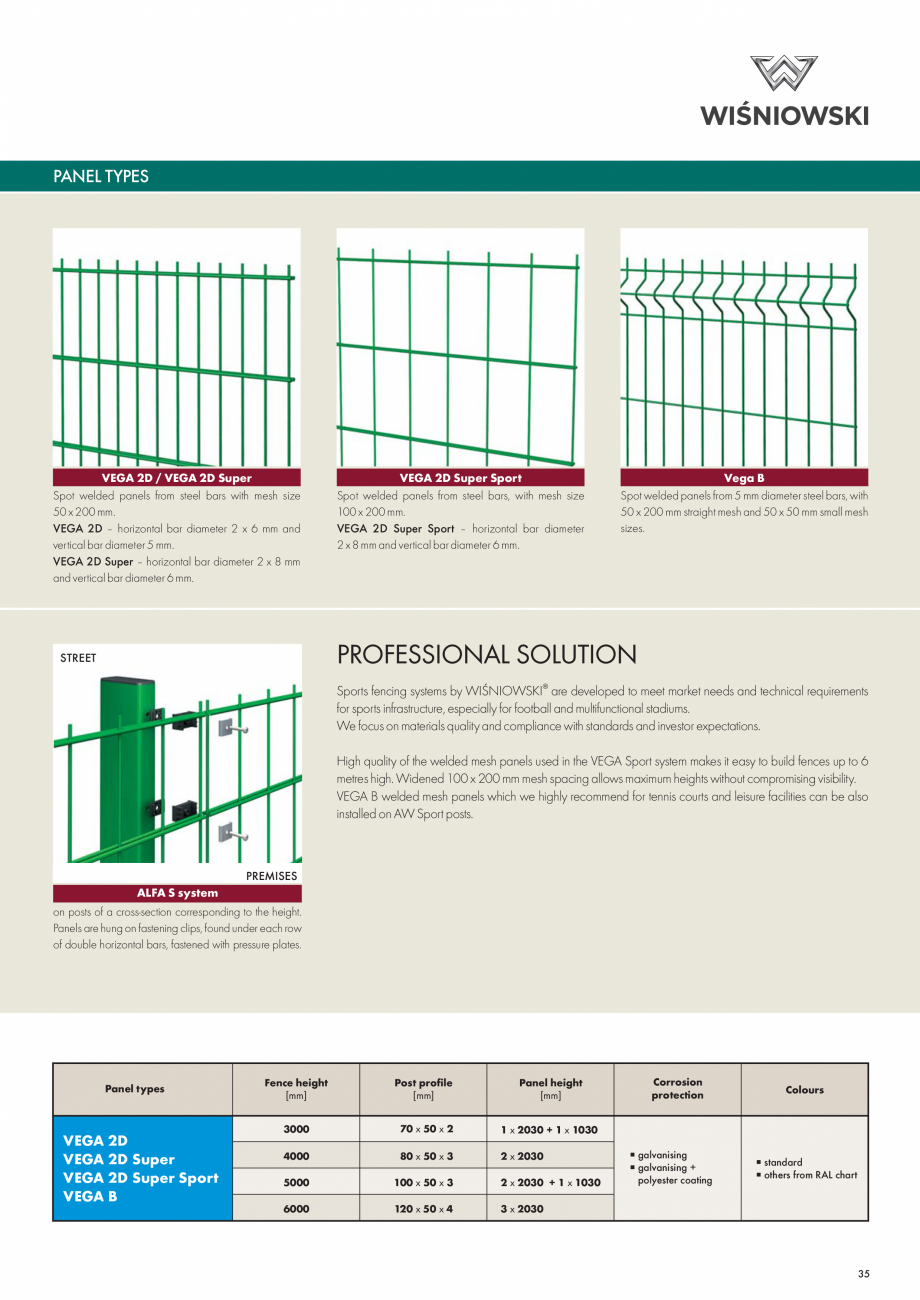

developed to meet market needs and technical requirements for sports infrastructure, especially for football and multifunctional stadiums. We focus on materials quality and compliance with standards and investor expectations. High quality of the welded mesh panels used in the VEGA Sport system makes it easy to build fences up to 6 metres high. Widened 100 x 200 mm mesh spacing allows maximum heights without compromising visibility. VEGA B welded mesh panels which we highly recommend for tennis courts and leisure facilities can be also installed on AW Sport posts. PREMISES ALFA S system on posts of a cross-section corresponding to the height. Panels are hung on fastening clips, found under each row of double horizontal bars, fastened with pressure plates. Panel types VEGA 2D VEGA 2D Super VEGA 2D Super Sport VEGA B Fence height [mm] Post profile [mm] Panel height [mm] 3000 70 x 50 x 2 1 x 2030 + 1 x 1030 4000 80 x 50 x 3 2 x 2030 5000 100 x 50 x 3 2 x 2030 + 1 x 1030 60

Pagina 5-Prezentare - panouri rigide cu dublu fir Wisniowski VEGA 2D Catalog, brosura Engleza developed to...

Pagina 6 - Prezentare - panouri rigide cu dublu fir Wisniowski VEGA 2D Catalog, brosura Engleza 00
...

00 120 x 50 x 4 3 x 2030 Corrosion protection " galvanising " galvanising + polyester coating Colours " standard " others from RAL chart 35

Pagina 6-Prezentare - panouri rigide cu dublu fir Wisniowski VEGA 2D Catalog, brosura Engleza 00

120 x 50 x...

00 120 x 50 x 4 3 x 2030 Corrosion protection " galvanising " galvanising + polyester coating Colours " standard " others from RAL chart 35 ... ascunde
