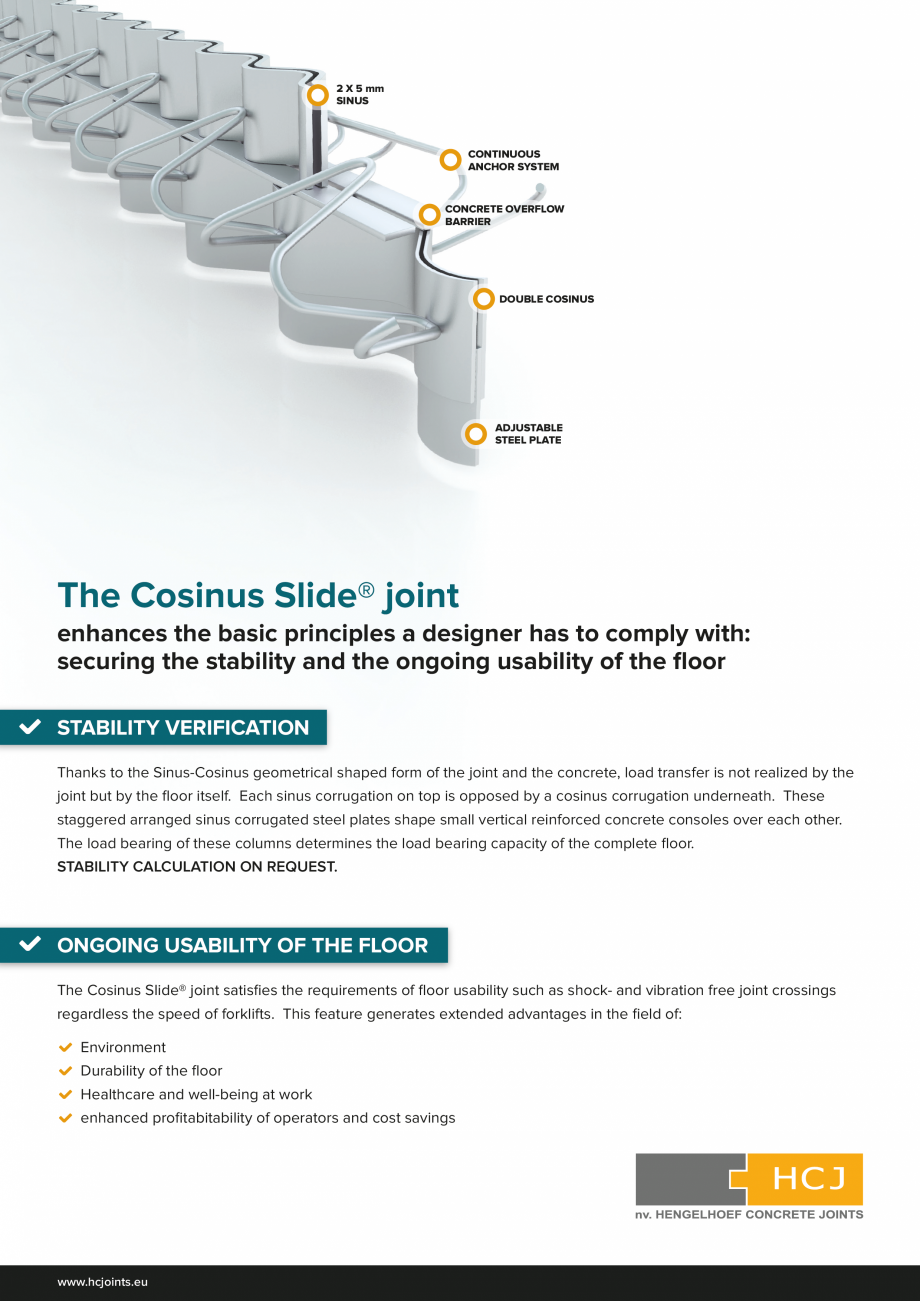

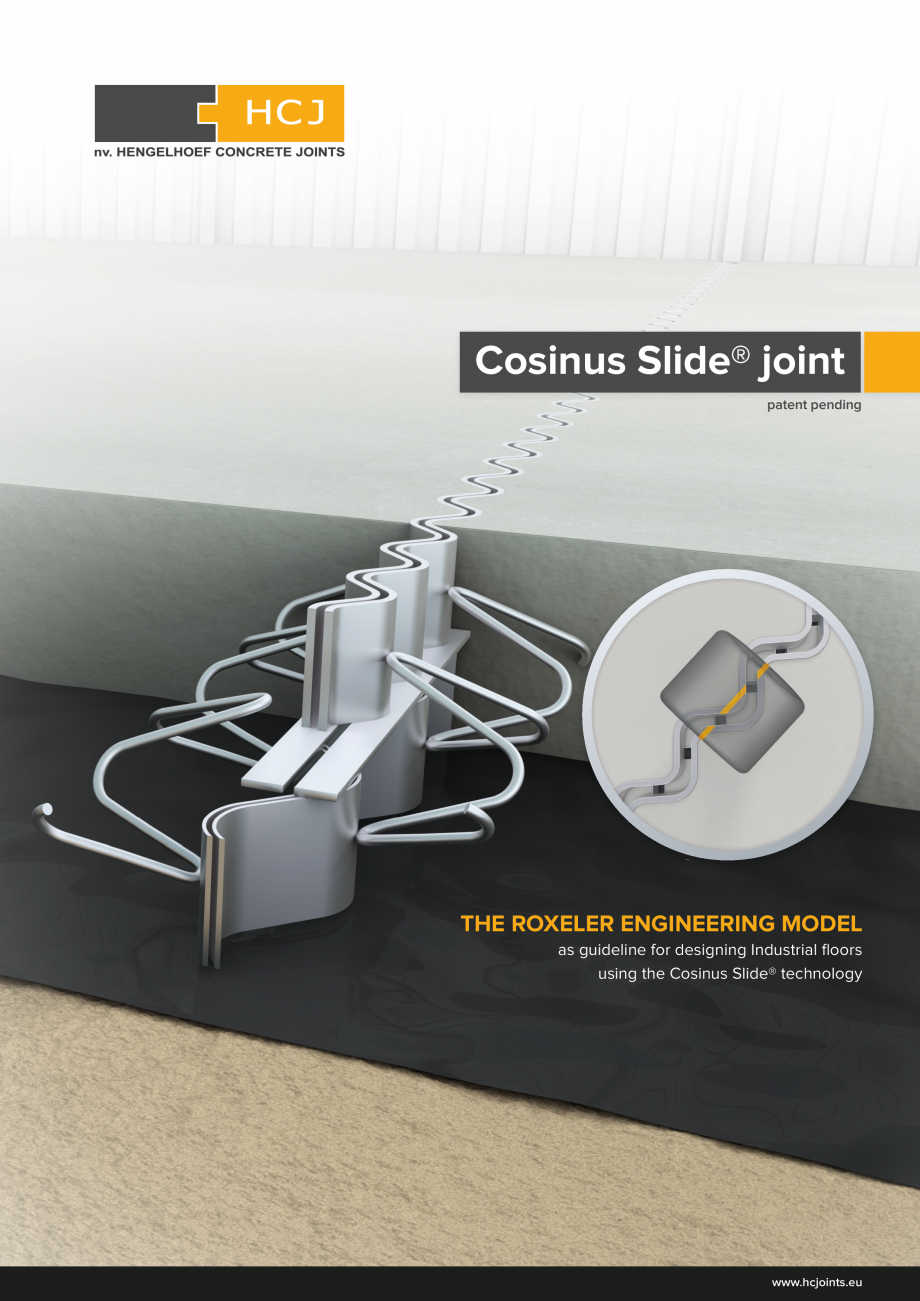

Cosinus Slide® joint patent pending THE ROXELER ENGINEERING MODEL as guideline for designing Industrial ﬂoors using the Cosinus Slide® technology www.hcjoints.eu 2 X 5 mm SINUS CONTINUOUS ANCHOR SYSTEM CONCRETE OVERFLOW BARRIER DOUBLE COSINUS ADJUSTABLE STEEL PLATE The Cosinus Slide® joint enhances the basic principles a designer has to comply with: securing the stability and the ongoing usability of the ﬂoor STABILITY VERIFICATION Thanks to the Sinus-Cosinus geometrical shaped form of the joint and the concrete, load transfer is not realized by the joint but by the ﬂoor itself. Each sinus corrugation on top is opposed by a cosinus corrugation underneath. These staggered arranged sinus corrugated steel plates shape small vertical reinforced concrete consoles over each other. The load bearing of these columns determines the load bearing capacity of the complete ﬂoor. STABILITY CALCULATION ON REQUEST. ONGOING USABILITY OF THE FLOOR The Cosinus Slide® joint satisﬁe

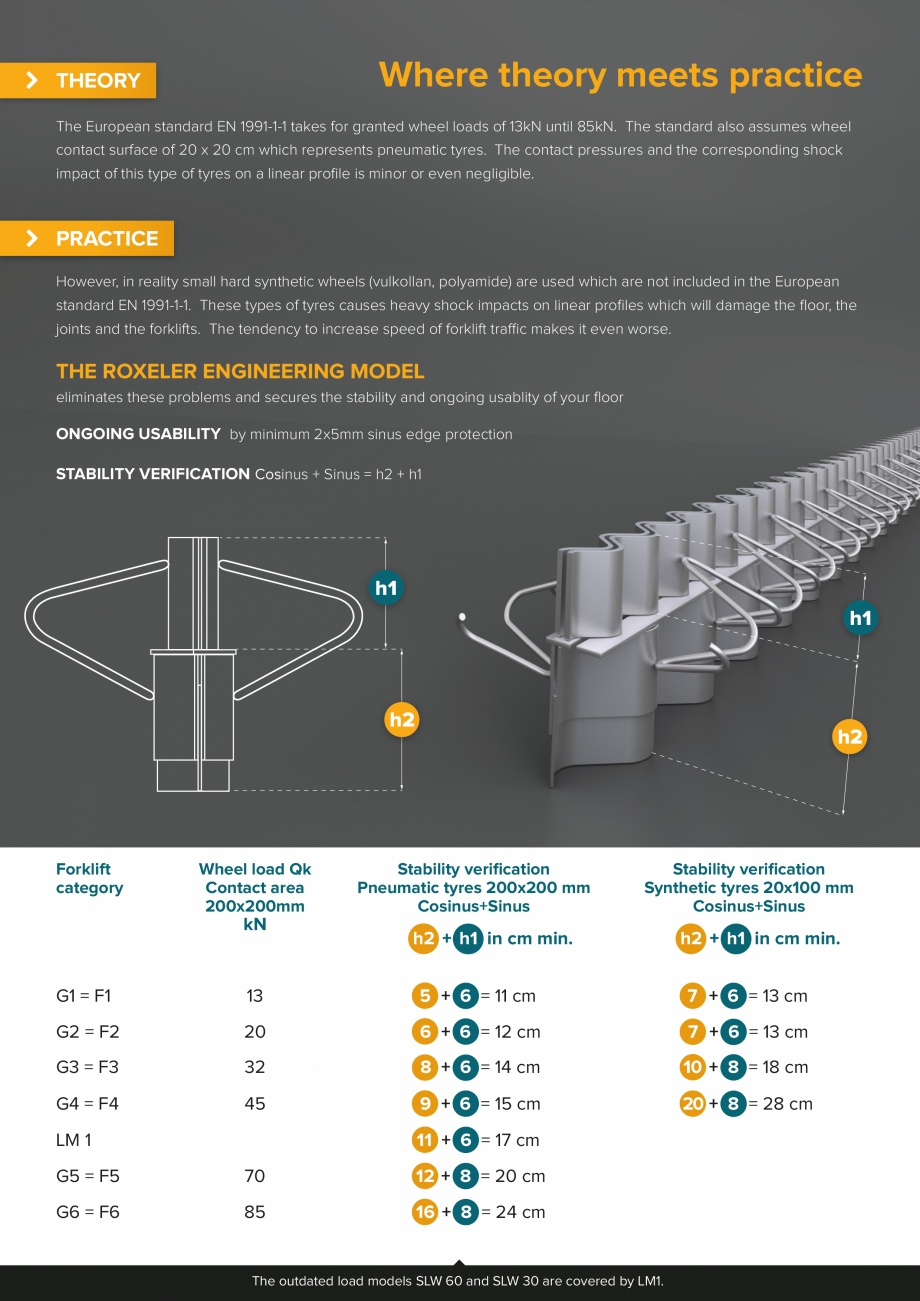

s the requirements of ﬂoor usability such as shock- and vibration free joint crossings regardless the speed of forklifts. This feature generates extended advantages in the ﬁeld of: Environment Durability of the ﬂoor Healthcare and well-being at work enhanced proﬁtabitability of operators and cost savings www.hcjoints.eu Where theory meets practice THEORY The European standard EN 1991-1-1 takes for granted wheel loads of 13kN until 85kN. The standard also assumes wheel contact surface of 20 x 20 cm which represents pneumatic tyres. The contact pressures and the corresponding shock impact of this type of tyres on a linear proﬁle is minor or even negligible. PRACTICE However, in reality small hard synthetic wheels (vulkollan, polyamide) are used which are not included in the European standard EN 1991-1-1. These types of tyres causes heavy shock impacts on linear proﬁles which will damage the ﬂoor, the joints and the forklifts. The tendency to increase speed of forklift

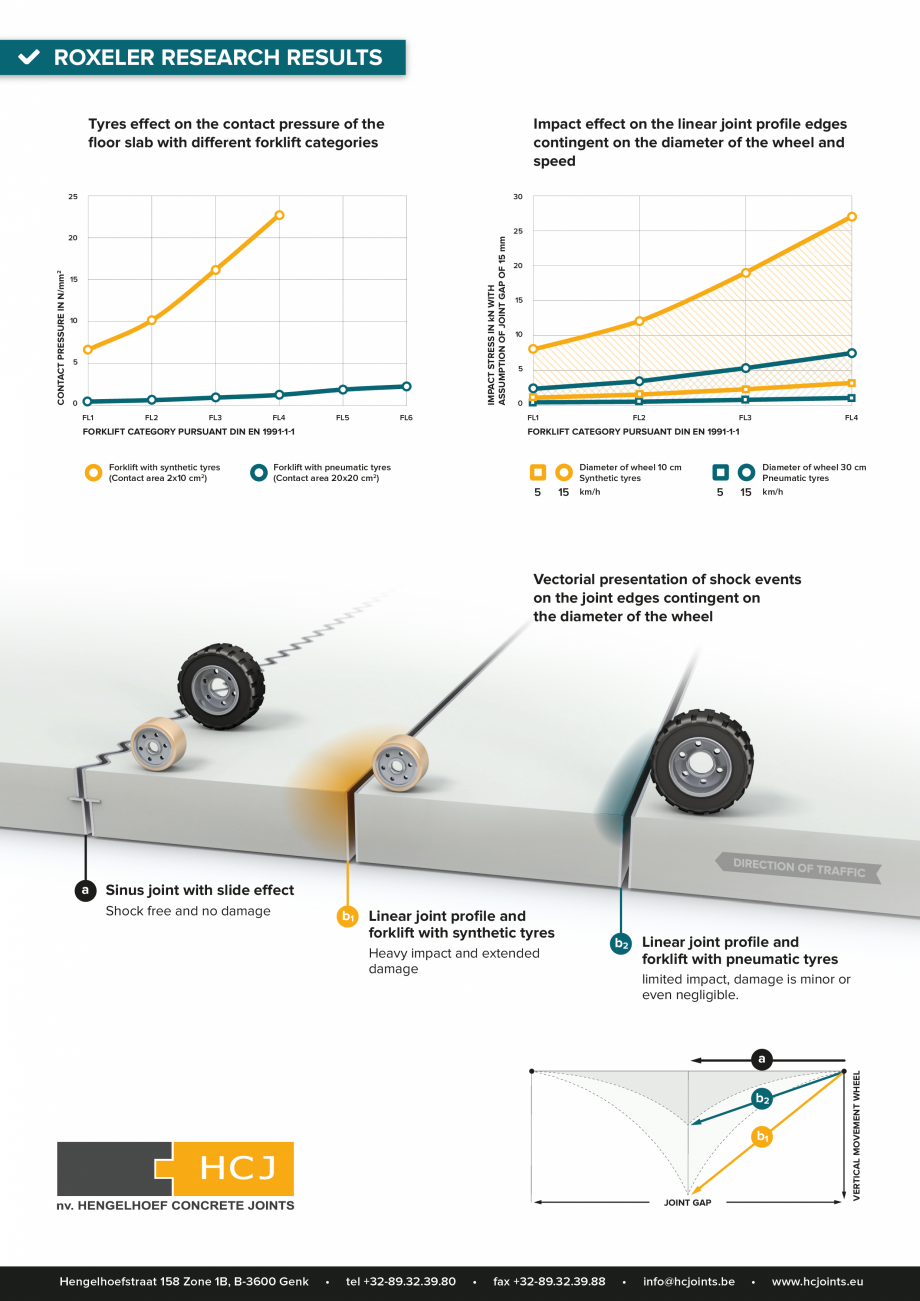

traffic makes it even worse. THE ROXELER ENGINEERING MODEL eliminates these problems and secures the stability and ongoing usablity of your ﬂoor ONGOING USABILITY by minimum 2x5mm sinus edge protection STABILITY VERIFICATION Cosinus + Sinus = h2 + h1 h1 h1 h2 Forklift category Wheel load Qk Contact area 200x200mm kN h2 Stability veriﬁcation Pneumatic tyres 200x200 mm Cosinus+Sinus Stability veriﬁcation Synthetic tyres 20x100 mm Cosinus+Sinus h2 + h1 in cm min. h2 + h1 in cm min. G1 = F1 13 5 + 6 = 11 cm 7 + 6 = 13 cm G2 = F2 20 6 + 6 = 12 cm 7 + 6 = 13 cm G3 = F3 32 8 + 6 = 14 cm 10 + 8 = 18 cm G4 = F4 45 9 + 6 = 15 cm 20 + 8 = 28 cm LM 1 11 + 6 = 17 cm G5 = F5 70 12 + 8 = 20 cm G6 = F6 85 16 + 8 = 24 cm The outdated load models SLW 60 and SLW 30 are covered by LM1. ROXELER RESEARCH RESULTS Tyres effect on the contact pressure of the ﬂoor slab with different forklift categories Impact effect on the linear joint proﬁle edges contingent

on the diameter of the wheel and speed 30 25 25 IMPACT STRESS IN kN WITH ASSUMPTION OF JOINT GAP OF 15 mm CONTACT PRESSURE IN N/mm2 20 15 10 5 0 FL1 FL2 FL3 FL4 FL5 15 10 5 0 FL2 FL1 FL6 FORKLIFT CATEGORY PURSUANT DIN EN 1991-1-1 Forklift with synthetic tyres (Contact area 2x10 cm2) 20 FL3 FL4 FORKLIFT CATEGORY PURSUANT DIN EN 1991-1-1 Forklift with pneumatic tyres (Contact area 20x20 cm2) 5 15 Diameter of wheel 10 cm Synthetic tyres km/h 5 Diameter of wheel 30 cm Pneumatic tyres km/h 15 Vectorial presentation of shock events on the joint edges contingent on the diameter of the wheel a Sinus joint with slide effect Shock free and no damage b1 Linear joint proﬁle and forklift with synthetic tyres Heavy impact and extended damage b2 Linear joint proﬁle and forklift with pneumatic tyres limited impact, damage is minor or even negligible. b2 b1 JOINT GAP Hengelhoefstraat 158 Zone 1B, B-3600 Genk • tel +32-89.32.39.80 • fax +32-89.32.39.
