Pagina 1 - Rampa hidraulica ergonomica STERTIL Seria P Catalog, brosura Engleza DOCK LEVELLERS
...

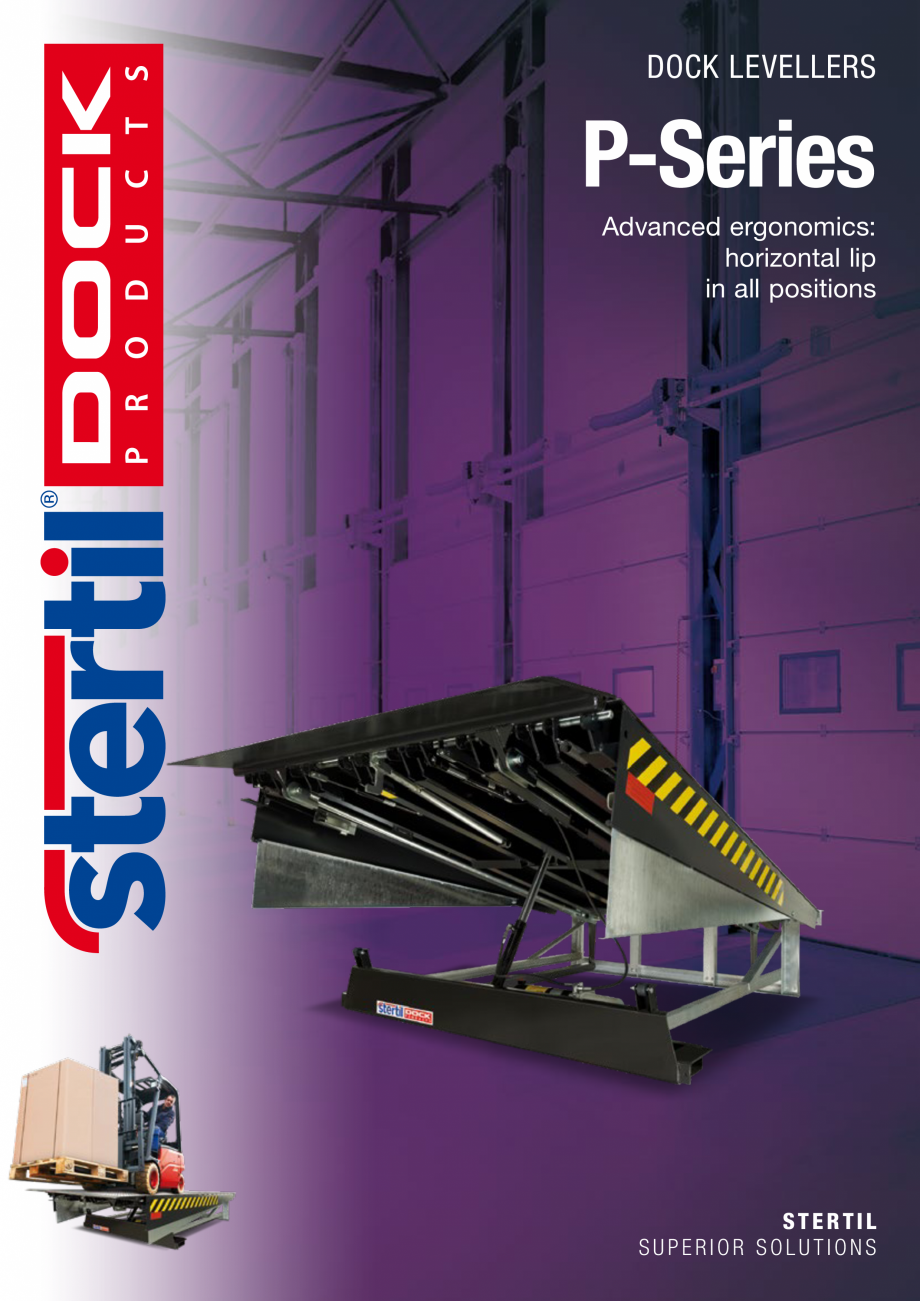

DOCK LEVELLERS P-Series Advanced ergonomics: horizontal lip in all positions STERTIL SUPERIOR SOLUTIONS Superior Solutions Stertil Dock Products provides quality, customised and technically advanced loading bay dock equipment solutions throughout the world. The best possible service is also offered from skilled local partners. These superior solutions are conceived, developed and implemented by a team of professional specialists with unique expertise. Thanks to the quality of its people, its totally in-house production process and its international organisation, Stertil Dock Products is a leading international quality supplier of loading bay dock equipment. Smooth-running loading and unloading The Stertil P-Series dock leveller offers superior ergonomics thanks to the hinged lip which always maintains a horizontal position when deployed. No other dock leveller provides such a smooth and simple transition from loading bay to vehicle as the P-Series, thanks to this unique and innov

Pagina 1-Rampa hidraulica ergonomica STERTIL Seria P Catalog, brosura Engleza DOCK LEVELLERS

P-Series...

Pagina 2 - Rampa hidraulica ergonomica STERTIL Seria P Catalog, brosura Engleza ative
patented...

ative patented parallelogram lip mechanism. Even a ball can sit without moving on the lip while it is being raised or lowered. This unrivalled ergonomic design results in smoother loading and unloading, which subjects personnel and handling equipment to less physical impact. Moreover, the design significantly reduces vibration and noise. With a dynamic load rating of 6 tons and an extensive range of platform sizes, the P-Series is suitable for use in almost any loading dock situation. It is especially suitable for pallet trucks with low levels of ground clearance, and the 8/10 platform surface strut. When the platform is in parked position, it is automatically enables the use of 3-wheel forklift trucks. supported by two cross-traffic safety legs. Optimum safety Advanced but simple control The P-Series meets the EN 1938 safety standards. In case of Practicality and safety go hand-in-hand with the P-Series premature vehicle departure (if the forklift truck is still on the adva

Pagina 2-Rampa hidraulica ergonomica STERTIL Seria P Catalog, brosura Engleza ative
patented parallelogram...

Pagina 3 - Rampa hidraulica ergonomica STERTIL Seria P Catalog, brosura Engleza nced control system....

nced control system. The dock leveller can be positioned leveller), the automatic panic-stop activates. The leveller in most perfectly at the touch of a single button. cases remains in operation even after a panic-stop situation. There are several advanced control options which provide The emergency stop button on the control box can also be additional functions: door control, shelter control, auto park, operated at any time. The platform can tilt 125 mm to both sides automated interlock to prevent operation when the dock door without influencing the functionality of the centre positioned is not fully open, and automatic door closure locking until the robust main cylinder and, therefore smoothly following the leveller has been parked correctly. Traffic lights, dock lighting movements of the truck. During maintenance, the platform is and wheel lock systems can also be connected to the dock held safely in position by means of a special maintenance leveller control. Adva

Pagina 3-Rampa hidraulica ergonomica STERTIL Seria P Catalog, brosura Engleza nced control system. The dock...

Pagina 4 - Rampa hidraulica ergonomica STERTIL Seria P Catalog, brosura Engleza nced ergonomics:...

nced ergonomics: horizontal lip in all positions Unique open lip hinge One hydraulic (main) cylinder The platform can tilt 125 mm at both sides Two safety legs Improved efficiency Thanks to the P-Series dock leveller’s exceptionally smooth loading and unloading, there is practically no risk of grounding even with low clearance trucks. The severely reduced impact Horizontal lip in all positions ensures that the risk of damage to goods during loading is minimal. Most importantly, it also ensures that loading equipment is subject to less wear and tear, thereby considerably increasing operating life and cutting maintenance costs. Significant cost savings can also be achieved by reduction of absenteeism among staff due to sickness or injury; this is because they are able to carry out the same work more comfortably and with less physical exertion. Closed rear hinge Excellent with regard to ergonomics and efficiency Standard sizes Extensive choice of sizes Theoretical ranges for

Pagina 4-Rampa hidraulica ergonomica STERTIL Seria P Catalog, brosura Engleza nced ergonomics:
horizontal lip...

Pagina 5 - Rampa hidraulica ergonomica STERTIL Seria P Catalog, brosura Engleza “standard” PP - ...

“standard” PP - PF Series. The P-Series offers numerous possibilities customised to your dock for most efficient use. The length of the Dynamic capacity PP - PF 6 tons Lengths (mm) excluding lip 2000 2200 2500 2800 3000 3500 4000 4500 Working range (mm)* above dock Working range (mm)* below dock platform will primarily be determined by the height Frame height (mm) difference between the warehouse floor and the PP PF PP PF PP PF 195 190 270 295 265 360 370 335 215 220 245 300 270 360 370 335 254 235 225 215 215 295 280 275 265 395 335 370 360 295 280 275 585 585 585 585 585 700 700 700 700 700 700 700 700 700 700 700 expected range of truck beds. Stertil bases its sizes on a lower maximum incline than is permitted by EN 1398 Directive, in order to guarantee smoother loading and unloading with less physical strain. We would be happy to advise you about the most efficient sizes and designs at the early stages of dock planning. Platform width (mm) 1750, 1830, 2000

Pagina 5-Rampa hidraulica ergonomica STERTIL Seria P Catalog, brosura Engleza “standard” PP - PF Series.
...

Pagina 6 - Rampa hidraulica ergonomica STERTIL Seria P Catalog, brosura Engleza , 2110, 2250
*...

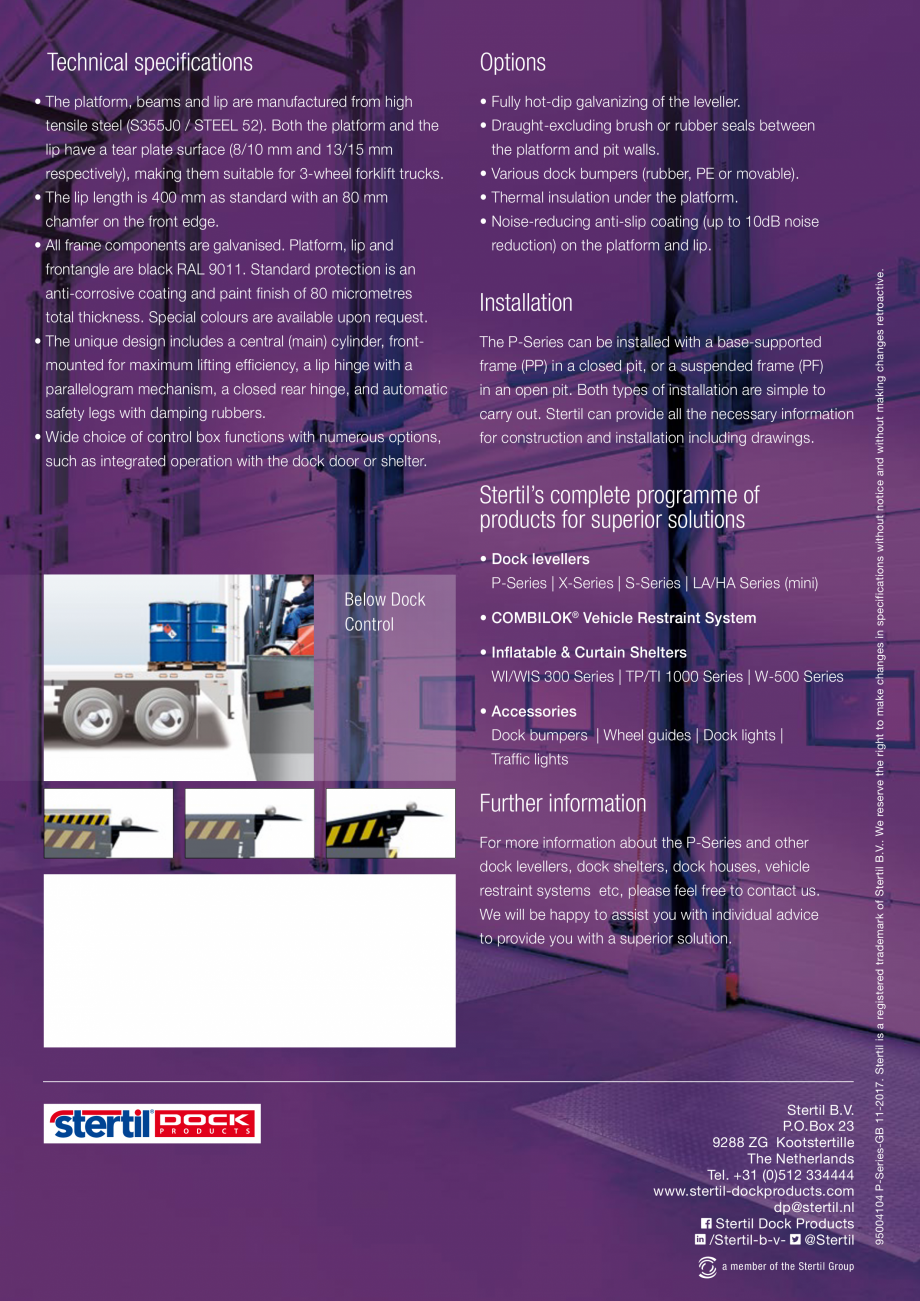

, 2110, 2250 * Calculated with a 400 mm lip and 100 mm bumper projection P = Pit Installation, F = Frame Installation Advanced control box Technical specifications Options • The platform, beams and lip are manufactured from high tensile steel (S355J0 / STEEL 52). Both the platform and the lip have a tear plate surface (8/10 mm and 13/15 mm respectively), making them suitable for 3-wheel forklift trucks. • The lip length is 400 mm as standard with an 80 mm • Draught-excluding brush or rubber seals between the platform and pit walls. • Various dock bumpers (rubber, PE or movable). • Thermal insulation under the platform. • Noise-reducing anti-slip coating (up to 10dB noise • All frame components are galvanised. Platform, lip and reduction) on the platform and lip. frontangle are black RAL 9011. Standard protection is an anti-corrosive coating and paint finish of 80 micrometres total thickness. Special colours are available upon request. Installation • Th
