Raport de la Institutul Tehnologic Danez privind rezistenta la fungi a SkamoWall Board (panoului) SKAMOL

Limba: Engleza

12 afisari

Tip documentatie: Certificare produs

Pagina 1 - Raport de la Institutul Tehnologic Danez privind rezistenta la fungi a SkamoWall Board...

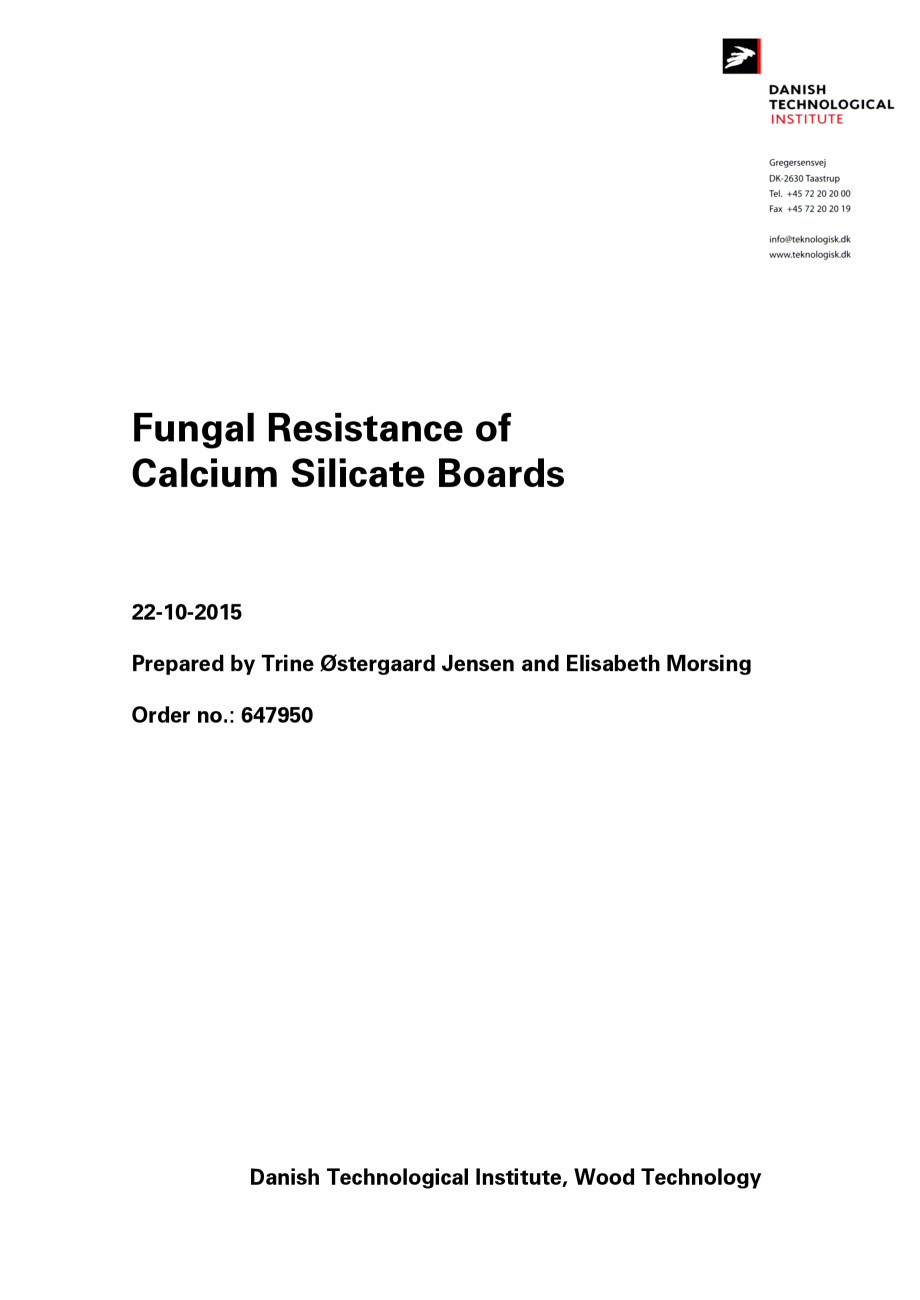

Fungal Resistance of Calcium Silicate Boards 22-10-2015 Prepared by Trine Østergaard Jensen and Elisabeth Morsing Order no.: 647950 Danish Technological Institute, Wood Technology Contents 1 Background and Purpose ......................................................................................... 2 2 Assignor ................................................................................................................... 2 3 Test Materials .......................................................................................................... 2 4 Method ..................................................................................................................... 3 4.1 Ageing ............................................................................................................ 3 4.2 Exposure ......................................................................................................... 3 5 Results ........................................

Pagina 1-Raport de la Institutul Tehnologic Danez privind rezistenta la fungi a SkamoWall Board (panoului)...

Pagina 2 - Raport de la Institutul Tehnologic Danez privind rezistenta la fungi a SkamoWall Board...

.............................................................................. 5 5.1.1 Skamol 15-37-103 ................................................................................. 6 5.1.2 Skamol Yantai Haohai 130 ................................................................... 7 5.1.3 Skamol Skamotec 225........................................................................... 8 5.1.4 Gypsum boards ..................................................................................... 9 5.1.5 Pine sapwood ...................................................................................... 10 6 Conclusion ............................................................................................................. 11 1 Background and Purpose The purpose of the test is to determine the ability to prevent fungal growth on aged surfaces of Calcium Silicate boards used as wall insulation. 2 Assignor Skamol A/S Fasanvej 7 DK-7860 Spøttrup Attn: Kim F. Siefert 3 Test Mater

Pagina 2-Raport de la Institutul Tehnologic Danez privind rezistenta la fungi a SkamoWall Board (panoului)...

Pagina 3 - Raport de la Institutul Tehnologic Danez privind rezistenta la fungi a SkamoWall Board...

ials      Skamol 15-37-10-3 Skamol Yantai Haohai 130 Skamol Skamotec 225 Gypsum boards (positive reference) Pine sapwood (comparative material) Skamol 15-37-10-3, Skamol Yantai Haohai 130 and Skamol Skamotec 225 silica boards were delivered by Skamol A/S. The references were made at Technological Institute. 647950_Report 2 4 Method ASTM G145-12a: Standard Practice for Operating Fluorescent Light Apparatus for UV Exposure of Nonmetallic Materials ASTM C1339-96: Standard test Method for Determining Fungi Resistance of Insulation Materials and Facings. 4.1 Ageing Chamber: QUV apparatus Lamps: UVA 351 (~normal daylight through window glass). Cycle: 4 h UV at 60 °C and 4 h condensation at 50 °C. Specimens of Skamol 15-37-10-3, Skamol Yantai Haohai 130 and Skamol Skamotec 225, gypsum boards and pine sapwood were cut and the front and backside of the materials aged in QUV. QUV was carried out from 09-06-2015 to 23-07-2015 by Centre for Plastics Technology, Danish T

Pagina 3-Raport de la Institutul Tehnologic Danez privind rezistenta la fungi a SkamoWall Board (panoului)...

Pagina 4 - Raport de la Institutul Tehnologic Danez privind rezistenta la fungi a SkamoWall Board...

echnological Institute. Report no. 156/15. The exposed time was 1000 hours. Organisms Aspergillus niger Aspergillus versicolor Penicillium funicolosum Chaetomium globosum Aspergillus flavus ATCC 9642 ATCC 11 730 ATCC 11 797 ATCC 6205 ATCC 9643 The fungi were cultivated on V8 agar plates for one week at 28°C. The spores were harvested by adding 10 mL distilled water containing 0.1 g Tween 80/L per plate and the spores loosened with a Drigalski spatula. The spore suspensions were collected in a jar with glass beads and whirled to ensure even distribution of the spores and subsequently filtered through a layer of cotton wool. These cultures are designated stock cultures. The amount of spores were counted in a counting chamber and then diluted with distilled water to a final concentration of 106±2 x 105 spores per mL. Equal volumes of the diluted spore solutions were mixed and used for inoculation of the test specimens. 4.2 Exposure From each type of boards 4 specimens with a dimension

Pagina 4-Raport de la Institutul Tehnologic Danez privind rezistenta la fungi a SkamoWall Board (panoului)...

Pagina 5 - Raport de la Institutul Tehnologic Danez privind rezistenta la fungi a SkamoWall Board...

of 7.5 × 7.5 × 1.2 cm were cut. 2 of these specimens were cut from the front side aged specimens and 2 specimens were cut from the back side aged specimens. 647950_Report 3 The specimens were placed in petri dishes and inoculated by pipette with 105 spores per specimen. The petri dishes were placed at 28±2°C and 95±4% relative humidity for 7 weeks and evaluated once a week for fungal growth on the surface. The evaluation was performed according to the scale below from BS 3900:1989 (British Standard Method of test for paints. Part G6. Assessment of resistance to fungal growth). Rating 0 1 2 3 4 5 Appearance No growth Trace of growth up to 1 % coverage of test inoculated area Growth more than 1 % and up to 10% coverage of test inoculated area Growth more than 10 % and up to 30% coverage of test inoculated area Trace of growth more than 30 % and up to 70% coverage of test inoculated area Growth more than 70 % of test inoculated area The exposure took place from 28-08-2015 to 1

Pagina 5-Raport de la Institutul Tehnologic Danez privind rezistenta la fungi a SkamoWall Board (panoului)...

Pagina 6 - Raport de la Institutul Tehnologic Danez privind rezistenta la fungi a SkamoWall Board...

6-10-2015. After four weeks of exposure the amount of fungal biomass was determined by the MycoMeter®test. The MycoMeter®-test is based on the detection and quantification of an enzyme that is present in both mycelium and spores of most fungi. MycoMeter®-analysis is not a part of the standard. The MycoMeter®-values are divided into the following three categories: A MycoMeter®value ≤ 25 The level of mould is not above normal background level B 25< MycoMeter®value ≤450 The level of mould is above the normal background level. This is typically due to high concentration of spores in dust deposits but may in some cases indicate the presence of an old damage (mould growth) C MycoMeter®value > 450 The level of mould is high above normal background level due to mould growth 647950_Report 4 5 Results Growth on surfaces Material Exposure (weeks) (Front/back) 3 4 5 1 2 Skamol 15-37-10-3 0/0 0/0 0/0 0/0 Skamol Yantai Haohai 130 0/0 0/0 0/0 Skamol Skamotec 225

Pagina 6-Raport de la Institutul Tehnologic Danez privind rezistenta la fungi a SkamoWall Board (panoului)...

Pagina 7 - Raport de la Institutul Tehnologic Danez privind rezistenta la fungi a SkamoWall Board...

0/0 0/0 0/0 0/0 Gypsum boards (positive reference) Pine sapwood (comparative material) MycoMeter®-test Material 6 7 0/0 0/0 0/0 0/0 0/0 0/0 0/0 0/0 0/0 0/0 0/0 0/0 0/0 2/2 3/3 4/4 5/5 5/5 0/0 2/2 3/3 4/4 5/5 5/5 MycoMeter®value Category Skamol 15-37-10-3 31 B (Low) Skamol Yantai Haohai 130 40 B (Low) Skamol Skamotec 225 81 B (Low) 228 B 452 C Gypsum boards (positive reference) Pine sapwood (comparative material) On the tested material values were found corresponding to category B, although all values were considered as a low category B. In this test, a very large amount of spores was applied to the material that may be deemed unlikely to find in a building, which is consistent with the fact that we find values in category B for the tested material. On the reference material values were found in category B and C which is consistent with the fact that growth was observed on these materials. 647950_Report 5 5.1.1 Skamol 15-37-103 Phot

Pagina 7-Raport de la Institutul Tehnologic Danez privind rezistenta la fungi a SkamoWall Board (panoului)...

Pagina 8 - Raport de la Institutul Tehnologic Danez privind rezistenta la fungi a SkamoWall Board...

o 1. Skamol 15-37-10-3, no growth on surfaces after 7 weeks’ exposure Photo 2. Skamol 15-37-10-3, no growth observed in microscope. After 7 weeks’ exposure, no fungal growth were visible to the naked eye. In the microscope, the spores were observed but no mycelium. 647950_Report 6 5.1.2 Skamol Yantai Haohai 130 Photo 3. Skamol Yantai Haohai 130, no growth on surfaces after 7 weeks’ exposure Photo 4. Skamol Yantai Haohai 130, no growth observed in microscope. After 7 weeks’ exposure, no fungal growth were visible to the naked eye. In the microscope, the spores were observed but no mycelium. 647950_Report 7 5.1.3 Skamol Skamotec 225 Photo 5. Skamol Skamotec 225, no growth on surfaces after 7 weeks’ exposure Photo 6. Skamol Skamotec 225, no growth observed in microscope. After 7 weeks’ exposure, no fungal growth were visible to the naked eye. In the microscope, the spores were observed but no mycelium. 647950_Report 8 5.1.4 Gypsum boards Photo 7. Gypsum bo

Pagina 8-Raport de la Institutul Tehnologic Danez privind rezistenta la fungi a SkamoWall Board (panoului)...

Pagina 9 - Raport de la Institutul Tehnologic Danez privind rezistenta la fungi a SkamoWall Board...

ards, growth on surfaces after 7 weeks’ exposure Photo 8. Gypsum boards, growth observed in the microscope After 5 weeks’ exposure, the surfaces of the Gypsum boards reference specimens were covered with visible fungal growth, and the paper on top of the specimens was damaged by moisture. Also in the microscope, heavy growth was observed. 647950_Report 9 5.1.5 Pine sapwood Photo 9. Pine sapwood, growth on surfaces after 7 weeks’ exposure Photo 10. Pine sapwood, growth observed in the microscope After 5 weeks’ exposure, the surfaces of the Gypsum boards reference specimens were covered with visible fungal growth, and the paper on top of the specimens was damaged by moisture. Also in the microscope, heavy growth was observed. 647950_Report 10 6 Conclusion The results demonstrate than the tested Skamol Silica Boards – Skamol 15-37-10-3, Skamol Yantai Haohai and Skamol Skamotec 225 were able to prevent growth of fungi on the surfaces when exposed to optimal tempera

Pagina 9-Raport de la Institutul Tehnologic Danez privind rezistenta la fungi a SkamoWall Board (panoului)...

Pagina 10 - Raport de la Institutul Tehnologic Danez privind rezistenta la fungi a SkamoWall Board...

ture and high moisture content. The specimens were exposed for 7 weeks. On the reference material slight fungal growth was seen after 3 weeks and heavy growth after 5 weeks’ exposure. Yours sincerely Danish Technological Institute, Wood Technology 647950_Report 11
