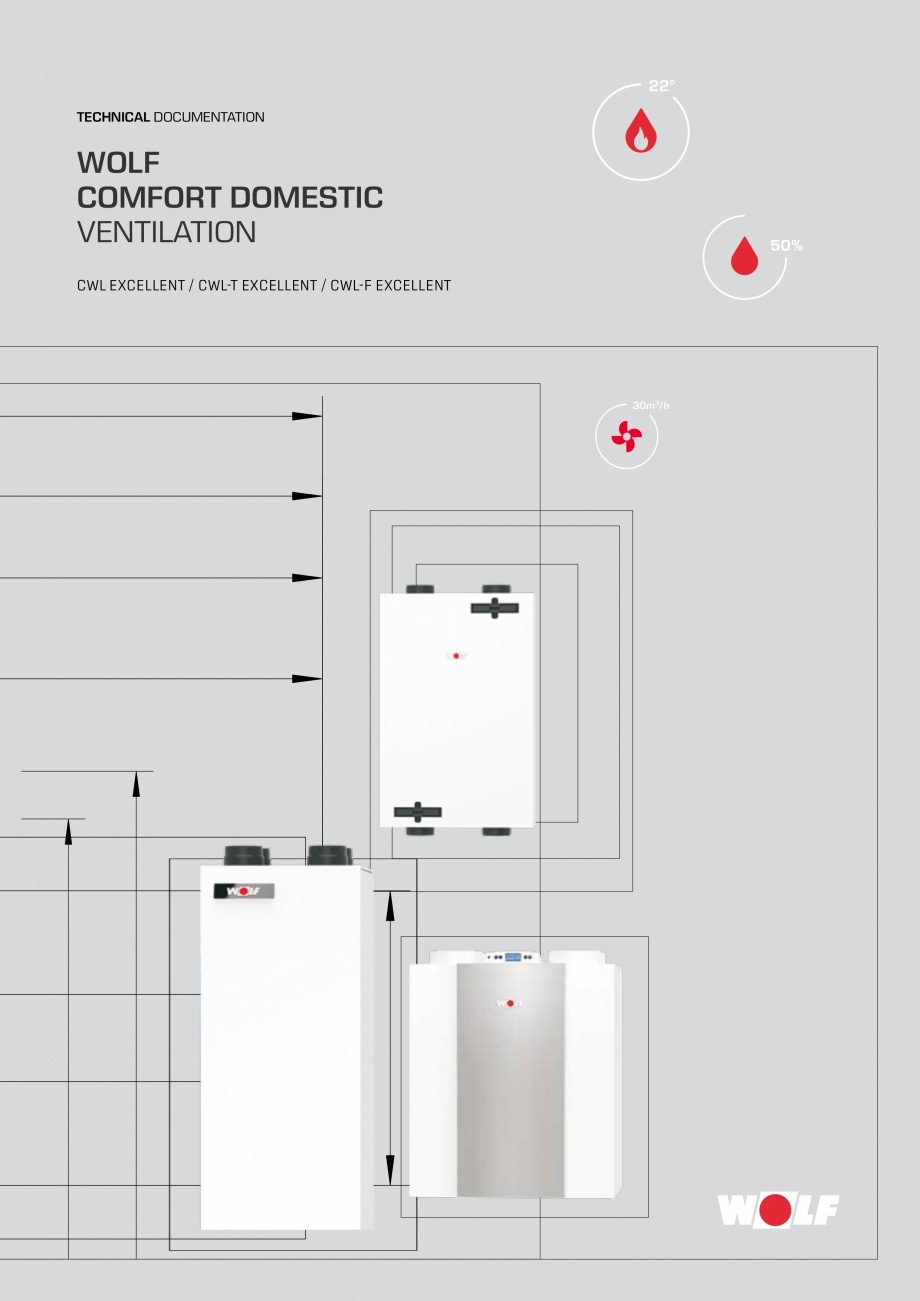

TECHNICAL DOCUMENTATION WOLF COMFORT DOMESTIC VENTILATION CWL EXCELLENT / CWL-T EXCELLENT / CWL-F EXCELLENT 30m3/h THE EXTENSIVE EQUIPMENT RANGE from system supplier WOLF offers the ideal solution for commercial and industrial buildings, new build and modernisation projects alike. The range of WOLF control units can meet any requirement for heating convenience. All equipment is easy to operate, highly energy efficient and reliable. Solar thermal systems can be swiftly integrated into existing systems. WOLF equipment is easy and quick to install and maintain. WOLF COMFORT DOMESTIC VENTILATION 04-05 UNIT VERSIONS SPECIFICATION 06 EXCELLENT SLIMLINE UNIT CWL-F-150/300 07 EXCELLENT CWL-180 08 EXCELLENT CWL-300/400 09 EXCELLENT CWL-T-300 10 CWL-D-70 11 CONTROL CWL EXCELLENT 12 CONTROL ACCESSORIES CWL EXCELLENT 12-13 ACCESSORIES 14-26 HOW IT WORKS CWL EXCELLENT INSULATED DUCT SYSTEM CWL EXCELLENT / CWL 16 17-18 SILENCER 19 GENERAL INFORMATION FLEXIBLE DU

Pagina 1-Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent, CWL-300...

Pagina 2 - Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent,...

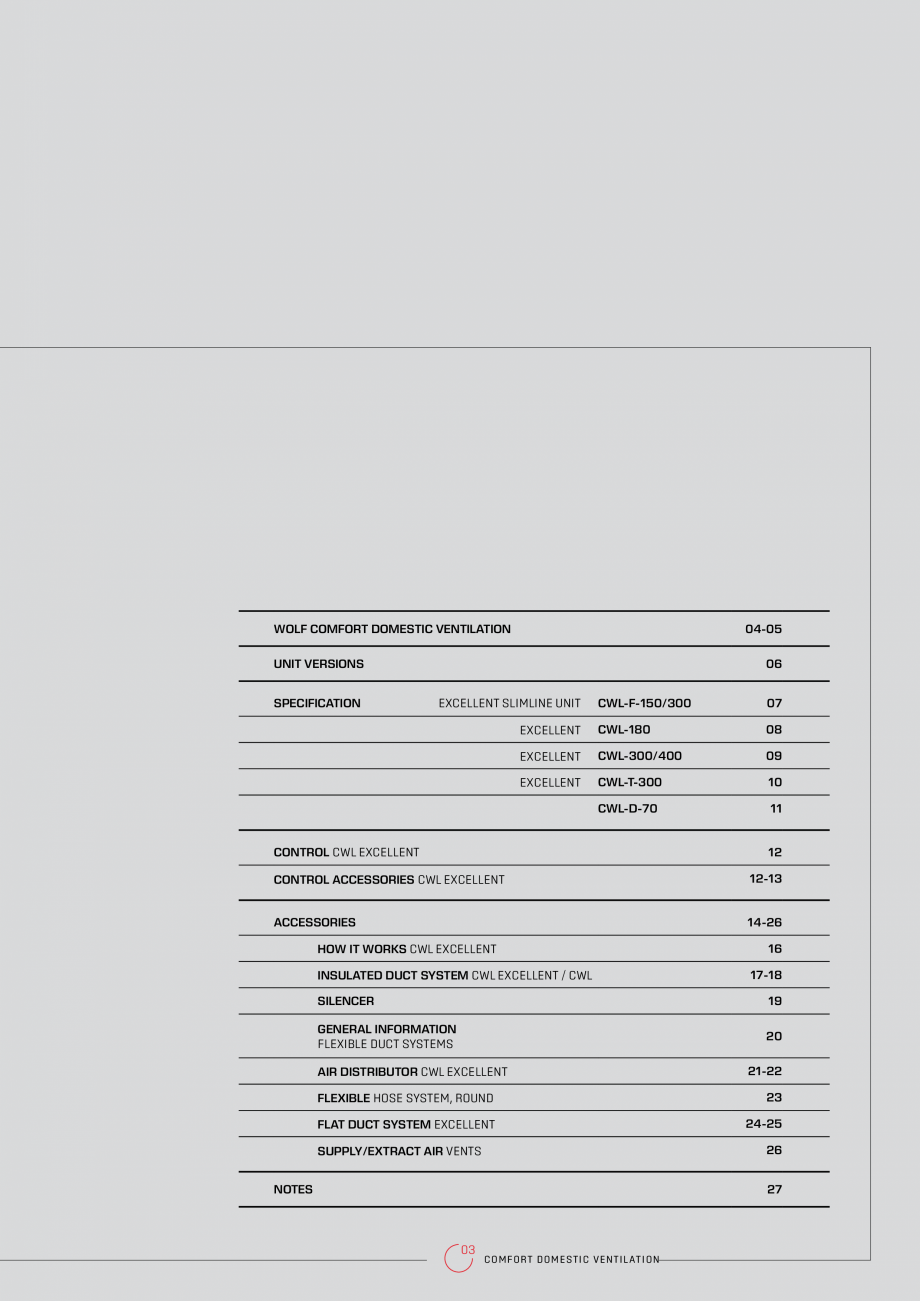

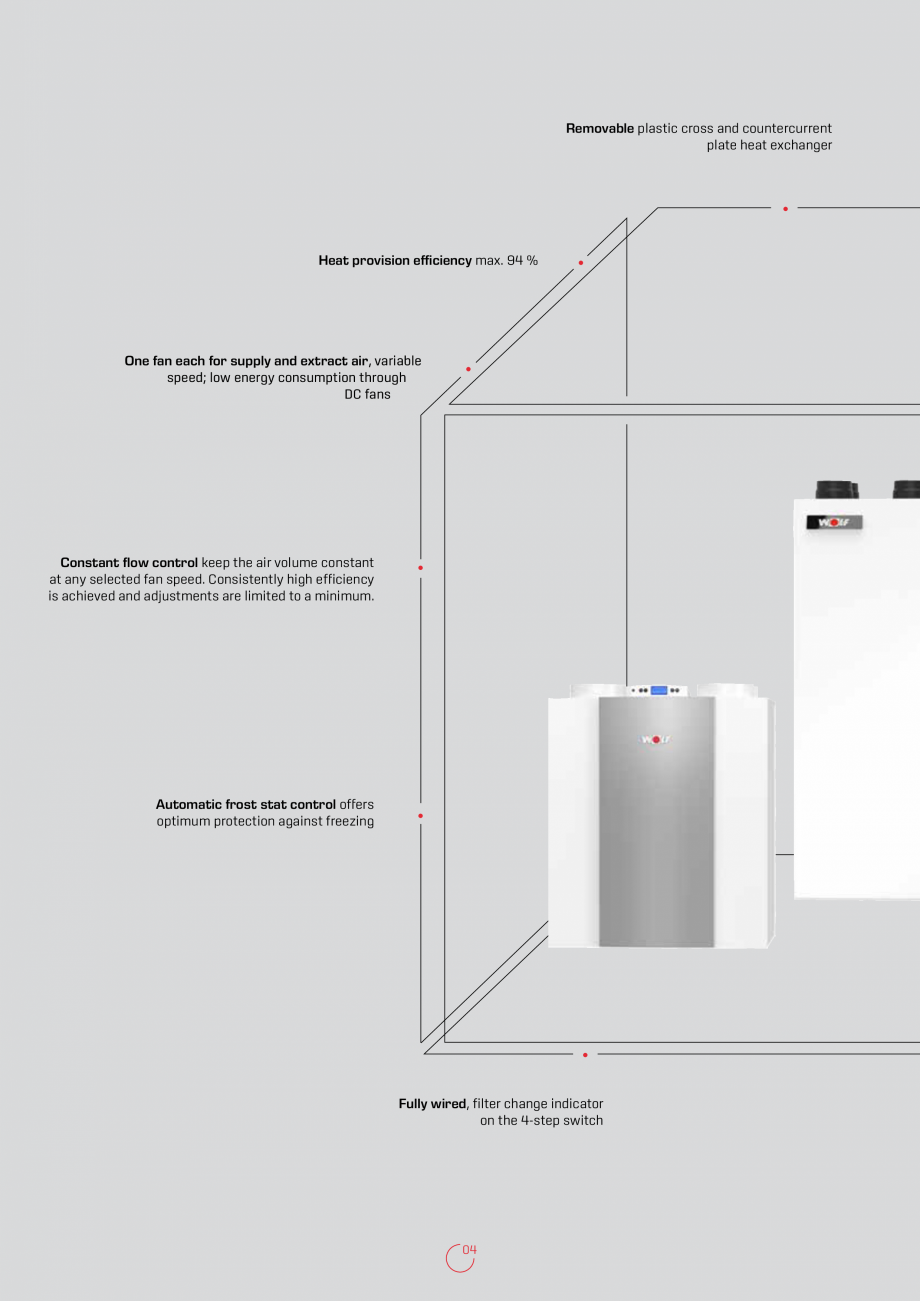

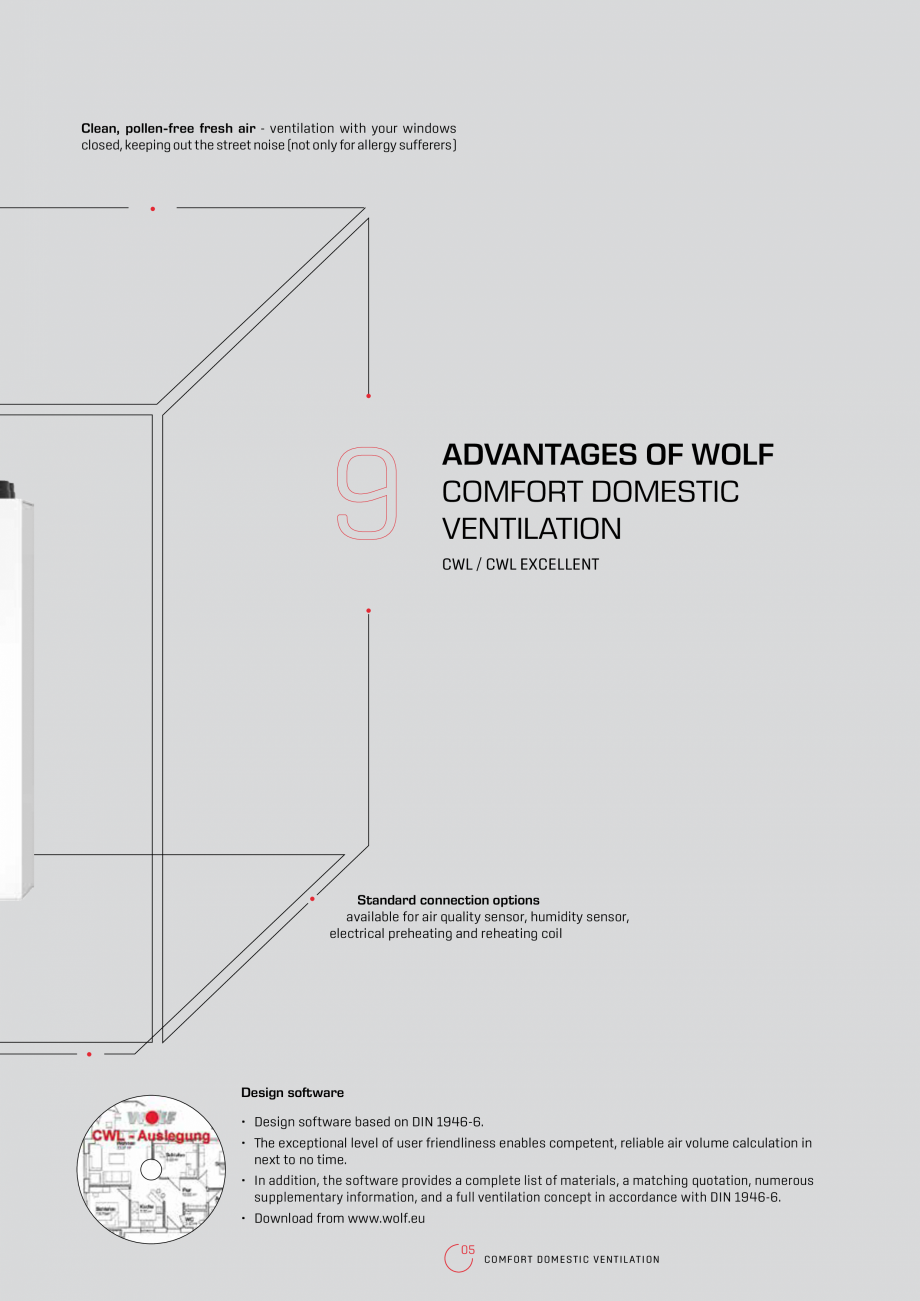

CT SYSTEMS 20 AIR DISTRIBUTOR CWL EXCELLENT 21-22 FLEXIBLE HOSE SYSTEM, ROUND 23 FLAT DUCT SYSTEM EXCELLENT 24-25 26 SUPPLY/EXTRACT AIR VENTS NOTES 27 03 COMFORT DOMESTIC VENTILATION Removable plastic cross and countercurrent plate heat exchanger Heat provision efficiency max. 94 % One fan each for supply and extract air, variable speed; low energy consumption through DC fans Constant flow control keep the air volume constant at any selected fan speed. Consistently high efficiency is achieved and adjustments are limited to a minimum. Automatic frost stat control offers optimum protection against freezing Fully wired, filter change indicator on the 4-step switch 04 Clean, pollen-free fresh air - ventilation with your windows closed, keeping out the street noise (not only for allergy sufferers) ADVANTAGES OF WOLF COMFORT DOMESTIC VENTILATION CWL / CWL EXCELLENT Standard connection options available for air quality sensor, humidity sensor, electrical preheating and

Pagina 2-Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent, CWL-300...

Pagina 3 - Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent,...

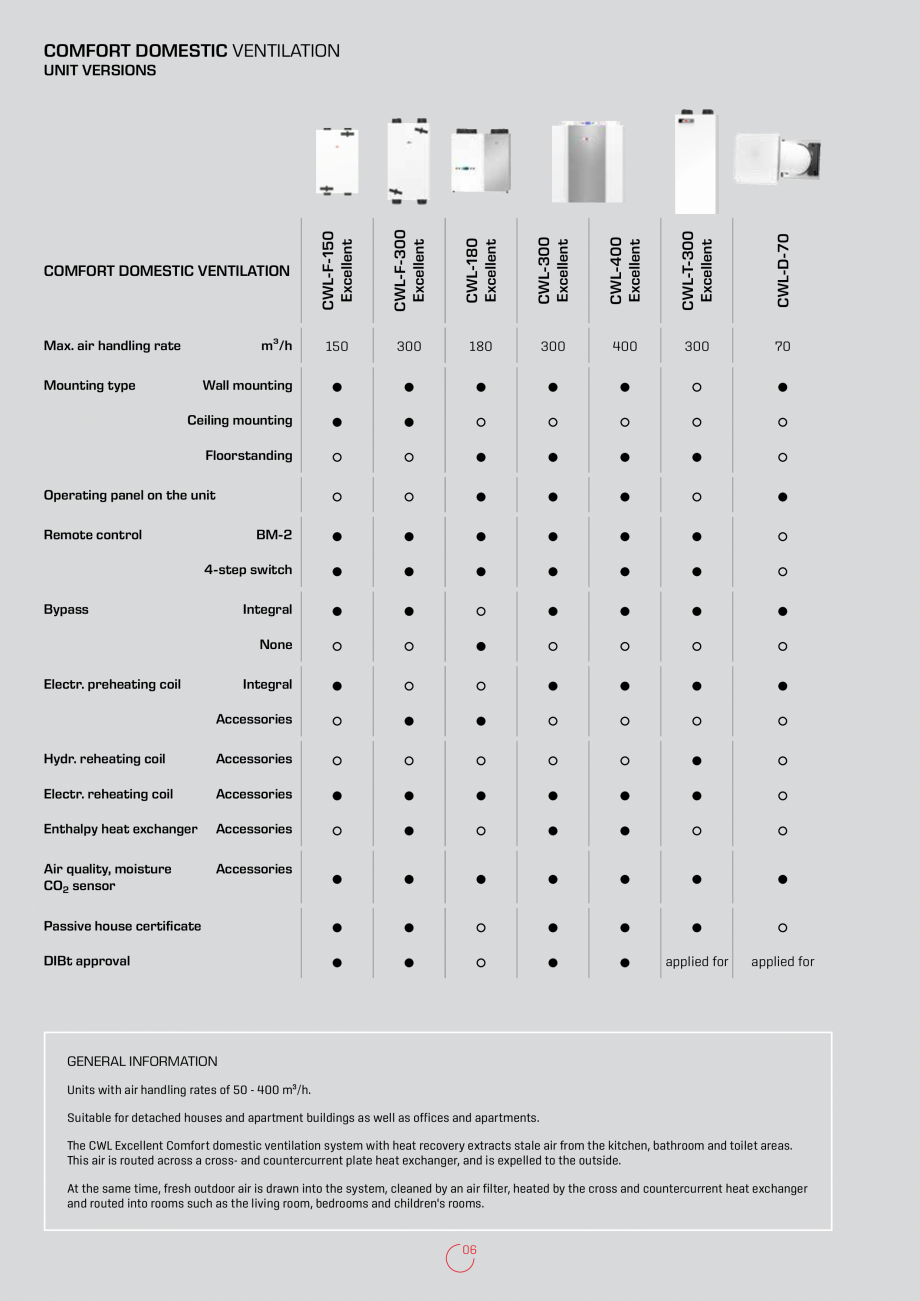

reheating coil Design software • Design software based on DIN 1946-6. • The exceptional level of user friendliness enables competent, reliable air volume calculation in next to no time. • In addition, the software provides a complete list of materials, a matching quotation, numerous supplementary information, and a full ventilation concept in accordance with DIN 1946-6. • Download from www.wolf.eu 05 COMFORT DOMESTIC VENTILATION COMFORT DOMESTIC VENTILATION Mounting type CWL-300 Excellent CWL-400 Excellent CWL-T-300 Excellent CWL-D-70 m³/h CWL-180 Excellent Max. air handling rate CWL-F-300 Excellent COMFORT DOMESTIC VENTILATION CWL-F-150 Excellent UNIT VERSIONS 150 300 180 300 400 300 70 Wall mounting Ceiling mounting Floorstanding Operating panel on the unit Remote control BM-2 4-step switch Bypass Integral None Electr. preheating coil Integral Accessories Hydr. reheating coil Accessories Electr. reheating coil Accessories Enthalpy h

Pagina 3-Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent, CWL-300...

Pagina 4 - Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent,...

eat exchanger Accessories Air quality, moisture CO2 sensor Accessories Passive house certificate DIBt approval applied for applied for GENERAL INFORMATION Units with air handling rates of 50 - 400 m³/h. Suitable for detached houses and apartment buildings as well as offices and apartments. The CWL Excellent Comfort domestic ventilation system with heat recovery extracts stale air from the kitchen, bathroom and toilet areas. This air is routed across a cross- and countercurrent plate heat exchanger, and is expelled to the outside. At the same time, fresh outdoor air is drawn into the system, cleaned by an air filter, heated by the cross and countercurrent heat exchanger and routed into rooms such as the living room, bedrooms and children's rooms. 06 COMFORT DOMESTIC VENTILATION CWL-F-150/300 EXCELLENT SLIMLINE UNIT SPECIFICATION • Compact, slimline design for ceiling and wall mounting • Bypass as standard • Category G4 filter; F7 as optional accessory • Standard o

Pagina 4-Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent, CWL-300...

Pagina 5 - Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent,...

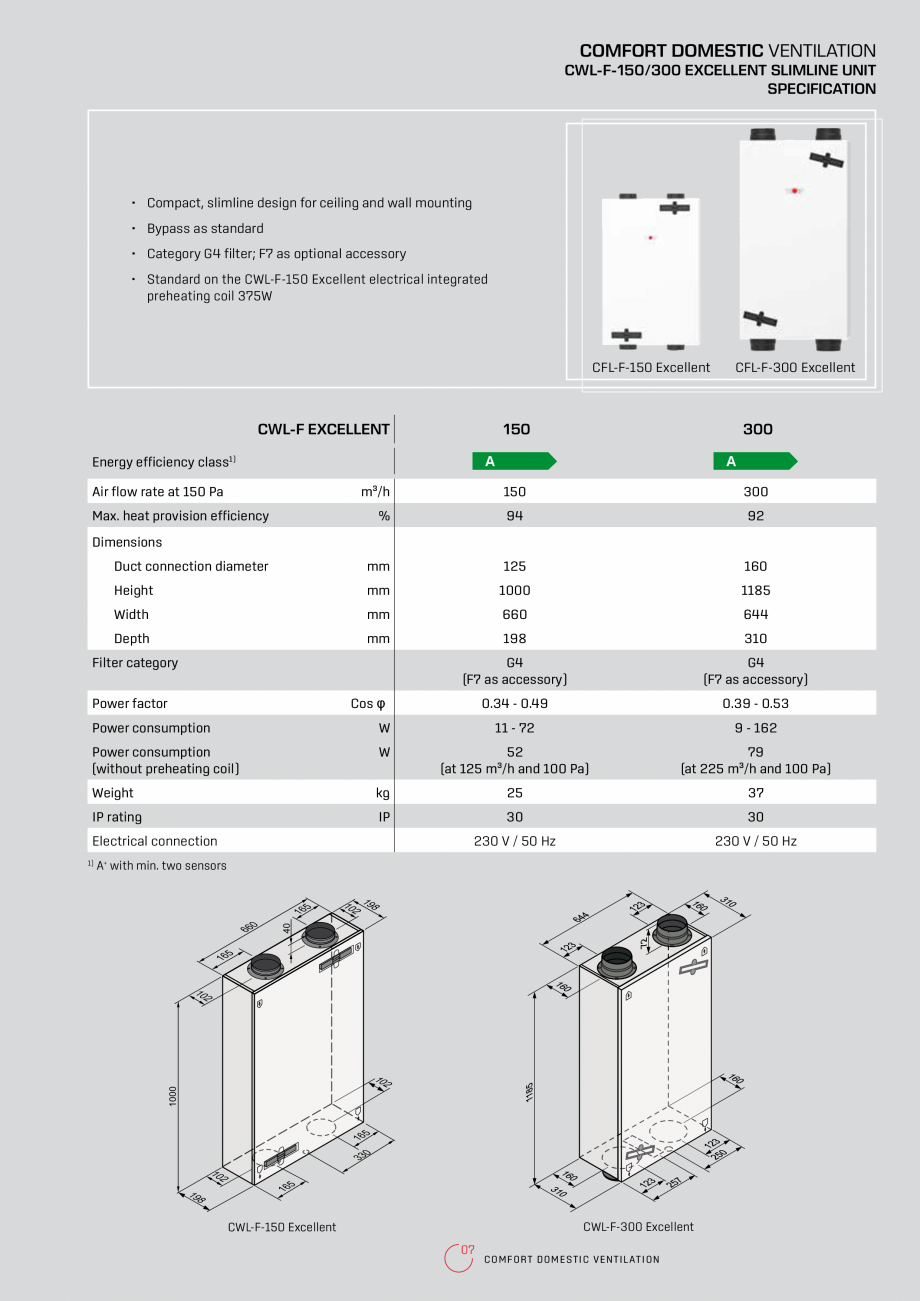

n the CWL-F-150 Excellent electrical integrated preheating coil 375W CFL-F-150 Excellent CWL-F EXCELLENT 150 300 A Energy efficiency class1) Air flow rate at 150 Pa CFL-F-300 Excellent A m³/h 150 300 % 94 92 Max. heat provision efficiency Dimensions Duct connection diameter mm 125 160 Height mm 1000 1185 Width mm 660 644 Depth mm 198 310 G4 (F7 as accessory) G4 (F7 as accessory) 0.34 - 0.49 0.39 - 0.53 Filter category Cos φ Power factor Power consumption W 11 - 72 9 - 162 Power consumption (without preheating coil) W 52 (at 125 m³/h and 100 Pa) 79 (at 225 m³/h and 100 Pa) Weight kg 25 37 IP rating IP 30 30 230 V / 50 Hz 230 V / 50 Hz Electrical connection A+ with min. two sensors 660 102 198 40 165 165 102 102 1000 1) 165 330 102 198 165 CWL-F-300 Excellent CWL-F-150 Excellent 07 COMFORT DOMESTIC VENTILATION COMFORT DOMESTIC VENTILATION CWL-180 EXCELLENT SPECIFICATION OPTIONAL CONNECTIONS To cope

Pagina 5-Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent, CWL-300...

Pagina 6 - Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent,...

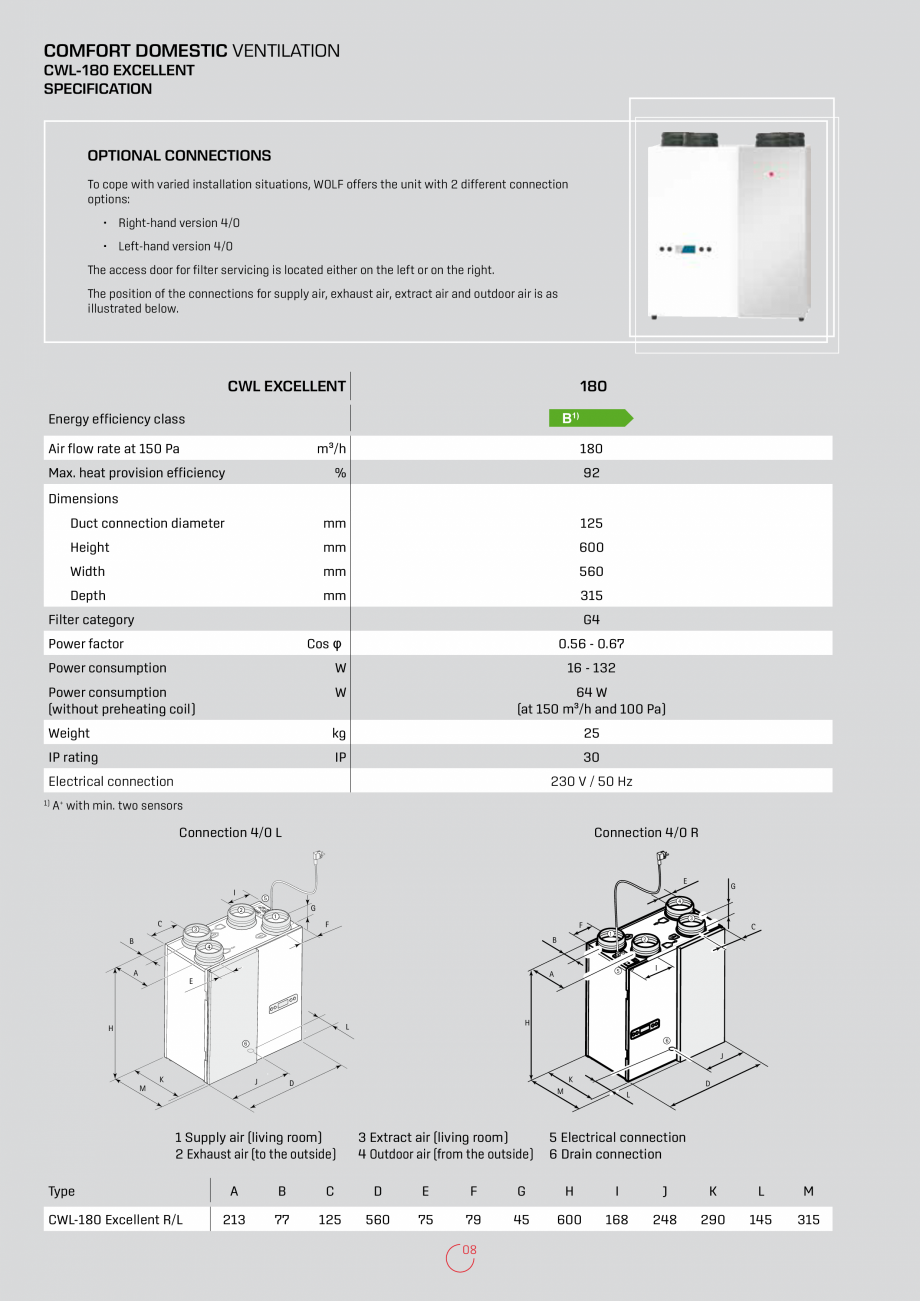

with varied installation situations, WOLF offers the unit with 2 different connection options: • Right-hand version 4/0 • Left-hand version 4/0 The access door for filter servicing is located either on the left or on the right. The position of the connections for supply air, exhaust air, extract air and outdoor air is as illustrated below. CWL EXCELLENT 180 B1) Energy efficiency class Air flow rate at 150 Pa m³/h 180 % 92 Max. heat provision efficiency Dimensions Duct connection diameter mm 125 Height mm 600 Width mm 560 Depth mm 315 Filter category G4 Cos φ Power factor 0.56 - 0.67 Power consumption W 16 - 132 Power consumption (without preheating coil) W 64 W (at 150 m³/h and 100 Pa) Weight kg 25 IP rating IP 30 Electrical connection 1) 230 V / 50 Hz A+ with min. two sensors Connection 4/0 L Connection 4/0 R E G I 5 4 G 2 1 3 C F 3 F C 1 2 B B 4 A I 5 A E H L H 6 6 J K J K D M D M 1 Supp

Pagina 6-Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent, CWL-300...

Pagina 7 - Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent,...

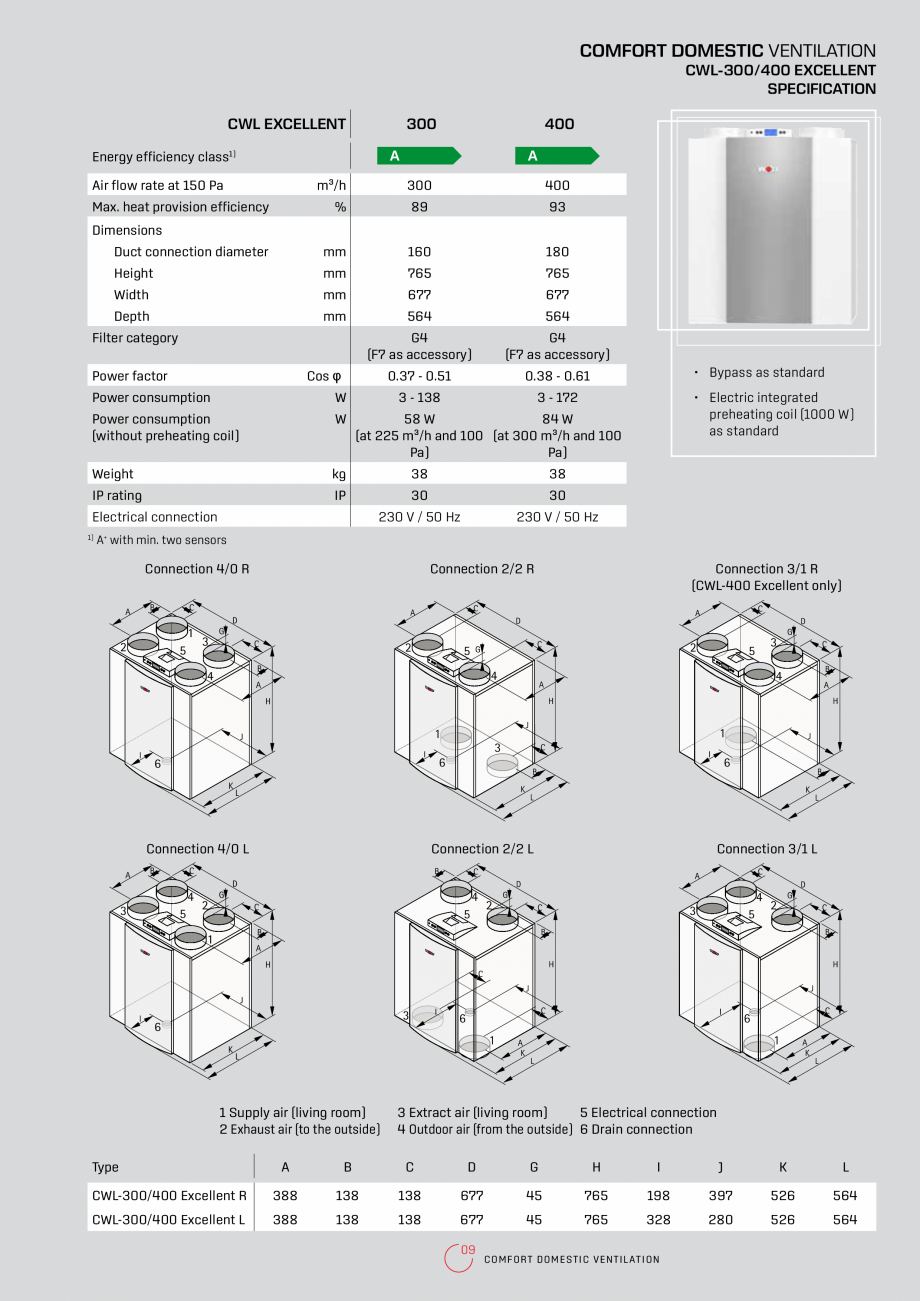

ly air (living room) 2 Exhaust air (to the outside) Type CWL-180 Excellent R/L 3 Extract air (living room) 4 Outdoor air (from the outside) L 5 Electrical connection 6 Drain connection A B C D E F G H I J K L M 213 77 125 560 75 79 45 600 168 248 290 145 315 08 COMFORT DOMESTIC VENTILATION CWL-300/400 EXCELLENT SPECIFICATION CWL EXCELLENT 300 400 A Energy efficiency class1) Air flow rate at 150 Pa Max. heat provision efficiency A m³/h 300 400 % 89 93 Dimensions Duct connection diameter mm 160 180 Height mm 765 765 Width mm 677 677 Depth mm 564 564 G4 (F7 as accessory) G4 (F7 as accessory) 0.37 - 0.51 0.38 - 0.61 3 - 138 3 - 172 Filter category Cos φ Power factor • Bypass as standard Power consumption W Power consumption (without preheating coil) W Weight kg 38 38 IP rating IP 30 30 230 V / 50 Hz 230 V / 50 Hz Electrical connection 1) • Electric integrated preheating coil (1000 W

Pagina 7-Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent, CWL-300...

Pagina 8 - Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent,...

) as standard 84 W 58 W (at 225 m³/h and 100 (at 300 m³/h and 100 Pa) Pa) A with min. two sensors + Connection 4/0 R B A Connection 2/2 R C C A 2 5 C A D 1 Connection 3/1 R (CWL-400 Excellent only) D D G G 3 C 2 5 B 4 C G 2 3 5 4 C B 4 A A A H H H J 1 1 J 3 I I I 6 6 J C 6 B K Connection 4/0 L B A C 3 5 K L L Connection 2/2 L Connection 3/1 L B C C A D 4 B K L D G 2 C D G 4 4 2 5 C 5 2 C B B 1 3 G B A H H H C J J J 3 I 6 I C 6 1 K L C 6 1 A K A K L L 1 Supply air (living room) 2 Exhaust air (to the outside) Type I 3 Extract air (living room) 5 Electrical connection 4 Outdoor air (from the outside) 6 Drain connection A B C D G H I J K L CWL-300/400 Excellent R 388 138 138 677 45 765 198 397 526 564 CWL-300/400 Excellent L 388 138 138 677 45 765 328 280 526 564 09 COMFORT DOMESTIC VENTILATION COMFORT DOMESTIC VENTILATION CWL-T-300 EXCELLE

Pagina 8-Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent, CWL-300...

Pagina 9 - Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent,...

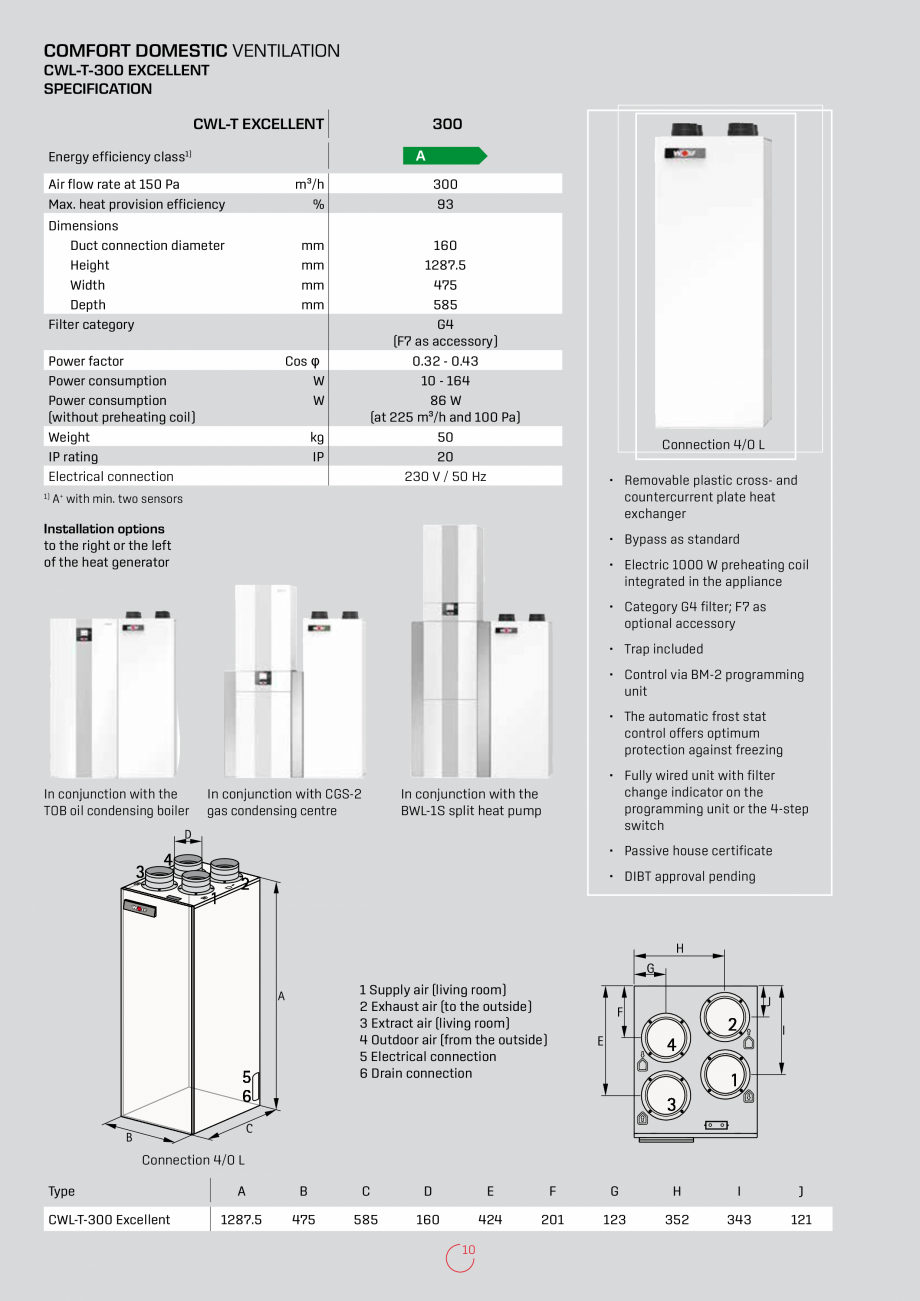

NT SPECIFICATION CWL-T EXCELLENT 300 A Energy efficiency class1) Air flow rate at 150 Pa Max. heat provision efficiency m³/h % 300 93 Dimensions Duct connection diameter Height Width Depth Filter category mm mm mm mm 160 1287.5 475 585 G4 (F7 as accessory) 0.32 - 0.43 10 - 164 86 W (at 225 m³/h and 100 Pa) 50 20 230 V / 50 Hz Cos φ W W Power factor Power consumption Power consumption (without preheating coil) Weight IP rating Electrical connection 1) kg IP Connection 4/0 L • Removable plastic cross- and countercurrent plate heat exchanger A+ with min. two sensors Installation options to the right or the left of the heat generator • Bypass as standard • Electric 1000 W preheating coil integrated in the appliance • Category G4 filter; F7 as optional accessory • Trap included • Control via BM-2 programming unit • The automatic frost stat control offers optimum protection against freezing In conjunction with the TOB oil condensing boiler

Pagina 9-Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent, CWL-300...

Pagina 10 - Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent,...

In conjunction with CGS-2 gas condensing centre • Fully wired unit with filter change indicator on the programming unit or the 4-step switch In conjunction with the BWL-1S split heat pump D • Passive house certificate • DIBT approval pending H G 1 Supply air (living room) 2 Exhaust air (to the outside) 3 Extract air (living room) 4 Outdoor air (from the outside) 5 Electrical connection 6 Drain connection A J F I E C B Connection 4/0 L Type CWL-T-300 Excellent A B C D E F G H I J 1287.5 475 585 160 424 201 123 352 343 121 10 COMFORT DOMESTIC VENTILATION CWL-D-70 SPECIFICATION • White internal panel • External wall hood in white (RAL 9010) or stainless steel • Clean, pollen-free fresh air - ventilation with your windows closed, cutting out street noise (not only for allergy sufferers) • Removable plastic countercurrent plate heat exchanger • Heat provision efficiency min. 87 % • Bypass as standard • Automatic frost protect

Pagina 10-Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent, CWL-300...

Pagina 11 - Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent,...

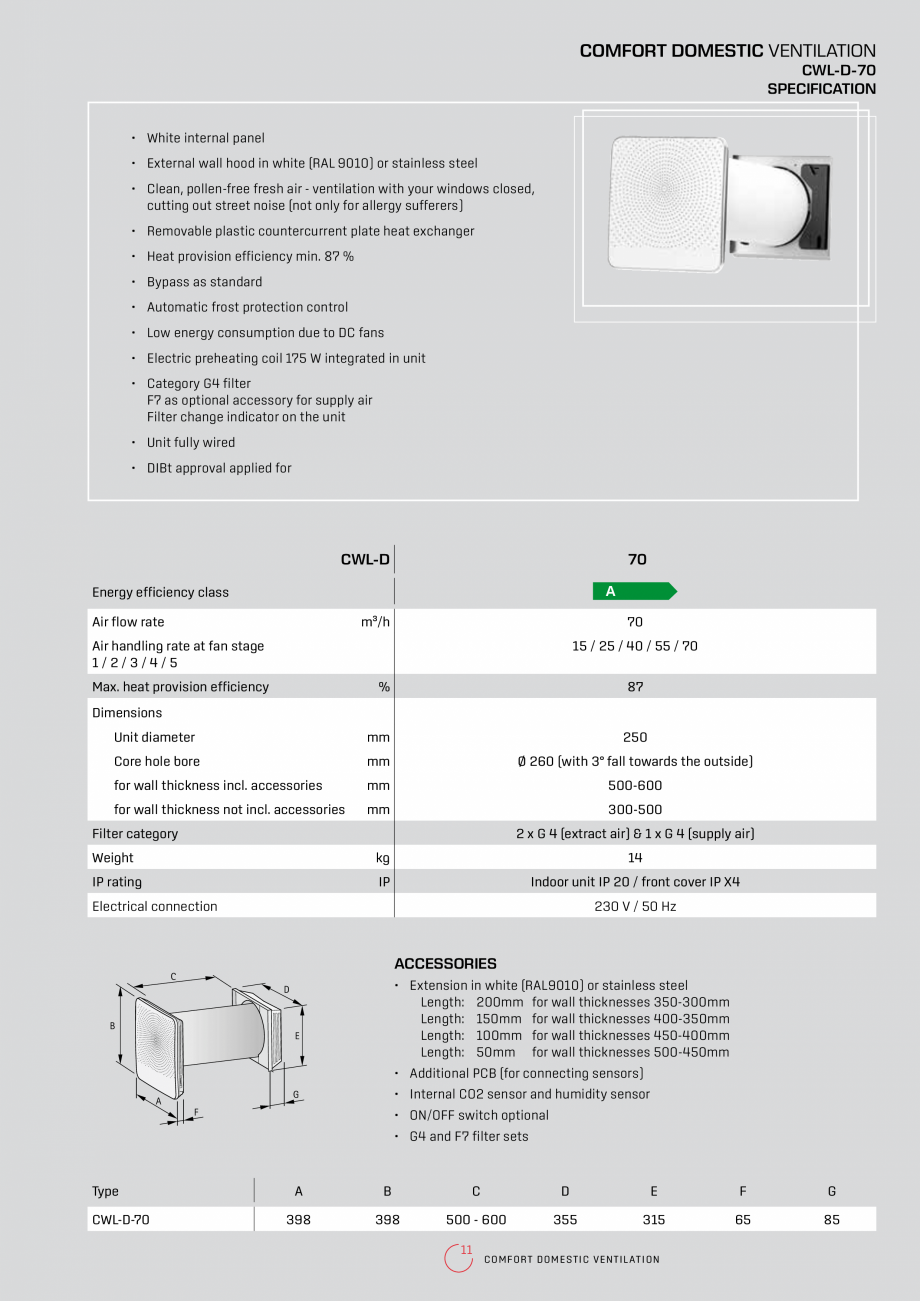

ion control • Low energy consumption due to DC fans • Electric preheating coil 175 W integrated in unit • Category G4 filter F7 as optional accessory for supply air Filter change indicator on the unit • Unit fully wired • DIBt approval applied for CWL-D 70 A Energy efficiency class Air flow rate m³/h 70 Air handling rate at fan stage 1/2/3/4/5 15 / 25 / 40 / 55 / 70 Max. heat provision efficiency % 87 Dimensions Unit diameter mm 250 Core hole bore mm Ø 260 (with 3° fall towards the outside) for wall thickness incl. accessories mm 500-600 for wall thickness not incl. accessories mm 300-500 Filter category 2 x G 4 (extract air) & 1 x G 4 (supply air) Weight kg 14 IP rating IP Indoor unit IP 20 / front cover IP X4 Electrical connection 230 V / 50 Hz ACCESSORIES C • Extension in white (RAL9010) or stainless steel Length: 200mm for wall thicknesses 350-300mm Length: 150mm for wall thicknesses 400-350mm Length:

Pagina 11-Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent, CWL-300...

Pagina 12 - Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent,...

100mm for wall thicknesses 450-400mm Length: 50mm for wall thicknesses 500-450mm D B E • Additional PCB (for connecting sensors) • Internal CO2 sensor and humidity sensor G A • ON/OFF switch optional F • G4 and F7 filter sets Type CWL-D-70 A B C D E F G 398 398 500 - 600 355 315 65 85 11 COMFORT DOMESTIC VENTILATION COMFORT DOMESTIC VENTILATION CWL EXCELLENT CONTROL - CONTROL ACCESSORIES CONTROL Operating panel MICROPROCESSOR CONTROL UNIT WITH DISPLAY FOR ADJUSTING AND DISPLAYING THE INDIVIDUAL CONTROL FUNCTIONS • Set value adjustment of the supply and extract air flow rate • Fans ON / OFF • Programmable pressure compensation or pressure balancing - i.e. if required, overpressure or underpressure can generally be deliberately created inside the accommodation via an adjustable value • Filter alarm on the display (filter service) • Frost protection • Displaying the selected values BM-2 PROGRAMMING UNIT • Fixed time progra

Pagina 12-Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent, CWL-300...

Pagina 13 - Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent,...

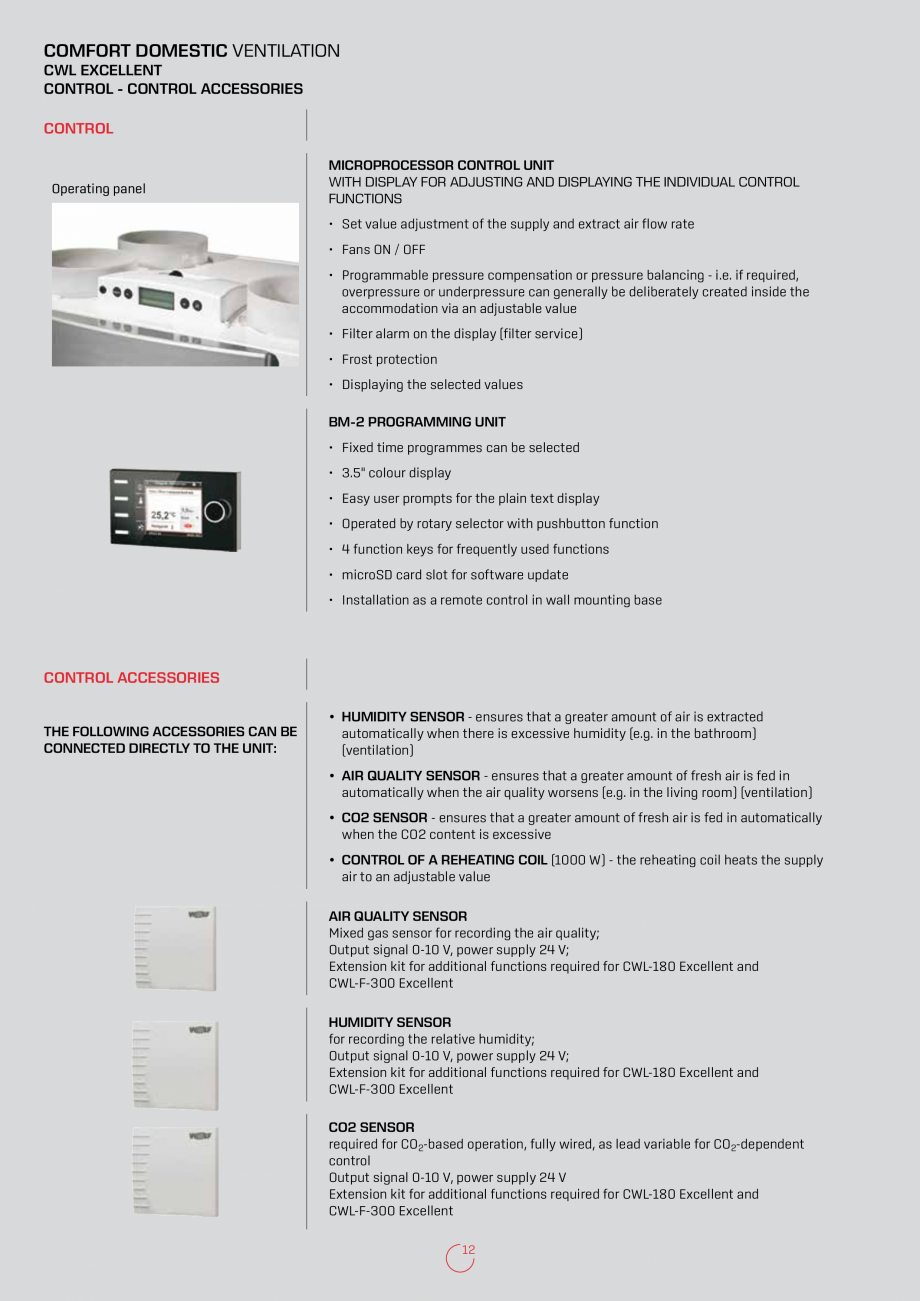

mmes can be selected • 3.5" colour display • Easy user prompts for the plain text display • Operated by rotary selector with pushbutton function • 4 function keys for frequently used functions • microSD card slot for software update • Installation as a remote control in wall mounting base CONTROL ACCESSORIES THE FOLLOWING ACCESSORIES CAN BE CONNECTED DIRECTLY TO THE UNIT: • HUMIDITY SENSOR - ensures that a greater amount of air is extracted automatically when there is excessive humidity (e.g. in the bathroom) (ventilation) • AIR QUALITY SENSOR - ensures that a greater amount of fresh air is fed in automatically when the air quality worsens (e.g. in the living room) (ventilation) • CO2 SENSOR - ensures that a greater amount of fresh air is fed in automatically when the CO2 content is excessive • CONTROL OF A REHEATING COIL (1000 W) - the reheating coil heats the supply air to an adjustable value AIR QUALITY SENSOR Mixed gas sensor for recording the air qu

Pagina 13-Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent, CWL-300...

Pagina 14 - Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent,...

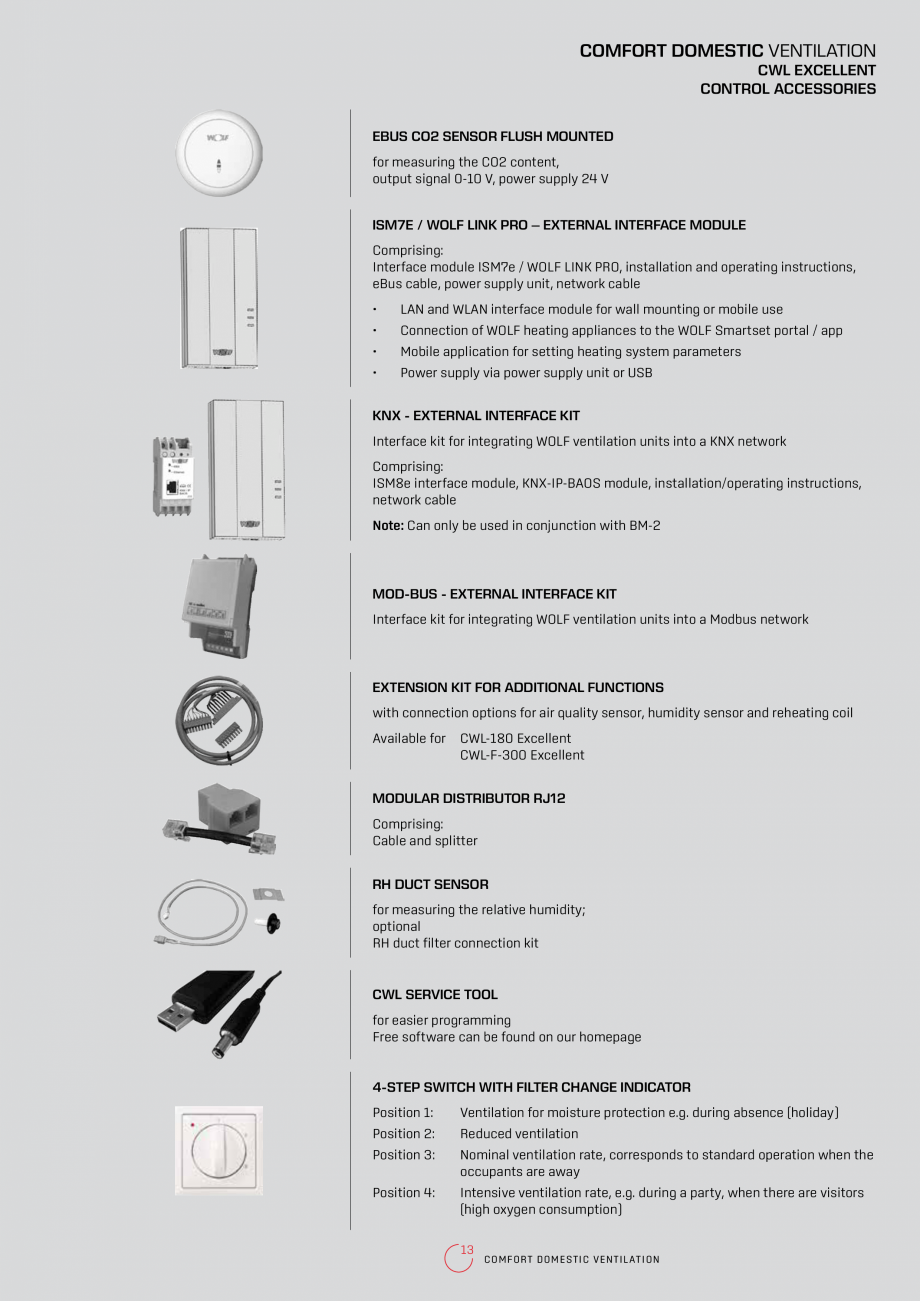

ality; Output signal 0-10 V, power supply 24 V; Extension kit for additional functions required for CWL-180 Excellent and CWL-F-300 Excellent HUMIDITY SENSOR for recording the relative humidity; Output signal 0-10 V, power supply 24 V; Extension kit for additional functions required for CWL-180 Excellent and CWL-F-300 Excellent CO2 SENSOR required for CO2-based operation, fully wired, as lead variable for CO2-dependent control Output signal 0-10 V, power supply 24 V Extension kit for additional functions required for CWL-180 Excellent and CWL-F-300 Excellent 12 COMFORT DOMESTIC VENTILATION CWL EXCELLENT CONTROL ACCESSORIES EBUS CO2 SENSOR FLUSH MOUNTED for measuring the CO2 content, output signal 0-10 V, power supply 24 V ISM7E / WOLF LINK PRO – EXTERNAL INTERFACE MODULE Comprising: Interface module ISM7e / WOLF LINK PRO, installation and operating instructions, eBus cable, power supply unit, network cable • LAN and WLAN interface module for wall mounting or mobile use •

Pagina 14-Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent, CWL-300...

Pagina 15 - Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent,...

Connection of WOLF heating appliances to the WOLF Smartset portal / app • Mobile application for setting heating system parameters • Power supply via power supply unit or USB KNX - EXTERNAL INTERFACE KIT Interface kit for integrating WOLF ventilation units into a KNX network Comprising: ISM8e interface module, KNX-IP-BAOS module, installation/operating instructions, network cable Note: Can only be used in conjunction with BM-2 MOD-BUS - EXTERNAL INTERFACE KIT Interface kit for integrating WOLF ventilation units into a Modbus network EXTENSION KIT FOR ADDITIONAL FUNCTIONS with connection options for air quality sensor, humidity sensor and reheating coil Available for CWL-180 Excellent CWL-F-300 Excellent MODULAR DISTRIBUTOR RJ12 Comprising: Cable and splitter RH DUCT SENSOR for measuring the relative humidity; optional RH duct filter connection kit CWL SERVICE TOOL for easier programming Free software can be found on our homepage 4-STEP SWITCH WITH FILTER CHANGE INDICA

Pagina 15-Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent, CWL-300...

Pagina 16 - Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent,...

TOR Position 1: Ventilation for moisture protection e.g. during absence (holiday) Position 2: Reduced ventilation Position 3: Nominal ventilation rate, corresponds to standard operation when the occupants are away Position 4: Intensive ventilation rate, e.g. during a party, when there are visitors (high oxygen consumption) 13 COMFORT DOMESTIC VENTILATION COMFORT DOMESTIC VENTILATION CWL EXCELLENT ACCESSORIES ELECTRICAL PREHEATING COIL OR REHEATING COIL 1000W ENTHALPY HEAT EXCHANGER FOR MOISTURE RECOVERY Hygiene: AATCC certificate (VDI 6022) Heat provision efficiency gm. EN 308: 78 % Moisture recovery 59 % Available for CWL-300/400 Excellent CWL-F-300 Excellent CONDENSATE REMOVAL PUMP WITH POTENTIAL-FREE ALARM OUTPUT, FULLY WIRED Comprising: Condensate pump with potential-free alarm output, PVC hose 10 mm (6 m long), non-return valve, condensate inlet adaptor SUMMER CASSETTE Alternative to in-line heat exchangers without heat recovery Available for CWL-180-Excellent TRA

Pagina 16-Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent, CWL-300...

Pagina 17 - Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent,...

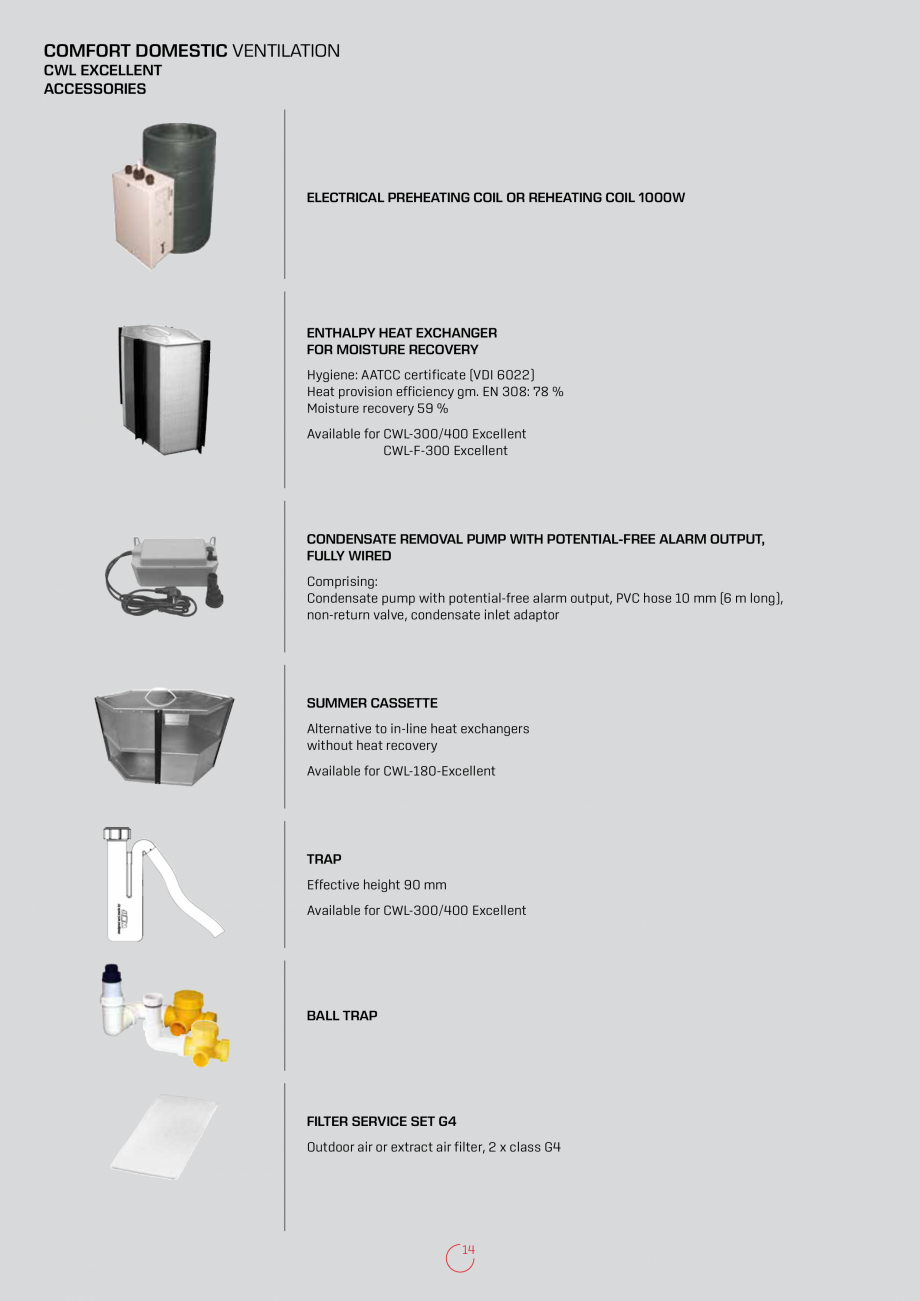

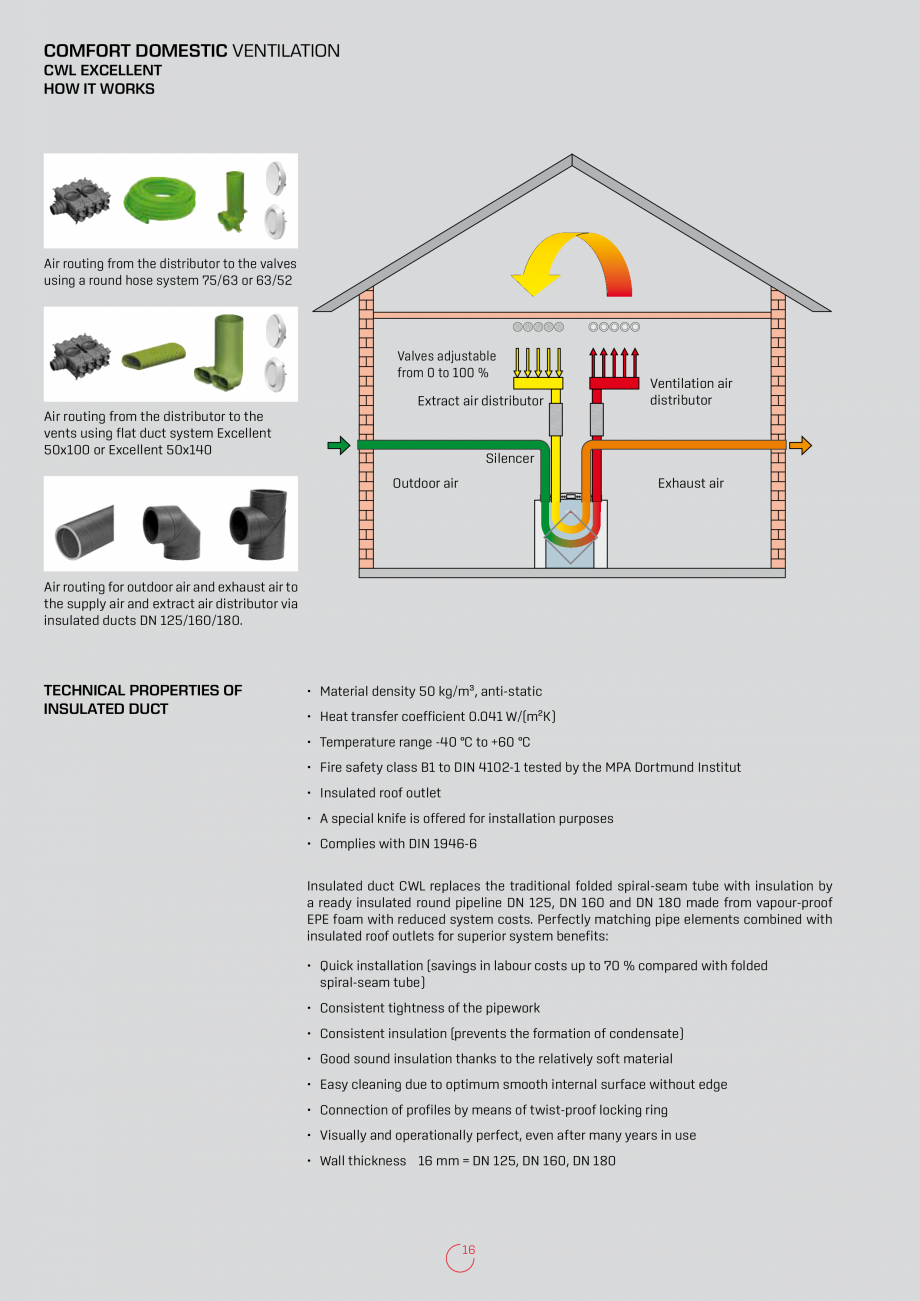

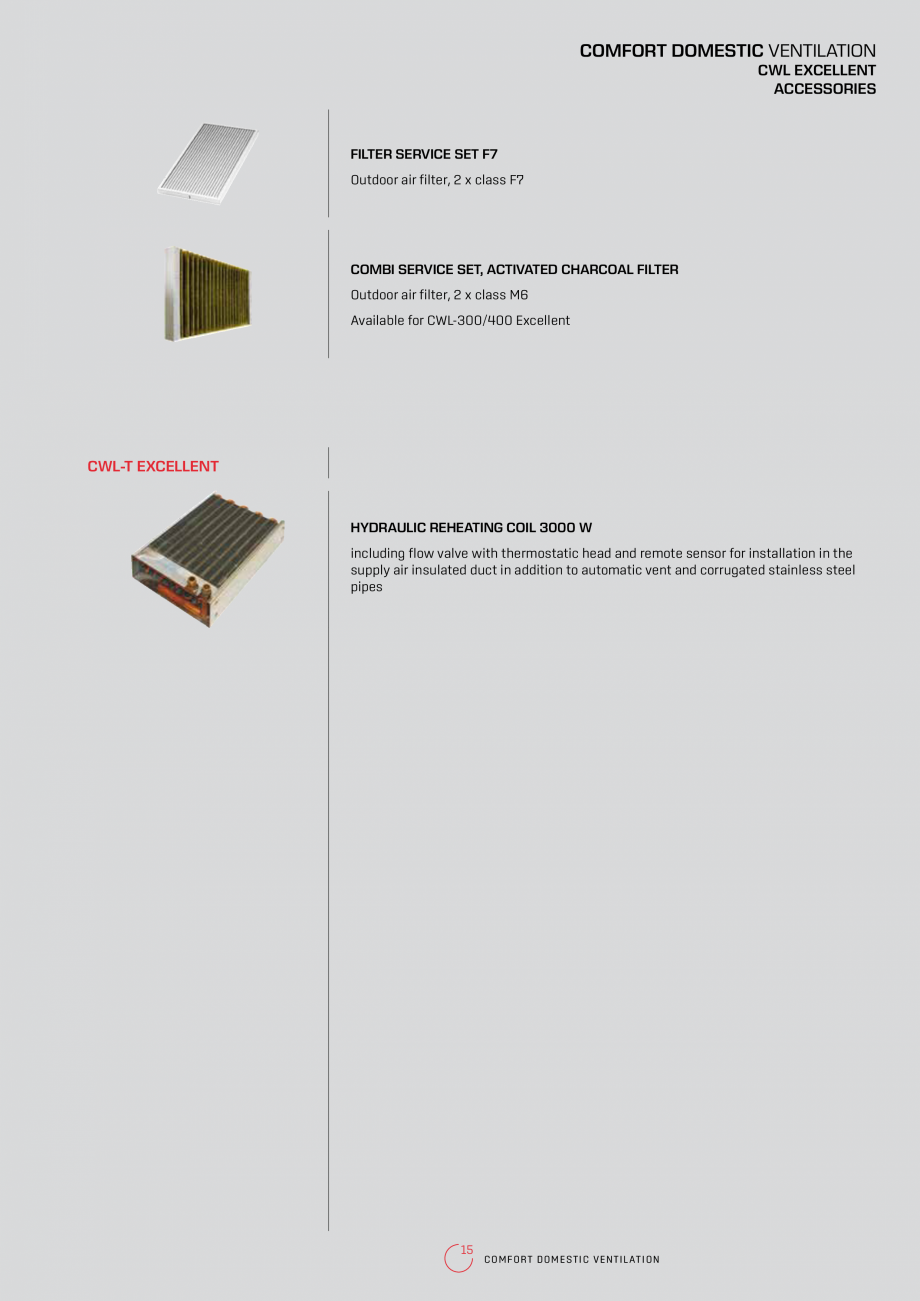

P Effective height 90 mm Available for CWL-300/400 Excellent BALL TRAP FILTER SERVICE SET G4 Outdoor air or extract air filter, 2 x class G4 14 COMFORT DOMESTIC VENTILATION CWL EXCELLENT ACCESSORIES FILTER SERVICE SET F7 Outdoor air filter, 2 x class F7 COMBI SERVICE SET, ACTIVATED CHARCOAL FILTER Outdoor air filter, 2 x class M6 Available for CWL-300/400 Excellent CWL-T EXCELLENT HYDRAULIC REHEATING COIL 3000 W including flow valve with thermostatic head and remote sensor for installation in the supply air insulated duct in addition to automatic vent and corrugated stainless steel pipes 15 COMFORT DOMESTIC VENTILATION COMFORT DOMESTIC VENTILATION CWL EXCELLENT HOW IT WORKS Air routing from the distributor to the valves using a round hose system 75/63 or 63/52 Valves adjustable from 0 to 100 % Ventilation air distributor Extract air distributor Air routing from the distributor to the vents using flat duct system Excellent 50x100 or Excellent 50x140 Silencer Outdoor

Pagina 17-Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent, CWL-300...

Pagina 18 - Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent,...

air Exhaust air R + - unem Air routing for outdoor air and exhaust air to the supply air and extract air distributor via insulated ducts DN 125/160/180. TECHNICAL PROPERTIES OF INSULATED DUCT • Material density 50 kg/m³, anti-static • Heat transfer coefficient 0.041 W/(m²K) • Temperature range -40 °C to +60 °C • Fire safety class B1 to DIN 4102-1 tested by the MPA Dortmund Institut • Insulated roof outlet • A special knife is offered for installation purposes • Complies with DIN 1946-6 Insulated duct CWL replaces the traditional folded spiral-seam tube with insulation by a ready insulated round pipeline DN 125, DN 160 and DN 180 made from vapour-proof EPE foam with reduced system costs. Perfectly matching pipe elements combined with insulated roof outlets for superior system benefits: • Quick installation (savings in labour costs up to 70 % compared with folded spiral-seam tube) • Consistent tightness of the pipework • Consistent insulation (pr

Pagina 18-Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent, CWL-300...

Pagina 19 - Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent,...

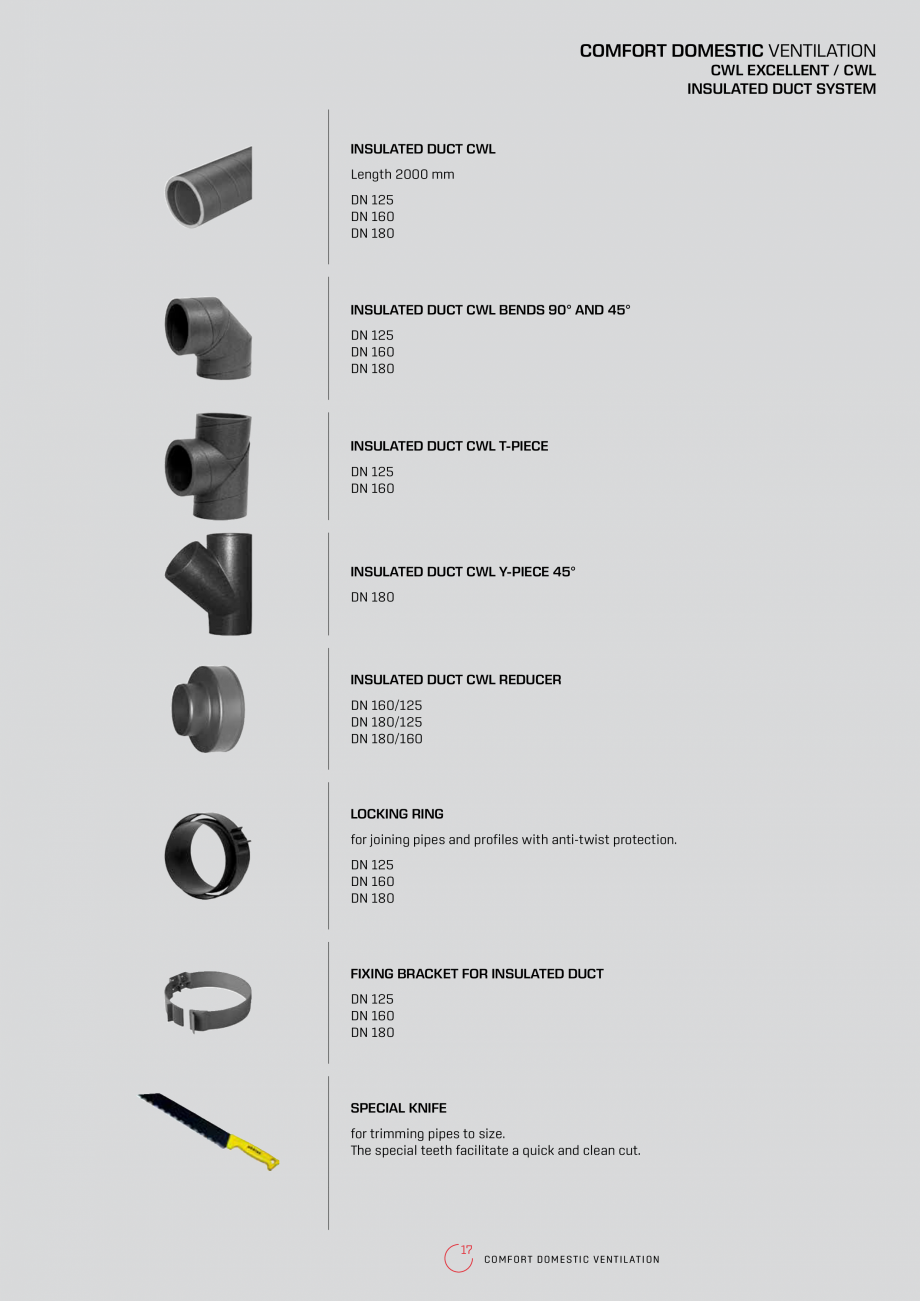

events the formation of condensate) • Good sound insulation thanks to the relatively soft material • Easy cleaning due to optimum smooth internal surface without edge • Connection of profiles by means of twist-proof locking ring • Visually and operationally perfect, even after many years in use • Wall thickness 16 mm = DN 125, DN 160, DN 180 16 COMFORT DOMESTIC VENTILATION CWL EXCELLENT / CWL INSULATED DUCT SYSTEM INSULATED DUCT CWL Length 2000 mm DN 125 DN 160 DN 180 INSULATED DUCT CWL BENDS 90° AND 45° DN 125 DN 160 DN 180 INSULATED DUCT CWL T-PIECE DN 125 DN 160 INSULATED DUCT CWL Y-PIECE 45° DN 180 INSULATED DUCT CWL REDUCER DN 160/125 DN 180/125 DN 180/160 LOCKING RING for joining pipes and profiles with anti-twist protection. DN 125 DN 160 DN 180 FIXING BRACKET FOR INSULATED DUCT DN 125 DN 160 DN 180 SPECIAL KNIFE for trimming pipes to size. The special teeth facilitate a quick and clean cut. 17 COMFORT DOMESTIC VENTILATION COMFORT DOMESTIC VENT

Pagina 19-Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent, CWL-300...

Pagina 20 - Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent,...

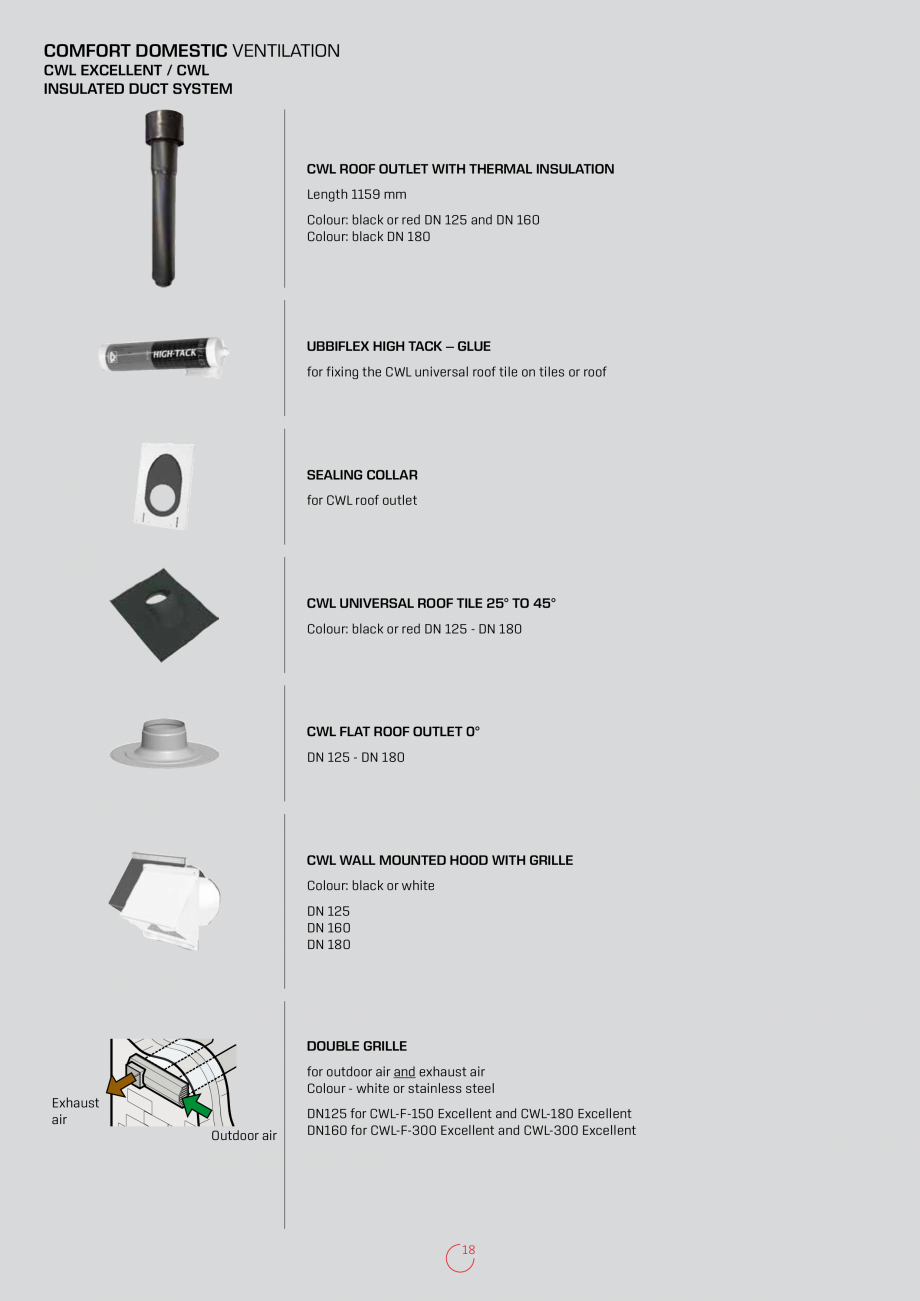

ILATION CWL EXCELLENT / CWL INSULATED DUCT SYSTEM CWL ROOF OUTLET WITH THERMAL INSULATION Length 1159 mm Colour: black or red DN 125 and DN 160 Colour: black DN 180 UBBIFLEX HIGH TACK – GLUE for fixing the CWL universal roof tile on tiles or roof SEALING COLLAR for CWL roof outlet CWL UNIVERSAL ROOF TILE 25° TO 45° Colour: black or red DN 125 - DN 180 CWL FLAT ROOF OUTLET 0° DN 125 - DN 180 CWL WALL MOUNTED HOOD WITH GRILLE Colour: black or white DN 125 DN 160 DN 180 DOUBLE GRILLE for outdoor air and exhaust air Colour - white or stainless steel Exhaust air Outdoor air DN125 for CWL-F-150 Excellent and CWL-180 Excellent DN160 for CWL-F-300 Excellent and CWL-300 Excellent 18 COMFORT DOMESTIC VENTILATION CWL EXCELLENT / CWL SILENCER SILENCER for supply air or extract air Length 500 mm or 1000 mm DN 125, 50 mm insulation DN 160, 50 mm insulation DN 180, 50 mm insulation FLEXIBEL SILENCER for supply air or extract air Length 1000 mm DN 125, 50 mm insulation DN 160, 50 m

Pagina 20-Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent, CWL-300...

Pagina 21 - Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent,...

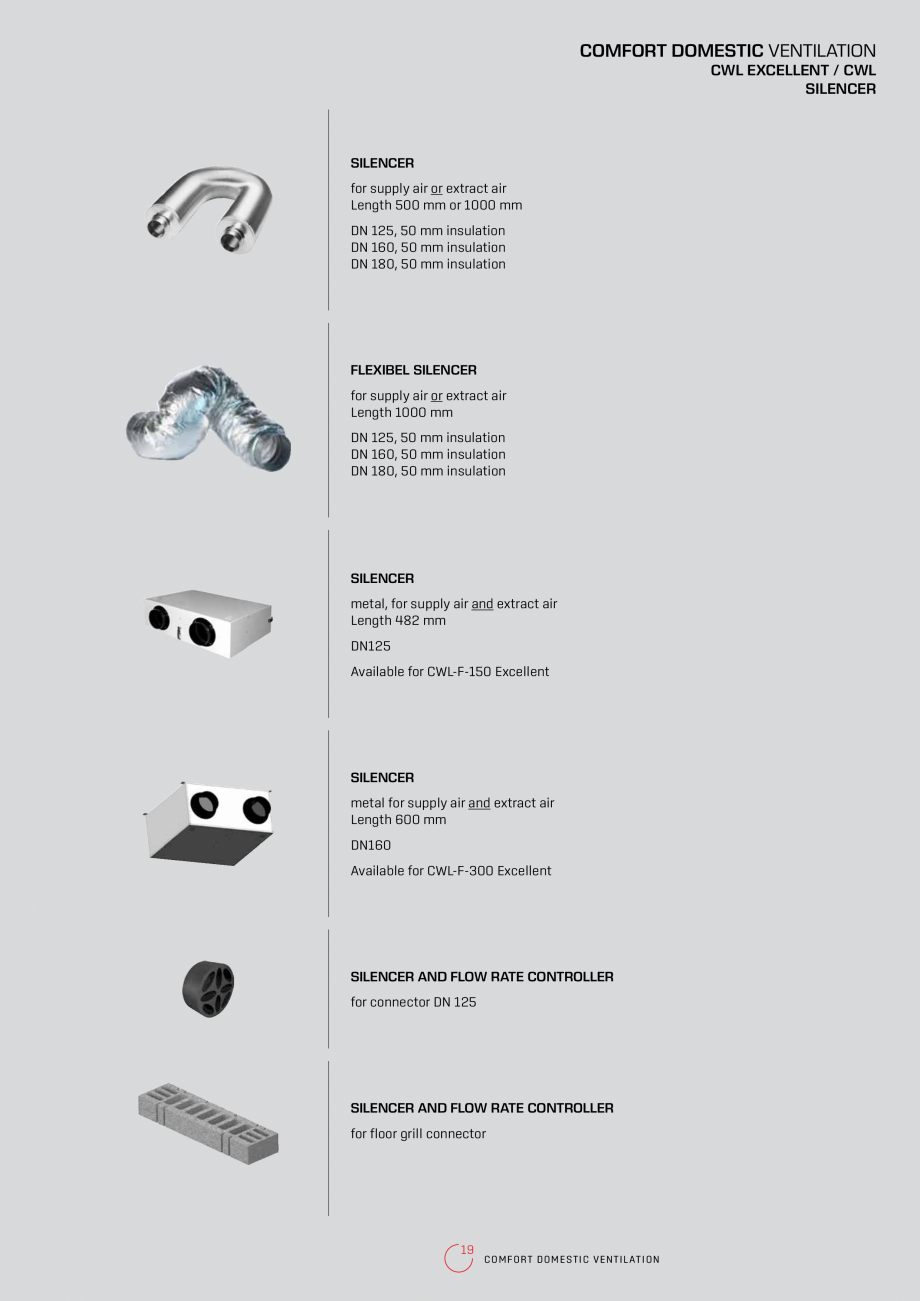

m insulation DN 180, 50 mm insulation SILENCER metal, for supply air and extract air Length 482 mm DN125 Available for CWL-F-150 Excellent SILENCER metal for supply air and extract air Length 600 mm DN160 Available for CWL-F-300 Excellent SILENCER AND FLOW RATE CONTROLLER for connector DN 125 SILENCER AND FLOW RATE CONTROLLER for floor grill connector 19 COMFORT DOMESTIC VENTILATION COMFORT DOMESTIC VENTILATION CWL EXCELLENT / CWL GENERAL INFORMATION / FLEXIBLE DUCT SYSTEMS FLEXIBLE ROUND DUCT SYSTEM Pipe systems specially designed for ventilation equipment, for flexible routing across ceilings, in false ceilings and in walls. Twin layer construction (smooth interior, corrugated exterior) ensures: FLEXIBLE FLAT DUCT SYSTEM SIZING good acoustic insulation thanks to low flow resistance; high rigidity but still extremely flexible, low weight. The Excellent flat duct system is also (optionally) odourless and antibacterial due to using environmentally-friendly material (PE) and

Pagina 21-Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent, CWL-300...

Pagina 22 - Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent,...

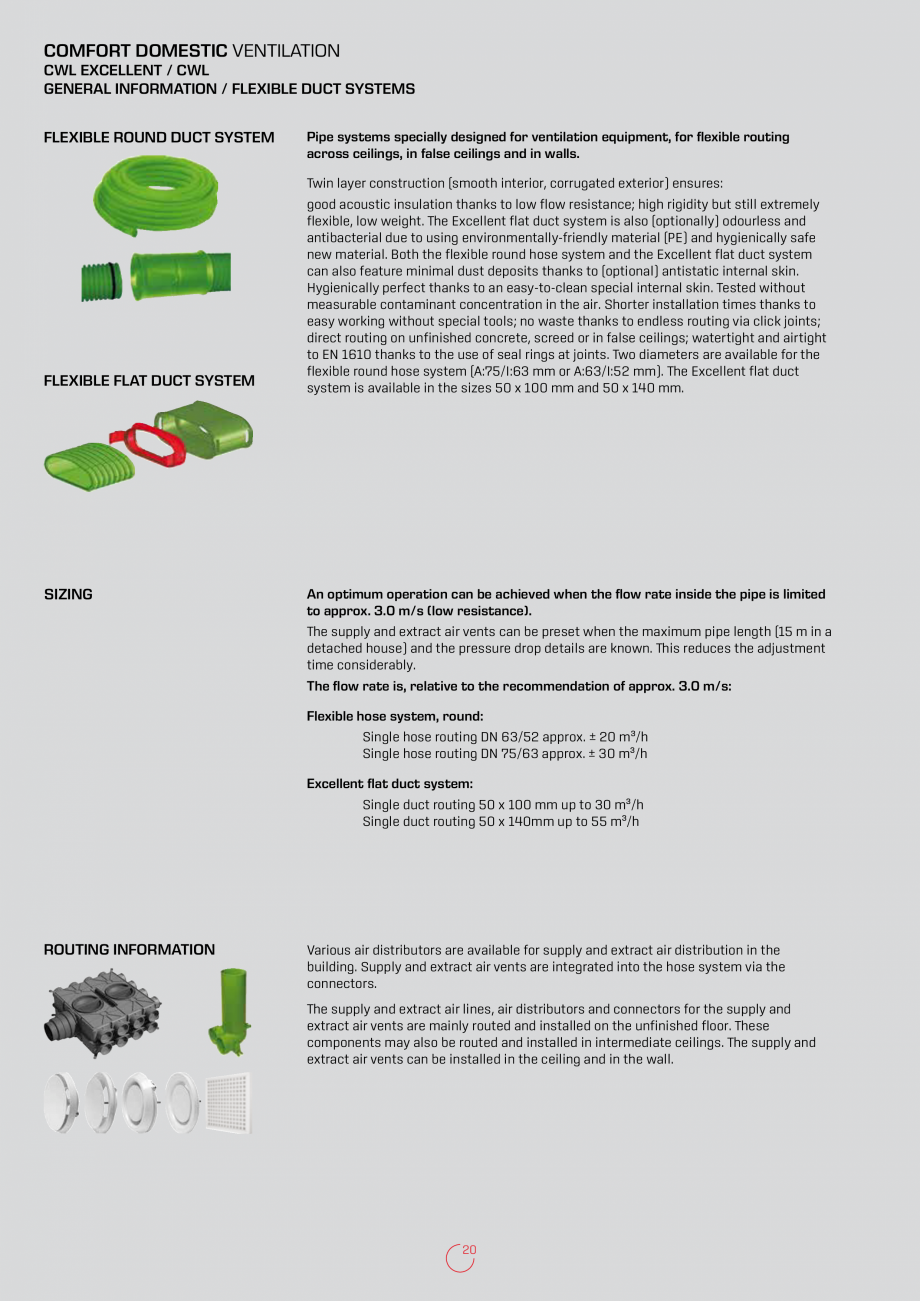

hygienically safe new material. Both the flexible round hose system and the Excellent flat duct system can also feature minimal dust deposits thanks to (optional) antistatic internal skin. Hygienically perfect thanks to an easy-to-clean special internal skin. Tested without measurable contaminant concentration in the air. Shorter installation times thanks to easy working without special tools; no waste thanks to endless routing via click joints; direct routing on unfinished concrete, screed or in false ceilings; watertight and airtight to EN 1610 thanks to the use of seal rings at joints. Two diameters are available for the flexible round hose system (A:75/I:63 mm or A:63/I:52 mm). The Excellent flat duct system is available in the sizes 50 x 100 mm and 50 x 140 mm. An optimum operation can be achieved when the flow rate inside the pipe is limited to approx. 3.0 m/s (low resistance). The supply and extract air vents can be preset when the maximum pipe length (15 m in a detached house)

Pagina 22-Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent, CWL-300...

Pagina 23 - Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent,...

and the pressure drop details are known. This reduces the adjustment time considerably. The flow rate is, relative to the recommendation of approx. 3.0 m/s: Flexible hose system, round: Single hose routing DN 63/52 approx. ± 20 m³/h Single hose routing DN 75/63 approx. ± 30 m³/h Excellent flat duct system: ROUTING INFORMATION Single duct routing 50 x 100 mm up to 30 m³/h Single duct routing 50 x 140mm up to 55 m³/h Various air distributors are available for supply and extract air distribution in the building. Supply and extract air vents are integrated into the hose system via the connectors. The supply and extract air lines, air distributors and connectors for the supply and extract air vents are mainly routed and installed on the unfinished floor. These components may also be routed and installed in intermediate ceilings. The supply and extract air vents can be installed in the ceiling and in the wall. 20 COMFORT DOMESTIC VENTILATION CWL EXCELLENT AIR DISTRIBUT

Pagina 23-Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent, CWL-300...

Pagina 24 - Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent,...

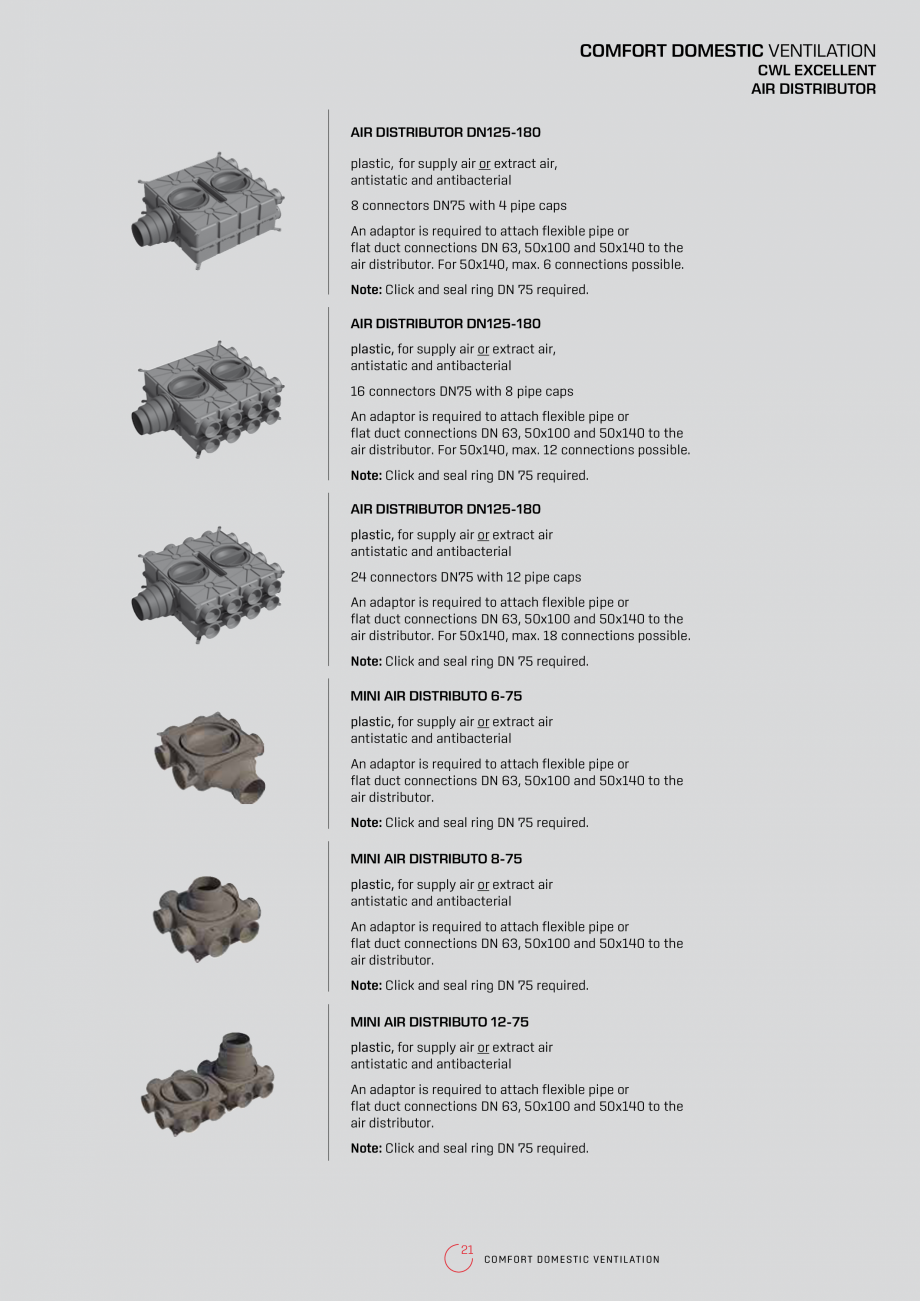

OR AIR DISTRIBUTOR DN125-180 plastic, for supply air or extract air, antistatic and antibacterial 8 connectors DN75 with 4 pipe caps An adaptor is required to attach flexible pipe or flat duct connections DN 63, 50x100 and 50x140 to the air distributor. For 50x140, max. 6 connections possible. Note: Click and seal ring DN 75 required. AIR DISTRIBUTOR DN125-180 plastic, for supply air or extract air, antistatic and antibacterial 16 connectors DN75 with 8 pipe caps An adaptor is required to attach flexible pipe or flat duct connections DN 63, 50x100 and 50x140 to the air distributor. For 50x140, max. 12 connections possible. Note: Click and seal ring DN 75 required. AIR DISTRIBUTOR DN125-180 plastic, for supply air or extract air antistatic and antibacterial 24 connectors DN75 with 12 pipe caps An adaptor is required to attach flexible pipe or flat duct connections DN 63, 50x100 and 50x140 to the air distributor. For 50x140, max. 18 connections possible. Note: Click and seal ring DN 75 r

Pagina 24-Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent, CWL-300...

Pagina 25 - Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent,...

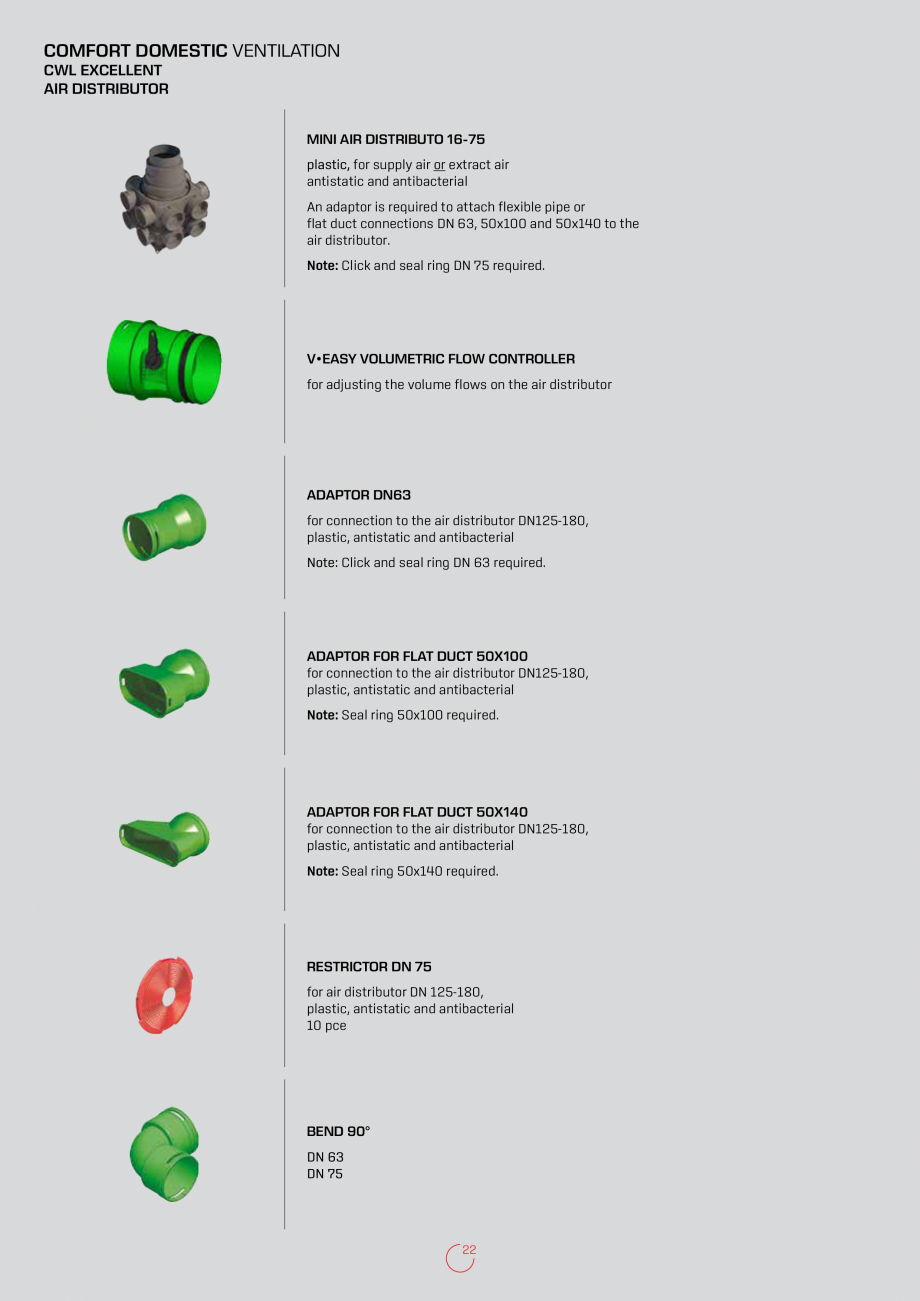

equired. MINI AIR DISTRIBUTO 6-75 plastic, for supply air or extract air antistatic and antibacterial An adaptor is required to attach flexible pipe or flat duct connections DN 63, 50x100 and 50x140 to the air distributor. Note: Click and seal ring DN 75 required. MINI AIR DISTRIBUTO 8-75 plastic, for supply air or extract air antistatic and antibacterial An adaptor is required to attach flexible pipe or flat duct connections DN 63, 50x100 and 50x140 to the air distributor. Note: Click and seal ring DN 75 required. MINI AIR DISTRIBUTO 12-75 plastic, for supply air or extract air antistatic and antibacterial An adaptor is required to attach flexible pipe or flat duct connections DN 63, 50x100 and 50x140 to the air distributor. Note: Click and seal ring DN 75 required. 21 COMFORT DOMESTIC VENTILATION COMFORT DOMESTIC VENTILATION CWL EXCELLENT AIR DISTRIBUTOR MINI AIR DISTRIBUTO 16-75 plastic, for supply air or extract air antistatic and antibacterial An adaptor is required to attach

Pagina 25-Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent, CWL-300...

Pagina 26 - Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent,...

flexible pipe or flat duct connections DN 63, 50x100 and 50x140 to the air distributor. Note: Click and seal ring DN 75 required. V•EASY VOLUMETRIC FLOW CONTROLLER for adjusting the volume flows on the air distributor ADAPTOR DN63 for connection to the air distributor DN125-180, plastic, antistatic and antibacterial Note: Click and seal ring DN 63 required. ADAPTOR FOR FLAT DUCT 50X100 for connection to the air distributor DN125-180, plastic, antistatic and antibacterial Note: Seal ring 50x100 required. ADAPTOR FOR FLAT DUCT 50X140 for connection to the air distributor DN125-180, plastic, antistatic and antibacterial Note: Seal ring 50x140 required. RESTRICTOR DN 75 for air distributor DN 125-180, plastic, antistatic and antibacterial 10 pce BEND 90° DN 63 DN 75 22 COMFORT DOMESTIC VENTILATION CWL EXCELLENT FLEXIBLE HOSE SYSTEM, ROUND AIR DISTRIBUTION HOSE with a smooth internal skin, antistatic and antibacterial DN 63/52, roll 50 m DN 75/63, roll 50 m with a smooth in

Pagina 26-Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent, CWL-300...

Pagina 27 - Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent,...

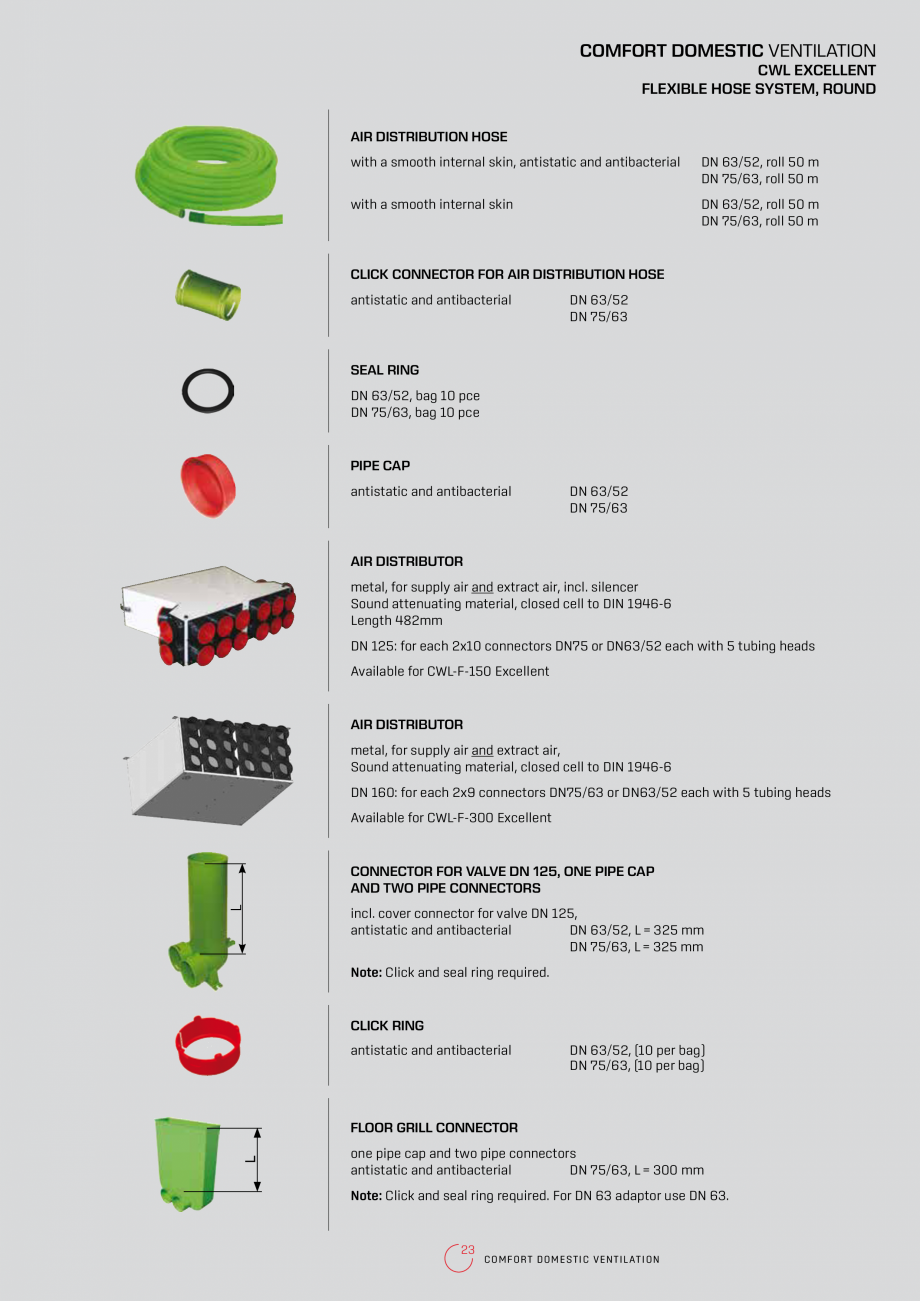

ternal skin DN 63/52, roll 50 m DN 75/63, roll 50 m CLICK CONNECTOR FOR AIR DISTRIBUTION HOSE antistatic and antibacterial DN 63/52 DN 75/63 SEAL RING DN 63/52, bag 10 pce DN 75/63, bag 10 pce PIPE CAP antistatic and antibacterial DN 63/52 DN 75/63 AIR DISTRIBUTOR metal, for supply air and extract air, incl. silencer Sound attenuating material, closed cell to DIN 1946-6 Length 482mm DN 125: for each 2x10 connectors DN75 or DN63/52 each with 5 tubing heads Available for CWL-F-150 Excellent AIR DISTRIBUTOR metal, for supply air and extract air, Sound attenuating material, closed cell to DIN 1946-6 DN 160: for each 2x9 connectors DN75/63 or DN63/52 each with 5 tubing heads Available for CWL-F-300 Excellent L CONNECTOR FOR VALVE DN 125, ONE PIPE CAP AND TWO PIPE CONNECTORS incl. cover connector for valve DN 125, antistatic and antibacterial DN 63/52, L = 325 mm DN 75/63, L = 325 mm Note: Click and seal ring required. CLICK RING antistatic and antibacterial DN 63/52

Pagina 27-Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent, CWL-300...

Pagina 28 - Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent,...

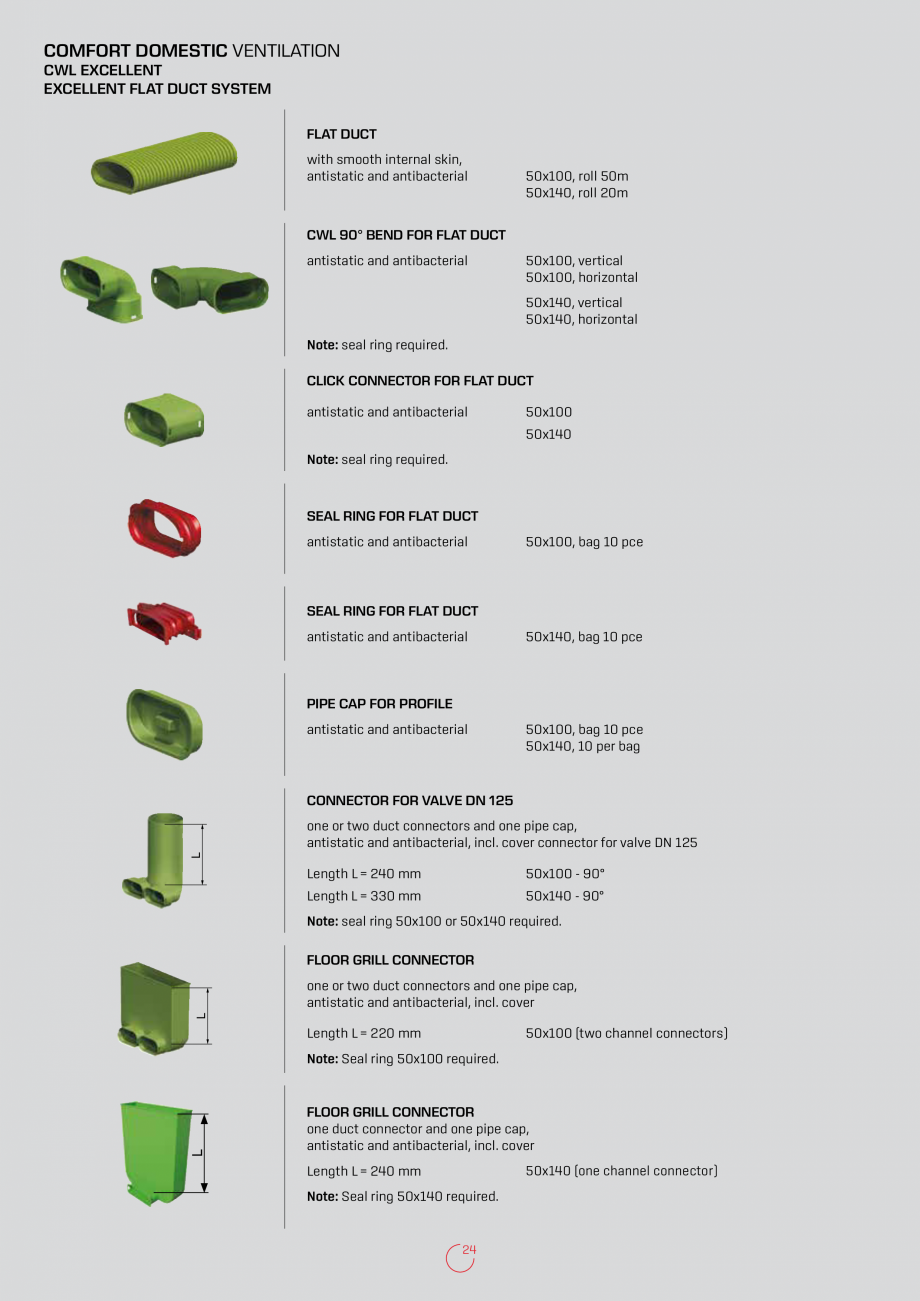

, (10 per bag) DN 75/63, (10 per bag) L FLOOR GRILL CONNECTOR one pipe cap and two pipe connectors antistatic and antibacterial DN 75/63, L = 300 mm Note: Click and seal ring required. For DN 63 adaptor use DN 63. 23 COMFORT DOMESTIC VENTILATION COMFORT DOMESTIC VENTILATION CWL EXCELLENT EXCELLENT FLAT DUCT SYSTEM FLAT DUCT with smooth internal skin, antistatic and antibacterial 50x100, roll 50m 50x140, roll 20m CWL 90° BEND FOR FLAT DUCT antistatic and antibacterial 50x100, vertical 50x100, horizontal 50x140, vertical 50x140, horizontal Note: seal ring required. CLICK CONNECTOR FOR FLAT DUCT antistatic and antibacterial 50x100 50x140 Note: seal ring required. SEAL RING FOR FLAT DUCT antistatic and antibacterial 50x100, bag 10 pce SEAL RING FOR FLAT DUCT antistatic and antibacterial 50x140, bag 10 pce PIPE CAP FOR PROFILE antistatic and antibacterial 50x100, bag 10 pce 50x140, 10 per bag CONNECTOR FOR VALVE DN 125 L one or two duct connectors

Pagina 28-Recuperatoare de caldura rezidentiale WOLF CWL-F-150 Excellent, CWL-180 Excellent, CWL-300...
