Rigola Axhell UTube, Trafic 90 tone, clasa F900 GIMANI&MUFLE

Limba: Engleza

32 afisari

Tip documentatie: Fisa tehnica

Pagina 1 - Rigola Axhell UTube, Trafic 90 tone, clasa F900 GIMANI&MUFLE Fisa tehnica Engleza Ø ...

Ø 160 Ø 200 Ø 250 UTube technical data sheet why UTube tel:+39 3404771763 - info@axhell.com CUI: RO40879600 - ROONRC.J3/993/2019 www.axhell.com 1 2 3 4 5 6 7 8 9 Connection pipe capacity entirely exploitable thanks to the absence of a drain hole. Direct attachment to the sewer system thorough the connection pipe. One grating for every field of application. Reduced grating width: the necessary draining capacity in only 4cm. Nice visual impact. Class of load F900 according to the norm UNI EN 1433. The slots perpendicular to the flow prevent the escape of liquids. Possibility of flow change by connecting pipes with different diameters along the line. Possibility of choosing different flow rate with the same grating. UTube technical data sheet Ø 160 Ø 200 Ø 250 40 107,5 40 75 FORO 1000 500 250 75 FORO 250 499 4,5 107,5 140 A 75 FORO 357,5 307,5 267,5 107,5 107,5 40 86 A 539 6 4,5 DETTAGLIO FESSURA 74,5 SEZIONE A-A tel:+39 3404771763 - inf

Pagina 1-Rigola Axhell UTube, Trafic 90 tone, clasa F900 GIMANI&MUFLE Fisa tehnica Engleza Ø 160
Ø 200
...

Pagina 2 - Rigola Axhell UTube, Trafic 90 tone, clasa F900 GIMANI&MUFLE Fisa tehnica Engleza...

o@axhell.com CUI: RO40879600 - ROONRC.J3/993/2019 www.axhell.com 486,71 Dimensions and charateristics System Lenght (mm) Total width (mm) Grating width (mm) Height (mm) Material Weight (Kg) Flow rate l/s (80% filling, minimum slope 0,1%) Surface finishing Class of load (UNI EN 1433) Cone outlet into the pipe (mm) UTube Ø160 UTube Ø200 UTube Ø250 Captation cone // Corrugated pipe 1000 Ø 160 Ø 200 Ø 250 40 40 40 267,5 307,5 357,5 Ductile iron GJS 500/7 (EN 1563) // PE-HD 11,2 11,7 13,2 14,3 24,3 37,3 Epoxy Paint // PE-HD F900 (UNI EN 1433) 2x Ø 75 Axhell Drain Srl reserves the right to vary the above mentioned technical features without notice. The dimensions and weights are subject to the standard tolerance of production. The products have to be installed according to Axhell’s specifications and Standard in force. application field Rest areas subject to heavy vehicles transit Goods handling areas with use of forklifts Squares with prestigious flooring Ports and airports

Pagina 2-Rigola Axhell UTube, Trafic 90 tone, clasa F900 GIMANI&MUFLE Fisa tehnica Engleza o@axhell.com...

Pagina 3 - Rigola Axhell UTube, Trafic 90 tone, clasa F900 GIMANI&MUFLE Fisa tehnica Engleza ...

specification Supply and installation of rainwater and surface run-off water capturing and drainage system of UTube Axhell consisting of 2 elements: 1 - Corrugated pipe for sewer coextruded with double wall smooth inside and corrugated outside black color in polyethylene high density, for underground piping not in pressure with hooking through coupling in PEAD and preinstalled connection for lip gaskets in EPDM. The pipe will have holes diameter 75mm every 500mm to connect the cone. The pipe must be 1m long and outside diameter from 160mm to 250mm. The pipe diameter will be calculated based on the water flow rate which can’t exceed the 70% of its capacity. tel:+39 3404771763 - info@axhell.com CUI: RO40879600 - ROONRC.J3/993/2019 www.axhell.com 2 - Cone suitable to capturing and draining of water from the surface and incoming the above described corrugated pipe; made of ductile iron GJS 500/7 following standard EN1563-2004; male-female locking system between cones. The cone must b

Pagina 3-Rigola Axhell UTube, Trafic 90 tone, clasa F900 GIMANI&MUFLE Fisa tehnica Engleza
specification...

Pagina 4 - Rigola Axhell UTube, Trafic 90 tone, clasa F900 GIMANI&MUFLE Fisa tehnica Engleza e...

e made in one only piece where the above part will have three longitudinal slots creating a suitable draining grating. The body of the cone will have conical shape which ends, on the bottom, with a circular opening 35mm high and diameter 65mm for direct connection to the corrugated pipe below described in point 1. The cone dimensions are: length 500mm, total height 140mm, height after connection to the pipe 105mm, top width 40mm. The surface exposed to the traffic will show a grating, class F900 following standard EN1433-2008 and will be provided with all the markings following standard EN1433-2008 and marking CE. installation 1 2 Realize the excavation according to the dimensions required in the project. The dimension will be on the diameter of the required pipe. We recommend consulting the European standard UNI EN 1610 which points out the minimum values of the excavation trench. Lay the EPS supports on the bottom of the excavation site suitably compacted and leveled. Position

Pagina 4-Rigola Axhell UTube, Trafic 90 tone, clasa F900 GIMANI&MUFLE Fisa tehnica Engleza e made in one ...

Pagina 5 - Rigola Axhell UTube, Trafic 90 tone, clasa F900 GIMANI&MUFLE Fisa tehnica Engleza the...

the corrugated pipe. s tel:+39 3404771763 - info@axhell.com CUI: RO40879600 - ROONRC.J3/993/2019 www.axhell.com 3 Control that the concrete laying bed on the bottom of the excava tion respects the norm UNI EN 1433 based on the required class of load. If a thicker laying bed than the EPS support is required, place a concrete laying bed on the bottom of the excavation or him the EPS support. Insert the cones connecting one to the other with the special male-female interlocking system through a rotating move on the horizontal axis and make sure they are aligned. 4 Cover the cones and the pipe with concrete with resistance class according to the class of load requested. 5 Complete the installation with the requested paving. • Make sure to prevent the material from falling into the cone. • It is advisable to support this casting using one or two Ø12 electrically welded meshes, 10x10 mesh in case of heavy and fast traffic or with heavy classes of load. The abutment operation

Pagina 5-Rigola Axhell UTube, Trafic 90 tone, clasa F900 GIMANI&MUFLE Fisa tehnica Engleza the corrugated...

Pagina 6 - Rigola Axhell UTube, Trafic 90 tone, clasa F900 GIMANI&MUFLE Fisa tehnica Engleza...

must be carried out in consecutive layers in order to avoid the floating of the pipe. tel:+39 3404771763 - info@axhell.com CUI: RO40879600 - ROONRC.J3/993/2019 www.axhell.com installation with mesh 1 After having carried out the excavation as per Phase 1 and 2, insert a suitably bent “U” shaped welded mesh panel resting the part open on the bottom of the excavation. 2 Insert the cones connecting one to the other with the special male-female interlocking system through a rotating move on the horizontal axis and make sure they are aligned. 3 Proceed with the Pose Phase 4. 4 Level out the cones. 5 Complete the installation with the requested paving. Be careful to leave enough space without flanking, when a final covering (tiles, blockpaving, etc...) is necessary. note a) The depth of the final surface must exceed the grating edge of about 3mm. b) In case of concrete paving, in order to absorb the horizontal expansion forces it is advisable to provide expansion joints

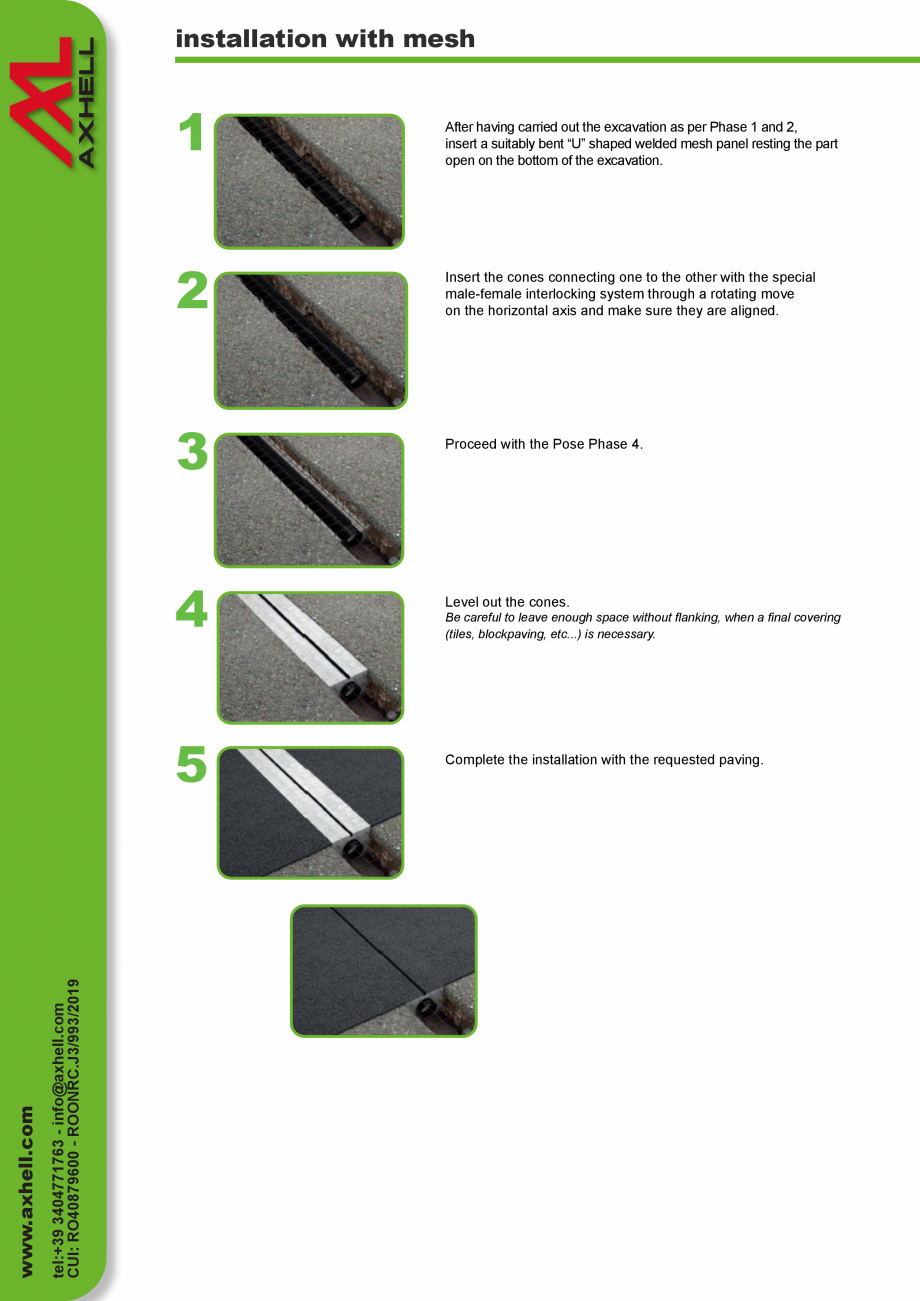

Pagina 6-Rigola Axhell UTube, Trafic 90 tone, clasa F900 GIMANI&MUFLE Fisa tehnica Engleza must be...

Pagina 7 - Rigola Axhell UTube, Trafic 90 tone, clasa F900 GIMANI&MUFLE Fisa tehnica Engleza in ...

in both directions. c) It is recommended to use concrete with Class of Consistency S4 (EN 206-1) and stone aggregates with maximum diameter of 8mm. In case of very intense and frequent stresses, support the concrete casting around the UTube cone with an electrically welded mesh and / or steel rods. SUMMARY TABLE Load class (UNI EN 1433) D 400 E 600 F 900 Applicable load (UNI EN 1433) KN 400 600 900 Minimum height H of concrete laying bed mm 200 200 250 Minimum thickness S of concrete fl anking mm 200 200 Concrete compression strenght class (EN 206-1) C 25/30 Class of concrete compression resistance (EN 206-1) C 30/37 XF4 C 34/45 XF4 C 30/37 250 C 35/45 C 40/50 XF4 In case of concrete exposed to freeze / thaw cycles The installation instructions and the relative example drawings are provided as an indication and do not take into account any specific characteristics of the place of installation, the particularities of the ground, the morphology and the position o

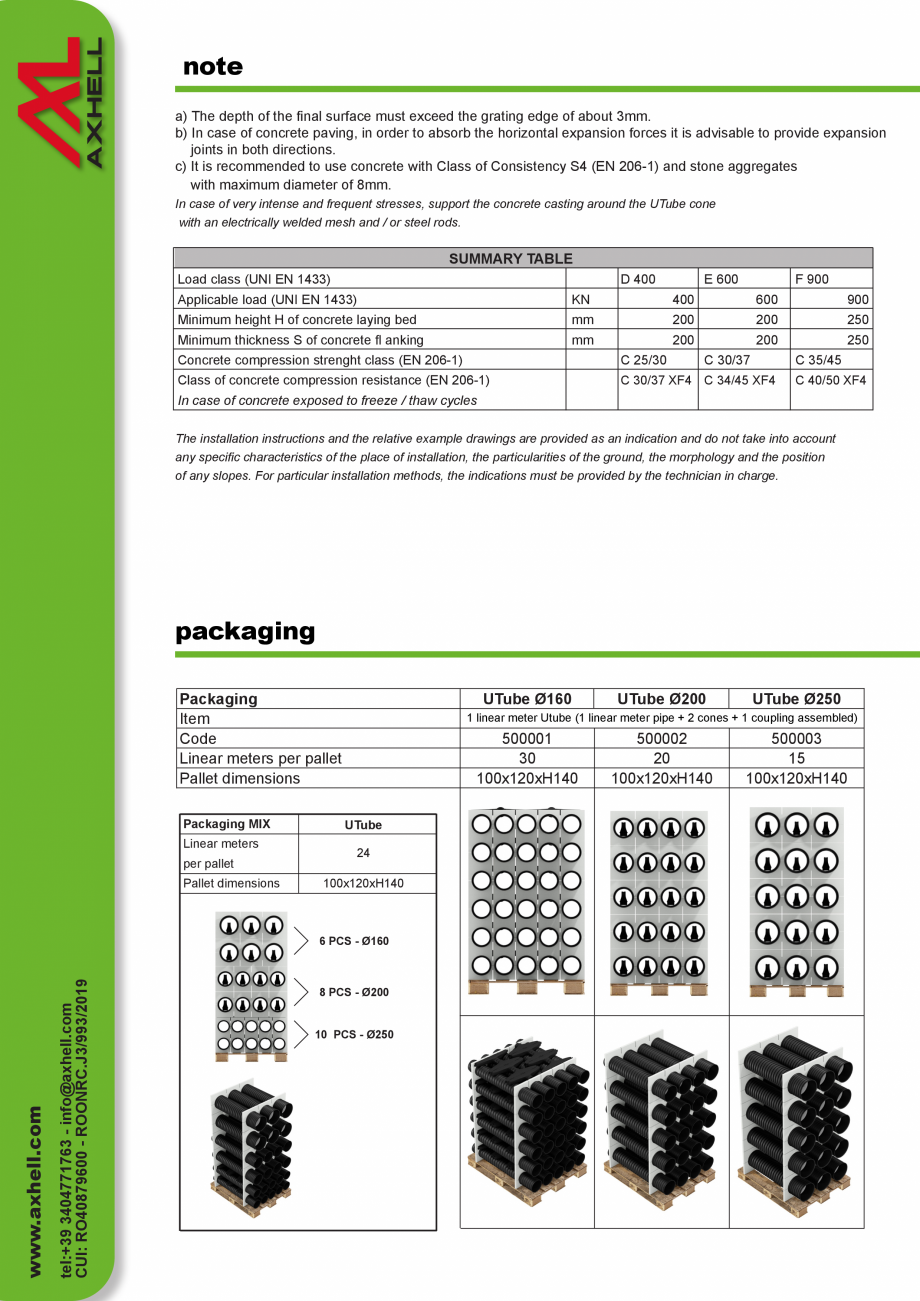

Pagina 7-Rigola Axhell UTube, Trafic 90 tone, clasa F900 GIMANI&MUFLE Fisa tehnica Engleza in both...

Pagina 8 - Rigola Axhell UTube, Trafic 90 tone, clasa F900 GIMANI&MUFLE Fisa tehnica Engleza f...

f any slopes. For particular installation methods, the indications must be provided by the technician in charge. packaging Packaging Item Code Linear meters per pallet Pallet dimensions Packaging MIX Linear meters per pallet Pallet dimensions UTube 24 100x120xH140 tel:+39 3404771763 - info@axhell.com CUI: RO40879600 - ROONRC.J3/993/2019 6 PCS - Ø160 www.axhell.com UTube Ø160 UTube Ø200 UTube Ø250 500001 30 100x120xH140 500002 20 100x120xH140 500003 15 100x120xH140 1 linear meter Utube (1 linear meter pipe + 2 cones + 1 coupling assembled) 8 PCS - Ø200 10 PCS - Ø250
