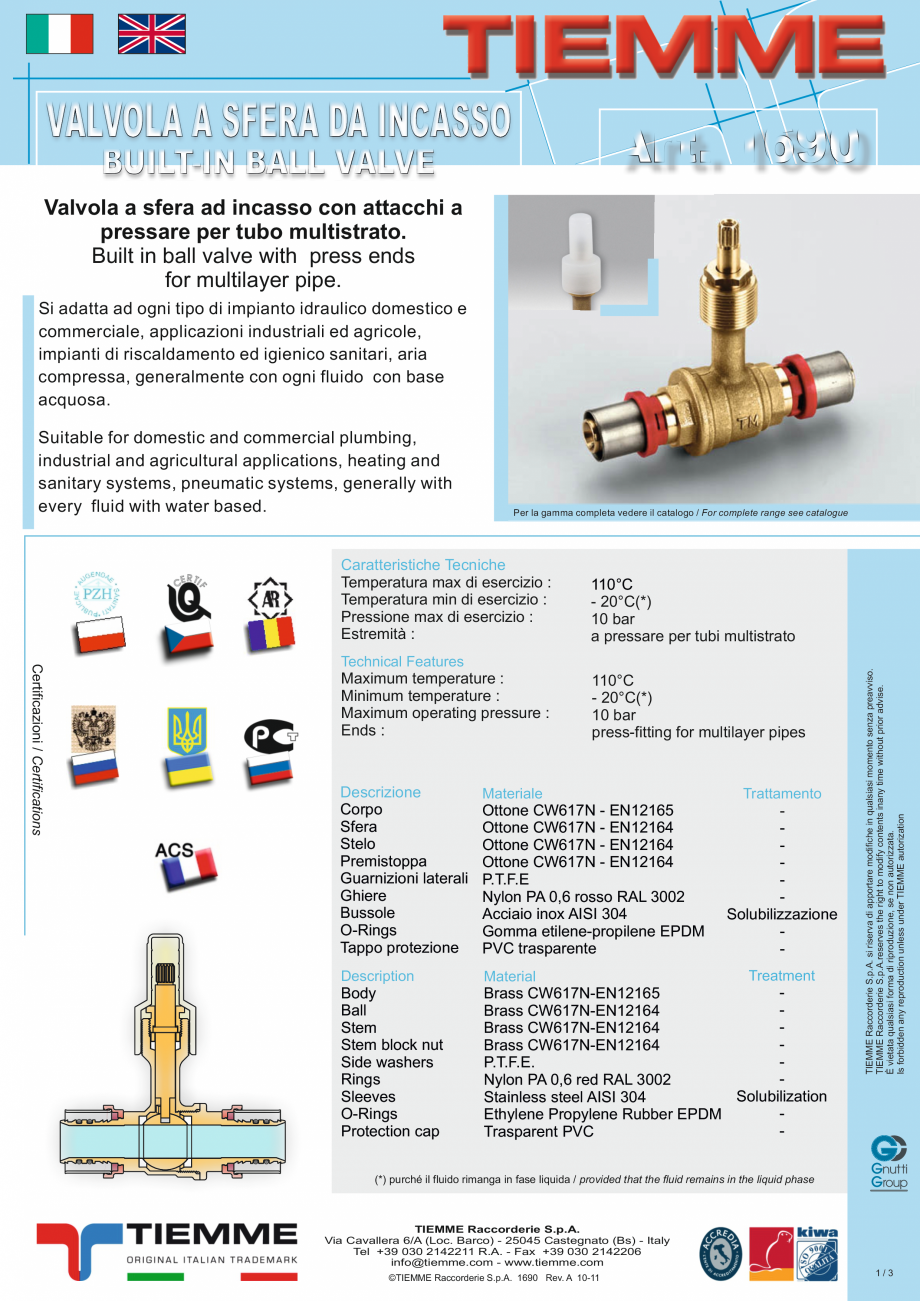

Robinet cu sfera de incastrat TIEMME 1690
VALVOLA A SFERA DA INCASSO
Art. 1690
BUILT-IN BALL VALVE
Valvola a sfera ad incasso con attacchi a
pressare per tubo multistrato.
Built in ball valve with press ends
for multilayer pipe.
Si adatta ad ogni tipo di impianto idraulico domestico e
commerciale, applicazioni industriali ed agricole,
impianti di riscaldamento ed igienico sanitari, aria
compressa, generalmente con ogni fluido con base
acquosa.
Per la gamma completa vedere il catalogo / For complete range see catalogue
Caratteristiche Tecniche
Temperatura max di esercizio :
Temperatura min di esercizio :
Pressione max di esercizio :
Estremità :
110°C
- 20°C(*)
10 bar
a pressare per tubi multistrato
Certificazioni / Certifications
Technical Features
Maximum temperature :
Minimum temperature :
Maximum operating pressure :
Ends :
110°C
- 20°C(*)
10 bar
press-fitting for multilayer pipes
Descrizione
Corpo
Sfera
Stelo
Premistoppa
Guarnizioni laterali
Ghiere
Bussole
O-Rings
Tappo protezione
Ottone CW617N - EN12165
Ot
tone CW617N - EN12164
Ottone CW617N - EN12164
Ottone CW617N - EN12164
P.T.F.E
Nylon PA 0,6 rosso RAL 3002
Acciaio inox AISI 304
Gomma etilene-propilene EPDM
PVC trasparente
Description
Material
Body
Ball
Stem
Stem block nut
Side washers
Rings
Sleeves
O-Rings
Protection cap
Brass CW617N-EN12165
Brass CW617N-EN12164
Brass CW617N-EN12164
Brass CW617N-EN12164
P.T.F.E.
Nylon PA 0,6 red RAL 3002
Solubilization
Stainless steel AISI 304
Ethylene Propylene Rubber EPDM
Trasparent PVC
Materiale
Trattamento
Solubilizzazione
Treatment
TIEMME Raccorderie S.p.A. si riserva di apportare modifiche in qualsiasi momento senza preavviso.
TIEMME Raccorderie S.p.A.reserves the right to modify contents inany time without prior advise.
È vietata qualsiasi forma di riproduzione, se non autorizzata.
Is forbidden any reproduction unless under TIEMME autorization
Suitable for domestic and commercial plumbing,
industrial and agricultural applications, heating and
sanitary systems, pneumatic systems, gene
rally with
every fluid with water based.
(*) purché il fluido rimanga in fase liquida / provided that the fluid remains in the liquid phase
TIEMME Raccorderie S.p.A.
Via Cavallera 6/A (Loc. Barco) - 25045 Castegnato (Bs) - Italy
Tel +39 030 2142211 R.A. - Fax +39 030 2142206
info@tiemme.com - www.tiemme.com
©TIEMME Raccorderie S.p.A. 1690 Rev. A 10-11
1/3

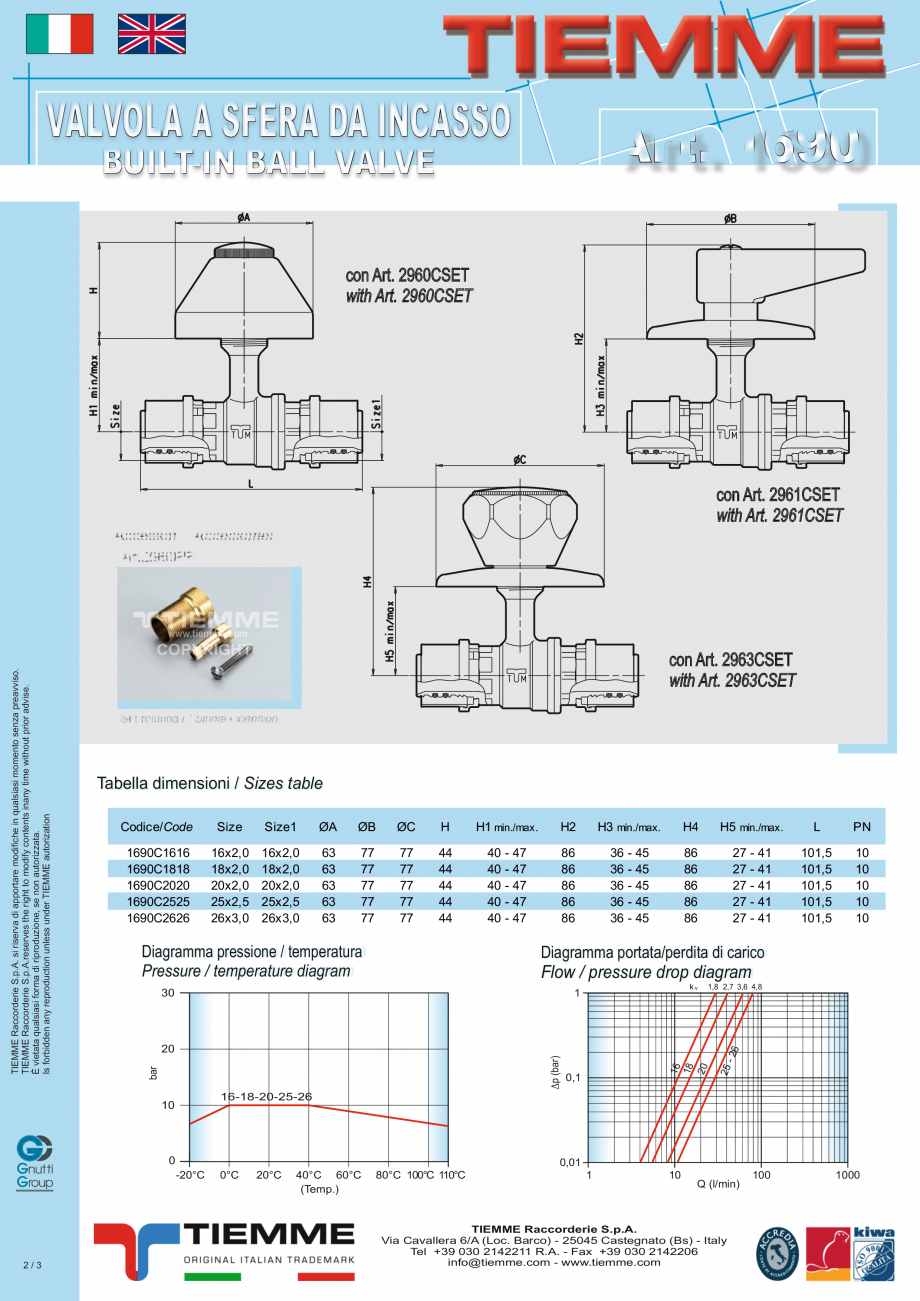

VALVOLA A SFERA DA INCASSO
Art. 1690
BUILT-IN BALL VALVE
con Art. 2960CSET
with Art. 2960CSET
con Art. 2961CSET
with Art. 2961CSET
Accessori / Accessories
Art.2960PR
www.tiemme.com
con Art. 2963CSET
with Art. 2963CSET
Set prolunga / Spindle extension
Tabella dimensioni / Sizes table
Codice/Code
Size
Size1
ØA
ØB
ØC
H
1690C1616
1690C1818
1690C2020
1690C2525
1690C2626
16x2,0
18x2,0
20x2,0
25x2,5
26x3,0
16x2,0
18x2,0
20x2,0
25x2,5
26x3,0
63
63
63
63
63
77
77
77
77
77
77
77
77
77
77
44
44
44
44
44
Diagramma pressione / temperatura
Pressure / temperature diagram
40
40
40
40
40
H2
- 47
- 47
- 47
- 47
- 47

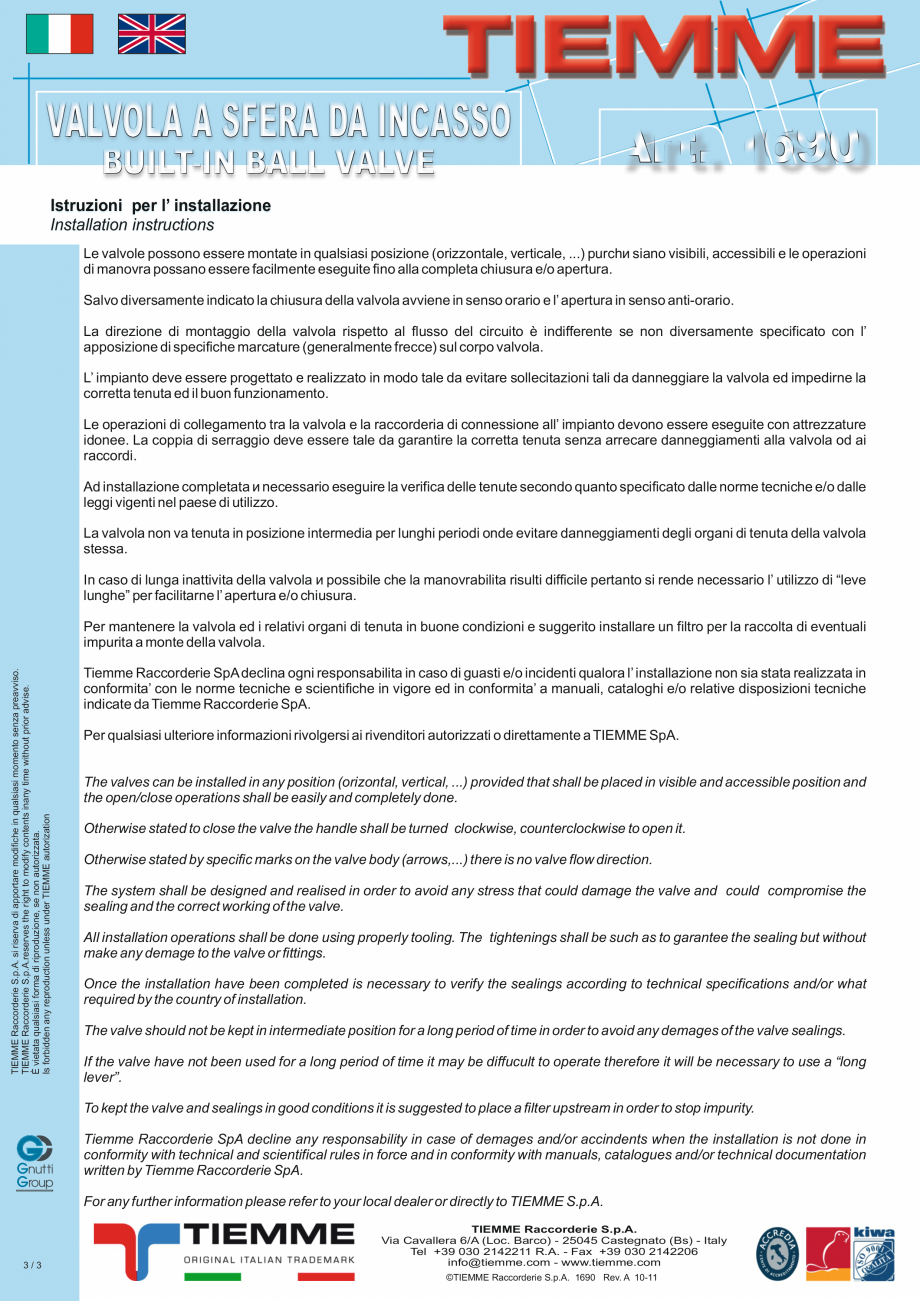

rally with
every fluid with water based.
(*) purché il fluido rimanga in fase liquida / provided that the fluid remains in the liquid phase
TIEMME Raccorderie S.p.A.
Via Cavallera 6/A (Loc. Barco) - 25045 Castegnato (Bs) - Italy
Tel +39 030 2142211 R.A. - Fax +39 030 2142206
info@tiemme.com - www.tiemme.com
©TIEMME Raccorderie S.p.A. 1690 Rev. A 10-11
1/3
VALVOLA A SFERA DA INCASSO
Art. 1690
BUILT-IN BALL VALVE
con Art. 2960CSET
with Art. 2960CSET
con Art. 2961CSET
with Art. 2961CSET
Accessori / Accessories
Art.2960PR
www.tiemme.com
con Art. 2963CSET
with Art. 2963CSET
Set prolunga / Spindle extension
Tabella dimensioni / Sizes table
Codice/Code
Size
Size1
ØA
ØB
ØC
H
1690C1616
1690C1818
1690C2020
1690C2525
1690C2626
16x2,0
18x2,0
20x2,0
25x2,5
26x3,0
16x2,0
18x2,0
20x2,0
25x2,5
26x3,0
63
63
63
63
63
77
77
77
77
77
77
77
77
77
77
44
44
44
44
44
Diagramma pressione / temperatura
Pressure / temperature diagram
40
40
40
40
40
H2
- 47
- 47
- 47
- 47
- 47
