Sistem de blocare a camionului in dock STERTIL COMBILOK SWAP

Limba: Engleza

6 afisari

Tip documentatie: Catalog, brosura

Pagina 1 - Sistem de blocare a camionului in dock STERTIL COMBILOK SWAP Catalog, brosura Engleza...

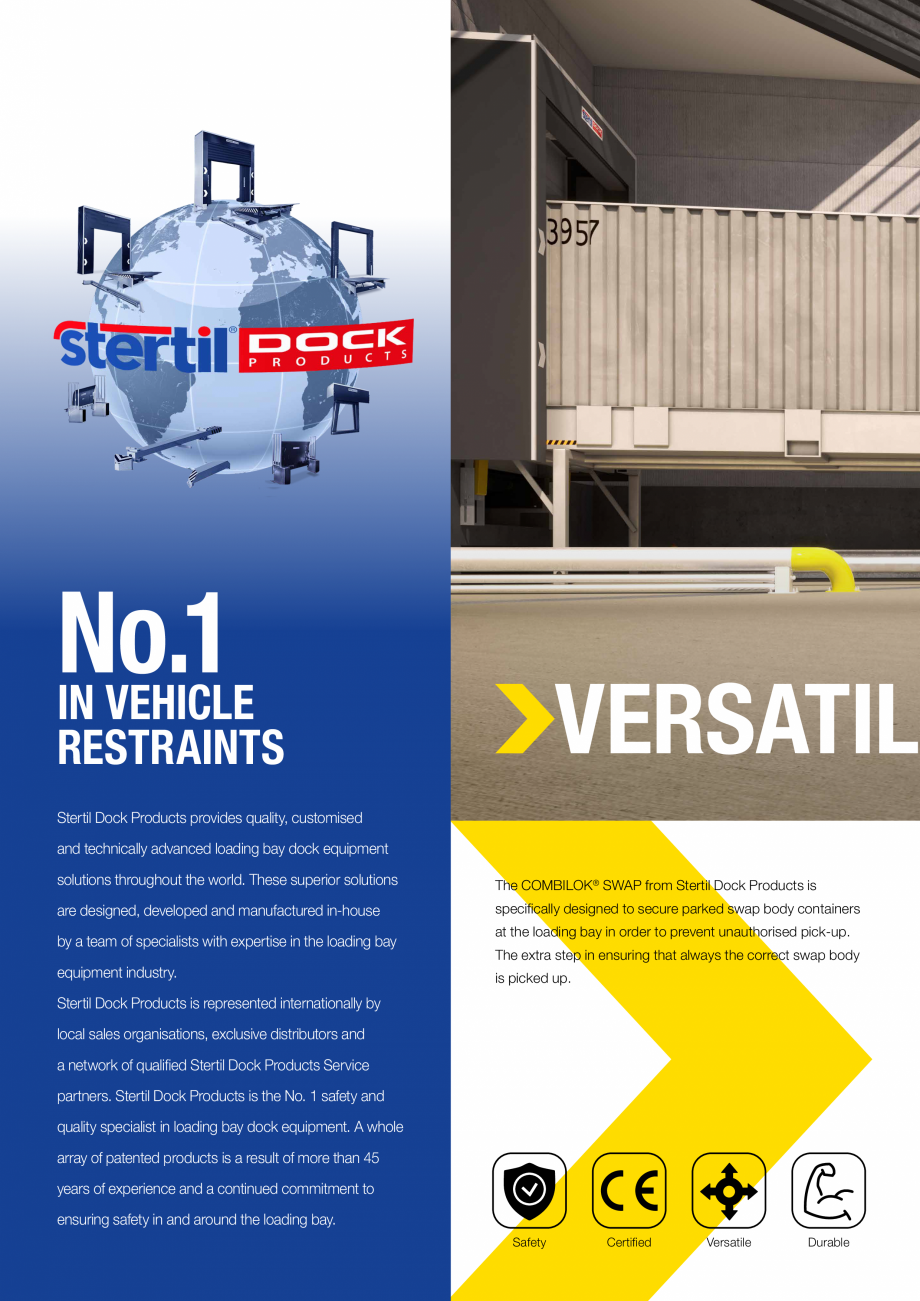

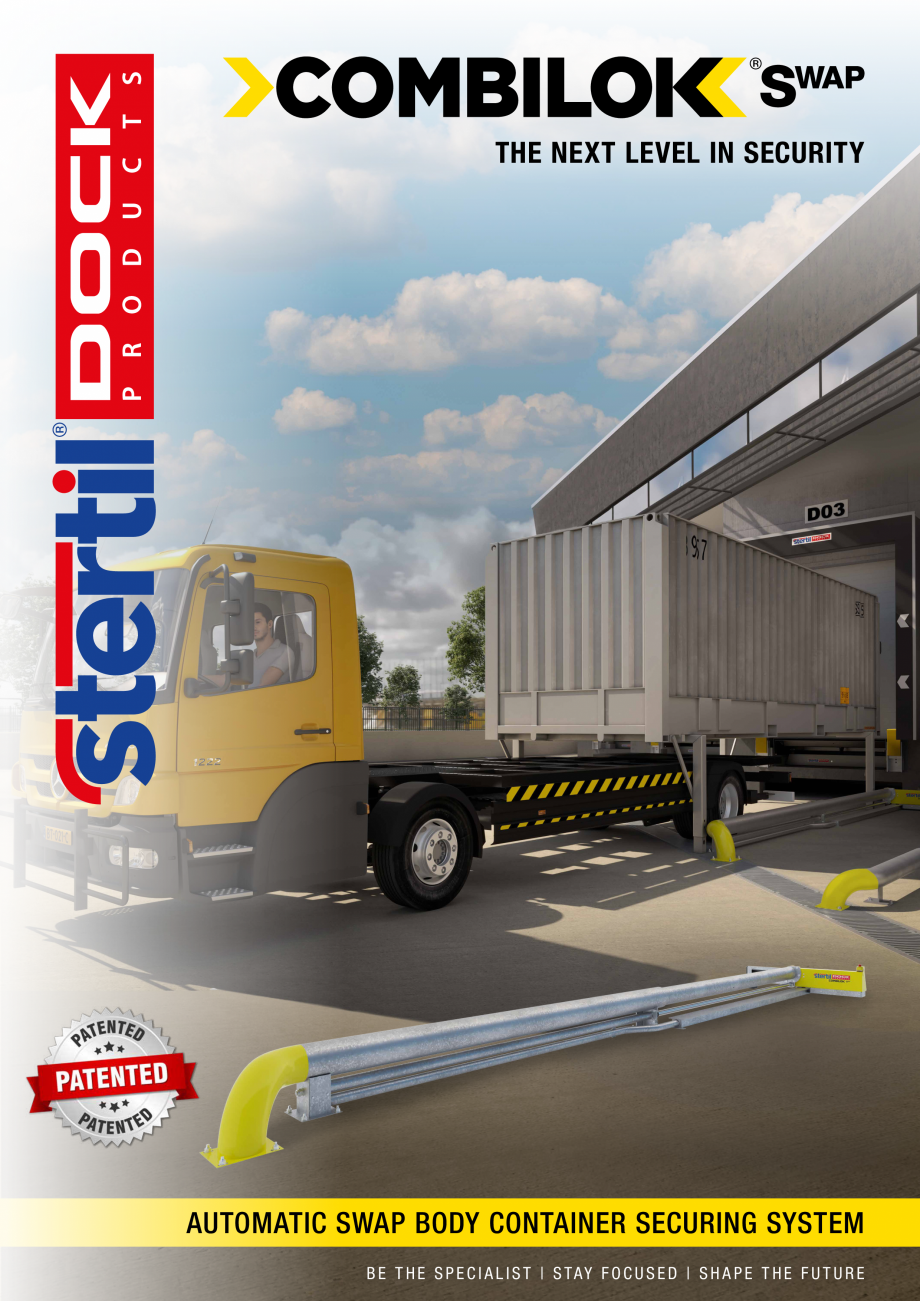

THE NEXT LEVEL IN SECURITY AUTOMATIC SWAP BODY CONTAINER SECURING SYSTEM B E T H E S P E C I A L I S T | S TAY F O C U S E D | S H A P E T H E F U T U R E No.1 IN VEHICLE VERSATILE RESTRAINTS Stertil Dock Products provides quality, customised and technically advanced loading bay dock equipment solutions throughout the world. These superior solutions The COMBILOK® SWAP from Stertil Dock Products is are designed, developed and manufactured in-house specifically designed to secure parked swap body containers by a team of specialists with expertise in the loading bay equipment industry. at the loading bay in order to prevent unauthorised pick-up. The extra step in ensuring that always the correct swap body is picked up. Stertil Dock Products is represented internationally by local sales organisations, exclusive distributors and a network of qualified Stertil Dock Products Service partners. Stertil Dock Products is the No. 1 safety and quality specialist in loading bay dock equi

Pagina 1-Sistem de blocare a camionului in dock STERTIL COMBILOK SWAP Catalog, brosura Engleza THE NEXT...

Pagina 2 - Sistem de blocare a camionului in dock STERTIL COMBILOK SWAP Catalog, brosura Engleza...

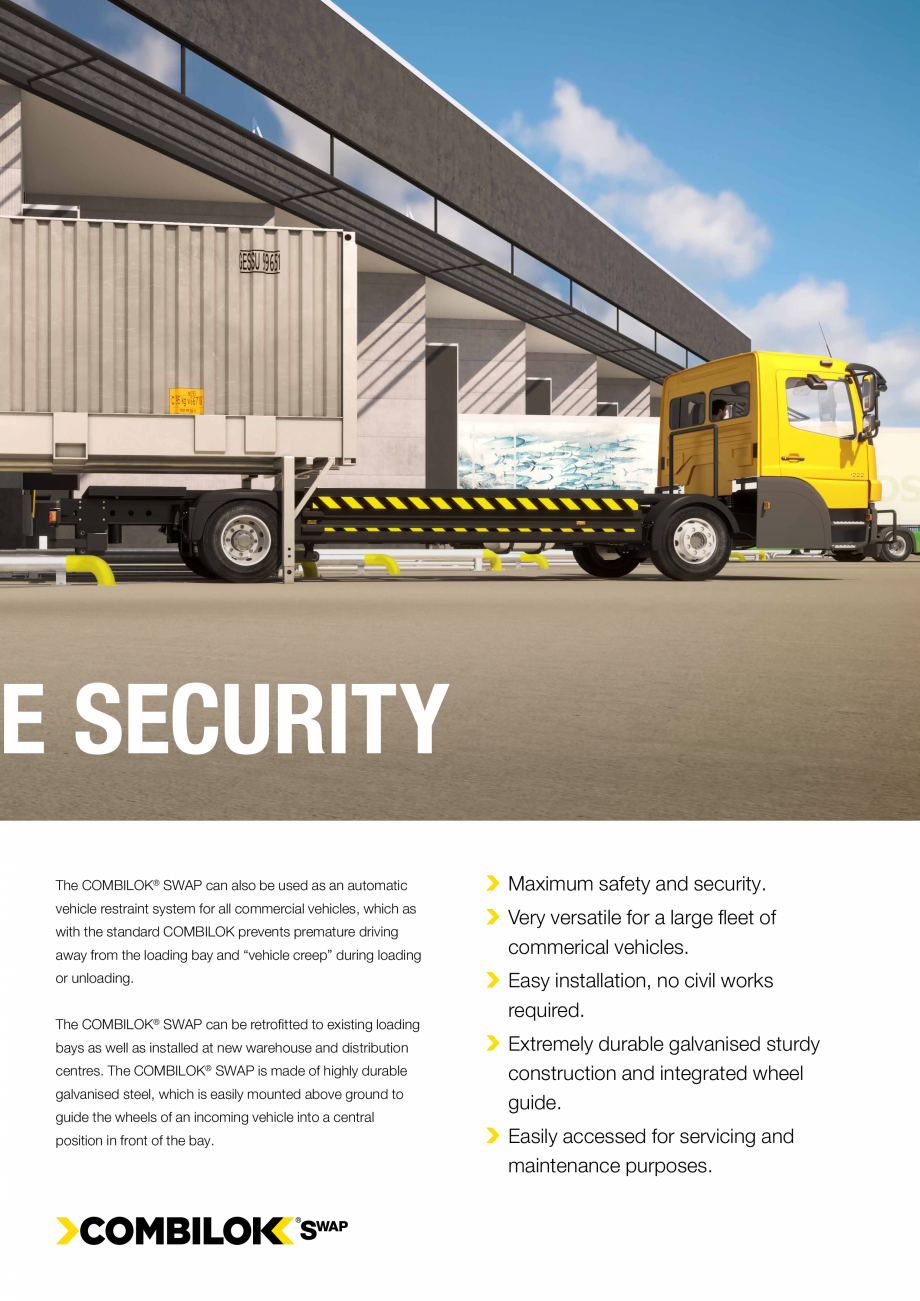

pment. A whole array of patented products is a result of more than 45 years of experience and a continued commitment to ensuring safety in and around the loading bay. Safety Certified Versatile Durable E SECURITY The COMBILOK® SWAP can also be used as an automatic vehicle restraint system for all commercial vehicles, which as with the standard COMBILOK prevents premature driving away from the loading bay and “vehicle creep” during loading or unloading. The COMBILOK® SWAP can be retrofitted to existing loading bays as well as installed at new warehouse and distribution centres. The COMBILOK® SWAP is made of highly durable galvanised steel, which is easily mounted above ground to guide the wheels of an incoming vehicle into a central position in front of the bay. Maximum safety and security. Very versatile for a large fleet of commerical vehicles. Easy installation, no civil works required. Extremely durable galvanised sturdy construction and integrated wheel guide.

Pagina 2-Sistem de blocare a camionului in dock STERTIL COMBILOK SWAP Catalog, brosura Engleza pment. A...

Pagina 3 - Sistem de blocare a camionului in dock STERTIL COMBILOK SWAP Catalog, brosura Engleza...

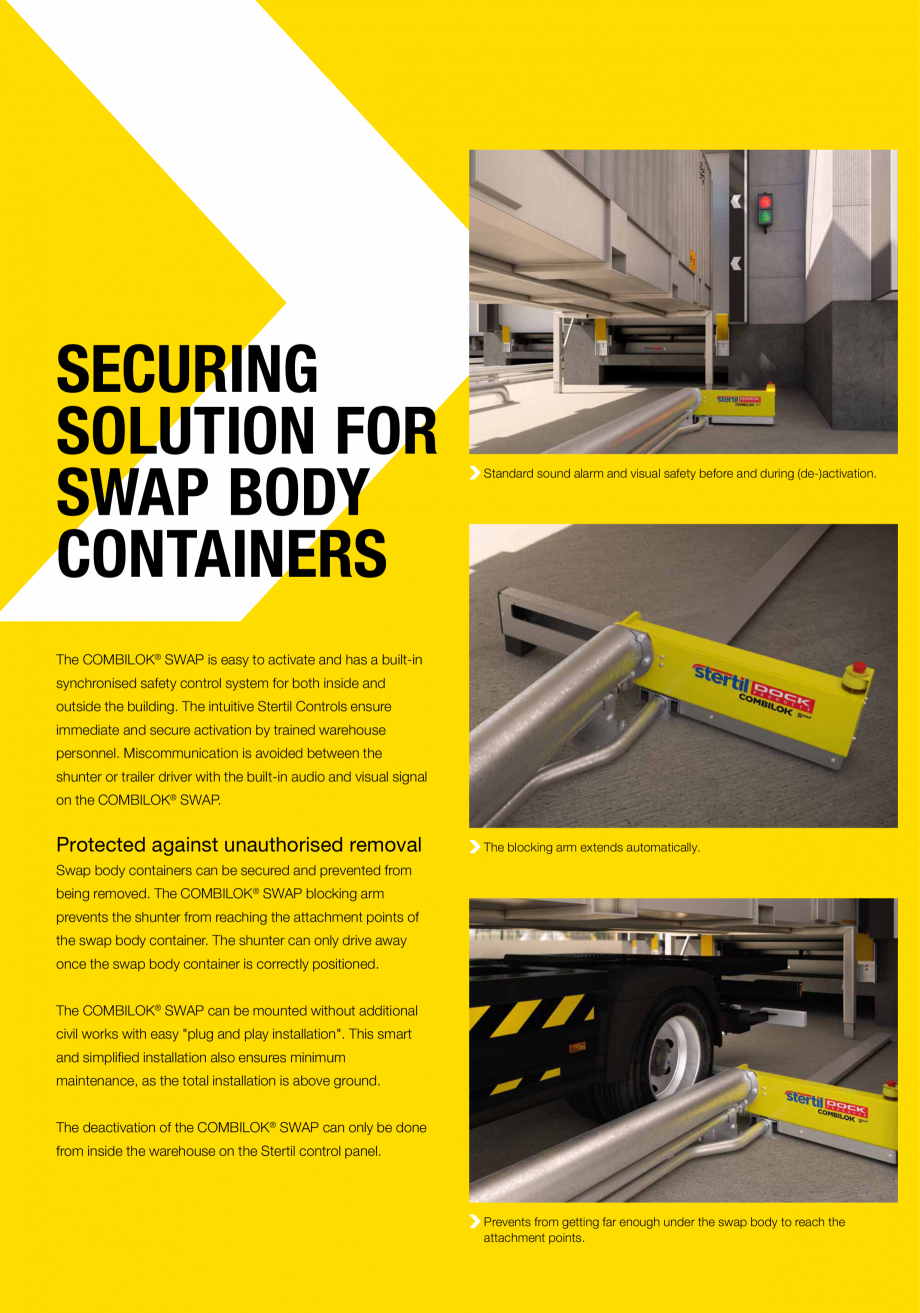

Easily accessed for servicing and maintenance purposes. SECURING SOLUTION FOR SWAP BODY CONTAINERS Standard sound alarm and visual safety before and during (de-)activation. The COMBILOK® SWAP is easy to activate and has a built-in synchronised safety control system for both inside and outside the building. The intuitive Stertil Controls ensure immediate and secure activation by trained warehouse personnel. Miscommunication is avoided between the shunter or trailer driver with the built-in audio and visual signal on the COMBILOK® SWAP. Protected against unauthorised removal The blocking arm extends automatically. Swap body containers can be secured and prevented from being removed. The COMBILOK® SWAP blocking arm prevents the shunter from reaching the attachment points of the swap body container. The shunter can only drive away once the swap body container is correctly positioned. The COMBILOK® SWAP can be mounted without additional civil works with easy "plug and play instal

Pagina 3-Sistem de blocare a camionului in dock STERTIL COMBILOK SWAP Catalog, brosura Engleza Easily...

Pagina 4 - Sistem de blocare a camionului in dock STERTIL COMBILOK SWAP Catalog, brosura Engleza...

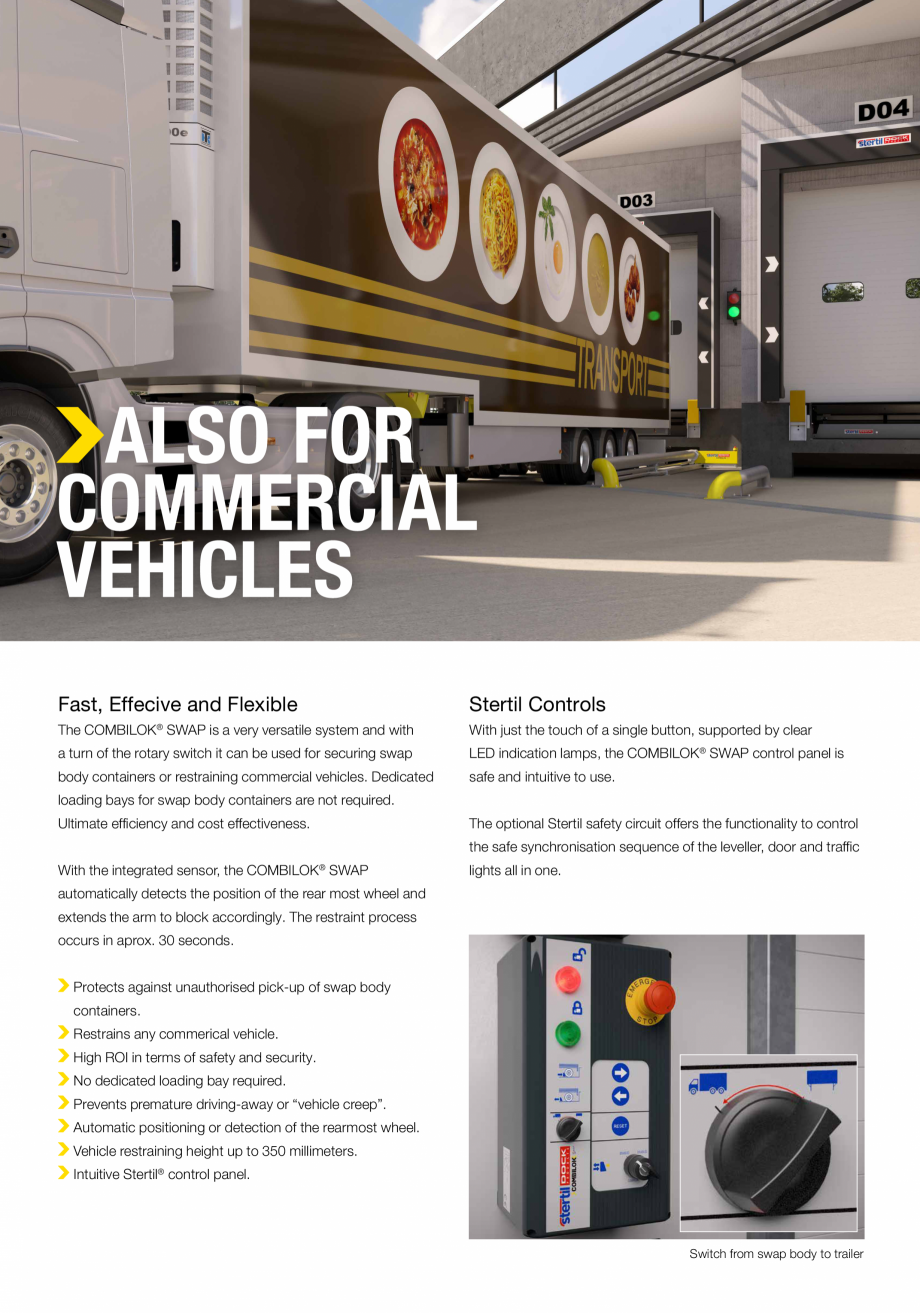

lation". This smart and simplified installation also ensures minimum maintenance, as the total installation is above ground. The deactivation of the COMBILOK® SWAP can only be done from inside the warehouse on the Stertil control panel. revents from getting far enough under the swap body to reach the P attachment points. ALSO FOR COMMERCIAL VEHICLES Fast, Effecive and Flexible Stertil Controls The COMBILOK® SWAP is a very versatile system and with With just the touch of a single button, supported by clear a turn of the rotary switch it can be used for securing swap LED indication lamps, the COMBILOK® SWAP control panel is body containers or restraining commercial vehicles. Dedicated safe and intuitive to use. loading bays for swap body containers are not required. The optional Stertil safety circuit offers the functionality to control Ultimate efficiency and cost effectiveness. the safe synchronisation sequence of the leveller, door and traffic With the integrated sen

Pagina 4-Sistem de blocare a camionului in dock STERTIL COMBILOK SWAP Catalog, brosura Engleza lation

Pagina 5 - Sistem de blocare a camionului in dock STERTIL COMBILOK SWAP Catalog, brosura Engleza...

sor, the COMBILOK SWAP ® lights all in one. automatically detects the position of the rear most wheel and extends the arm to block accordingly. The restraint process occurs in aprox. 30 seconds. Protects against unauthorised pick-up of swap body containers. Restrains any commerical vehicle. High ROI in terms of safety and security. No dedicated loading bay required. Prevents premature driving-away or “vehicle creep”. Automatic positioning or detection of the rearmost wheel. Vehicle restraining height up to 350 millimeters. Intuitive Stertil® control panel. Switch from swap body to trailer TECHNICAL SPECIFICATIONS Length 7.5 metres Control voltage 24 V Installation space required 8.4 metres Mains connection 3 x 400 V, 50 Hz, 1 x EARTH 3 x 230 V, 50 Hz, 1 x EARTH Completely electrical hydraulically operated Integrated galvanised steel wheel guide Hydraulics capacity 215 bar Emergency release possible at all times Electrical capacit

Pagina 5-Sistem de blocare a camionului in dock STERTIL COMBILOK SWAP Catalog, brosura Engleza sor, the...

Pagina 6 - Sistem de blocare a camionului in dock STERTIL COMBILOK SWAP Catalog, brosura Engleza y ...

y 2.2 kW TÜV Rheinland approved according to the EC machinery Pull-out force 147 kN directive 2006/42/EC Blocking pressure vehicle restraint system 14 kN Length of blocking arm 600 mm Travel range of the blocking arm 3,200 mm Options Contra wheel guide Inside traffic lights 24 V Please refer to the Installation and or Operations Manuals for detailed information and specifications. This product and all other Stertil® products are protected by patents from various regions and countries. For more information please refer to: www.stertil.com/en/patents/. All rights reserved. Foundation dimensions COMBILOK® SWAP Lefthand Foundation dimensions COMBILOK® SWAP Righthand Video COMBILOK® SWAP Further information For more specific information or advice about the COMBILOK® SWAP or any of the other quality products manufactured by Stertil Dock Products, please contact us. Stertil B.V. P.O.Box 23 9288 ZG Kootstertille The Netherlands Tel. +31 (0)512 334444 www.stertil-
