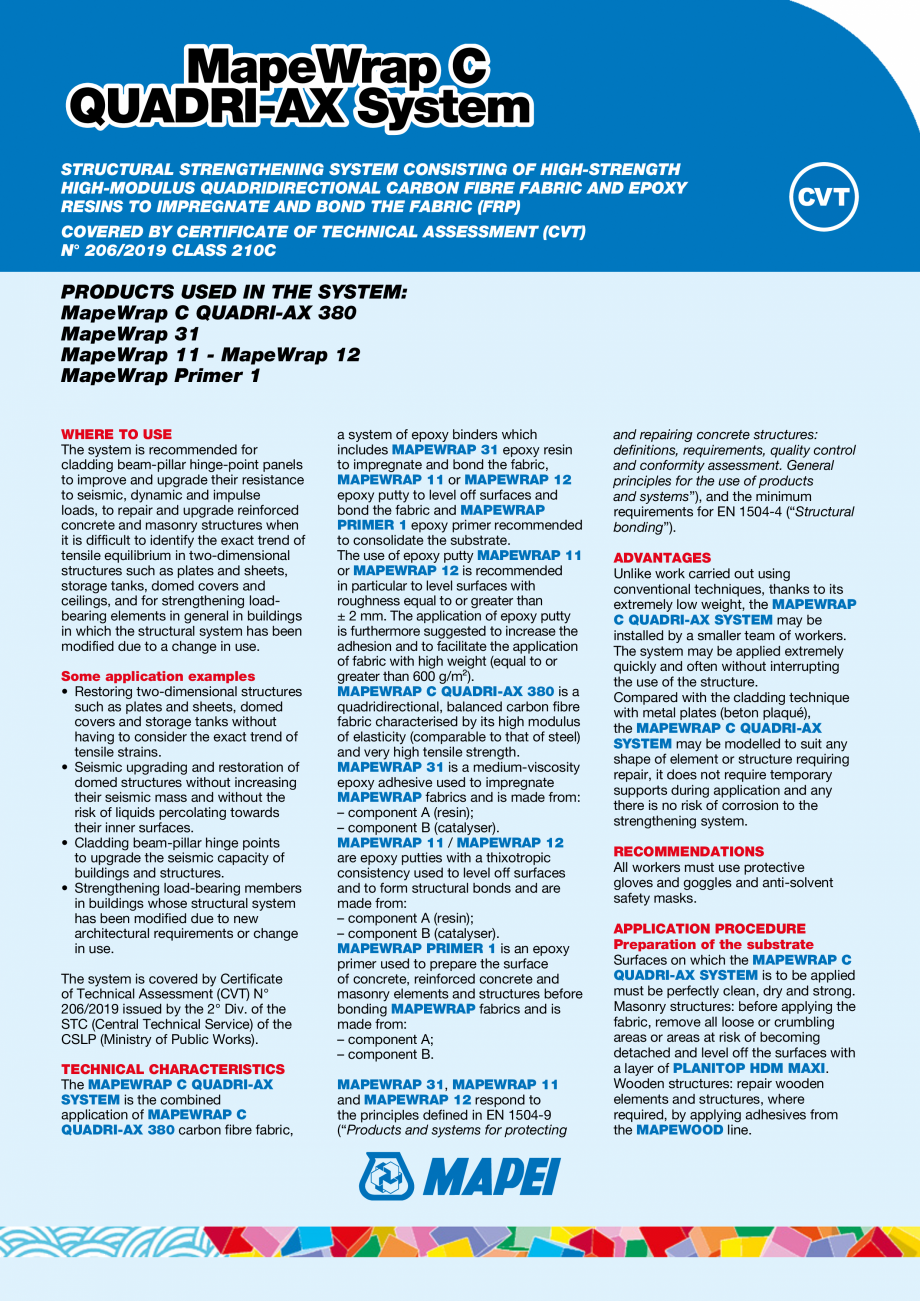

MapeWrap C QUADRI-AX System STRUCTURAL STRENGTHENING SYSTEM CONSISTING OF HIGH-STRENGTH HIGH-MODULUS QUADRIDIRECTIONAL CARBON FIBRE FABRIC AND EPOXY RESINS TO IMPREGNATE AND BOND THE FABRIC (FRP) COVERED BY CERTIFICATE OF TECHNICAL ASSESSMENT (CVT) N° 206/2019 CLASS 210C PRODUCTS USED IN THE SYSTEM: MapeWrap C QUADRI-AX 380 MapeWrap 31 MapeWrap 11 - MapeWrap 12 MapeWrap Primer 1 WHERE TO USE The system is recommended for cladding beam-pillar hinge-point panels to improve and upgrade their resistance to seismic, dynamic and impulse loads, to repair and upgrade reinforced concrete and masonry structures when it is difficult to identify the exact trend of tensile equilibrium in two-dimensional structures such as plates and sheets, storage tanks, domed covers and ceilings, and for strengthening loadbearing elements in general in buildings in which the structural system has been modified due to a change in use. Some application examples • Restoring two-dimensional structures such as pl

Pagina 1-Sistem de consolidare structurala MAPEI MAPEWRAP C QUADRI-AX SYSTEM Fisa tehnica Engleza MapeWrap C
...

Pagina 2 - Sistem de consolidare structurala MAPEI MAPEWRAP C QUADRI-AX SYSTEM Fisa tehnica Engleza ...

ates and sheets, domed covers and storage tanks without having to consider the exact trend of tensile strains. • Seismic upgrading and restoration of domed structures without increasing their seismic mass and without the risk of liquids percolating towards their inner surfaces. • Cladding beam-pillar hinge points to upgrade the seismic capacity of buildings and structures. • Strengthening load-bearing members in buildings whose structural system has been modified due to new architectural requirements or change in use. The system is covered by Certificate of Technical Assessment (CVT) N° 206/2019 issued by the 2° Div. of the STC (Central Technical Service) of the CSLP (Ministry of Public Works). TECHNICAL CHARACTERISTICS The MAPEWRAP C QUADRI-AX SYSTEM is the combined application of MAPEWRAP C QUADRI-AX 380 carbon fibre fabric, a system of epoxy binders which includes MAPEWRAP 31 epoxy resin to impregnate and bond the fabric, MAPEWRAP 11 or MAPEWRAP 12 epoxy putty to level o

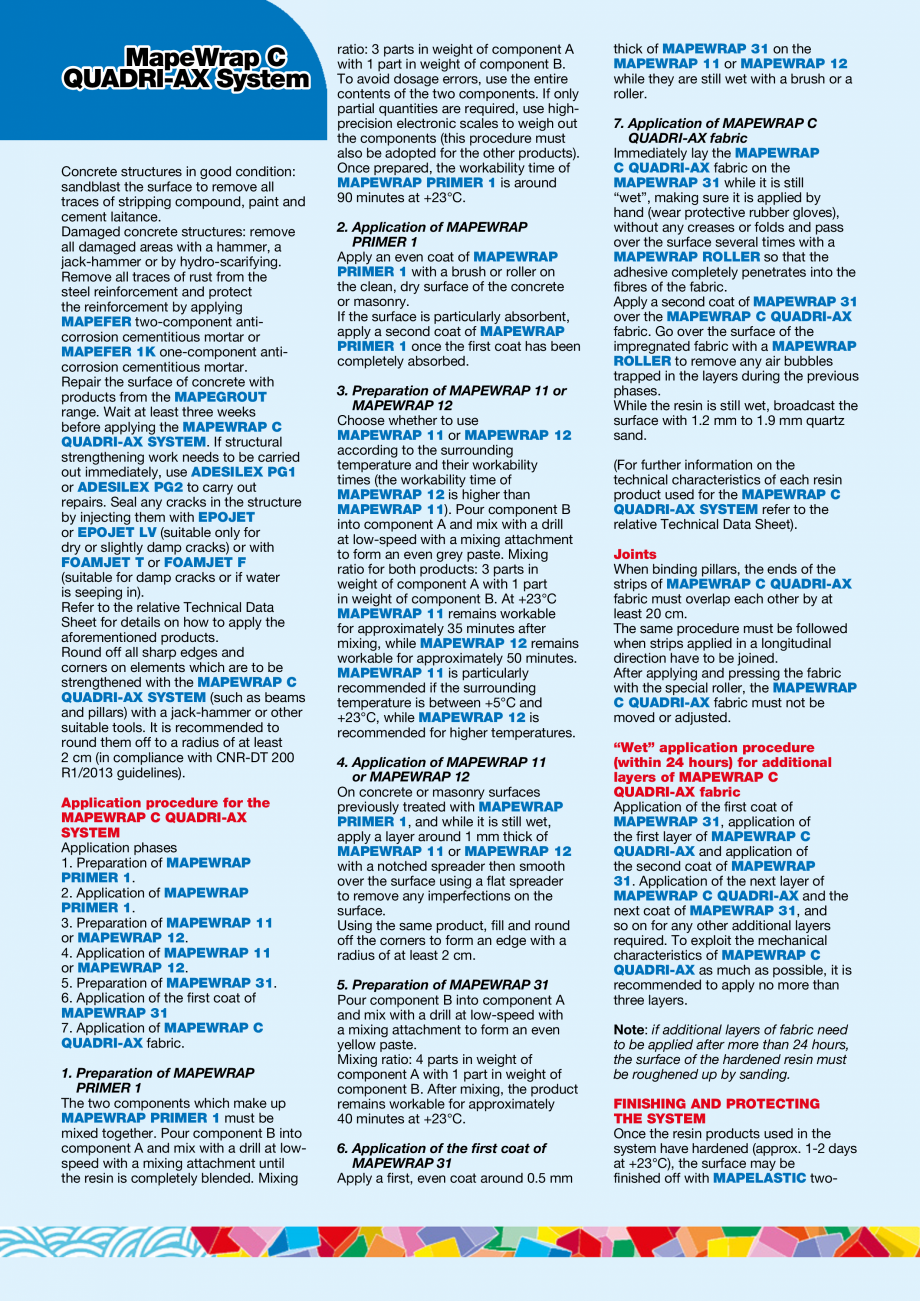

Pagina 2-Sistem de consolidare structurala MAPEI MAPEWRAP C QUADRI-AX SYSTEM Fisa tehnica Engleza ates and...

Pagina 3 - Sistem de consolidare structurala MAPEI MAPEWRAP C QUADRI-AX SYSTEM Fisa tehnica Engleza ...

ff surfaces and bond the fabric and MAPEWRAP PRIMER 1 epoxy primer recommended to consolidate the substrate. The use of epoxy putty MAPEWRAP 11 or MAPEWRAP 12 is recommended in particular to level surfaces with roughness equal to or greater than ± 2 mm. The application of epoxy putty is furthermore suggested to increase the adhesion and to facilitate the application of fabric with high weight (equal to or greater than 600 g/m²). MAPEWRAP C QUADRI-AX 380 is a quadridirectional, balanced carbon fibre fabric characterised by its high modulus of elasticity (comparable to that of steel) and very high tensile strength. MAPEWRAP 31 is a medium-viscosity epoxy adhesive used to impregnate MAPEWRAP fabrics and is made from: – component A (resin); – component B (catalyser). MAPEWRAP 11 / MAPEWRAP 12 are epoxy putties with a thixotropic consistency used to level off surfaces and to form structural bonds and are made from: – component A (resin); – component B (catalyser). MAPEWRAP PRIMER

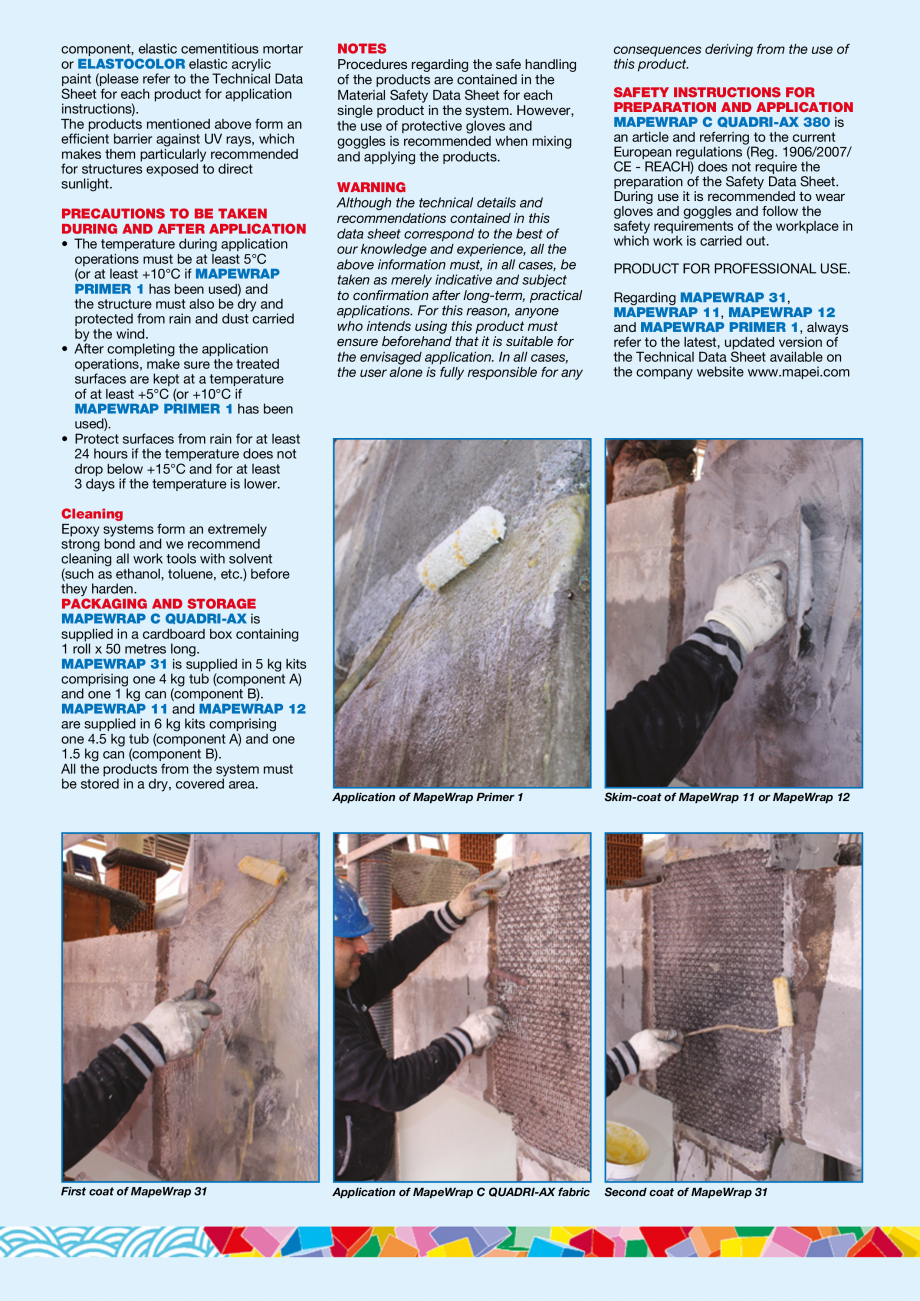

Pagina 3-Sistem de consolidare structurala MAPEI MAPEWRAP C QUADRI-AX SYSTEM Fisa tehnica Engleza ff surfaces...

Pagina 4 - Sistem de consolidare structurala MAPEI MAPEWRAP C QUADRI-AX SYSTEM Fisa tehnica Engleza ...

1 is an epoxy primer used to prepare the surface of concrete, reinforced concrete and masonry elements and structures before bonding MAPEWRAP fabrics and is made from: – component A; – component B. MAPEWRAP 31, MAPEWRAP 11 and MAPEWRAP 12 respond to the principles defined in EN 1504-9 (“Products and systems for protecting and repairing concrete structures: definitions, requirements, quality control and conformity assessment. General principles for the use of products and systems”), and the minimum requirements for EN 1504-4 (“Structural bonding”). ADVANTAGES Unlike work carried out using conventional techniques, thanks to its extremely low weight, the MAPEWRAP C QUADRI-AX SYSTEM may be installed by a smaller team of workers. The system may be applied extremely quickly and often without interrupting the use of the structure. Compared with the cladding technique with metal plates (beton plaqué), the MAPEWRAP C QUADRI-AX SYSTEM may be modelled to suit any shape of element or

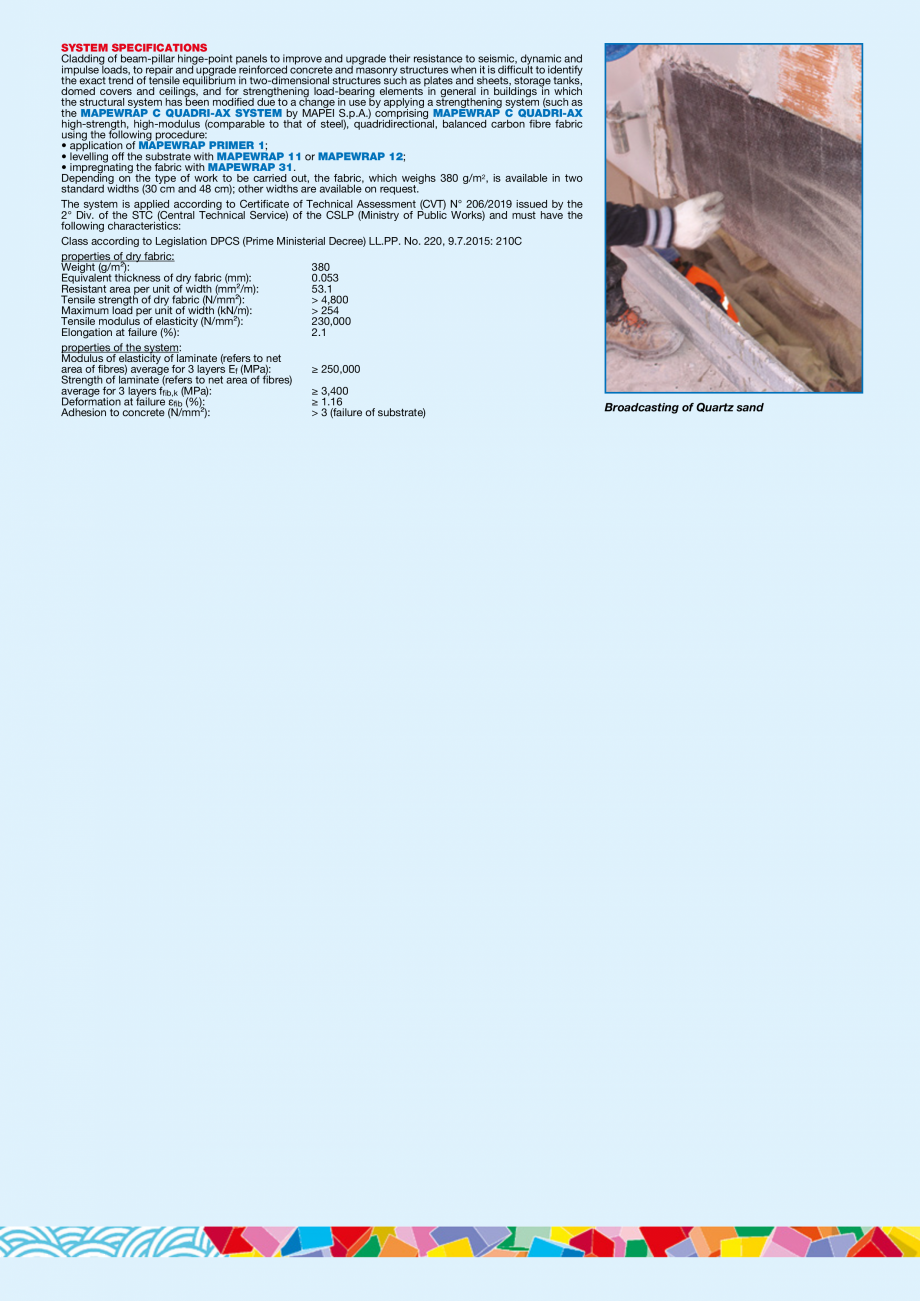

Pagina 4-Sistem de consolidare structurala MAPEI MAPEWRAP C QUADRI-AX SYSTEM Fisa tehnica Engleza 1 is an...

Pagina 5 - Sistem de consolidare structurala MAPEI MAPEWRAP C QUADRI-AX SYSTEM Fisa tehnica Engleza ...

structure requiring repair, it does not require temporary supports during application and any there is no risk of corrosion to the strengthening system. RECOMMENDATIONS All workers must use protective gloves and goggles and anti-solvent safety masks. APPLICATION PROCEDURE Preparation of the substrate Surfaces on which the MAPEWRAP C QUADRI-AX SYSTEM is to be applied must be perfectly clean, dry and strong. Masonry structures: before applying the fabric, remove all loose or crumbling areas or areas at risk of becoming detached and level off the surfaces with a layer of PLANITOP HDM MAXI. Wooden structures: repair wooden elements and structures, where required, by applying adhesives from the MAPEWOOD line. MapeWrap C QUADRI-AX System Concrete structures in good condition: sandblast the surface to remove all traces of stripping compound, paint and cement laitance. Damaged concrete structures: remove all damaged areas with a hammer, a jack-hammer or by hydro-scarifying. Remove all trac

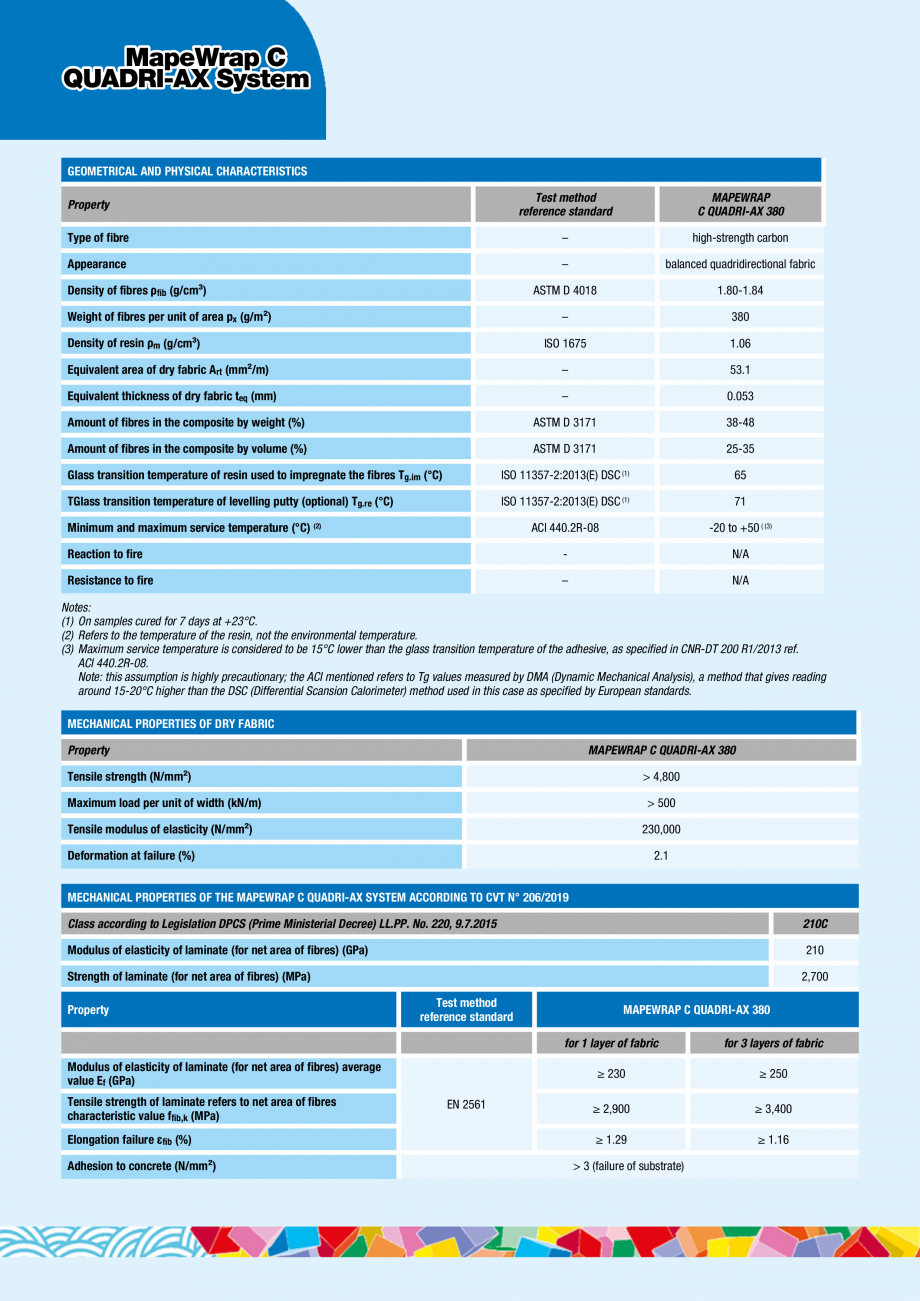

Pagina 5-Sistem de consolidare structurala MAPEI MAPEWRAP C QUADRI-AX SYSTEM Fisa tehnica Engleza structure ...

Pagina 6 - Sistem de consolidare structurala MAPEI MAPEWRAP C QUADRI-AX SYSTEM Fisa tehnica Engleza ...

es of rust from the steel reinforcement and protect the reinforcement by applying MAPEFER two-component anticorrosion cementitious mortar or MAPEFER 1K one-component anticorrosion cementitious mortar. Repair the surface of concrete with products from the MAPEGROUT range. Wait at least three weeks before applying the MAPEWRAP C QUADRI-AX SYSTEM. If structural strengthening work needs to be carried out immediately, use ADESILEX PG1 or ADESILEX PG2 to carry out repairs. Seal any cracks in the structure by injecting them with EPOJET or EPOJET LV (suitable only for dry or slightly damp cracks) or with FOAMJET T or FOAMJET F (suitable for damp cracks or if water is seeping in). Refer to the relative Technical Data Sheet for details on how to apply the aforementioned products. Round off all sharp edges and corners on elements which are to be strengthened with the MAPEWRAP C QUADRI-AX SYSTEM (such as beams and pillars) with a jack-hammer or other suitable tools. It is recommended to round them
