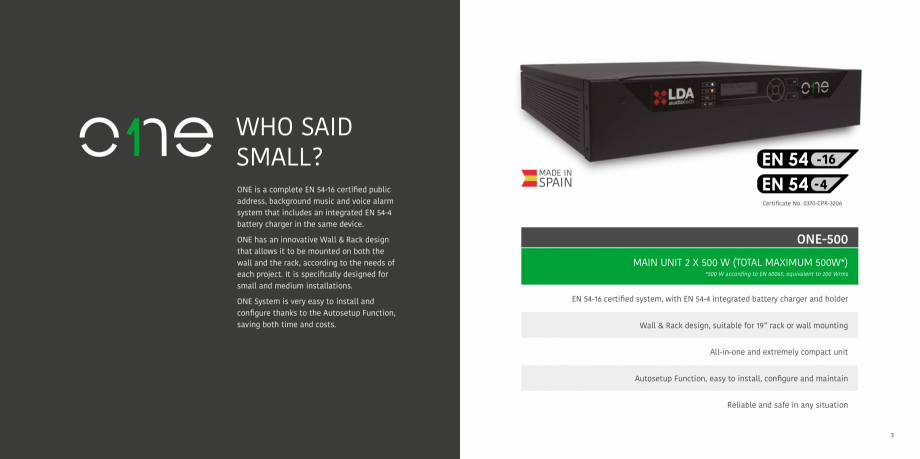

16 4 Certificate No. 0370-CPR-3206 PUBLIC ADDRESS, BACKGROUND MUSIC AND VOICE ALARM SYSTEM WHO SAID SMALL? ONE is a complete EN 54-16 certified public address, background music and voice alarm system that includes an integrated EN 54-4 battery charger in the same device. ONE has an innovative Wall & Rack design that allows it to be mounted on both the wall and the rack, according to the needs of each project. It is specifically designed for small and medium installations. ONE System is very easy to install and configure thanks to the Autosetup Function, saving both time and costs. MADE IN SPAIN 16 4 Certificate No. 0370-CPR-3206 ONE-500 MAIN UNIT 2 X 500 W (TOTAL MAXIMUM 500W*) *500 W according to EN 60065, equivalent to 200 Wrms EN 54-16 certified system, with EN 54-4 integrated battery charger and holder Wall & Rack design, suitable for 19” rack or wall mounting All-in-one and extremely compact unit Autosetup Function, easy to install, configure and maintain Reliable and s

Pagina 1-Sistem de evacuare si adresare publica compact EN54-16 - LDA ONE LDA Audio Tech ONE-500 Catalog,...

Pagina 2 - Sistem de evacuare si adresare publica compact EN54-16 - LDA ONE LDA Audio Tech ONE-500...

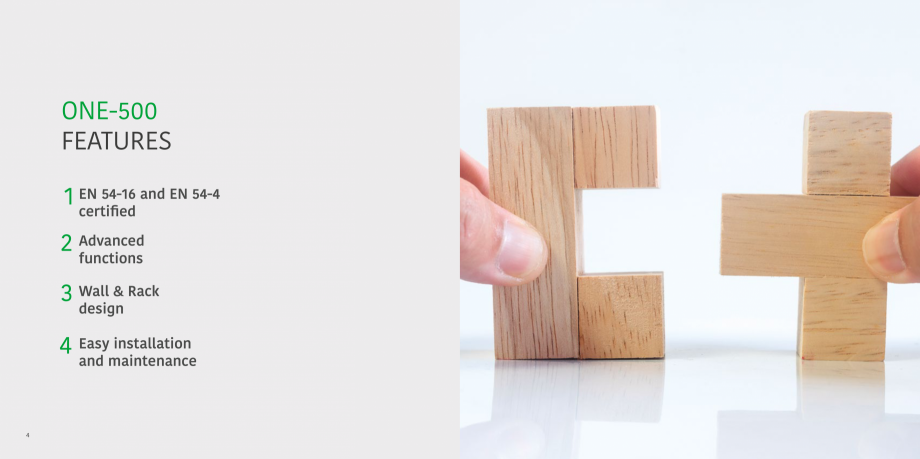

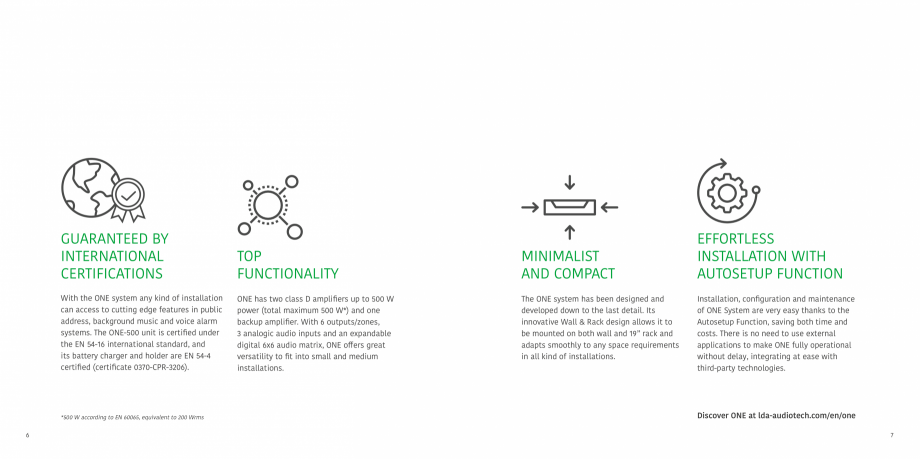

afe in any situation 3 ONE-500 FEATURES EN 54-16 and EN 54‑4 certified Advanced functions Wall & Rack design Easy installation and maintenance 4 5 GUARANTEED BY INTERNATIONAL CERTIFICATIONS TOP FUNCTIONALITY MINIMALIST AND COMPACT With the ONE system any kind of installation can access to cutting edge features in public address, background music and voice alarm systems. The ONE‑500 unit is certified under the EN 54‑16 international standard, and its battery charger and holder are EN 54‑4 certified (certificate 0370‑CPR‑3206). ONE has two class D amplifiers up to 500 W power (total maximum 500 W*) and one backup amplifier. With 6 outputs/zones, 3 analogic audio inputs and an expandable digital 6x6 audio matrix, ONE offers great versatility to fit into small and medium installations. The ONE system has been designed and developed down to the last detail. Its innovative Wall & Rack design allows it to be mounted on both wall and 19” rack and adapts smoothly to any

Pagina 2-Sistem de evacuare si adresare publica compact EN54-16 - LDA ONE LDA Audio Tech ONE-500 Catalog,...

Pagina 3 - Sistem de evacuare si adresare publica compact EN54-16 - LDA ONE LDA Audio Tech ONE-500...

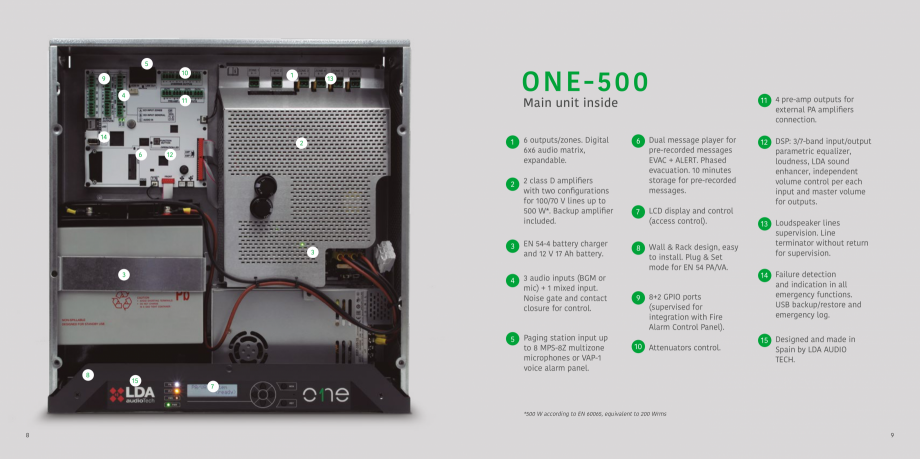

space requirements in all kind of installations. *500 W according to EN 60065, equivalent to 200 Wrms 6 EFFORTLESS INSTALLATION WITH AUTOSETUP FUNCTION Installation, configuration and maintenance of ONE System are very easy thanks to the Autosetup Function, saving both time and costs. There is no need to use external applications to make ONE fully operational without delay, integrating at ease with third-party technologies. Discover ONE at lda-audiotech.com/en/one 7 5 10 9 4 1 ONE‑500 13 Main unit inside 11 14 2 6 1 6 outputs/zones. Digital 6x6 audio matrix, expandable. 2 2 class D amplifiers with two configurations for 100/70 V lines up to 500 W*. Backup amplifier included. 12 3 3 3 EN 54‑4 battery charger and 12 V 17 Ah battery. 4 3 audio inputs (BGM or mic) + 1 mixed input. Noise gate and contact closure for control. 5 8 15 Paging station input up to 8 MPS‑8Z multizone microphones or VAP‑1 voice alarm panel. 11 6 Dual message player for pre

Pagina 3-Sistem de evacuare si adresare publica compact EN54-16 - LDA ONE LDA Audio Tech ONE-500 Catalog,...

Pagina 4 - Sistem de evacuare si adresare publica compact EN54-16 - LDA ONE LDA Audio Tech ONE-500...

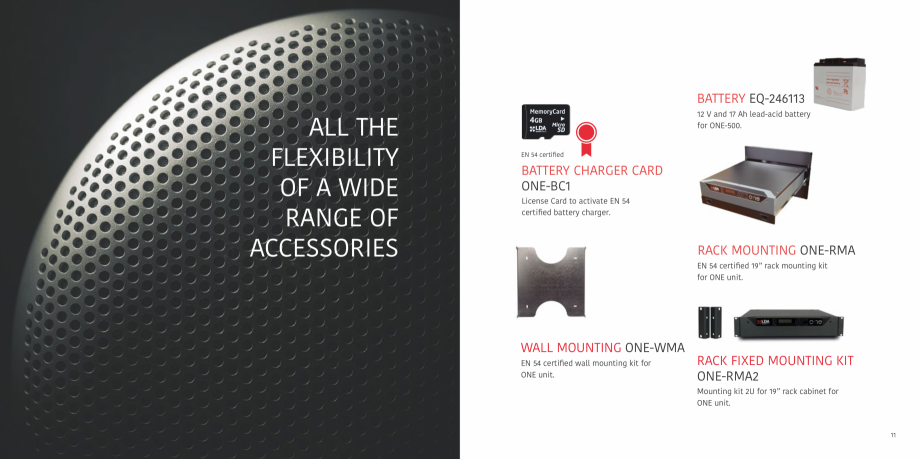

‑recorded messages EVAC + ALERT. Phased evacuation. 10 minutes storage for pre‑recorded messages. 7 LCD display and control (access control). 8 Wall & Rack design, easy to install. Plug & Set mode for EN 54 PA/VA. 9 8+2 GPIO ports (supervised for integration with Fire Alarm Control Panel). 10 Attenuators control. 4 pre‑amp outputs for external PA amplifiers connection. 12 DSP: 3/7‑band input/output parametric equalizer, loudness, LDA sound enhancer, independent volume control per each input and master volume for outputs. 13 Loudspeaker lines supervision. Line terminator without return for supervision. 14 Failure detection and indication in all emergency functions. USB backup/restore and emergency log. 15 Designed and made in Spain by LDA AUDIO TECH. 7 *500 W according to EN 60065, equivalent to 200 Wrms 8 9 ALL THE FLEXIBILITY OF A WIDE RANGE OF ACCESSORIES BATTERY EQ-246113 12 V and 17 Ah lead-acid battery for ONE‑500. EN 54 certified BATTERY CHARGER CARD ON

Pagina 4-Sistem de evacuare si adresare publica compact EN54-16 - LDA ONE LDA Audio Tech ONE-500 Catalog,...

Pagina 5 - Sistem de evacuare si adresare publica compact EN54-16 - LDA ONE LDA Audio Tech ONE-500...

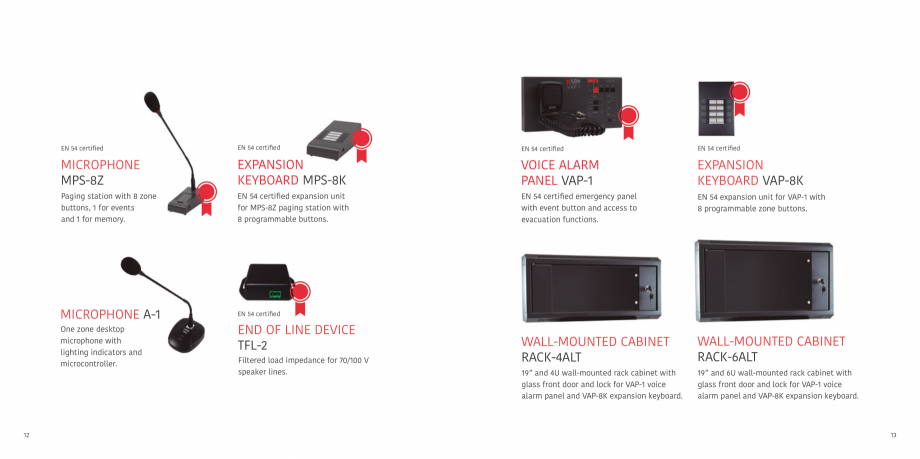

E-BC1 License Card to activate EN 54 certified battery charger. RACK MOUNTING ONE-RMA EN 54 certified 19” rack mounting kit for ONE unit. WALL MOUNTING ONE-WMA EN 54 certified wall mounting kit for ONE unit. RACK FIXED MOUNTING KIT ONE-RMA2 Mounting kit 2U for 19” rack cabinet for ONE unit. 10 11 EN 54 certified EN 54 certified EN 54 certified EN 54 certified MICROPHONE MPS-8Z EXPANSION KEYBOARD MPS-8K VOICE ALARM PANEL VAP-1 EXPANSION KEYBOARD VAP-8K Paging station with 8 zone buttons, 1 for events and 1 for memory. EN 54 certified expansion unit for MPS‑8Z paging station with 8 programmable buttons. EN 54 certified emergency panel with event button and access to evacuation functions. EN 54 expansion unit for VAP‑1 with 8 programmable zone buttons. MICROPHONE A-1 EN 54 certified WALL-MOUNTED CABINET RACK-4ALT WALL-MOUNTED CABINET RACK-6ALT 19” and 4U wall-mounted rack cabinet with glass front door and lock for VAP-1 voice alarm panel and VAP-8K expansi

Pagina 5-Sistem de evacuare si adresare publica compact EN54-16 - LDA ONE LDA Audio Tech ONE-500 Catalog,...

Pagina 6 - Sistem de evacuare si adresare publica compact EN54-16 - LDA ONE LDA Audio Tech ONE-500...

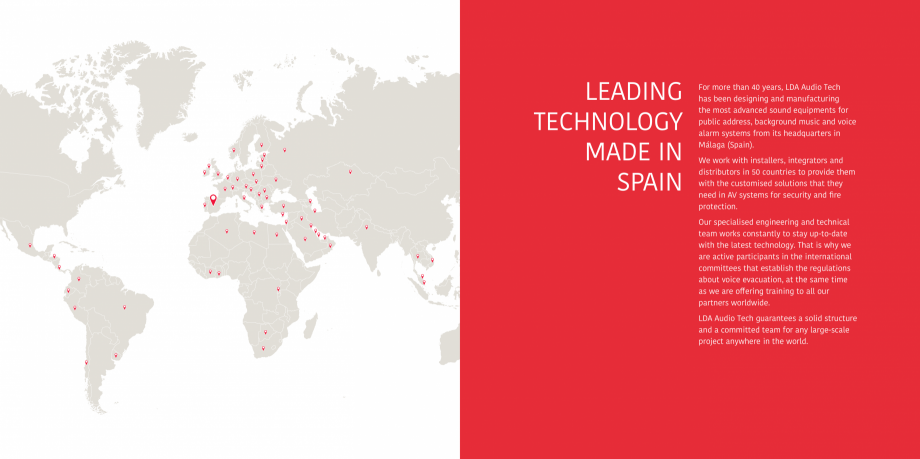

on keyboard. 19” and 6U wall-mounted rack cabinet with glass front door and lock for VAP-1 voice alarm panel and VAP-8K expansion keyboard. One zone desktop microphone with lighting indicators and microcontroller. 12 END OF LINE DEVICE TFL-2 Filtered load impedance for 70/100 V speaker lines. 13 LEADING TECHNOLOGY MADE IN SPAIN For more than 40 years, LDA Audio Tech has been designing and manufacturing the most advanced sound equipments for public address, background music and voice alarm systems from its headquarters in Málaga (Spain). We work with installers, integrators and distributors in 50 countries to provide them with the customised solutions that they need in AV systems for security and fire protection. Our specialised engineering and technical team works constantly to stay up-to-date with the latest technology. That is why we are active participants in the international committees that establish the regulations about voice evacuation, at the same time as we are of

Pagina 6-Sistem de evacuare si adresare publica compact EN54-16 - LDA ONE LDA Audio Tech ONE-500 Catalog,...

Pagina 7 - Sistem de evacuare si adresare publica compact EN54-16 - LDA ONE LDA Audio Tech ONE-500...

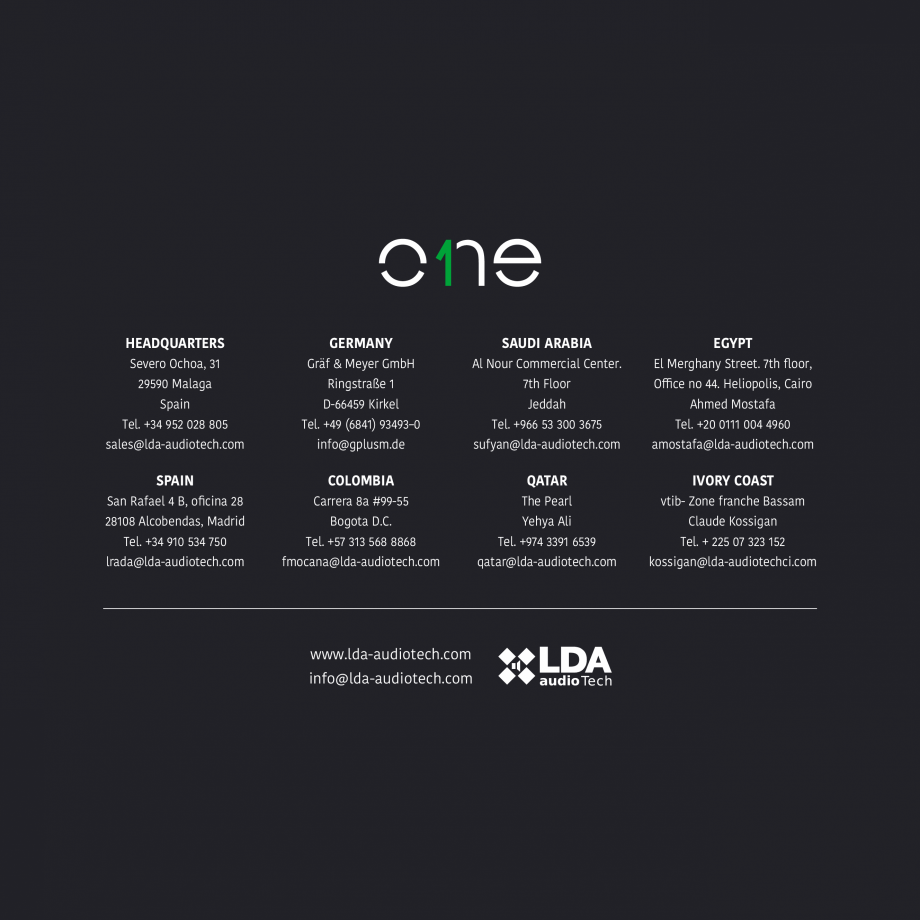

fering training to all our partners worldwide. LDA Audio Tech guarantees a solid structure and a committed team for any large-scale project anywhere in the world. 14 15 HEADQUARTERS Severo Ochoa, 31 GERMANY SAUDI ARABIA EGYPT Gräf & Meyer GmbH Al Nour Commercial Center. El Merghany Street. 7th floor, 29590 Malaga Ringstraße 1 7th Floor Office no 44. Heliopolis, Cairo Spain D-66459 Kirkel Jeddah Ahmed Mostafa Tel. +34 952 028 805 Tel. +49 (6841) 93493–0 Tel. +966 53 300 3675 Tel. +20 0111 004 4960 sales@lda-audiotech.com info@gplusm.de sufyan@lda-audiotech.com amostafa@lda-audiotech.com SPAIN San Rafael 4 B, oficina 28 COLOMBIA Carrera 8a #99-55 QATAR The Pearl IVORY COAST vtib- Zone franche Bassam 28108 Alcobendas, Madrid Bogota D.C. Yehya Ali Claude Kossigan Tel. +34 910 534 750 Tel. +57 313 568 8868 Tel. +974 3391 6539 Tel. + 225 07 323 152 lrada@lda-audiotech.com fmocana@lda-audiotech.com qatar@lda-audiotech.com kossigan@lda-audiotec
