Sistem de hidroizolatie cu membrana lichida din material plastic - Prezentare generala BAUDER BauderLIQUITEC PU

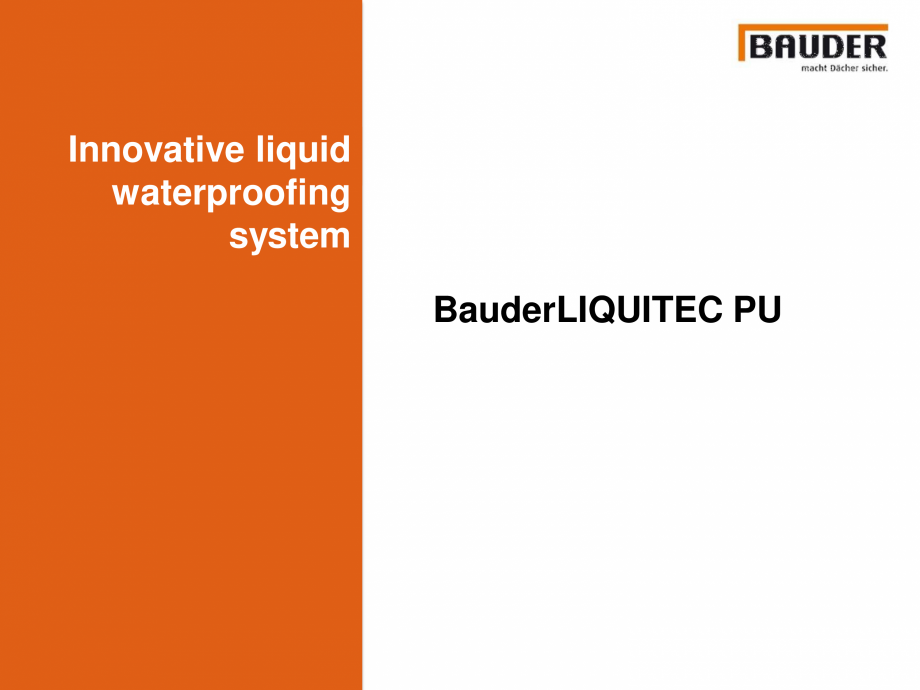

Innovative liquid
waterproofing
system
BauderLIQUITEC PU

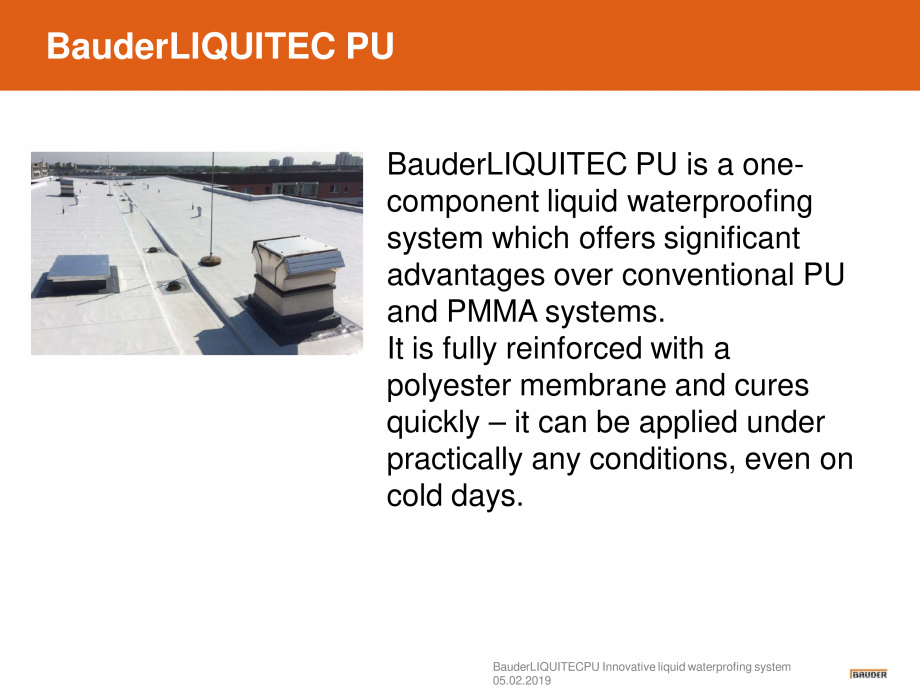

BauderLIQUITEC PU
BauderLIQUITEC PU is a onecomponent liquid waterproofing
system which offers significant
advantages over conventional PU
and PMMA systems.
It is fully reinforced with a
polyester membrane and cures
quickly – it can be applied under
practically any conditions, even on
cold days.
BauderLIQUITECPU Innovative liquid waterprofing system
05.02.2019
BauderLIQUITEC PU

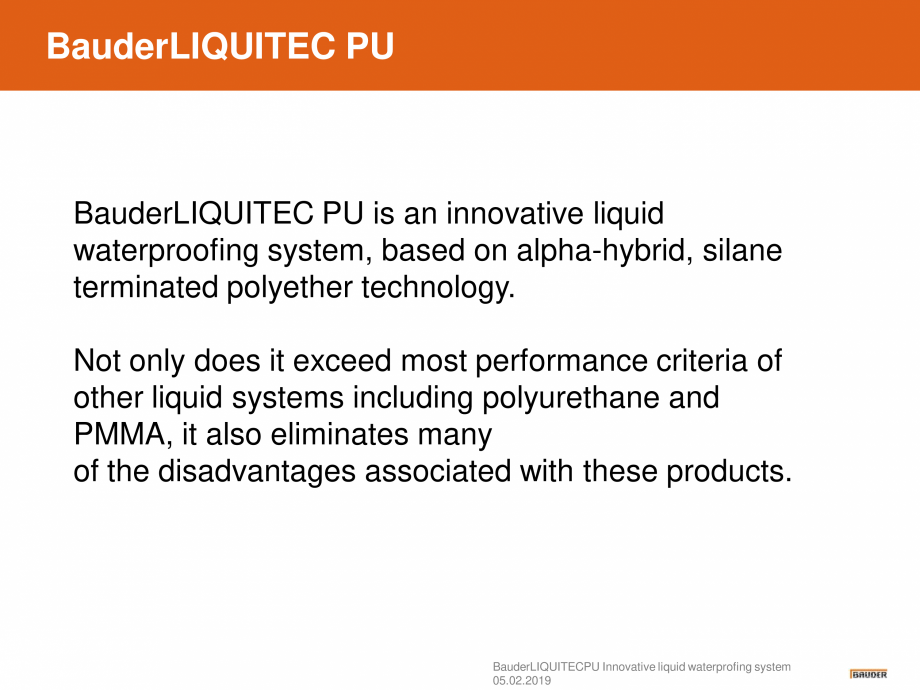

BauderLIQUITEC PU is an innovative liquid
waterproofing system, based on alpha-hybrid, silane
terminated polyether technology.
Not only does it exceed most performance criteria of
other liquid systems including polyurethane and
PMMA, it also eliminates many
of the disadvantages associated with these products.
BauderLIQUITECPU Innovative liquid waterprofing system
05.02.2019
BauderLIQUITEC PU

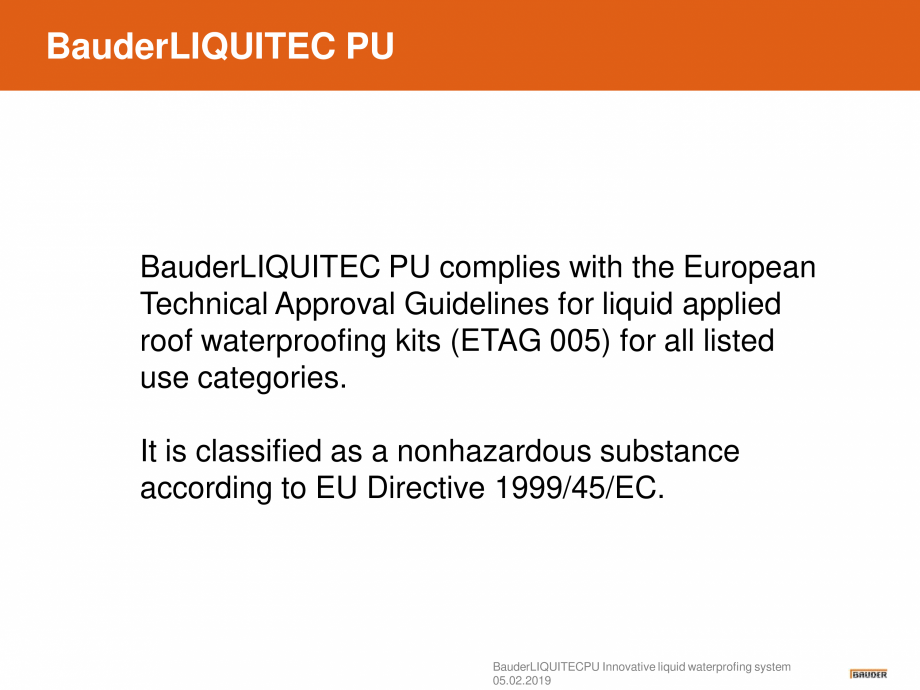

BauderLIQUITEC PU complies with the European
Technical Approval Guidelines for liquid applied
roof waterproofing kits (ETAG 005) for all listed
use categor
ies.
It is classified as a nonhazardous substance
according to EU Directive 1999/45/EC.
BauderLIQUITECPU Innovative liquid waterprofing system
05.02.2019
BauderLIQUITEC PU

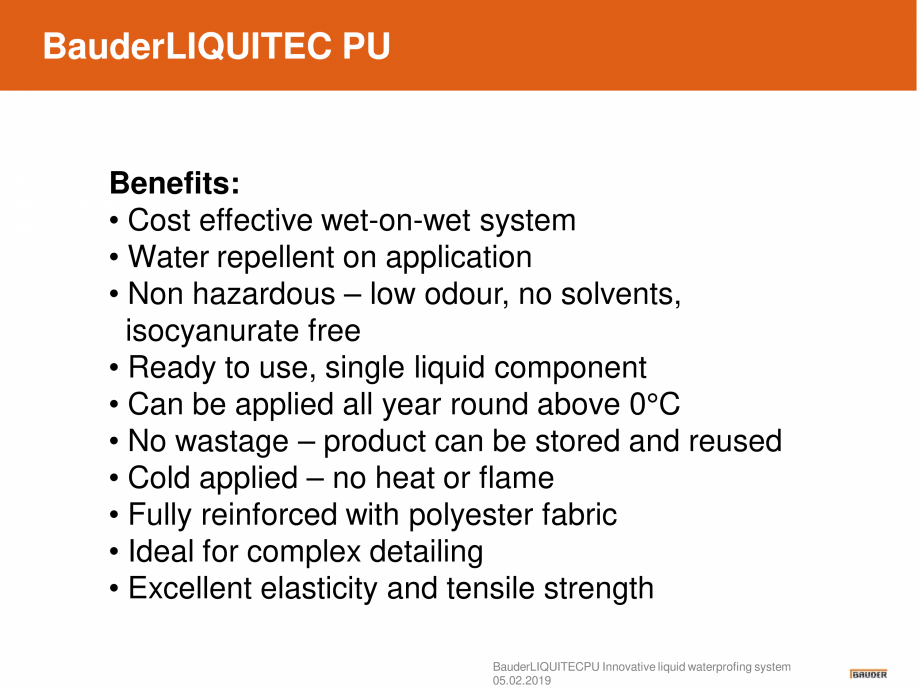

Benefits:
• Cost effective wet-on-wet system
• Water repellent on application
• Non hazardous – low odour, no solvents,
isocyanurate free
• Ready to use, single liquid component
• Can be applied all year round above 0°C
• No wastage – product can be stored and reused
• Cold applied – no heat or flame
• Fully reinforced with polyester fabric
• Ideal for complex detailing
• Excellent elasticity and tensile strength
BauderLIQUITECPU Innovative liquid waterprofing system
05.02.2019
BauderLIQUITEC PU

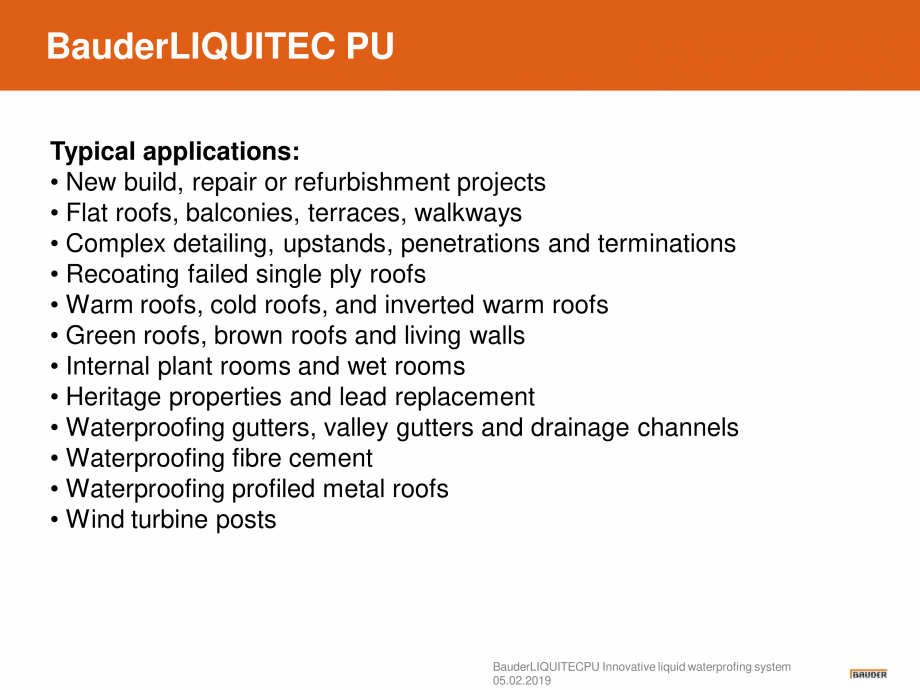

Typical applications:
• New build, repair or refurbishment projects
• Flat roofs, balconies, terraces, walkways
• Complex detailing, upstands, penetrations and terminations
• Recoating failed single ply roofs
• Warm roofs, cold roofs, and inverted warm roofs
• Green roofs, brown ro
ofs and living walls
• Internal plant rooms and wet rooms
• Heritage properties and lead replacement
• Waterproofing gutters, valley gutters and drainage channels
• Waterproofing fibre cement
• Waterproofing profiled metal roofs
• Wind turbine posts
BauderLIQUITECPU Innovative liquid waterprofing system
05.02.2019
BauderLIQUITEC PU

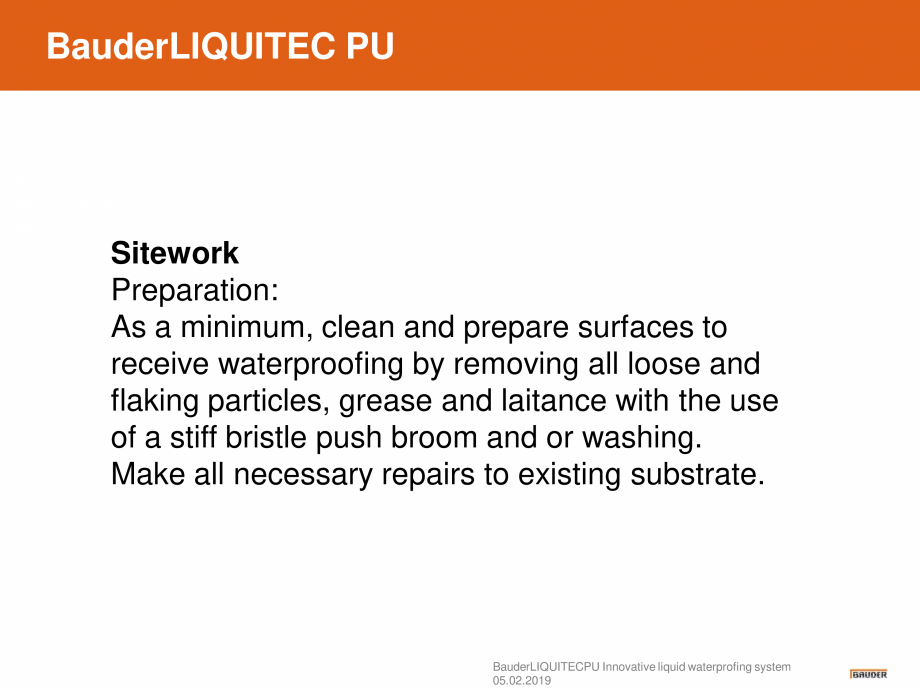

Sitework
Preparation:
As a minimum, clean and prepare surfaces to
receive waterproofing by removing all loose and
flaking particles, grease and laitance with the use
of a stiff bristle push broom and or washing.
Make all necessary repairs to existing substrate.
BauderLIQUITECPU Innovative liquid waterprofing system
05.02.2019
BauderLIQUITEC PU

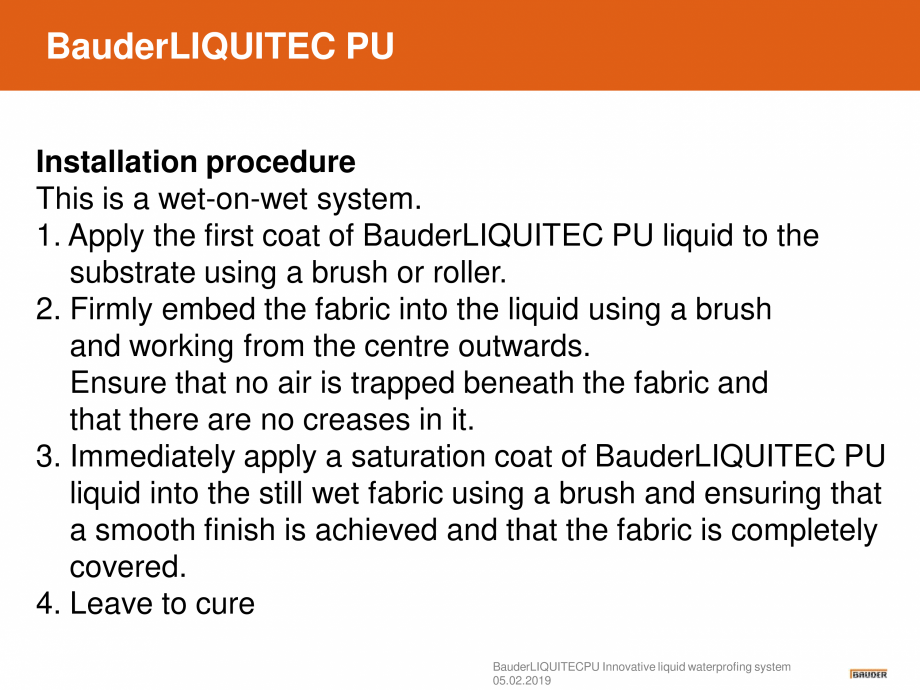

Installation procedure
This is a wet-on-wet system.
1. Apply the first coat of BauderLIQUITEC PU liquid to the
substrate using a brush or roller.
2. Firmly embed the fabric into the liquid using a brush
and working from the centre outwards.
Ensure that no air is trapped beneath the fabric and
that th
ere are no creases in it.
3. Immediately apply a saturation coat of BauderLIQUITEC PU
liquid into the still wet fabric using a brush and ensuring that
a smooth finish is achieved and that the fabric is completely
covered.
4. Leave to cure
BauderLIQUITECPU Innovative liquid waterprofing system
05.02.2019
BauderLIQUITEC PU

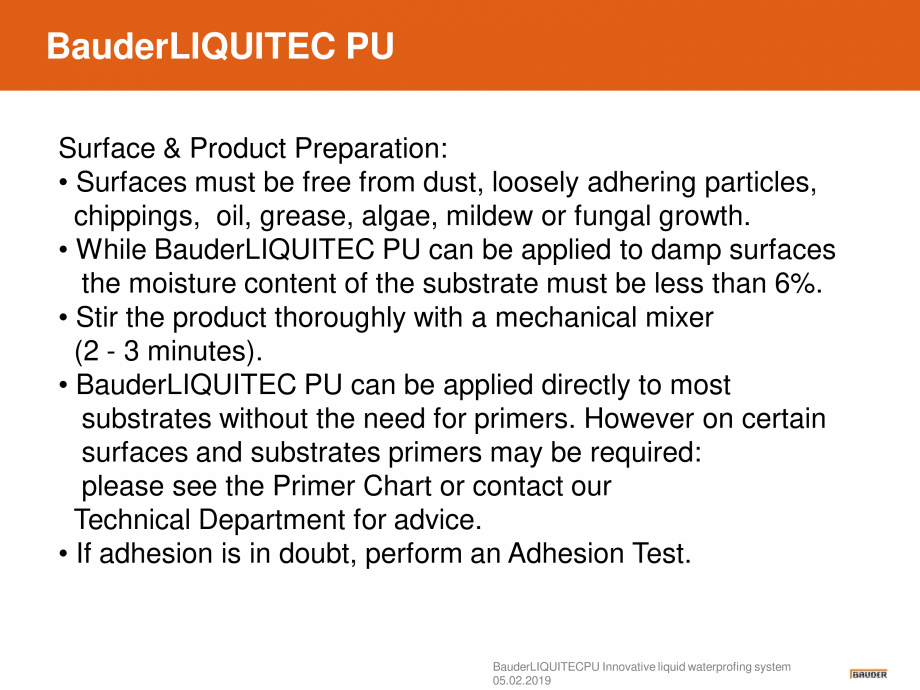

Surface & Product Preparation:
• Surfaces must be free from dust, loosely adhering particles,
chippings, oil, grease, algae, mildew or fungal growth.
• While BauderLIQUITEC PU can be applied to damp surfaces
the moisture content of the substrate must be less than 6%.
• Stir the product thoroughly with a mechanical mixer
(2 - 3 minutes).
• BauderLIQUITEC PU can be applied directly to most
substrates without the need for primers. However on certain
surfaces and substrates primers may be required:
please see the Primer Chart or contact our
Technical Department for advice.
• If adhesion is in doubt, perform an Adhesion Test.
BauderLIQUITECPU Innovative liquid
waterprofing system
05.02.2019
BauderLIQUITEC PU

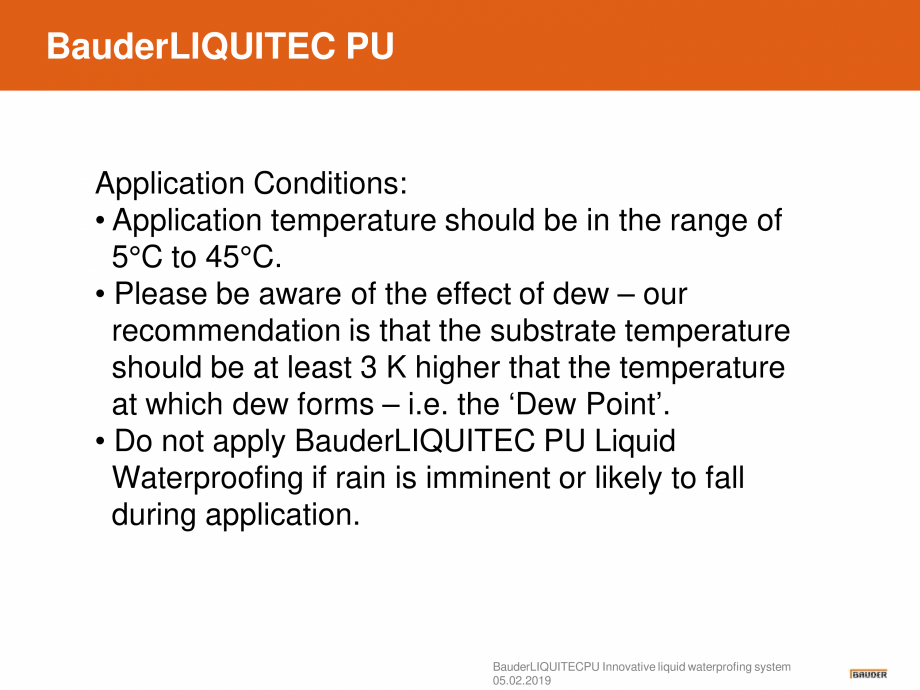

Application Conditions:
• Application temperature should be in the range of
5°C to 45°C.
• Please be aware of the effect of dew – our
recommendation is that the substrate temperature
should be at least 3 K higher that the temperature
at which dew forms – i.e. the ‘Dew Point’.
• Do not apply BauderLIQUITEC PU Liquid
Waterproofing if rain is imminent or likely to fall
during application.
BauderLIQUITECPU Innovative liquid waterprofing system
05.02.2019
BauderLIQUITEC PU

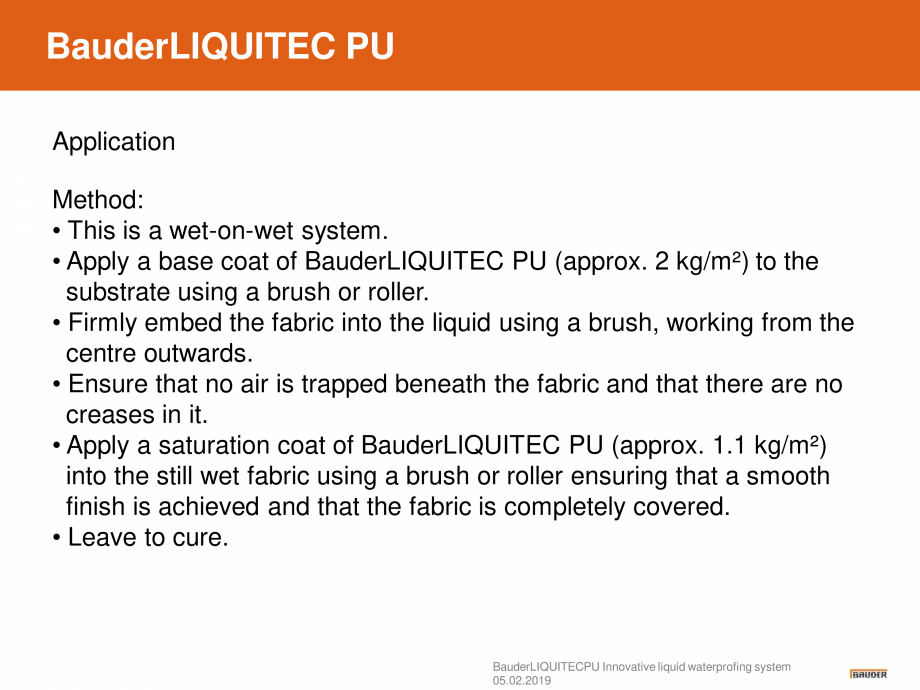

Application
Method:
• This is a wet-on-wet system.
• Apply a base coat of BauderLIQUITEC PU (approx. 2 kg/m²) to the
substrate using a brush or roller.
• Firmly embed the fabric into the liquid using a brush, working from the
centre outwards.
• Ensure that no air is trapped beneath the fabric and that there are no
creases in it.
• Apply a saturation coat of BauderLIQUITEC PU (approx. 1.1 kg/m²)
into the still wet fabric using a brush or rol
ler ensuring that a smooth
finish is achieved and that the fabric is completely covered.
• Leave to cure.
BauderLIQUITECPU Innovative liquid waterprofing system
05.02.2019
BauderLIQUITEC PU

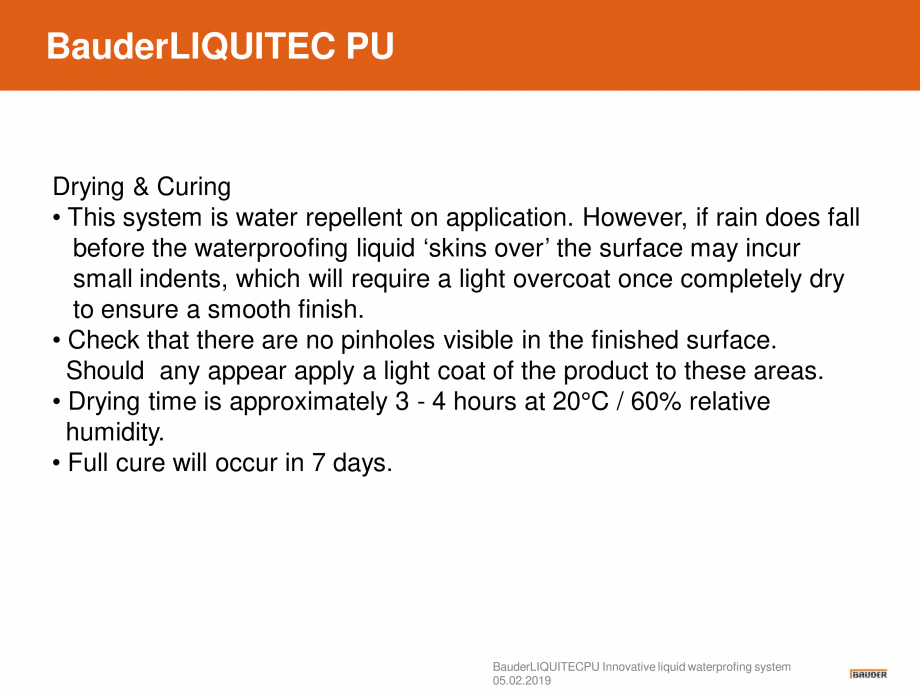

Drying & Curing
• This system is water repellent on application. However, if rain does fall
before the waterproofing liquid ‘skins over’ the surface may incur
small indents, which will require a light overcoat once completely dry
to ensure a smooth finish.
• Check that there are no pinholes visible in the finished surface.
Should any appear apply a light coat of the product to these areas.
• Drying time is approximately 3 - 4 hours at 20°C / 60% relative
humidity.
• Full cure will occur in 7 days.
BauderLIQUITECPU Innovative liquid waterprofing system
05.02.2019
BauderLIQUITEC PU

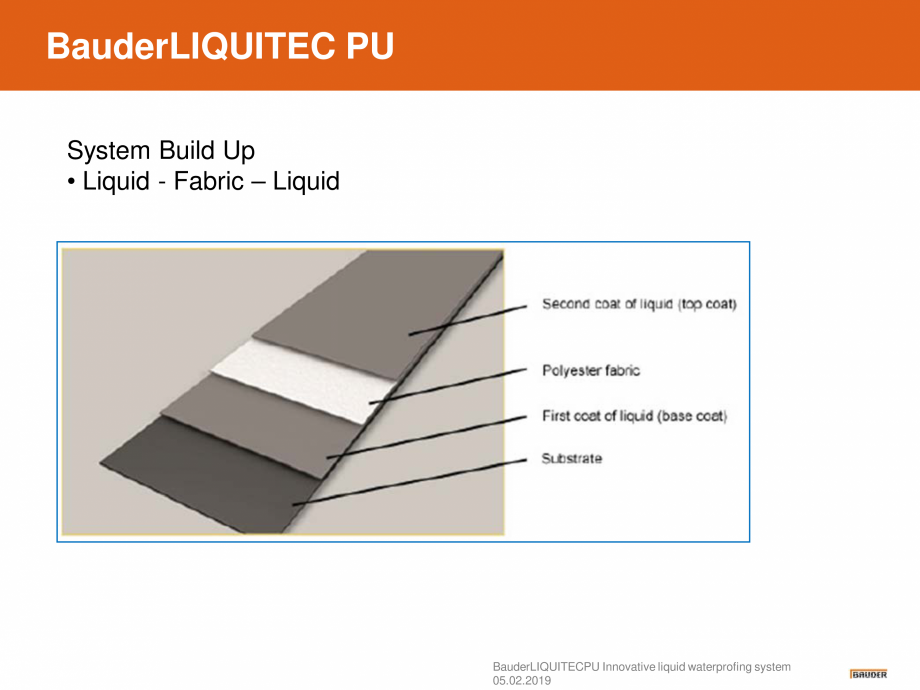

System Build Up
• Liquid - Fabric – Liquid
BauderLIQUITECPU Innovative liquid waterprofing system
05.02.2019
