Page 1 Title page Page 2 Shaft with walls Page 3 Shaft without walls Page 4 KLAUS Multiparking GmbH Hermann-Krum-Straße 2 D-88319 Aitrach Fon +49 (0 ) 75 65 5 08-0 Fax +49 (0 ) 75 65 5 08-88 info@multiparking.com www.multiparking.com PRODUCT DATA Shelf system, crosswise The automatic shelf system is arranged similar to a high-bay storage system and particularly suited for narrow and long premises. Tower/shaft with walls Page 5 Tower/shaft The shelf system can be designed as above-ground or underground system or as a combination of both variants. without walls Variants Storage and retrieval unit with horizontal and vertical conveying unit Optional turning unit Up to 8 parking levels Vehicle height variable Different level height possible Floor loads per parking space: 2500 kg Higher loads per parking space possible upon request Please note the separate technical information. MasterVario R3 C | Code number 586.45.040 | Version 09.2012 Page 6 MasterVario R3 C | Code numb

Pagina 1-Sistem de parcare hidraulic R3C KLAUS MASTERVARIO R3 Fisa tehnica Engleza Page 1
Title page

Page 2
...

Pagina 2 - Sistem de parcare hidraulic R3C KLAUS MASTERVARIO R3 Fisa tehnica Engleza er 586.35.800 |...

er 586.35.800 | Version 09.2012 Page 1 Title page Page 2 Page 2 of 6 Shaft design. With walls or support between the parking spaces For 1–8 levels Up to 80 metres length Transfer cabin located directly above storage and retrieval unit, or in the area of the parking spaces Parking levels with different heights for variable vehicle heights Multi-row arrangement possible Turning unit optional (in transfer cabin or in system) Shaft with walls Transfer cabin above storage and retrieval unit Transfer cabin within the area of the parking spaces Electrical cabinet Close to the transfer cabin room for an electrical cabinet is to be provided. Minimum dimensions: l: 240 cm, w: 200 cm, h: 230 cm. 270 35 35 Page 5 60 Tower/shaft 225 280 730 H2 H2 H1 90 H2 90 H2 with walls 60 225 Page 6 225 280 730 225 280 25 25 L1 L1 L3 L3 25 25 620 L2 Variants L4 without walls H2+180 Tower/shaft H2 Page 4 H2 H1 without walls max. 35 Shaft 270 Page 3 max. 220 L2

Pagina 2-Sistem de parcare hidraulic R3C KLAUS MASTERVARIO R3 Fisa tehnica Engleza er 586.35.800 | Version 09...

Pagina 3 - Sistem de parcare hidraulic R3C KLAUS MASTERVARIO R3 Fisa tehnica Engleza
L2

25

25

L3...

L2 25 25 L3 L3 max. 220 730 730 Height dimensions Length dimensions all levels for vehicles up to 160 cm levels 1 2 3 4 5 6 7 max. 8 H1 261 472 644 831 1030 1175 1362 1534 car height 160 160 160 160 160 160 160 160 H2 172 172 172 172 172 172 172 172 with 1 level for vehicles up to 200 cm H1 308 481 679 852 1025 1198 1371 1544 car height 200 160 160 160 160 160 160 160 H2 212 172 172 172 172 172 172 172 parking spaces per level 6 8 10 12 14 16 18 20 L1 1905 2475 3045 3615 4185 4755 5325 5895 only 1 level L2 655 655 655 655 655 655 655 655 Depending on the location of the transfer cabin the number of parking spaces may differ. From 2 parking levels an additional height of 35 cm is required for the storage and retrieval unit. In case of ceiling thicknesses greater 35 cm the dimension 60 must be increased by the same value. All length (L) are examples and depending on the actual width of the intermediate walls or supports. If a turning unit is used on the storage an

Pagina 3-Sistem de parcare hidraulic R3C KLAUS MASTERVARIO R3 Fisa tehnica Engleza
L2

25

25

L3

L3

max.
...

Pagina 4 - Sistem de parcare hidraulic R3C KLAUS MASTERVARIO R3 Fisa tehnica Engleza d retrieval...

d retrieval unit, the dimension 60 must be increased by 50 cm. In case of more than 4 levels crossbars are to be provided in each third level (+ 15 cm). System with entry above storage and retrieval unit. L3 545 545 545 545 545 545 545 545 L1 1960 2565 3170 3775 4380 4985 5590 6195 from 2 levels L3 L2 665 580 665 580 665 580 665 580 665 580 665 580 665 580 665 580 L4 690 690 690 690 690 690 690 690 MasterVario R3 C | Code number 586.35.800 | Version 09.2012 Page 1 Title page Page 2 Page 3 of 6 Shaft design. Without walls or support between the parking spaces For 1–8 levels Up to 80 metres length Transfer cabin located directly above storage and retrieval unit, or in the area of the parking spaces Parking levels with different heights for variable vehicle heights Multi-row arrangement possible Turning unit optional (in transfer cabin or in system) Shaft with walls Transfer cabin above storage and retrieval unit Transfer cabin within the area of the parking spaces Electri

Pagina 4-Sistem de parcare hidraulic R3C KLAUS MASTERVARIO R3 Fisa tehnica Engleza d retrieval unit, the...

Pagina 5 - Sistem de parcare hidraulic R3C KLAUS MASTERVARIO R3 Fisa tehnica Engleza cal cabinet...

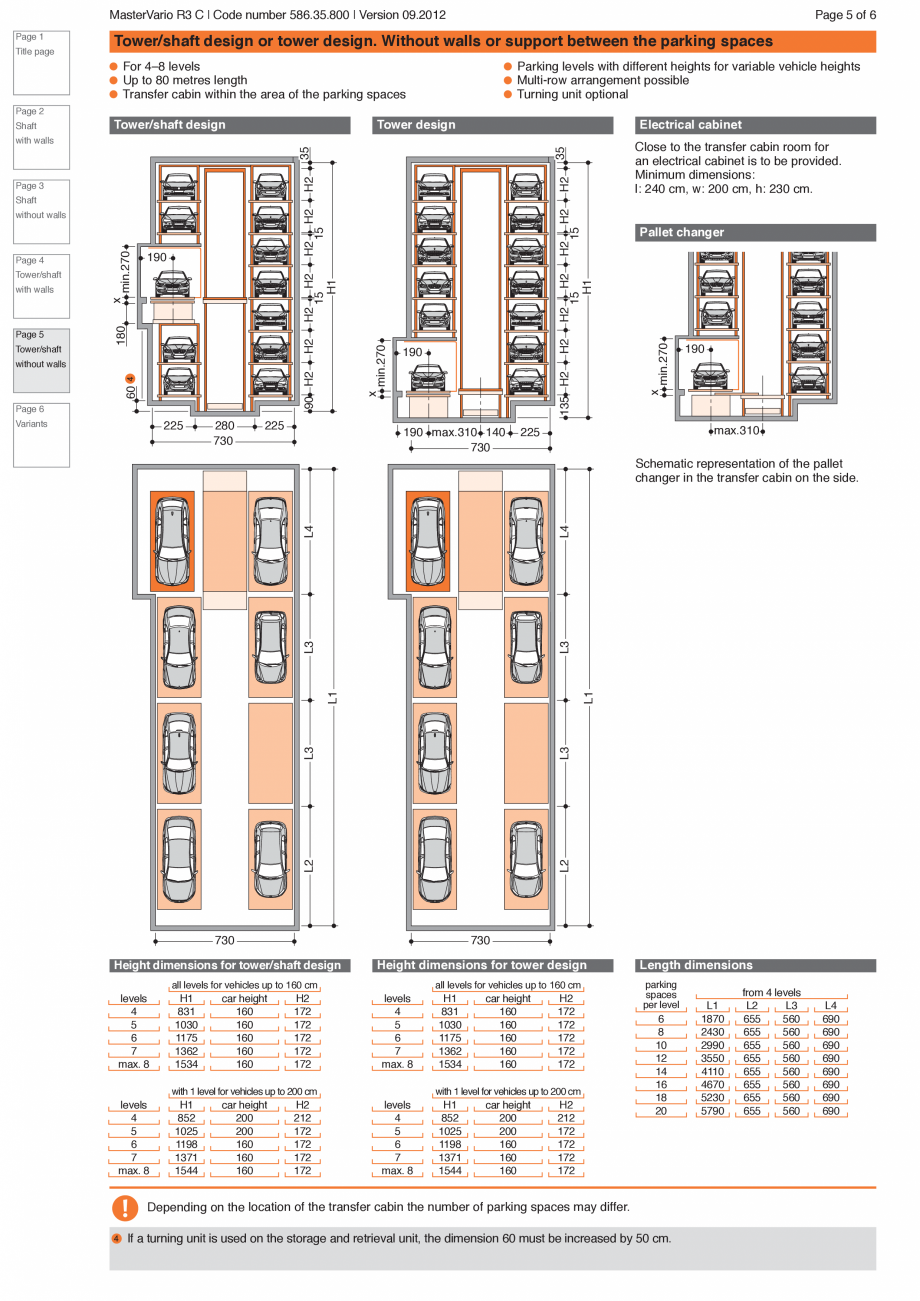

cal cabinet Close to the transfer cabin room for an electrical cabinet is to be provided. Minimum dimensions: l: 240 cm, w: 200 cm, h: 230 cm. 35 35 Page 5 60 Tower/shaft 225 280 730 H2 90 H2 H2 H1 H2 90 H2 with walls 60 225 Page 6 225 280 730 225 280 L1 L3 L3 L2 L2 L3 L1 L3 620 L2 Variants L4 without walls H2+180 Tower/shaft H2 H1 Page 4 270 without walls max. 35 Shaft 270 Page 3 730 730 Height dimensions Length dimensions all levels for vehicles up to 160 cm levels 1 2 3 4 5 6 7 max. 8 H1 261 472 644 831 1030 1175 1362 1534 car height 160 160 160 160 160 160 160 160 H2 172 172 172 172 172 172 172 172 with 1 level for vehicles up to 200 cm H1 308 481 679 852 1025 1198 1371 1544 car height 200 160 160 160 160 160 160 160 H2 212 172 172 172 172 172 172 172 parking spaces per level 6 8 10 12 14 16 18 20 L1 1850 2390 3470 4010 4550 4700 5100 5640 only 1 level L2 655 655 655 655 655 655 655 655 Depending on the location of the transfe

Pagina 5-Sistem de parcare hidraulic R3C KLAUS MASTERVARIO R3 Fisa tehnica Engleza cal cabinet
Close to the...

Pagina 6 - Sistem de parcare hidraulic R3C KLAUS MASTERVARIO R3 Fisa tehnica Engleza r cabin the...

r cabin the number of parking spaces may differ. From 2 parking levels an additional height of 35 cm is required for the storage and retrieval unit. In case of ceiling thicknesses greater 35 cm the dimension 60 must be increased by the same value. All length (L) are examples and depending on the actual width of the intermediate walls or supports. If a turning unit is used on the storage and retrieval unit, the dimension 60 must be increased by 50 cm. In case of more than 4 levels crossbars are to be provided in each third level (+ 15 cm). System with entry above storage and retrieval unit. L3 540 540 540 540 540 540 540 540 L1 1870 2430 2990 3550 4110 4670 5230 5790 from 2 levels L3 L2 655 560 655 560 655 560 655 560 655 560 655 560 655 560 655 560 L4 690 690 690 690 690 690 690 690 MasterVario R3 C | Code number 586.35.800 | Version 09.2012 Page 1 Title page Page 4 of 6 Tower/shaft design or tower design. With walls or support between the parking spaces For 4–8 levels Up to
