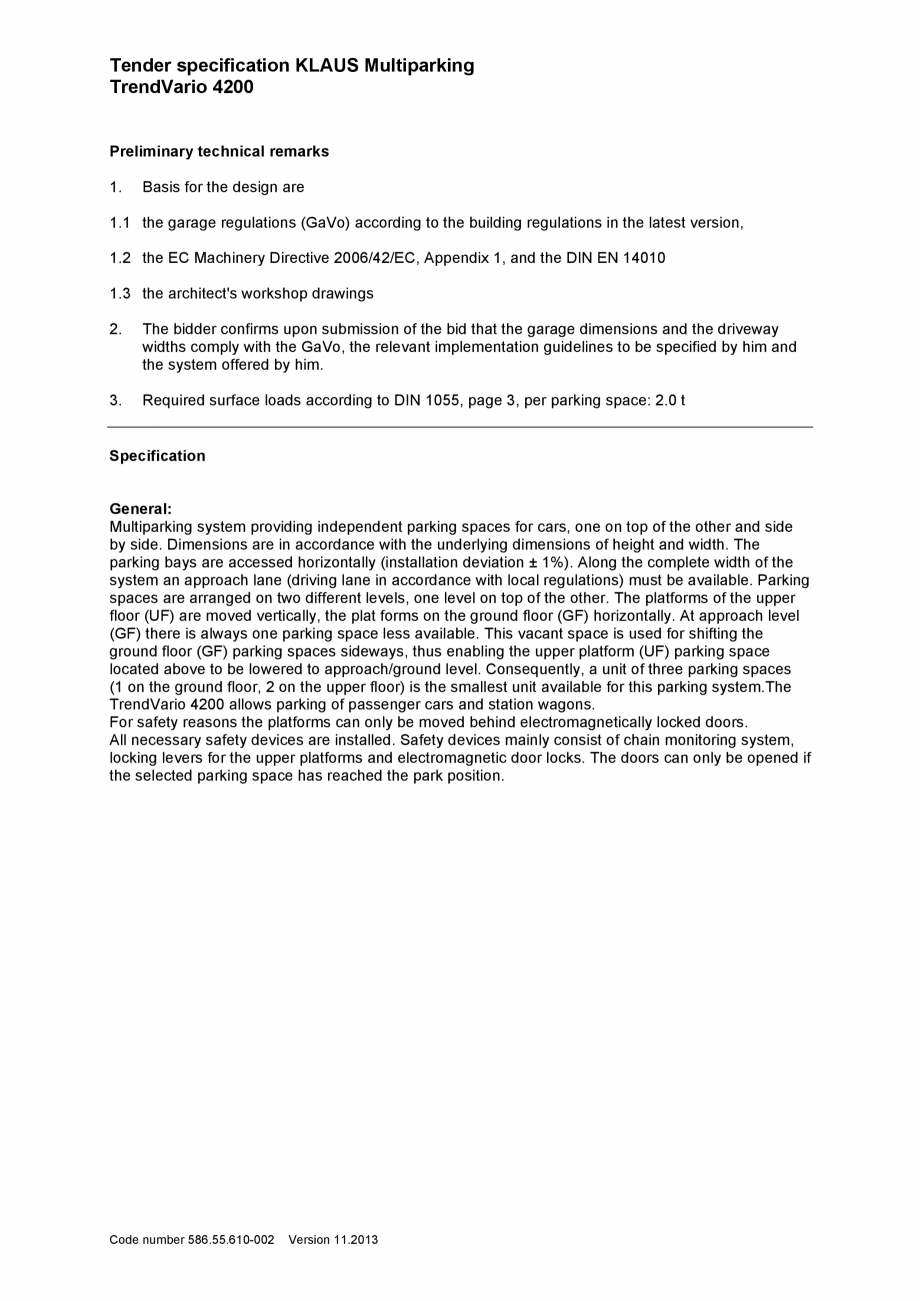

Tender specification KLAUS Multiparking TrendVario 4200 Preliminary technical remarks 1. Basis for the design are 1.1 the garage regulations (GaVo) according to the building regulations in the latest version, 1.2 the EC Machinery Directive 2006/42/EC, Appendix 1, and the DIN EN 14010 1.3 the architect's workshop drawings 2. The bidder confirms upon submission of the bid that the garage dimensions and the driveway widths comply with the GaVo, the relevant implementation guidelines to be specified by him and the system offered by him. 3. Required surface loads according to DIN 1055, page 3, per parking space: 2.0 t Specification General: Multiparking system providing independent parking spaces for cars, one on top of the other and side by side. Dimensions are in accordance with the underlying dimensions of height and width. The parking bays are accessed horizontally (installation deviation ± 1%). Along the complete width of the system an approach lane (driving lane in accordance w

Pagina 1-Sistem de parcare - Specificatii tehnice KLAUS TRENDVARIO 4200 Fisa tehnica Engleza Tender...

Pagina 2 - Sistem de parcare - Specificatii tehnice KLAUS TRENDVARIO 4200 Fisa tehnica Engleza ith...

ith local regulations) must be available. Parking spaces are arranged on two different levels, one level on top of the other. The platforms of the upper floor (UF) are moved vertically, the plat forms on the ground floor (GF) horizontally. At approach level (GF) there is always one parking space less available. This vacant space is used for shifting the ground floor (GF) parking spaces sideways, thus enabling the upper platform (UF) parking space located above to be lowered to approach/ground level. Consequently, a unit of three parking spaces (1 on the ground floor, 2 on the upper floor) is the smallest unit available for this parking system.The TrendVario 4200 allows parking of passenger cars and station wagons. For safety reasons the platforms can only be moved behind electromagnetically locked doors. All necessary safety devices are installed. Safety devices mainly consist of chain monitoring system, locking levers for the upper platforms and electromagnetic door locks. The doors c

Pagina 2-Sistem de parcare - Specificatii tehnice KLAUS TRENDVARIO 4200 Fisa tehnica Engleza ith local...

Pagina 3 - Sistem de parcare - Specificatii tehnice KLAUS TRENDVARIO 4200 Fisa tehnica Engleza an...

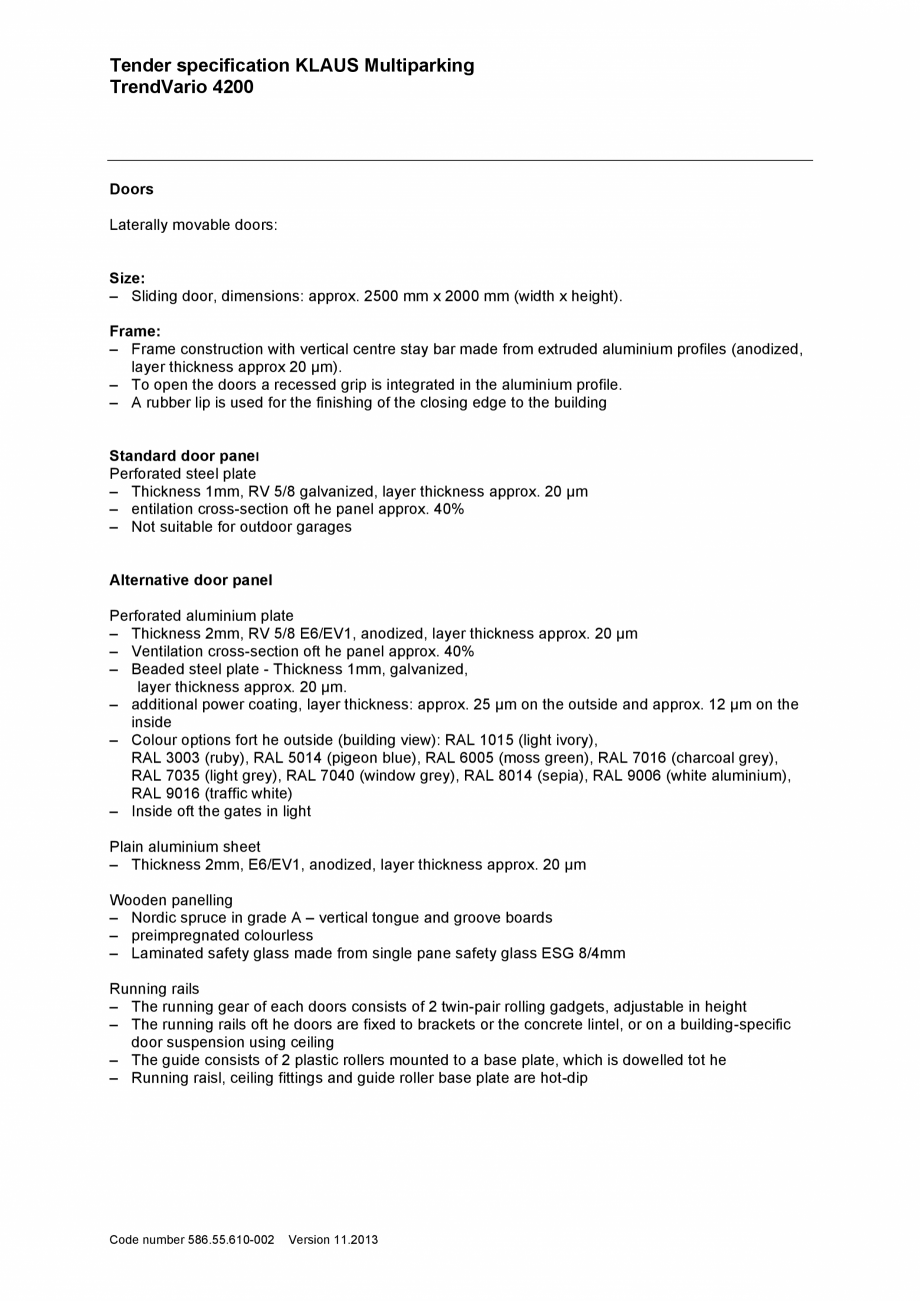

an only be opened if the selected parking space has reached the park position. Code number 586.55.610-002 Version 11.2013 Tender specification KLAUS Multiparking TrendVario 4200 Doors Laterally movable doors: Size: – Sliding door, dimensions: approx. 2500 mm x 2000 mm (width x height). Frame: – Frame construction with vertical centre stay bar made from extruded aluminium profiles (anodized, layer thickness approx 20 µm). – To open the doors a recessed grip is integrated in the aluminium profile. – A rubber lip is used for the finishing of the closing edge to the building Standard door panel Perforated steel plate – Thickness 1mm, RV 5/8 galvanized, layer thickness approx. 20 µm – entilation cross-section oft he panel approx. 40% – Not suitable for outdoor garages Alternative door panel Perforated aluminium plate – Thickness 2mm, RV 5/8 E6/EV1, anodized, layer thickness approx. 20 µm – Ventilation cross-section oft he panel approx. 40% – Beaded steel plate -

Pagina 3-Sistem de parcare - Specificatii tehnice KLAUS TRENDVARIO 4200 Fisa tehnica Engleza an only be...

Pagina 4 - Sistem de parcare - Specificatii tehnice KLAUS TRENDVARIO 4200 Fisa tehnica Engleza...

Thickness 1mm, galvanized, layer thickness approx. 20 µm. – additional power coating, layer thickness: approx. 25 µm on the outside and approx. 12 µm on the inside – Colour options fort he outside (building view): RAL 1015 (light ivory), RAL 3003 (ruby), RAL 5014 (pigeon blue), RAL 6005 (moss green), RAL 7016 (charcoal grey), RAL 7035 (light grey), RAL 7040 (window grey), RAL 8014 (sepia), RAL 9006 (white aluminium), RAL 9016 (traffic white) – Inside oft the gates in light Plain aluminium sheet – Thickness 2mm, E6/EV1, anodized, layer thickness approx. 20 µm Wooden panelling – Nordic spruce in grade A – vertical tongue and groove boards – preimpregnated colourless – Laminated safety glass made from single pane safety glass ESG 8/4mm Running rails – The running gear of each doors consists of 2 twin-pair rolling gadgets, adjustable in height – The running rails oft he doors are fixed to brackets or the concrete lintel, or on a building-specific door suspension usi

Pagina 4-Sistem de parcare - Specificatii tehnice KLAUS TRENDVARIO 4200 Fisa tehnica Engleza Thickness 1mm,...

Pagina 5 - Sistem de parcare - Specificatii tehnice KLAUS TRENDVARIO 4200 Fisa tehnica Engleza ng...

ng ceiling – The guide consists of 2 plastic rollers mounted to a base plate, which is dowelled tot he – Running raisl, ceiling fittings and guide roller base plate are hot-dip Code number 586.55.610-002 Version 11.2013 Tender specification KLAUS Multiparking TrendVario 4200 Door actuation Standard: – Manually, i.e. the door is opened and closed by hand Alternatively: – Electric drive via electric motor mounted oft he rail system at the turning point oft he sliding doors. The drive pinion engages into the chain mounted oft he door. For safety reasons the movement oft he platforms is always made behind locked doors. Position sensing, i.e. „door open“ and „door closed“ is effected by electic signalers. Separation (if necessary): – Upon request Please note: Door panels (on the side, cover for running rails, etc.) and door suspension are not inclueded in the standard version but can be delivered against surcharge as special equipment. Controll system: – Central con

Pagina 5-Sistem de parcare - Specificatii tehnice KLAUS TRENDVARIO 4200 Fisa tehnica Engleza ng ceiling
–...

Pagina 6 - Sistem de parcare - Specificatii tehnice KLAUS TRENDVARIO 4200 Fisa tehnica Engleza trol ...

trol panel (operating device) used to select the desired parking space – With series installation, the doors are opened manually. If desired, this can also be done using electic motors – Electric wiring is made from the electric cabinet by the manufacturer Corrosion protection: Corrosion protection according to DIN EN ISO12944-2, corrosive category C3 moderate – Platform profiles hot-dip galvanized in accordance with DIN EN ISO 1461, film thickness approx. 45 µm – Side member hot-dip galvanized in accordance with DIN EN ISO 1461, film thickness approx.55 µm – Cross members hot-dip galvanized in accordance with DIN EN ISO 1461, film thickness approx. 55 µm – Access plate hot-dip galvanized in accordance with DIN EN ISO 1461, film thickness approx. 55 µm, and additional orange powder- coating (Epoxy / Polyester base) RAL 2000, dry film thickness approx. 60 – 80 µm. – Fastening screws for platform profiles Stainless steel V4A (lower platform electrogalvanized) – Hyd

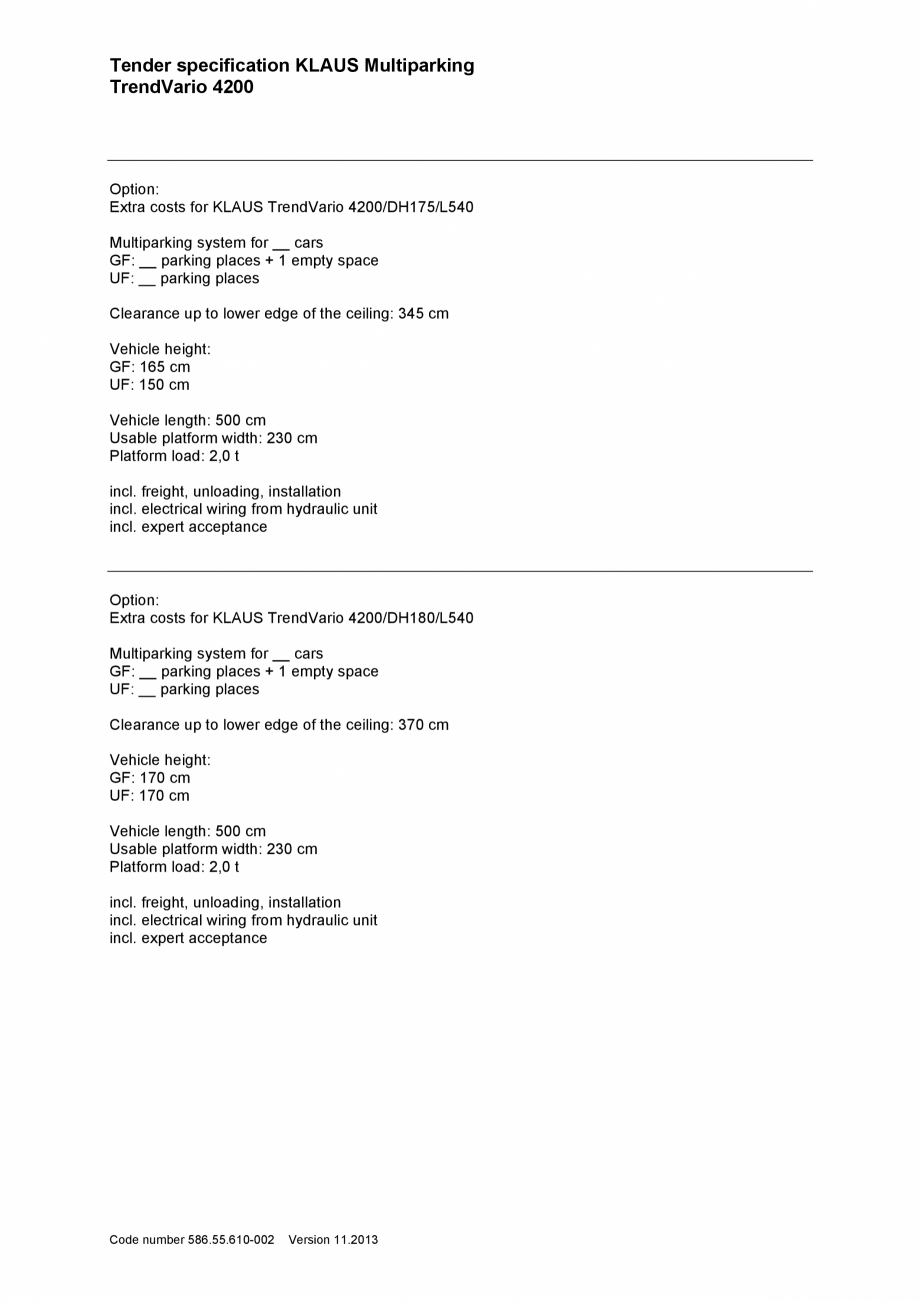

Pagina 6-Sistem de parcare - Specificatii tehnice KLAUS TRENDVARIO 4200 Fisa tehnica Engleza trol panel...

Pagina 7 - Sistem de parcare - Specificatii tehnice KLAUS TRENDVARIO 4200 Fisa tehnica Engleza...

raulic tubes, screwed joints, bolts, screws, nuts, washers electrogalvanized – Other steel components for example, steel construction, roller seating, drive mount, bearing plates and other small components: shot-peened (particle cleanliness SA 2.5) and grey powder coating (Epoxy / Polyester base) RAL 7040, dry film thickness approx. 60 – 80 µm – Rail unit hot-dip galvanized in accordance with DIN EN ISO 1461, film thickness approx. 55 µm Electrical supply: Control box: – The control box must be accessible at all times from outside. – Dimensions approx. 100 x 100 x 30 cm. Code number 586.55.610-002 Version 11.2013 Tender specification KLAUS Multiparking TrendVario 4200 – Parking system must be fully visible from control box. To be performed by the customer: 1. Electrical supply to the main switch / Foundation earth connector: Suitable electrical supply to the main switch and the control wire line must be provided by the customer during installation. The functionality

Pagina 7-Sistem de parcare - Specificatii tehnice KLAUS TRENDVARIO 4200 Fisa tehnica Engleza raulic tubes,...

Pagina 8 - Sistem de parcare - Specificatii tehnice KLAUS TRENDVARIO 4200 Fisa tehnica Engleza can...

can be monitored on site by our fitters together with the electrician. If this cannot be done during installation for some reason for which the customer is responsible, the customer must commission an electrician at their own expense and risk. In accordance with DIN EN 60204 (Safety of Machinery. Electrical Equipment), grounding of the steel structure is necessary, provided by the customer (distance between grounding max. 10 m). 2. Safety fences: Any constraints that may be necessary according to DIN EN ISO 13857 in order to provide protection, for pathways directly in front, next to or behind the unit. This is also valid during construction. 3. Numbering of parking spaces: Consecutive numbering of parking spaces. 4. Building services: Any required lighting, ventilation, fire extinguishing and fire alarm systems as well as clarification and compliance with the relevant regulatory requirements. 5. Door suspension: The lintel height H2 (see product data sheet TrendVario 4200) is

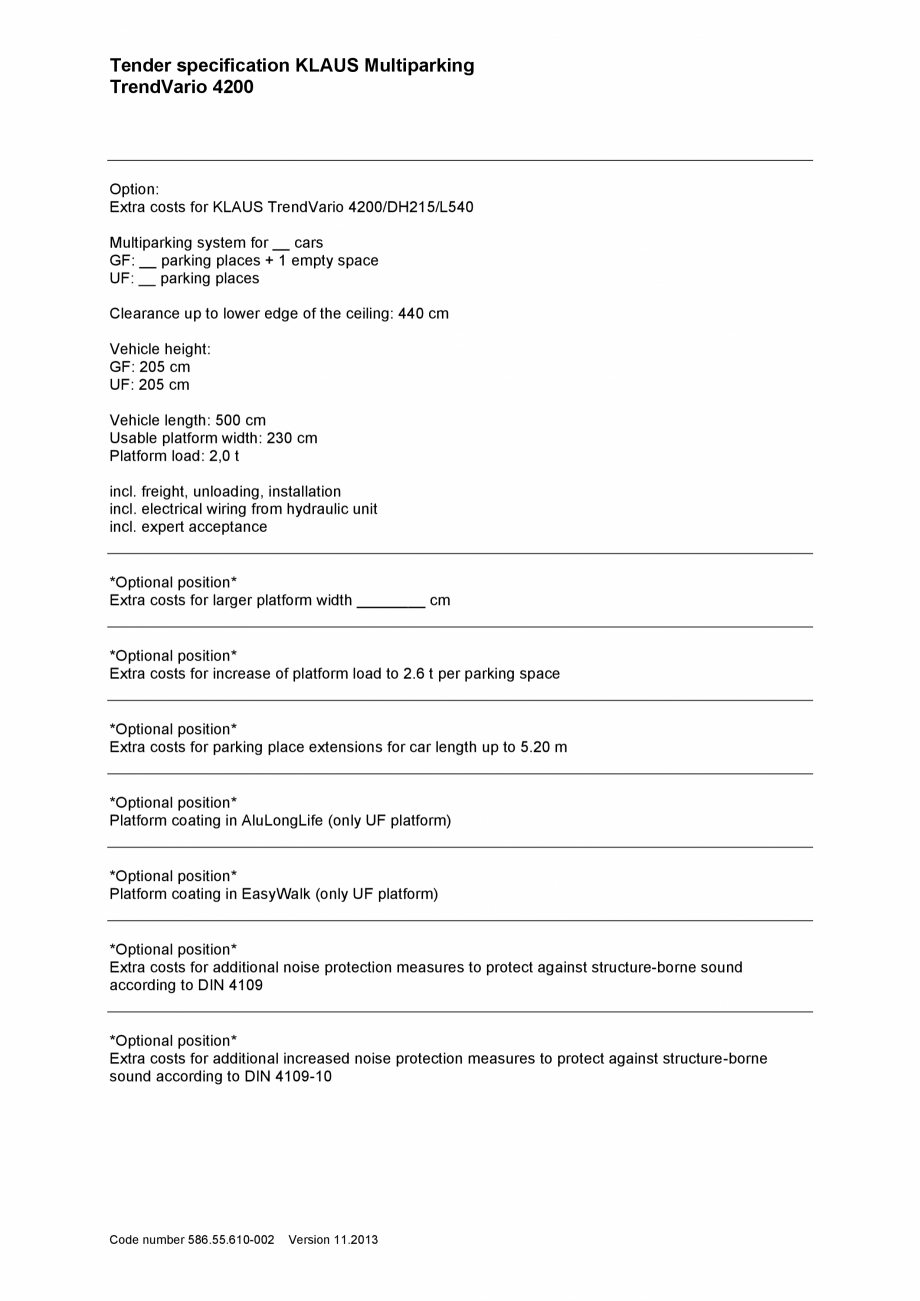

Pagina 8-Sistem de parcare - Specificatii tehnice KLAUS TRENDVARIO 4200 Fisa tehnica Engleza can be monitored...

Pagina 9 - Sistem de parcare - Specificatii tehnice KLAUS TRENDVARIO 4200 Fisa tehnica Engleza...

absolutely necessary. With differing heights, additional fixings are required for extra charge. 6. Door shields: Door shields that may be necessary. If desired, they can be ordered from KLAUS Multiparking for an additional charge. 7. Floor/rails: Flooring structure in accordance with product data sheet TrendVario 4200 (recesses, rail systems). Recesses, tolerances for the evenness of the driving lane must adhere to DIN 18202, sheet 3, line 3. Stuffing of rail system with cement floor for the whole length. Bringing in of floor pavement. 8. Wall cuttings: Any necessary wall cuttings according to product data sheet TrendVario 4200. 9. Concrete quality: Floor and walls are to be made of concrete (quality minimum C20/25). If the following positions are not listed in the bid, the following services are also to be provided by the customer: 10. Costs for expert acceptance Code number 586.55.610-002 Version 11.2013 Tender specification KLAUS Multiparking TrendVario 4200 Multiparki
