SYSTEM OVERVIEW
- VISIBLE FIXING
- CONCEALED FIXING
- SUSPENDED CEILING
- PHOTOVOLTAICS
·
·

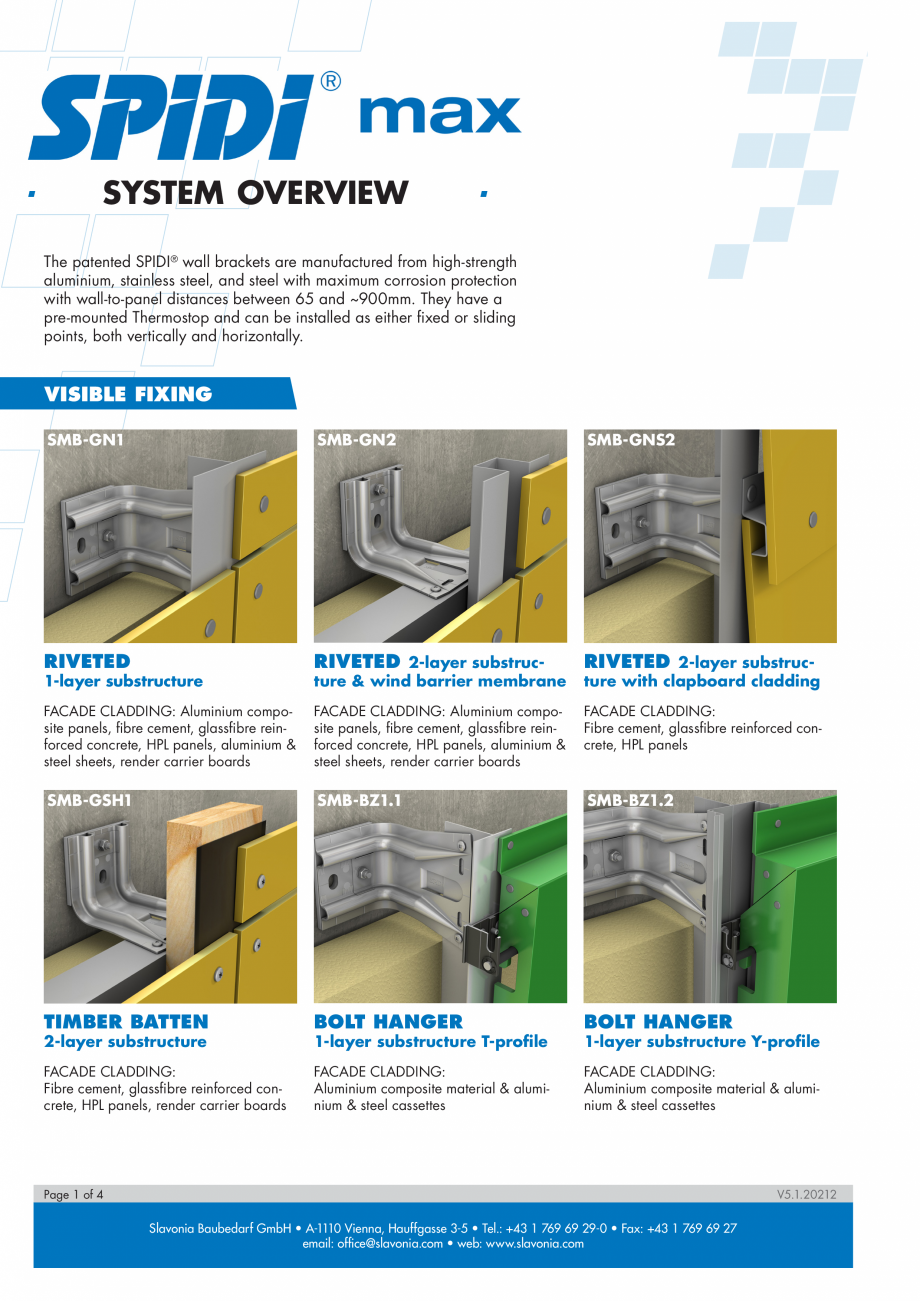

SYSTEM OVERVIEW
·
The patented SPIDI® wall brackets are manufactured from high-strength
aluminium, stainless steel, and steel with maximum corrosion protection
with wall-to-panel distances between 65 and ~900mm. They have a
pre-mounted Thermostop and can be installed as either fixed or sliding
points, both vertically and horizontally.
VISIBLE FIXING
SMB-GN1
SMB-GN2
SMB-GNS2
RIVETED
RIVETED 2-layer substruc-
RIVETED 2-layer substruc-
FACADE CLADDING: Aluminium composite panels, fibre cement, glassfibre reinforced concrete, HPL panels, aluminium &
steel sheets, render carrier boards
FACADE CLADDING: Aluminium composite panels, fibre cement, glassfibre reinforced concrete, HPL panels, aluminium &
steel sheets, render carrier boards
FACADE CLADDING:
Fibre cement, glassfibre reinforced concrete, HPL panels
SMB-GSH1
SMB-BZ1.1
SMB-BZ1.2
TIMBER BATTEN
BOLT HANGER
BOLT HANGE
R
FACADE CLADDING:
Fibre cement, glassfibre reinforced concrete, HPL panels, render carrier boards
FACADE CLADDING:
Aluminium composite material & aluminium & steel cassettes
FACADE CLADDING:
Aluminium composite material & aluminium & steel cassettes
1-layer substructure
2-layer substructure
ture & wind barrier membrane
1-layer substructure T-profile
ture with clapboard cladding
1-layer substructure Y-profile
Page 1 of 4
V5.1.20212
Slavonia Baubedarf GmbH • A-1110 Vienna, Hauffgasse 3-5 • Tel.: +43 1 769 69 29-0 • Fax: +43 1 769 69 27
email: office@slavonia.com • web: www.slavonia.com

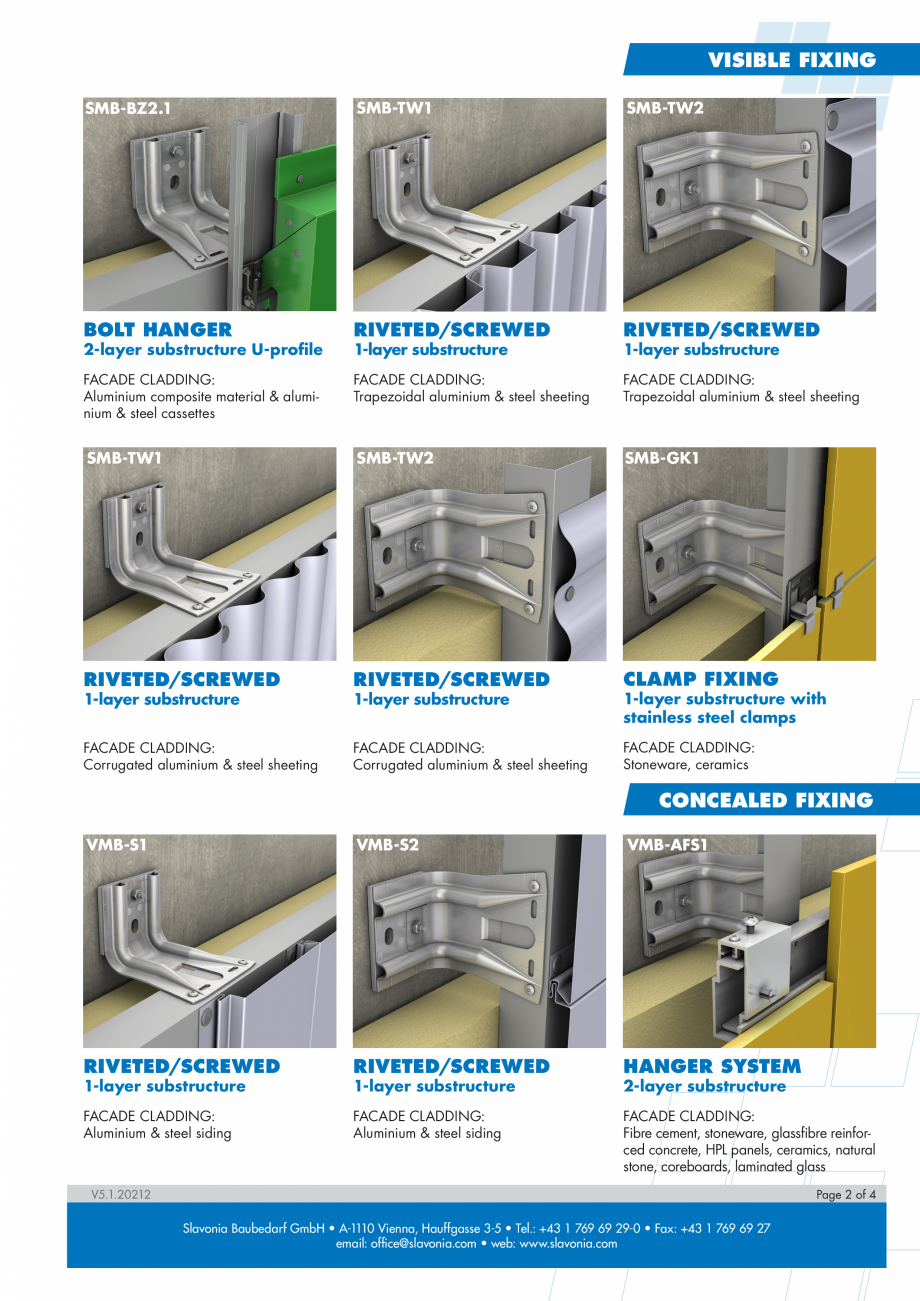

VISIBLE FIXING
SMB-BZ2.1
SMB-TW1
SMB-TW2
BOLT HANGER
RIVETED/SCREWED
RIVETED/SCREWED
FACADE CLADDING:
Aluminium composite material & aluminium & steel cassettes
FACADE CLADDING:
Trapezoidal aluminium & steel sheeting
FACADE CLADDING:
Trapezoidal aluminium & steel sheeting
SMB-TW1
SMB-TW2
SMB-GK1
RIVETED/SCREWED
RIVETED/SCREWED
CLAMP FIXING
FACADE CLADDING:
Corrugated a
luminium & steel sheeting
FACADE CLADDING:
Corrugated aluminium & steel sheeting
FACADE CLADDING:
Stoneware, ceramics
2-layer substructure U-profile
1-layer substructure
1-layer substructure
1-layer substructure
1-layer substructure
1-layer substructure with
stainless steel clamps
CONCEALED FIXING
VMB-S1
VMB-S2
VMB-AFS1
RIVETED/SCREWED
RIVETED/SCREWED
HANGER SYSTEM
FACADE CLADDING:
Aluminium & steel siding
FACADE CLADDING:
Aluminium & steel siding
FACADE CLADDING:
Fibre cement, stoneware, glassfibre reinforced concrete, HPL panels, ceramics, natural
stone, coreboards, laminated glass
1-layer substructure
1-layer substructure
2-layer substructure
V5.1.20212
Page 2 of 4
Slavonia Baubedarf GmbH • A-1110 Vienna, Hauffgasse 3-5 • Tel.: +43 1 769 69 29-0 • Fax: +43 1 769 69 27
email: office@slavonia.com • web: www.slavonia.com

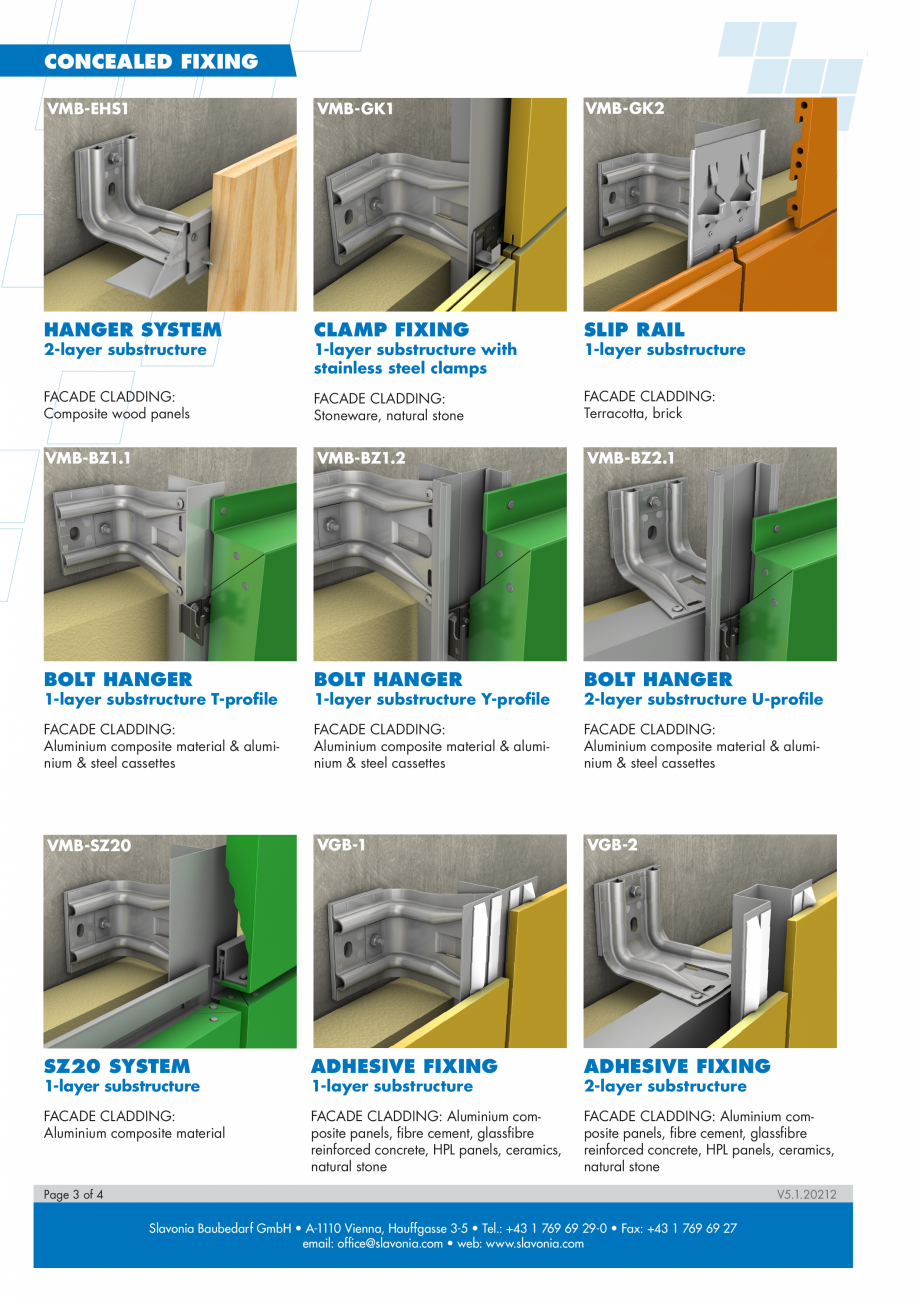

CONCEALED FIXING
VMB-EHS1
VMB-GK1
VMB-GK2
HANGER SYSTEM
CLAMP FIXING
SLIP RAIL
FACADE CLADDING:
Composite wood panels
FACADE
CLADDING:
Stoneware, natural stone
FACADE CLADDING:
Terracotta, brick
VMB-BZ1.1
VMB-BZ1.2
VMB-BZ2.1
BOLT HANGER
BOLT HANGER
BOLT HANGER
FACADE CLADDING:
Aluminium composite material & aluminium & steel cassettes
FACADE CLADDING:
Aluminium composite material & aluminium & steel cassettes
FACADE CLADDING:
Aluminium composite material & aluminium & steel cassettes
VMB-SZ20
VGB-1
VGB-2
2-layer substructure
1-layer substructure T-profile
1-layer substructure with
stainless steel clamps
1-layer substructure Y-profile
1-layer substructure
2-layer substructure U-profile
SZ20 SYSTEM
ADHESIVE FIXING
ADHESIVE FIXING
FACADE CLADDING:
Aluminium composite material
FACADE CLADDING: Aluminium composite panels, fibre cement, glassfibre
reinforced concrete, HPL panels, ceramics,
natural stone
FACADE CLADDING: Aluminium composite panels, fibre cement, glassfibre
reinforced concrete, HPL panels, ceramics,
natural stone
1-layer substructure
1-layer substructure
2-layer substru
cture
Page 3 of 4
V5.1.20212
Slavonia Baubedarf GmbH • A-1110 Vienna, Hauffgasse 3-5 • Tel.: +43 1 769 69 29-0 • Fax: +43 1 769 69 27
email: office@slavonia.com • web: www.slavonia.com

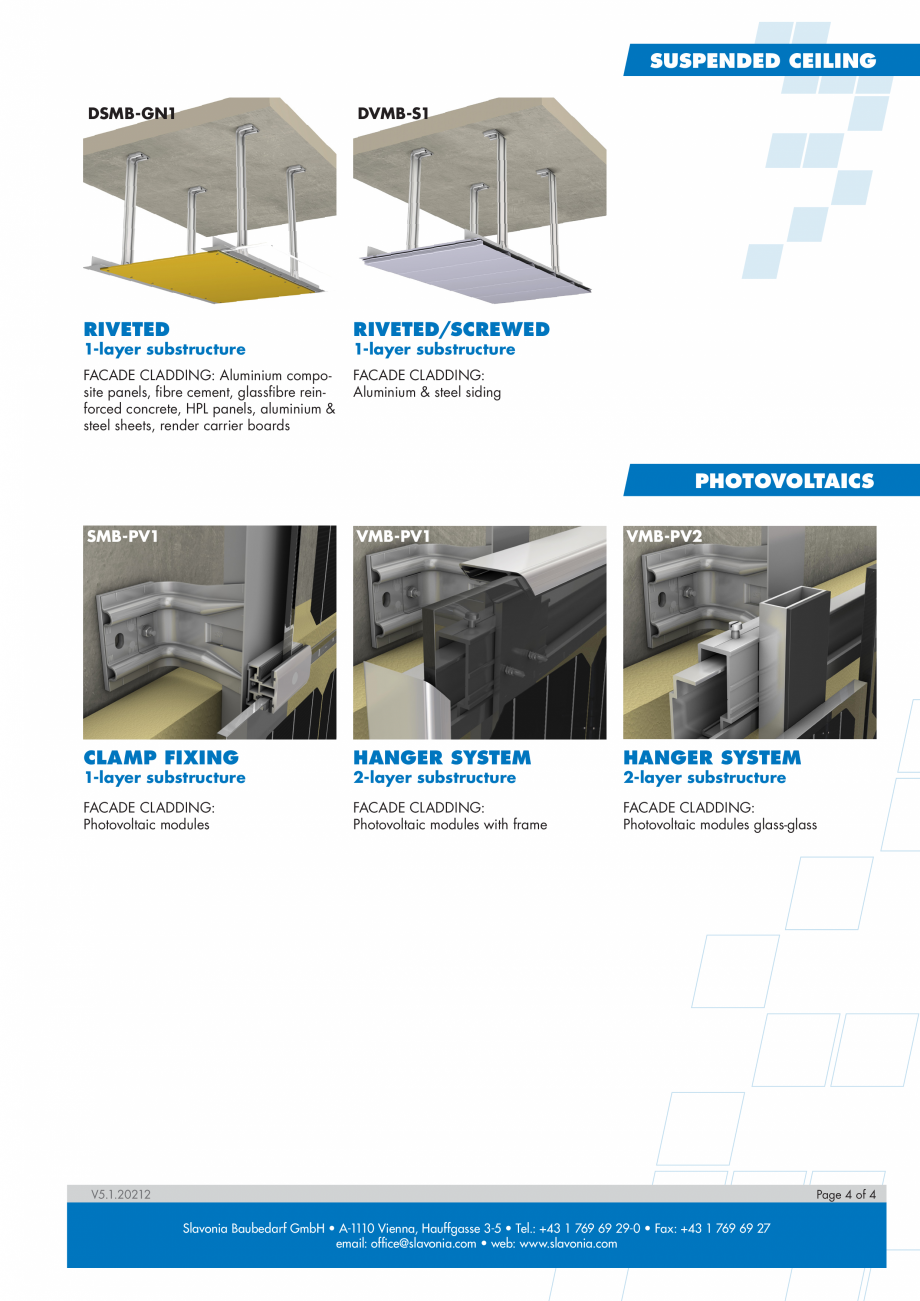

SUSPENDED CEILING
DSMB-GN1
DVMB-S1
RIVETED
RIVETED/SCREWED
FACADE CLADDING: Aluminium composite panels, fibre cement, glassfibre reinforced concrete, HPL panels, aluminium &
steel sheets, render carrier boards
FACADE CLADDING:
Aluminium & steel siding
1-layer substructure
1-layer substructure
PHOTOVOLTAICS
SMB-PV1
VMB-PV1
VMB-PV2
CLAMP FIXING
HANGER SYSTEM
HANGER SYSTEM
FACADE CLADDING:
Photovoltaic modules
FACADE CLADDING:
Photovoltaic modules with frame
FACADE CLADDING:
Photovoltaic modules glass-glass
1-layer substructure
2-layer substructure
2-layer substructure
V5.1.20212
Page 4 of 4
Slavonia Baubedarf GmbH • A-1110 Vienna, Hauffgasse 3-5 • Tel.: +43 1 769 69 29-0 • Fax: +43 1 769 69 27
email: office@slavonia.com • web: www.slavonia.com
