Sisteme de fixare din aluminiu pentru placaje uscate exterioare SPIDI max

Limba: Engleza

21 afisari

Tip documentatie: Catalog, brosura

Pagina 1 - Sisteme de fixare din aluminiu pentru placaje uscate exterioare SPIDI max Catalog,...

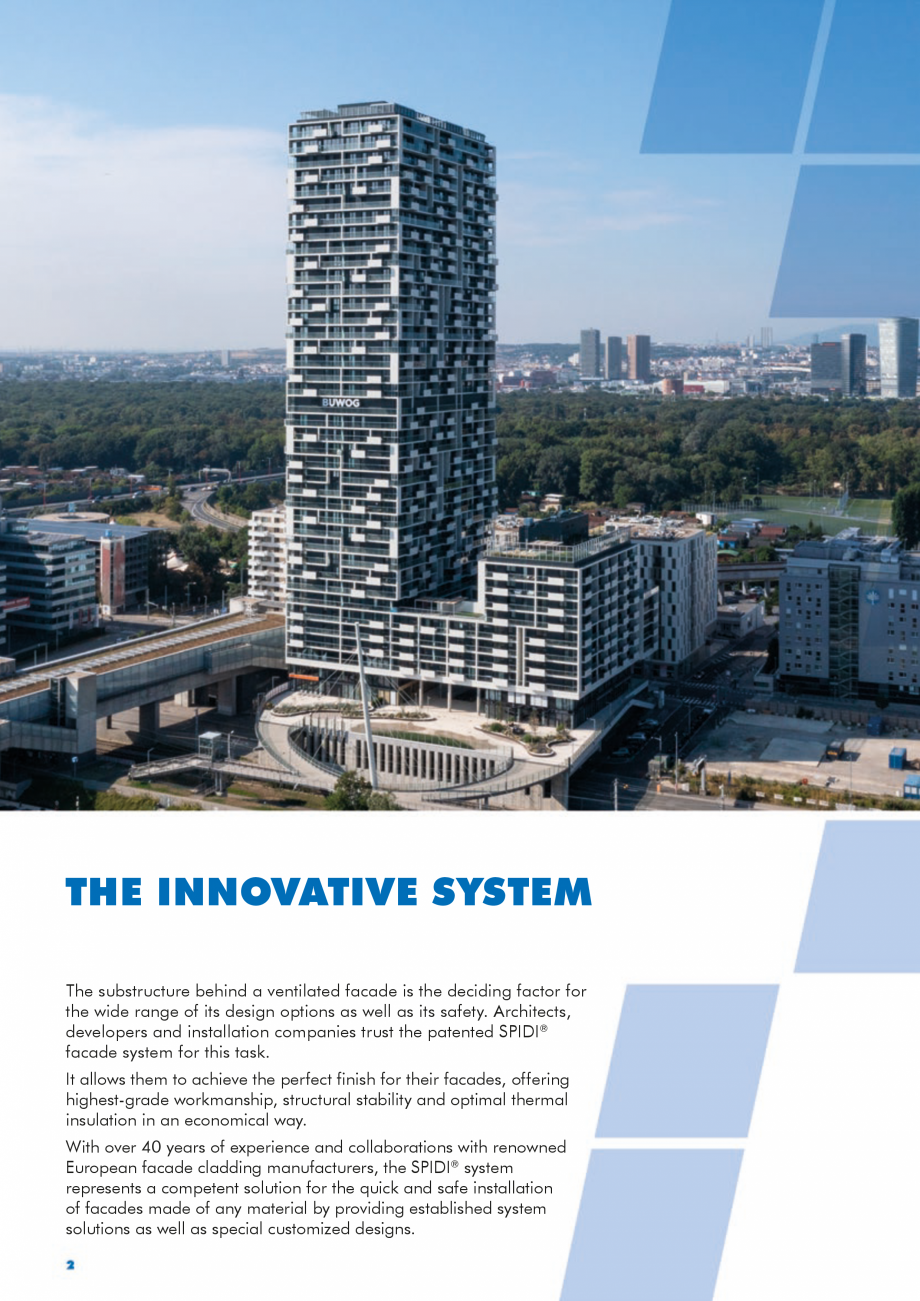

QUALITY MADE IN AUSTRIA • c ertified according EN 1090 • ETA-17/0461 • pre-assembled THERMOSTOP Professional fixing system for ventilated facades & suspended ceilings THE INNOVATIVE SYSTEM The substructure behind a ventilated facade is the deciding factor for the wide range of its design options as well as its safety. Architects, developers and installation companies trust the patented SPIDI® facade system for this task. It allows them to achieve the perfect finish for their facades, offering highest-grade workmanship, structural stability and optimal thermal insulation in an economical way. With over 40 years of experience and collaborations with renowned European facade cladding manufacturers, the SPIDI® system represents a competent solution for the quick and safe installation of facades made of any material by providing established system solutions as well as special customized designs. Marina Tower Vienna Eternit, 20.000 m 2 SMB-GN1 The SPIDI® Facade System The

Pagina 1-Sisteme de fixare din aluminiu pentru placaje uscate exterioare SPIDI max Catalog, brosura Engleza...

Pagina 2 - Sisteme de fixare din aluminiu pentru placaje uscate exterioare SPIDI max Catalog,...

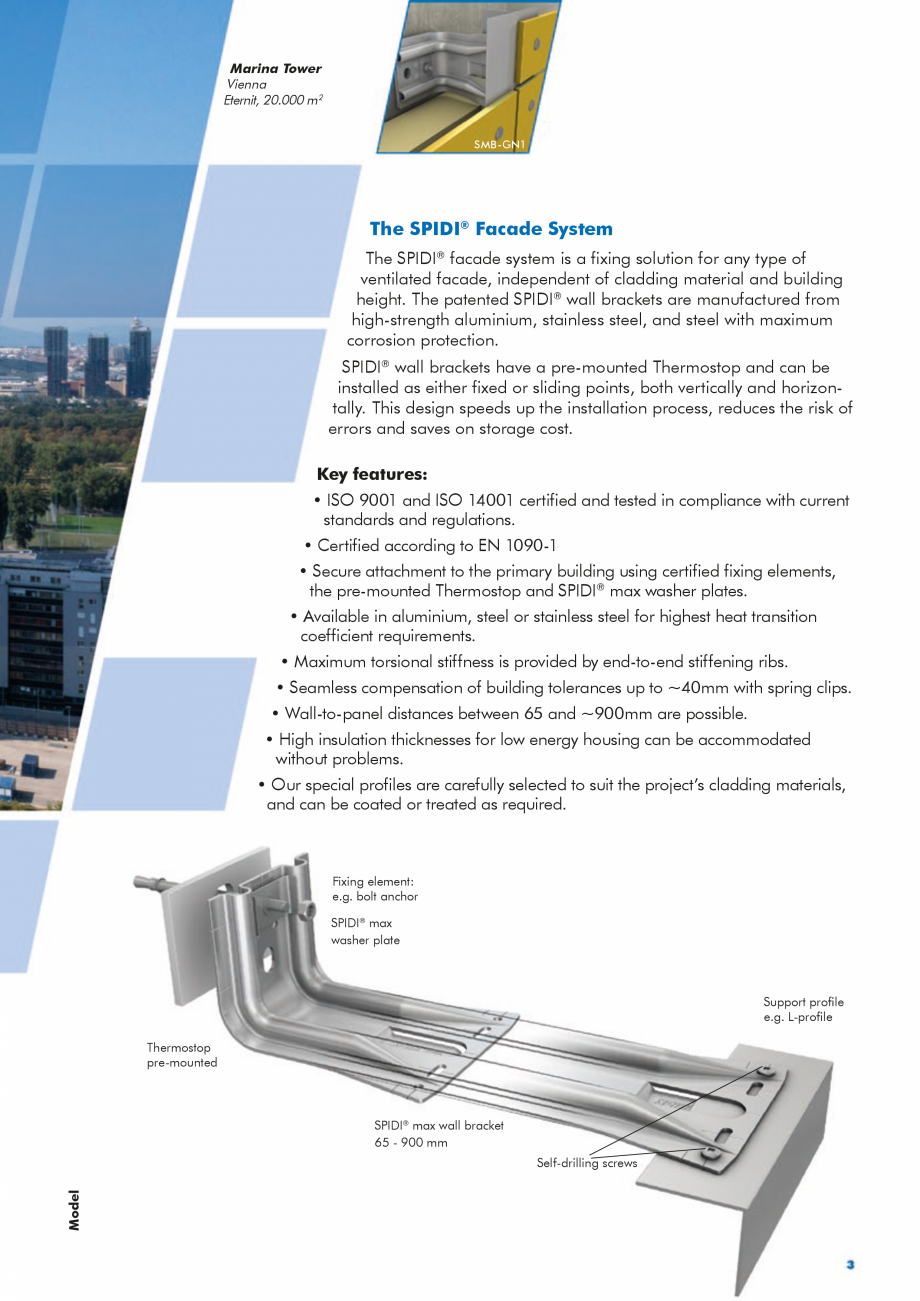

SPIDI® facade system is a fixing solution for any type of ventilated facade, independent of cladding material and building height. The patented SPIDI® wall brackets are manufactured from high-strength aluminium, stainless steel, and steel with maximum corrosion protection. SPIDI® wall brackets have a pre-mounted Thermostop and can be installed as either fixed or sliding points, both vertically and horizontally. This design speeds up the installation process, reduces the risk of errors and saves on storage cost. Key features: • ISO 9001 and ISO 14001 certified and tested in compliance with current standards and regulations. • Certified according to EN 1090-1 • Secure attachment to the primary building using certified fixing elements, the pre-mounted Thermostop and SPIDI® max washer plates. • Available in aluminium, steel or stainless steel for highest heat transition coefficient requirements. • Maximum torsional stiffness is provided by end-to-end stiffening ribs. �

Pagina 2-Sisteme de fixare din aluminiu pentru placaje uscate exterioare SPIDI max Catalog, brosura Engleza...

Pagina 3 - Sisteme de fixare din aluminiu pentru placaje uscate exterioare SPIDI max Catalog,...

� Seamless compensation of building tolerances up to ~40mm with spring clips. • Wall-to-panel distances between 65 and ~900mm are possible. • High insulation thicknesses for low energy housing can be accommodated without problems. • Our special profiles are carefully selected to suit the project’s cladding materials, and can be coated or treated as required. Fixing element: e.g. bolt anchor SPIDI® max washer plate Support profile e.g. L-profile Thermostop pre-mounted SPIDI® max wall bracket 65 - 900 mm Model Self-drilling screws FLEXIBILITY WITHIN THE SYSTEM The ventilated facade has established itself as the optimal system for facade engineering and construction. The SPIDI® facade system is prepared for even the most ambitious architectural designs. Construction projects of any size can be built to perfection using the SPIDI® facade system - including everything from small areas for a family house to large scale projects and beyond. llowing The SPIDI�

Pagina 3-Sisteme de fixare din aluminiu pentru placaje uscate exterioare SPIDI max Catalog, brosura Engleza �...

Pagina 4 - Sisteme de fixare din aluminiu pentru placaje uscate exterioare SPIDI max Catalog,...

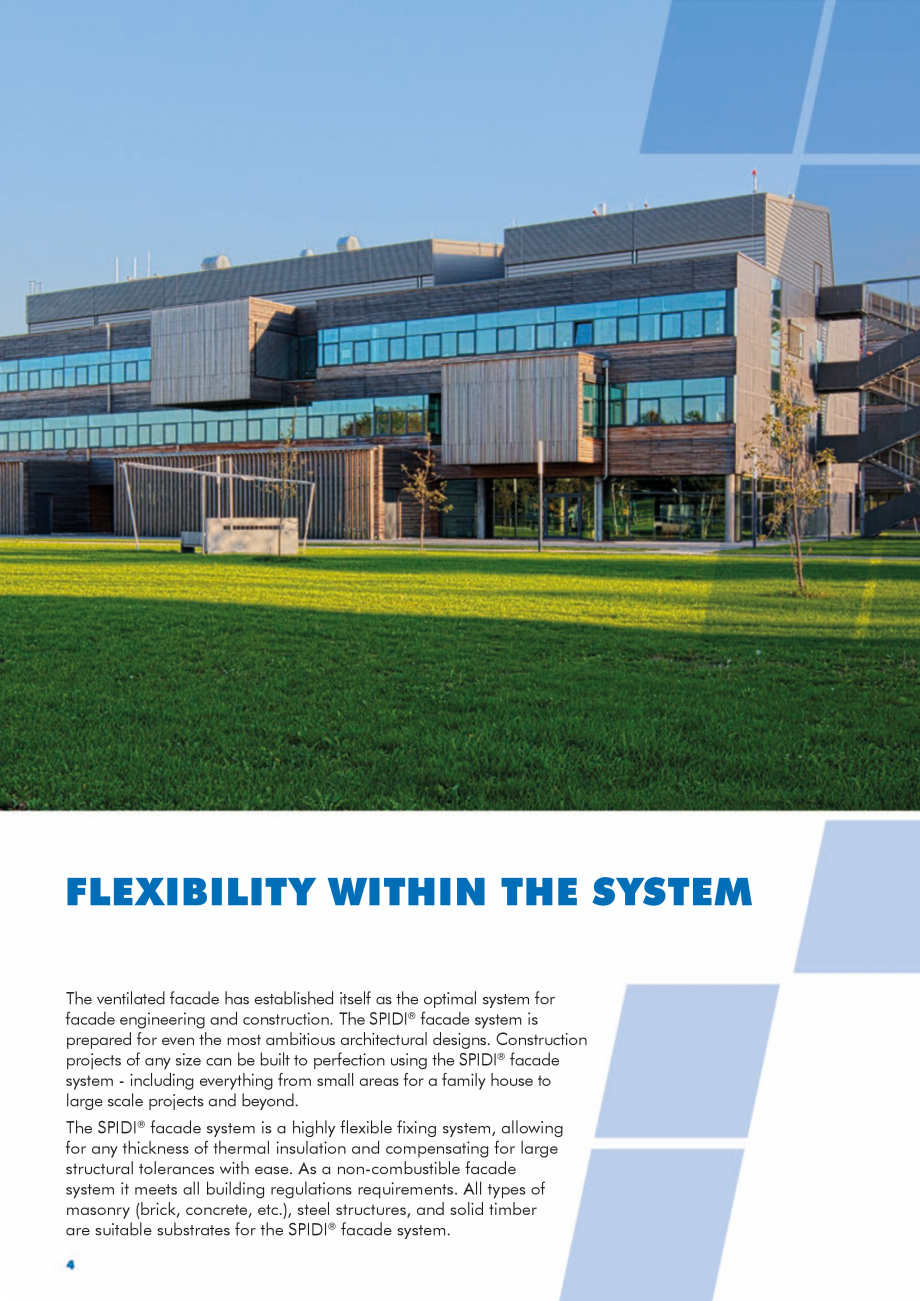

� facade system is a highly flexible fixing system, a for any thickness of thermal insulation and compensating for large structural tolerances with ease. As a non-combustible facade system it meets all building regulations requirements. All types of masonry (brick, concrete, etc.), steel structures, and solid timber are suitable substrates for the SPIDI® facade system. University and Research Center Tulln/ Austria Timber/Fiber cement, 4500 m 2 SMB-GN1 The Perfect Solution for any Construction Project The same project often requires a variety of solutions, be it due to varying wind loads on different sides of the building, due to the fixing components’ varying load properties, or the range of cladding materials used. In order to achieve the best results, we will meet you on-site to discuss local conditions, assess permissible loads for fixing components on the given substrate, and take site measurements. Based on this we determine the fixing system best suited for the facade cladd

Pagina 4-Sisteme de fixare din aluminiu pentru placaje uscate exterioare SPIDI max Catalog, brosura Engleza �...

Pagina 5 - Sisteme de fixare din aluminiu pentru placaje uscate exterioare SPIDI max Catalog,...

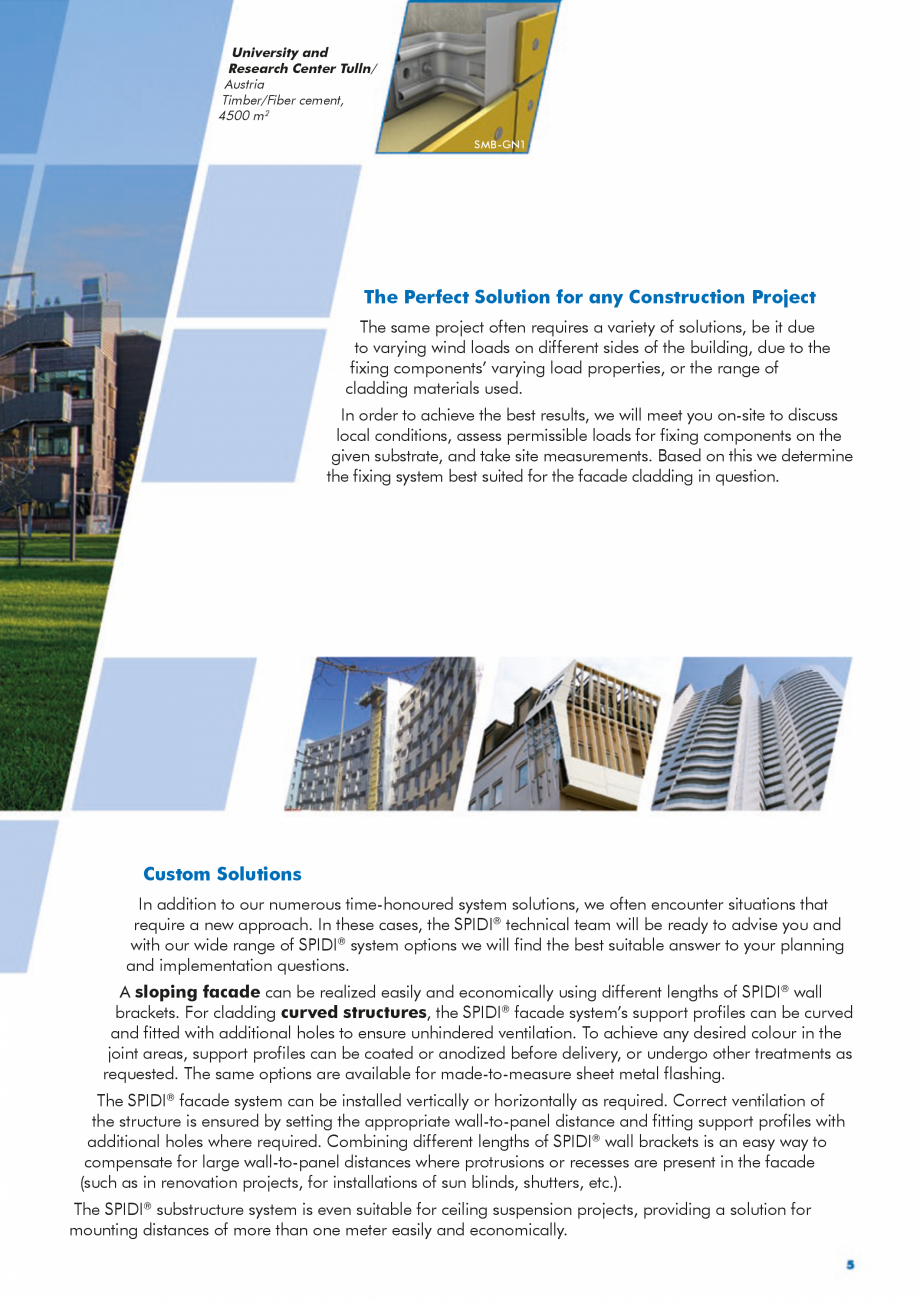

ing in question. Custom Solutions In addition to our numerous time-honoured system solutions, we often encounter situations that require a new approach. In these cases, the SPIDI® technical team will be ready to advise you and with our wide range of SPIDI® system options we will find the best suitable answer to your planning and implementation questions. A sloping facade can be realized easily and economically using different lengths of SPIDI® wall brackets. For cladding curved structures, the SPIDI® facade system’s support profiles can be curved and fitted with additional holes to ensure unhindered ventilation. To achieve any desired colour in the joint areas, support profiles can be coated or anodized before delivery, or undergo other treatments as requested. The same options are available for made-to-measure sheet metal flashing. The SPIDI® facade system can be installed vertically or horizontally as required. Correct ventilation of the structure is ensured by setting the ap

Pagina 5-Sisteme de fixare din aluminiu pentru placaje uscate exterioare SPIDI max Catalog, brosura Engleza...

Pagina 6 - Sisteme de fixare din aluminiu pentru placaje uscate exterioare SPIDI max Catalog,...

propriate wall-to-panel distance and fitting support profiles with additional holes where required. Combining different lengths of SPIDI® wall brackets is an easy way to compensate for large wall-to-panel distances where protrusions or recesses are present in the facade (such as in renovation projects, for installations of sun blinds, shutters, etc.). The SPIDI® substructure system is even suitable for ceiling suspension projects, providing a solution for mounting distances of more than one meter easily and economically. BUILDING PHYSICS PERFORMANCE Thermal Insulation and Temperature Control A rear ventilated facade structure that is correctly insulated will keep the interior environment balanced throughout the year. During summer, s unlight is reflected or absorbed, preventing solar heat gain on the facade. During winter, the insulation layer serves as heat storage. Tailored insulation solutions, such as those used in ''passive-hometechnology'', provide the best possible p

Pagina 6-Sisteme de fixare din aluminiu pentru placaje uscate exterioare SPIDI max Catalog, brosura Engleza...

Pagina 7 - Sisteme de fixare din aluminiu pentru placaje uscate exterioare SPIDI max Catalog,...

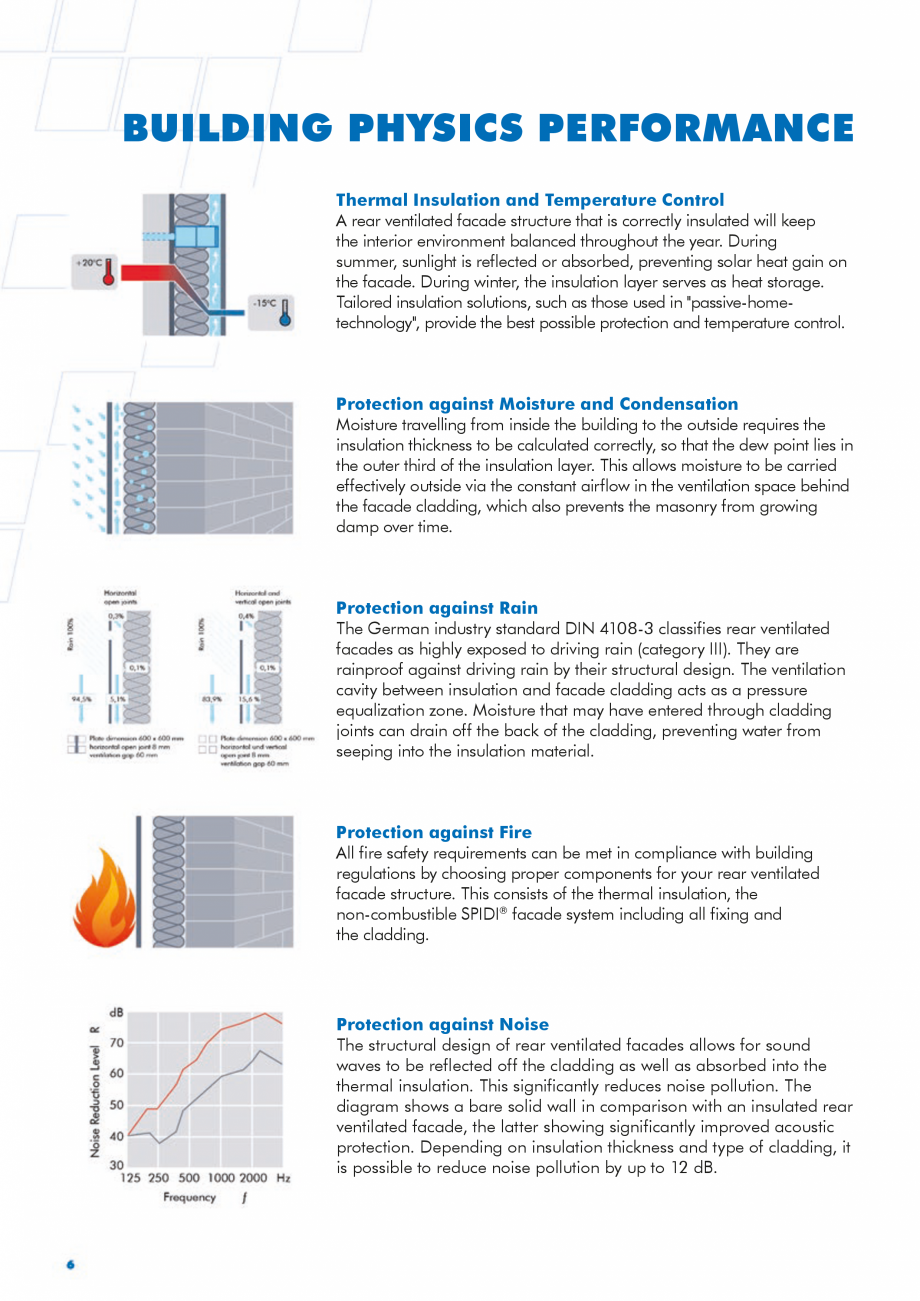

rotection and temperature control. Protection against Moisture and Condensation Moisture travelling from inside the building to the outside requires the insulation thickness to be calculated correctly, so that the dew point lies in the outer third of the insulation layer. This allows moisture to be carried effectively outside via the constant airflow in the ventilation space behind the facade cladding, which also prevents the masonry from growing damp over time. Protection against Rain The German industry standard DIN 4108-3 classifies rear v entilated facades as highly exposed to driving rain (category III). They are rainproof against driving rain by their structural design. The ventilation cavity between insulation and facade cladding acts as a pressure equalization zone. Moisture that may have entered through cladding joints can drain off the back of the cladding, preventing water from seeping into the insulation material. Protection against Fire All fire safety requirement

Pagina 7-Sisteme de fixare din aluminiu pentru placaje uscate exterioare SPIDI max Catalog, brosura Engleza...

Pagina 8 - Sisteme de fixare din aluminiu pentru placaje uscate exterioare SPIDI max Catalog,...

s can be met in compliance with building regulations by choosing proper components for your rear ventilated facade structure. This consists of the thermal insulation, the non-combustible SPIDI® facade system including all fixing and the cladding. Protection against Noise The structural design of rear ventilated facades allows for sound waves to be reflected off the cladding as well as absorbed into the thermal insulation. This significantly reduces noise pollution. The diagram shows a bare solid wall in comparison with an insulated rear ventilated facade, the latter showing significantly improved acoustic protection. Depending on insulation thickness and type of cladding, it is possible to reduce noise pollution by up to 12 dB. TECHNOLOGY AND APPLICATION The SPIDI® facade system complies with all regulations, standards and laws that apply to the implementation of ventilated facades. SPIDI® wall brackets can be installed vertically or horizontally as appropriate for the

Pagina 8-Sisteme de fixare din aluminiu pentru placaje uscate exterioare SPIDI max Catalog, brosura Engleza s...

Pagina 9 - Sisteme de fixare din aluminiu pentru placaje uscate exterioare SPIDI max Catalog,...

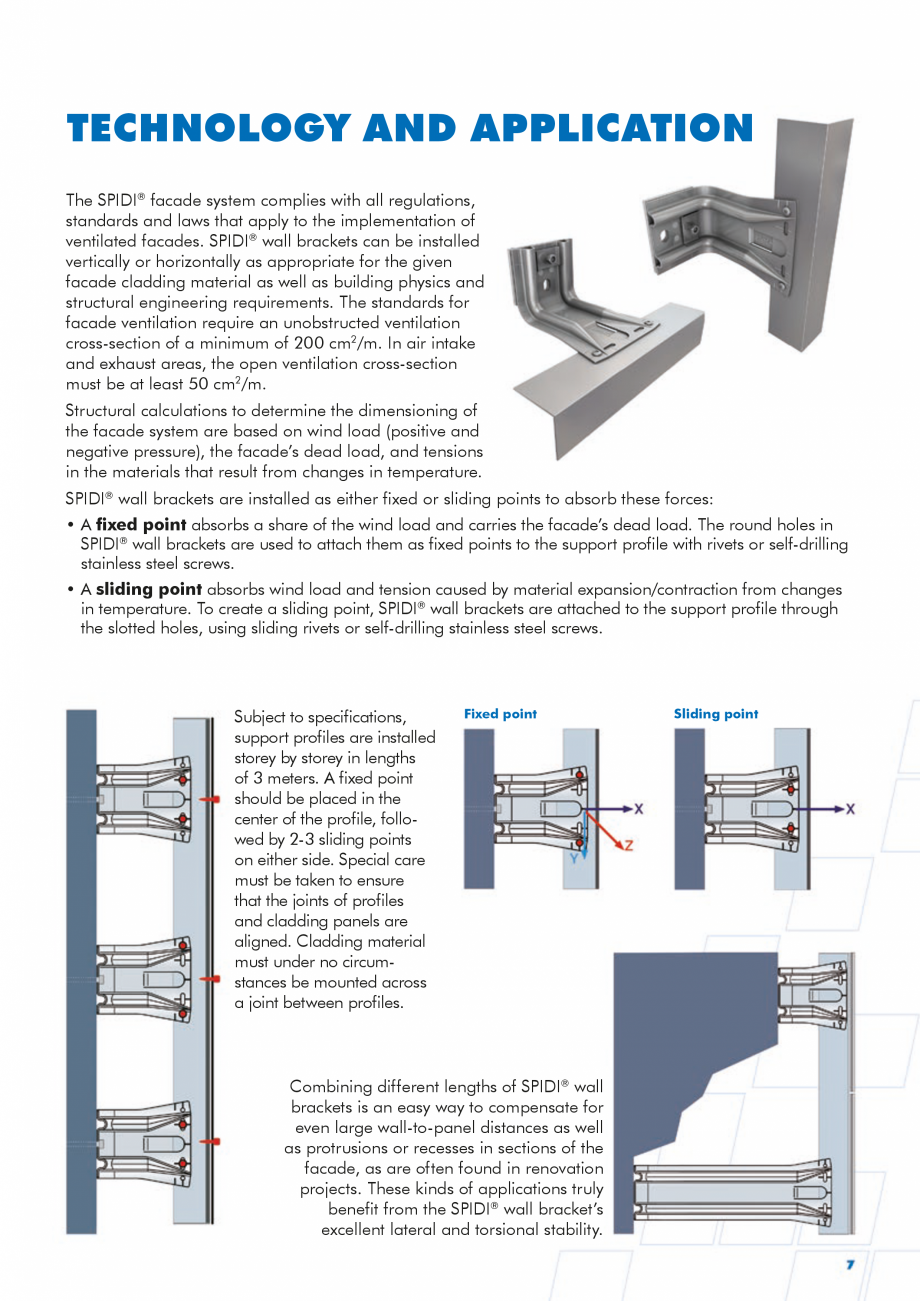

given facade cladding m aterial as well as building physics and structural e ngineering requirements. The standards for facade v entilation require an unobstructed ventilation cross-section of a minimum of 200 cm2/m. In air intake and exhaust areas, the open ventilation cross-section must be at least 50 cm2/m. Structural calculations to determine the dimensioning of the facade system are based on wind load (positive and negative pressure), the facade’s dead load, and tensions in the materials that result from changes in temperature. SPIDI® wall brackets are installed as either fixed or sliding points to absorb these forces: • A fixed point absorbs a share of the wind load and carries the facade’s dead load. The round holes in SPIDI® wall brackets are used to attach them as fixed points to the support profile with rivets or self-drilling stainless steel screws. • A sliding point absorbs wind load and tension caused by material expansion/contraction from changes

Pagina 9-Sisteme de fixare din aluminiu pentru placaje uscate exterioare SPIDI max Catalog, brosura Engleza ...

Pagina 10 - Sisteme de fixare din aluminiu pentru placaje uscate exterioare SPIDI max Catalog,...

in temperature. To create a sliding point, SPIDI® wall brackets are attached to the support profile through the slotted holes, using sliding rivets or self-drilling stainless steel screws. Subject to specifications, support profiles are installed storey by storey in lengths of 3 meters. A fixed point should be placed in the center of the profile, followed by 2-3 sliding points on either side. Special care must be taken to ensure that the joints of profiles and cladding panels are aligned. Cladding material must under no circumstances be mounted across a joint between profiles. Fixed point Combining different lengths of SPIDI® wall brackets is an easy way to compensate for even large wall-to-panel distances as well as protrusions or recesses in sections of the facade, as are often found in renovation projects. These kinds of applications truly benefit from the SPIDI® wall bracket’s excellent lateral and torsional stability. Sliding point INSTALLATION - SAFE AND EASY Ov

Pagina 10-Sisteme de fixare din aluminiu pentru placaje uscate exterioare SPIDI max Catalog, brosura Engleza...

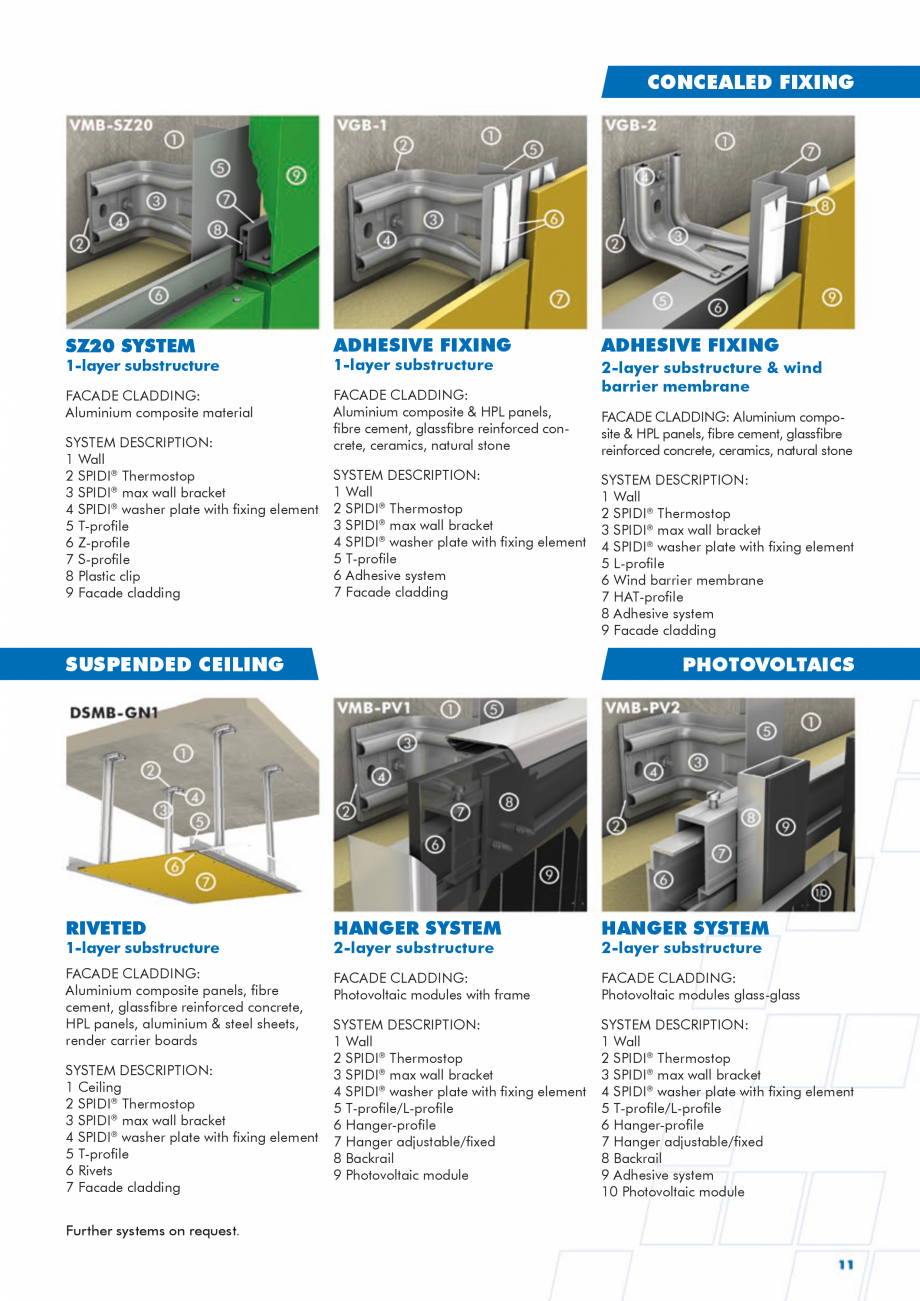

Pagina 11 - Sisteme de fixare din aluminiu pentru placaje uscate exterioare SPIDI max Catalog,...

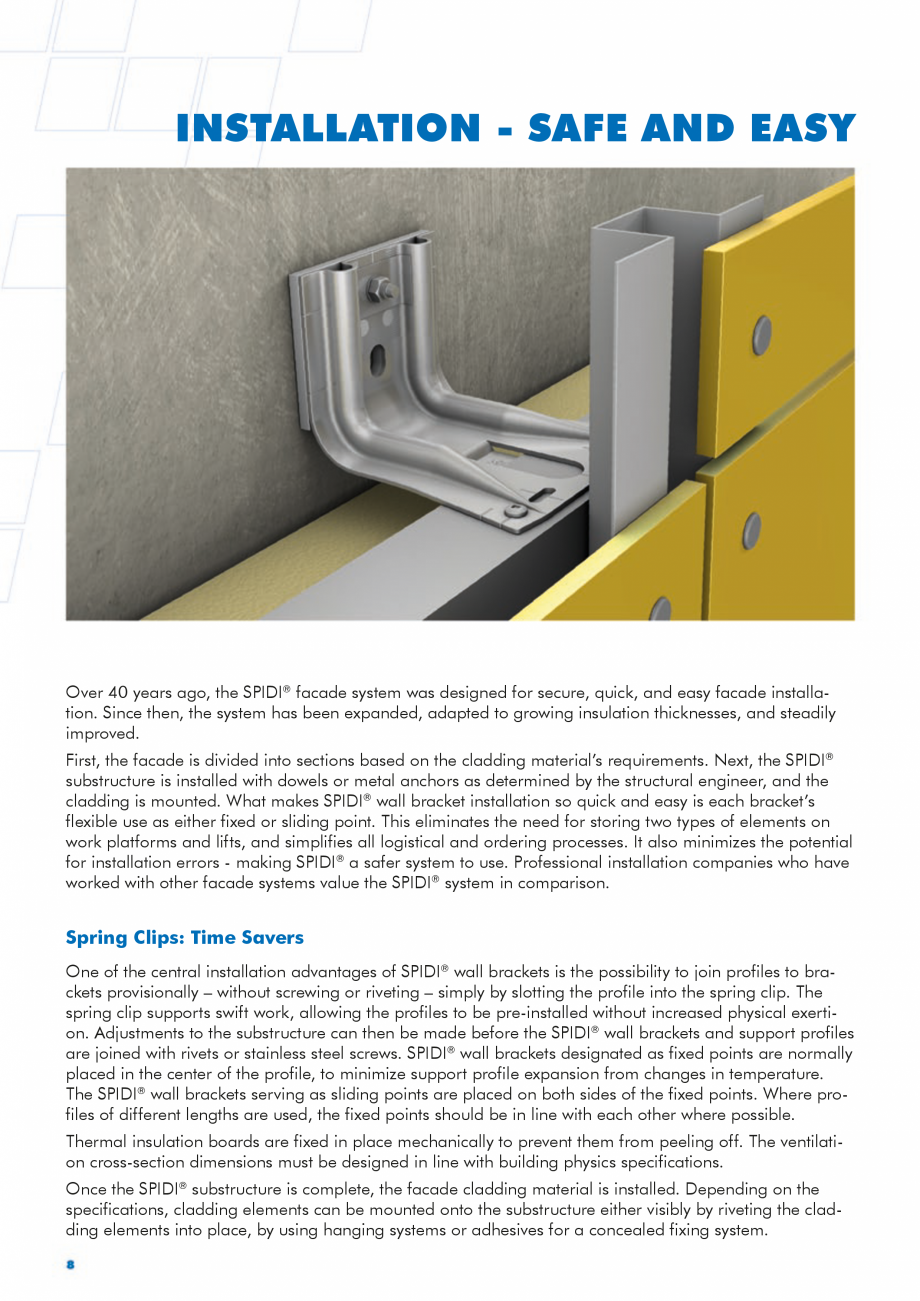

er 40 years ago, the SPIDI® facade system was designed for secure, quick, and easy facade installation. Since then, the system has been expanded, adapted to growing insulation thicknesses, and steadily improved. First, the facade is divided into sections based on the cladding material’s requirements. Next, the SPIDI® substructure is installed with dowels or metal anchors as determined by the structural engineer, and the cladding is mounted. What makes SPIDI® wall bracket installation so quick and easy is each bracket’s flexible use as either fixed or sliding point. This eliminates the need for storing two types of elements on work platforms and lifts, and simplifies all logistical and ordering processes. It also minimizes the potential for installation errors - making SPIDI® a safer system to use. Professional installation companies who have worked with other facade systems value the SPIDI® system in comparison. Spring Clips: Time Savers One of the central installation advant

Pagina 11-Sisteme de fixare din aluminiu pentru placaje uscate exterioare SPIDI max Catalog, brosura Engleza...

Pagina 12 - Sisteme de fixare din aluminiu pentru placaje uscate exterioare SPIDI max Catalog,...

ages of SPIDI® wall brackets is the possibility to join profiles to brackets provisionally – without screwing or riveting – simply by slotting the profile into the spring clip. The spring clip supports swift work, allowing the profiles to be pre-installed without increased physical exertion. Adjustments to the substructure can then be made before the SPIDI® wall brackets and support profiles are joined with rivets or stainless steel screws. SPIDI® wall brackets designated as fixed points are normally placed in the center of the profile, to minimize support profile expansion from changes in temperature. The SPIDI® wall brackets serving as sliding points are placed on both sides of the fixed points. Where profiles of different lengths are used, the fixed points should be in line with each other where possible. Thermal insulation boards are fixed in place mechanically to prevent them from peeling off. The ventilation cross-section dimensions must be designed in line with building

Pagina 12-Sisteme de fixare din aluminiu pentru placaje uscate exterioare SPIDI max Catalog, brosura Engleza...

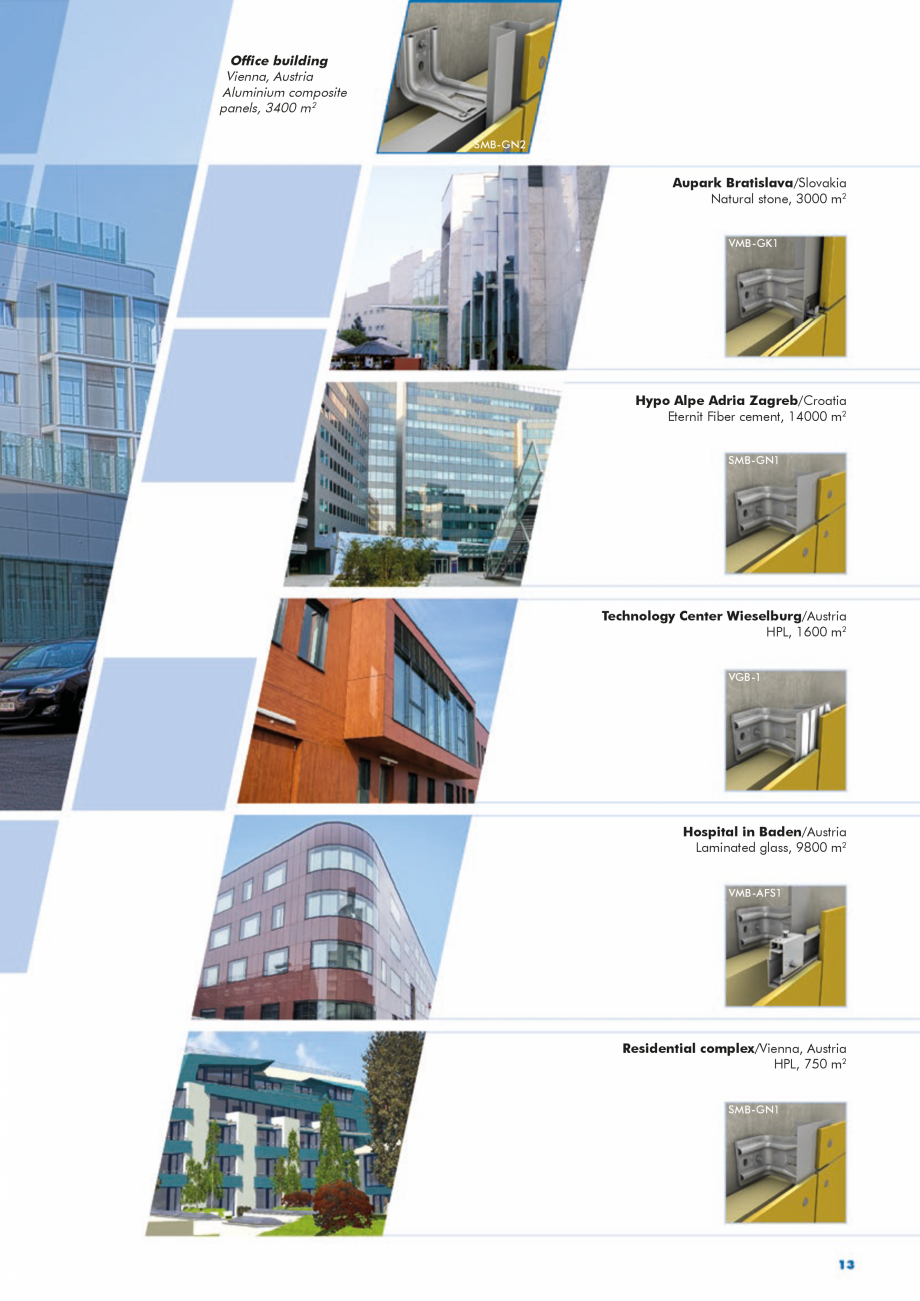

Pagina 13 - Sisteme de fixare din aluminiu pentru placaje uscate exterioare SPIDI max Catalog,...

physics specifications. Once the SPIDI® substructure is complete, the facade cladding material is installed. Depending on the specifications, cladding elements can be mounted onto the substructure either visibly by riveting the cladding elements into place, by using hanging systems or adhesives for a concealed fixing system. VISIBLE FIXING RIVETED 1-layer substructure FACADE CLADDING: Aluminium composite panels, fibre cement, glassfibre reinforced concrete, HPL panels, aluminium & steel sheets, render carrier boards SYSTEM DESCRIPTION: 1 Wall 2 SPIDI® Thermostop 3 SPIDI® max wall bracket 4 SPIDI® washer plate with fixing element 5 T-profile/L-profile 6 Rivets 7 Facade cladding RIVETED 2-layer substructure RIVETED 2-layer substructure & wind barrier membrane with clapboard cladding FACADE CLADDING: Aluminium composite panels, fibre cement, glassfibre reinforced concrete, HPL panels, aluminium & steel sheets, render carrier boards FACADE CLADDING: Fibre cement, glassfibre

Pagina 13-Sisteme de fixare din aluminiu pentru placaje uscate exterioare SPIDI max Catalog, brosura Engleza...

Pagina 14 - Sisteme de fixare din aluminiu pentru placaje uscate exterioare SPIDI max Catalog,...

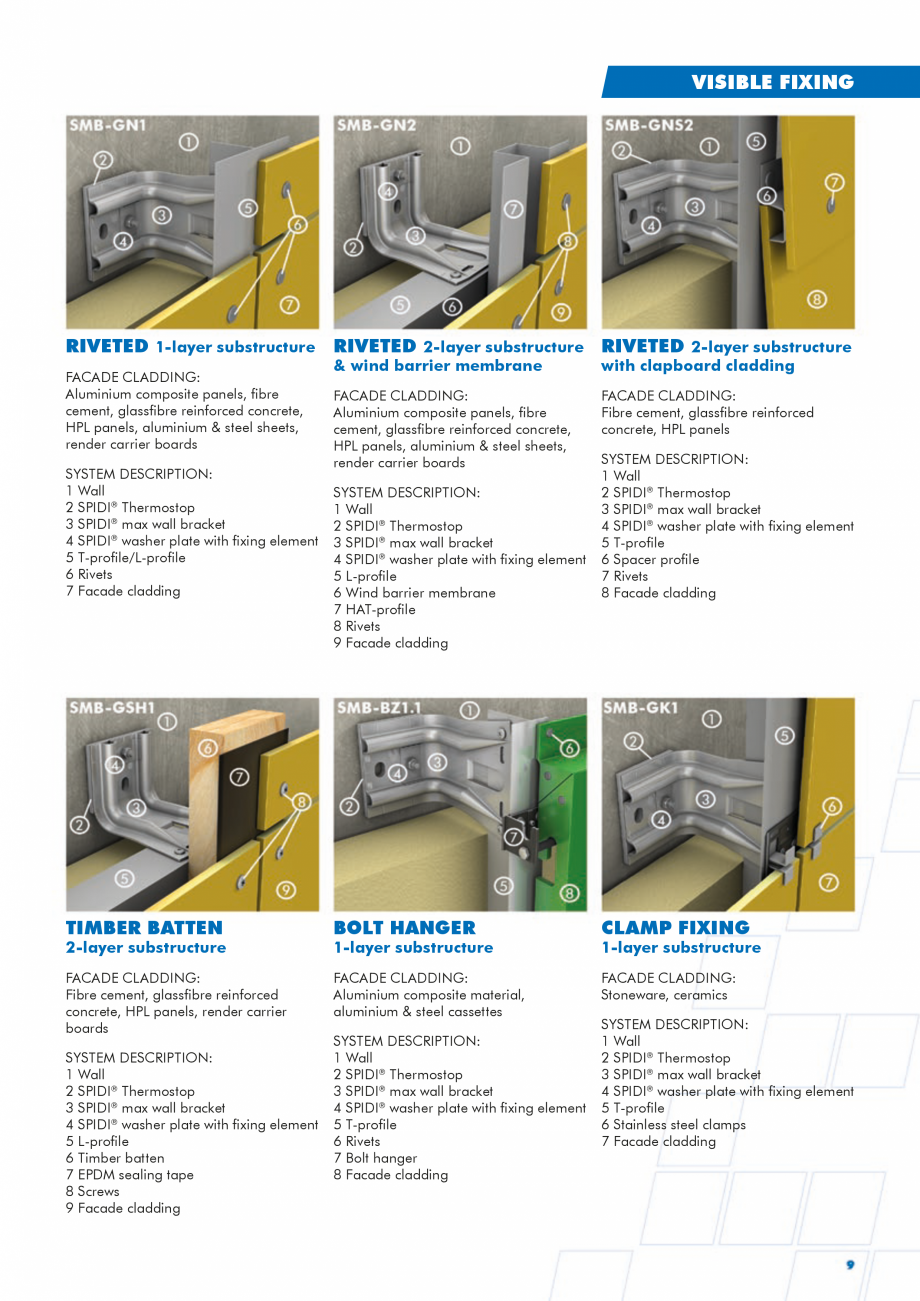

reinforced concrete, HPL panels SYSTEM DESCRIPTION: 1 Wall 2 SPIDI® Thermostop 3 SPIDI® max wall bracket 4 SPIDI® washer plate with fixing element 5 L-profile 6 Wind barrier membrane 7 HAT-profile 8 Rivets 9 Facade cladding SYSTEM DESCRIPTION: 1 Wall 2 SPIDI® Thermostop 3 SPIDI® max wall bracket 4 SPIDI® washer plate with fixing element 5 T-profile 6 Spacer profile 7 Rivets 8 Facade cladding TIMBER BATTEN BOLT HANGER CLAMP FIXING FACADE CLADDING: Fibre cement, glassfibre reinforced concrete, HPL panels, render carrier boards FACADE CLADDING: Aluminium composite material, aluminium & steel cassettes FACADE CLADDING: Stoneware, ceramics 2-layer substructure SYSTEM DESCRIPTION: 1 Wall 2 SPIDI® Thermostop 3 SPIDI® max wall bracket 4 SPIDI® washer plate with fixing element 5 L-profile 6 Timber batten 7 EPDM sealing tape 8 Screws 9 Facade cladding 1-layer substructure SYSTEM DESCRIPTION: 1 Wall 2 SPIDI® Thermostop 3 SPIDI® max wall bracket 4 SPIDI® washer p

Pagina 14-Sisteme de fixare din aluminiu pentru placaje uscate exterioare SPIDI max Catalog, brosura Engleza ...

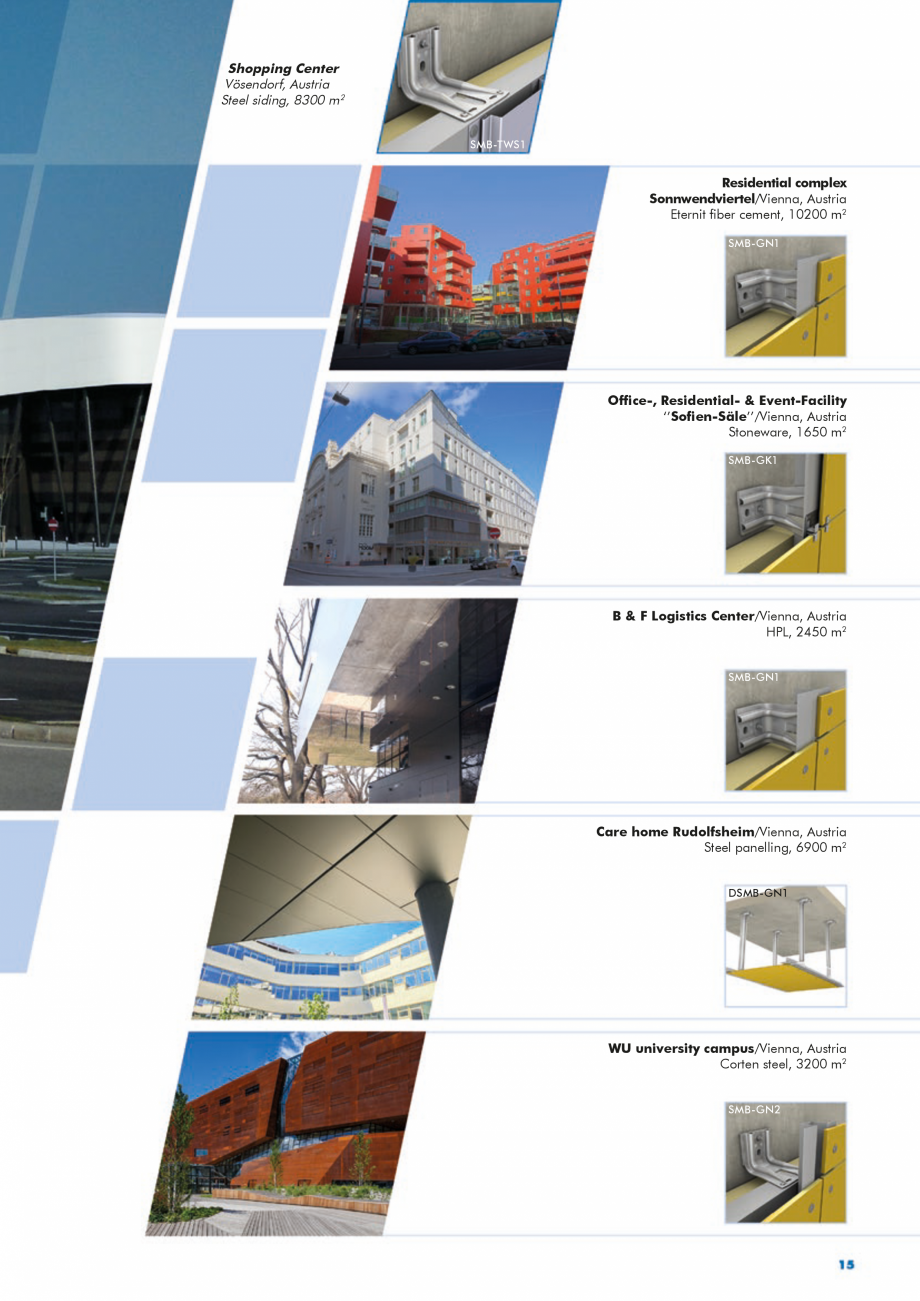

Pagina 15 - Sisteme de fixare din aluminiu pentru placaje uscate exterioare SPIDI max Catalog,...

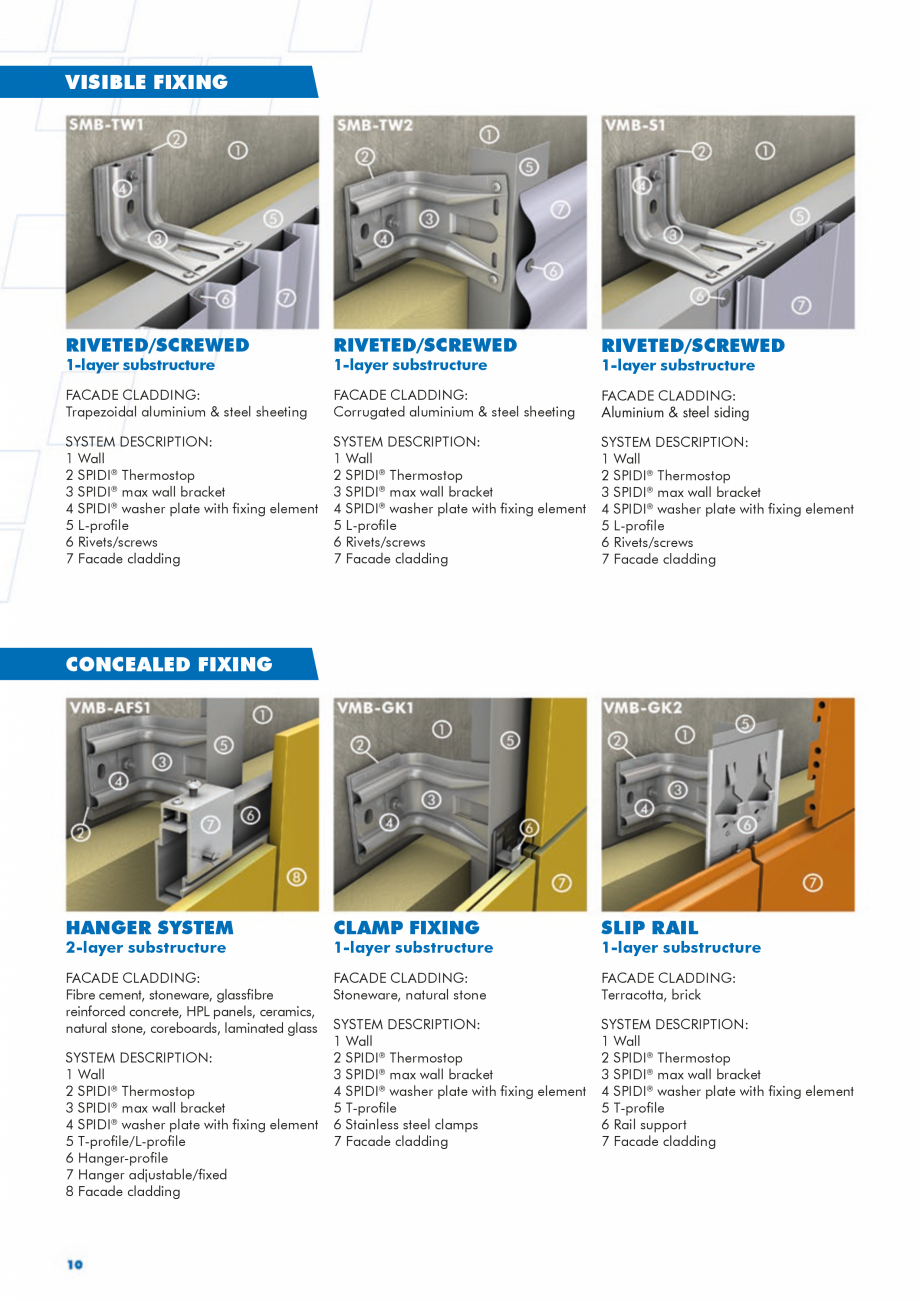

late with fixing element 5 T-profile 6 Rivets 7 Bolt hanger 8 Facade cladding 1-layer substructure SYSTEM DESCRIPTION: 1 Wall 2 SPIDI® Thermostop 3 SPIDI® max wall bracket 4 SPIDI® washer plate with fixing element 5 T-profile 6 Stainless steel clamps 7 Facade cladding VISIBLE FIXING RIVETED/SCREWED RIVETED/SCREWED RIVETED/SCREWED FACADE CLADDING: Trapezoidal aluminium & steel sheeting FACADE CLADDING: Corrugated aluminium & steel sheeting FACADE CLADDING: Aluminium & steel siding SYSTEM DESCRIPTION: 1 Wall 2 SPIDI® Thermostop 3 SPIDI® max wall bracket 4 SPIDI® washer plate with fixing element 5 L-profile 6 Rivets/screws 7 Facade cladding SYSTEM DESCRIPTION: 1 Wall 2 SPIDI® Thermostop 3 SPIDI® max wall bracket 4 SPIDI® washer plate with fixing element 5 L-profile 6 Rivets/screws 7 Facade cladding SYSTEM DESCRIPTION: 1 Wall 2 SPIDI® Thermostop 3 SPIDI® max wall bracket 4 SPIDI® washer plate with fixing element 5 L-profile 6 Rivets/screws 7 Facade cladding HA

Pagina 15-Sisteme de fixare din aluminiu pentru placaje uscate exterioare SPIDI max Catalog, brosura Engleza...

Pagina 16 - Sisteme de fixare din aluminiu pentru placaje uscate exterioare SPIDI max Catalog,...

NGER SYSTEM CLAMP FIXING SLIP RAIL FACADE CLADDING: Fibre cement, stoneware, glassfibre reinforced concrete, HPL panels, ceramics, natural stone, coreboards, laminated glass FACADE CLADDING: Stoneware, natural stone FACADE CLADDING: Terracotta, brick SYSTEM DESCRIPTION: 1 Wall 2 SPIDI® Thermostop 3 SPIDI® max wall bracket 4 SPIDI® washer plate with fixing element 5 T-profile 6 Stainless steel clamps 7 Facade cladding SYSTEM DESCRIPTION: 1 Wall 2 SPIDI® Thermostop 3 SPIDI® max wall bracket 4 SPIDI® washer plate with fixing element 5 T-profile 6 Rail support 7 Facade cladding 1-layer substructure 1-layer substructure 1-layer substructure CONCEALED FIXING 2-layer substructure SYSTEM DESCRIPTION: 1 Wall 2 SPIDI® Thermostop 3 SPIDI® max wall bracket 4 SPIDI® washer plate with fixing element 5 T-profile/L-profile 6 Hanger-profile 7 Hanger adjustable/fixed 8 Facade cladding 1-layer substructure 1-layer substructure CONCEALED FIXING SZ20 SYSTEM ADHESIVE FIXING 1
