JANUARY 2019 WIR VERDICHTEN PARKRAUM. From the WÖHR product range For owner builders, architects, investors, and design engineers WÖHR Autoparksysteme GmbH Ölgrabenstr. 14 71292 Friolzheim Germany Fon +49 [0] 7044 46-0 Fax +49 [0] 7044 46-149 info@woehr.de woehr.de SHOWING THE WAY FOR PARKING SPACE SOLUTIONS // Since 1959, WÖHR has had a vision for simple and space-saving parking. Today our family-run company offers the world’s largest range of in-house developed parking solutions – from classical systems with two vehicles parked over each other all the way to large projects with 1000 and more parking spaces in automatic parking systems. These days, our competent and reliable solutions are more in demand than ever before. Increased urbanisation and lack of construction sites necessitate intelligent parking solutions which offer the greatest possible number of parking bays in the smallest possible space and at the same time preserve the cityscape – as cities become de

Pagina 1-Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411, PARKLIFT...

Pagina 2 - Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411,...

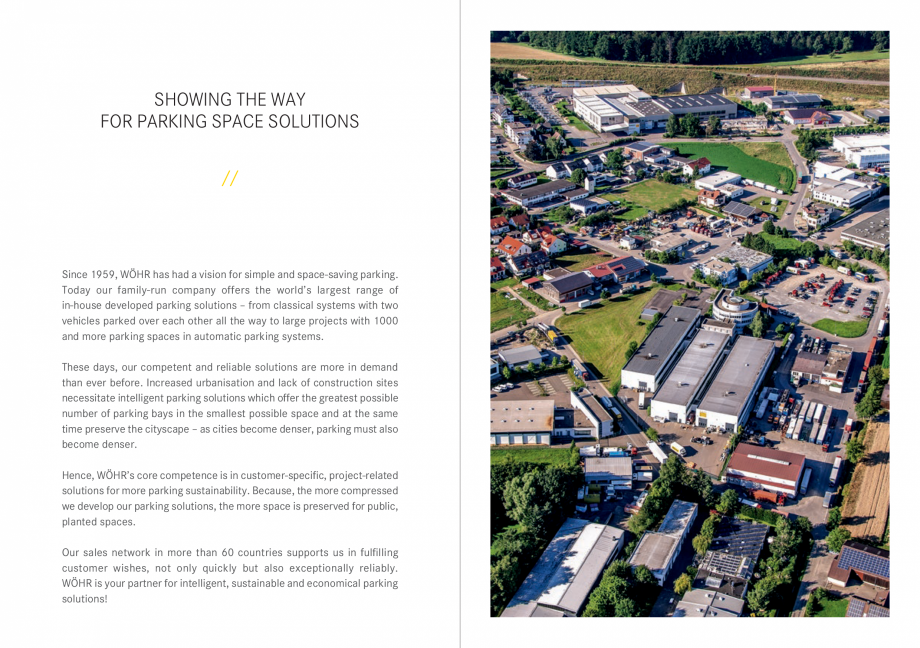

nser, parking must also become denser. Hence, WÖHR’s core competence is in customer-specific, project-related solutions for more parking sustainability. Because, the more compressed we develop our parking solutions, the more space is preserved for public, planted spaces. Our sales network in more than 60 countries supports us in fulfilling customer wishes, not only quickly but also exceptionally reliably. WÖHR is your partner for intelligent, sustainable and economical parking solutions! / CONTENTS / PARKLIFT 450 THE LATEST ADDITION 405 THE COMPACT TWO-STORY SYSTEM 401 SMALL STACKER 411 OPEN AIR 421 CREATING 3 FROM 1 461/462/463 HIDEAWAYS 403/413 3 LEVELS IN A SINGLE PIT PARKLIFTS – ONE DOUBLE IS BETTER THAN TWO SINGLES / LEVELPARKER 12 14 16 16 17 18 20 21 / PARKING PLATFORMS 501/503 THE CAR MOVERS 505/506 TURNING MADE EASY 26 27 / COMBILIFT 551/552 LIFT AND SLIDE 542/543 ON 2 OR 3 LEVELS 556 WITH PLATFORMS 557/558 THE MAGIC ONES 570 SPACE MIRACLES 590

Pagina 2-Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411, PARKLIFT...

Pagina 3 - Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411,...

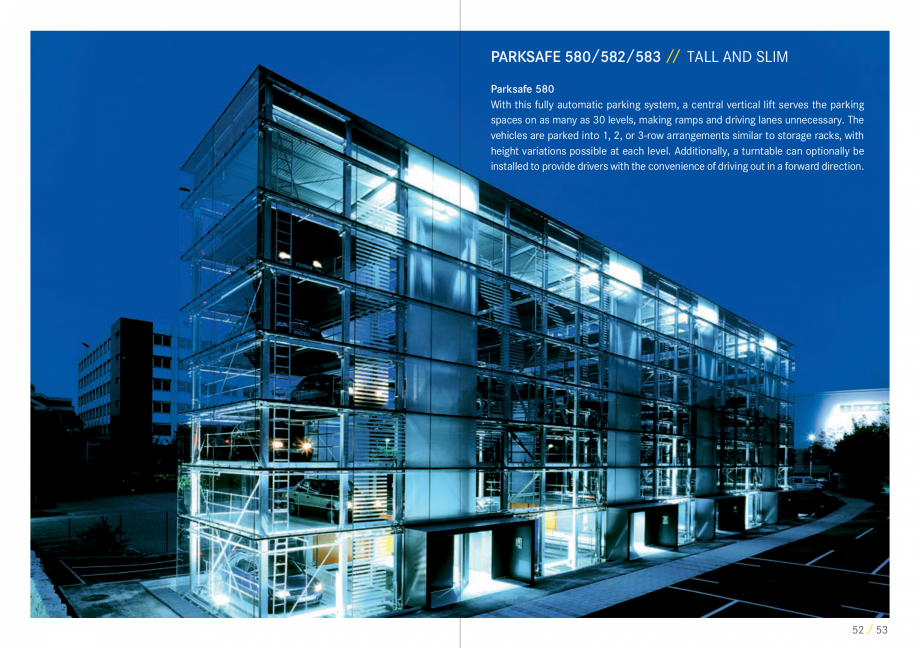

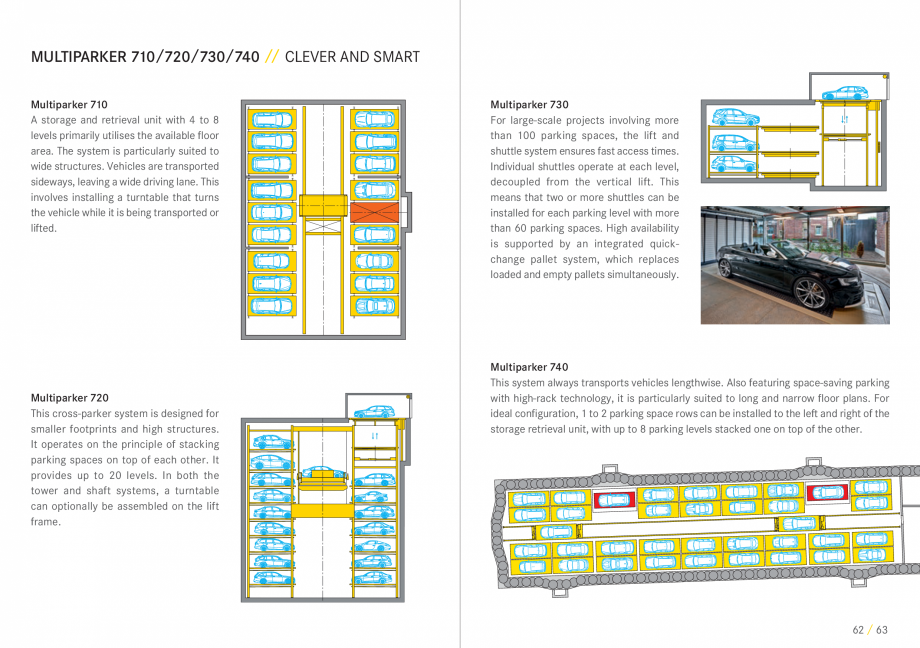

LINE DANCING 46 47 / PARKSAFE 580/582/583 TALL AND SLIM 52 / MULTIPARKER 710/720/730/740 CLEVER AND SMART 750/760 CLEVER AND PALLET-LESS 62 64 / BIKESAFE THE BICYCLE PARKER 68 / UNDERGROUND WASTE LIFT 32 34 36 38 SMART RETRACTION 72 / SERVICE PGS PARKING- UND GARAGEN-SERVICE GMBH 76 PARK LIFT // 8/9 A SYSTEM THAT OFFERS MORE. THE PRINCIPLE IS VERY SIMPLE: A SINGLE DECK PROVIDES UP TO THREE PARKING LEVELS. BUT THIS IS IMPLEMENTED IN A WAY THAT IS INTELLIGENT, SOPHISTICATED, AND ANYTHING BUT ONE-DIMENSIONAL. HIGH LEVELS OF OPERATING AND FUNCTIONAL SAFETY GO HAND IN HAND WITH A WIDE SELECTION OF OPTIONS. // 10 / 11 Parklift 450-195 (370) PARKLIFT 450 // THE LATEST ADDITION The Parklift 450 can adapt to different installation dimensions, making it more versatile than its predecessor. Rigid incremental pit depths of 15 cm are a thing of the past as greater variety becomes possible. The pit depths of the new development vary in 5 cm increments. Compared to

Pagina 3-Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411, PARKLIFT...

Pagina 4 - Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411,...

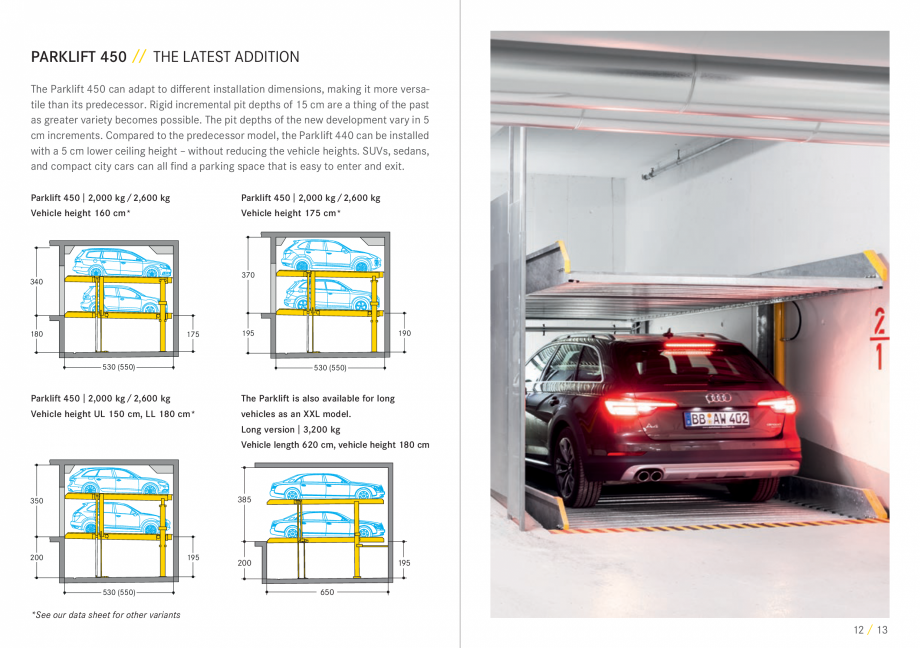

the predecessor model, the Parklift 440 can be installed with a 5 cm lower ceiling height – without reducing the vehicle heights. SUVs, sedans, 195 190 and compact city cars can all find a parking space that is easy to enter and exit. 370 530 (550) Parklift 450 | 2,000 kg / 2,600 kg Parklift 450 | 2,000 kg / 2,600 kg Vehicle height 160 cm* Vehicle height 175 cm* 0-190 (340) Parklift 450-195 (370) Parklift 450-180 (340) Parklift 450-190 (340) Parklift 450-195 (370) 370 340 340 180 530 (550) 190 185 530 (550) 370 175 195 190 530 (550) 195 185 190 Parklift 450 | 2,000 kg / 2,600 kg The Parklift is also available for long Vehicle height UL 150 cm, LL 180 cm* vehicles as an XXL model. 530 (550) 0-200 (350) Parklift 450-180 (340) 530 (550) Long version | 3,200 kg Vehicle length 620 cm, vehicle height 180 cm Parklift 450-180 (340) Parklift 450-200 (350) 340 385 350 180 195 530 (550) 200 195 530 (550) 340 175 530 (550) 180 200 195 6

Pagina 4-Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411, PARKLIFT...

Pagina 5 - Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411,...

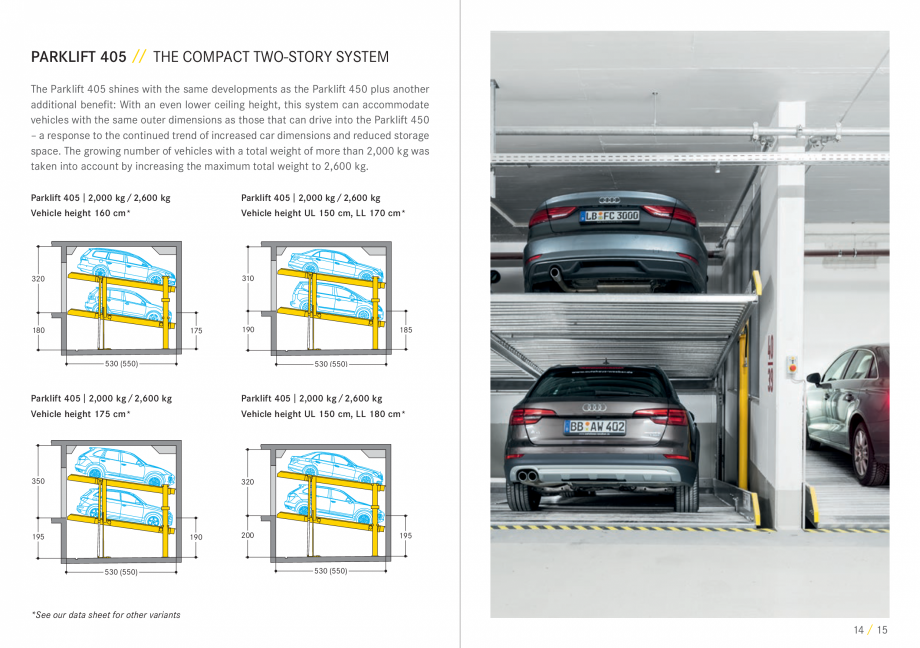

50 175 530 (550) *See our data sheet for other variants 12 / 13 Parklift 405-195 (350) PARKLIFT 405 // THE COMPACT TWO-STORY SYSTEM The Parklift 405 shines with the same developments as the Parklift 450 plus another 350 additional benefit: With an even lower ceiling height, this system can accommodate vehicles with the same outer dimensions as those that can drive into the Parklift 450 – a response to the continued trend of increased car dimensions and reduced storage 195 space. The growing number of vehicles with a total weight of more than 2,000 kg was 190 taken into account by increasing the maximum total weight to 2,600 kg. 530 (550) Parklift 405 | 2,000 kg / 2,600 kg Parklift 405 | 2,000 kg / 2,600 kg Vehicle height 160 cm* Vehicle height UL 150 cm, LL 170 cm* Parklift 405-180 (320) Parklift 405-190 (310) Parklift 405-195 (350) Parklift 405-190 (310) Parklift 405-195 (350) 310 320 350 310 180 175 350 190 185 190 185 530 (550) 195 190 195 1

Pagina 5-Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411, PARKLIFT...

Pagina 6 - Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411,...

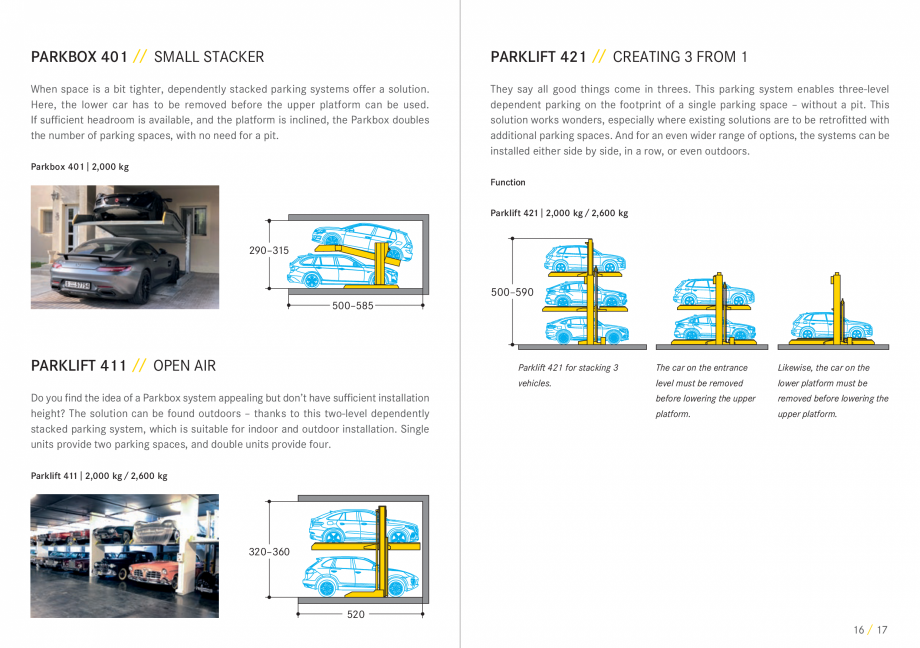

90 530 (550) 530 (550) 530 (550) 530 (550) Parklift 405 | 2,000 kg / 2,600 kg Parklift 405 | 2,000 kg / 2,600 kg Vehicle height 175 cm* Vehicle 150 cm, LL 180 cm* Parkliftheight 405-200UL (320) Parklift 405-195 (350) 350 195 190 320 320 320 320 200 195 180 175 200 195 180 175 530 (550) 530 (550) Parklift 405-180 (320) Parklift 405-180 (320) Parklift 405-200 (320) 530 (550) 530 (550) 530 (550) *See our 405-180 data sheet Parklift (320)for other variants 14 / 15 PARKBOX 401 // SMALL STACKER PARKLIFT 421 // CREATING 3 FROM 1 When space is a bit tighter, dependently stacked parking systems offer a solution. Here, the lower car has to be removed before the upper platform can be used. If sufficient headroom is available, and the platform is inclined, the Parkbox doubles the number of parking spaces, with no need for a pit. They say all good things come in threes. This parking system enables three-level dependent parking on the footprint of

Pagina 6-Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411, PARKLIFT...

Pagina 7 - Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411,...

a single parking space – without a pit. This solution works wonders, especially where existing solutions are to be retrofitted with additional parking spaces. And for an even wider range of options, the systems can be installed either side by side, in a row, or even outdoors. Parkbox 401 | 2,000 kg Function Parklift 421 | 2,000 kg / 2,600 kg 290–315 500–590 500–585 PARKLIFT 411 // OPEN AIR 320–360 Do you find the idea of a Parkbox system appealing but don’t have sufficient installation height? The solution can be found outdoors – thanks to this two-level dependently 290–315 stacked parking system, which is suitable for indoor and outdoor installation. Single units provide two parking spaces, and double units provide four. 520 Parklift 411 | 2,000 kg / 2,600 kg Parklift 421 for stacking 3 The car on the entrance Likewise, the car on the vehicles. level must be removed lower platform must be before lowering the upper removed before lowering t

Pagina 7-Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411, PARKLIFT...

Pagina 8 - Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411,...

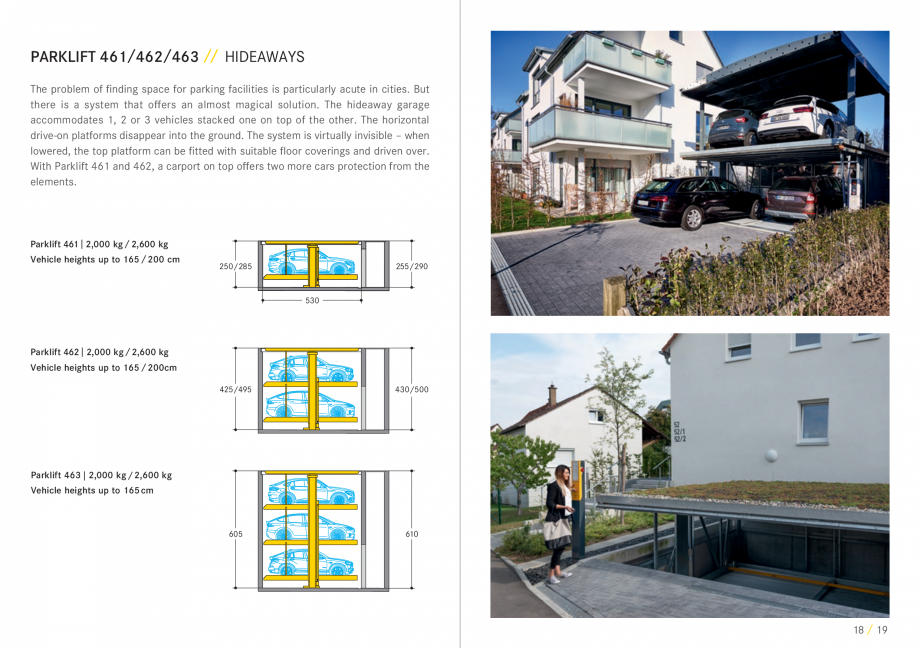

he platform. upper platform. 500–585 320–360 520 16 / 17 PARKLIFT 461/462/463 // HIDEAWAYS The problem of finding space for parking facilities is particularly acute in cities. But there is a system that offers an almost magical solution. The hideaway garage accommodates 1, 2 or 3 vehicles stacked one on top of the other. The horizontal drive-on platforms disappear into the ground. The system is virtually invisible – when lowered, the top platform can be fitted with suitable floor coverings and driven over. With Parklift 461 and 462, a carport on top offers two more cars protection from the elements. Parklift 461 | 2,000 kg / 2,600 kg Vehicle heights up to 165 / 200 cm 250/285 250/285 250/285 255/290 255/290 530 530 255/290 530 Parklift 462 | 2,000 kg / 2,600 kg Vehicle heights up to 165 / 200cm 425/495 425/495 430/500 430/500 425/495 430/500 605 605 610 610 605 610 Parklift 463 | 2,000 kg / 2,600 kg Vehicle heights up to 165 cm 18

Pagina 8-Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411, PARKLIFT...

Pagina 9 - Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411,...

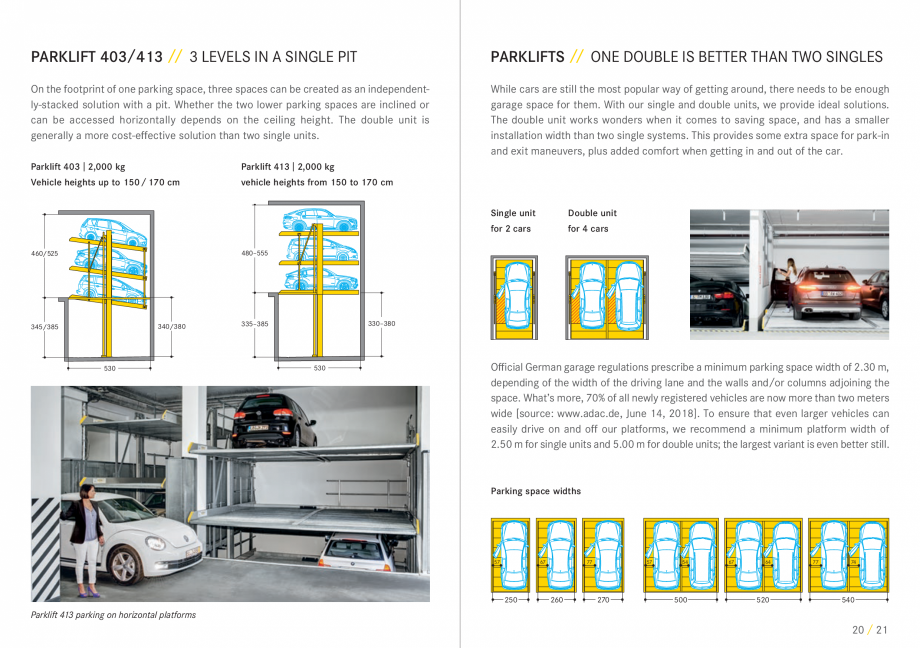

/ 19 460/525 PARKLIFT 403/413 // 3 LEVELS IN A SINGLE PIT PARKLIFTS // ONE DOUBLE IS BETTER THAN TWO SINGLES On the footprint of one parking space, three spaces can be created as an independently-stacked solution with a pit. Whether the two lower parking spaces are inclined or 340/380 unit is can be accessed horizontally depends on 345/385 the ceiling height. The double generally a more cost-effective solution than two single units. While cars are still the most popular way of getting around, there needs to be enough garage space for them. With our single and double units, we provide ideal solutions. The double unit works wonders when it comes to saving space, and has a smaller installation width than two single systems. This provides some extra space for park-in and exit maneuvers, plus added comfort when getting in and out of the car. 530 Parklift 403 | 2,000 kg Parklift 413 | 2,000 kg Vehicle heights up to 150 / 170 cm vehicle heights from 150 to 170 cm Single uni

Pagina 9-Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411, PARKLIFT...

Pagina 10 - Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411...

t Double unit for 2 cars for 4 cars 480–555 460/525 340/380 345/385 330–380 335–385 530 530 Official German garage regulations prescribe a minimum parking space width of 2.30 m, depending of the width of the driving lane and the walls and/or columns adjoining the space. What’s more, 70% of all newly registered vehicles are now more than two meters wide [source: www.adac.de, June 14, 2018]. To ensure that even larger vehicles can easily drive on and off our platforms, we recommend a minimum platform width of 2.50 m for single units and 5.00 m for double units; the largest variant is even better still. 480–555 Parking space widths 330–380 335–385 57 67 77 57 54 67 64 77 74 530 250 260 270 500 520 540 Parklift 413 parking on horizontal platforms 20 / 21 PARKING PLATFORMS // 22 / 23 PARKING PLATFORMS OFFER THE IDEAL SOLUTION WHEN IT COMES TO MAKING THE MOST OF AVAI LABLE SPACE WHEN PARKING. GROUPING AND MOVING VEHICLES IN

Pagina 10-Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411, PARKLIFT...

Pagina 11 - Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411...

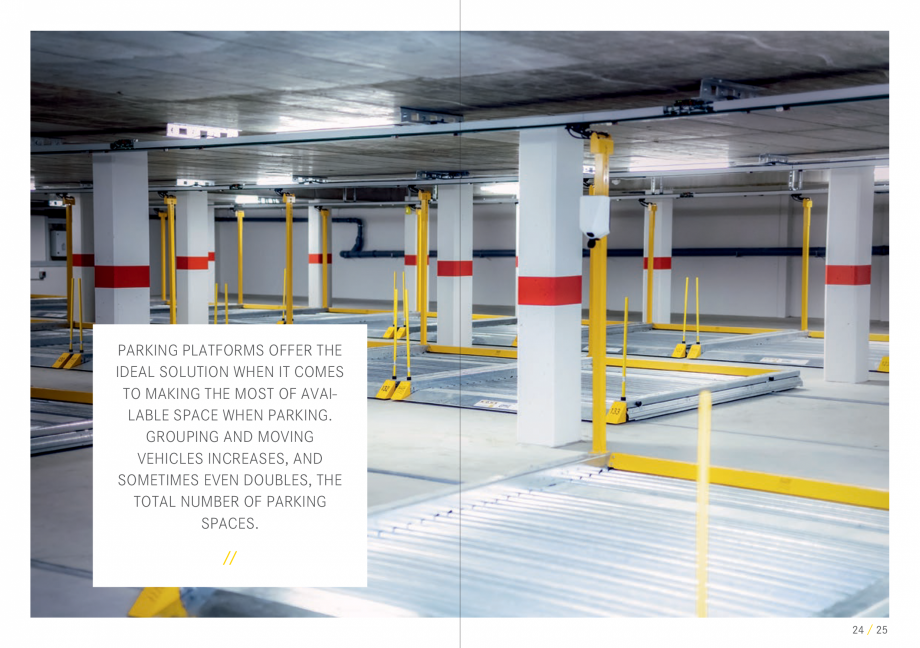

CREASES, AND SOMETIMES EVEN DOUBLES, THE TOTAL NUMBER OF PARKING SPACES. // 24 / 25 PARKING PLATFORMS 501/503 // THE CAR MOVERS TURNTABLE 505/506 // TURNING MADE EASY Lateral or longitudinal shifting – both systems utilize every bit of available space, maximising the parking area. Rails with parking platforms are installed behind columns, in corners, or even along the driving lanes. This sophisticated approach ensures that every single parking space can be used and accessed for unobstructed independent parking. Turning things to your advantage: If the only option is to drive forward, or if space for parking maneuvers is tight, the vehicle is simply rotated into the required parking position. Turntable rotation is the ideal solution where parking space entries and exits are narrow or bounded. Parking platforms 501 Turntable 505 | 4,000 kg 48 30 motor motor 48 30 Turntable Ø 450 Turntable Ø 450 Turntable 506 | 3,000 kg 4,5 motor Turntable Ø 440 4,5

Pagina 11-Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411, PARKLIFT...

Pagina 12 - Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411...

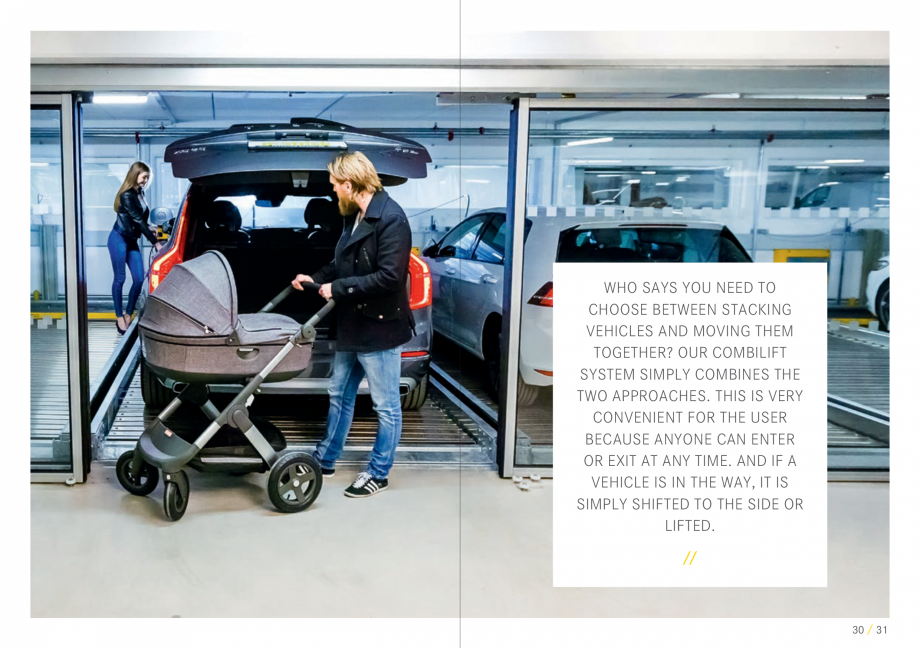

21,5 motor 21,5 Parking platforms 503 Turntable Ø 440 With its »super slim« design, the Turntable 506 can be fitted and installed onto virtually any surface. 26 / 27 COMBI LIFT // 28 / 29 WHO SAYS YOU NEED TO CHOOSE BETWEEN STACKING VEHICLES AND MOVING THEM TOGETHER? OUR COMBILIFT SYSTEM SIMPLY COMBINES THE TWO APPROACHES. THIS IS VERY CONVENIENT FOR THE USER BECAUSE ANYONE CAN ENTER OR EXIT AT ANY TIME. AND IF A VEHICLE IS IN THE WAY, IT IS SIMPLY SHIFTED TO THE SIDE OR LIFTED. // 30 / 31 COMBILIFT 551 // LIFT AND SLIDE COMBILIFT 552 // MORE PUZZLES Thinking of using the main entrance? Then think again. Instead of a single point of entry, an empty space on the entrance level offers direct access to the parking space in any position. In the system without pits for independent two-level parking, grids are flexibly positioned side by side. Putting the Combilift 552 in front of the Combilift 551 creates a smart combination solution. The empty space is positioned so

Pagina 12-Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411, PARKLIFT...

Pagina 13 - Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411...

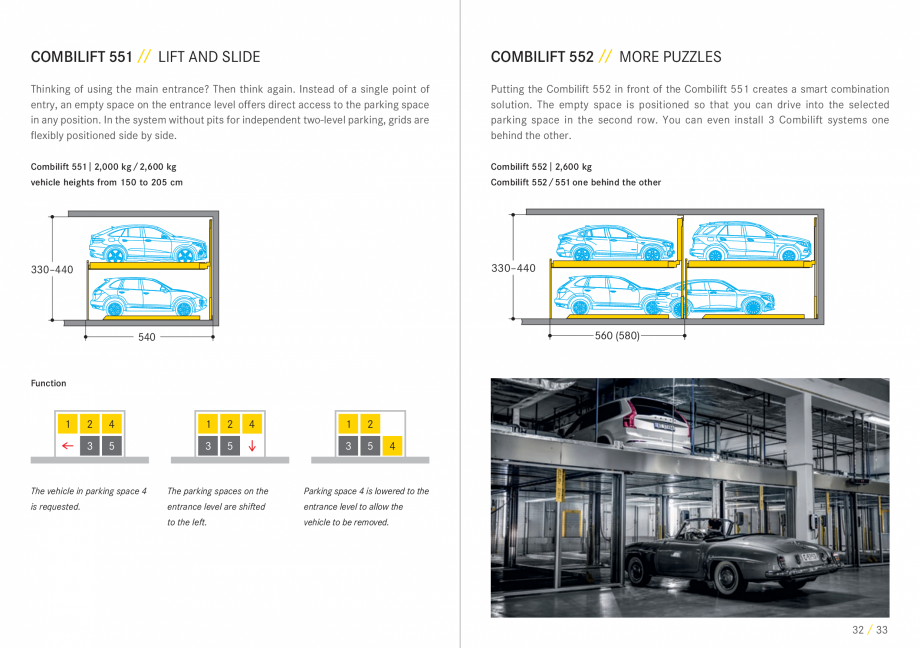

that you can drive into the selected parking space in the second row. You can even install 3 Combilift systems one behind the other. Combilift 551 | 2,000 kg / 2,600 kg Combilift 552 | 2,600 kg vehicle heights from 150 to 205 cm Combilift 552 / 551 one behind the other 330–440 330–440 560 (580) 540 551 Function 1 2 4 1 2 3 5 3 5 4 1 2 3 5 4 The vehicle in parking space 4 The parking spaces on the Parking space 4 is lowered to the is requested. entrance level are shifted entrance level to allow the to the left. vehicle to be removed. 556 32 / 33 COMBILIFT 542 // ON 2 LEVELS WITH A PIT The combination of stacking vehicles and moving them together, plus a pit arrangement, provides additional headroom on the top level. This means vans, SUVs, and vehicles with roof racks can park there, too. Security is also ensured, since the vehicles are parked behind closed gates. Combilift 542 | 2,000 kg / 2,600 kg – vehicle heights from 150 to

Pagina 13-Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411, PARKLIFT...

Pagina 14 - Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411...

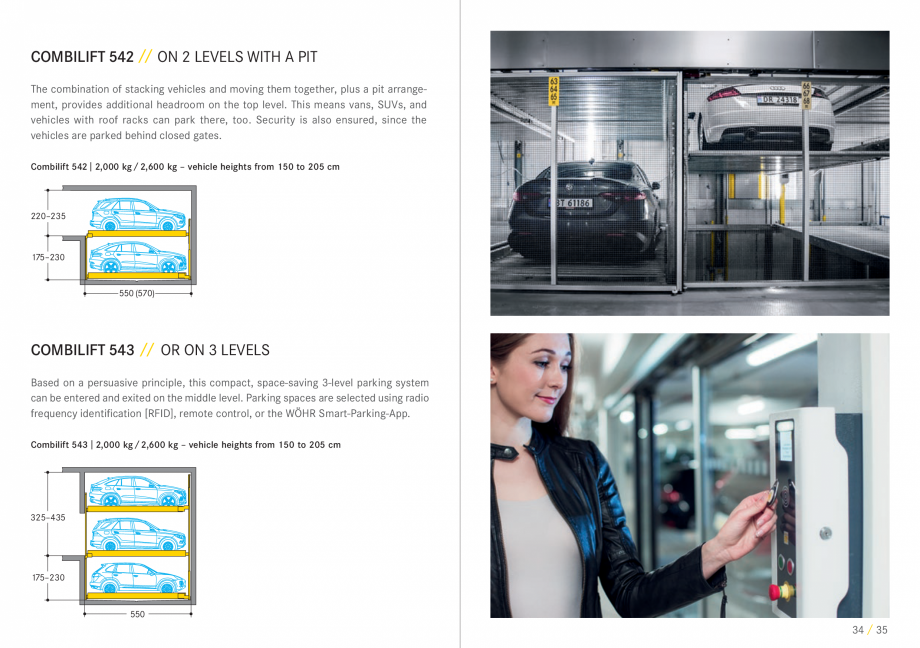

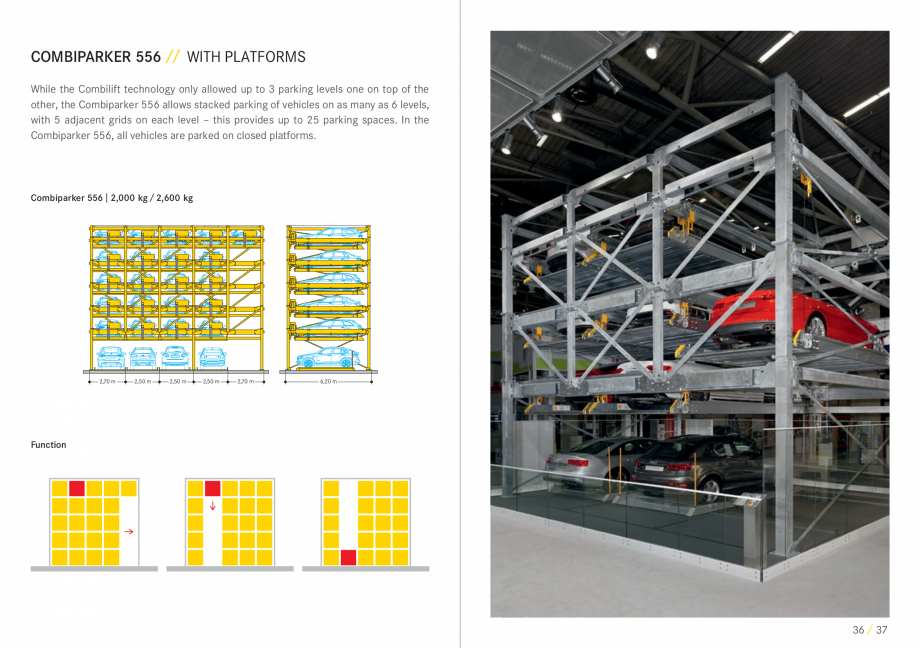

205 cm 220–235 175–230 550 (570) COMBILIFT 543 // OR ON 3 LEVELS Based on a persuasive principle, this compact, space-saving 3-level parking system can be entered and exited on the middle level. Parking spaces are selected using radio frequency identification [RFID], remote control, or the WÖHR Smart-Parking-App. Combilift 543 | 2,000 kg / 2,600 kg – vehicle heights from 150 to 205 cm 325–435 175–230 550 34 / 35 COMBIPARKER 556 // WITH PLATFORMS While the Combilift technology only allowed up to 3 parking levels one on top of the other, the Combiparker 556 allows stacked parking of vehicles on as many as 6 levels, with 5 adjacent grids on each level – this provides up to 25 parking spaces. In the Combiparker 556, all vehicles are parked on closed platforms. Combiparker 556 | 2,000 kg / 2,600 kg 551 1 2 4 3 5 1 2,70 m 2,50 m 2 2,50 m 3 5 4 2,50 m 2,70 m 1 2 3 5 4 6,20 m Function 556 36 / 37 SLIMPARKER 557 // THE MAGICAL TOWER S

Pagina 14-Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411, PARKLIFT...

Pagina 15 - Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411...

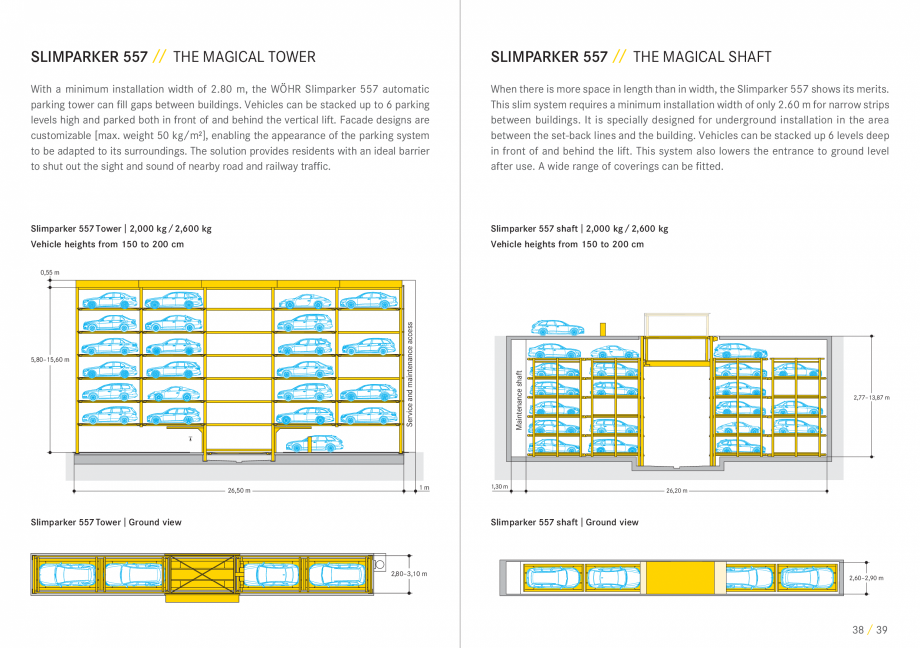

LIMPARKER 557 // THE MAGICAL SHAFT With a minimum installation width of 2.80 m, the WÖHR Slimparker 557 automatic parking tower can fill gaps between buildings. Vehicles can be stacked up to 6 parking levels high and parked both in front of and behind the vertical lift. Facade designs are customizable [max. weight 50 kg/m²], enabling the appearance of the parking system to be adapted to its surroundings. The solution provides residents with an ideal barrier to shut out the sight and sound of nearby road and railway traffic. When there is more space in length than in width, the Slimparker 557 shows its merits. This slim system requires a minimum installation width of only 2.60 m for narrow strips between buildings. It is specially designed for underground installation in the area between the set-back lines and the building. Vehicles can be stacked up 6 levels deep in front of and behind the lift. This system also lowers the entrance to ground level after use. A wide range of cover

Pagina 15-Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411, PARKLIFT...

Pagina 16 - Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411...

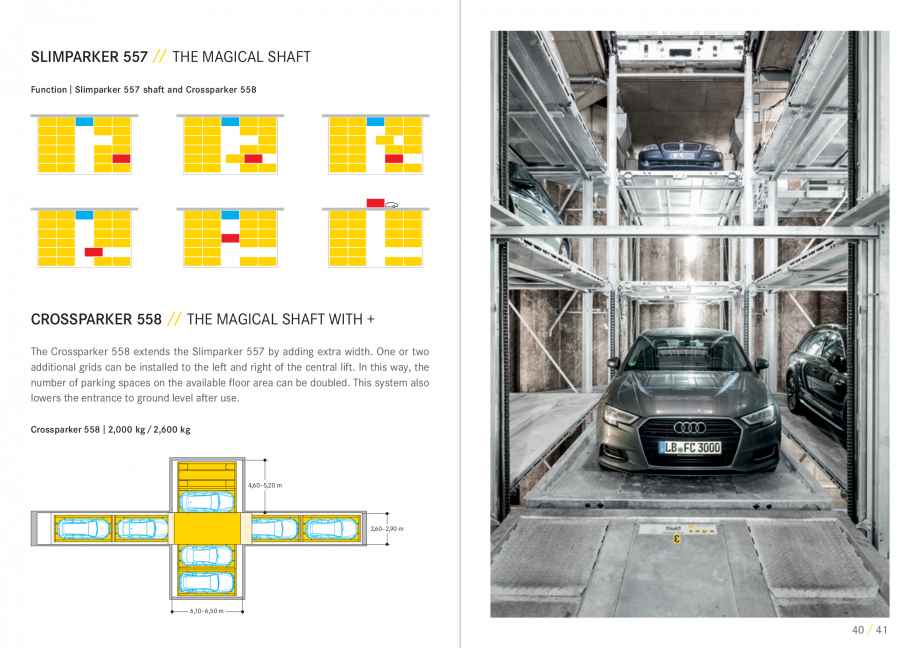

ings can be fitted. Slimparker 557 Tower | 2,000 kg / 2,600 kg Slimparker 557 shaft | 2,000 kg / 2,600 kg Vehicle heights from 150 to 200 cm Vehicle heights from 150 to 200 cm 5,80–15,60 m 26,50 m Maintenance shaft Service and maintenance access 0,55 m 1m Slimparker 557 Tower | Ground view 1,30 m 2,77–13,87 m 26,20 m Slimparker 557 shaft | Ground view 2,80–3,10 m 2,60–2,90 m 38 / 39 SLIMPARKER 557 // THE MAGICAL SHAFT Function | Slimparker 557 shaft and Crossparker 558 CROSSPARKER 558 // THE MAGICAL SHAFT WITH + The Crossparker 558 extends the Slimparker 557 by adding extra width. One or two additional grids can be installed to the left and right of the central lift. In this way, the number of parking spaces on the available floor area can be doubled. This system also lowers the entrance to ground level after use. Crossparker 558 | 2,000 kg / 2,600 kg 4,60–5,20 m 2,60–2,90 m 6,10–6,50 m 40 / 41 LEVEL PARKER // 42 / 43 »TO PARK OR

Pagina 16-Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411, PARKLIFT...

Pagina 17 - Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411...

TO HAVE IT PARKED FOR YOU?« THE QUESTION IS REALLY EASY TO ANSWER WHEN IT IS A MATTER OF INCREASED CONVENIENCE AND SAFETY. THE CARS ARE SIMPLY »HANDED OVER« AND PARKED IN ROWS, WITH NO NEED FOR YOU TO DRIVE OVER NARROW RAMPS OR WALK DOWN DARK STAIRWELLS. AND WHEN THINGS ARE TIGHT, THE SOLUTION IS COMPACT PARKING SPACE. // 44 / 45 LEVELPARKER 570 // SPACE MIRACLE LEVELPARKER 590 // LINE DANCING As if they were stored in a safe, the vehicles are parked in at least two and at most six rows on a maximum of five underground or overground levels. Instead of a ramp, a vertical lift is used, and the actual parking is handled by the system. The vehicles are moved by both lateral and longitudinal shifting cycles, enabling the parking system to automatically adapt to individual requirements. Two to five levels are located between vertical lifts to the left and right. The vehicles move along the rows on a circular path. This enables space-saving parking for single rows and does not r

Pagina 17-Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411, PARKLIFT...

Pagina 18 - Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411...

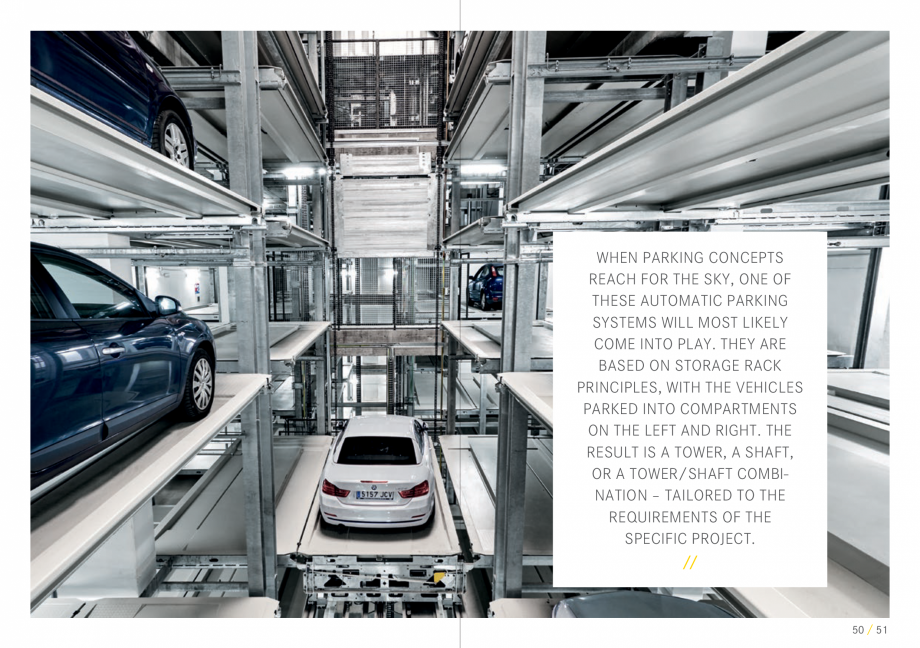

equire extra space for ramps or driving lanes. A turntable can be installed so that vehicles can be driven out in a forward direction. 46 / 47 PARK SAFE // 48 / 49 WHEN PARKING CONCEPTS REACH FOR THE SKY, ONE OF THESE AUTOMATIC PARKING SYSTEMS WILL MOST LIKELY COME INTO PLAY. THEY ARE BASED ON STORAGE RACK PRINCIPLES, WITH THE VEHICLES PARKED INTO COMPARTMENTS ON THE LEFT AND RIGHT. THE RESULT IS A TOWER, A SHAFT, OR A TOWER/SHAFT COMBI NATION – TAILORED TO THE REQUIREMENTS OF THE SPECIFIC PROJECT. // 50 / 51 PARKSAFE 580/582/583 // TALL AND SLIM Parksafe 580 With this fully automatic parking system, a central vertical lift serves the parking spaces on as many as 30 levels, making ramps and driving lanes unnecessary. The vehicles are parked into 1, 2, or 3-row arrangements similar to storage racks, with height variations possible at each level. Additionally, a turntable can optionally be installed to provide drivers with the convenience of driving out in a forward di

Pagina 18-Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411, PARKLIFT...

Pagina 19 - Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411...

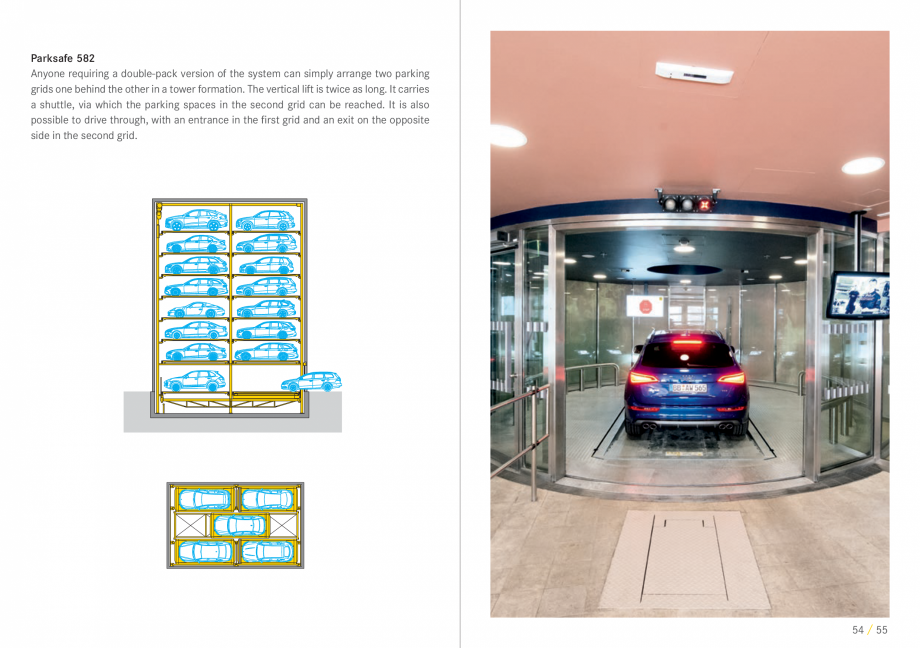

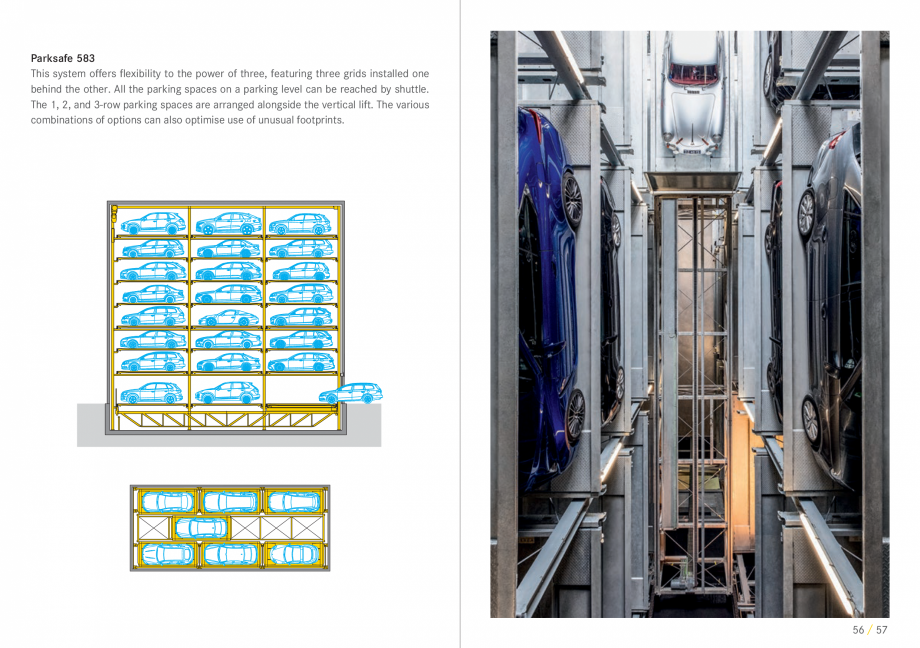

rection. 52 / 53 Parksafe 582 Anyone requiring a double-pack version of the system can simply arrange two parking grids one behind the other in a tower formation. The vertical lift is twice as long. It carries a shuttle, via which the parking spaces in the second grid can be reached. It is also possible to drive through, with an entrance in the first grid and an exit on the opposite side in the second grid. 54 / 55 Parksafe 583 This system offers flexibility to the power of three, featuring three grids installed one behind the other. All the parking spaces on a parking level can be reached by shuttle. The 1, 2, and 3-row parking spaces are arranged alongside the vertical lift. The various combinations of options can also optimise use of unusual footprints. 56 / 57 MULTI PARKER // 58 / 59 EVERYTHING IS RELATIVE – BUT WHERE REALLY LARGE NUMBERS OF PARKING SPACES ARE INVOLVED, IT’S BEST TO USE A SYSTEM FROM THIS RANGE. STORAGE AND RETRIEVAL UNITS OR SHUTTLES MOVE VEH

Pagina 19-Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411, PARKLIFT...

Pagina 20 - Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411...

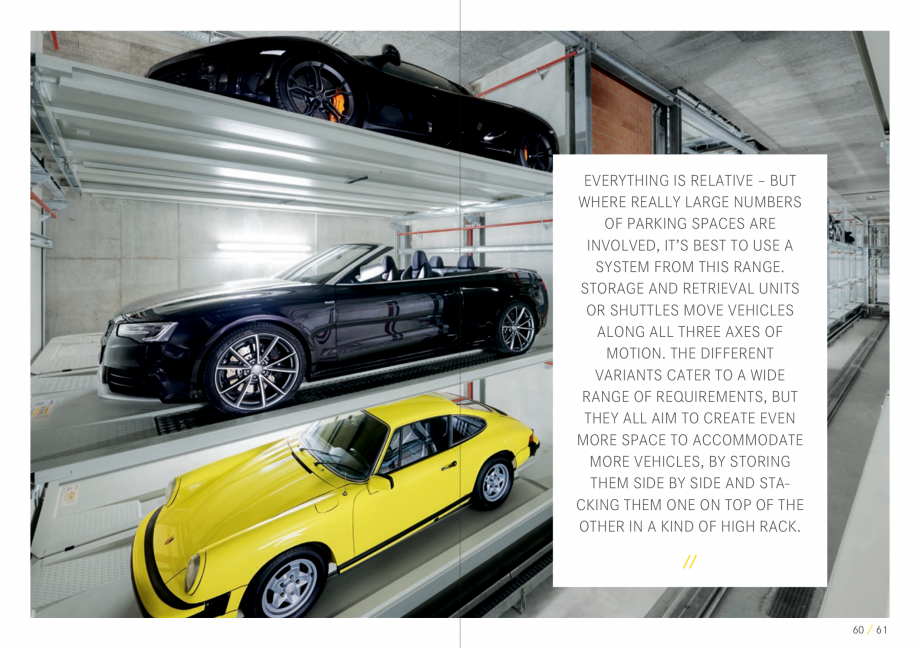

ICLES ALONG ALL THREE AXES OF MOTION. THE DIFFERENT VARIANTS CATER TO A WIDE RANGE OF REQUIREMENTS, BUT THEY ALL AIM TO CREATE EVEN MORE SPACE TO ACCOMMODATE MORE VEHICLES, BY STORING THEM SIDE BY SIDE AND STA CKING THEM ONE ON TOP OF THE OTHER IN A KIND OF HIGH RACK. // 60 / 61 MULTIPARKER 710/720/730/740 // CLEVER AND SMART Multiparker 710 A storage and retrieval unit with 4 to 8 levels primarily utilises the available floor area. The system is particularly suited to wide structures. Vehicles are transported sideways, leaving a wide driving lane. This involves installing a turntable that turns the vehicle while it is being transported or lifted. Multiparker 720 This cross-parker system is designed for smaller footprints and high structures. It operates on the principle of stacking parking spaces on top of each other. It provides up to 20 levels. In both the tower and shaft systems, a turntable can optionally be assembled on the lift frame. Multiparker 730 For lar

Pagina 20-Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411, PARKLIFT...

Pagina 21 - Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411...

ge-scale projects involving more than 100 parking spaces, the lift and shuttle system ensures fast access times. Individual shuttles operate at each level, decoupled from the vertical lift. This means that two or more shuttles can be installed for each parking level with more than 60 parking spaces. High availability is supported by an integrated quick- change pallet system, which replaces loaded and empty pallets simultaneously. Multiparker 740 This system always transports vehicles lengthwise. Also featuring space-saving parking with high-rack technology, it is particularly suited to long and narrow floor plans. For ideal configuration, 1 to 2 parking space rows can be installed to the left and right of the storage retrieval unit, with up to 8 parking levels stacked one on top of the other. 62 / 63 MULTIPARKER 750/760 // CLEVER AND PALLET-LESS Multiparker 750 It’s not the material that matters; it’s what you make from it – the high rack of this tower or shaft system is a

Pagina 21-Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411, PARKLIFT...

Pagina 22 - Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411...

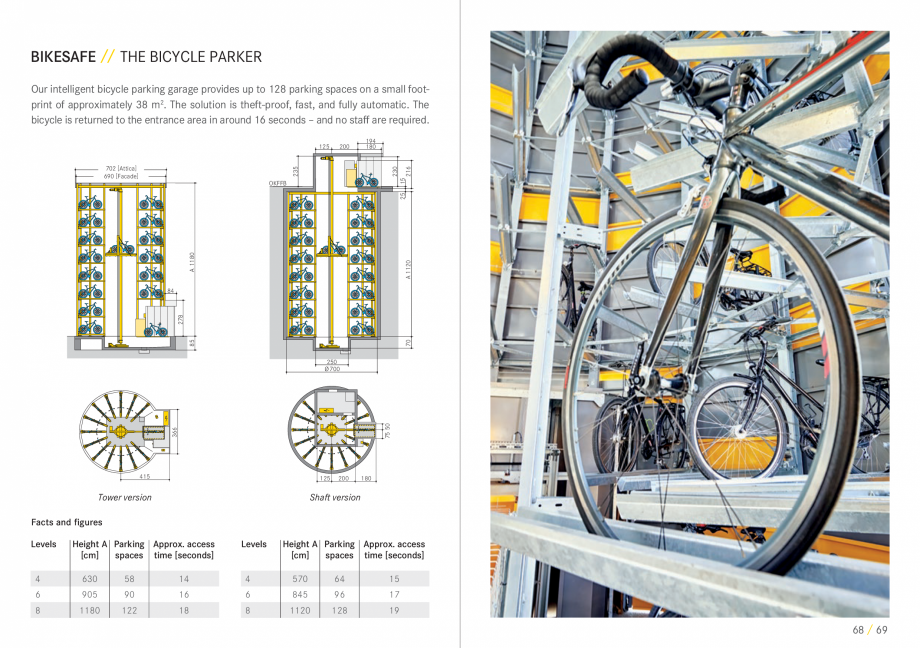

concrete structure. This makes the solution particularly cost- effective for underground structures. Besides the lift and shuttle technology, another impressive feature is the longitudinal pick-up transport system, the LAT takes the car from the drop-off area and parks it on a concrete slab. This is a smart alternative for smaller footprints requiring up to 30 parking levels. Multiparker 760 This parking solution is also available as a concrete structure for large floor areas. Where the number of parking levels is small, up to 200 parking spaces can be provided for each level. Inde pendent shuttles transfer the vehicles to the vertical lift via the longitudinal pick-up transport system, for redundant operation. 64 / 65 BIKE SAFE // 66 / 67 BIKESAFE // THE BICYCLE PARKER Our intelligent bicycle parking garage provides up to 128 parking spaces on a small footprint of approximately 38 m2. The solution is theft-proof, fast, and fully automatic. The bicycle is returned to the en

Pagina 22-Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411, PARKLIFT...

Pagina 23 - Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411...

trance area in around 16 seconds – and no staff are required. 216 216 230 230 15 15 230 216 235 250 201 200 OKFFB OKFFB 15 OKFFB 84 1120 A 1120 1120 1180 1180 A 1180 1180 25 OKFFB 125 194 194 180 180 194 180 25 25 200 OKFFB 200 200 15 125 15 125 235 235 702 [Attica] (Attica) 702 702(Fassade) (Attica) 690 690 690 [Facade] (Fassade) 125 125 200 250 125 201 125 70 70 70 250 250 250 ø700 Ø 700 ø700 366 366 75 50 250 ø700 7575 5050 250 ø700 366 702 702 394 85 85 85 278 278 278 278 84 84 415 415 125 125 125 Tower version 200 200 200 Shaft version 180 180 180 415 Facts and figures Levels Height A Parking Approx. access [cm] spaces time [seconds] Levels Height A Parking Approx. access [cm] spaces time [seconds] 4 630 58 14 4 570 64 15 6 905 90 16 6 845 96 17 8 1180 122 18 8 1120 128 19 68 / 69 UNDERGROUND WASTE LIFT // 70 / 71 UNDERGROUND WASTE LIFT // SMART RETRACTION The WÖHR undergr

Pagina 23-Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411, PARKLIFT...

Pagina 24 - Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411...

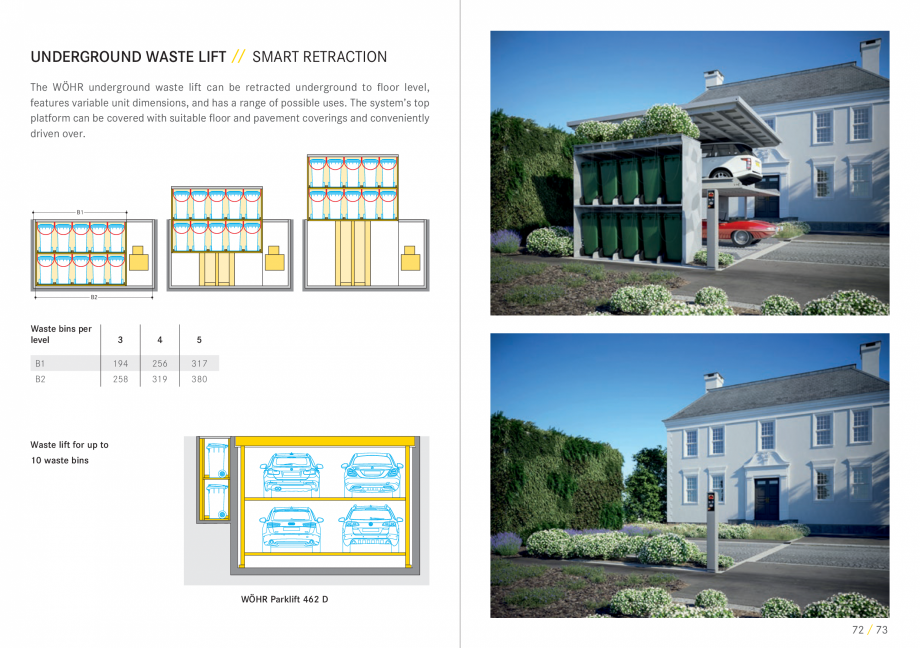

ound waste lift can be retracted underground to ﬂoor level, features variable unit dimensions, and has a range of possible uses. The system’s top platform can be covered with suitable floor and pavement coverings and conveniently driven over. B1 B2 Waste bins per level 3 4 5 B1 194 256 317 B2 258 319 380 Waste lift for up to 10 waste bins WÖHR Parklift 462 D 72 / 73 SERVICE // 74 / 75 PGS Parking- und Garagen-Service GmbH Services for our car parking systems are provided by our wholly owned subsidiary, PGS Parking- und Garagenservice GmbH. As always, you can count on expert advice and reliable execution of all services. Fon +49 [0] 7044 46-101 [24/7 phone line] | Fax +49 [0] 7044 46-199 One-stop, end-to-end services: that’s our strength. pgs-service.de | info@pgs-service.de 76 / 77 WÖHR makes parking green Space-saving parking for cars and bikes reduces CO2 emissions in inner cities and safeguards green spaces. Charging stations lay the foundation f

Pagina 24-Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411, PARKLIFT...

Pagina 25 - Sisteme de parcare auto WÖHR PARKLIFT 405, PARKLIFT 450, PARKLIFT 401, PARKLIFT 411...

or greater e-mobility. With these and many other innovative solutions, WÖHR delivers answers to the questions of today – making an important contribution to protecting the environment. Concept & Design: feedbackmedia.de | Photos: Klaus Mellenthin, Thomas Fischer, Quabbe + Tessmann, esspestudios, Sondre Formo Lindheim, Bernhard Mende. Copyright 01/2019. All images and content are protected by copyright and may be used only with the express permission of WÖHR Autoparksysteme GmbH. Vehicle drawings © creativ collection Verlag GmbH/www.ccvision.de. GREEN PARKING – WÖHR IS A SUPPLIER OF PARKING SYSTEMS, WITH THE LARGEST PRODUCT RANGE WORLDWIDE. With over 60 years of experience. WIR VERDICHTEN PARKRAUM. WÖHR Autoparksysteme GmbH Ölgrabenstr. 14 71292 Friolzheim Germany Fon +49 [0] 7044 46-0 Fax +49 [0] 7044 46-149 info@woehr.de woehr.de
